Product Descrıptıon

Acoustic wall panels: Colored acoustic wall panels that have high sound absorption properties are covered with acoustic fabric. Acoustic wall coating panels are possible in custom sizes, thicknesses, and colors. Acoustic panels are offered for sale in two formats as a straight edge and a beveled edge. It is produced suitable for technical provisions. You can obtain acoustic wall panels with a decorative appearance from our Turkish Acoustic sales office. Contact our technical office for more details.

Acoustıc Wall Panels

Ölçüler	600x600 mm, 600x1200 mm, 600x1800 mm, 600x2400 mm, 600x2700 mm, 600x3000 mm, 1200x1200 mm, 1200x1800 mm, 1200x2400 mm, 1200x2700 mm
Ham Madde	95 kg/m3³ yoğunlukta akustik camyünü levha
Ön Yüzey	Akustik kumaş kaplı
Arka Yüzey	Cam yünü tela kaplı
NRC	0.95-1.00
Kalınlık	Standart olarak 20 ve 40 mm olarak üretilir. Farklı kalınlıklar da mümkündür.
Kenar Detayı	Düz ve güçlendirilmiş
Yangına Dayanım	UNE-EN 13501-1:2007 standartlarına göre B S1 d0
Neme Dayanım	ISO 4611 e göre 30 C˚ sıcaklıkta % 85 bağıl neme dayanıklıdır.
Temizlik	Hafif nemli bezle silinebilir.
Uygulama Şekli	Yapıştırma / T taşıyıcı

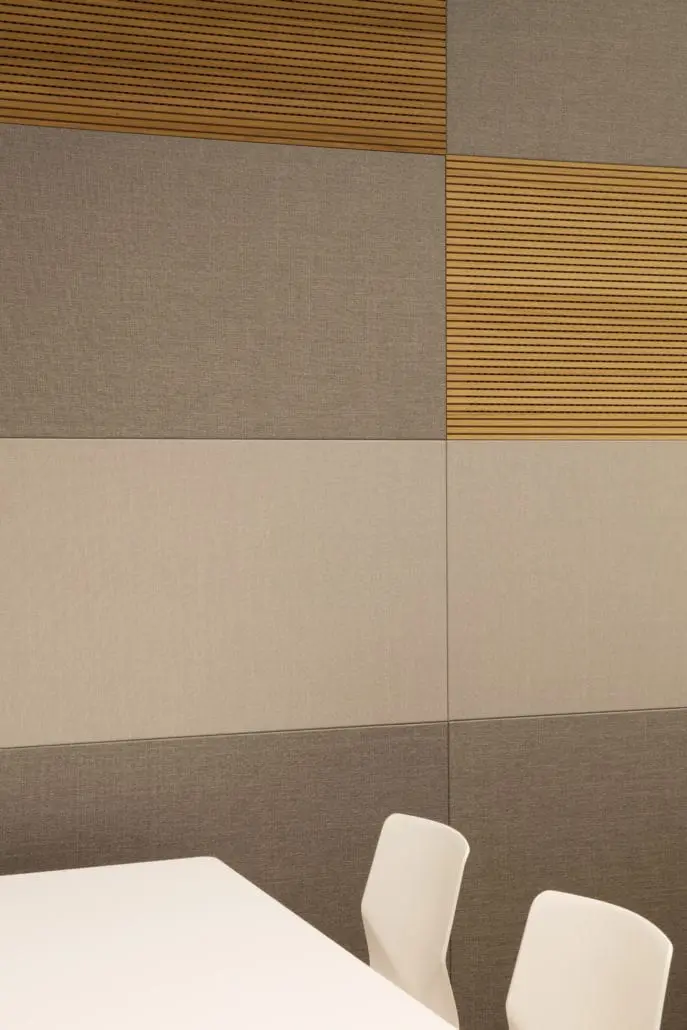

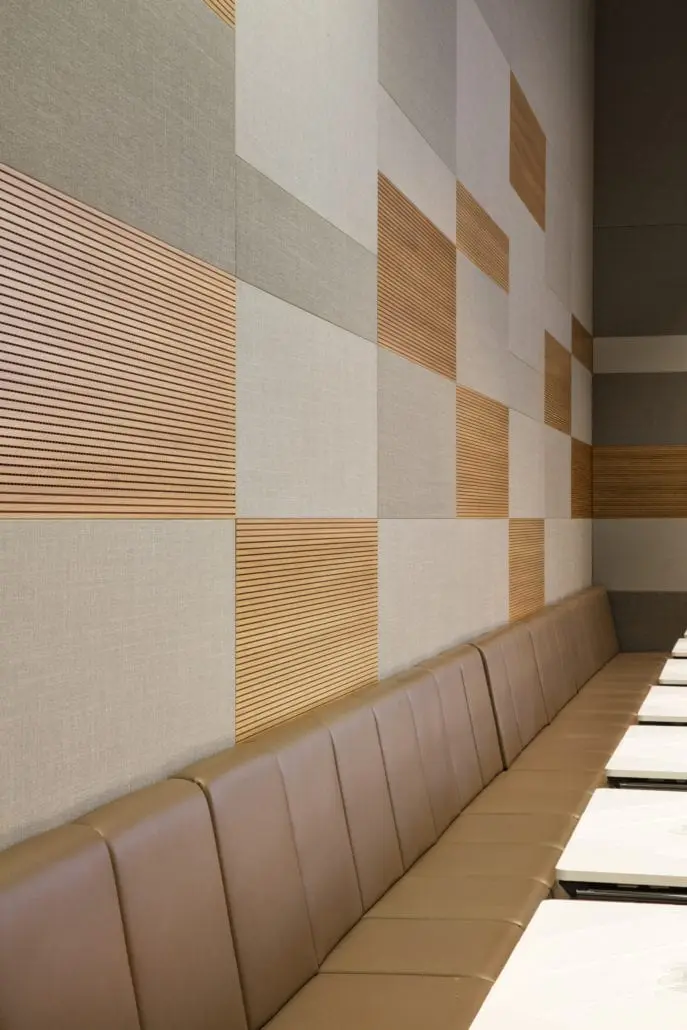

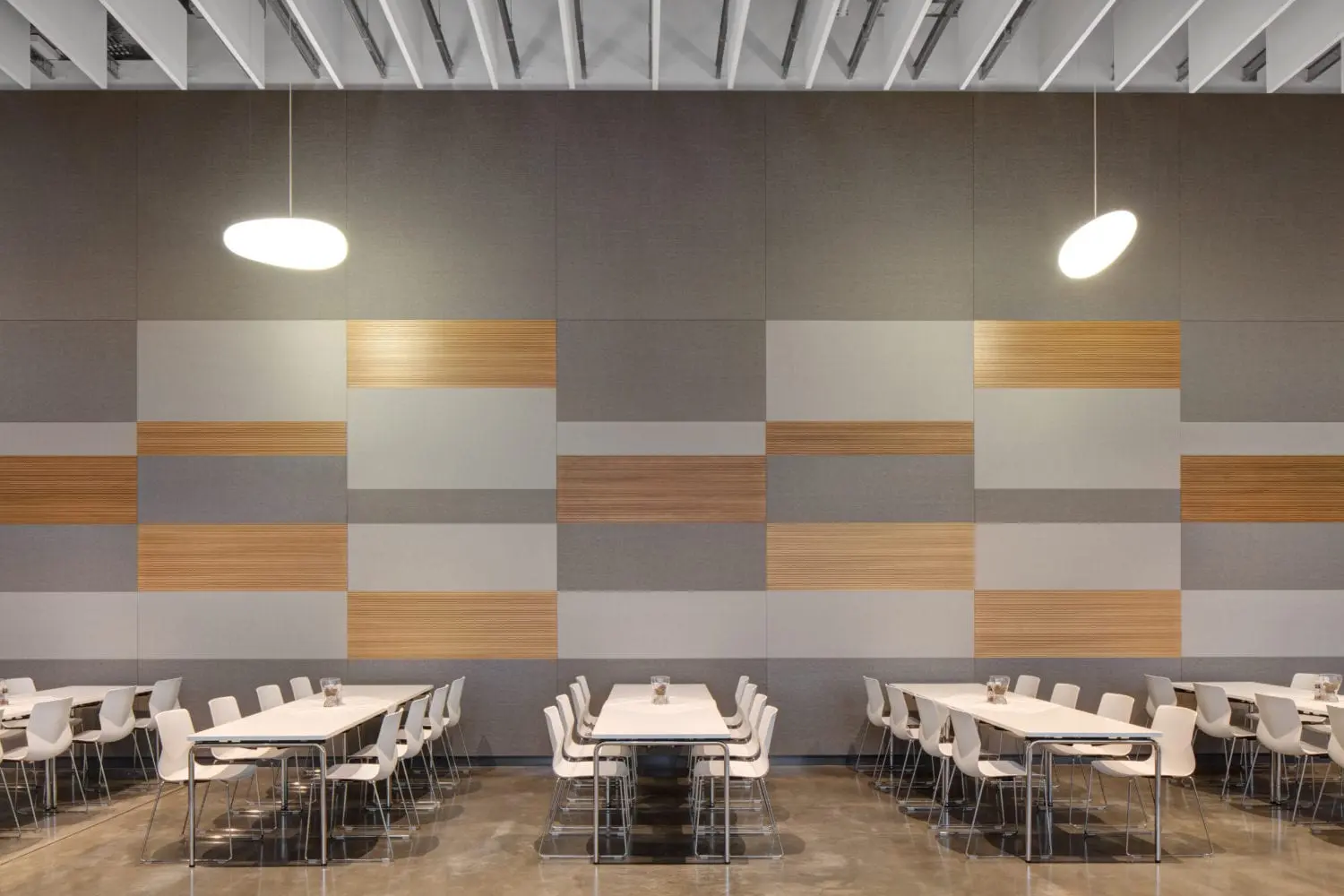

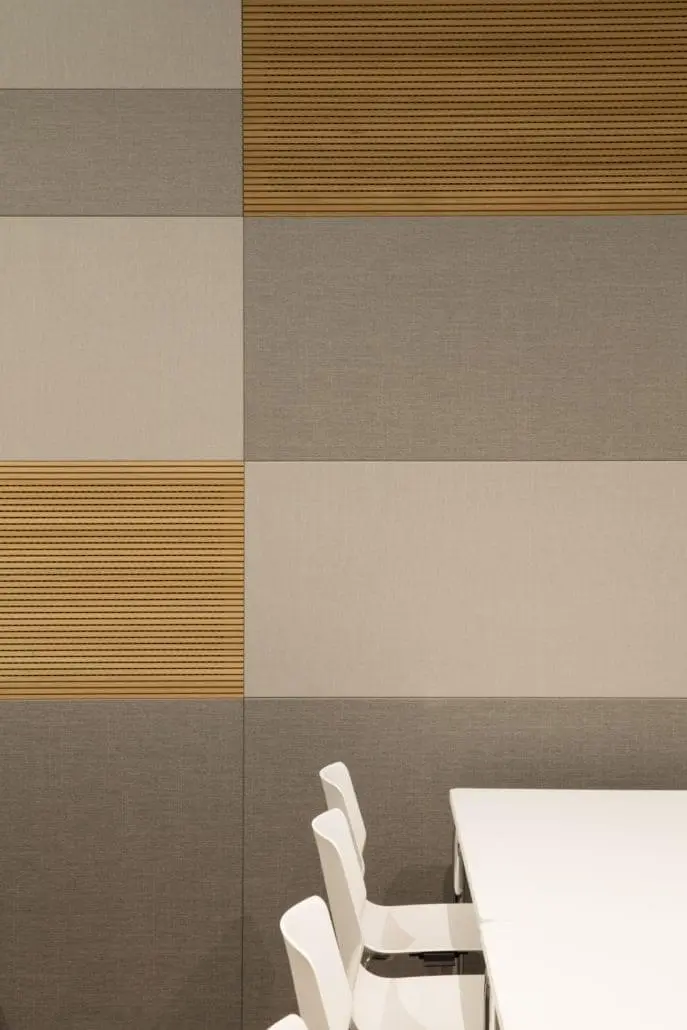

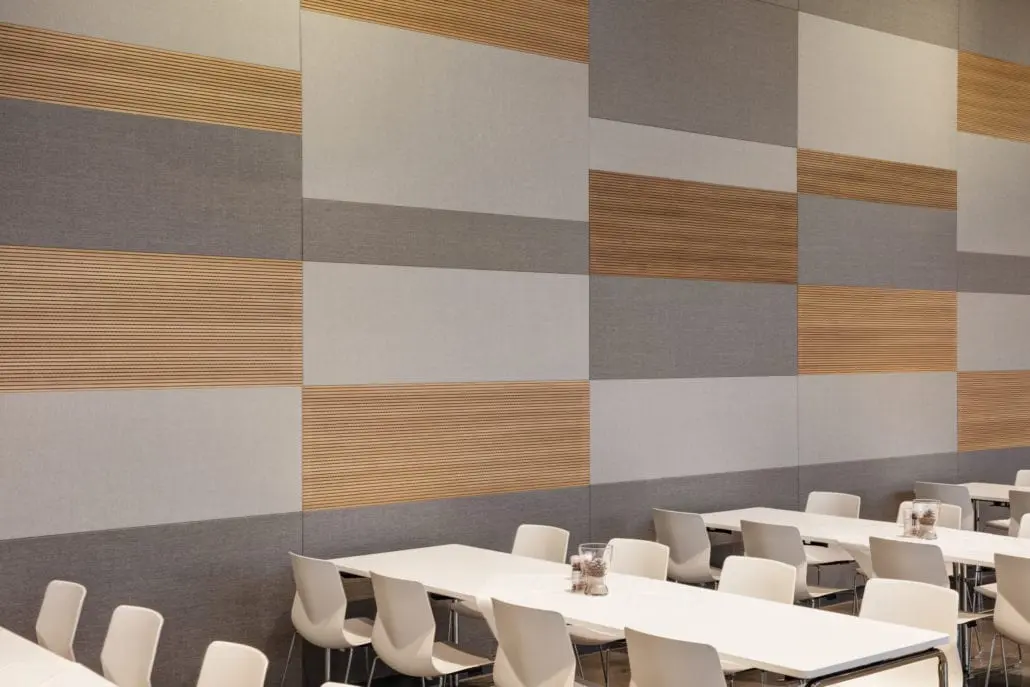

Application Images

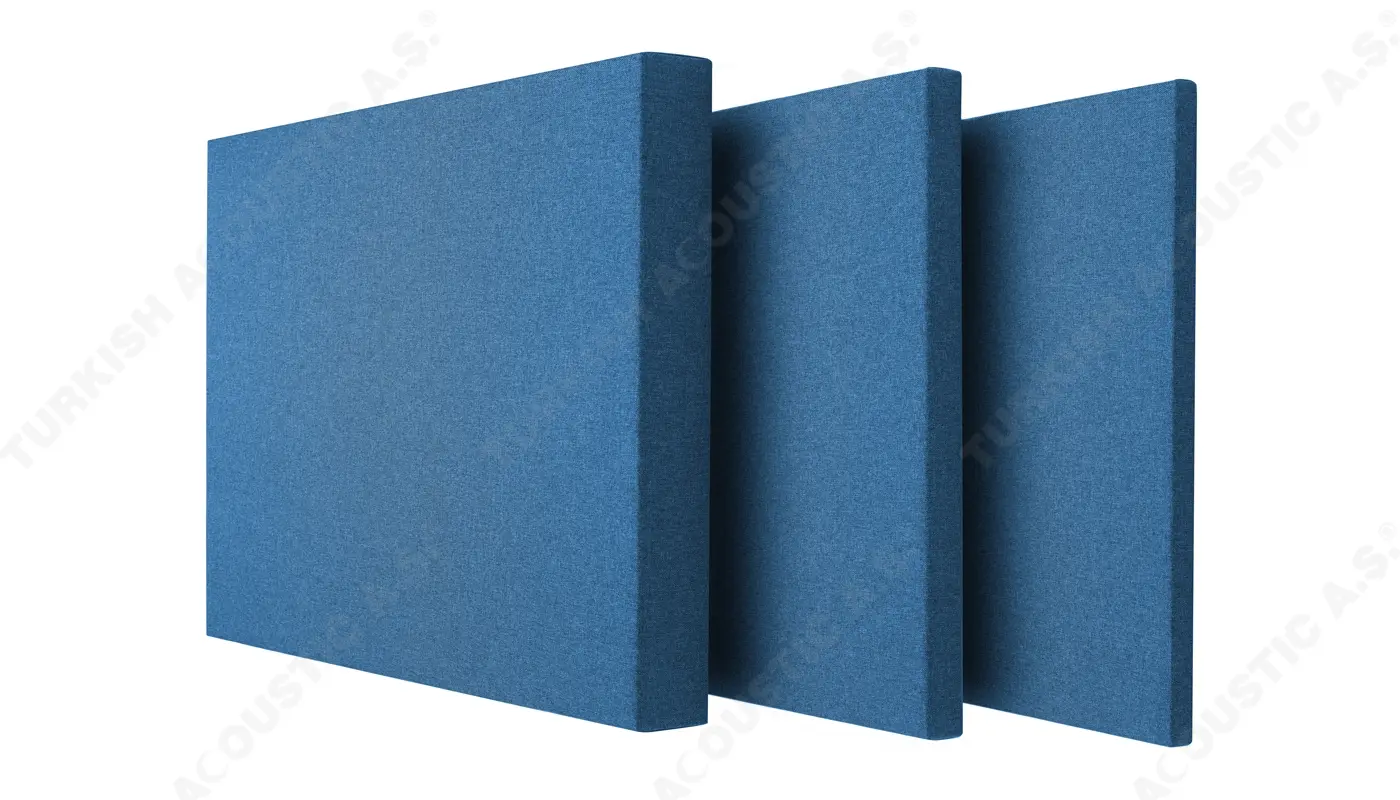

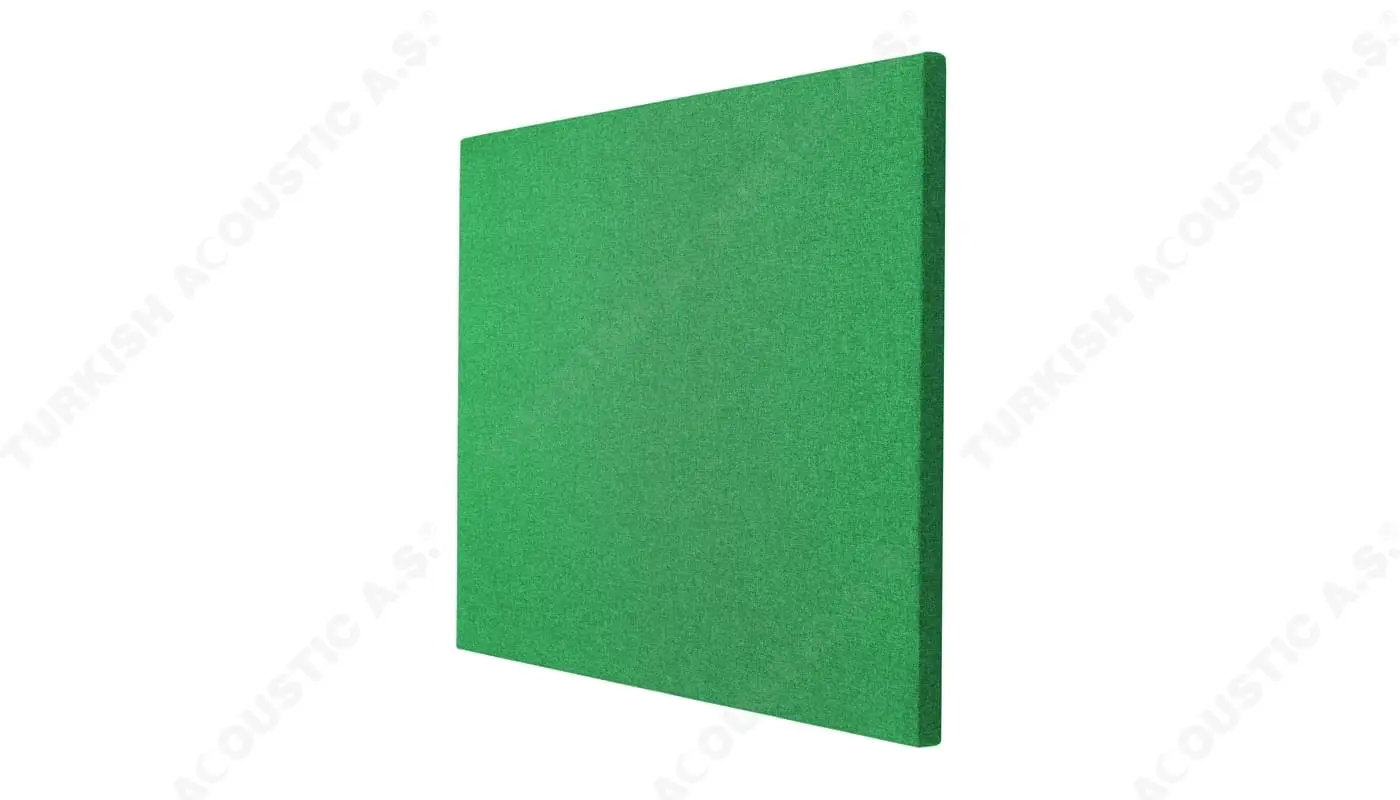

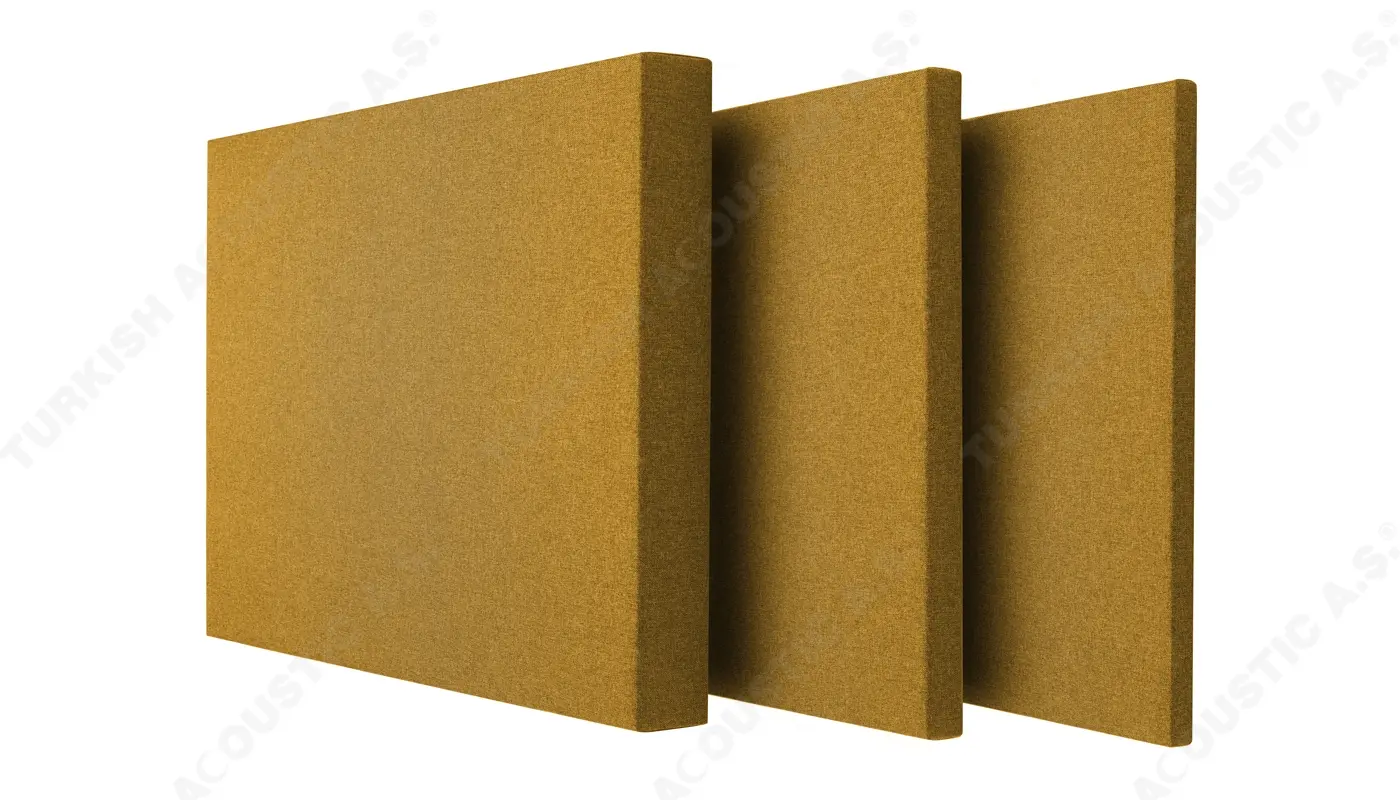

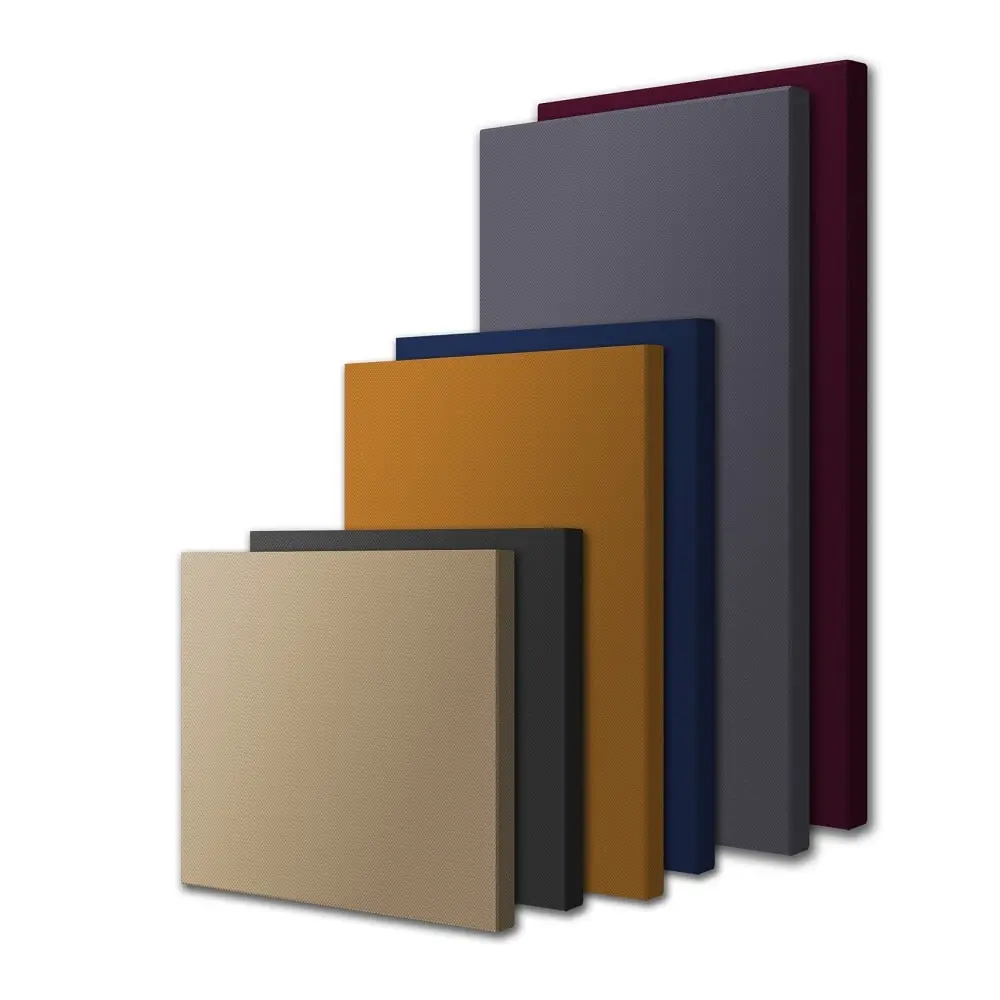

Product Images

Acoustıc Wall Panels

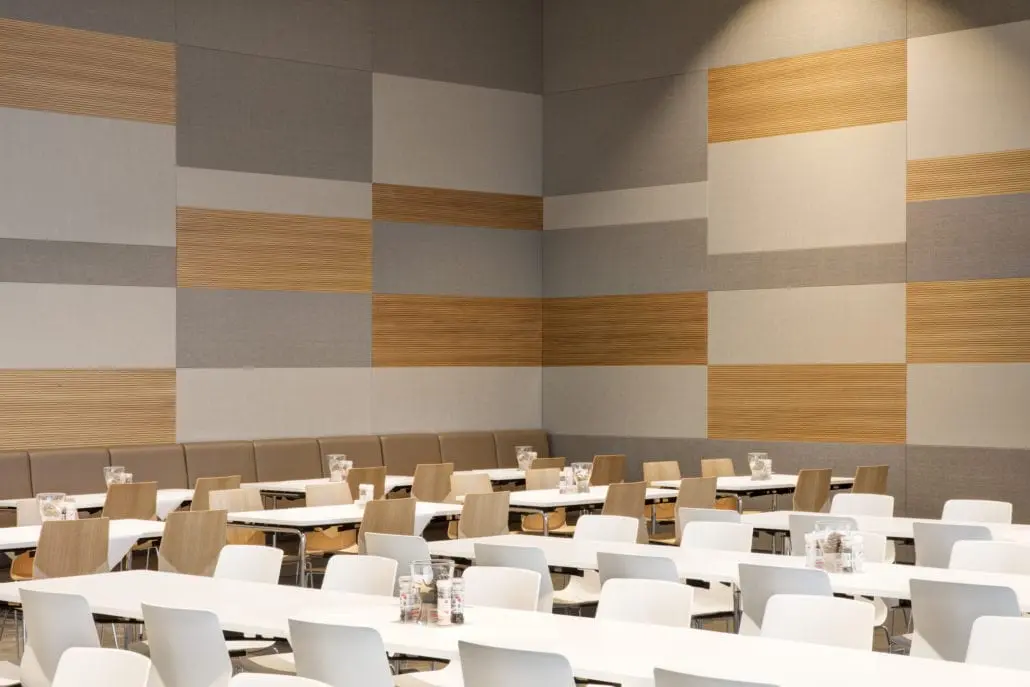

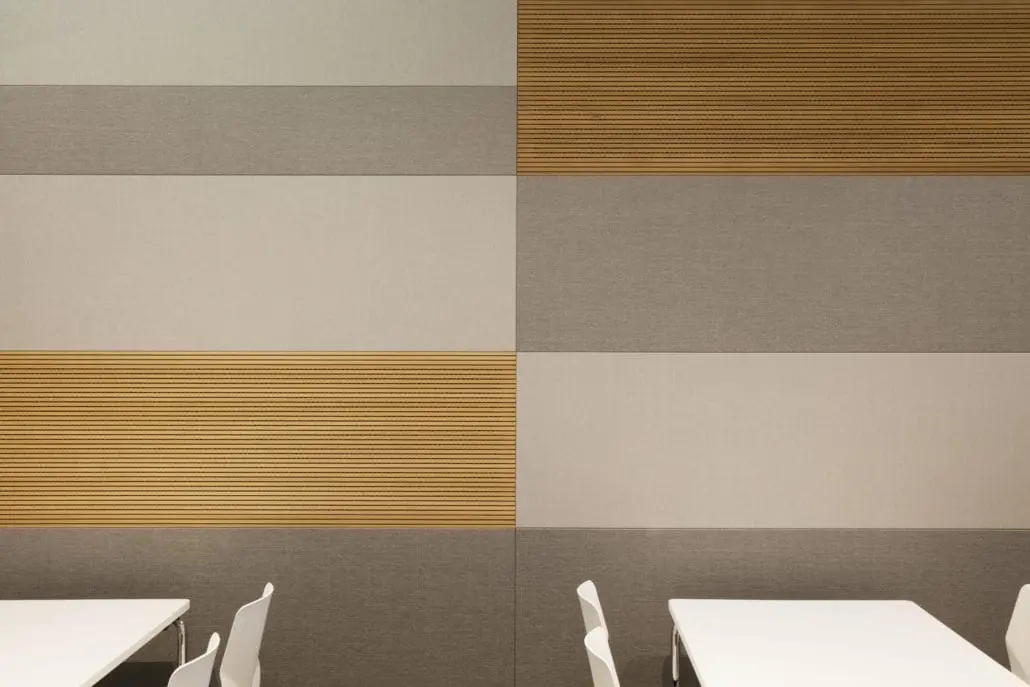

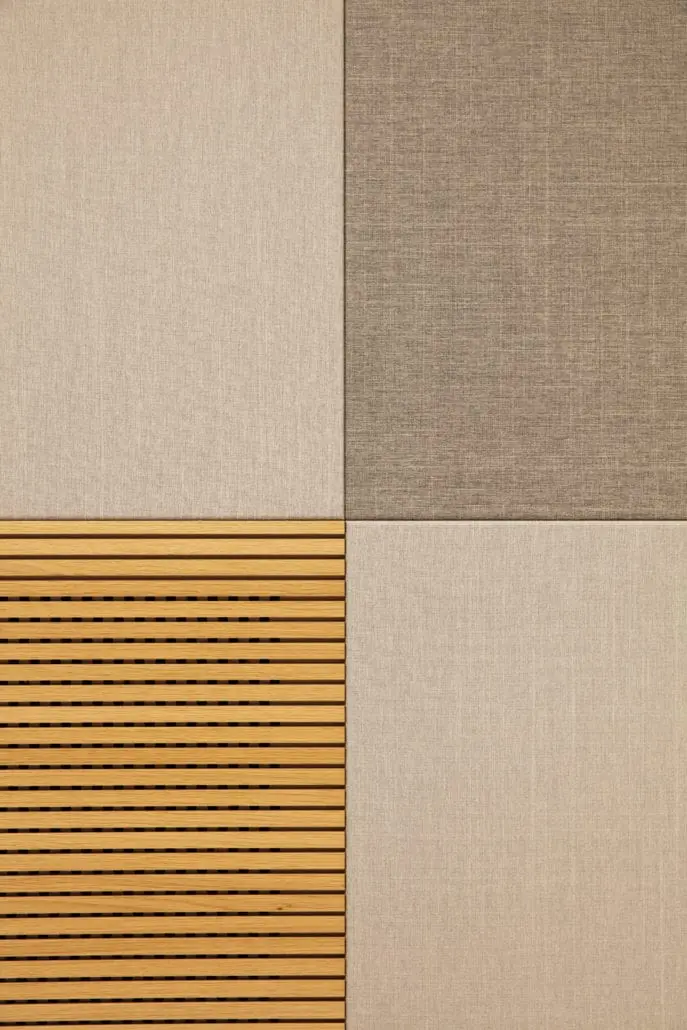

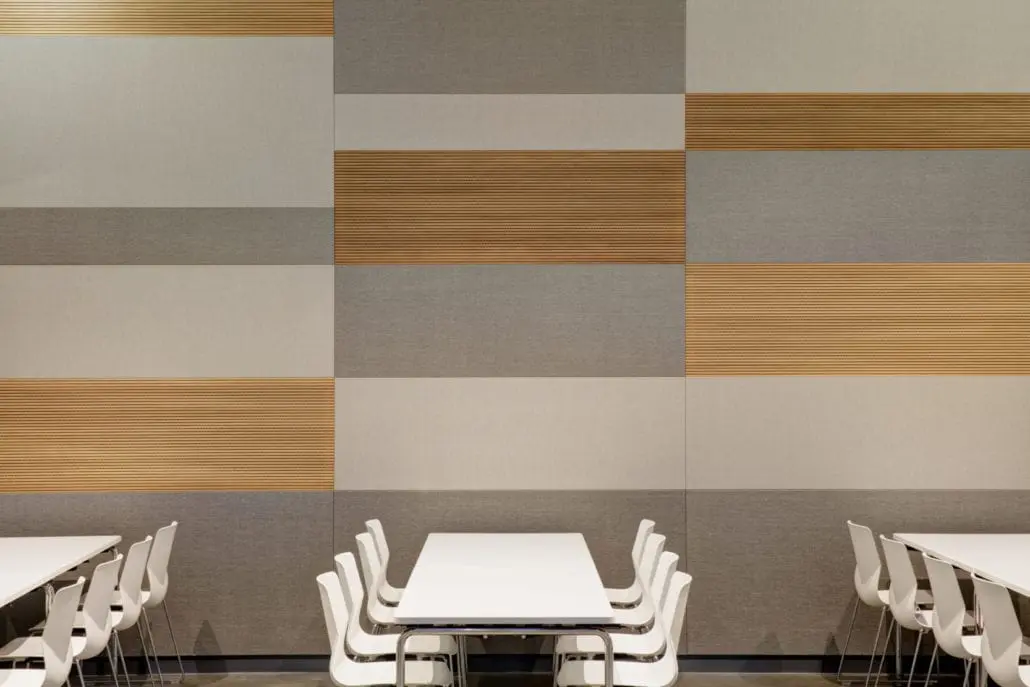

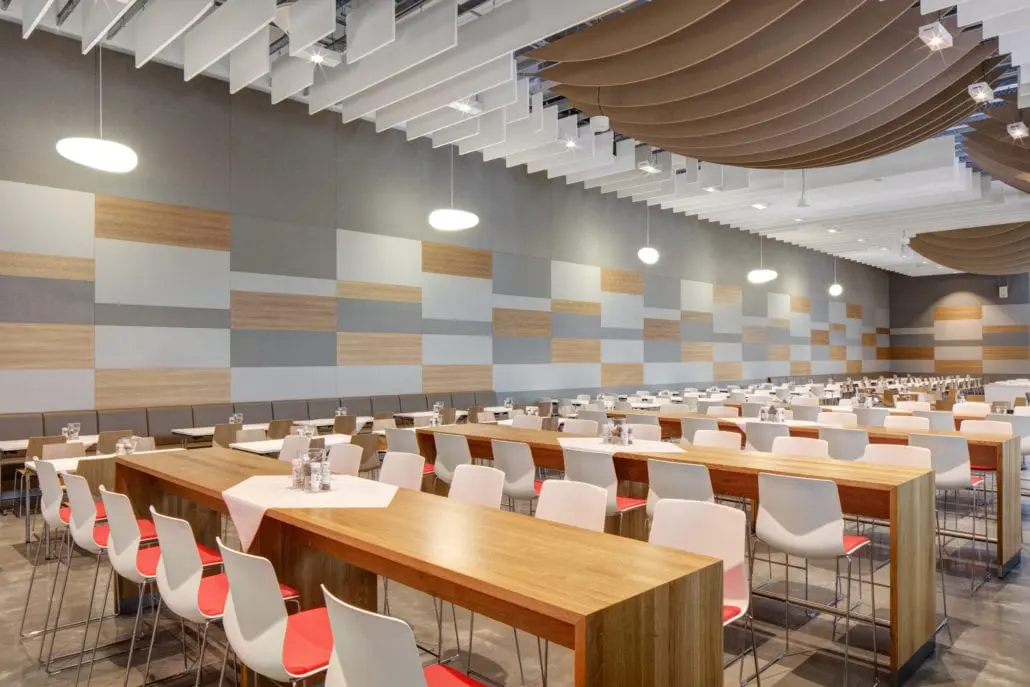

Implementatıon Gallery

Product Certıfıcates

Product Certıfıcate

Product Certificate

Fıelds of use

Implementatıon Fıelds

Projects

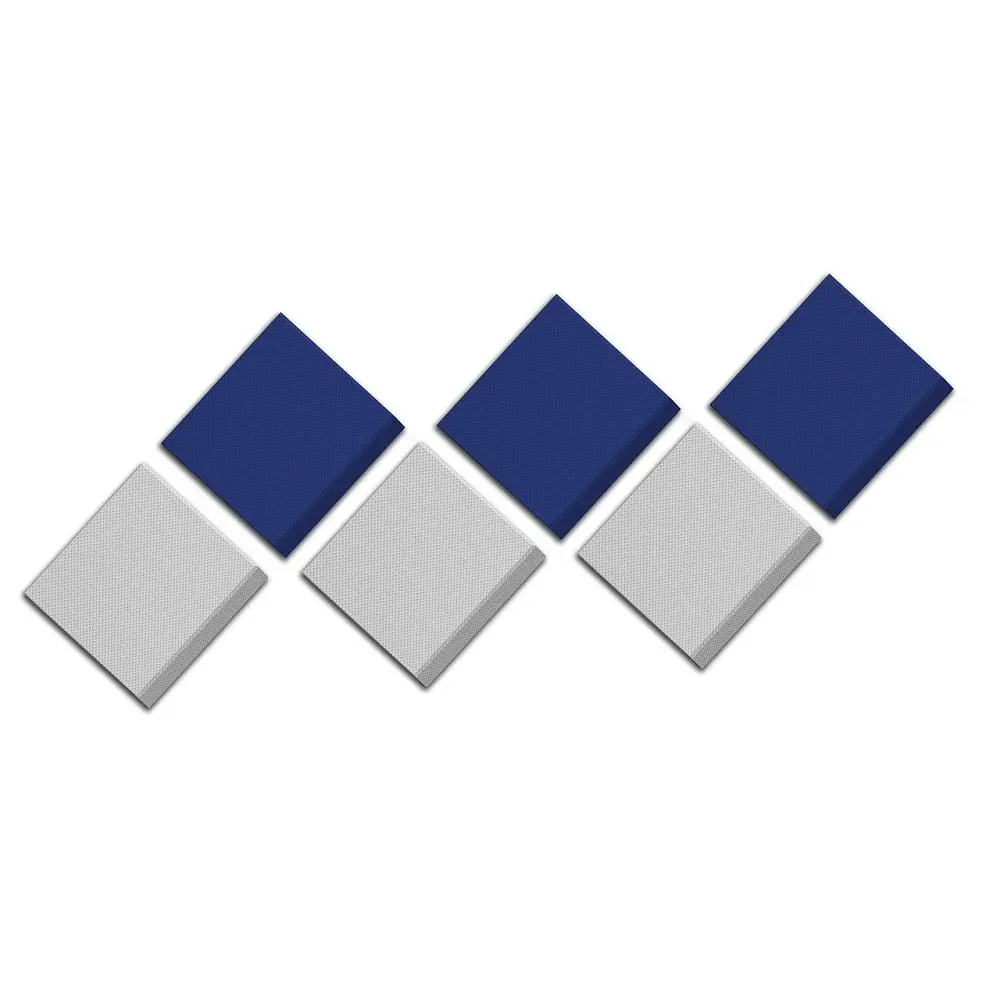

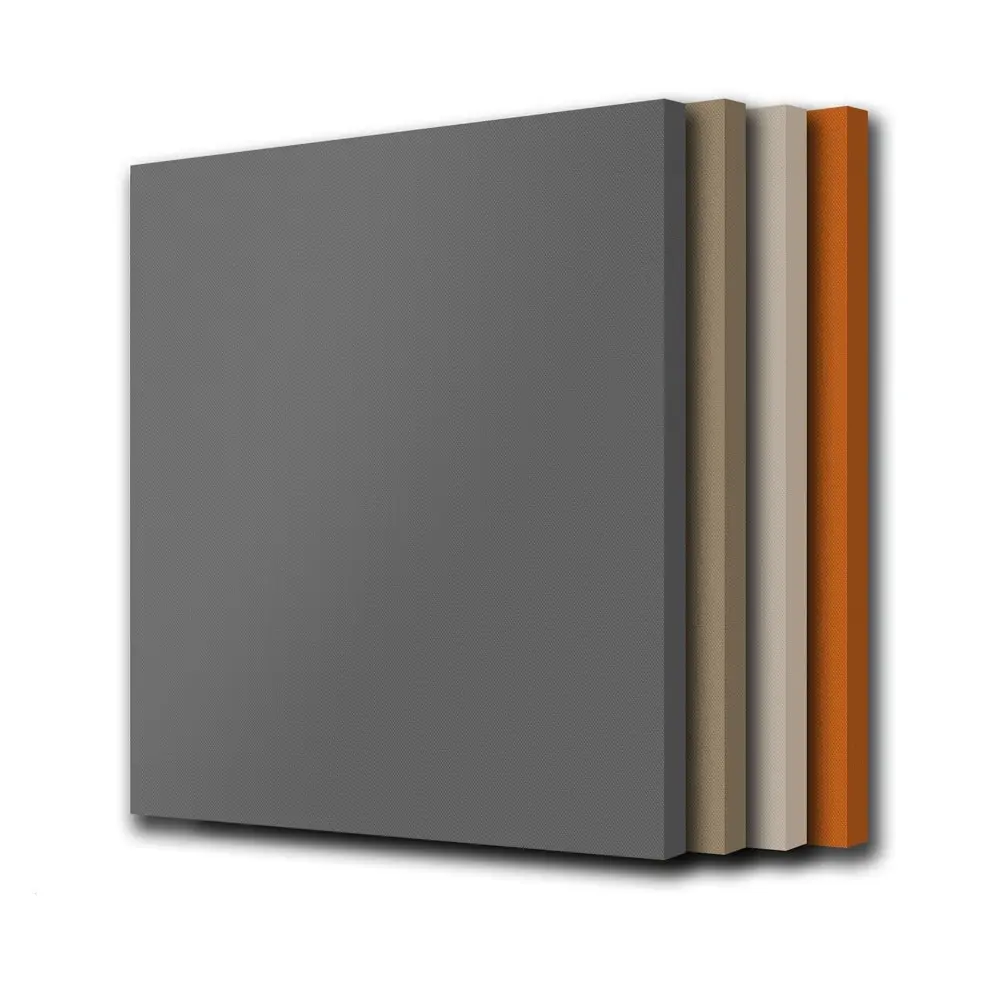

Acoustıc Panel Coatıng

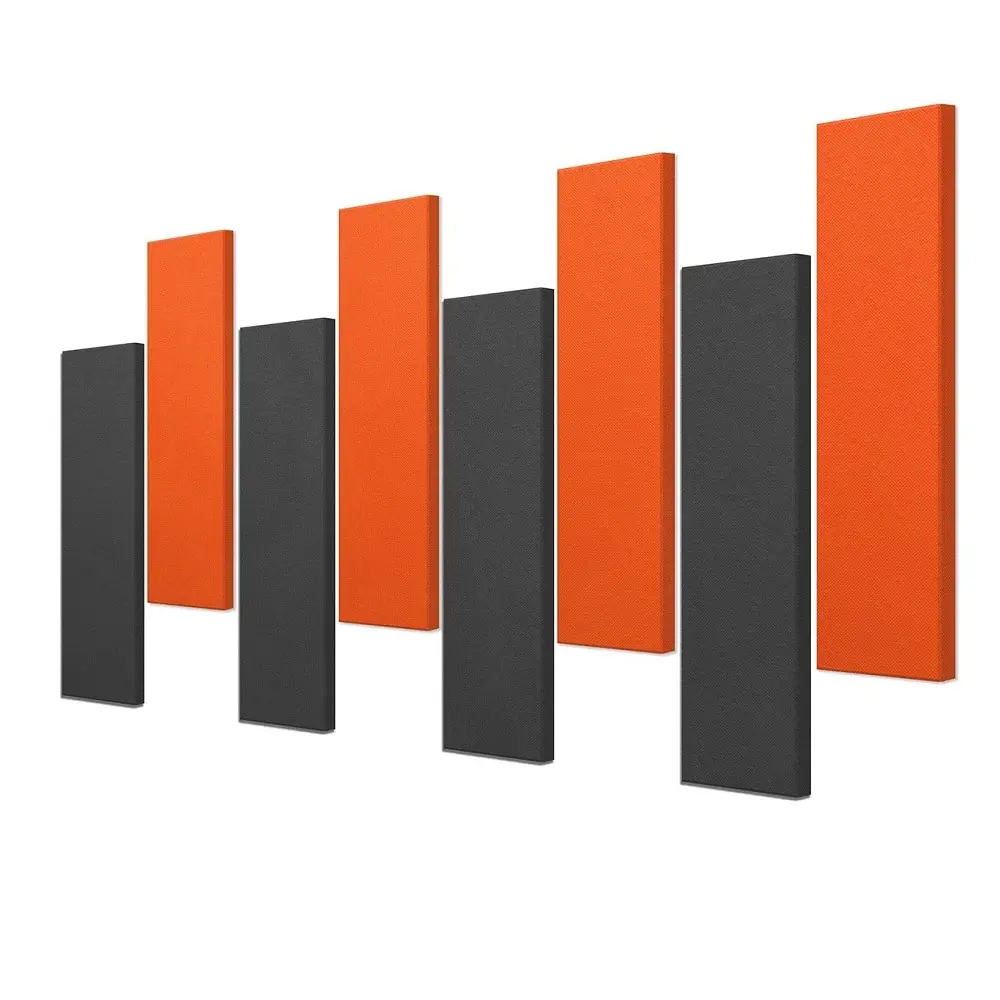

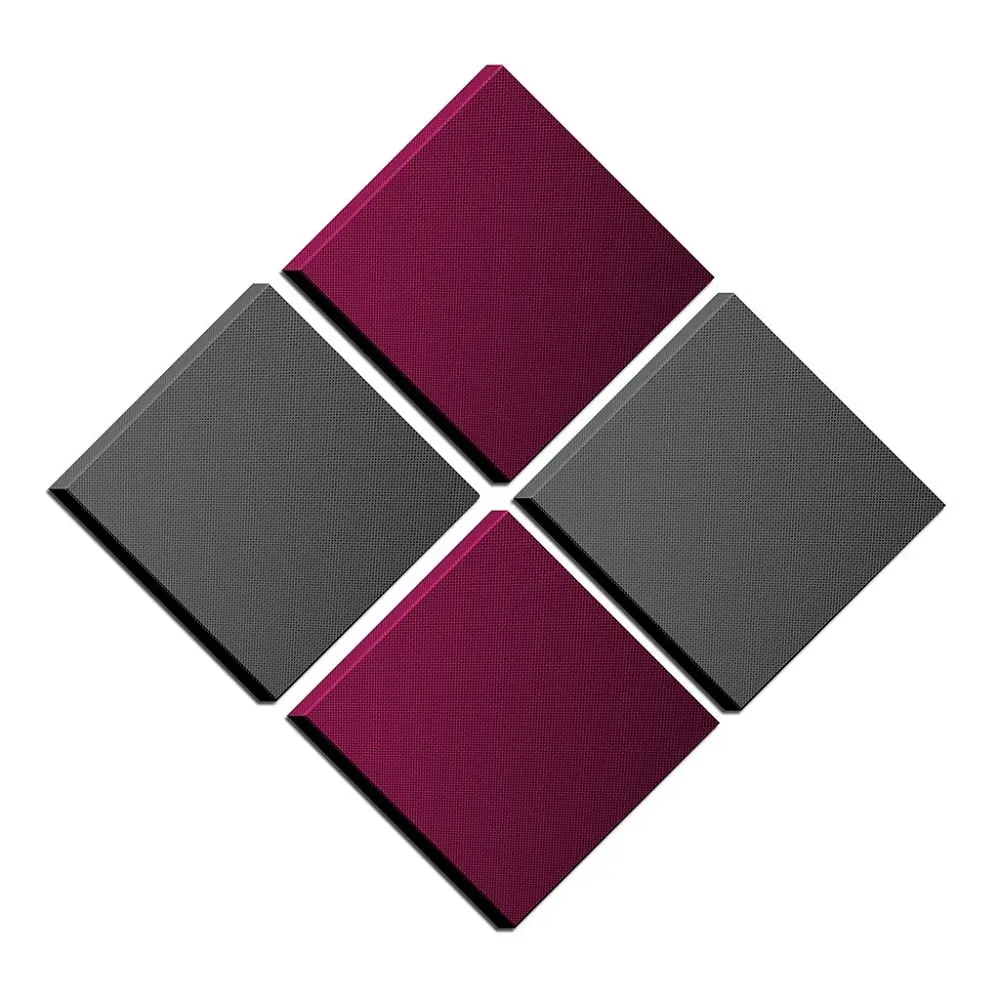

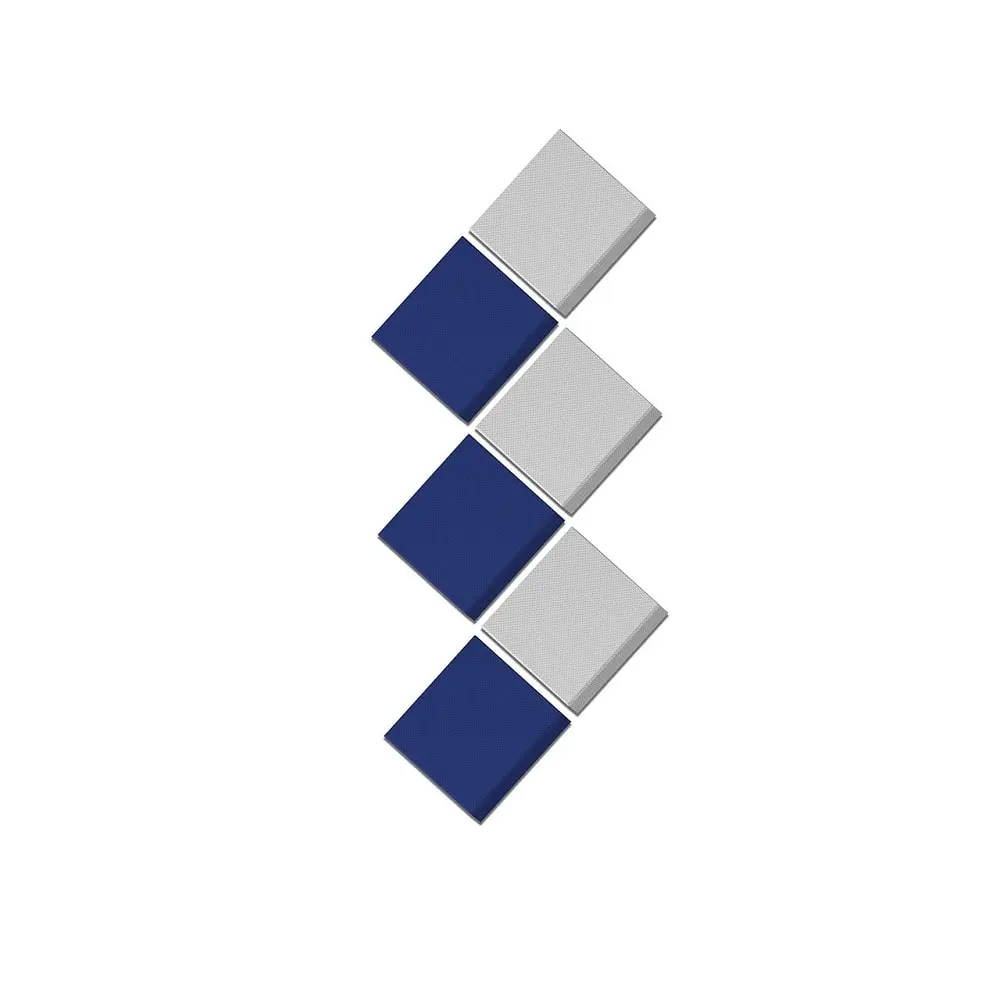

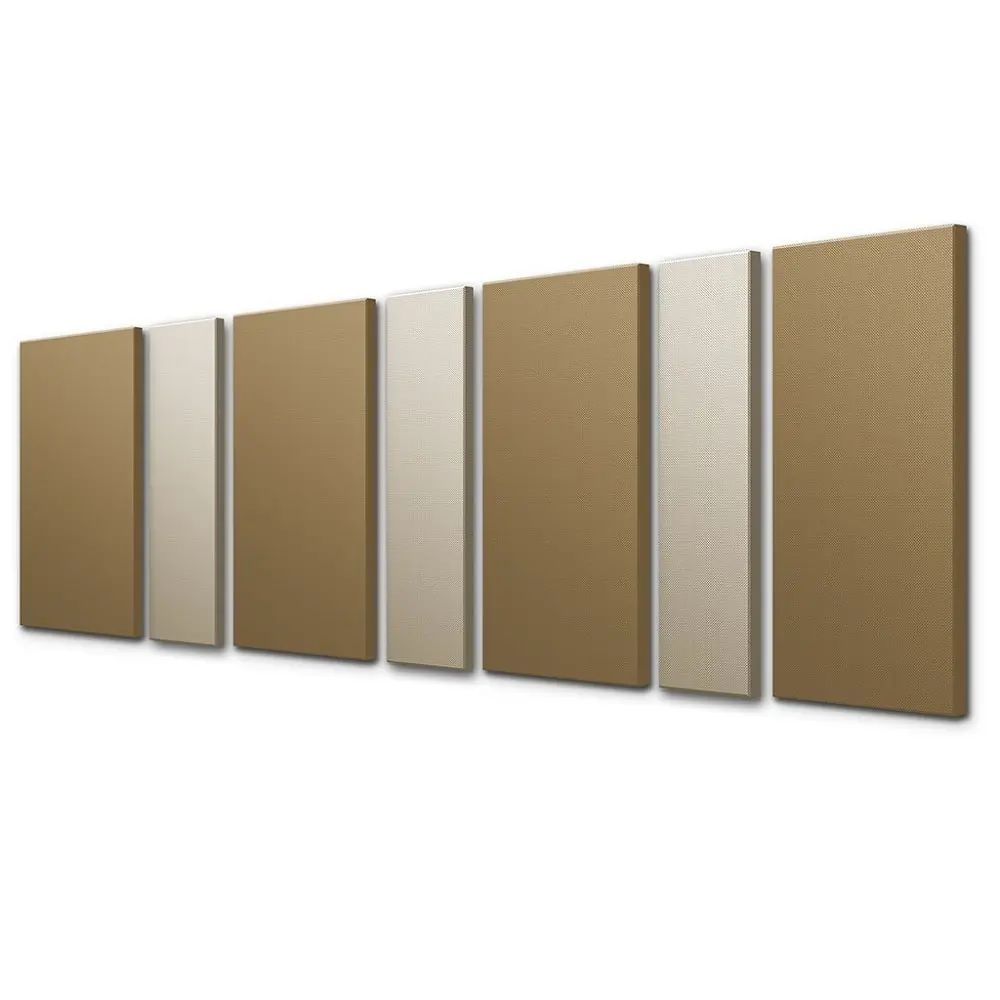

Combınatıon

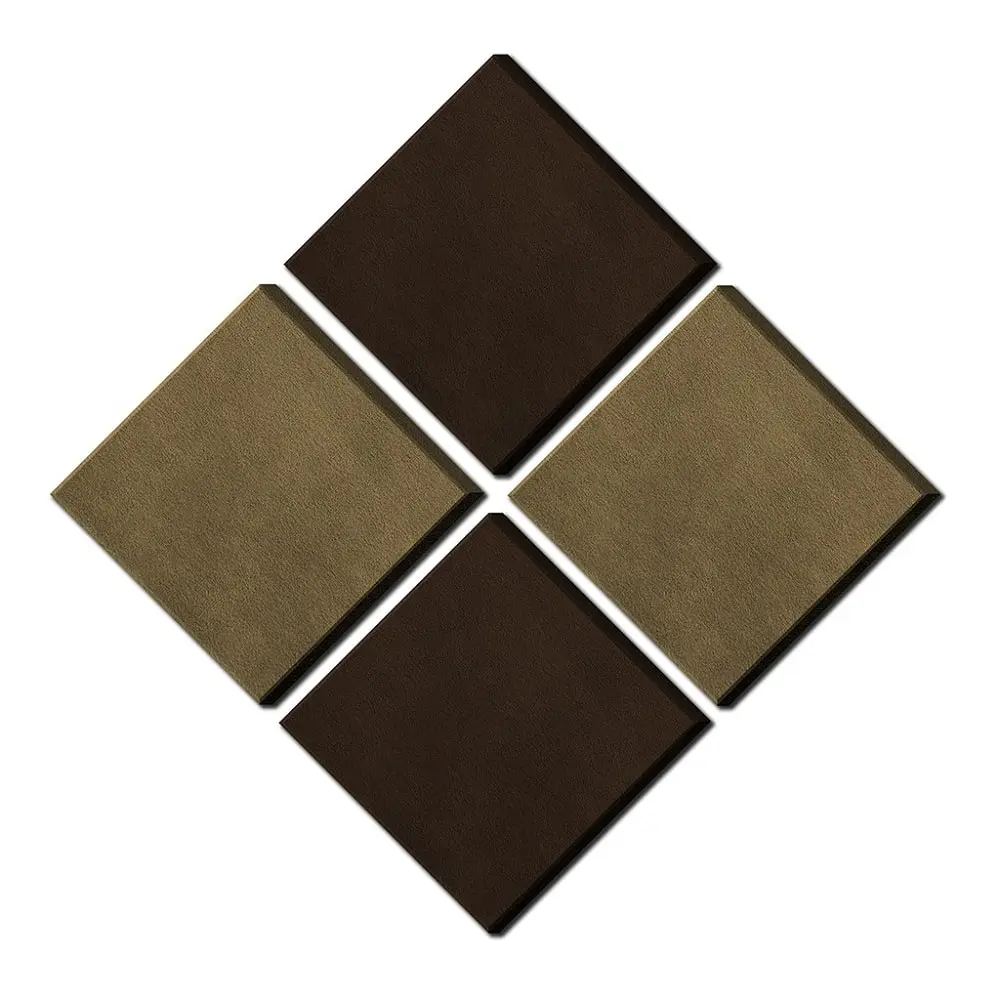

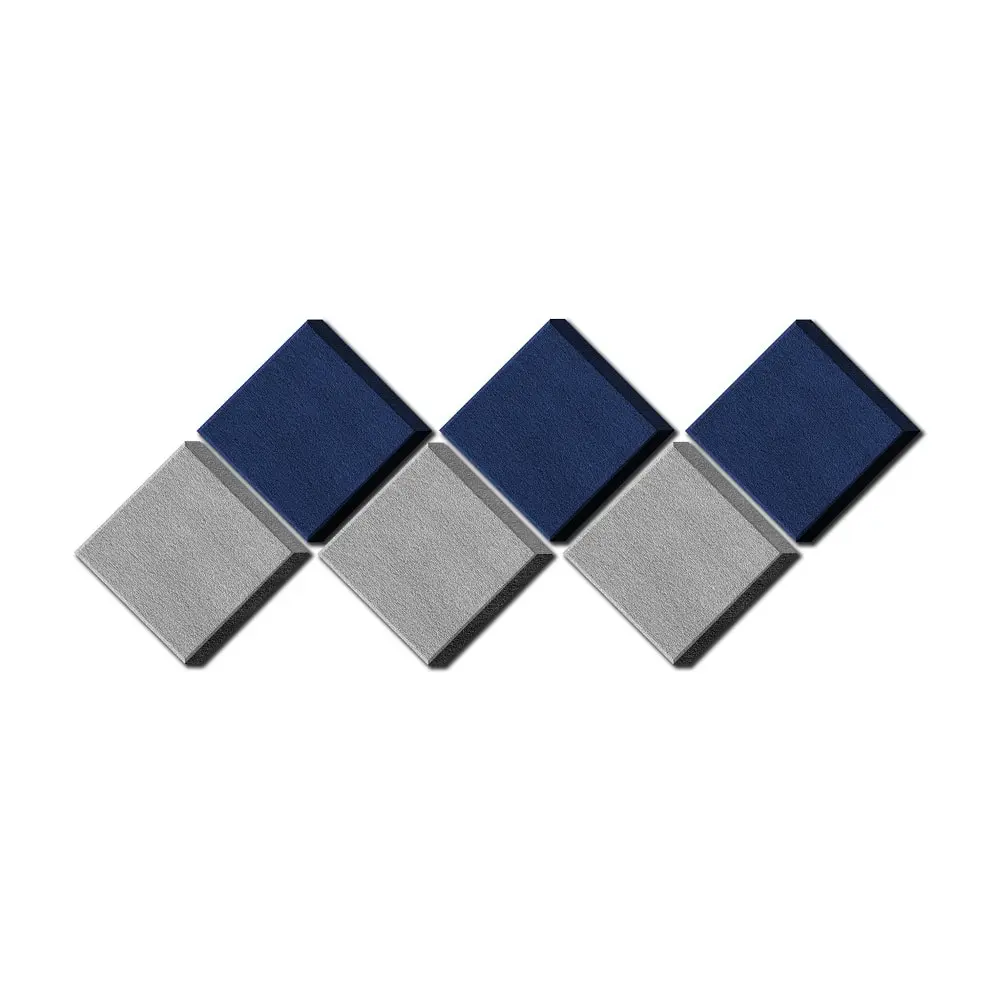

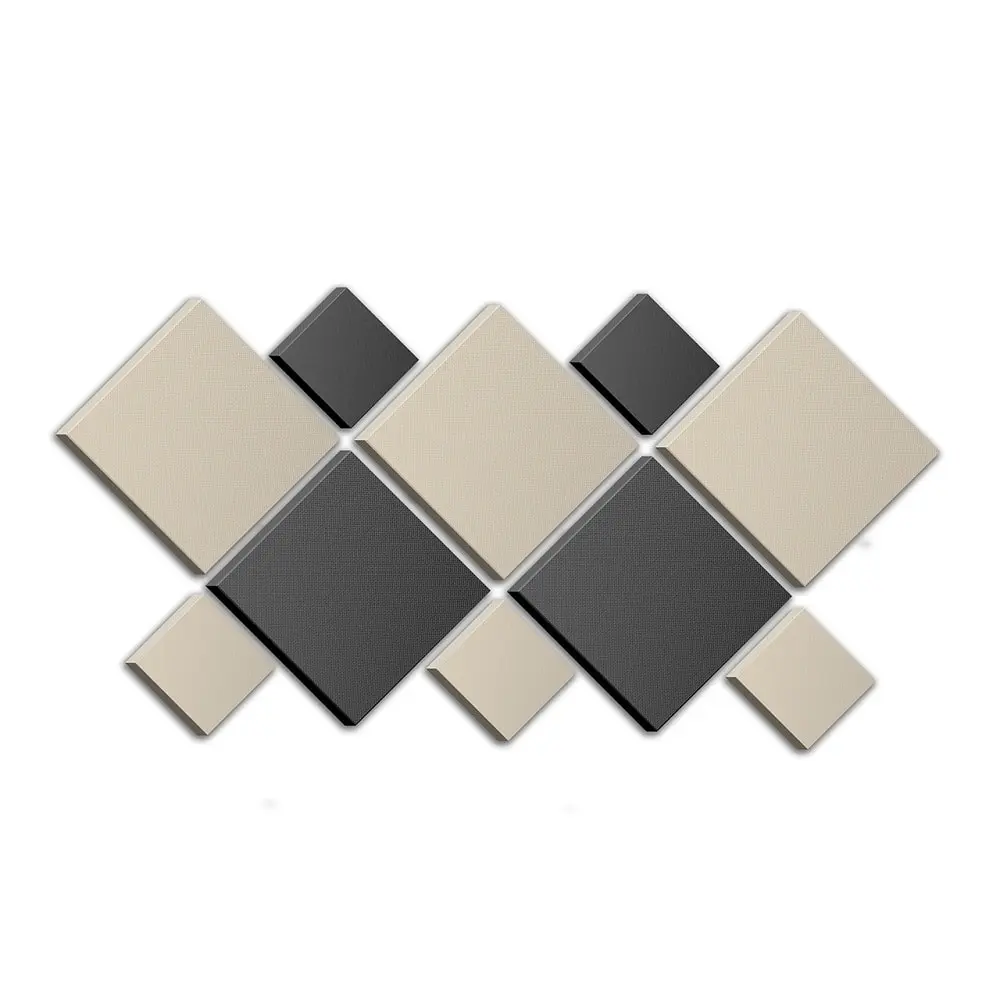

Beveled Edge

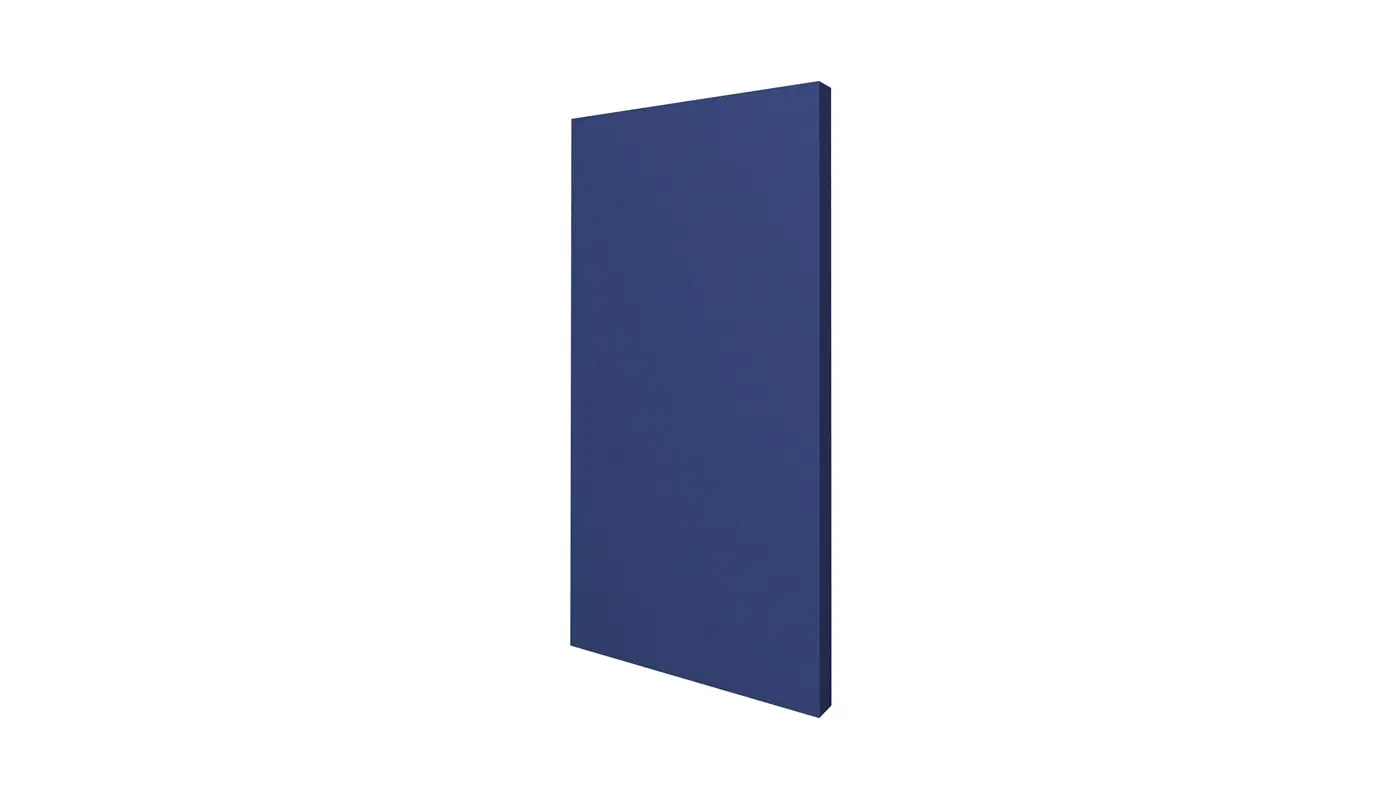

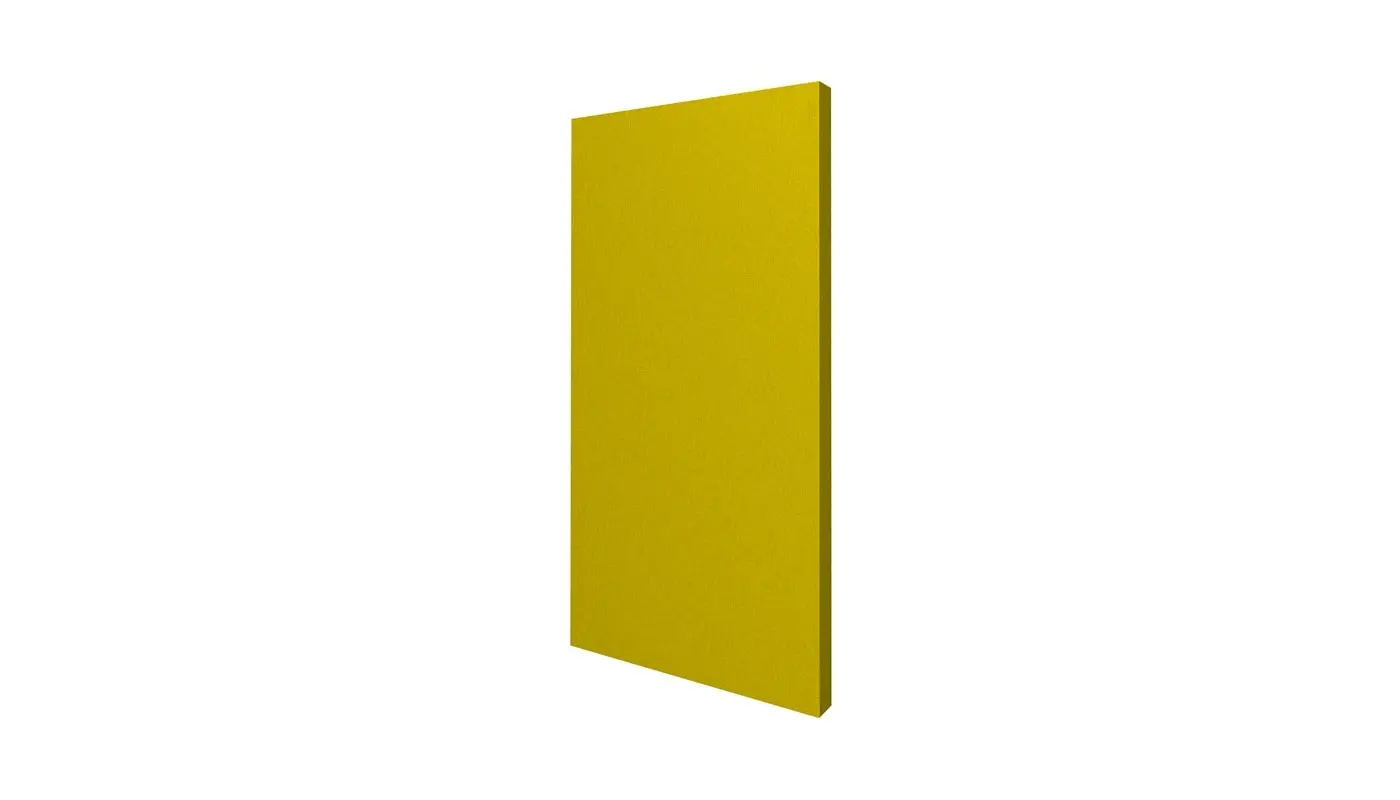

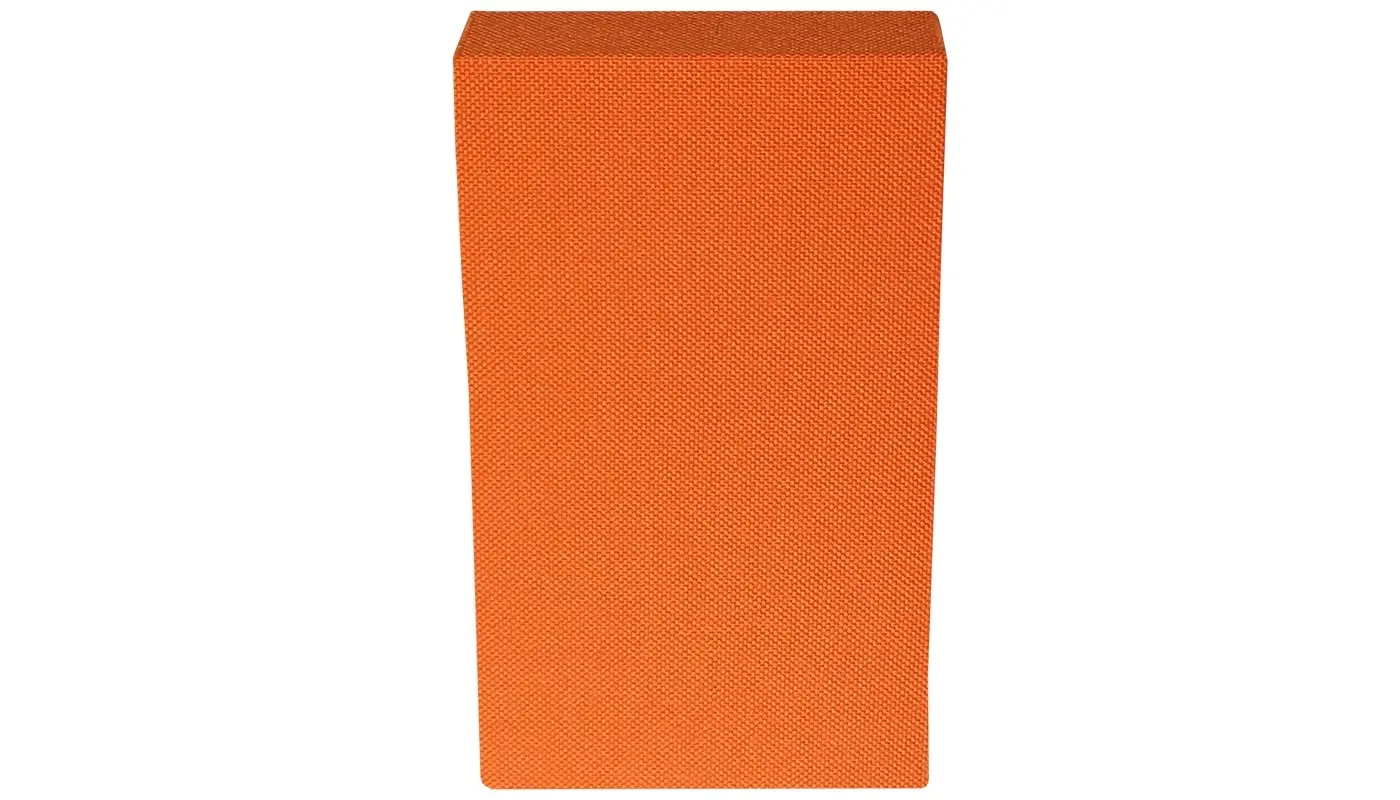

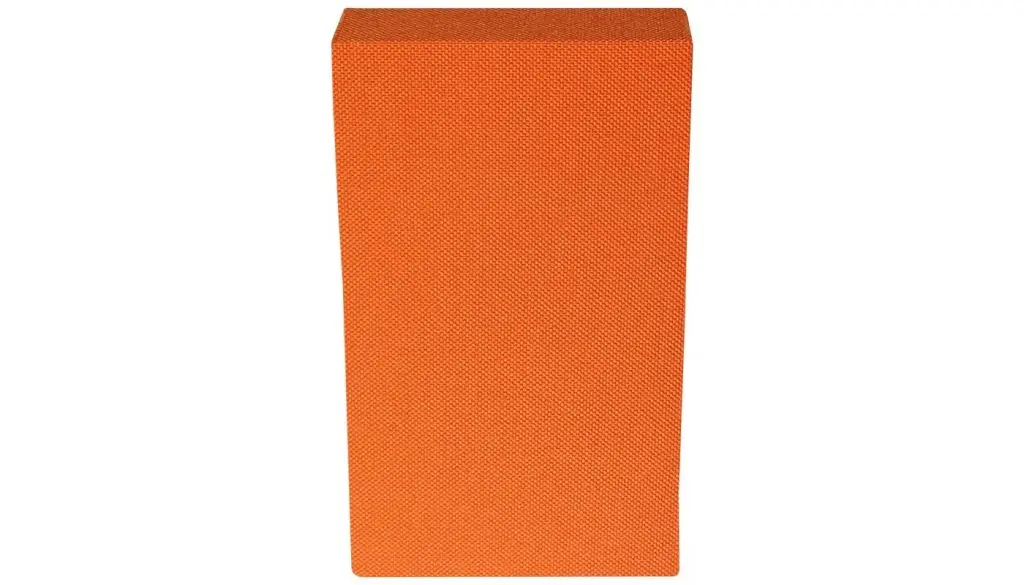

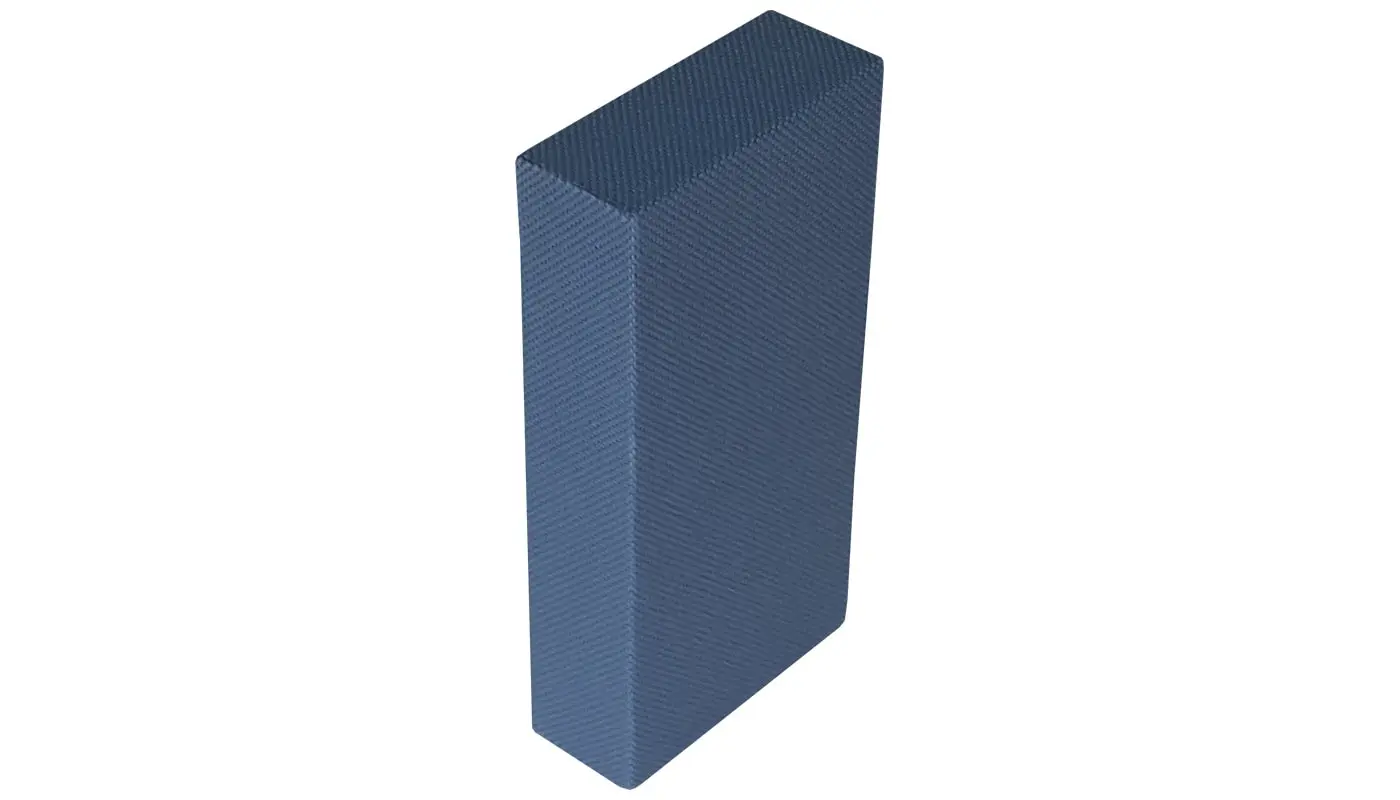

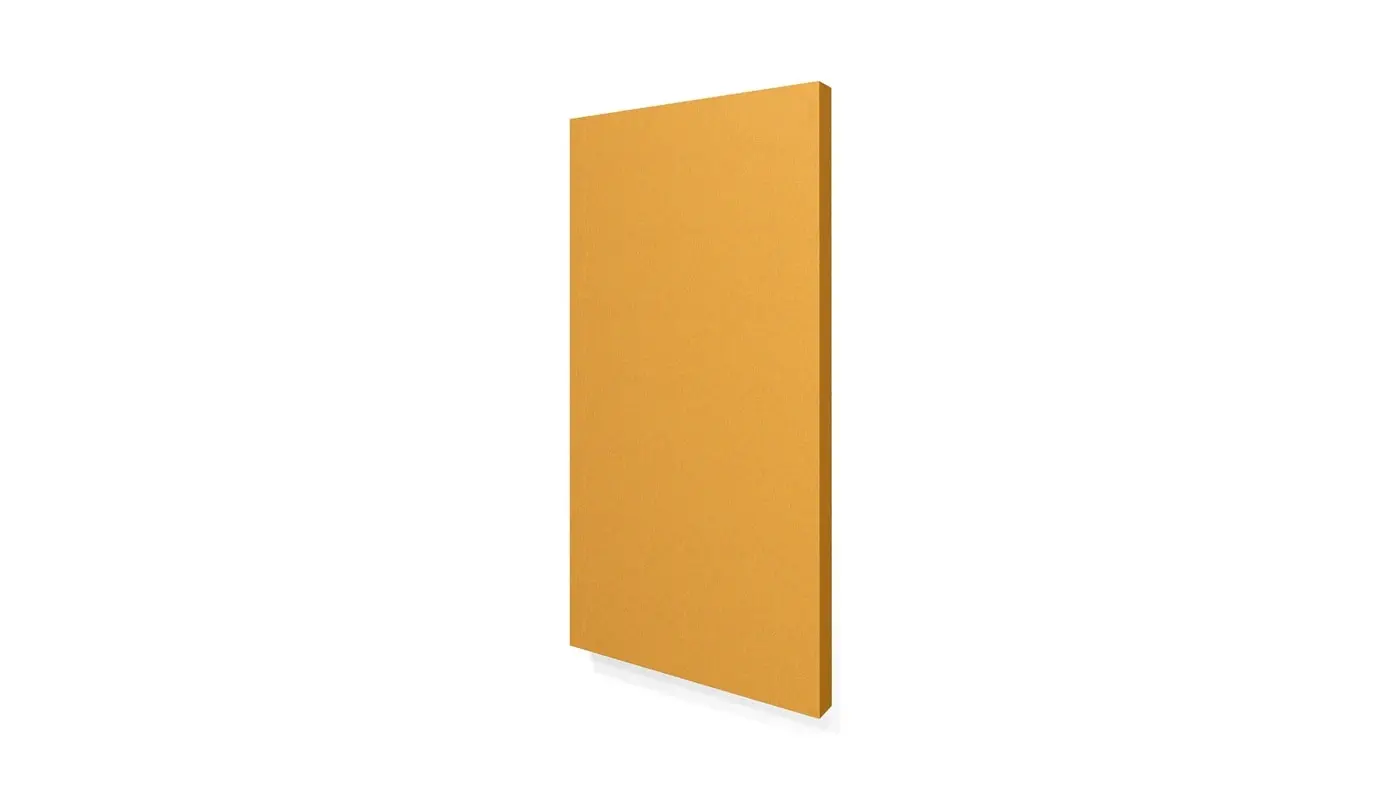

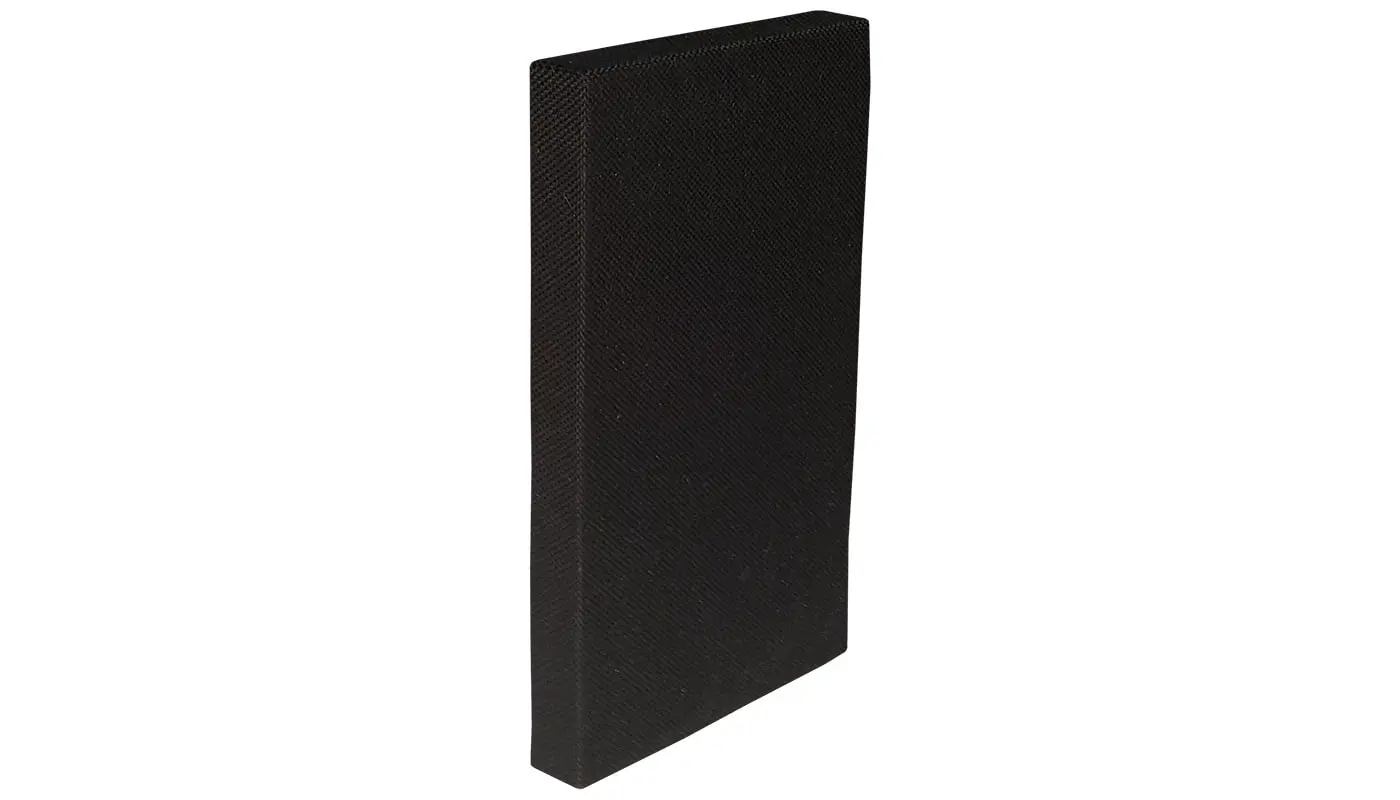

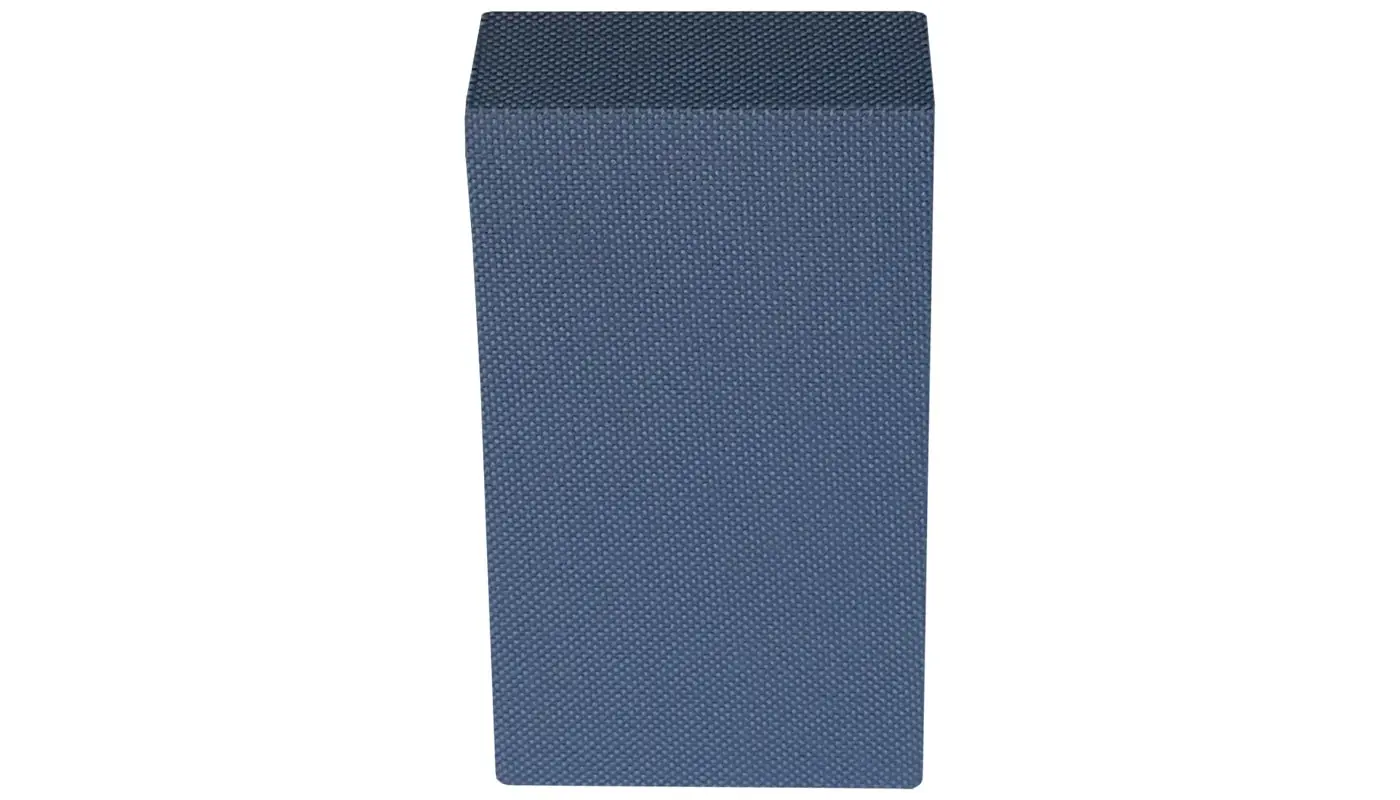

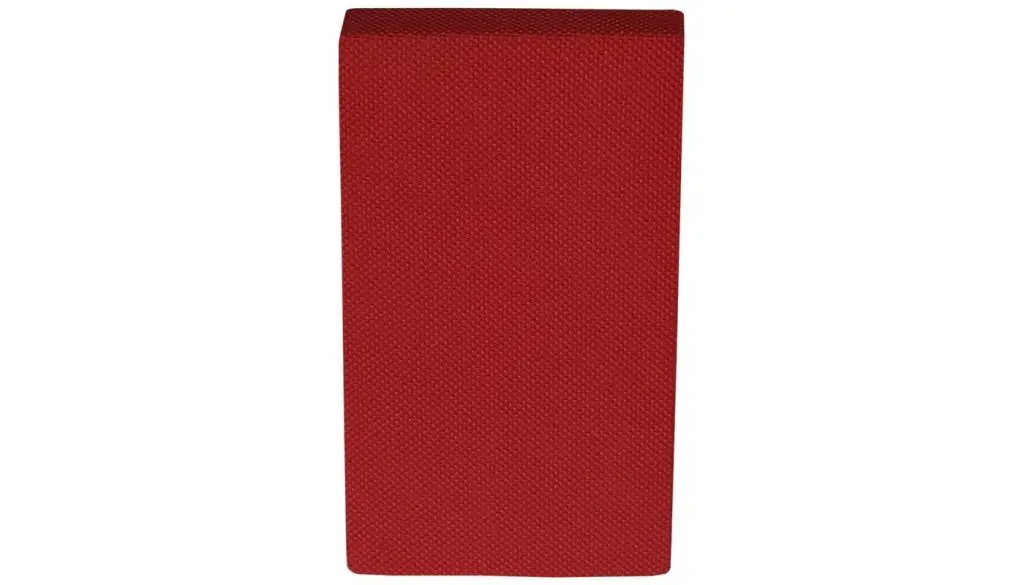

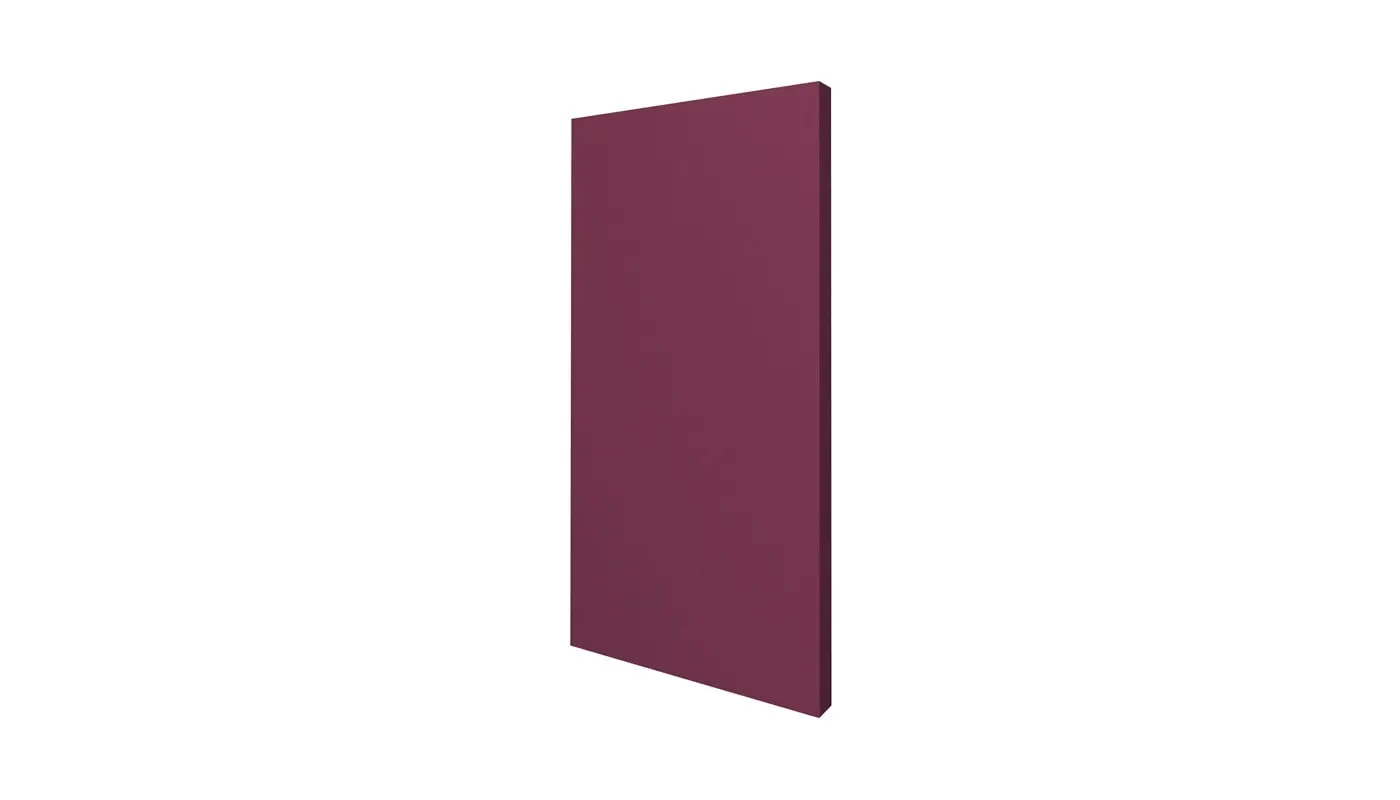

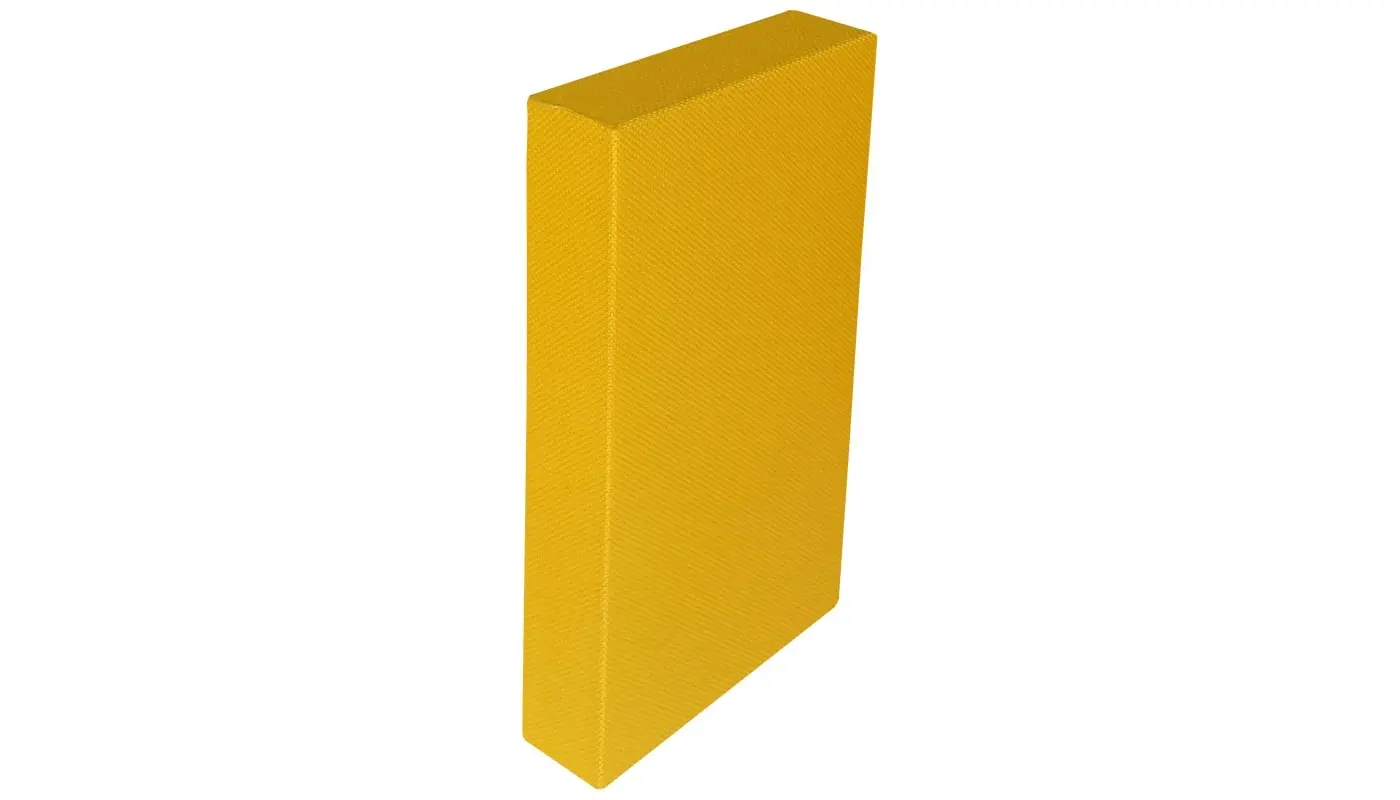

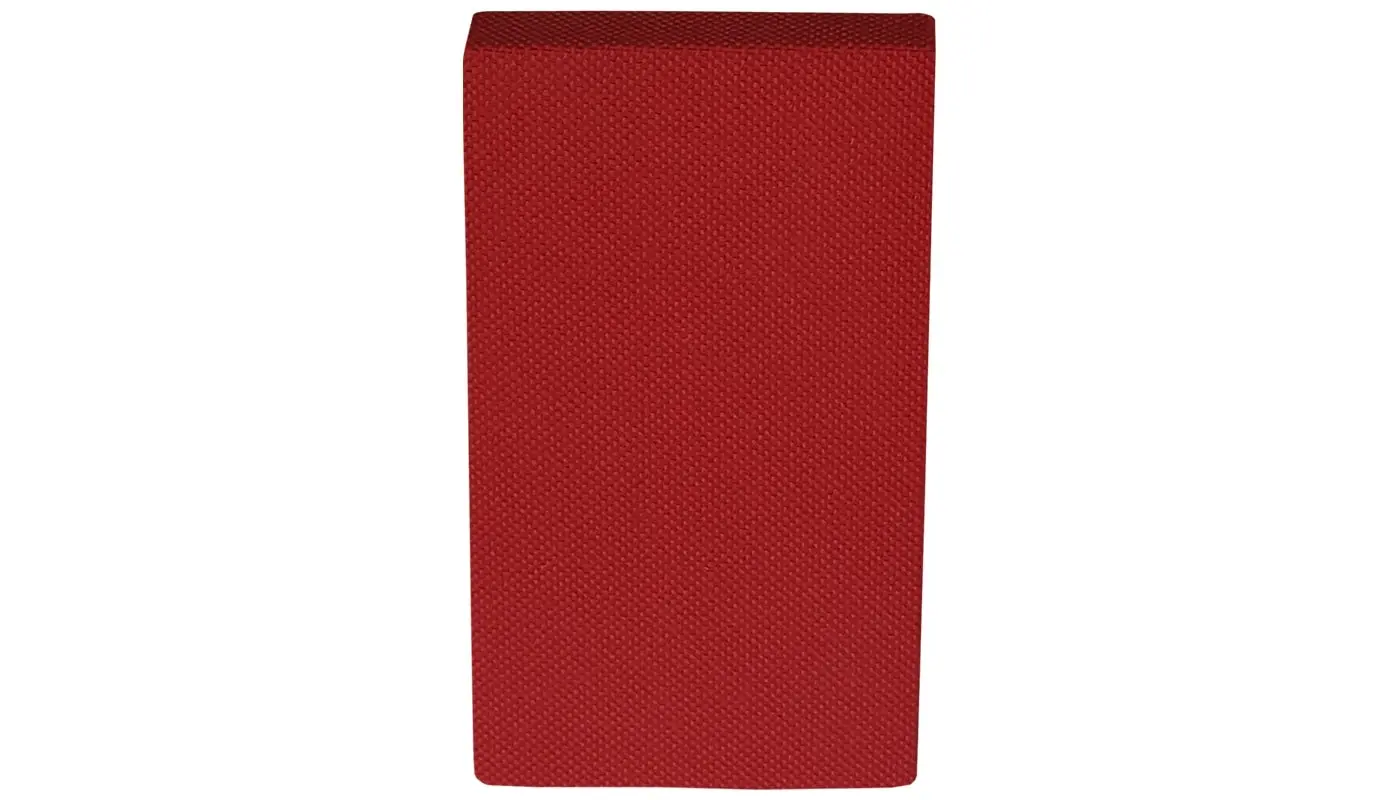

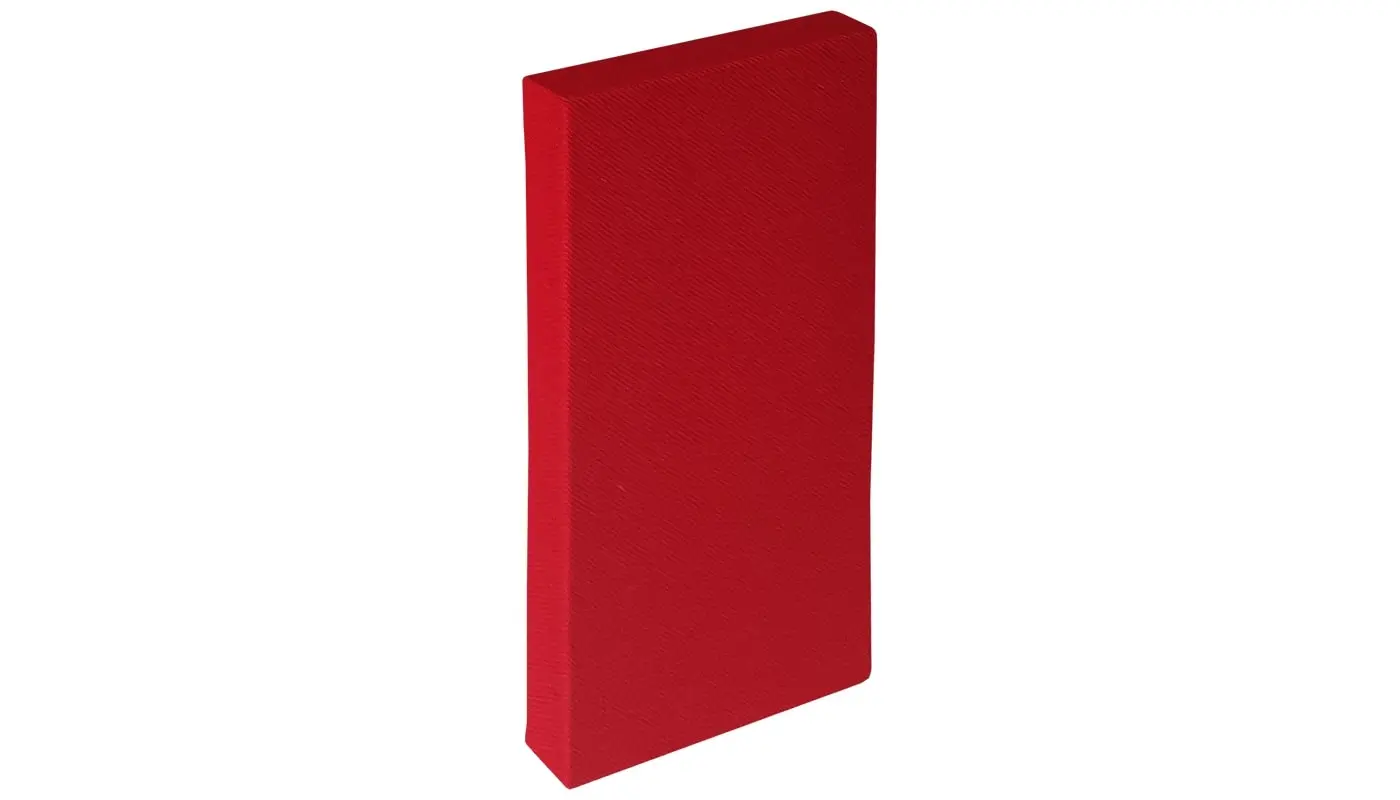

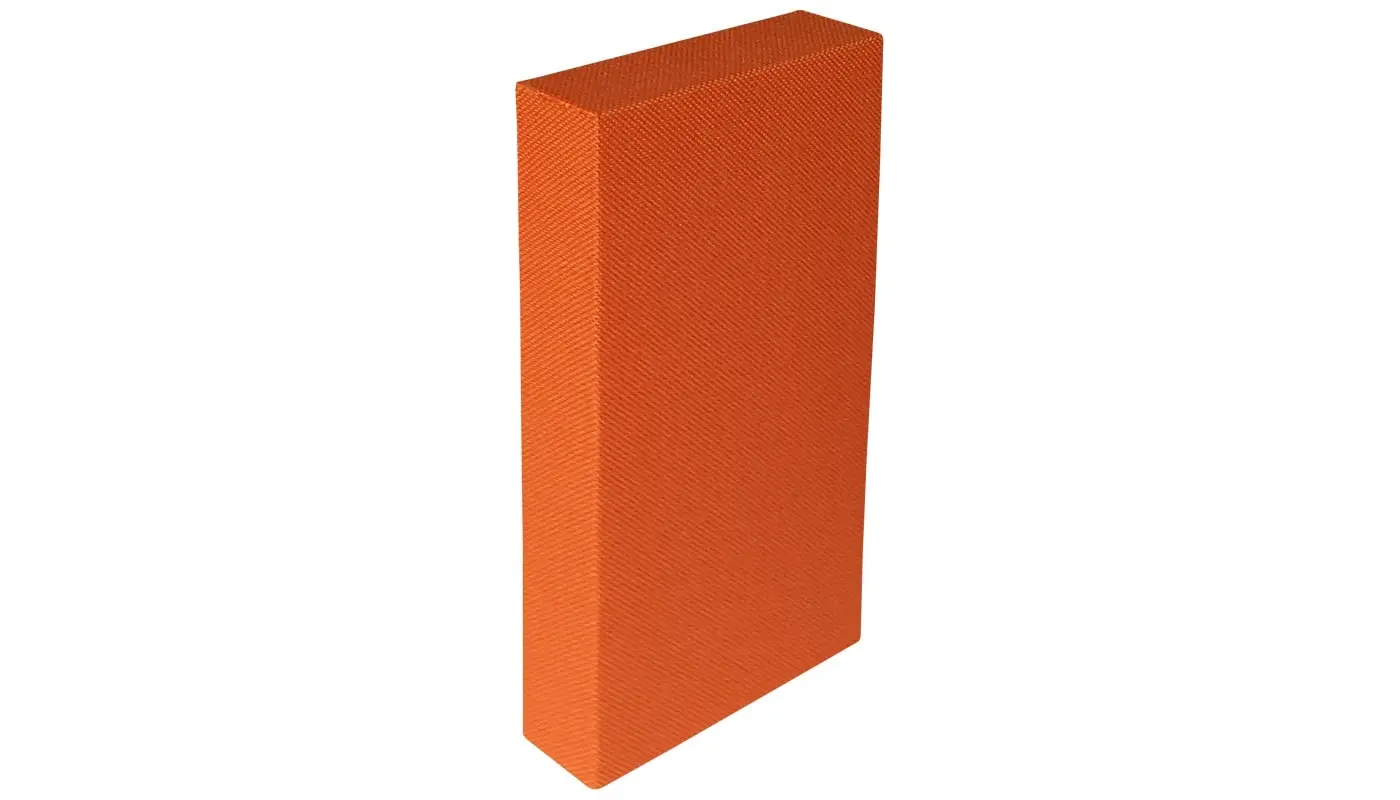

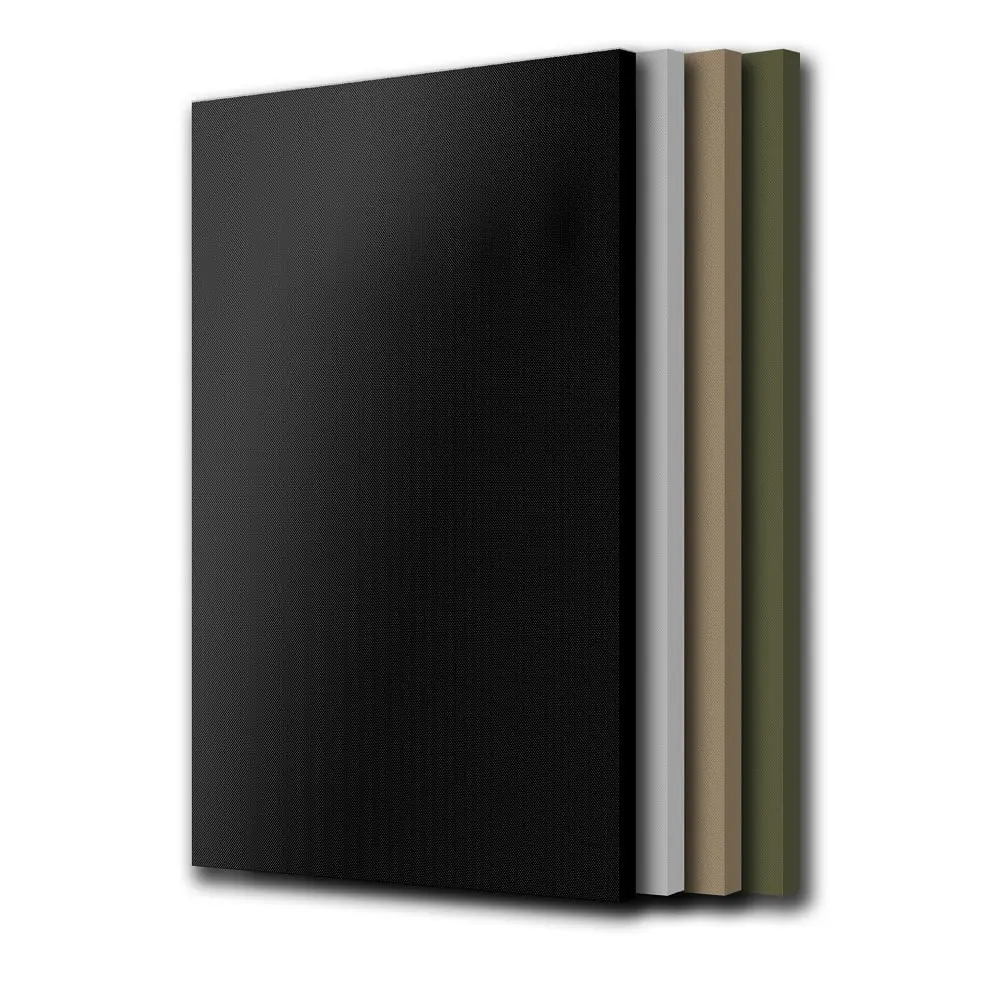

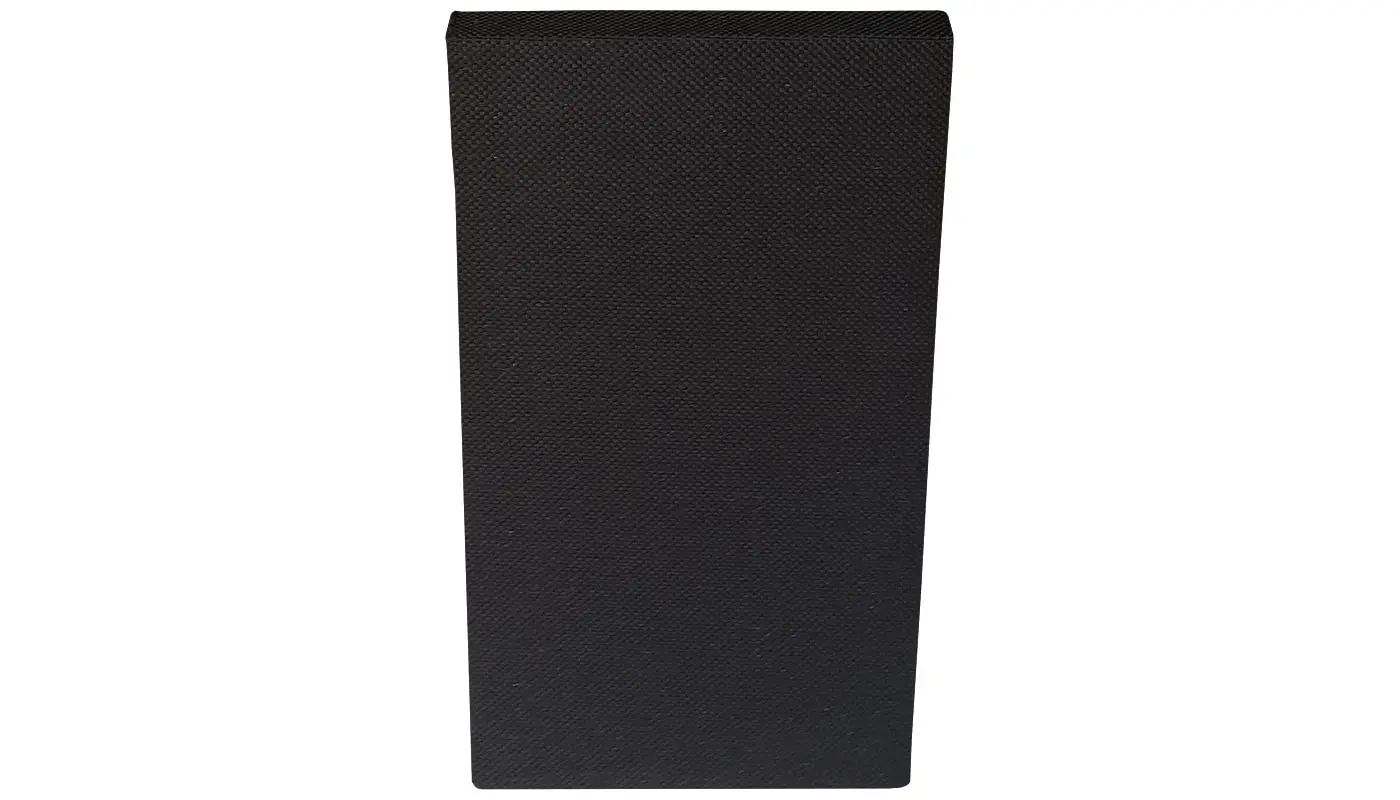

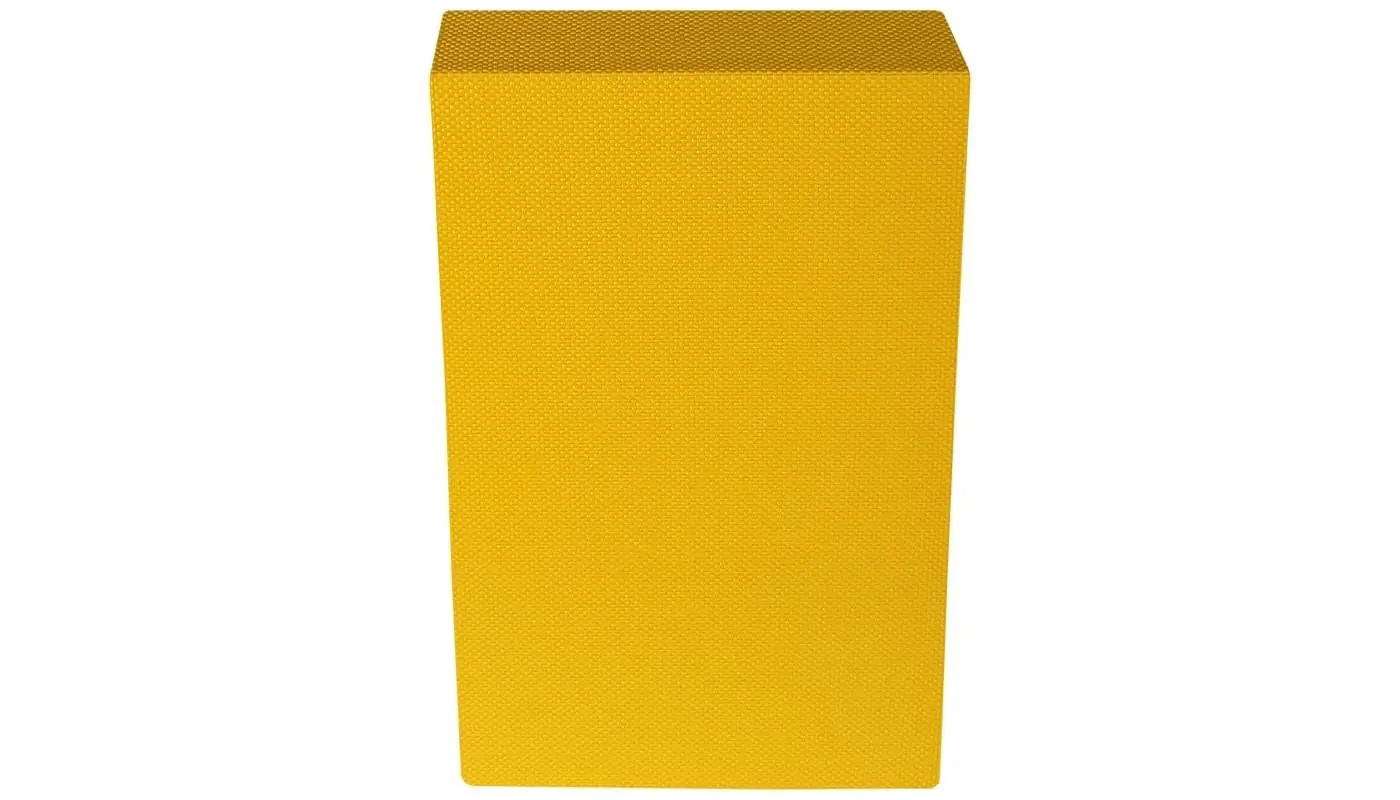

Straıght Edge

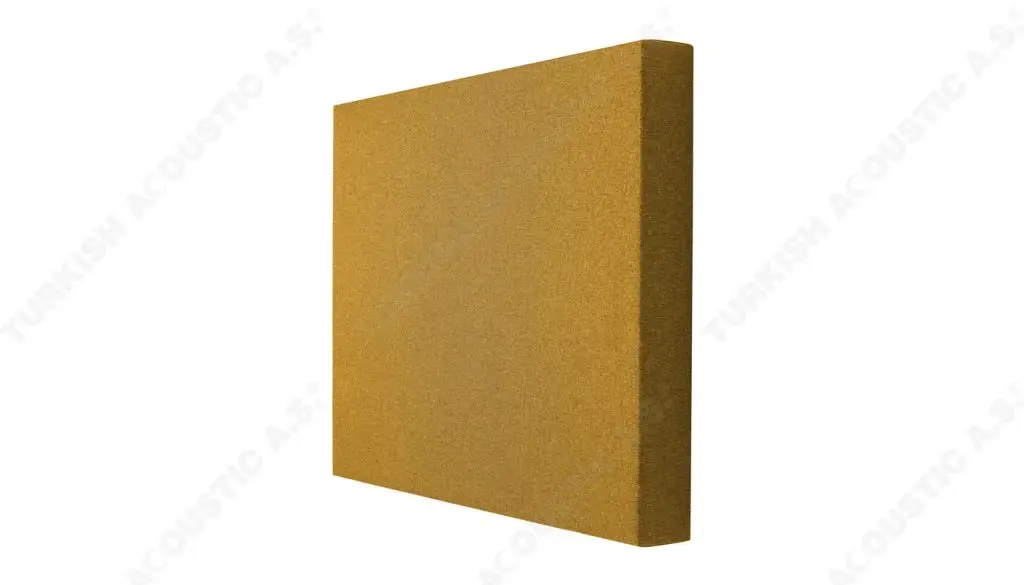

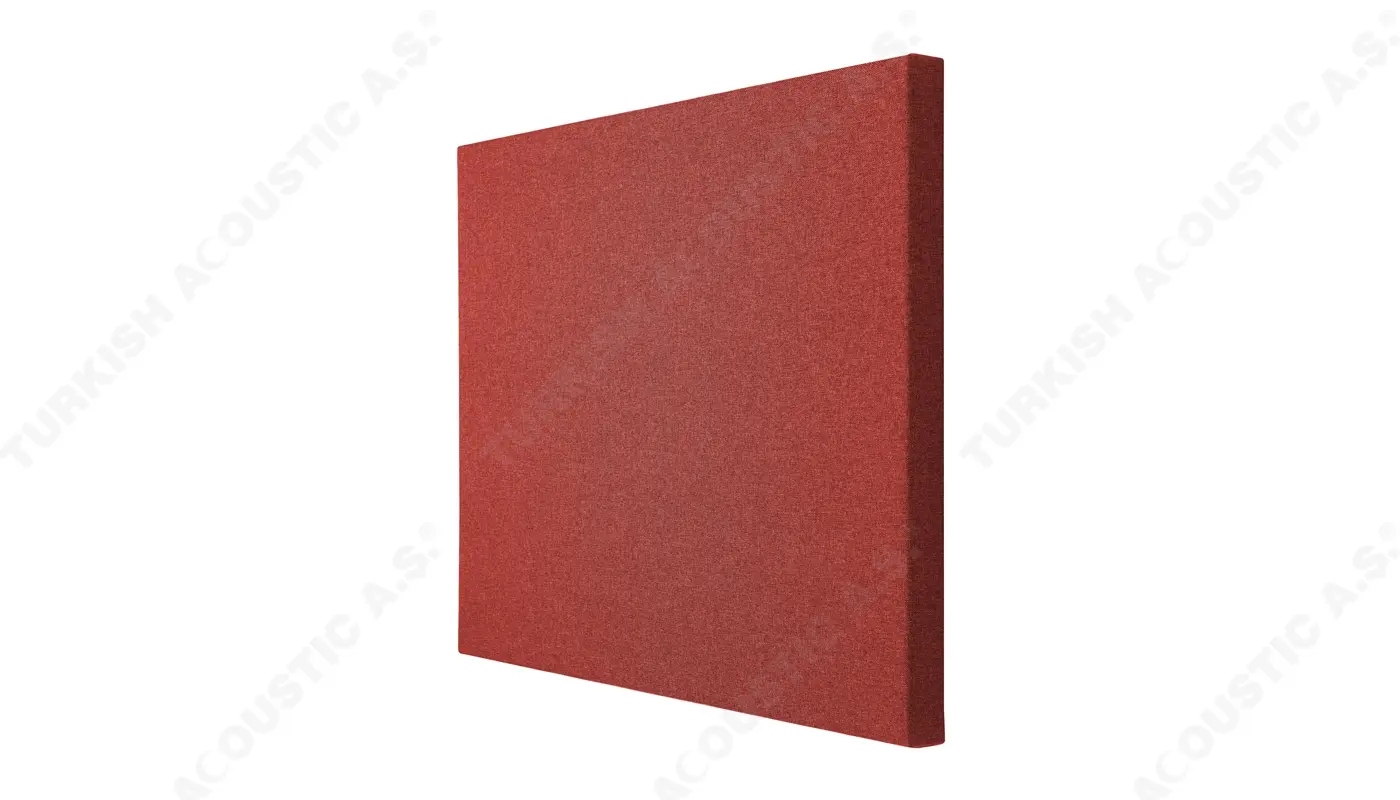

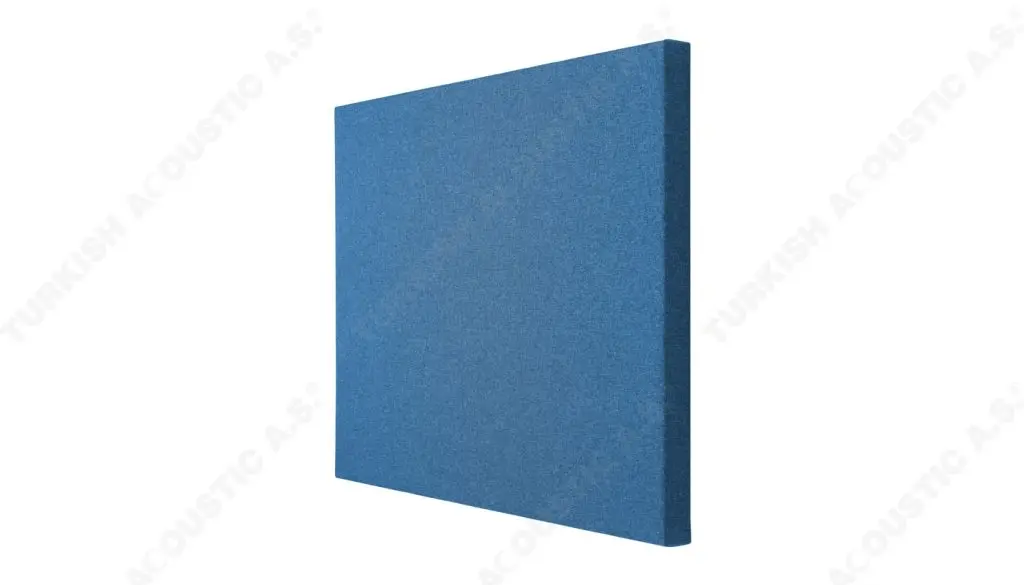

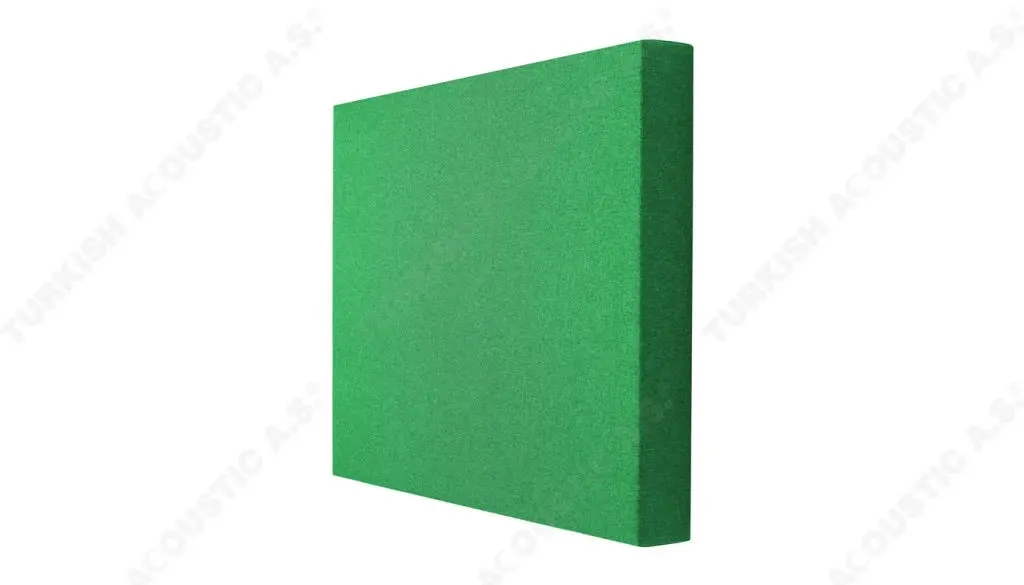

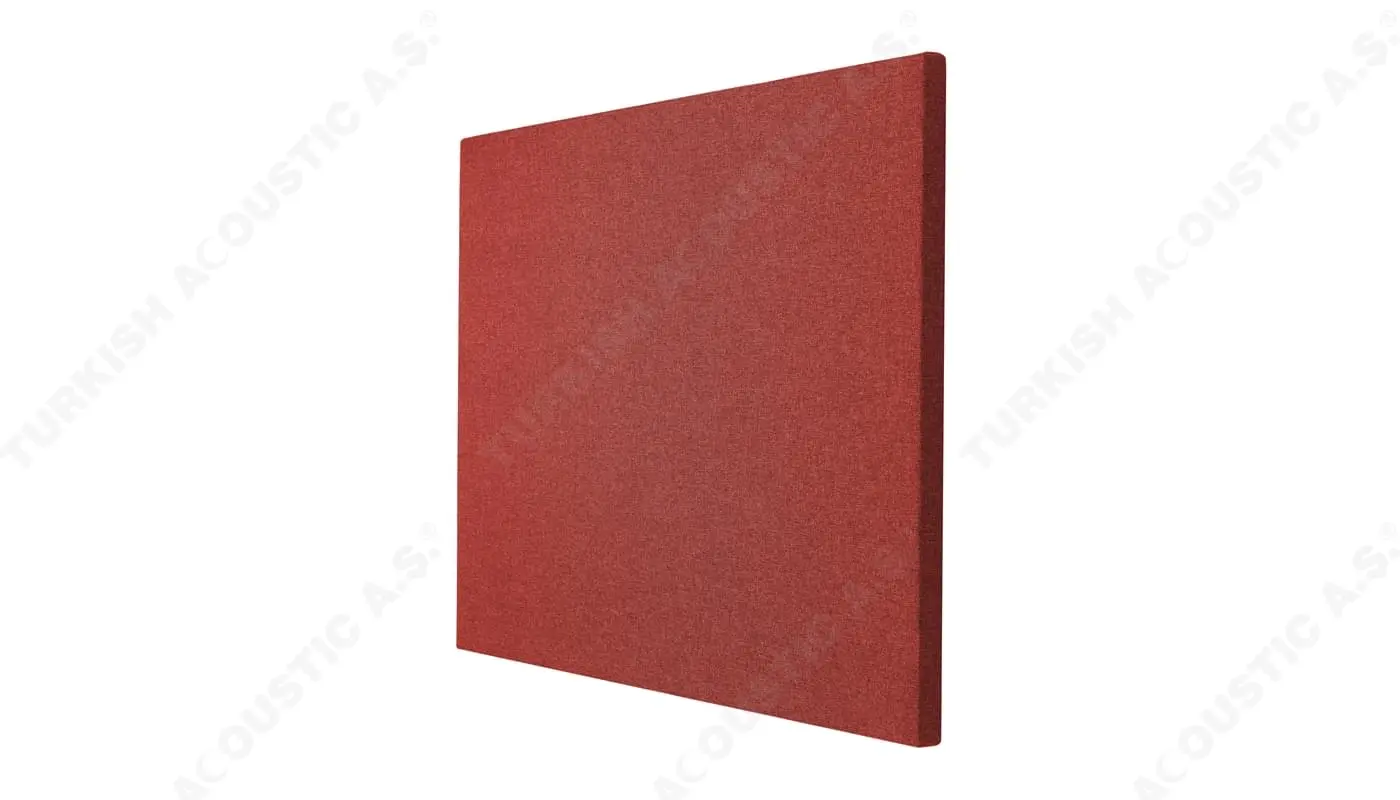

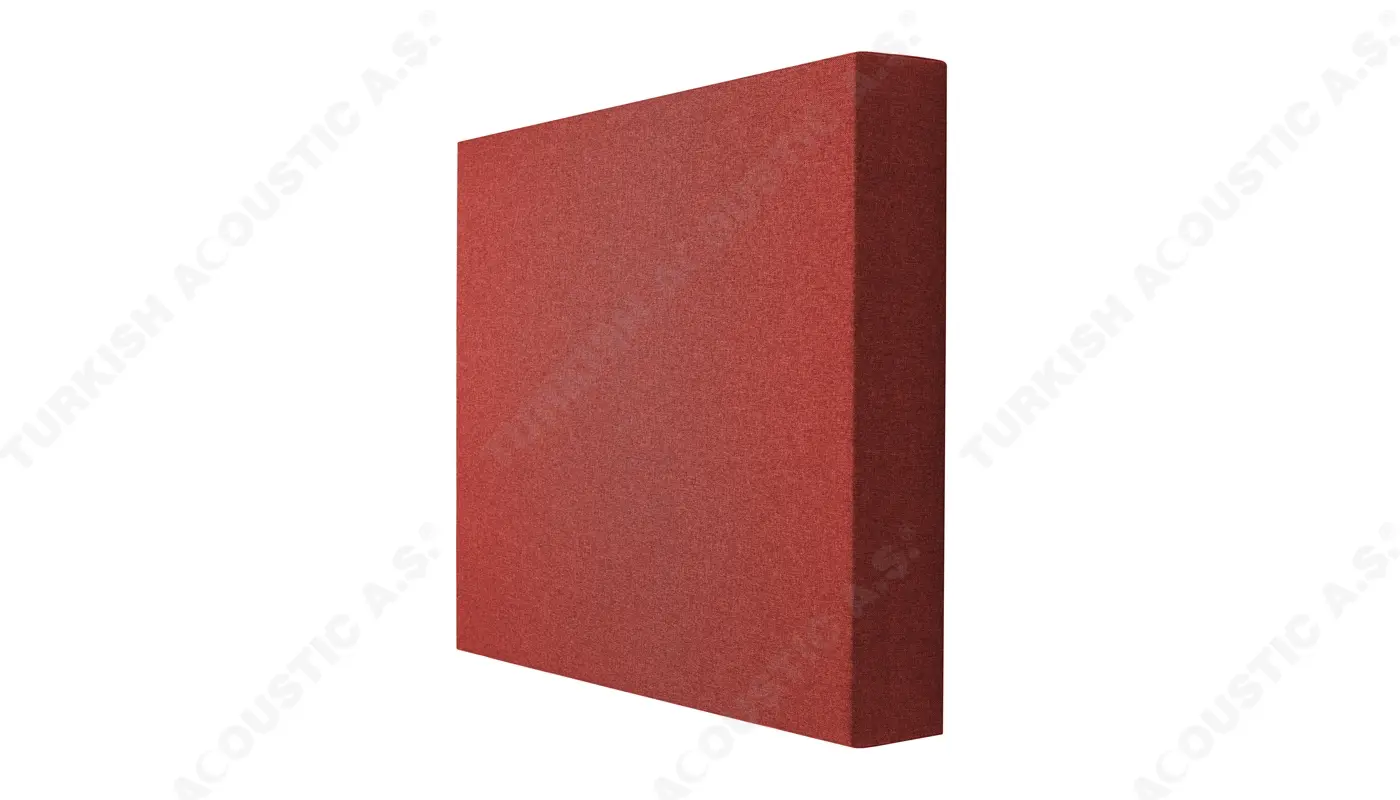

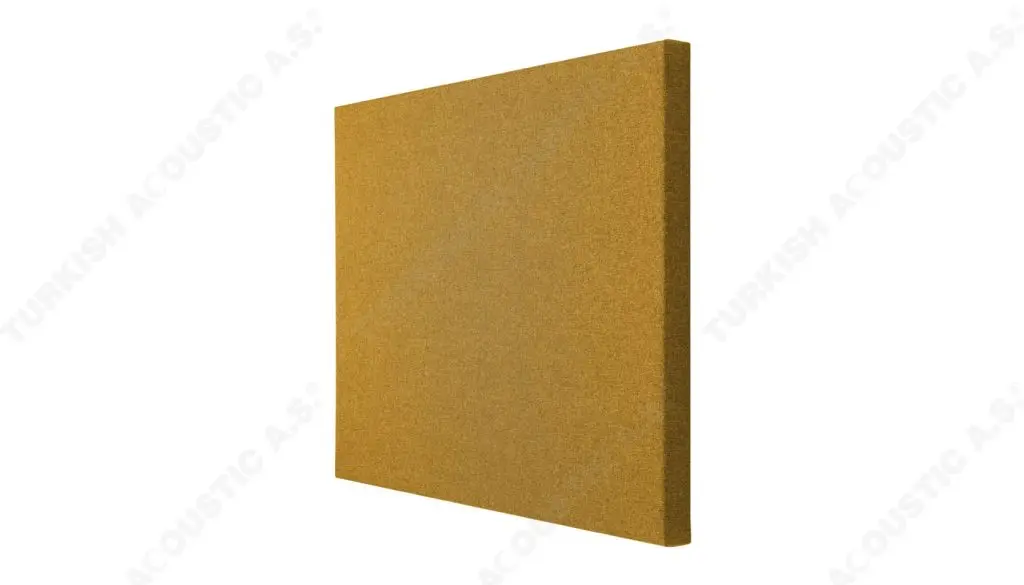

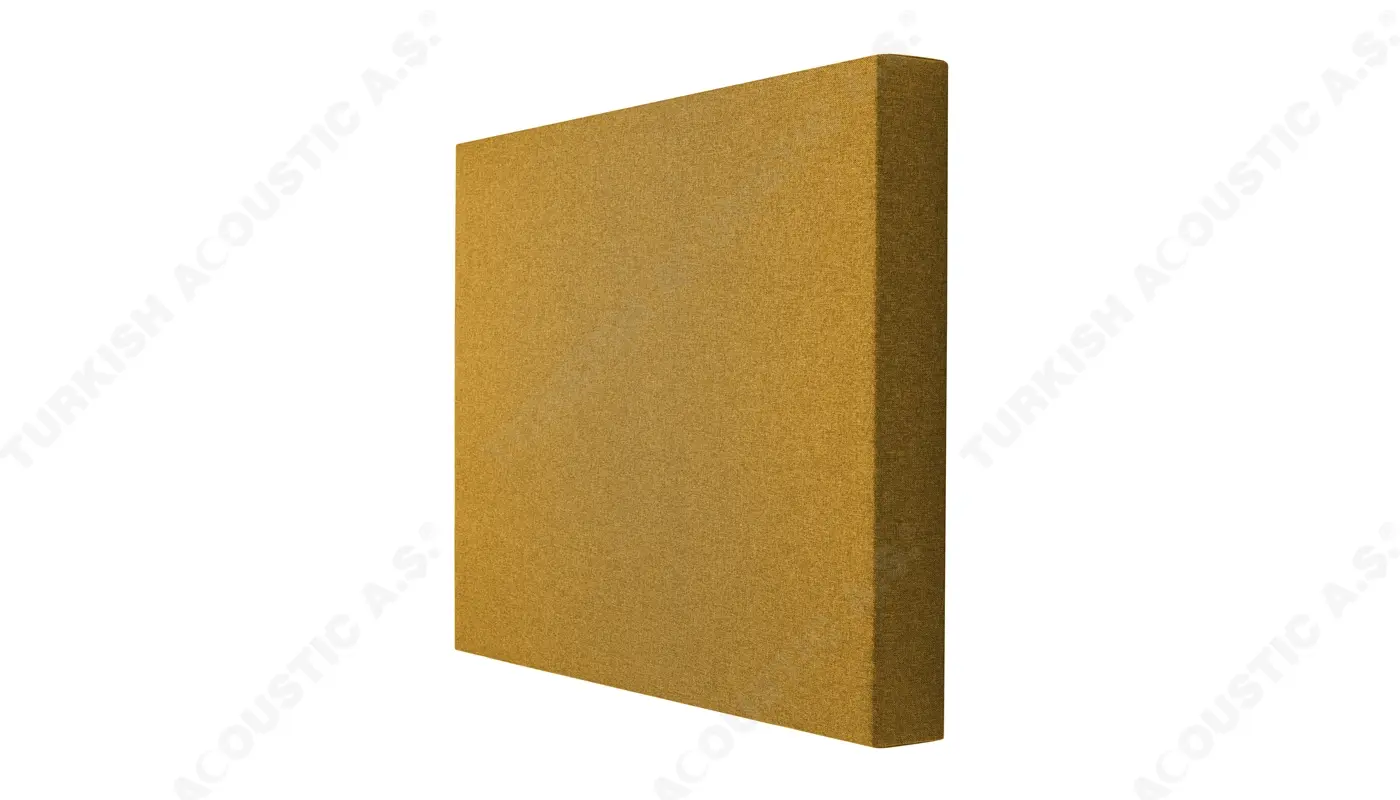

Acoustıc Wall Panels

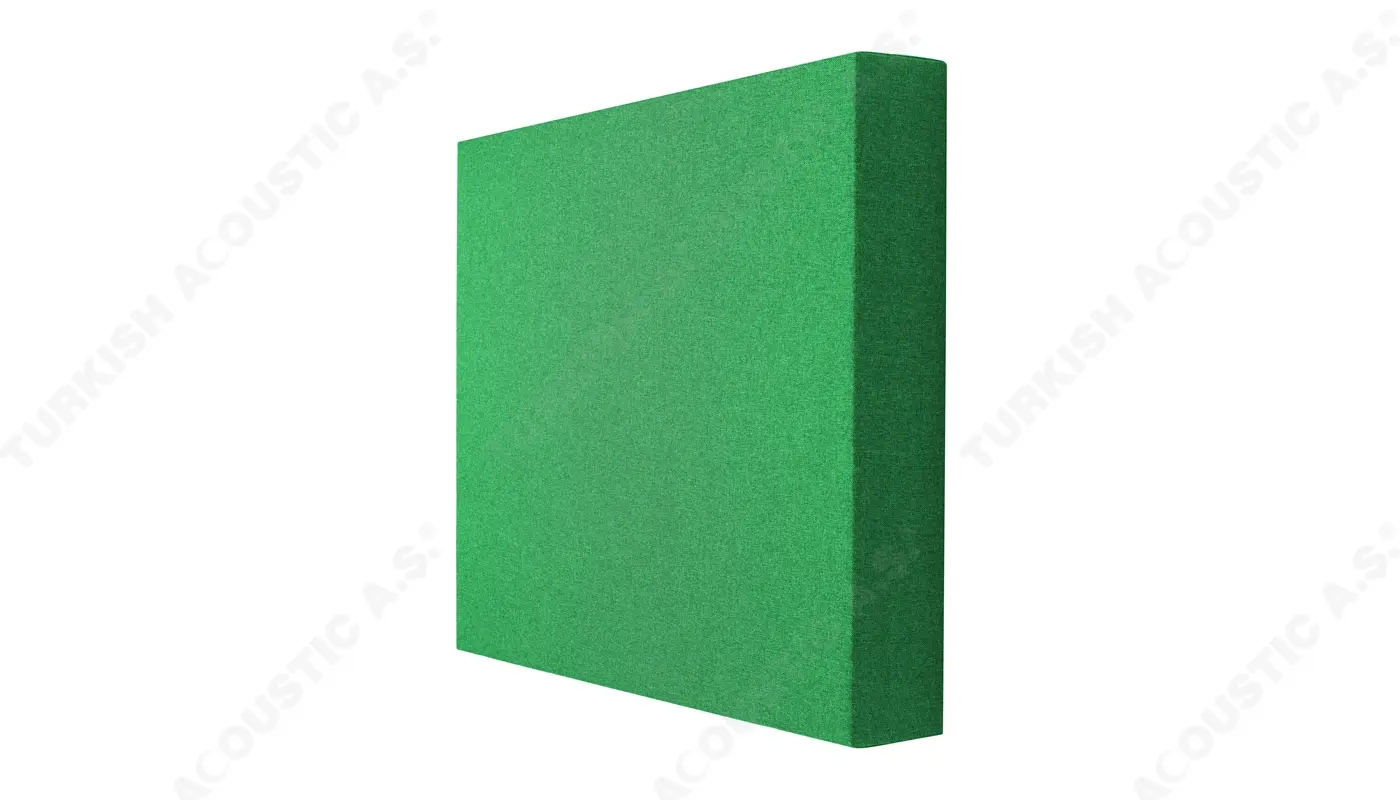

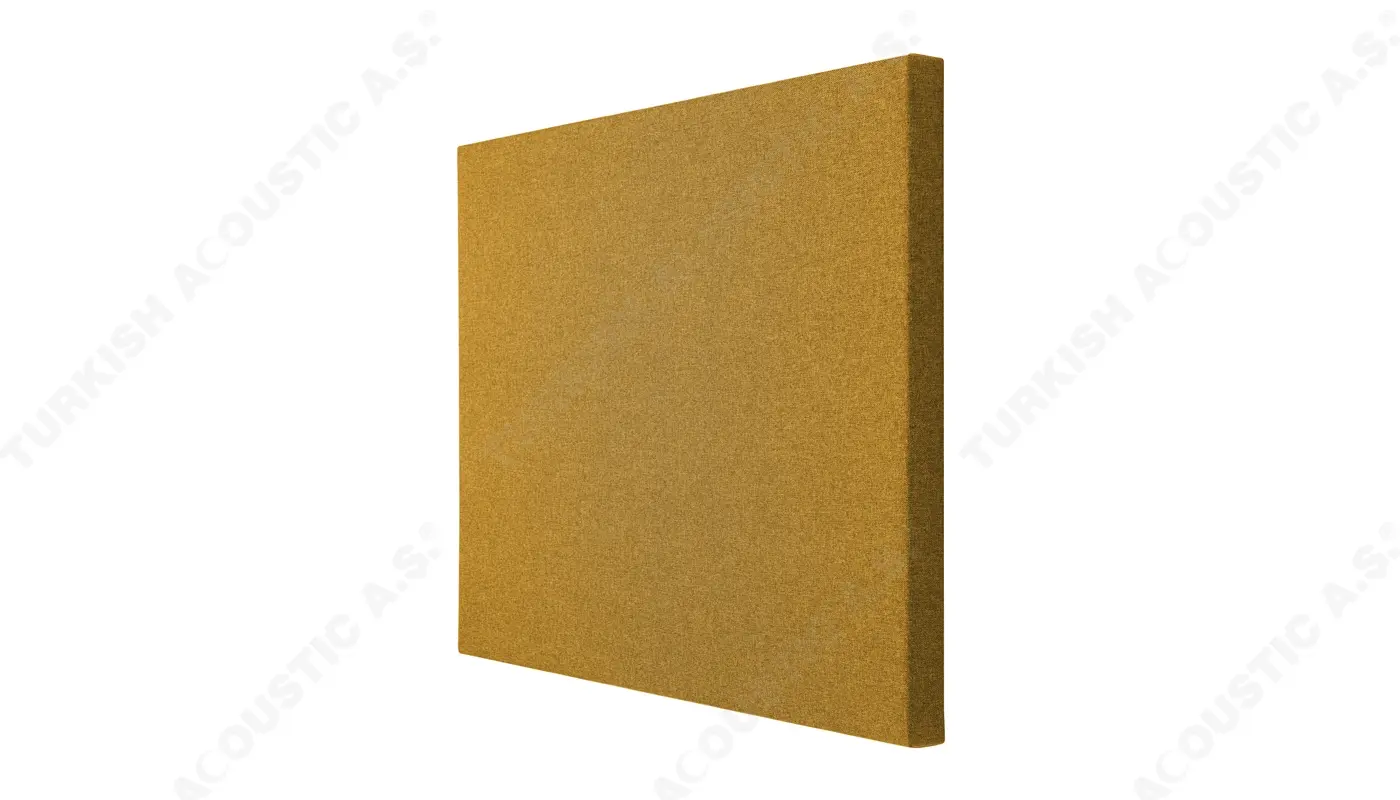

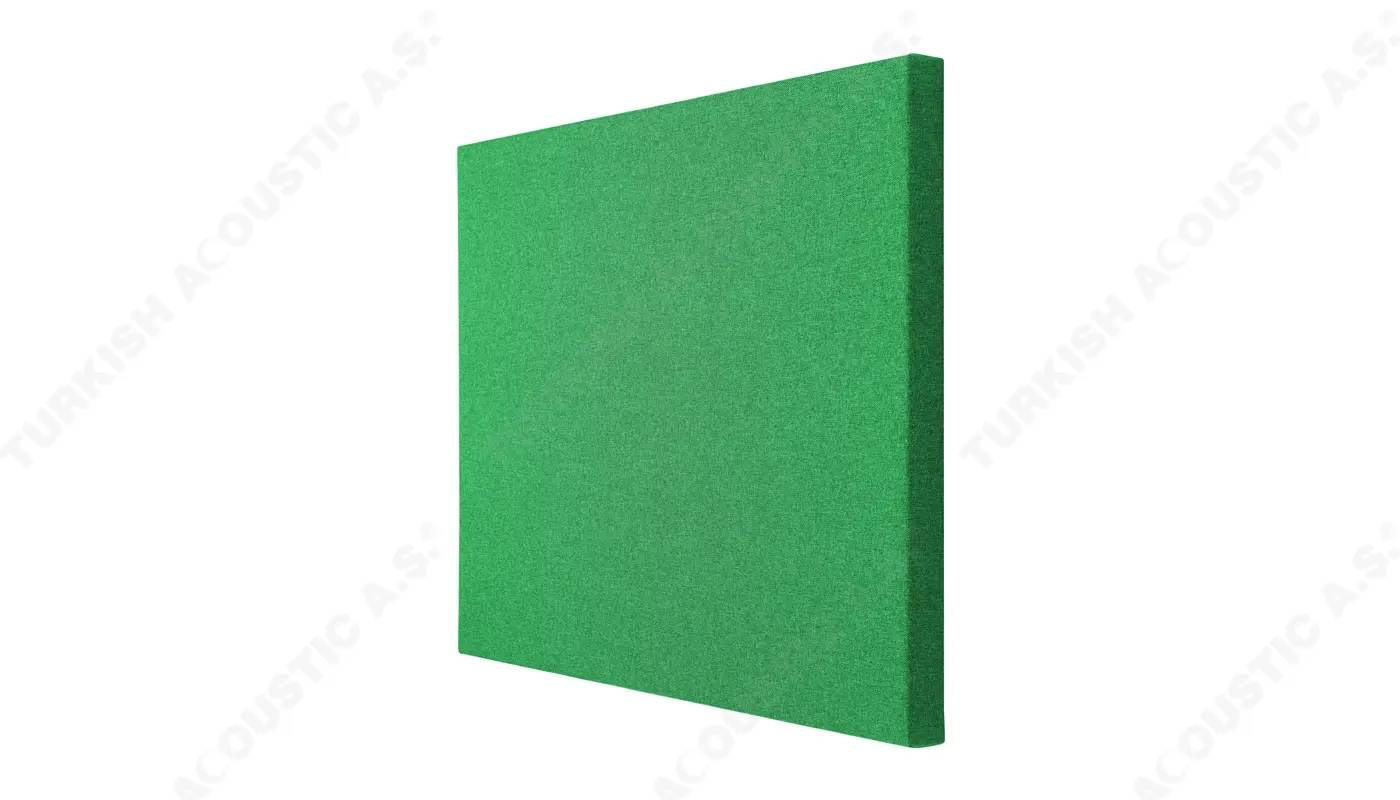

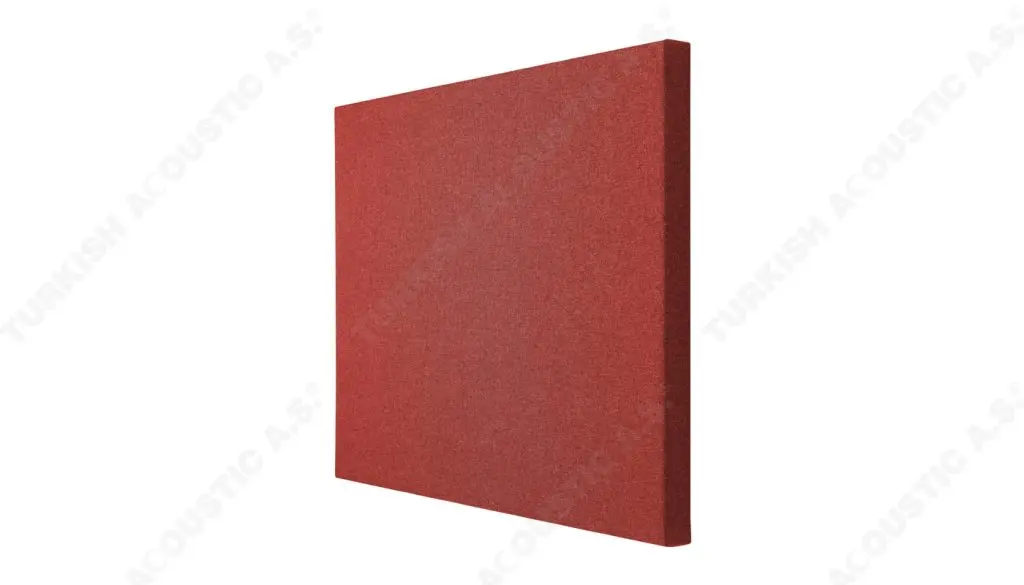

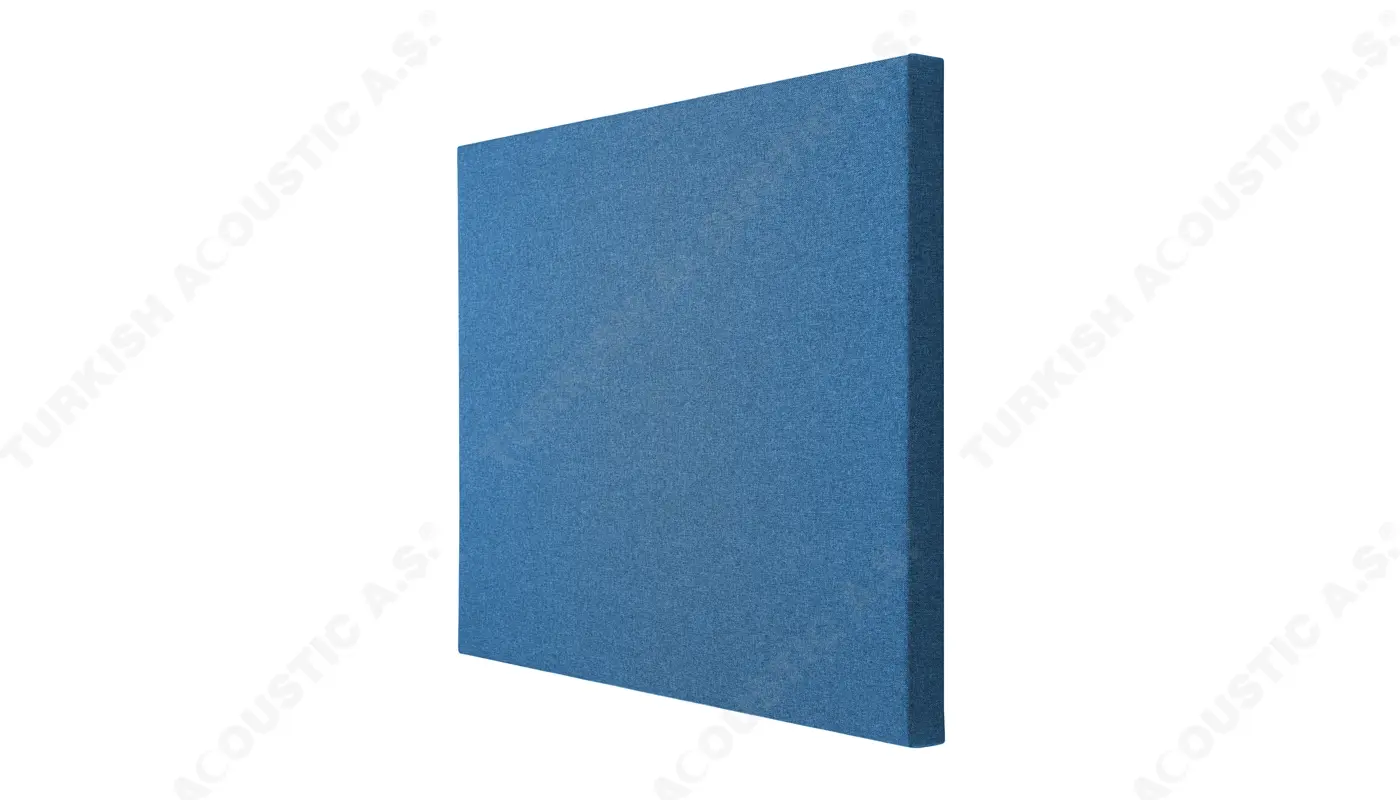

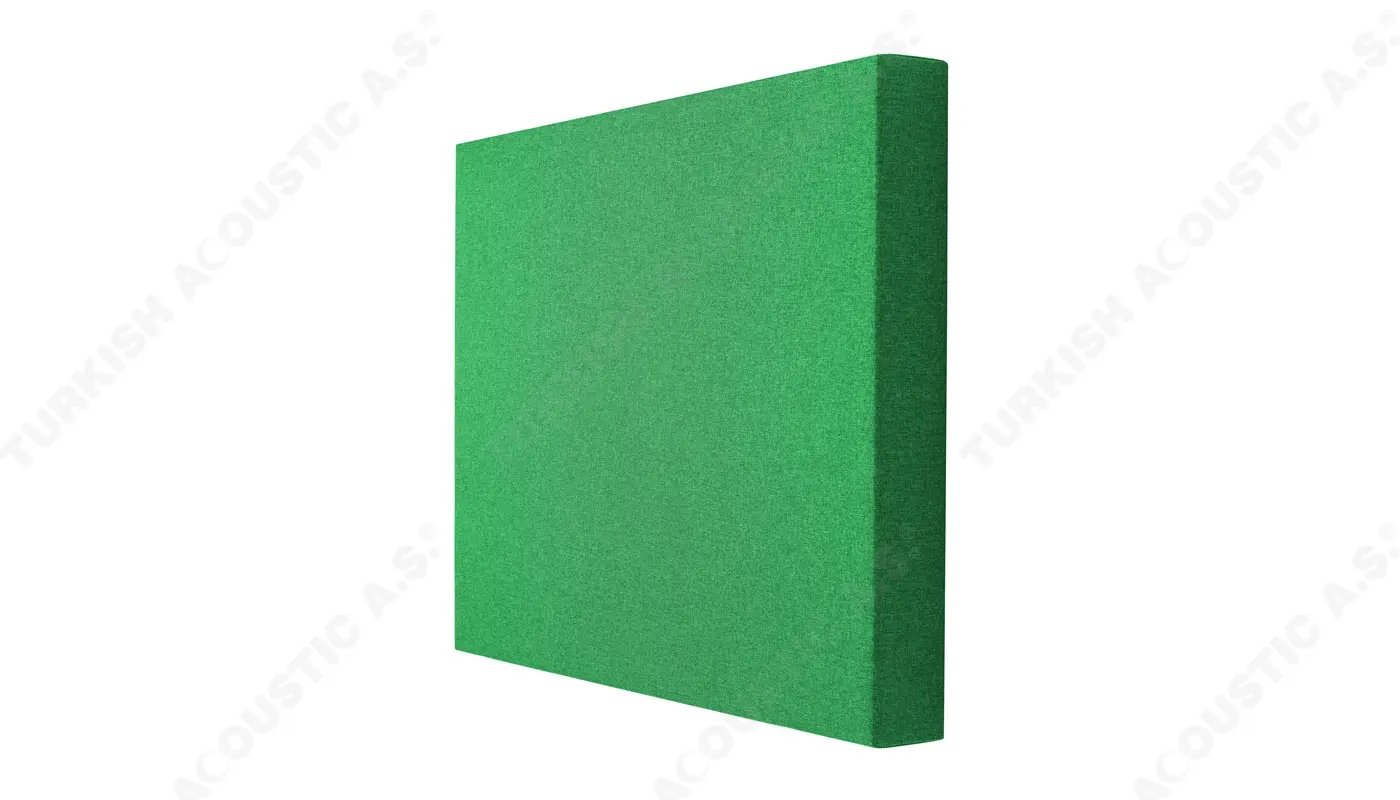

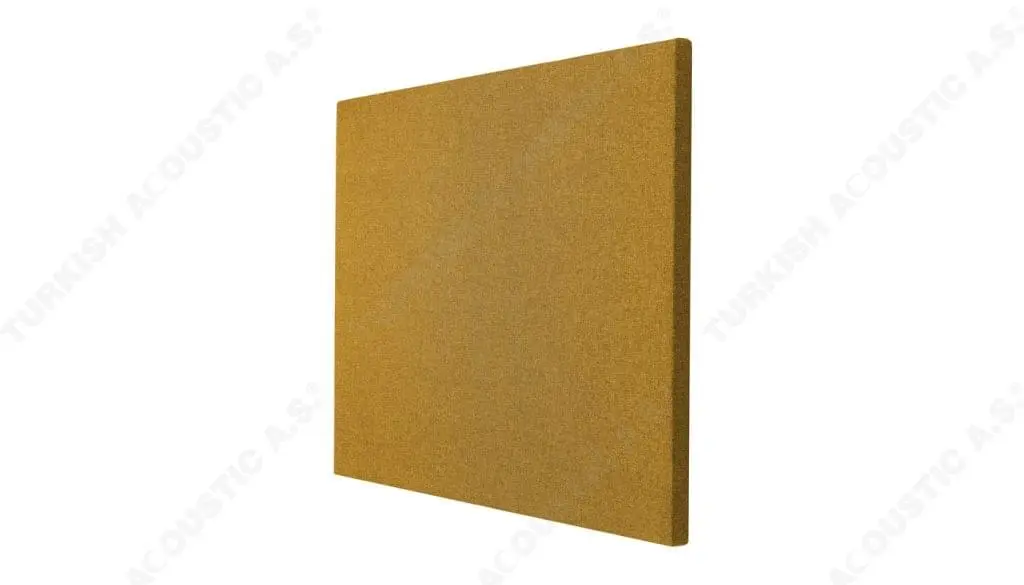

Product Images

Product Detaıls

Sponge fılled Profıle

Rock Wool fılled Profıle

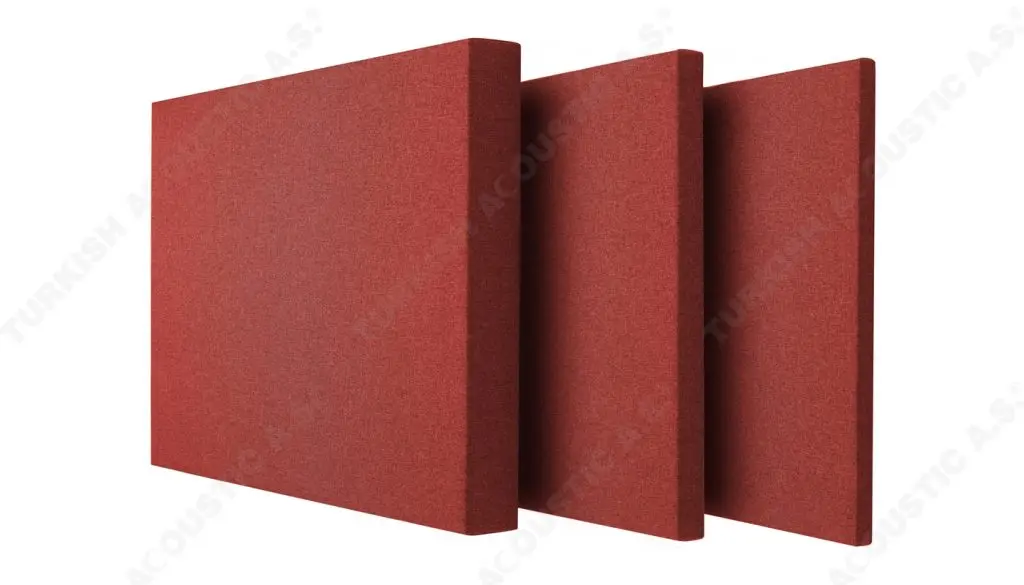

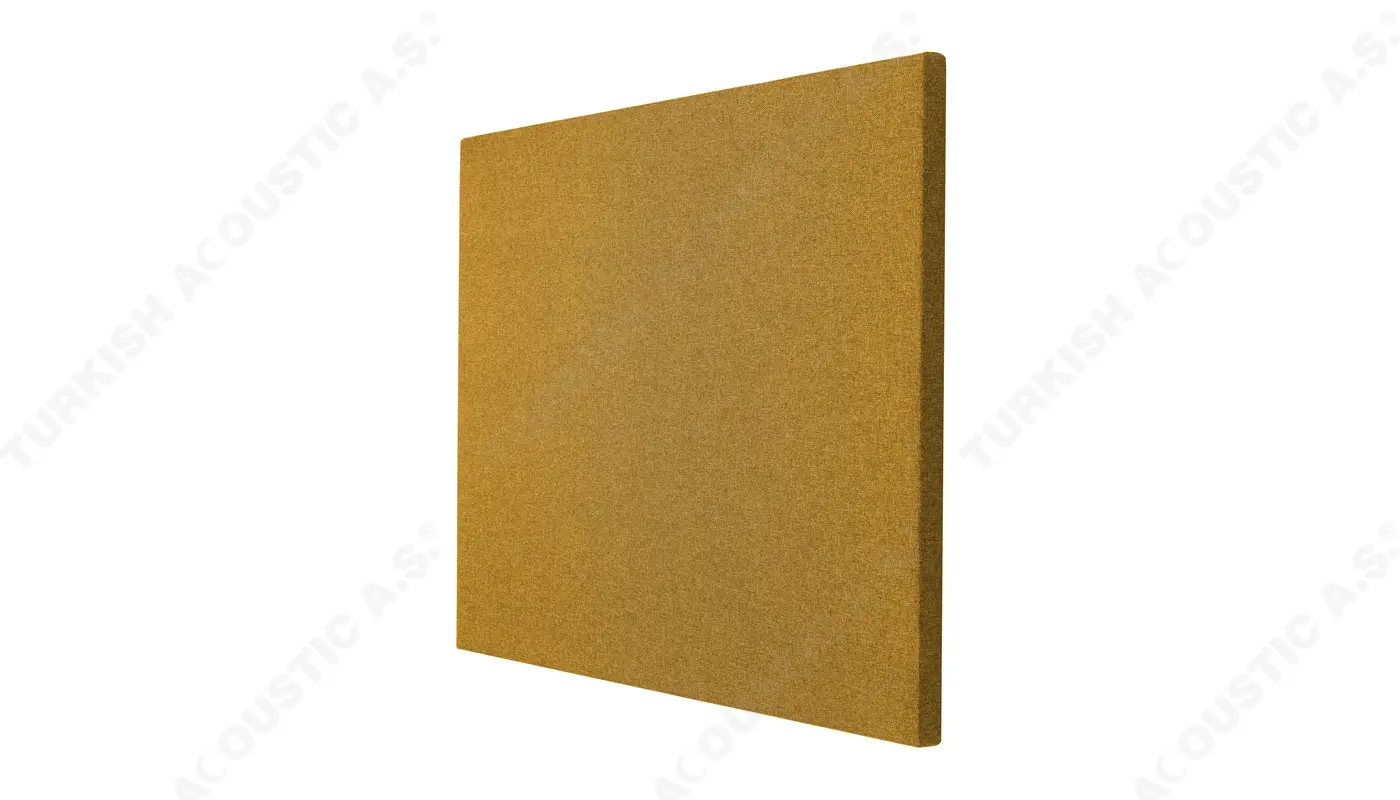

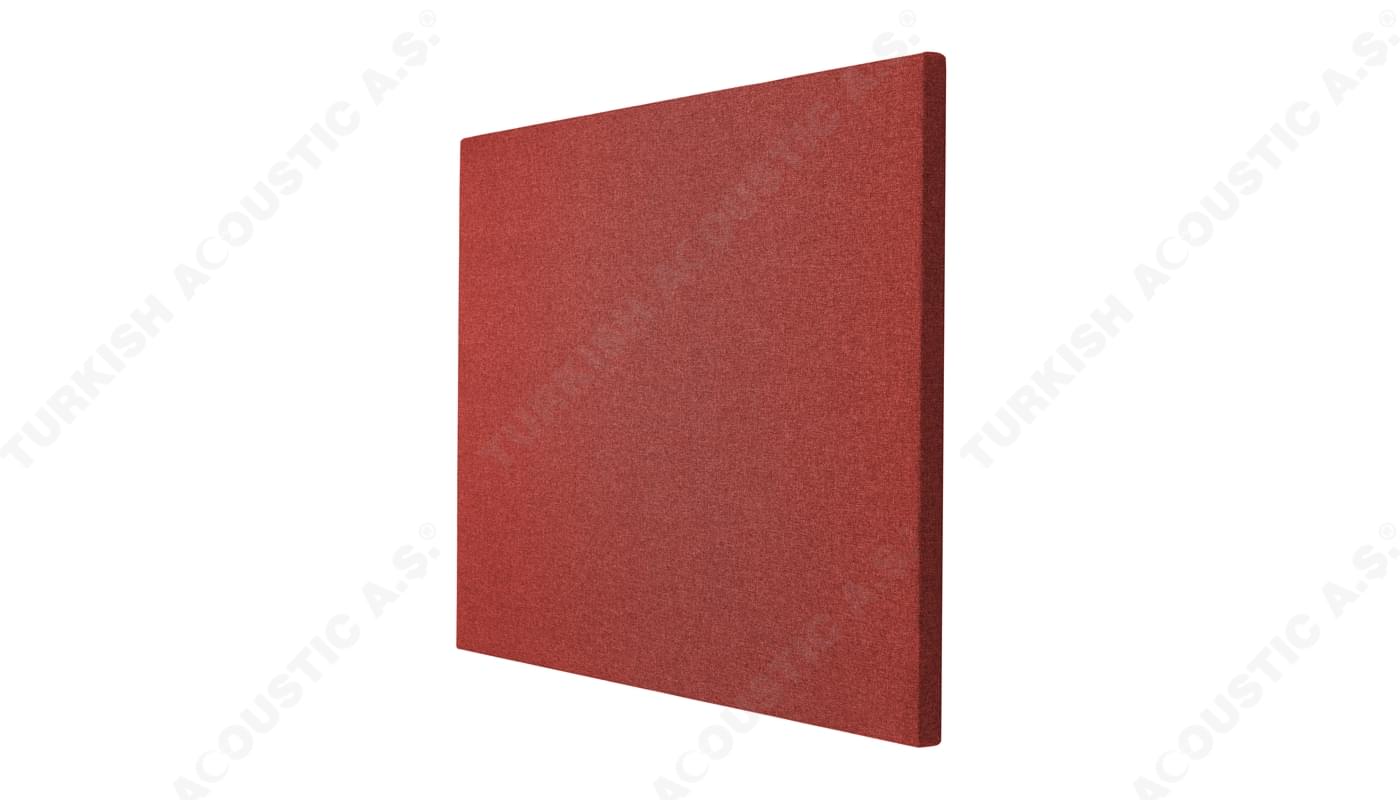

Acoustic Fabric Covered Panel :

Fabric covered acoustic panels are produced by using sound-absorbent acoustic materials such as glass wool and rock wool or fireproof acoustic sponges. Frontside of the panel is covered with sound-absorbent fabric applied with a stretch method or optional fireproof laminated fabric finish. As seen in the image on the left, panels are durable against impacts with reinforced wood. Our products are resistant to impacts and will not be punctured unless abraded by point and sharp materials. The front and backside of the acoustic fabric panels are covered with fiberglass. The visible front side of the panel is reinforced and high-density material and covered with acoustic fabric that is resistant to impacts and heat and has different color options. Our acoustic fabric-covered panels (covered with fireproof fabric) are beveled up to 3-5cm to the backside. The main material of the panels is acoustic rock wool in 95kg/m3 density. Acoustic fabric-covered panels are generally in standard sizes and thicknesses. Panel thickness: 20mm-40mm. Edge detail: Straight and reinforced. It is possible to produce in different sizes and colors (Project-based). NRC acoustic value (sound absorption value): between 0.95-1.00. Fire endurance of the acoustic fabric-covered panels is B s2 d0 class according to UNE – EN 13501-1:2007 standard. İstanbul sales office of the acoustic panels is Turkish Acoustic.

Acoustic Fabric Covered Panel: Acoustic fabric-covered panels are unlimited in color. Click here fabric chart for colors.

Acoustic Fabric Covered Panel Thicknesses: 20-40 mm standard thicknesses. Suitable for all technical provisions.

Acoustic Fabric Covered Panel Dimensions ( Standard Dimensions ) : 60 cm × 60 cm - 60 cm x 120 cm - 50 cm x 50 cm - 50 cm x 100 cm - 50 cm x 200 cm

Acoustic Fabric Covered Panel Dimensions ( Special Dimensions ) : 60 cm x 240 cm - 50 cm x 300 cm - 120 cm x 300 cm - 100 cm x 300 cm - 80 cm x 300 cm etc.

Acoustic Fabric Covered Panel Fields of Use: Conference rooms and seminar halls, meeting rooms and cinemas, auditorium, and studios.

Acoustic Fabric Covered Panel Options: Acoustic fabric-covered panels can be produced in different geometrical shapes and in different thicknesses.

Acoustic Fabric Covered Panel Nonflammability: Used materials are fiberglass and fabric coatings in the b1 nonflammability form.

Acoustic Fabric Covered Panel Density: Rock wool slab & acoustic fiberglass slab in 95 kg / m³ or 30 – 60 Dns Acoustic Sponge.

Acoustic Fabric Covered Panel Models: Solo Acoustic Panel – Orfe Acoustic Panel – Vocal Acoustic Panel – Velum Acoustic Panel

Tolerances: 30 mm thickness is between 25 – 30 mm, 40 mm thickness is between 35 – 40 mm, 50 mm is between 45 – 50 mm.

TWO TYPES OF ACOUSTIC SOUND ABSORBENT FILLED MATERIALS ARE USED IN THE ACOUSTIC PANELS. ACOUSTIC FIREPROOF SPONGE OR ROCK WOOL INSULATION SLAB

SOLO PANEL PRODUCT DETAILS

Solo Product Description: The visible surface of the high-density slab covered with fiberglass and fireproof sponge and its reinforced edges are covered with impact-resistant fabric with different color options. Edges are twisted 3-5cm to the backside.

Main Material: Acoustic fiberglass and fireproof sponge in 95 kg/m3 density. Dimensions: 600 × 600 mm, 600 × 1200 mm, 600 × 1800 mm, 600 × 2400 mm, 600 × 2700 mm, 600 × 3000 mm, 1200 × 1200 mm, 1200 × 1800 mm, 1200 × 2400 mm, 1200 × 2700 mm, 1200 x 3000 mm Thickness: 20-40 mm Edge Detail: Straight and reinforced. Acoustic NRC value: Between 0.95-1.00. Fire Endurance: B s2 d0 class

VOCAL PANEL PRODUCT DETAILS

Vocal Product Description: The visible surface of the high-density slab covered with fiberglass and the fireproof sponge is covered with impact-resistant fabric with different color options. Vocal, which is assembled with visible carrier profiles, has open edges.

Main Material : Acoustic fiberglass slab & fireproof sponge in 95 kg/m3 density Dimensions : 600 × 600 mm, 600 × 1200 mm, 600 × 1800 mm, 600 × 2400 mm, 600 × 2700 mm, 600 × 3000 mm, 1200 × 1200 mm, 1200 × 1800 mm, 1200 × 2400 mm, 1200 × 2700 mm, 1200 x 3000 mm Thickness : 20 – 40 mm Edge Detail: Straight and open Acoustic NRC Value : between 0.95-1.00. Fire Resistance: B s2 d0 class according to UNE-EN 13501-1:2007 standard Type of Mounting: Visible Profile

VELUM PANEL PRODUCT DETAIL

Velum Panel Description: The front and backside of the high-density slab covered with fiberglass and fireproof sponge and its vertical slotted edges are covered with impact-resistant fabric with different color options.

Main Material: Acoustic fiberglass slab & fireproof sponge in 95 kg/m³ density

Dimensions: 600 × 600 mm, 600 × 1200 mm, 600 × 1800 mm, 600 × 2400 mm, 600 × 2700 mm, 600 × 3000 mm, Thickness: 40 mm Edge Detail: Slotted and reinforced Akustik NRC Value: between 0.95-1.00 Fire Endurance: B s2 d0 class according to UNE-EN 13501-1:2007 standard Type of Mounting: Vertical profile inside canal suitable for the hidden system is processed to floor and wall with the help of leveling line and plumb scales. The wall is leveled with its horizontal profiles to eliminate scale and plaster defects. Two horizontal profiles are sufficient along with the wall height.

ORFE PANEL PRODUCT DETAIL

Orfe Product Description: The visible surface of the high-density slab covered with fiberglass and fireproof sponge and its aluminum frame are covered with impact-resistant fabric with different color options. Edges are twisted 3-5cm to the backside.

Main Material: Acoustic fiberglass slab & fireproof sponge in 95 kg/m³ density. Dimensions: 600 × 600 mm, 600 × 1200 mm, 600 × 1800 mm, 600 × 2400 mm, 600 × 2700 mm, 600 × 3000 mm, 1200 × 1200 mm, 1200 × 1800 mm, 1200 × 2400 mm, 1200 × 2700 mm, 1200 x 3000 mm Thickness: 20-40 mm Edge Detail: Straight edges on aluminum frame Akoustic NRC Rate: between 0.90-0.95 Fire Endurance: B s2 d0 class according to UNE-EN 13501-1:2007 standard B s2 d0 Type of Mounting: Hook / Z Clip

Implementatıons

Acoustıc Panel Coatıng

Product Content

Fabrıc covered Panels

Product Profıles

Acoustıc Panel Coatıng

Product Securıty

Sound Absorptıon

Product Assembly

Product Packages

Color Combınatıon

Acoustıc Panel Coatıng

İncelenme 186

Acoustic Panel Size	Height-Thickness	Absorption Factor Suitable for DİN52212
mm	mm	125 Hz	250 Hz	500 hz	1000 Hz	2000 Hz	4000 Hz
1000x1000	30 (30/10)	0,10	0,21	0,54	0,90	0,98	0,93
1000x1000	40 (40/10)	0,11	0,32	0,63	0,90	0,91	0,95
1000x1000	50 (50/10)	0,16	0,54	1,01	0,90	1,01	1.02
