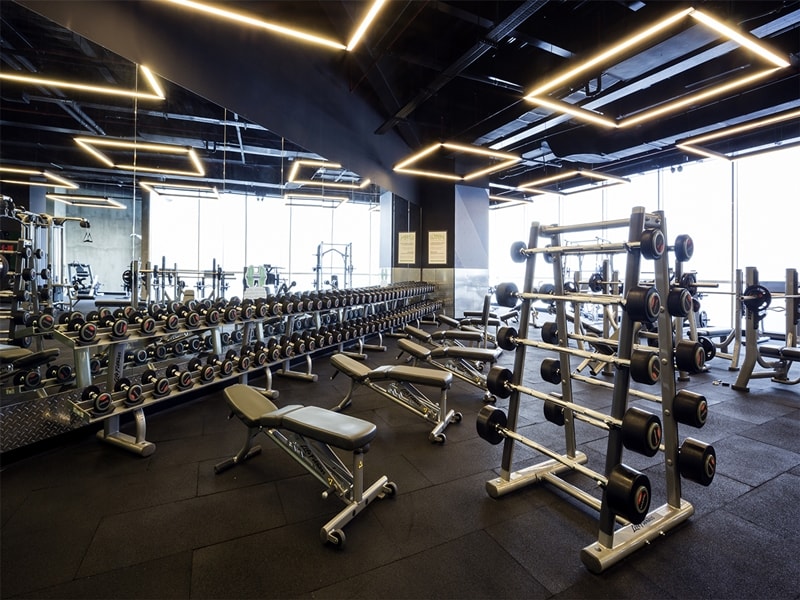

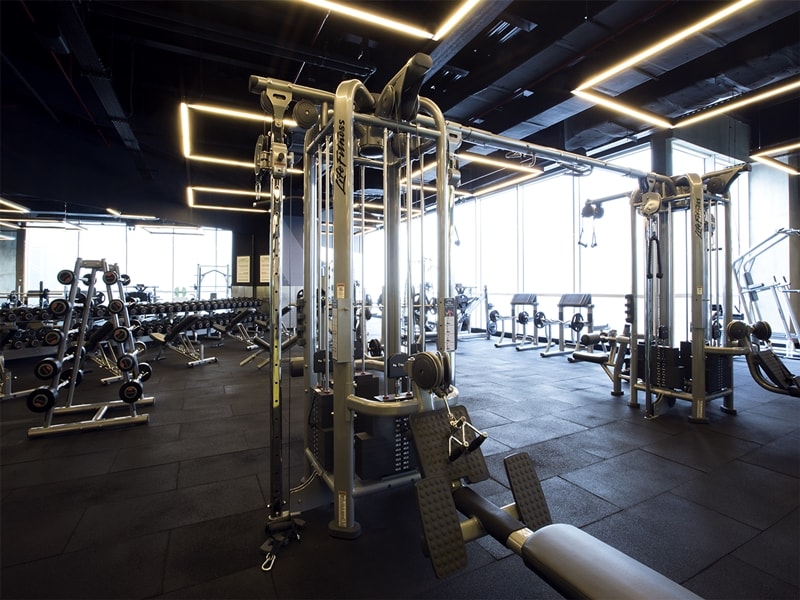

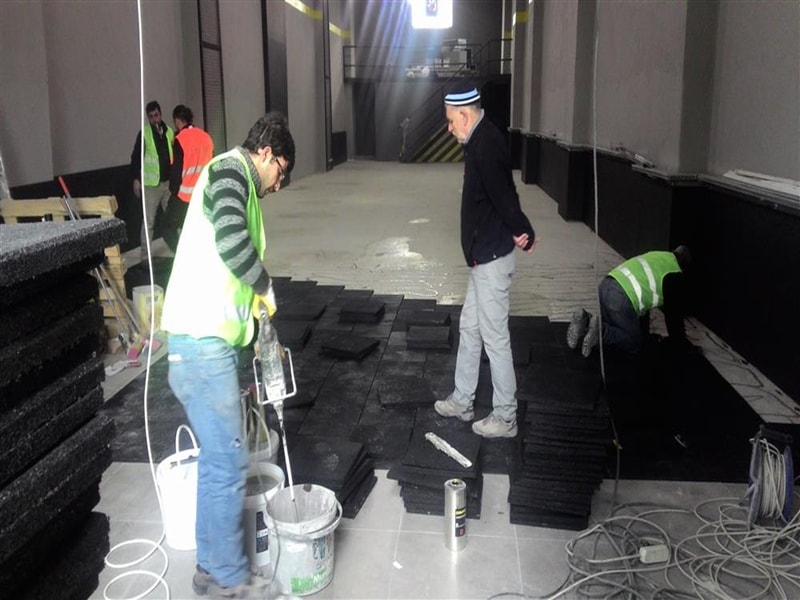

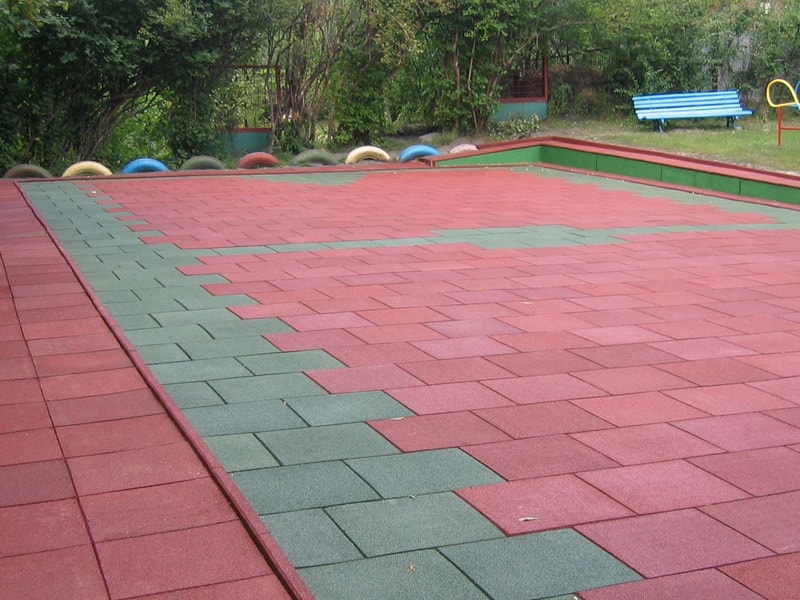

Application Images
Medicine | Most | Size | Thickness |
BLOCK![]() |
200 mm | 250 mm | 20 mm – 25 mm – 30 mm – 40 mm – 50 mm – 60 mm |

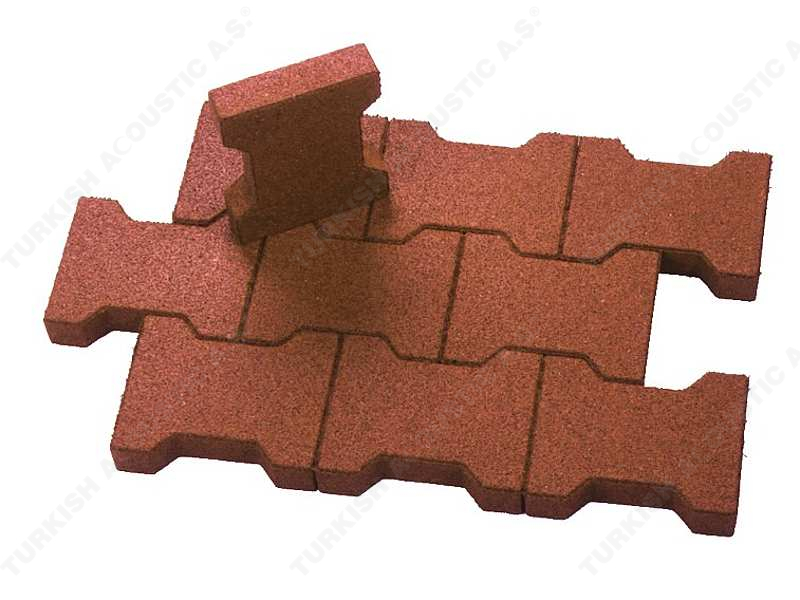

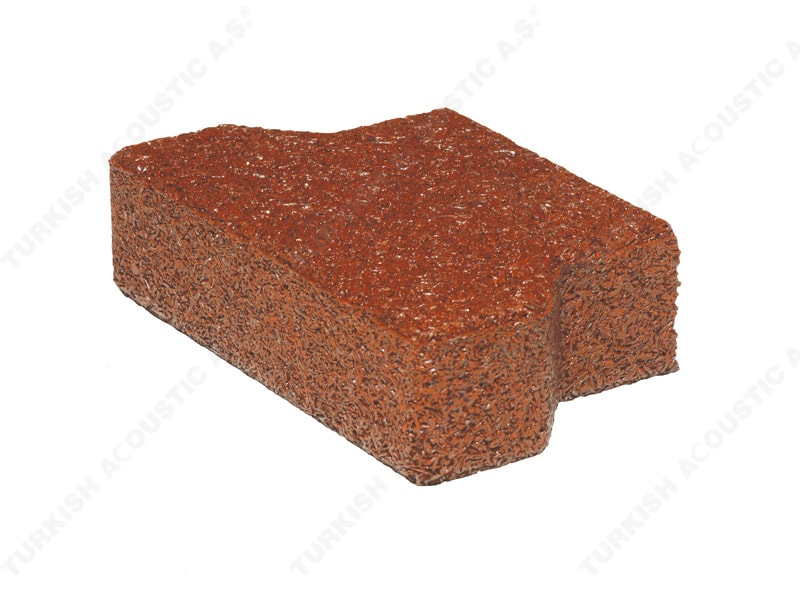

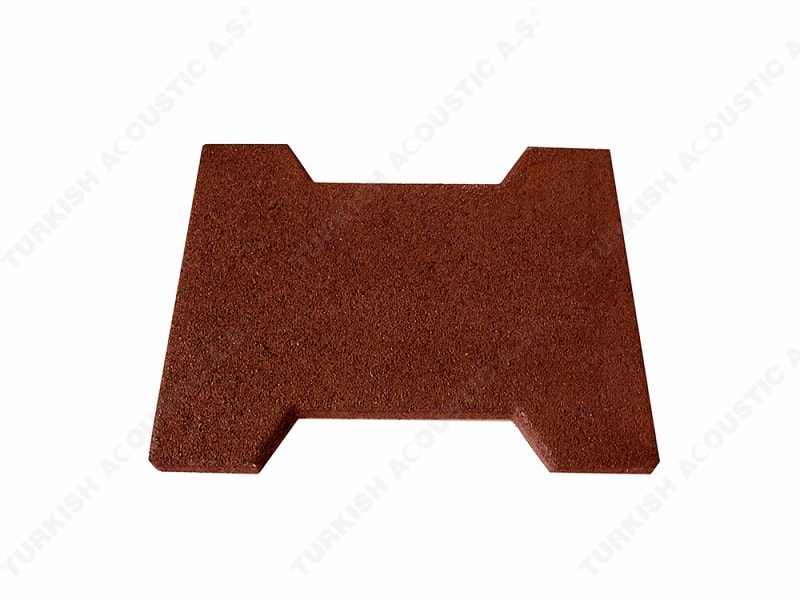

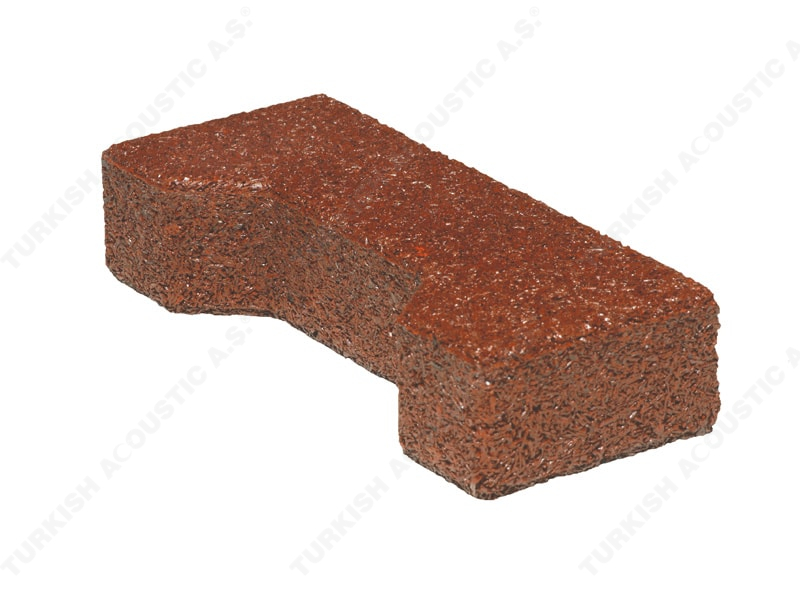

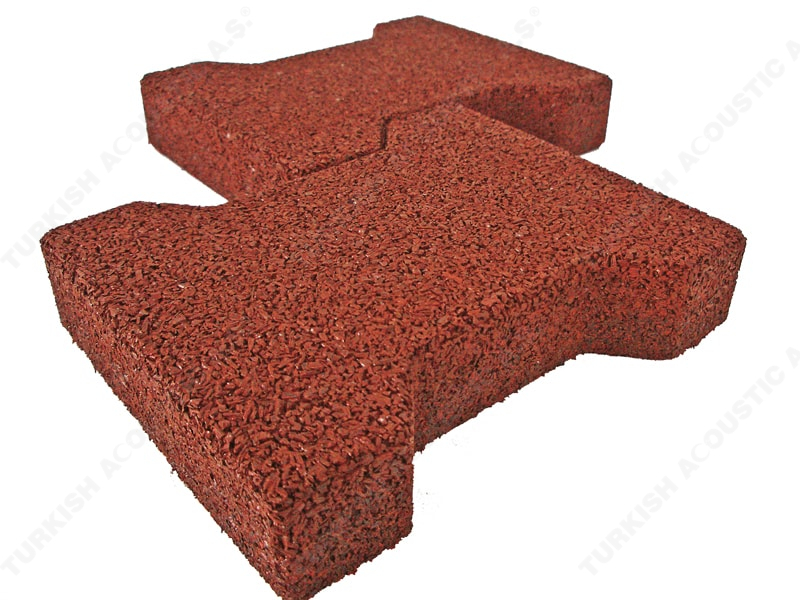

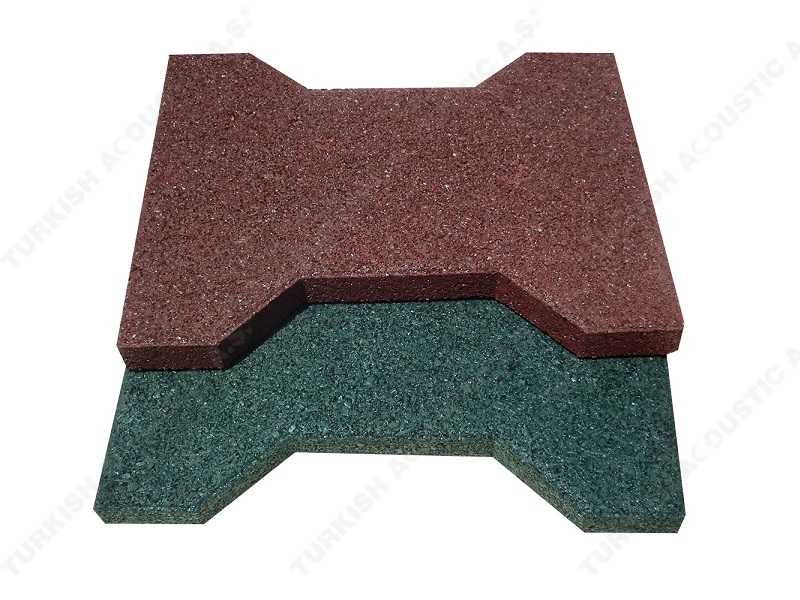

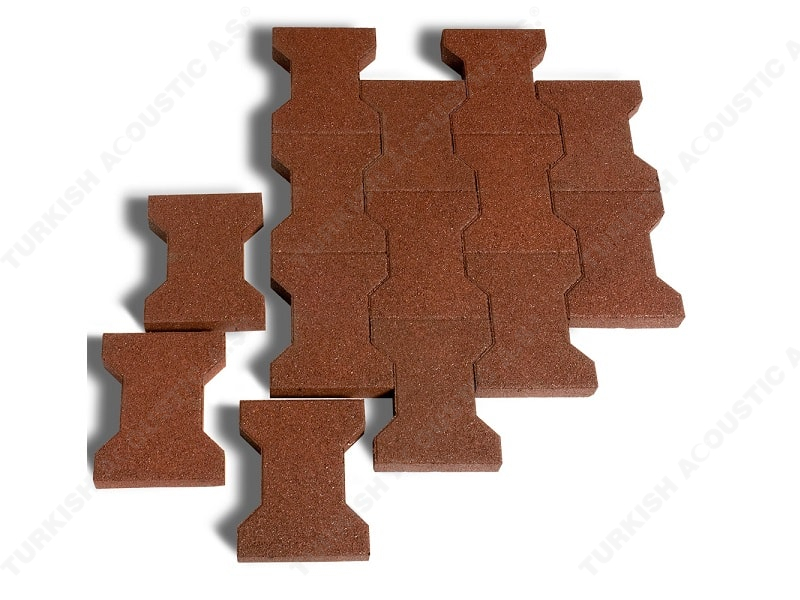

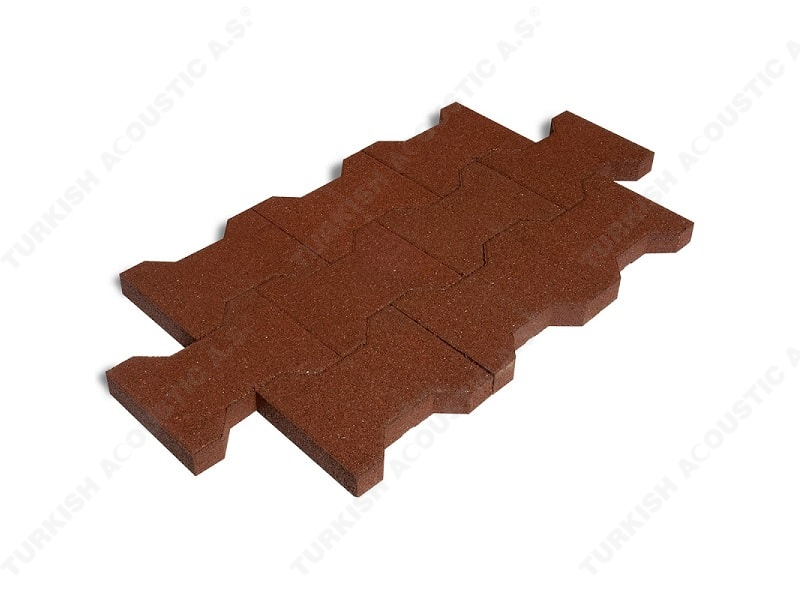

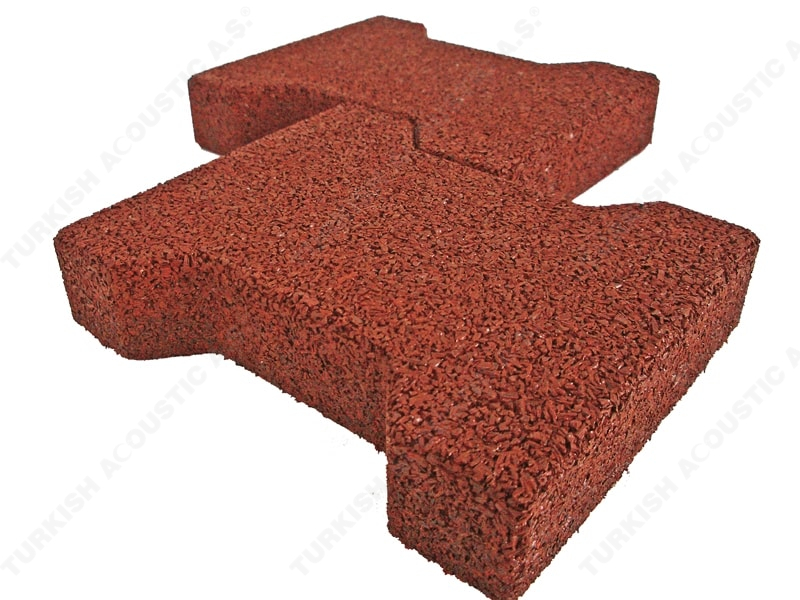

Harmony Keystone: Rubber Flooring, which is obtained by dosing SBR granules obtained from 100% recycling with polyurethane binders and color pigments and then pressing them with high temperature, Harmony Kilit series is produced for floor coating solutions in 20 × 25 sizes and in different thicknesses. Harmony Lock series, which is obtained by dosing with polyurethane binders and color pigments and then pressing with high temperature, is produced for flooring solutions in 20 × 25 sizes and different thicknesses. According to the chemical analysis results, 100% recycled 1.00 - 3, It must be manufactured after being mixed with a polyurethane-based single-component binder and UV-resistant color pigments in automatic mixers, pouring into each container and dosing, applying heat treatment and pressure in rubber presses and molding for a certain period of time. In the production of rubbers, polyurethane-based single component binder should not be less than 6%. In the production of rubber materials, iron oxide for the red color and chromium oxide pigments for the green color should be used. The average weight of 1 square meter of rubber flooring materials; It is between 20.50 - 21.50 kg for 25 mm. Rubber flooring material sizes will be 200x250x20,25,30 or 40 mm. Since the material to be laid on the ground is water-permeable, there are water channels at the bottom of the material to provide drainage. In order to let the water in the surface on the upper surface of the rubber materials, bevels should be made to create a joint on the edges. Our Products Have Necessary Quality Certificates
|
Medicine | Most | Size | Thickness |
HEXAGON![]() |
400 mm | 450 mm | 20 mm – 25 mm – 30 mm – 40 mm – 50 mm – 60 mm |

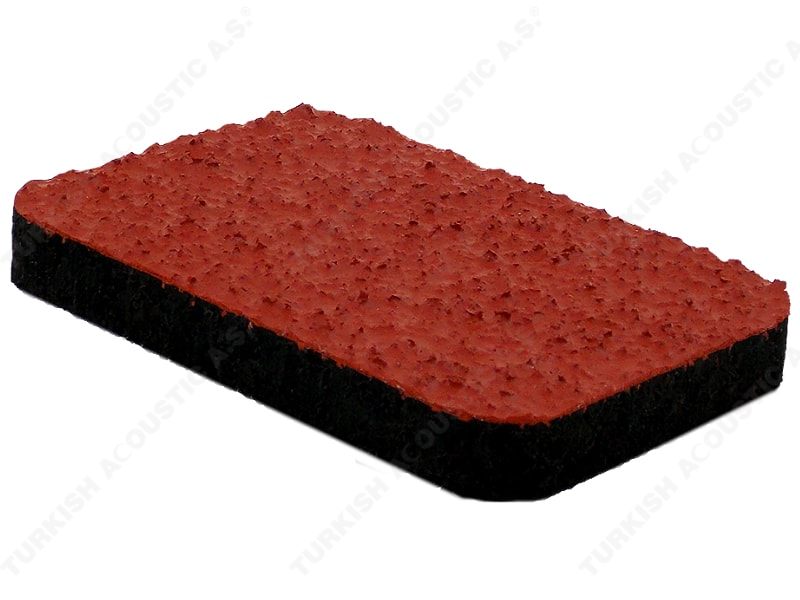

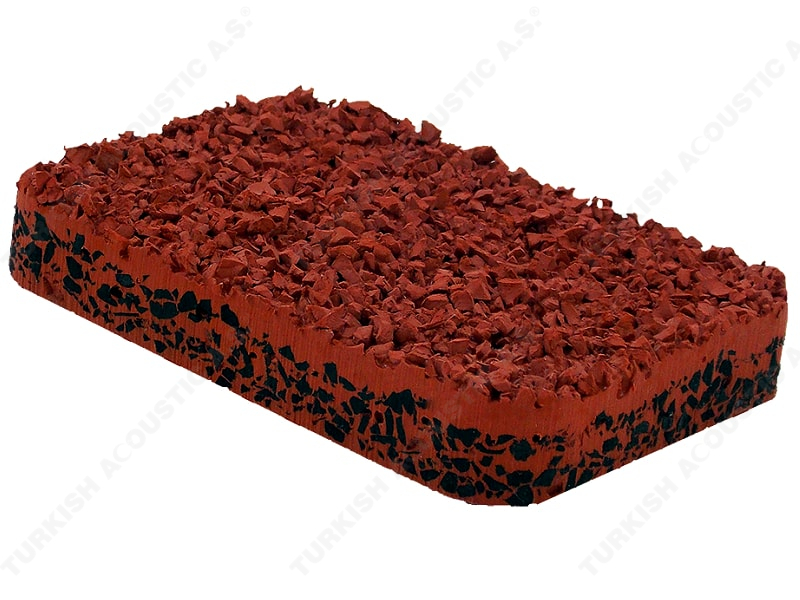

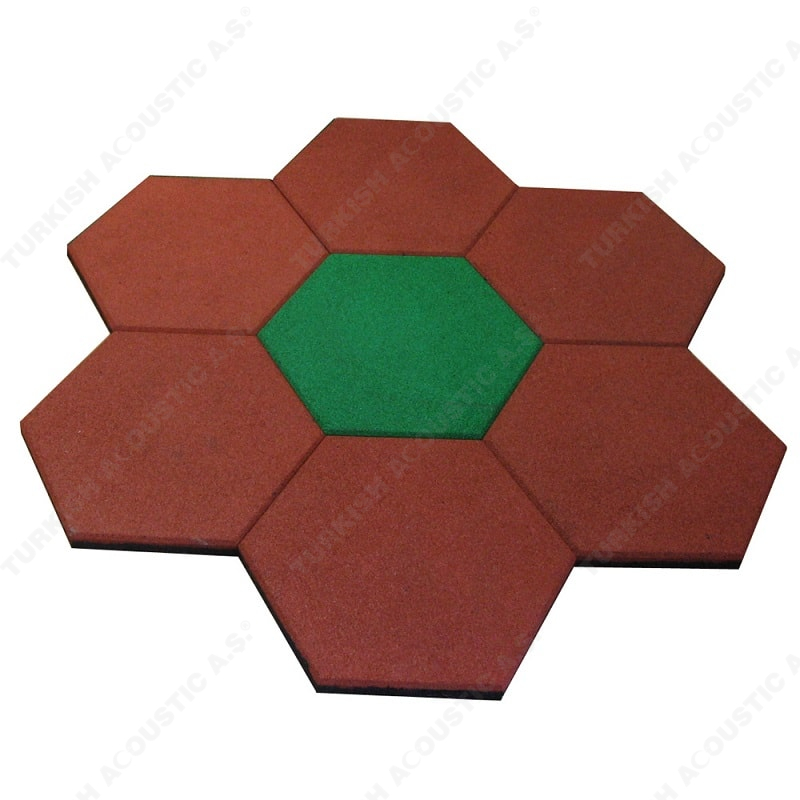

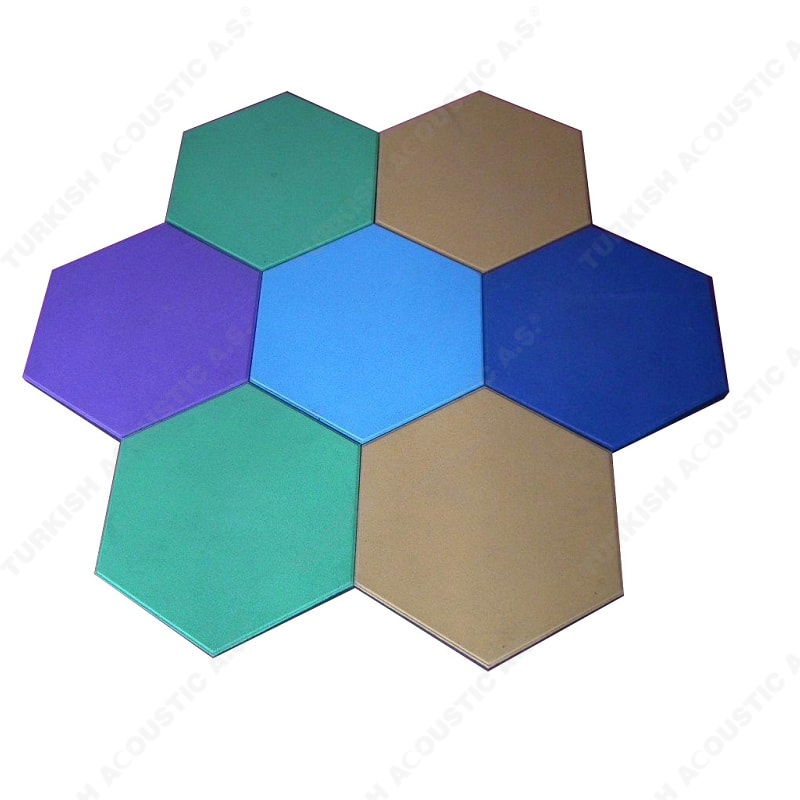

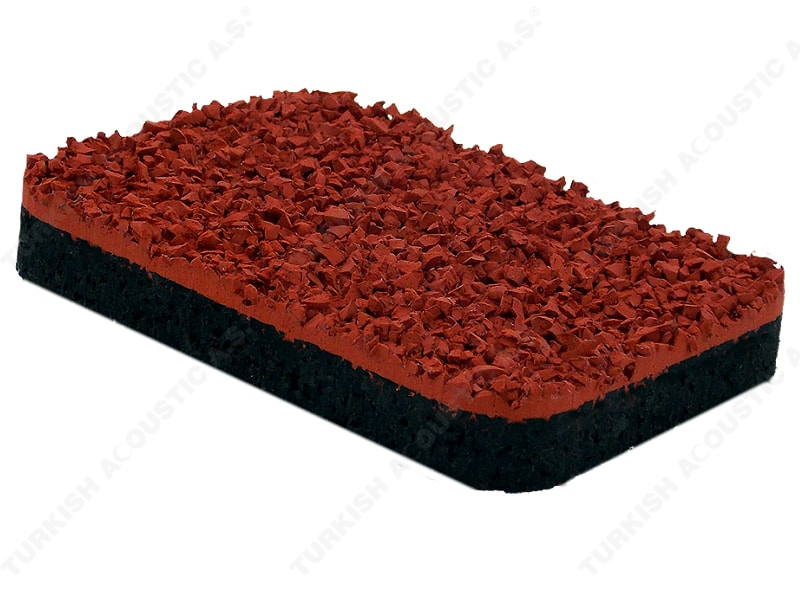

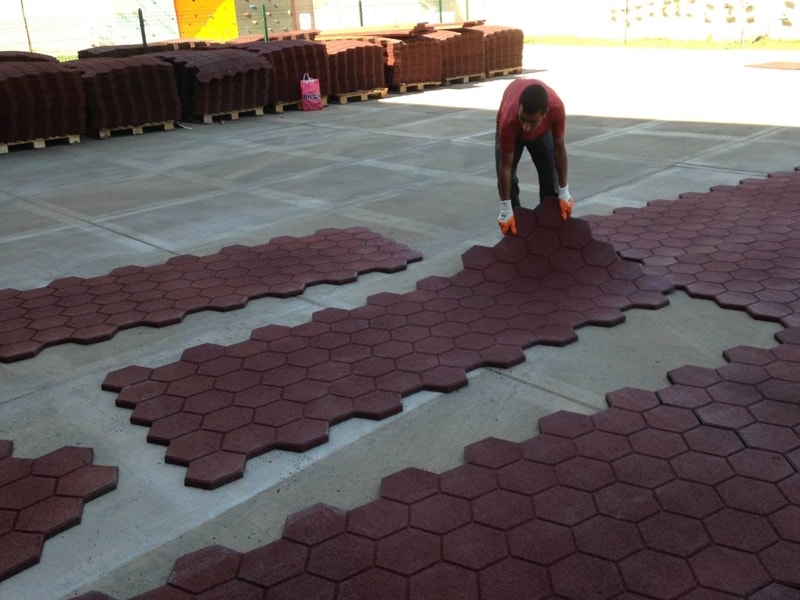

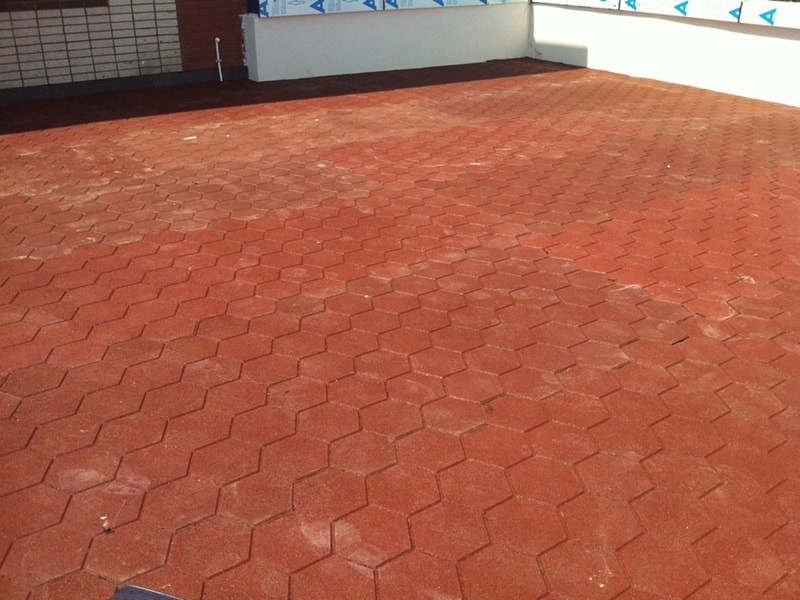

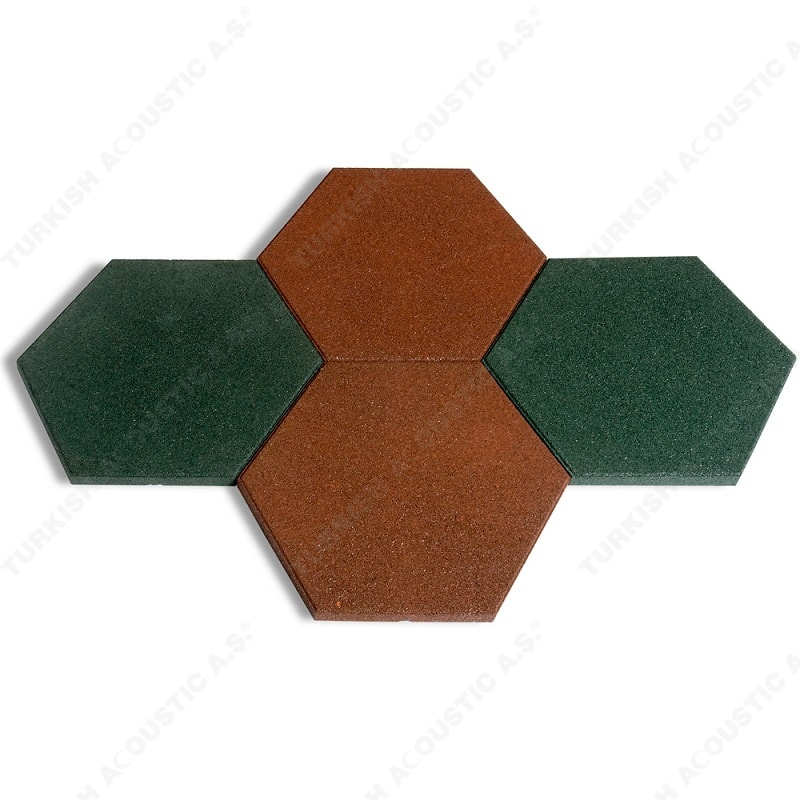

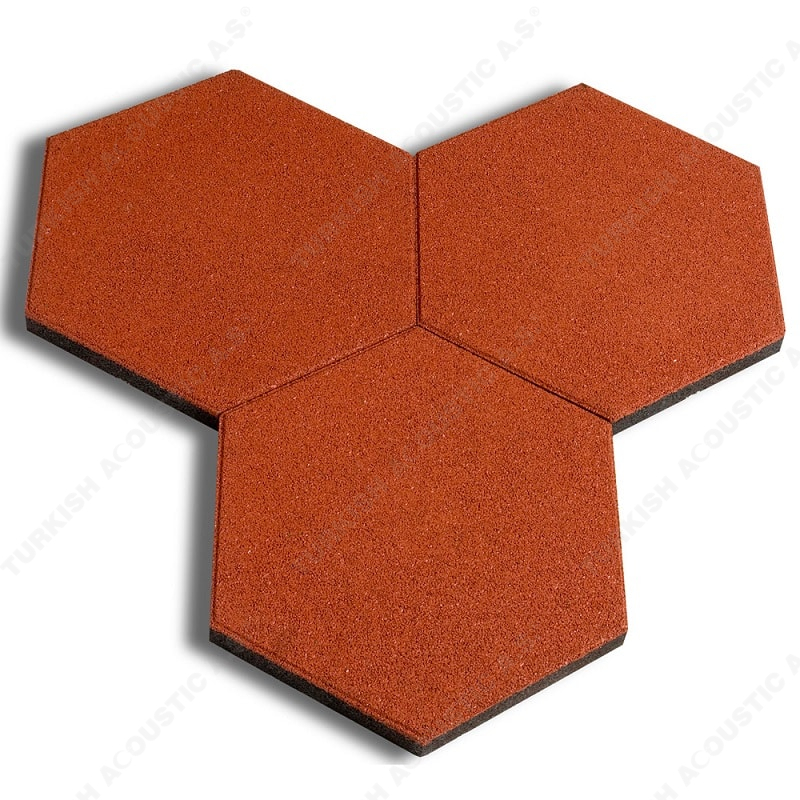

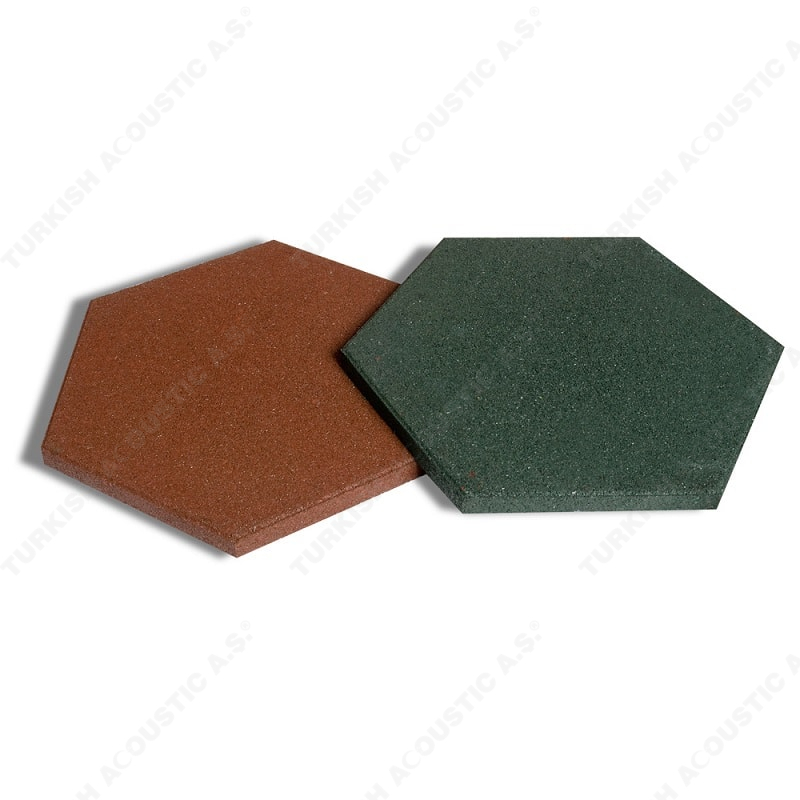

Hexagonal Honeycomb Pattern : RAINBOW series, which offers a rich design horizon to the user, colors our living spaces in 6 different thicknesses in tile, hexagonal, lock, puzzle and block forms. The second layer of EPDM granules on the first layer obtained from recycled SBR granules are obtained by dosing the other different binder polyurethane and then pressing it under high temperature and pressure. Hexagon Series, which is obtained by dosing SBR granules obtained from 100% recycling with polyurethane binders and color pigments and then pressing them with high temperature, creates a different atmosphere in all spaces with its modern design. Technical Properties: Flexible floor coverings with rubber granules; 1.00- 2, Granule rubber particles of 8 mm caliber should be produced by mixing with anti-carcinogen-based binder and ultraviolet-resistant iron oxide or chromium oxide pigment color and pressed in hexagonal molds under high temperature and pressure for a certain time. The upper edges of the hexagonal rubber material will be chamfered to form a joint. The thickness of the Hexagonal Rubber material should be 20,25,30,40 mm. The width of the waterways at the bottom of the rubber material should be 25 mm and 3 mm deep in order to provide drainage and better adhesion to the ground. Hexagonal Rubber floor covering will be adhered to the concrete and screed surface prepared by the administration with special polyurethane adhesives. Has Necessary Quality Certificates.
|
Medicine | Most | Size | Thickness |
TILE![]() |
400 mm | 400 mm | 20 mm – 25 mm – 30 mm – 40 mm – 50 mm – 60 mm |
500 mm | 500 mm | 20mm – 25 mm – 30 mm – 40 mm – 50 mm – 60 mm | |

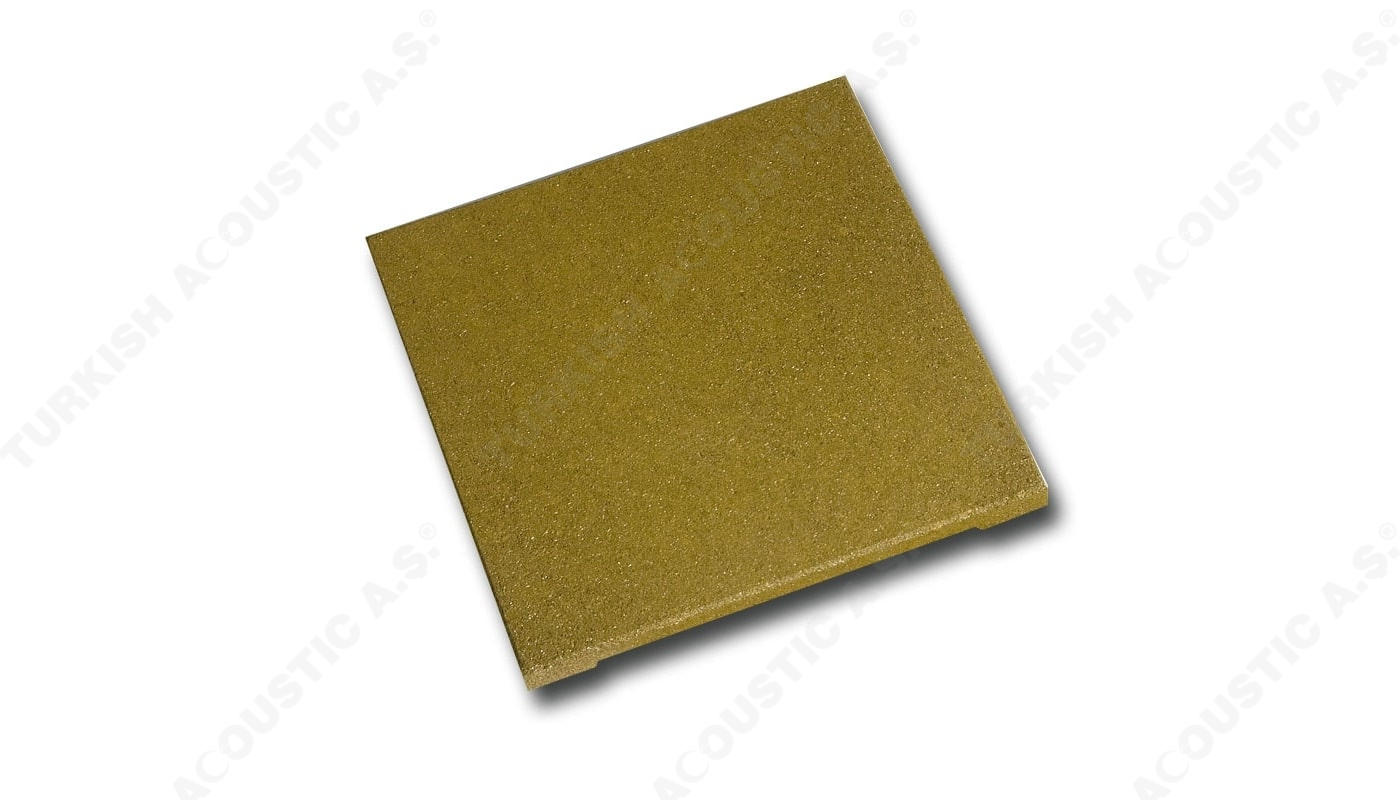

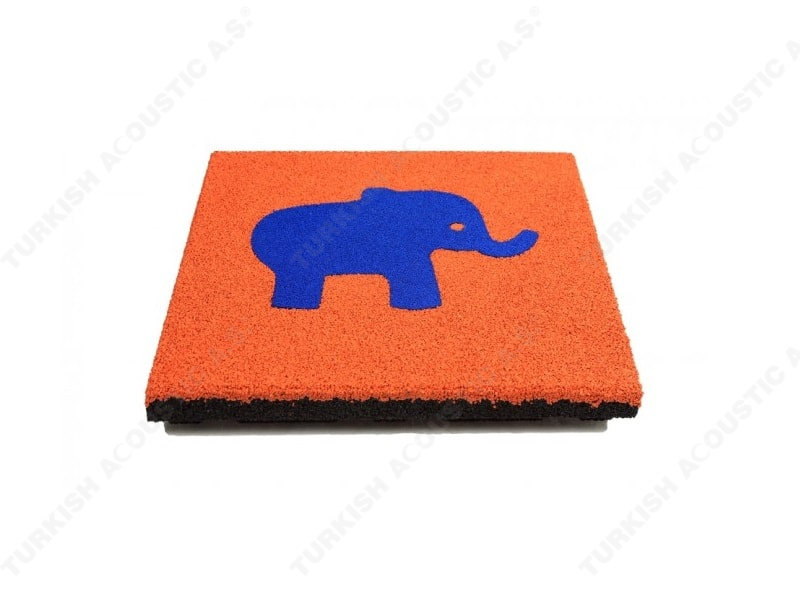

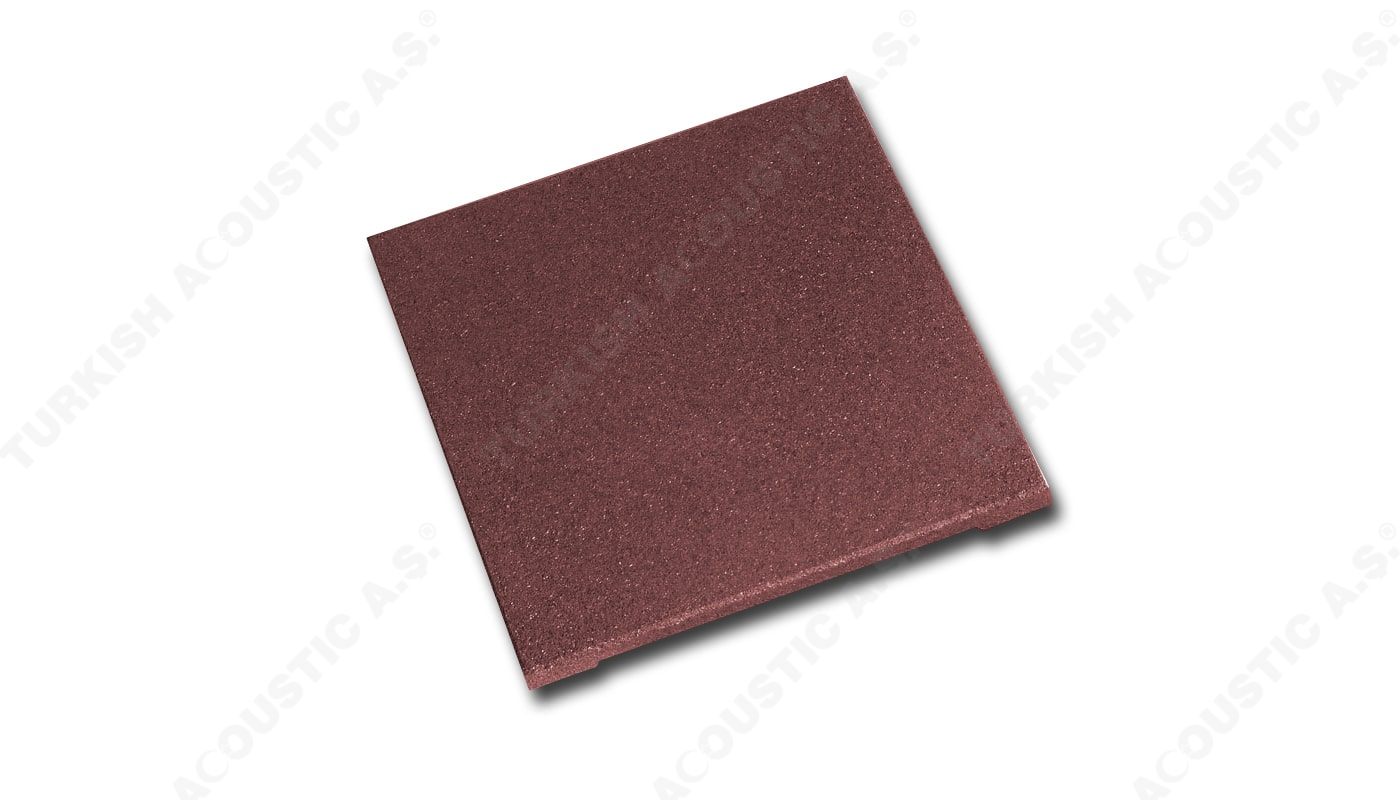

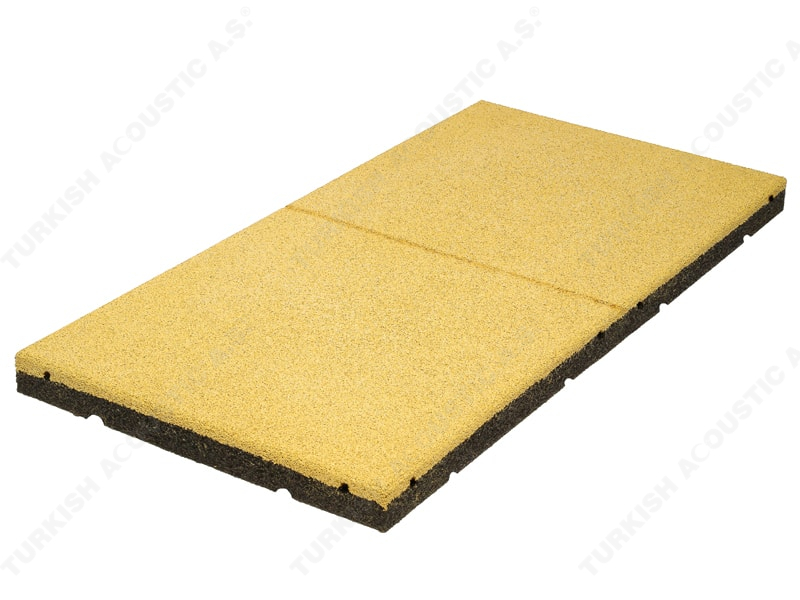

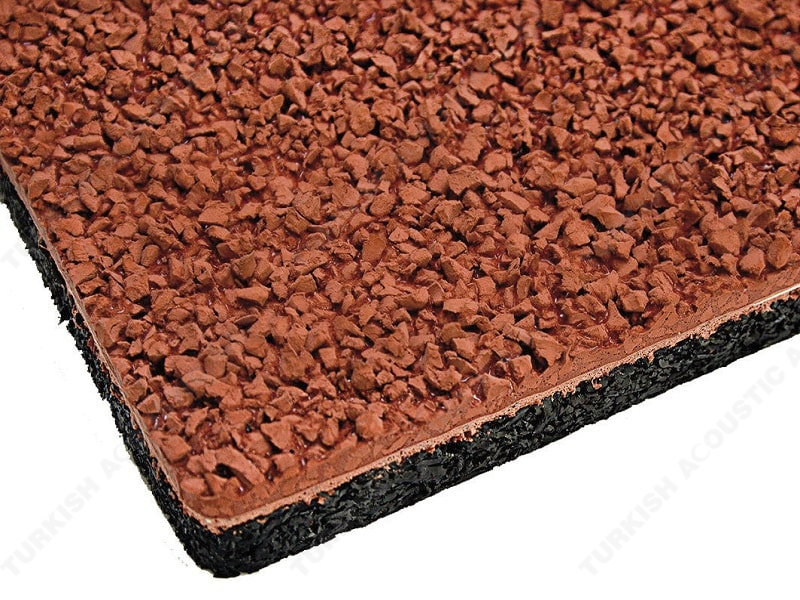

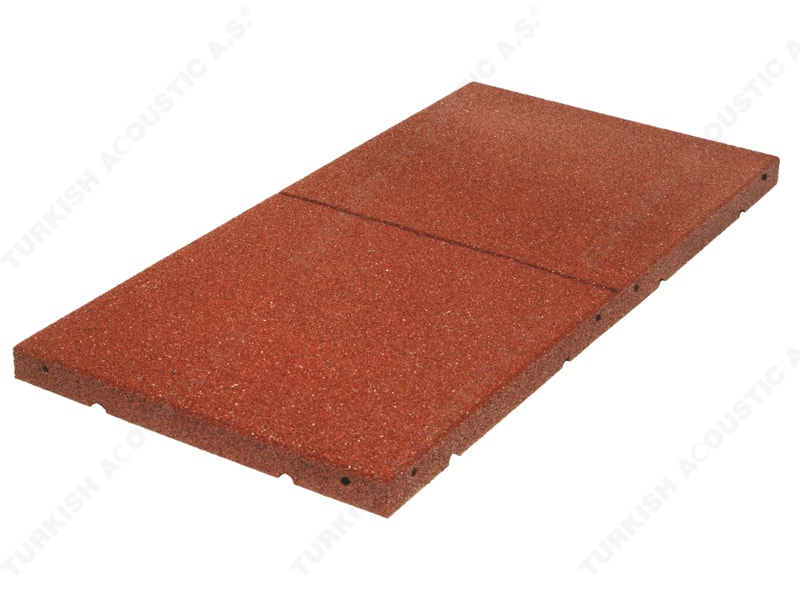

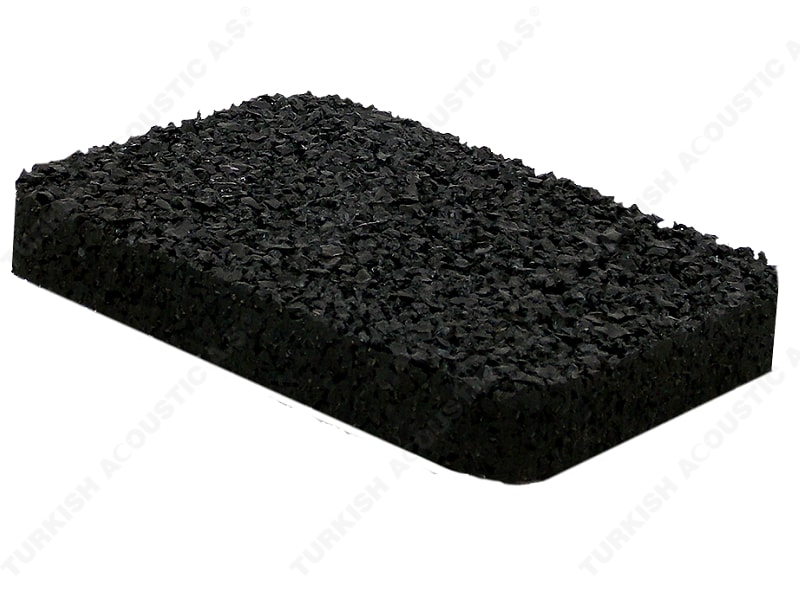

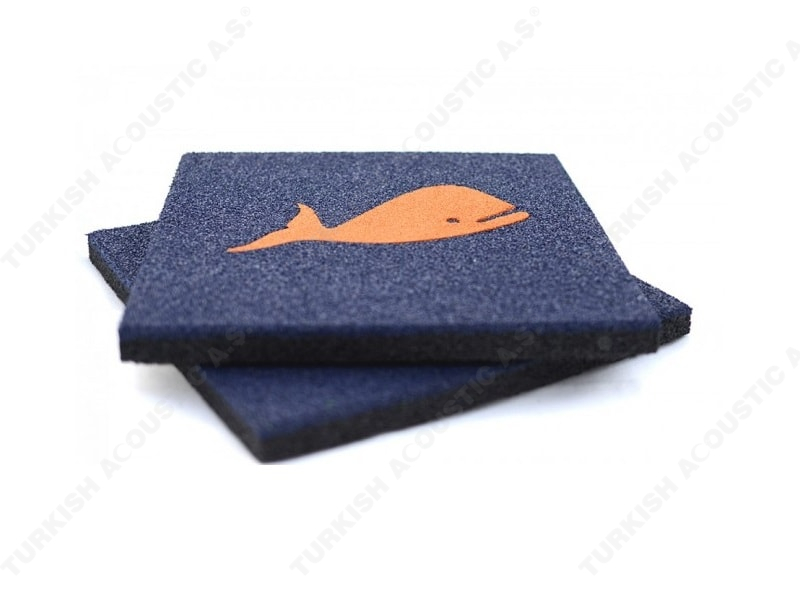

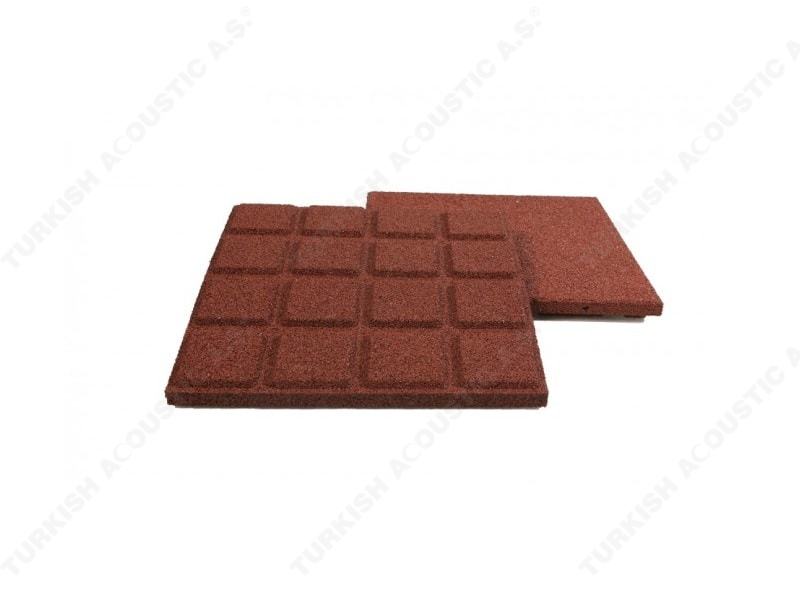

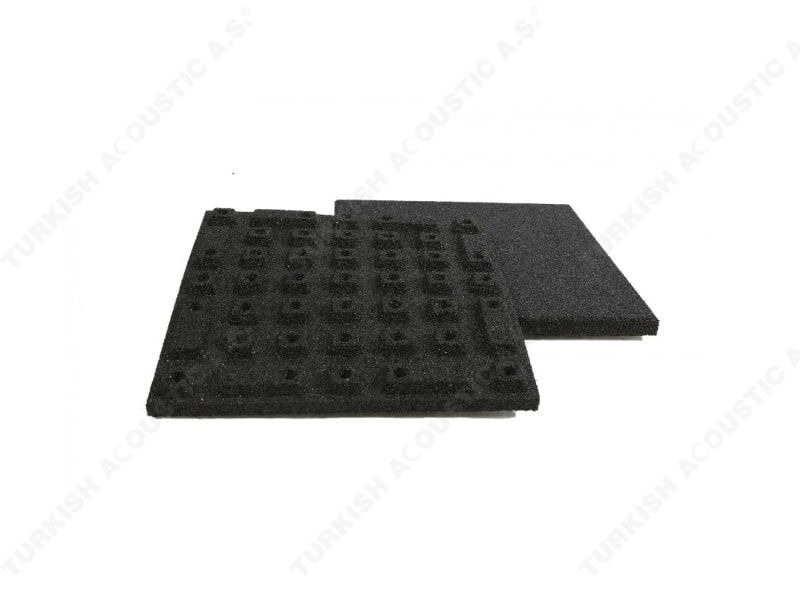

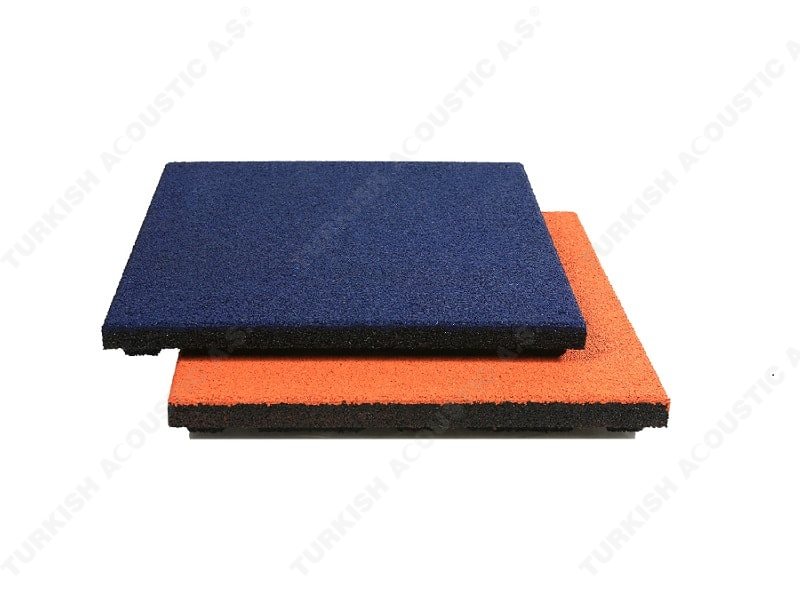

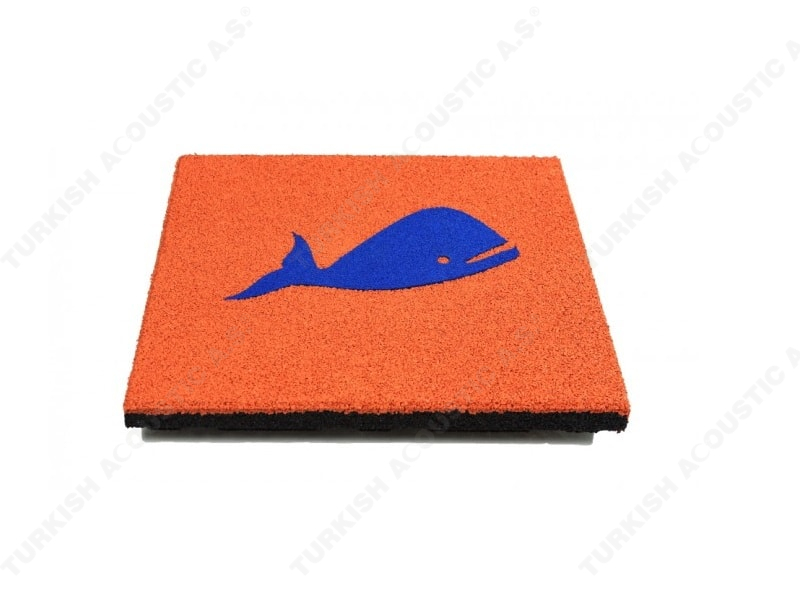

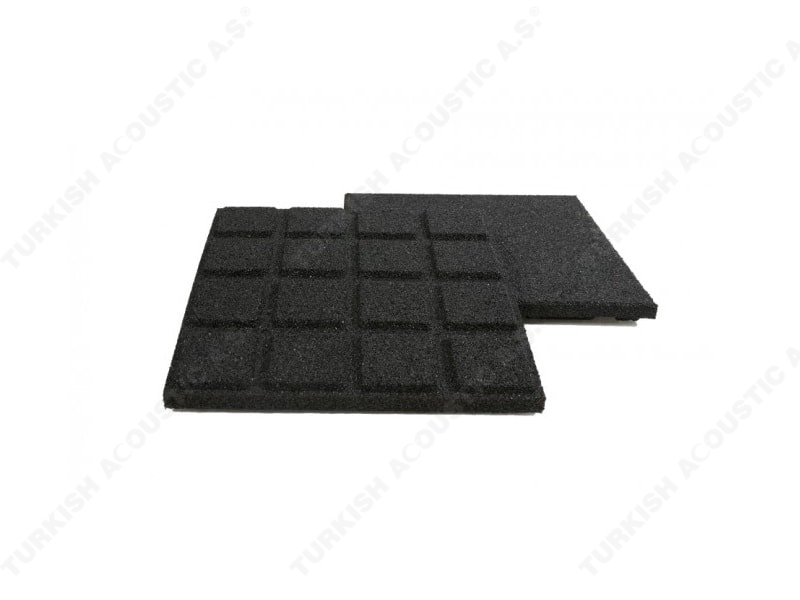

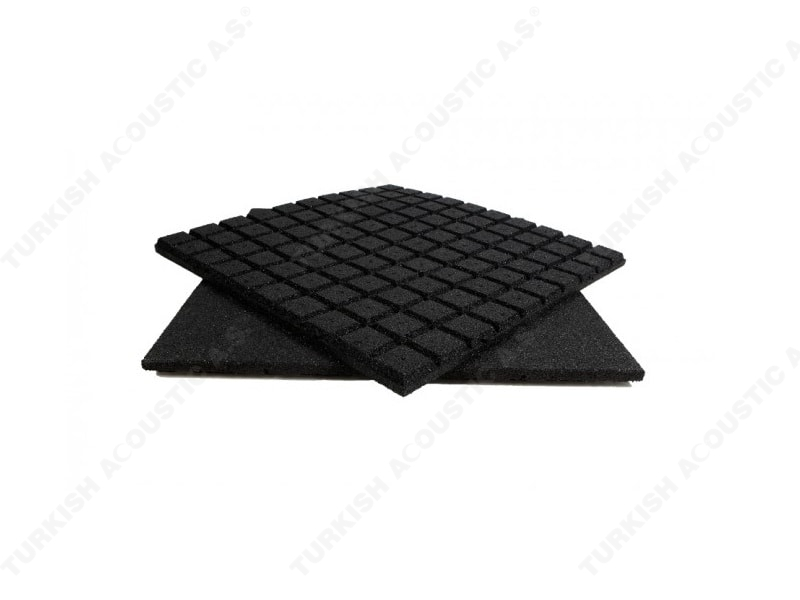

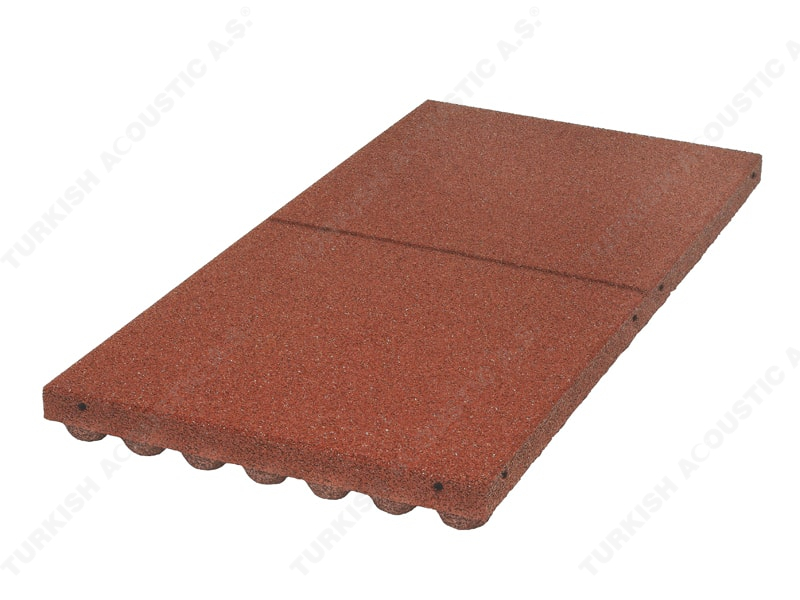

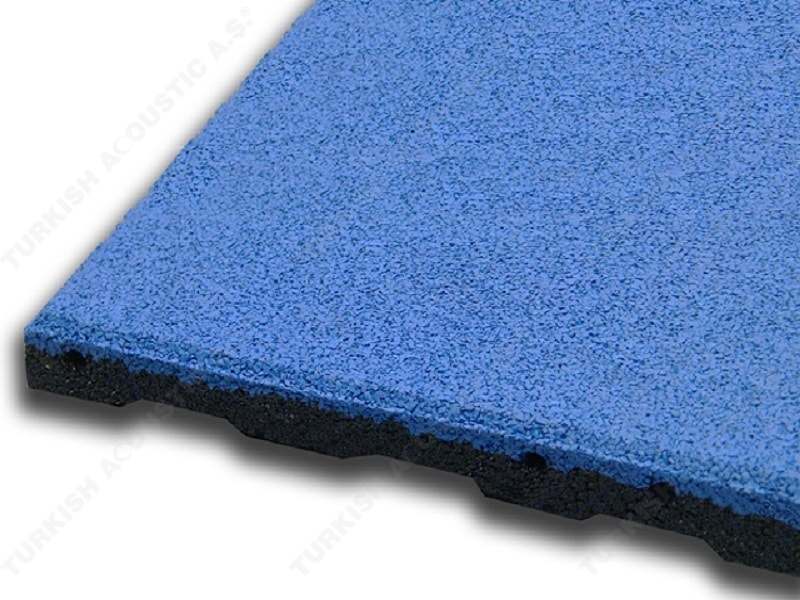

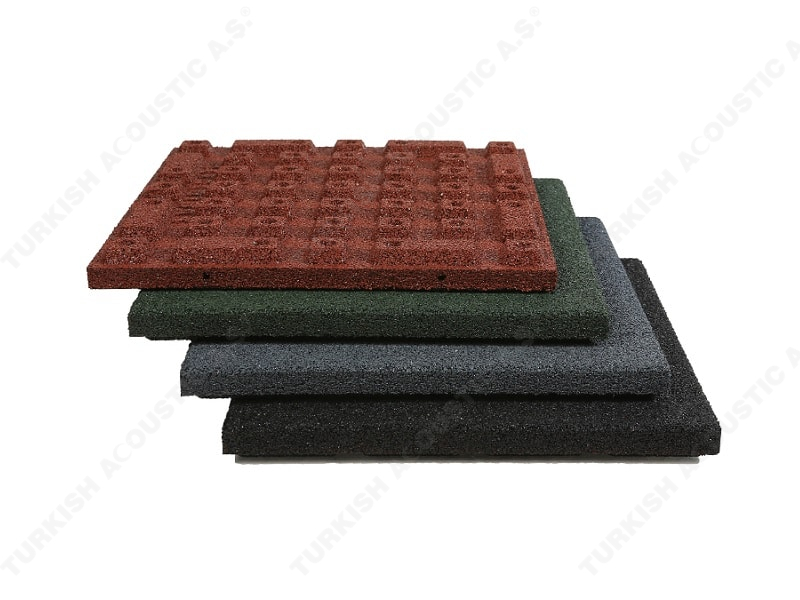

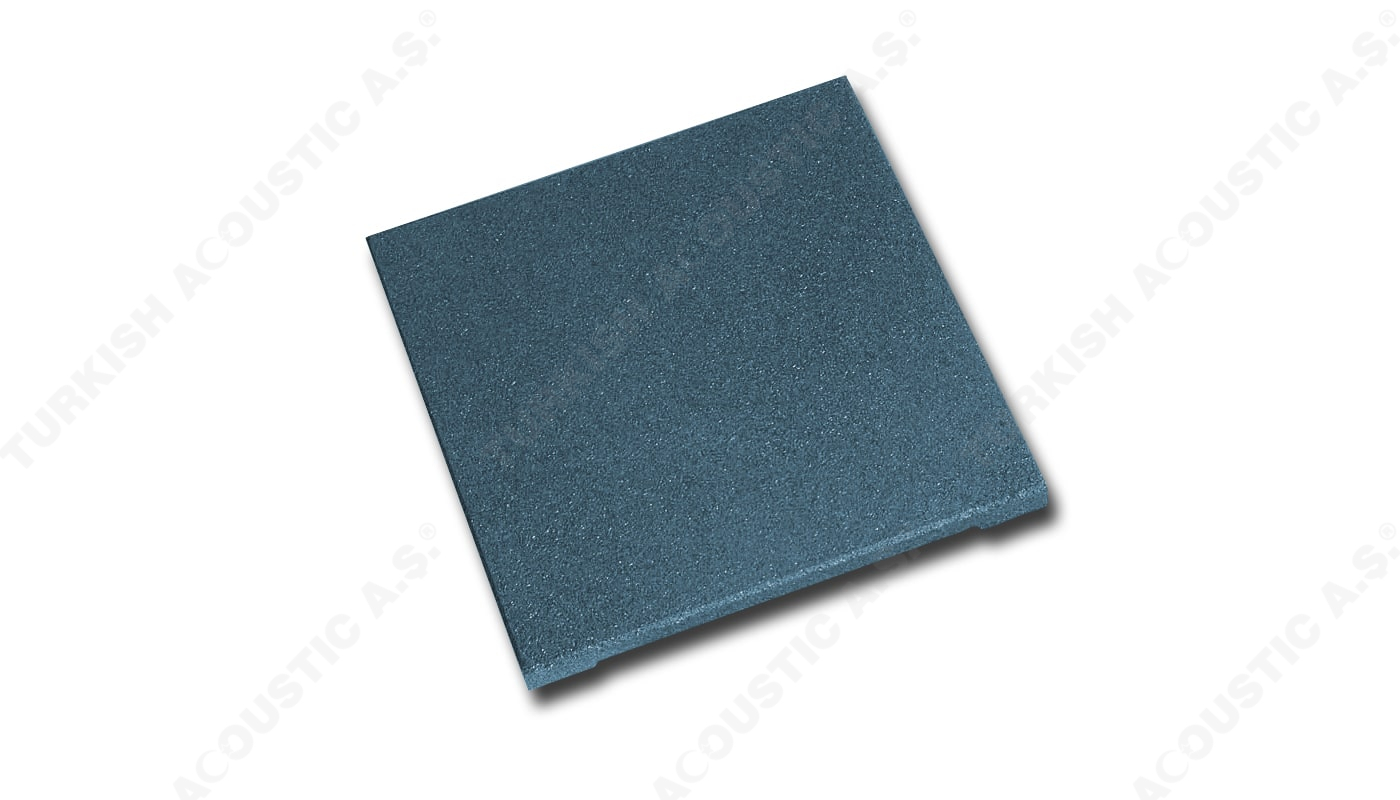

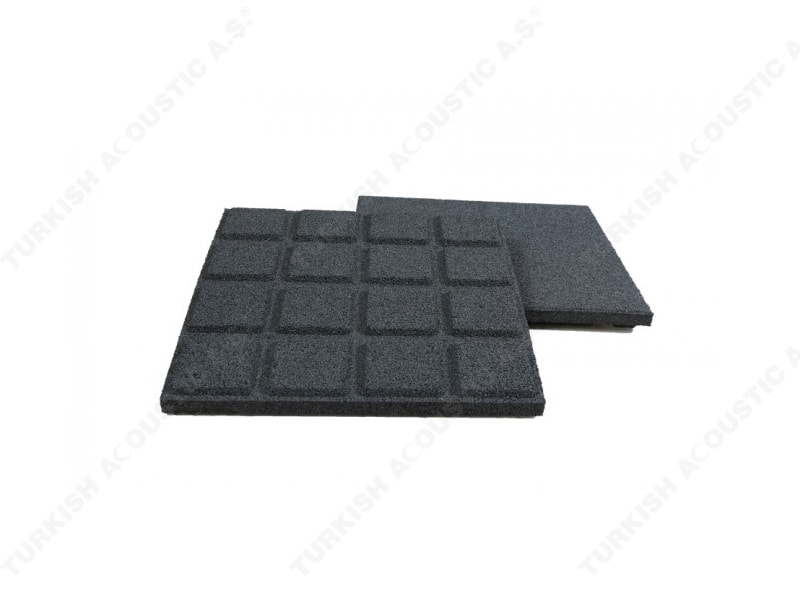

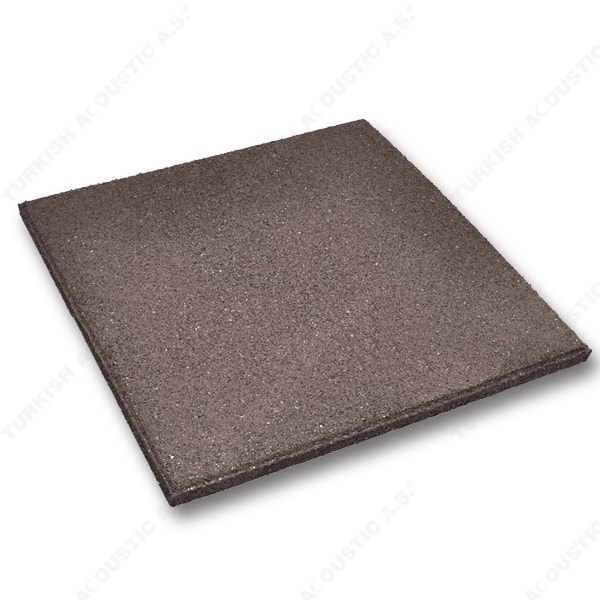

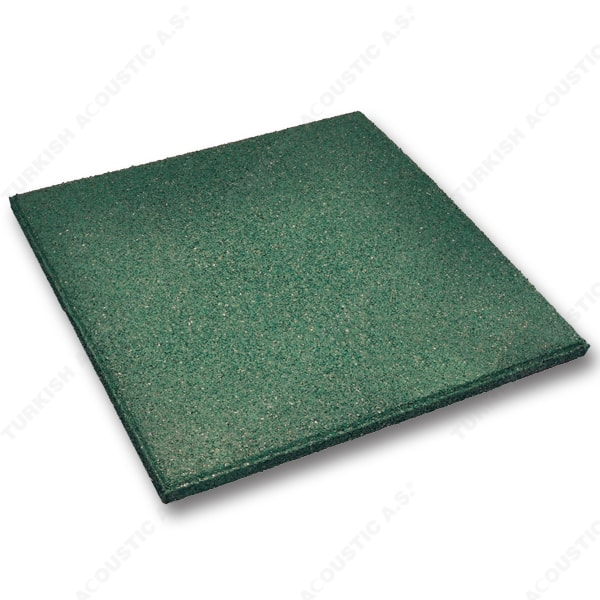

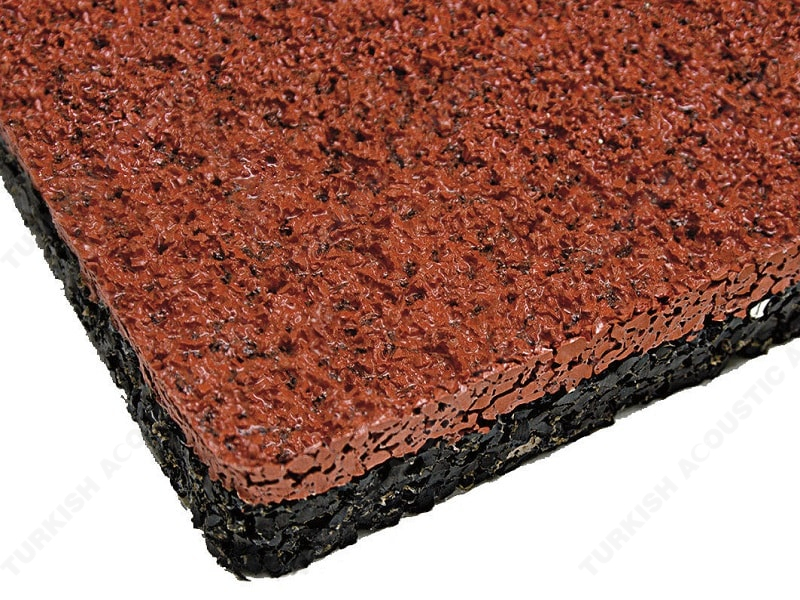

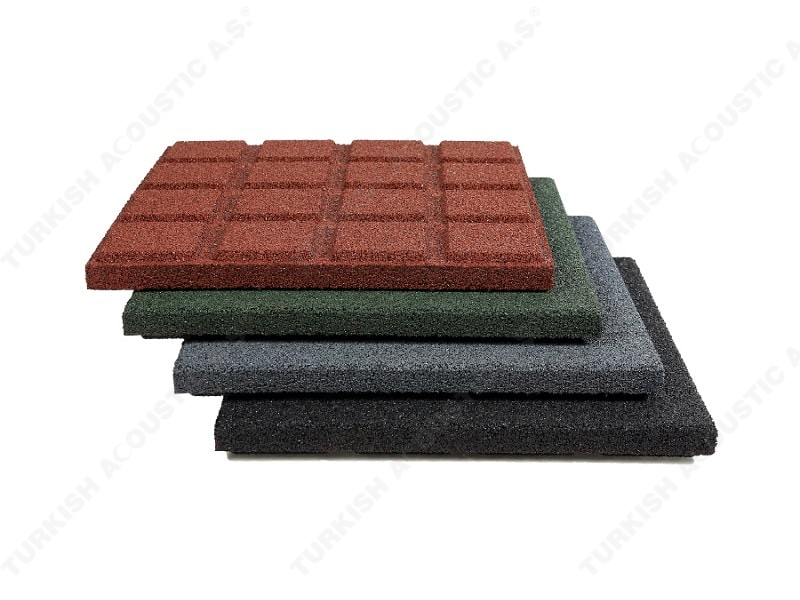

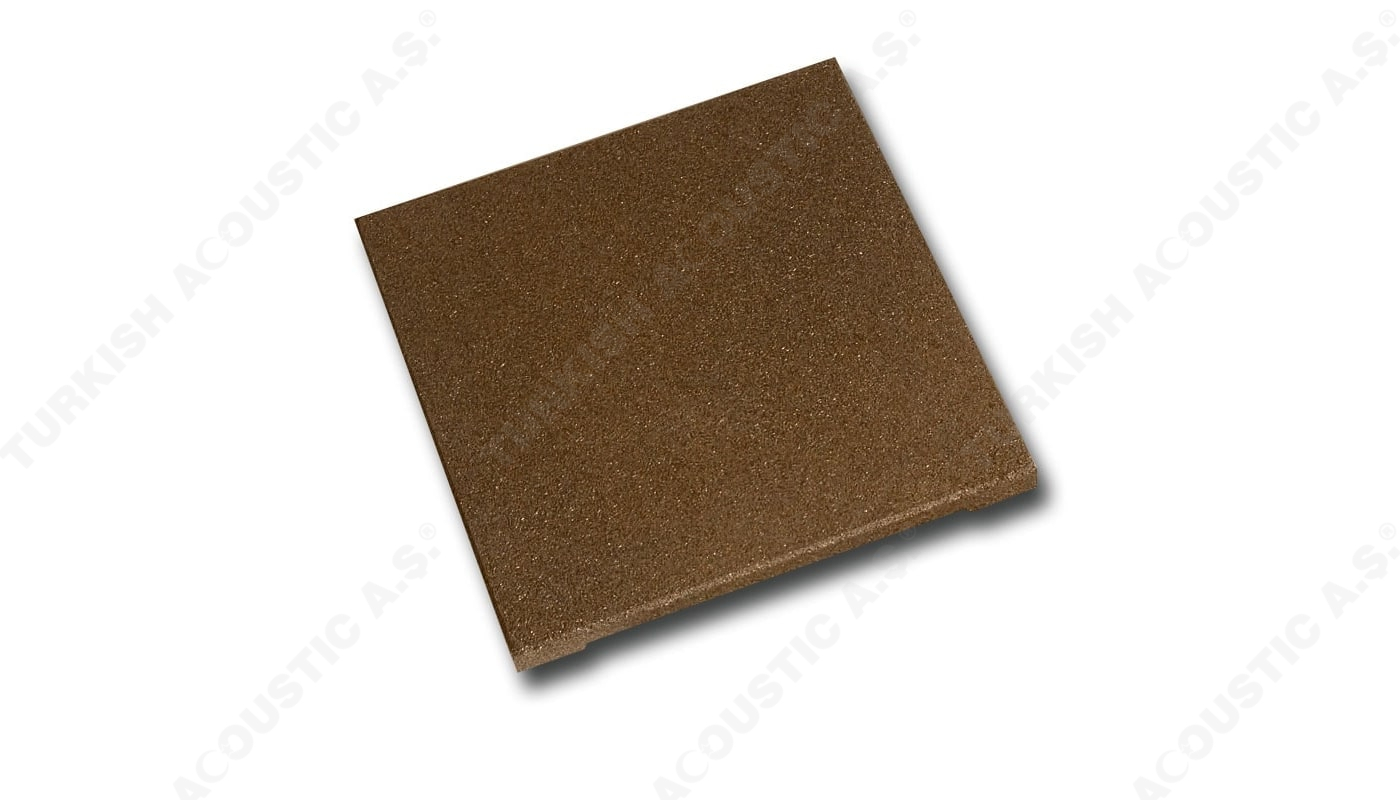

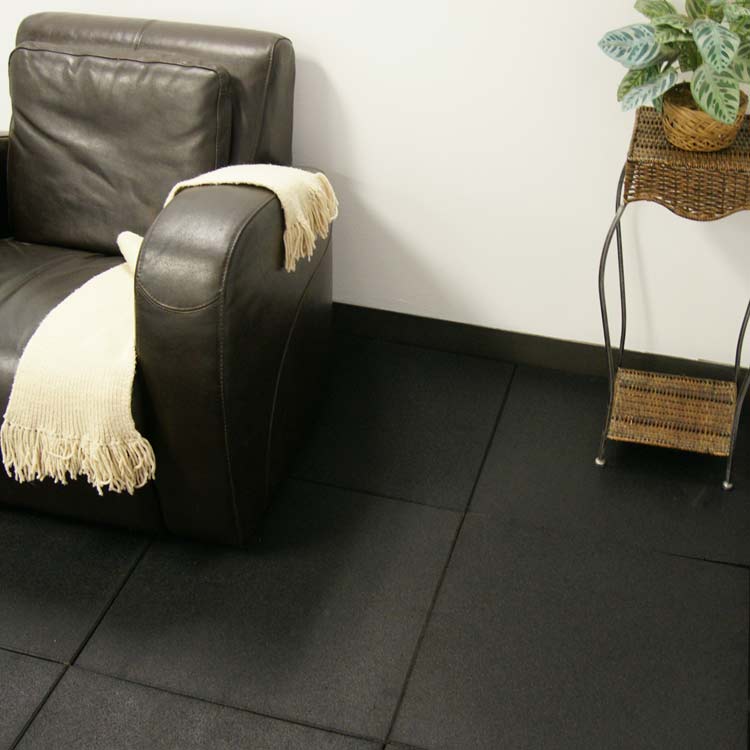

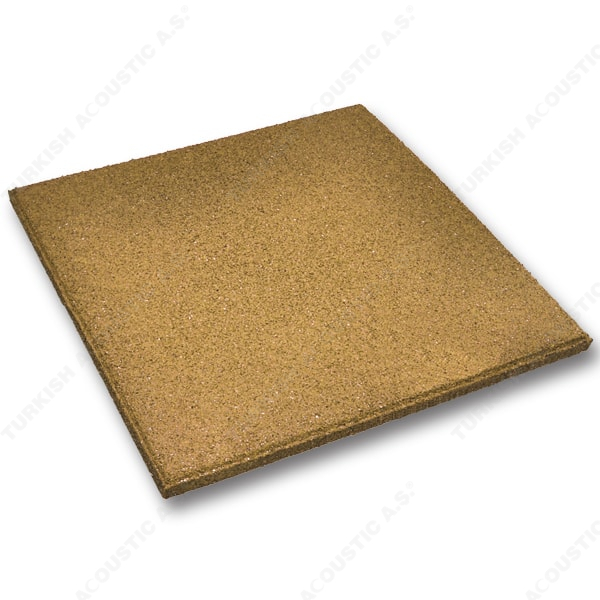

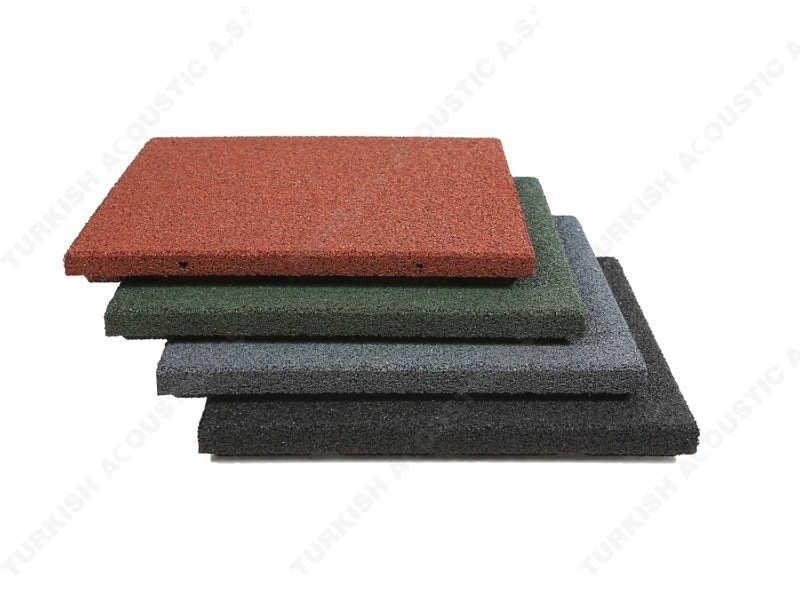

Rubber Floor Tile : The SBR granules obtained from 100% recycling are dosed with polyurethane binders and color pigments and then pressed with high temperature, TILE RUBBER series are produced in 40 × 40, 50 × 50 sizes and different thicknesses. The multi-purpose use of TILE RUBBER series, which has entered almost all our living spaces; it is non-slip and flexible. It is preferred with its impact resistance, shock absorption, non-flammability and modular features. |
Medicine | Most | Size | Thickness |
Block![]() |
500 mm | 1000 mm | 25 mm – 30 mm – 40 mm – 50 mm – 60 mm |
1000 mm | 1000 mm | 25 mm – 30 mm – 40 mm – 50 mm – 60 mm | |

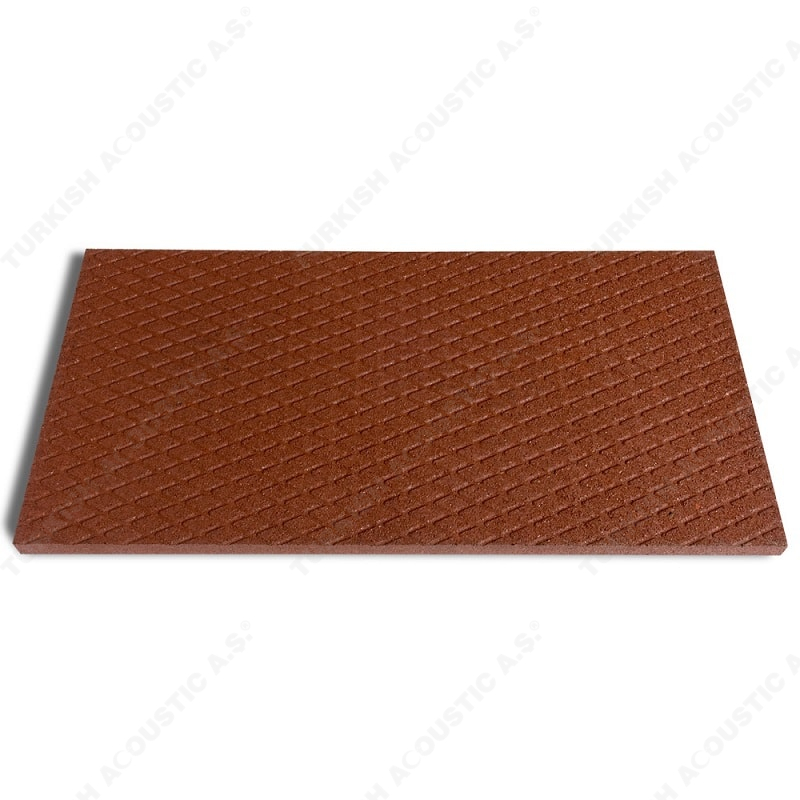

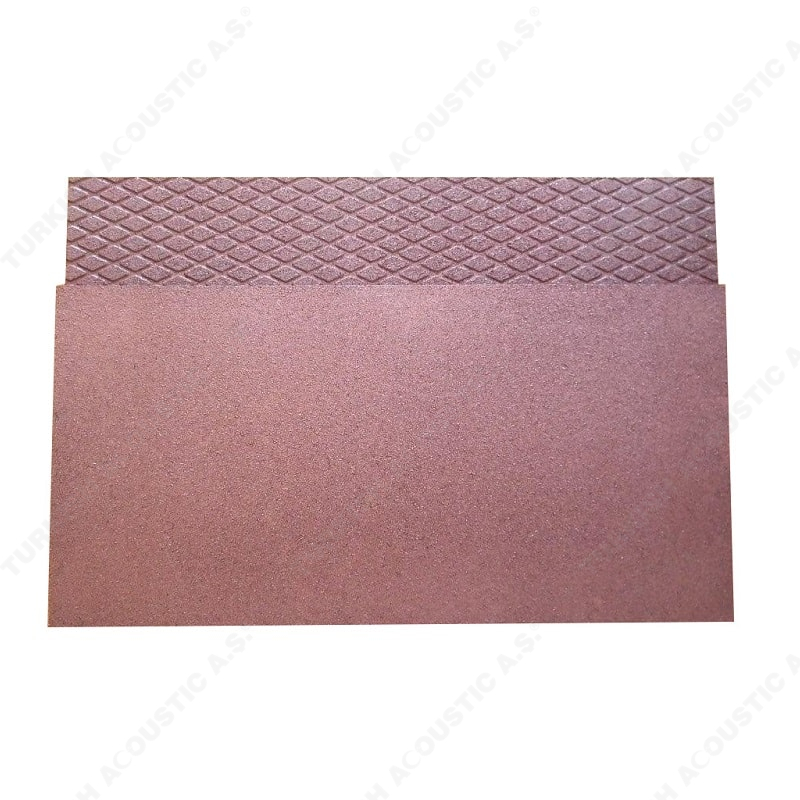

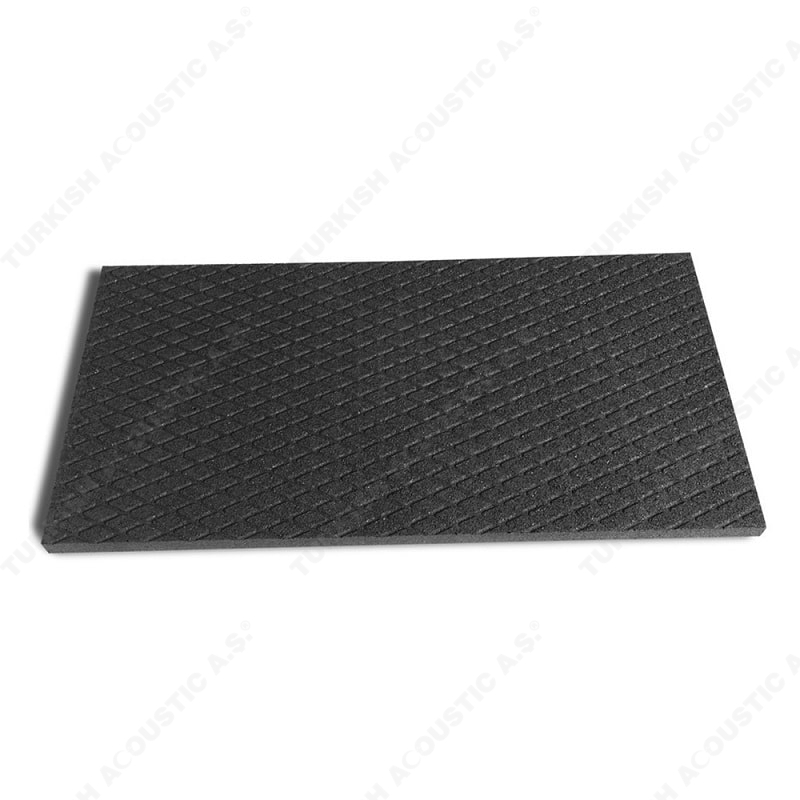

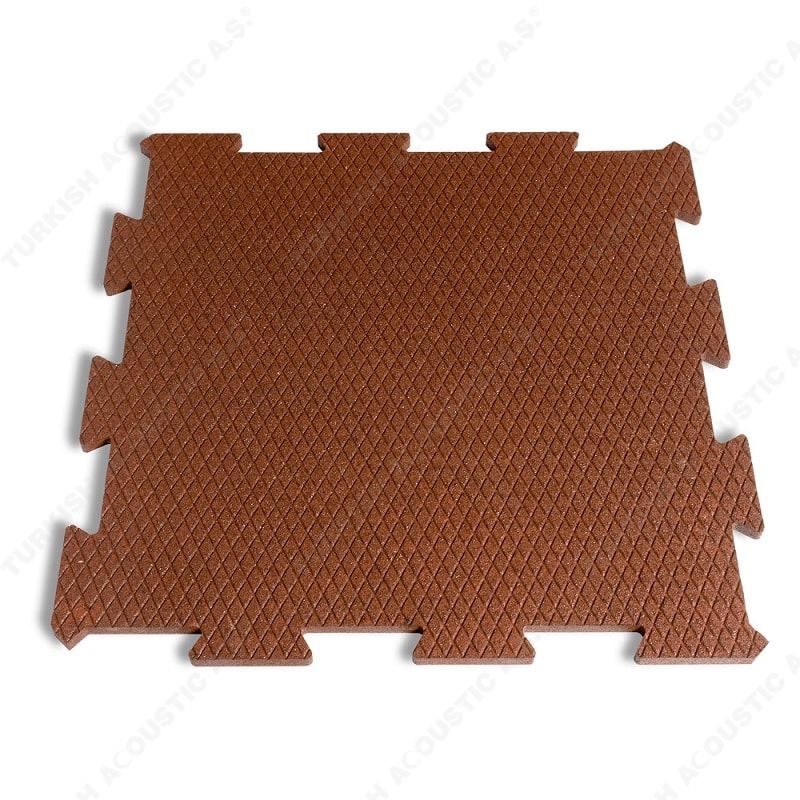

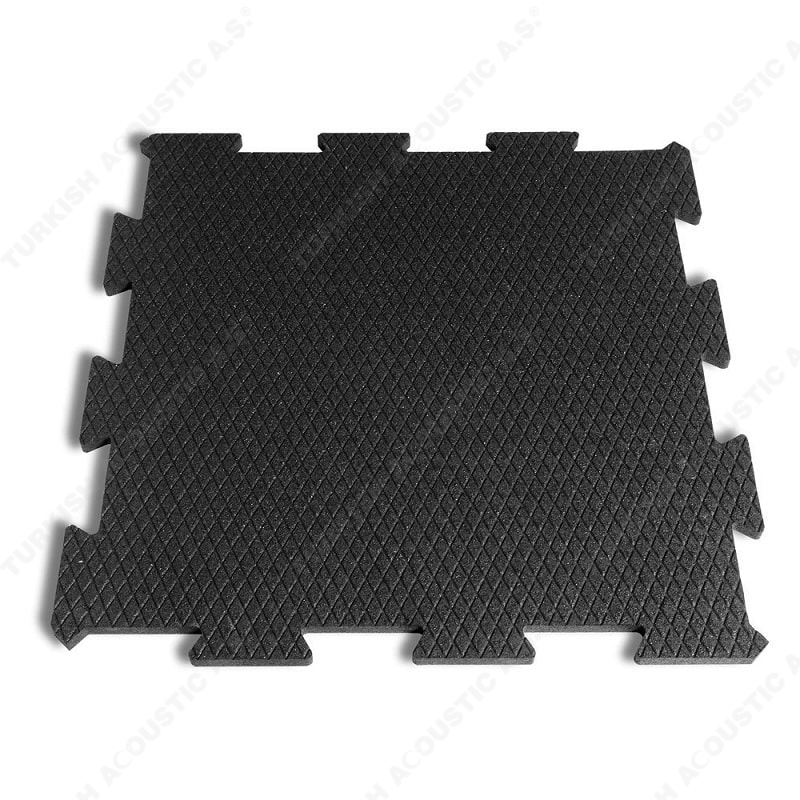

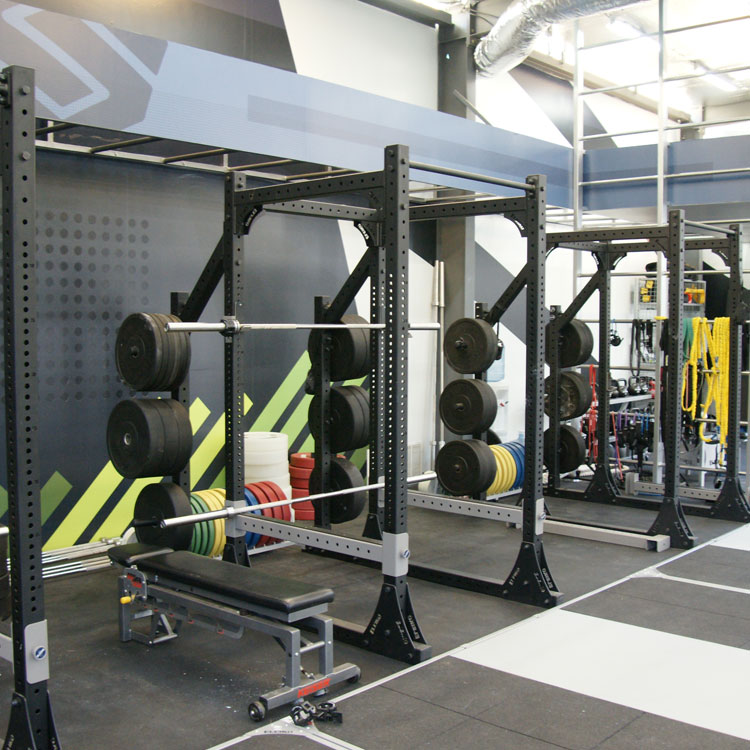

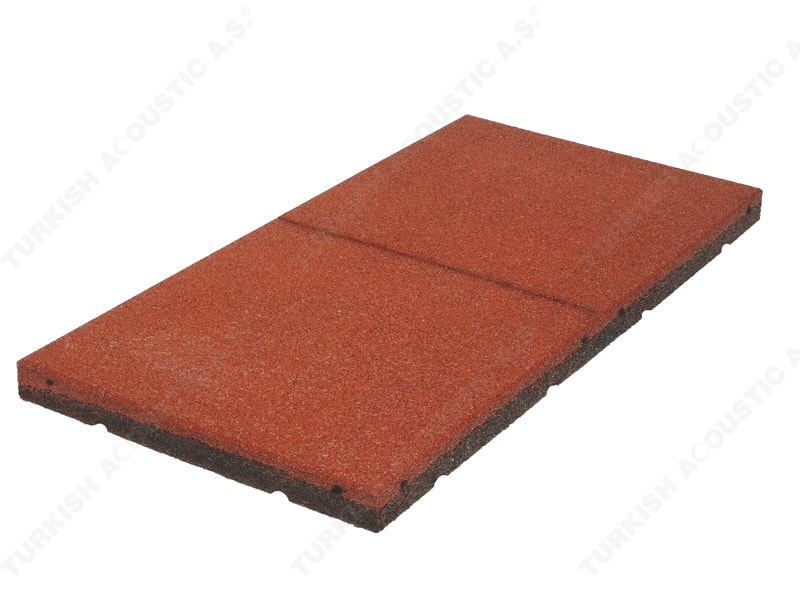

Block Rubber Coating : TWith its non-slip, flexible texture suitable for all climatic conditions, block rubber is a floor covering product with lock system in 50 × 100 and 100 × 100 sizes, which is used especially under machinery in production facilities, under weight in sports halls, paddocks, animal shelters, auto repair services, pool edges and polygons. . Thanks to its shock absorbing feature, it is an ideal insulation and flooring material in shooting ranges. With its non-slip, flexible texture suitable for all climatic conditions, block rubber is a floor covering product with lock system in 50 × 100 and 100 × 100 sizes, which is used especially under machinery in production facilities, weight areas in sports halls, paddocks, animal shelters, auto repair services, pool sides and polygons. |
USAGE AREAS : |
|

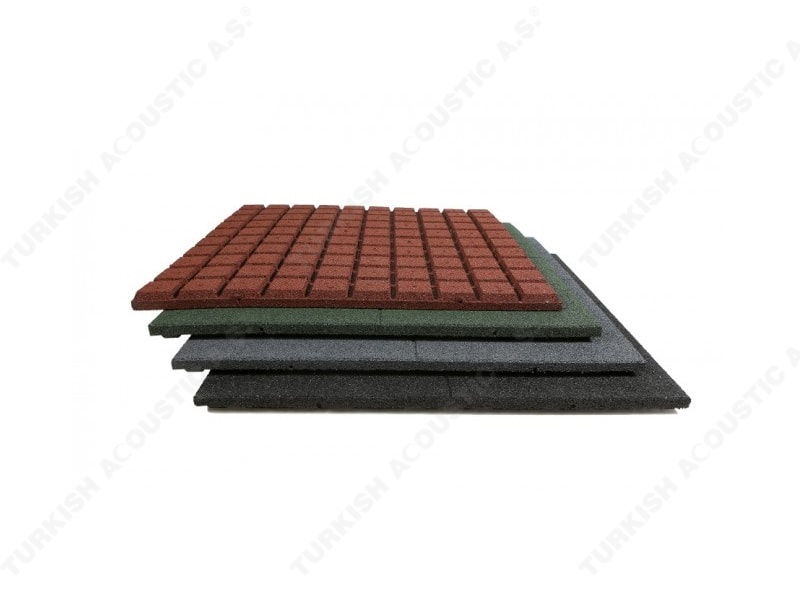

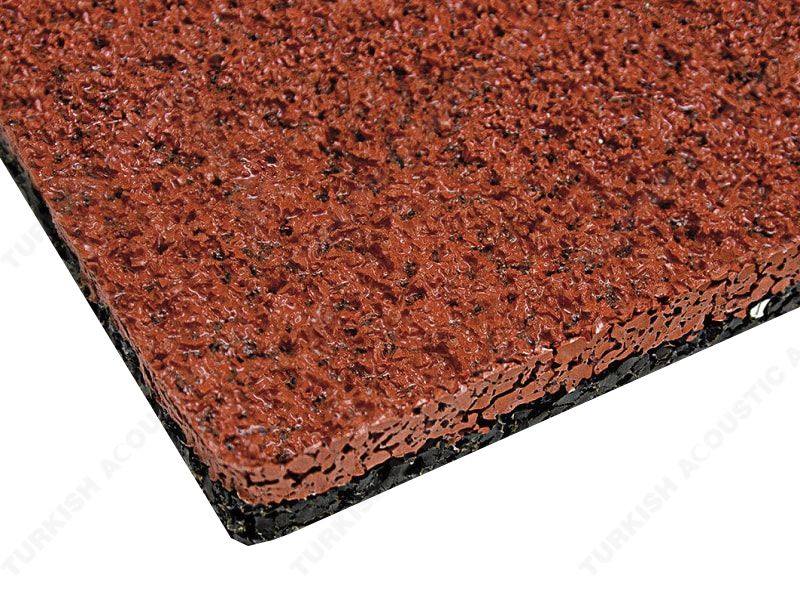

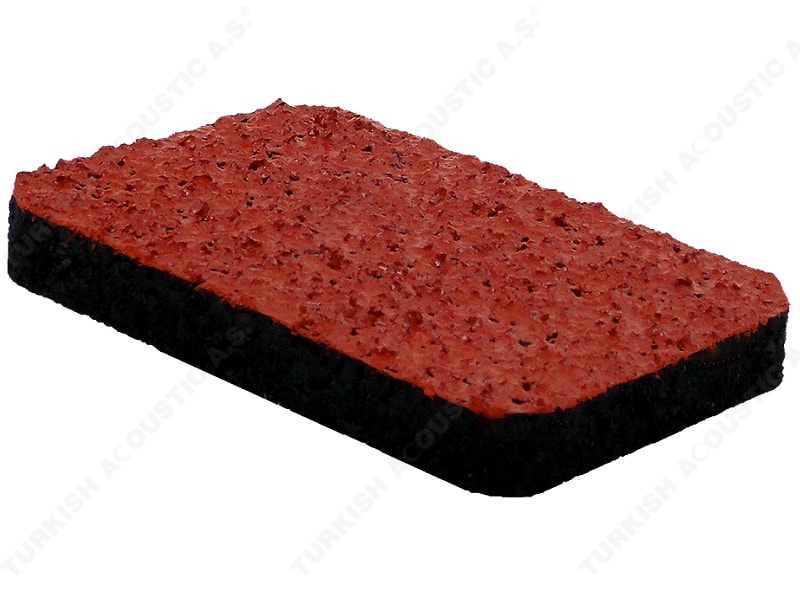

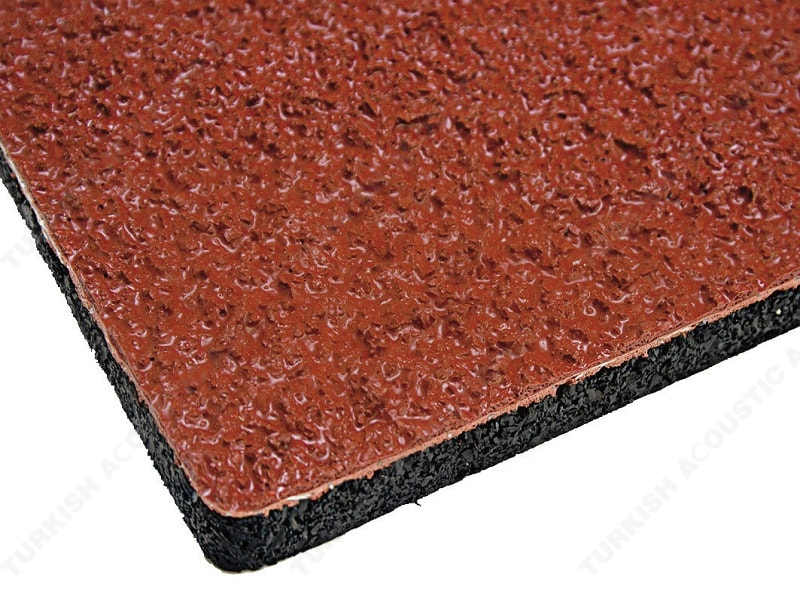

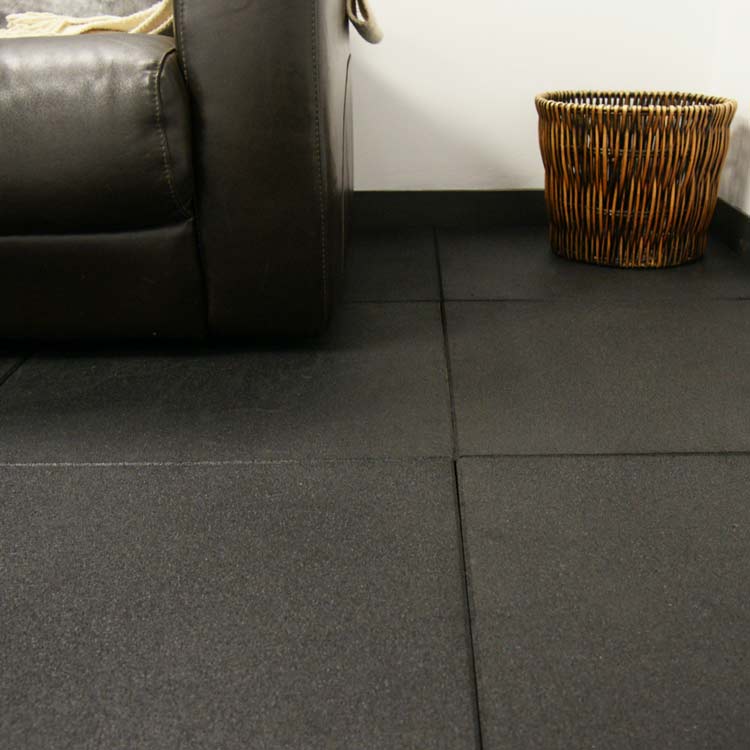

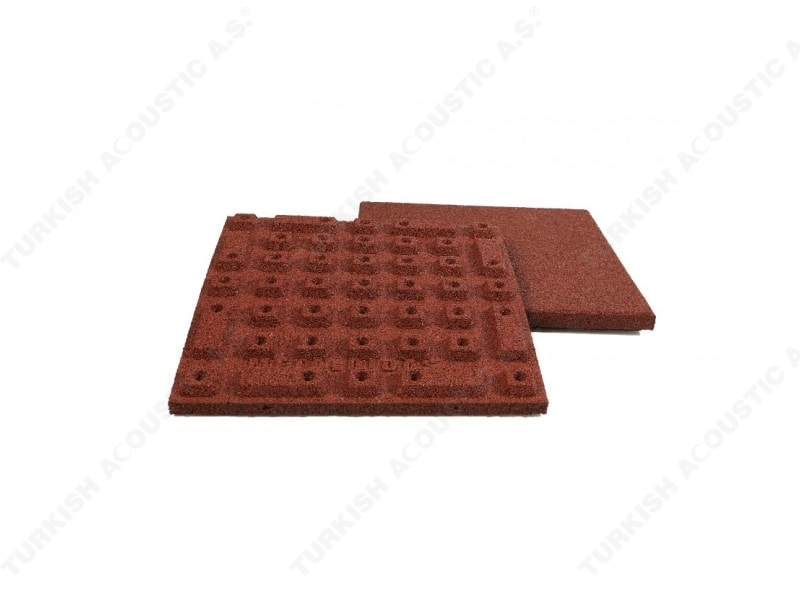

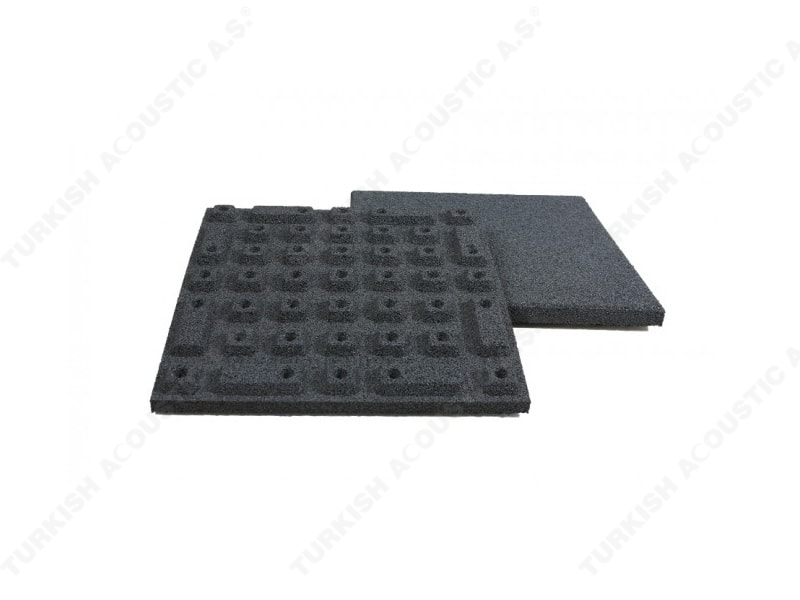

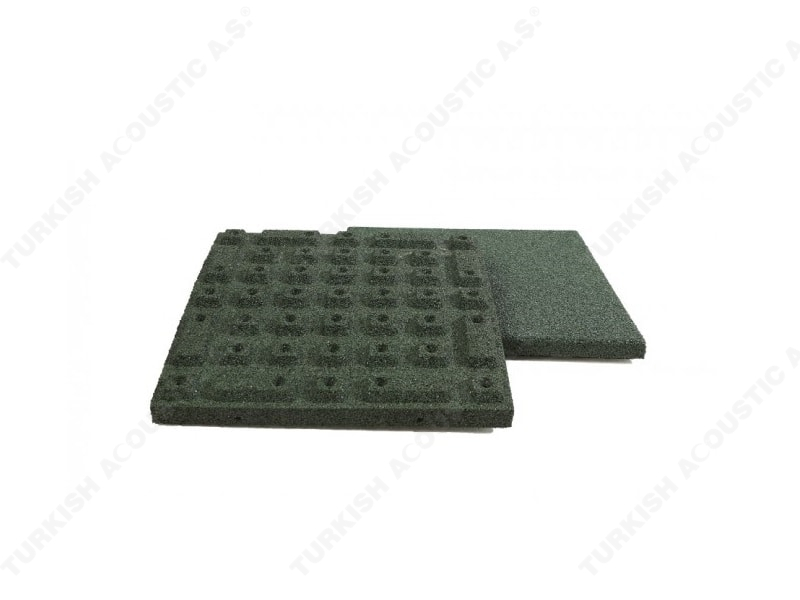

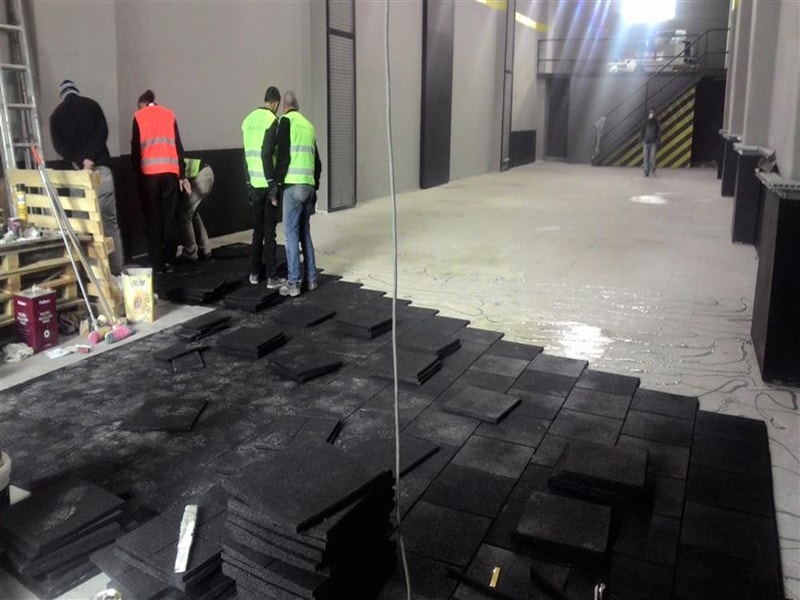

Rubber Floor Tiles: Tile rubber floor coverings are produced by dosing the SBR granules (from widely recovered rubber particles) with polyurethane binders and color pigments and then pressing them with high temperature, produced in 40 × 40, 50 × 50 sizes and different thicknesses. The SAFARI series, whose multi-purpose use has entered almost all our living spaces; it is non-slip and flexible. It is preferred with its impact resistance, shock absorption, non-flammability and modular features. Flexible floor coverings with impact vibration damping, noise control, rubber granules; 1.00- 2, Rubber floor tiles and rubber floor sound insulation systems Istanbul sales warehouse Turkish acoustic. The upper edges of the rubber tile will be chamfered to form a joint. The thickness of the rubber tile material should be 20,25,30,40 mm. The width of the waterways at the bottom of the rubber material should be 25 mm and 3 mm deep in order to provide drainage and better adhesion to the ground. Square rubber floor covering will be adhered to the concrete and screed surface prepared by the administration with special polyurethane adhesives. Has Required Quality Certificates. Rubber floor sound insulation systems usage areas: On the floors of open and closed playgrounds. Bicycle paths, traffic training tracks, running and walking paths. Nursing homes, children's hospitals, baby rooms. In nursing homes and rehabilitation centers. Classroom prepared for the disabled, playground, walkways. Shooting ranges, sports halls, playgrounds. In school gardens and other garden areas. In garage entrances and parking lots. It is possible to use it in terrace balconies and many other indoor and outdoor areas you can think of.
Rubber Tile Dimensions: 400 mm x 400 mm and 450 mm x 450 mm Thickness: 25 mm - 30 mm - 40 mm - 50 mm - 60 mm.
Rubber Tile Package Quantity: Rubber plates 40 x 40 cm size plate are sold in 63 packages. 1 Pack 10 m² Sold.

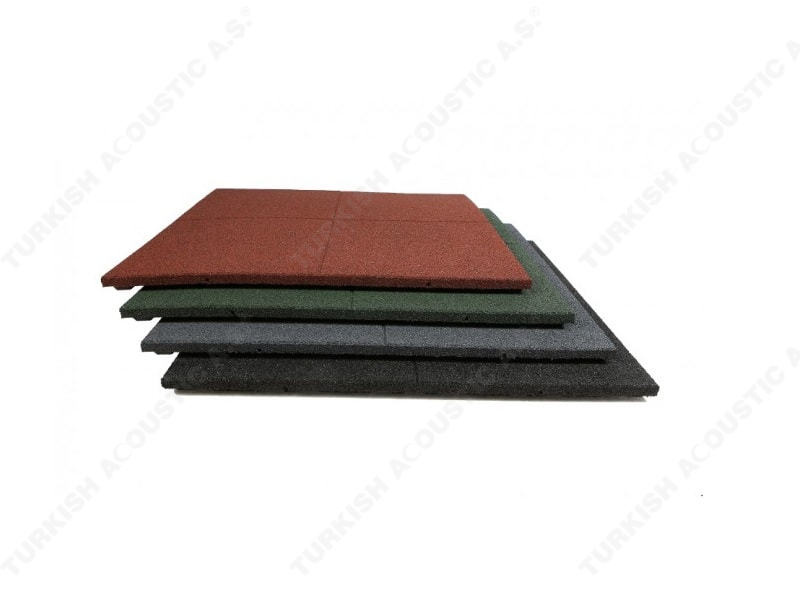

Rubber Tile Colors: Black, gray, blue, yellow beige, orange, brown, green gray.

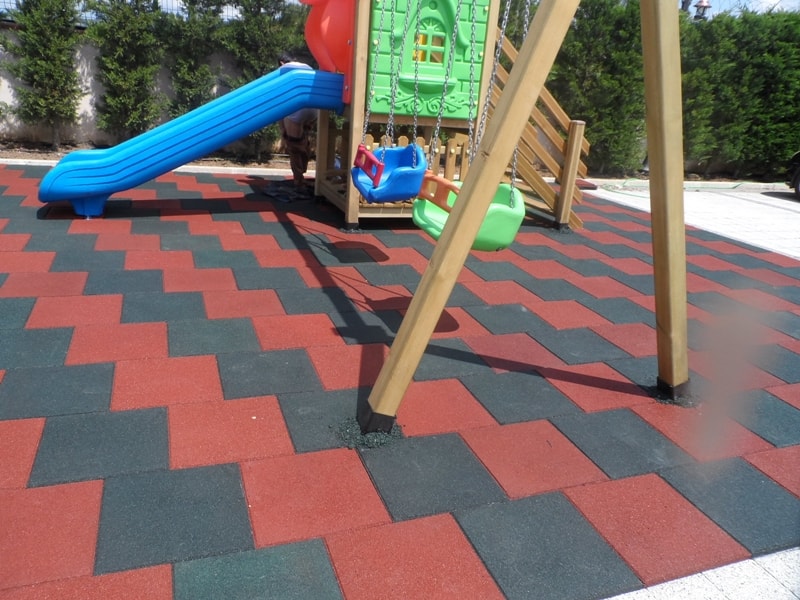

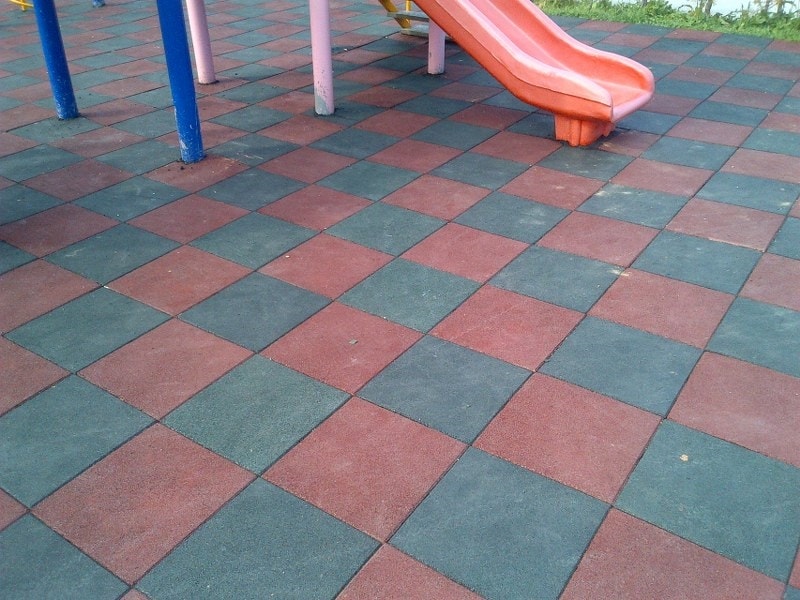

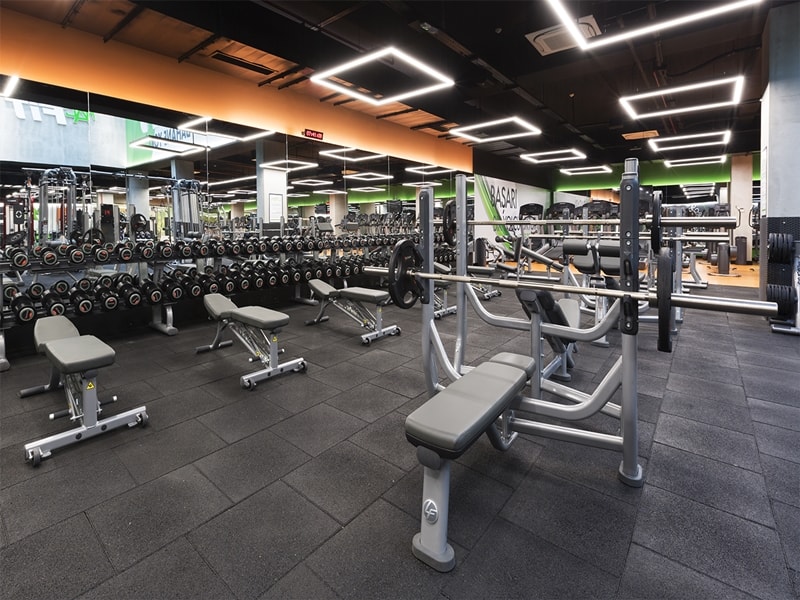

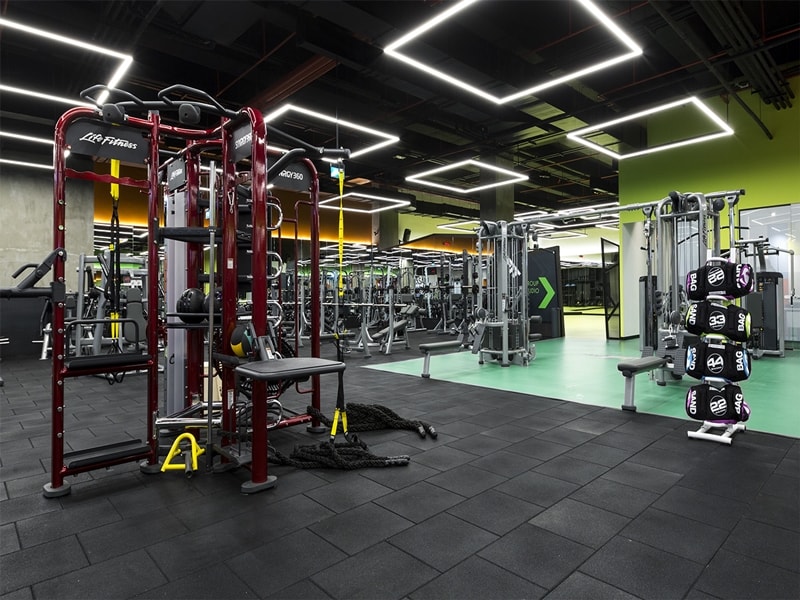

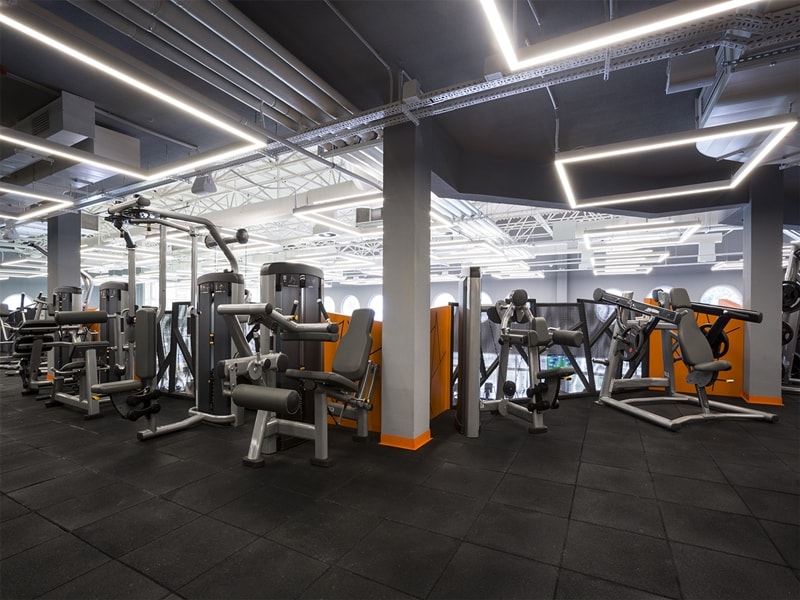

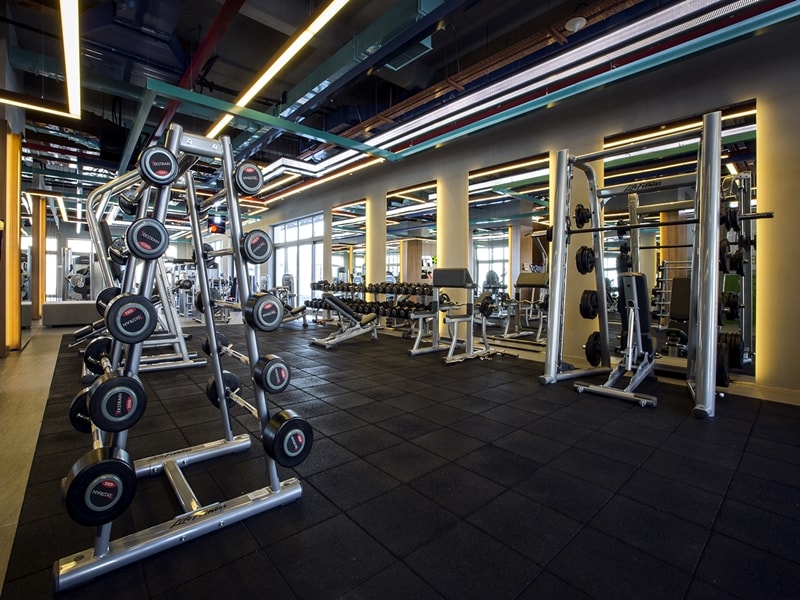

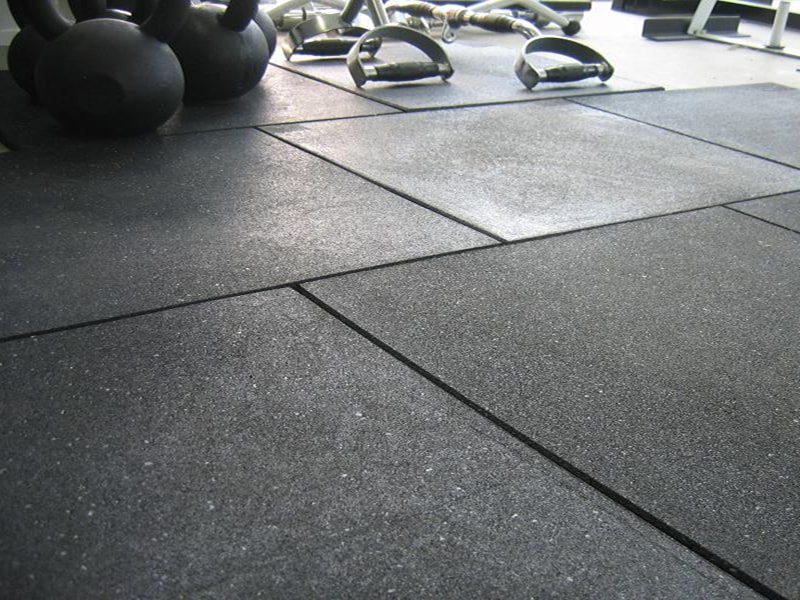

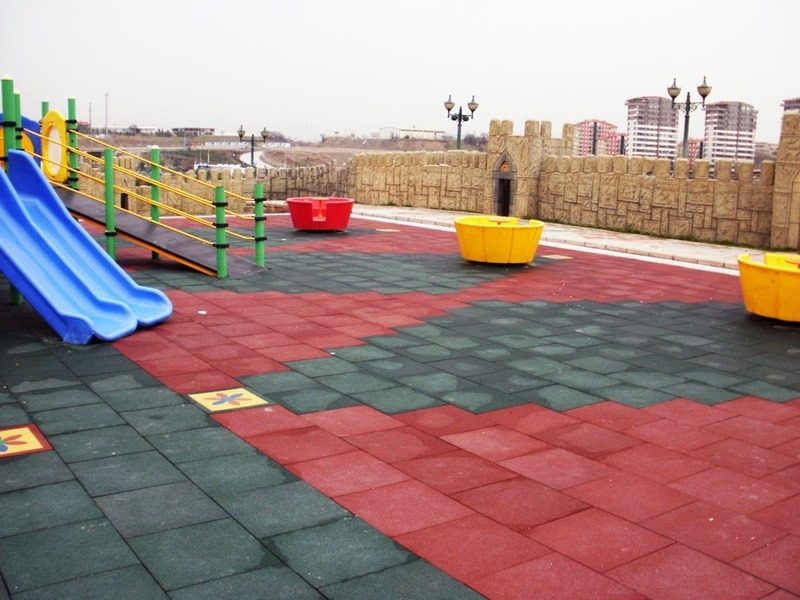

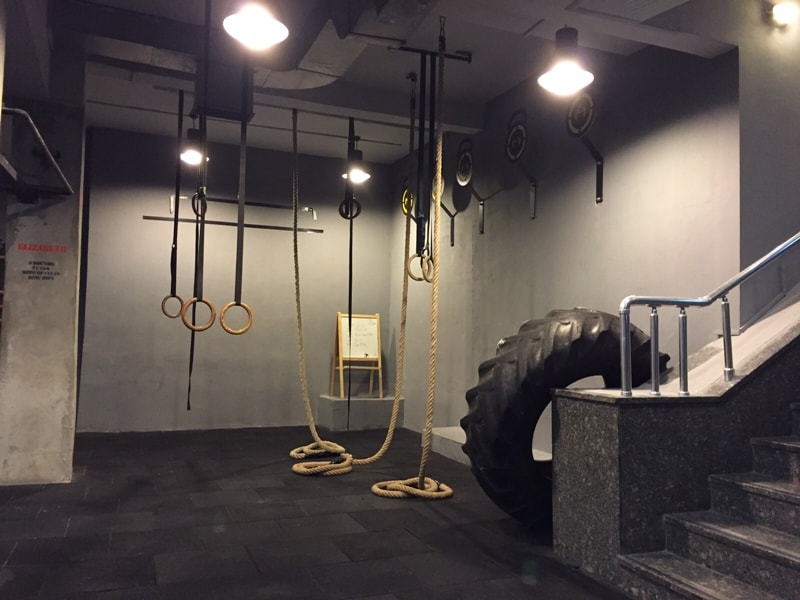

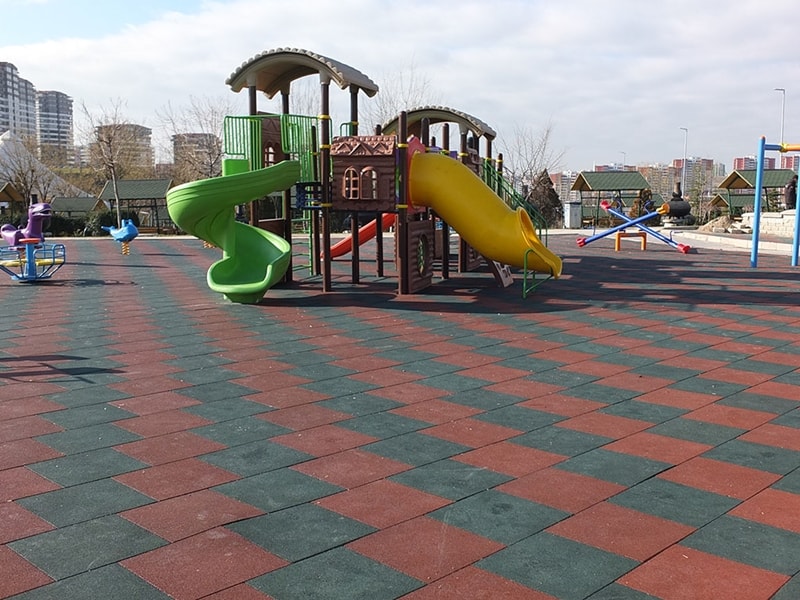

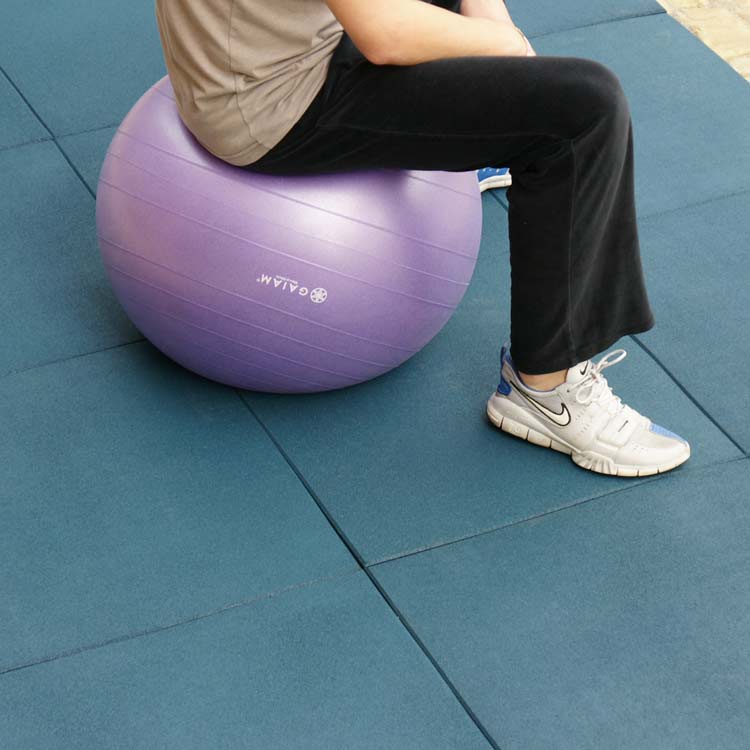

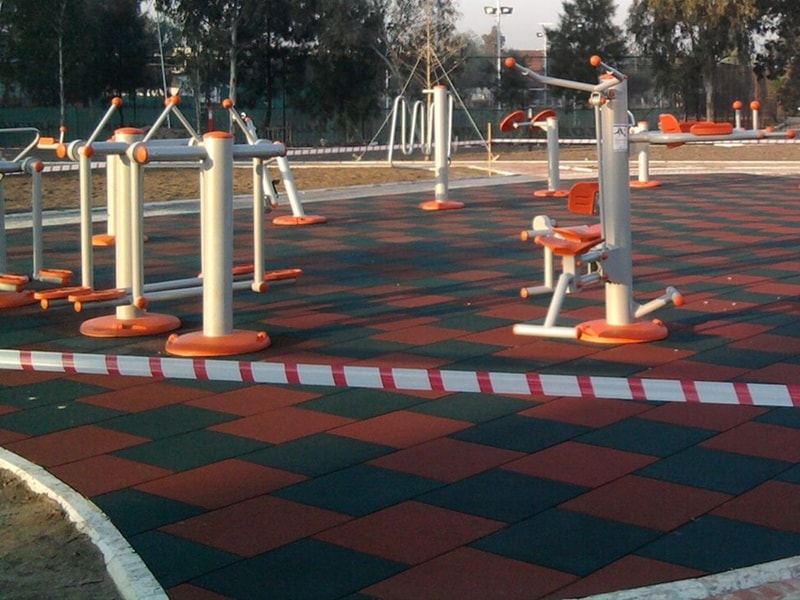

Uses of Rubber Tile: General use such as gyms, schools, children's playgrounds, gymnasiums, machine rooms.

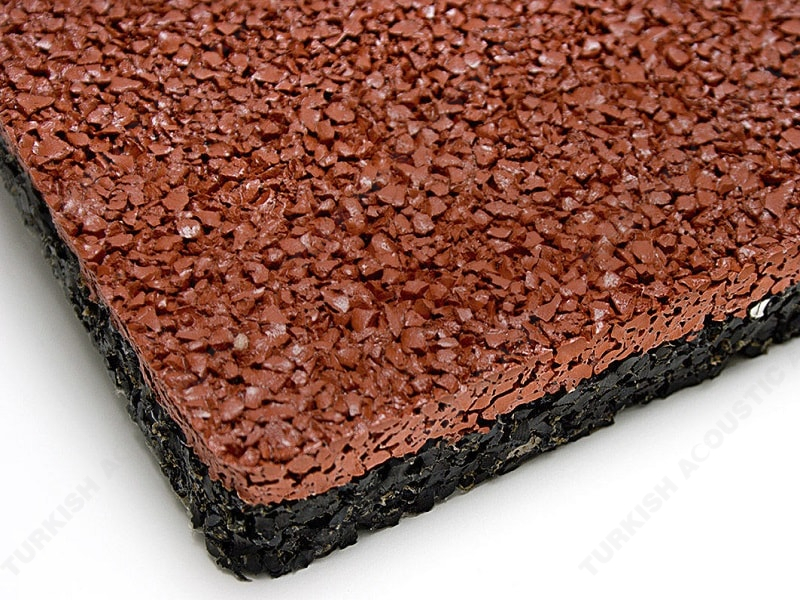

Rubber Tile Options: Rubber tiles are optionally coated with epdm coating.
Rubber Tile Fireproofing: It has no flammability feature. Flame retardant form can be produced optionally.
Rubber Tile Density: 600 Kg / Mg and we can produce it in any density and different thickness.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
The floor rubber tiles are in 45 cm x 45 cm plates and there are 40 plates, ie 18 m² of products in their packages. It is sold as a standard of 20 - 25 mm in retail and wholesale, if you wish, it can be produced in different thicknesses and sizes as a special production. Please contact our technical office for detailed information.
