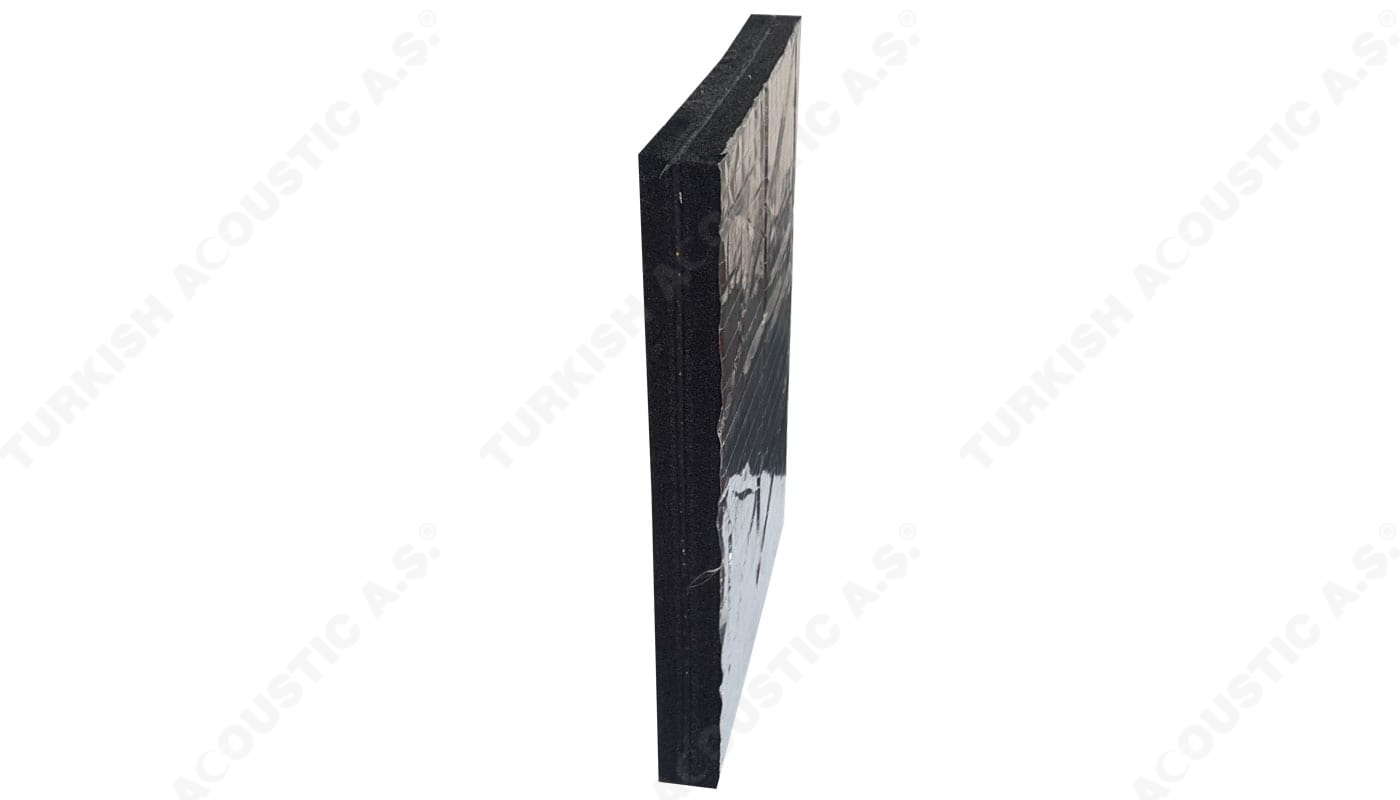

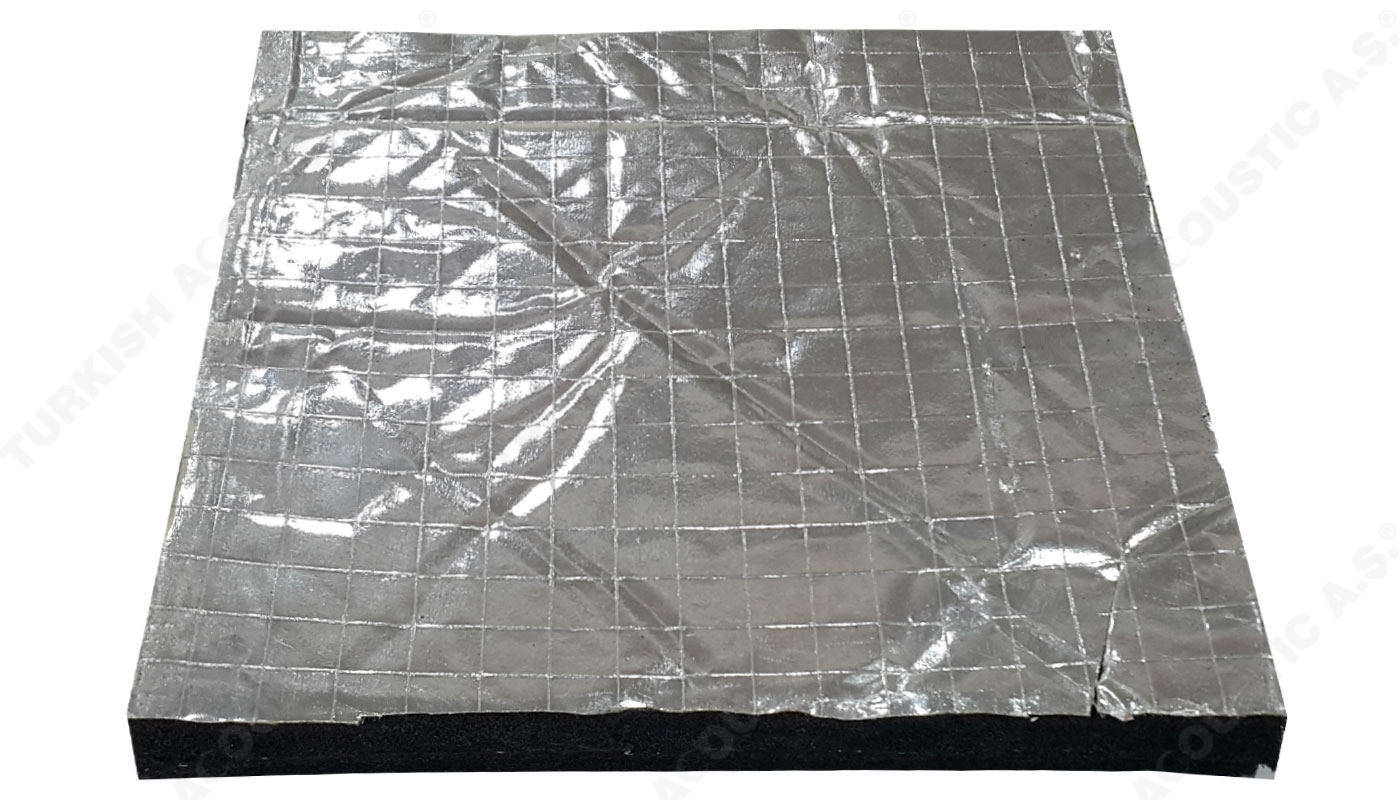

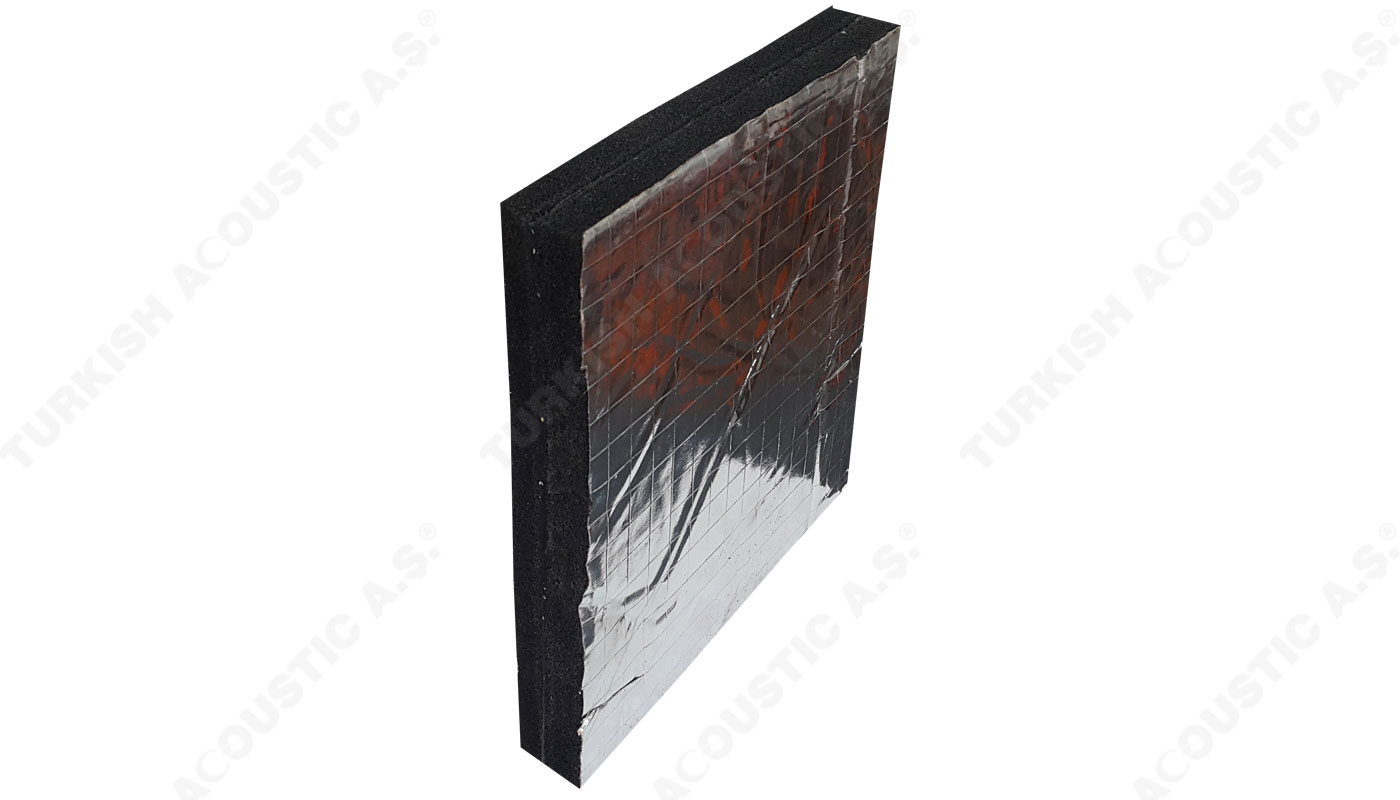

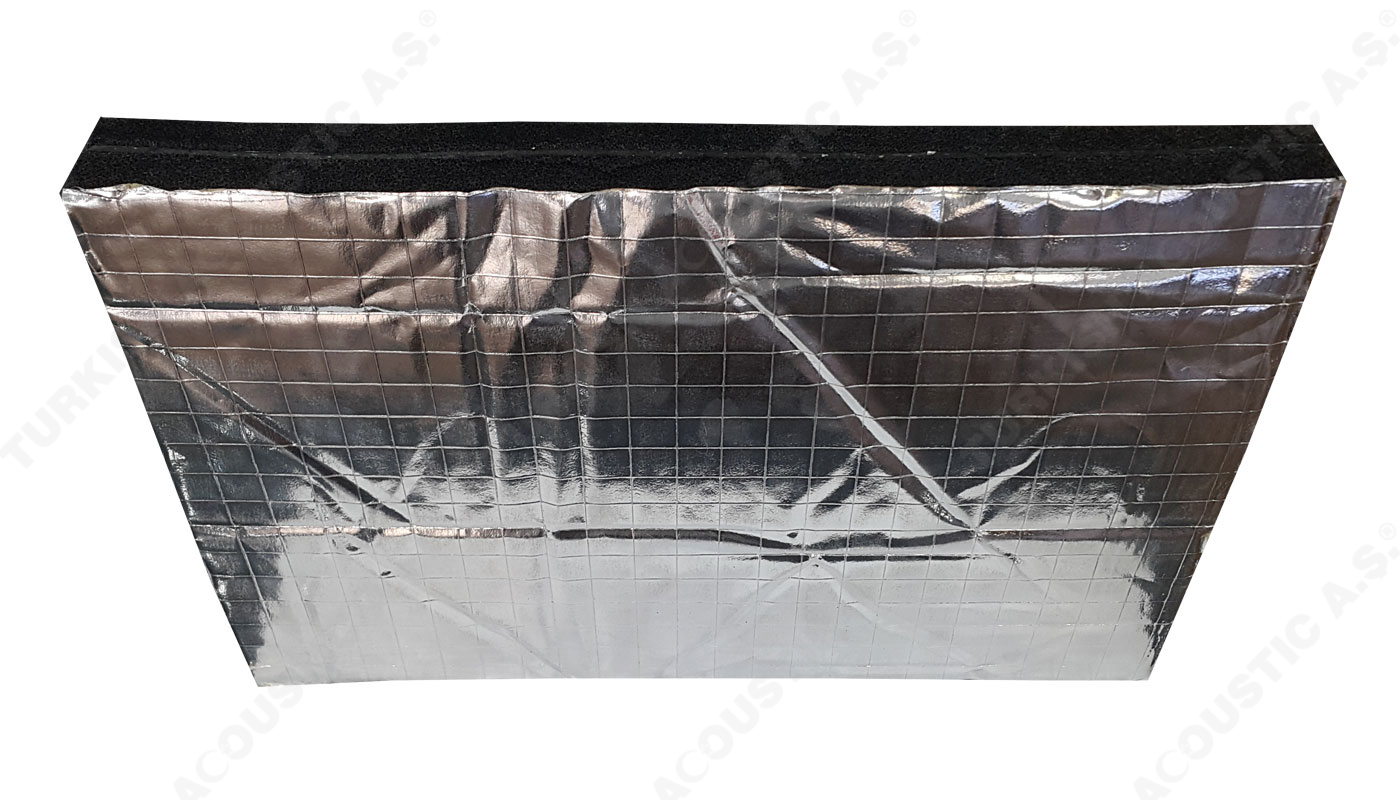

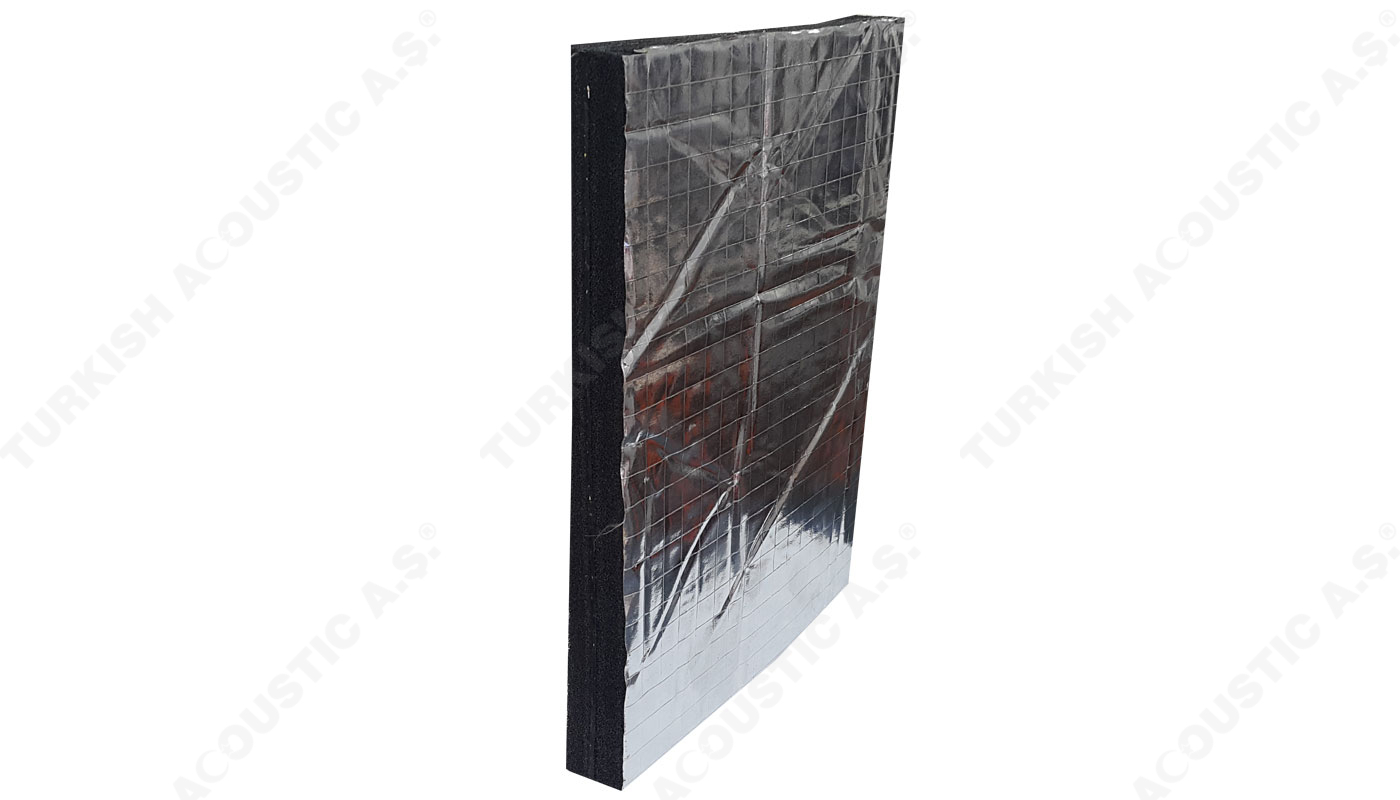

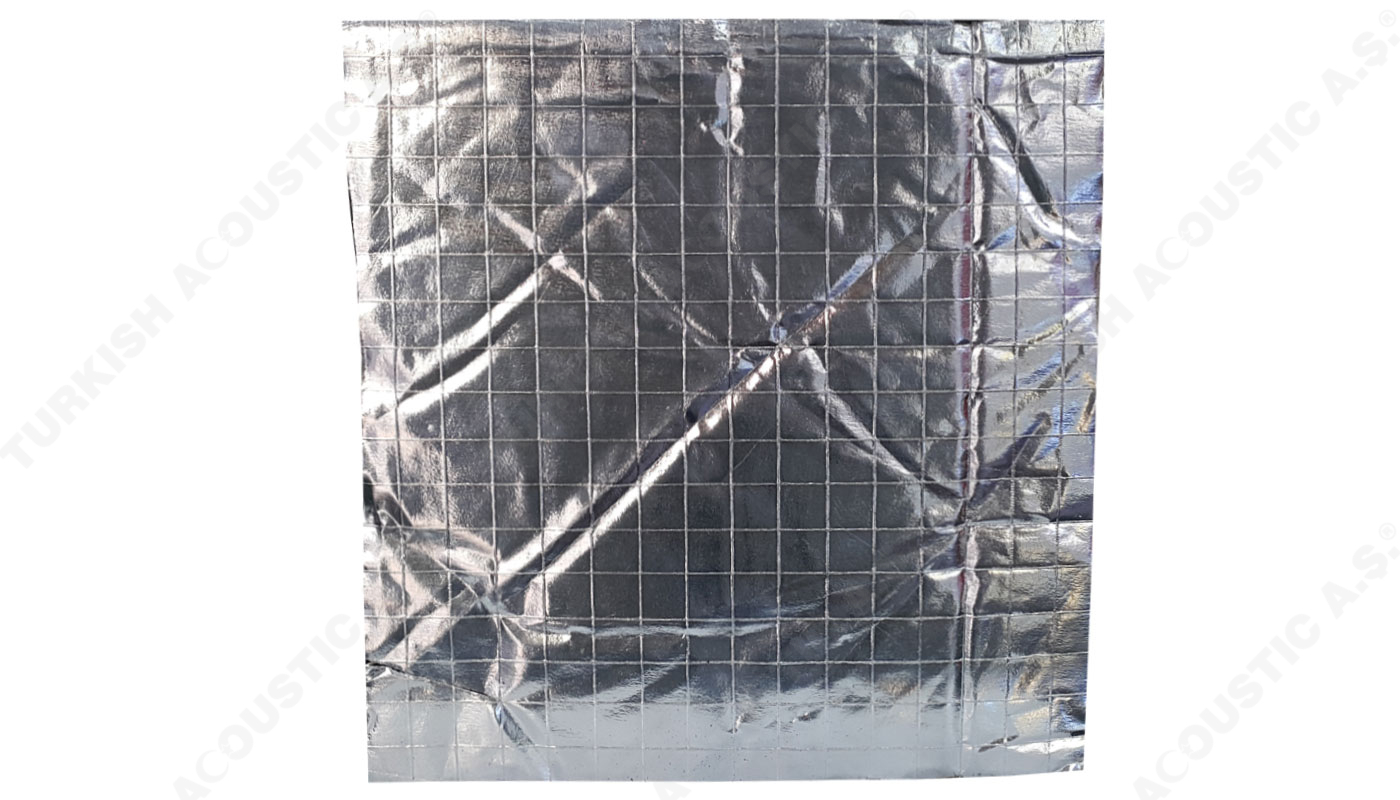

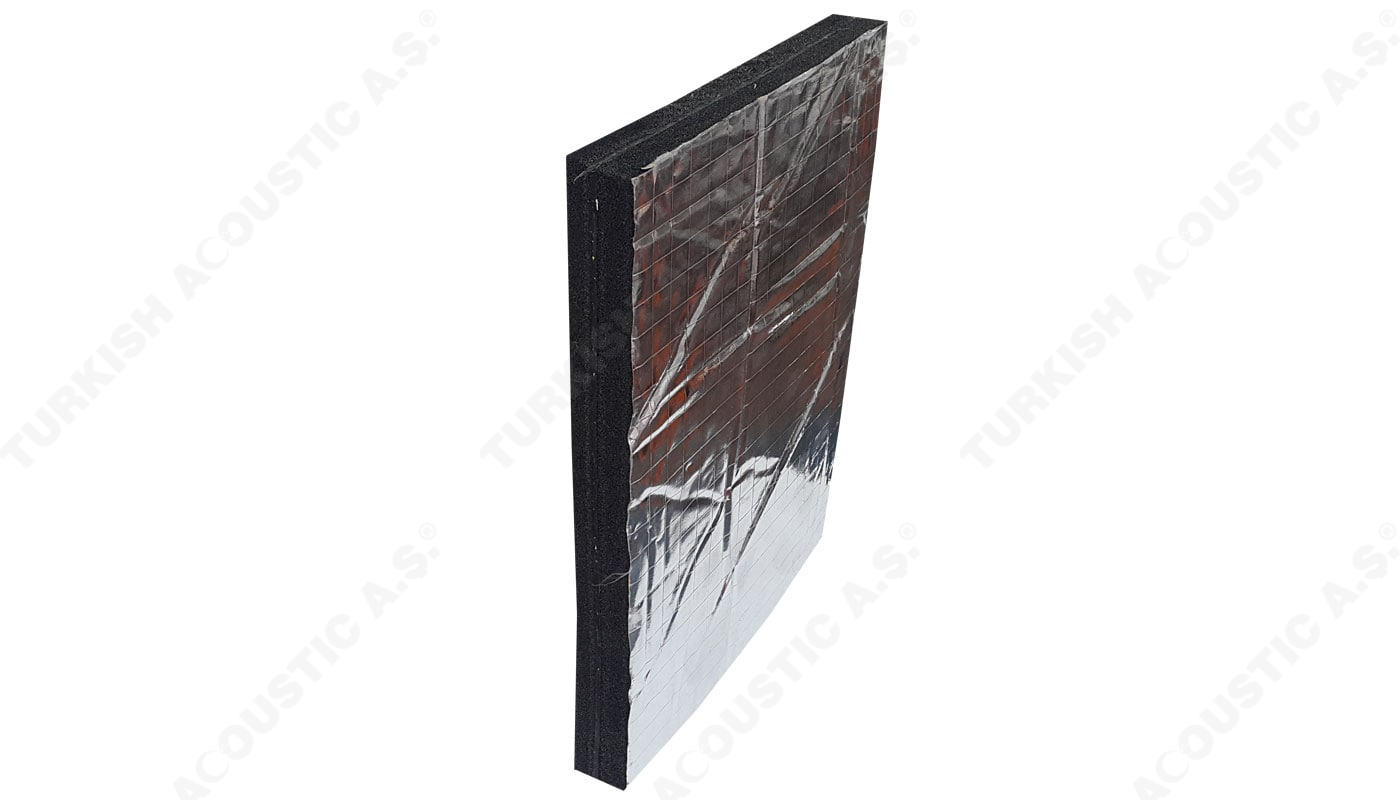

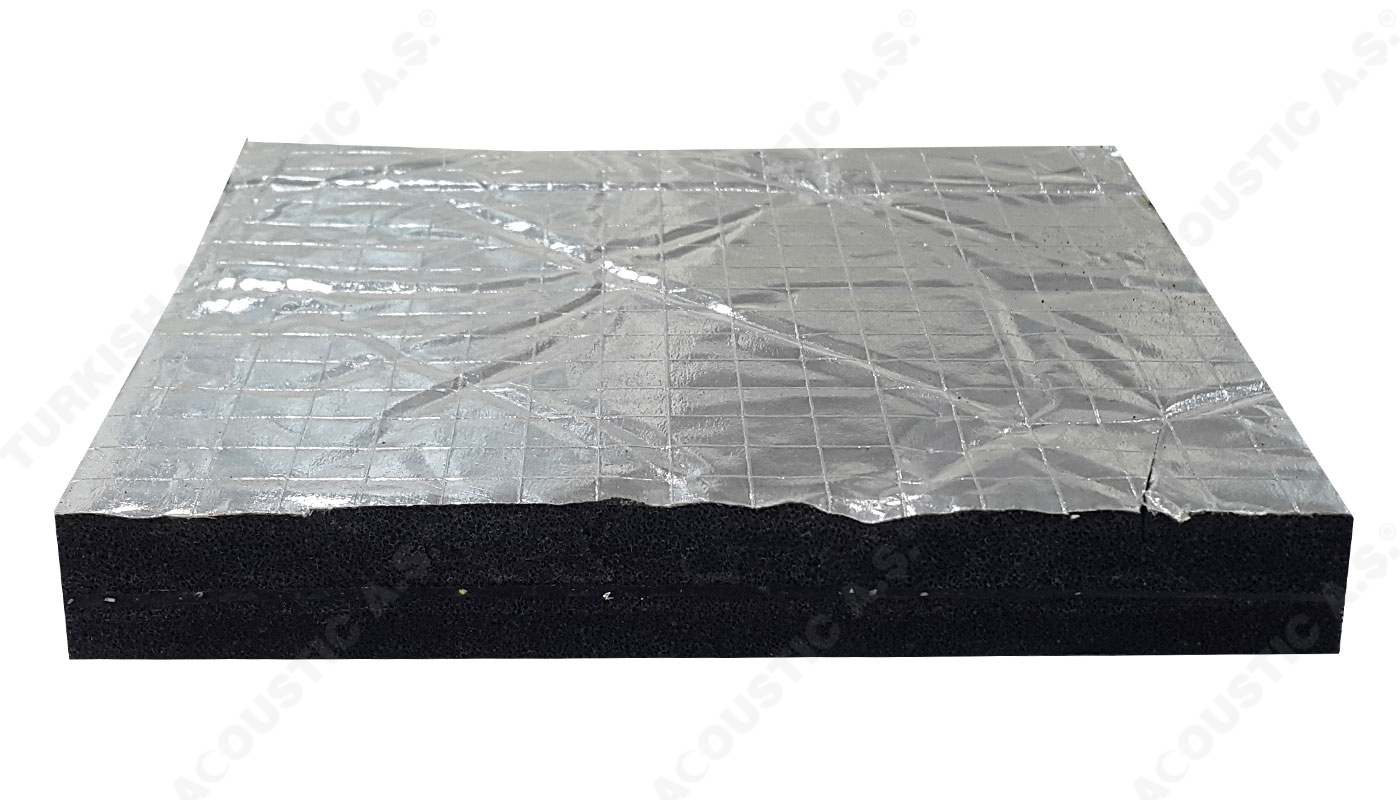

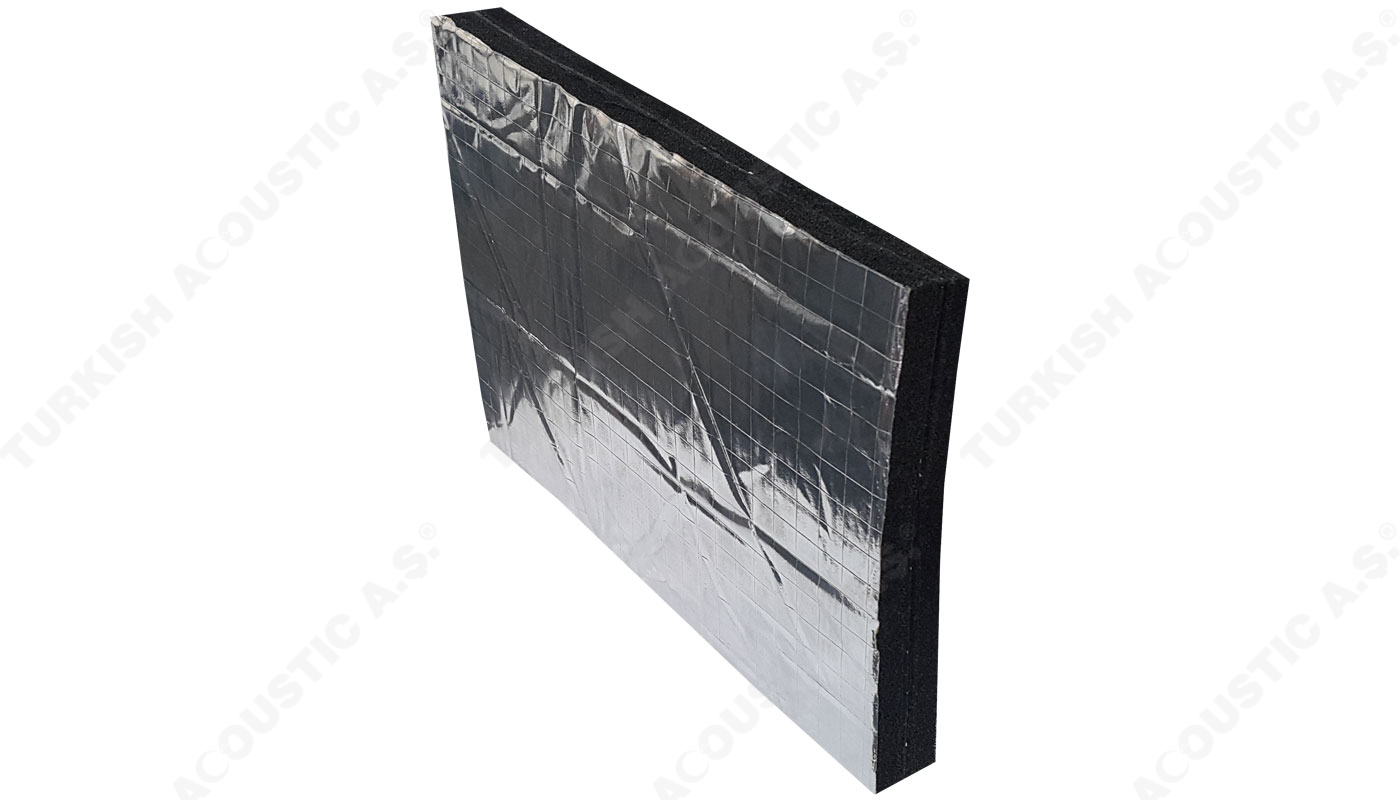

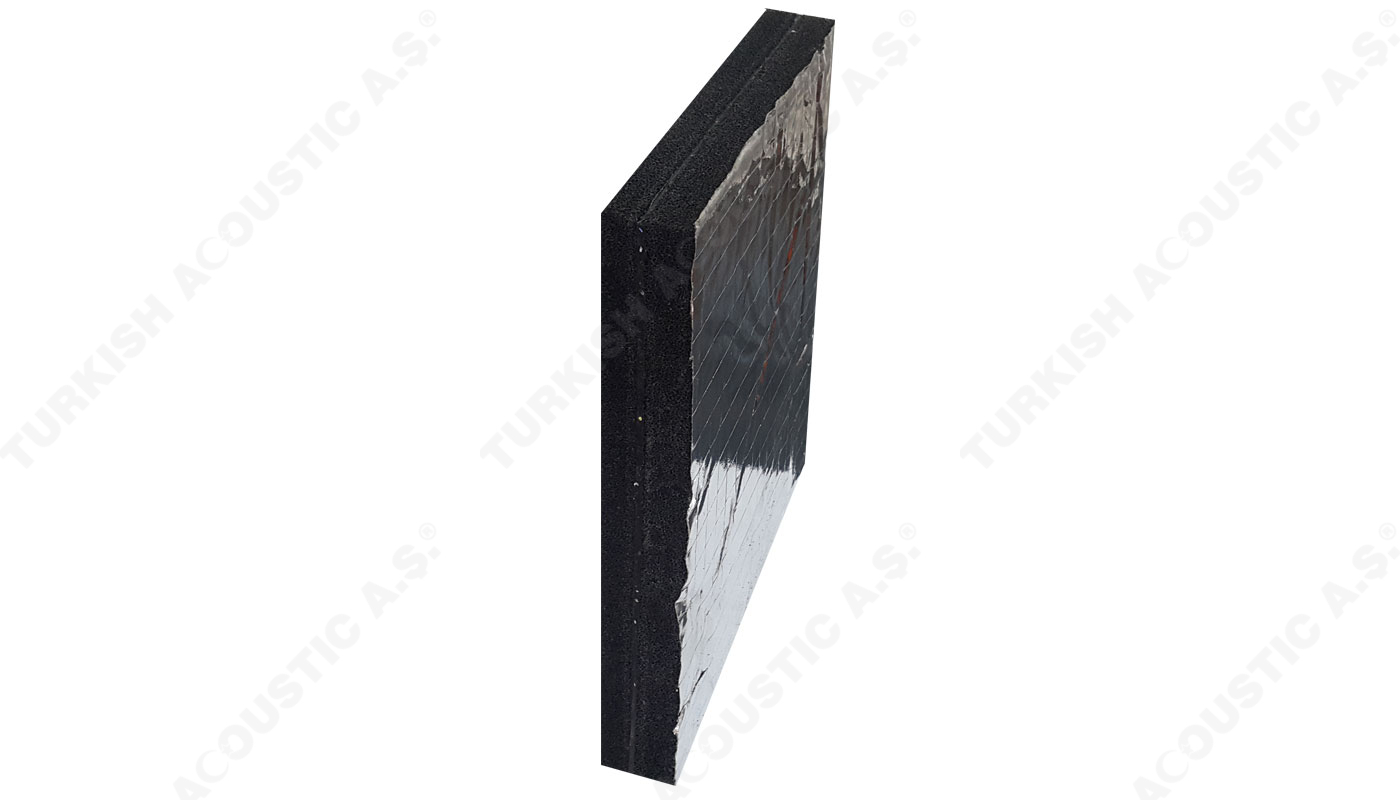

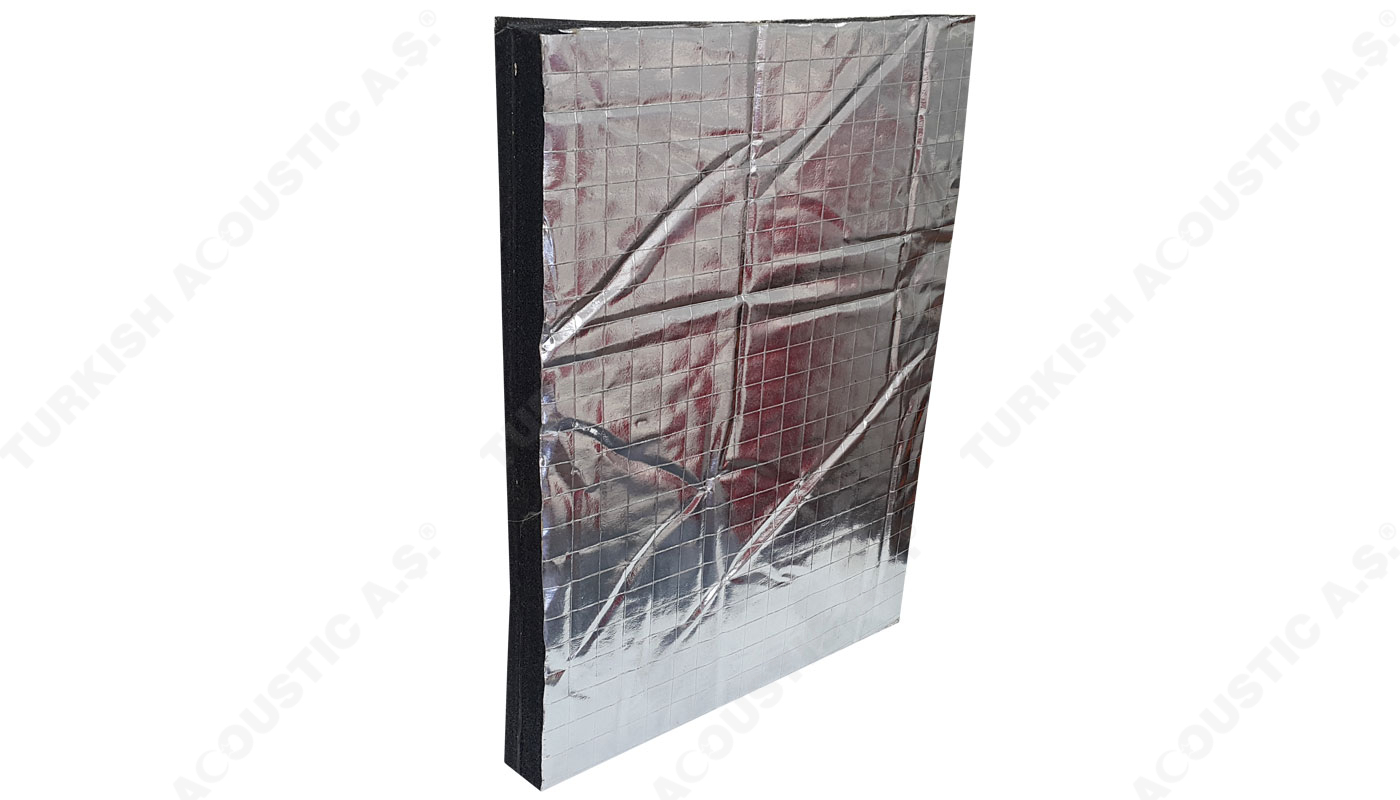

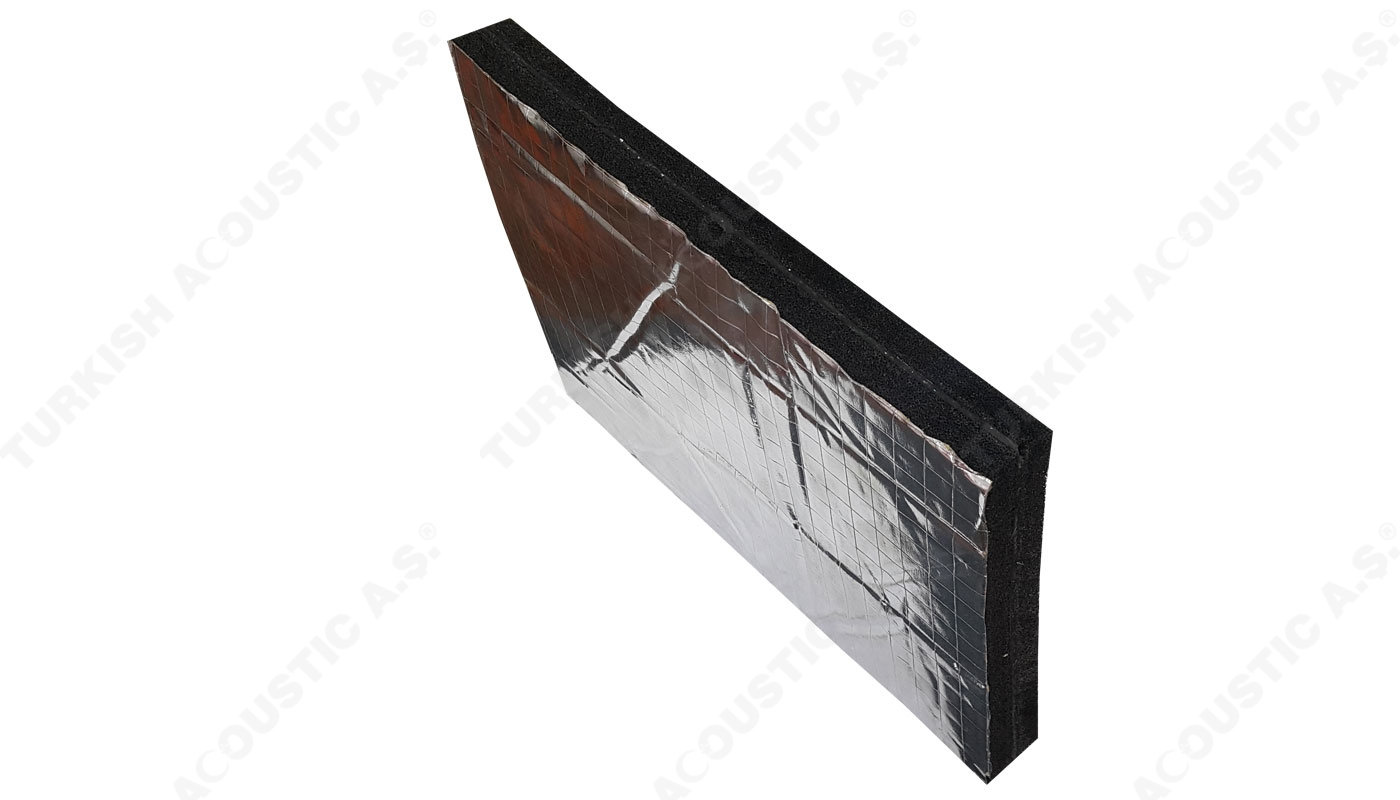

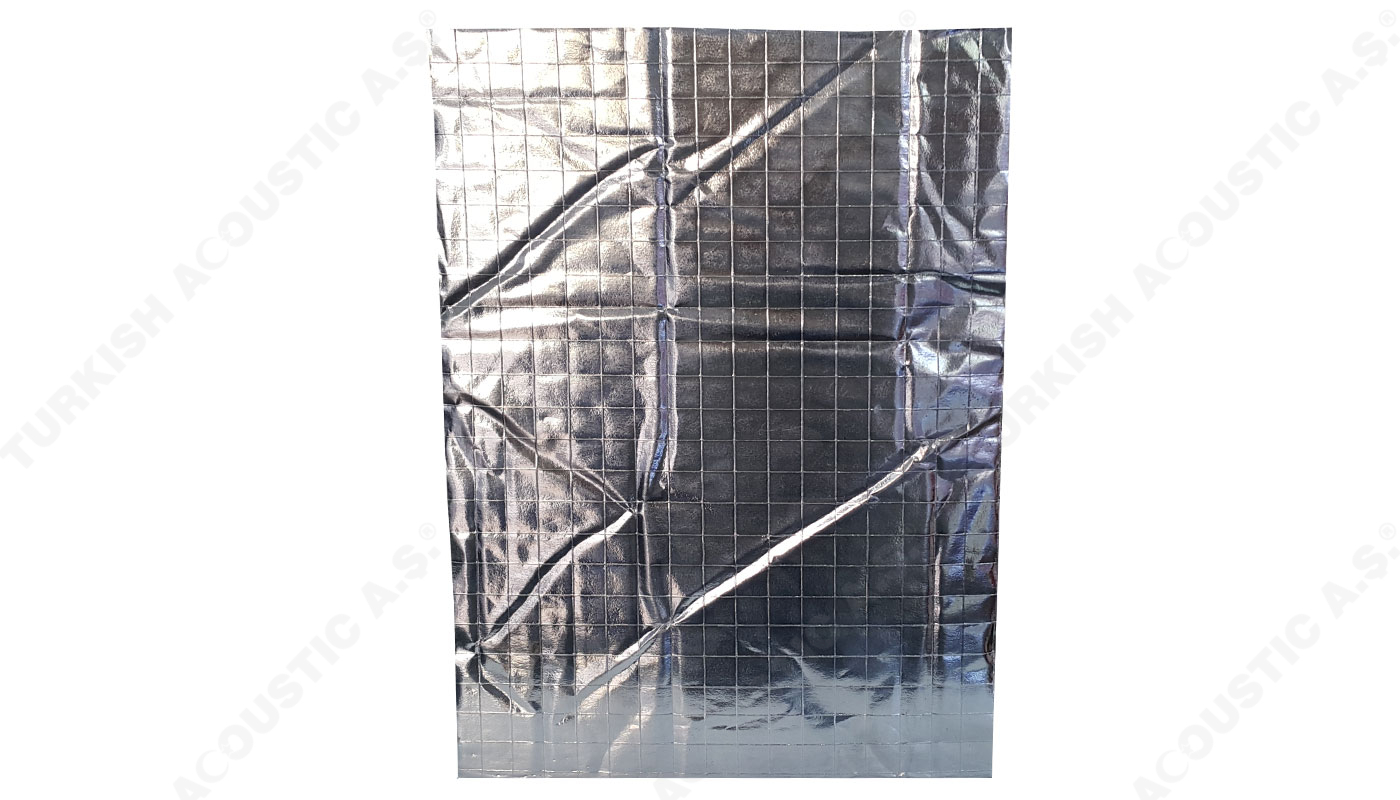

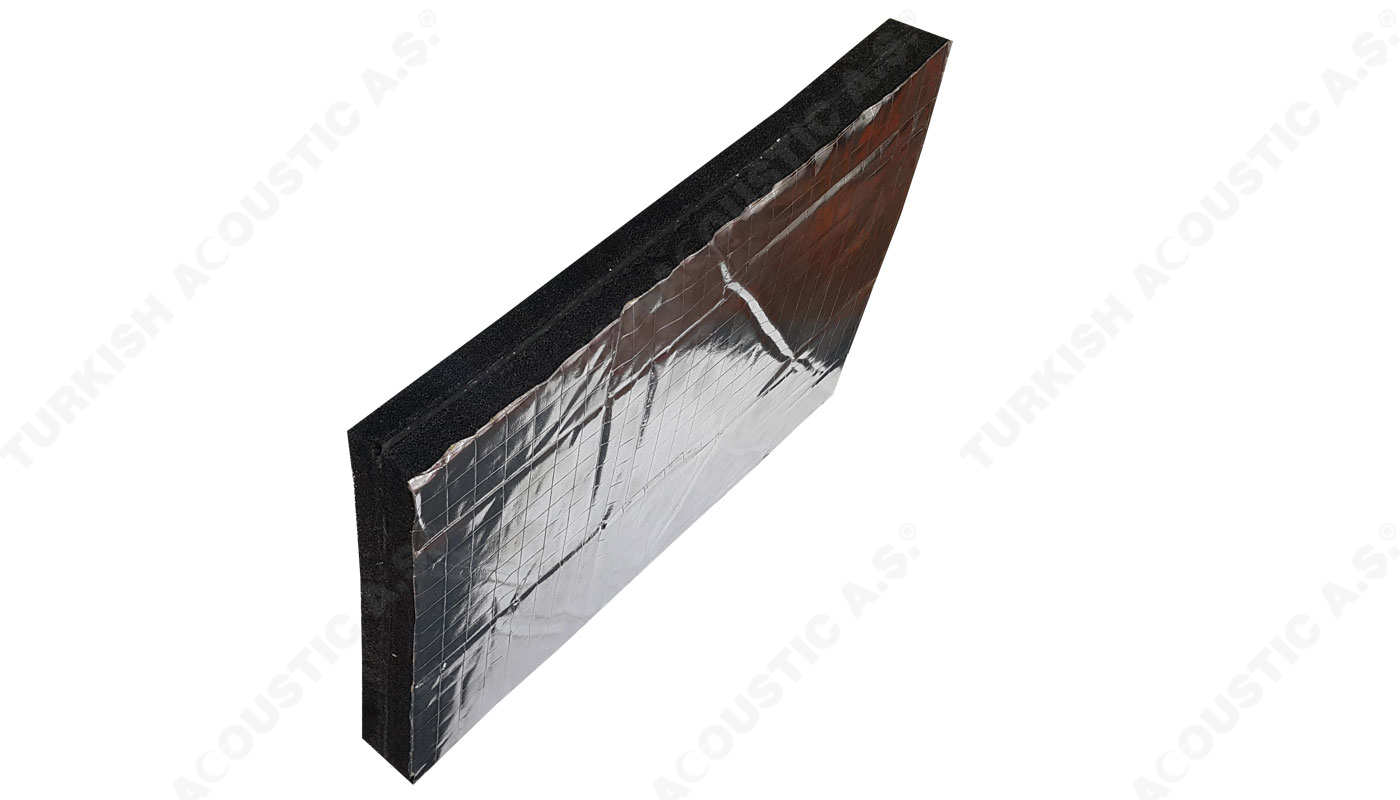

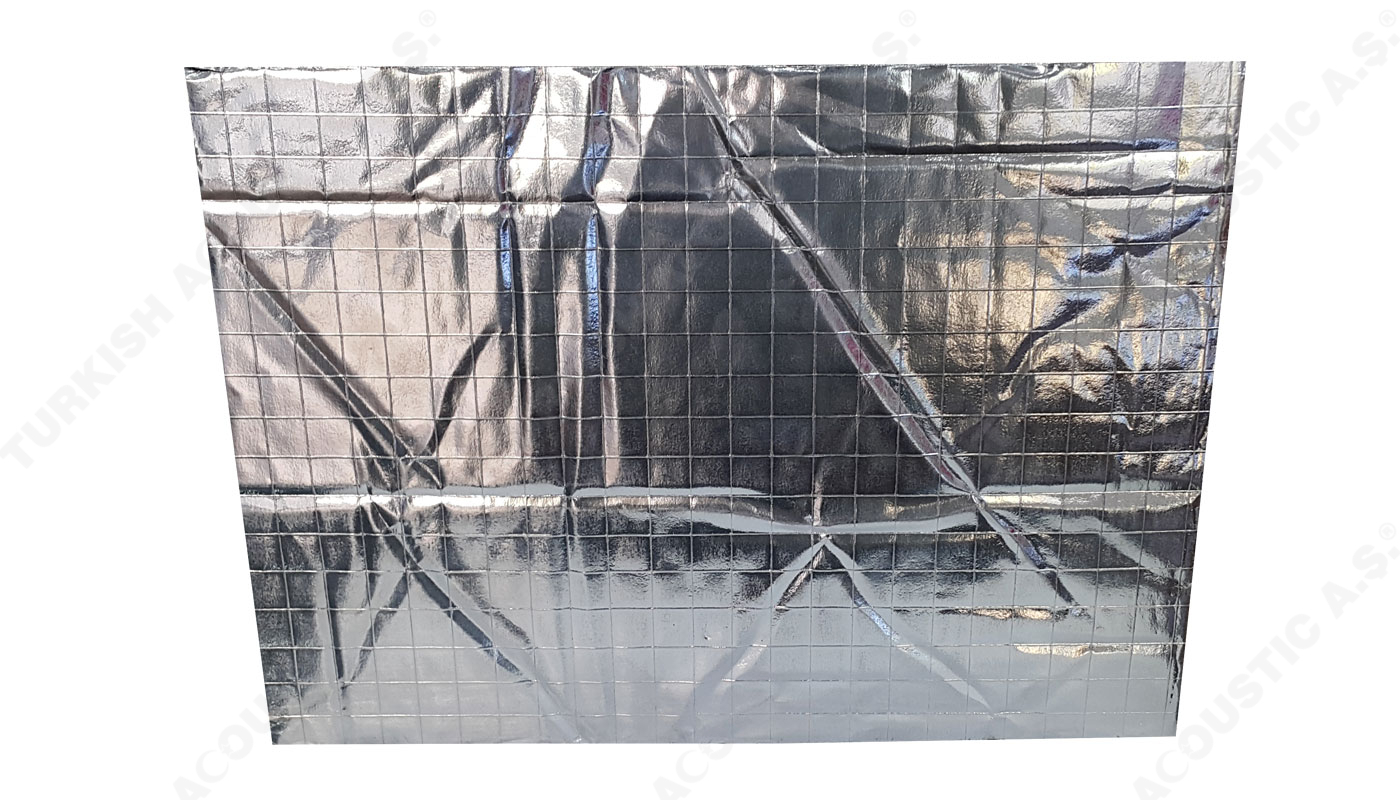

Trk Yacht Products: Aluminum film & foil-covered fireproof acoustic sponges. The product is covered with the desired PVC film (PU) or aluminum foil and laminated, this process prevents oil and water absorption. Coated sponges are products designed for the engine room, marine & yacht engine cabin in general. Pu coated-acoustic sponges, which are produced by our company in accordance with international standards and provide acoustic sound insulation solutions in areas where fireproofing is important, are non-flammable sponge foam products. Aluminum covered acoustic fireproof sponges, friend; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates (see the certificates section). Please contact us for acoustic test results according to frequency values. Usage areas of aluminum covered acoustic fireproof sponges; in ventilation ducts, mechanical apartments, generators, In compressor cabins, in short, at every point where sound insulation is required; In areas requiring acoustic solutions such as disco, restaurant, cinema, concert, meeting halls; It is used in situations where noise and echo (parasitic sounds) need to be controlled in crowded environments such as airports and government buildings.
Trk Yacht Products Dimensions: 100 cm x 100 cm or 100 cm x 200 cm Plate dimensions, 20 mm - 30 mm and 40 mm - 50 mm are offered for retail sale.
Trk Yacht Products Package Contents: Aluminum coated fireproof sponges 50 cm x 100 cm size plate is sold in 20 packages. 1 Pack 10 m² Sold.
Trk Yacht Products Product Thickness: 10 mm - 20 mm - 30 mm - 40 mm - 50 mm - 60 mm - 70 mm - 80 mm - 90 mm - 100 mm
Trk Yacht Products Color types: Black (dark andesite gray) are sold as standard, colored production is possible.
Trk Yacht Products Uses : Yachts and boats in the marina, nacelle, generators cabin, m Užice room, studio, radio, publishing, sports hall, entertainment venues.
Trk Yacht Products Production: Production of special thickness 50 mm and above is possible. Custom cut to size is possible.
Trk Yacht Products Density: 50 to 60 Kg / M³ It is possible to produce special production in desired density and thickness.
Note: 30 mm product is between 25 - 30 mm, 40 mm thickness is tolerated between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Aluminum coated sponges are in 100 cm x 100 cm plates, and their packages contain 10 plates, ie 10 m² of products. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
