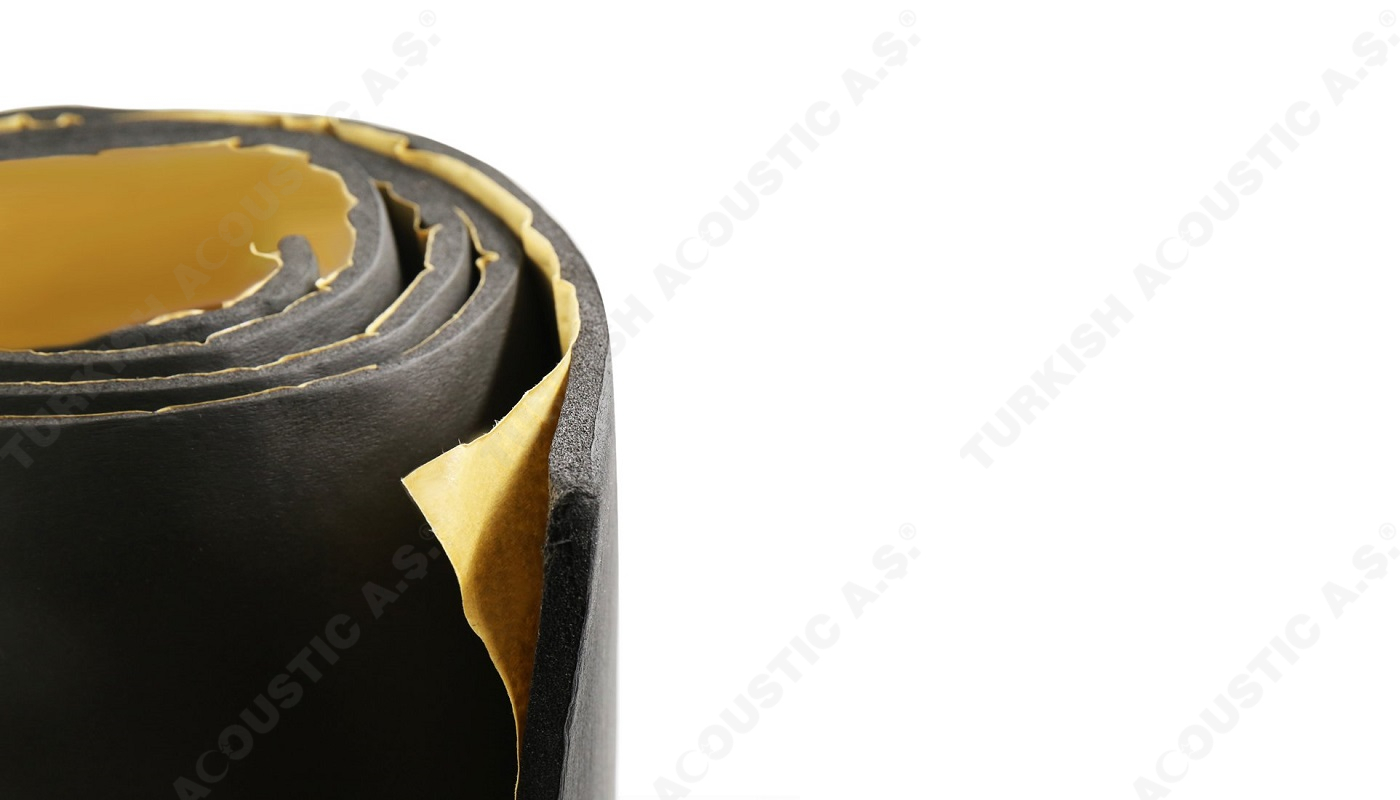

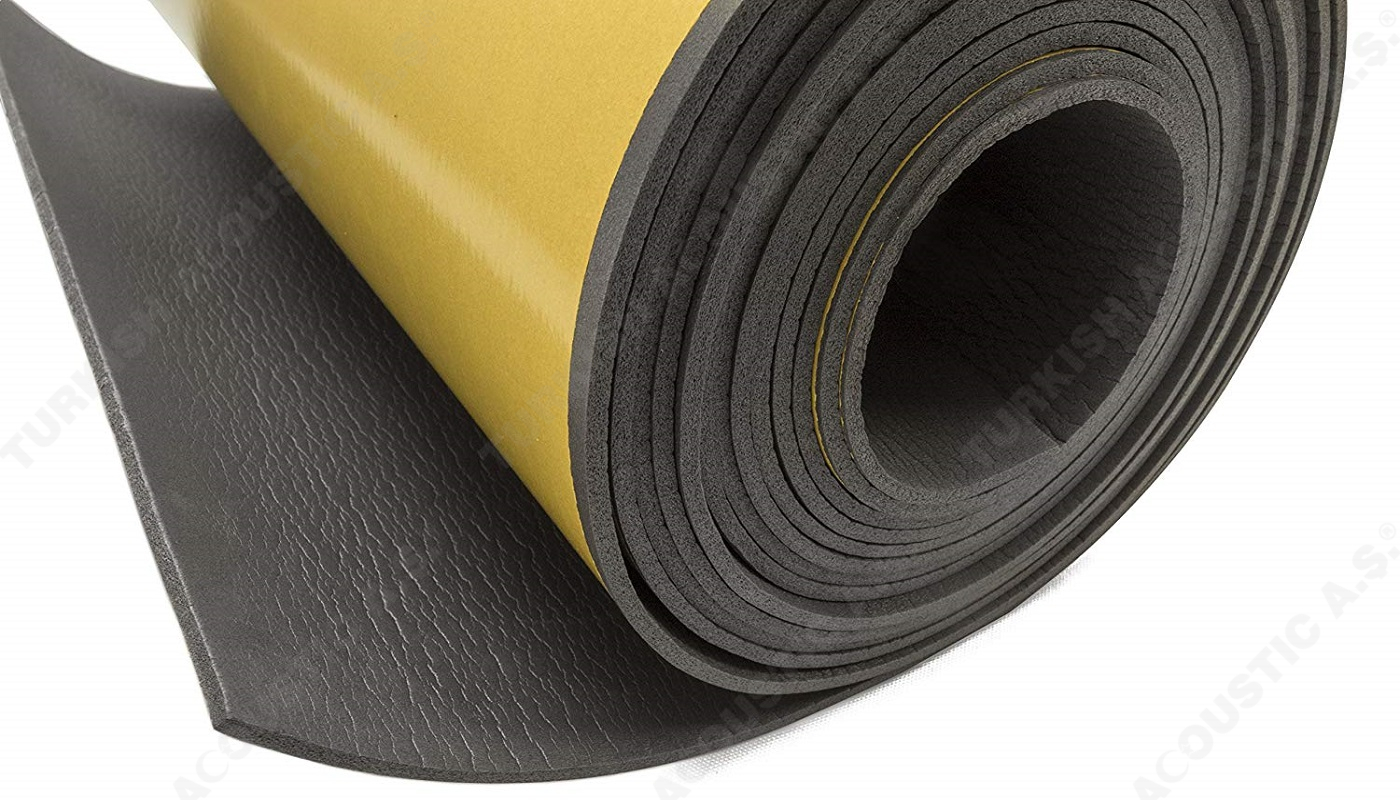

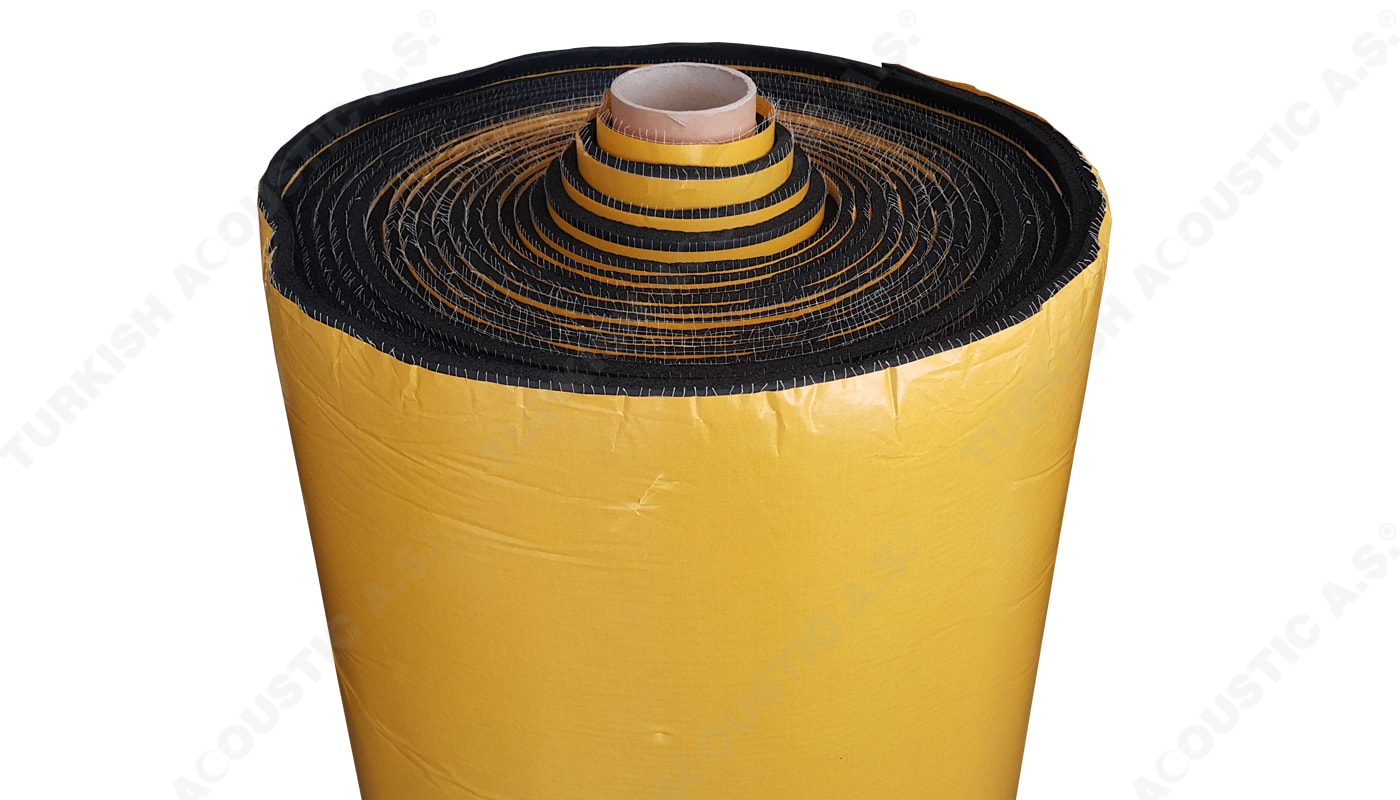

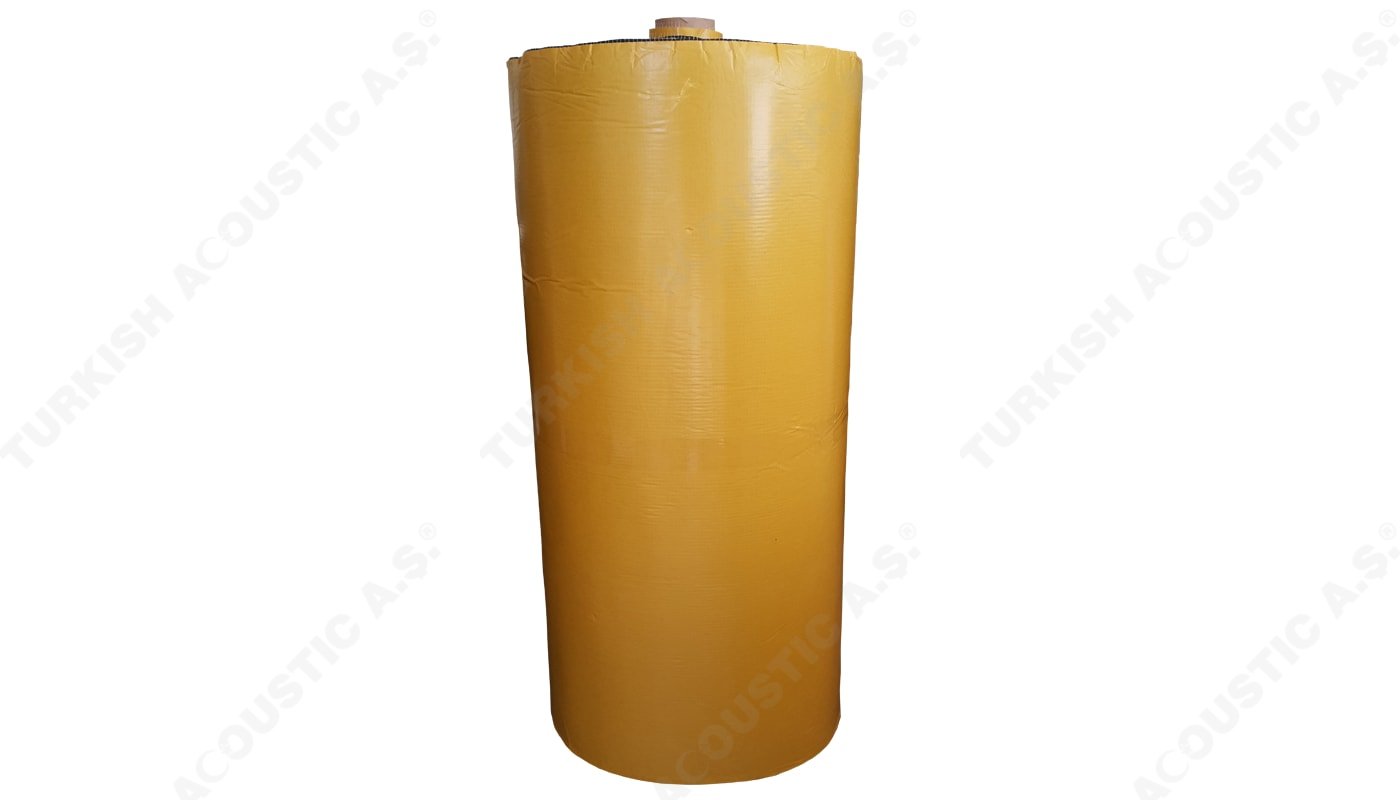

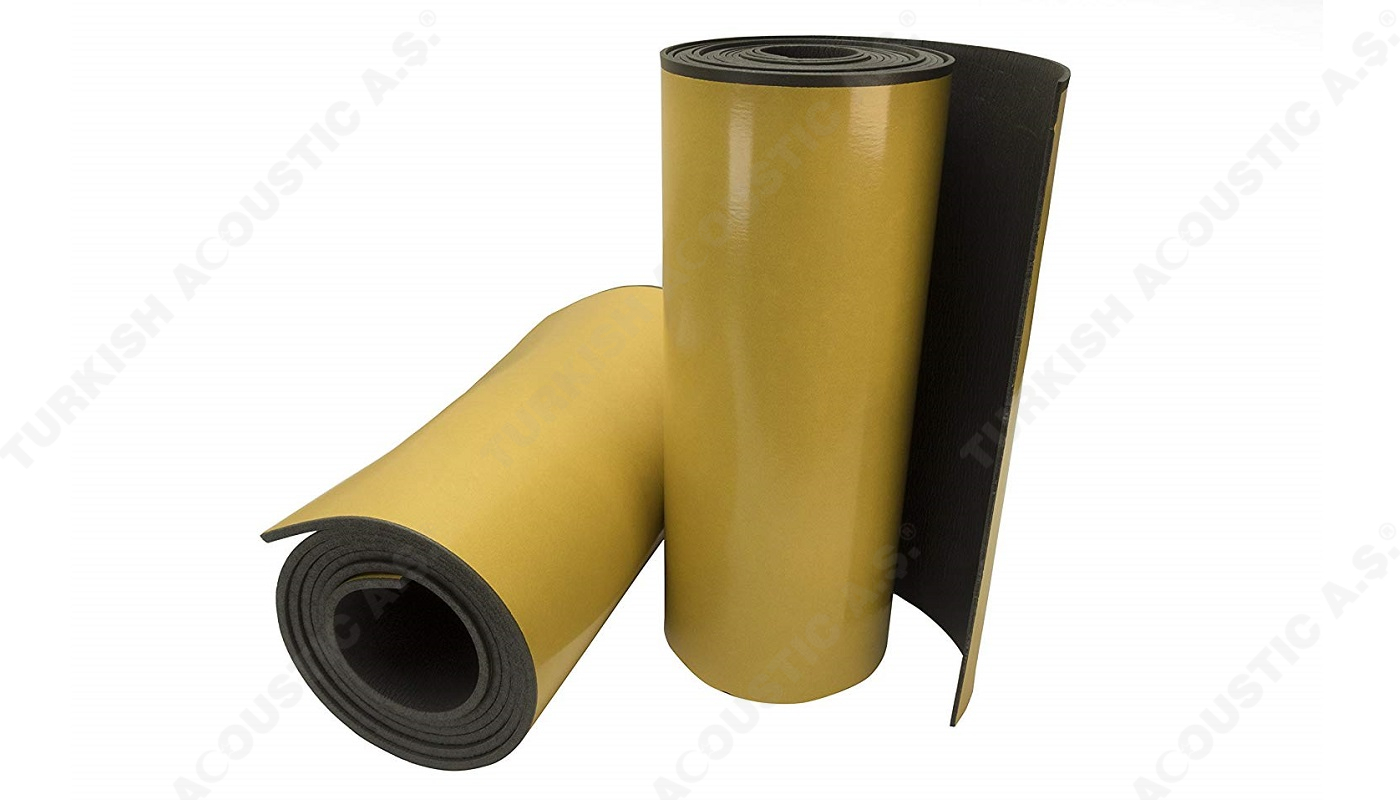

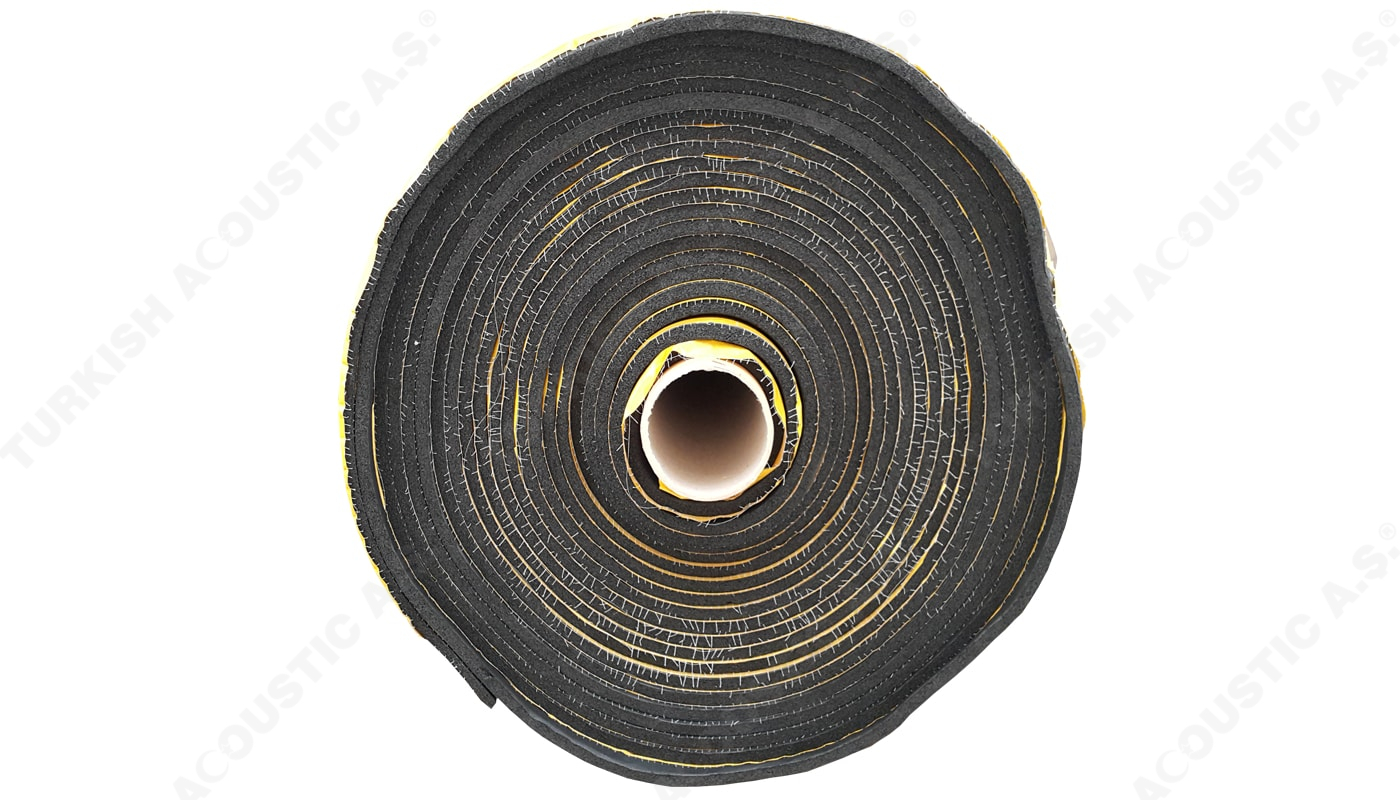

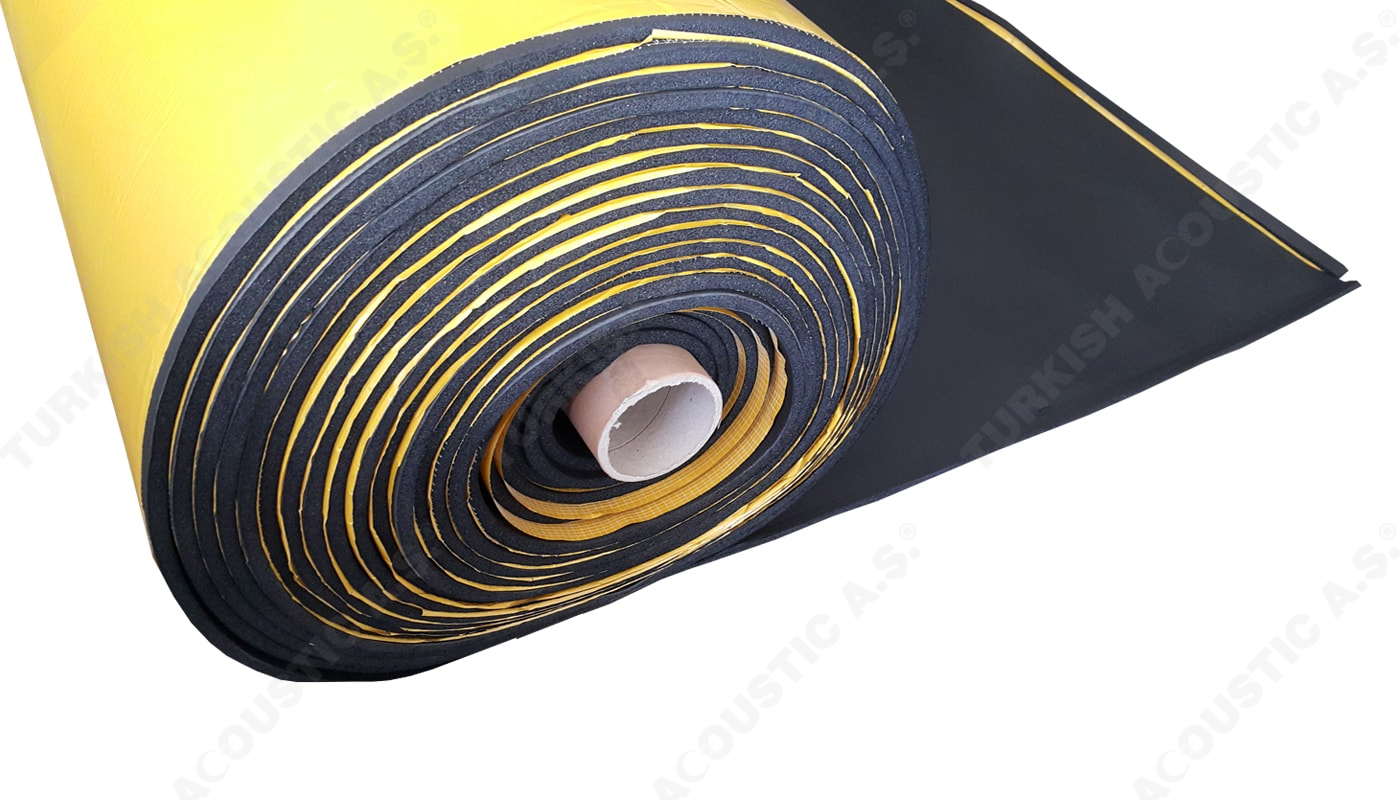

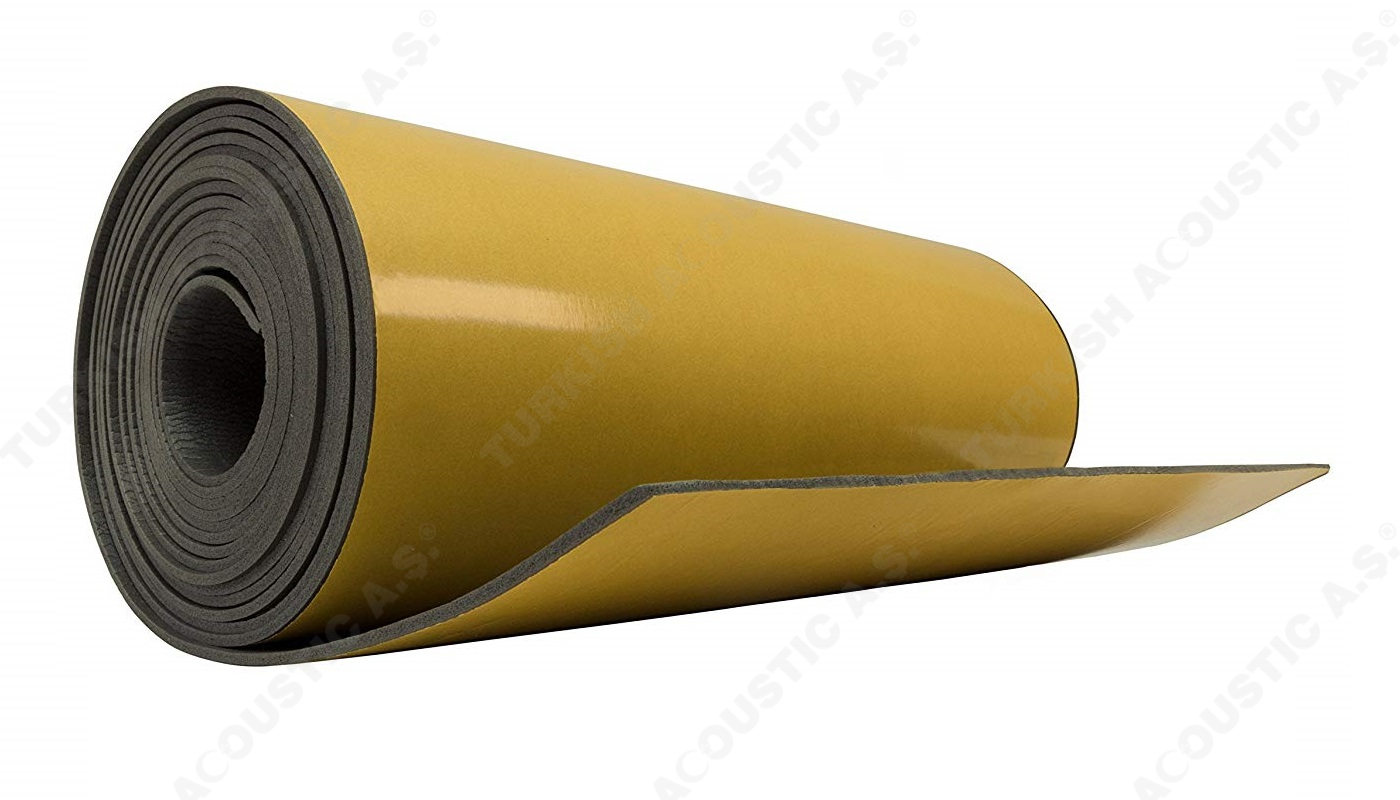

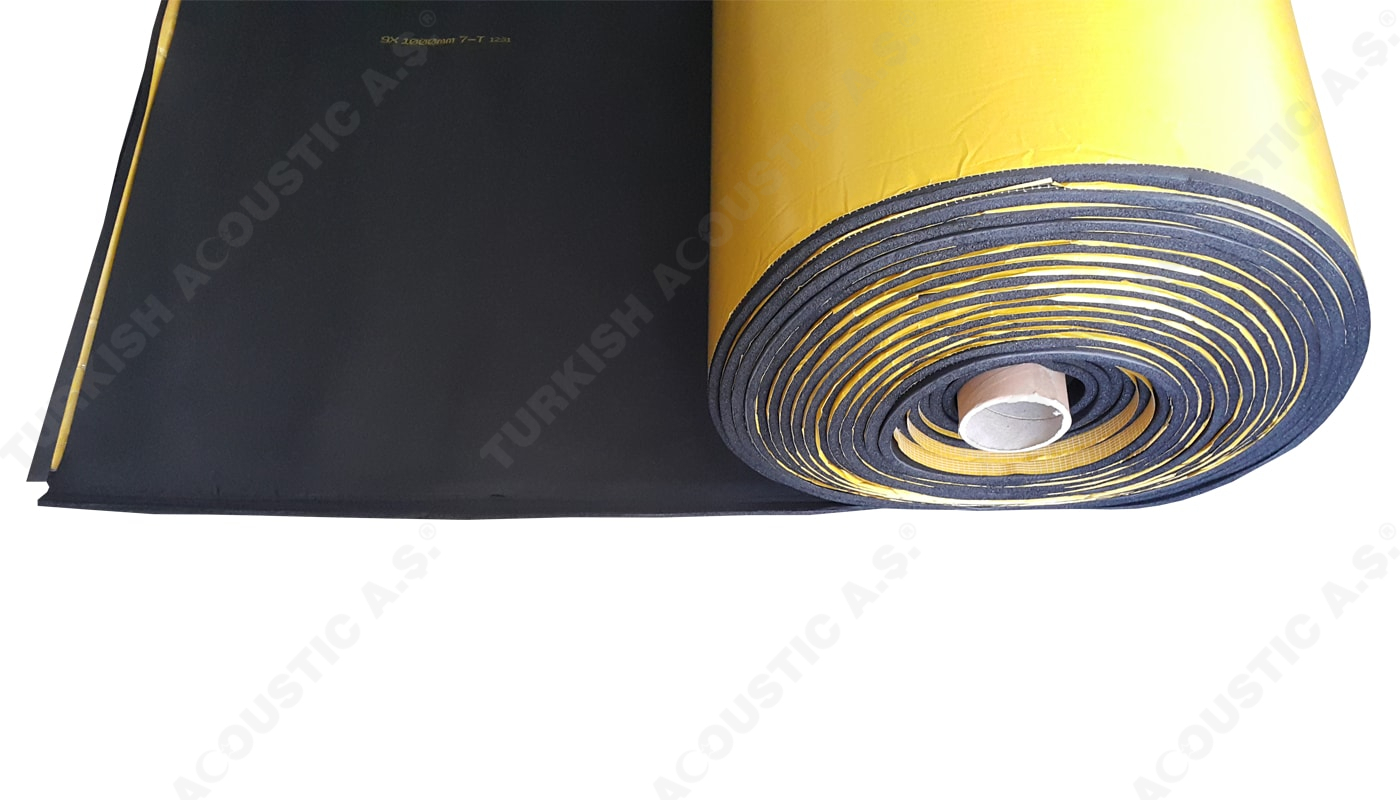

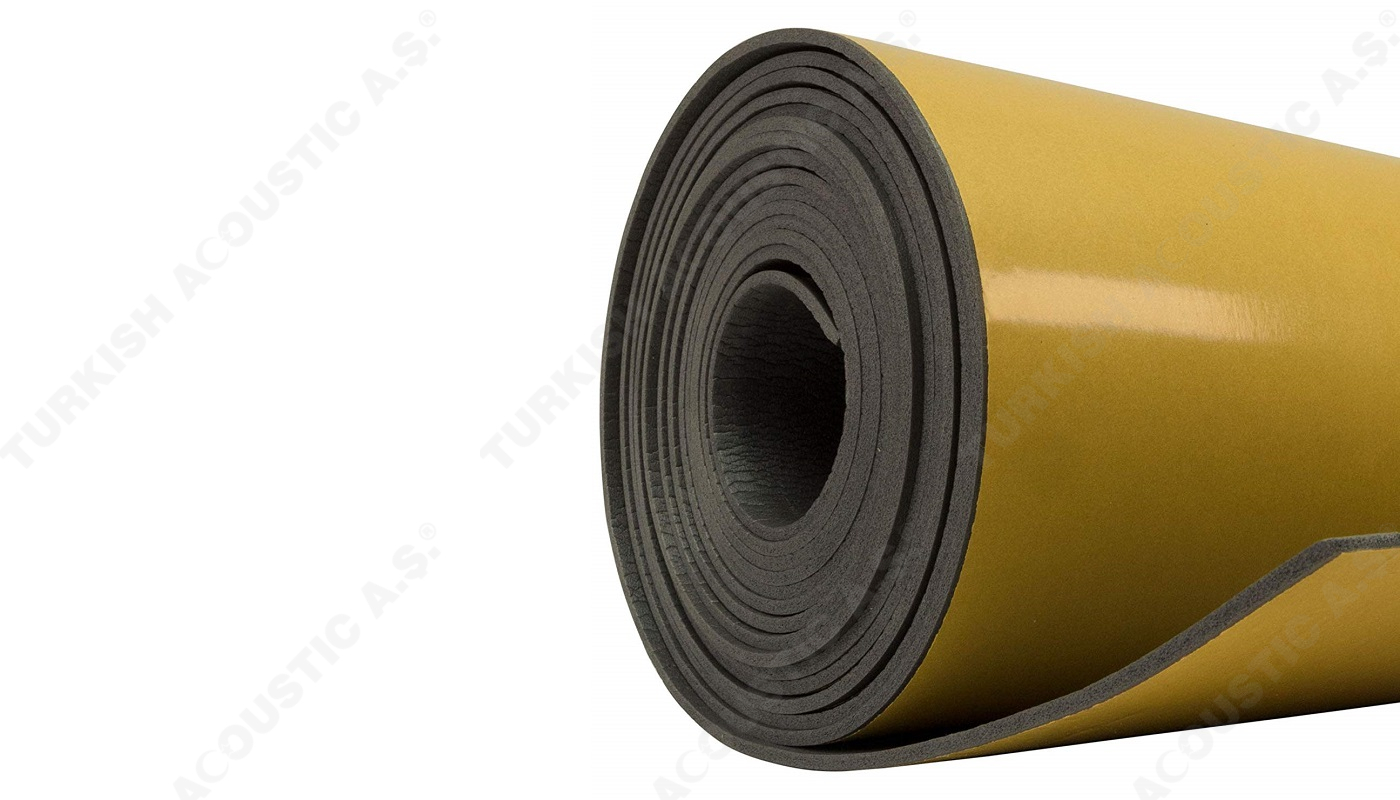

Roll Adhesive Sponge: We produce acoustic roll sponges with labels on the back, and acoustic fireproof roll sponges with self adhesive (labeled / tape on the back) in the form of a mattress in the form of a 100 cm wide, 10 meters and 20 meters long. Roller fireproof sponges , firend; It has BS476: class 0 and UNI 9175: 2008 M1 certificates in non-flammability (see the certificates section). Roll fireproof sponge, please contact us for acoustic test results according to frequency values. Adhesive rolls of fireproof spongesusage areas ; in ventilation ducts, mechanical apartments, generator and compressor cabins, in short, at every point where sound insulation is required; In areas where acoustic solutions are required such as disco, restaurant, cinema, concert, meeting halls; It is used in situations where noise and echo (parasitic sounds) need to be controlled in crowded environments such as airports and government buildings.
Adhesive Roll Fireproof Sponge Dimensions: 100 cm x 1000 cm or 100 cm x 2000 cm Plate dimensions, 20 mm - 30 mm and 40 mm - 50 mm are offered for retail sale.
Adhesive Roll Fireproof Sponge Package Contents: Rolled fireproof sponges are sold as rolls of 1 mt x 10 mt. 1 Package (Roll) 10 m² Sold. This amount varies according to thickness.
Adhesive Roll Fireproof Sponge Product Thickness: 10 mm - 20 mm - 30 mm - 40 mm - 50 mm - 60 mm - 70 mm - 80 mm - 90 mm - 100 mm
Adhesive Roller Fireproof Sponge Color types: Black (dark andesite gray) are sold as standard, colored production is possible. (In light cream off-white)
Adhesive Roller Fireproof Sponge Usage Areas: In yachts, marinas and boats, engine room, generator cabin, music room, studio, radio publishing house, sports hall, entertainment venues.
Adhesive Roll Fireproof Sponge Production: Production of special thickness 50 mm and above is possible. Custom cut to size is possible.
Adhesive Roll Fireproof Sponge Density: 50 to 60 Kg / M³ It is possible to custom manufacture in desired density and thickness.
Note: 30 mm product is between 25 - 30 mm, 40 mm thickness is tolerated between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Fireproof acoustic sponges are in 100 cm x 100 cm plates, and their packages contain 10 plates, ie 10 m² of products. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
