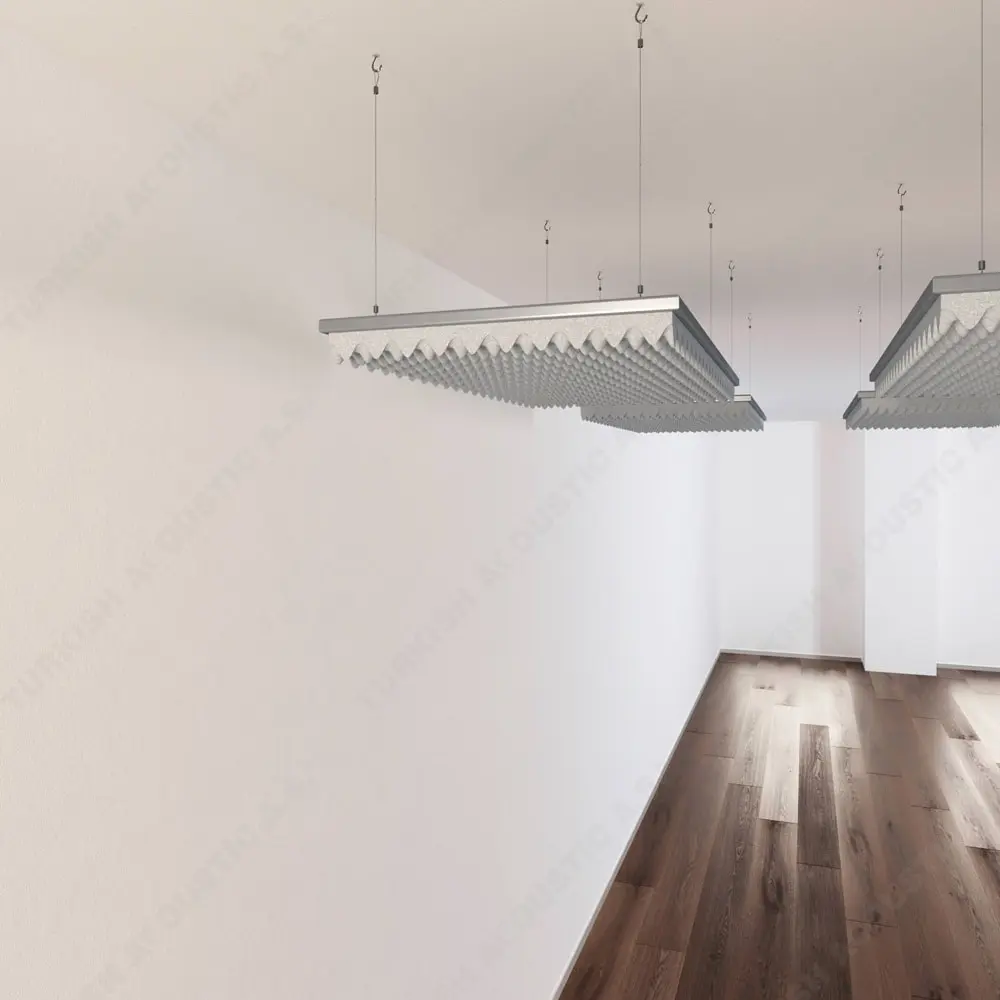

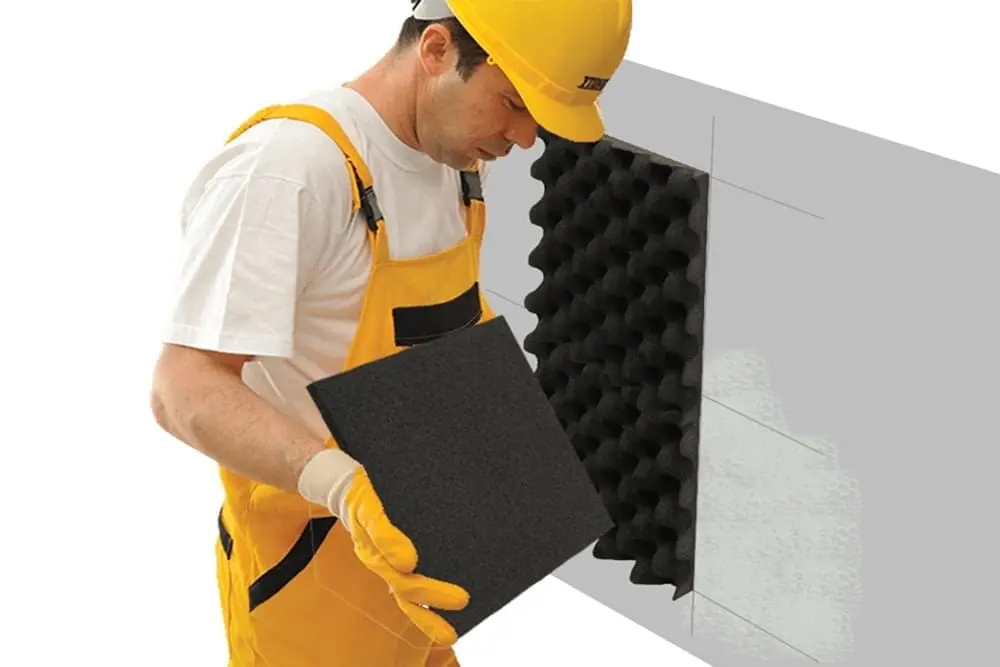

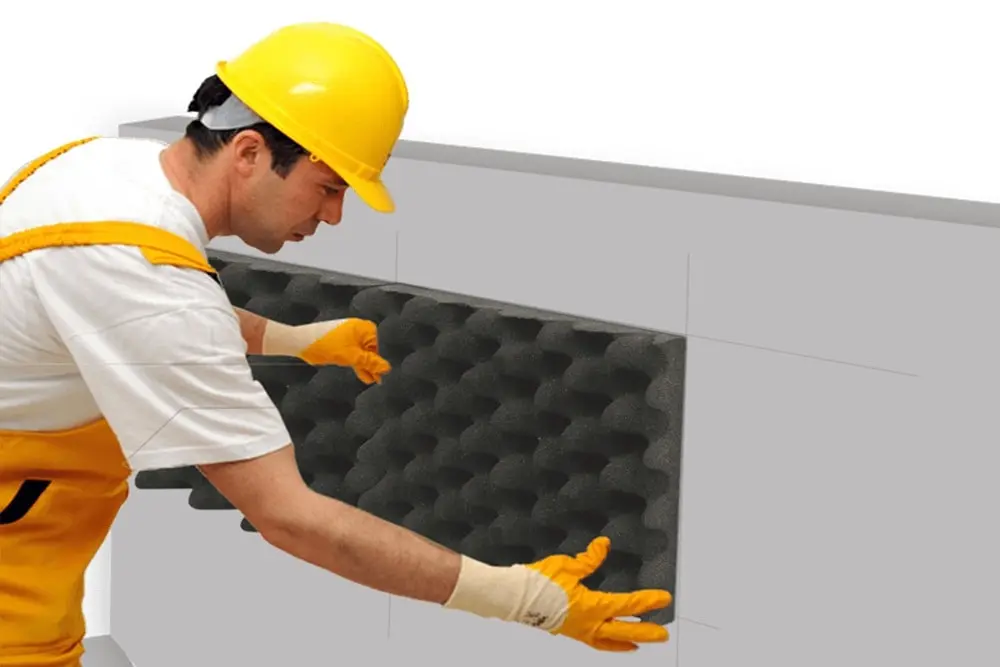

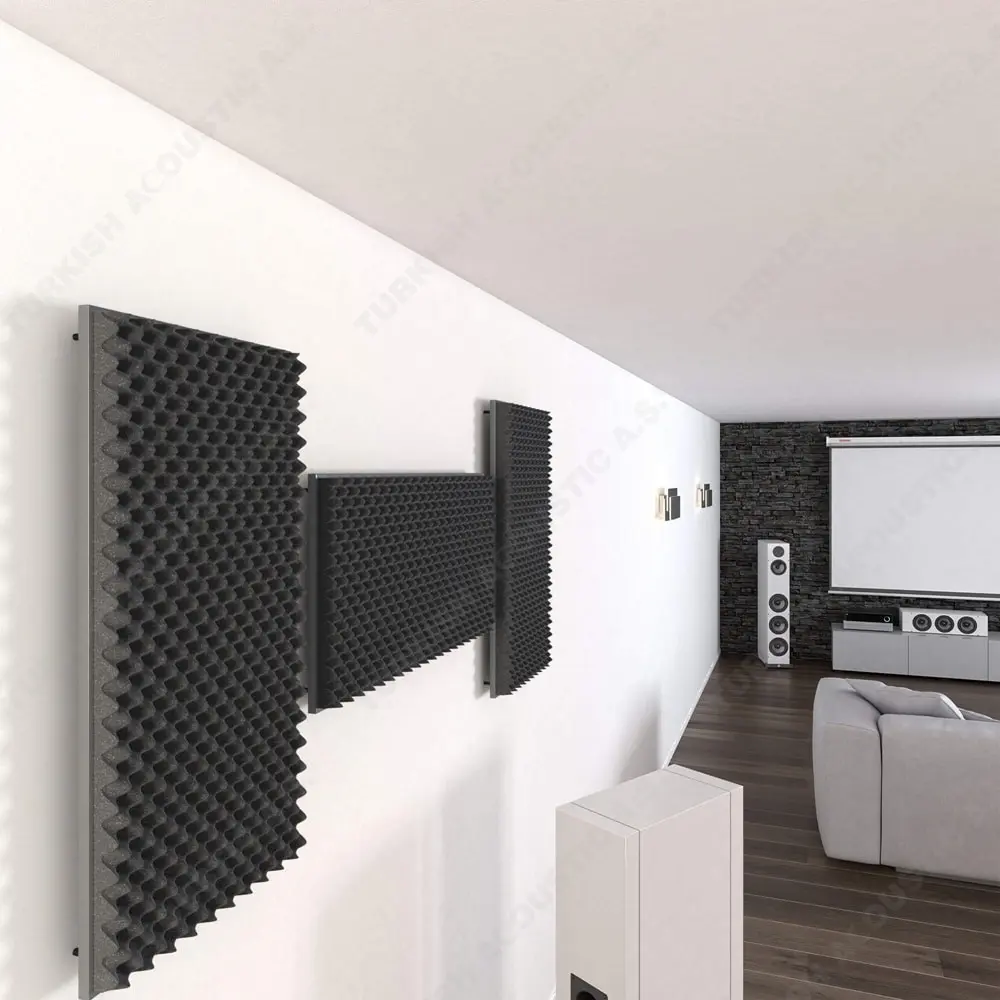

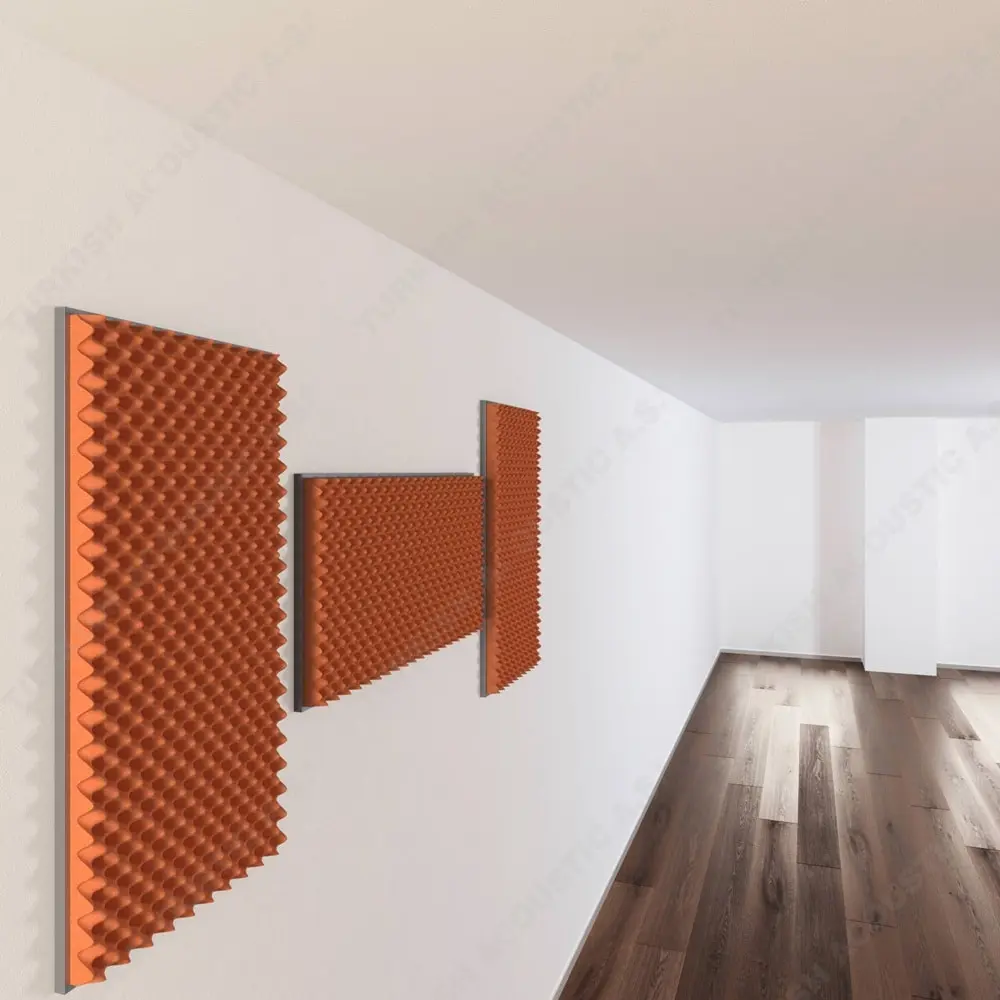

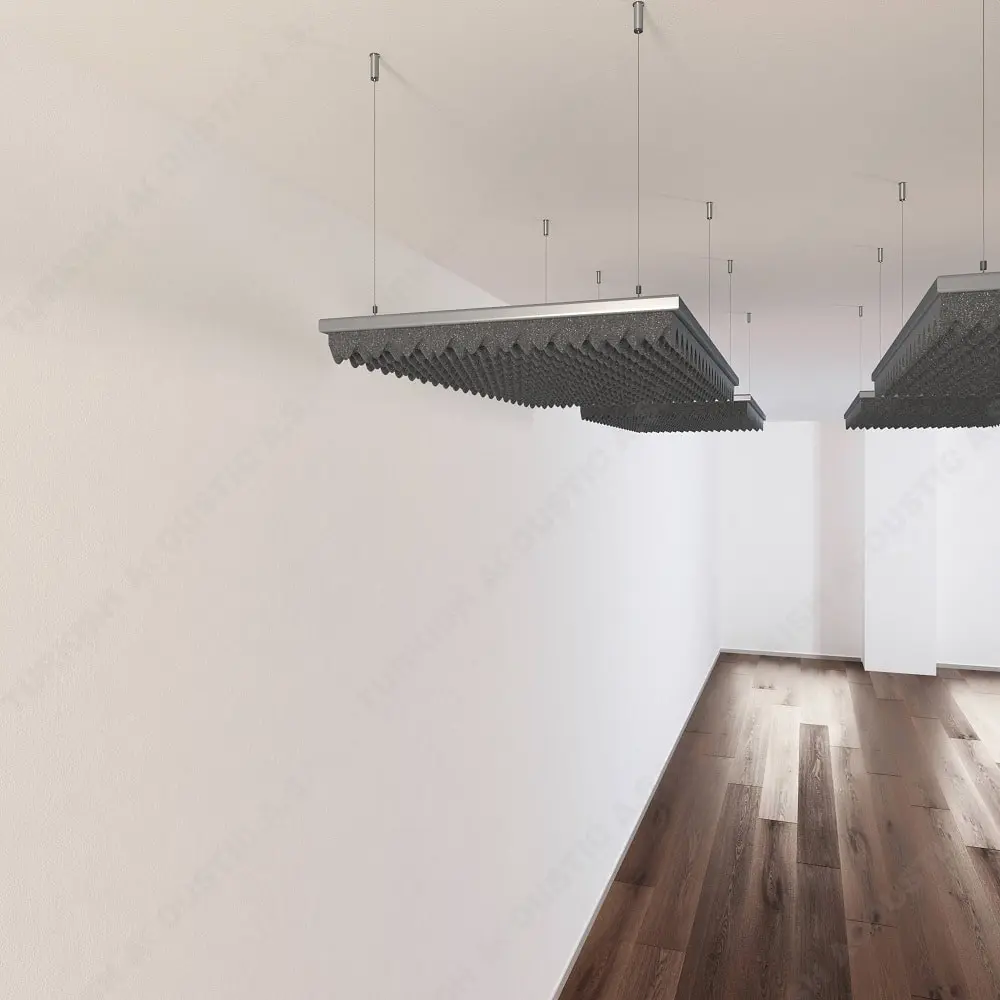

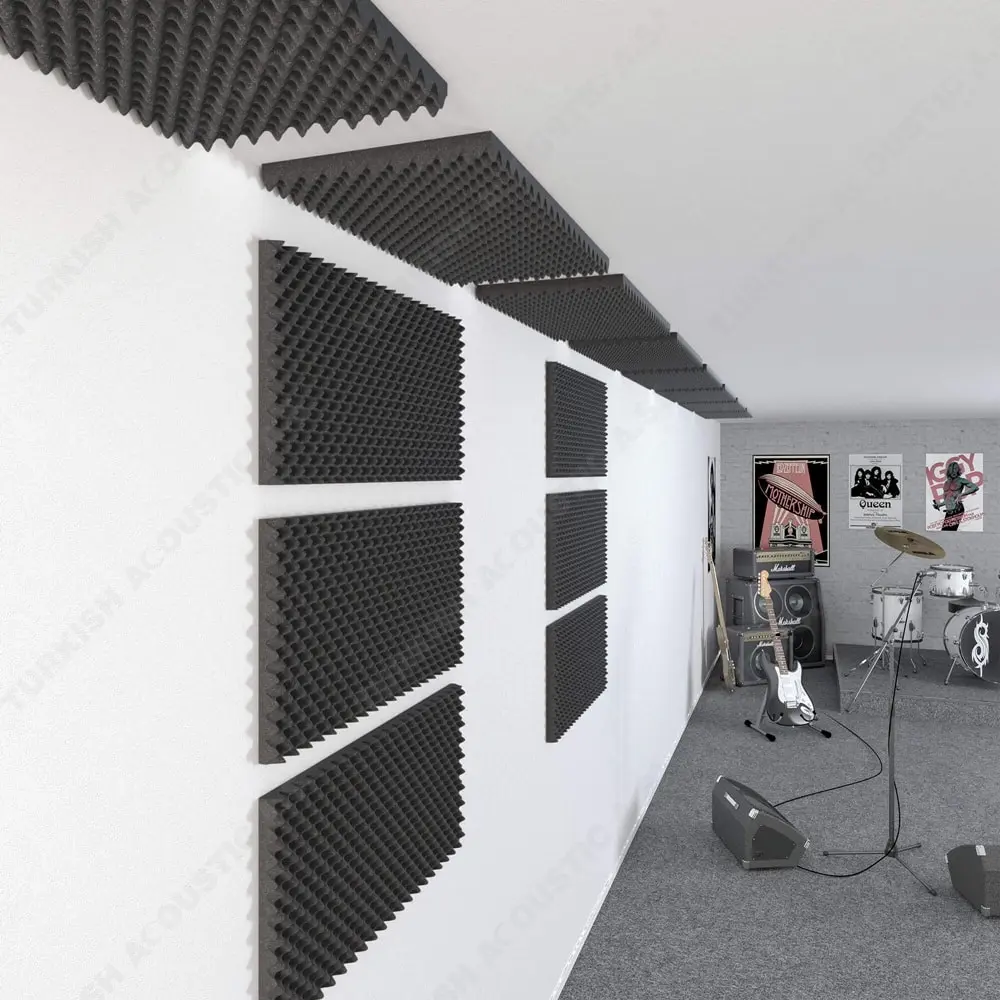

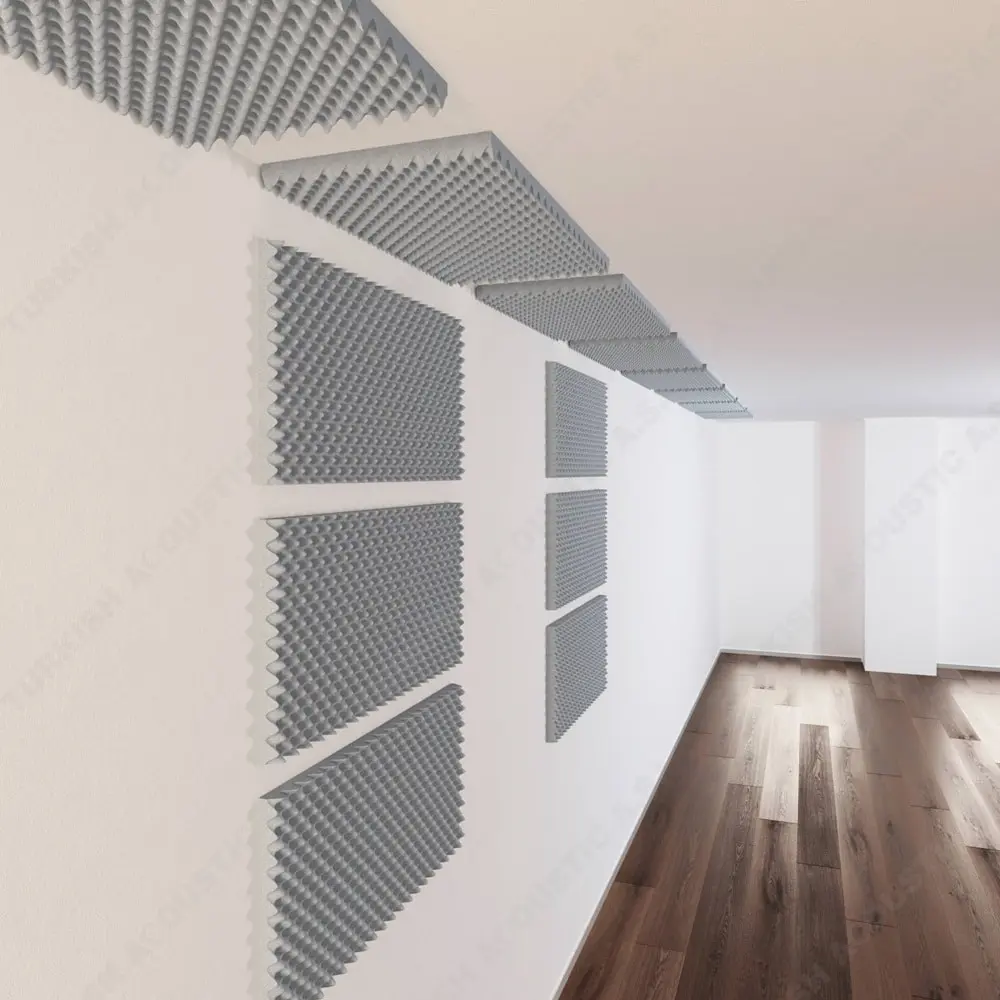

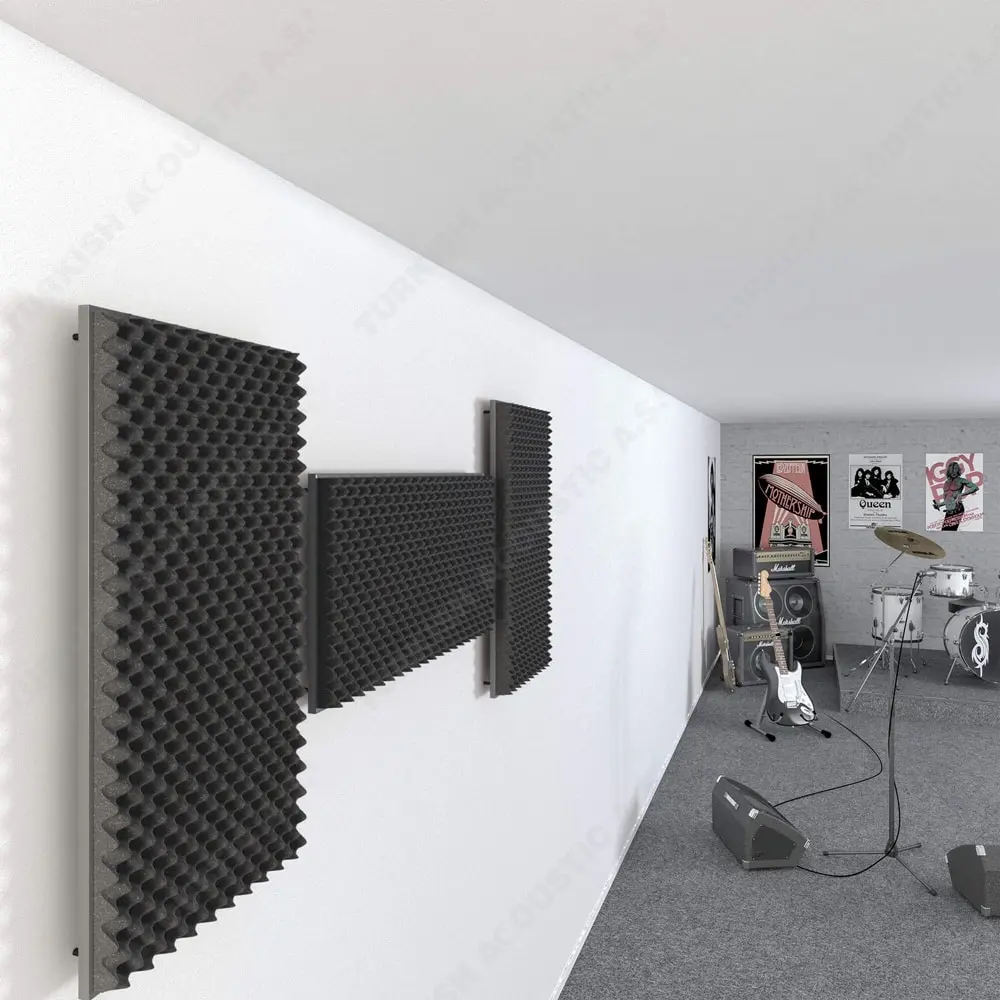

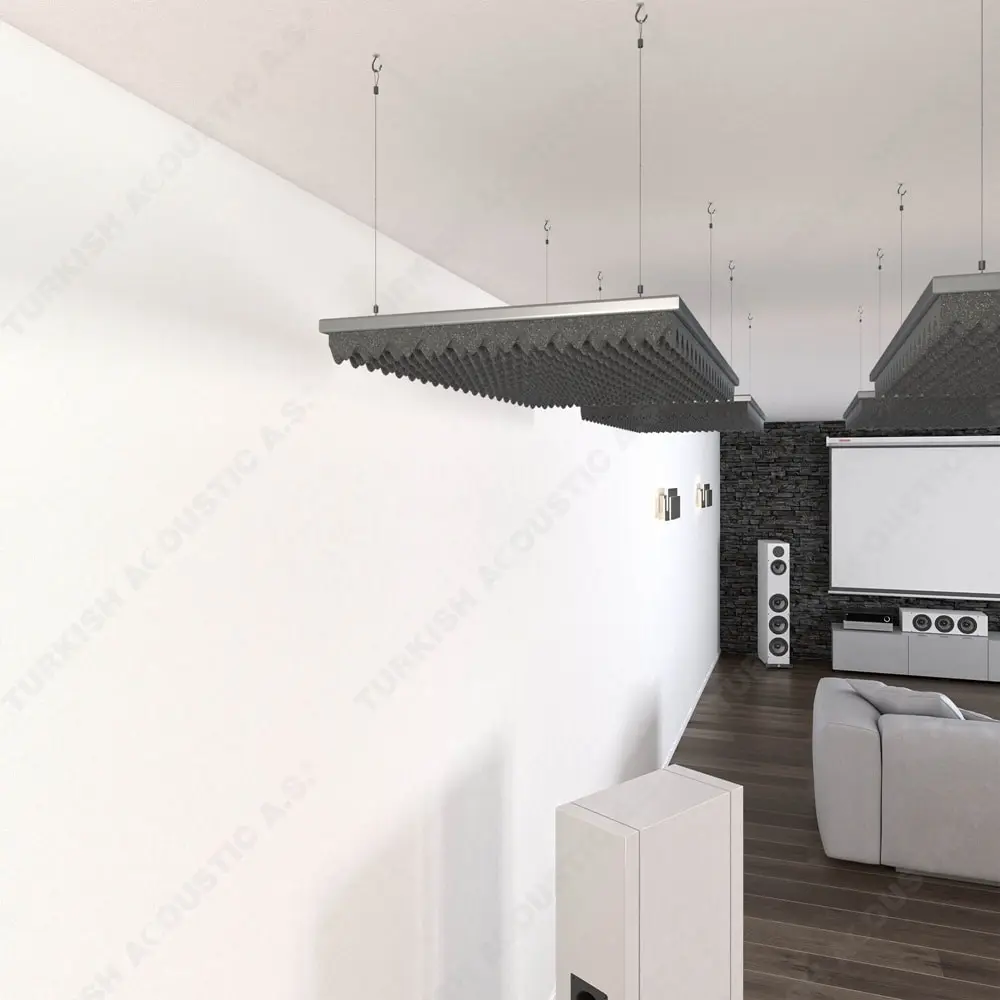

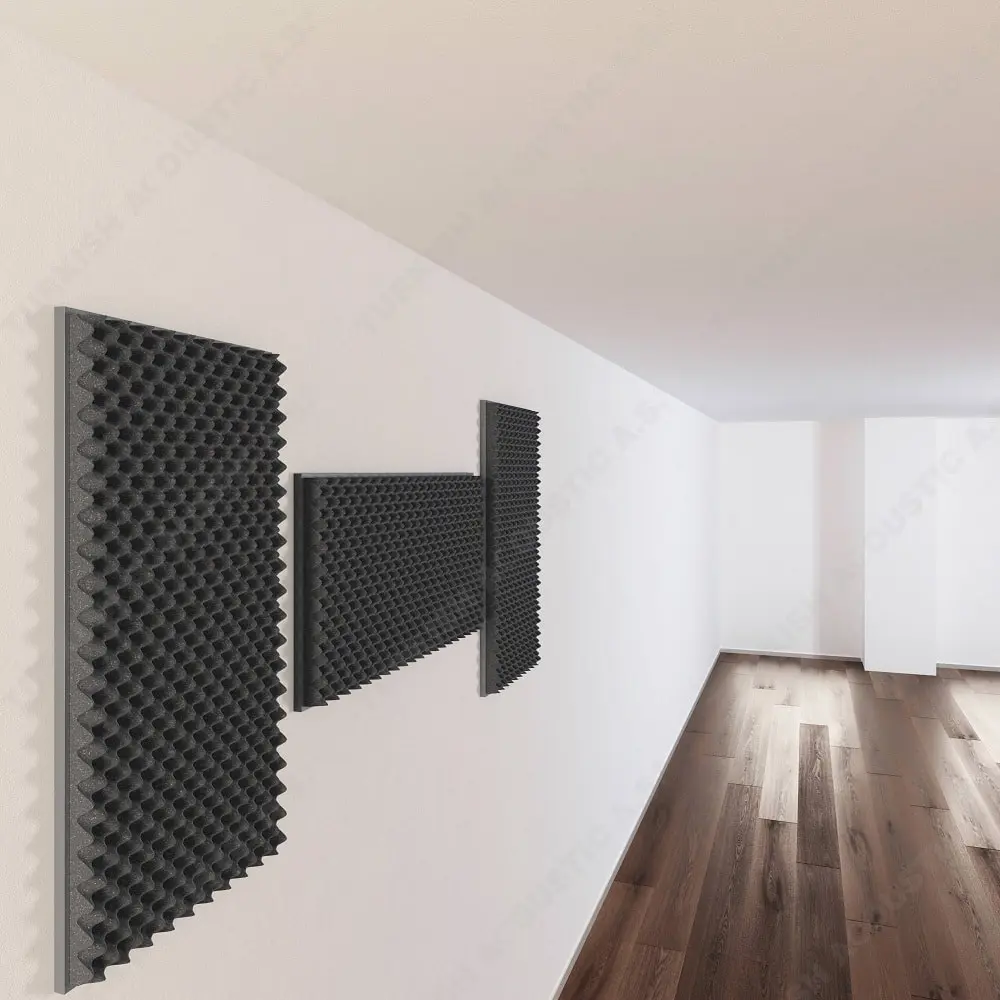

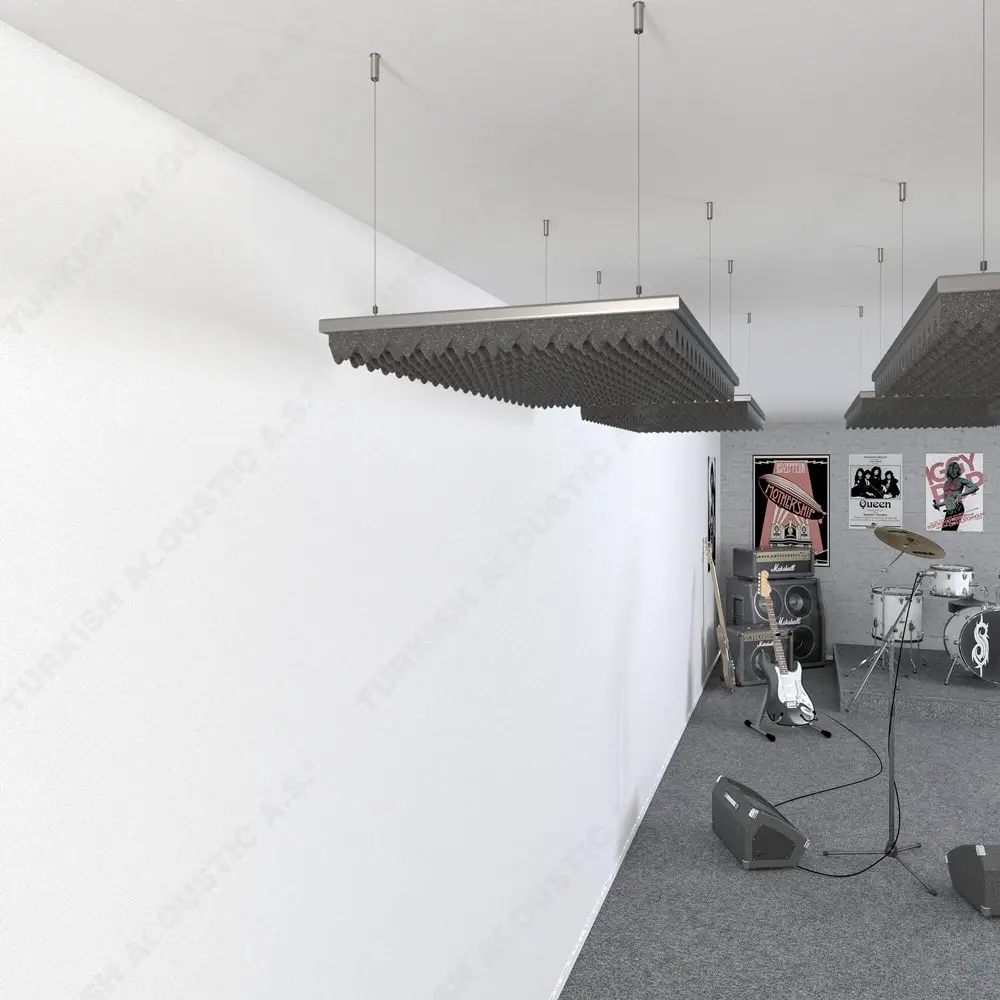

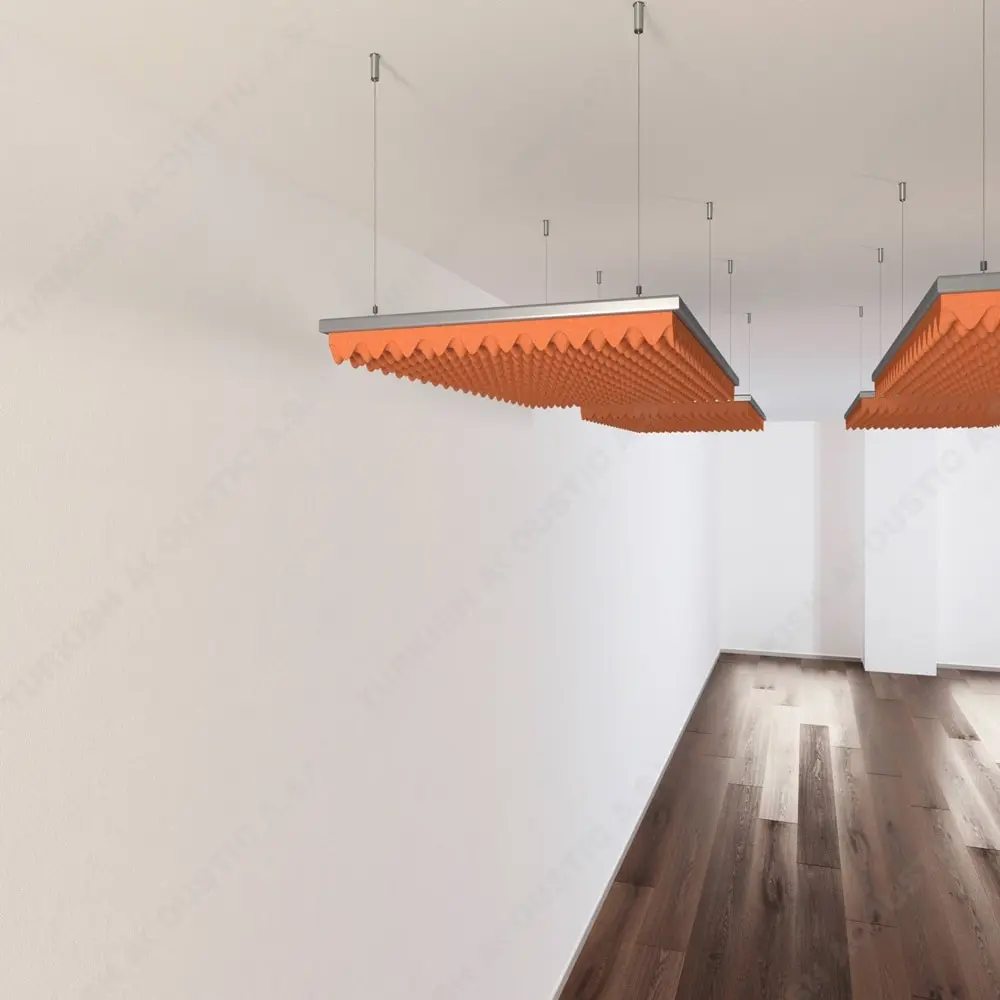

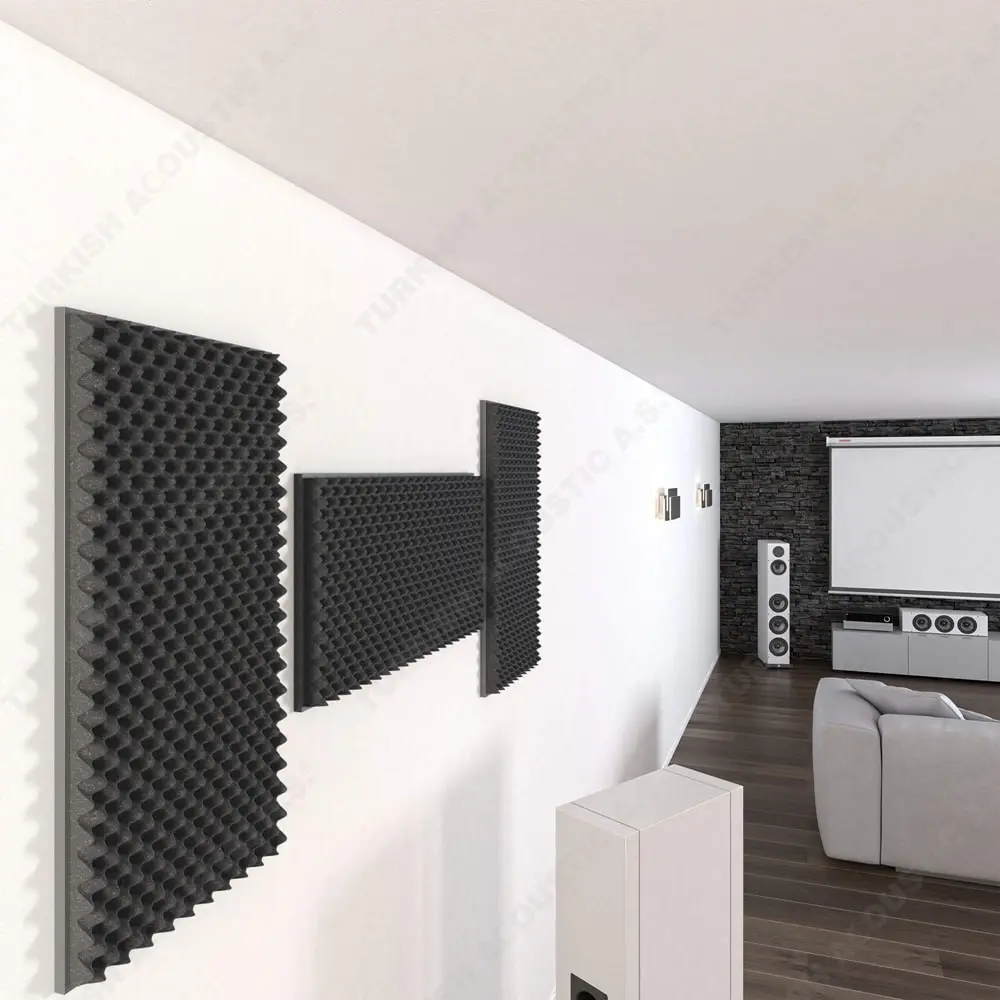

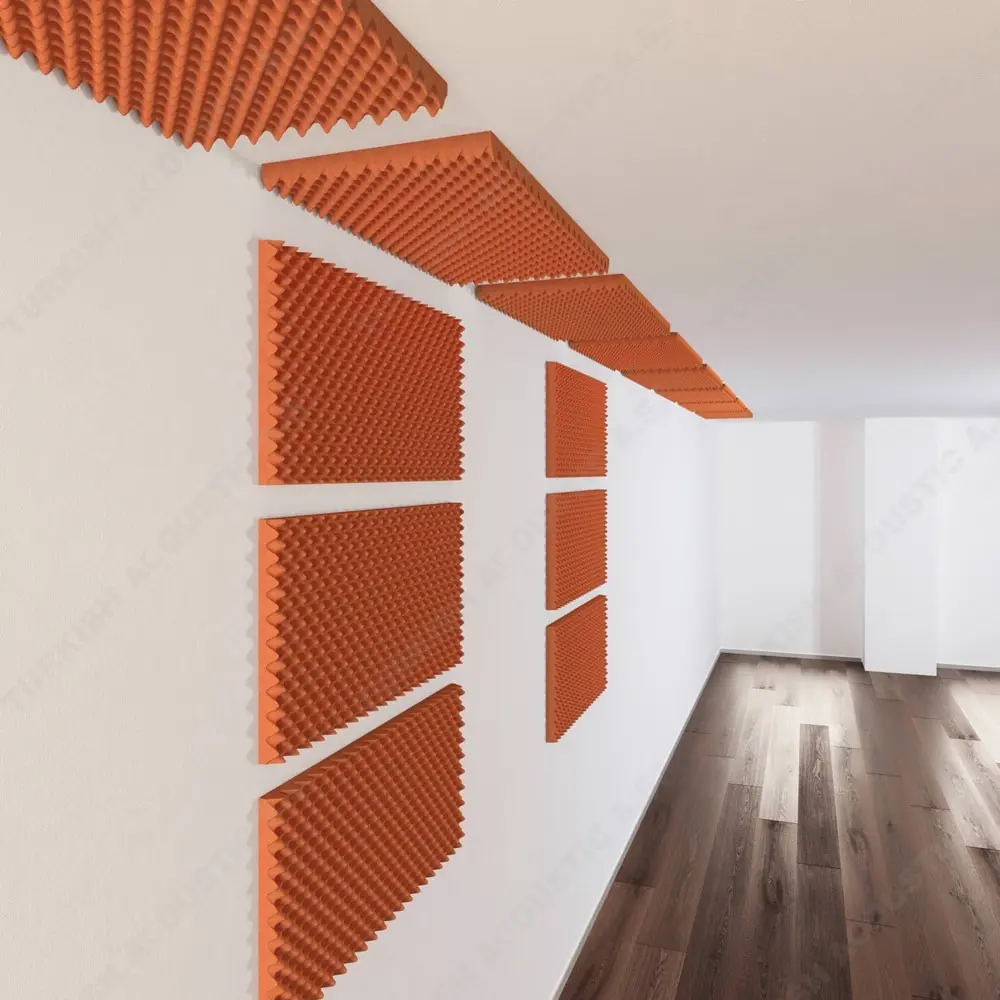

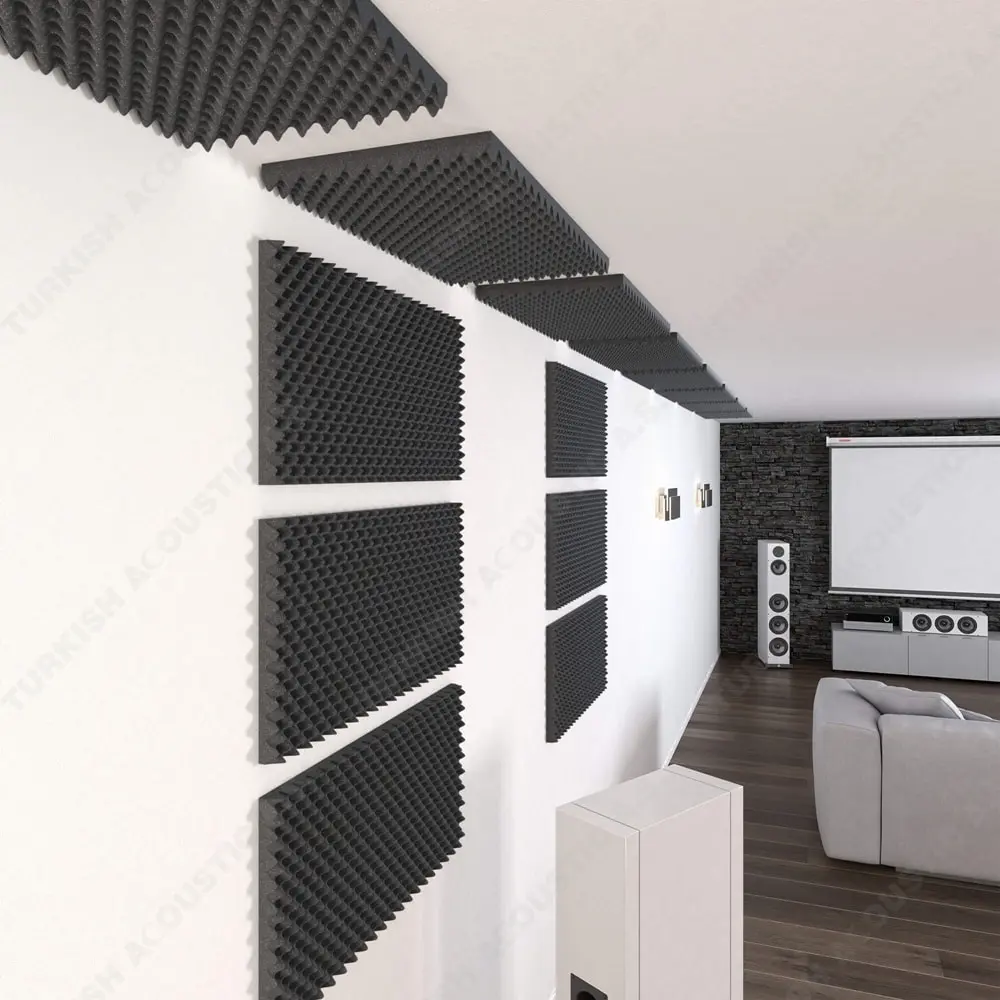

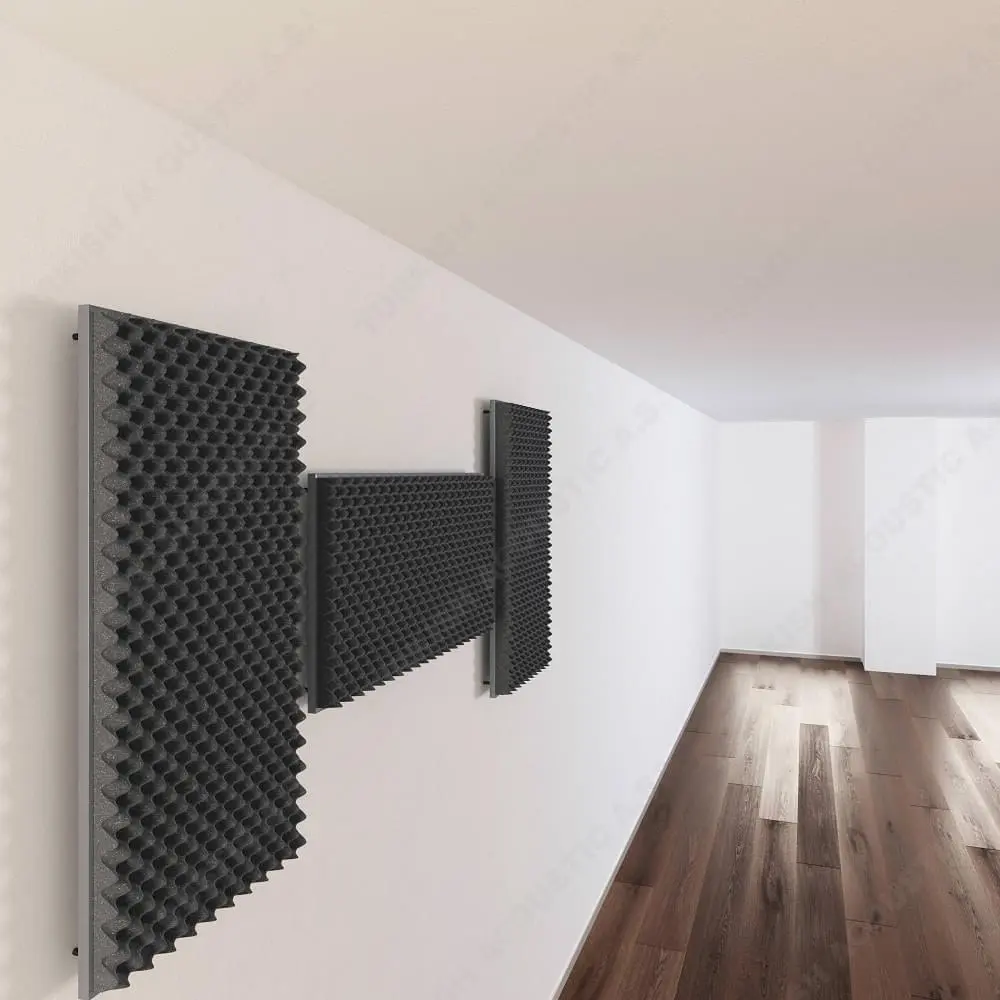

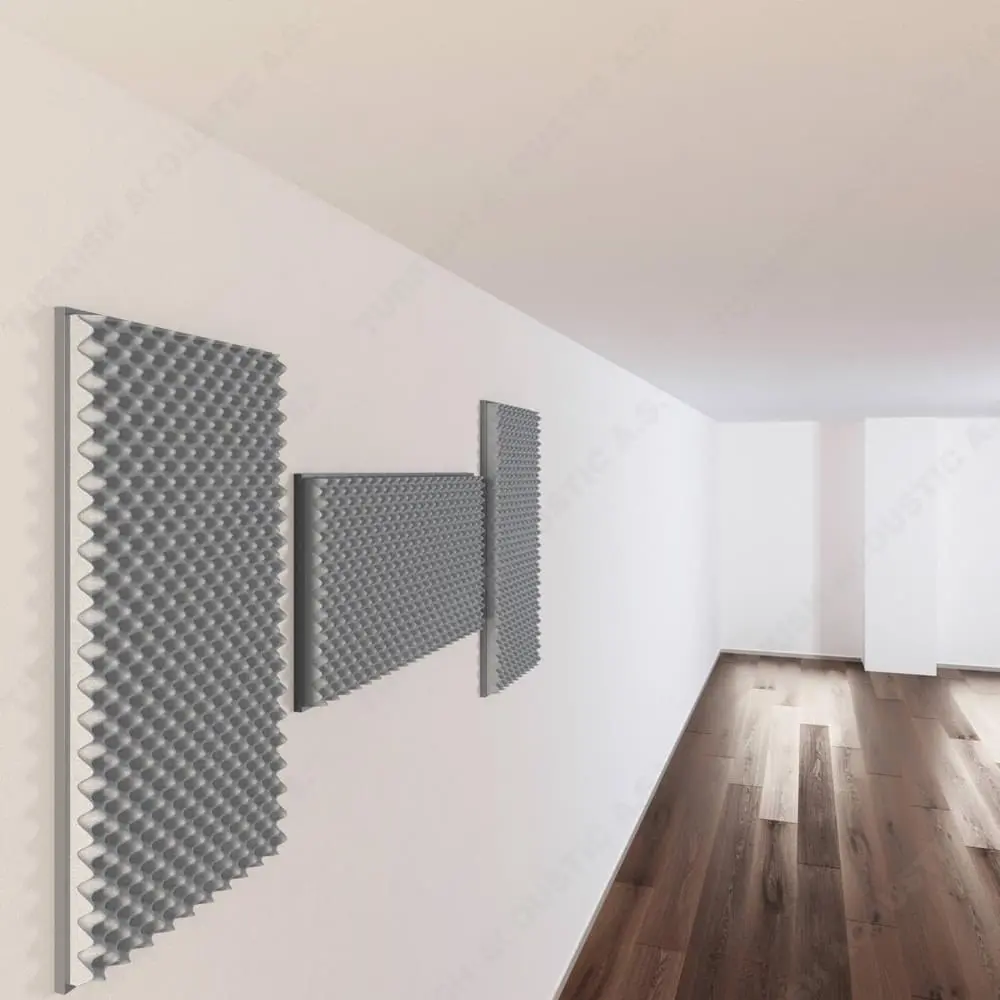

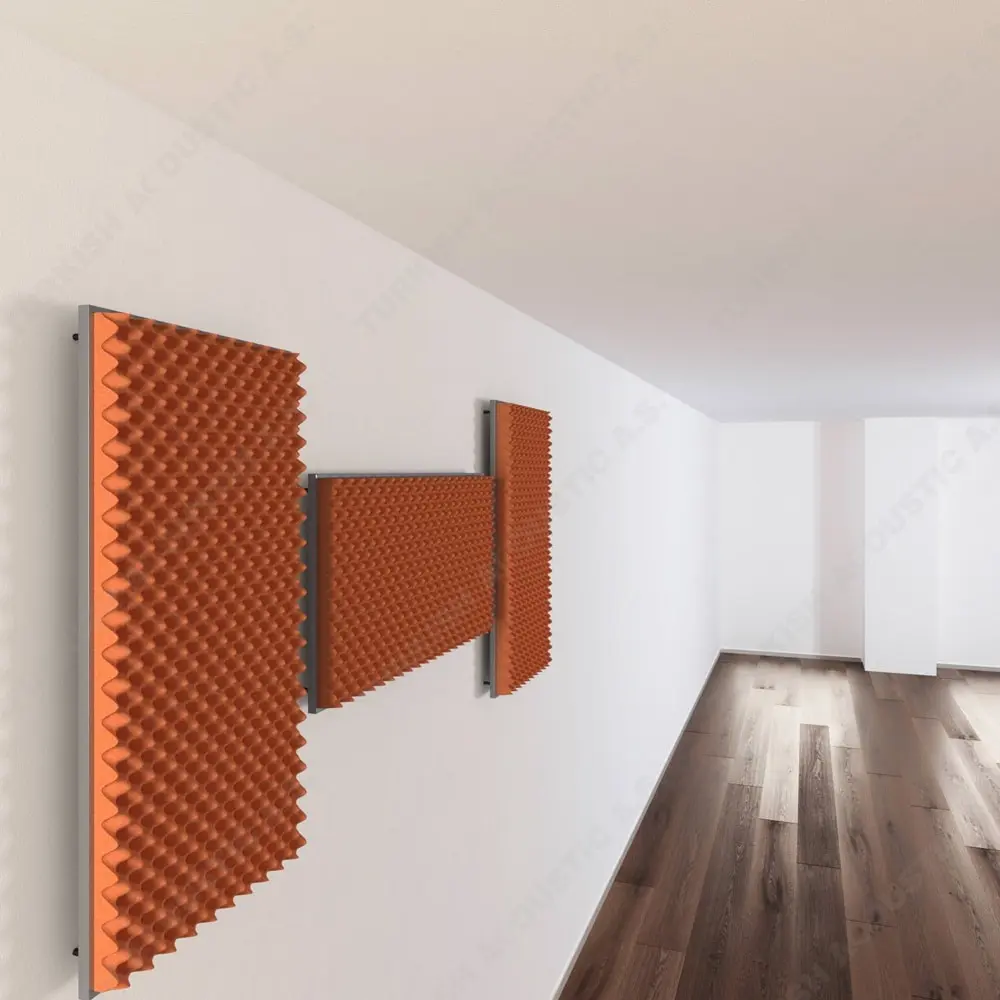

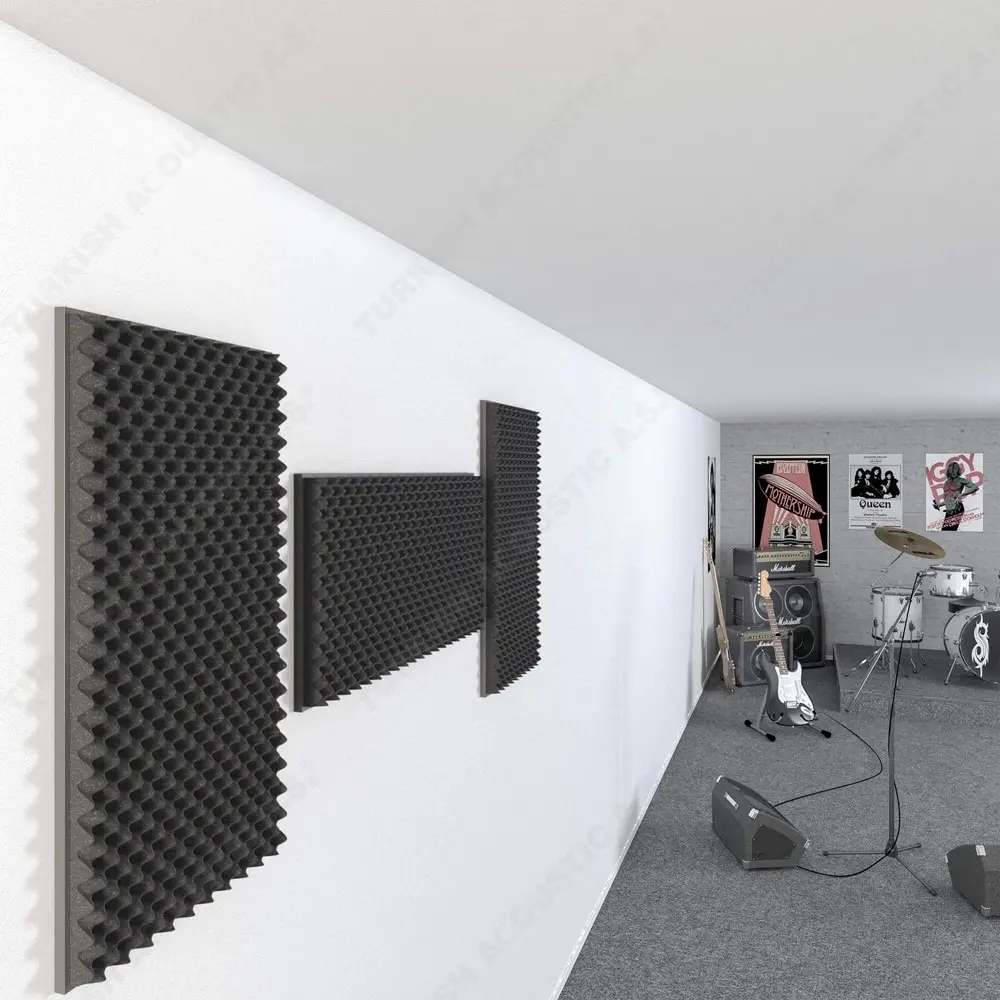

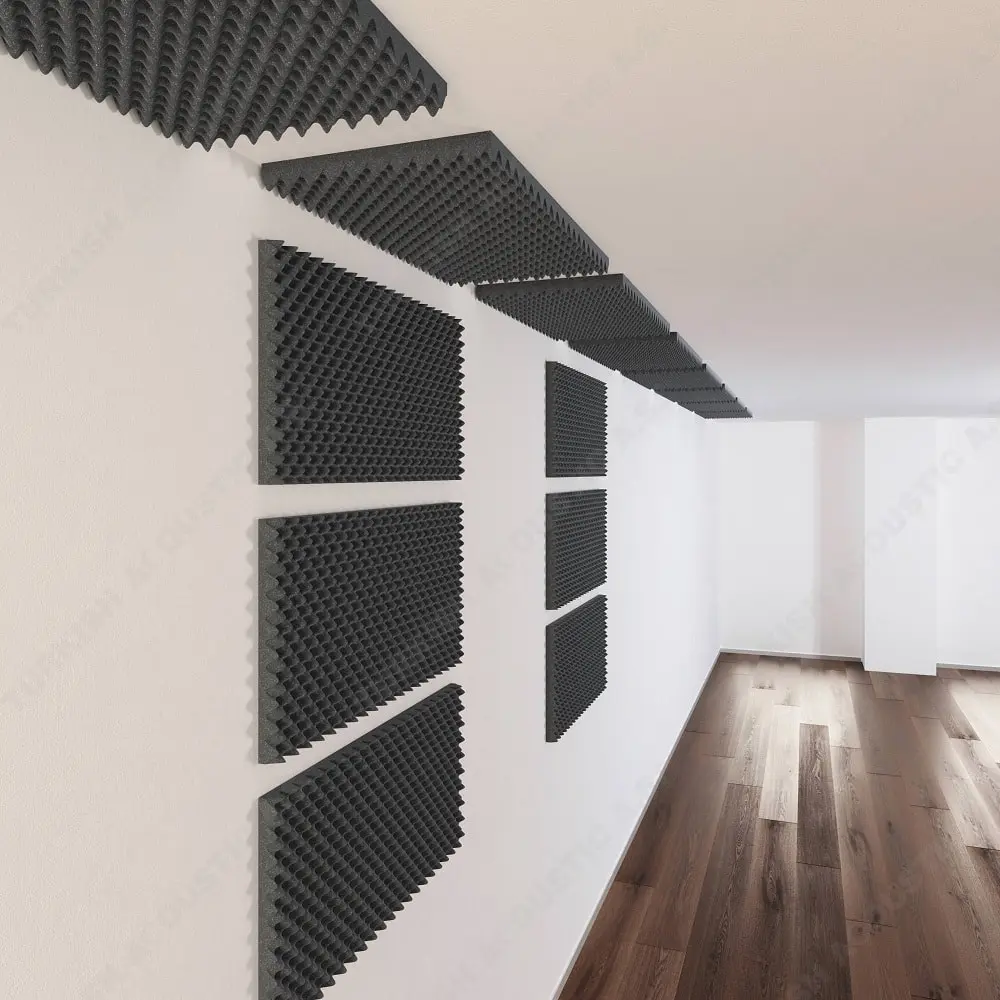

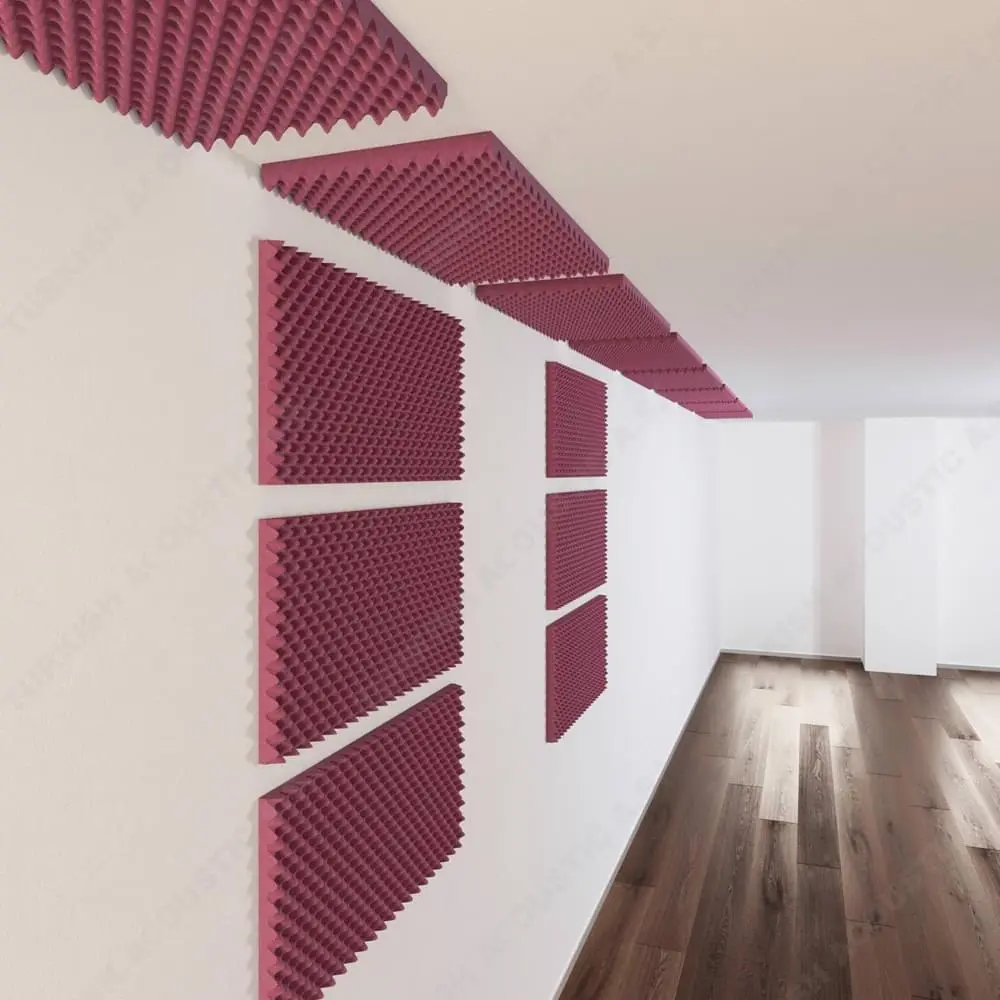

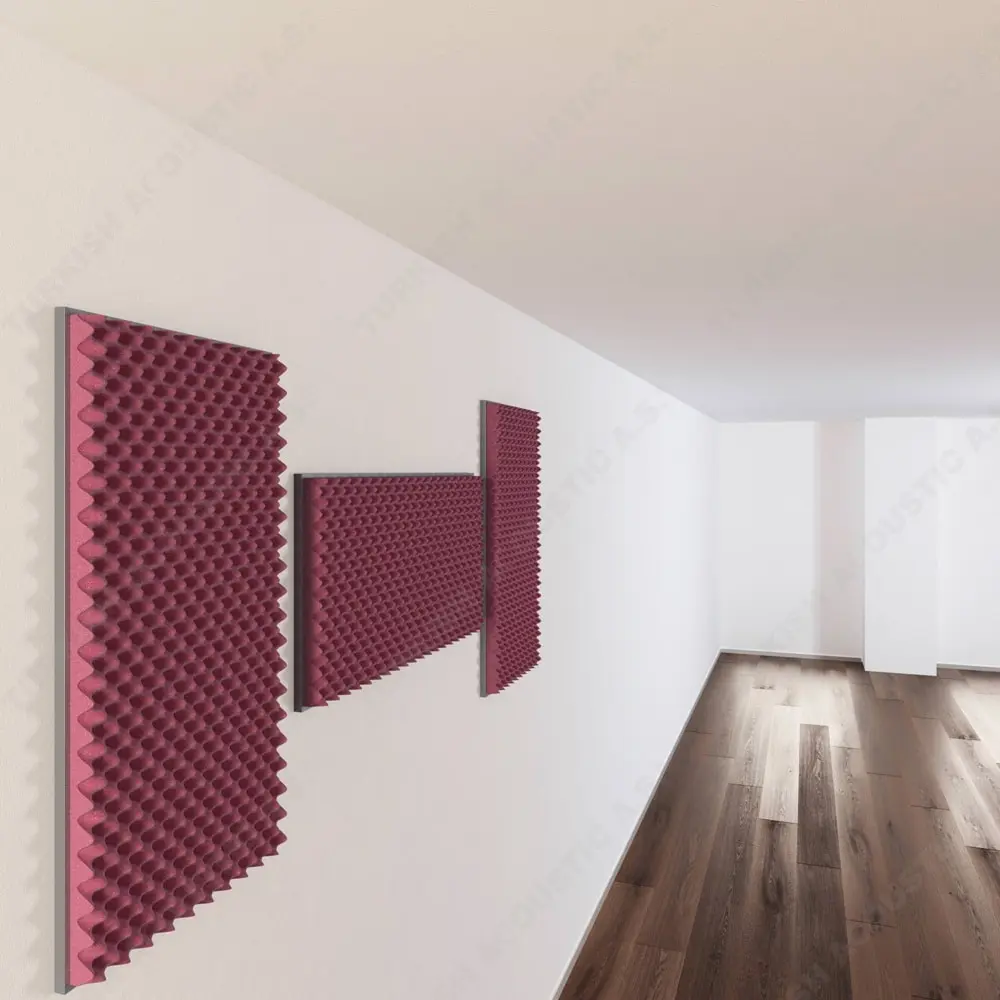

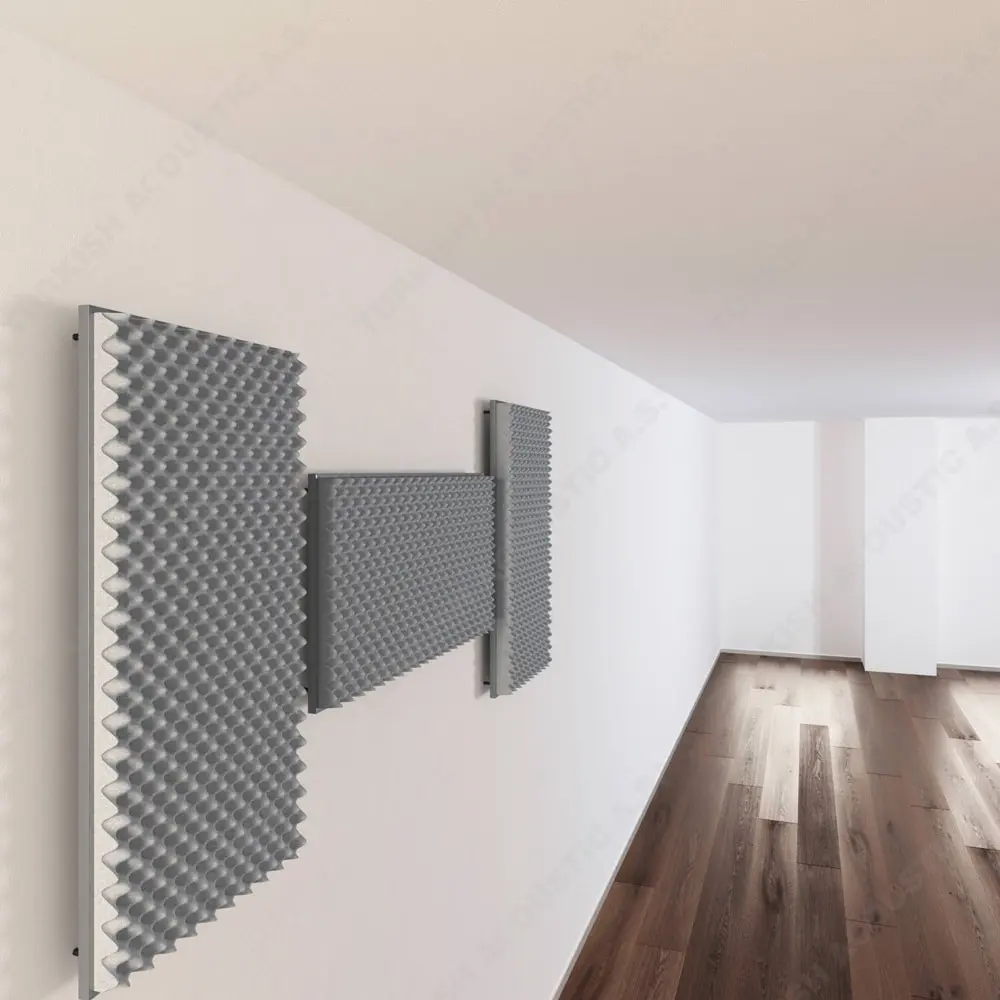

Application Images

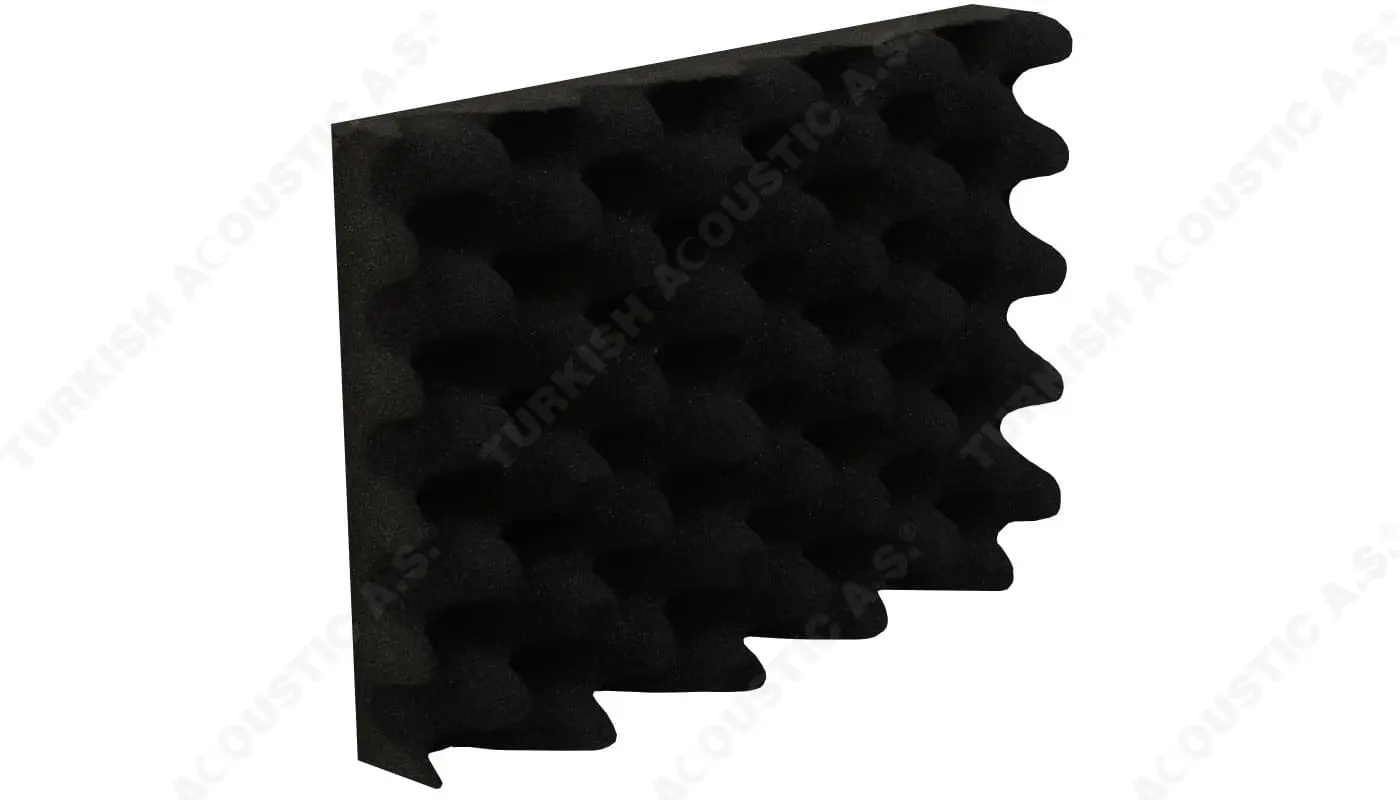

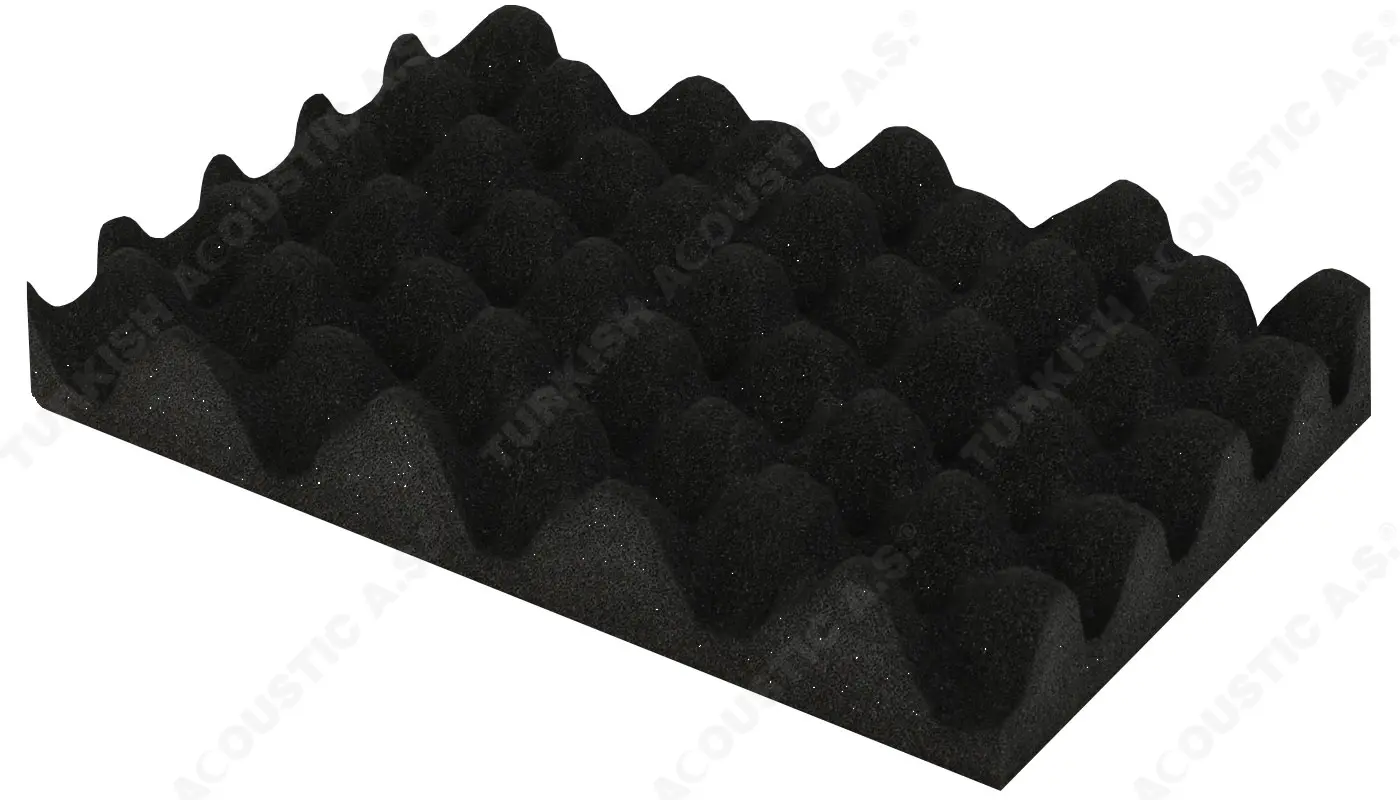

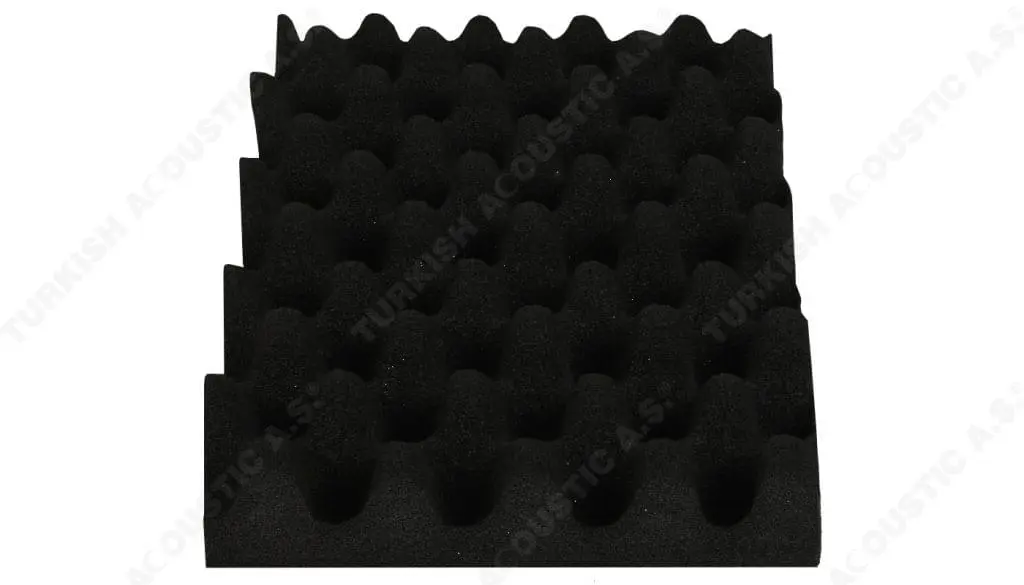

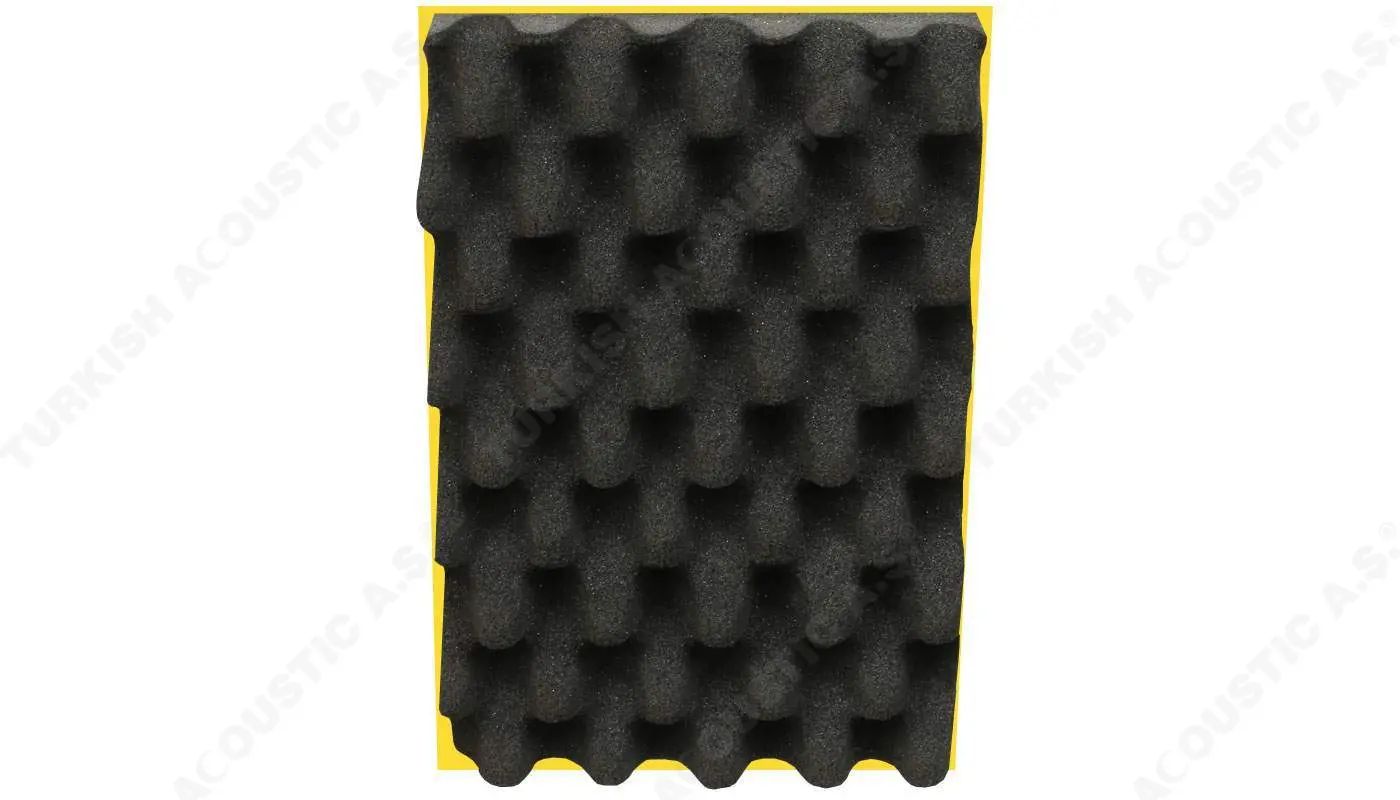

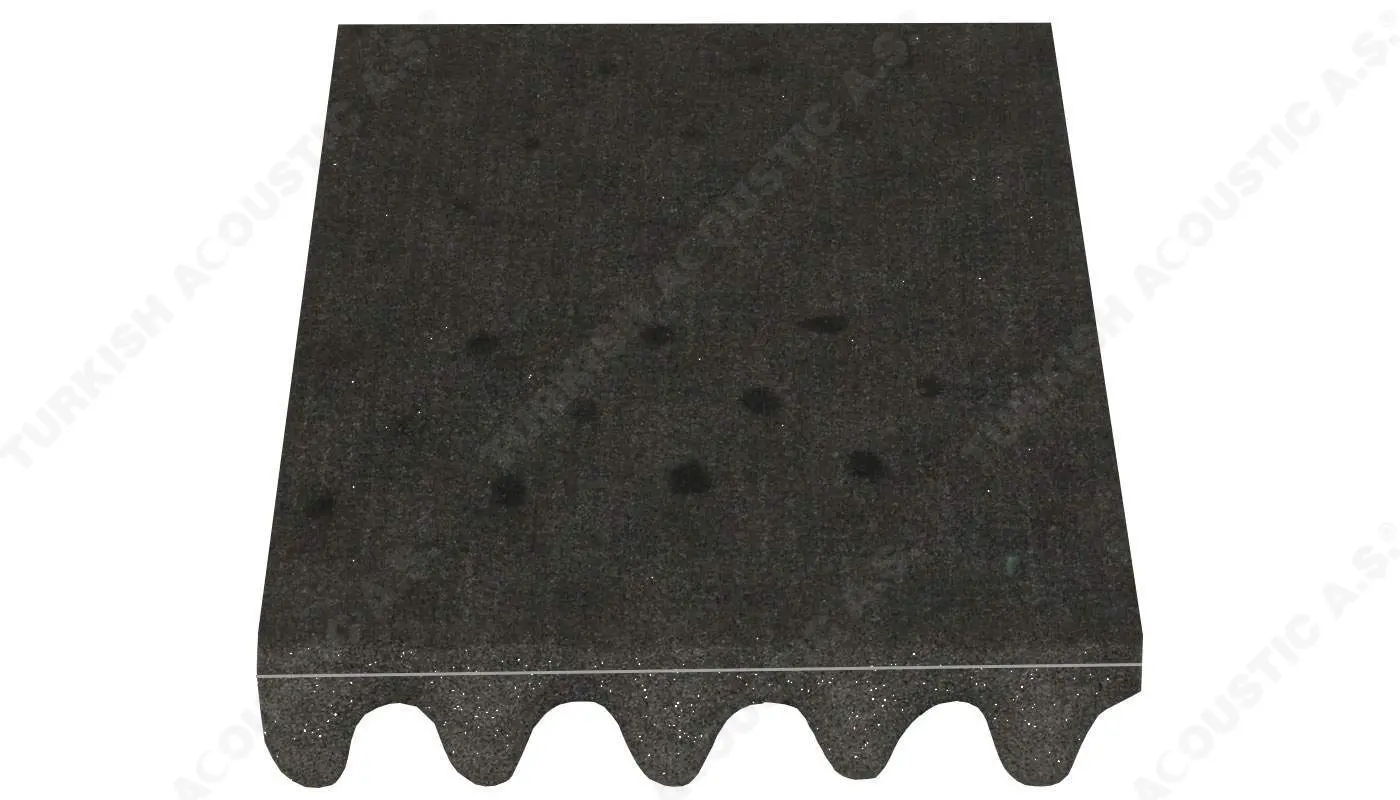

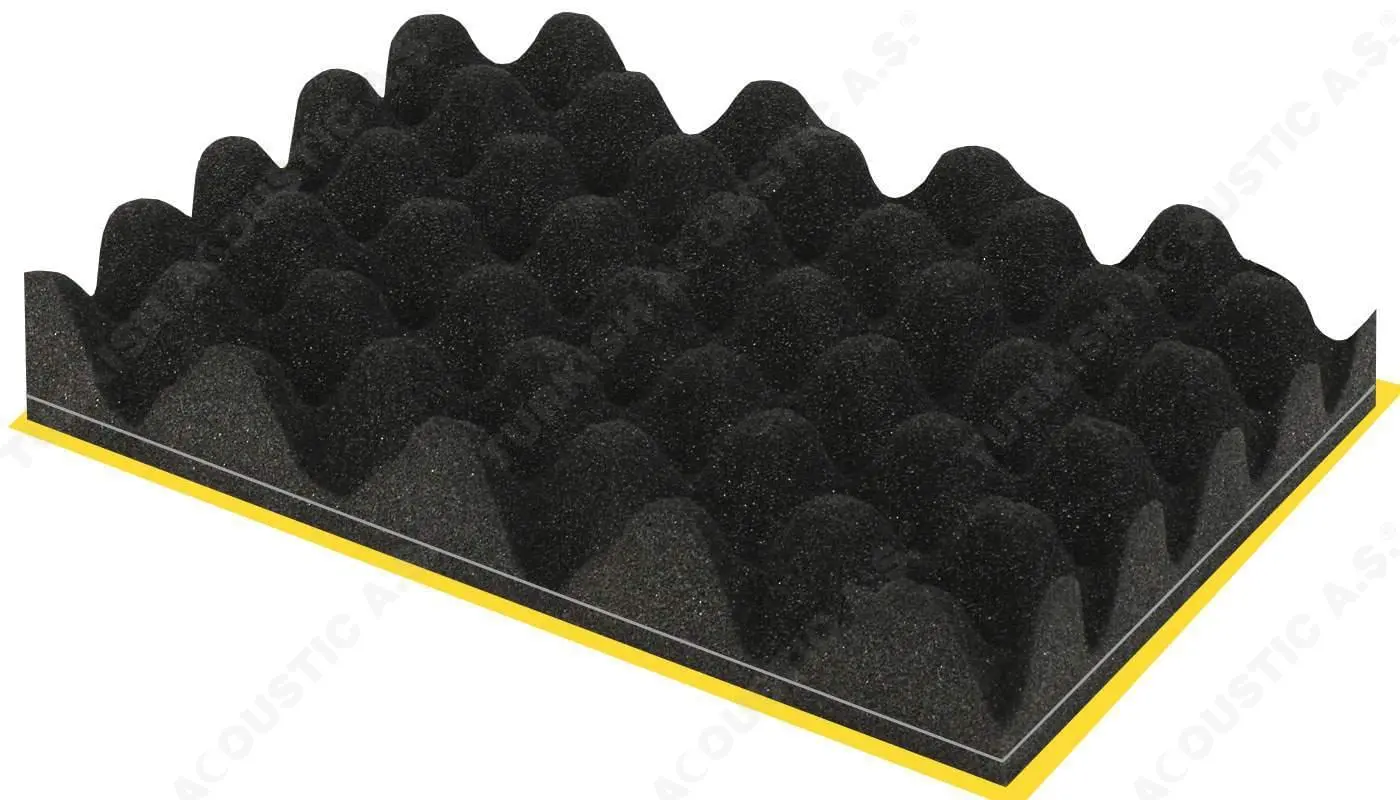

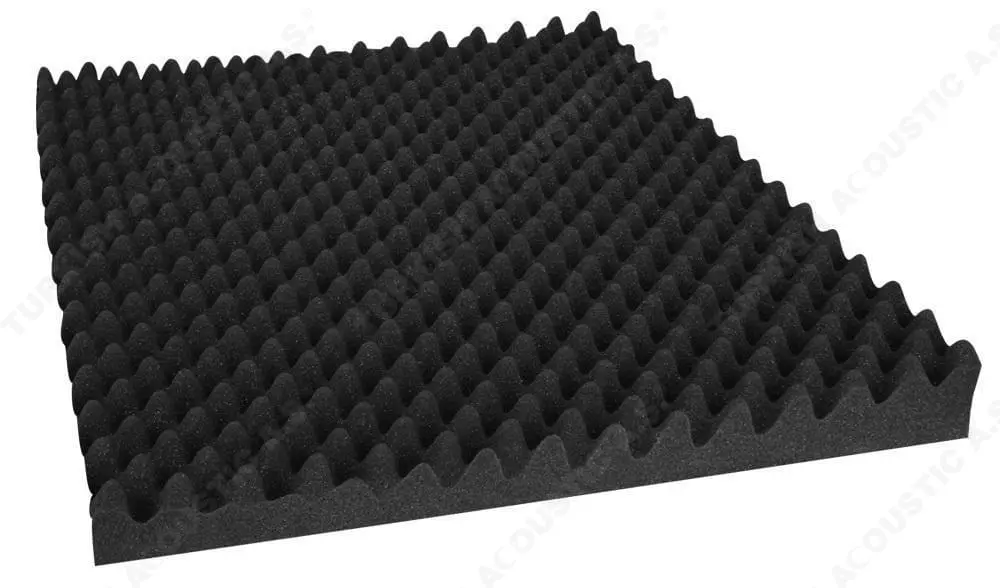

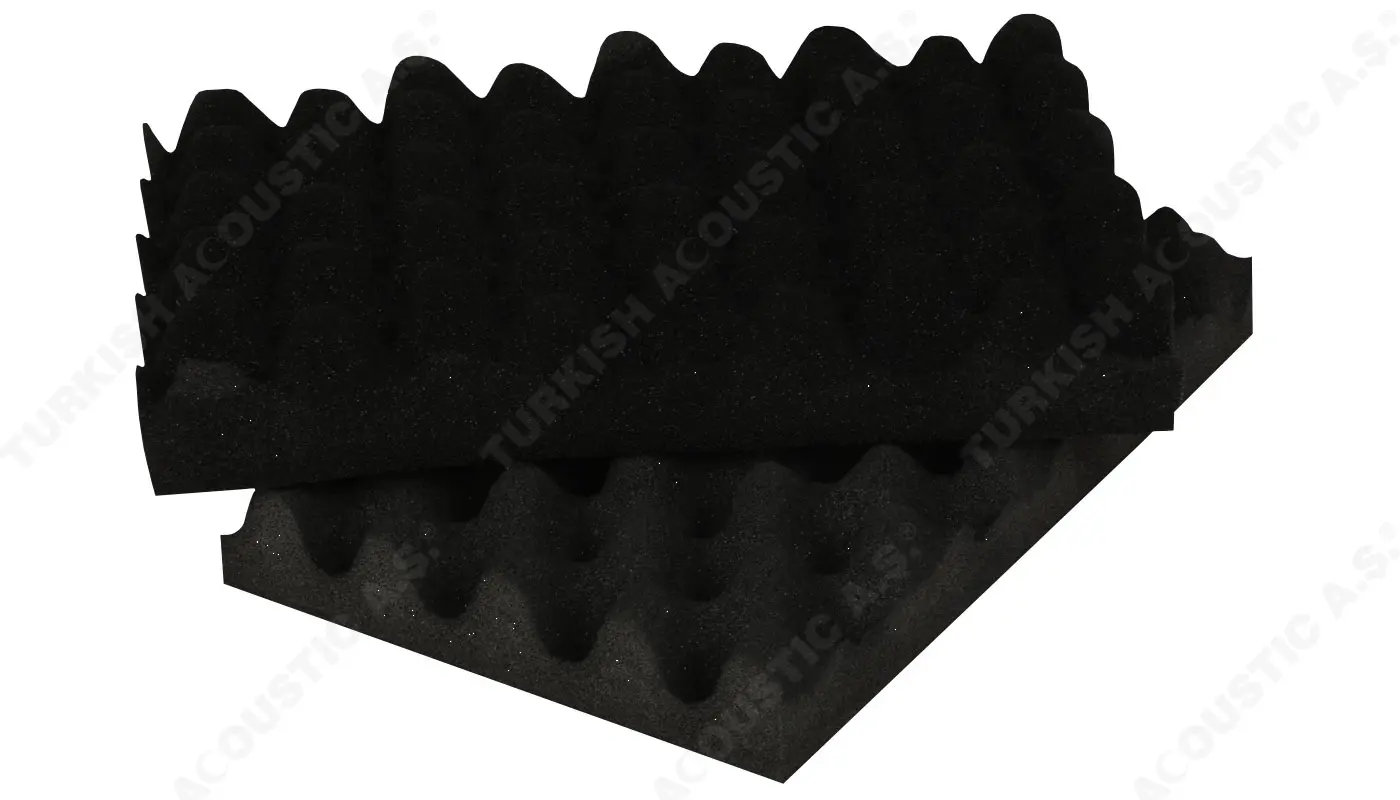

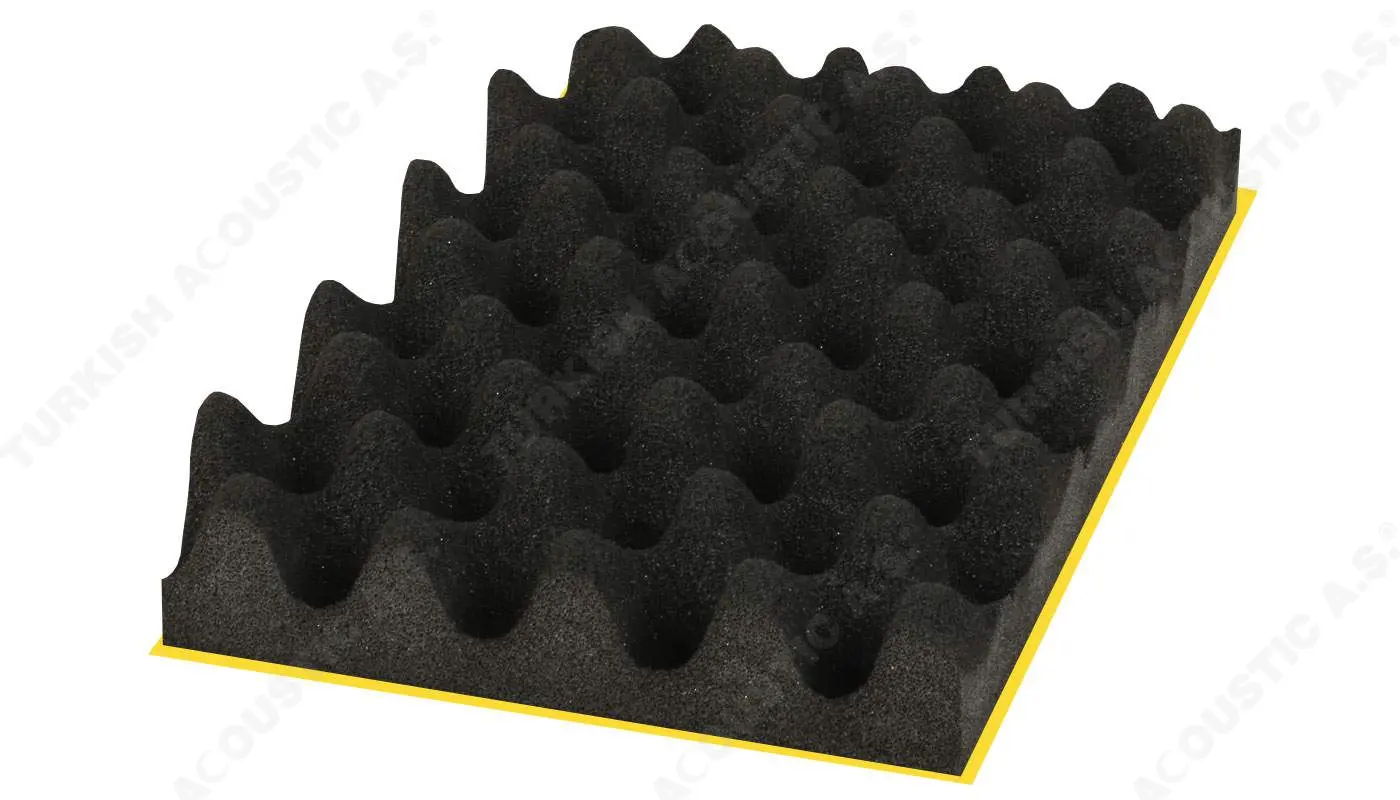

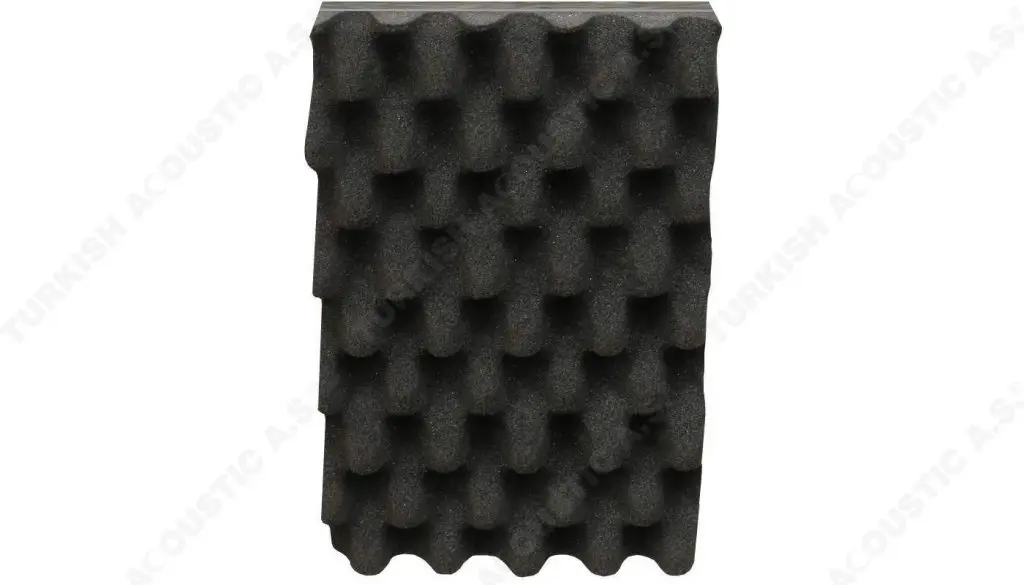

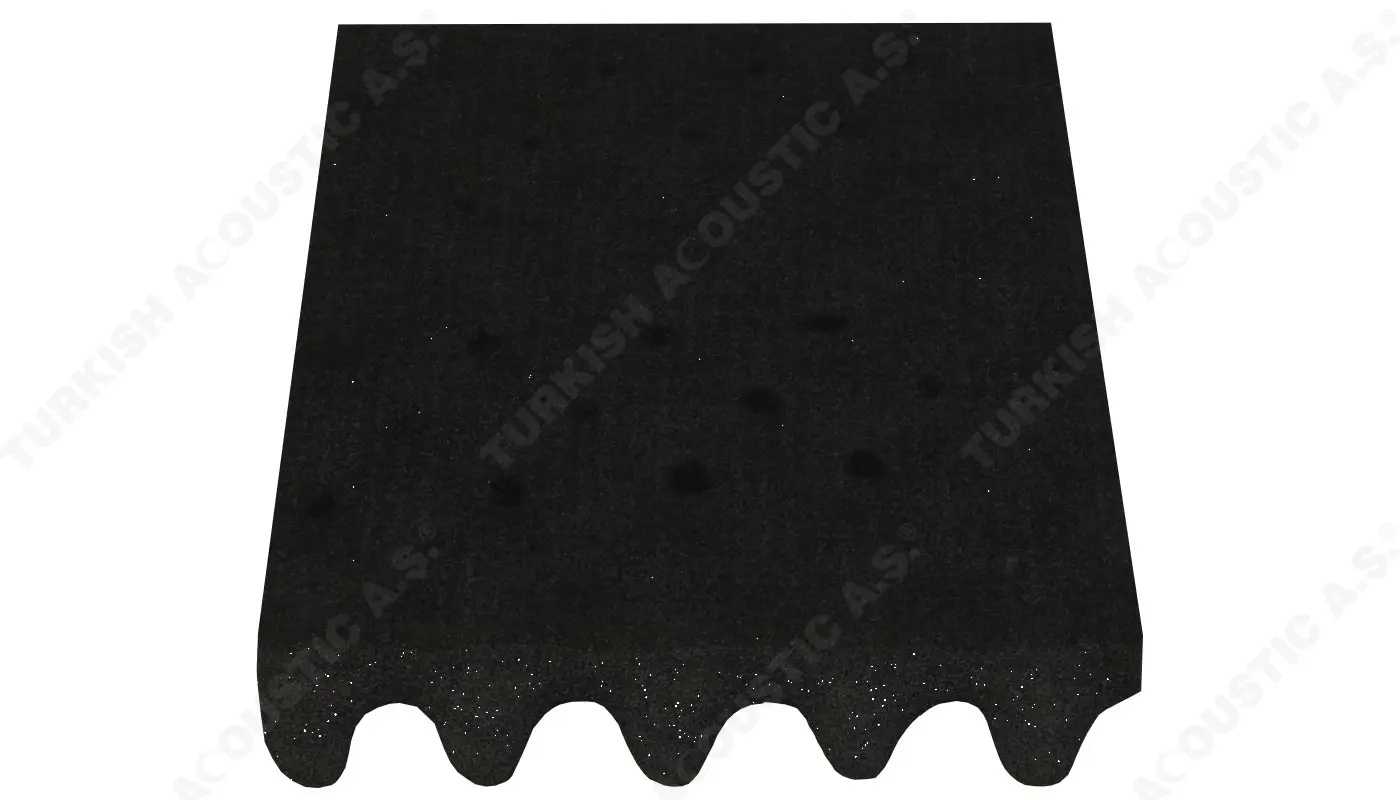

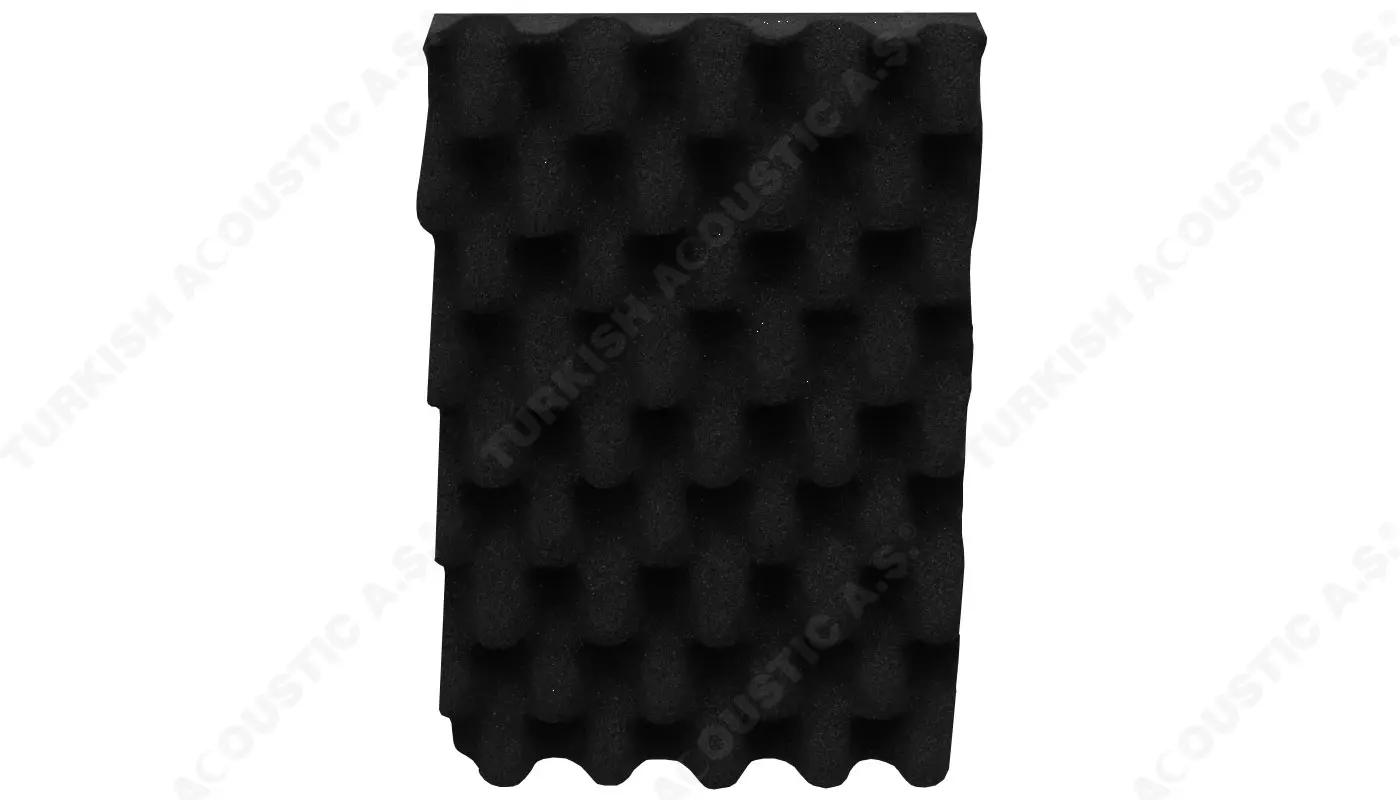

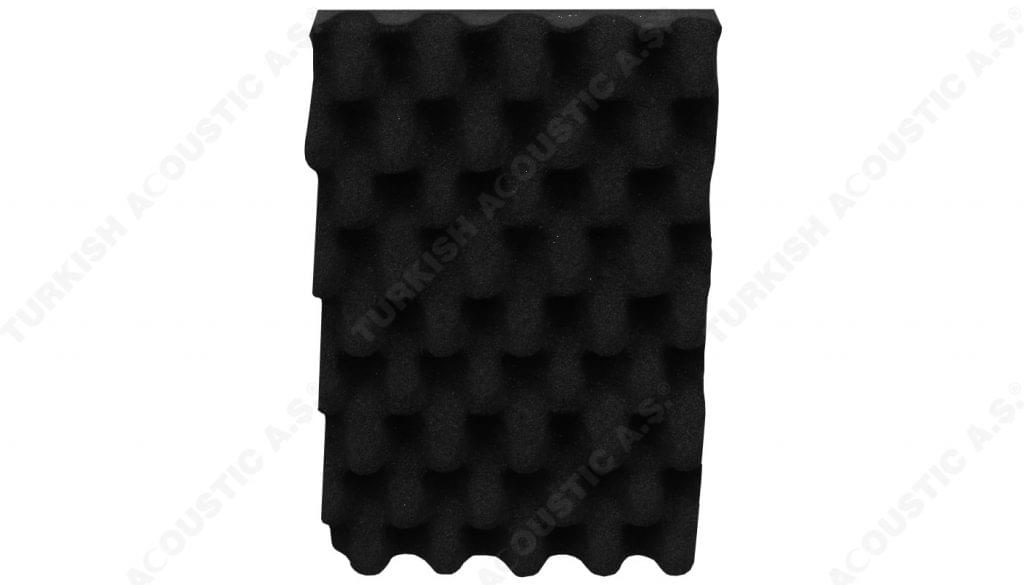

Fireproof Egg Sponge: Our acoustic fireproof egg sponges are used in all environments that require sound isolation and insulation, especially in places like studios, music rooms, and sound recording rooms. It is used in machine rooms safely thanks to its nonflammability. Acoustic egg sponges have an open-cell polyurethane structure.
Fireproof Egg Sponge Dimensions: 100 cm x 100 cm as plate, sold by retail in 30 mm and 40 mm thickness.
Fireproof Egg Sponge Package Content: 100 cm x 100 cm as a plate. One package contains 10 pieces (10 m²).

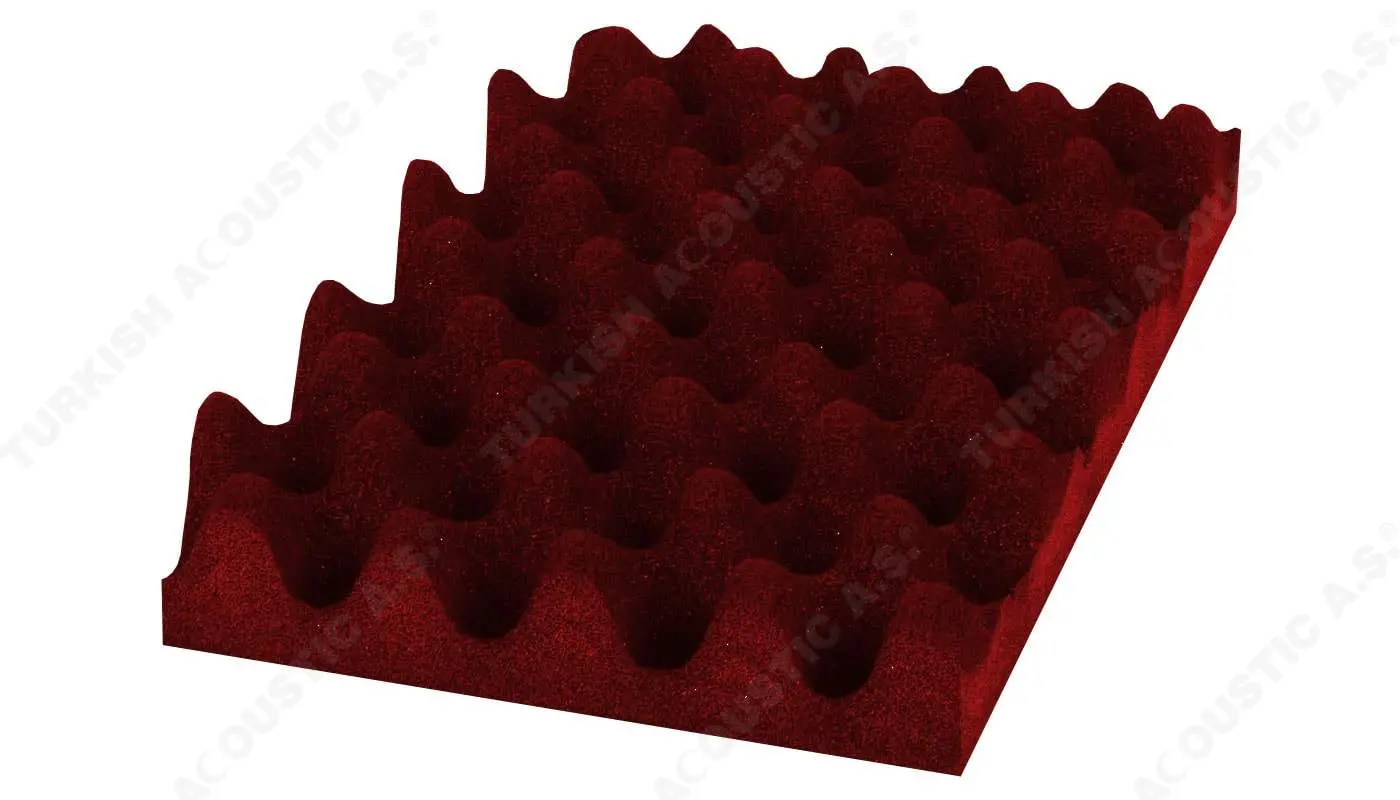

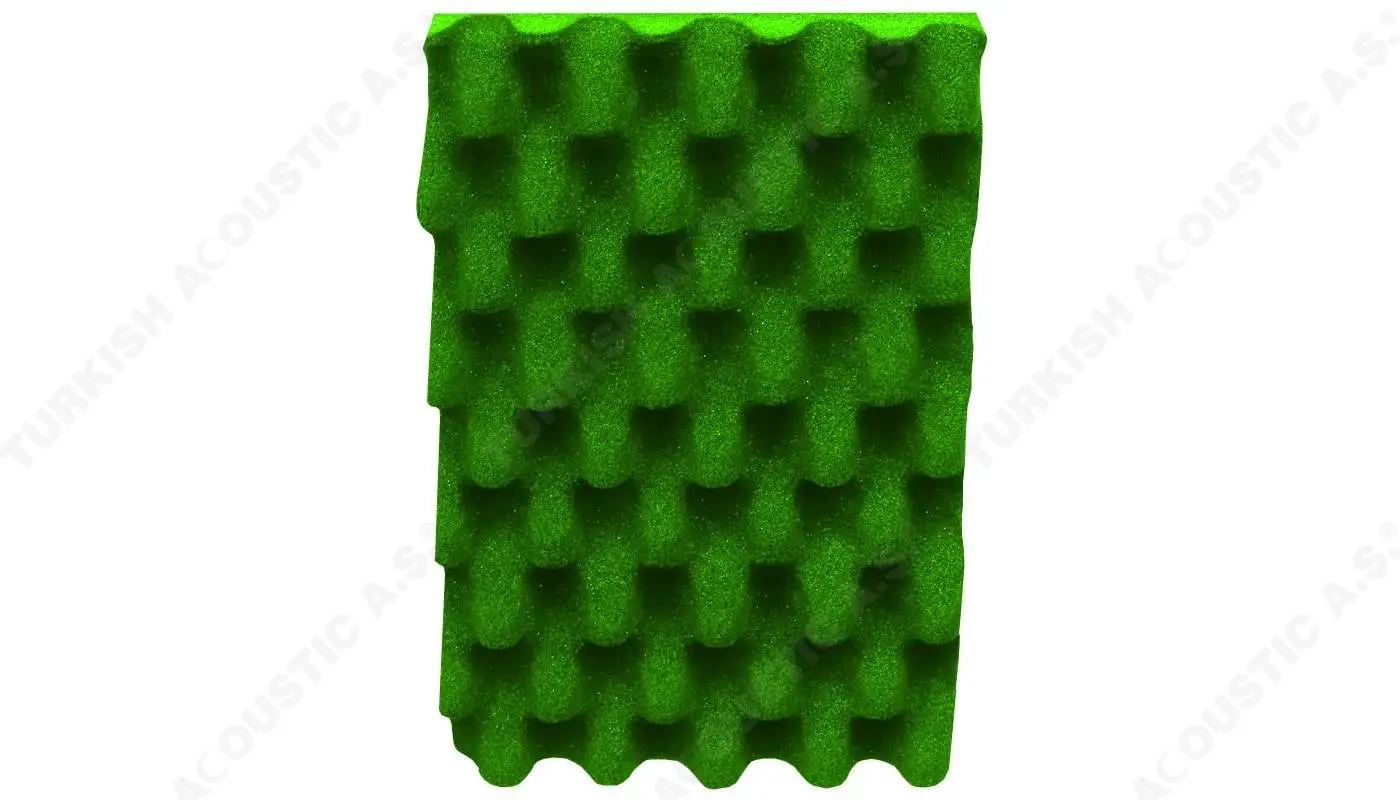

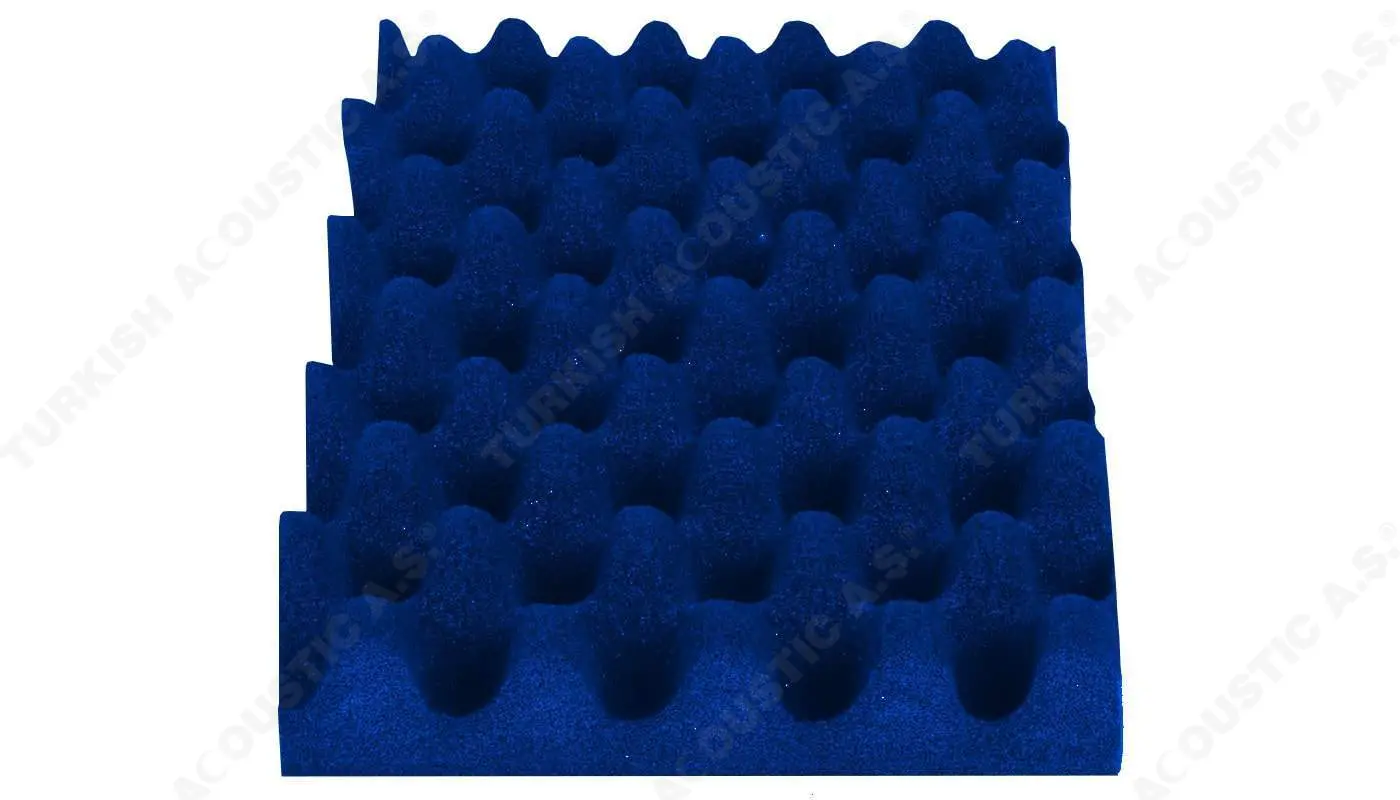

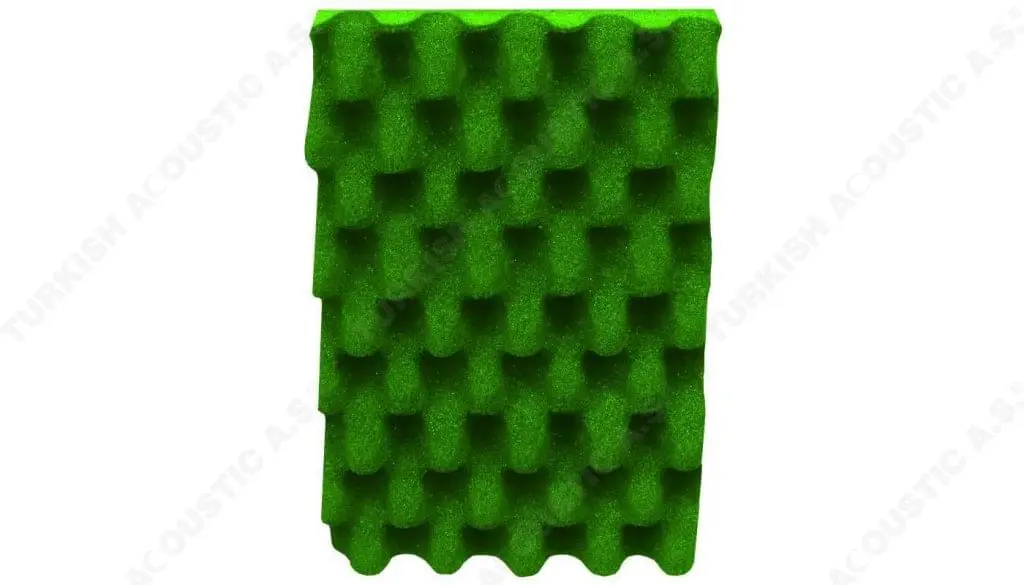

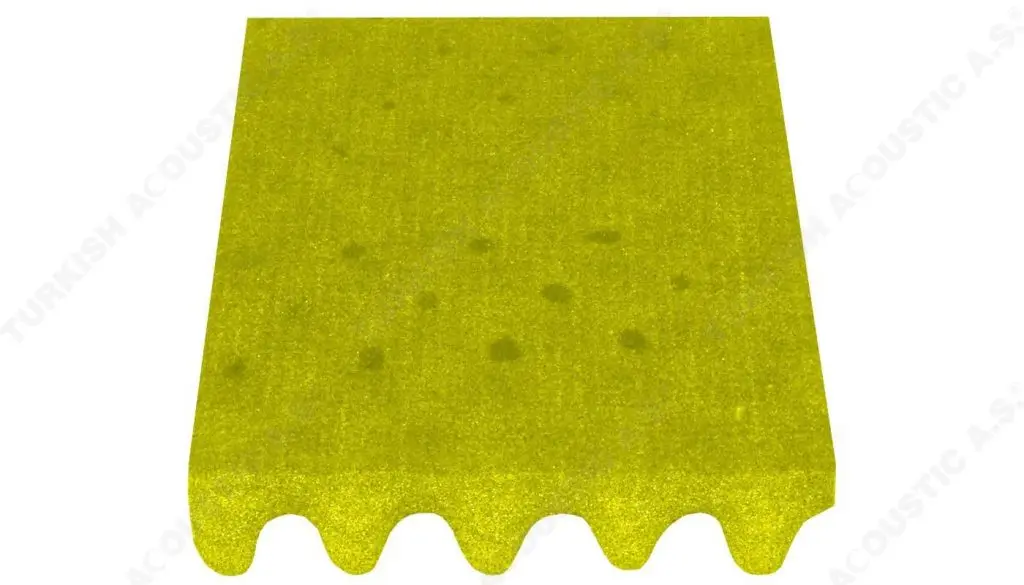

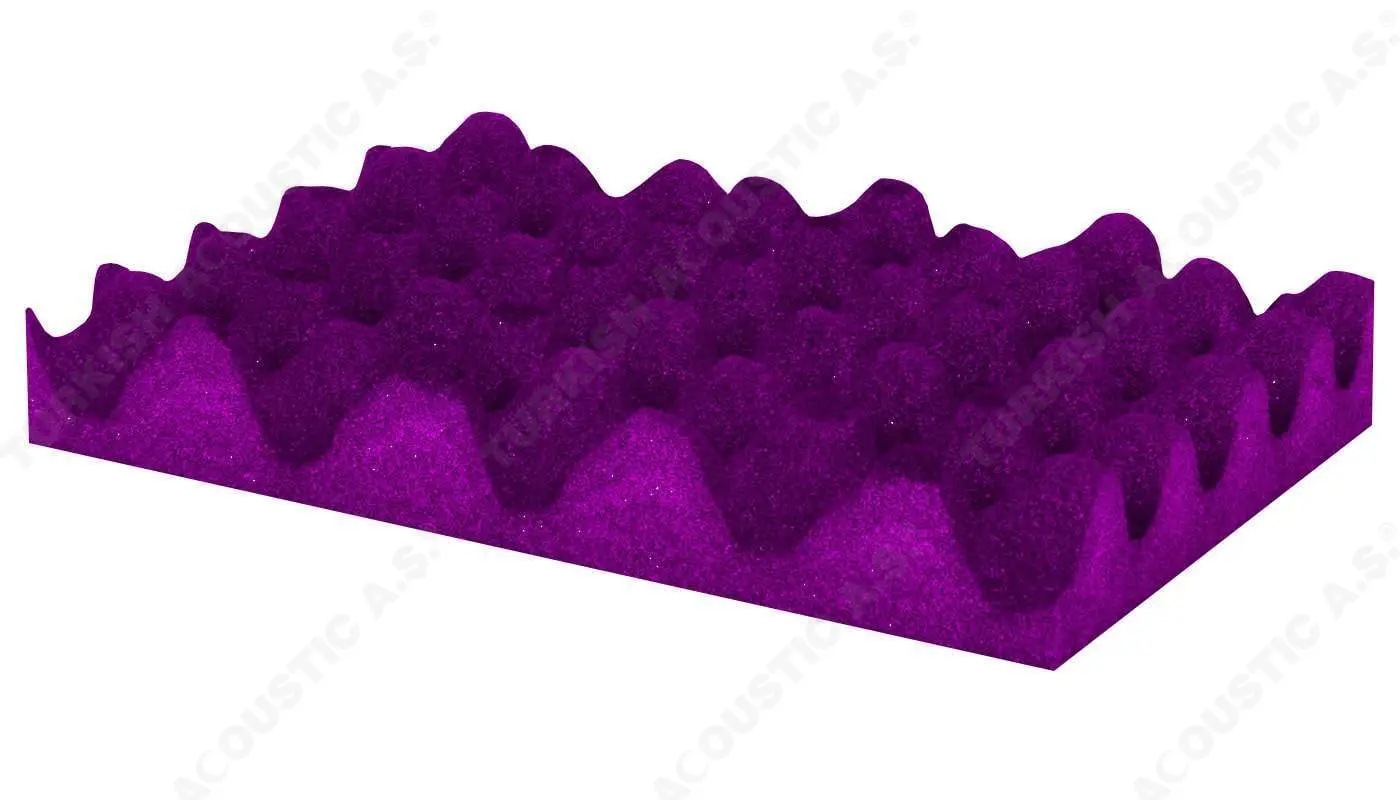

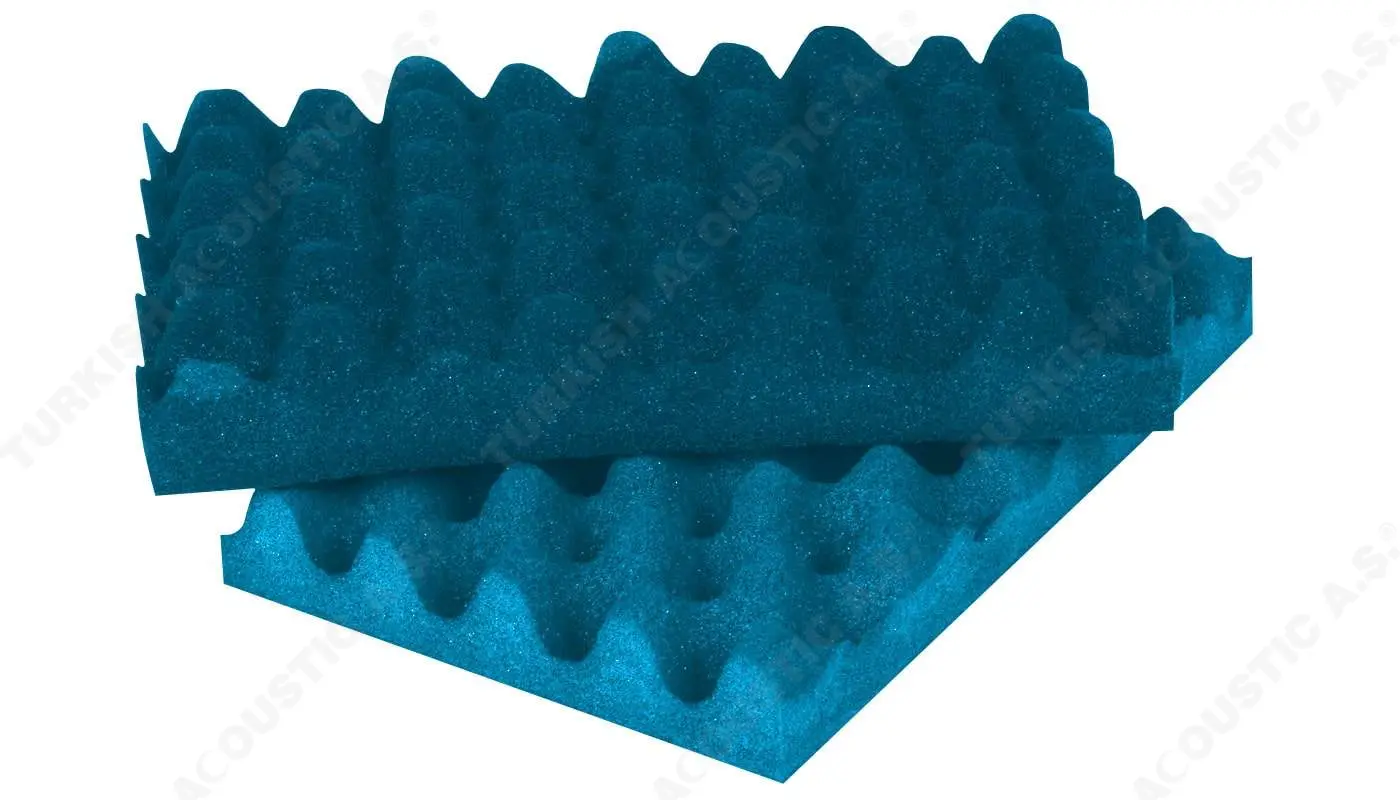

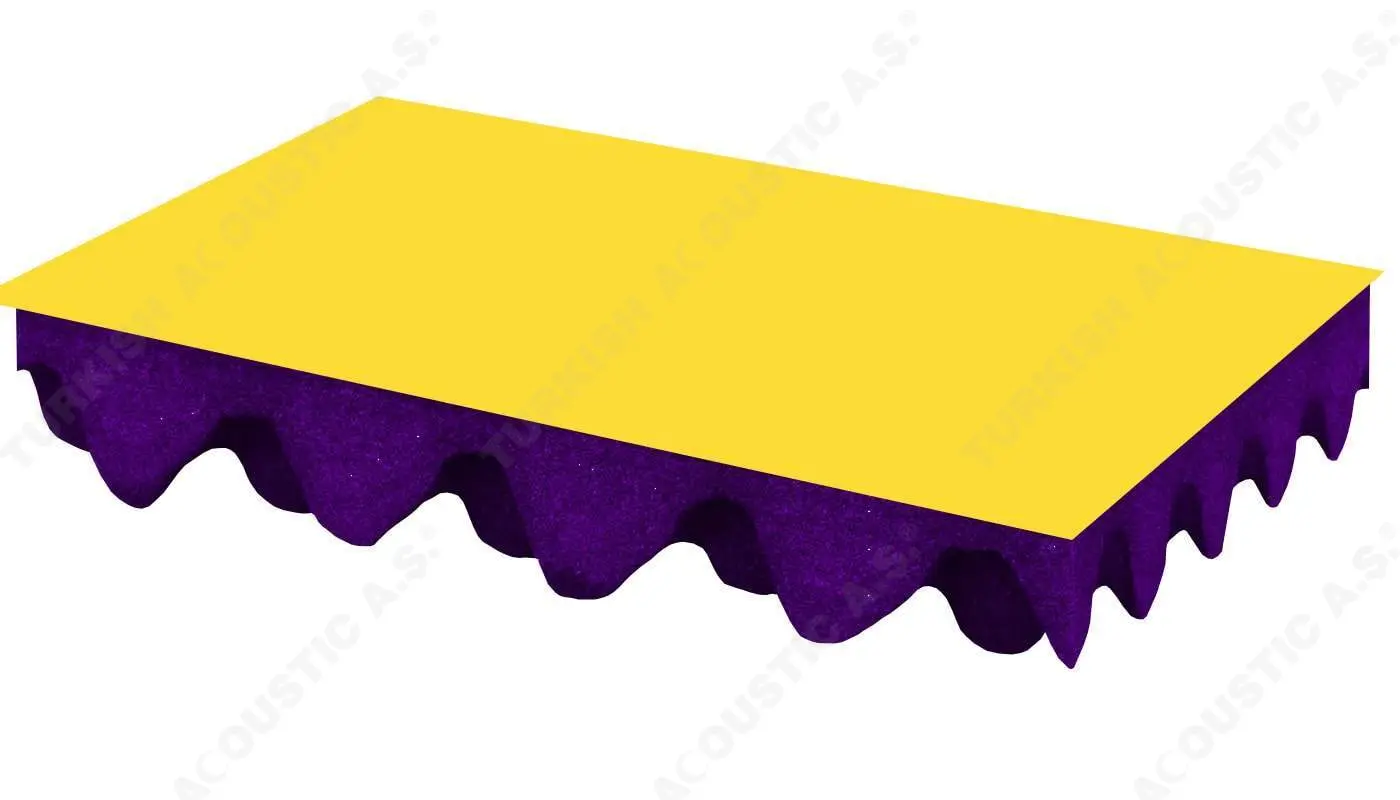

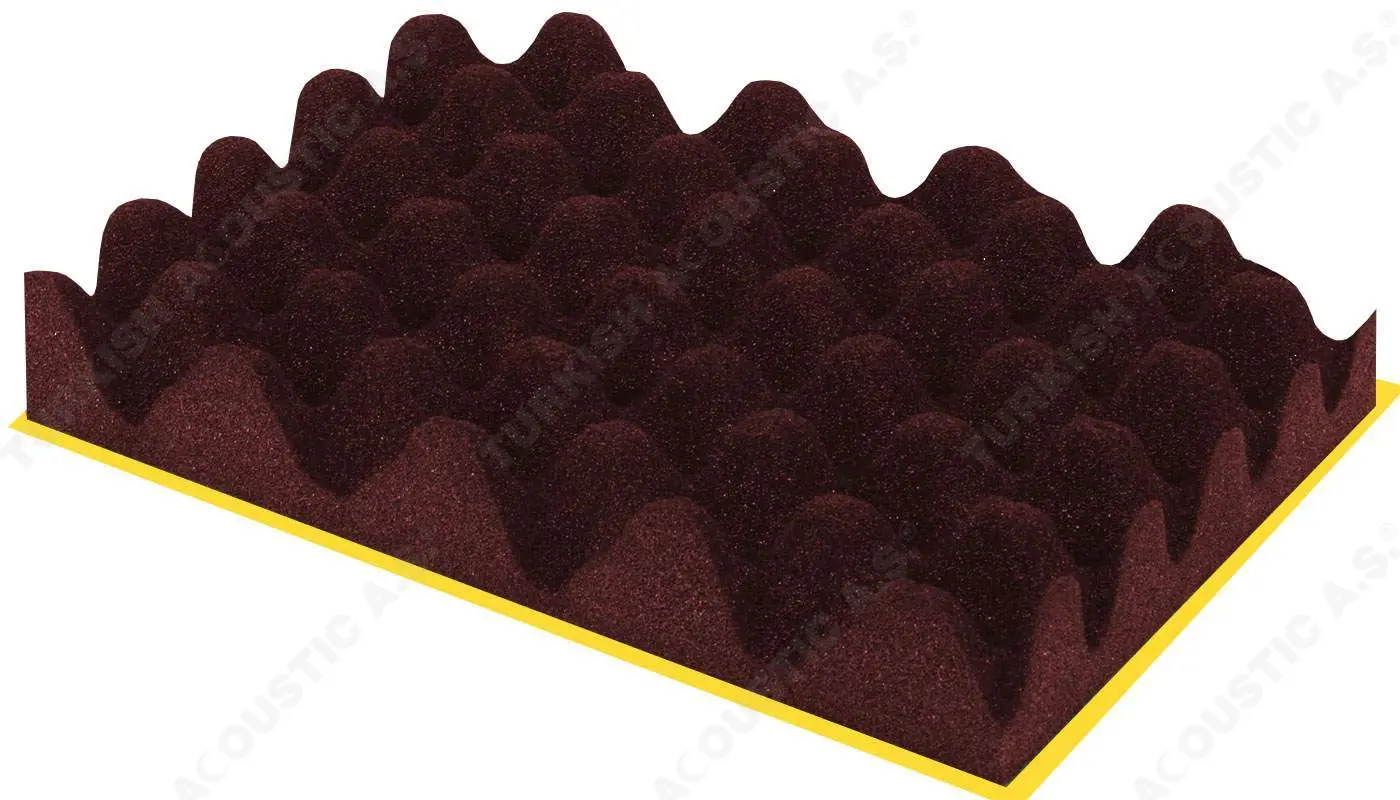

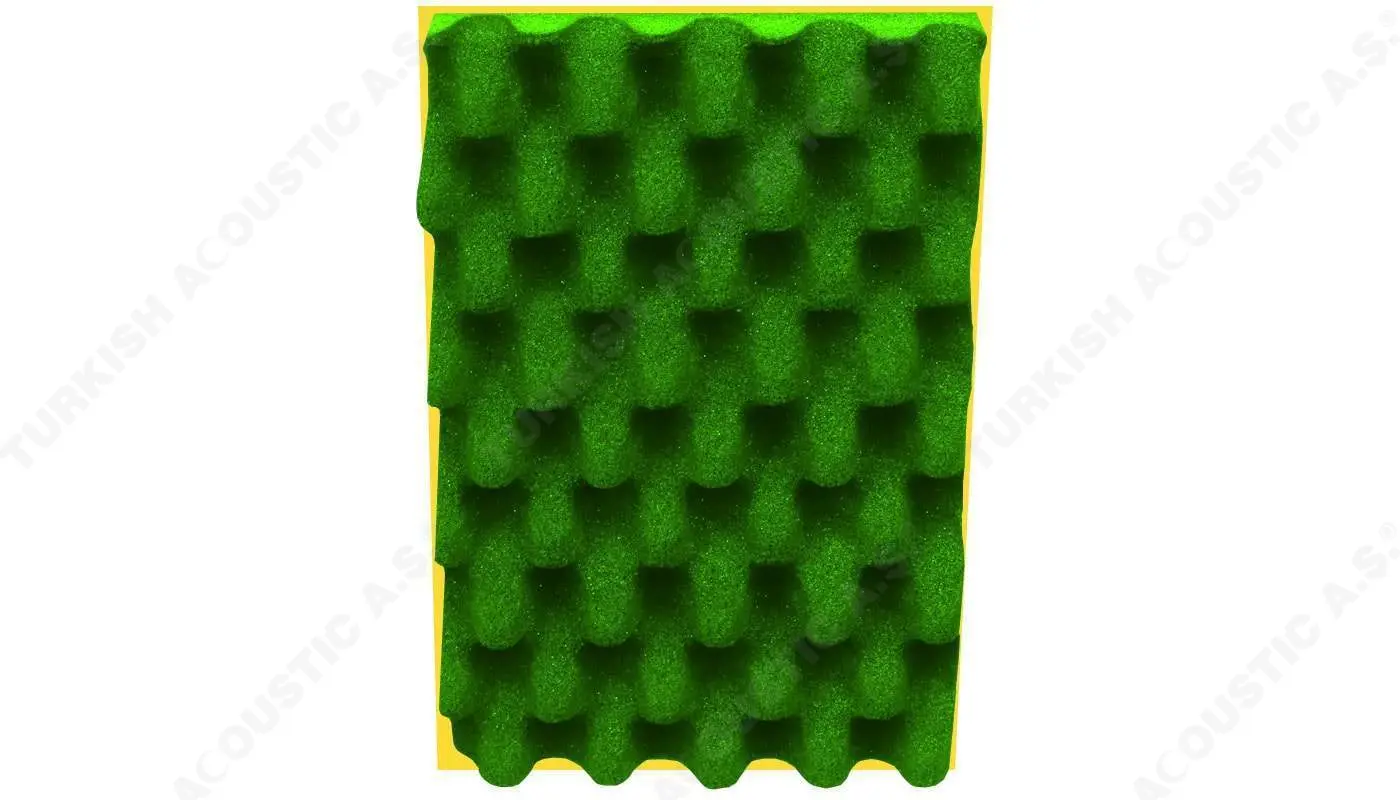

Fireproof Egg Sponge Color Variations: Black (Dark Andesite Gray) as standard. Colored production is available.
Fireproof Egg Sponge Area of Usage: Music room, studio, generator room, radio broadcast room, gymnasium, amusement centers.
Fireproof Egg Sponge Production: 50 mm and above custom thickness is available. The custom cut is possible. Colors RAL chart.
Fireproof Egg Sponge Nonflammability: BS476: class 0 and Unı 9175:2008 M1 certificates are available in nonflammability
Fireproof Egg Sponge Density: 30 and 60 Kg / M³ density / Special production in desired thickness and density is available.
Tolerance: 30 mm product is between 25 – 30 mm, 40 mm product is between 35 – 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Acoustic egg sponges are in 100 cm x 100 cm as plates. One package contains 10 plates (10m²). Sold in 30mm and 40mm standard thicknesses. Custom thickness and sizes are available upon request. Contact our technical office for details.
