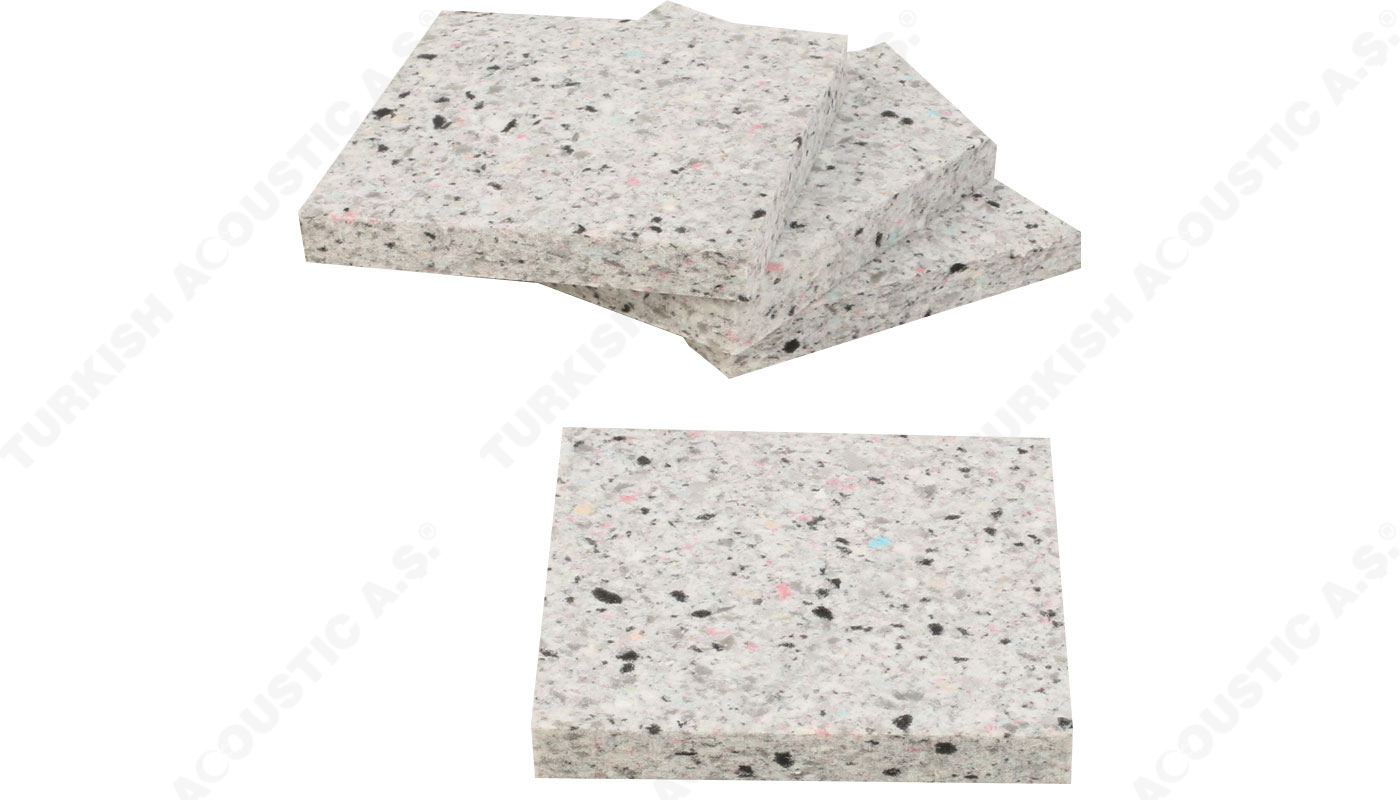

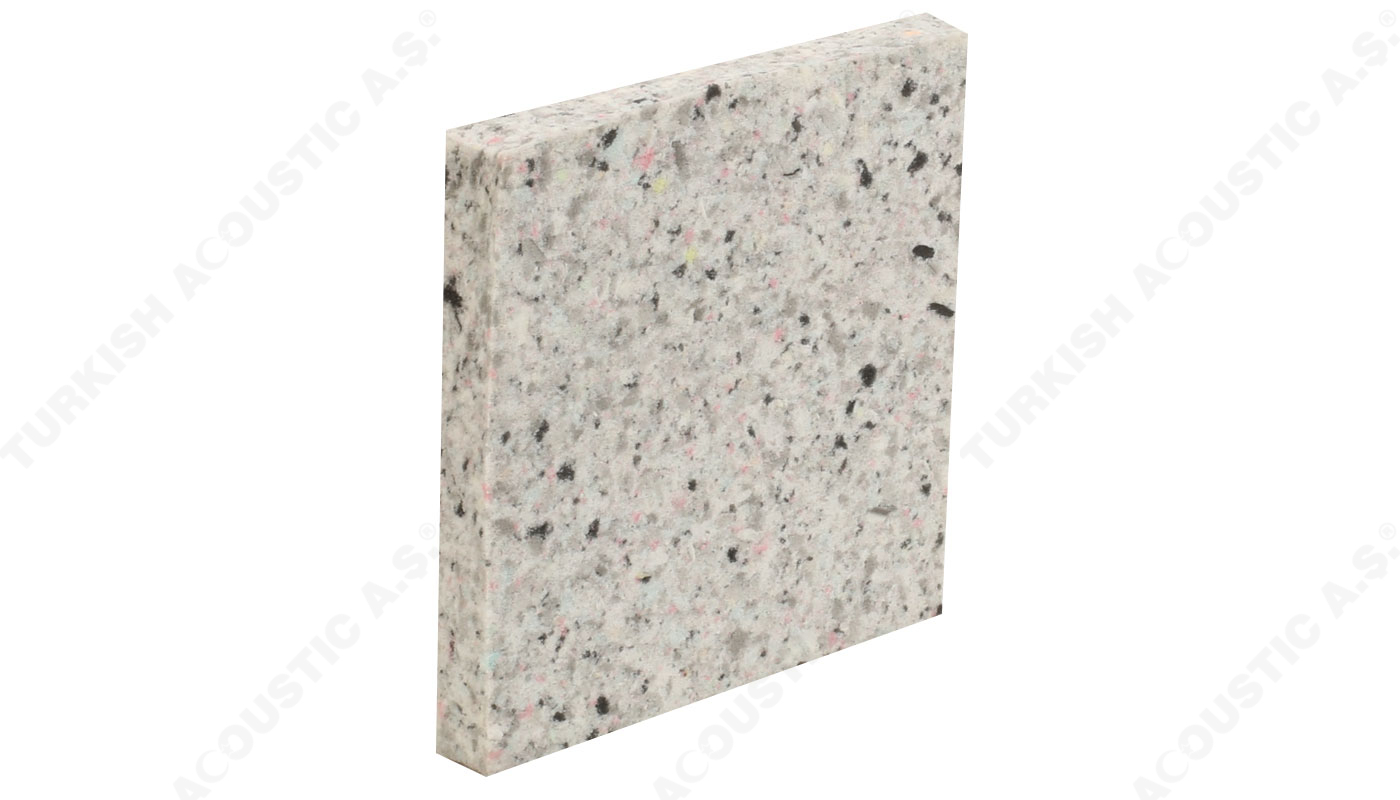

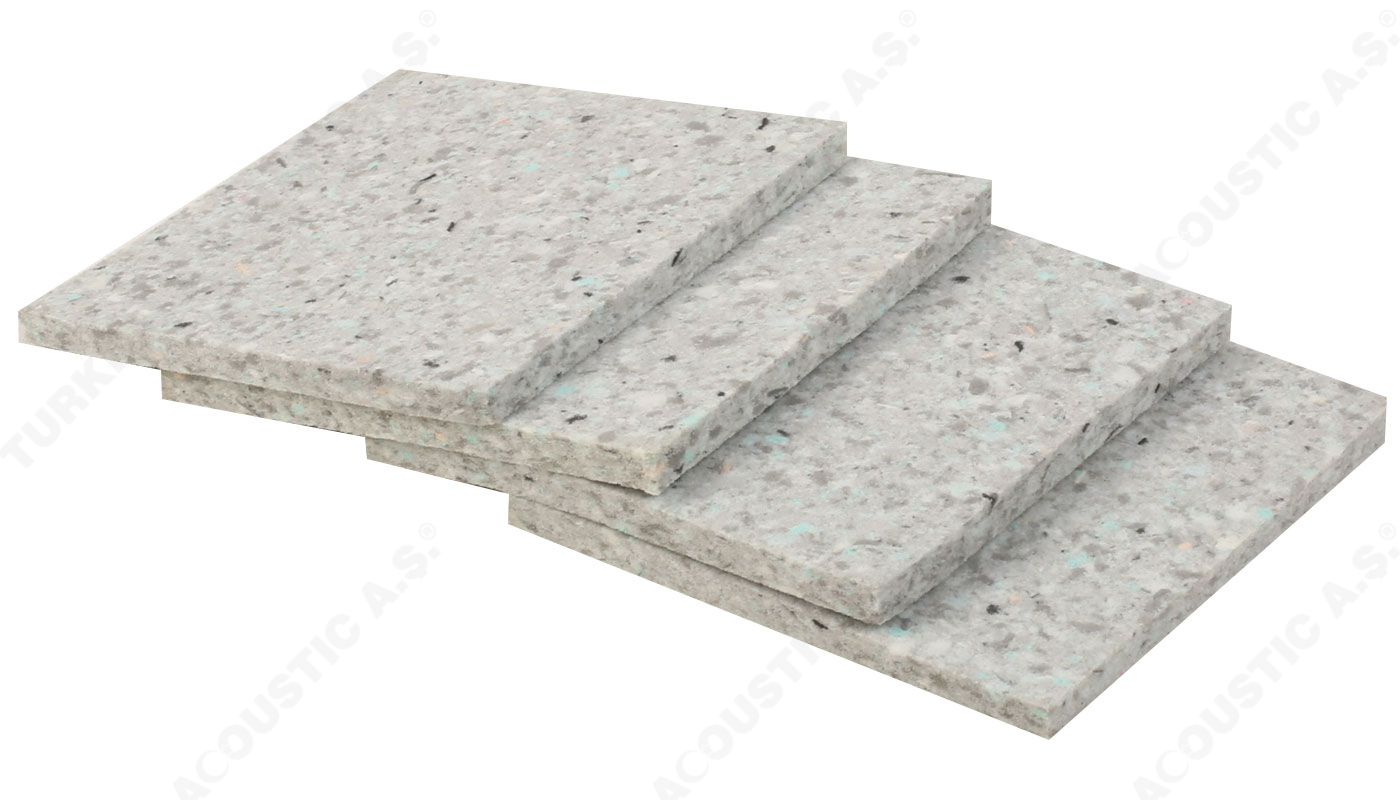

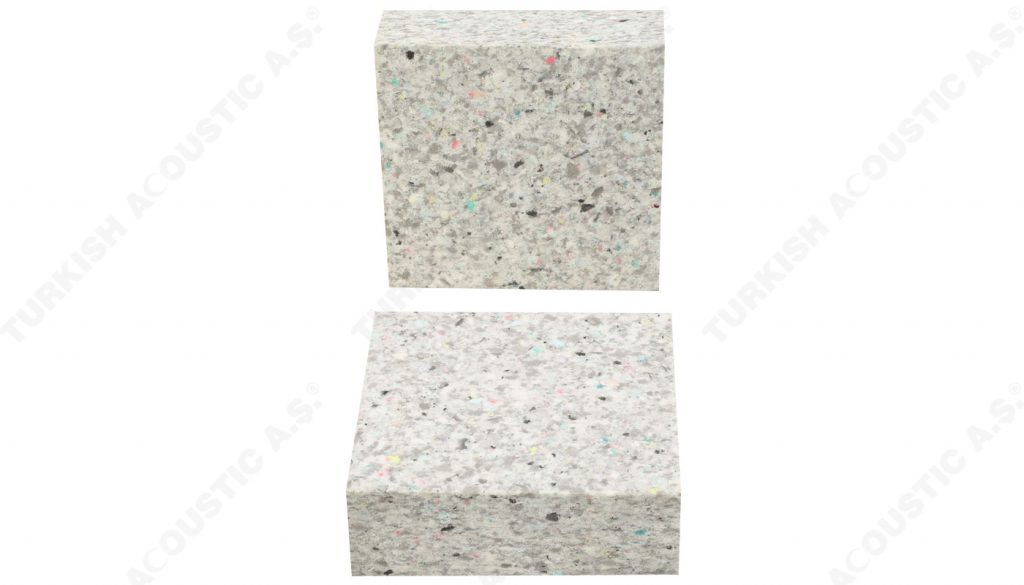

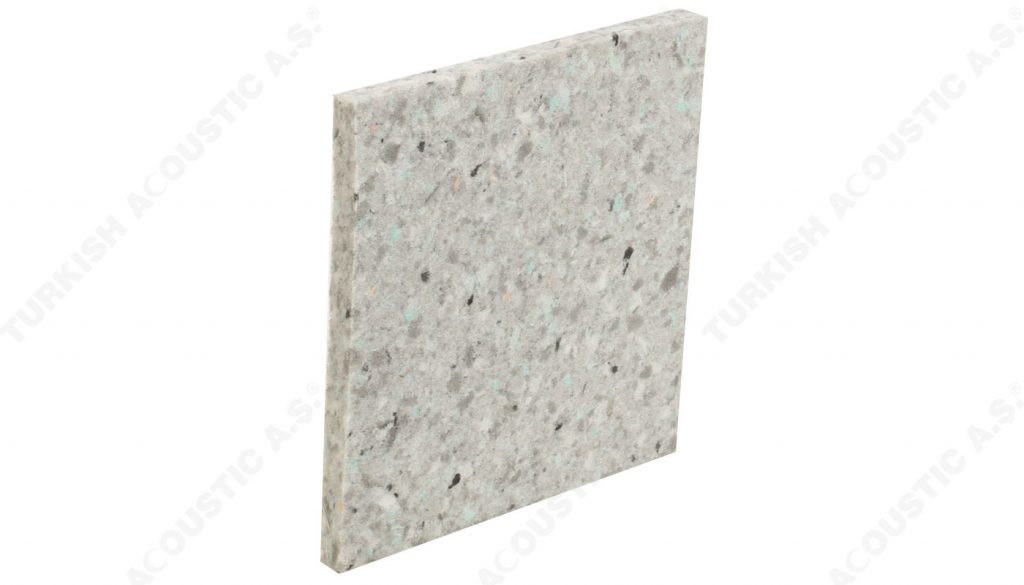

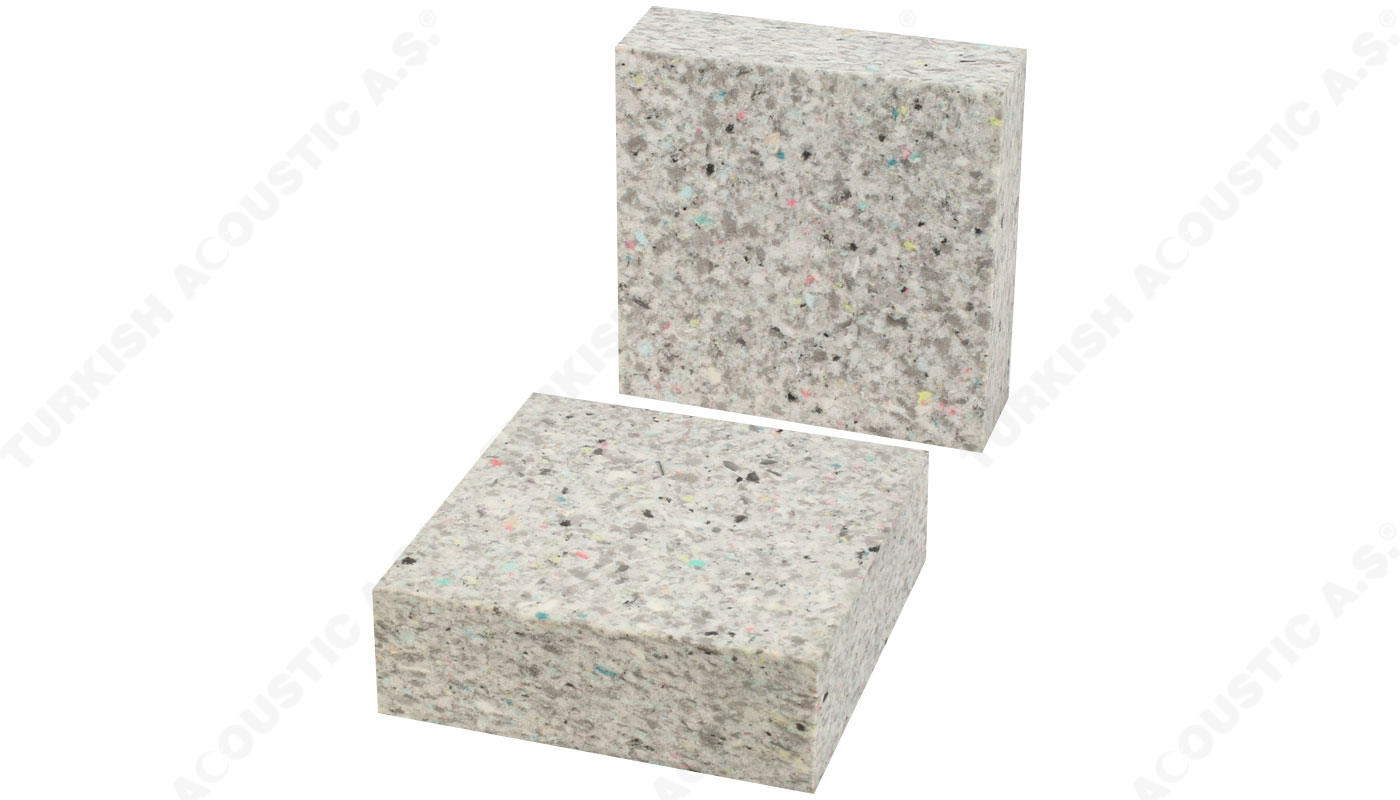

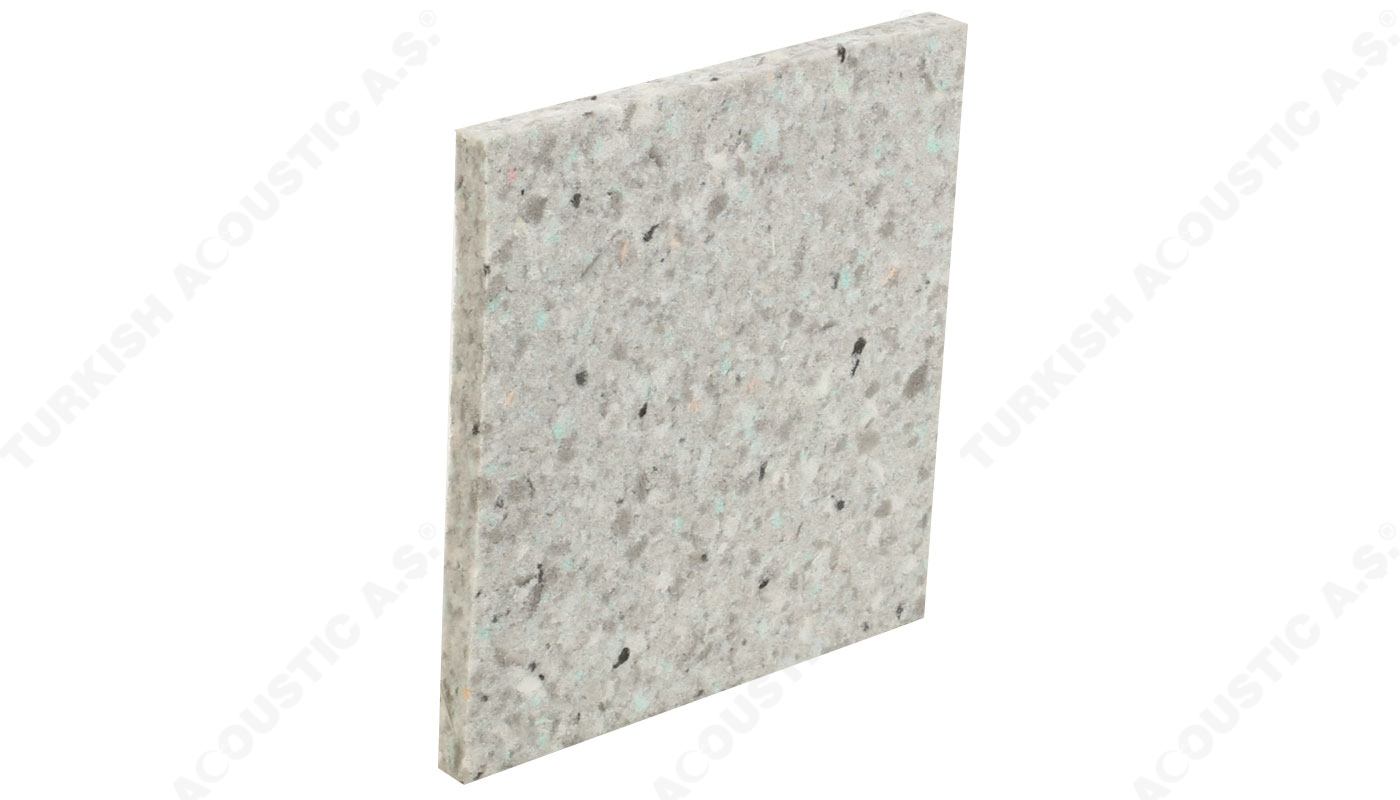

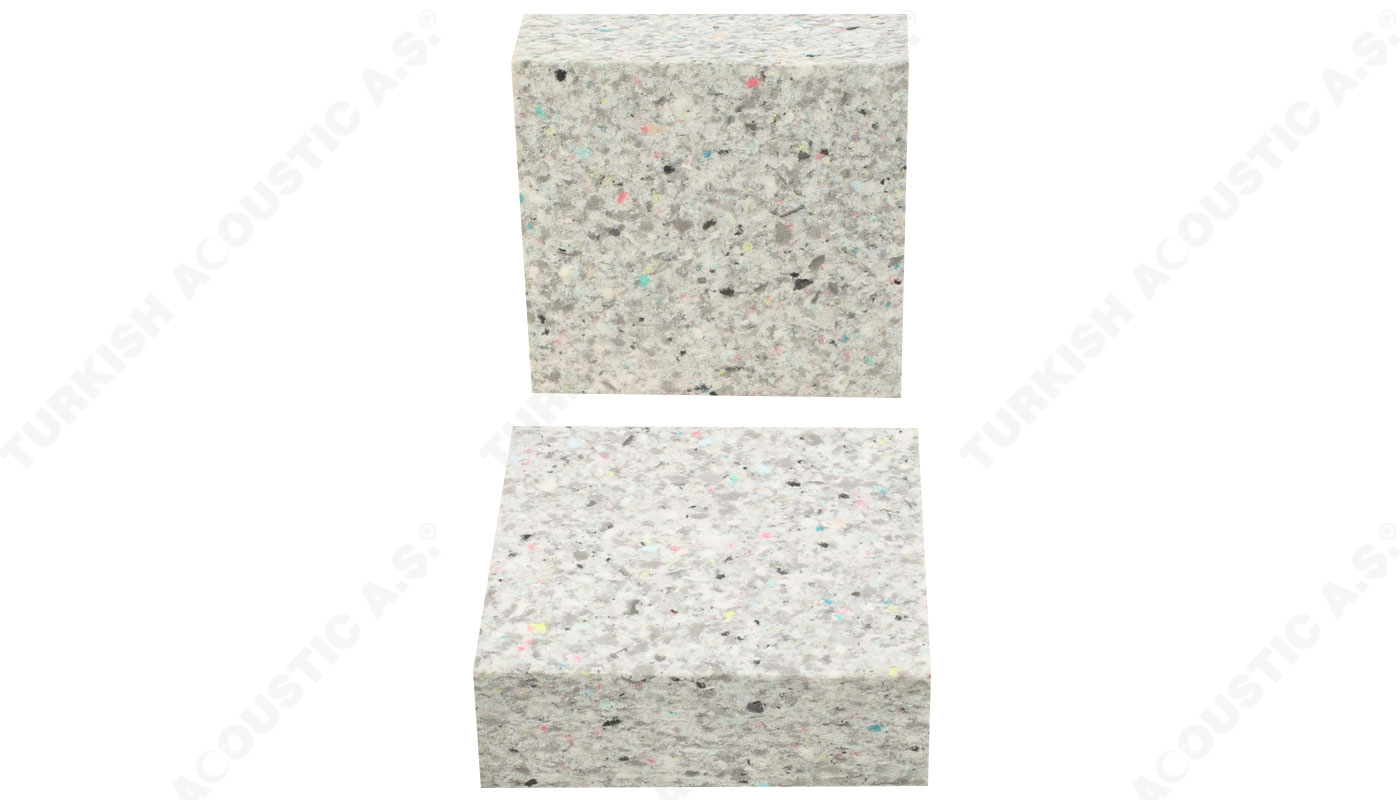

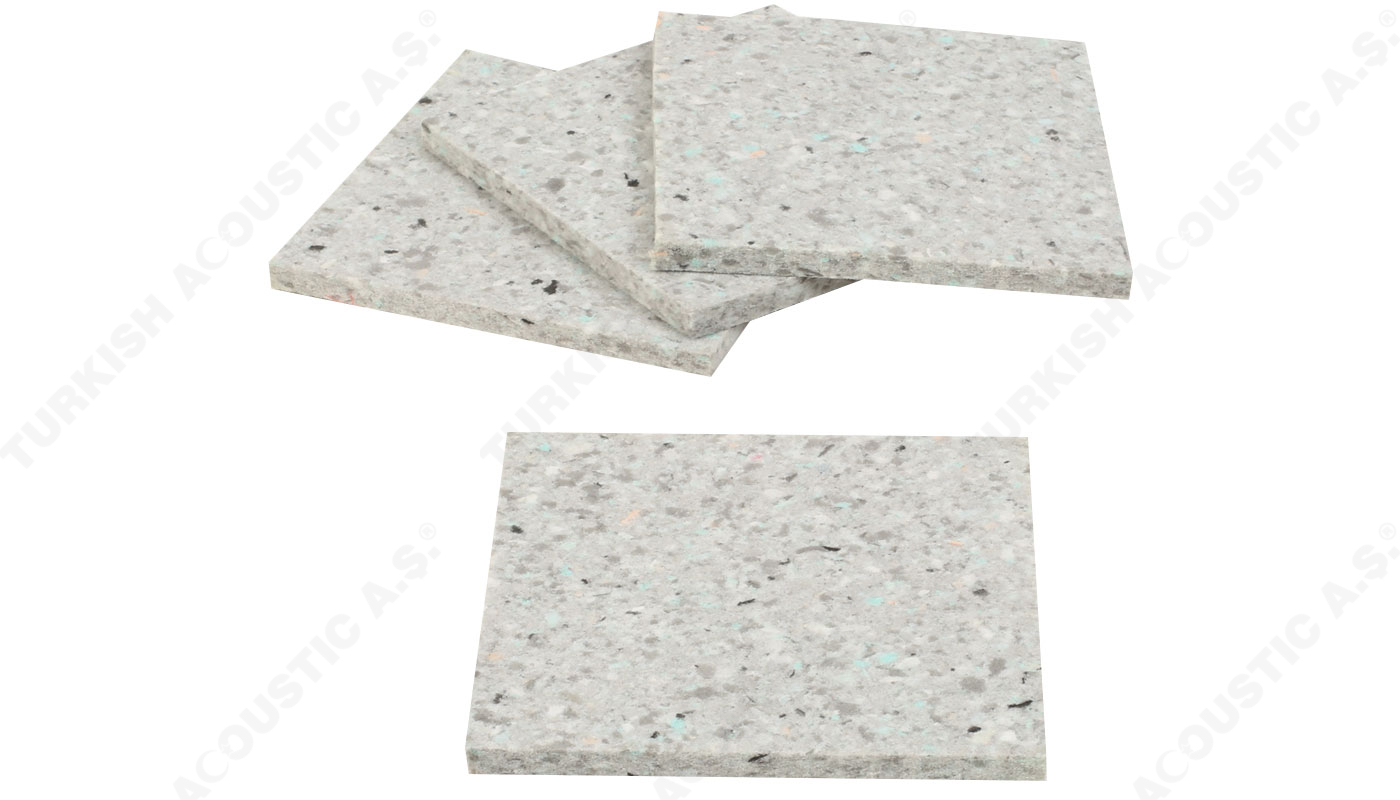

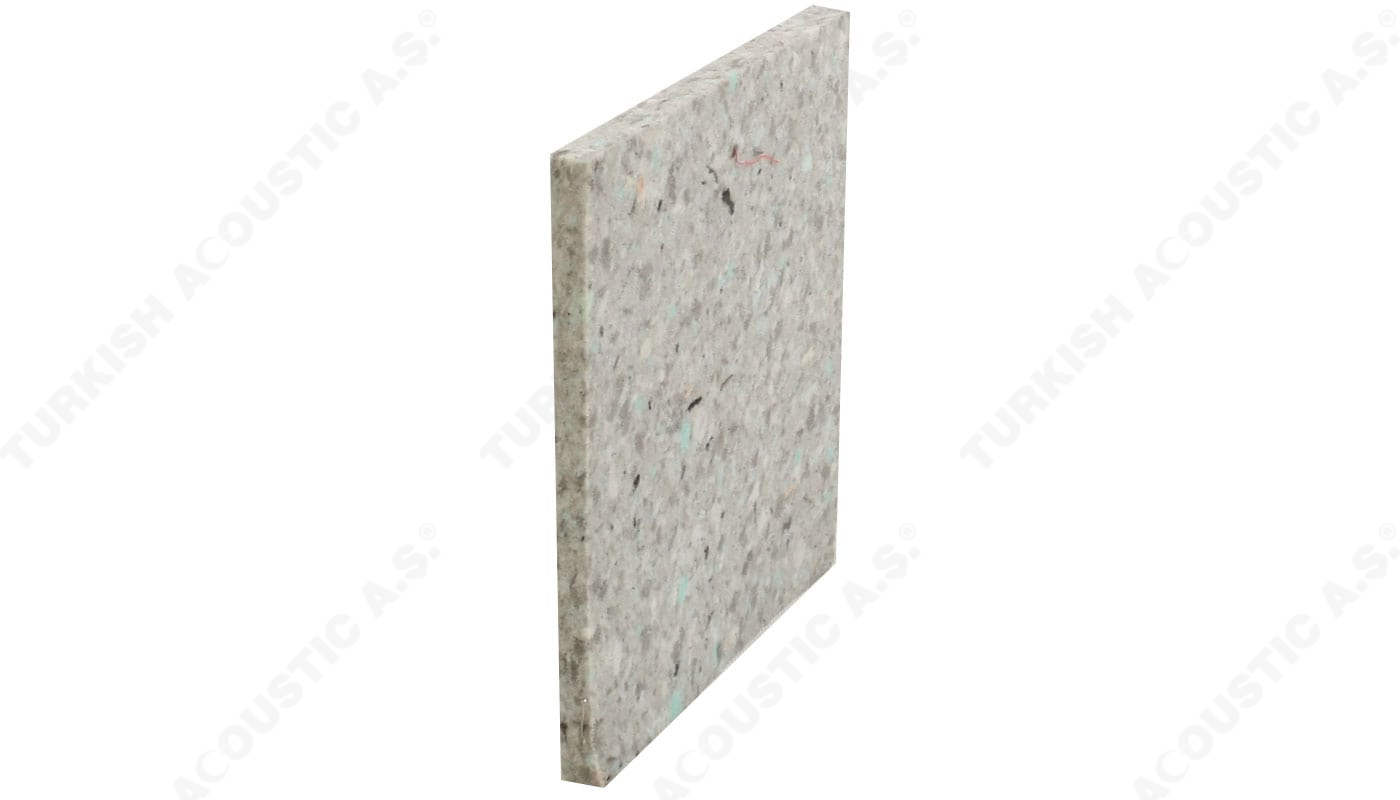

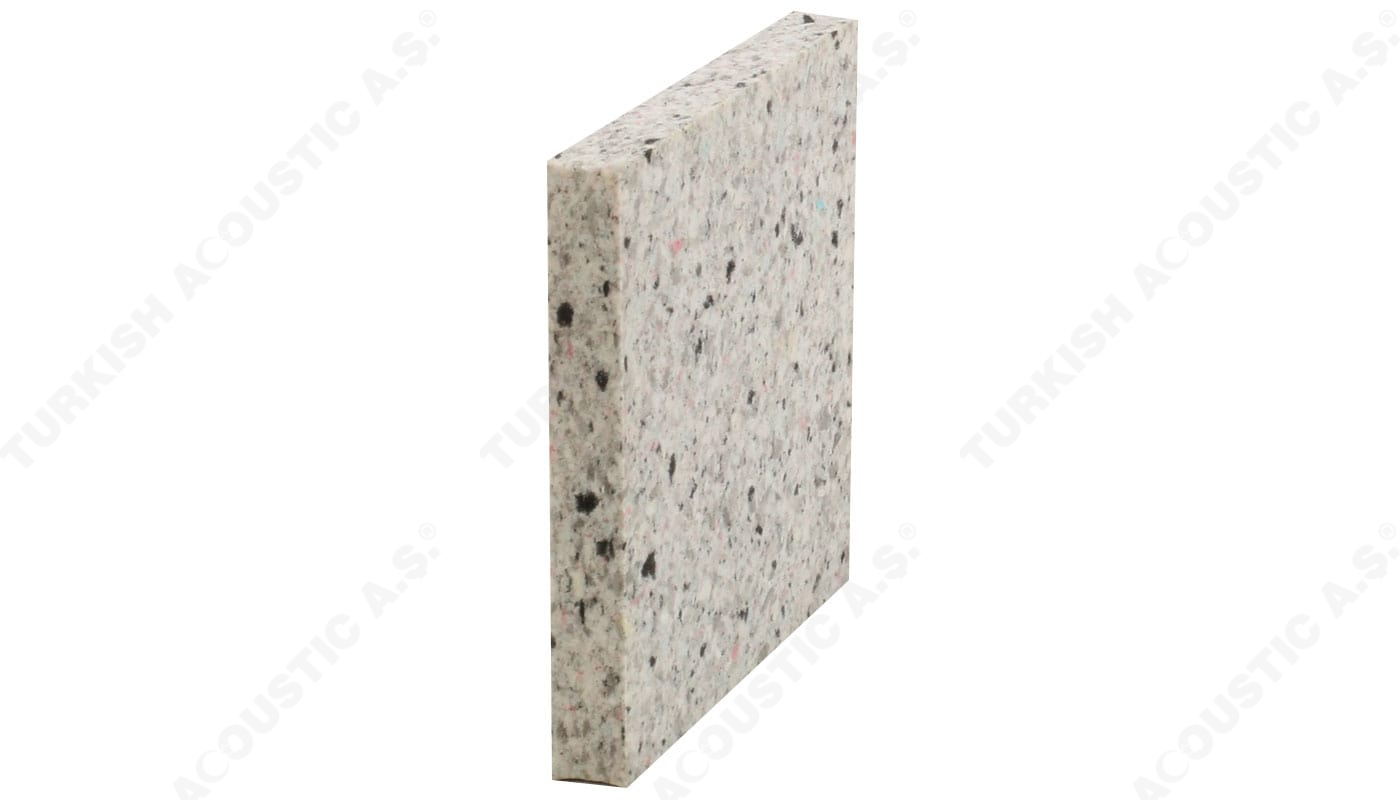

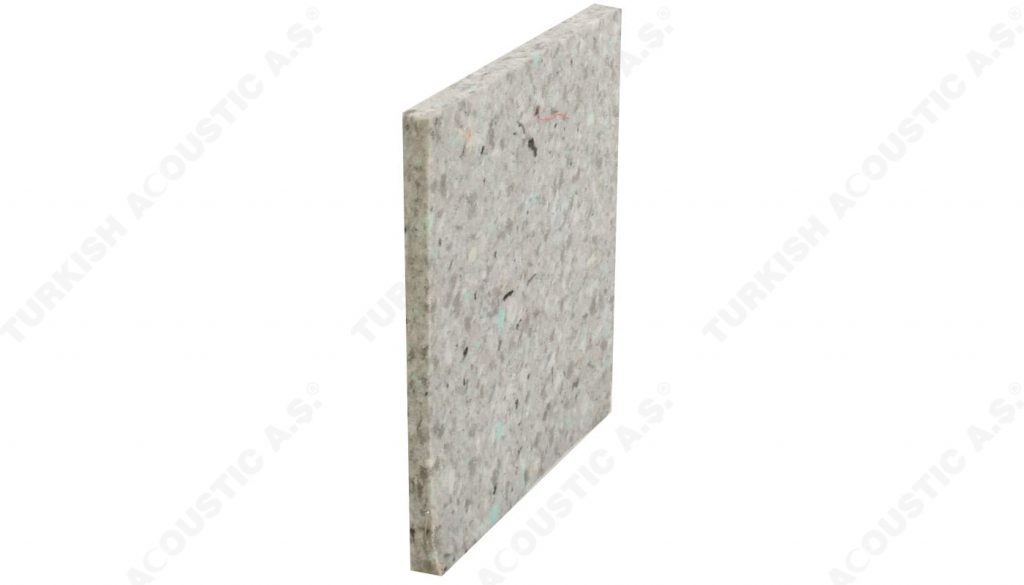

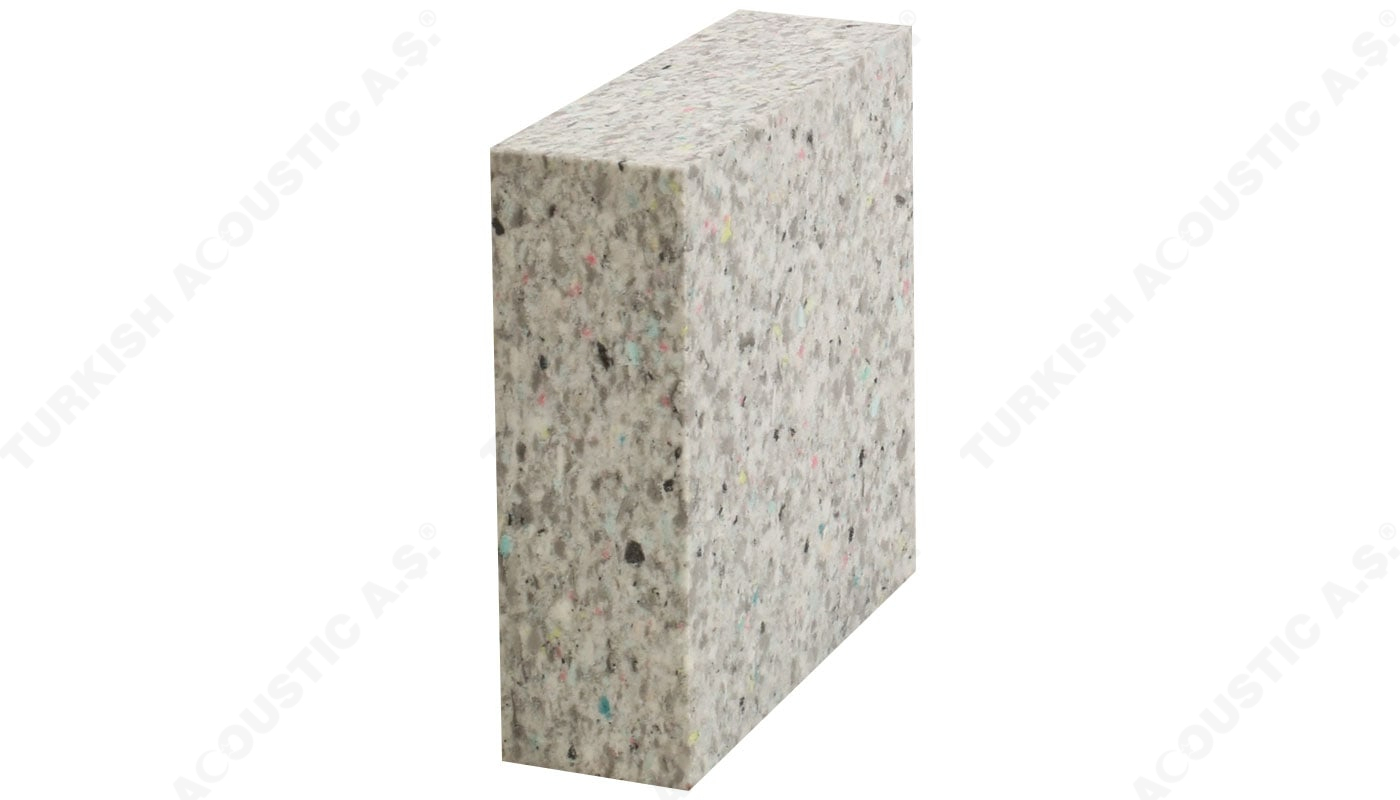

Trk Bond Panel : You can contact our company for acoustic sound insulation sponges, sound insulation sponges , bondex plate sponges, acoustic bondex sponges, sound insulation materials, Trk Bond Panel prices. Rebonded echobone bondex foam, rebonded foam, rebond foam rollers. Trk Bond Panels produced from scrap sponge particles, that is, recycled sponge waste, are used as sound insulation material under screed, under parquet floor. Roll bondexes from the rebonded echobone bondex sponge family provide effective insulation in thermal insulation as well as sound insulation. We produce in the form of rolls with the desired thickness and width of 100 cm.
Trk Bond Panel Size: 100 cm x 100 cm Plate dimensions, 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 mm are offered for retail sale.
Trk Bond Panel Package: Bondex sponges 100 cm x 100 cm size plate are sold in 10 packages. 1 Pack 10 m² Sold.
Trk Bond Panel Color: It is sold as a standard mosaic pattern granule mixed color.
Trk Bond Panel Usage Areas: Music room, studio, generator cabin, radio broadcasting house, sports hall, entertainment venues.
Trk Bond Panel Production: Production of special thickness 50 mm and above is possible. Custom cut to size is possible.
Trk Bond Panel Fireproof: It has no flammability and non-flammability. See the fireproof sponges section.
Trk Bond Panel Density: Standard density is 110 Kg / M³ and optionally it is possible to produce 180 Kg / M³ density.
Note: 30 mm product is between 25 - 30 mm, 40 mm is 35 - 40 mm, and 50 is in thicknesses with tolerances between 45 - 50 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Bondex acoustic sponges are in the form of 100 cm x 100 cm plates, and their packages contain 10 plates, 10 m² of products. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
