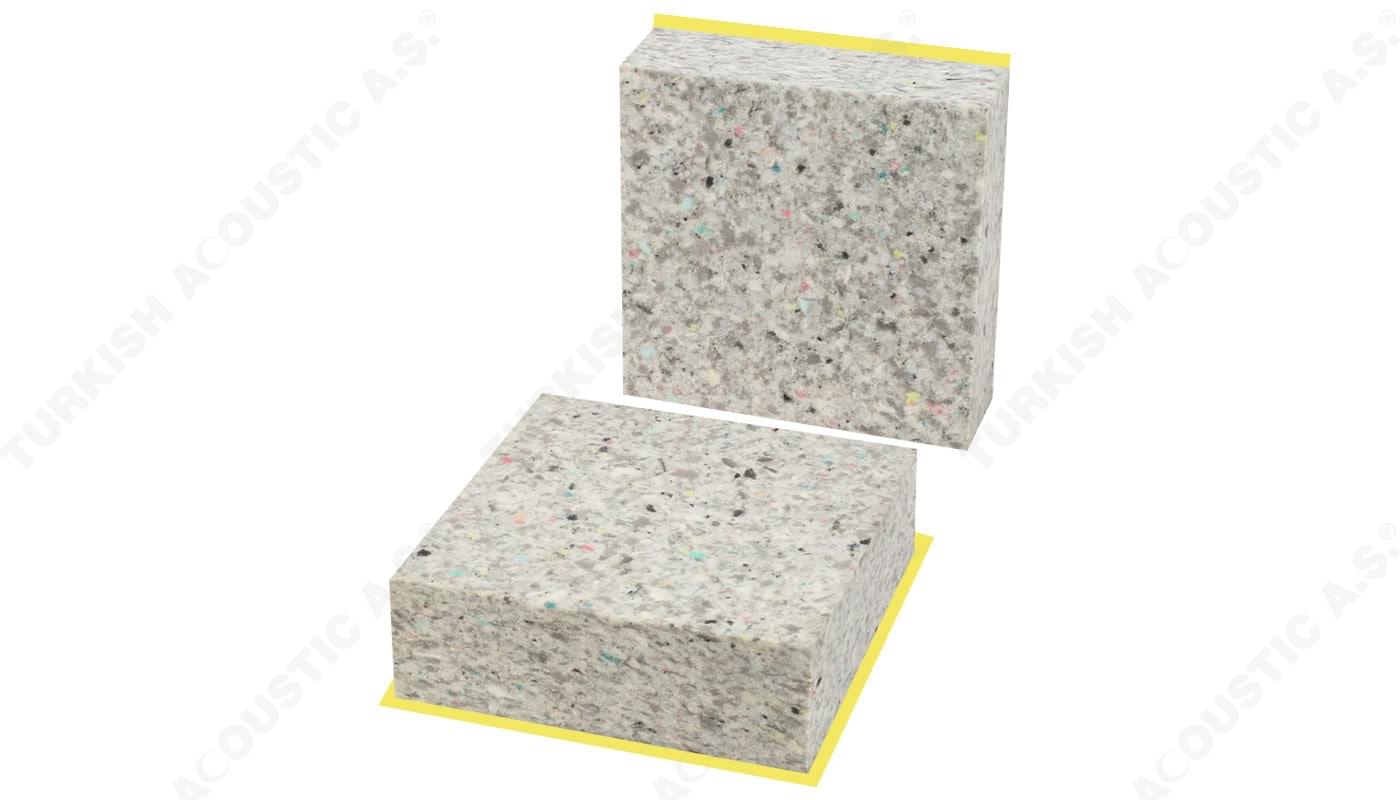

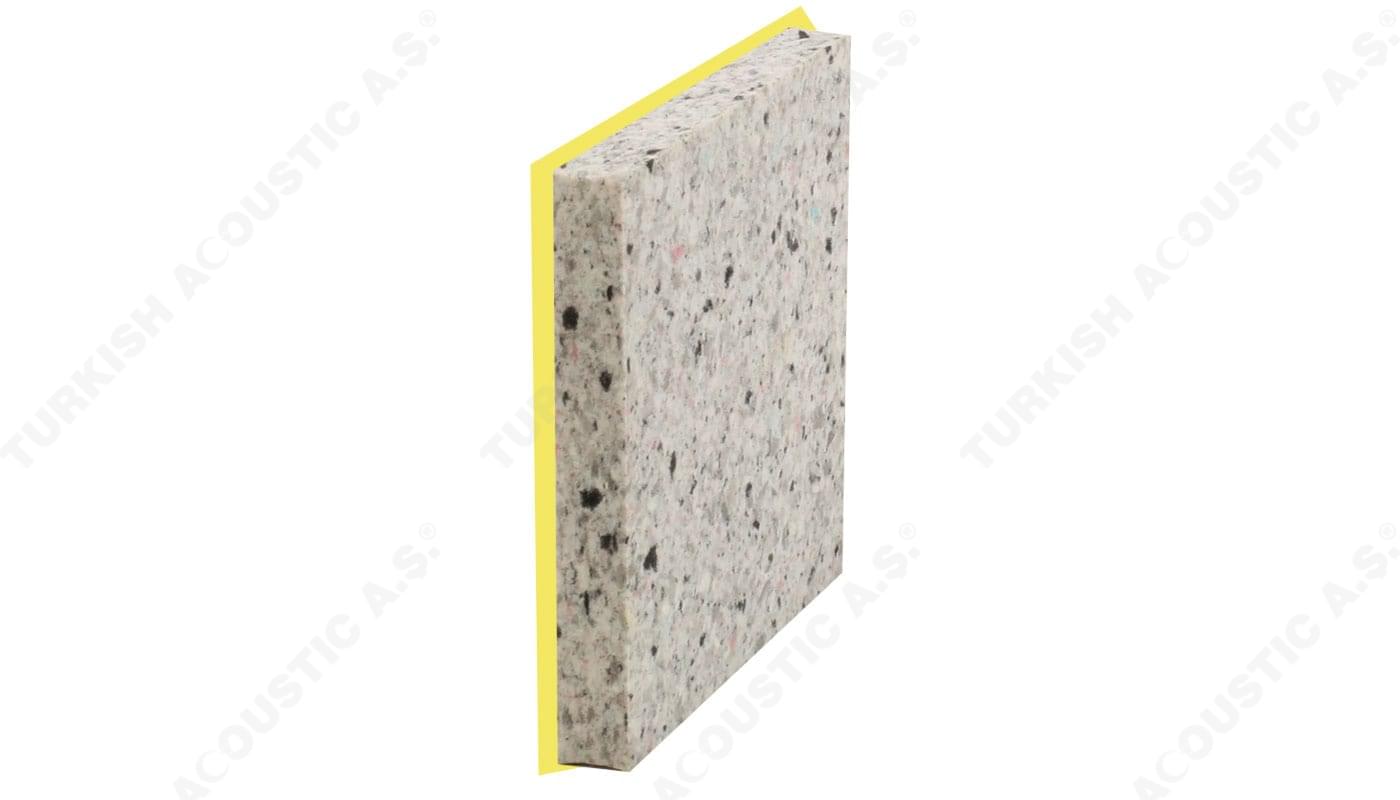

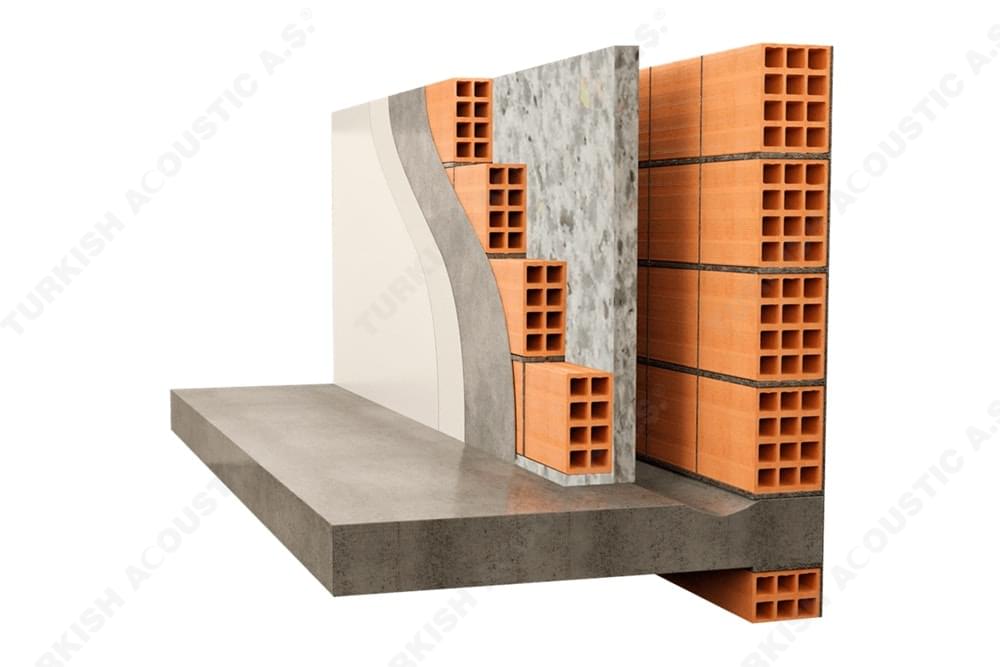

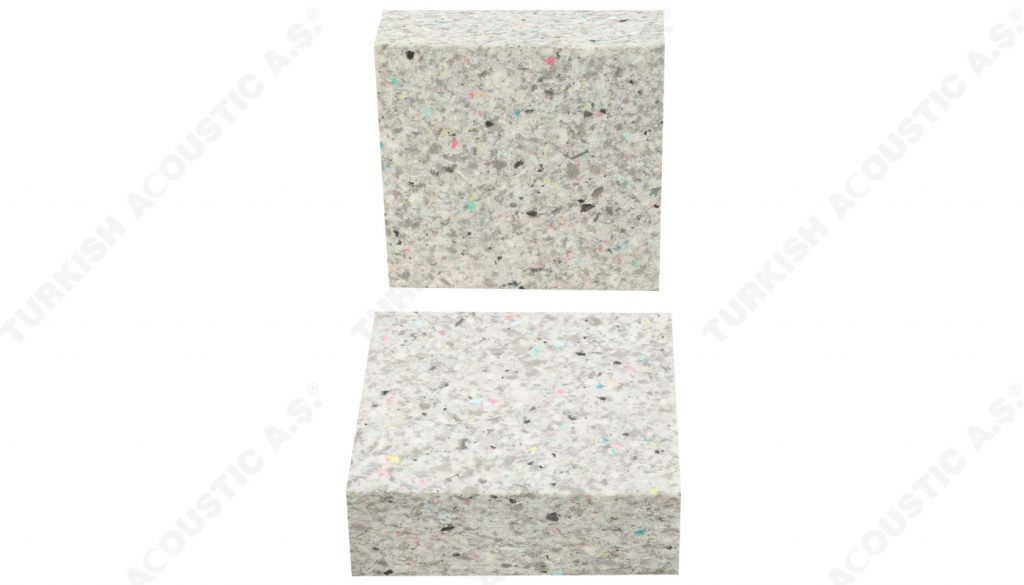

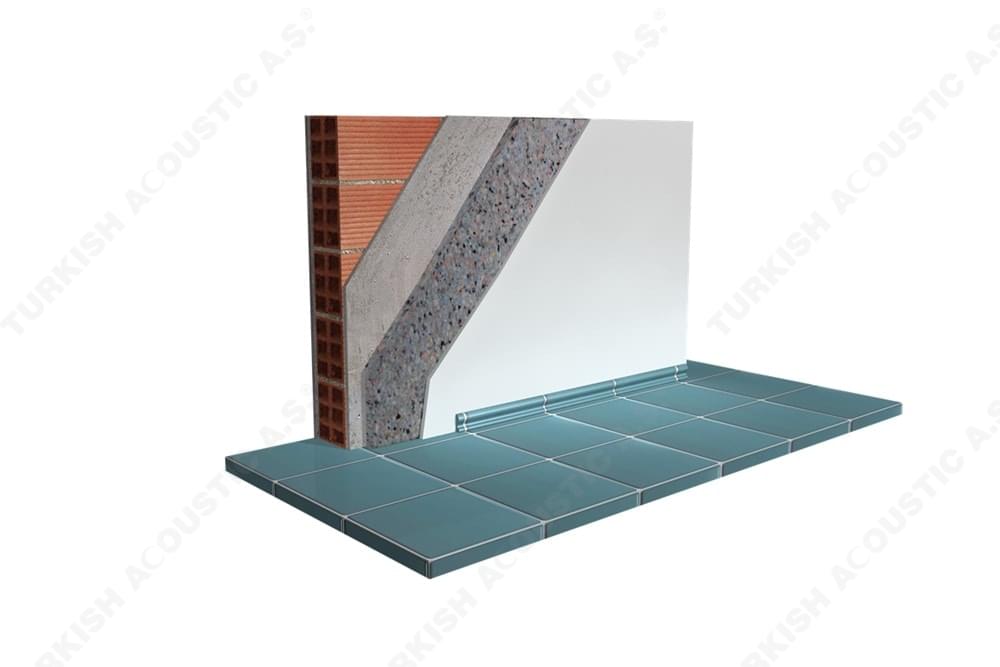

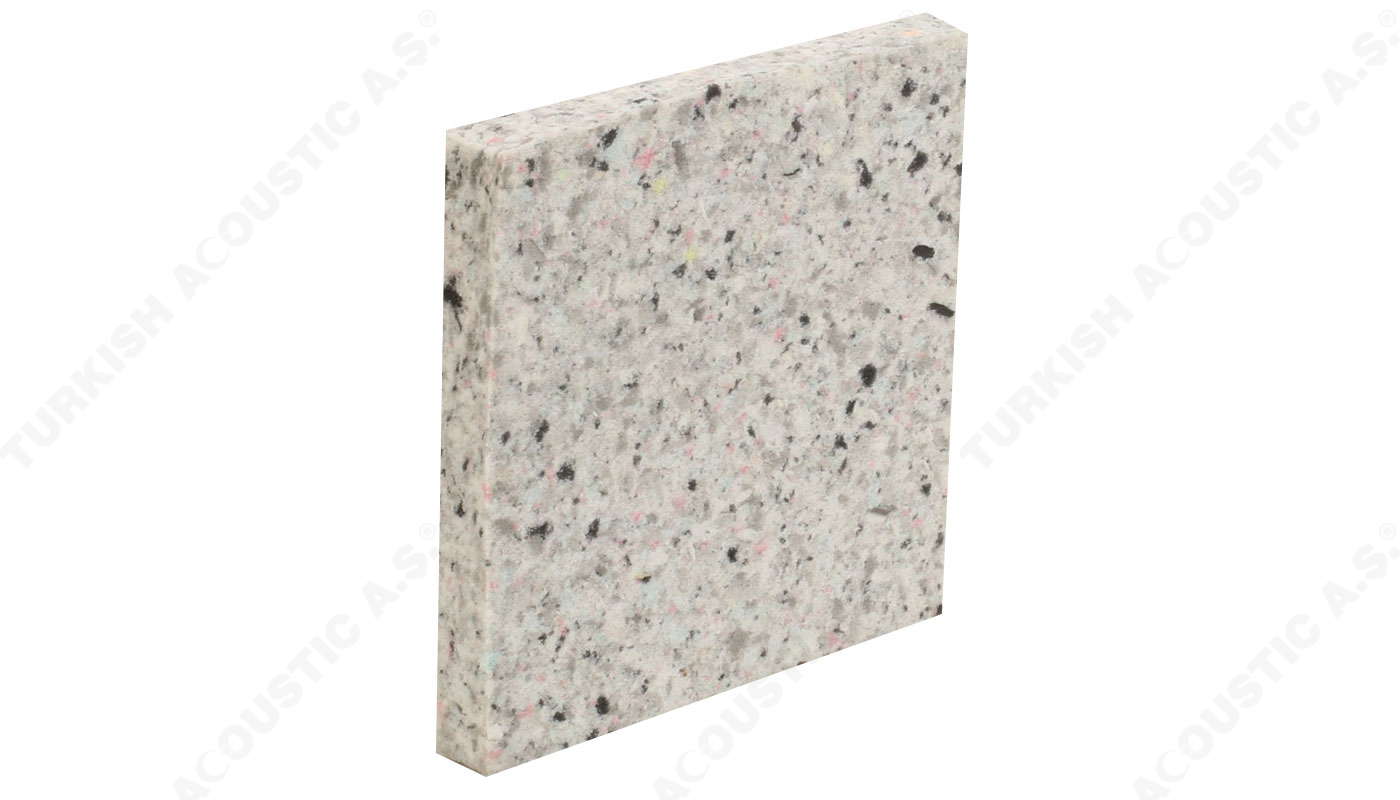

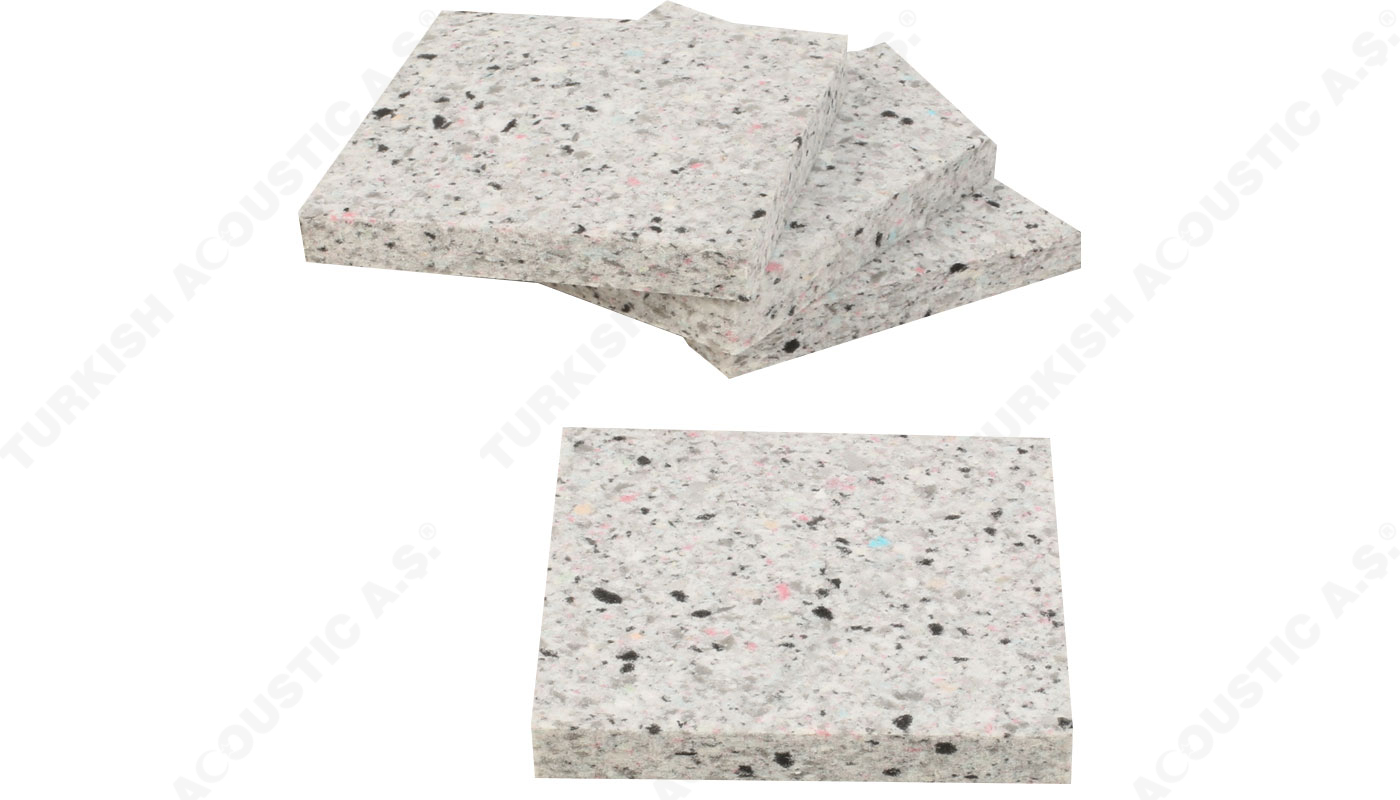

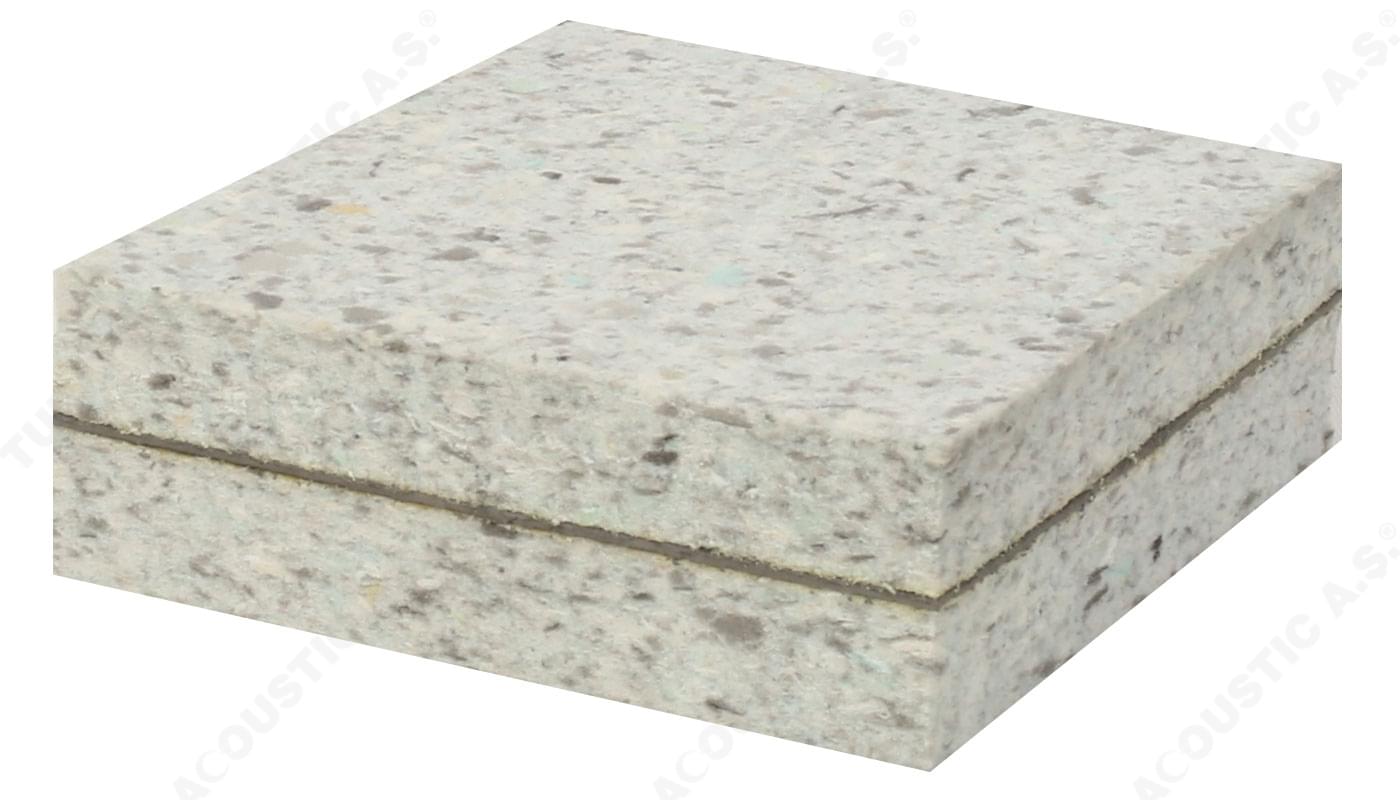

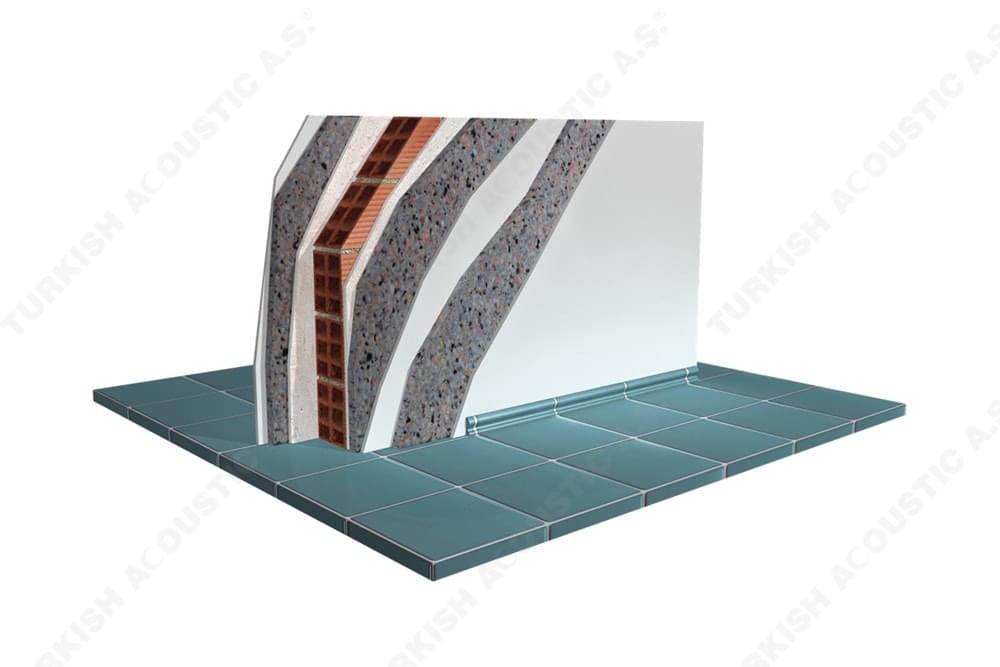

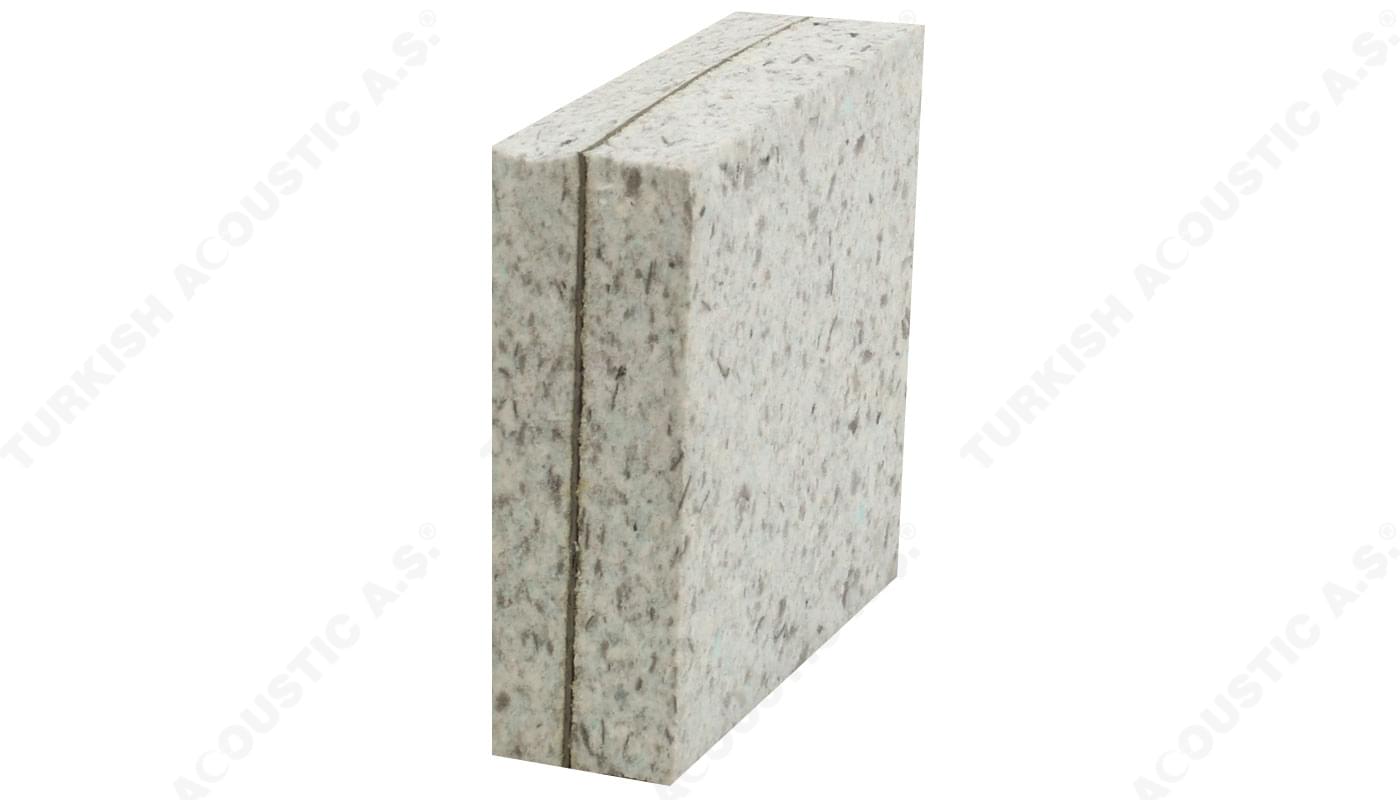

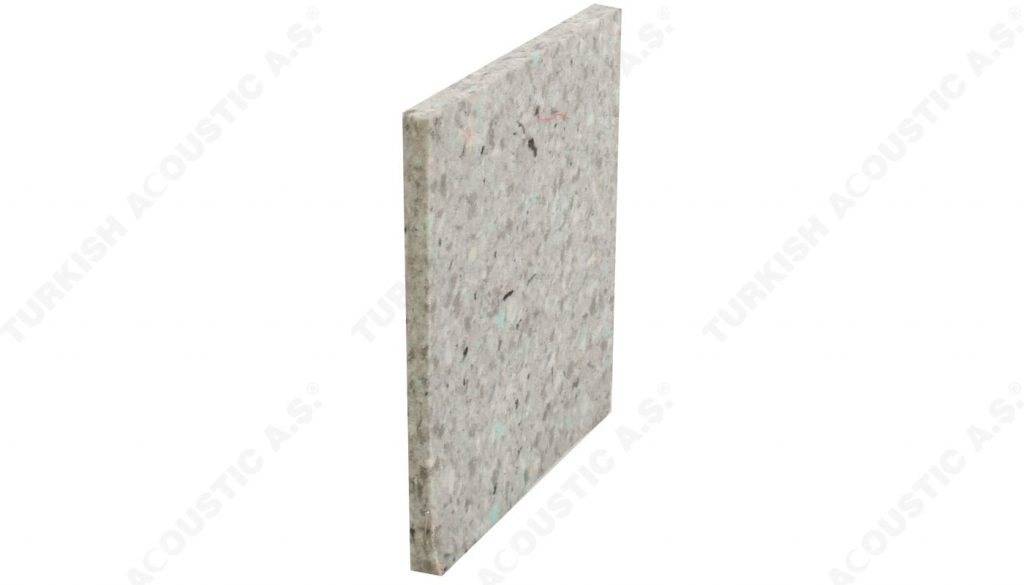

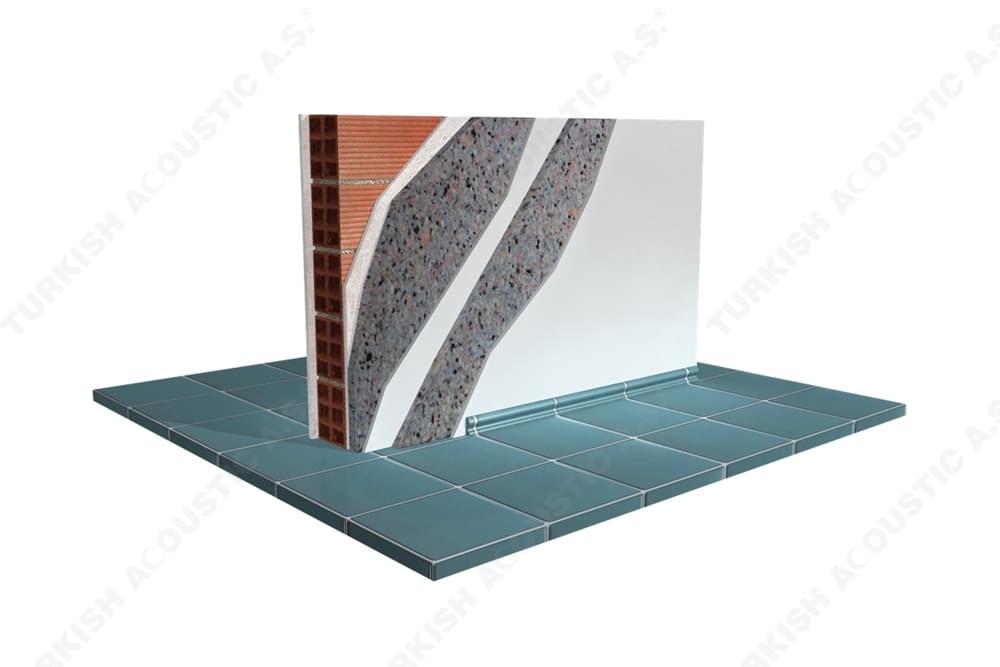

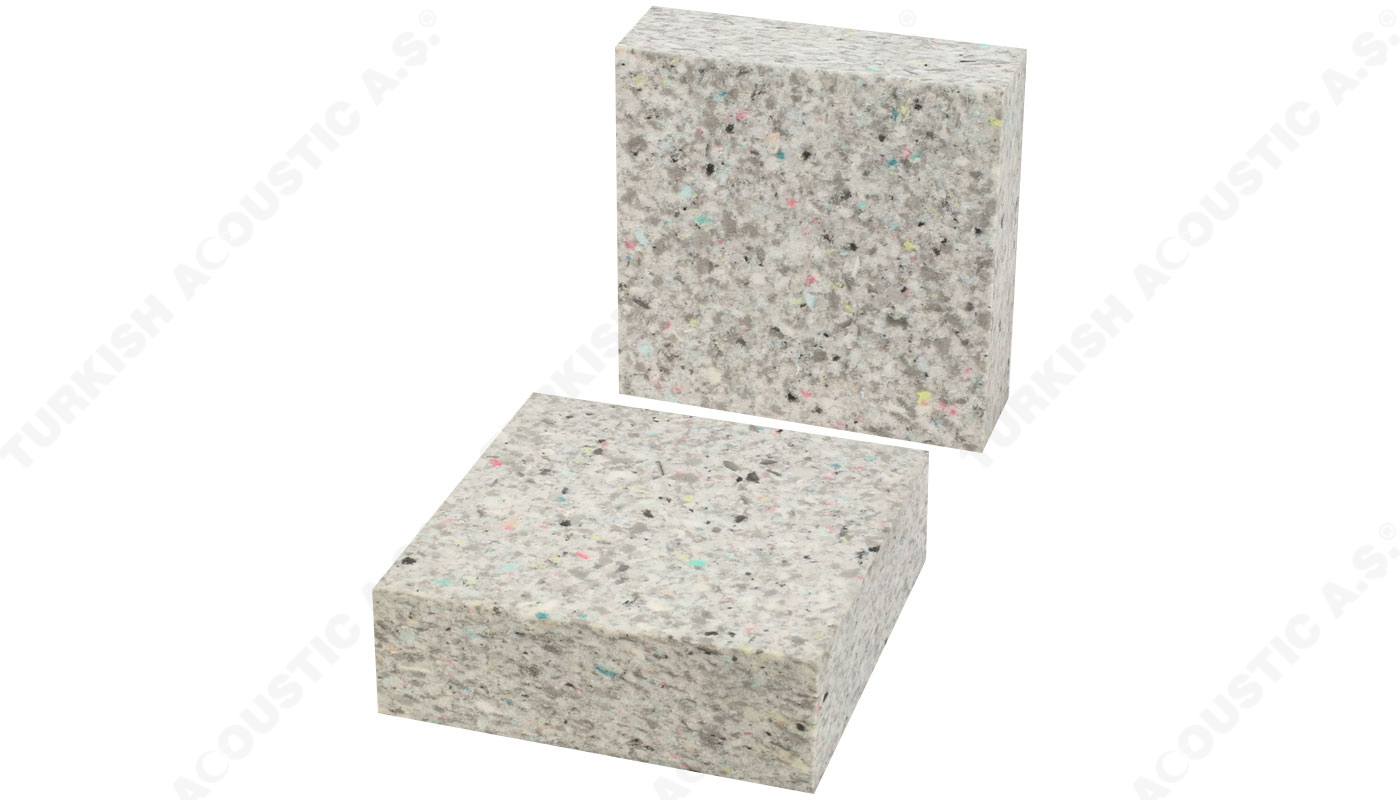

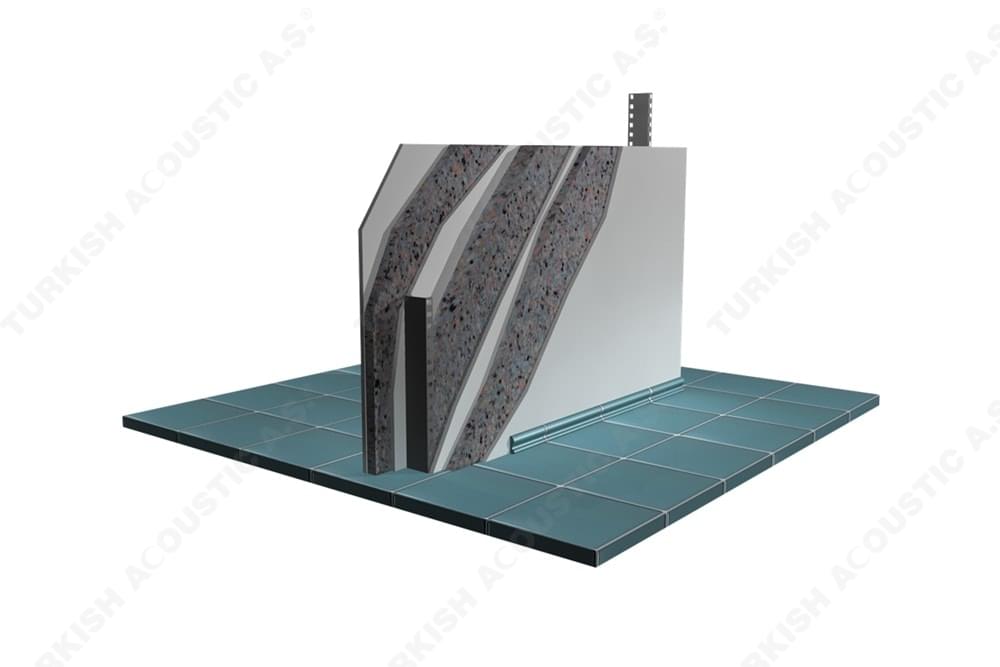

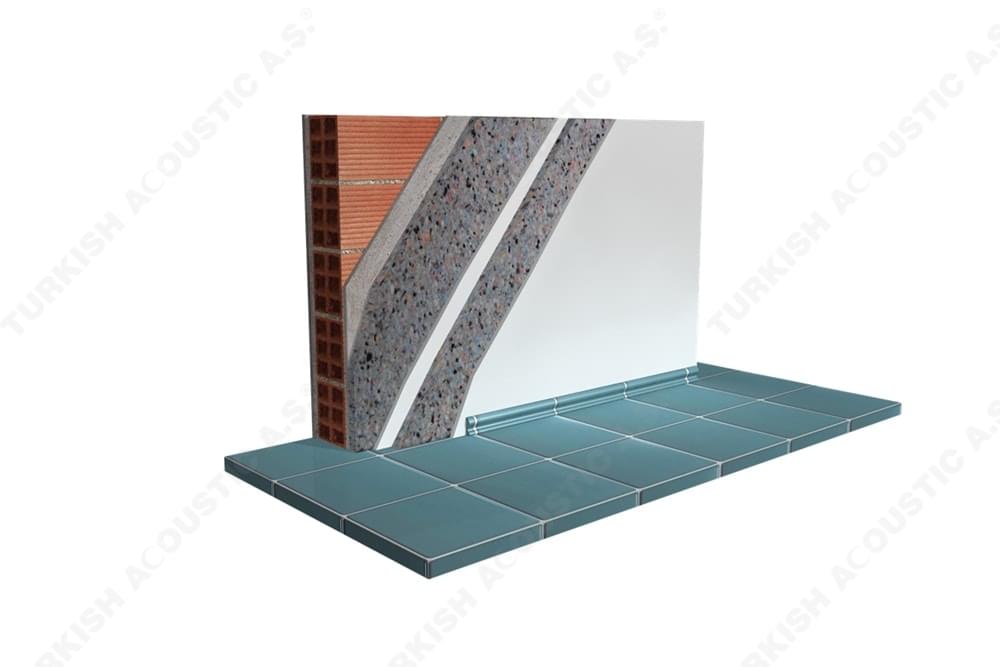

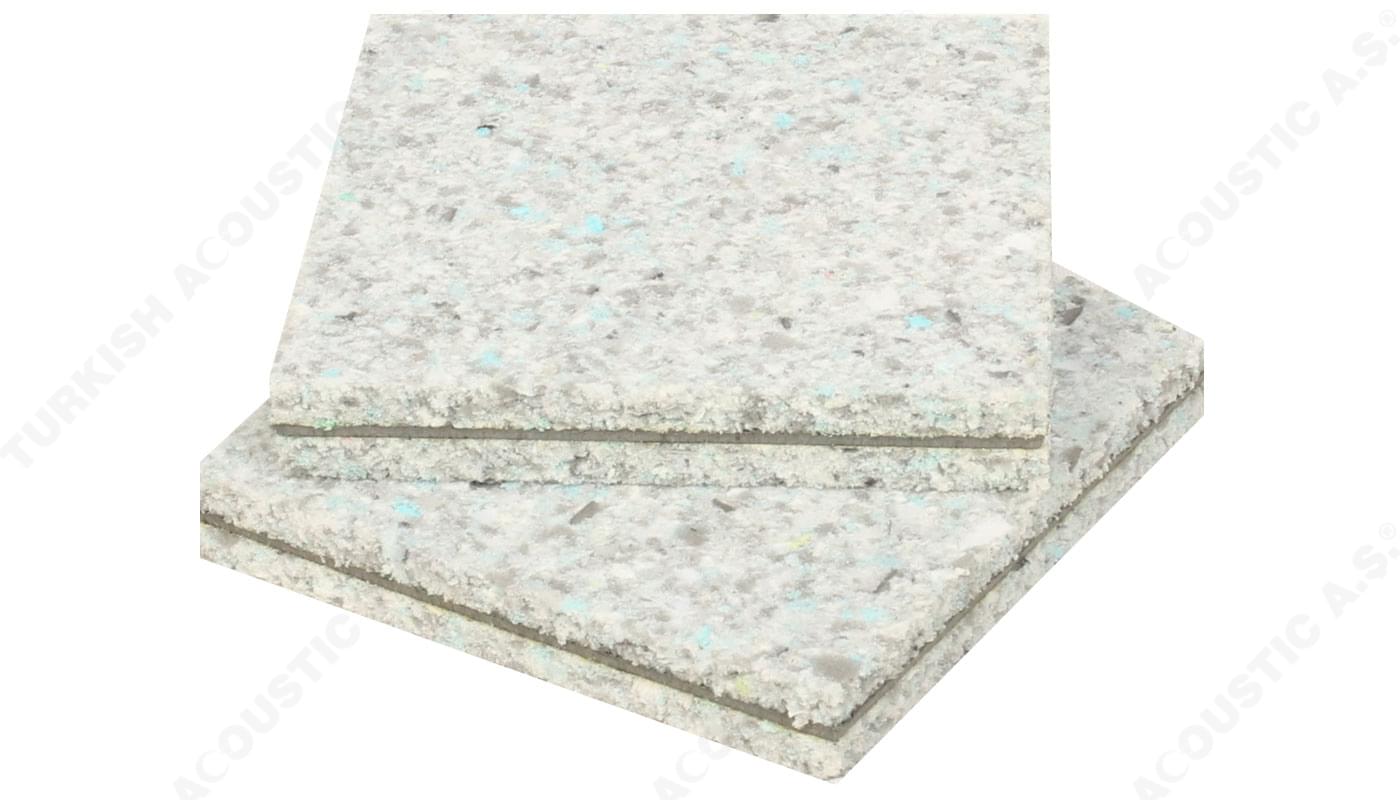

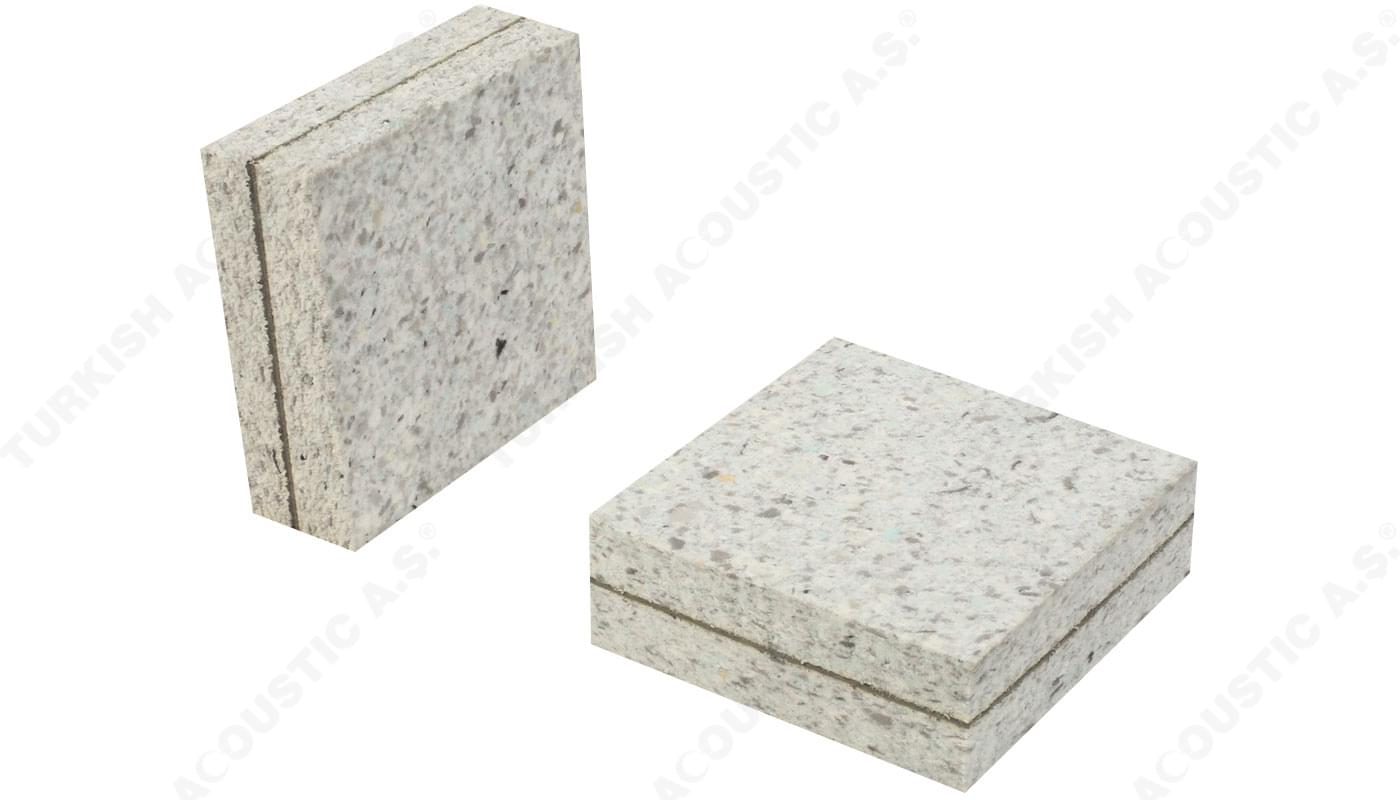

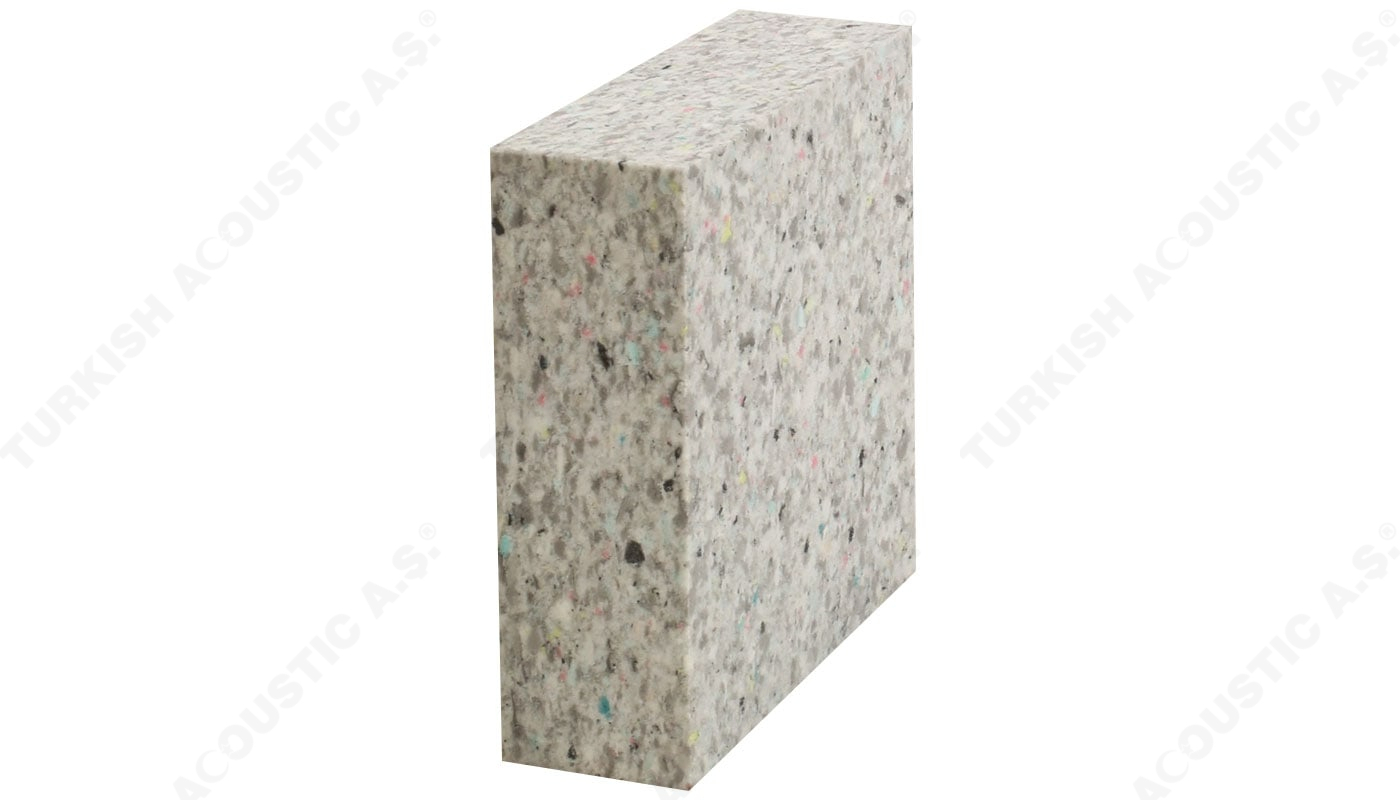

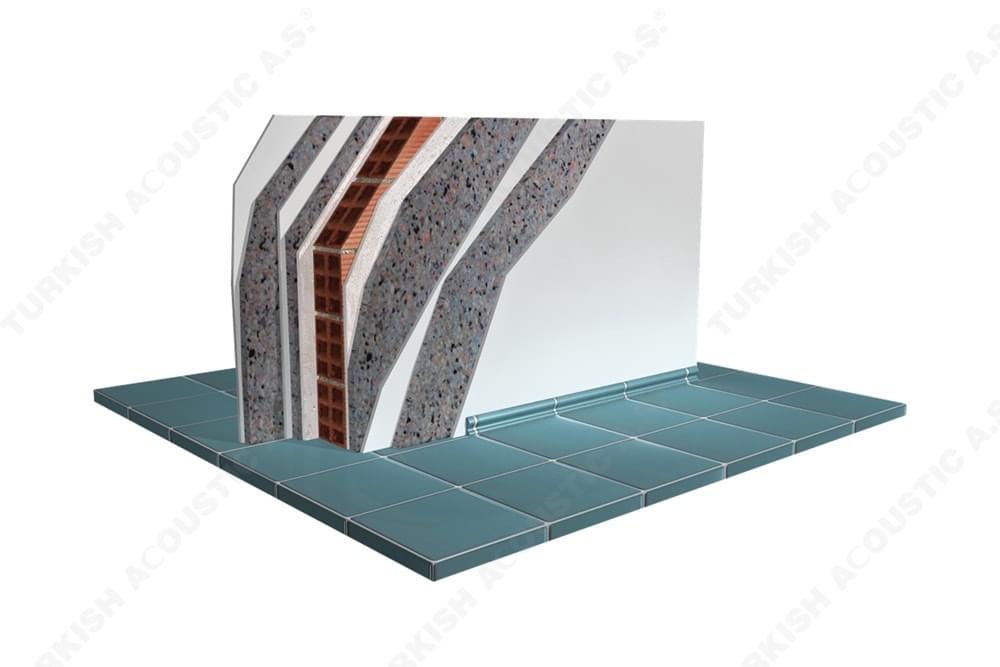

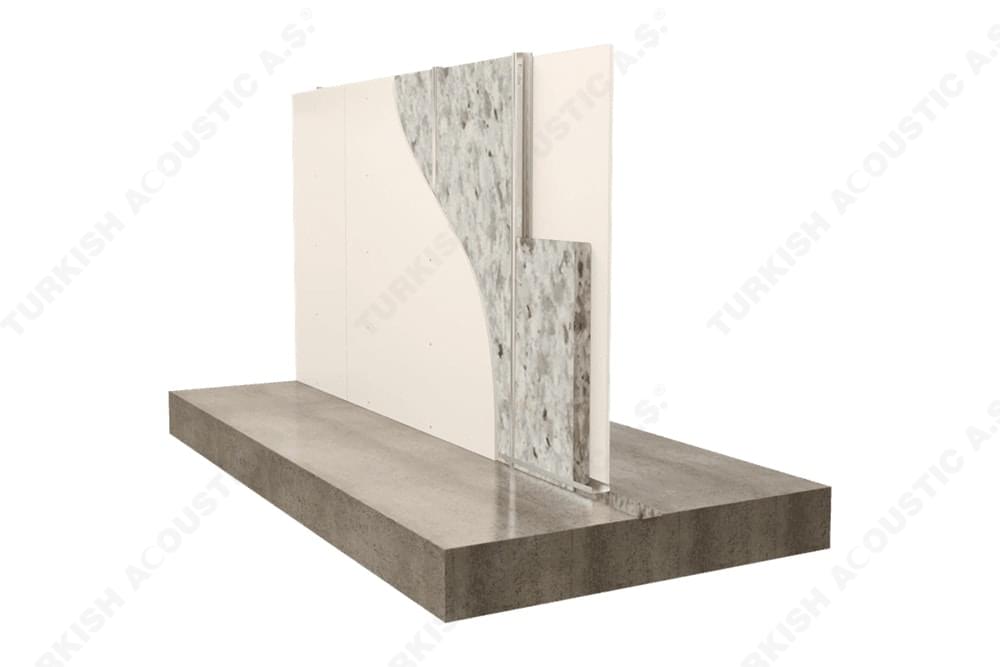

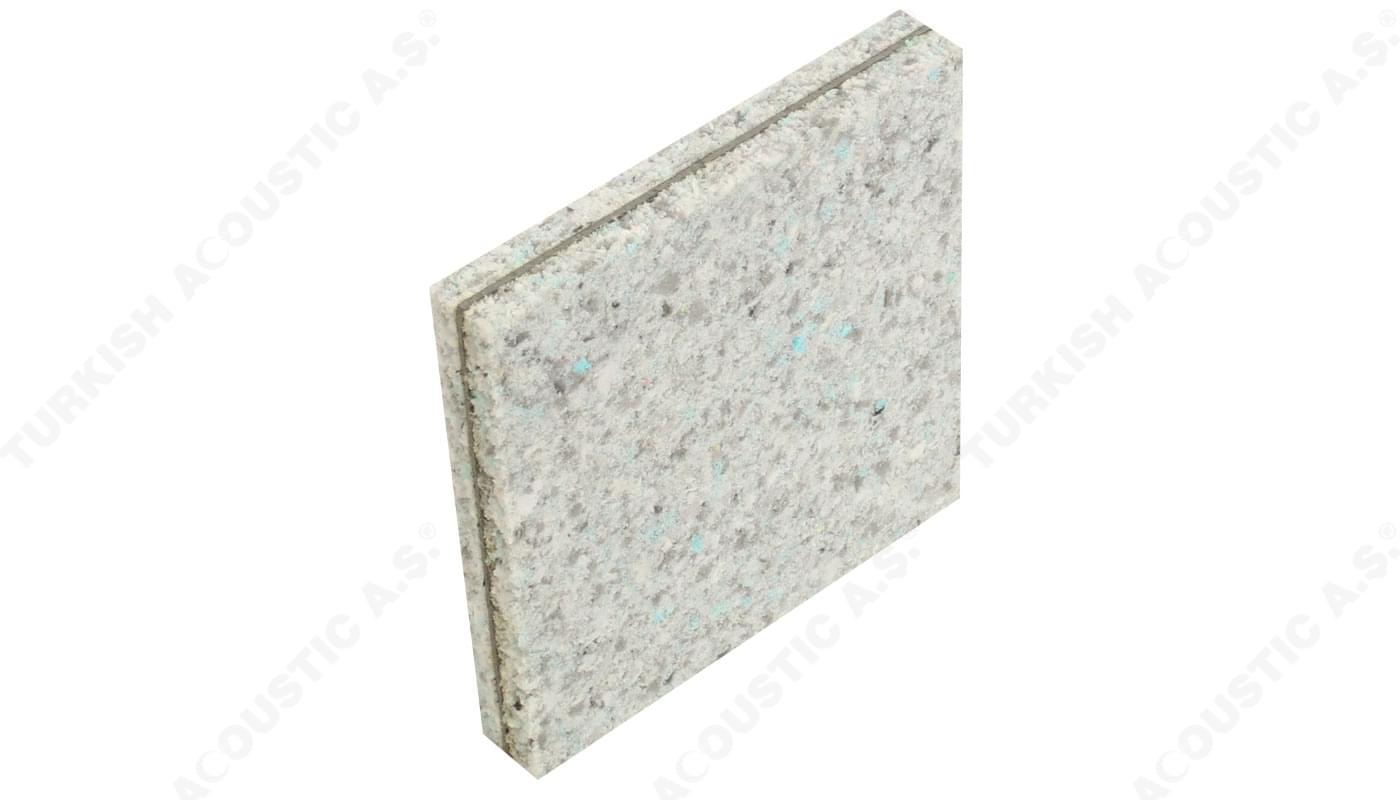

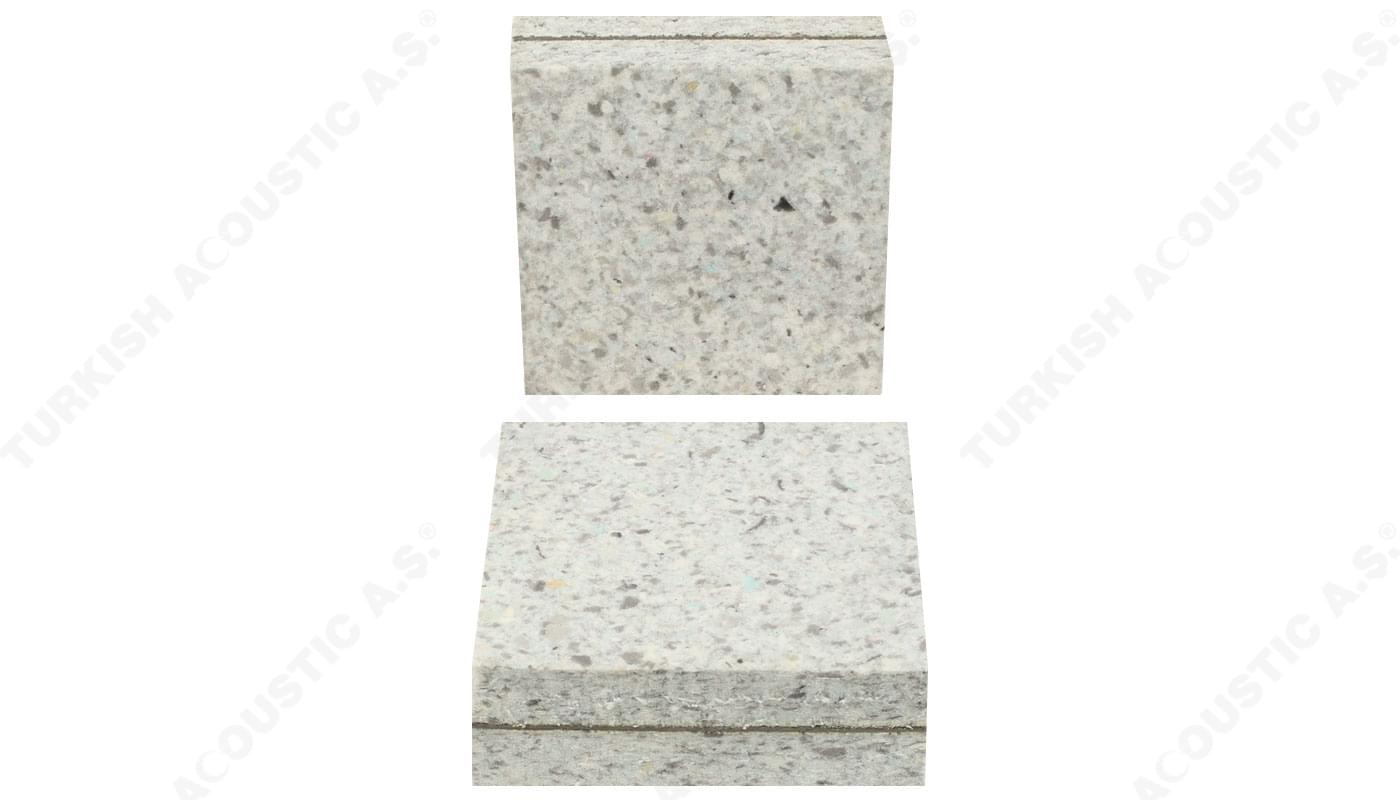

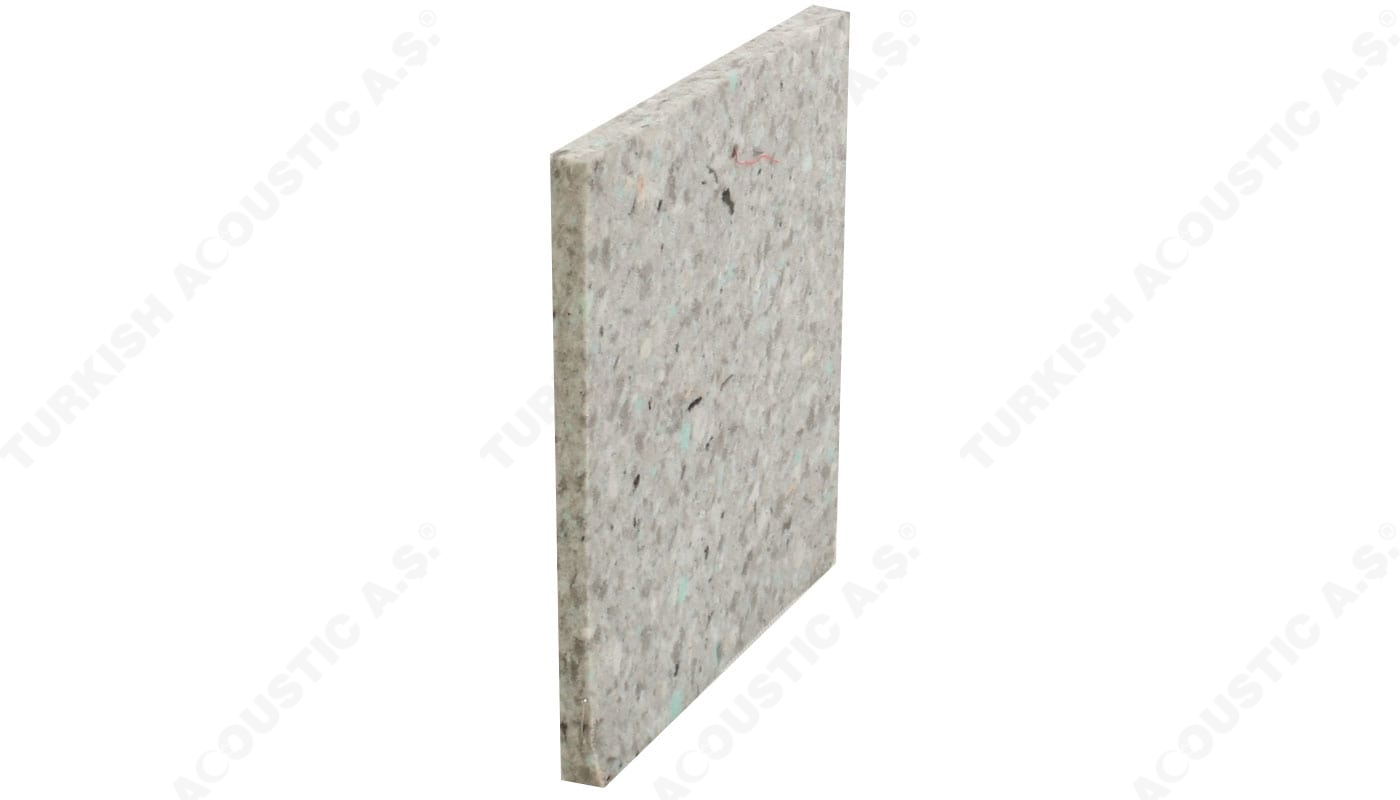

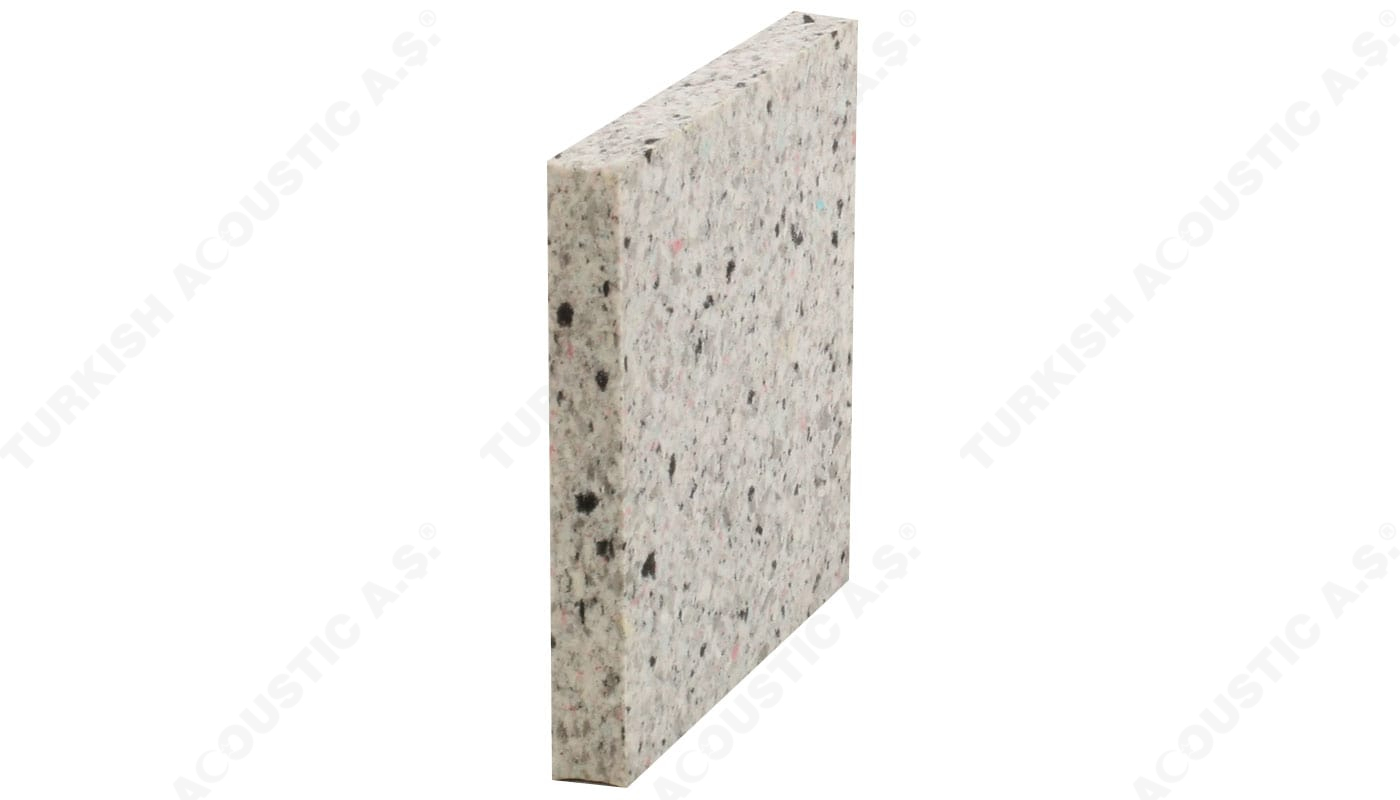

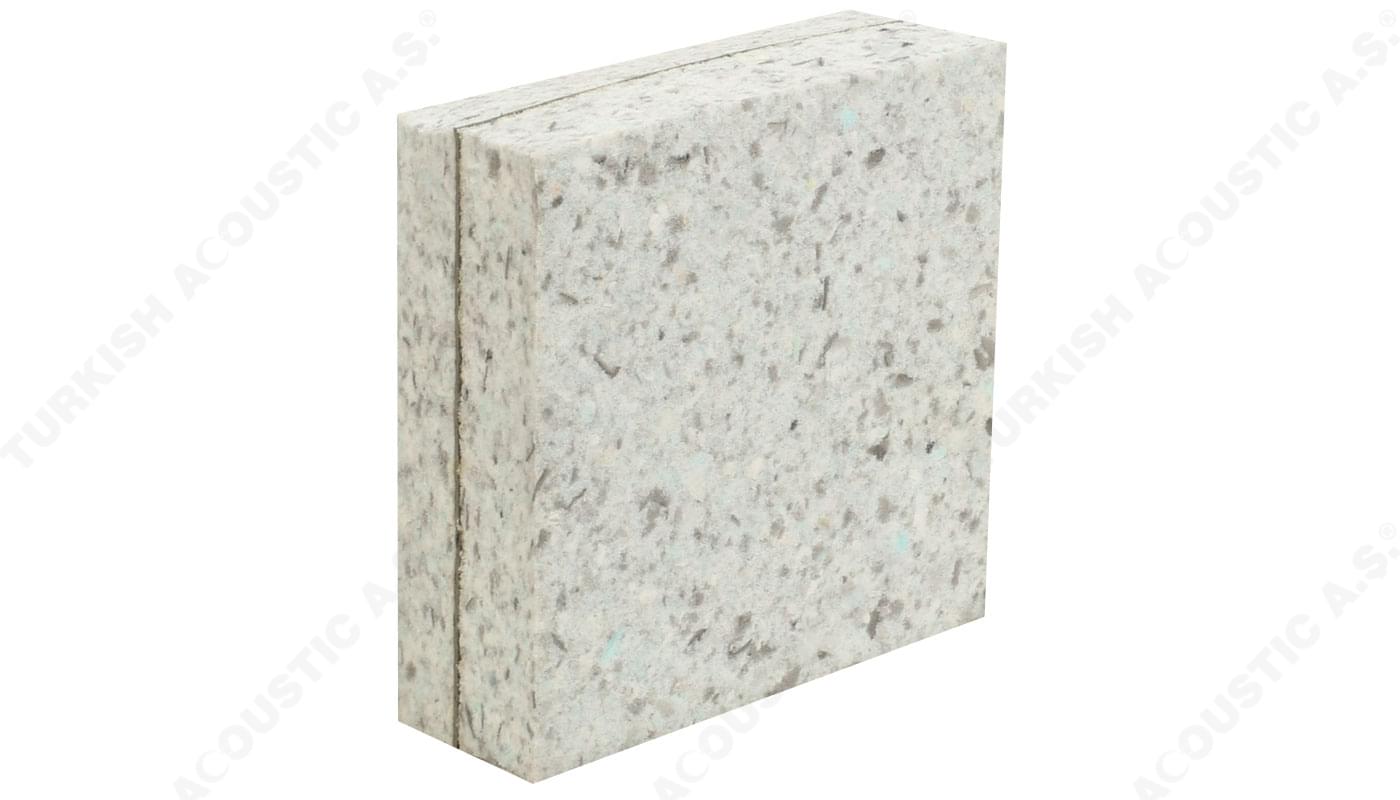

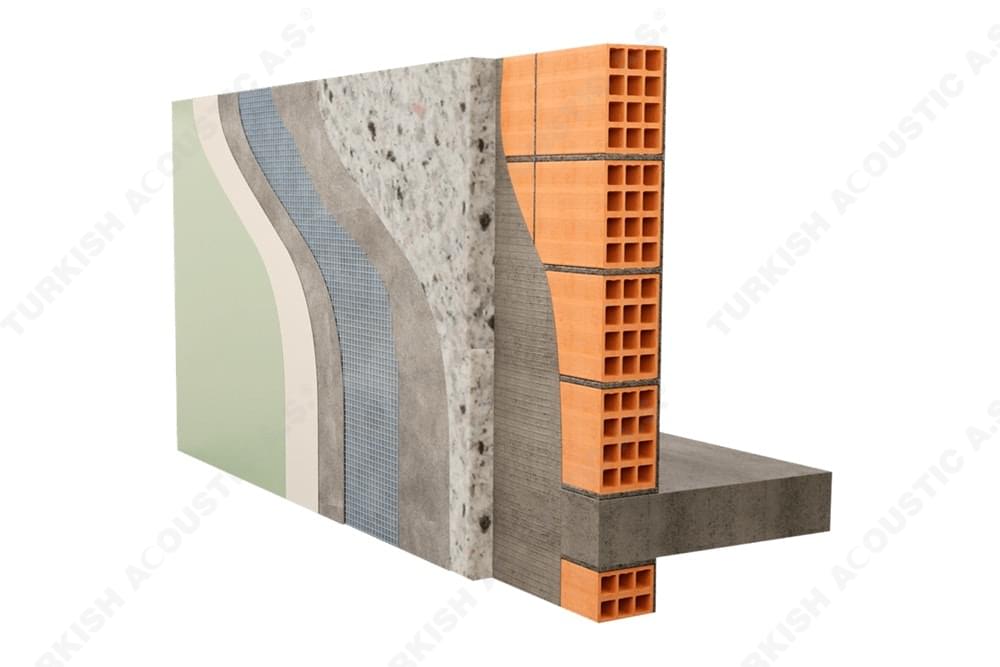

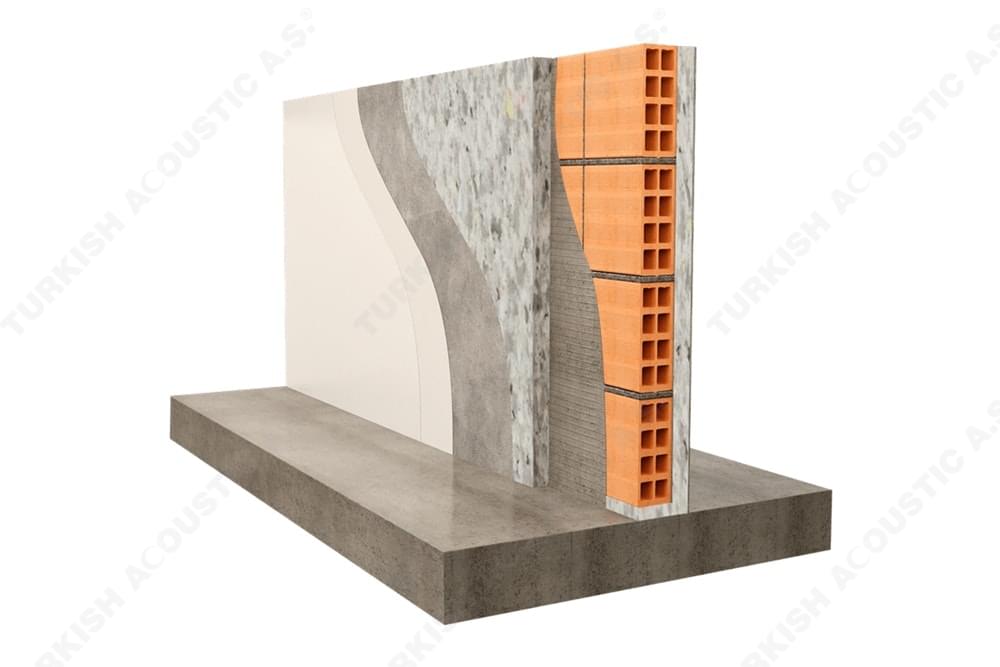

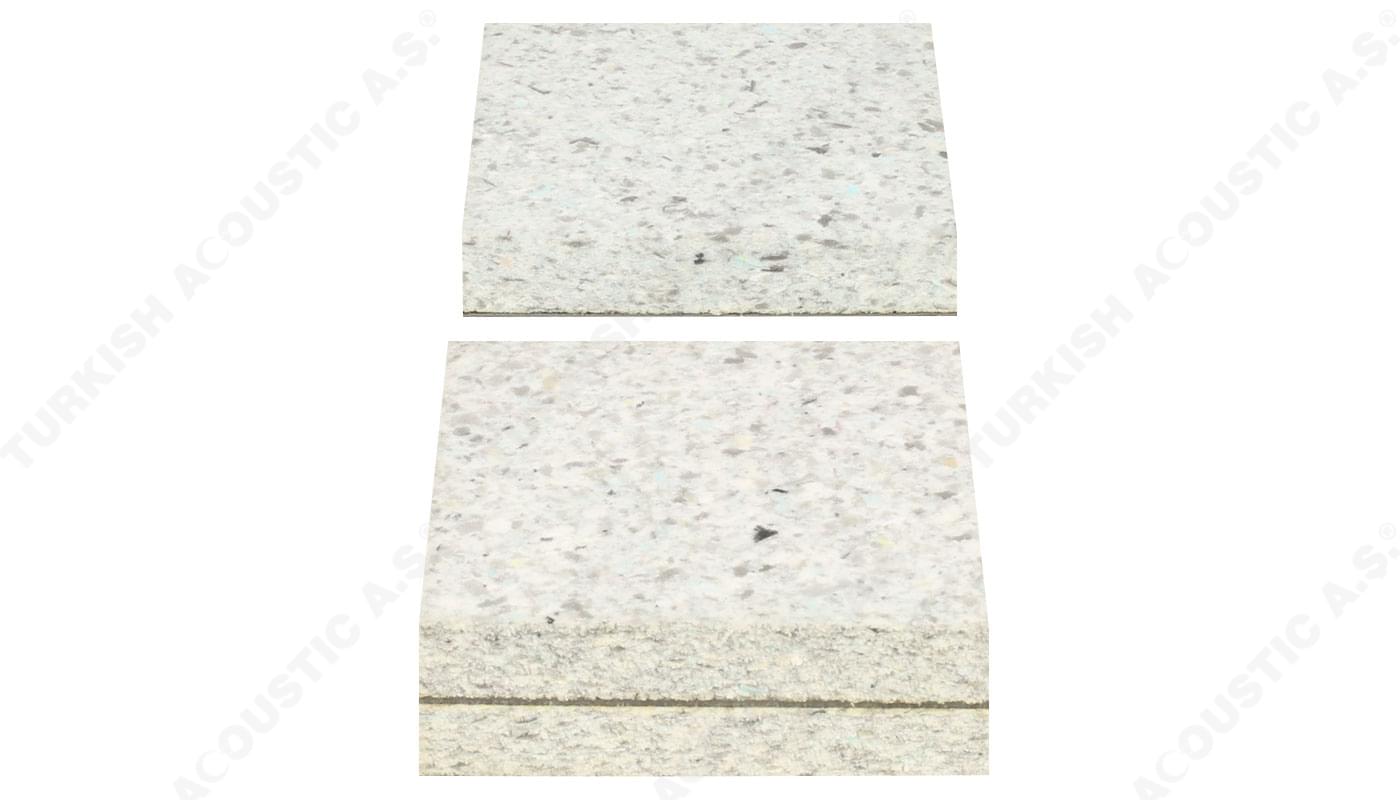

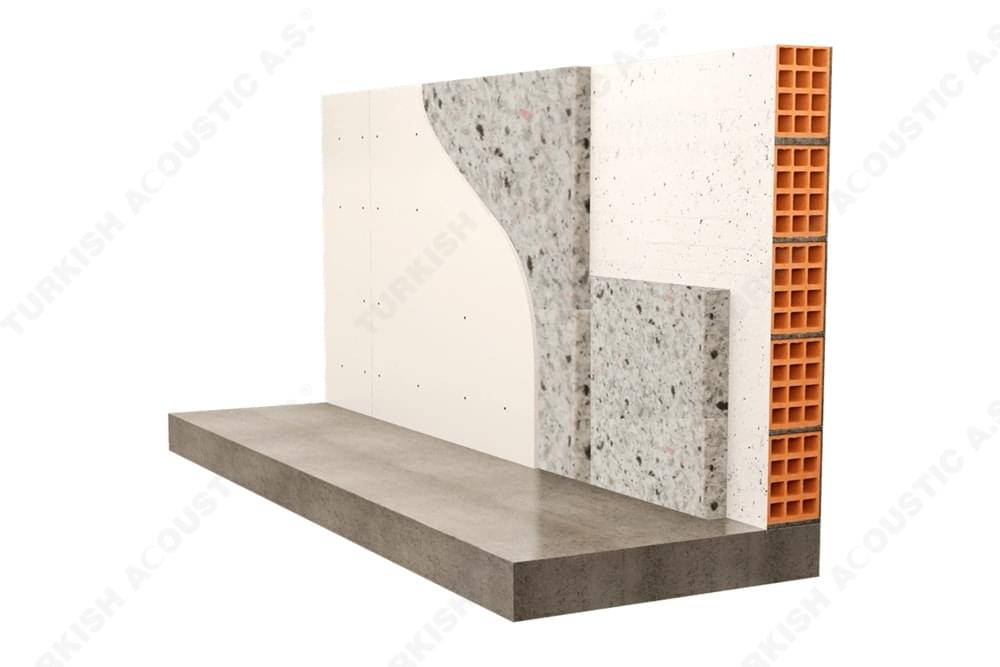

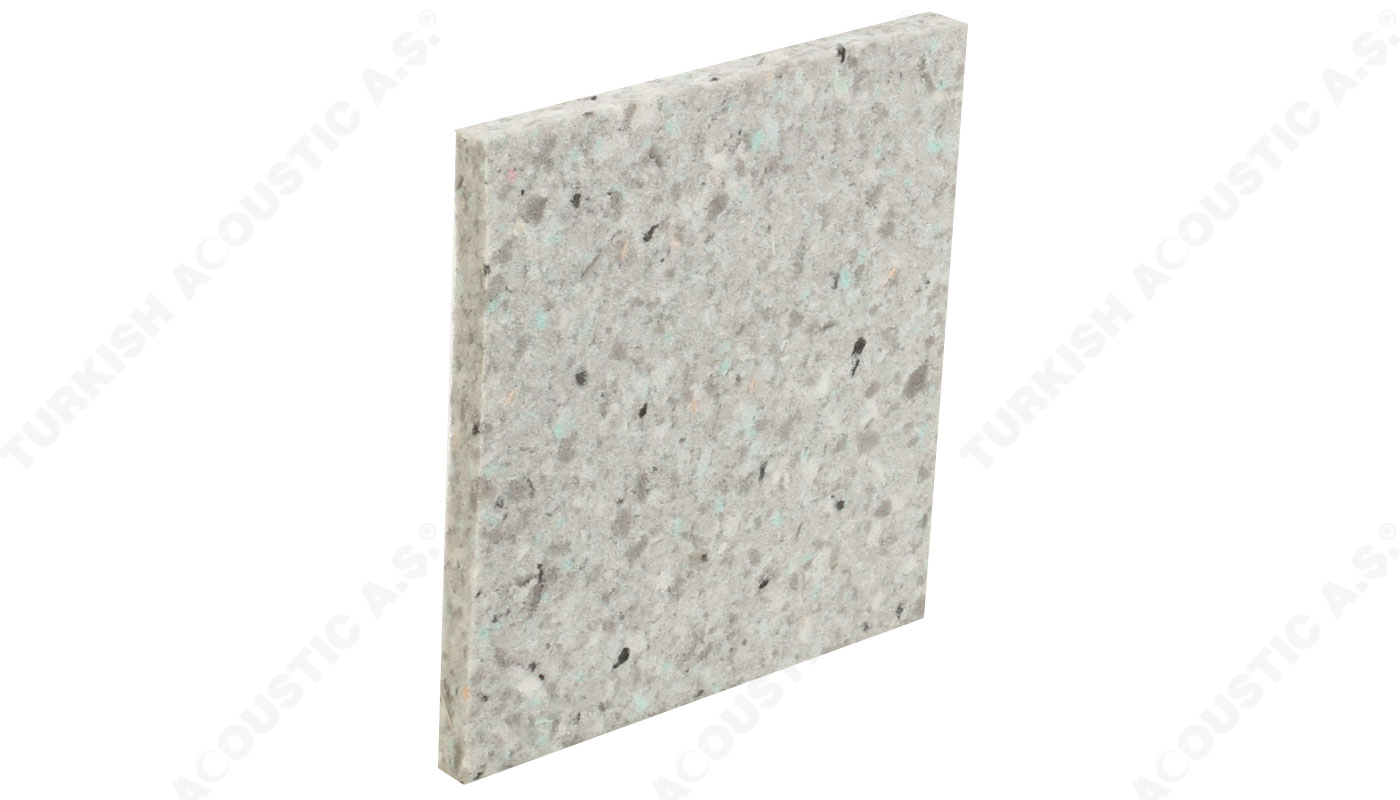

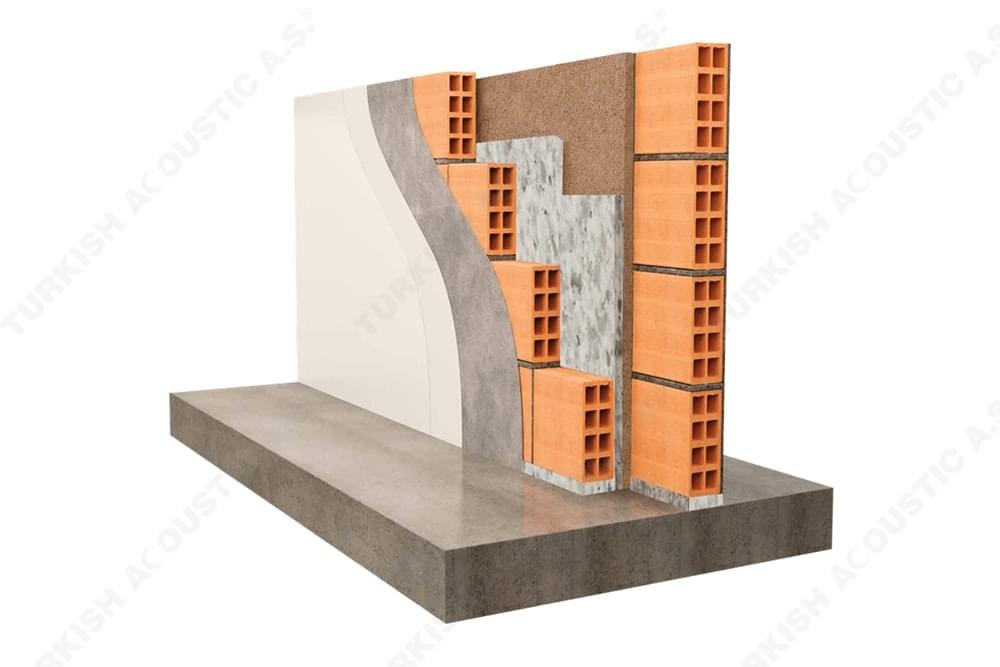

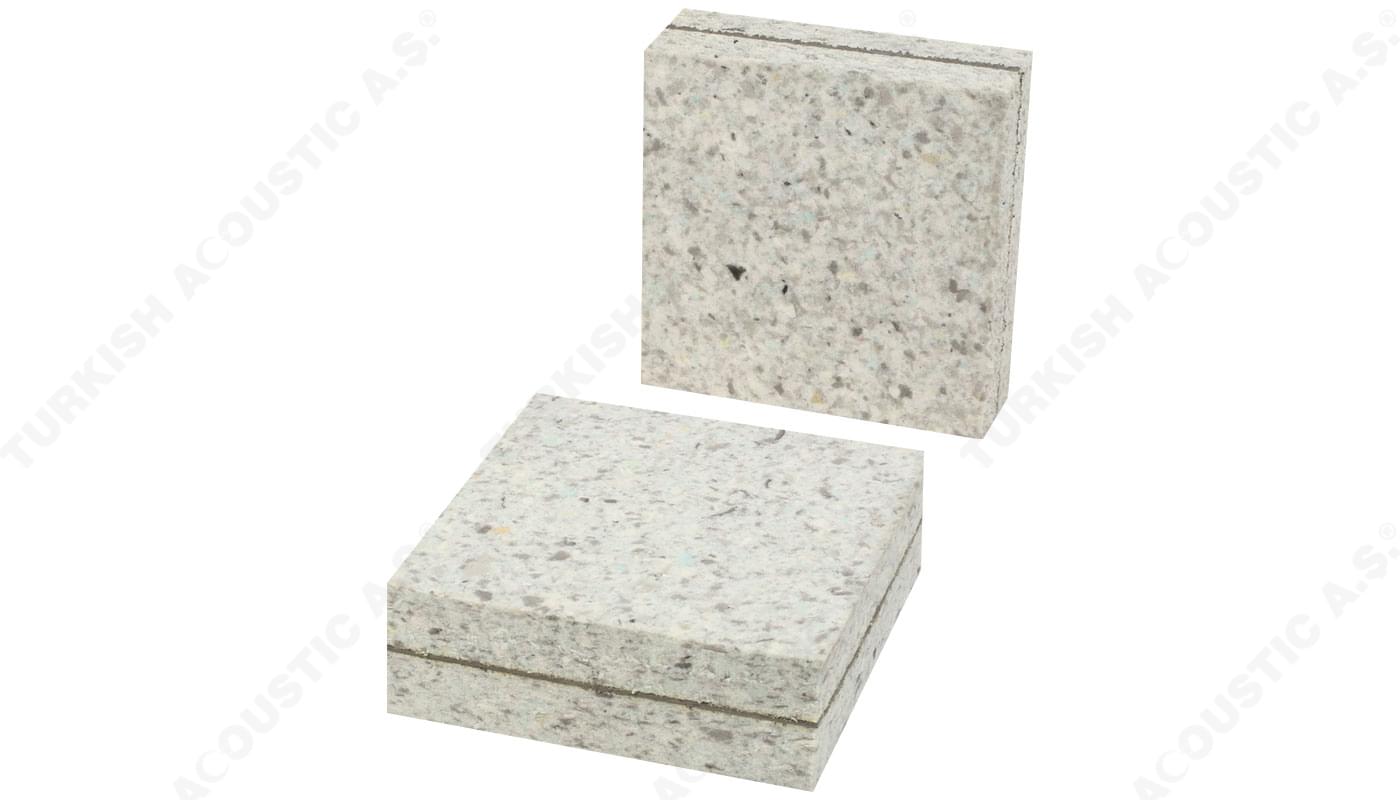

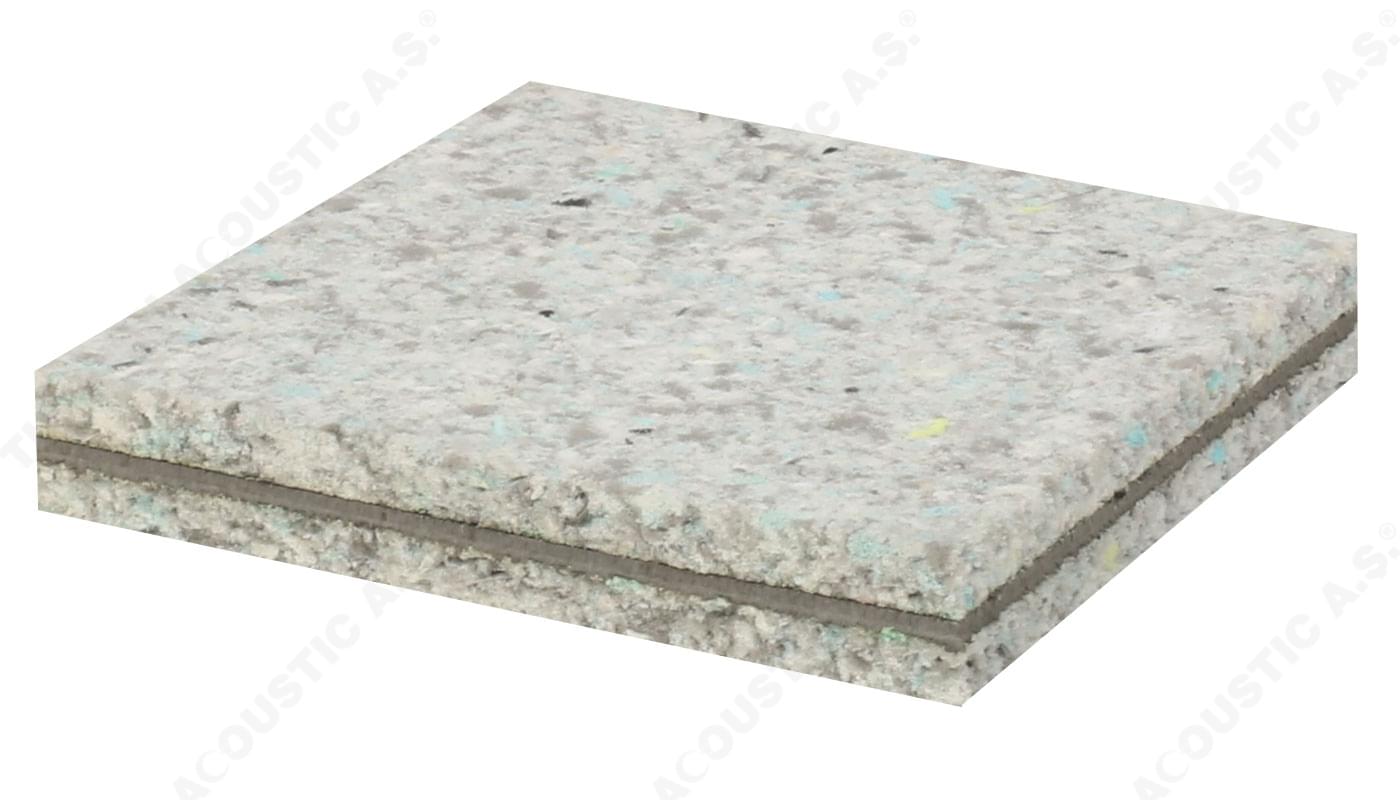

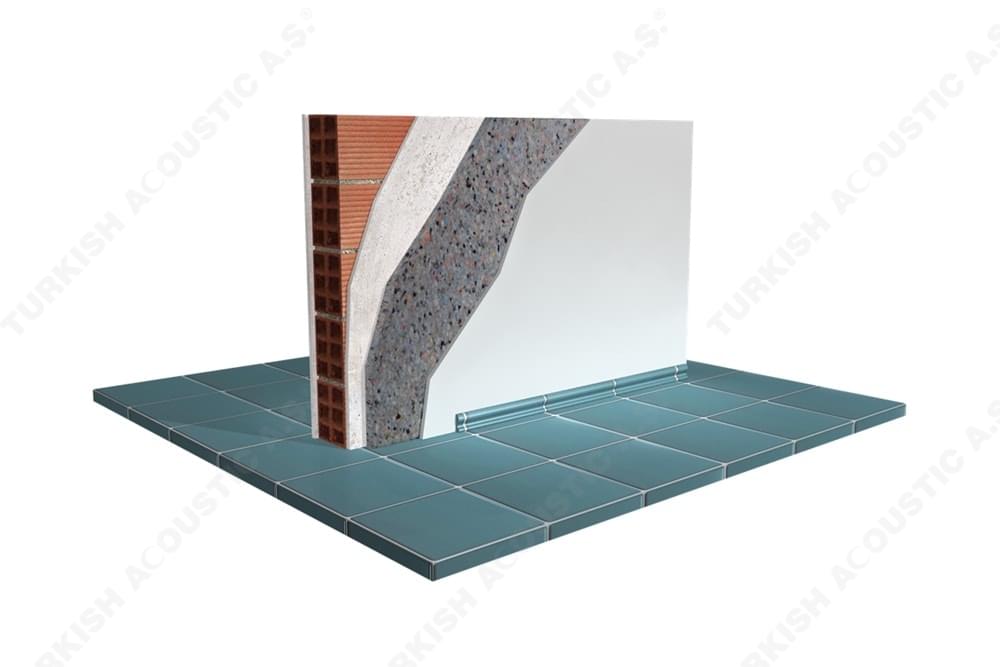

Turkishpan Sponge Panel: EPDM based heavy rubber sound barrier is placed between two Turkishpan sponges to increase sound transition loss and provide high sound isolation. You can complete all insulation implementations effectively and absolutely with a Turkishpan sponge. Turkishpan sponge is a supplementary sound insulation material, on the other hand, you may need to use a rubber sponge and acoustic sponge. Sound insulation is a system and you may need to use a three-layer product depending on the decibel rate of the environment. First, Turkishpan is applied to the surface, on top of that rubber sponge is applied, and last, an acoustic fireproof sponge is applied as a finish. You can obtain price information from the price list on our website. Turkishpan provides the best sound insulation in laminated sound insulation sponges.

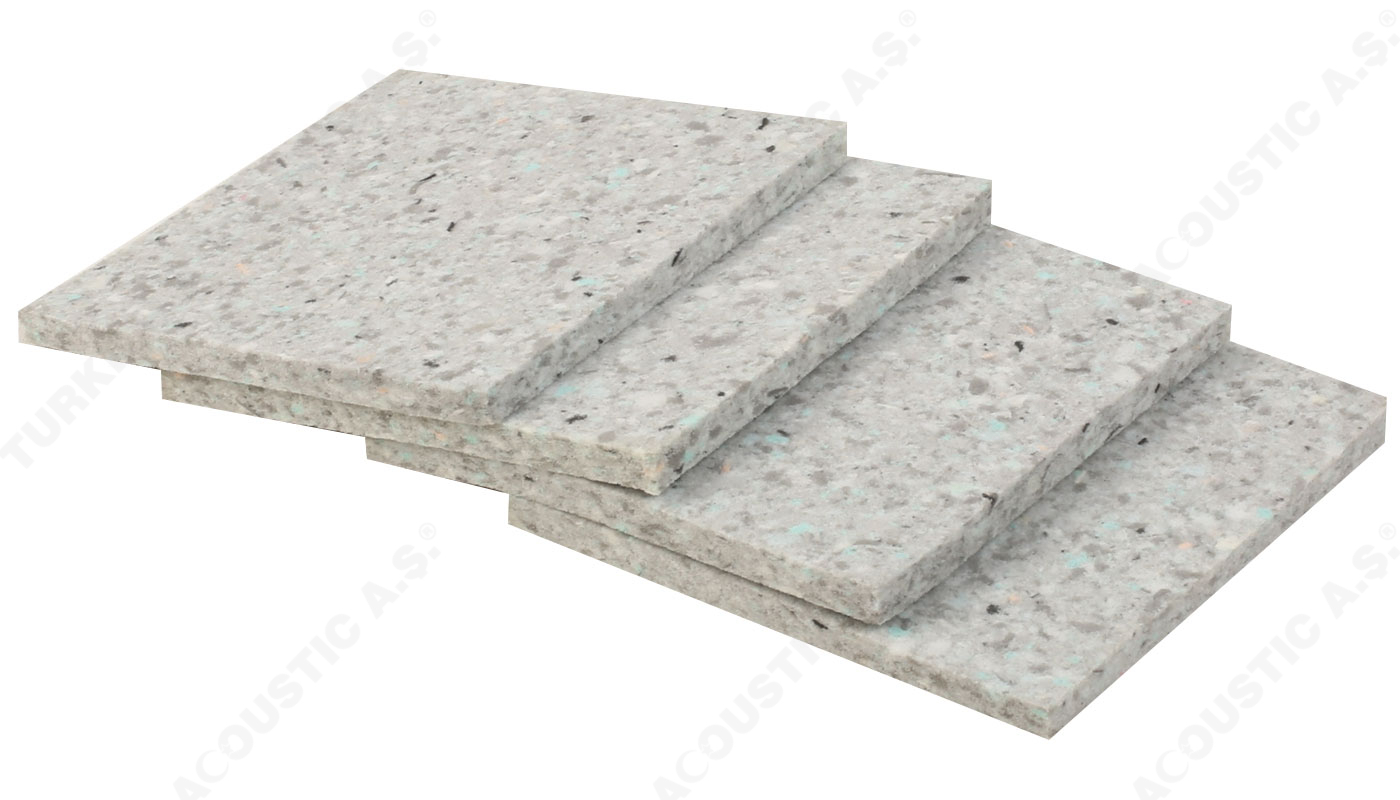

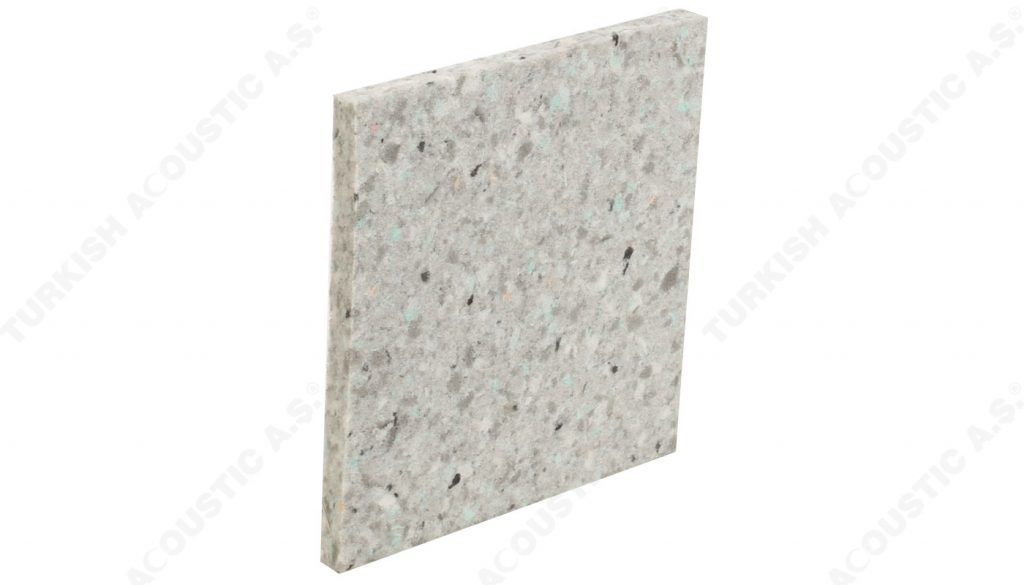

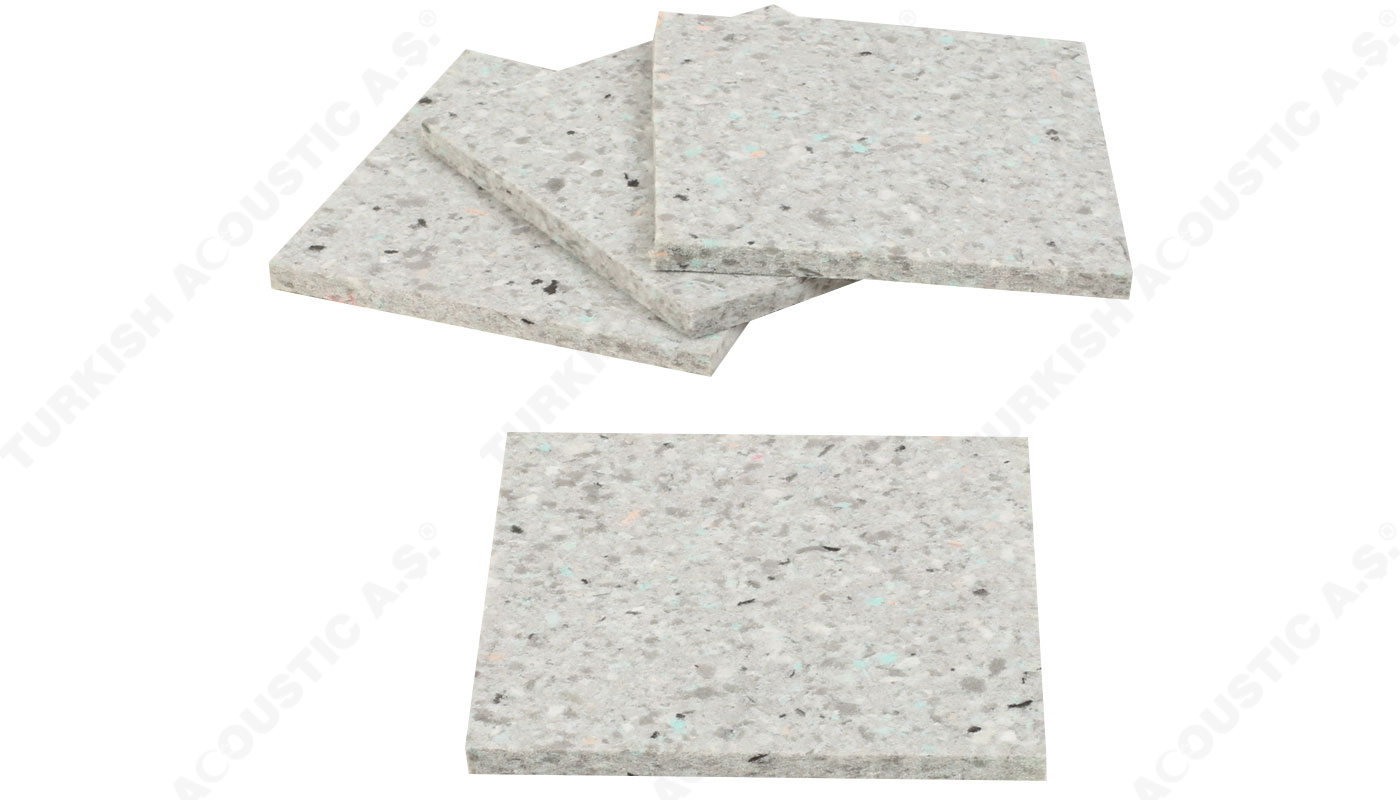

Turkishpan Sponge Panel Dimensions: 100 cm x 100 cm plate, 10 – 20 – 30 – 40 – 50 – 60 – 70 – 80 – 90 – 100 mm thicknesses sold by retail
Turkishpan Sponge Panel Package Content: 100 cm x 100 cm plate / One package contains 10 plates (10m²)

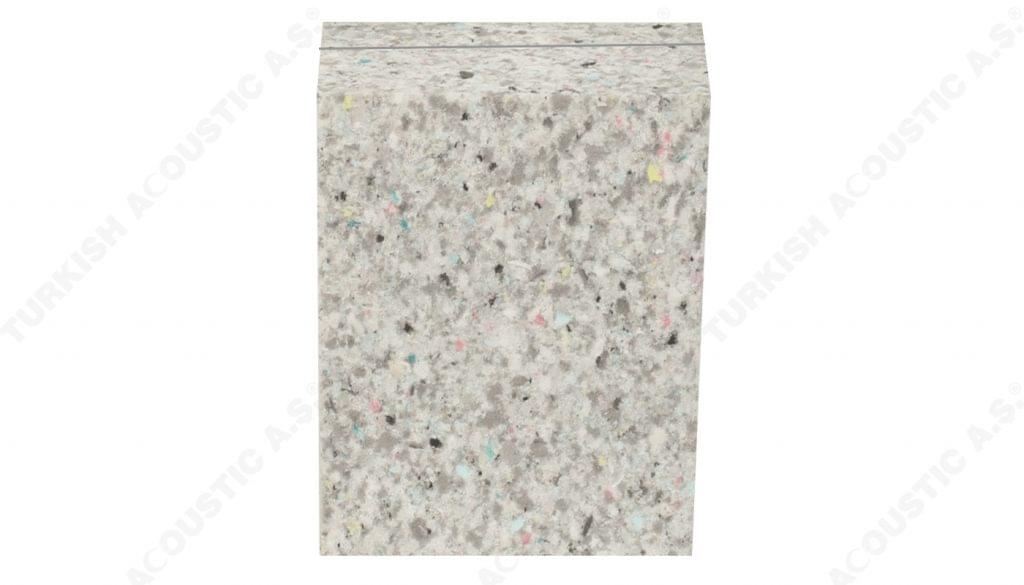

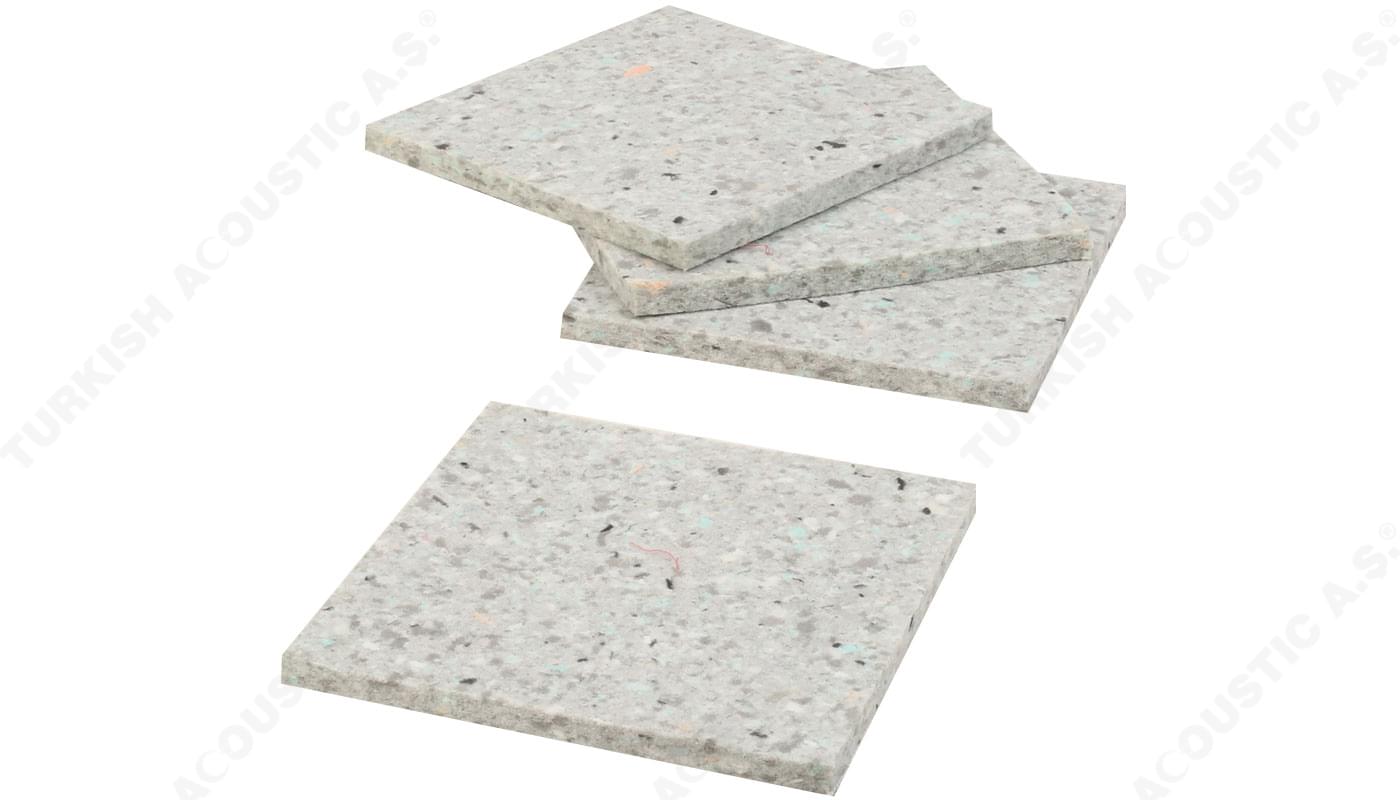

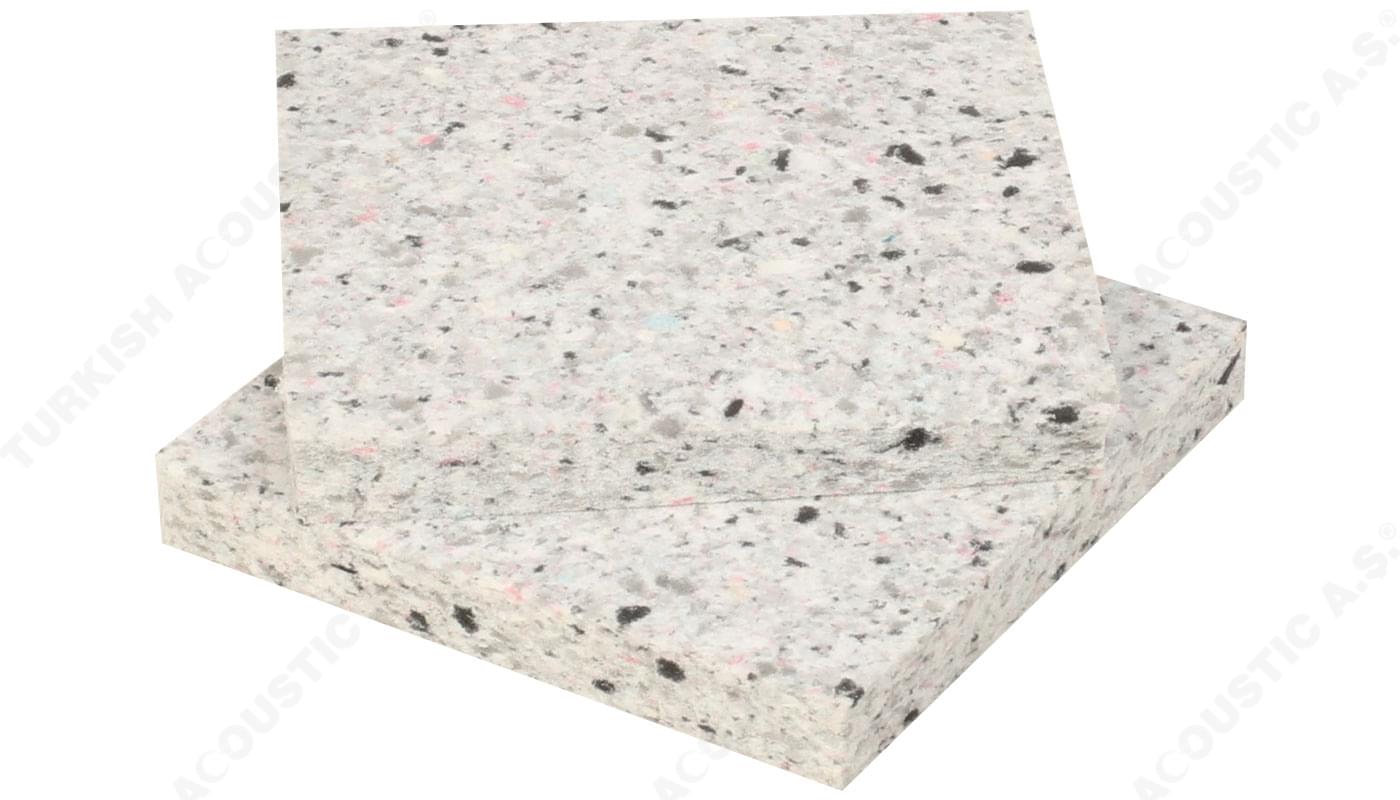

Turkishpan Sponge Panel Color Variations: It is sold as standard in mosaic pattern granule mixed color.

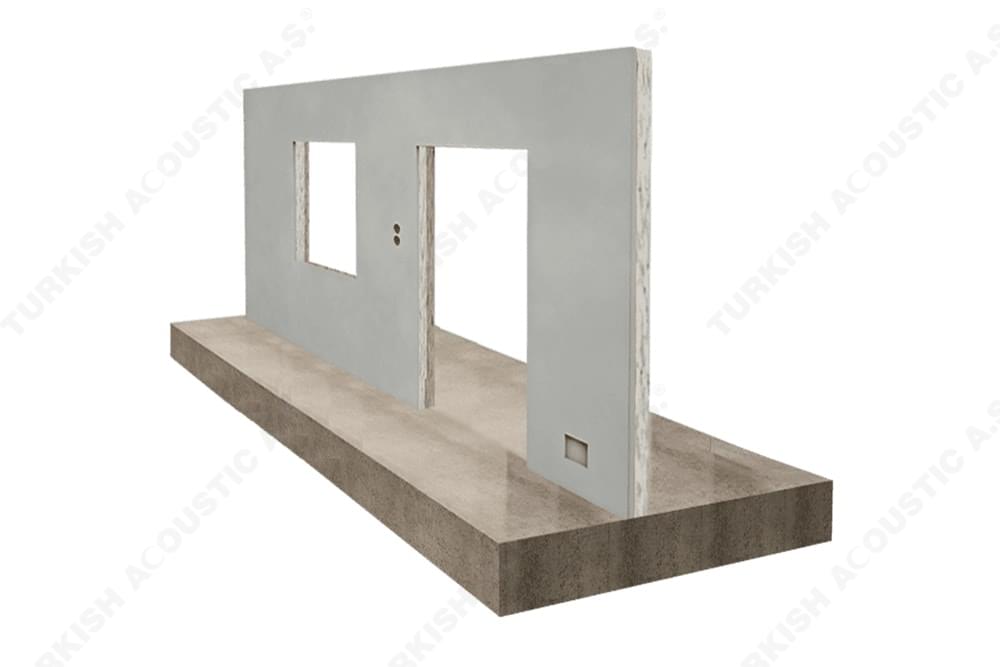

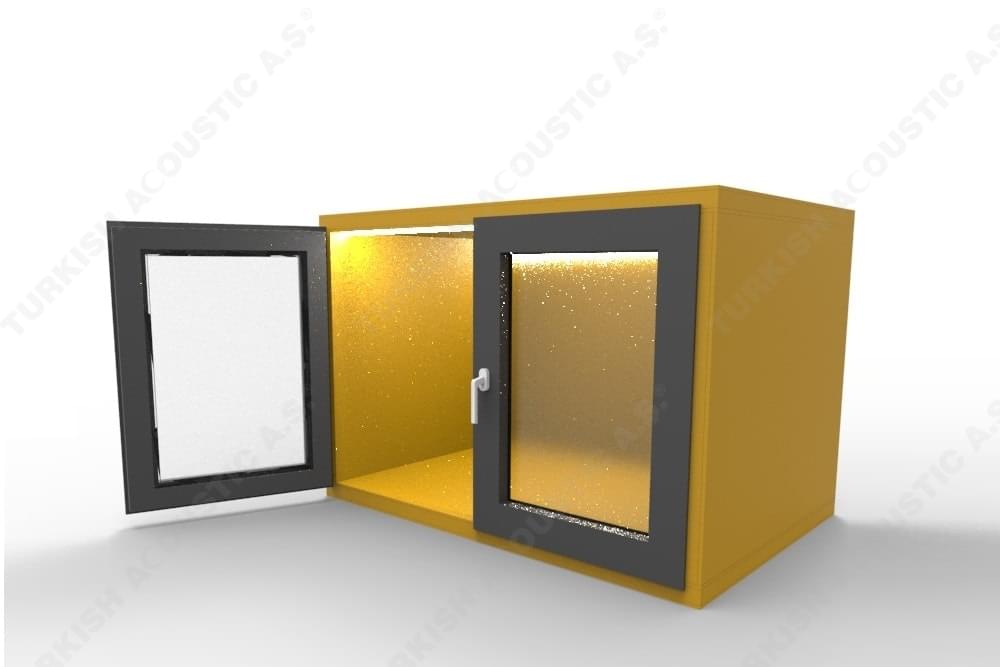

Turkishpan Sponge Panel Area of Usage: Music room, studio, DJ cabin, radio broadcast room, gymnasium, amusement centers
Turkishpan Sponge Panel Production: Special production above 50 mm thickness is available. The custom cut is possible.
Turkishpan Sponge Panel Nonflammability: Do not have nonflammability properties.
Turkishpan Sponge Panel Density: 110 Kg / M³ standard density / Production in desired density and thickness is available upon request.
Tolerance: 30 mm product is between 25 – 30 mm, 40 mm product is between 35 – 40 mm, and 50 mm product is between 45 - 50 mm thickness.

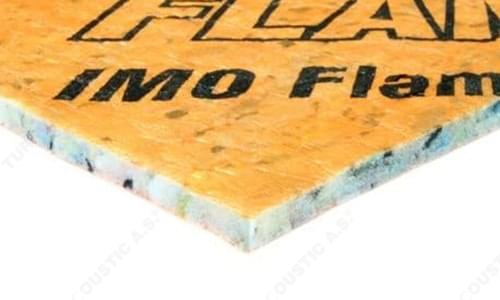

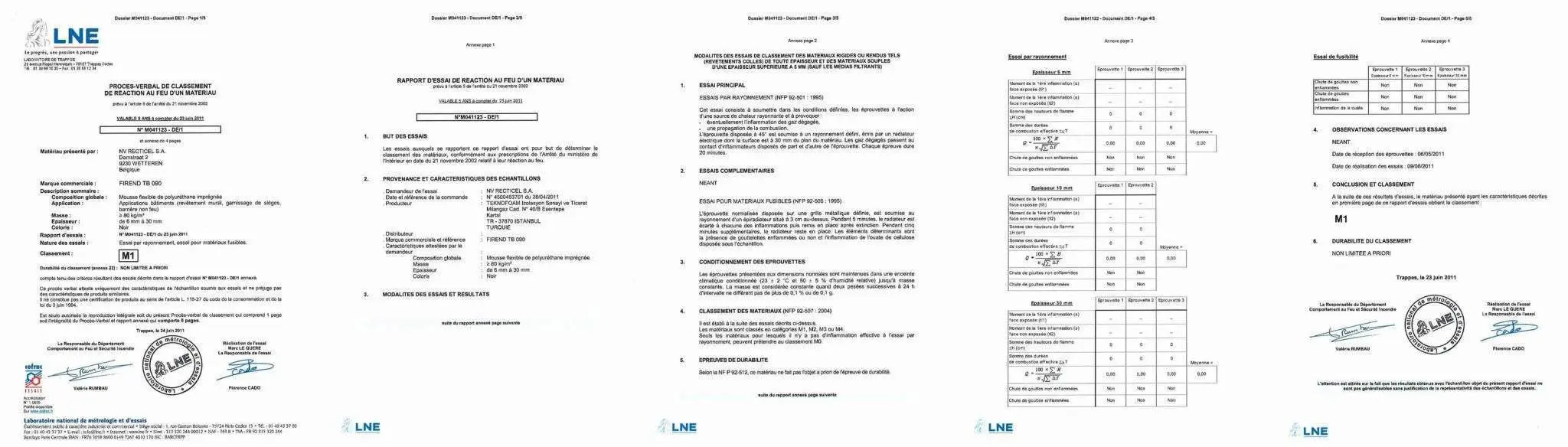

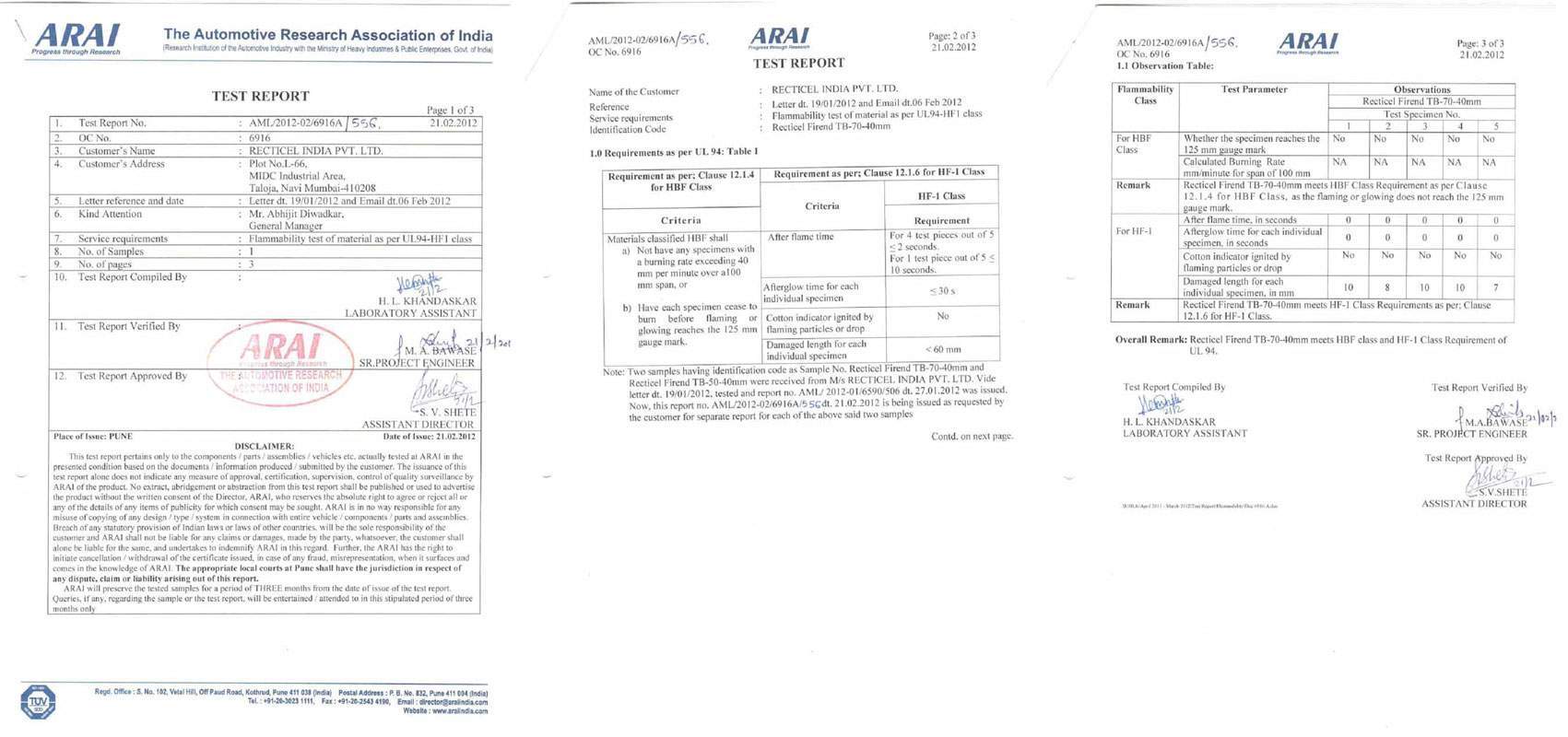

Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
|Acoustic Sponge Size||Height-Thickness||Absorption Factor Suitable for DİN52212|
|mm||mm||125 Hz||250 Hz||500 hz||1000 Hz||2000 Hz||4000 Hz|

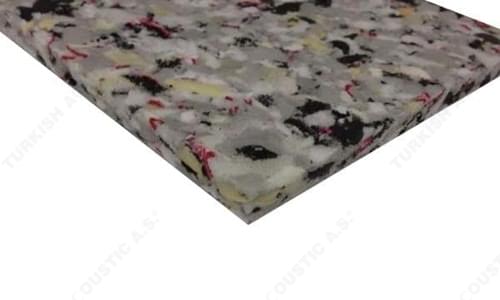

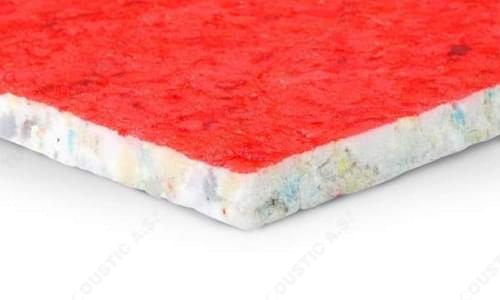

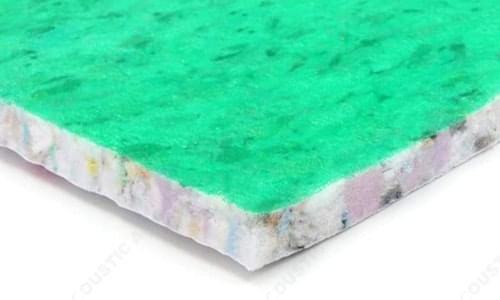

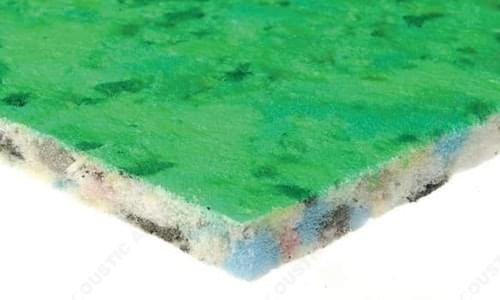

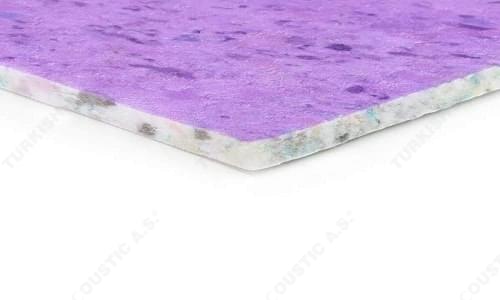

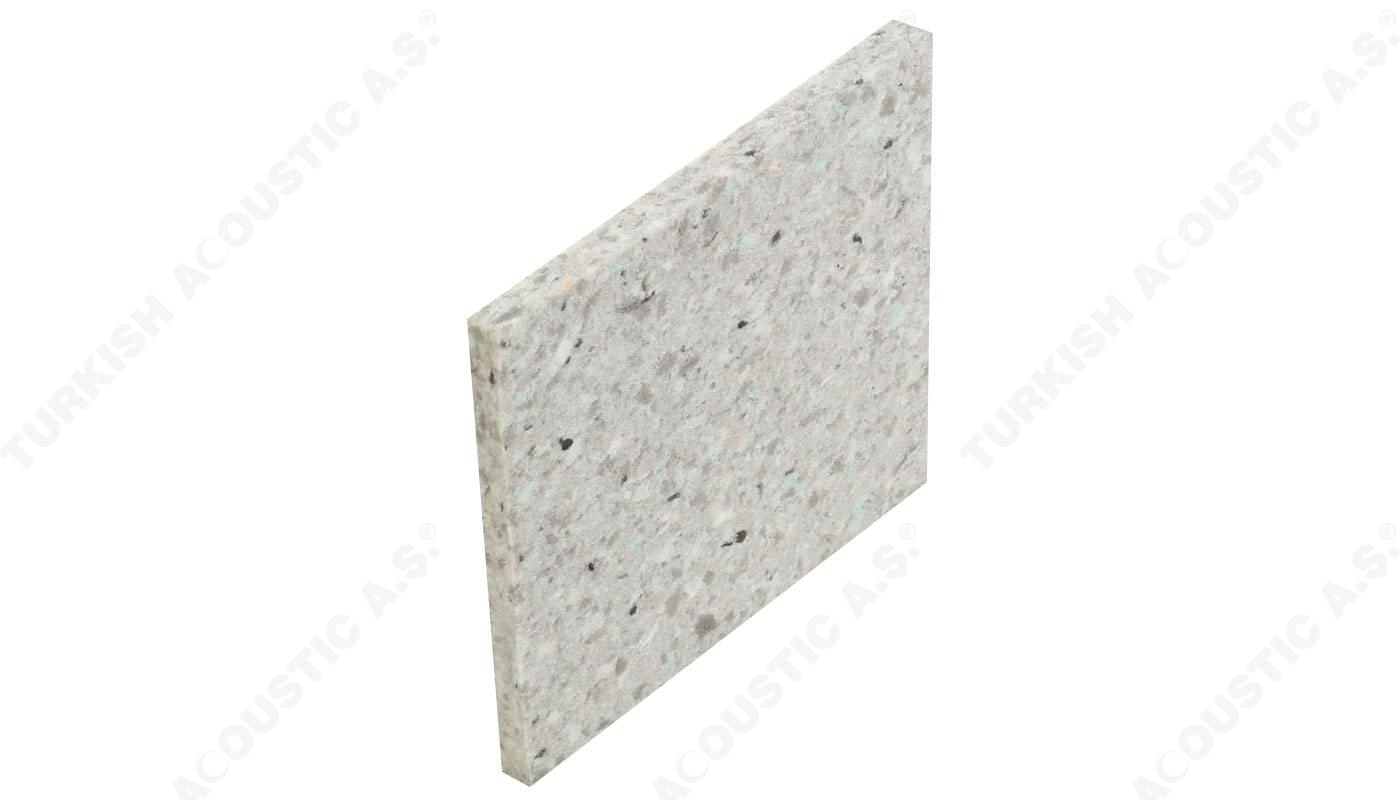

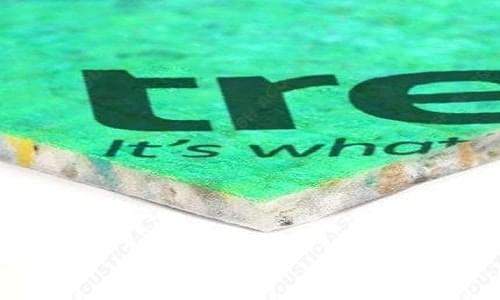

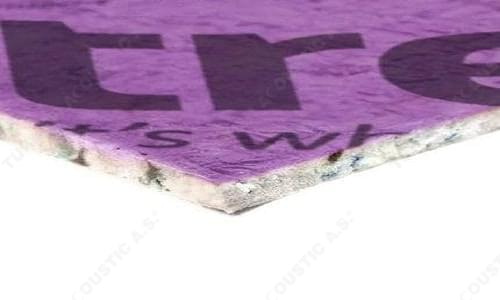

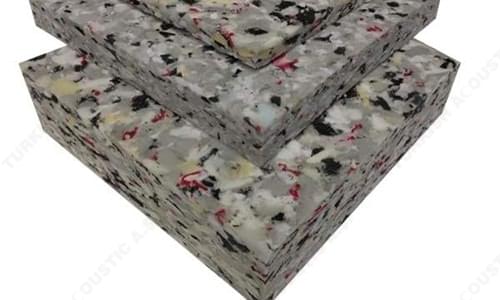

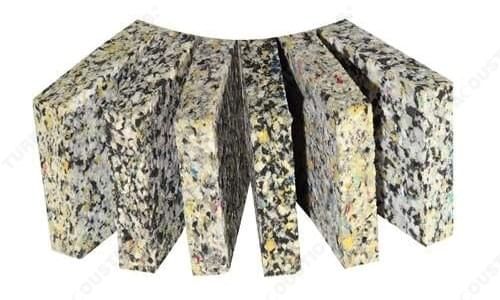

Bondex acoustic sponges are in the form of 100 cm x 100 cm plates, and their packages contain 10 plates, 10 m² of products. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
