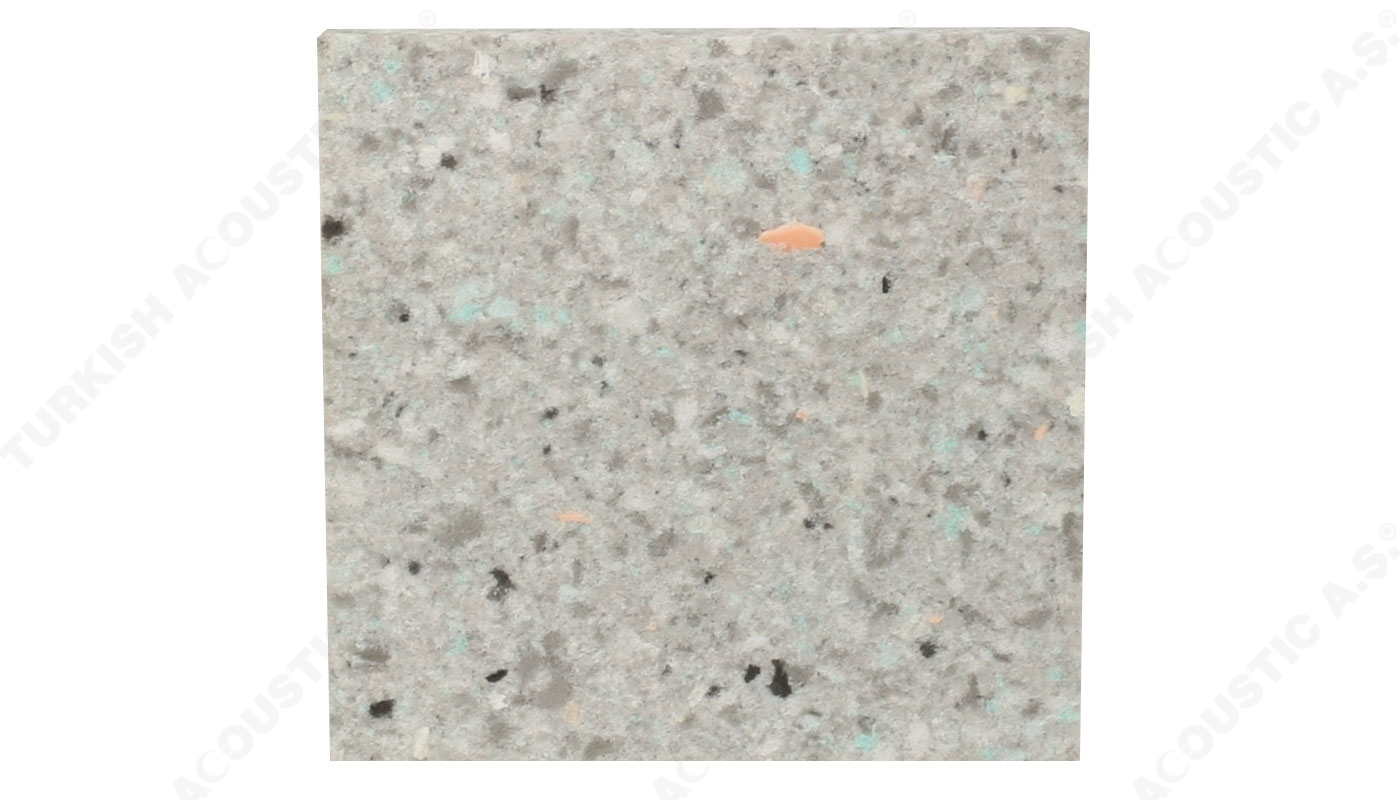

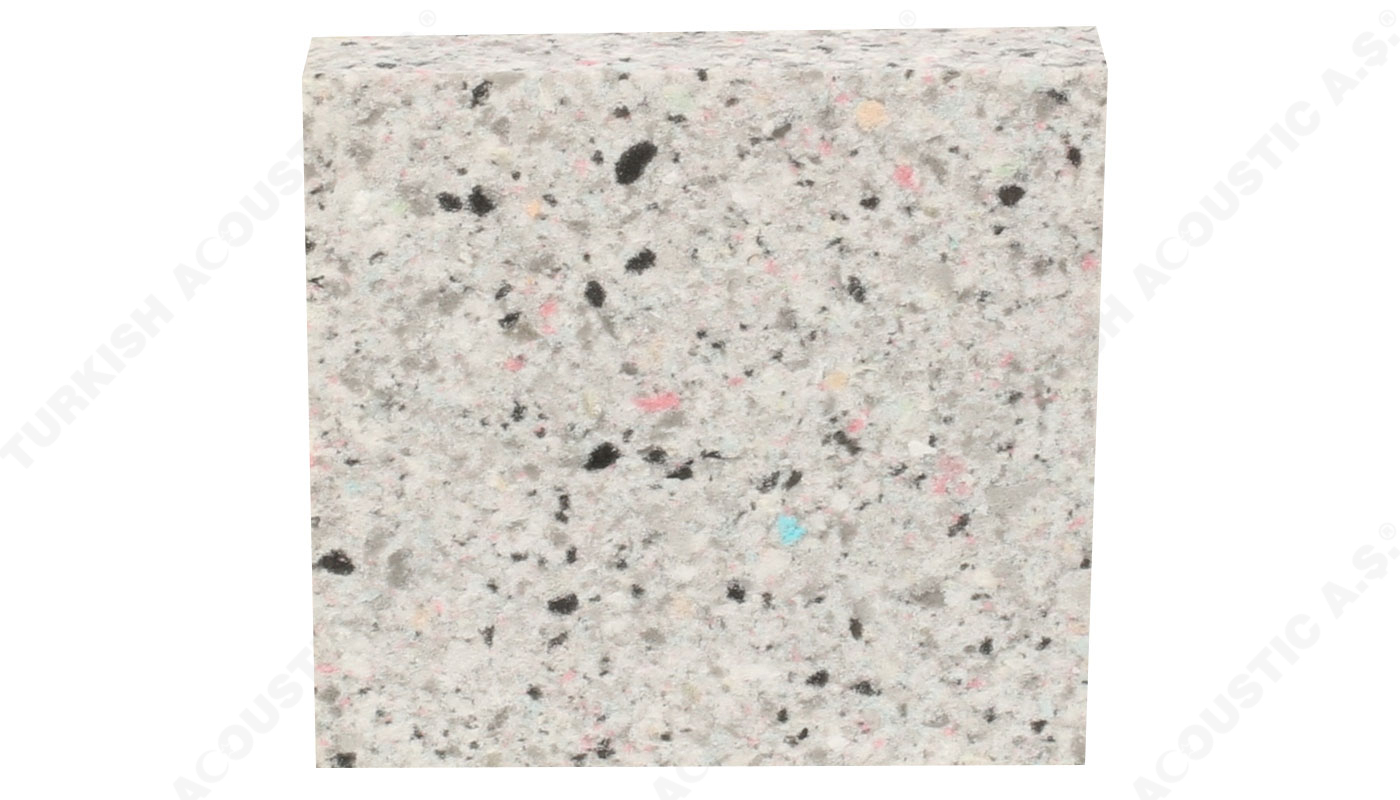

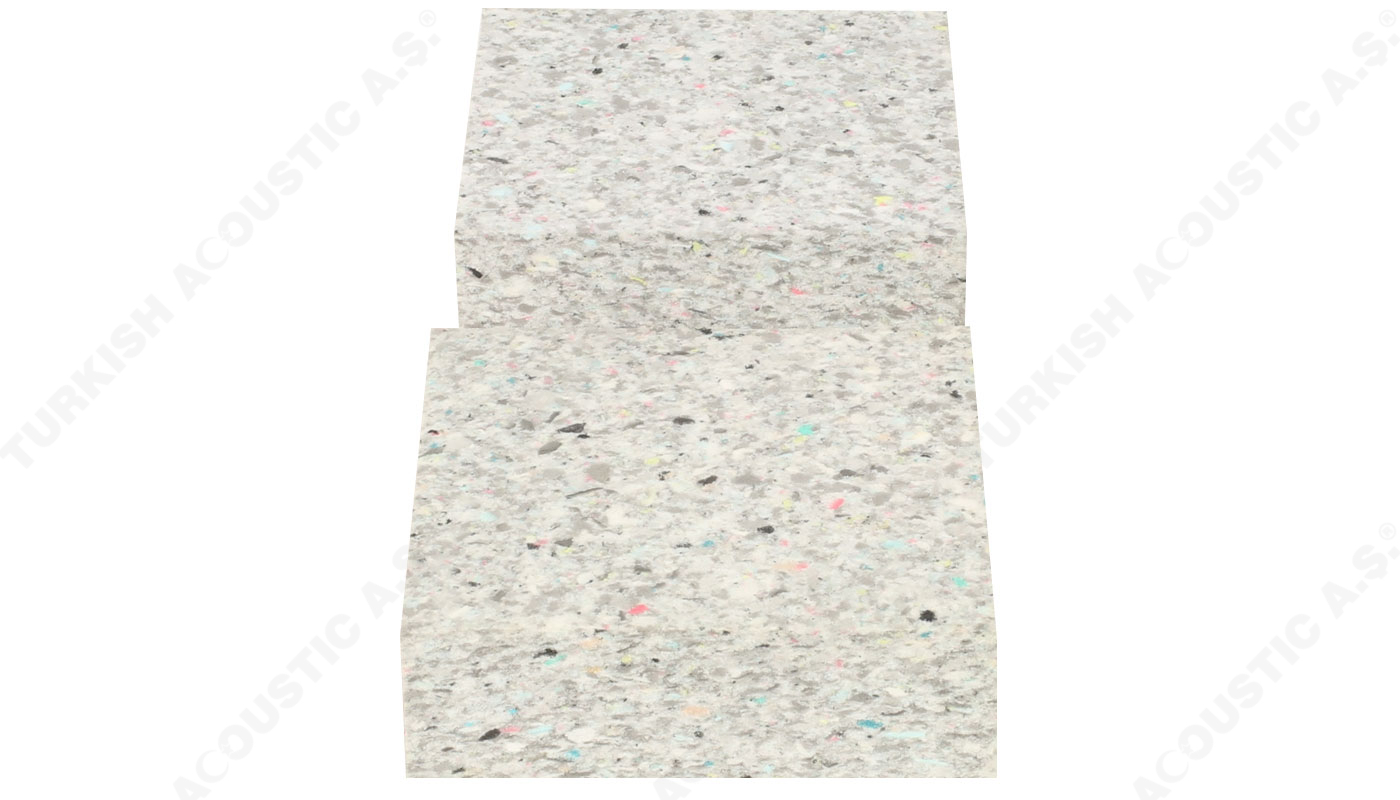

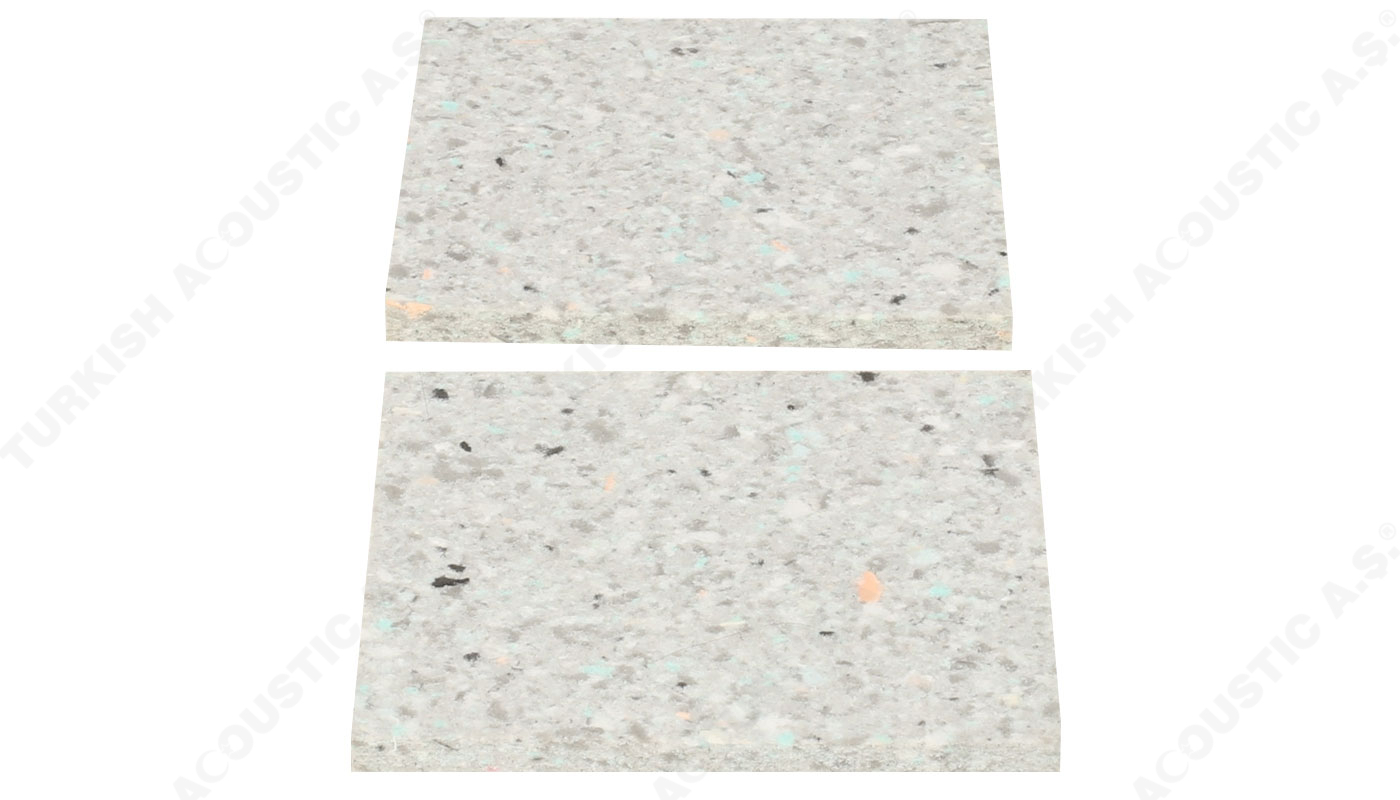

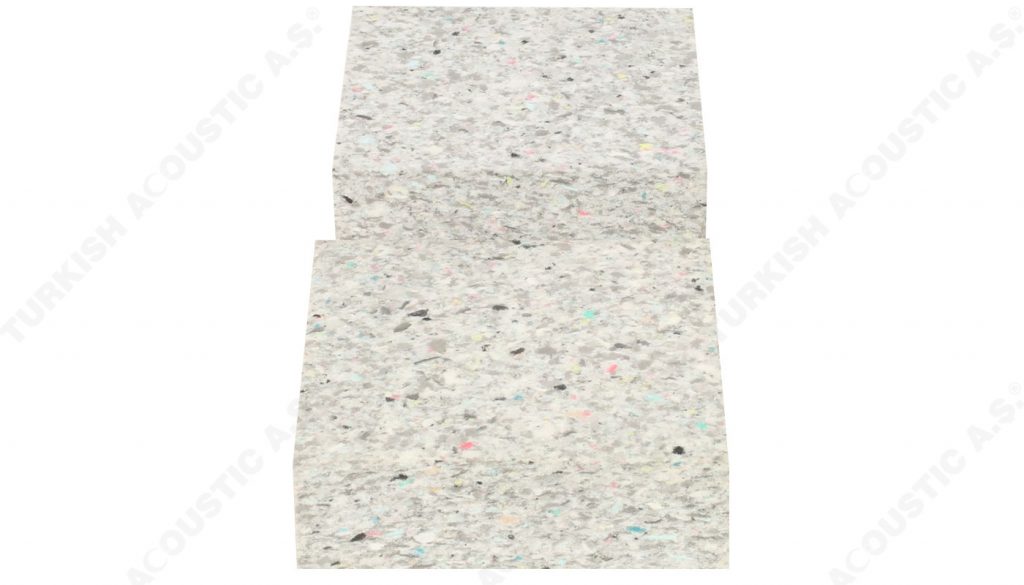

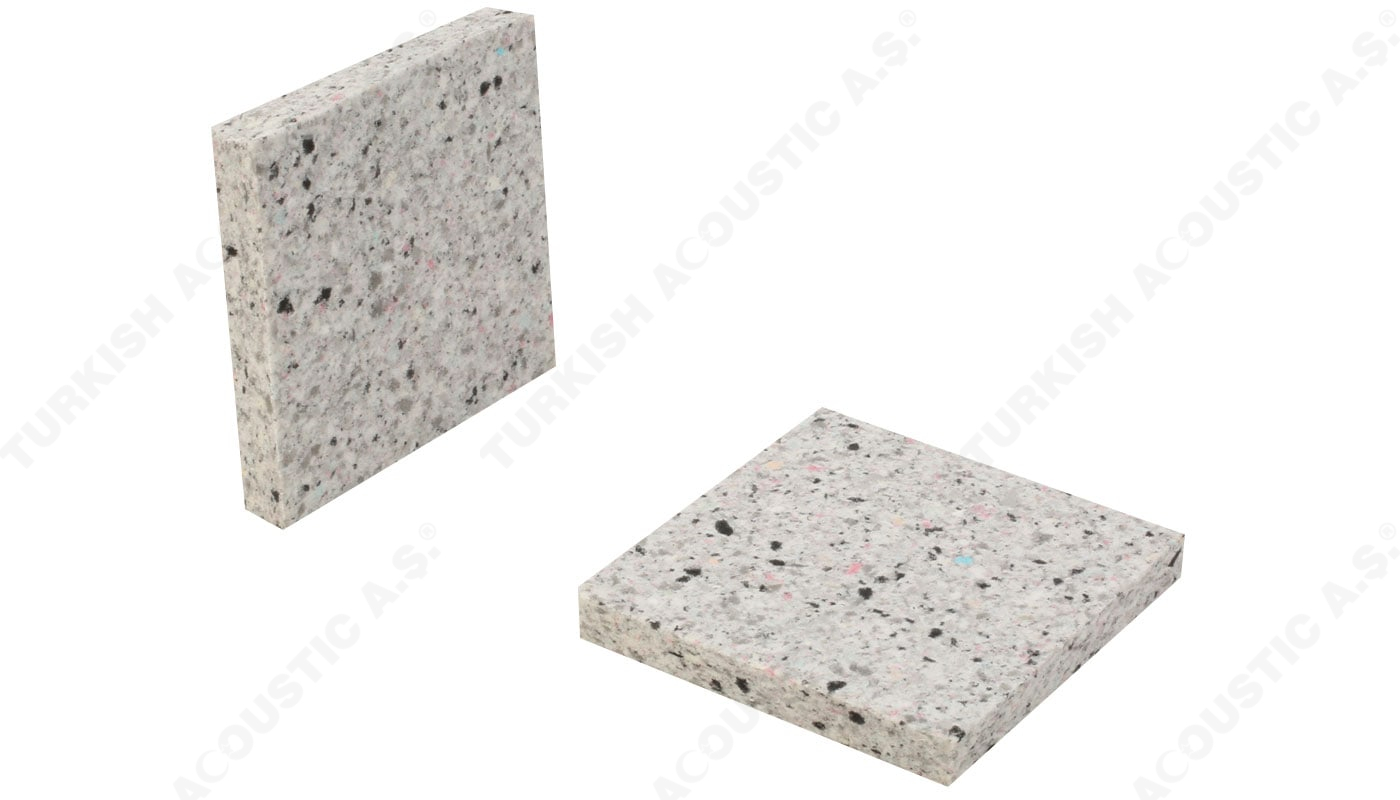

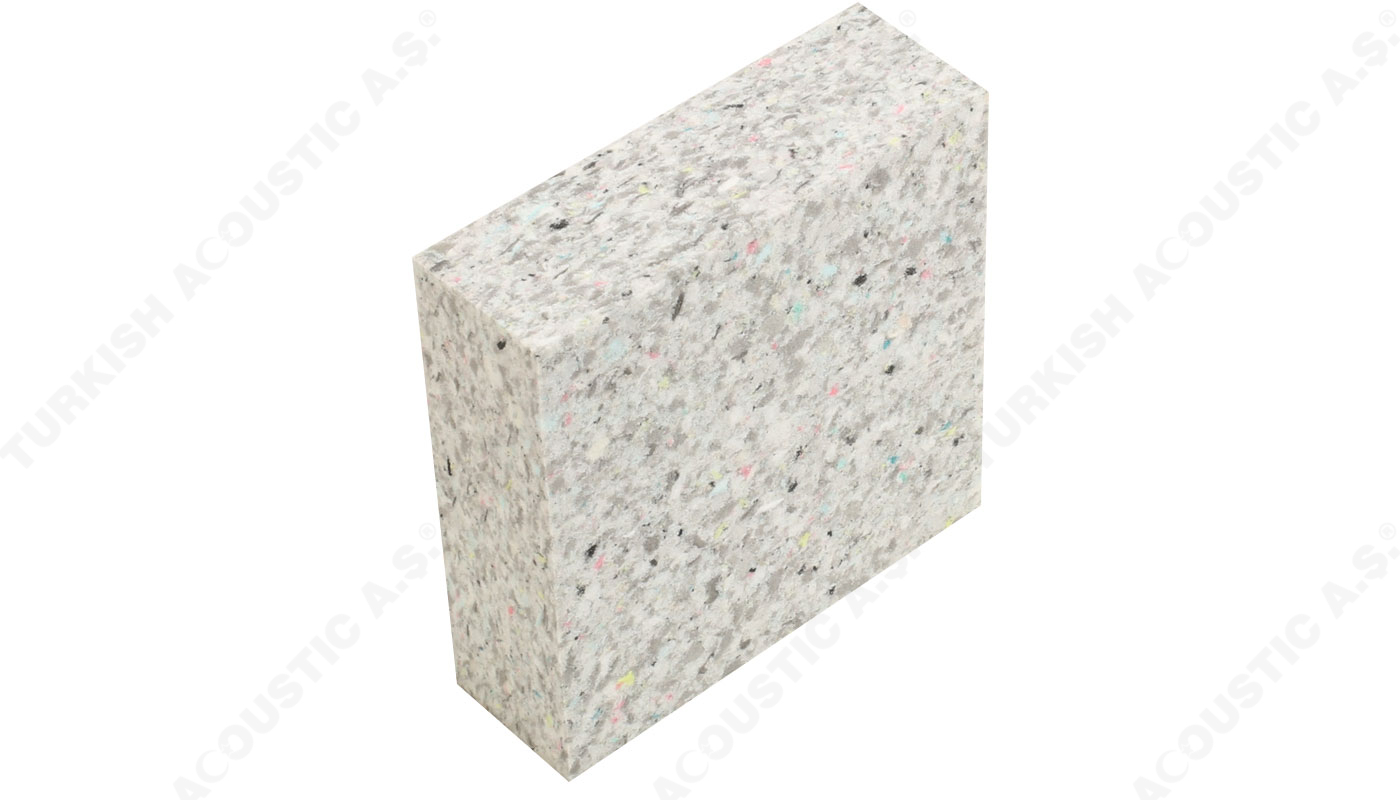

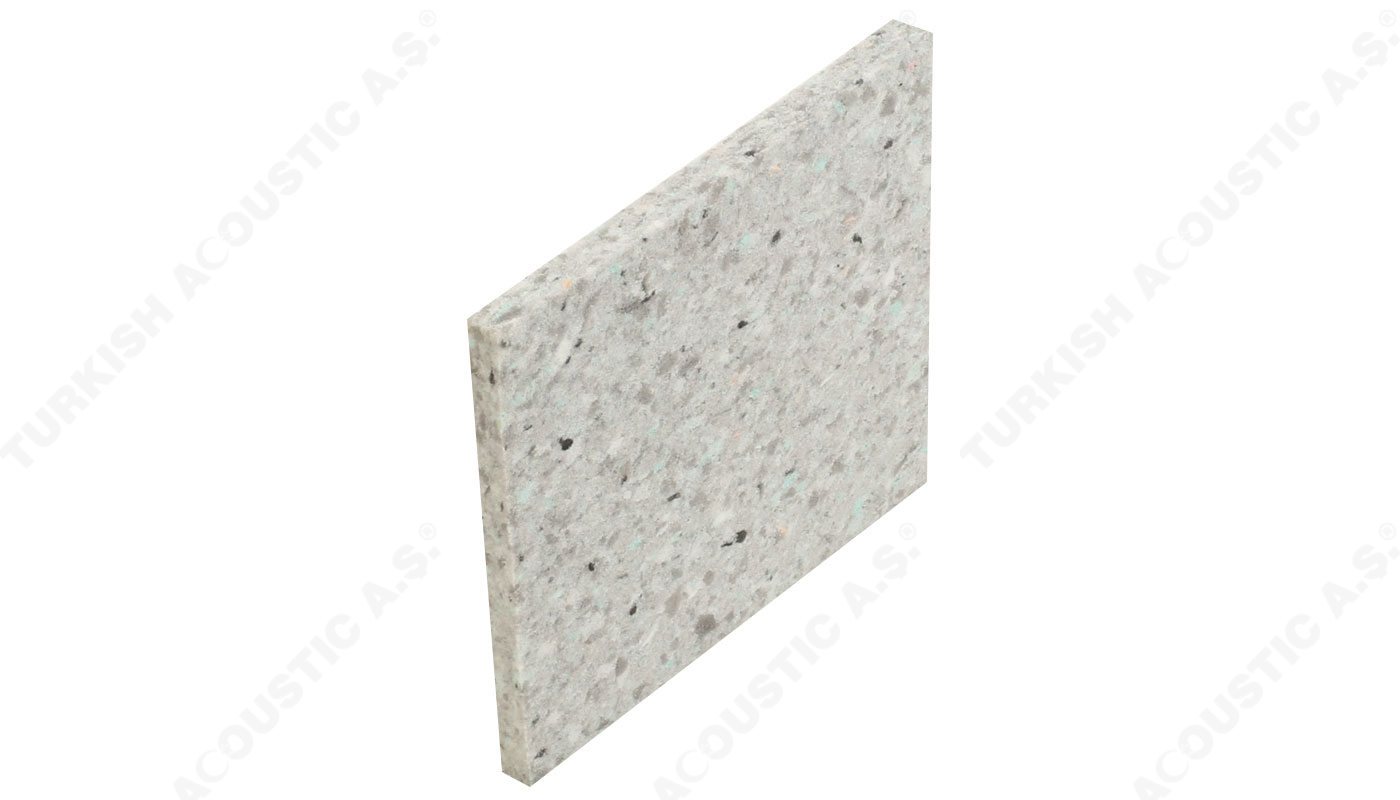

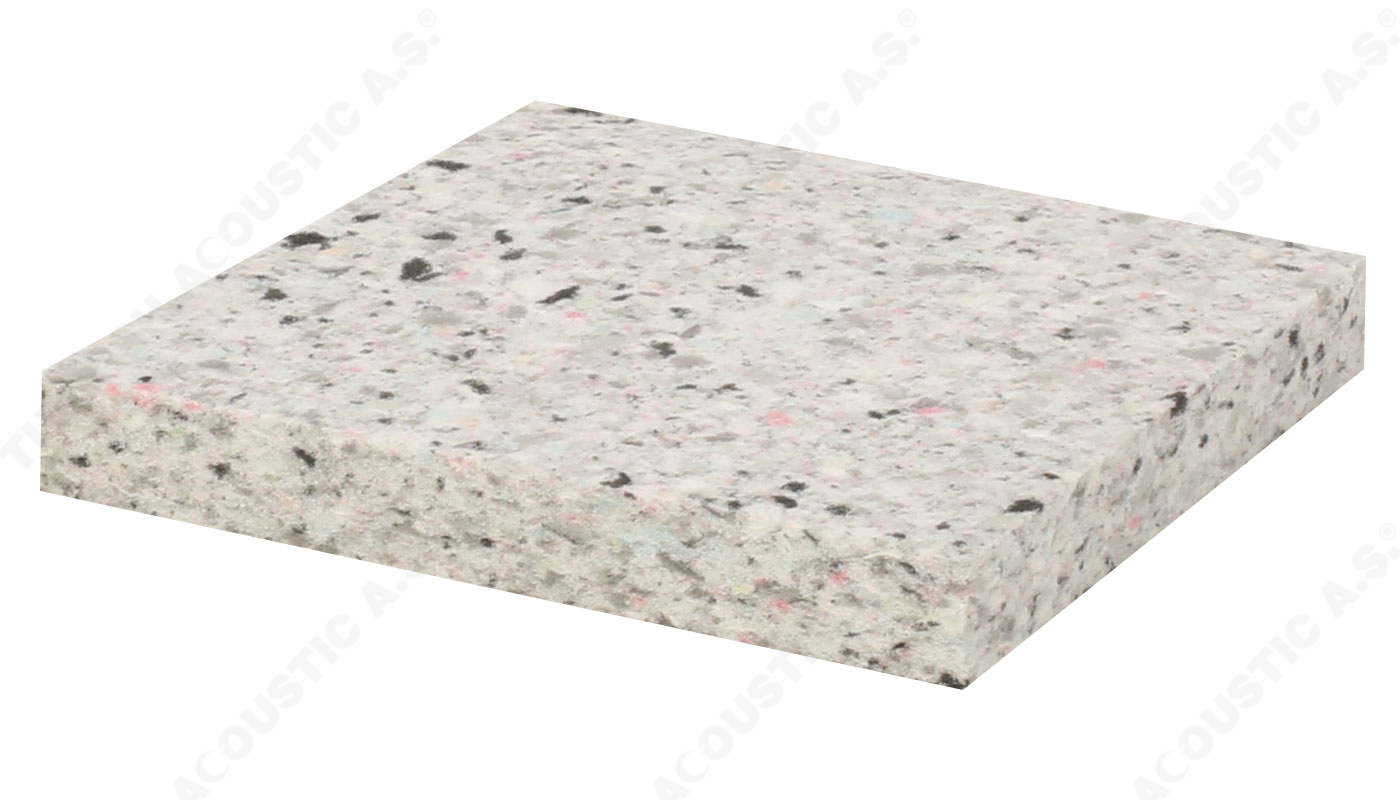

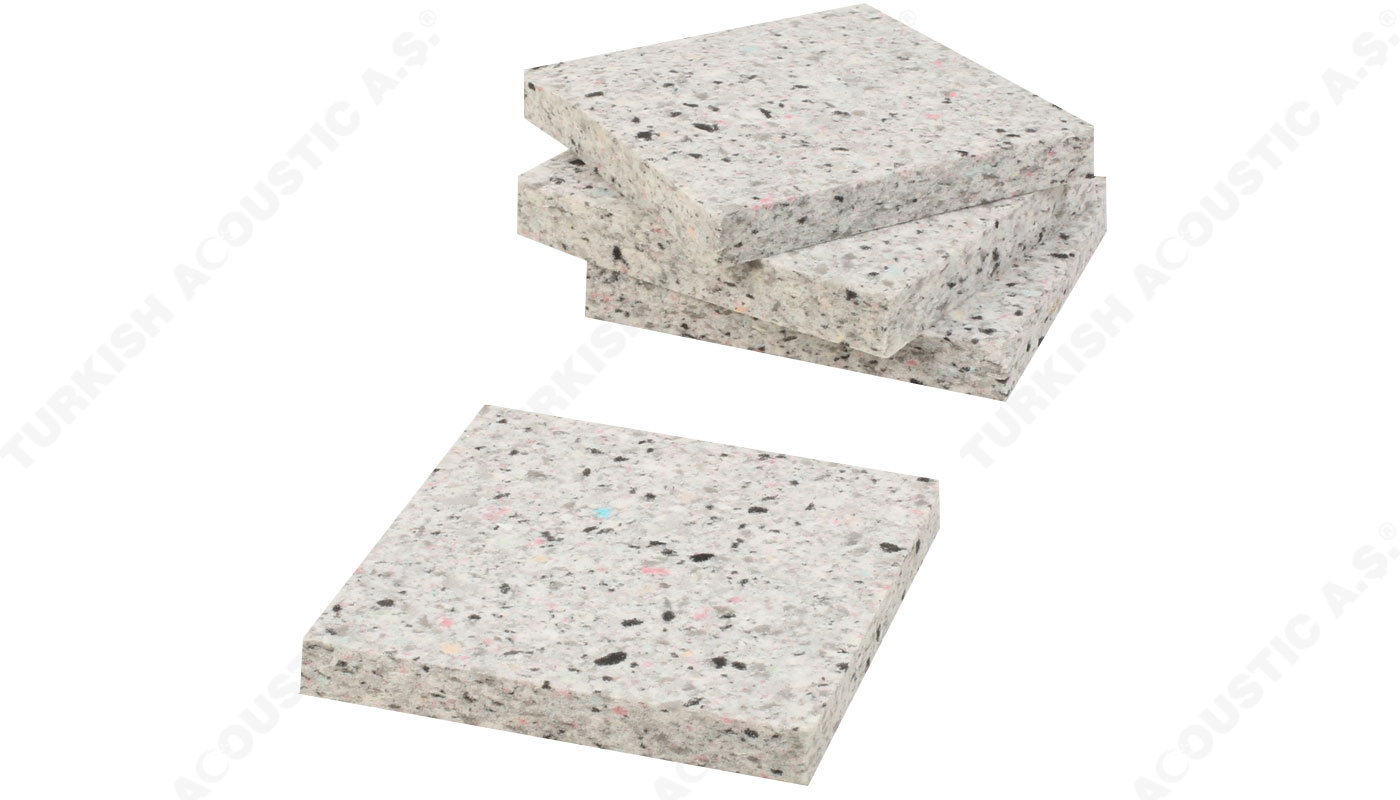

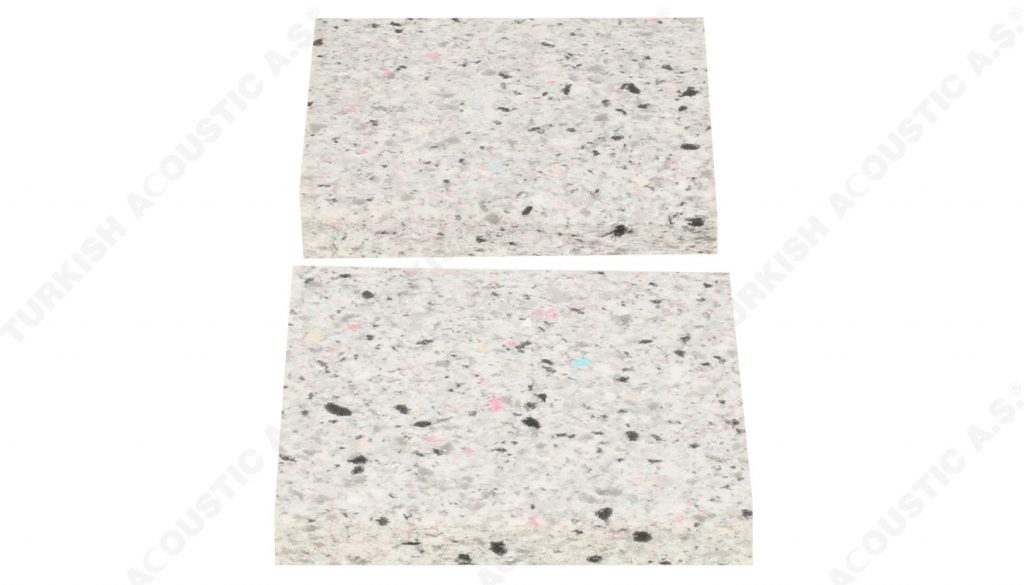

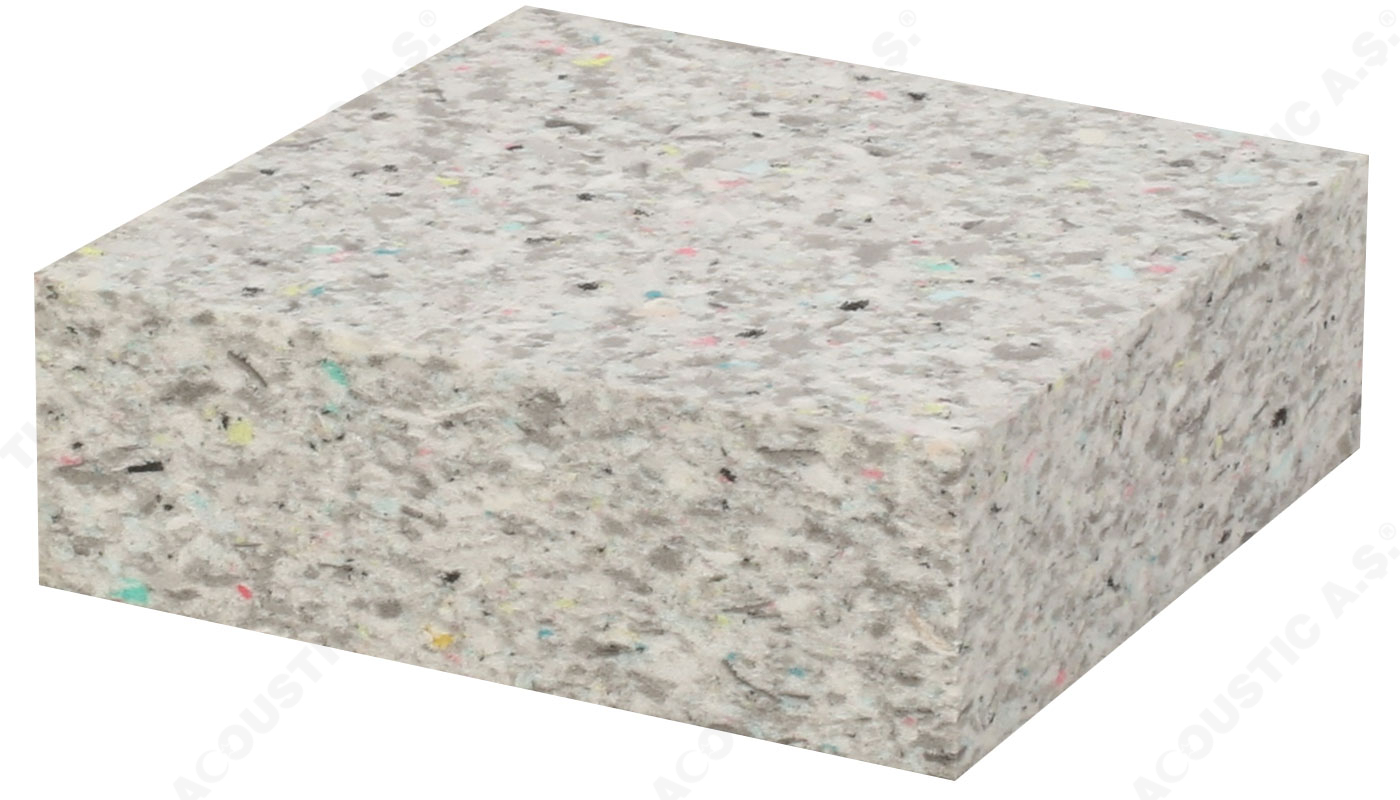

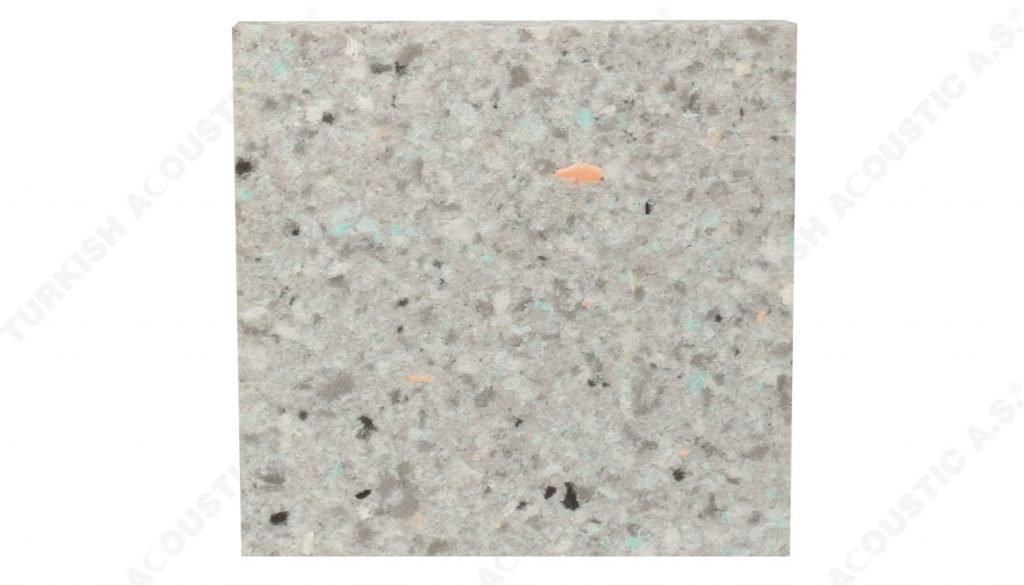

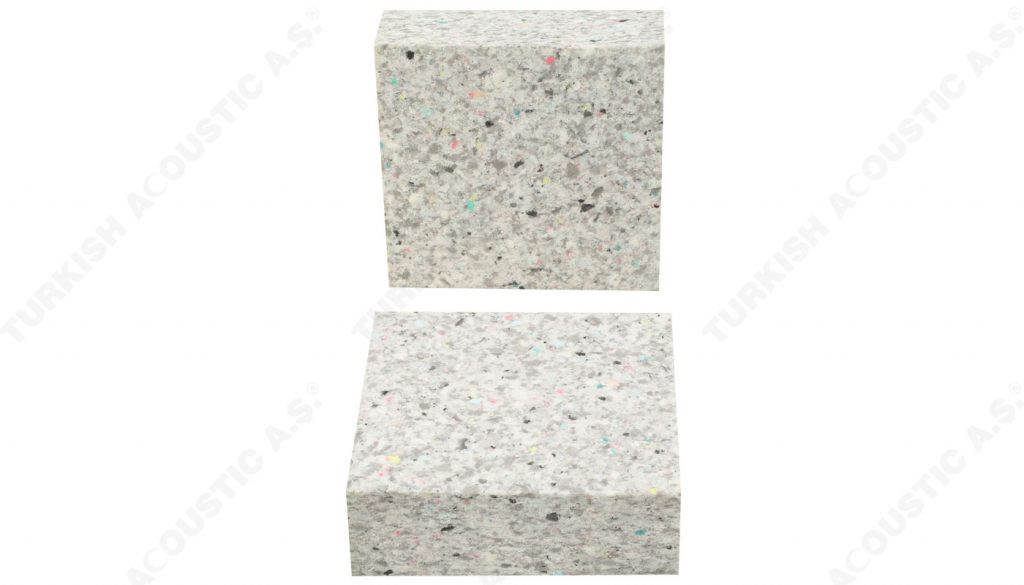

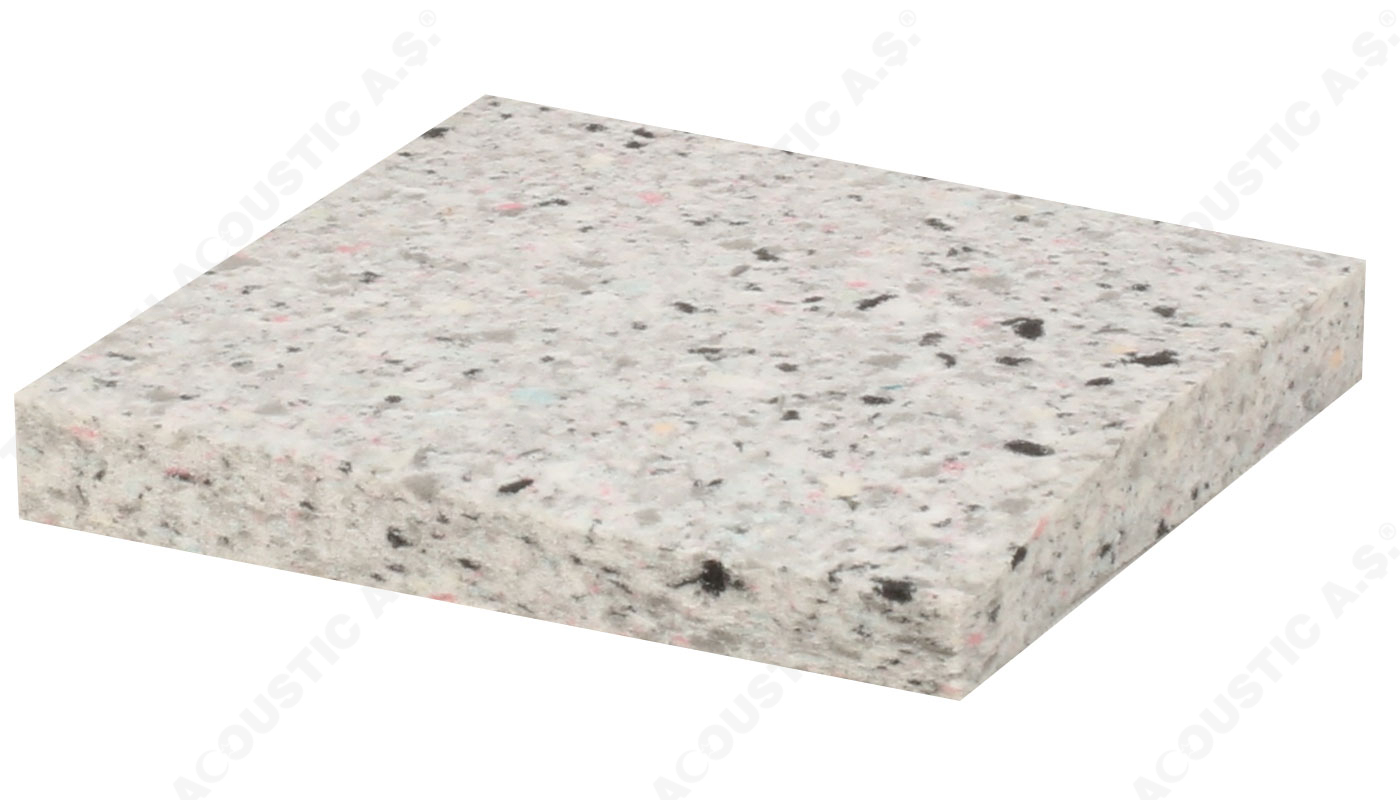

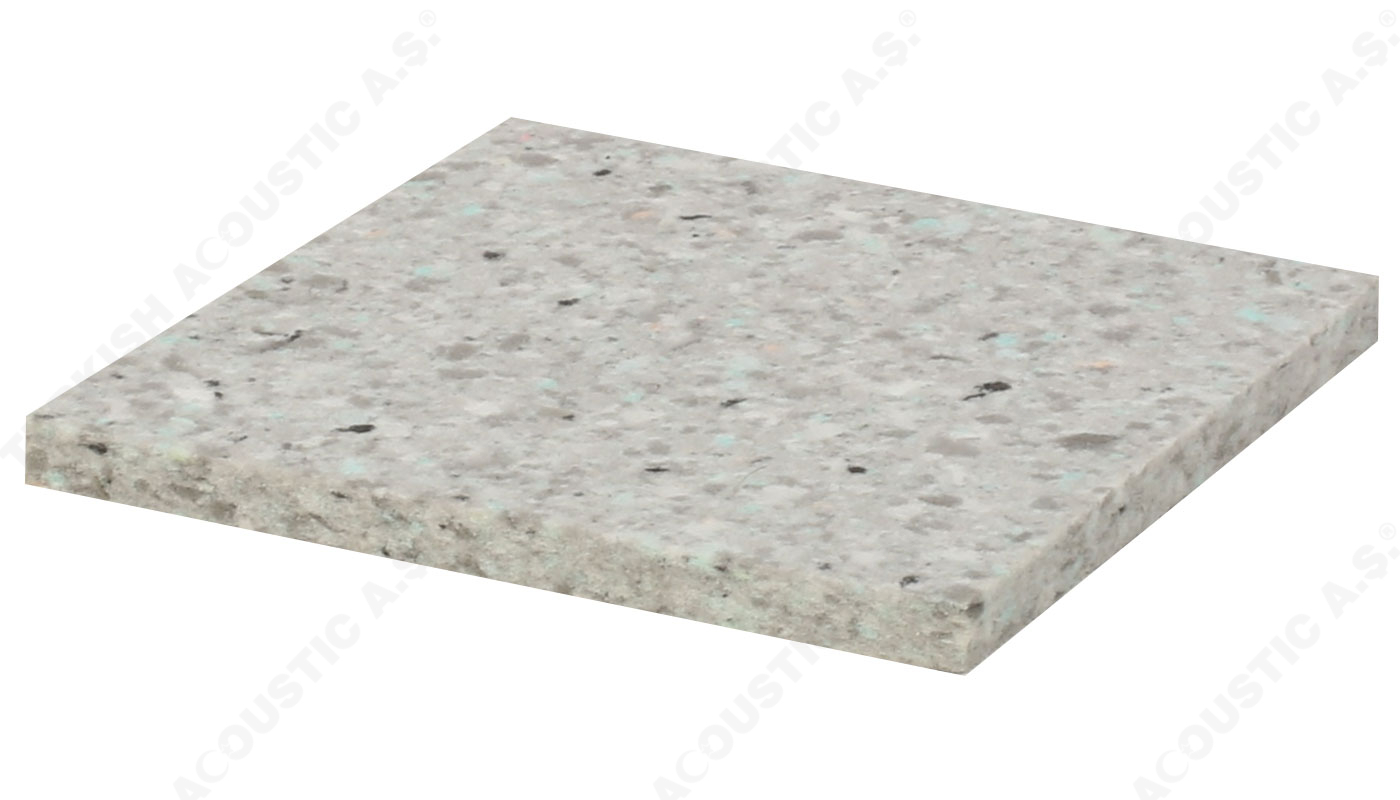

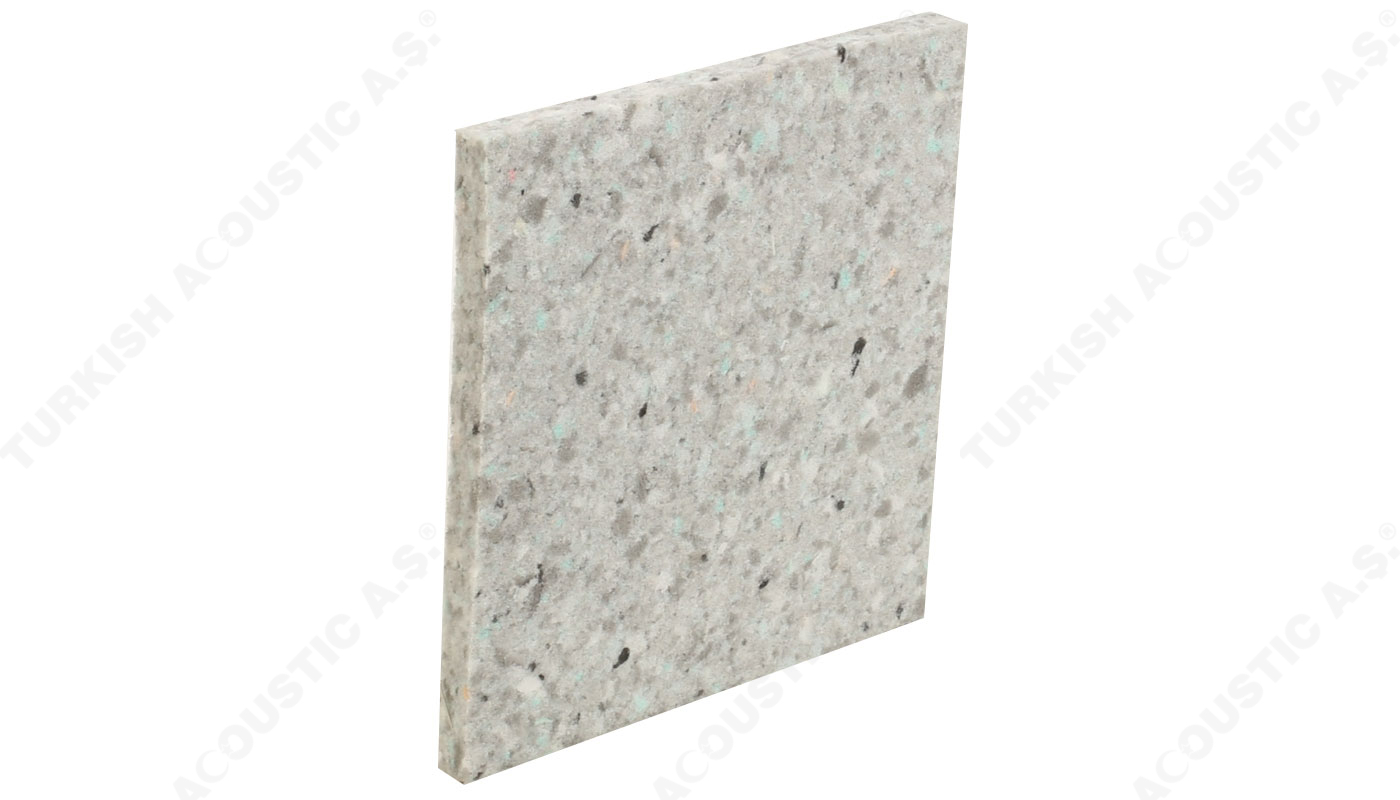

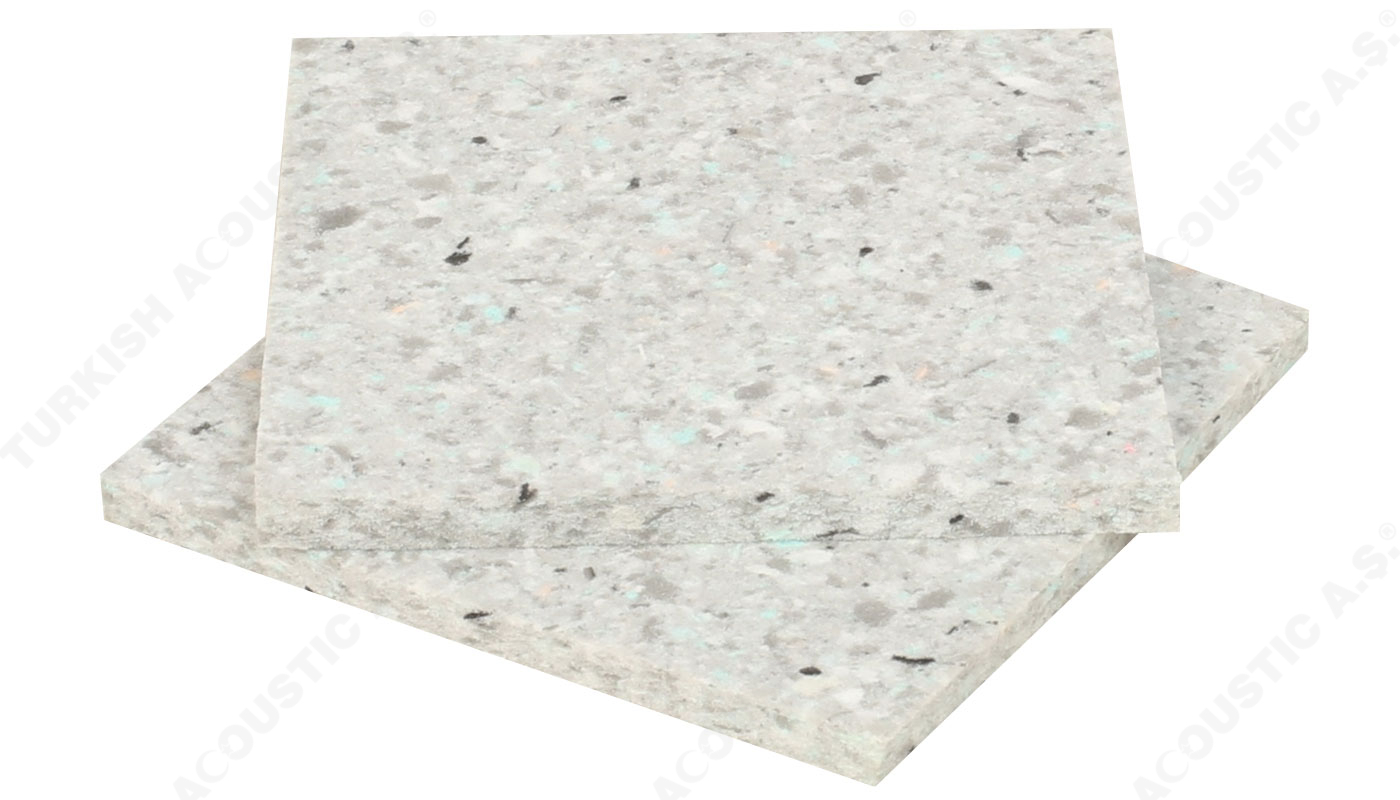

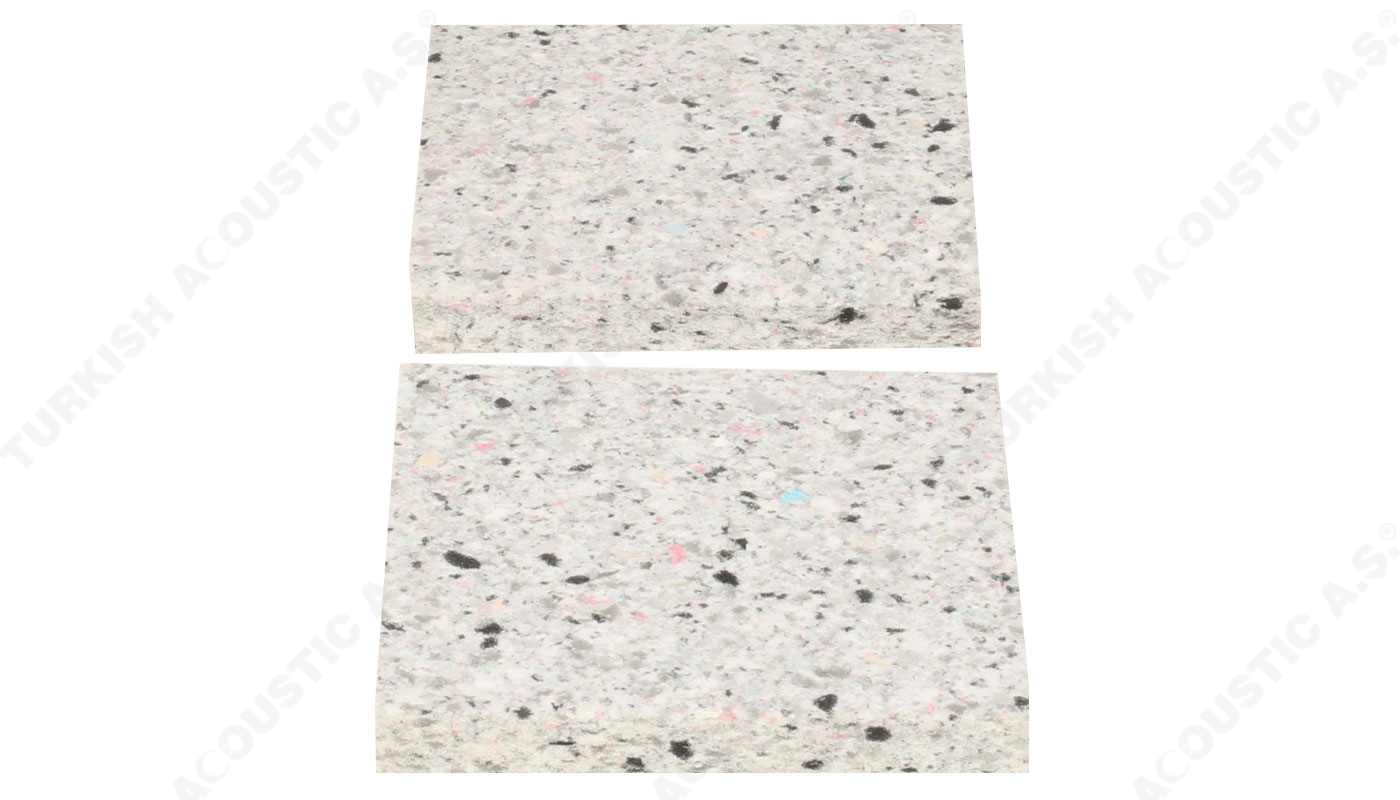

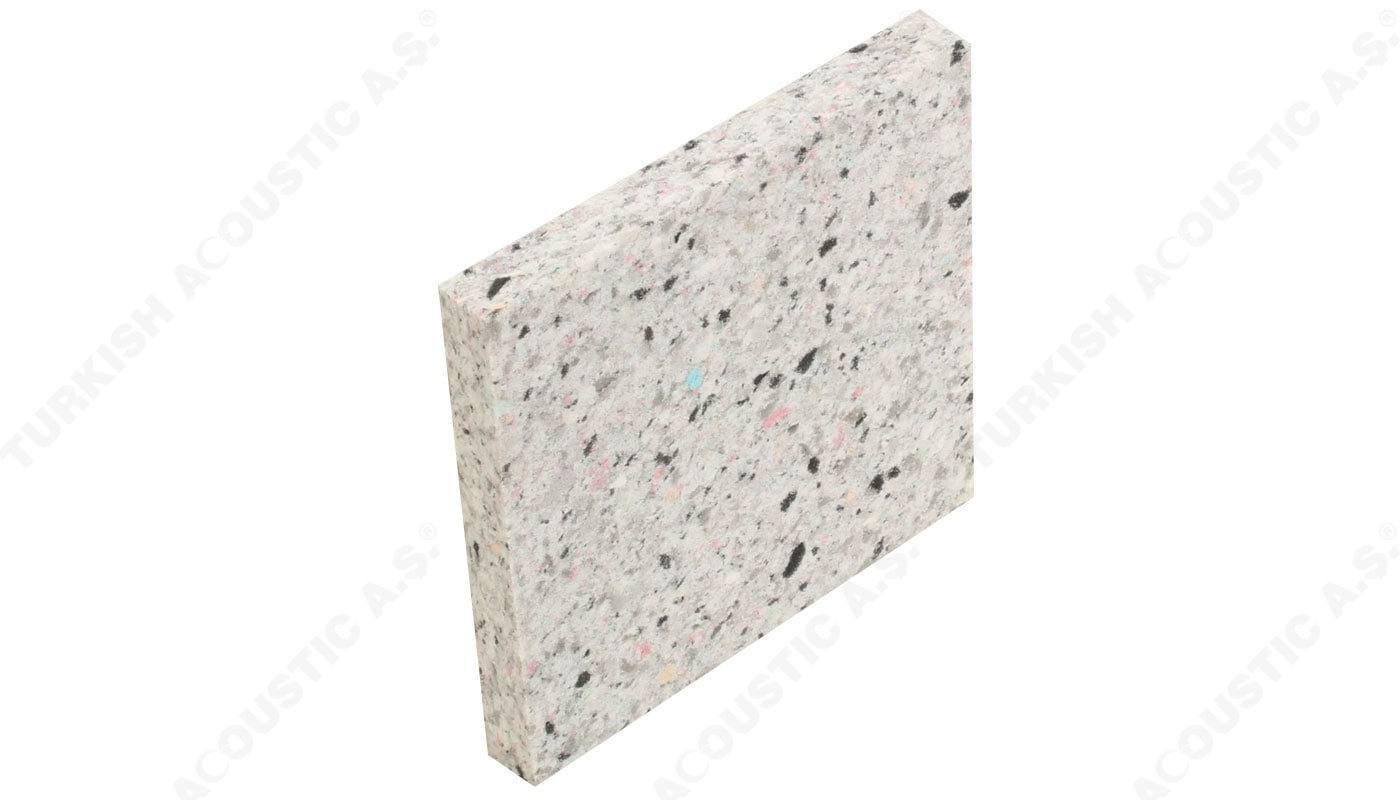

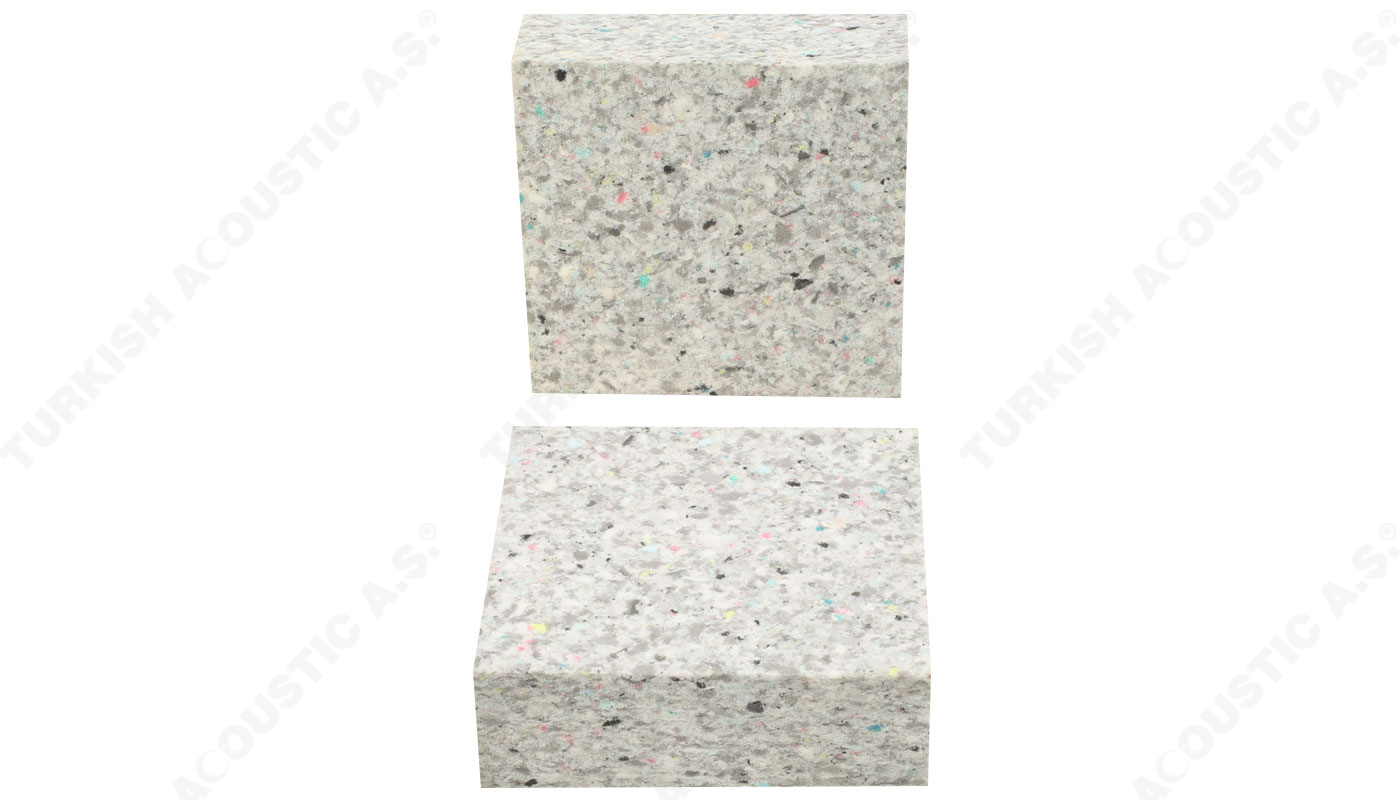

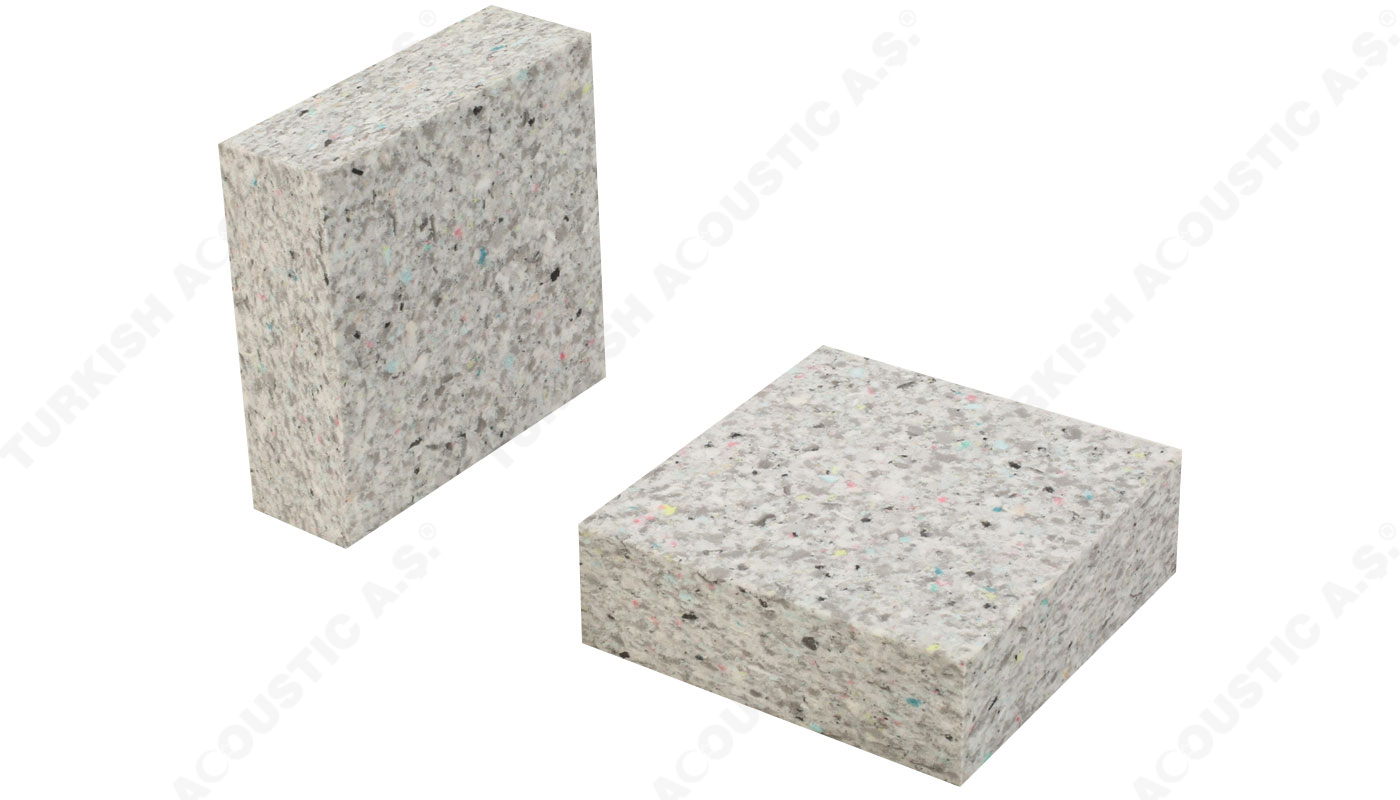

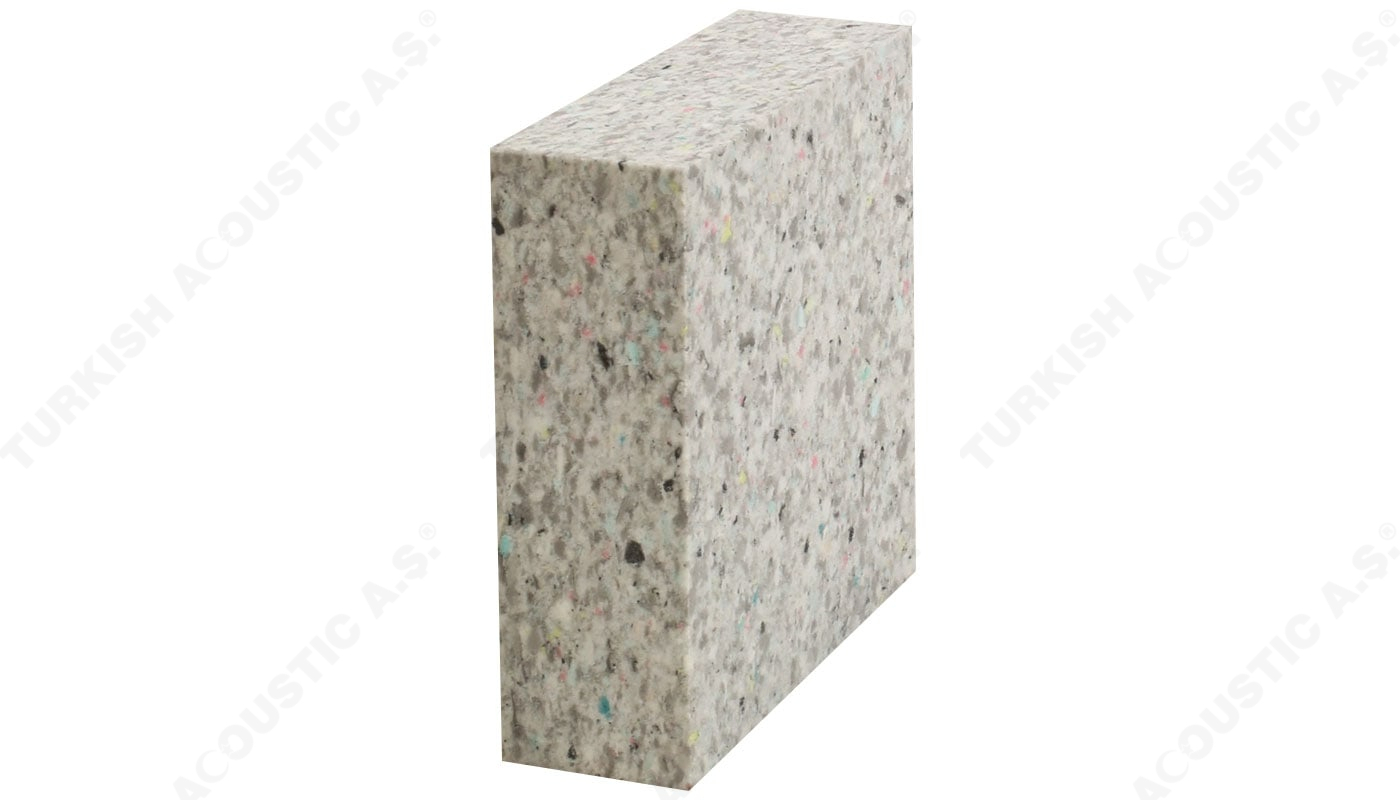

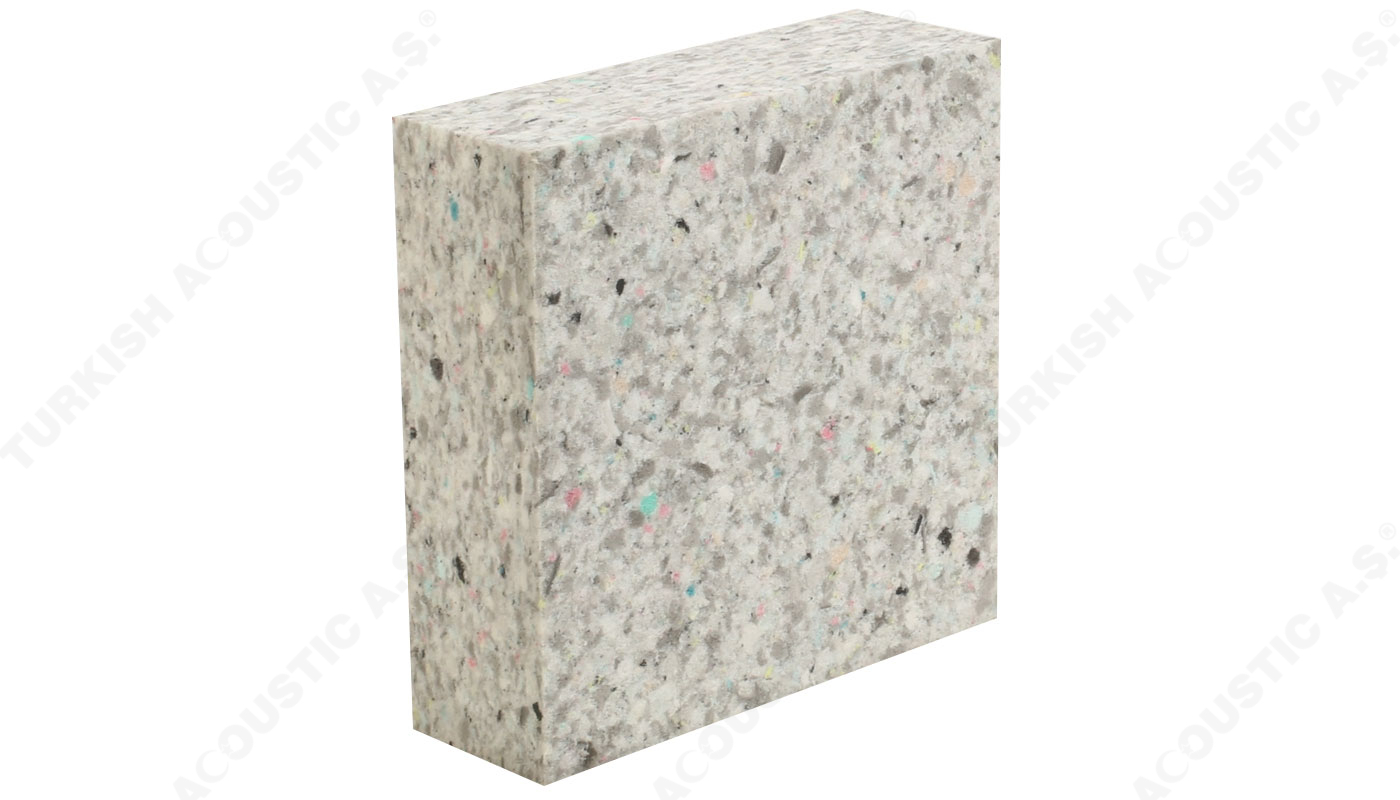

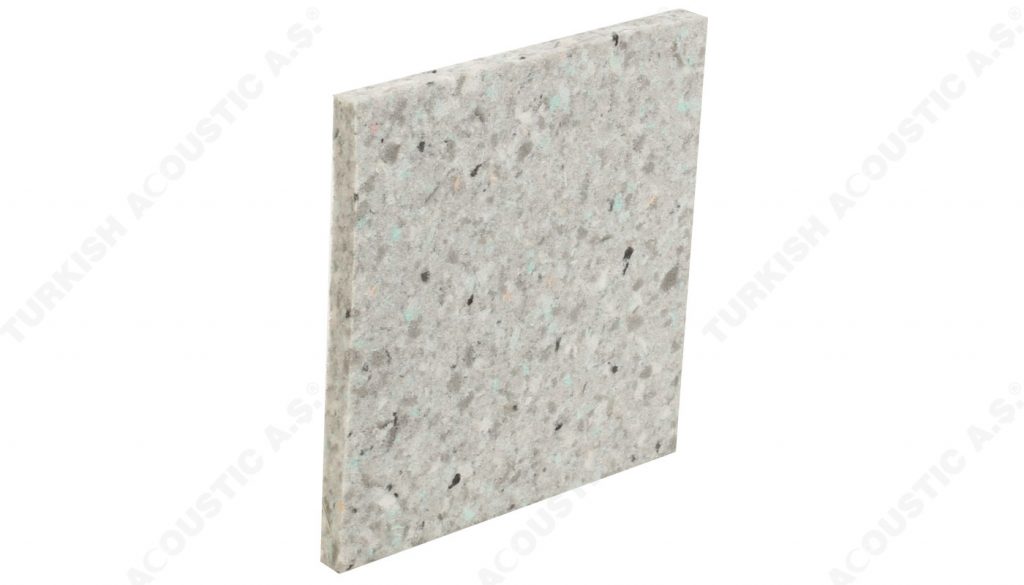

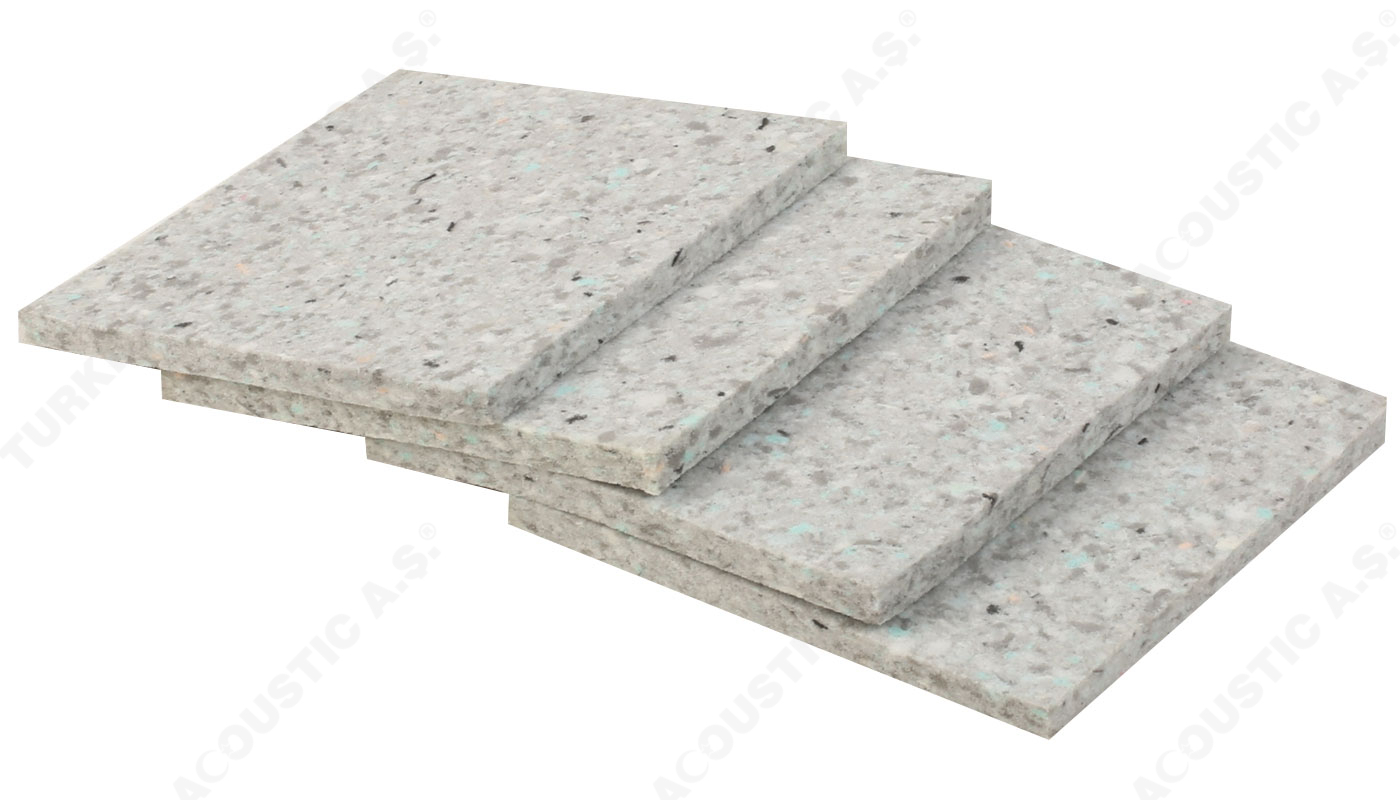

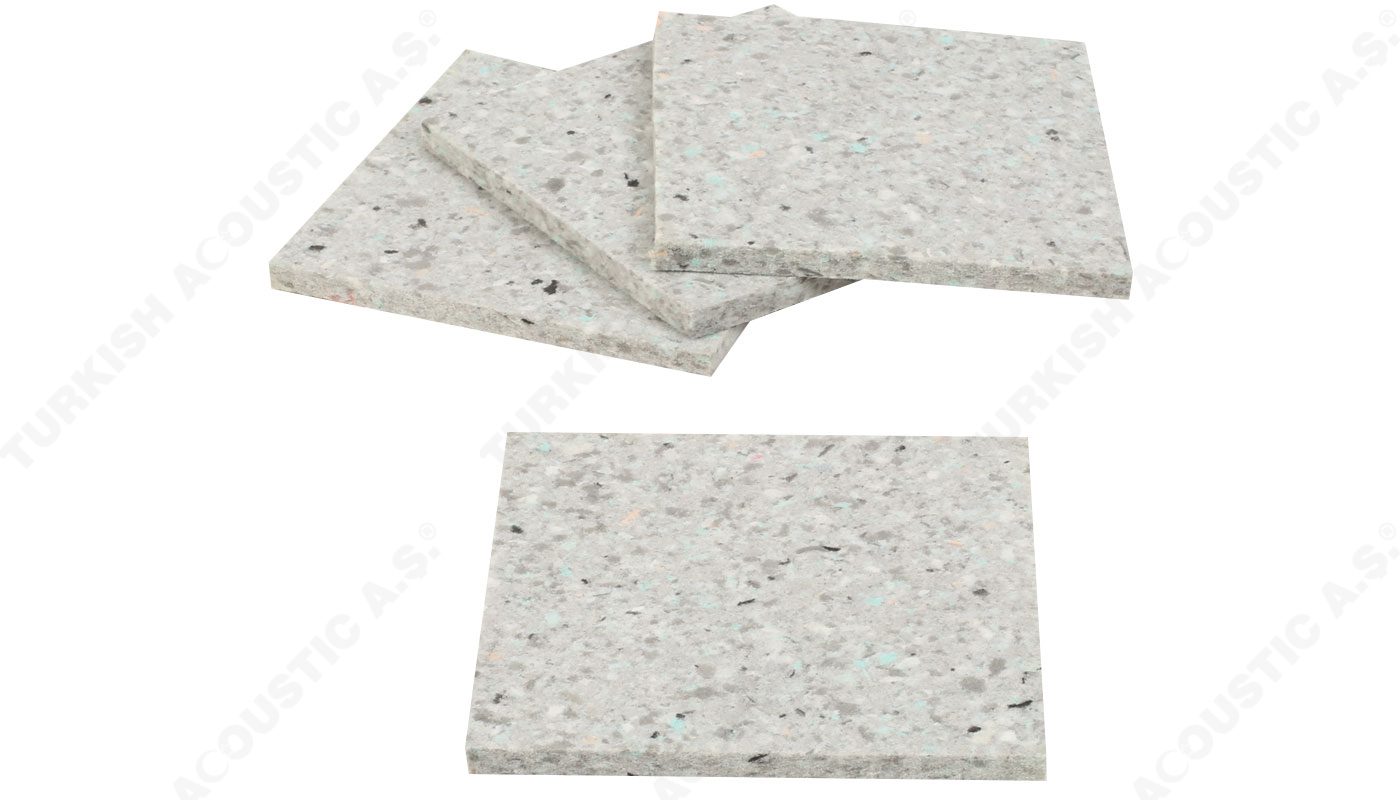

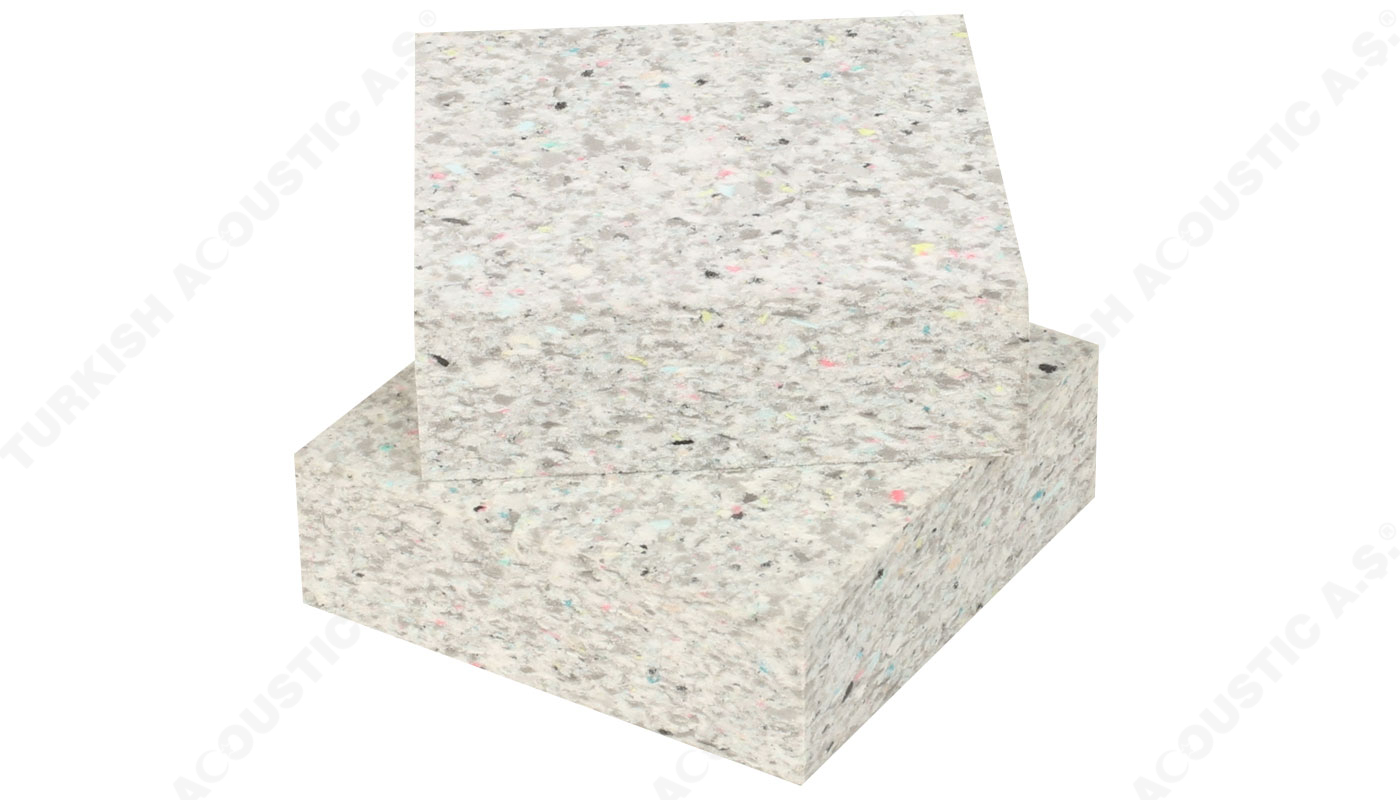

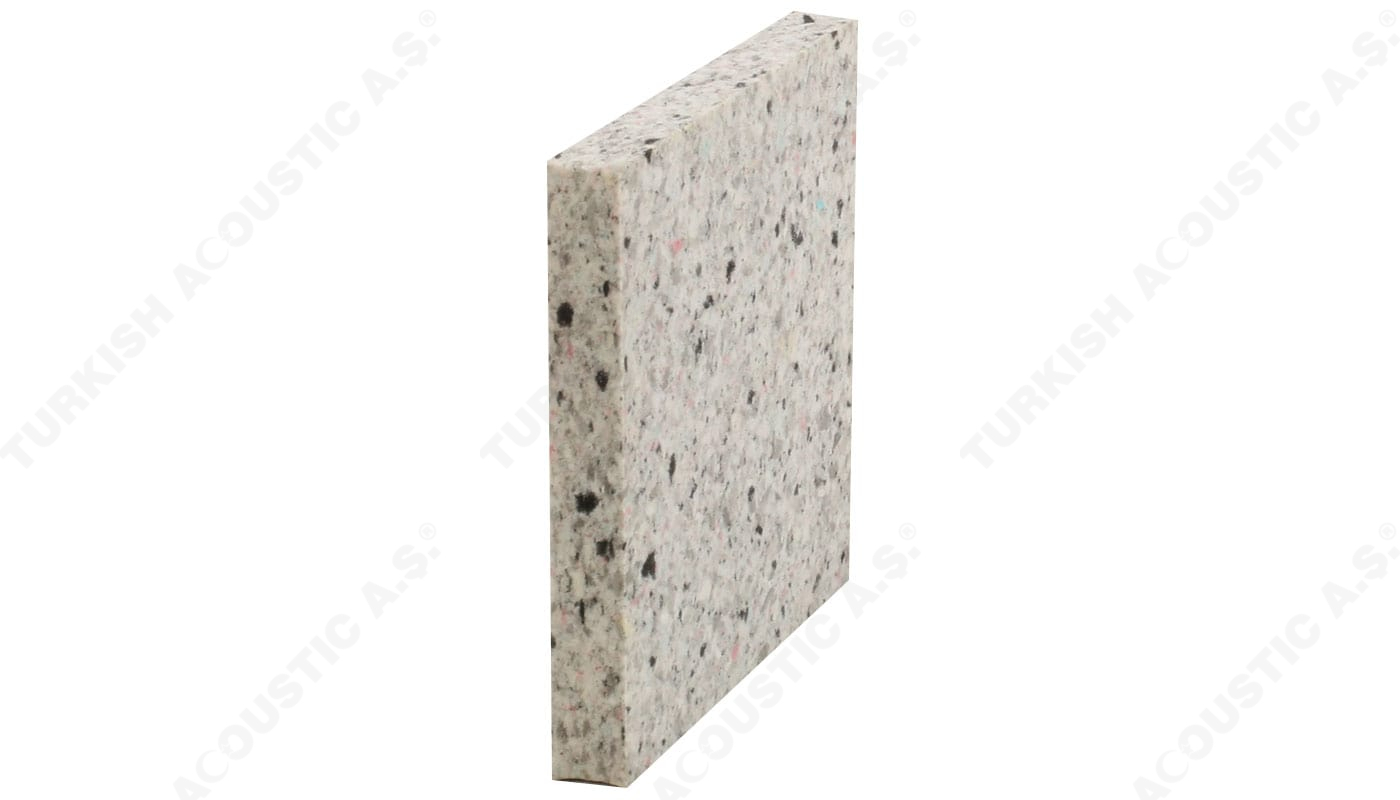

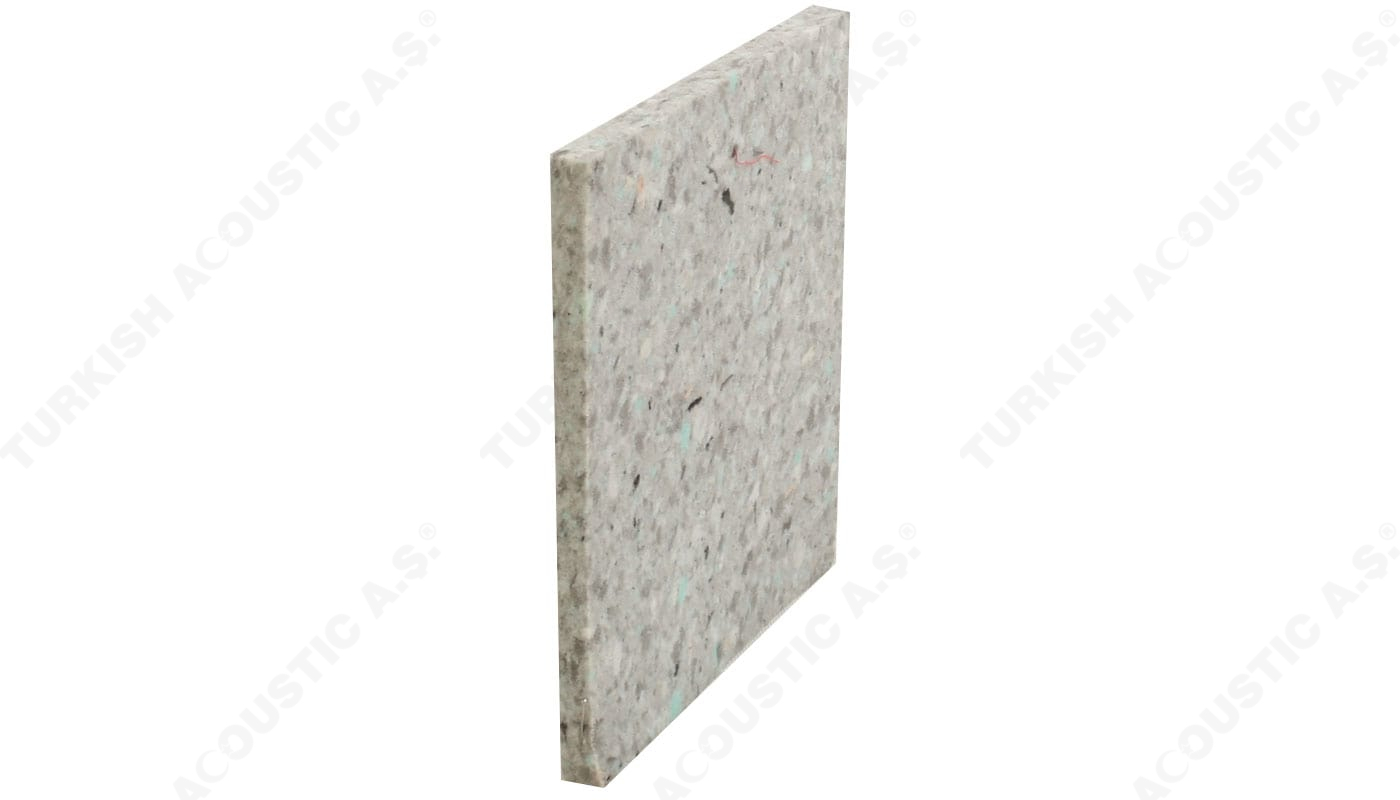

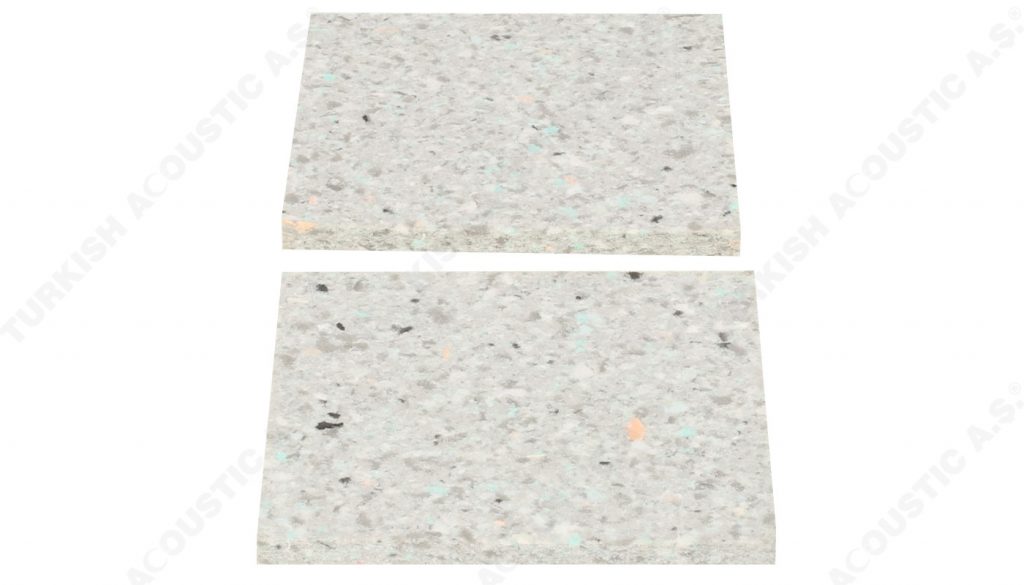

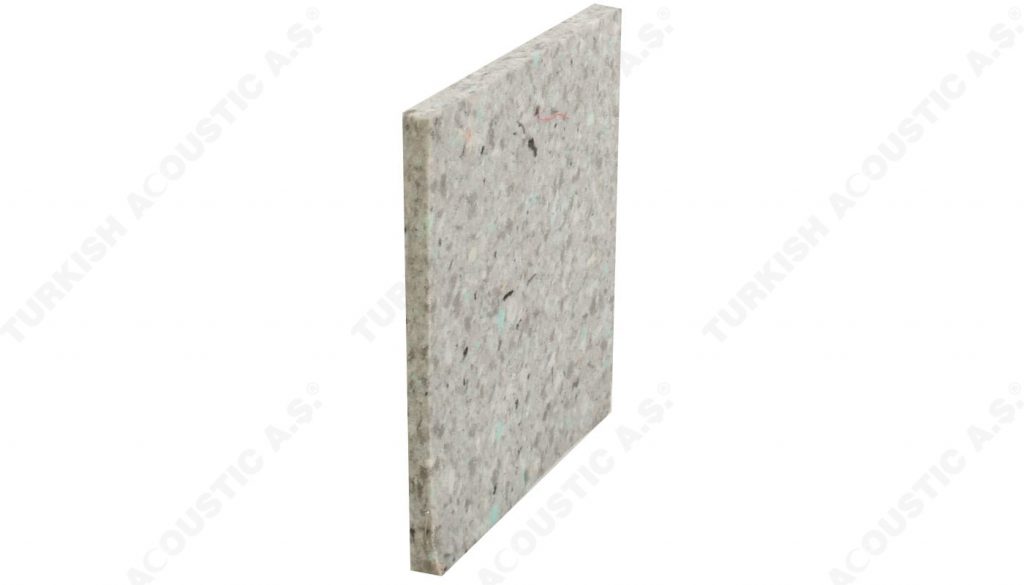

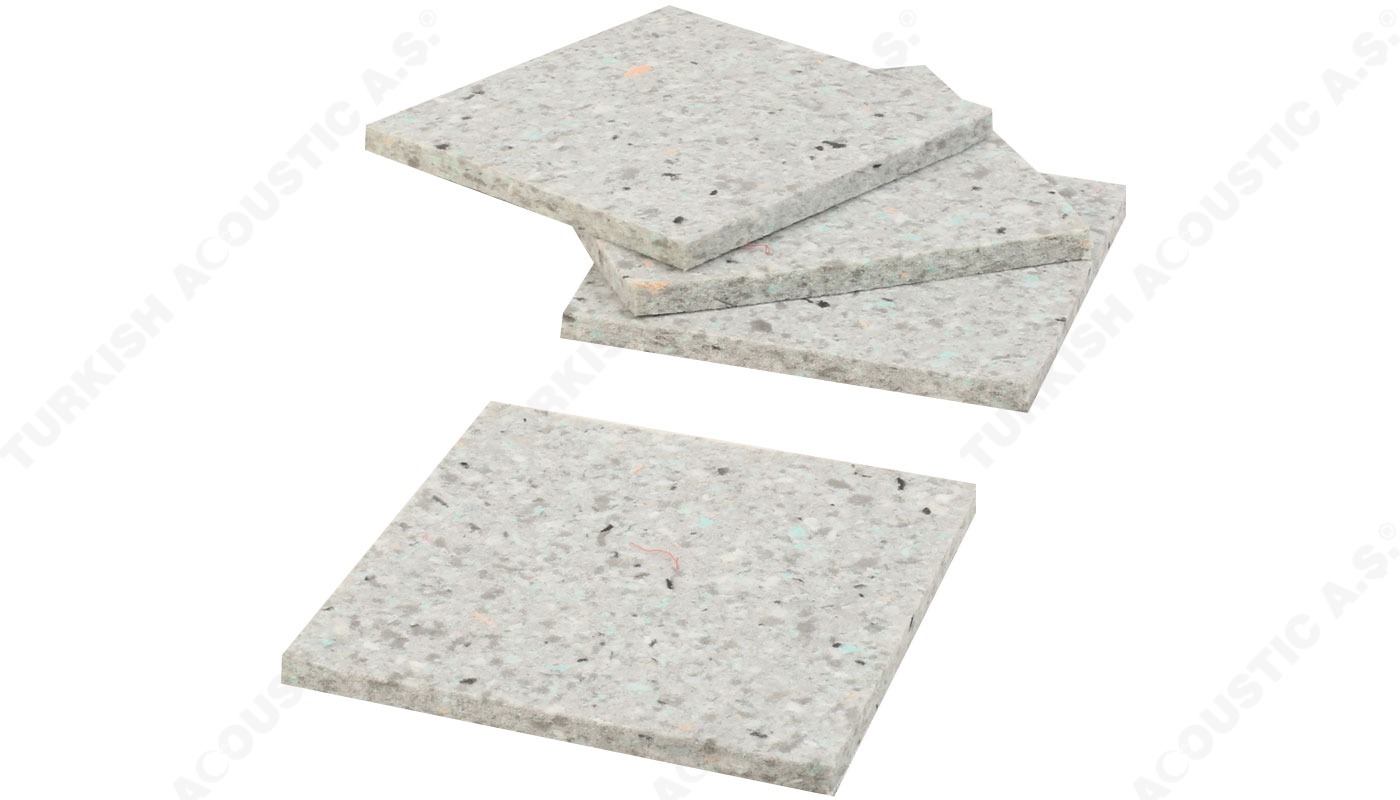

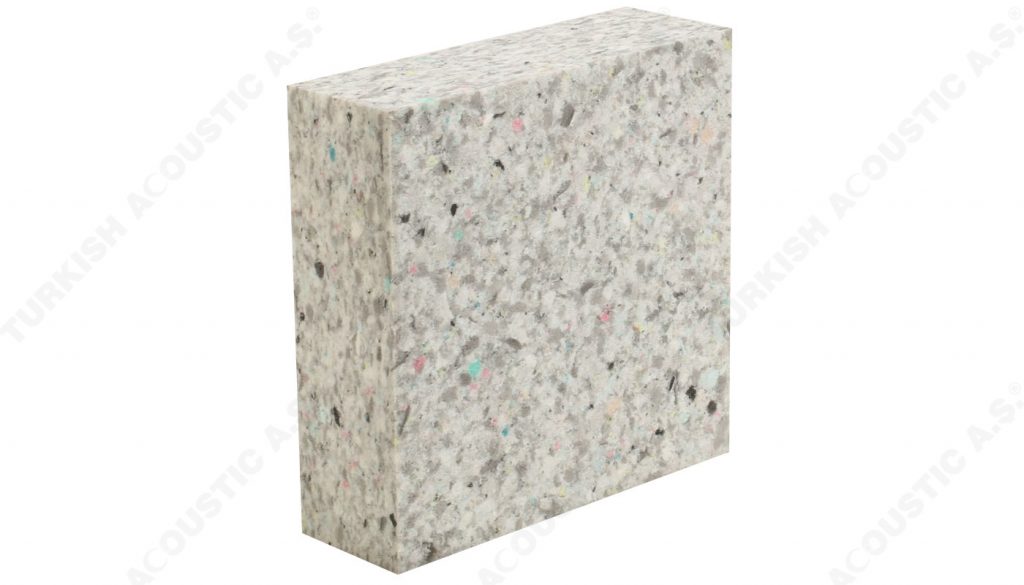

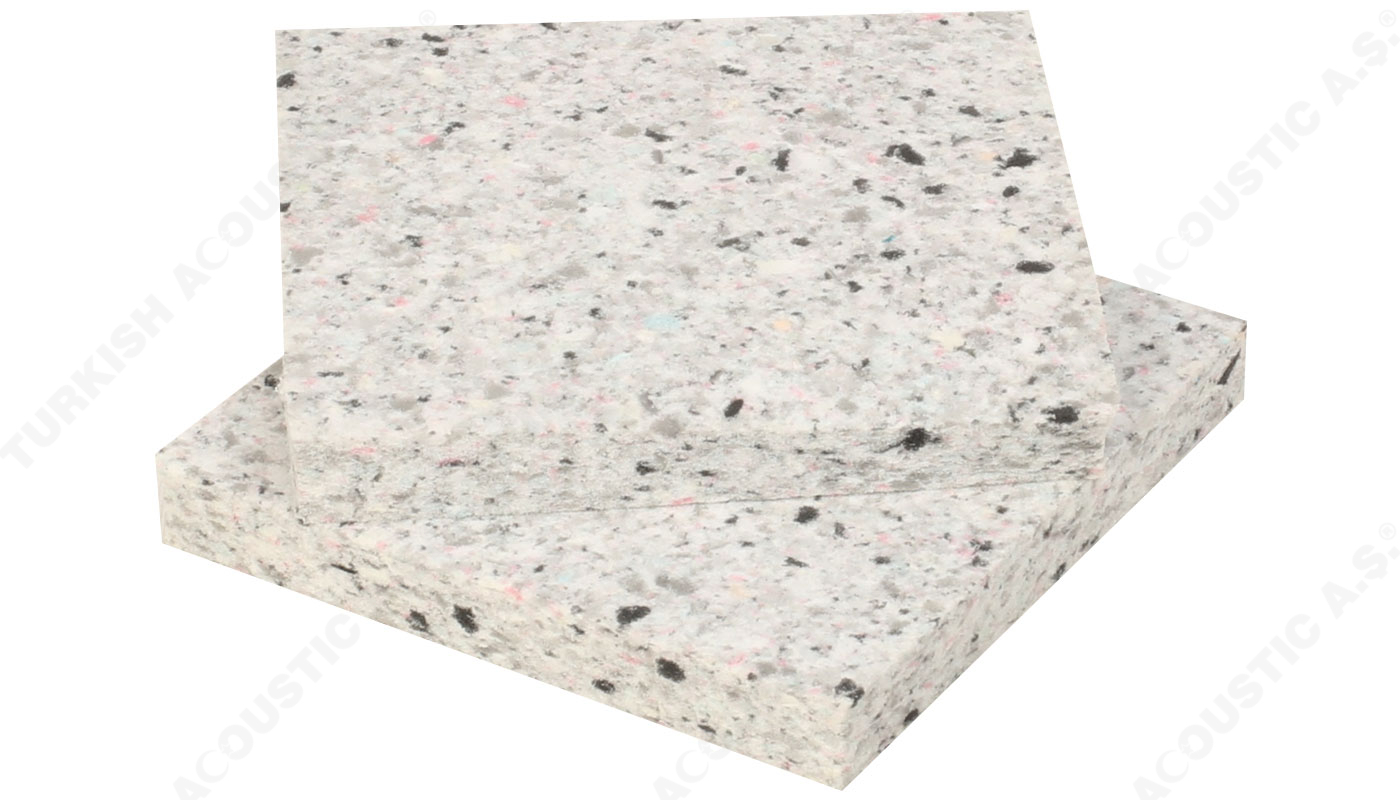

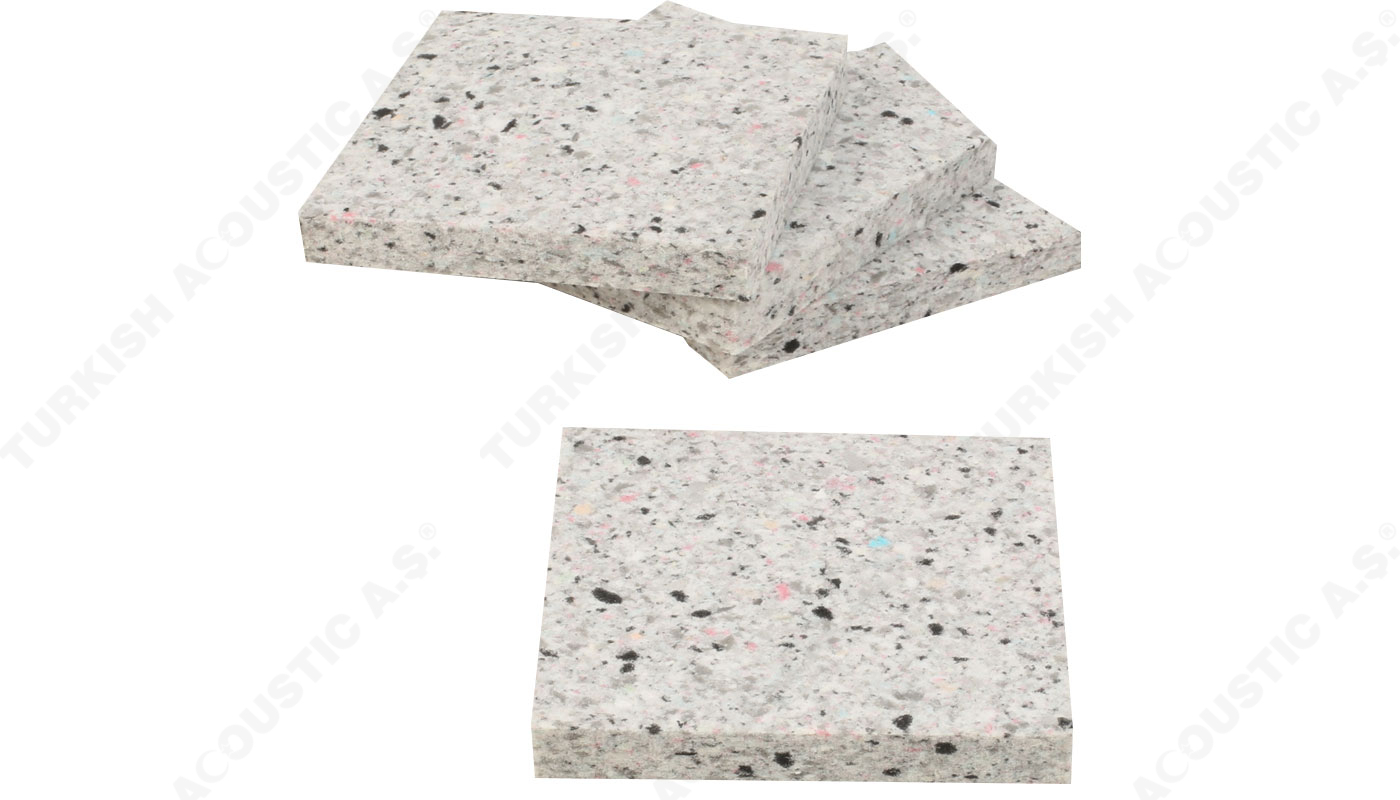

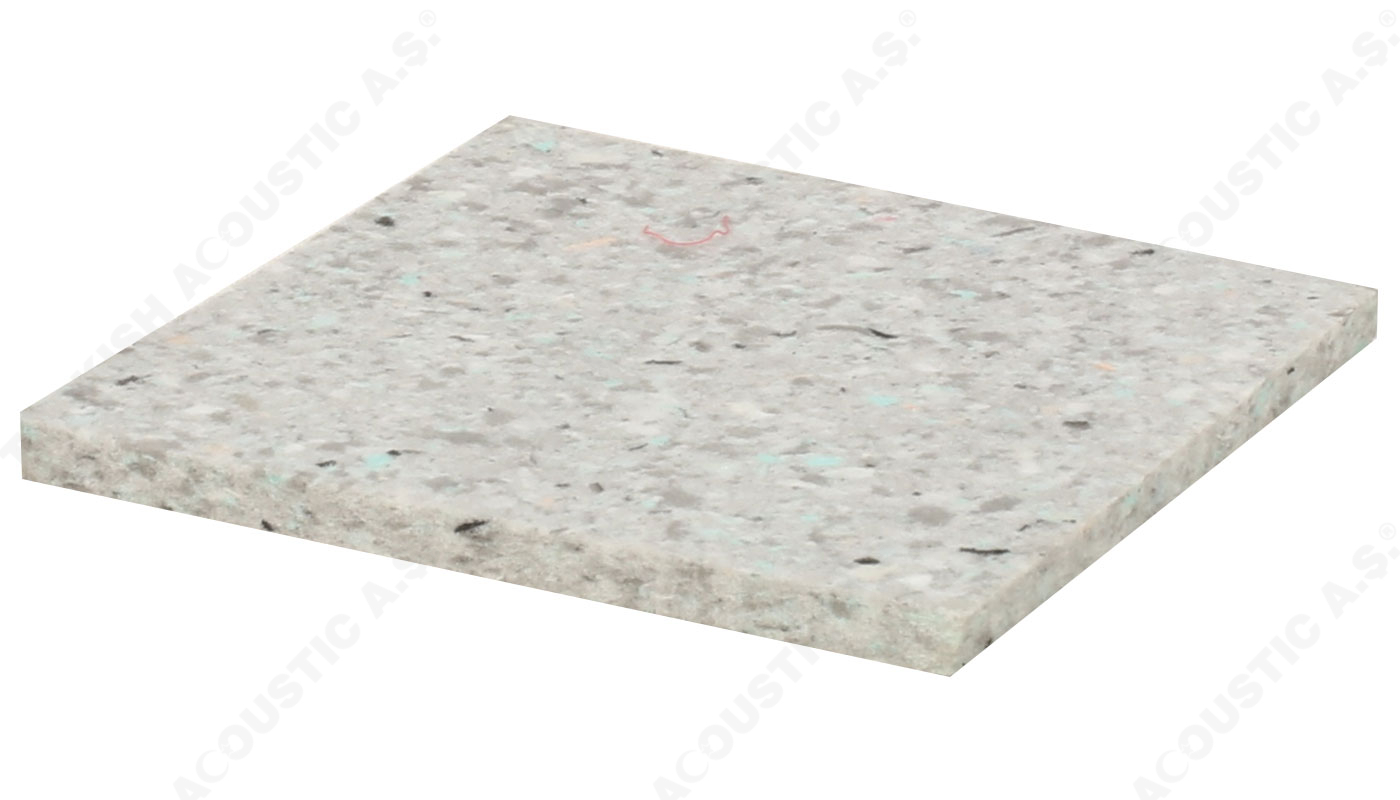

Rebonded Echobone Bondex: Bondex plate sponge, sound-absorbing sponge, sound-absorbing sponges, sound-absorbing sponges, sound-absorbing sponges, sound-absorbing sponge, absorbing acoustic sponge, wall sound insulation, ceiling sound insulation, floor sound insulation, sound insulation, echo insulation, under screed applications. provides sound insulation and insulation. The production of sponge pan panels is sponge panels produced from recycled products of acoustic sponges with granule particles. These sound insulation sponges are produced and sold as a very adepane shaped plate. Our bondex sponge, known as rebonded echobone bondex sponge, is one of the acoustic sound insulation sponges made of acoustic sponge clippings (recycled granule sponge). With TURKİSH BOND Bondex sponges that we produce and sell / export as a company, you complete all insulation applications including ceiling, wall, and floor with an effective and precise result. Bondex Sponge is a complementary soundproofing material, you should also use it in rubber sponge and acoustic sponge. Sound insulation is a system, although not with a single material, you should use these three products, depending on the decibel ratio of the place, one on top of the other in the required thickness. Bondex Sponge recfoam example: You can use bondex adepan with enhanced sound insulation. Brief description of barrier bondex spongepan sponges; It provides superior and high sound insulation by placing Epdm-based heavy rubber sound barrier between two acoustic bondex sponges to increase the loss of sound transmission. First, you should use bondex sponge with a barrier to the surface, then a rubber sponge and acoustic fireproof sponges as finishing material on it. You can find the prices of Bondex sponge from the price list on our homepage.
Rebonded Echobone Bondex Size: 100 cm x 100 cm Slab dimensions, 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 mm for retail sale.
Rebonded Echobone Bondex Package: Bondex sponges 100 cm x 100 cm size plate are sold in 10 packages. 1 Pack 10 m² Sold.
Rebonded Echobone Bondex Color: It is sold as standard in mosaic pattern granule mixed color.
Rebonded Echobone Bondex Usage Area: Music room, studio, generator cabin, radio broadcasting house, gymnasium, entertainment venues.
Production of Rebonded Echobone Bondex: Production of special thickness 50 mm and above is possible. Custom cut to size is possible.
Rebonded Echobone Bondex Non- flammability : Non-flammability and non-flammable. See the fireproof sponges section.
Rebonded Echobone Bondex Density: Standard density is 110 Kg / M³ and it is possible to produce 180 Kg / M³ density upon request.
Note: 30 mm product is between 25 - 30 mm, 40 mm is 35 - 40 mm, and 50 is in thicknesses with tolerances between 45 - 50 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Bondex acoustic sponges are in the form of 100 cm x 100 cm plates, and their packages contain 10 plates, 10 m² of products. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
