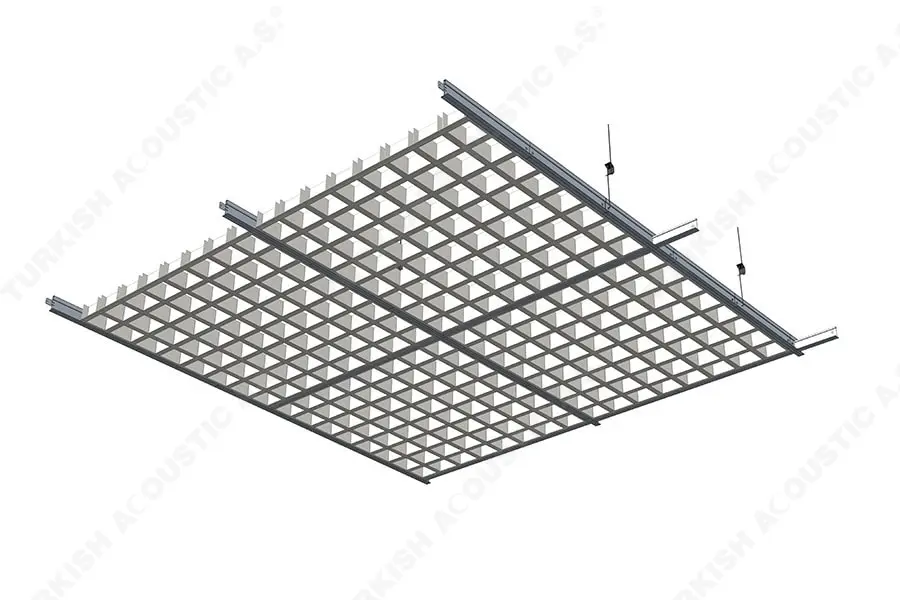

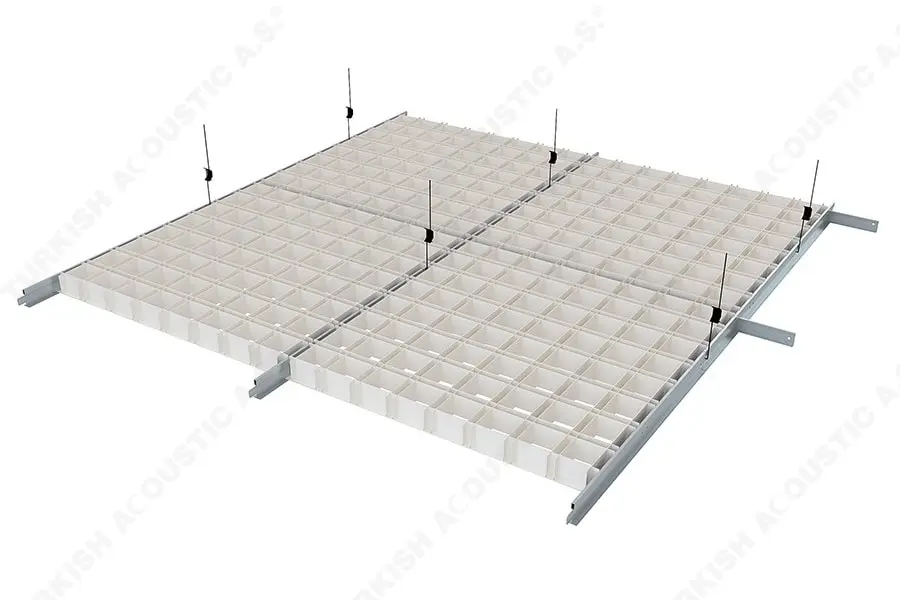

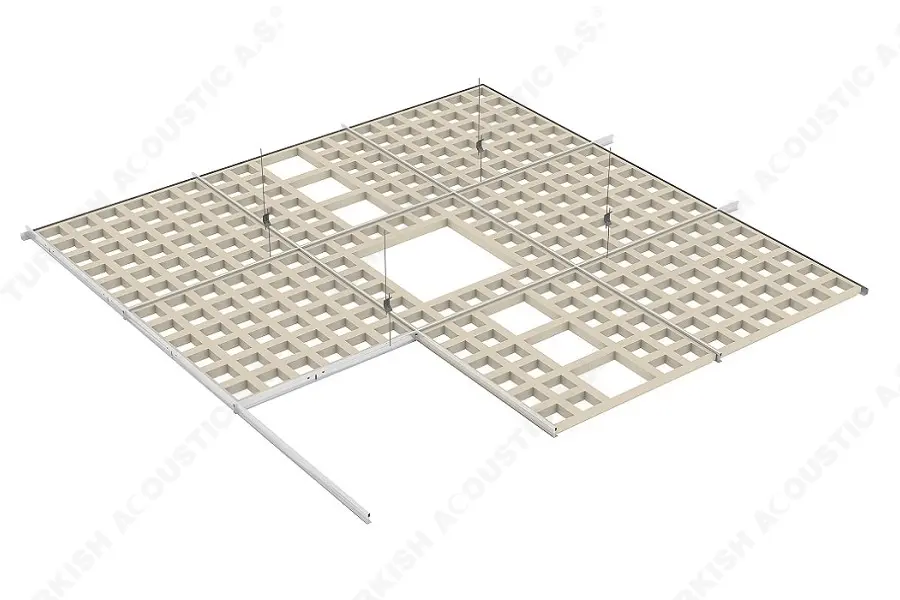

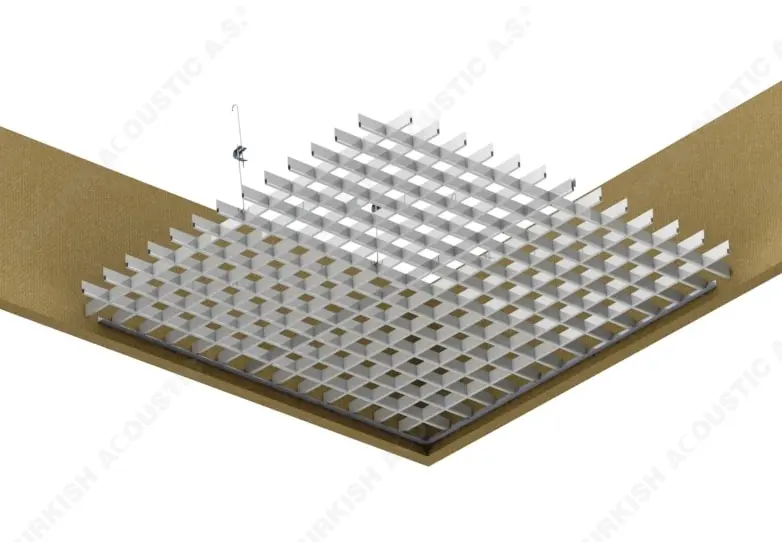

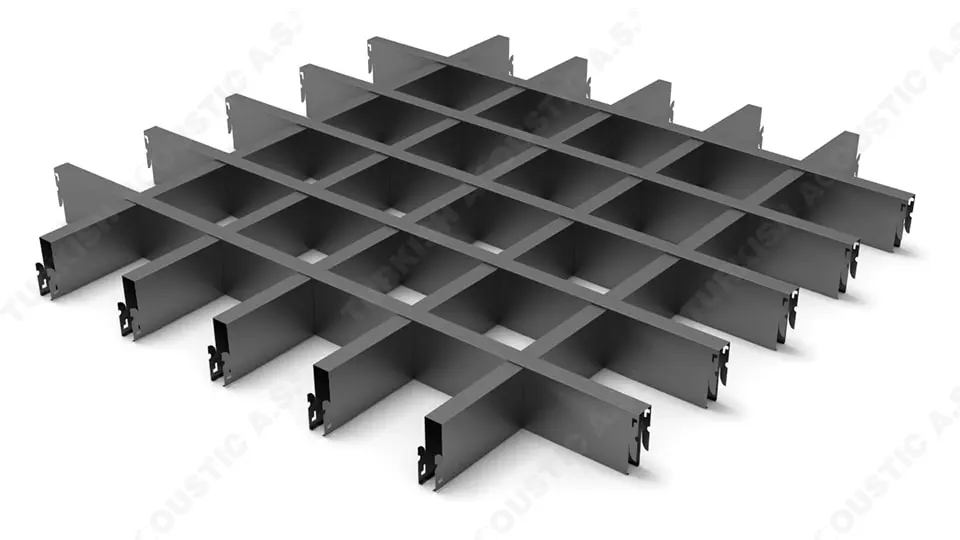

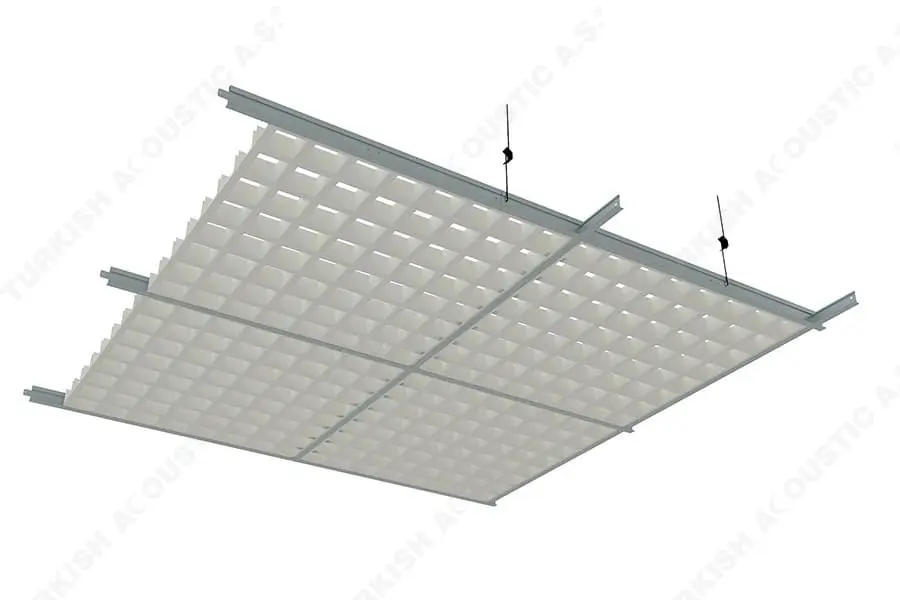

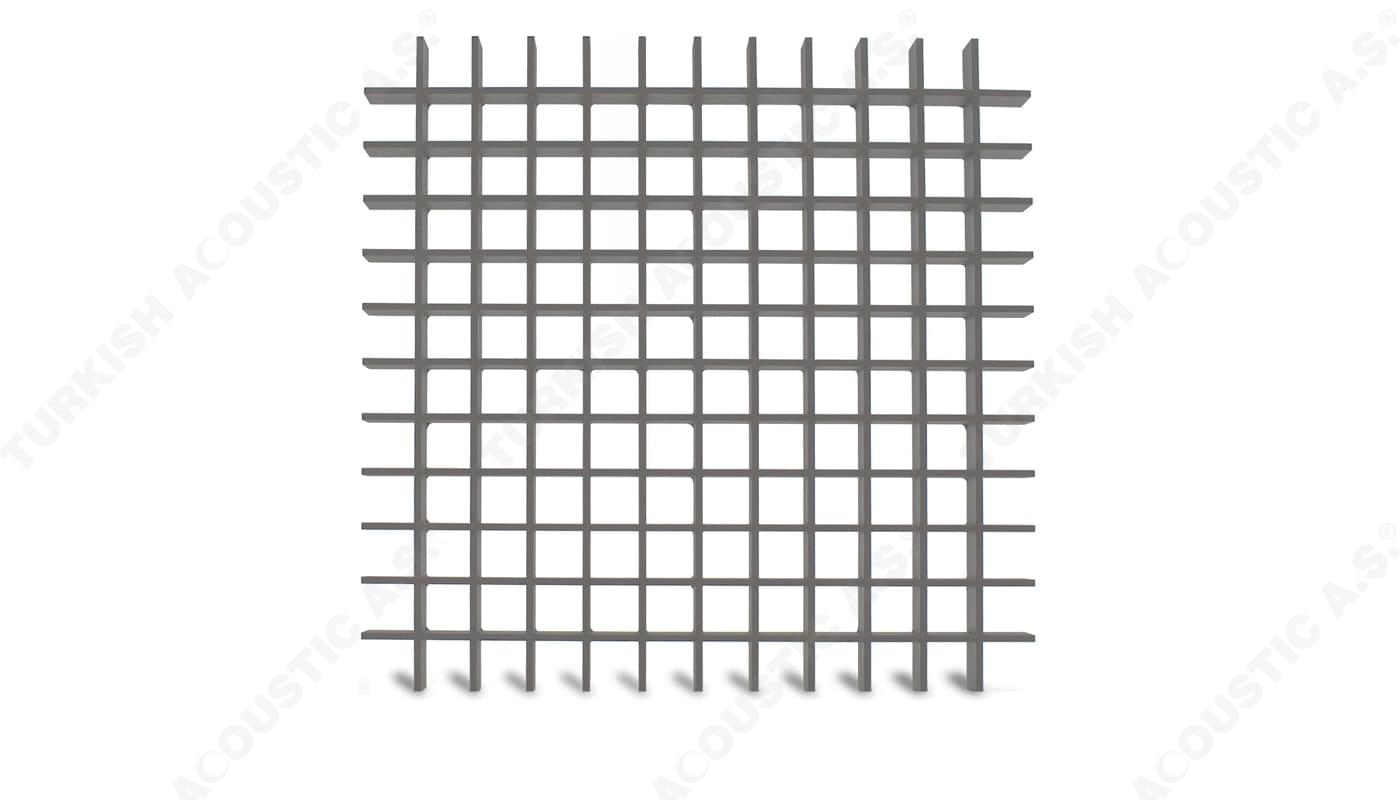

Aluminum Honeycomb Suspended Ceiling Description: T15 carrier system which is used in the honeycomb suspended ceiling is produced in the same color and the same size to provide an uninterrupted view. The suspended ceiling carrier system is assembled by applying the classic 3600 mm, 1200 mm, and 600 mm T15 profiles to the suspended ceiling with steel dowels, galvanized slings, dual springs, and edge L profile. Acoustic Isolation: 600 x 600 mm size panels can be applied with fragmentary black acoustic fabric or with fabric in a roll. It is also possible to apply isolation materials like fiberglass and rock wool to the panel.
Metal Type of Honeycomb Panel: Aluminum and mixture of galvanized steel

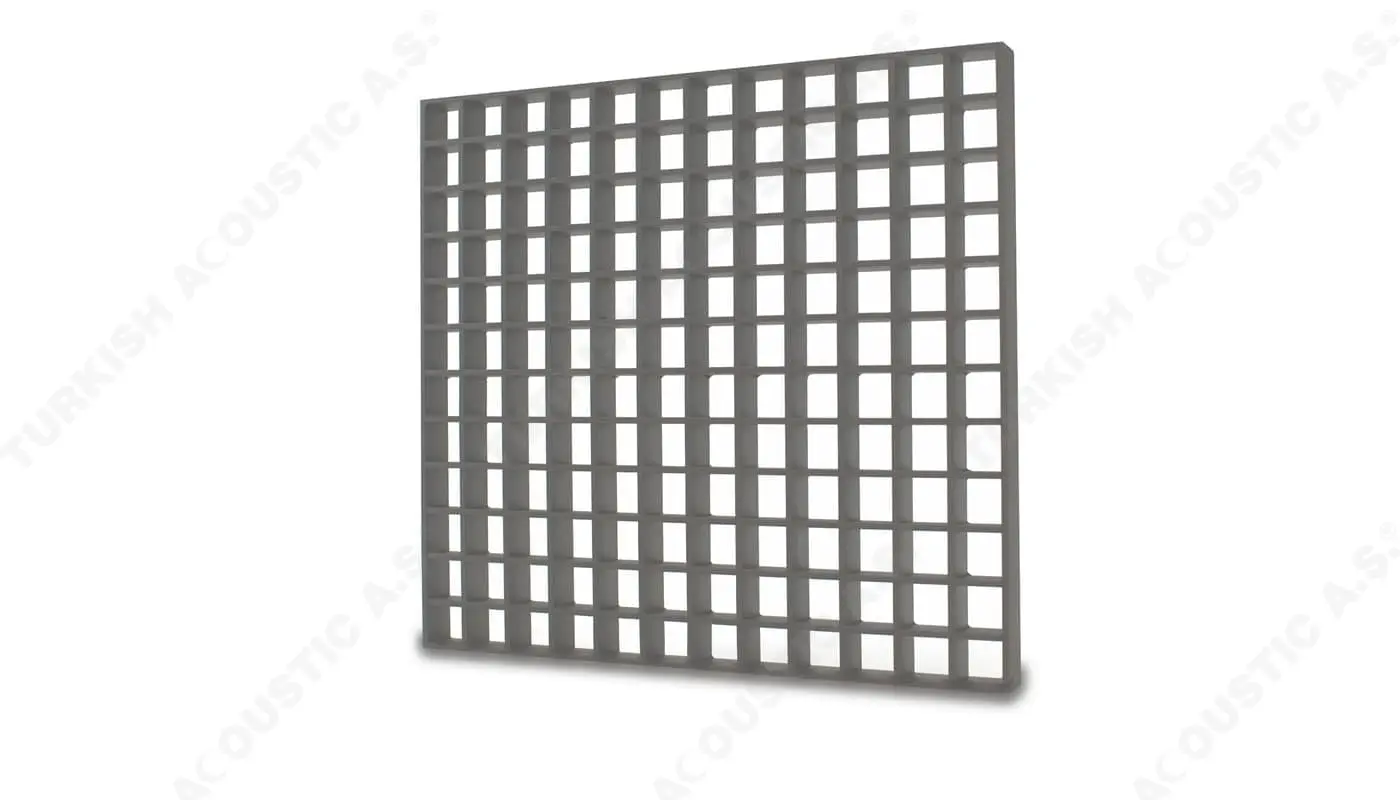

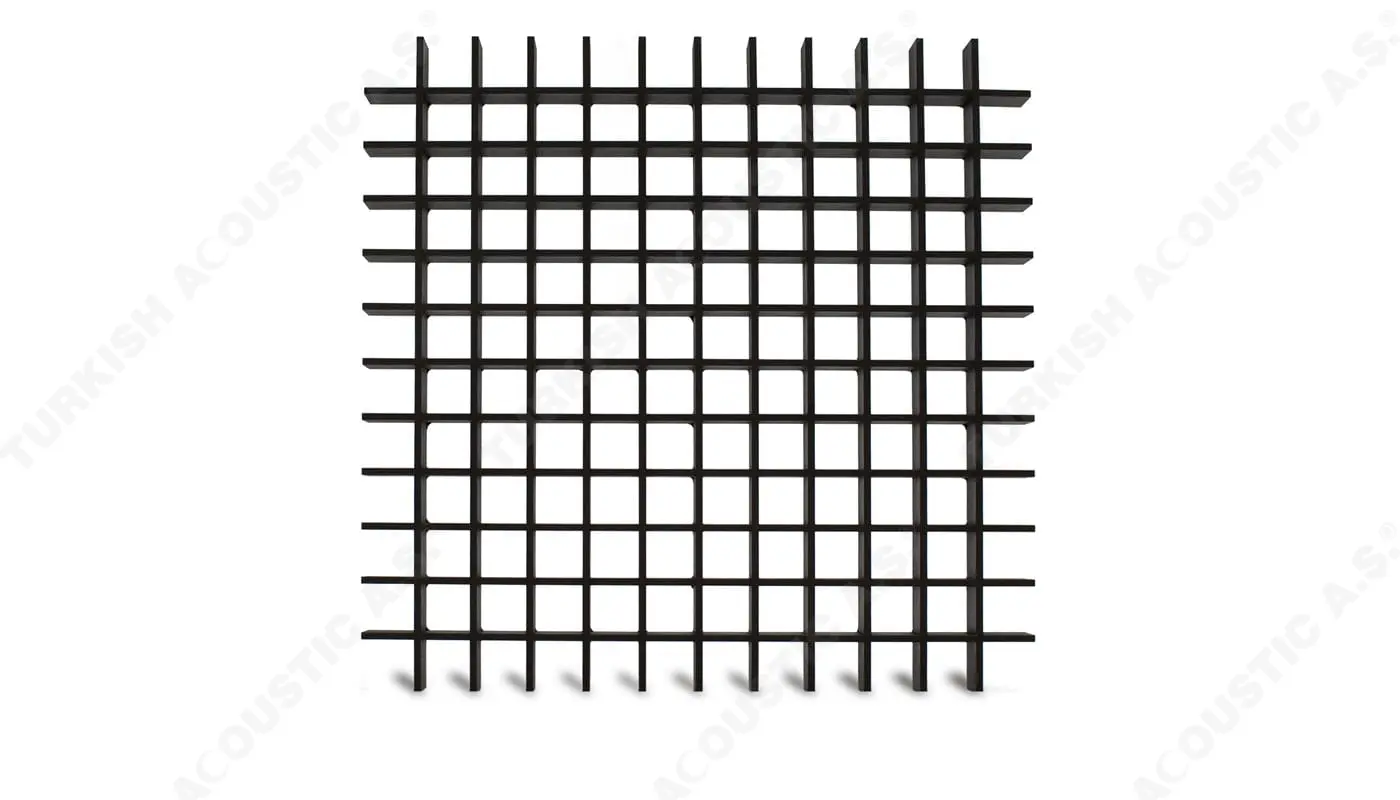

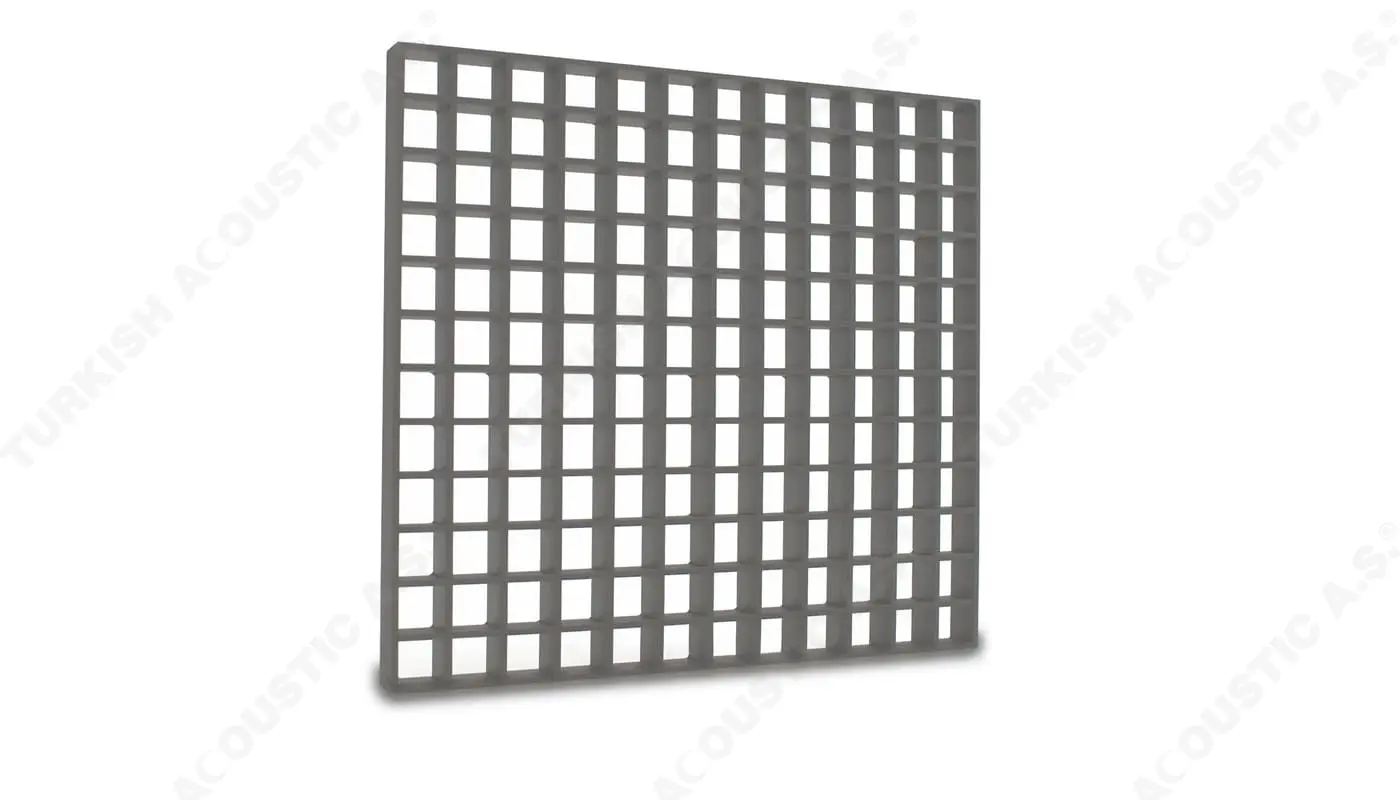

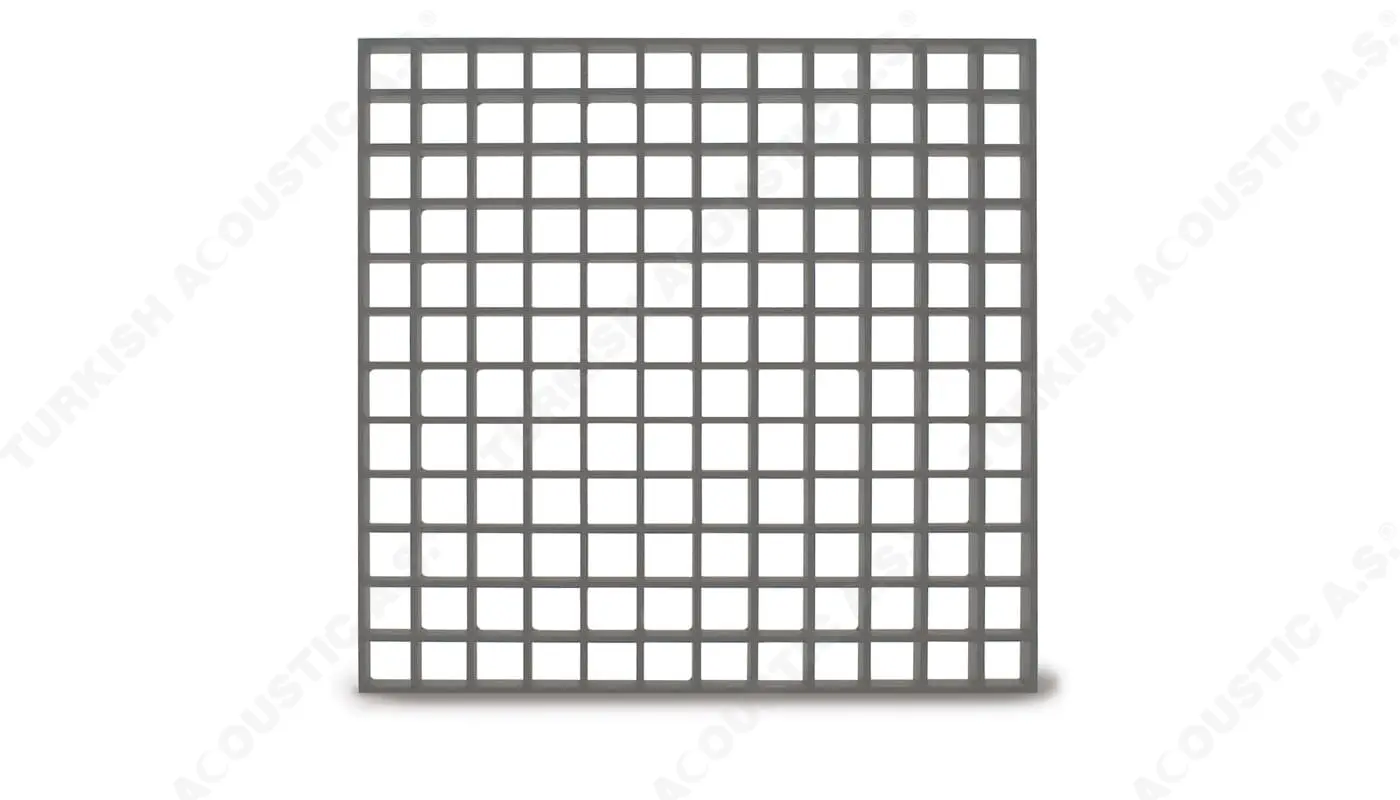

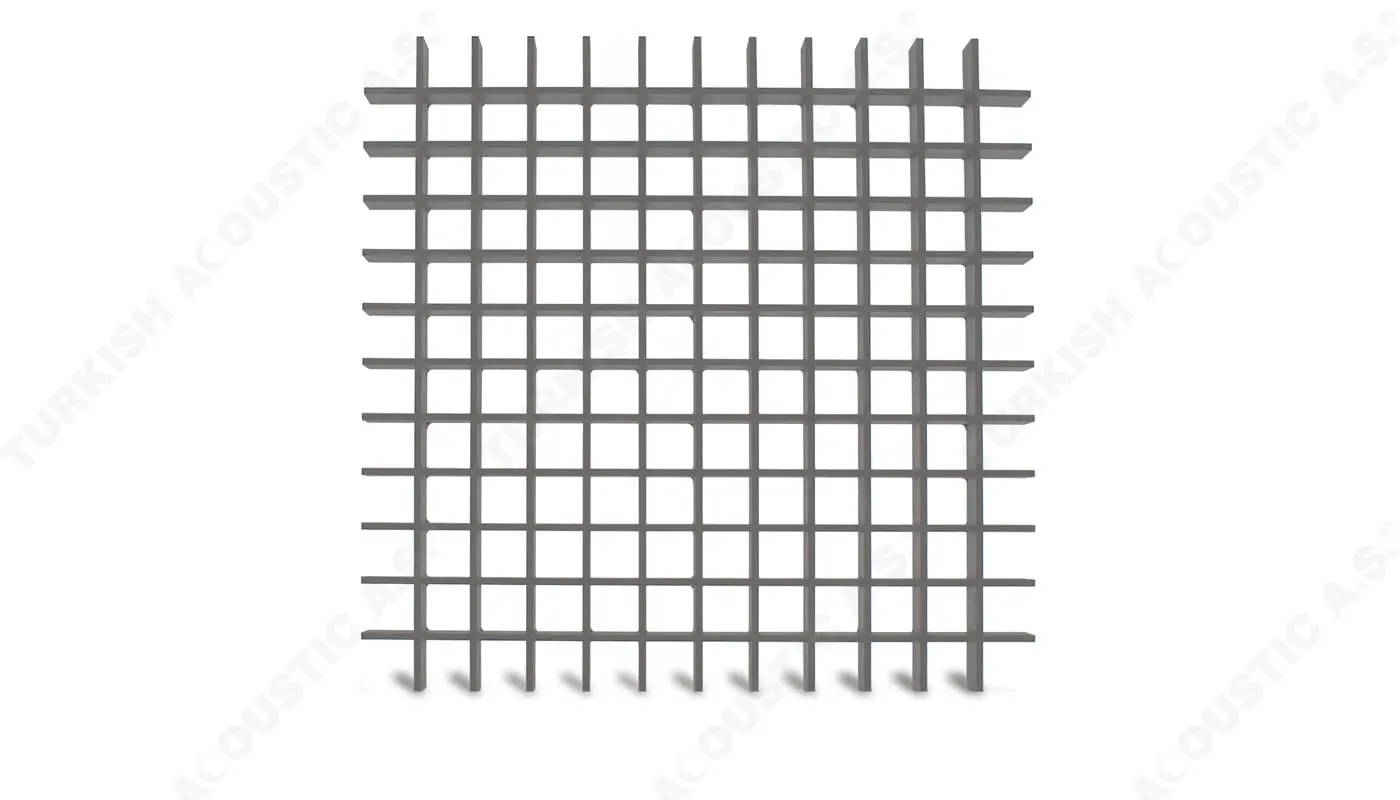

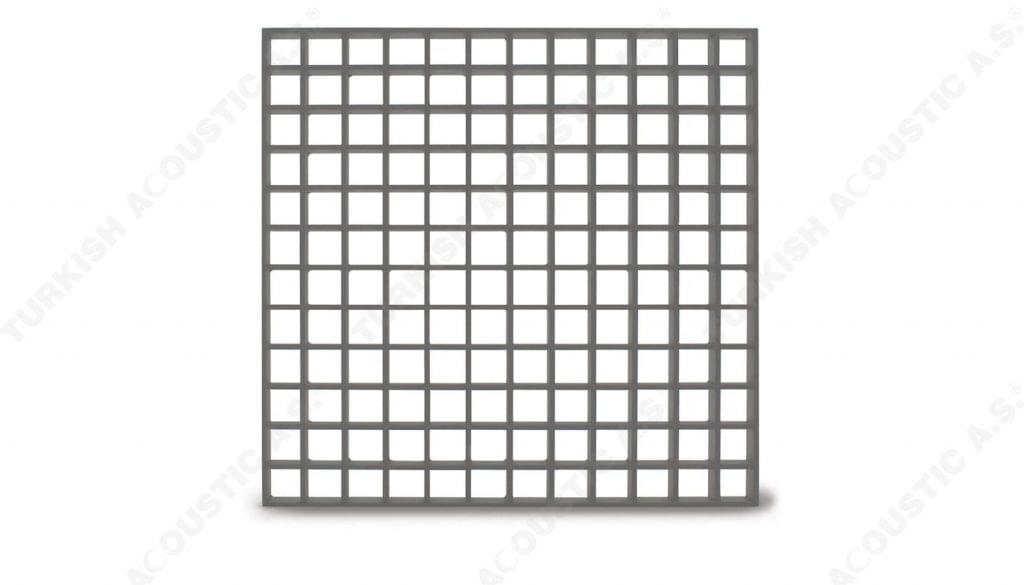

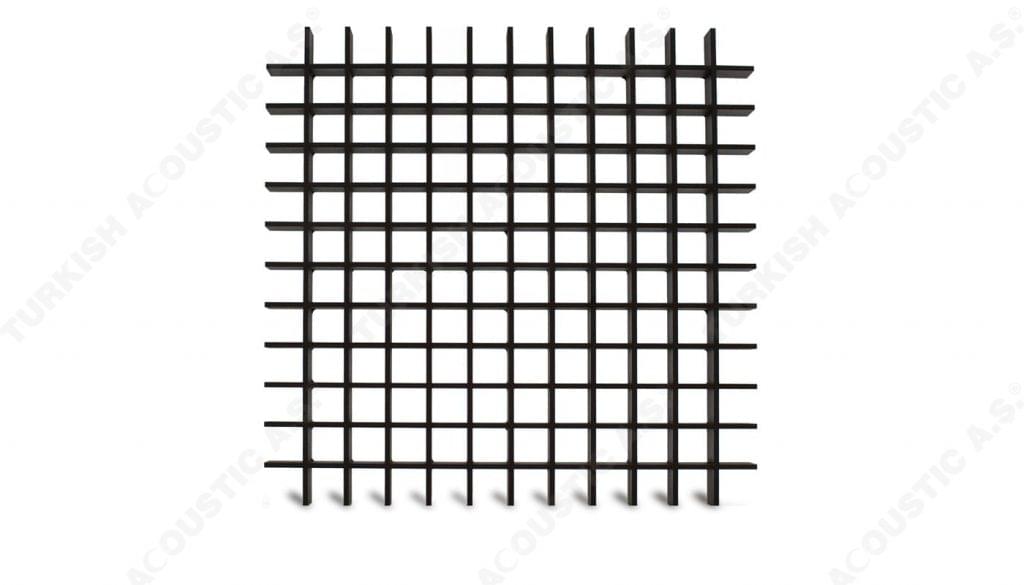

Honeycomb Panel Dimensions: 50 mm x 50 mm,75 mm x 75 mm,100 mm x 100 mm,150 mm x 150 mm, 200 mm x 200 mm

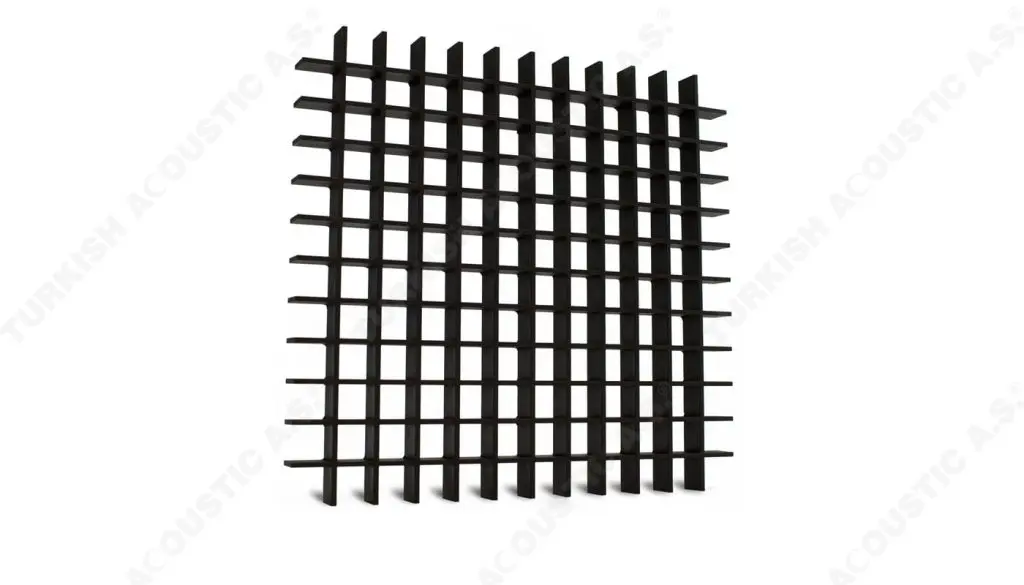

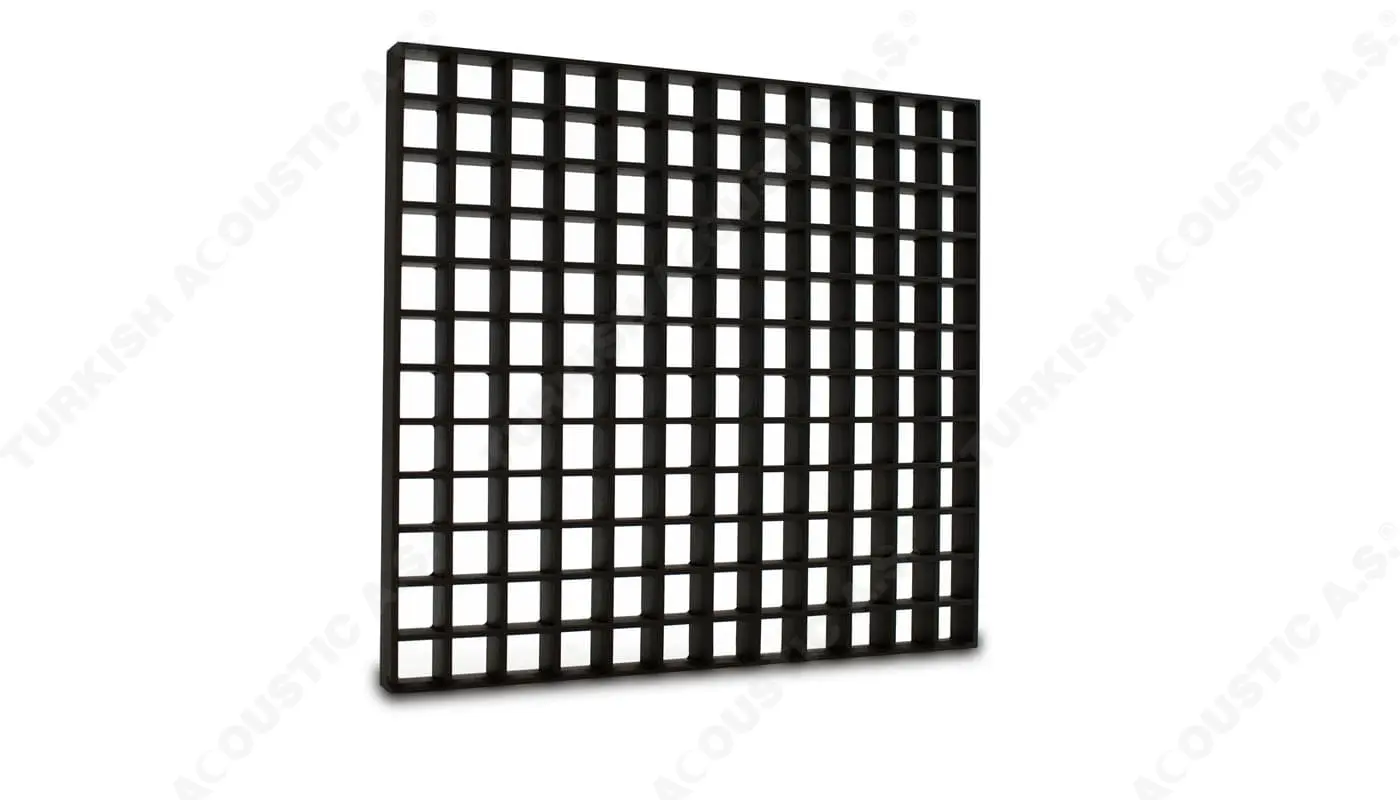

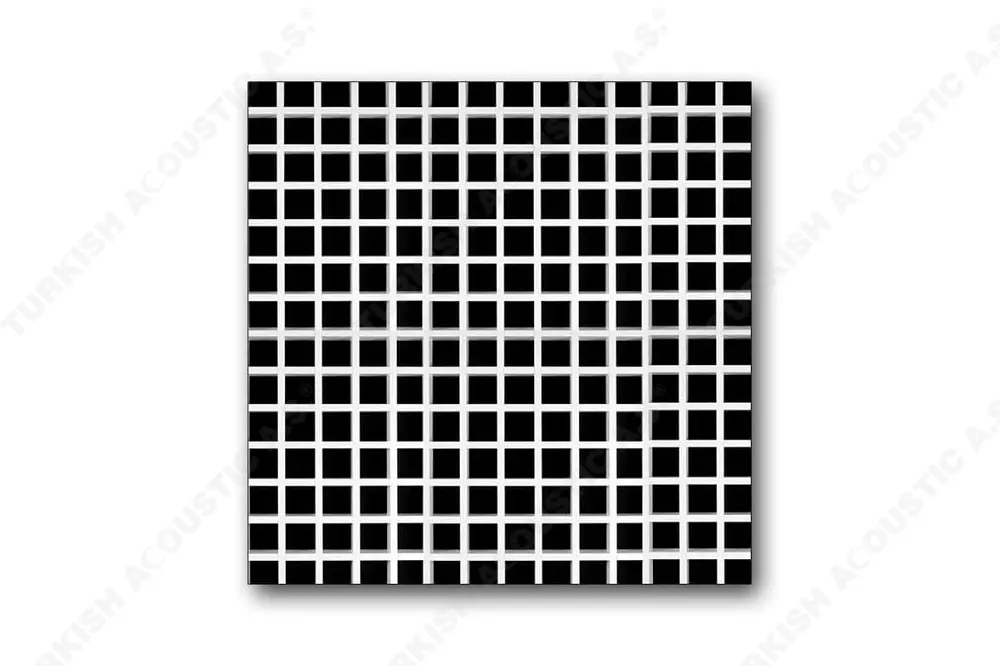

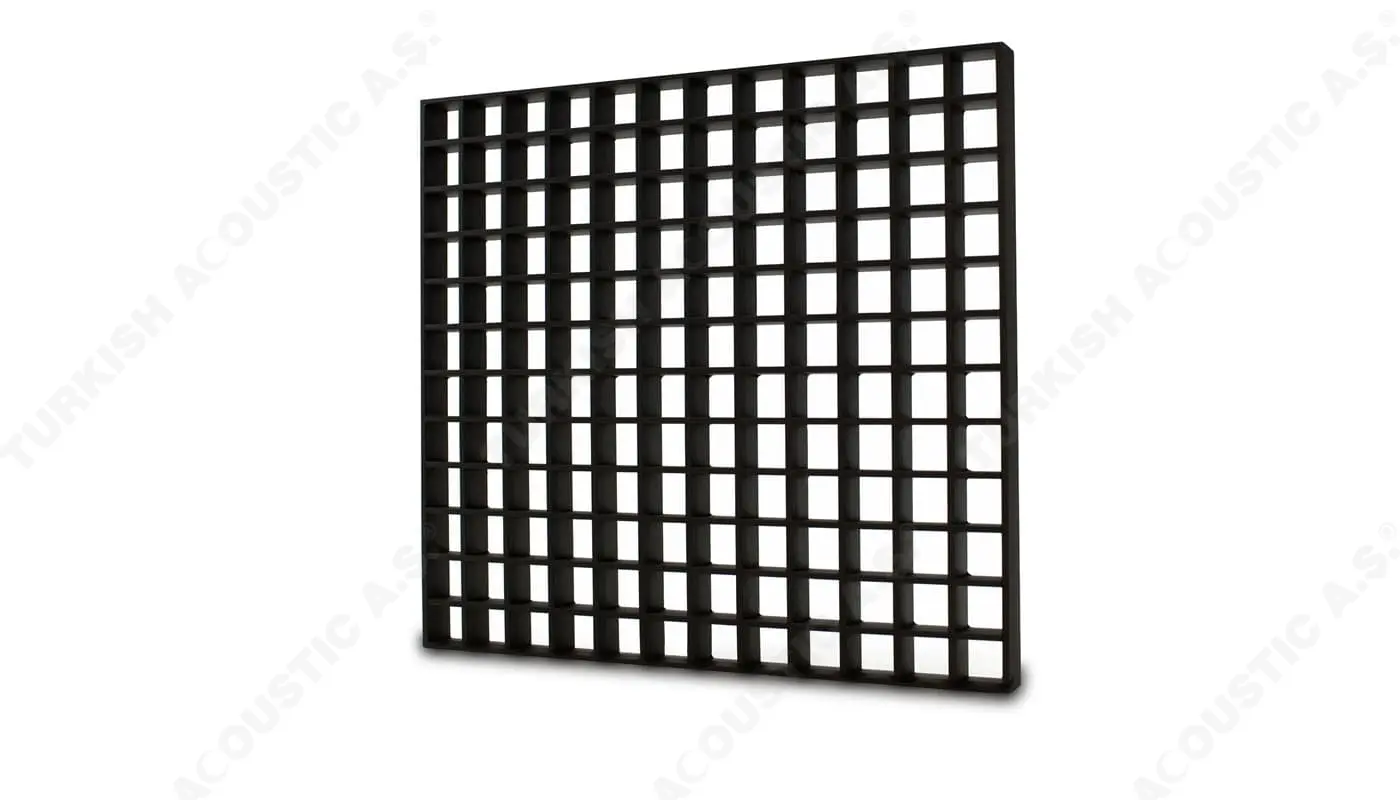

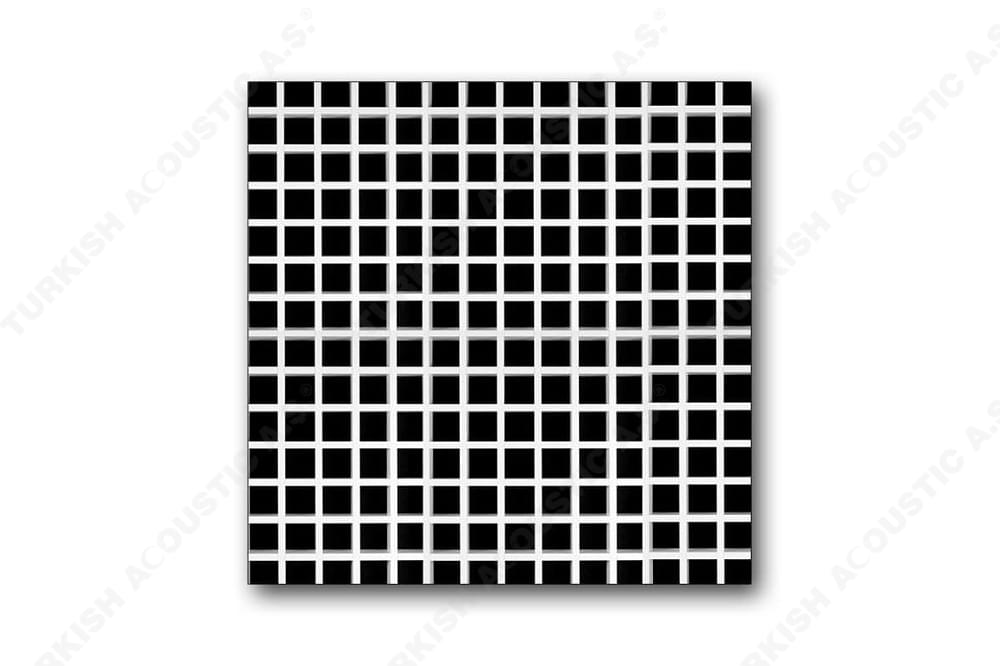

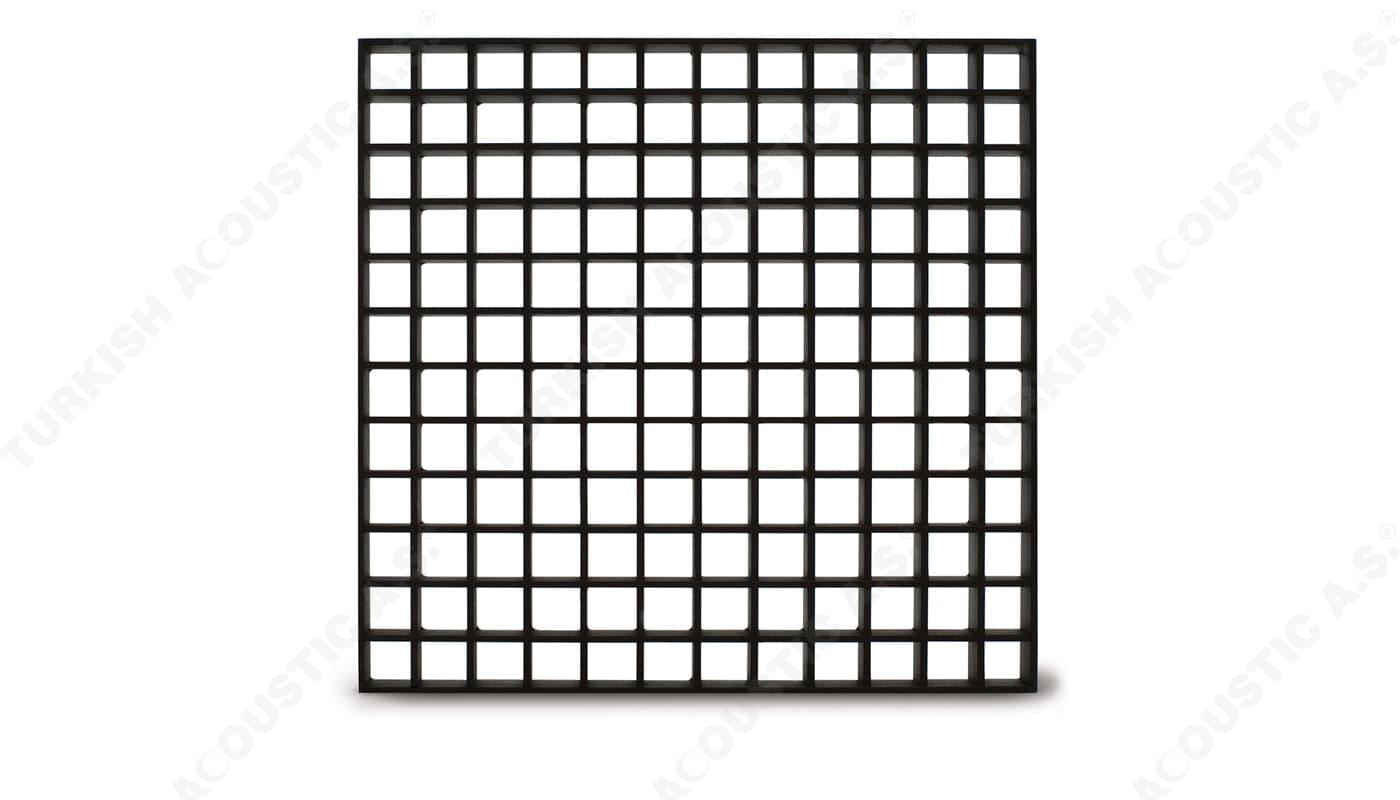

Honeycomb Panel Color Variations: RAL 9005 black, RAL 9010 white, RAL 9006 metallic grey, and RAL and wooden-like are options are available.
Honeycomb Properties: Honeycomb Suspended Ceiling Systems are recyclable and hide unwanted hardware (aeroducts, plumbing, mechanical and electrical installations, etc.). Suspended panels do not contain any mycose or bacteria and they can be cleaned with the wipe method. It is easy to mount and dismount them. They can be applied easily. They are lightweight and do not place a burden on the ceiling. Panels can be produced in requested thicknesses (0,30 mm - 0,70 mm). Patterns and colors can be applied as requested. Panels are painted with polyester oven-dying and are dried. They appeal to the eye and creates a flawless decoration.

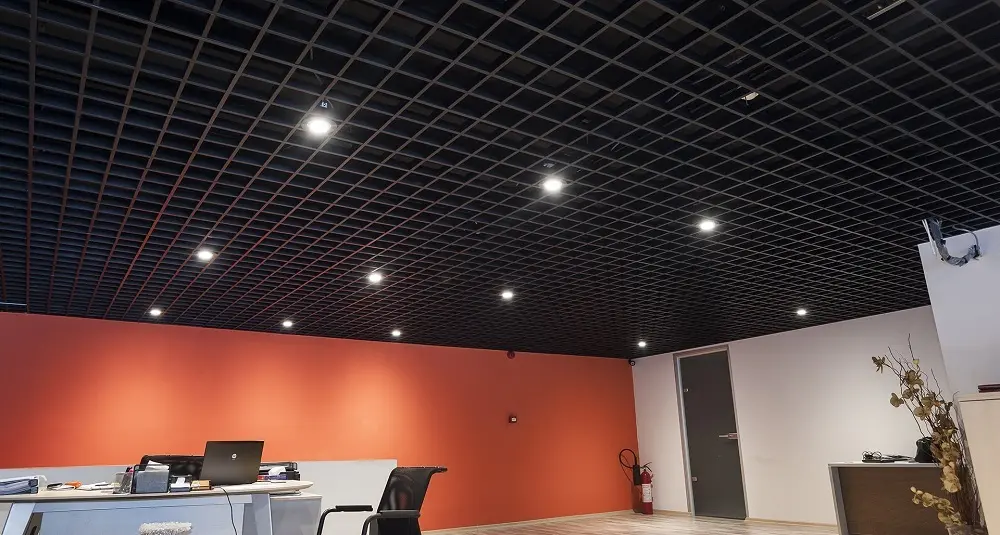

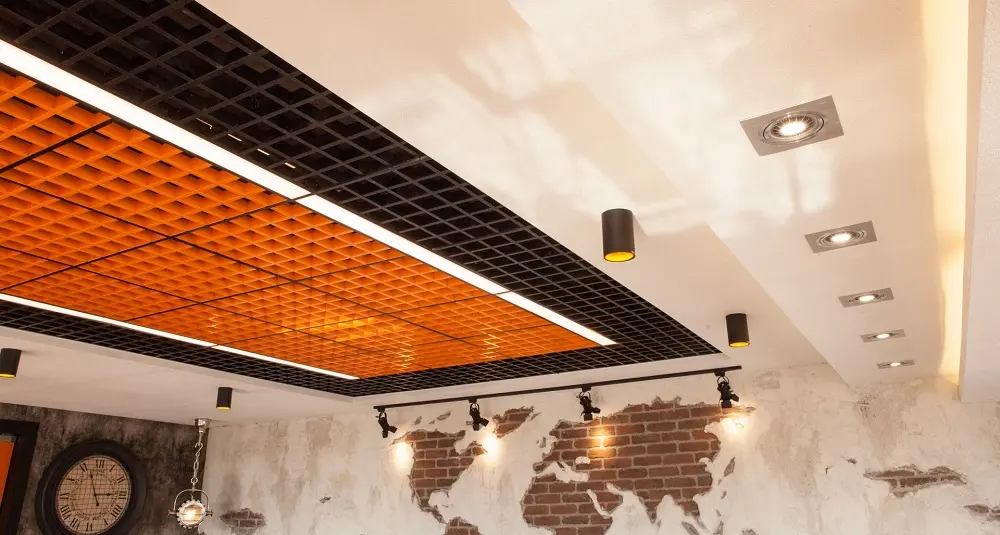

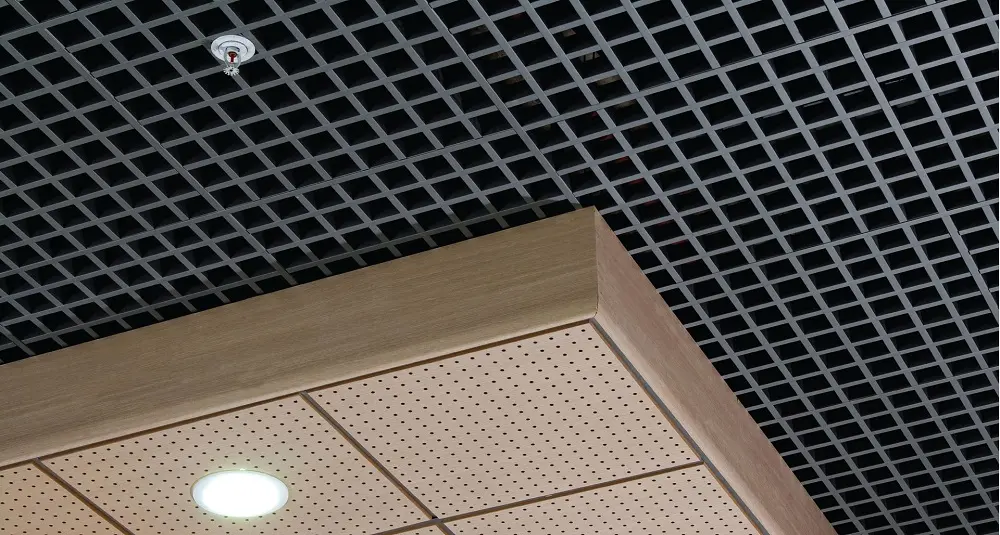

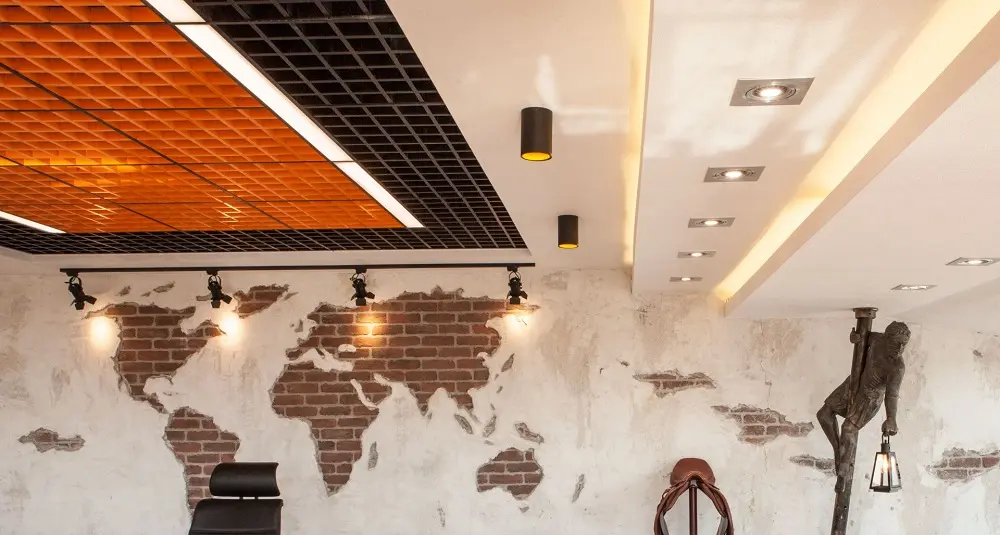

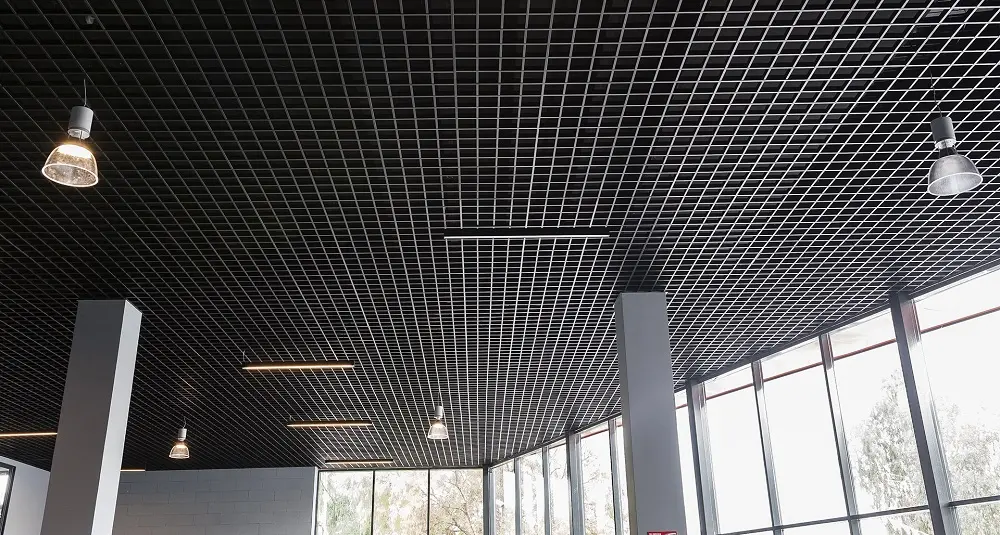

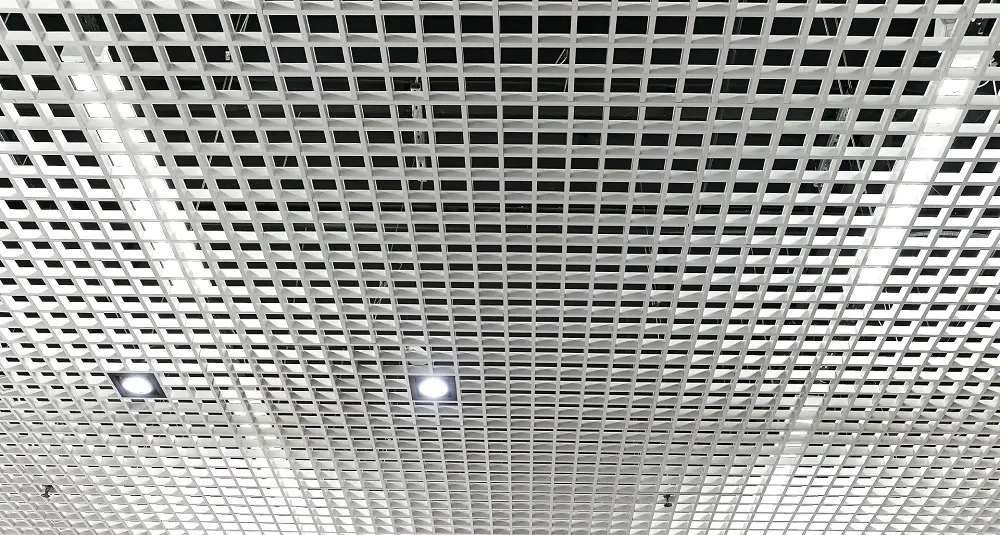

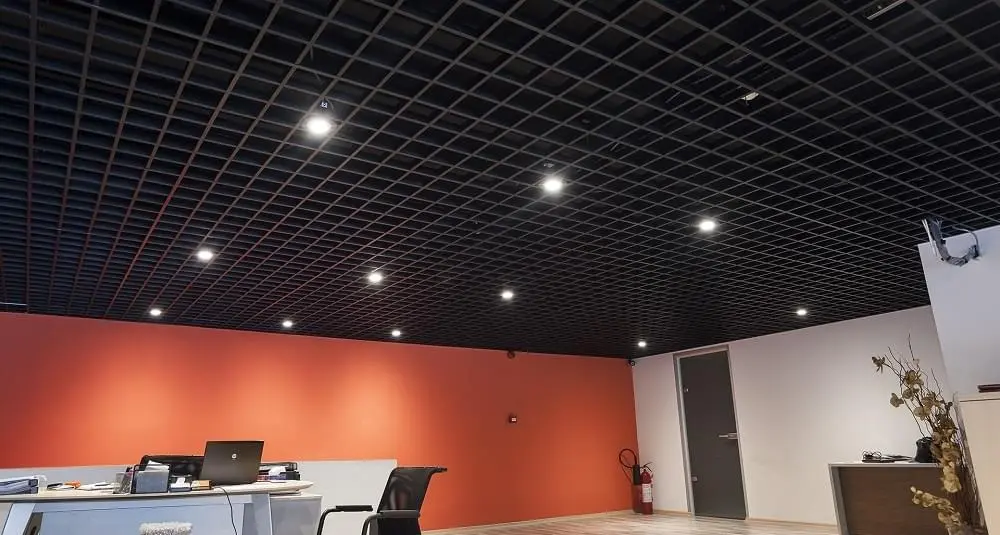

Square Honeycomb Suspended Ceiling Illumination and Sound Systems: For that, the carrier system is made with a T15 profile system, it is possible to use armatures in standard sizes 4x18W or similar illumination armatures. Due to the structure of the honeycomb suspended ceiling, it is also possible to put illumination behind or to create beautiful visual effects or hidden illumination by using special size spot armature inside available 50x50, 60x60, 75x75, 100x100 sizes. An uninterrupted ceiling view is provided by putting a loudspeaker system on top of the panels and putting a fire-extinguishing system in interstitial spaces. Honeycomb panels are completely non-flammable and do not contribute to the fire thanks to their aluminum structure. Square panels allow a large amount of smoke to pass through their wide spaces and give an important advantage for emergency exits which are very important during a fire.

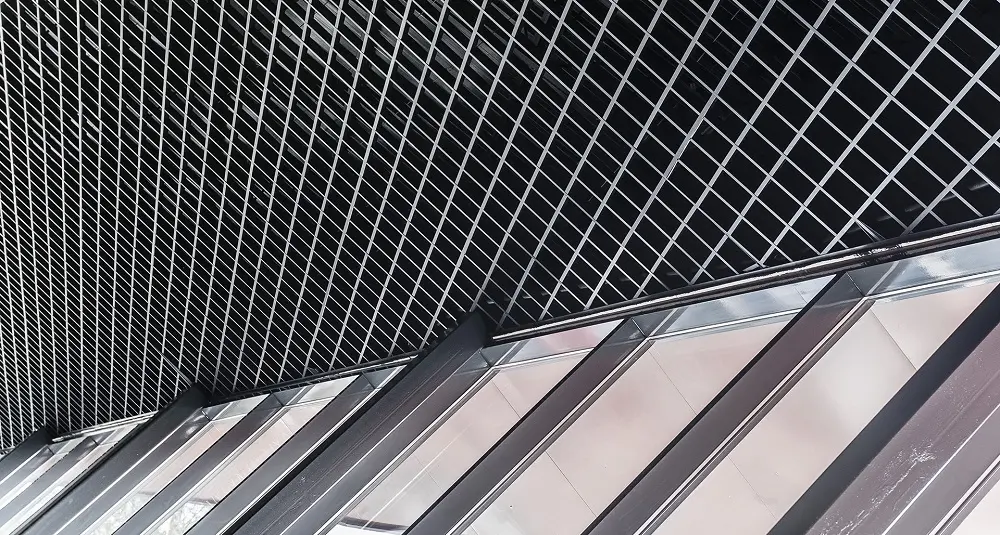

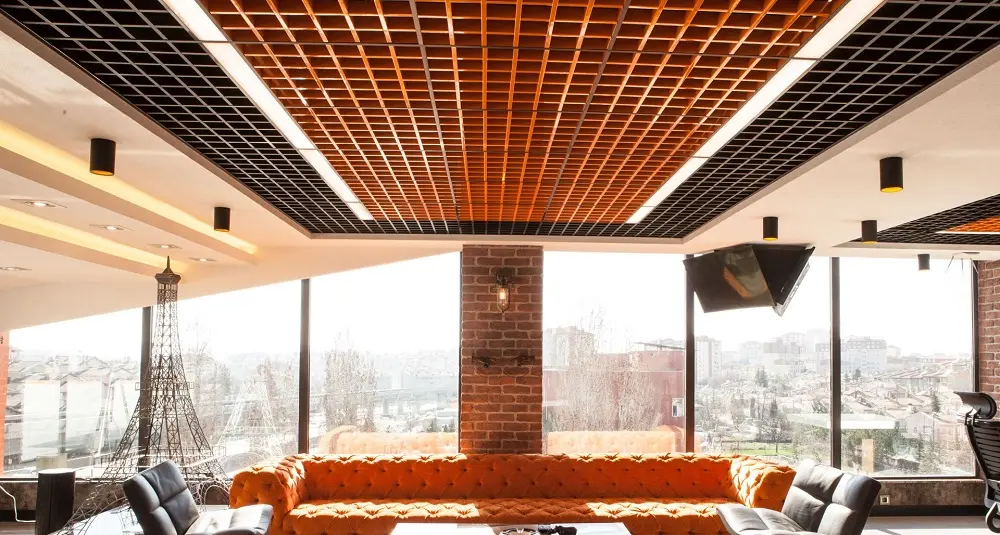

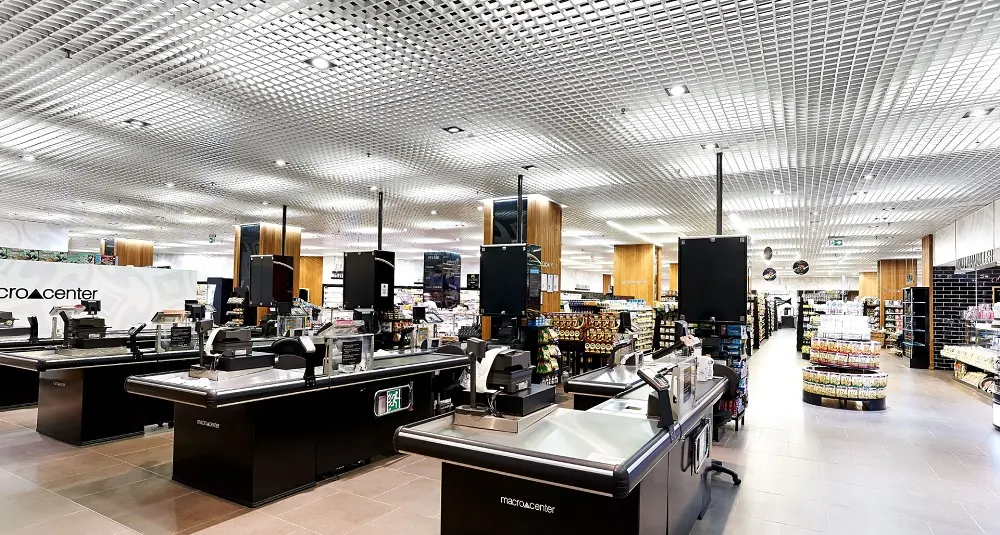

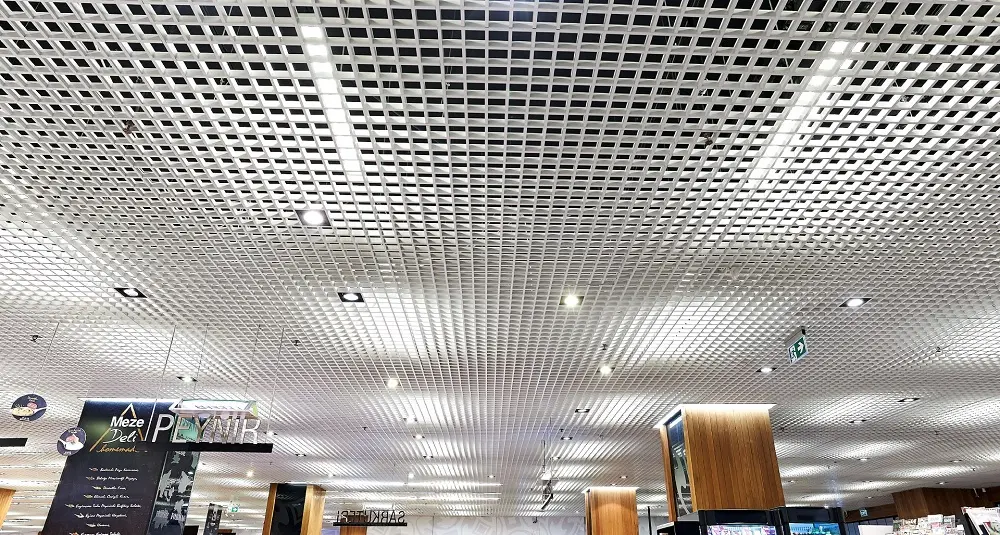

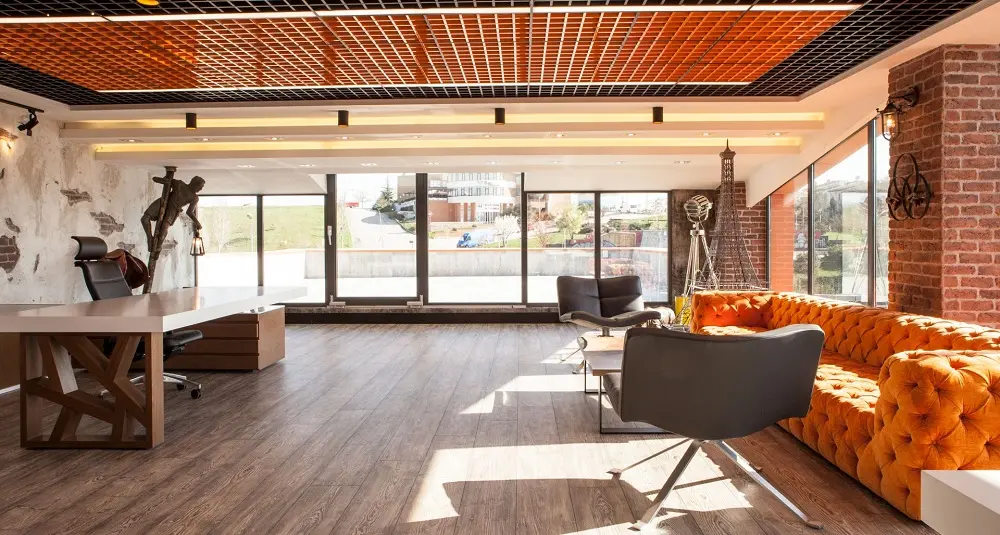

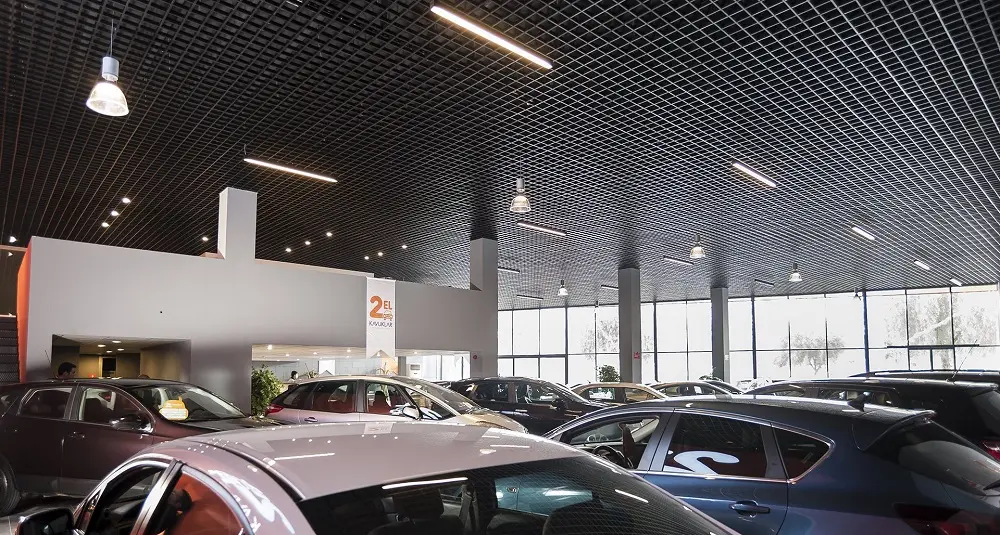

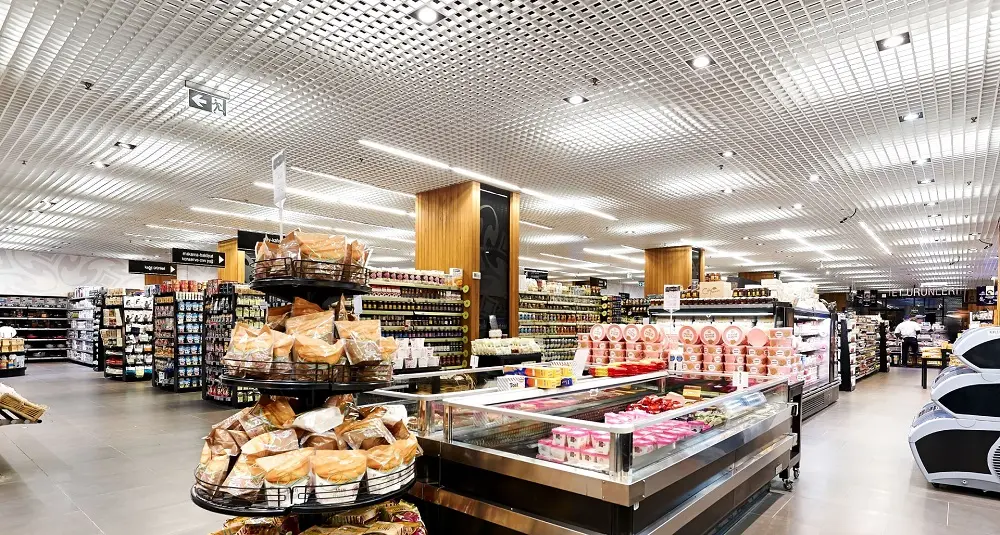

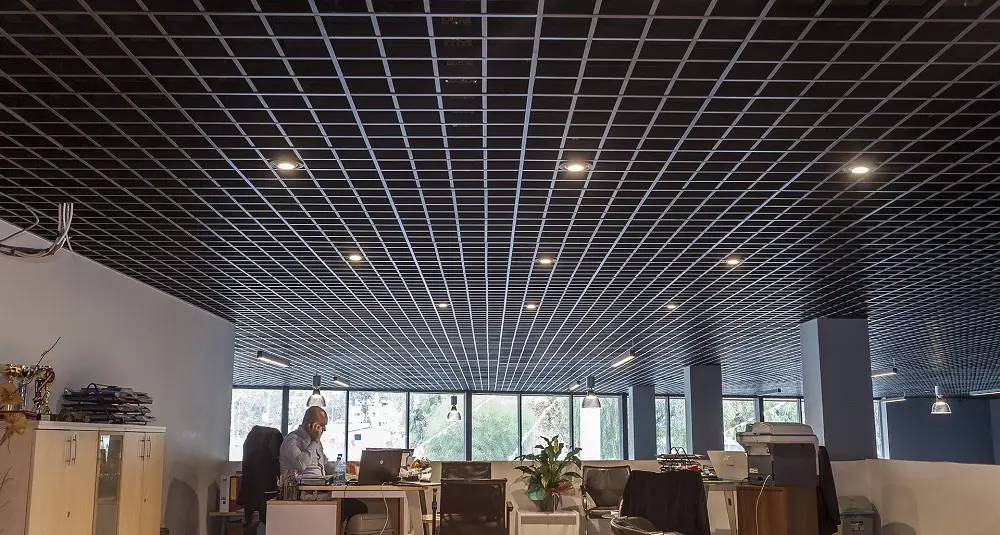

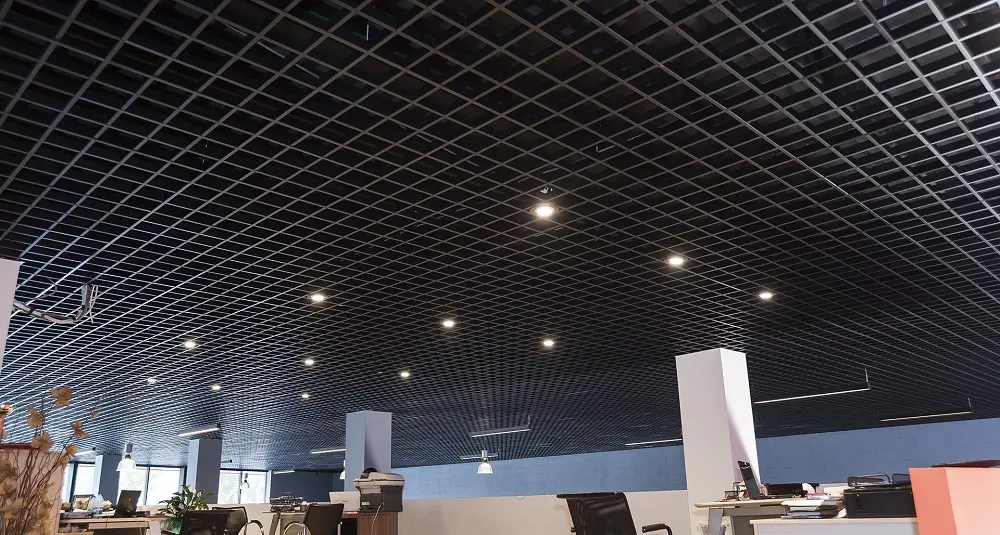

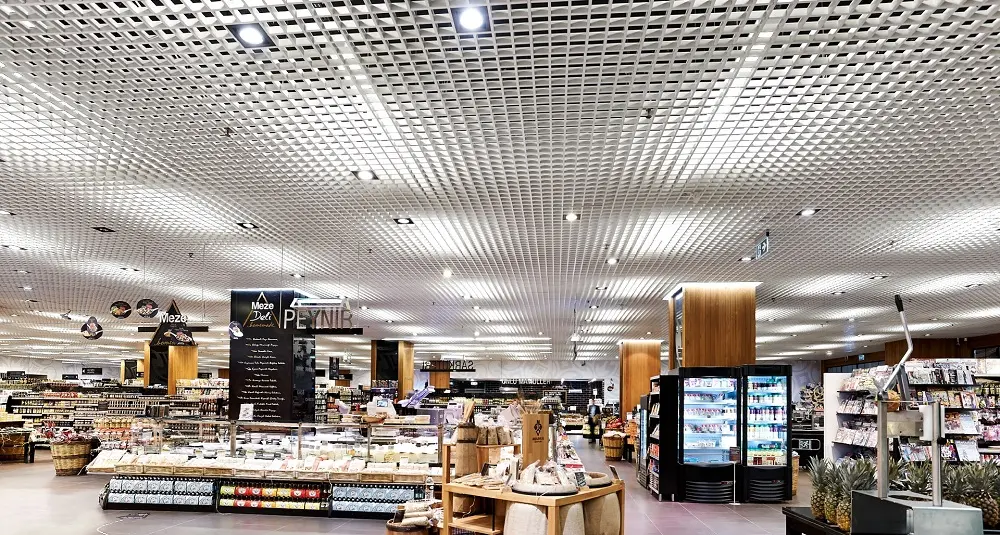

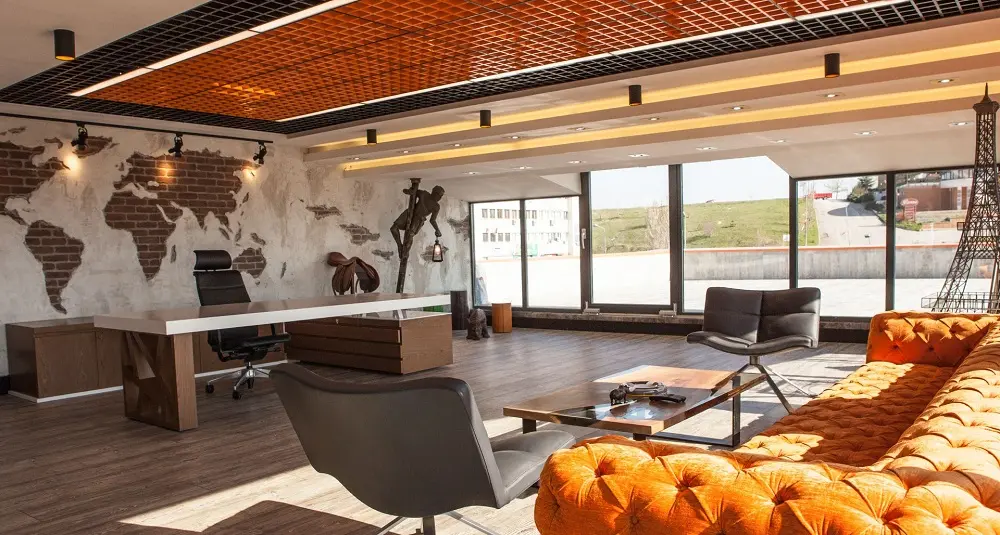

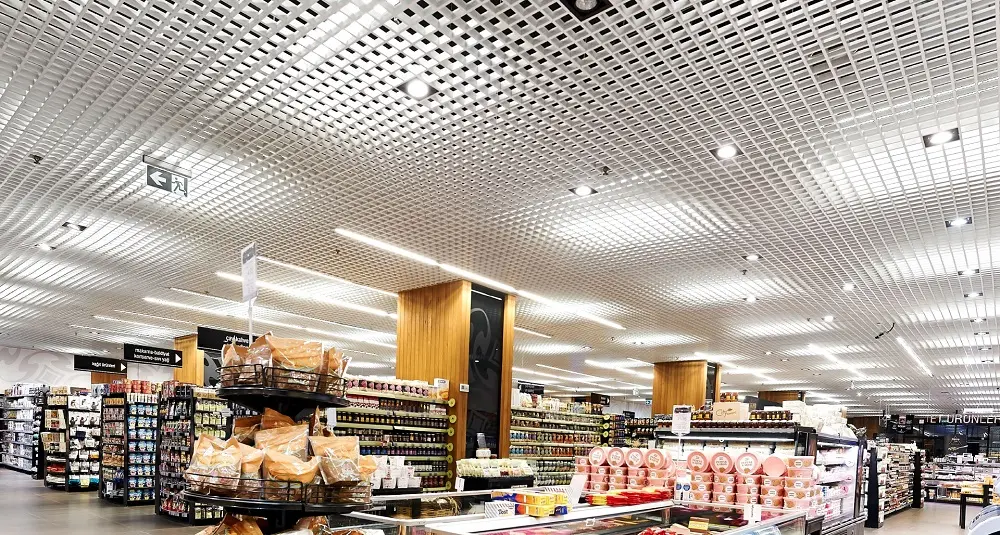

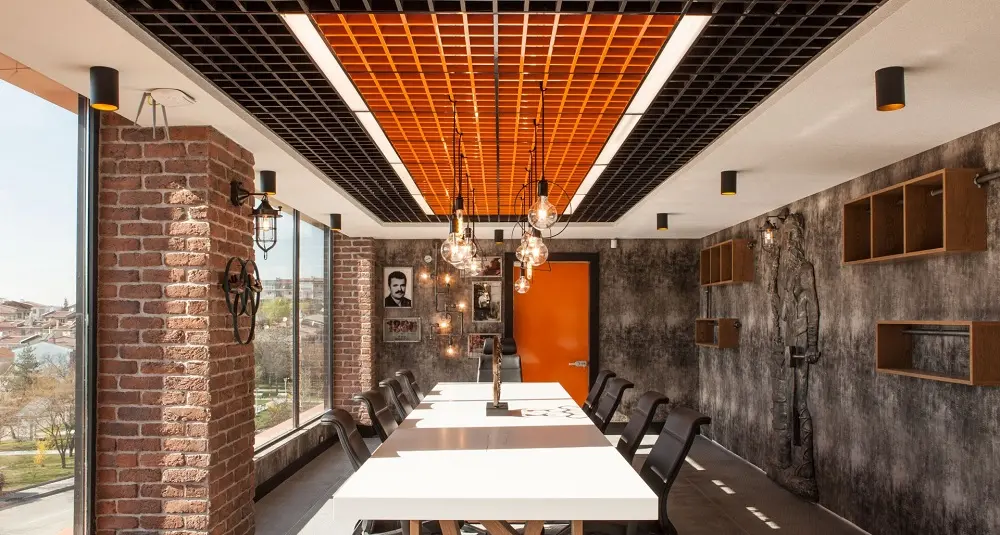

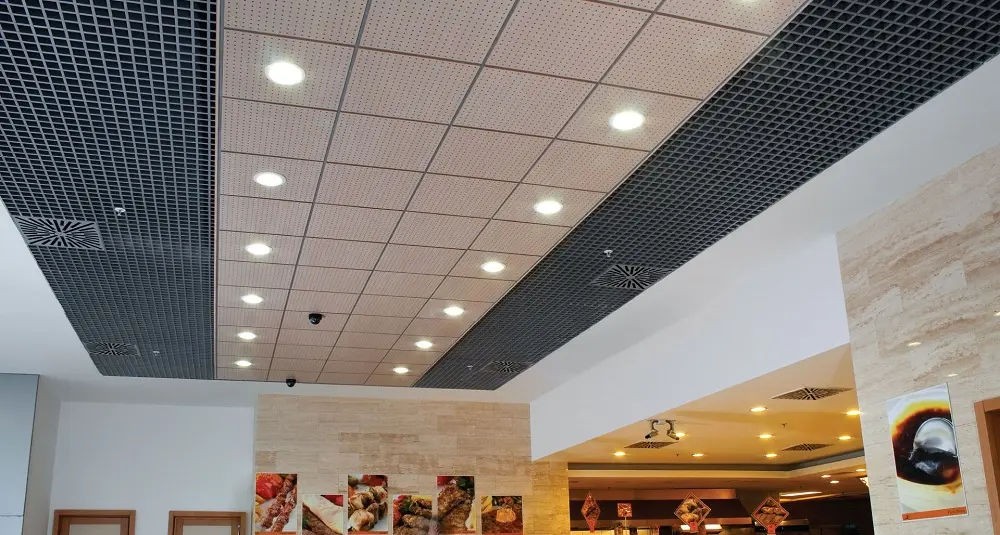

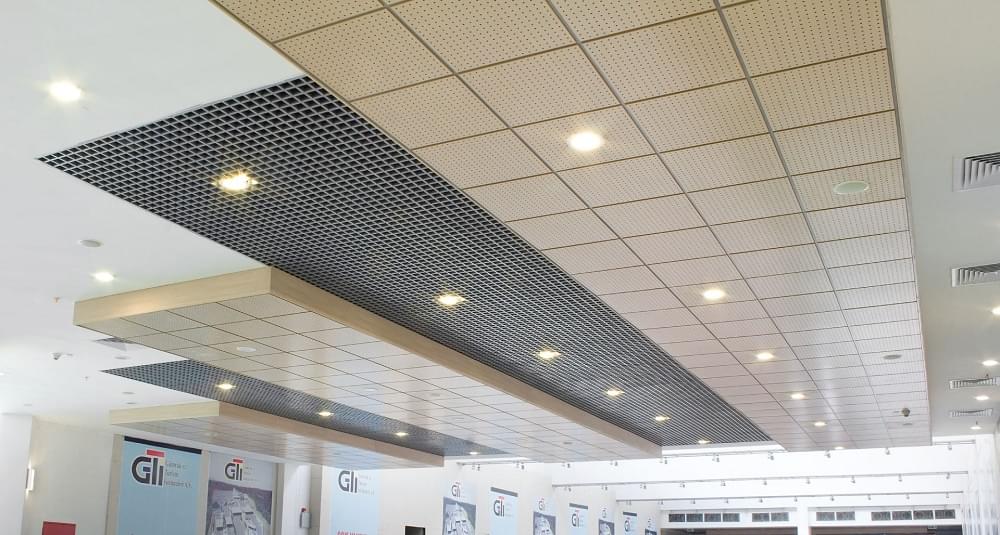

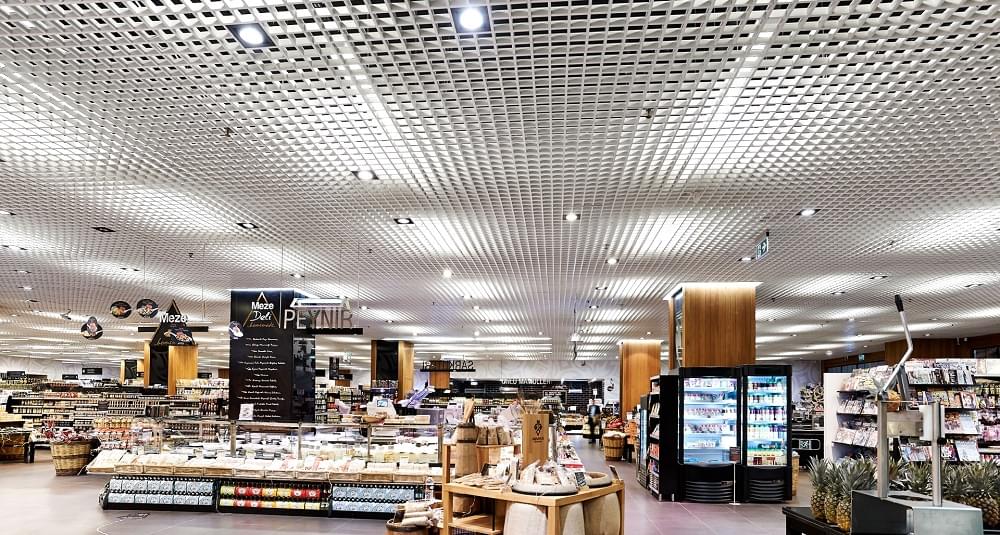

Square Honeycomb Suspended Ceiling Area of Usage: Honeycomb suspended ceilings contribute a different visual and atmosphere to the environment. They can be easily used in airports, offices, and shopping centers by bringing the freedom of design.
Square Honeycomb Suspended Ceiling Options: Honeycomb Suspended Ceiling Systems are recyclable and hide unwanted hardware (aeroducts, plumbing, mechanical and electrical installations, etc.). Suspended panels do not contain any mycose or bacteria and they can be cleaned with the wipe method. It is easy to mount and dismount them. They can be applied easily. They are lightweight and do not place a burden on the ceiling. Panels can be produced in requested thicknesses (0,30 mm - 0,70 mm). Patterns and colors can be applied as requested. Panels are painted with polyester oven-dying and are dried. They appeal to the eye and creates a flawless decoration.

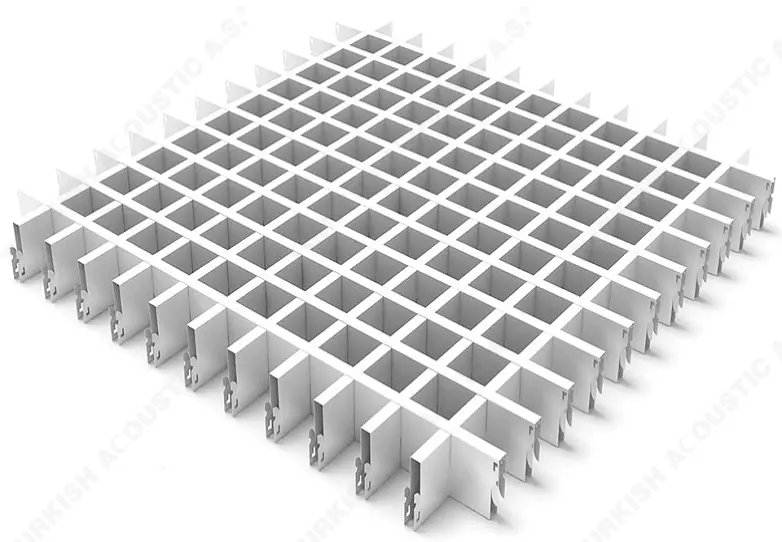

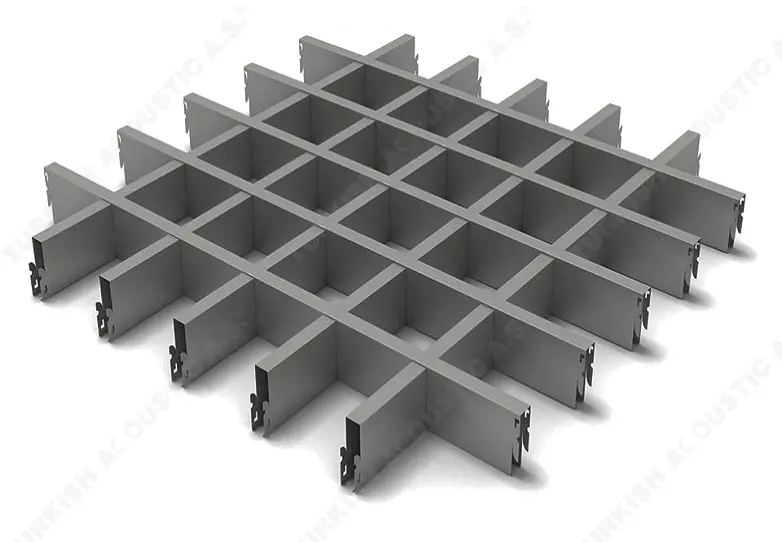

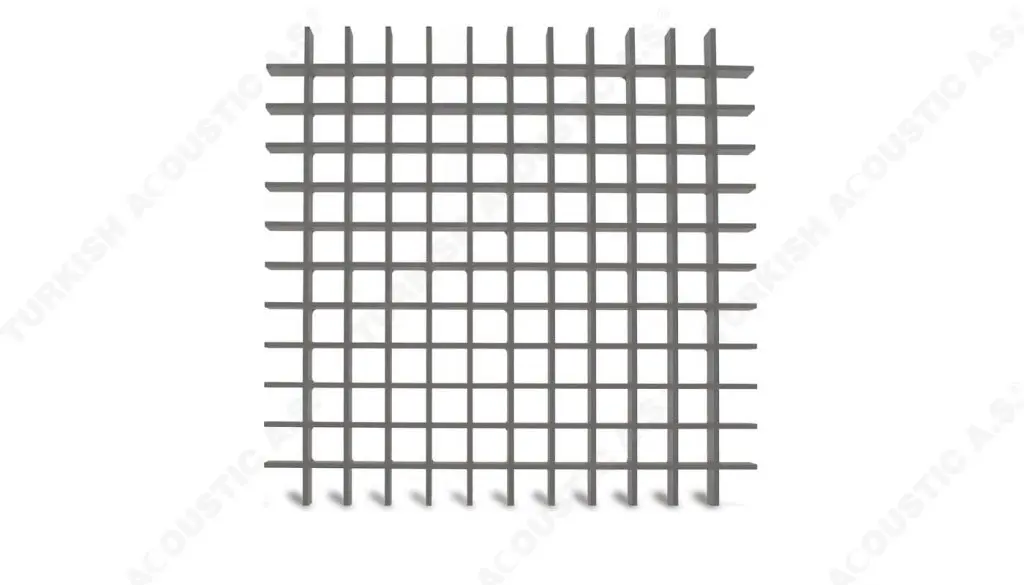

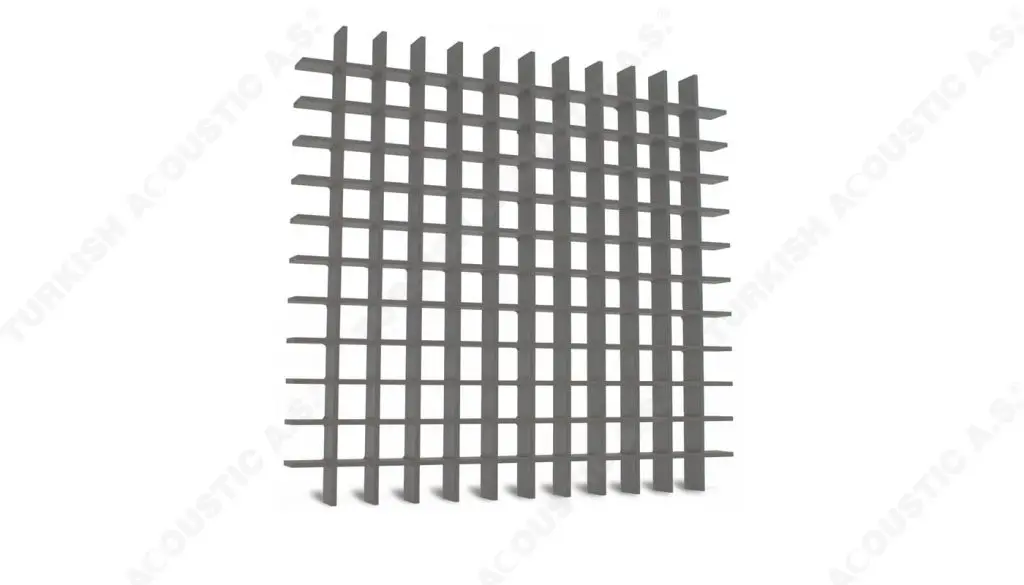

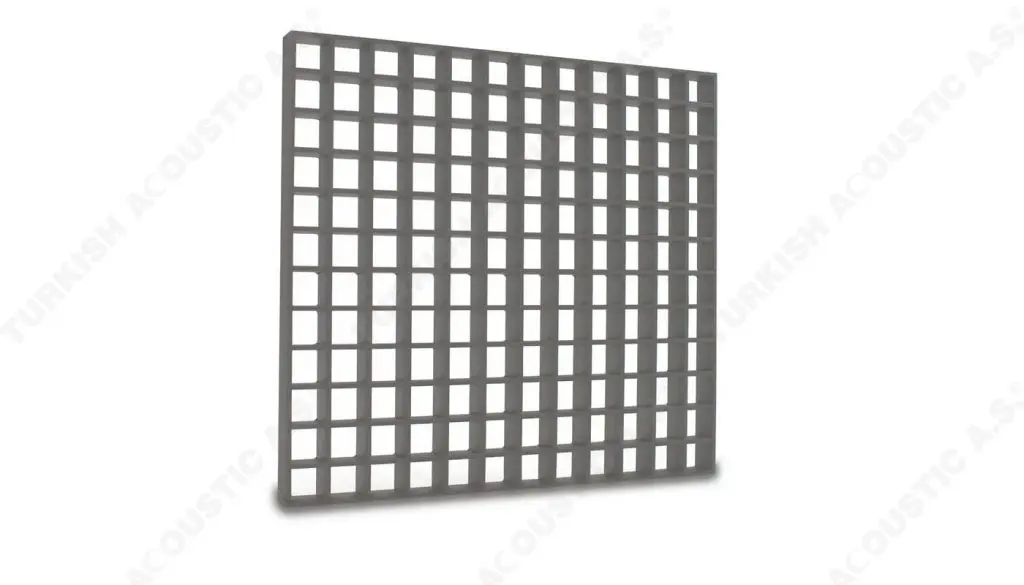

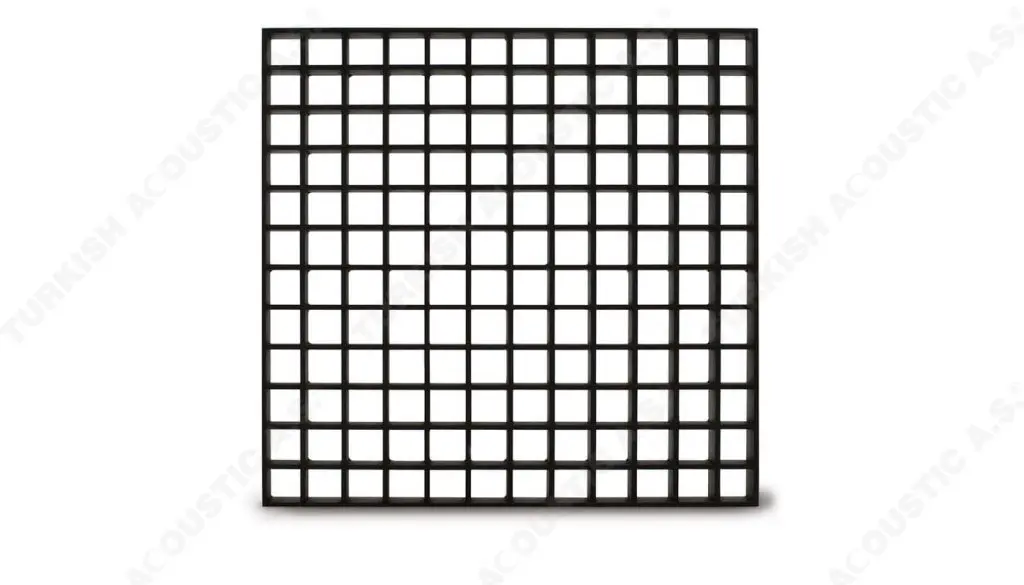

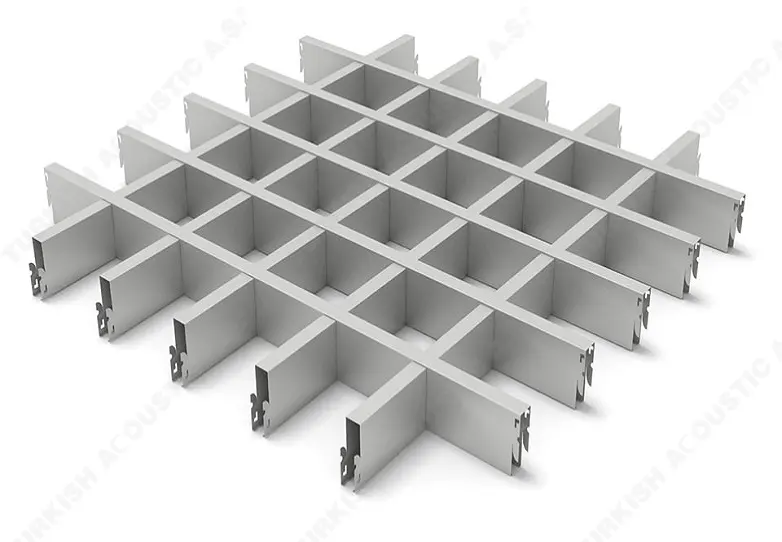

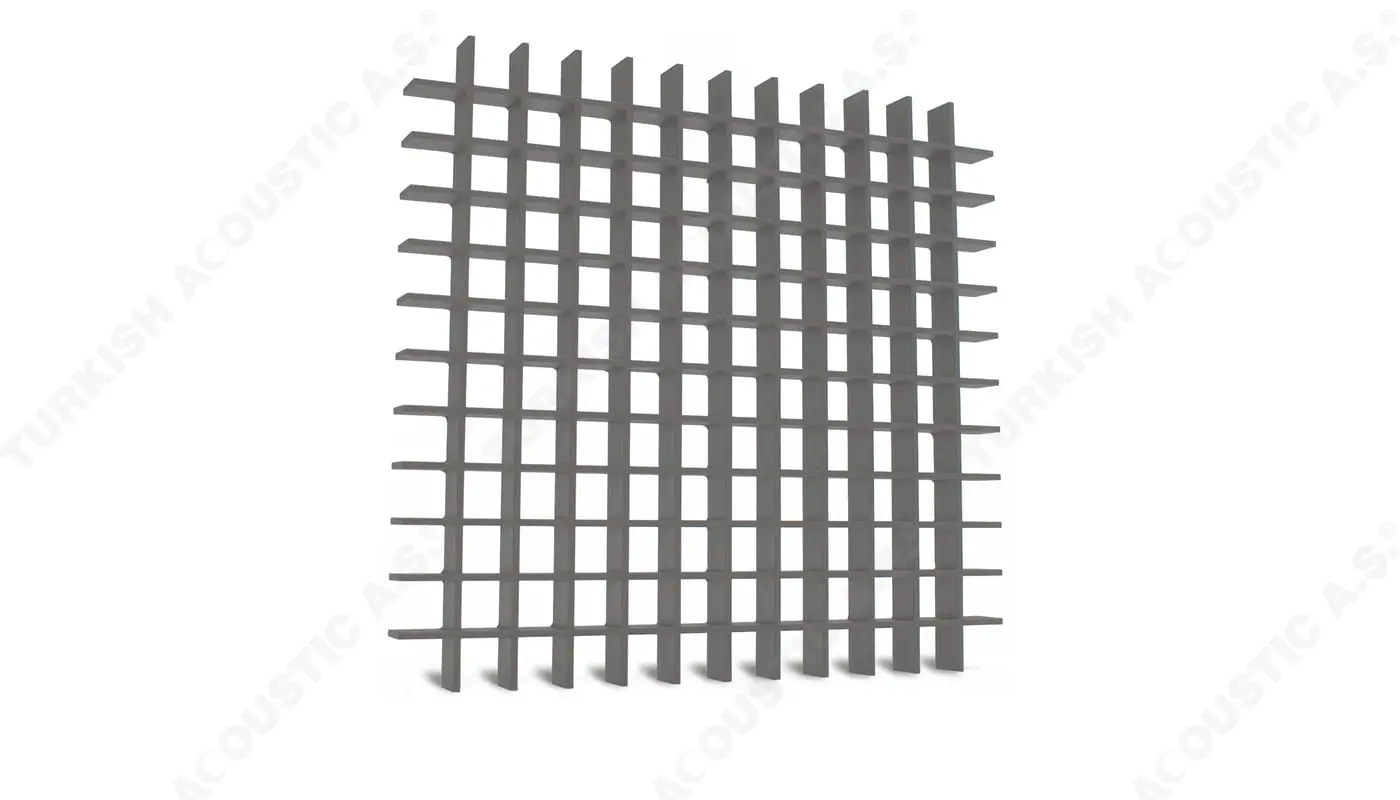

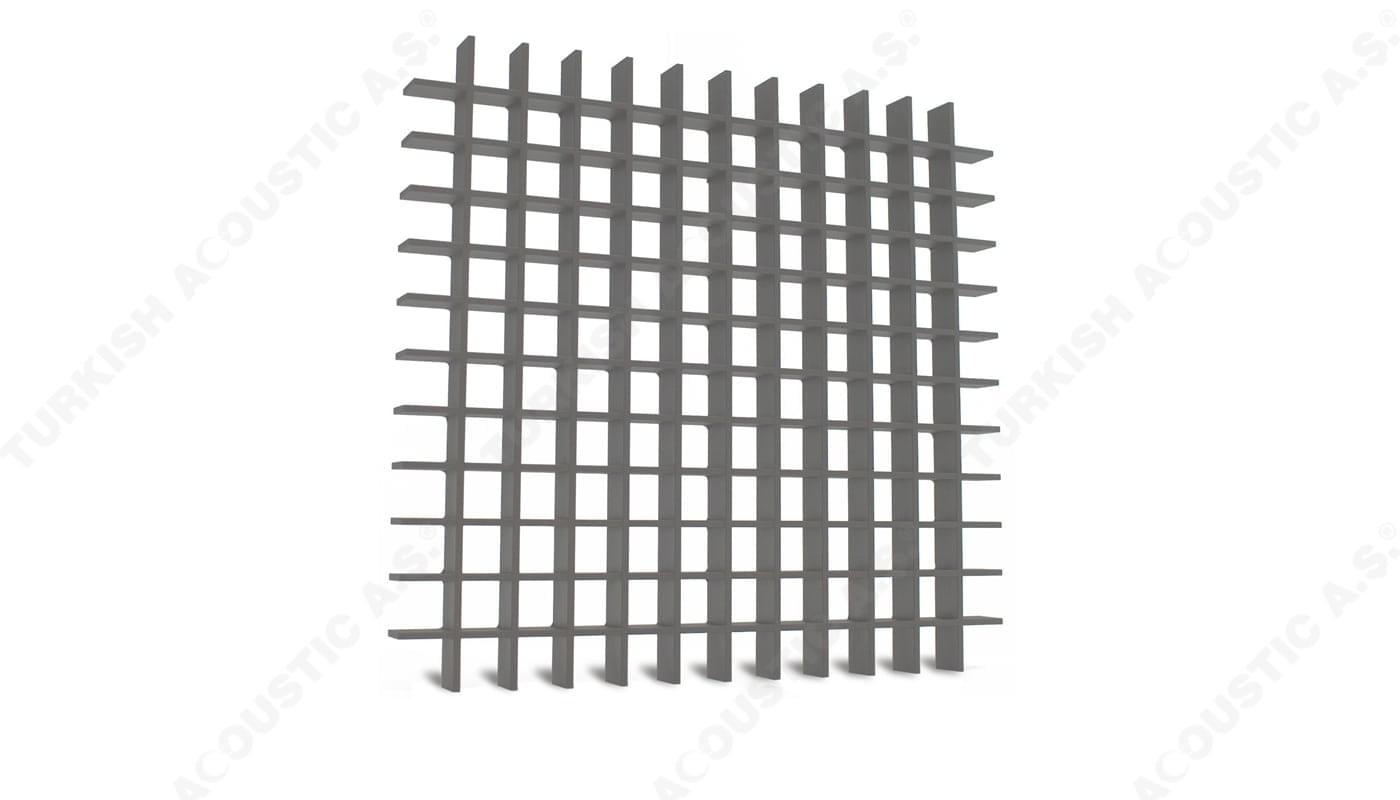

Square Honeycomb Suspended Ceiling Materials: The metal type is aluminum and galvanized steel alloy. Aluminum thickness: 0,40 mm. Honeycomb Suspended Ceiling Properties & Dimensions: 600 x 600 mm. 40x50 (Thickness: 40 mm; visible square space 35x35). 40x60 (Thickness: 40 mm; visible square space 45x45). 40x75 (Thickness: 40 mm; visible square space 60x60). 40x100 (Thickness: 40 mm; visible square space 85x85). Paint: Coil coat painted tape Standard Ral 9006 and Ral 9016. Paint thickness: 30 microns. Carrier profile: import painted tape ( Ral 9016 and 9006) T15 sheet metal profile. Suspension system: 7 plastic dowel, 6 steel dowel, 35 drywall screw, 0.50 mm steel hanger spring, 3 mm galvanized hanger wire.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.

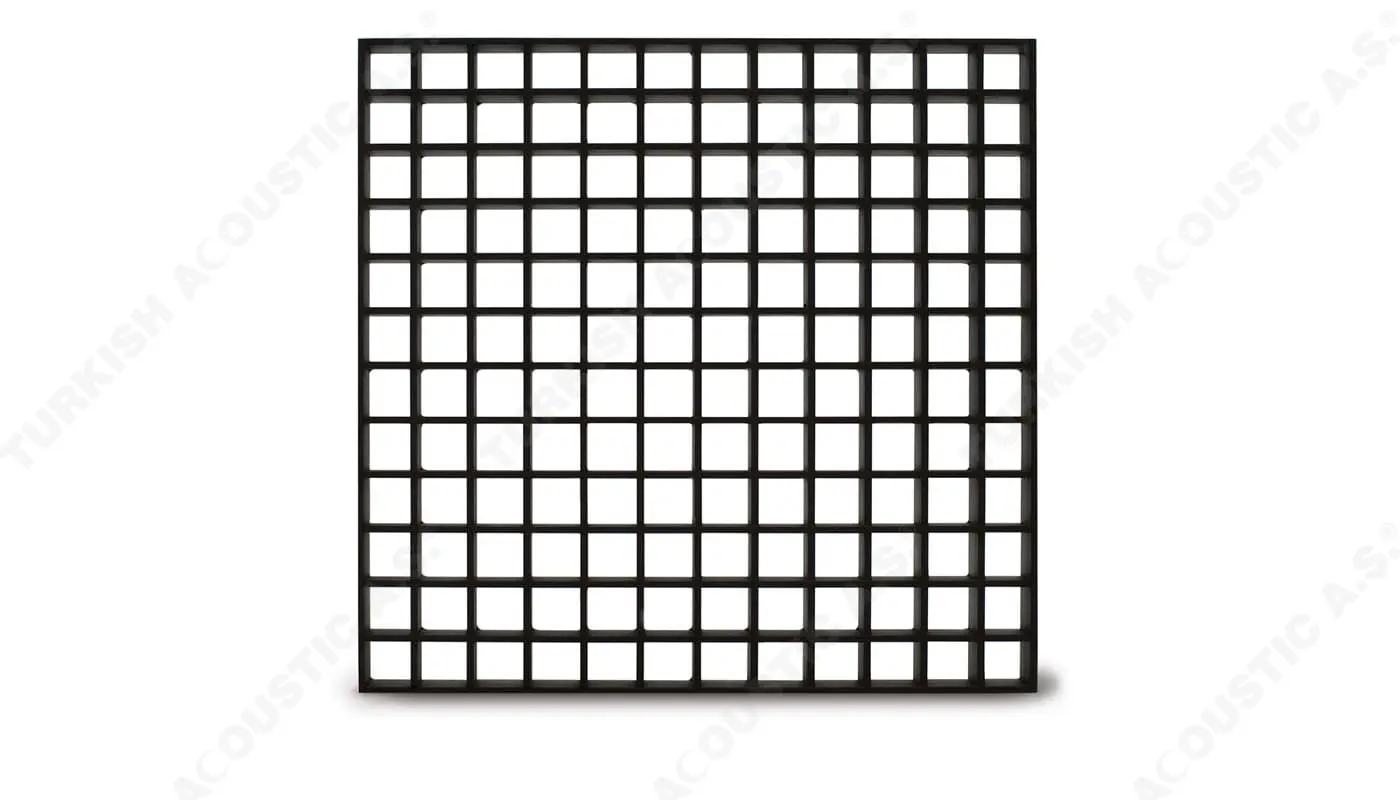

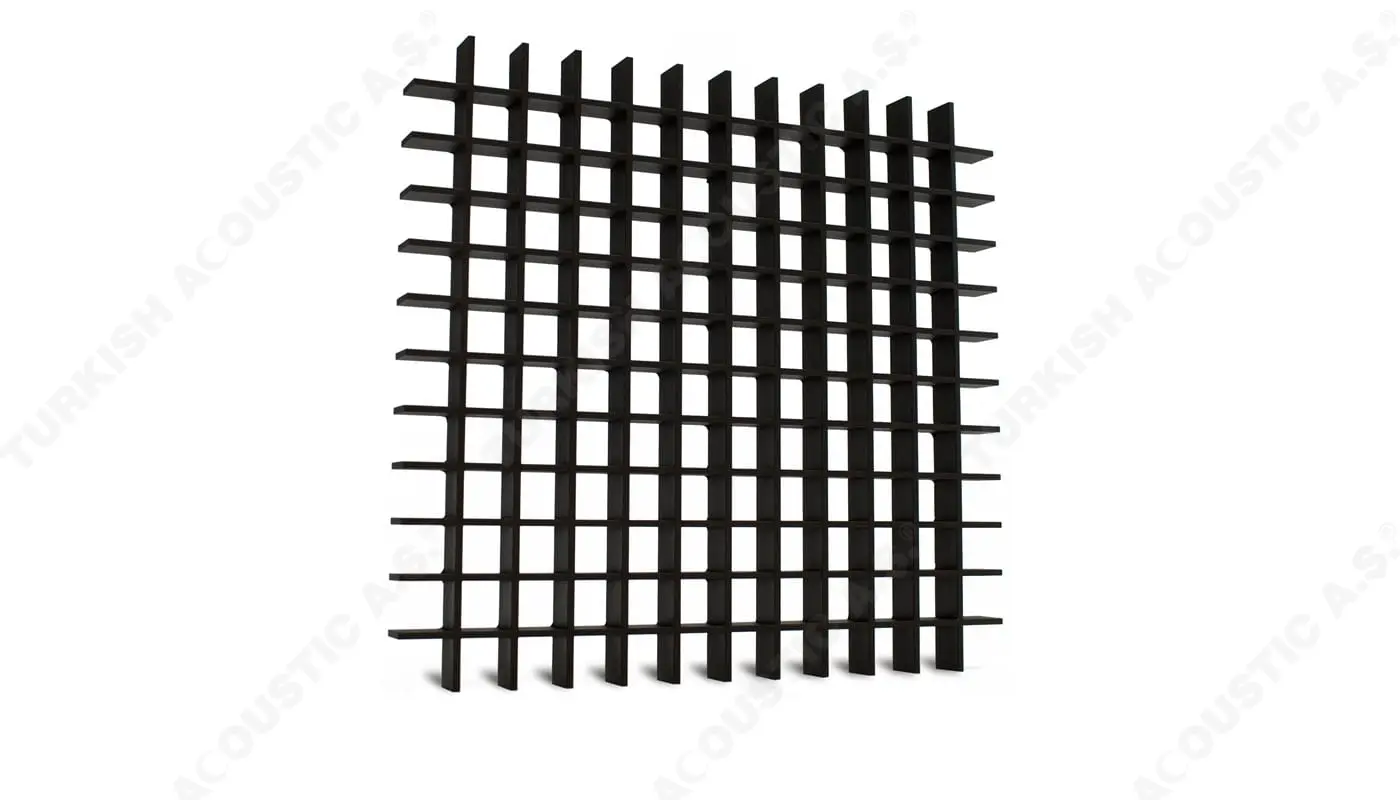

Honeycomb ceiling panels are in 60 cm x 60 cm scale as plates. One package contains 40 plates (14 m²). Sold in 75 mm and 100 mm thicknesses by retail and wholesale. It is possible to produce in custom sizes if you request. Contact our technical office for details.
