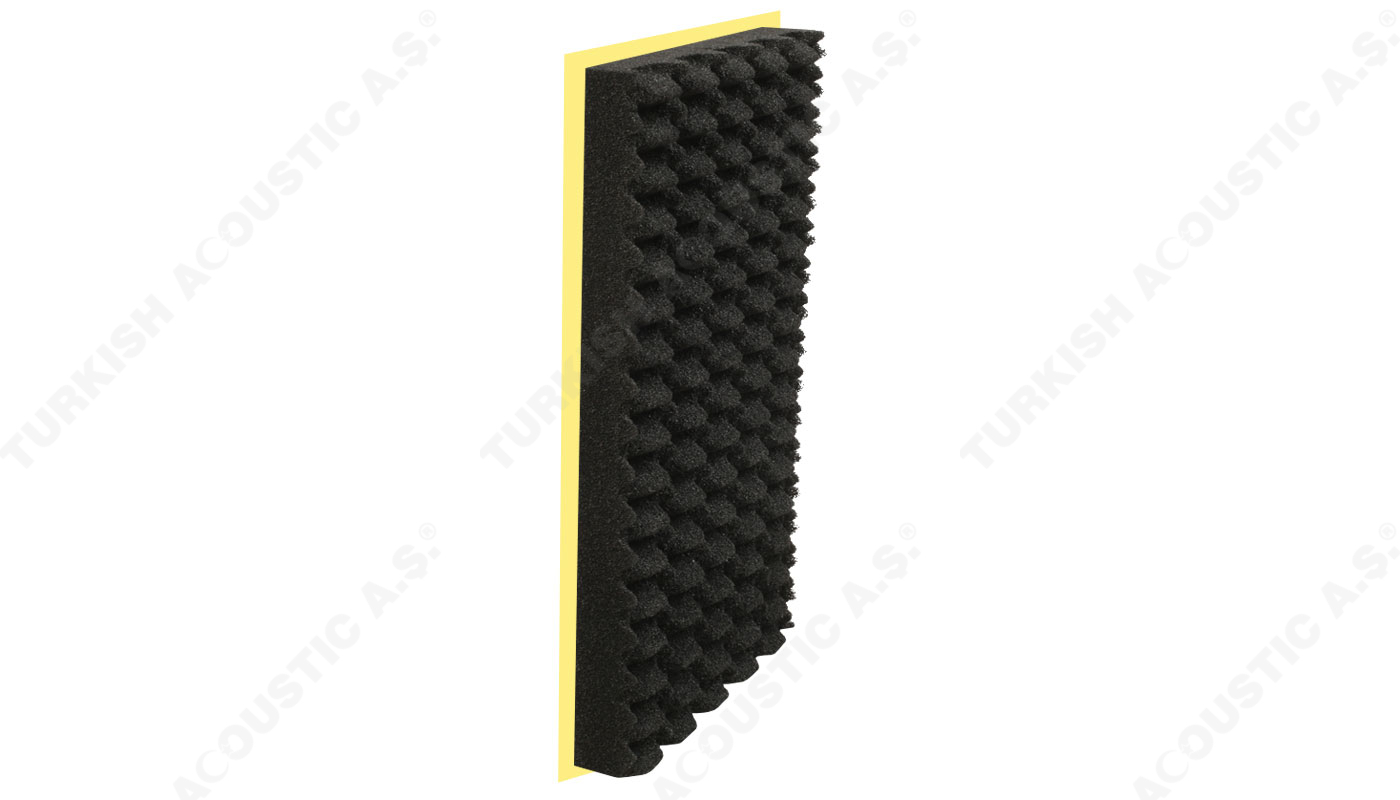

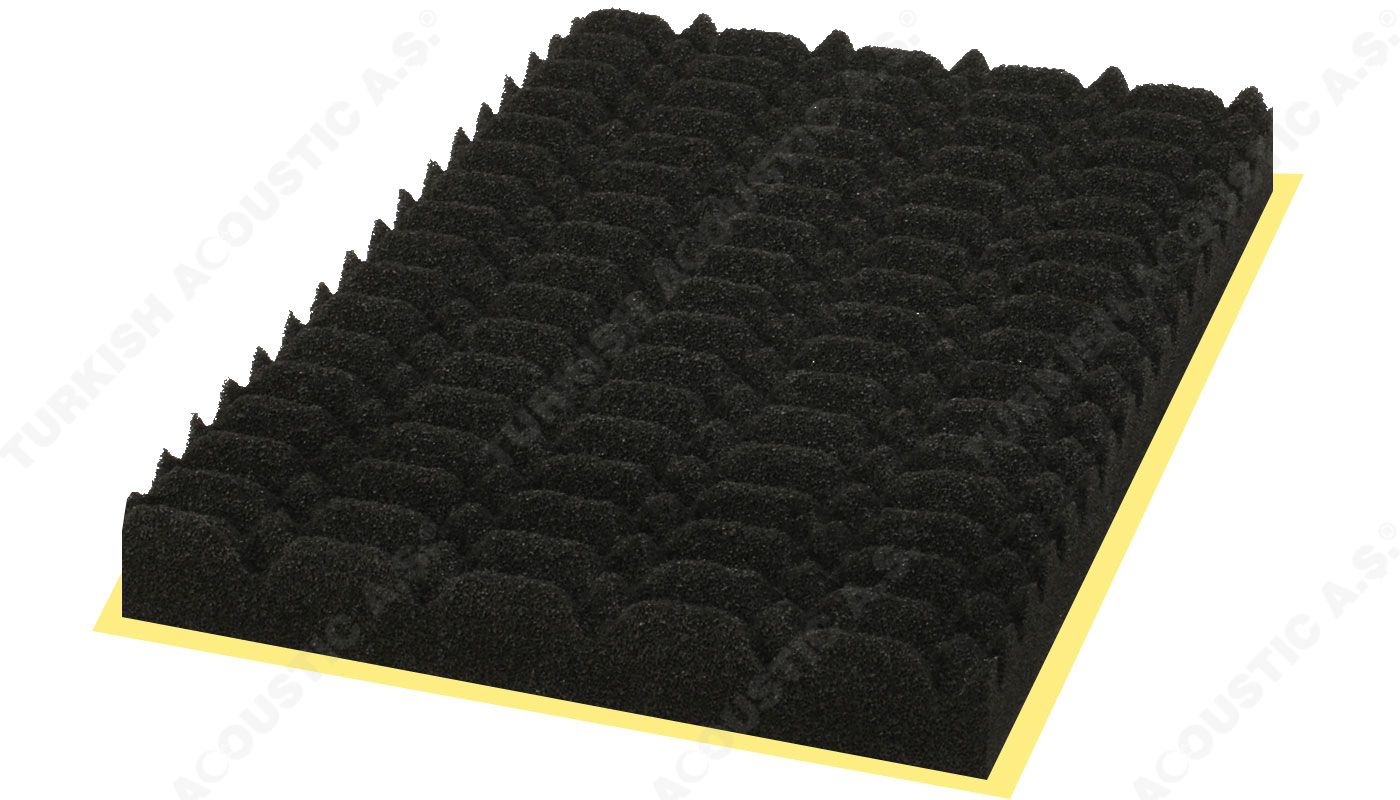

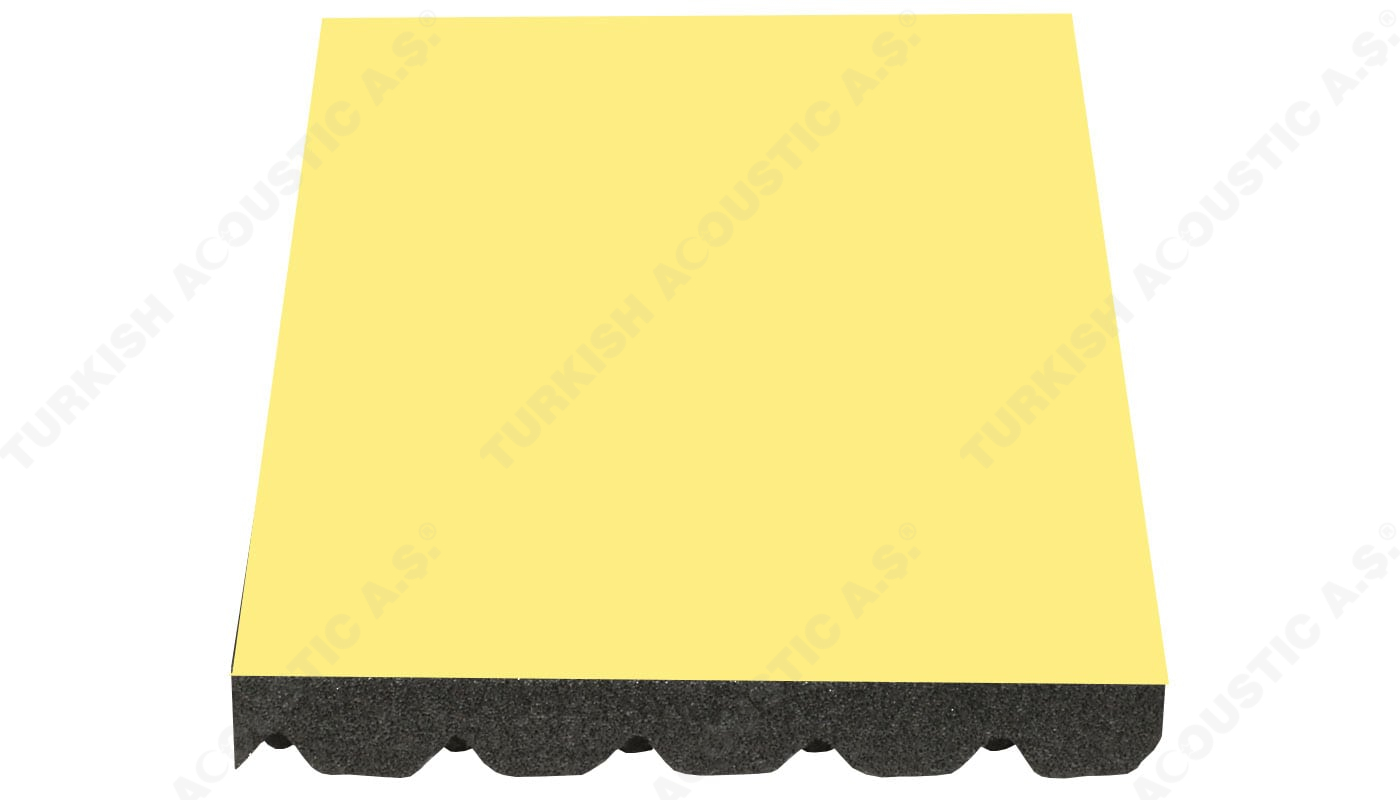

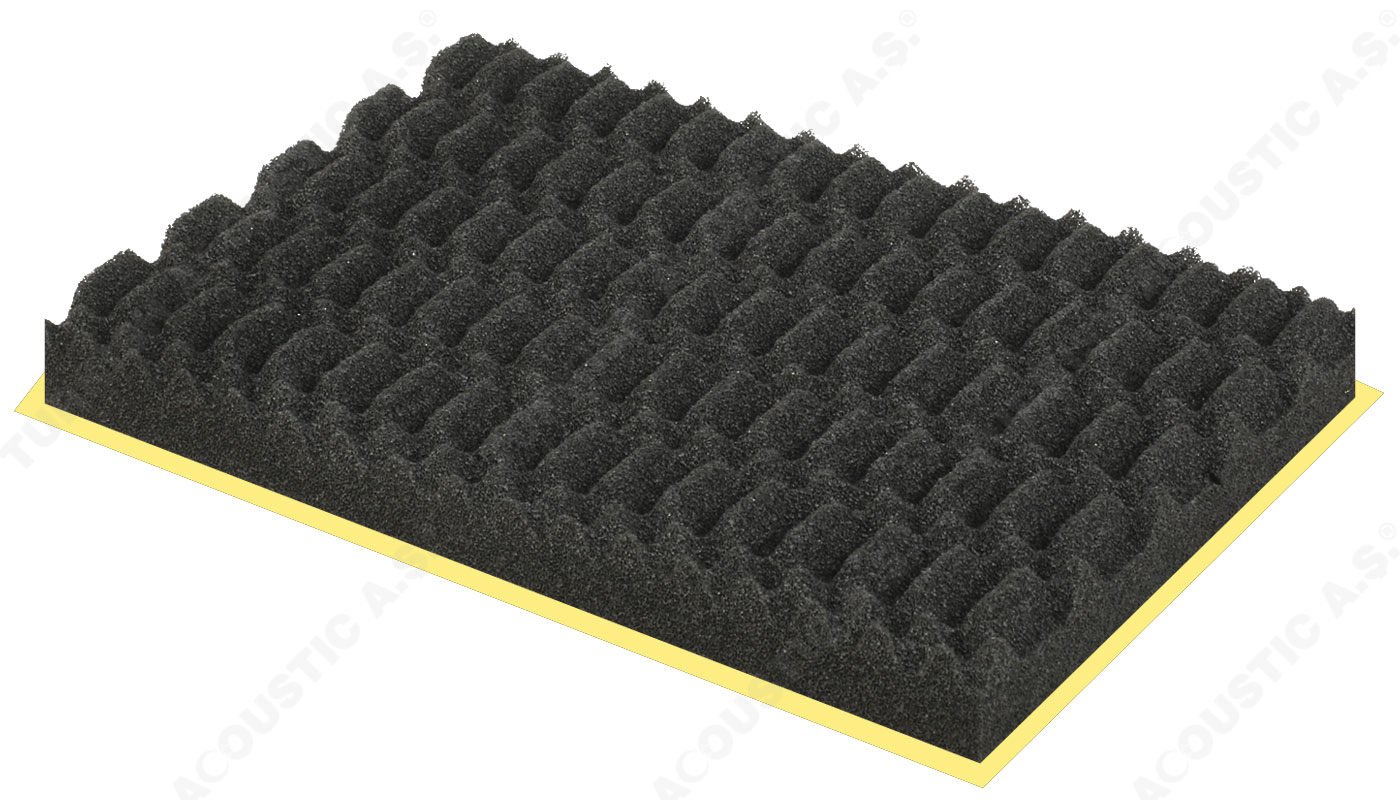

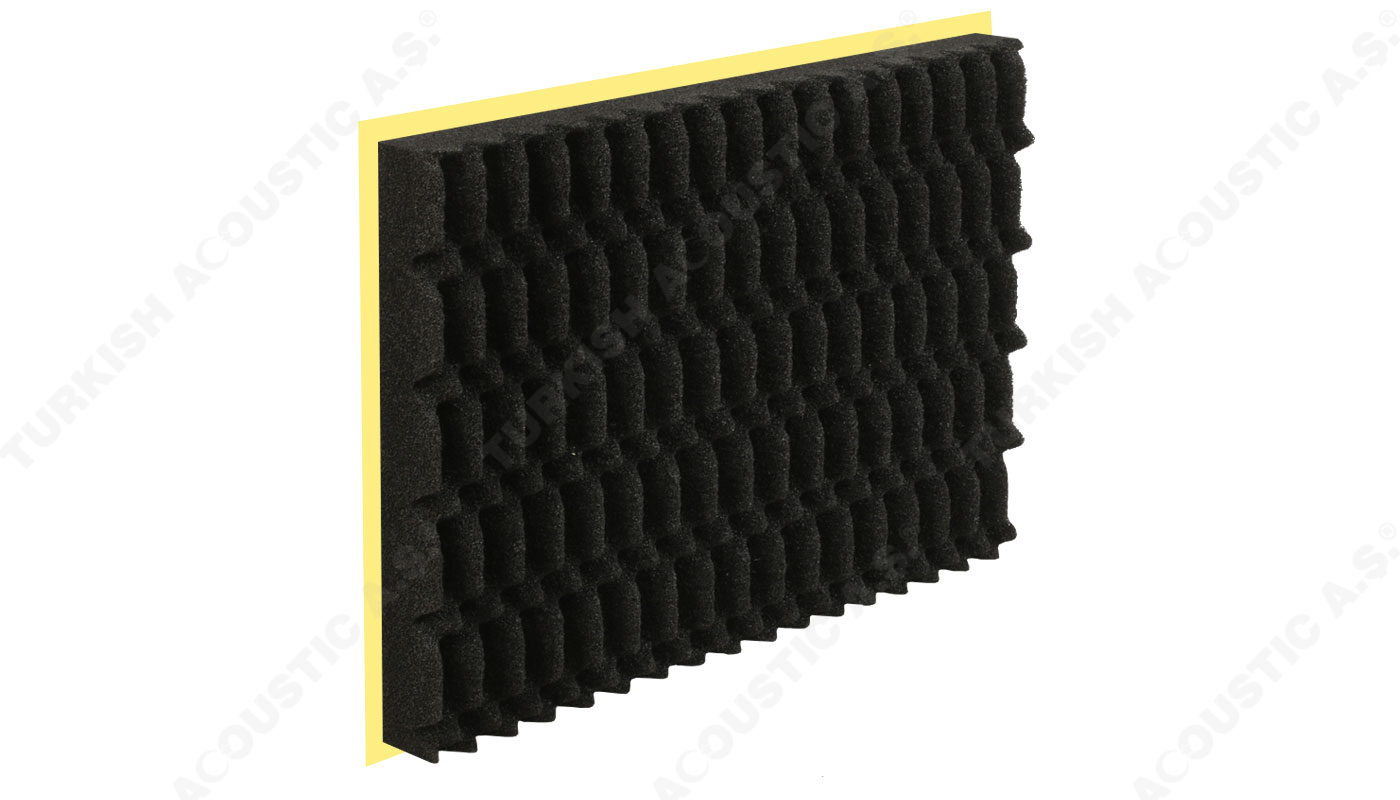

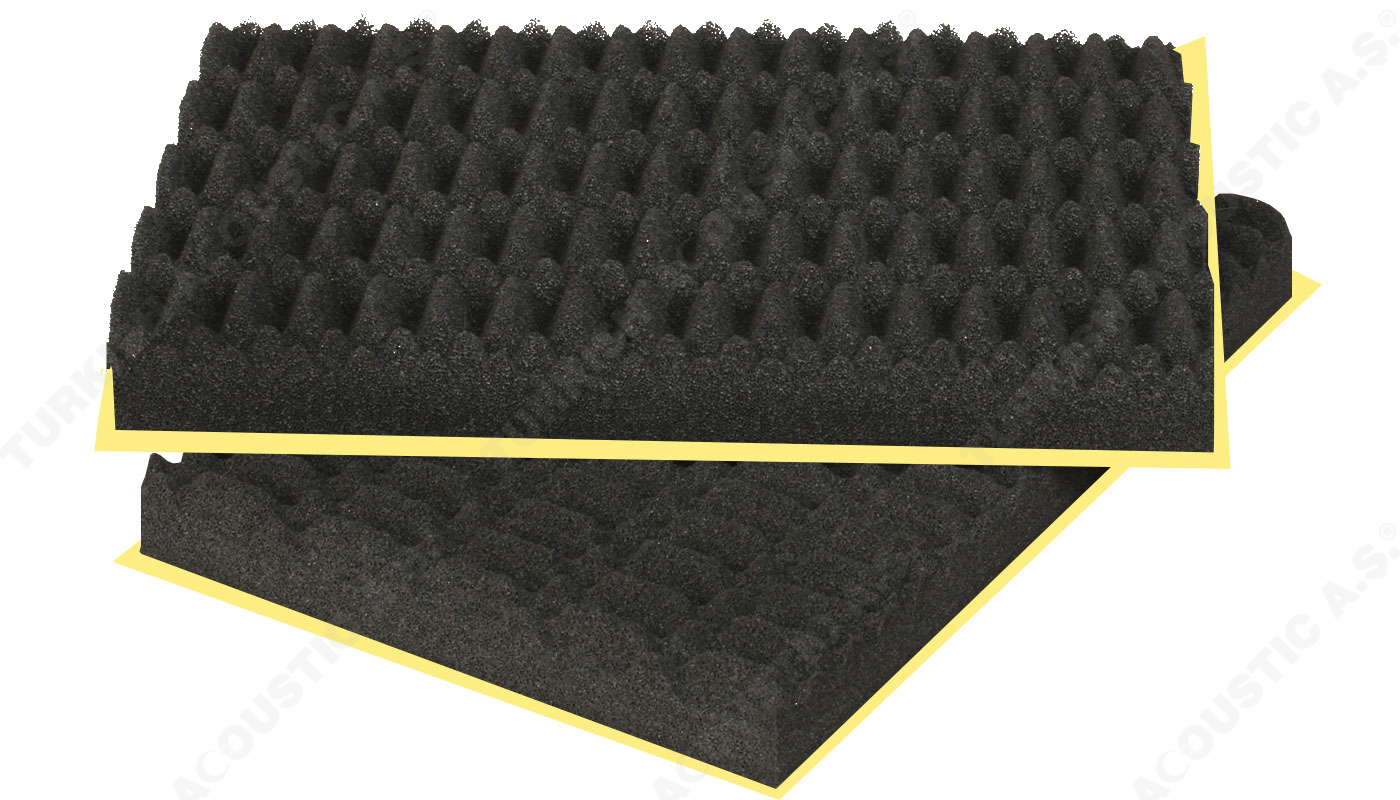

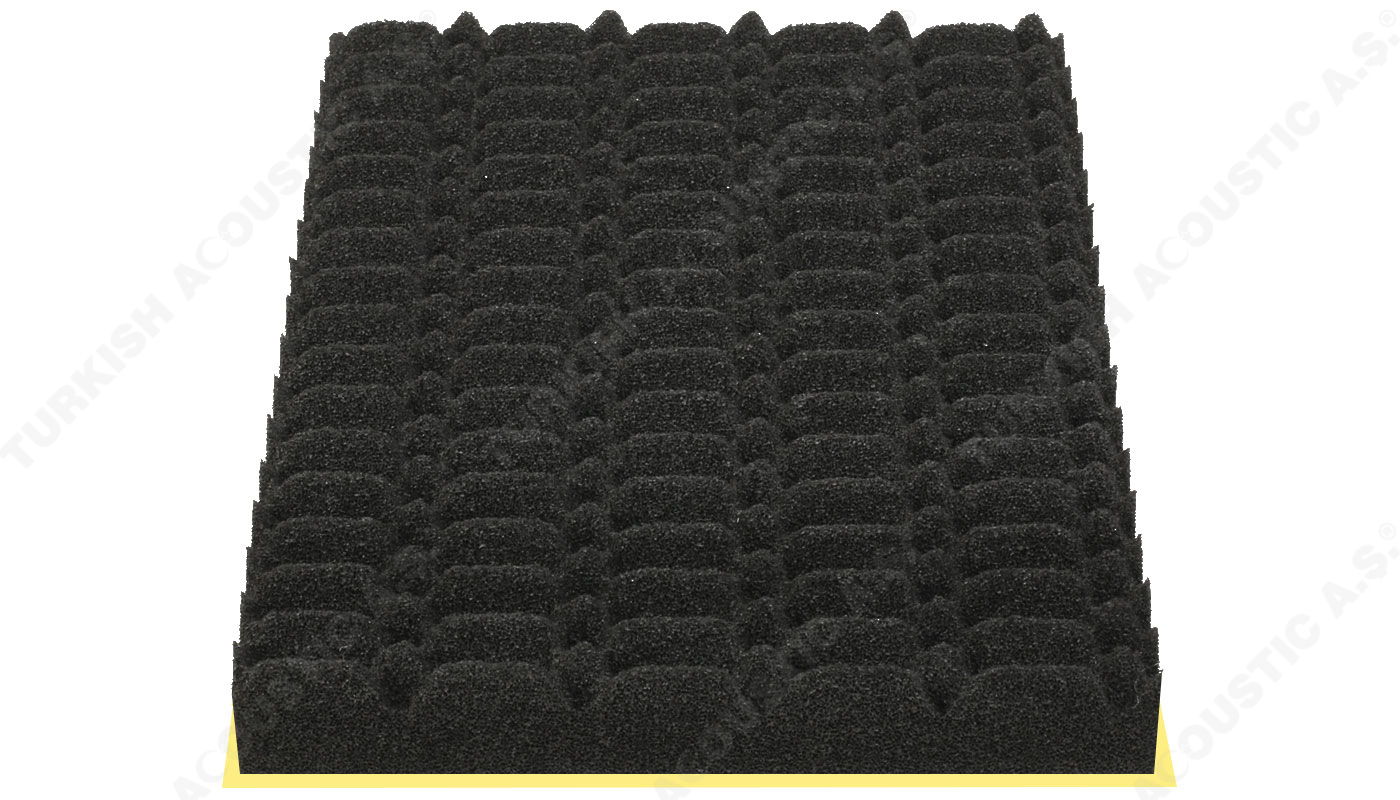

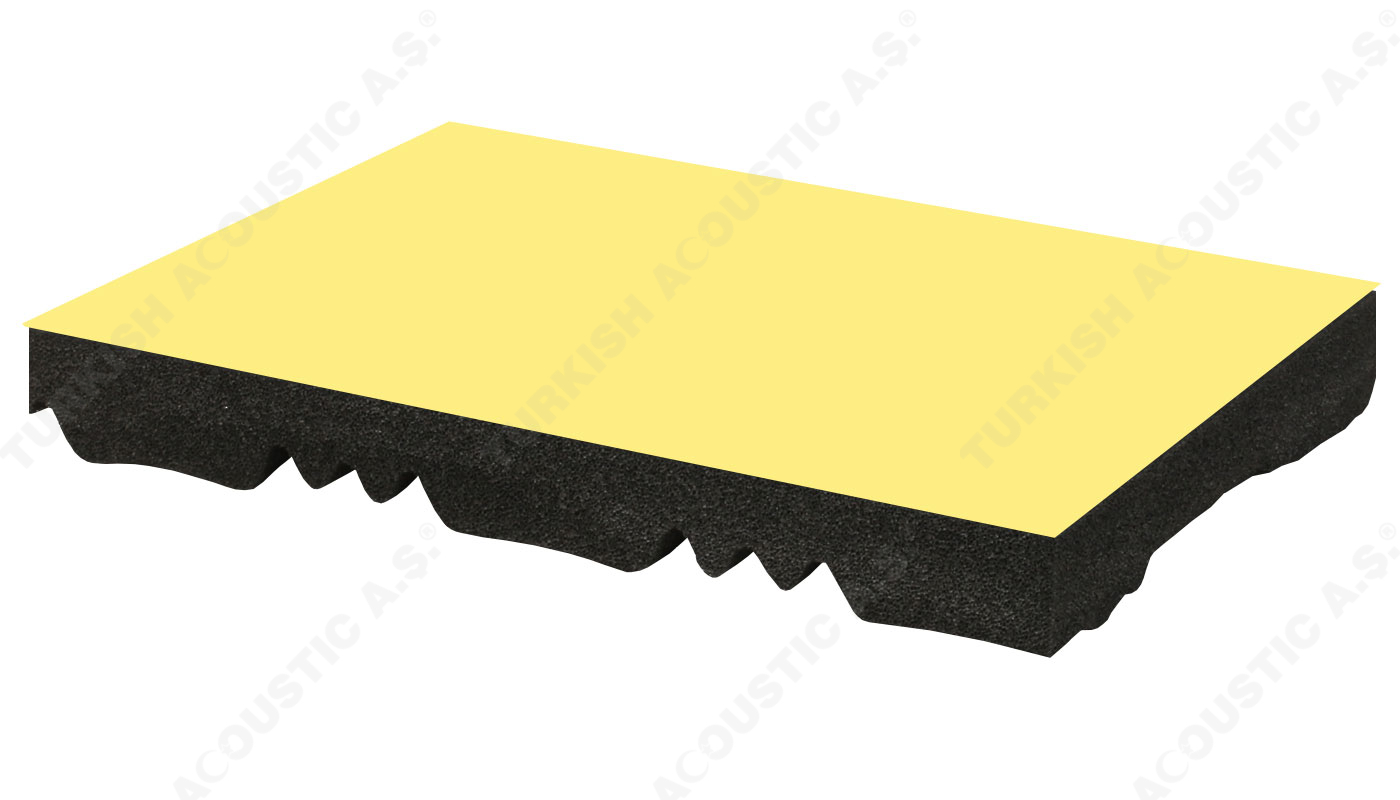

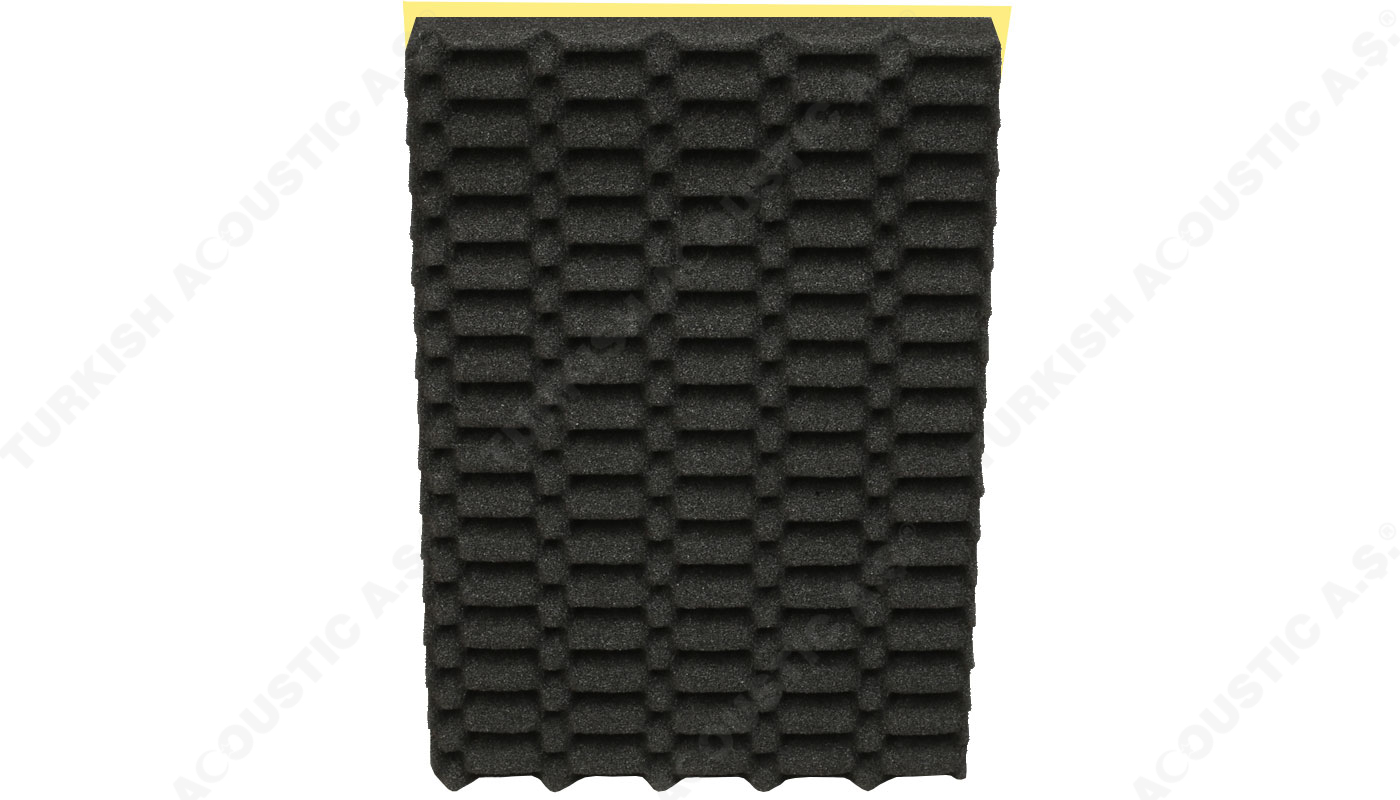

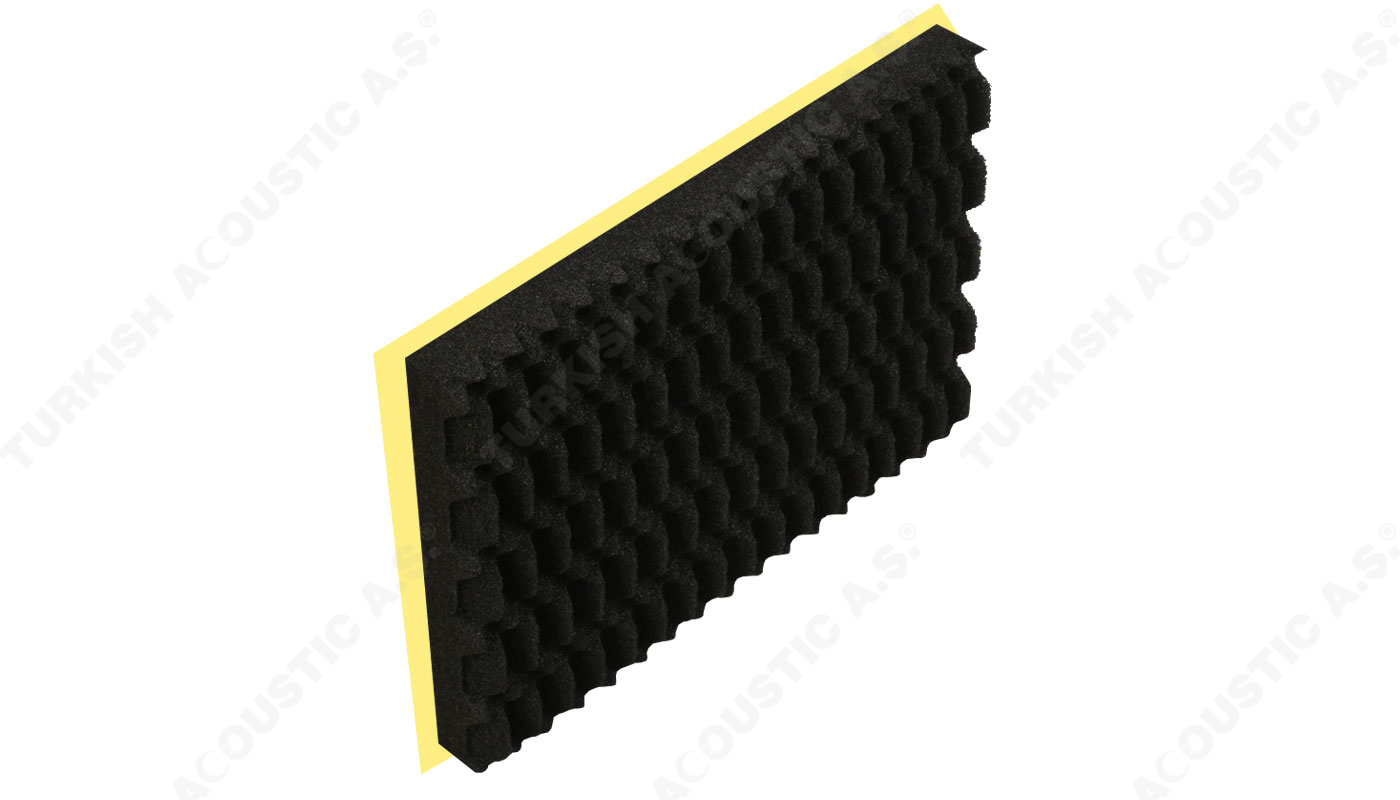

Adhesive Special Sponge: Self-adhesive special sponge provides high efficiency sound insulation thanks to its special texture / structure. Self-labeled / adhesive Acoustic special sponges, as well as highly effective sound insulation and sound insulation, have high acoustic properties and provide sound regulation. Adhesive special sponge is an acoustic material that provides the best performance of the acoustic material class. Self-labeled / adhesive Acoustic special sponges are colored and self-adhesive if you wish, as well as by using heavy rubber EPDM barrier between them, the sound transmission loss is increased and the insulation performance is increased. Acoustic sponges, also known as Acoustic Specials (pyramid sponges), are acoustic sponges produced from polyurethane raw material with high sound absorption values. Adhesive special sponge, Non-flammable sponges offer effective solutions in acoustic regulation with their open pore and flexible structure. Sponges made of first class materials can be used in many areas. The special barrier sponge model, which takes its place among the self-labeled special sponge and specially produced sponge types, has a flexible and easily applicable structure. Among the adhesive special sponge types, you can easily choose the special barrier sponge model as an insulation material where you can get rid of disturbing noises with its sound absorbing feature. Adhesive special sponges, the insulation material that will solve sound problems such as echo and echo in the space, regulates the ambient acoustics and allows the sound to come out much better.
Adhesive Special Sponge Dimensions : 100 cm x 100 cm Plate dimensions, 30 mm and 40 mm are offered for retail sale.
Adhesive Special Sponge Package Contents : Special adhesive sponges 100 cm x 100 cm size plate is sold in 10 packages. 1 Pack 10 m² Sold.
Adhesive Special Sponge Color Types : Black (dark andesite gray) are sold as standard, colored production is possible.
Adhesive Special Sponge Usage Areas : Music room, studio, generator cabin, radio broadcasting house, sports hall, entertainment venues.
Adhesive Special Sponge Production : It is possible to produce special thickness 50 mm and above. Custom cut to size is possible. Colors RAL chart
Adhesive Special Sponge Fireproof : Non-flammable / non-flammable Firend ; It has BS476: class 0 and UNI 9175: 2008 M1 certificates in flammability.
Adhesive Special Sponge Density : 50 to 60 Kg / M³ It is possible to custom manufacture in desired density and thickness.
Note: 30 mm product is between 25 - 30 mm, 40 mm is in tolerable thicknesses between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Acoustic special sponges are in the form of 100 cm x 100 cm plates and their packages contain 10 plates, ie 10 m² of products. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
