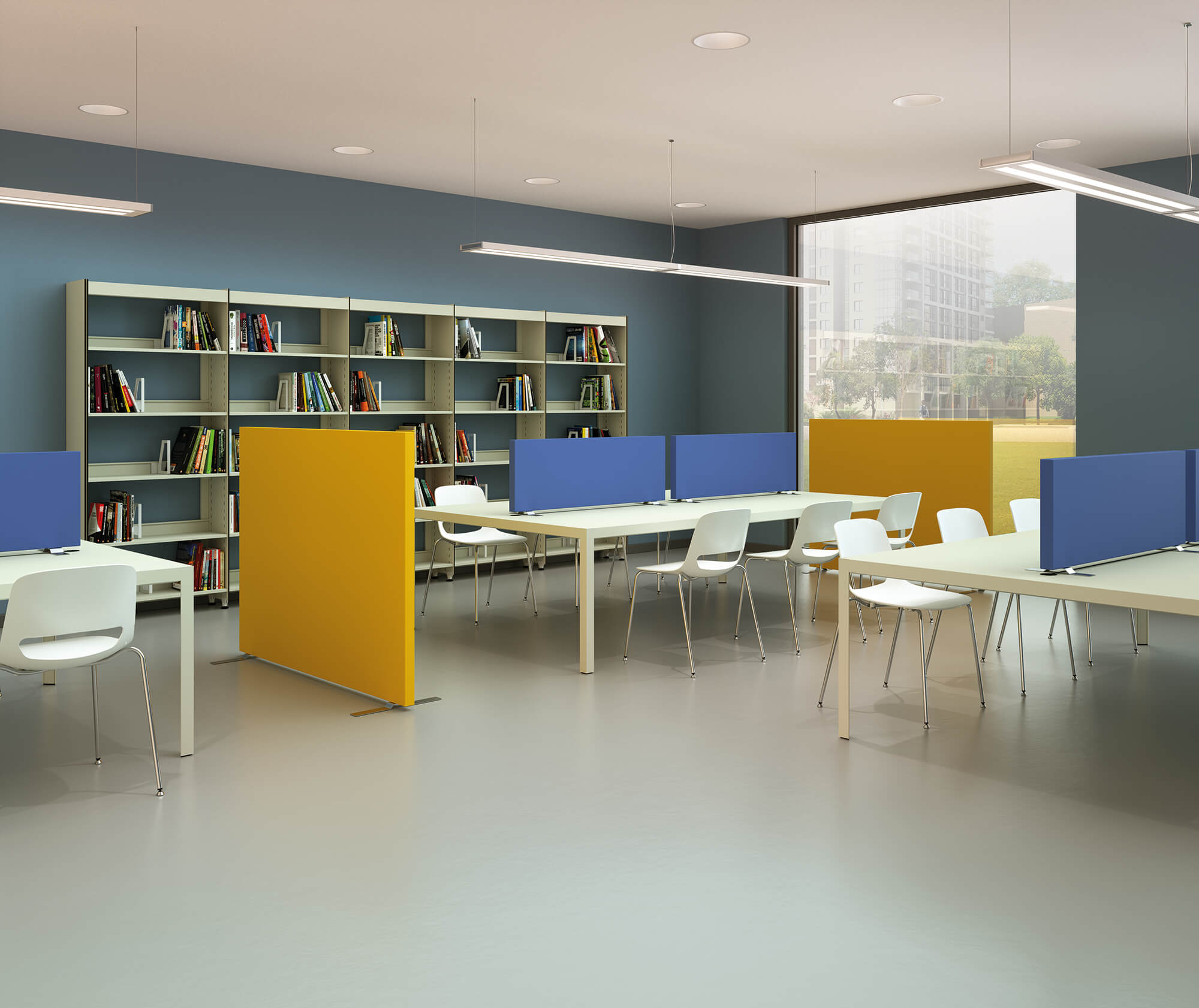

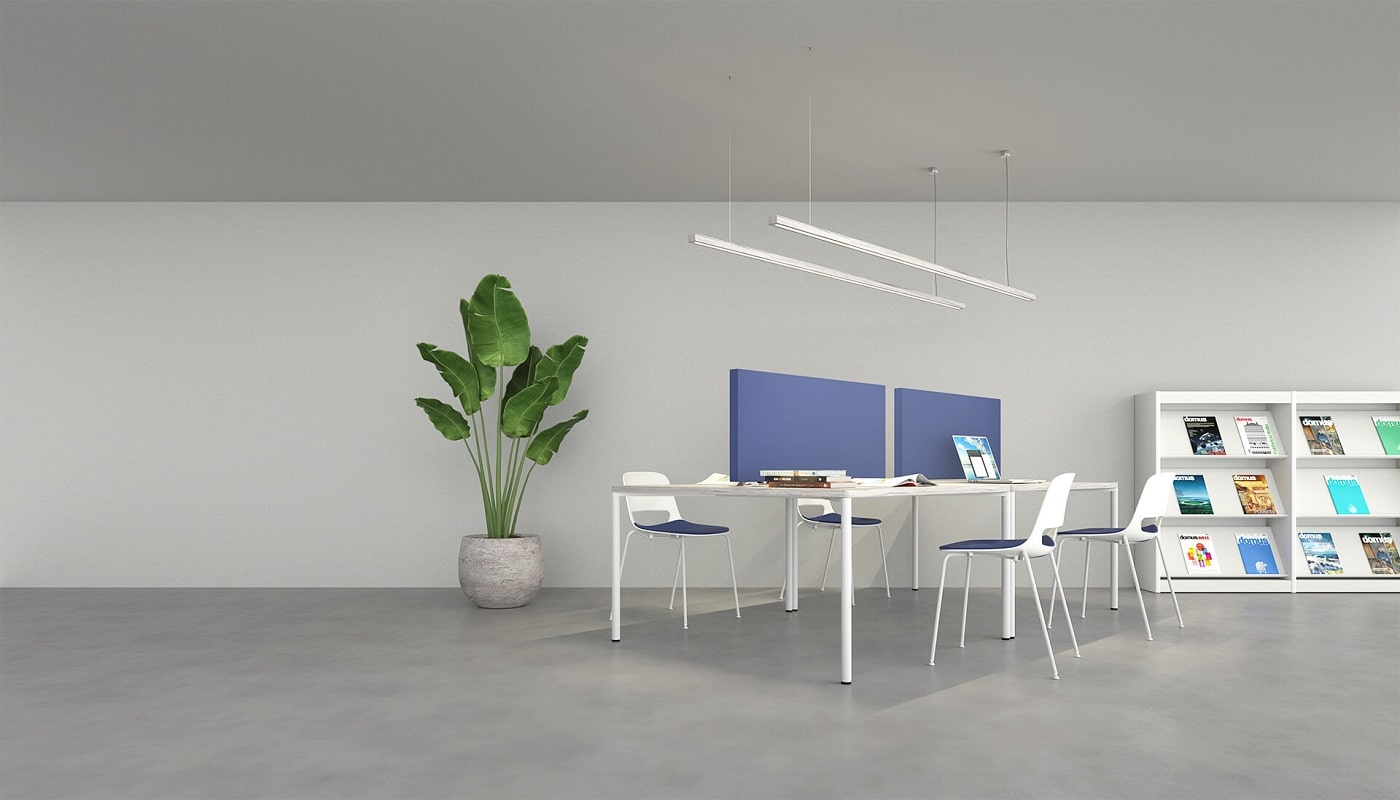

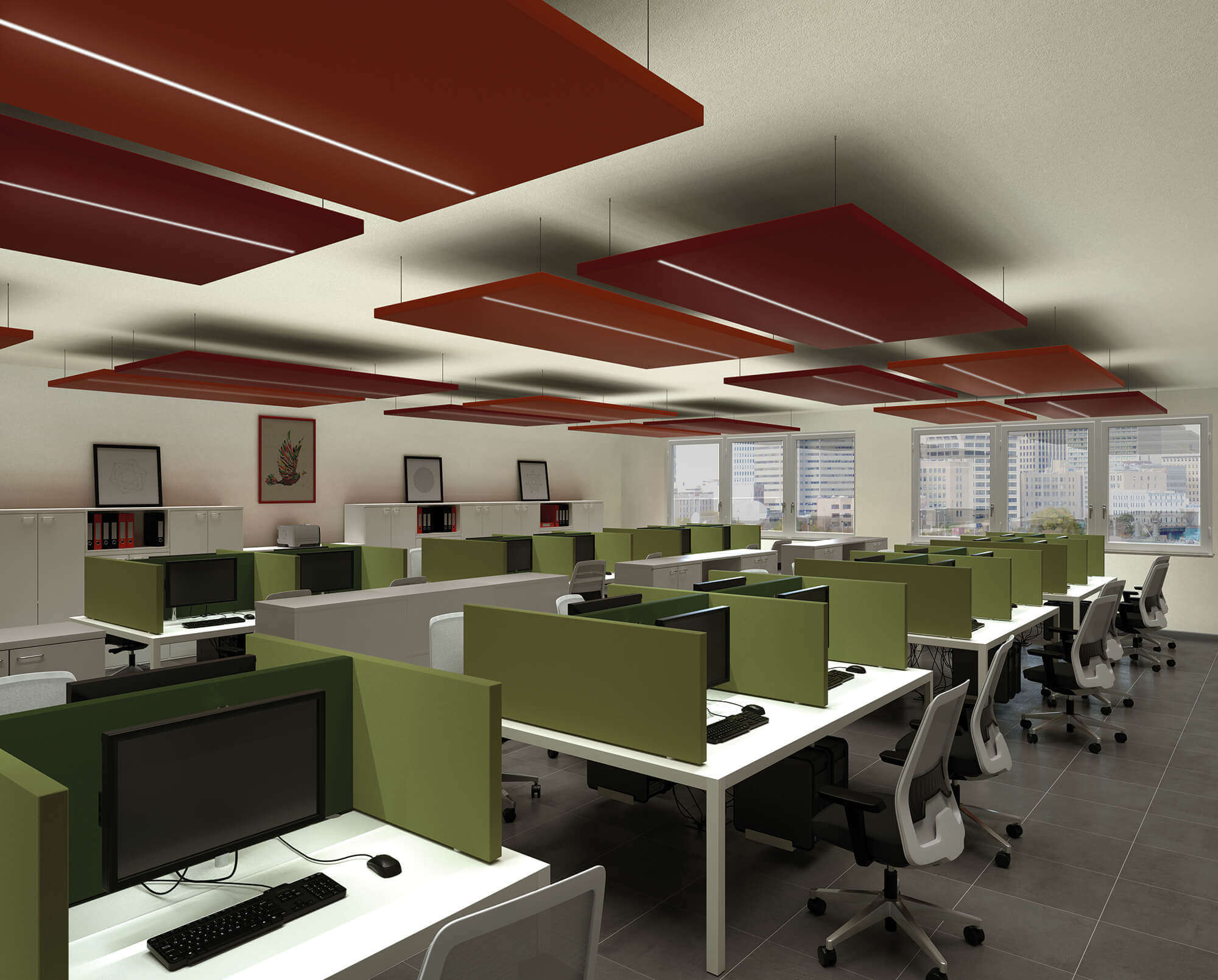

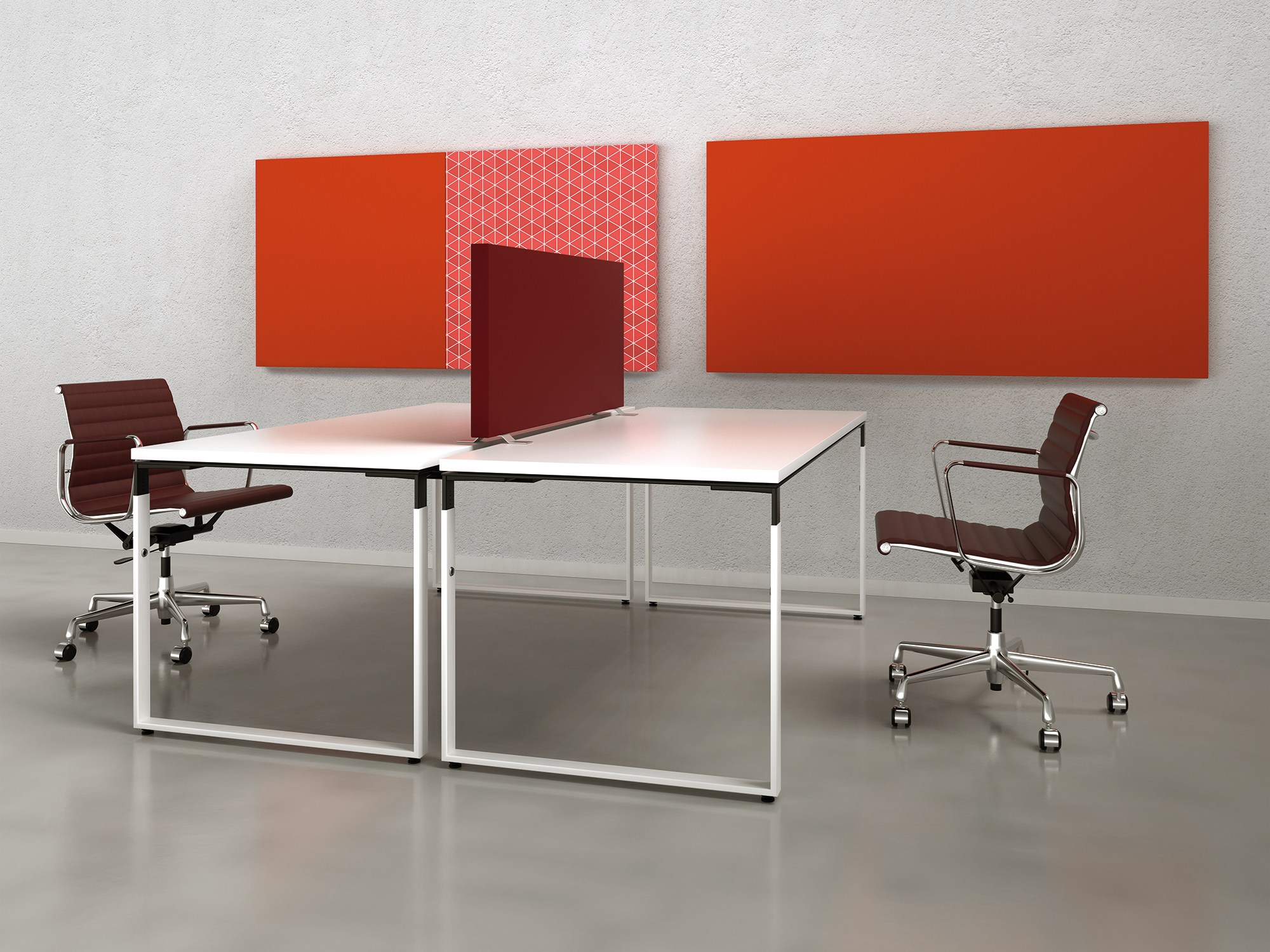

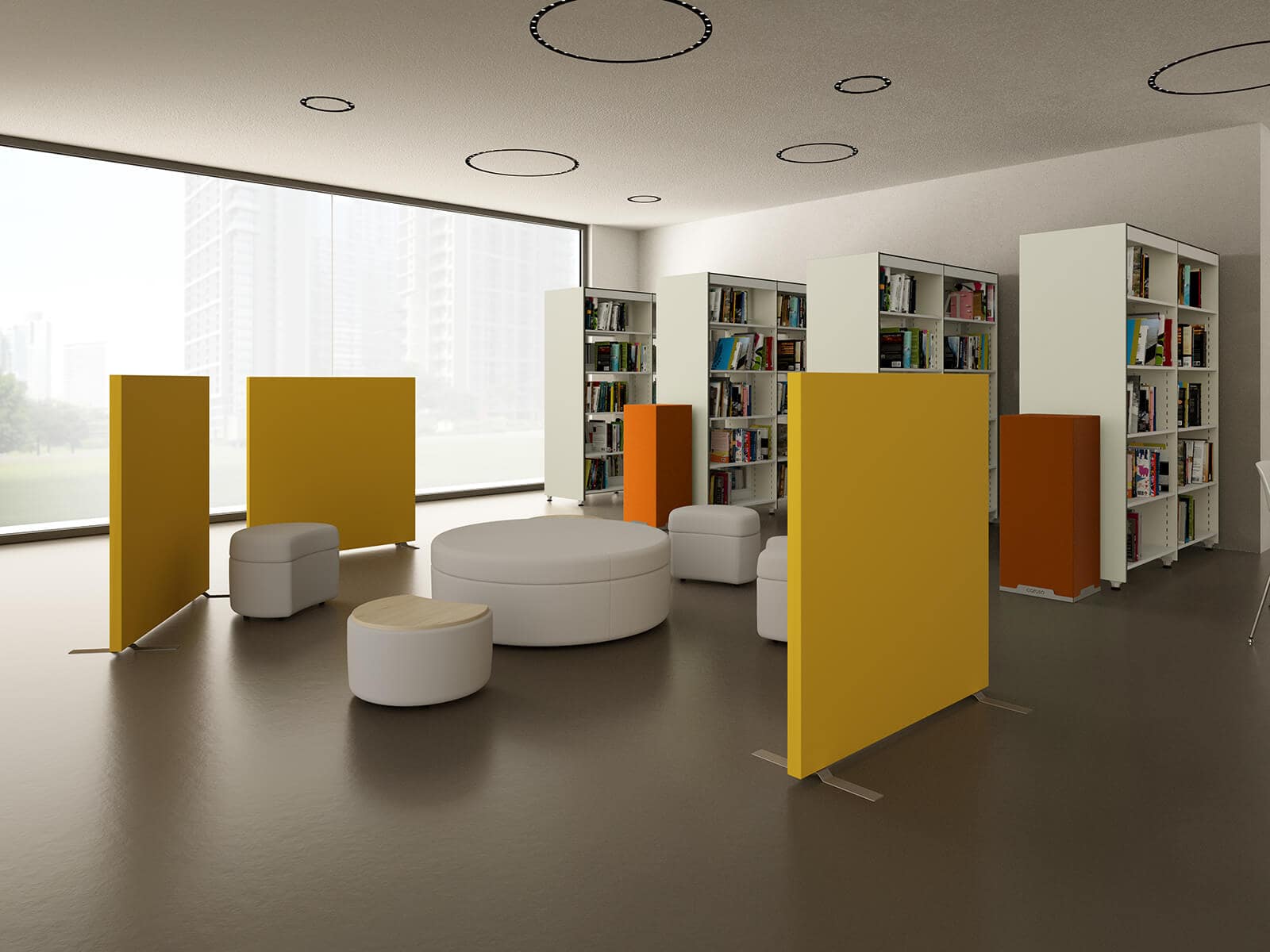

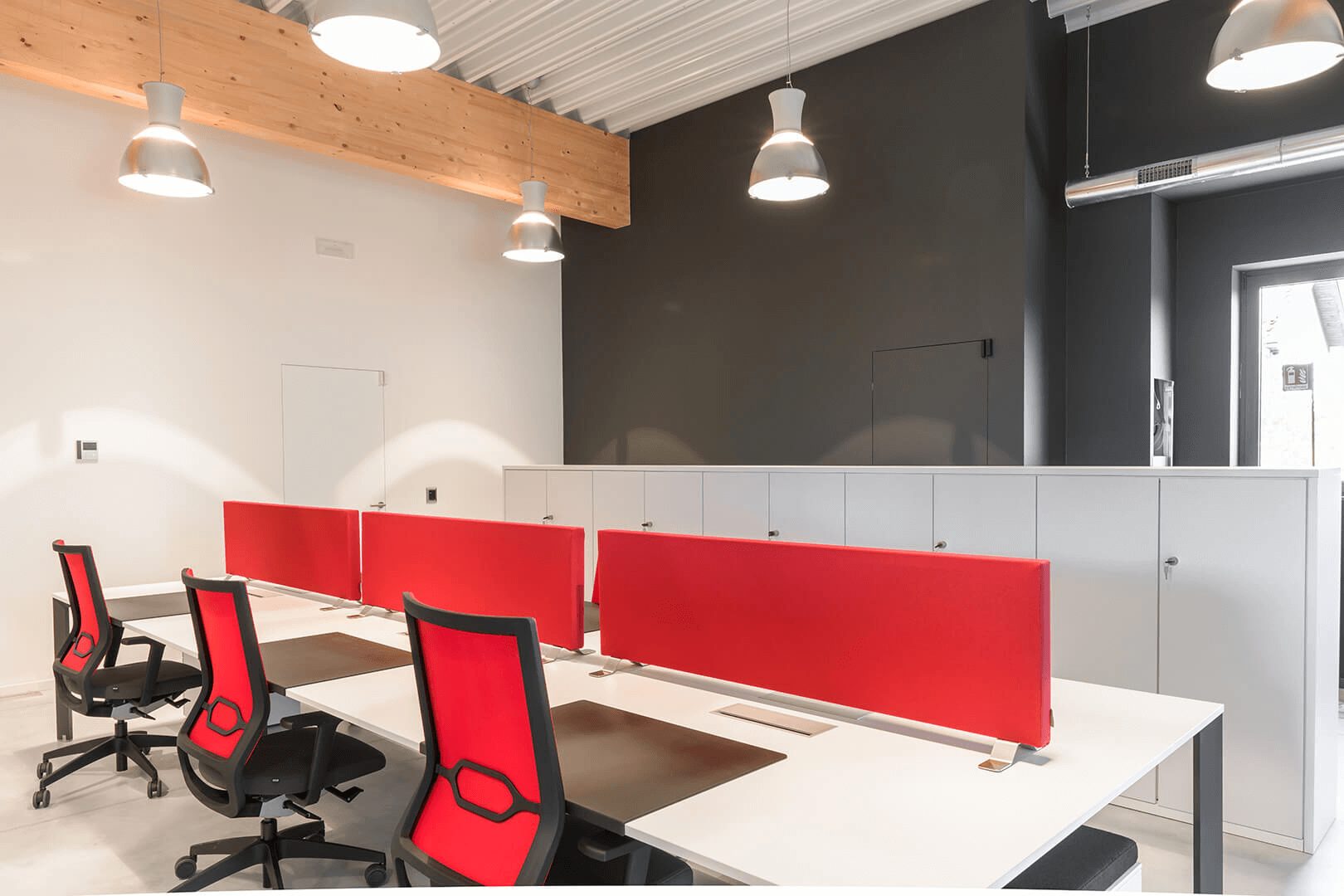

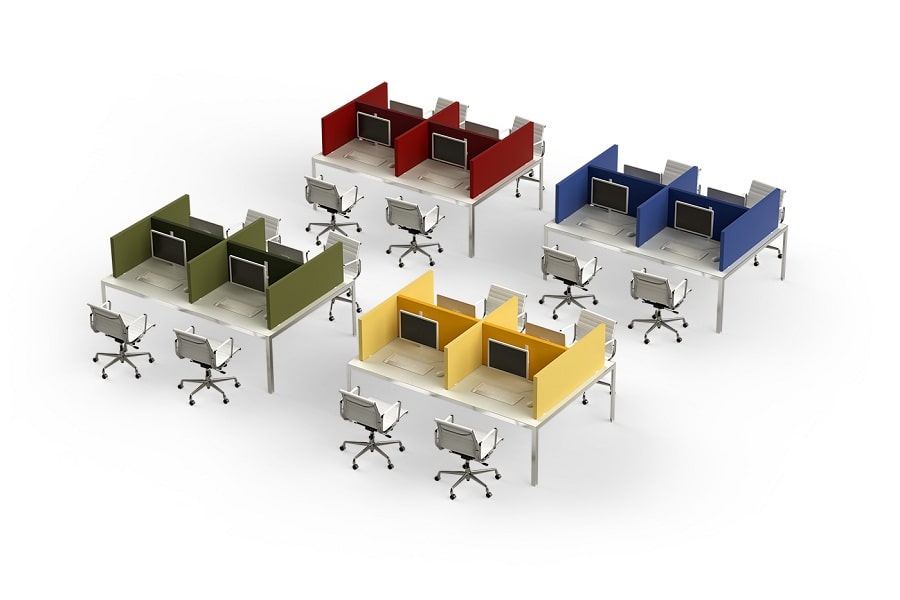

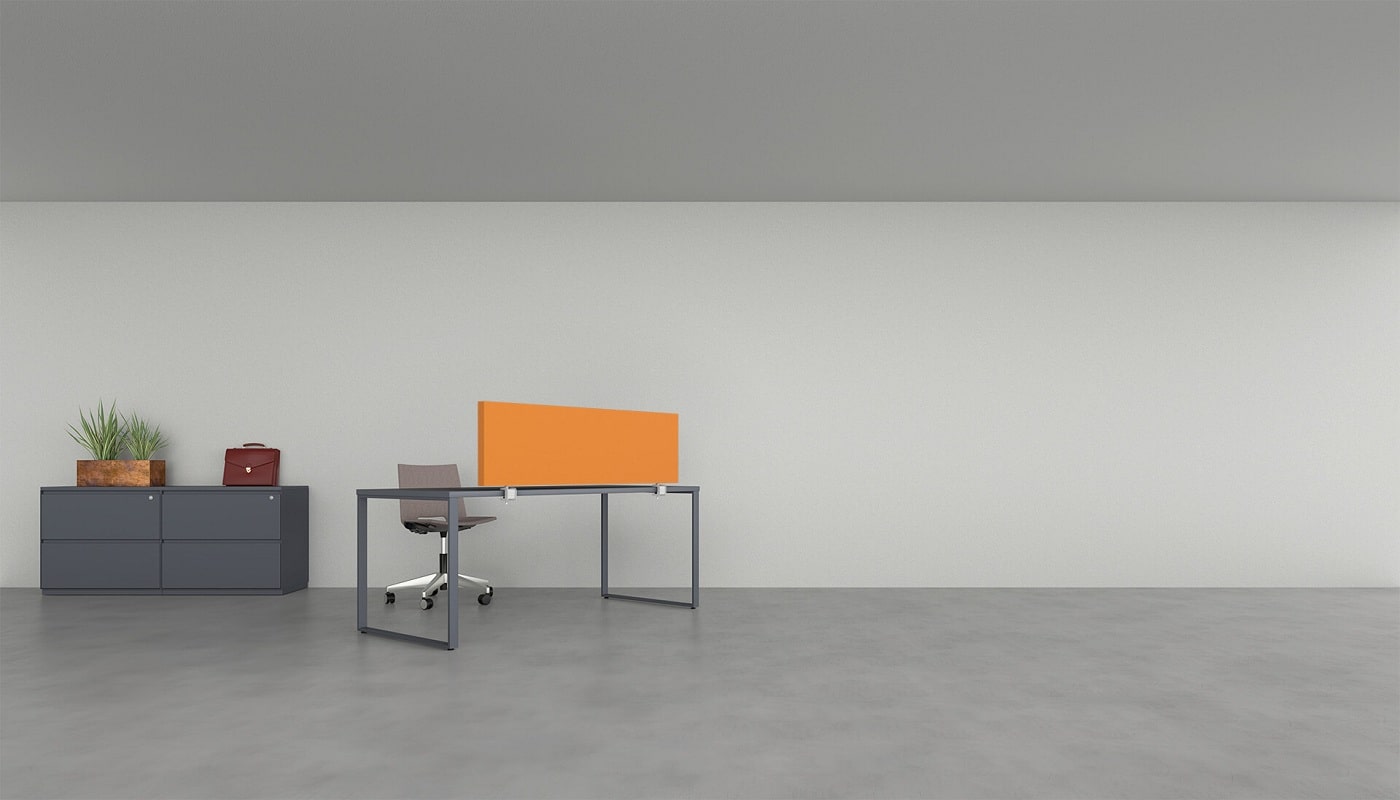

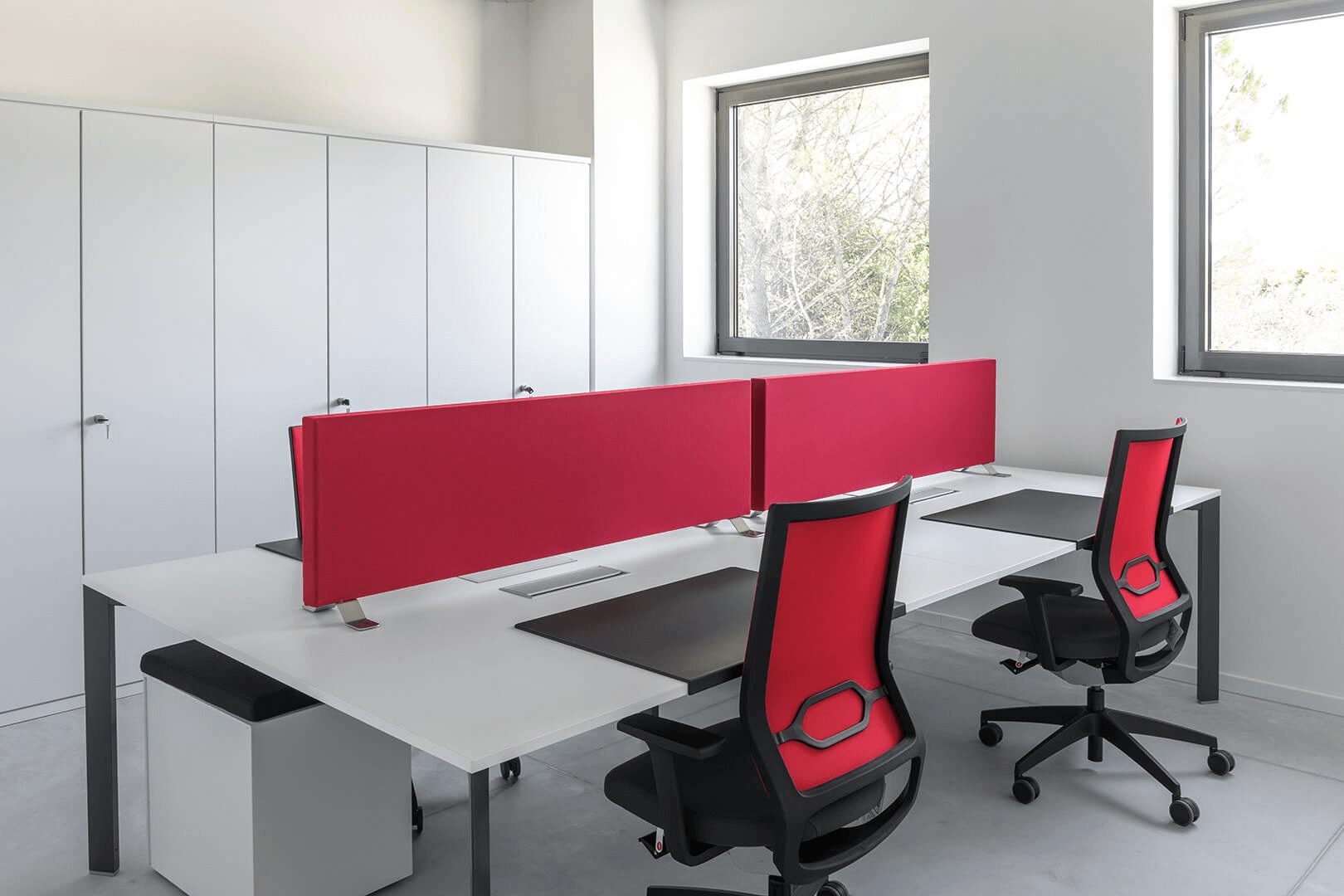

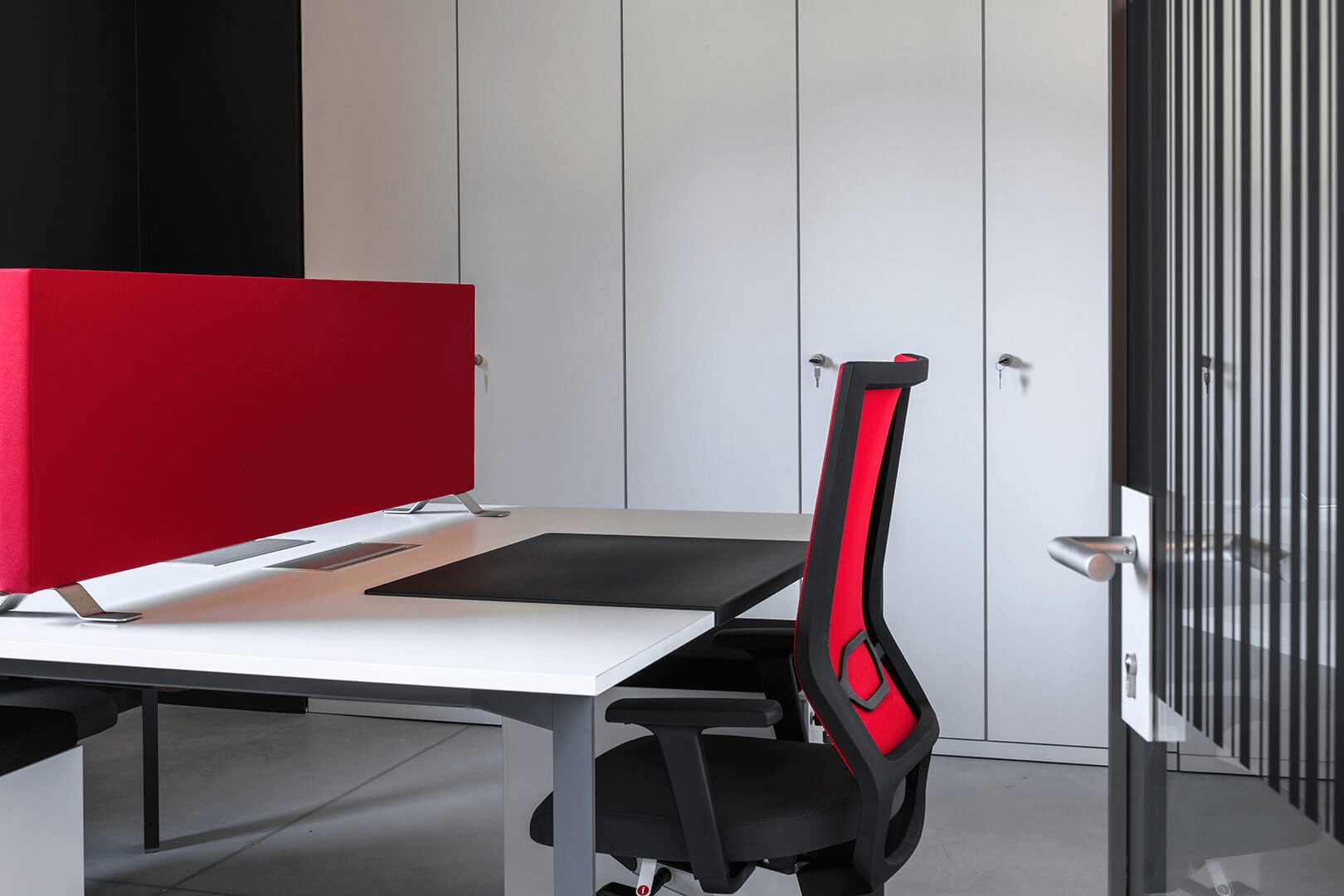

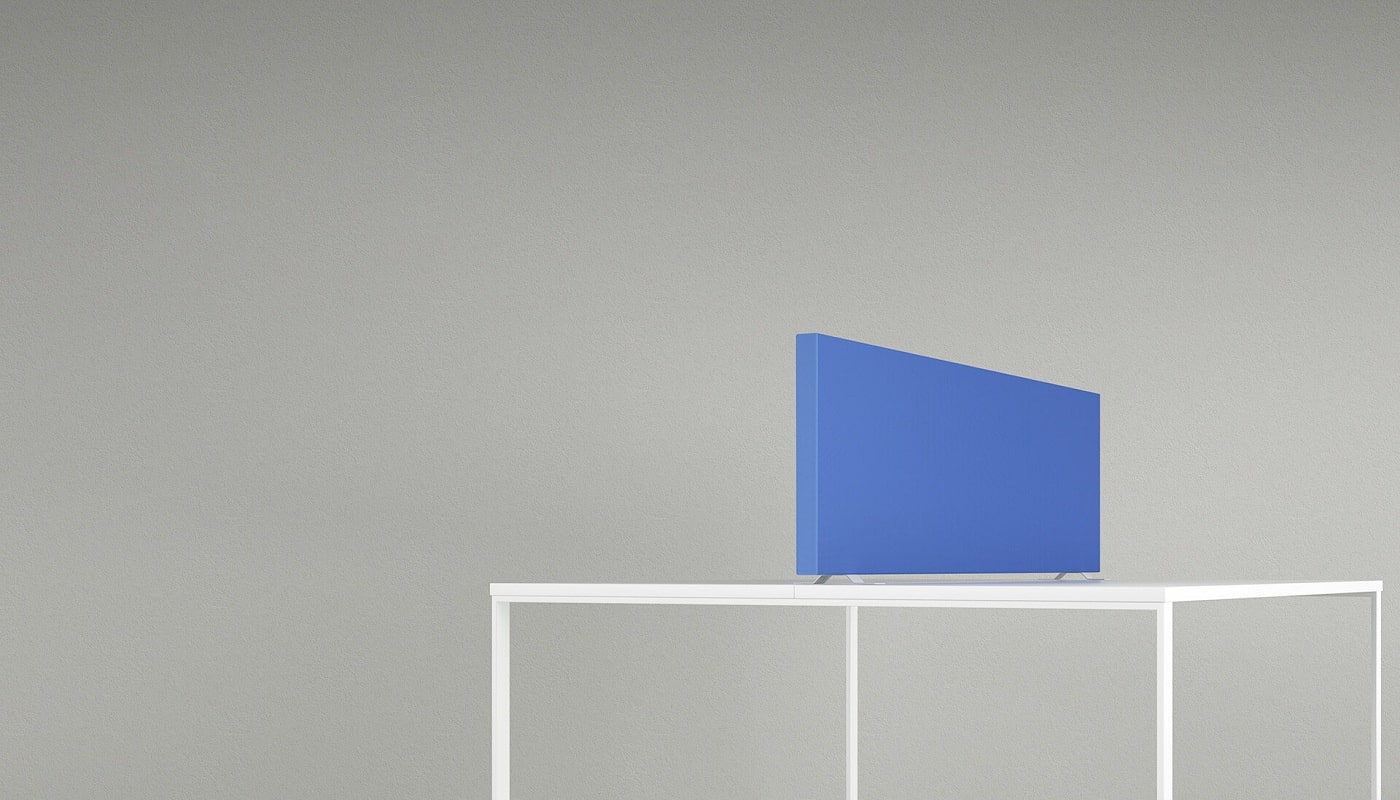

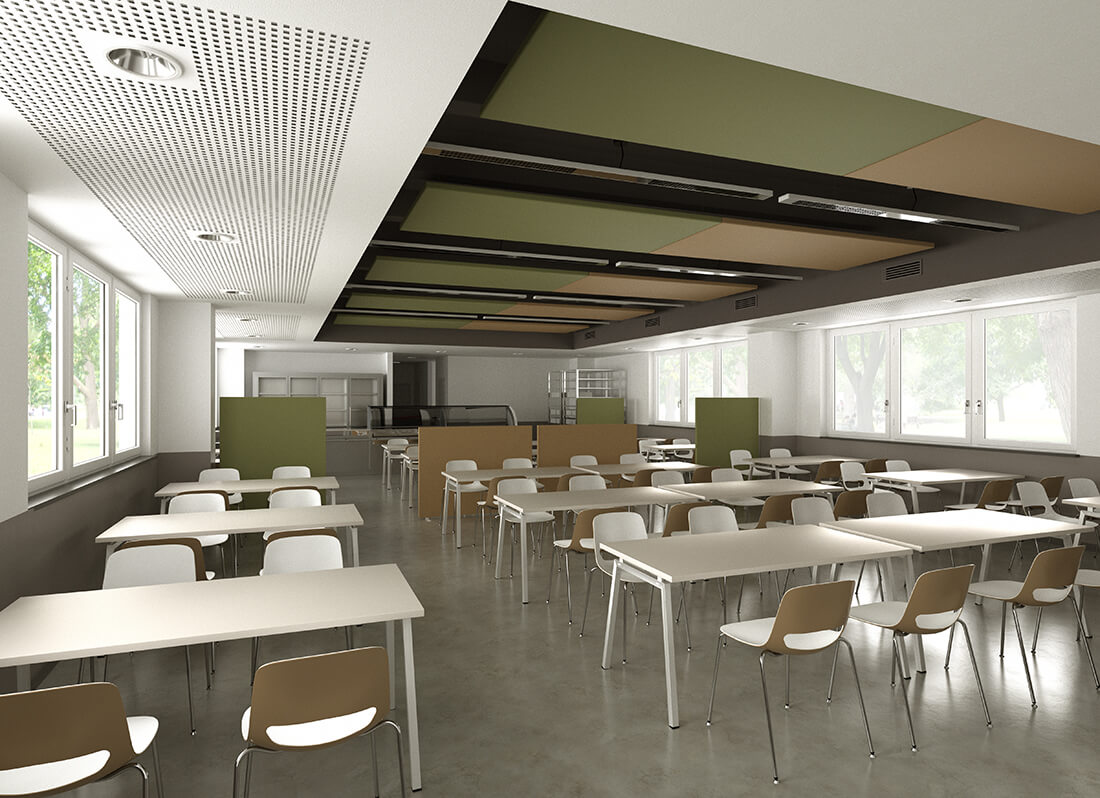

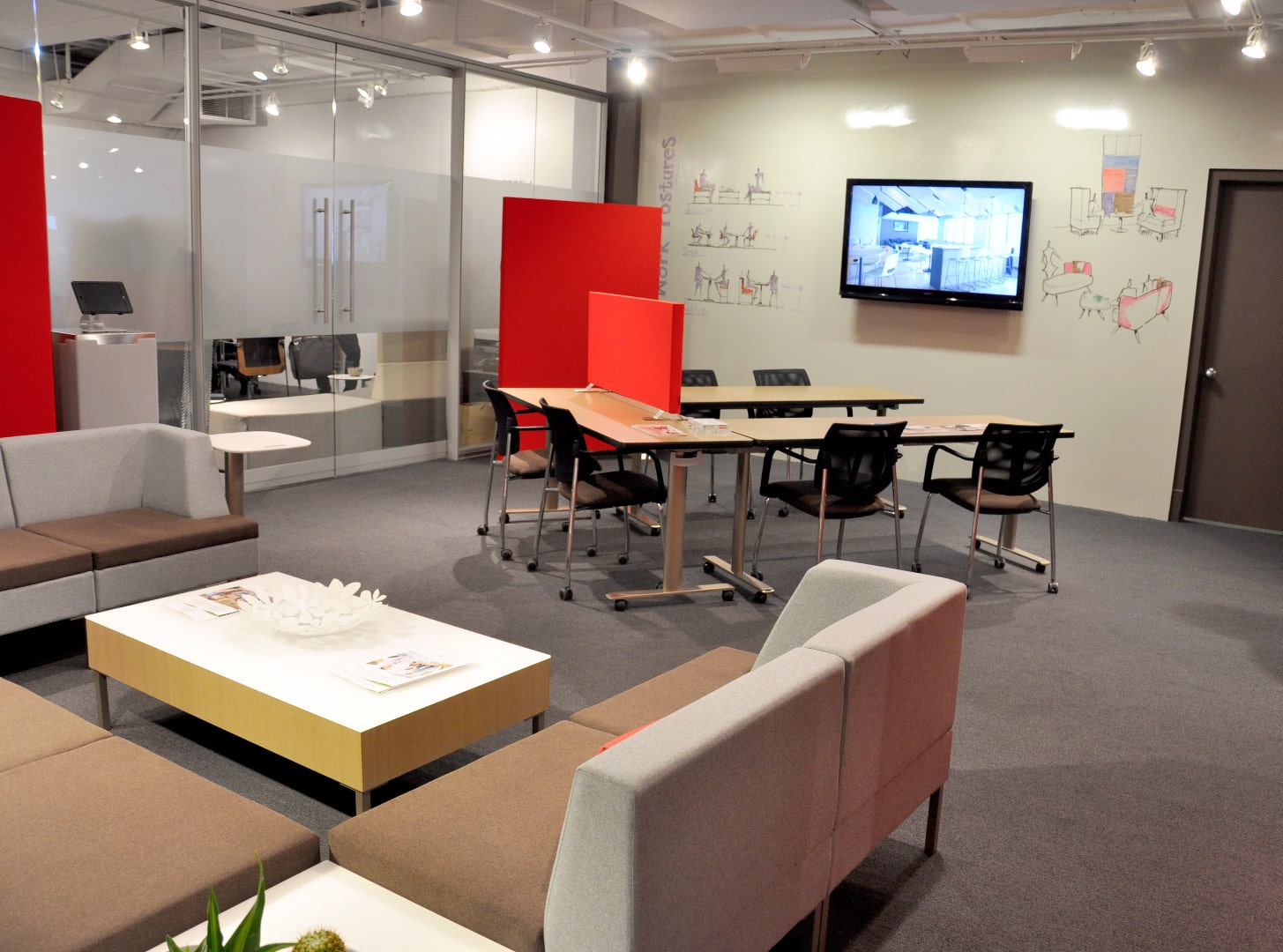

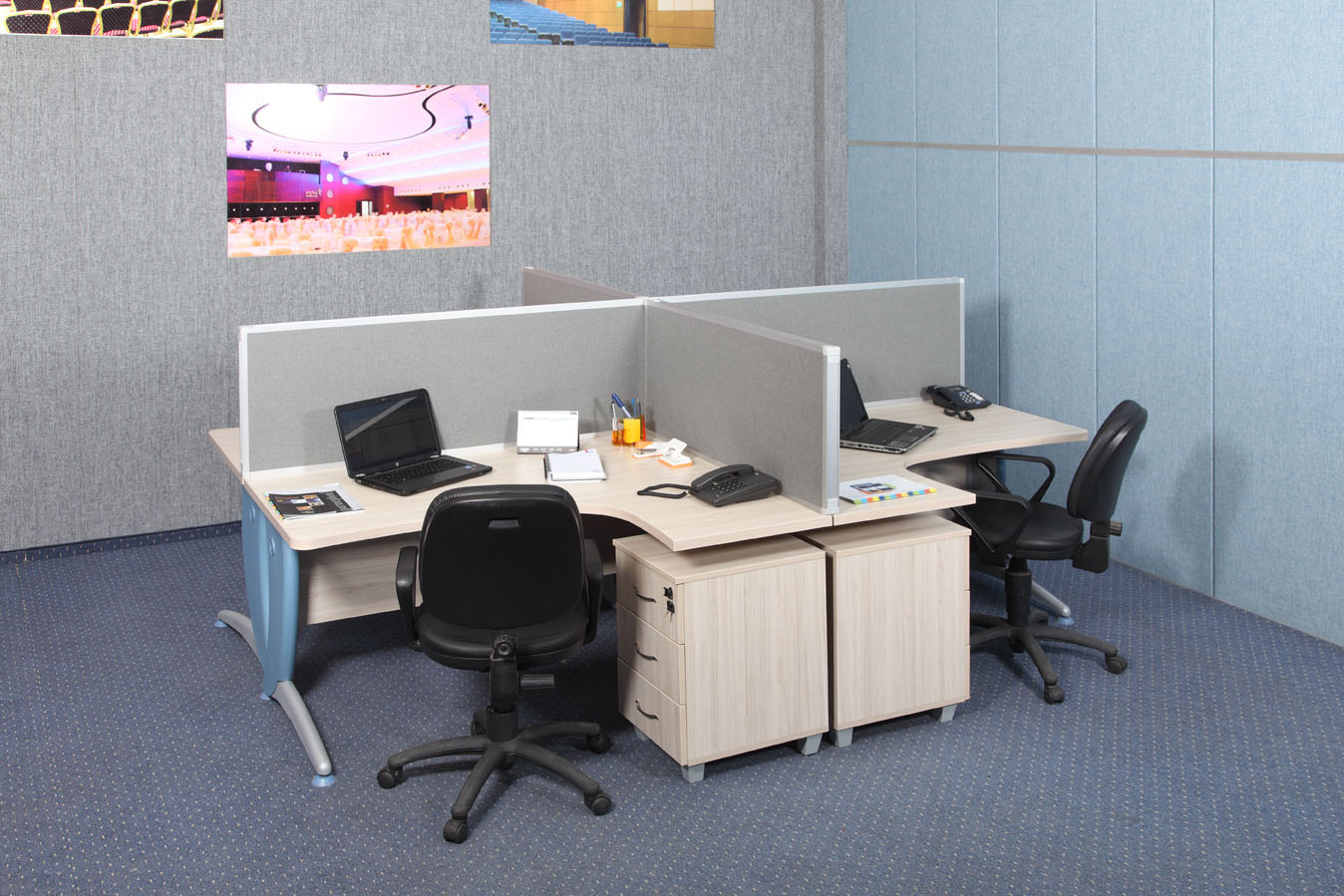

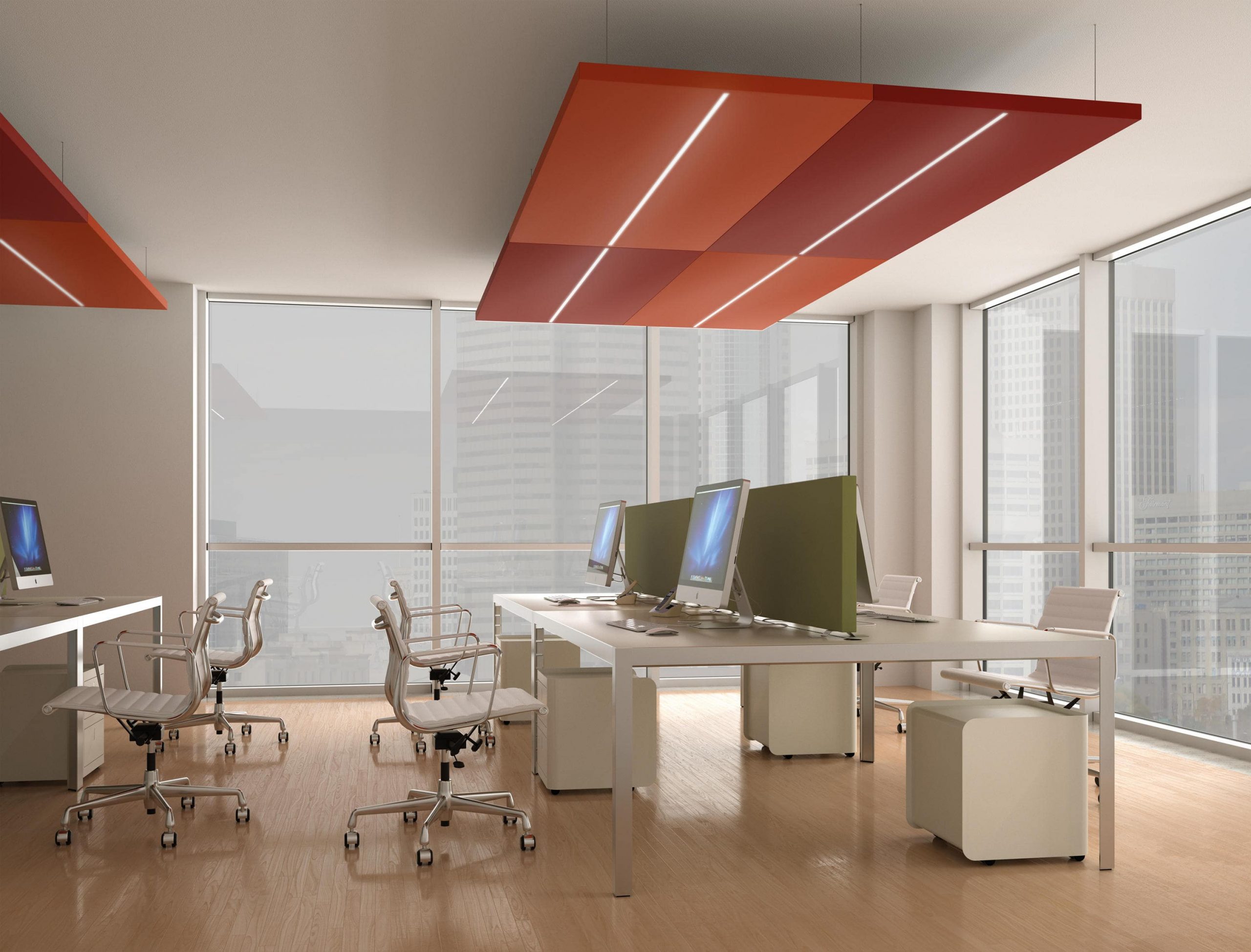

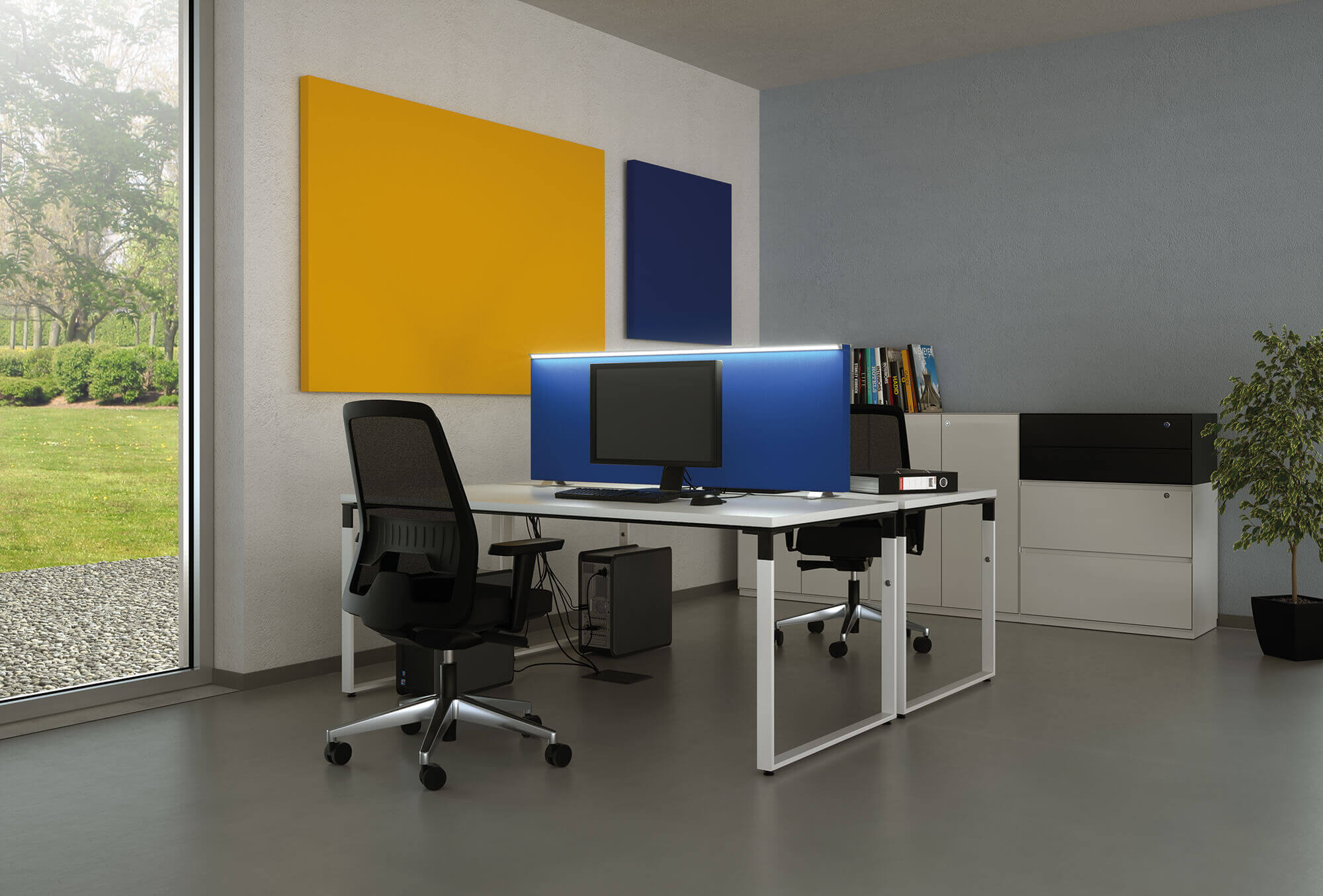

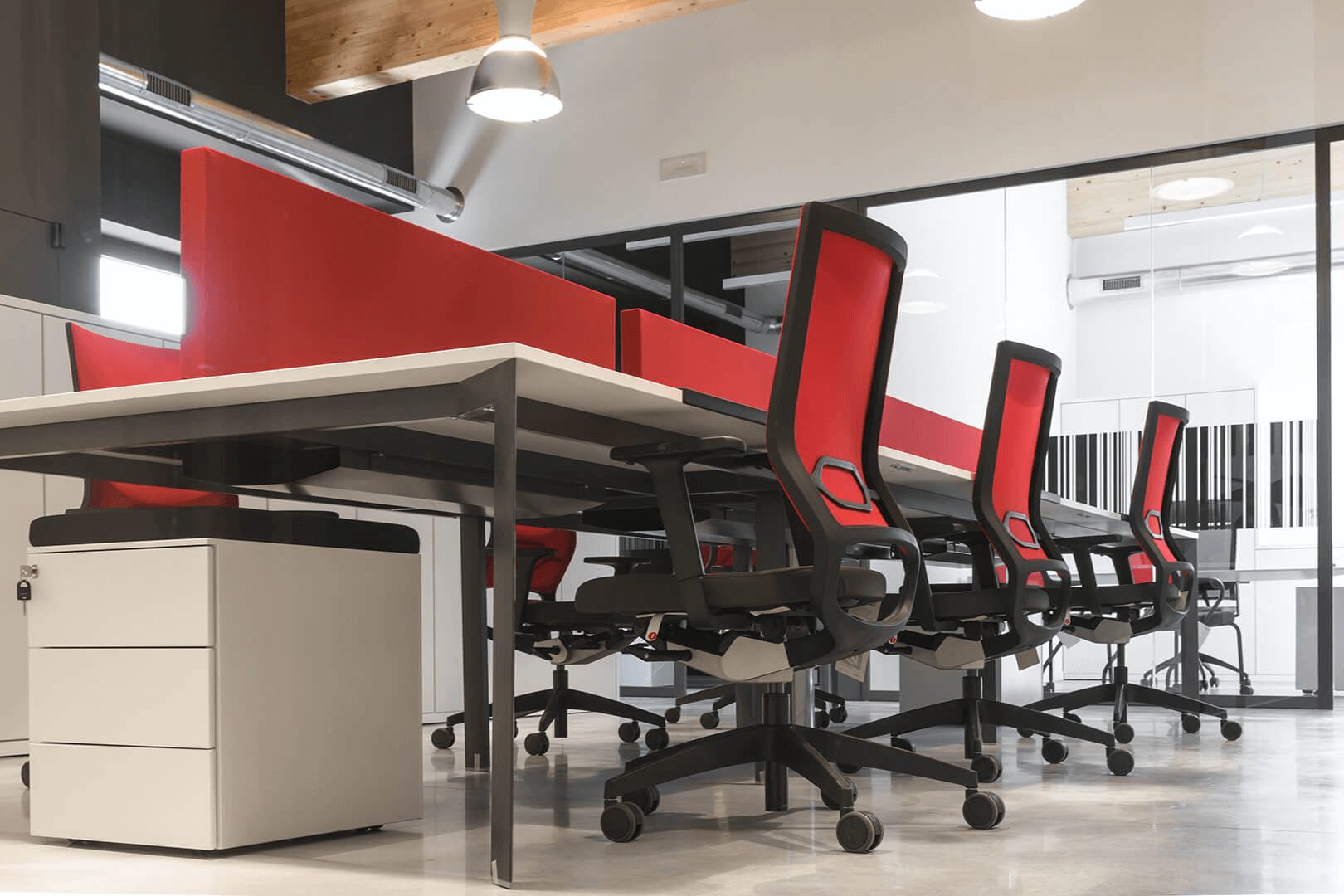

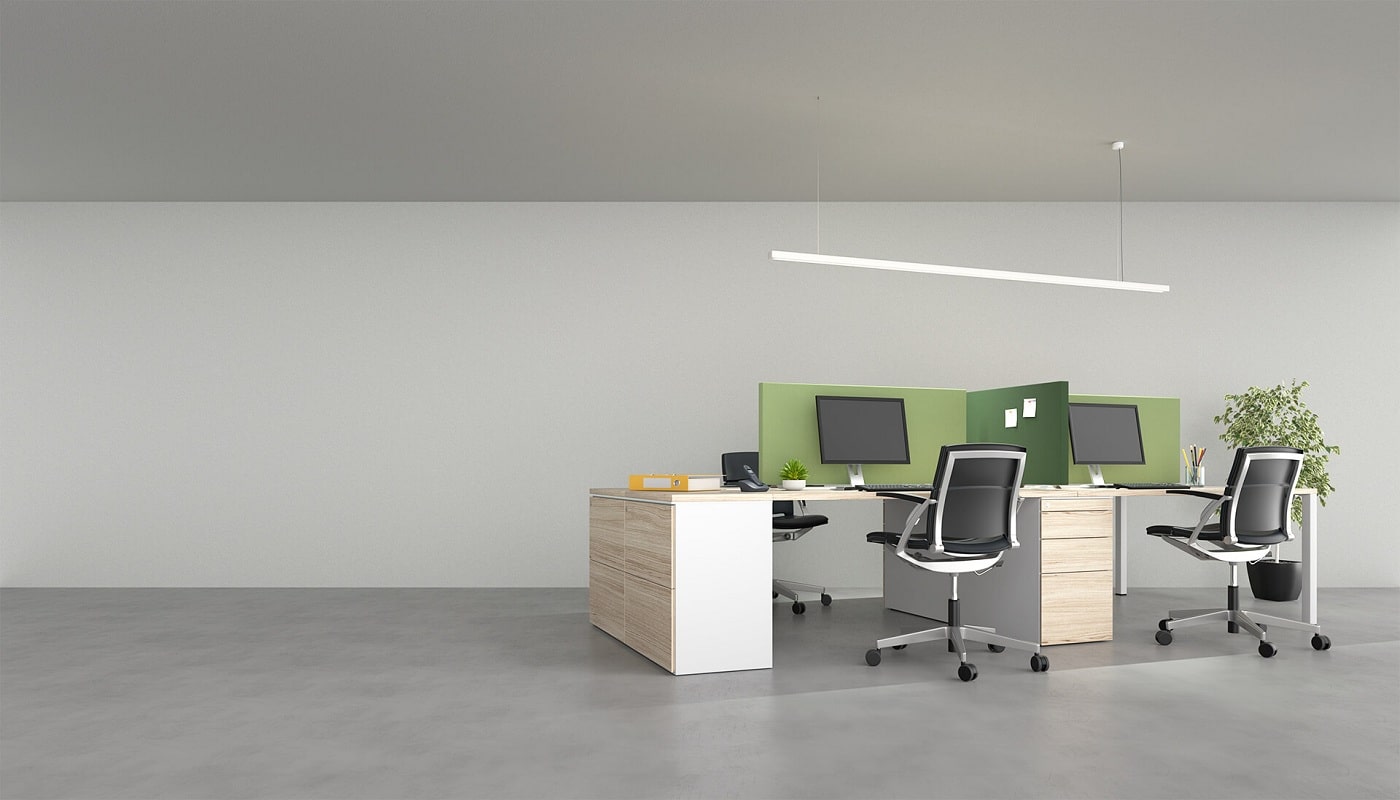

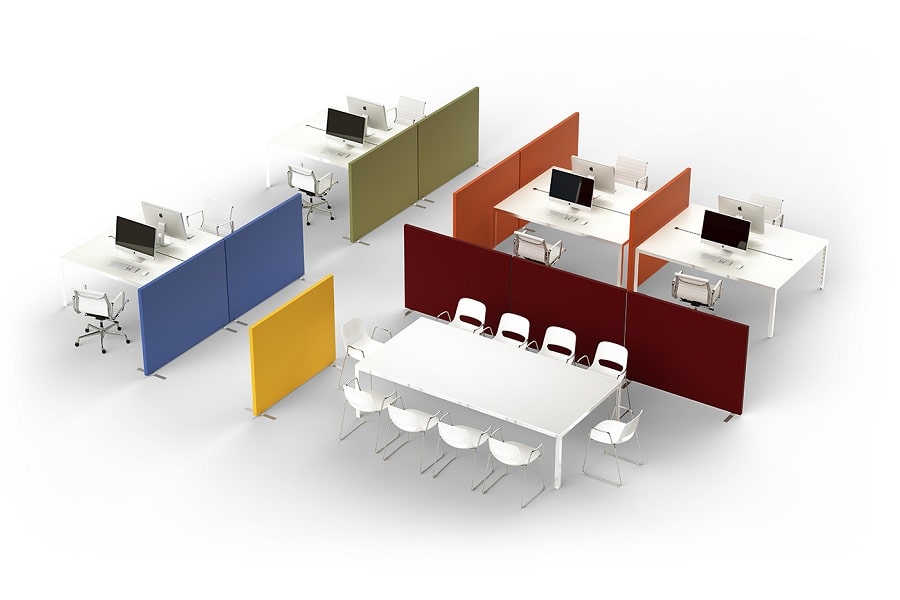

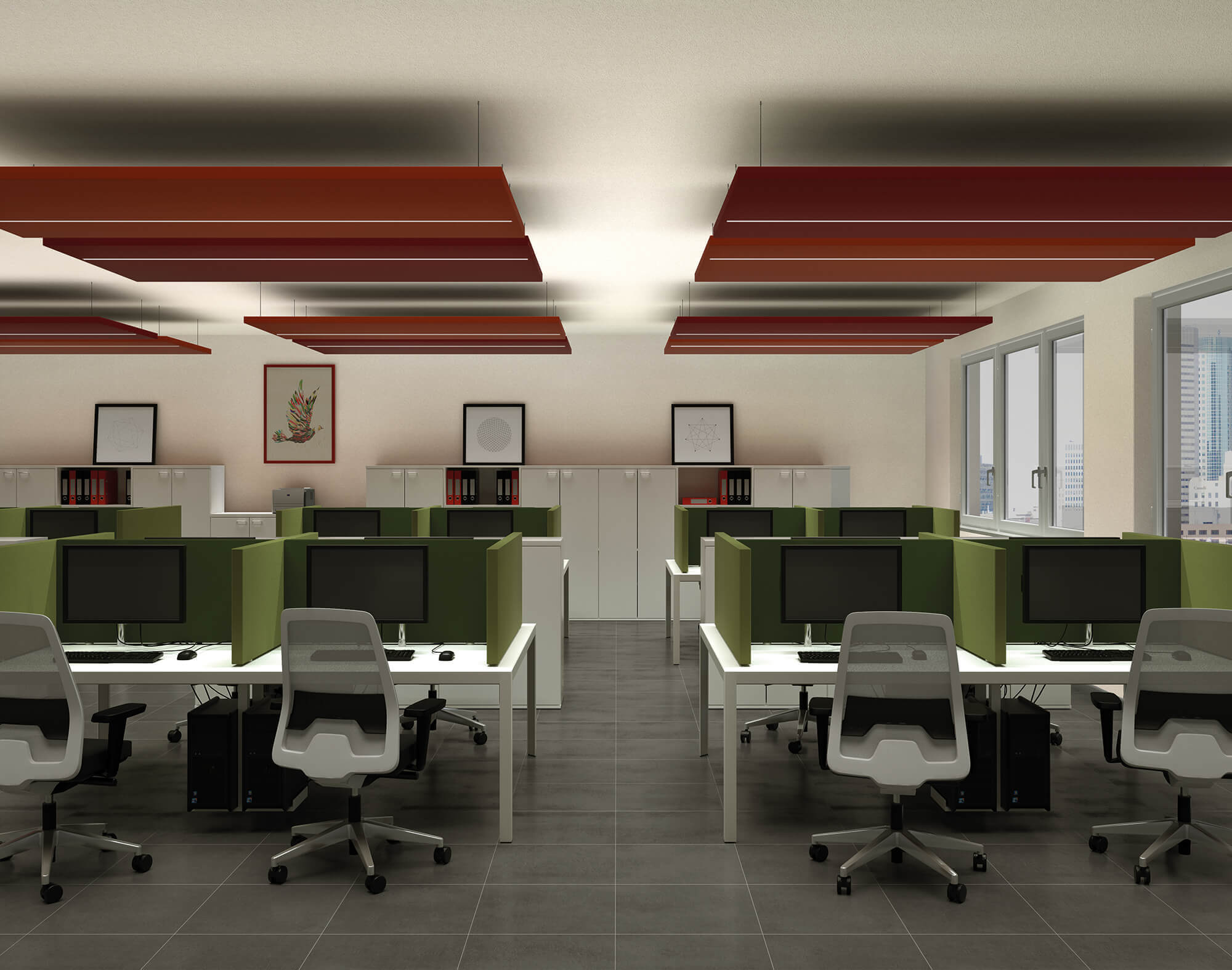

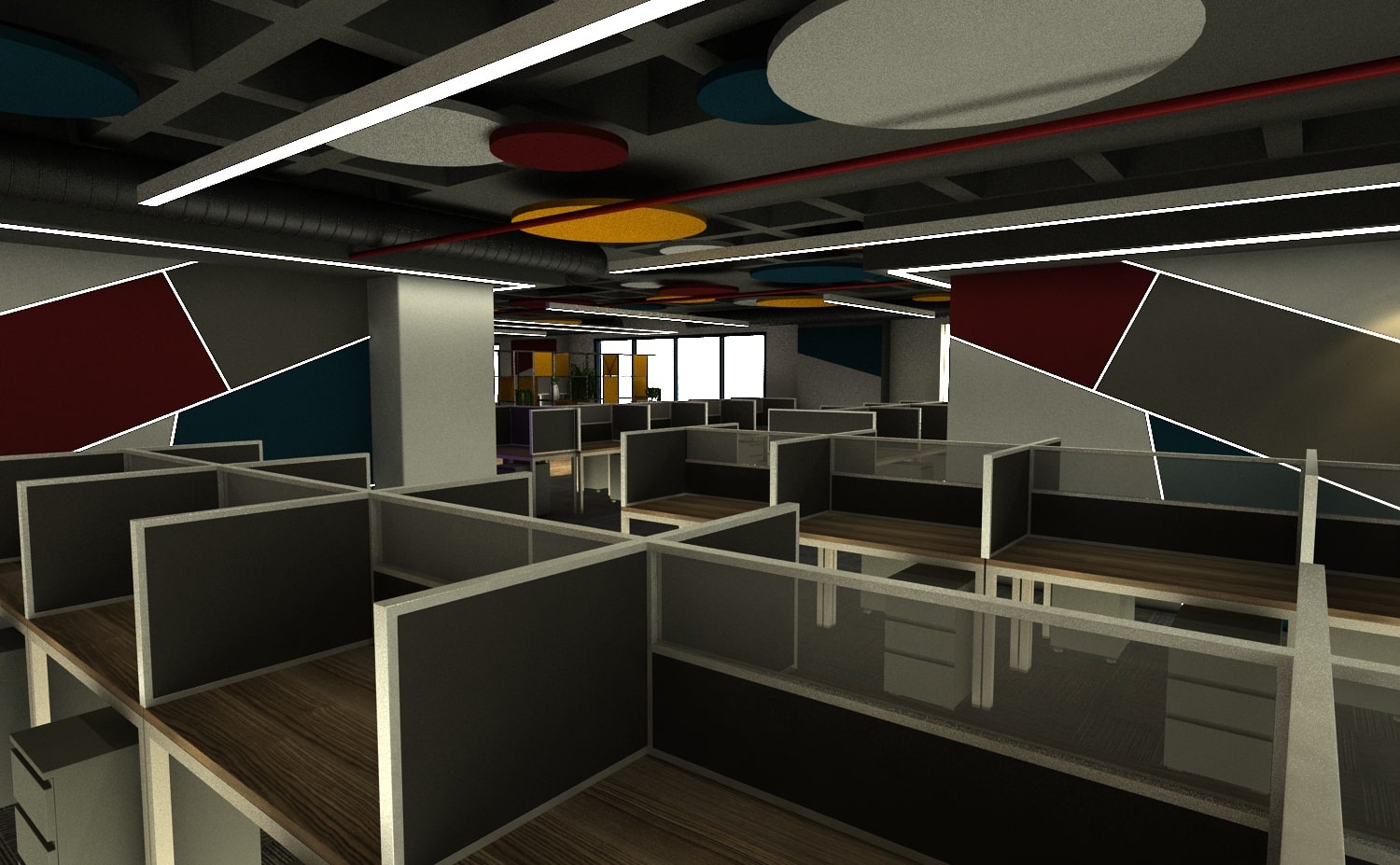

Applıcatıon Images

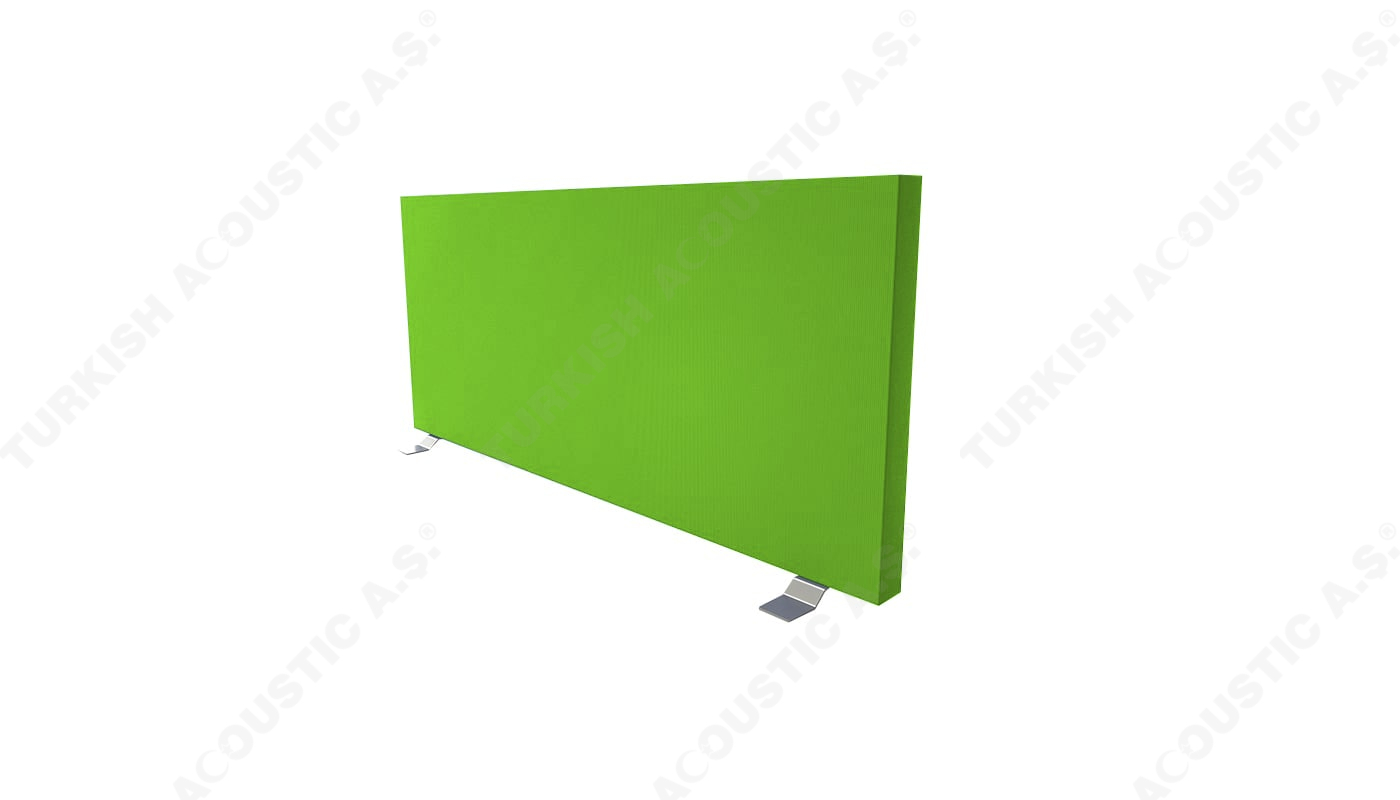

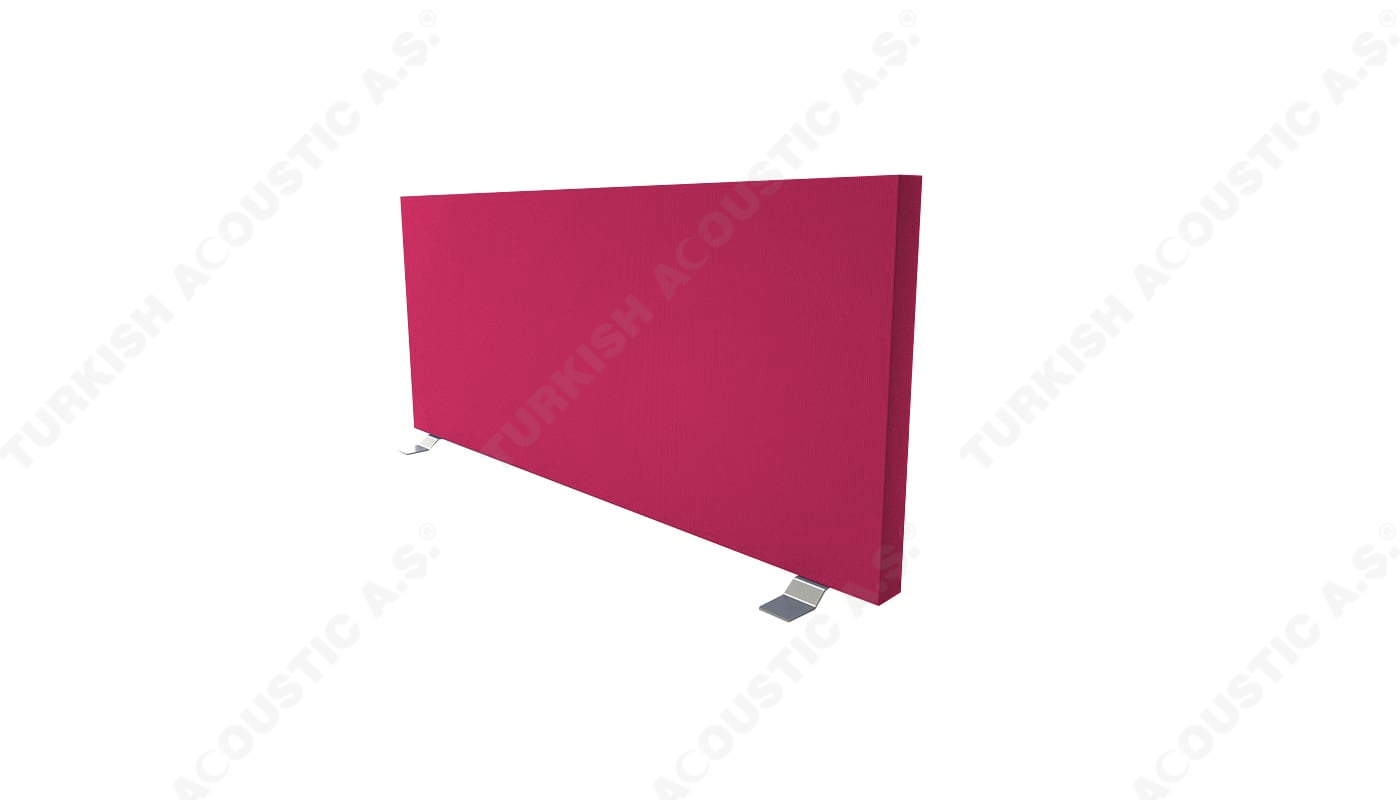

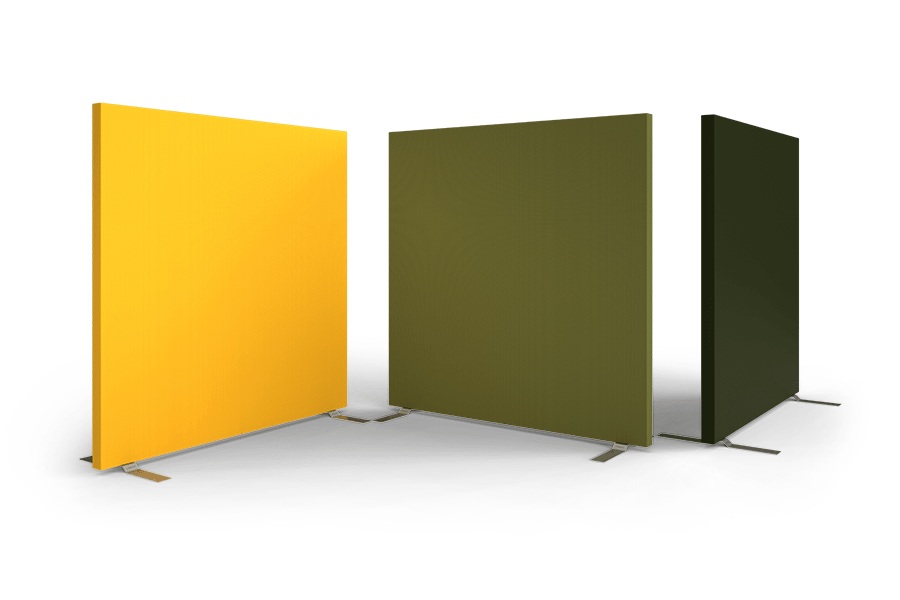

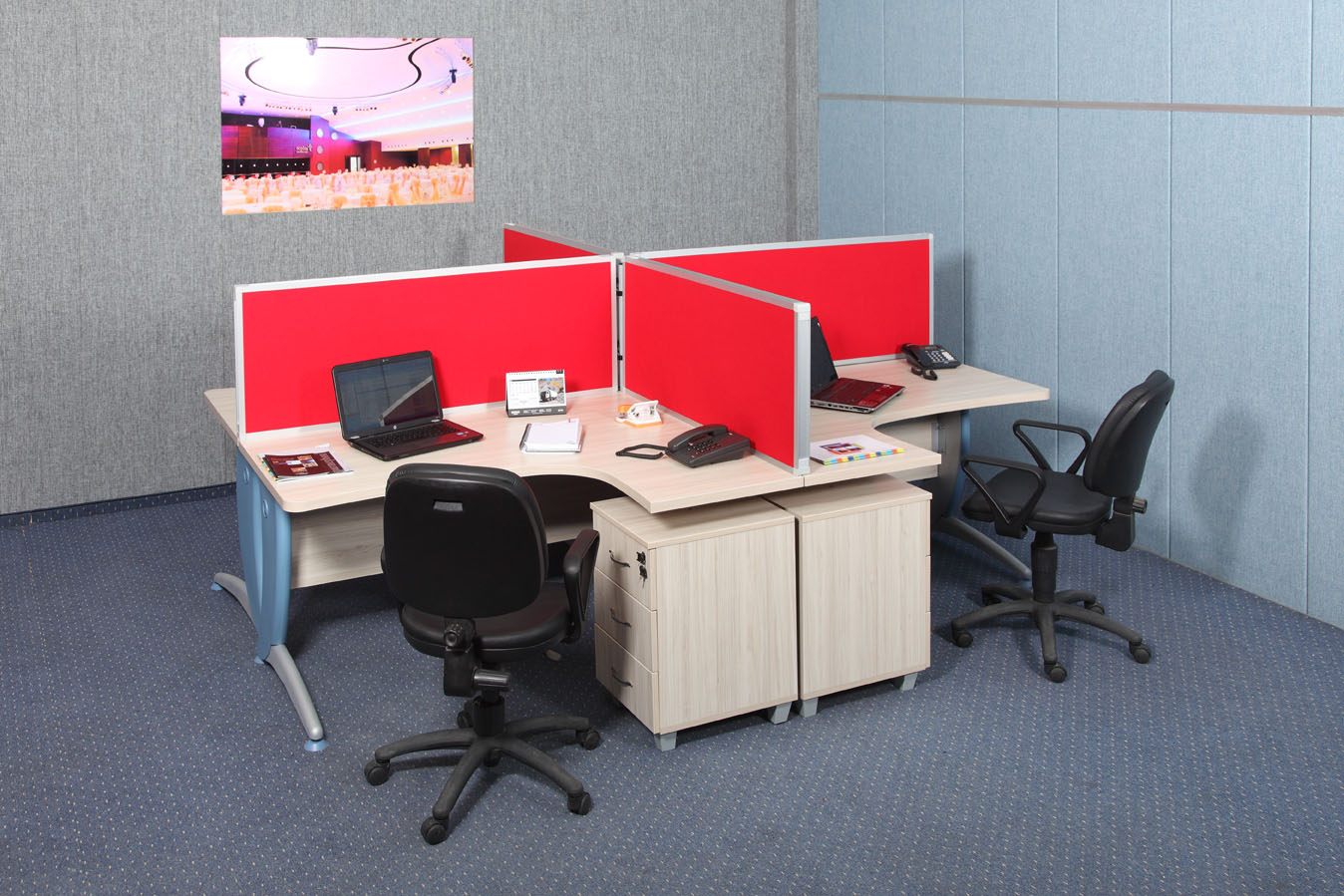

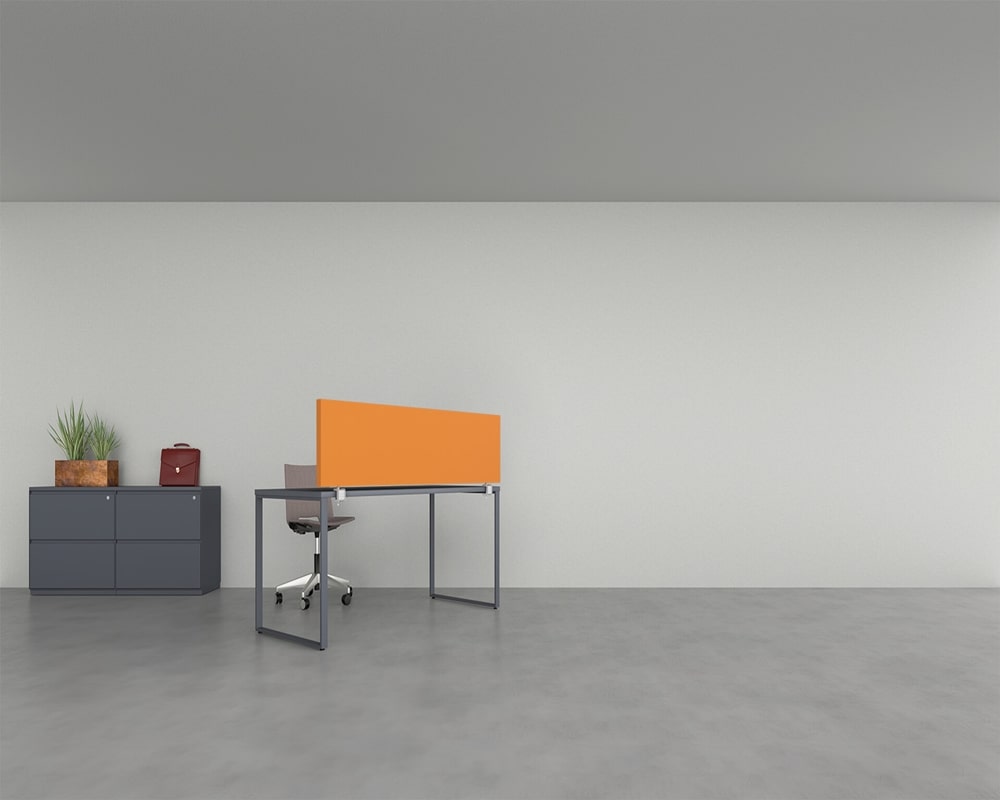

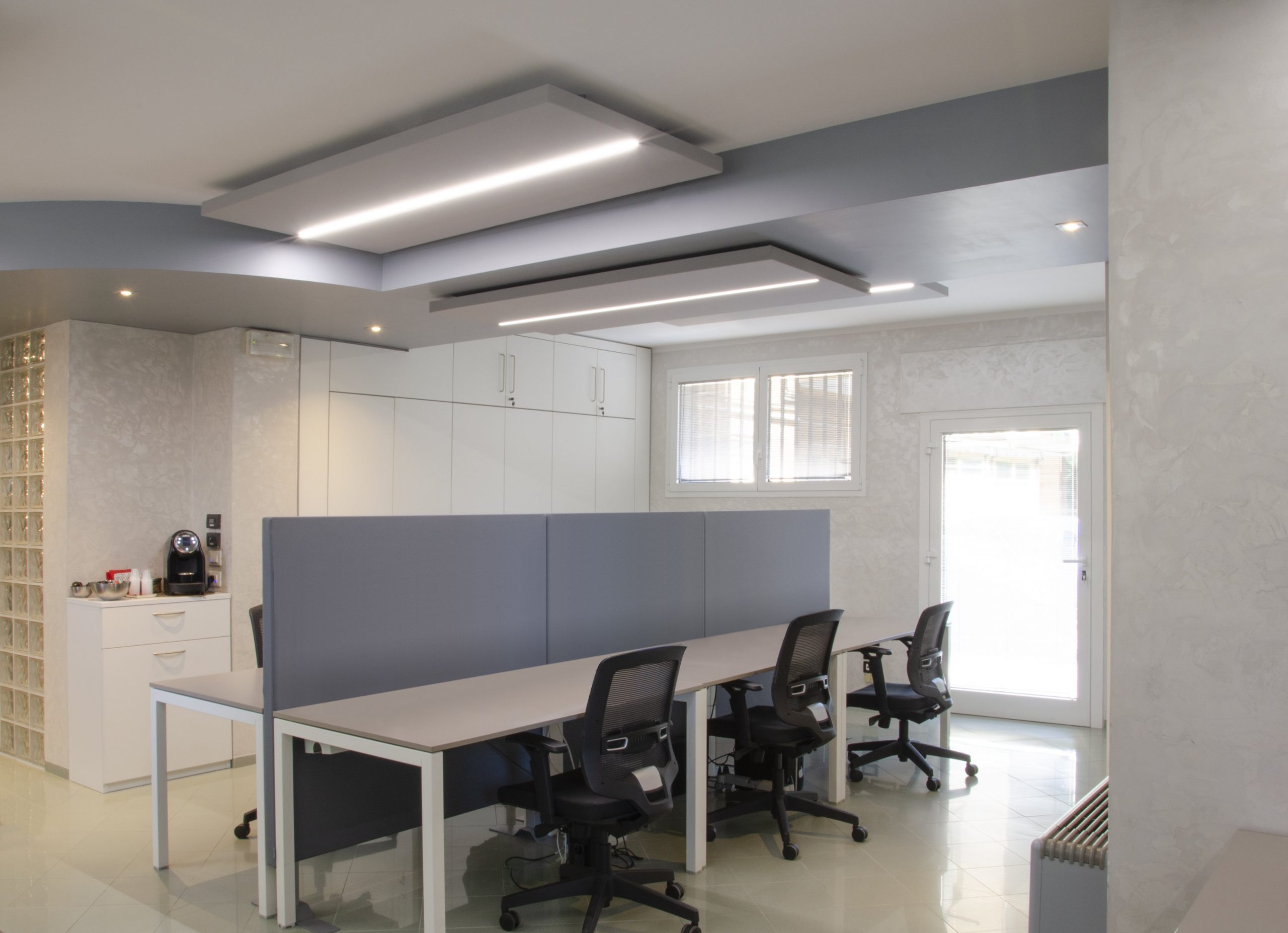

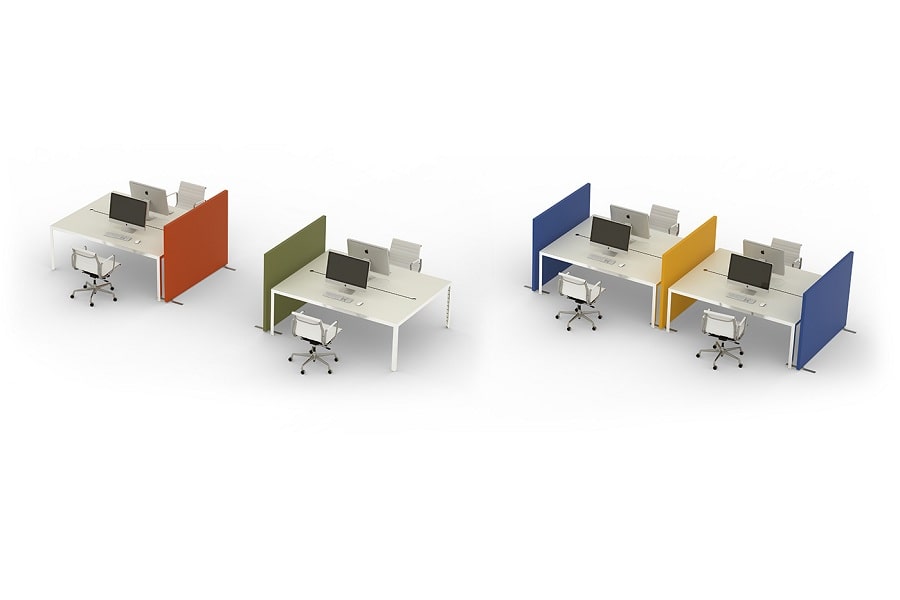

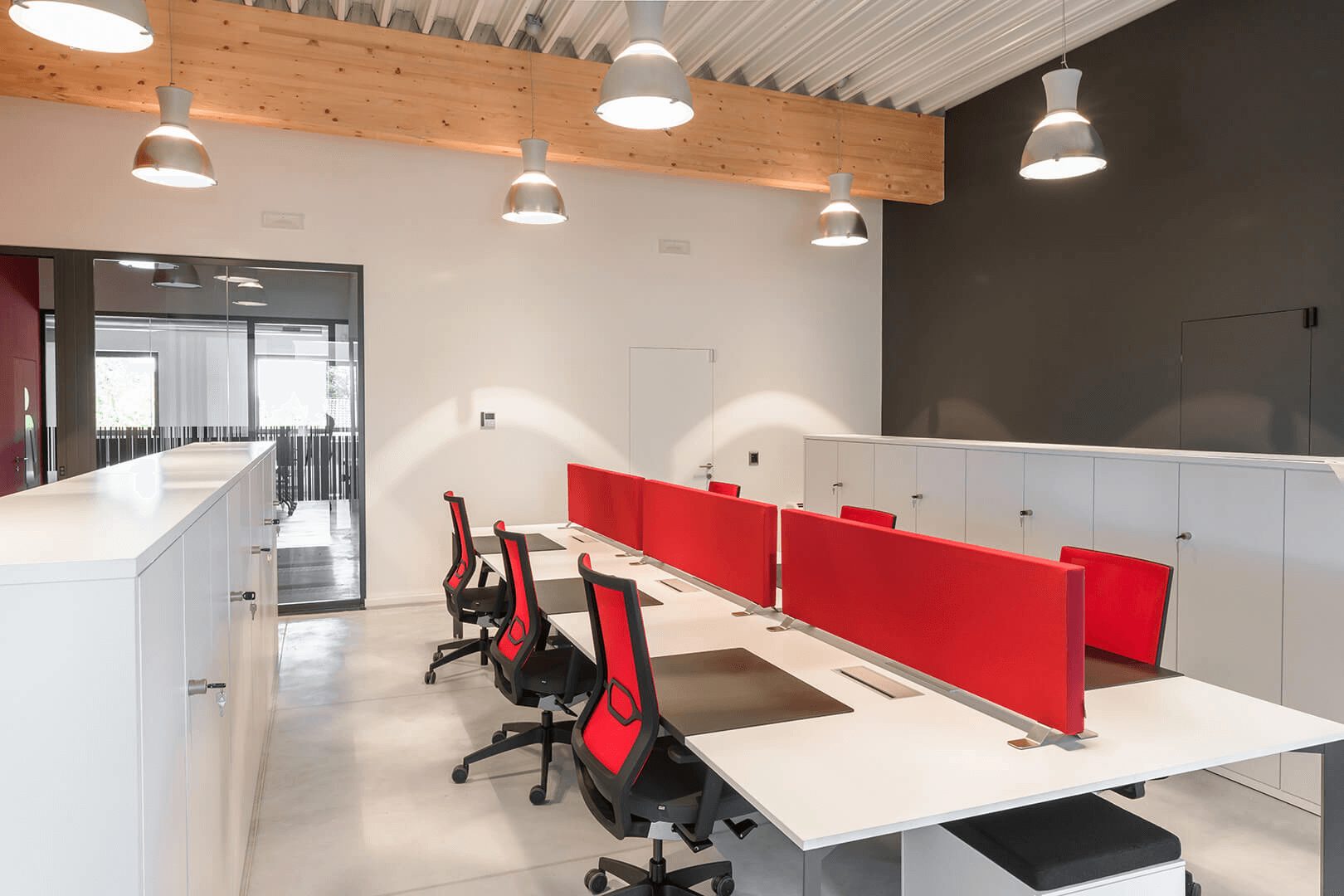

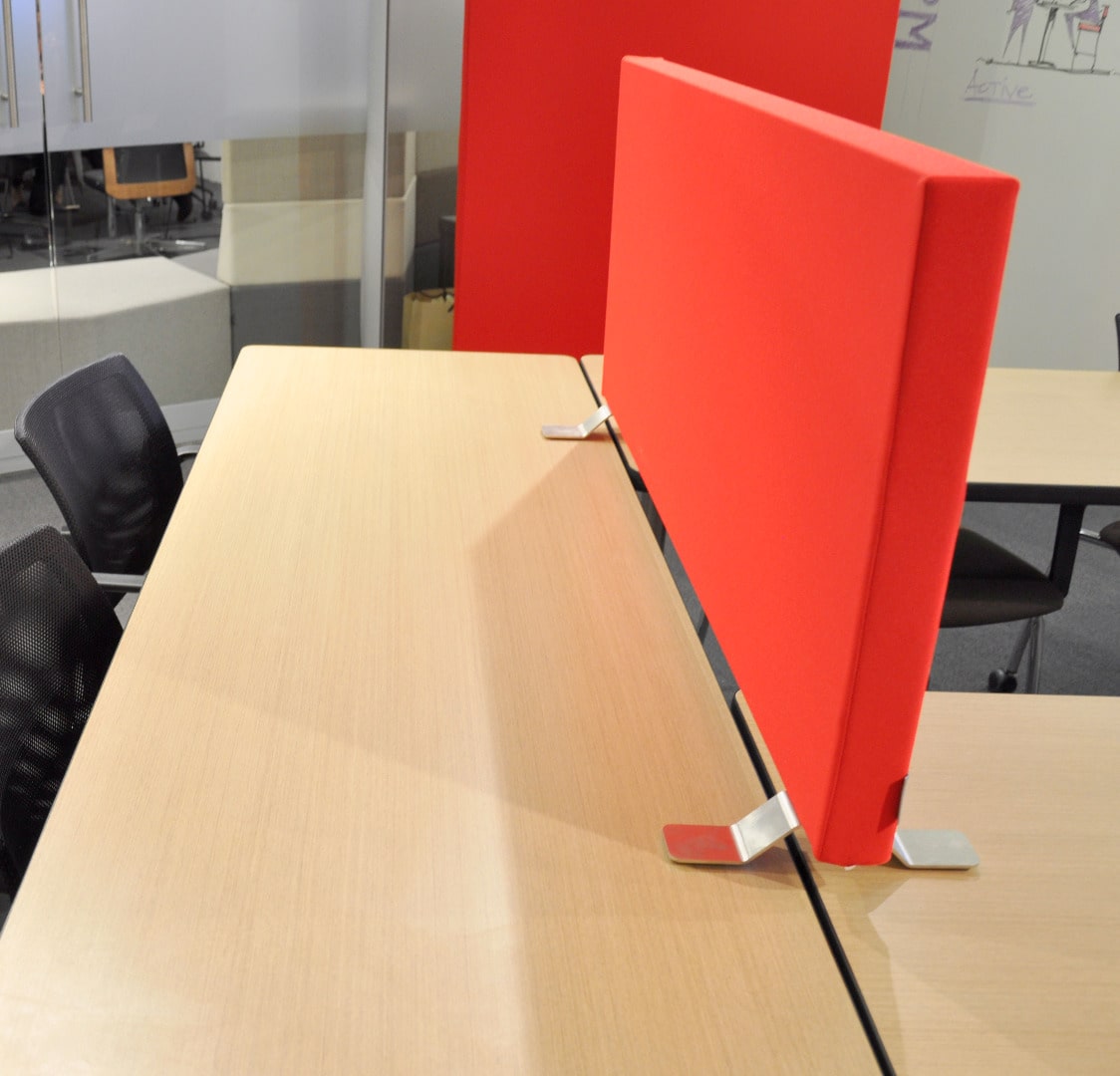

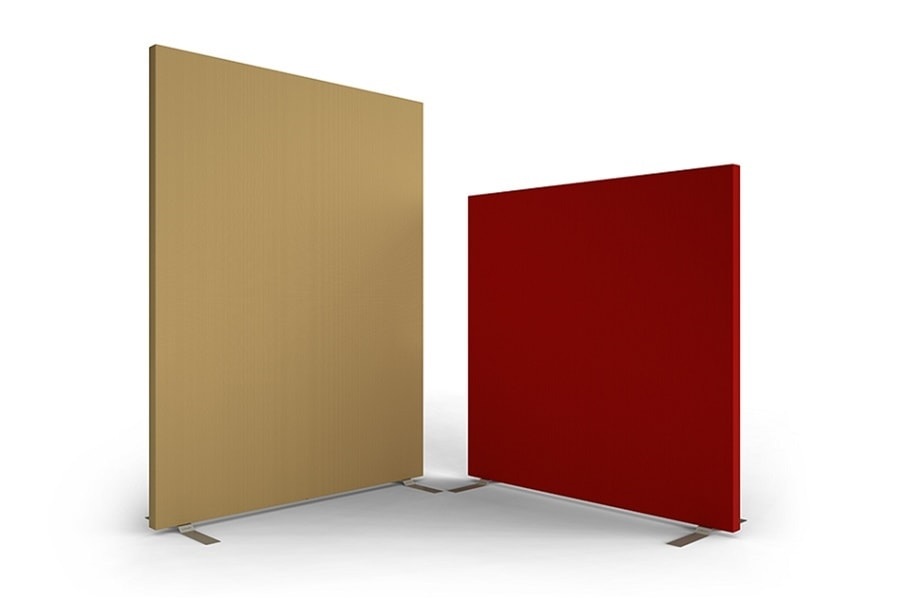

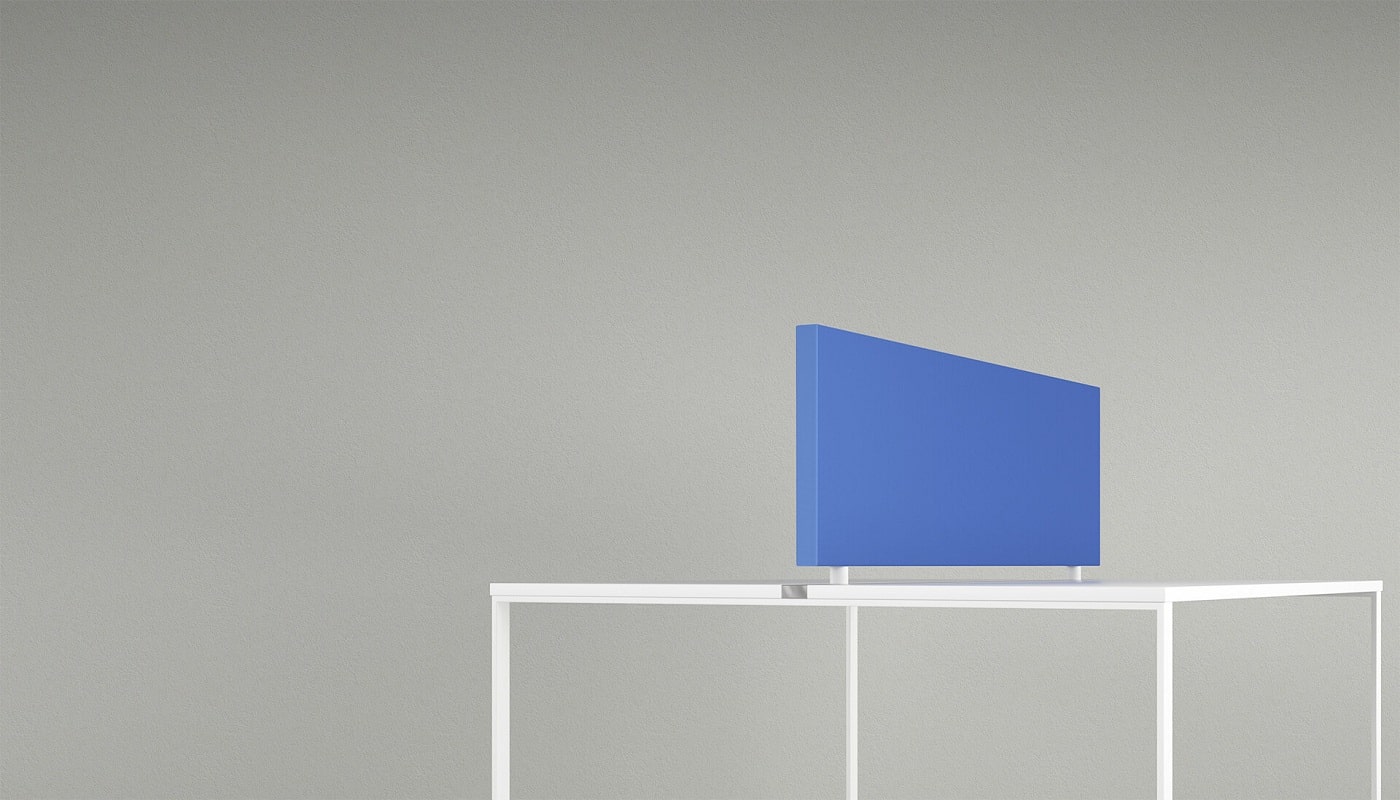

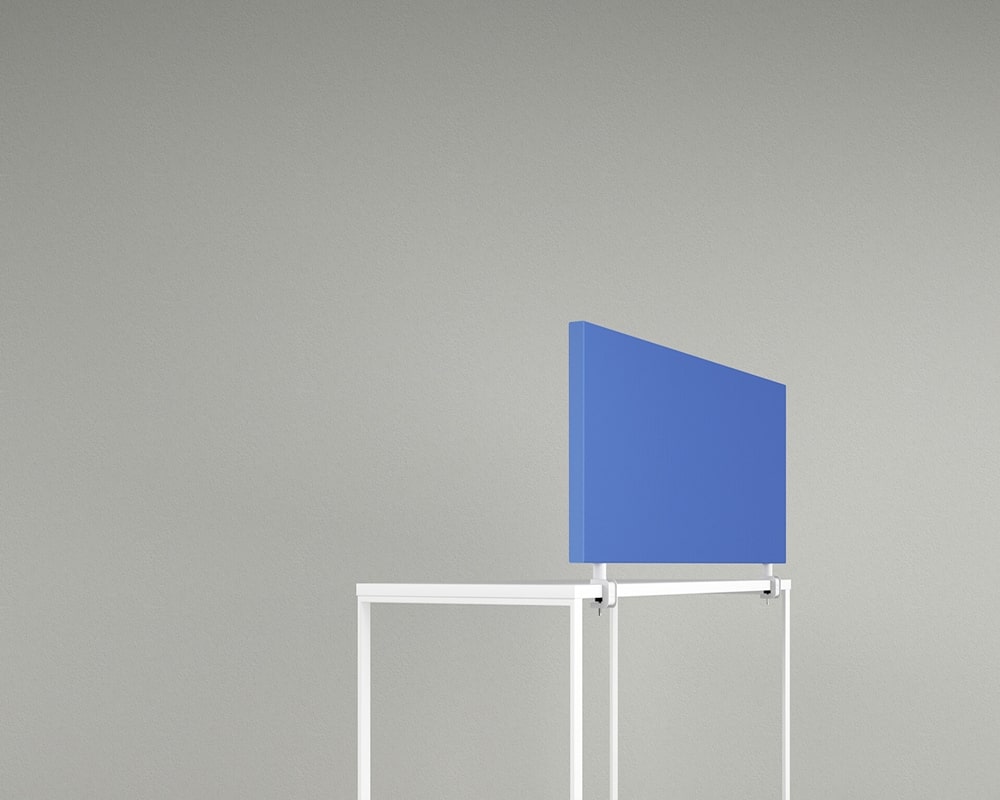

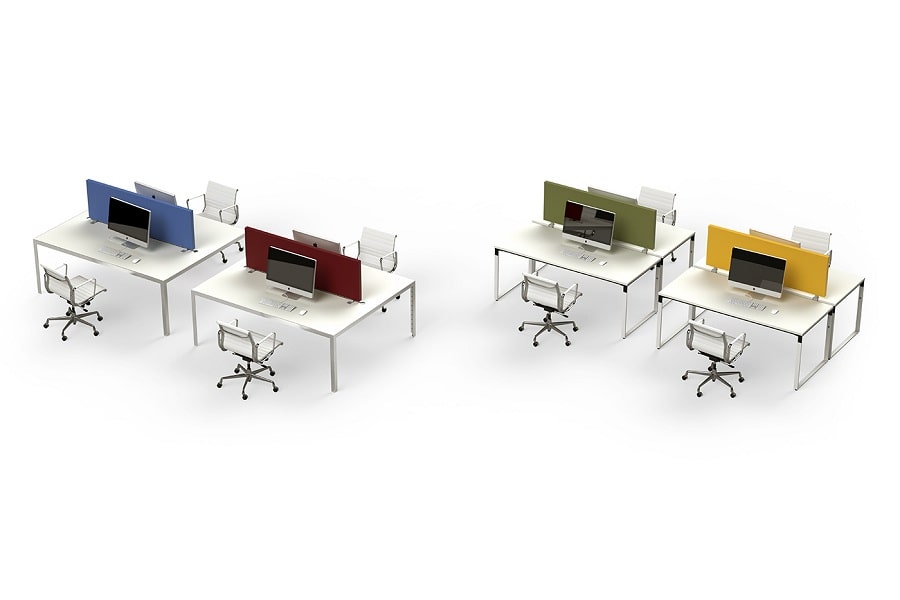

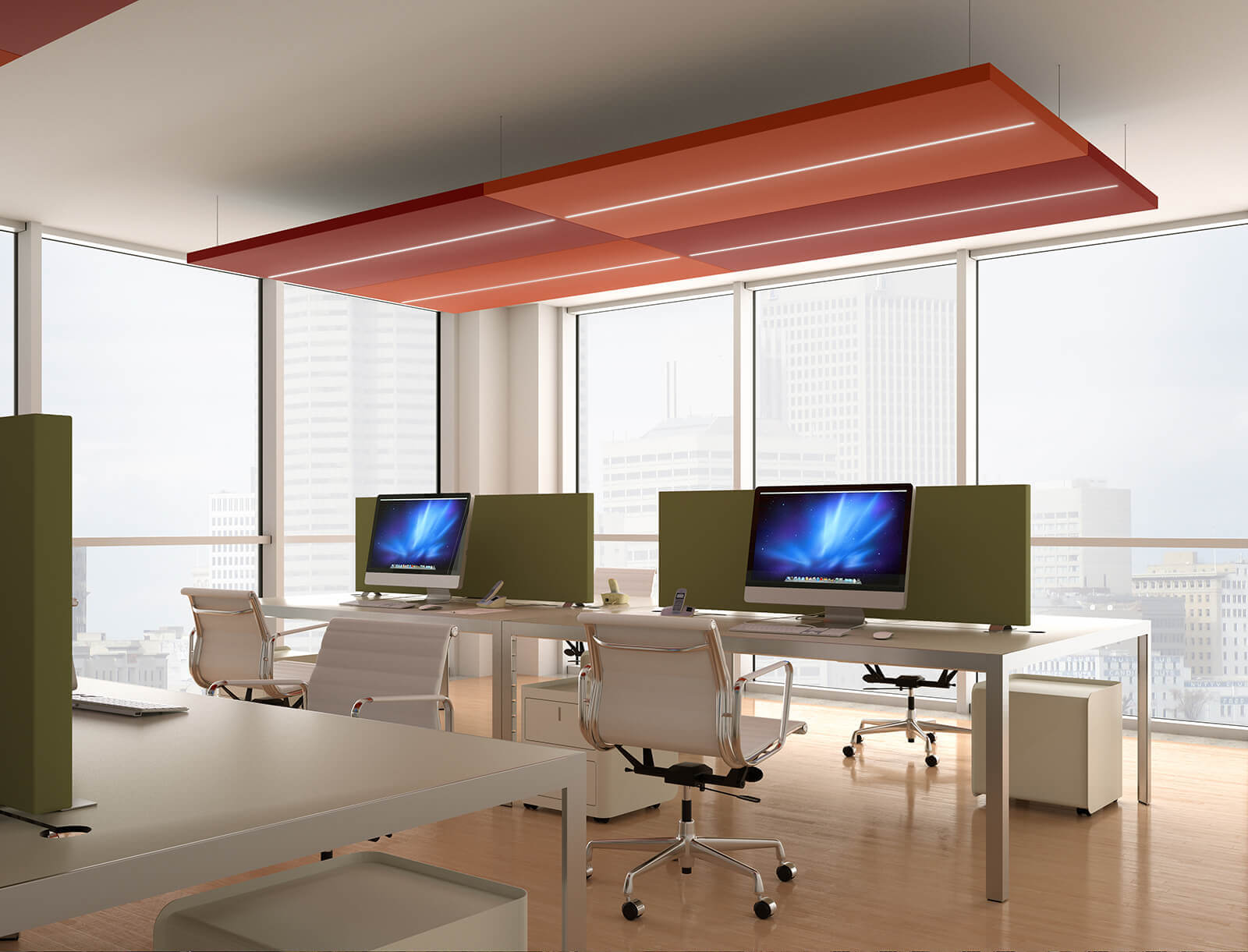

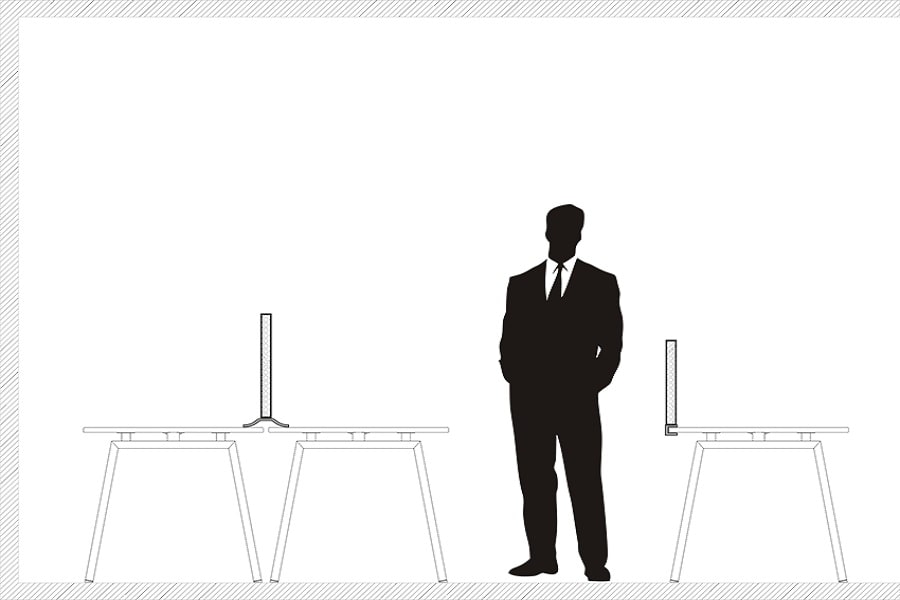

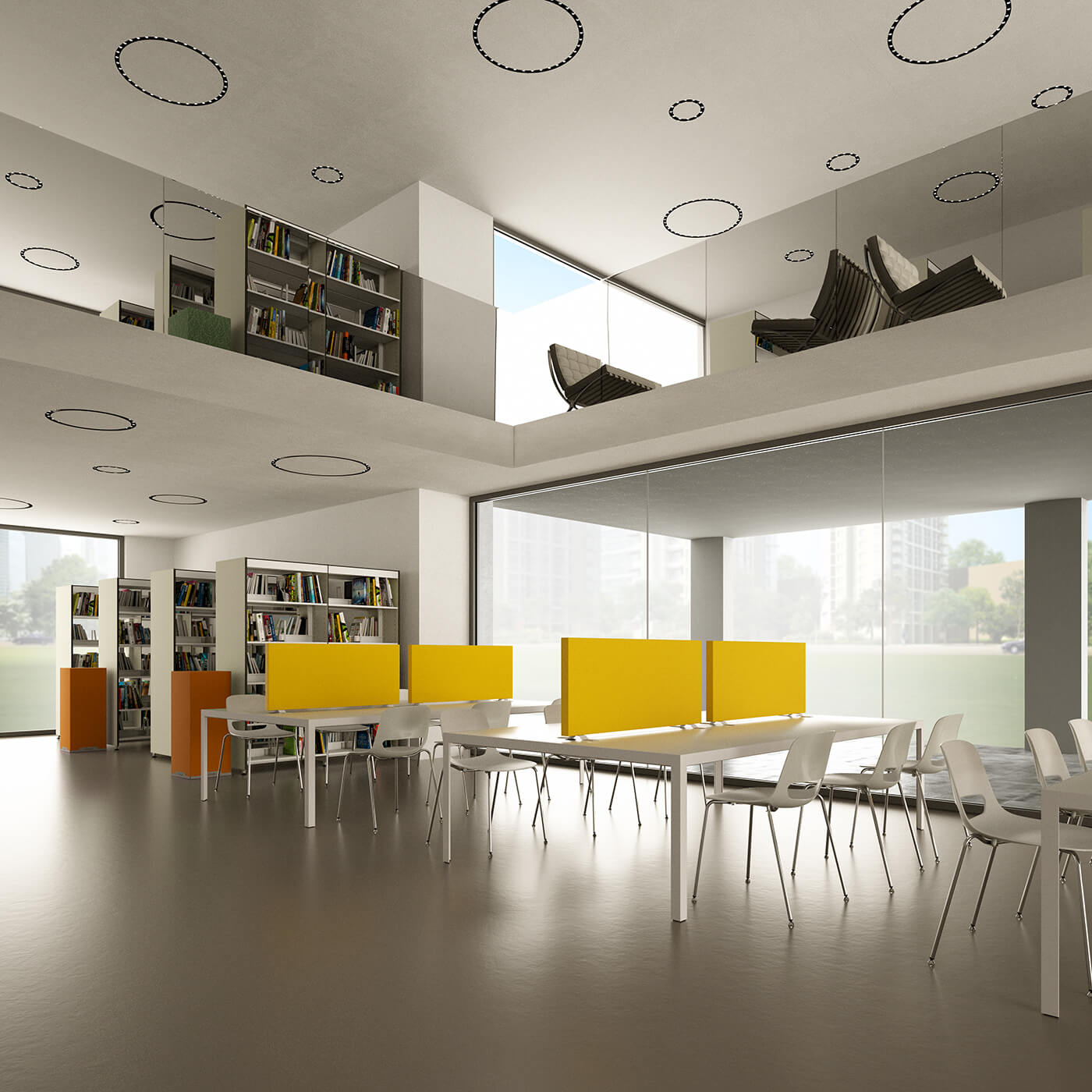

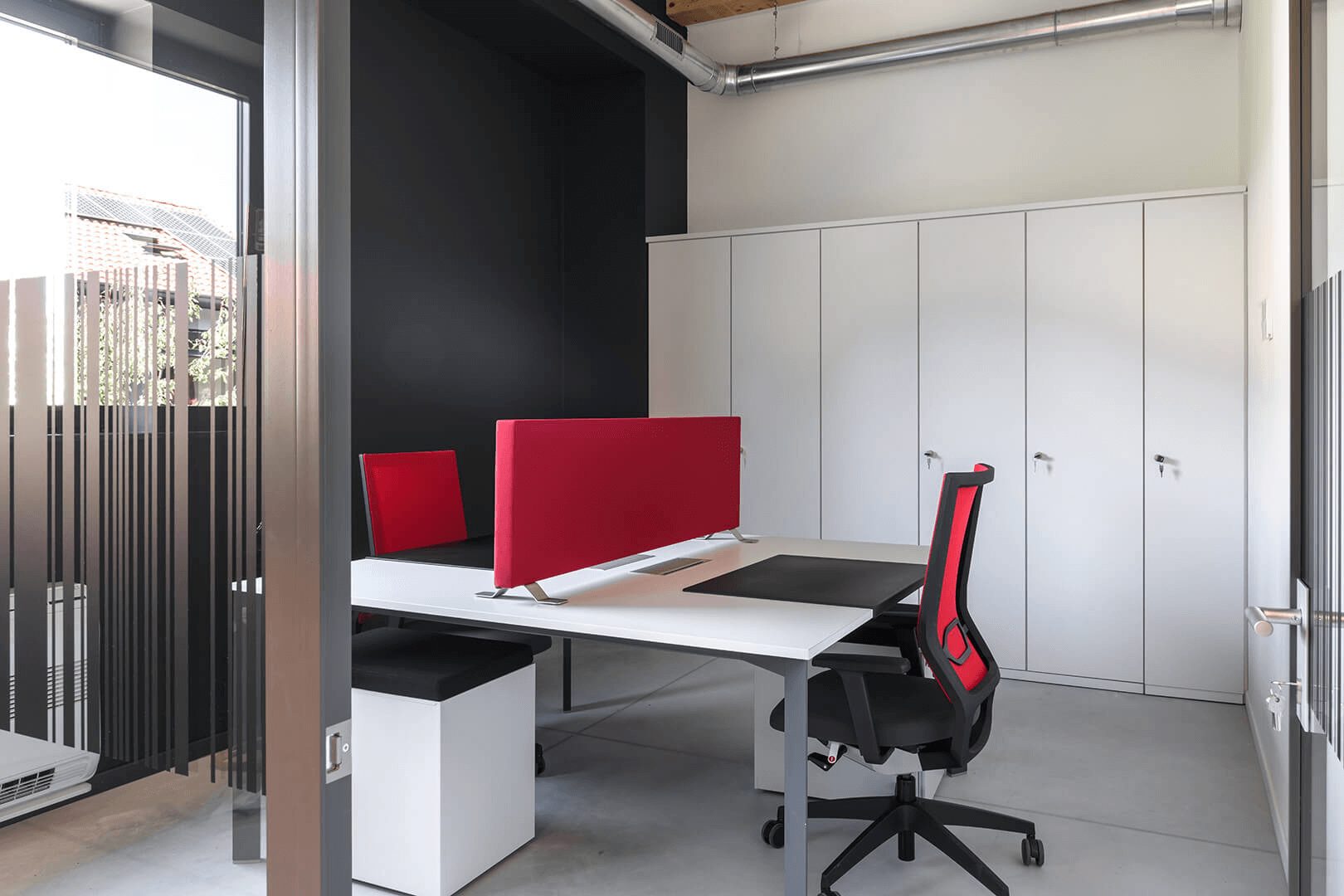

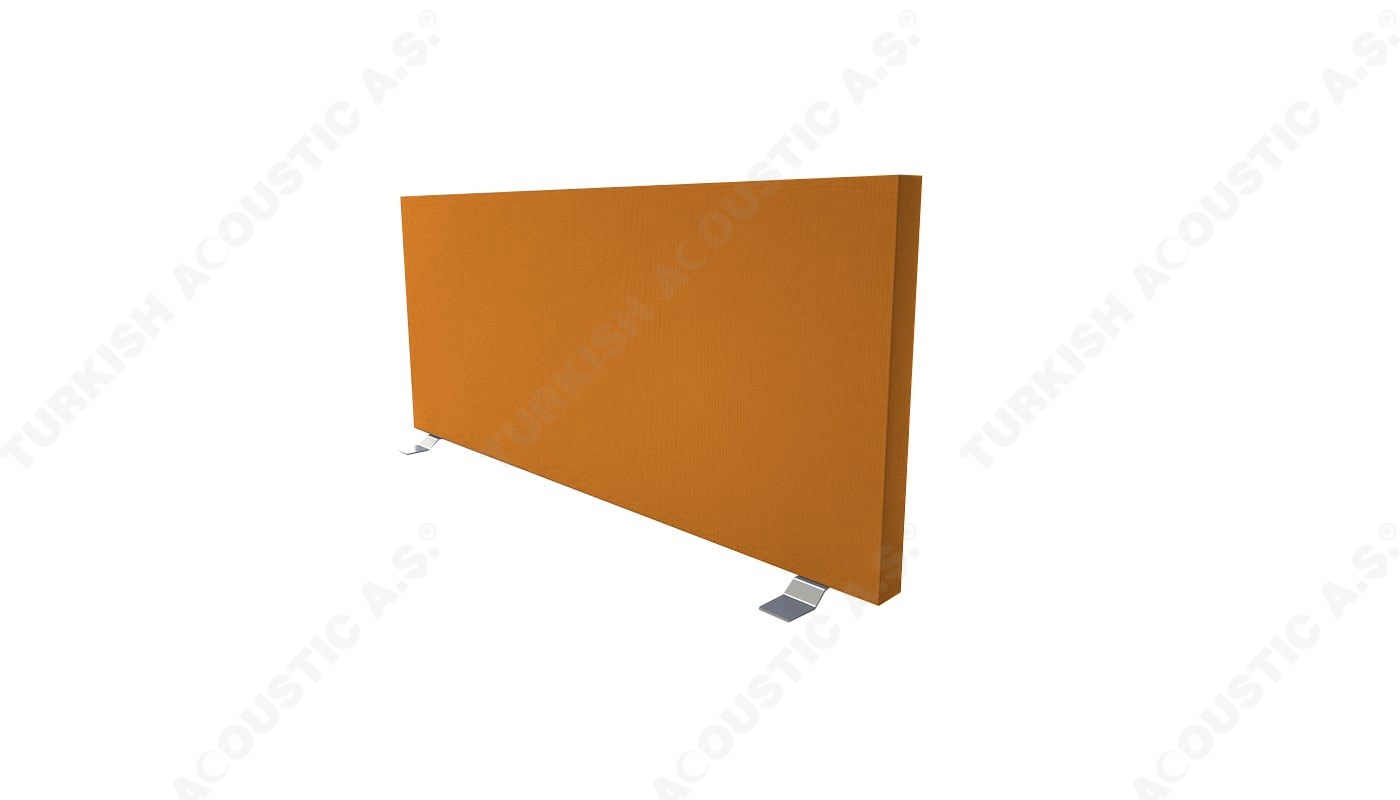

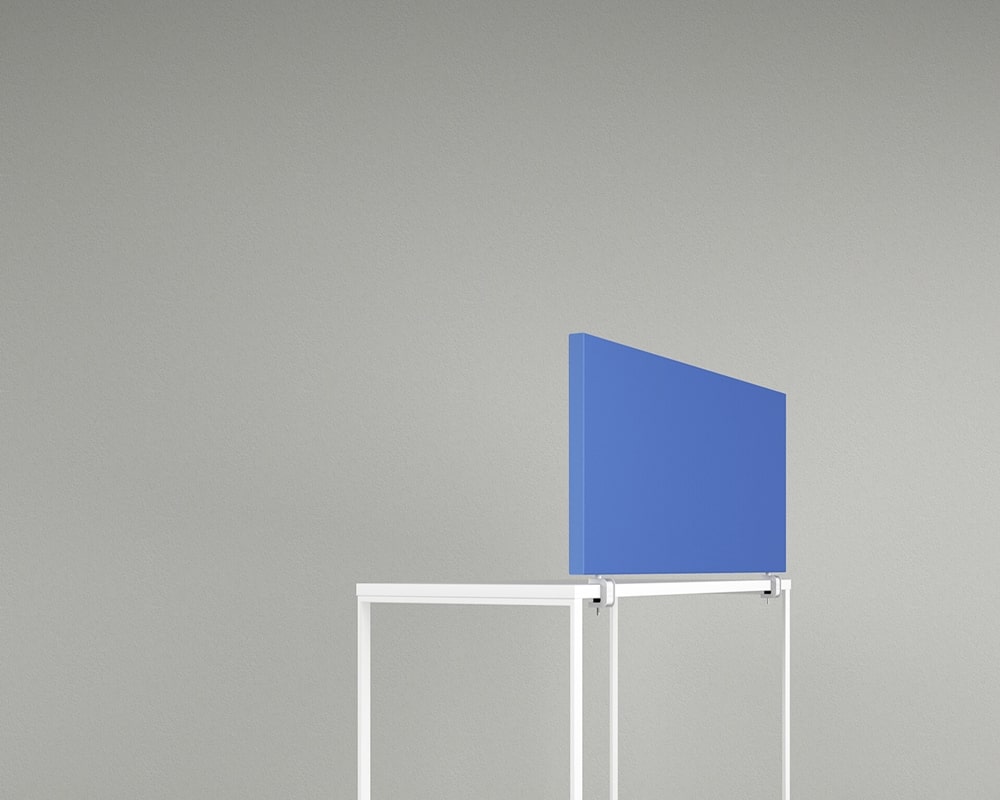

Acoustic Table Separators: Acoustic separation systems, which are suitable for use in the office as a divider and separator between the desk, allow you to establish healthy communication by preventing noise confusion in the environment. Table separators, which are produced as separating panels between tables in the workplace, ensure that human speech sounds do not disturb each other. Acoustic table separators NRC acoustic value (sound absorption value) is in the range of 0.95-1.00. Baffle acoustic fabric-covered panels are fire-resistant, class B s2 d0 according to UNE - EN 13501-1: 2007 standard. The product is produced in standard 30 mm thickness, outside with an aluminum profile frame. Standard size 40 cm x 160 cm are rectangular shapes. Its assembly is very simple and easy, the hidden connection is made by screwing the tables from the bottom. Acoustic table separators, separator dividers are mobile or fixed screen separation systems. (Table Separators)
Table Separator Colors: Fabric-covered acoustic panels are unlimited in color, click here for the fabric chart.
Table Separator Thickness: 30 mm standard thickness. Complies with all technical specifications.

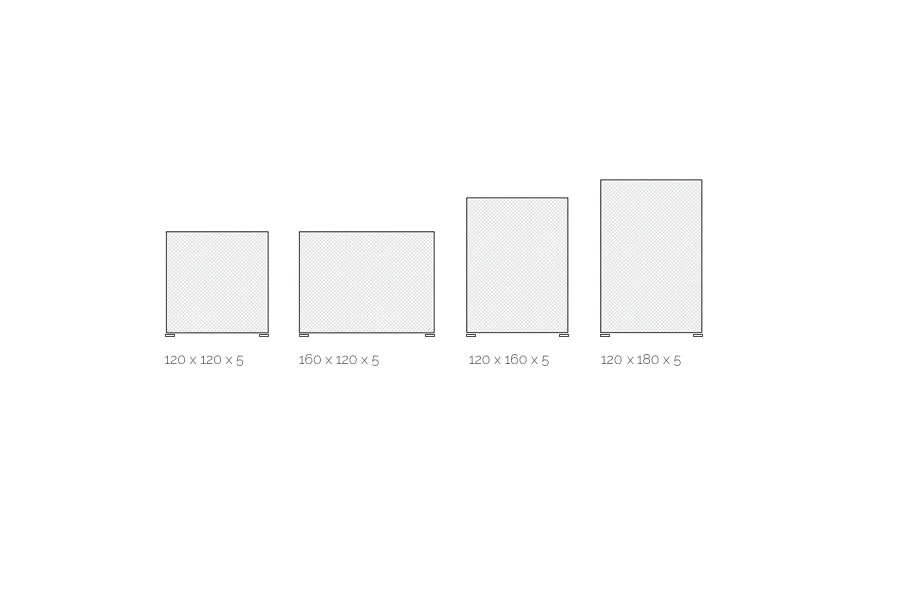

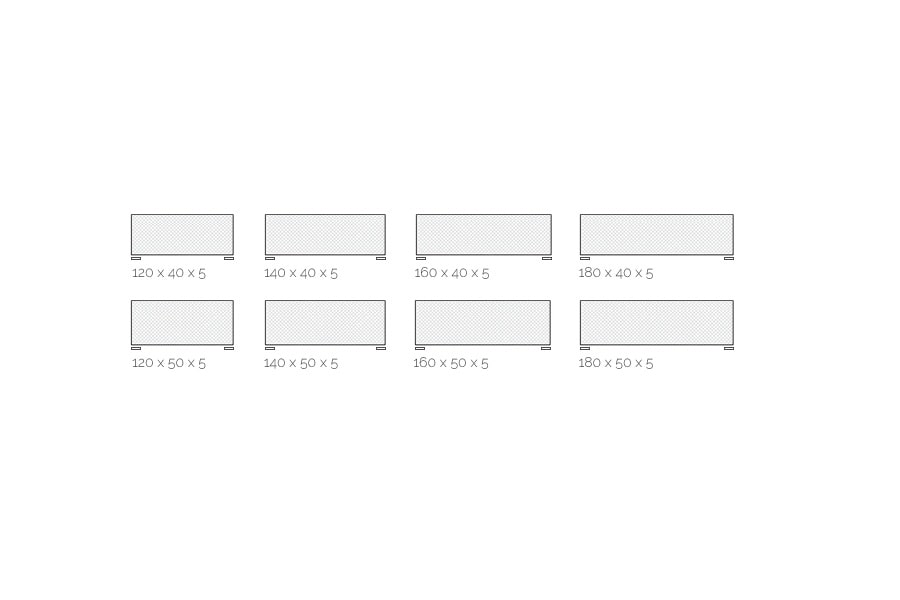

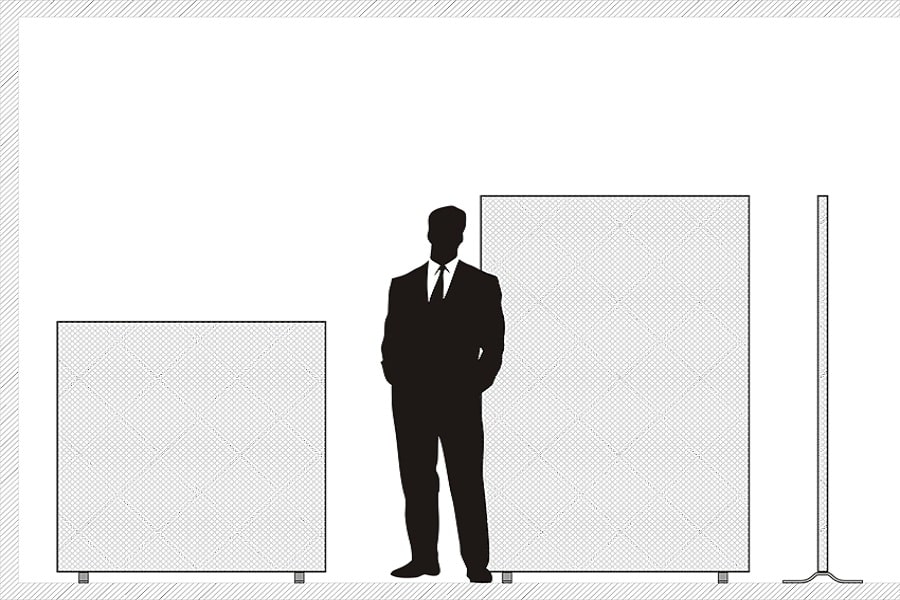

Table Separator Dimensions: 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm
Table Separator Area of Usage: Offices, workplaces, conference and call centers, factories, shopping malls, gymnasiums, meeting & movie theaters, auditoriums, and studios.
Table Separator Options: Fabric covered acoustic panels can be produced in combination in different geometric shapes and thicknesses.
Table Separator Nonflammability: Materials used are glass wool and fabric coverings in the form of b1 non-flammability.
Table Separator Density: 95 kg / m3 density acoustic glass wool board or 30 - 60 Dns Acoustic sponge
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Separator Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Acoustic table separators 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × It is in 270 cm, 120 x 300 cm plates, and there are 10 plates of products in different quantities in their packages. It is sold as 30 mm in retail and wholesale as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
