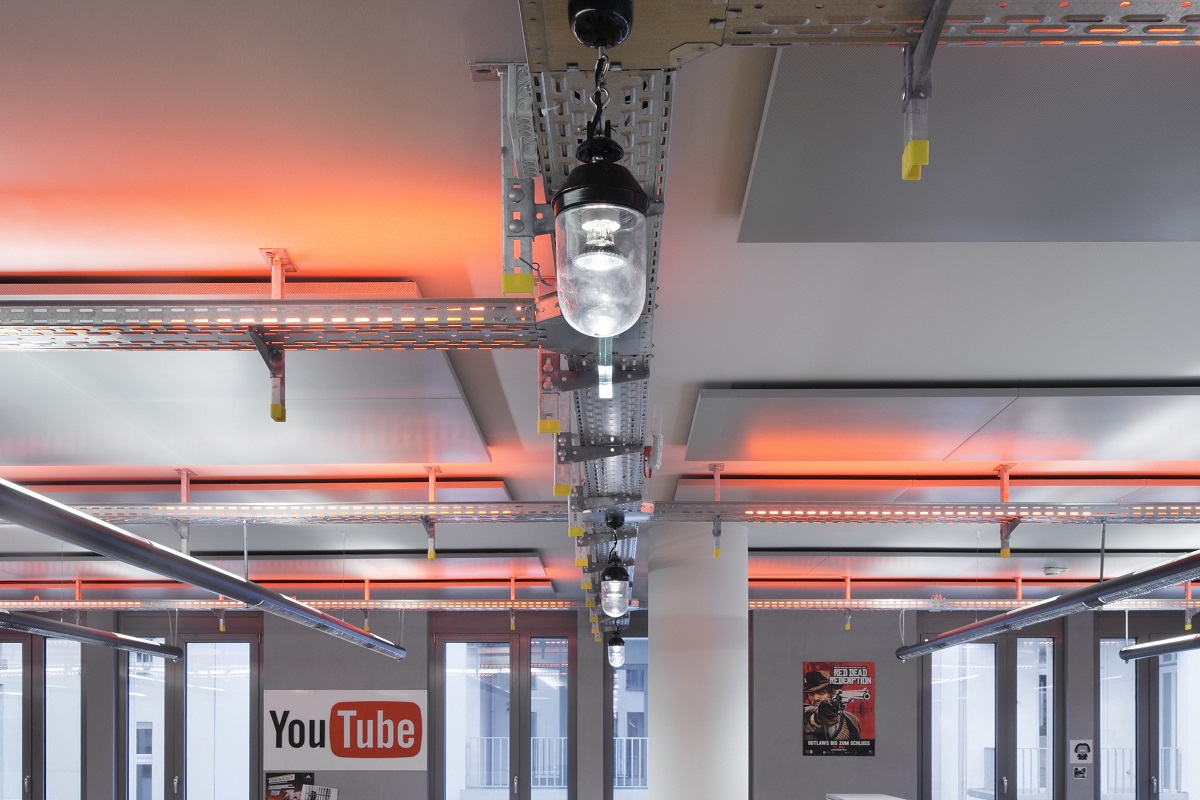

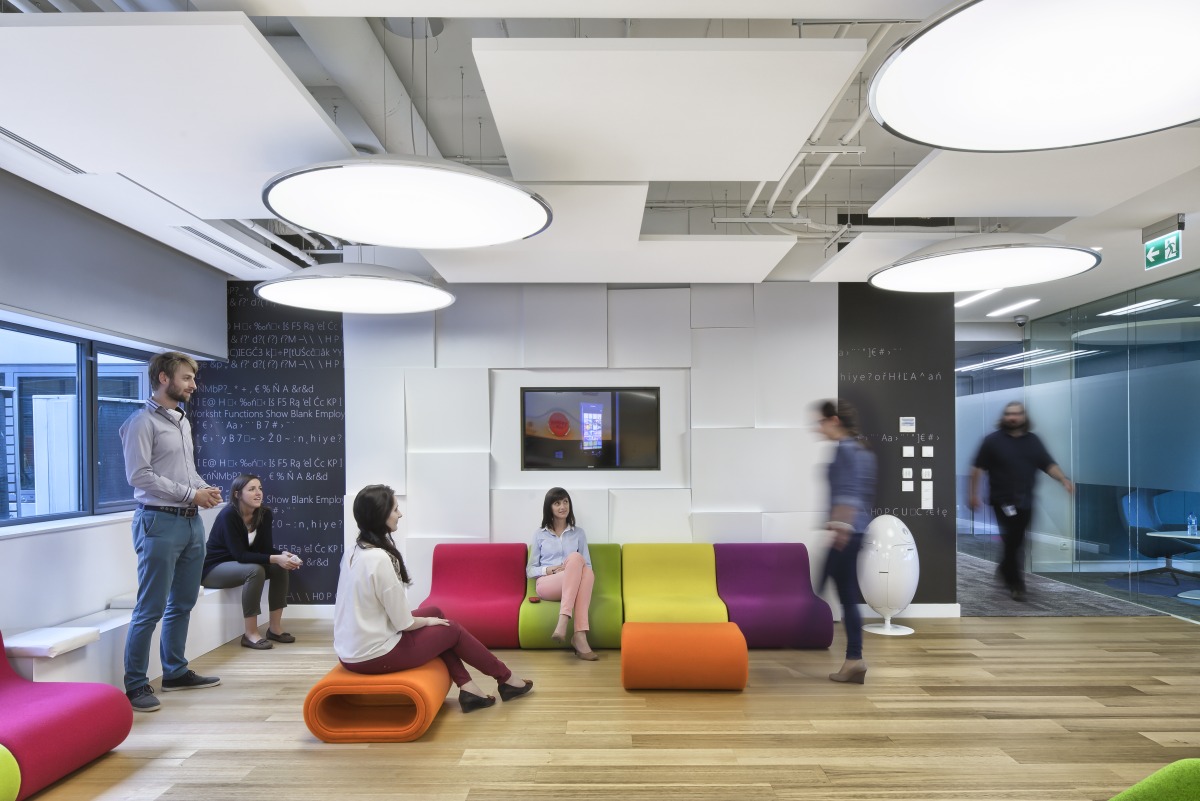

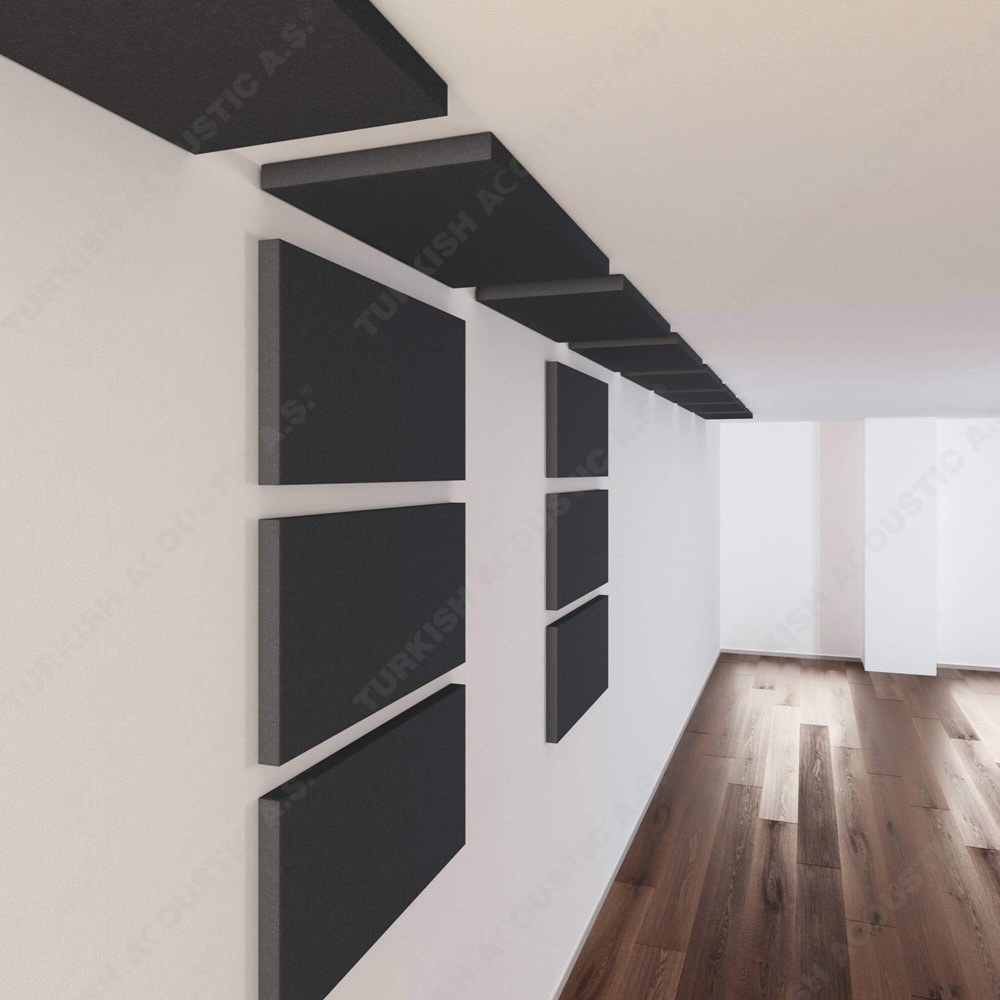

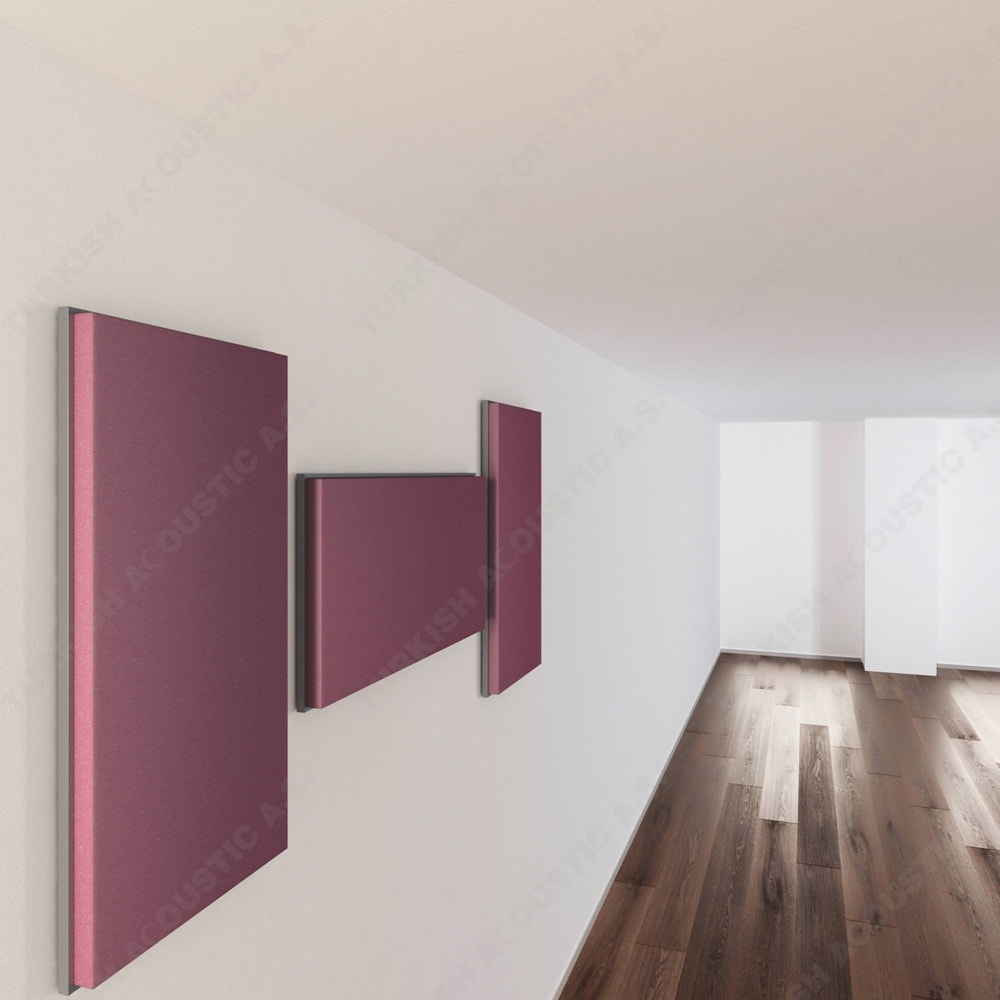

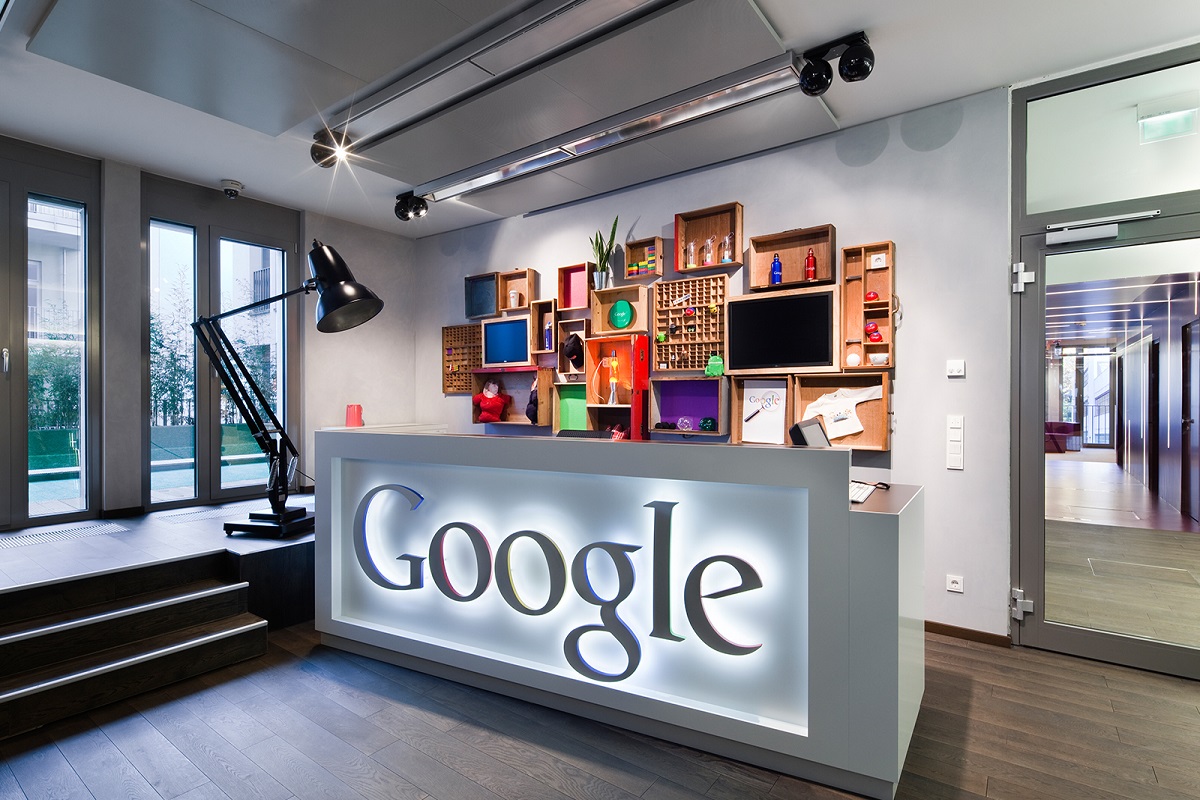

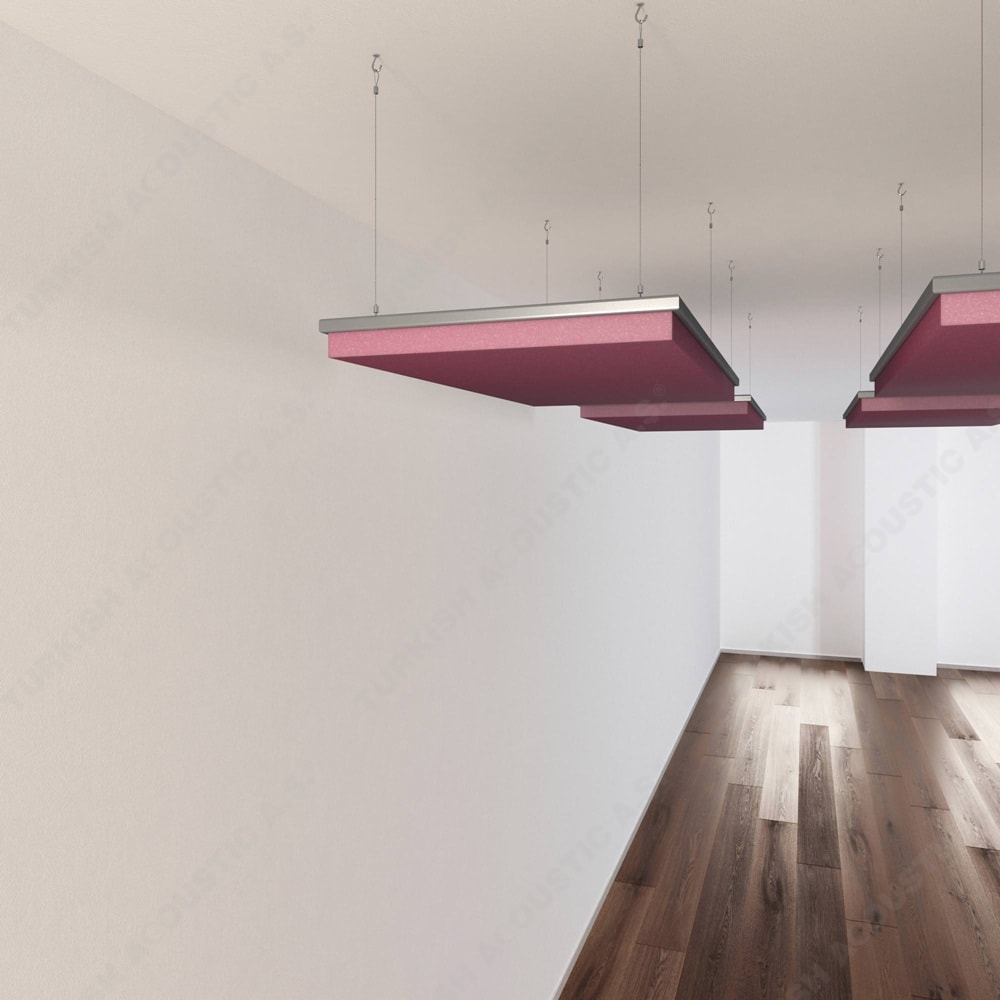

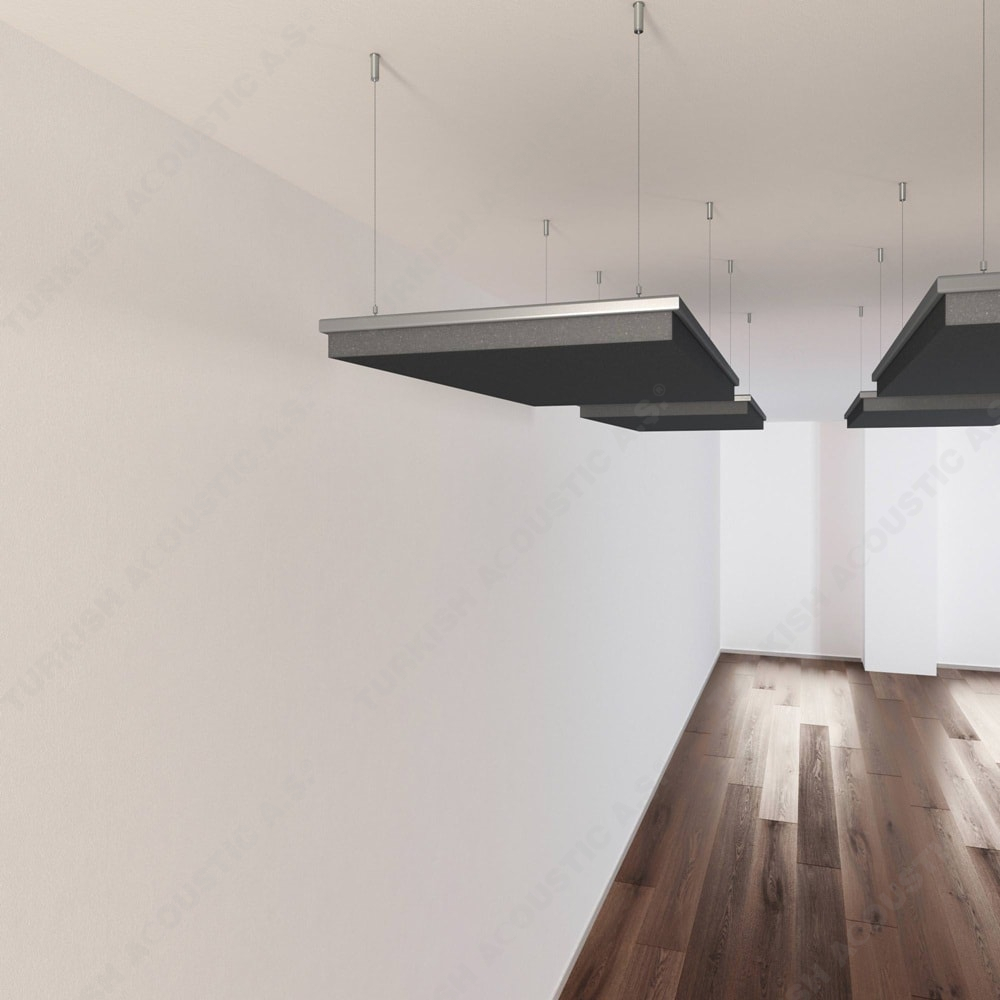

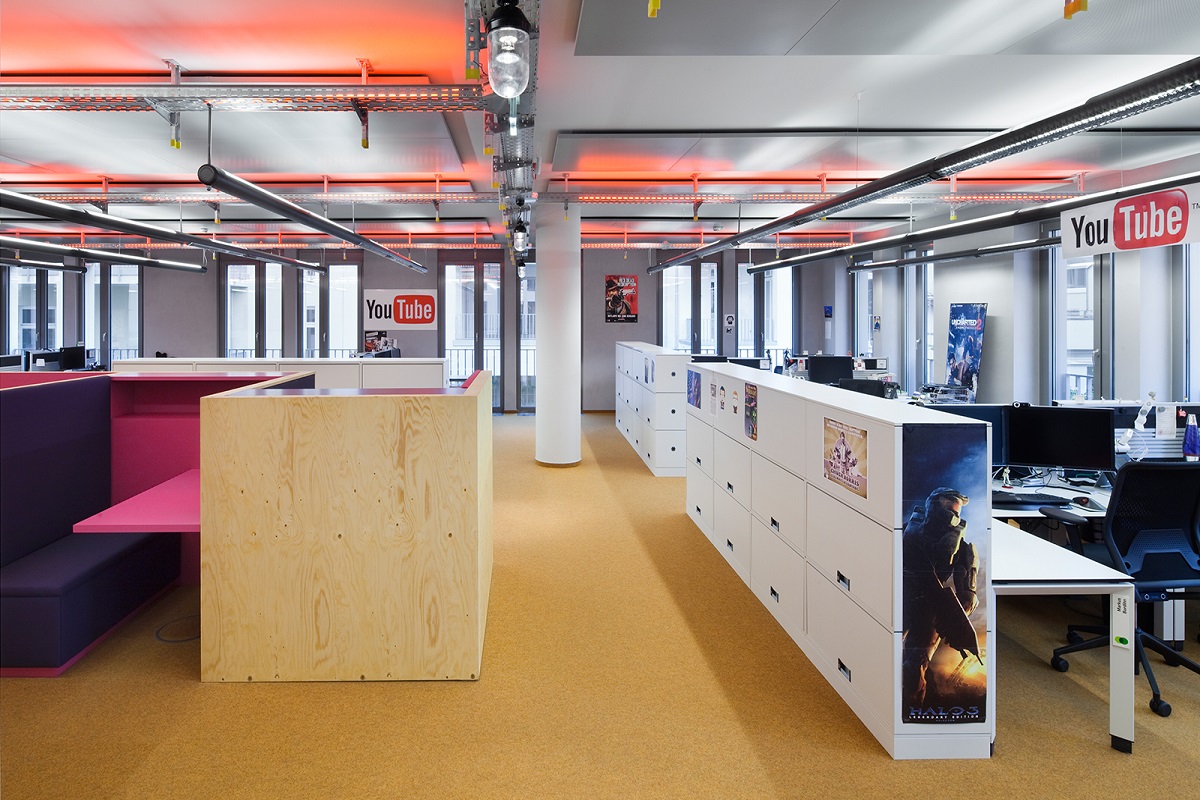

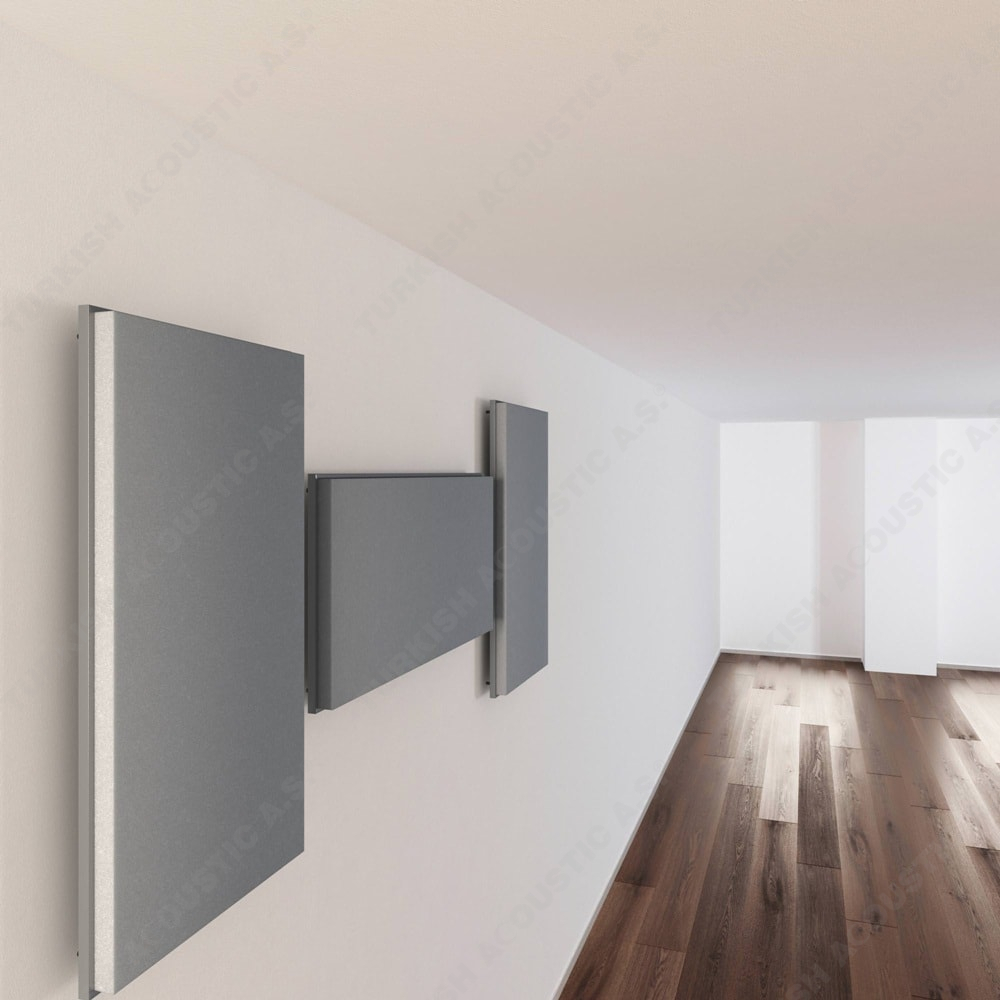

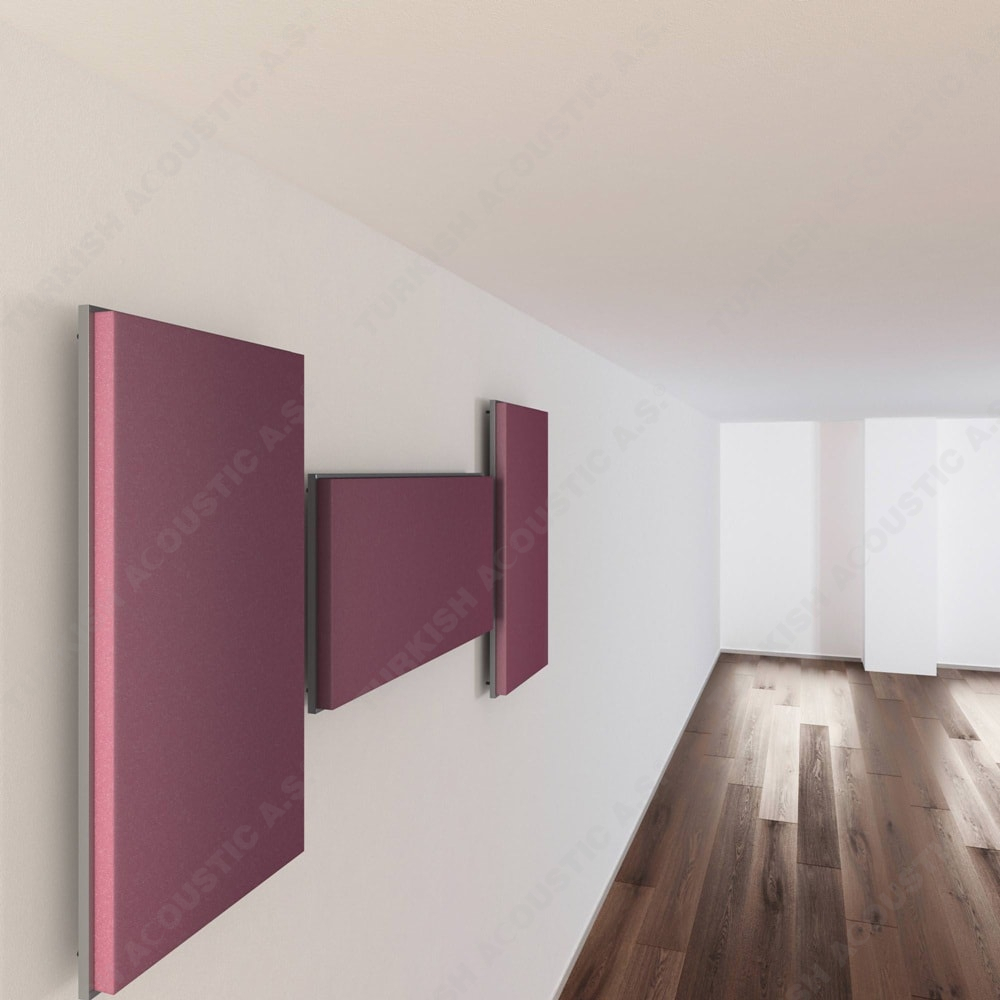

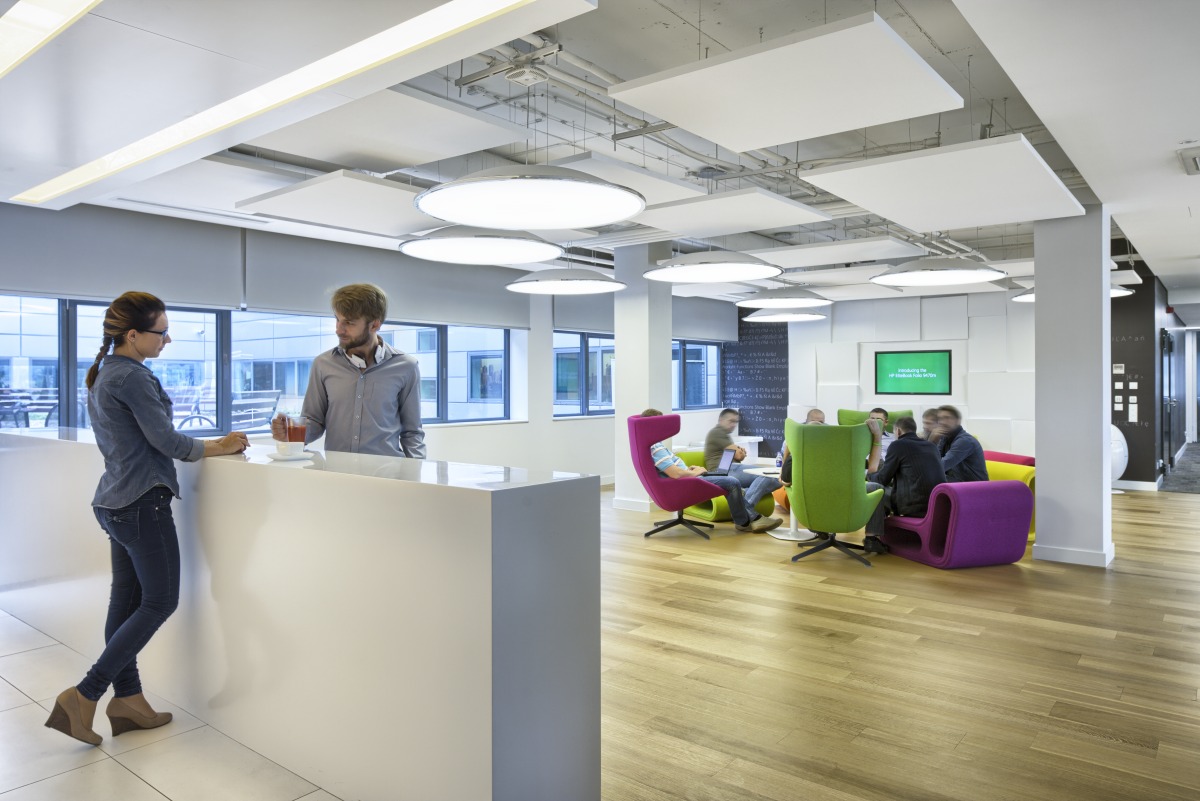

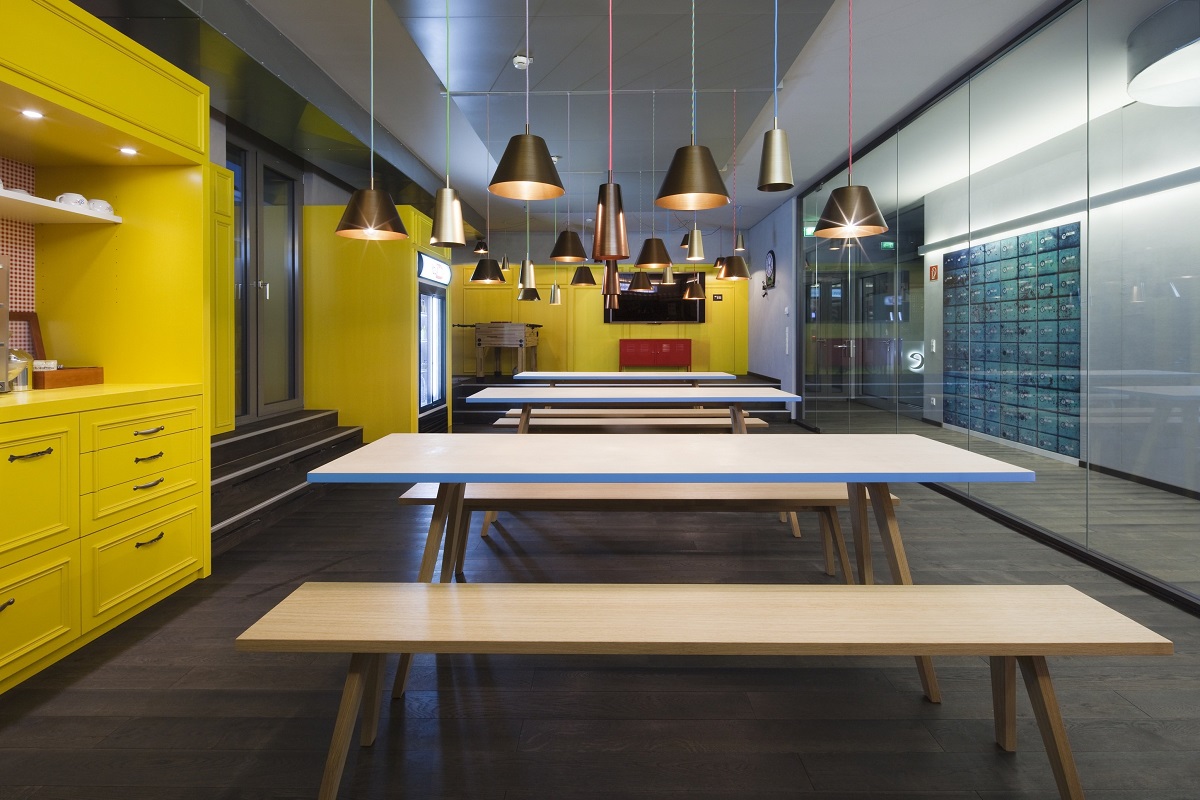

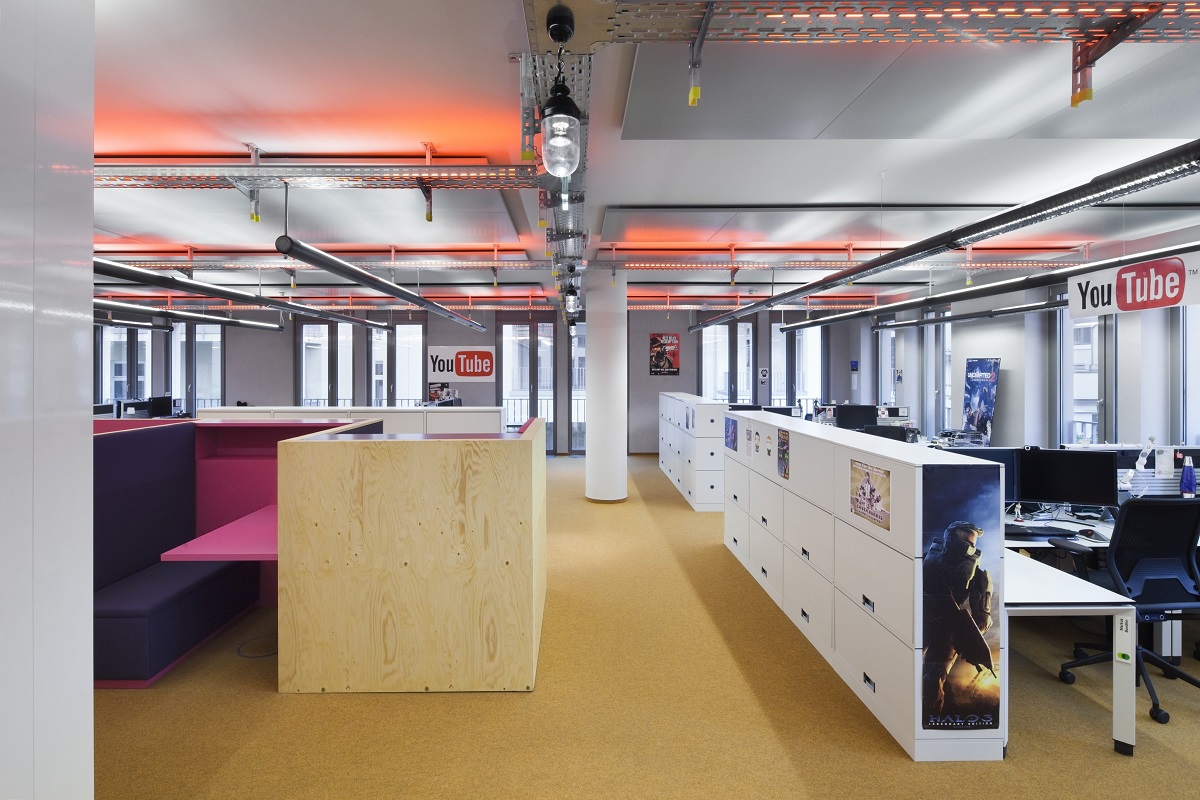

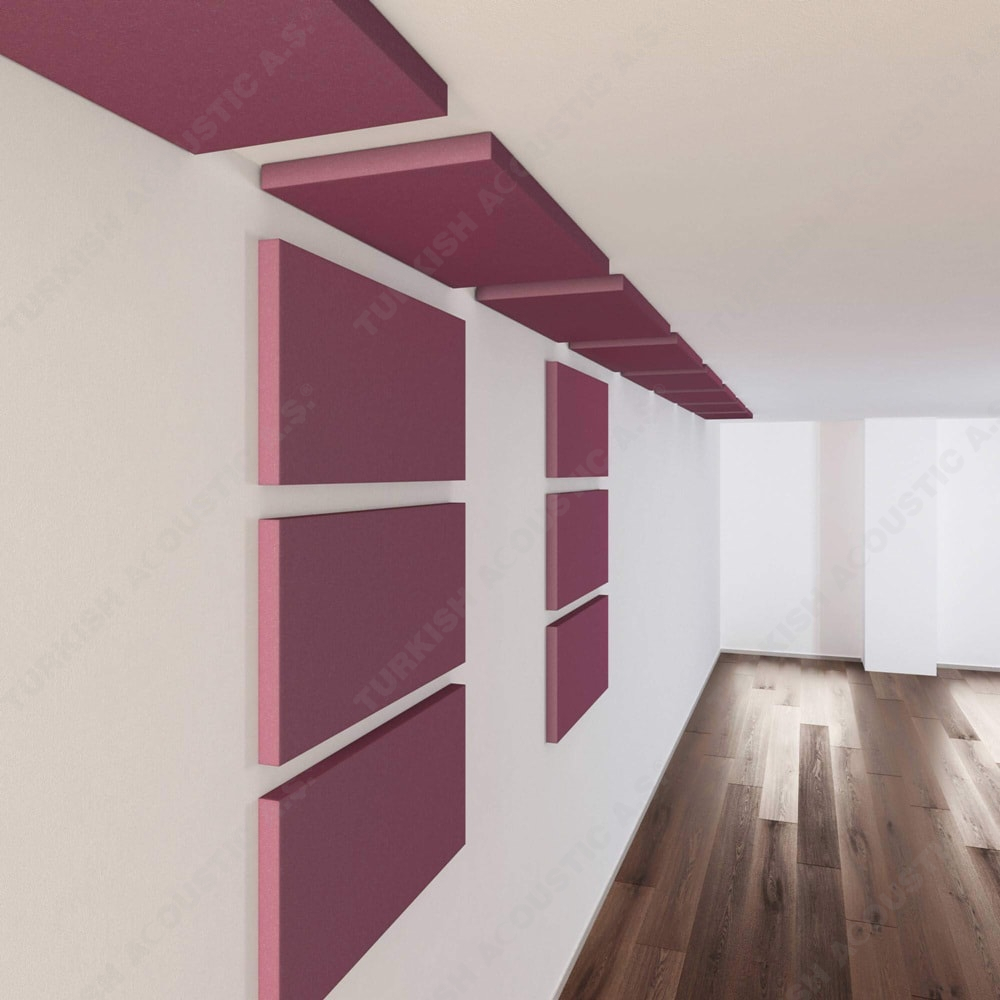

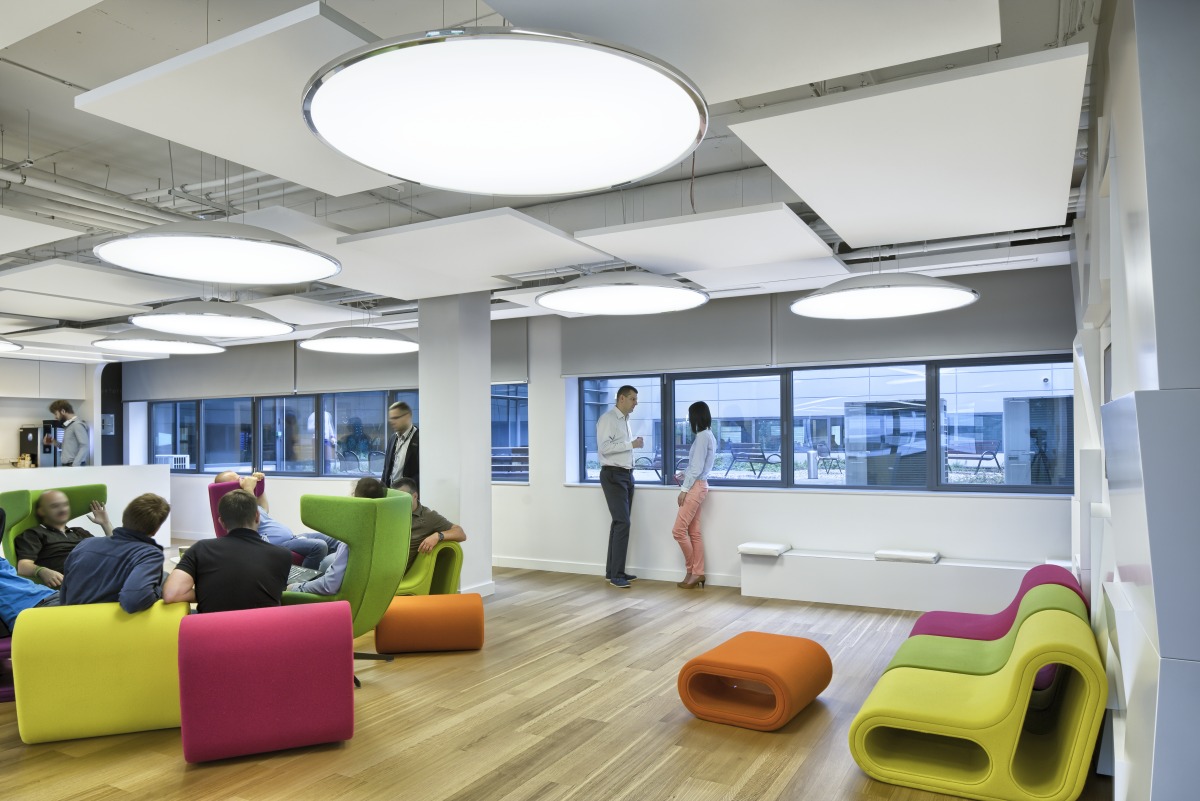

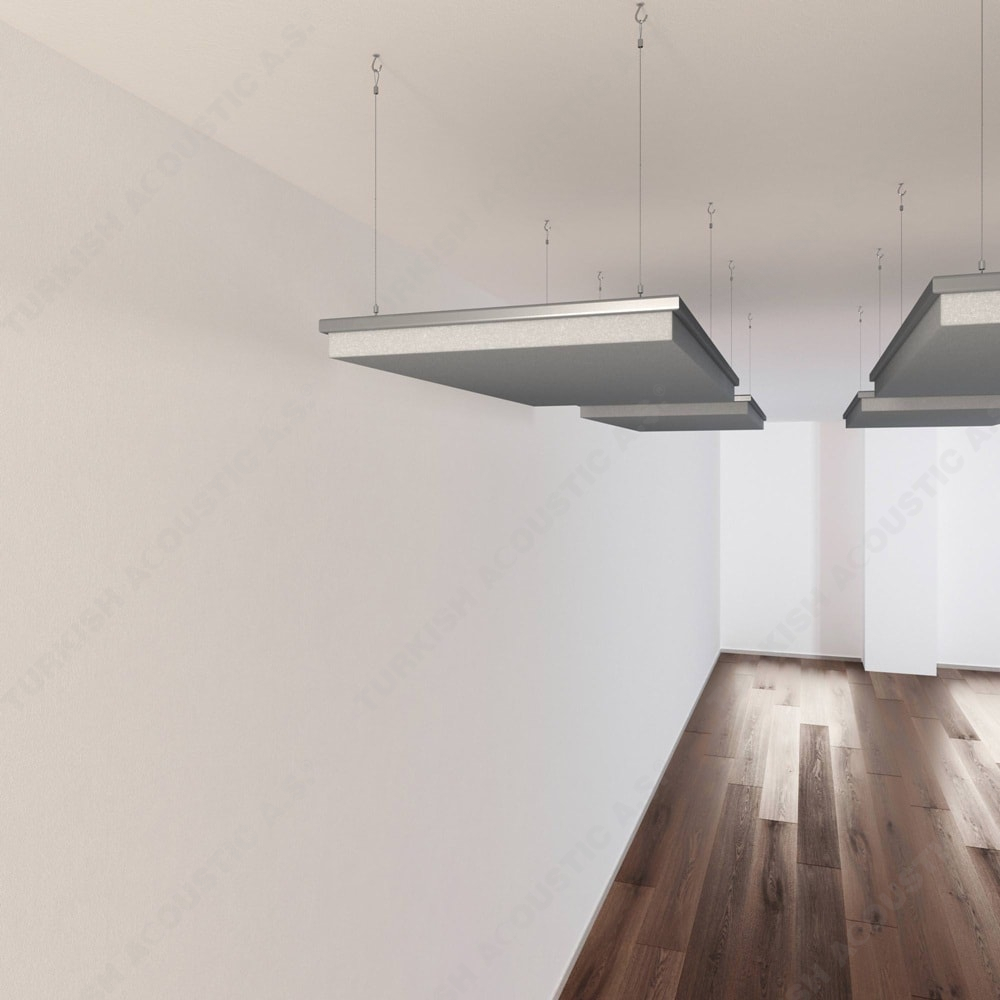

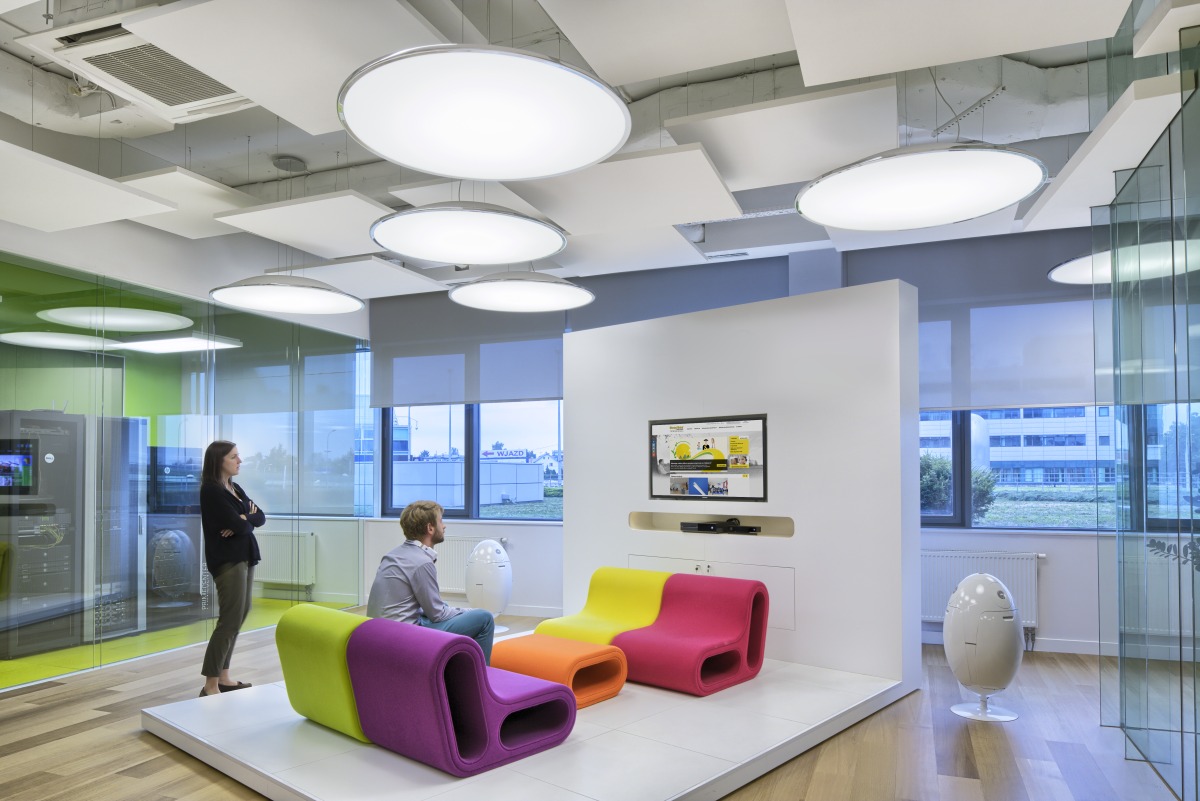

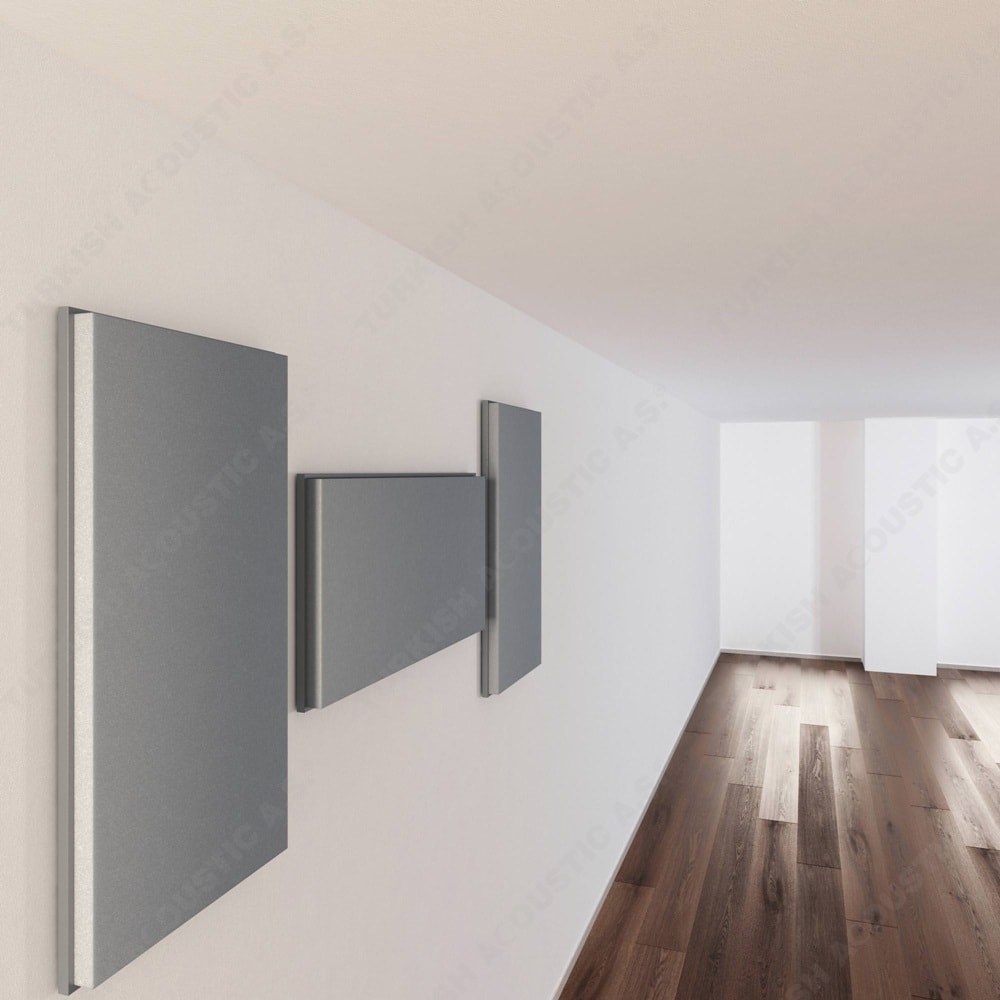

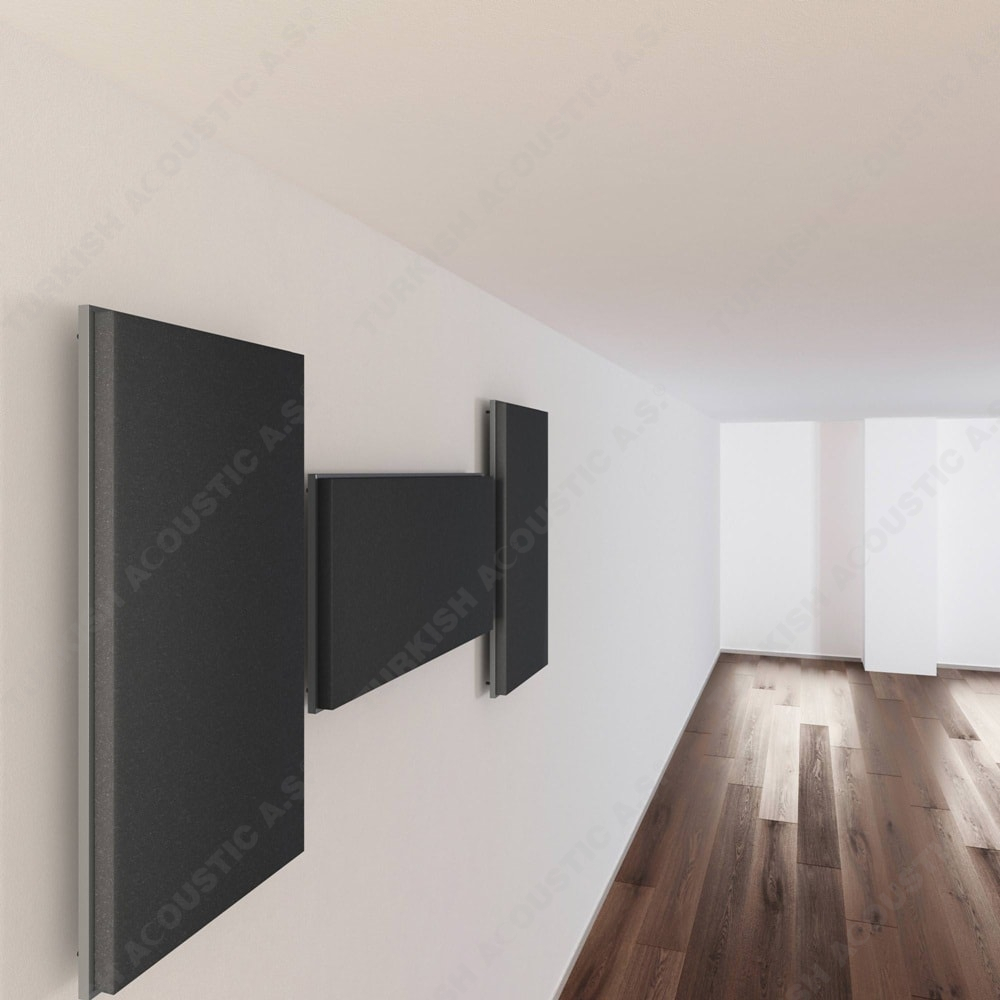

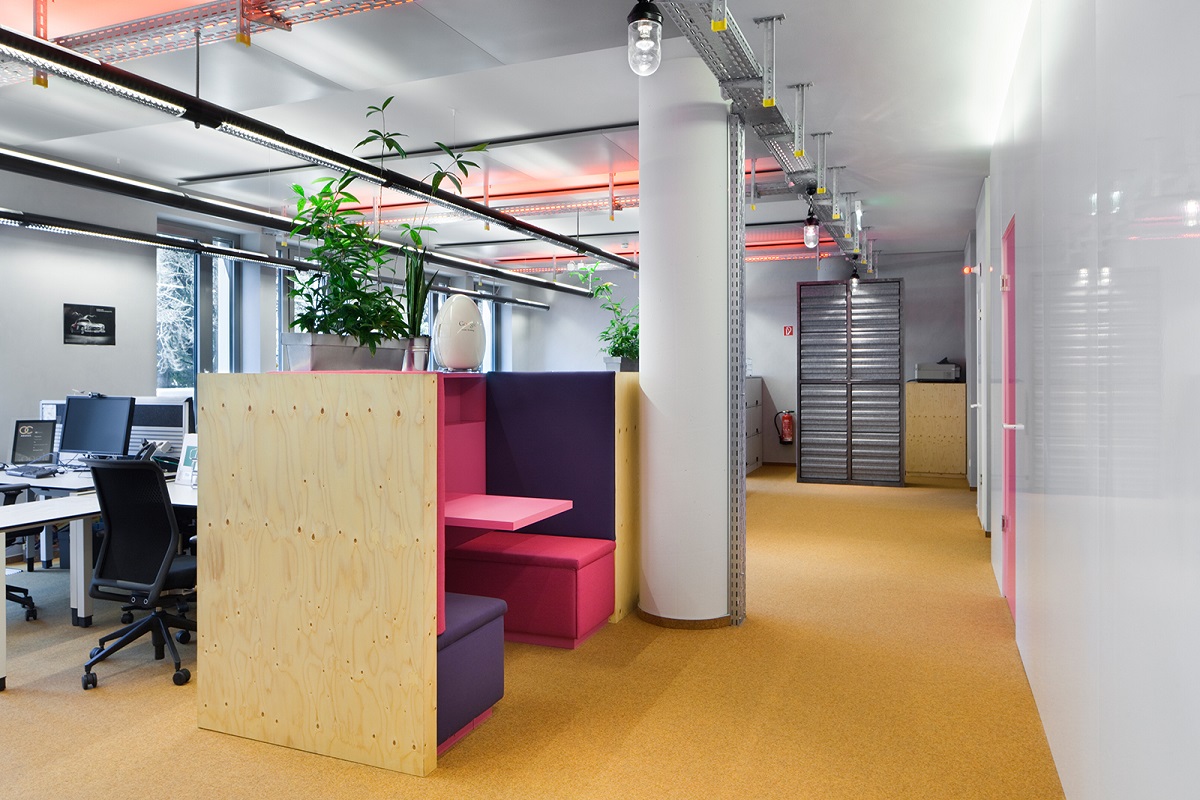

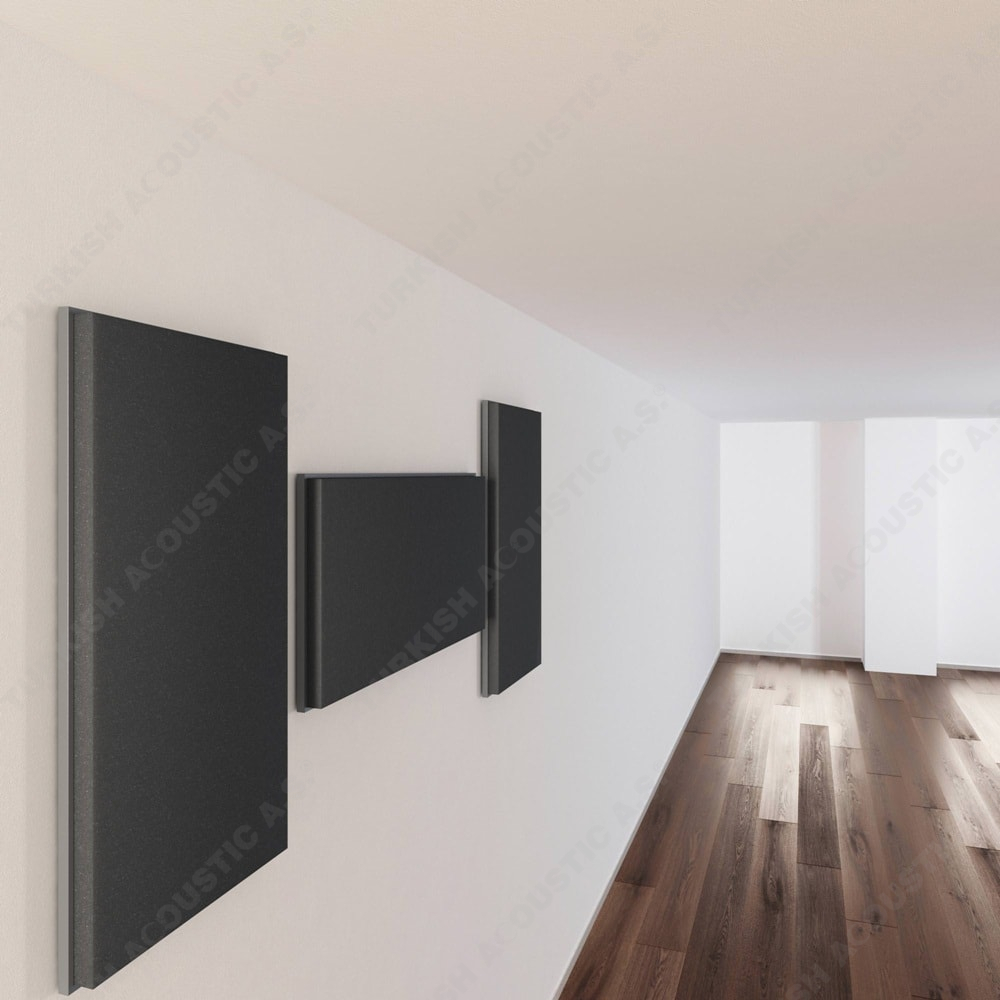

Application Images

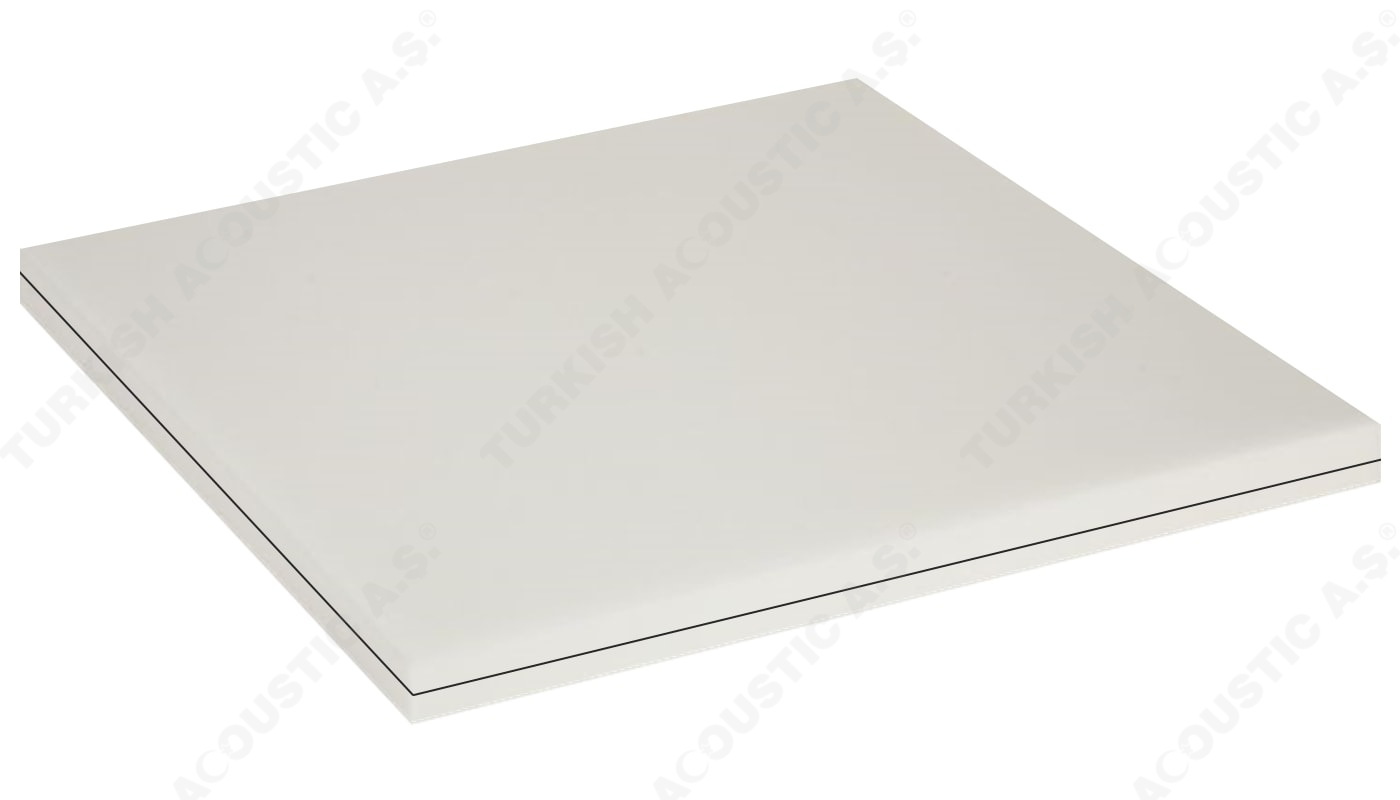

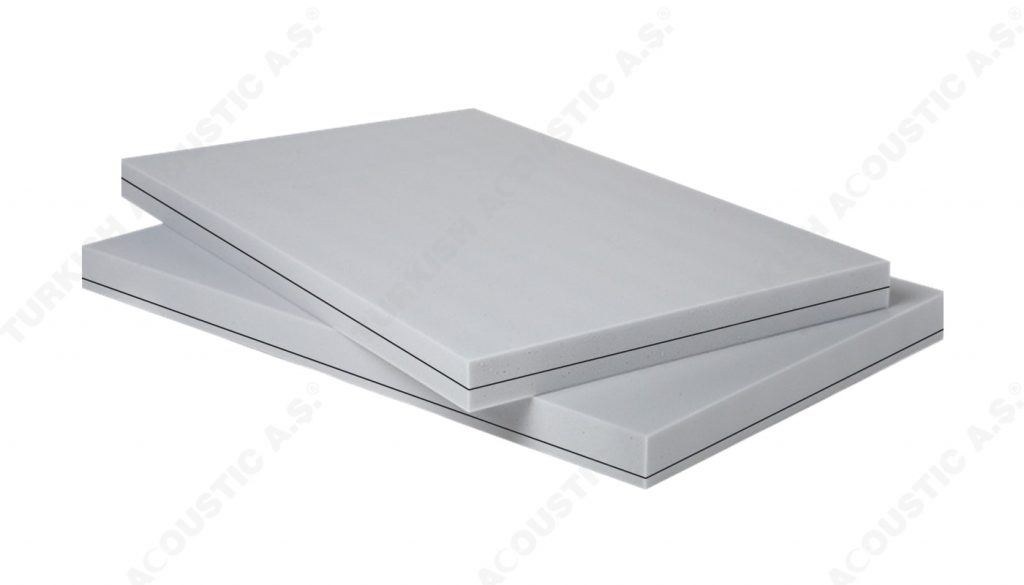

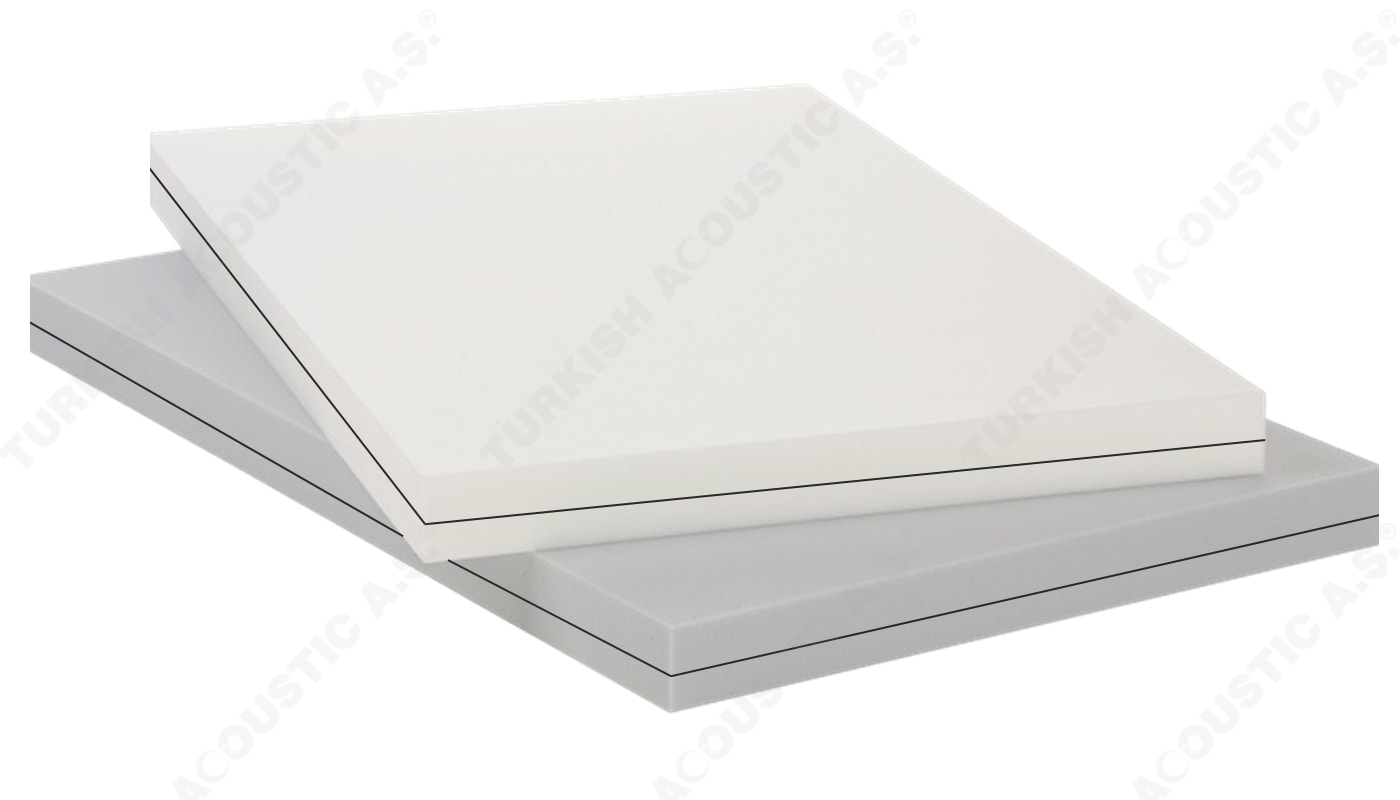

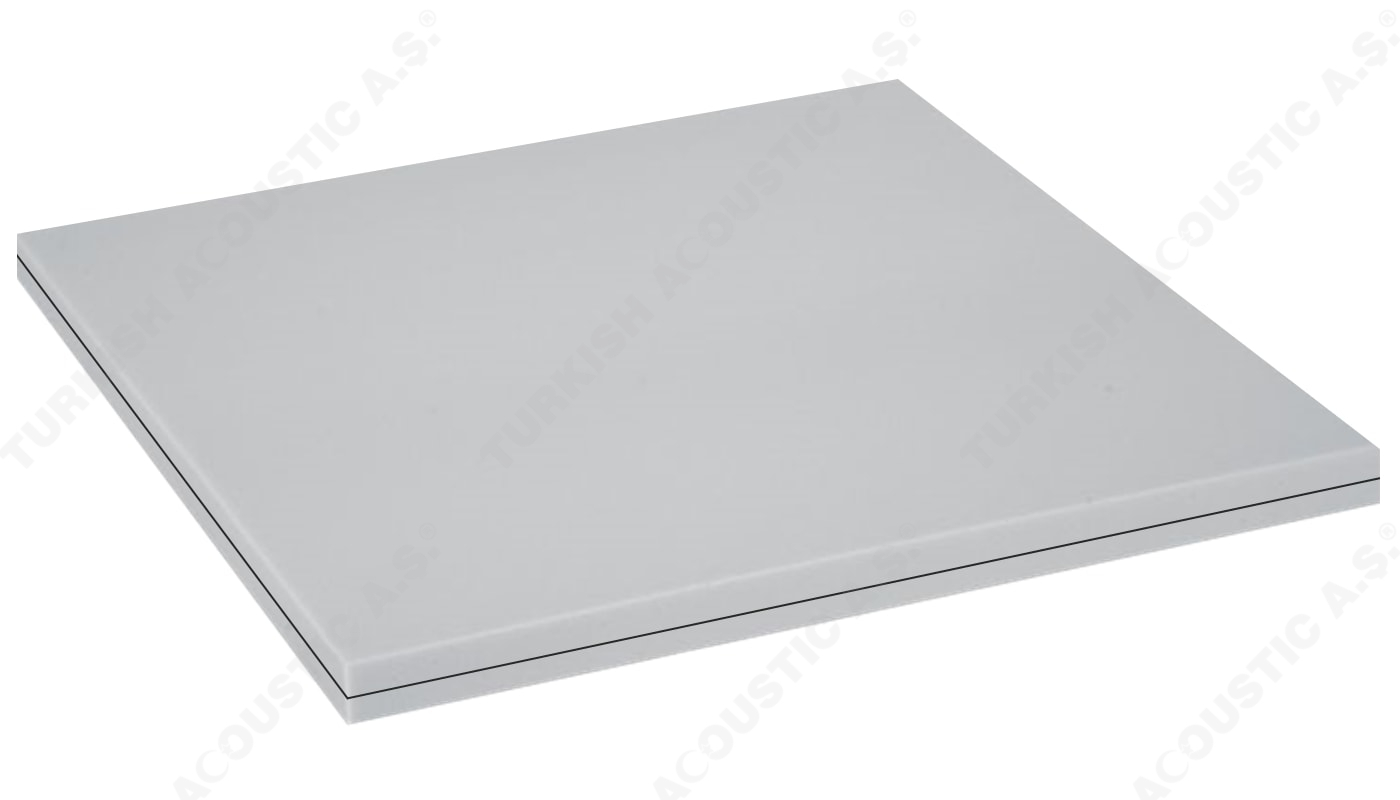

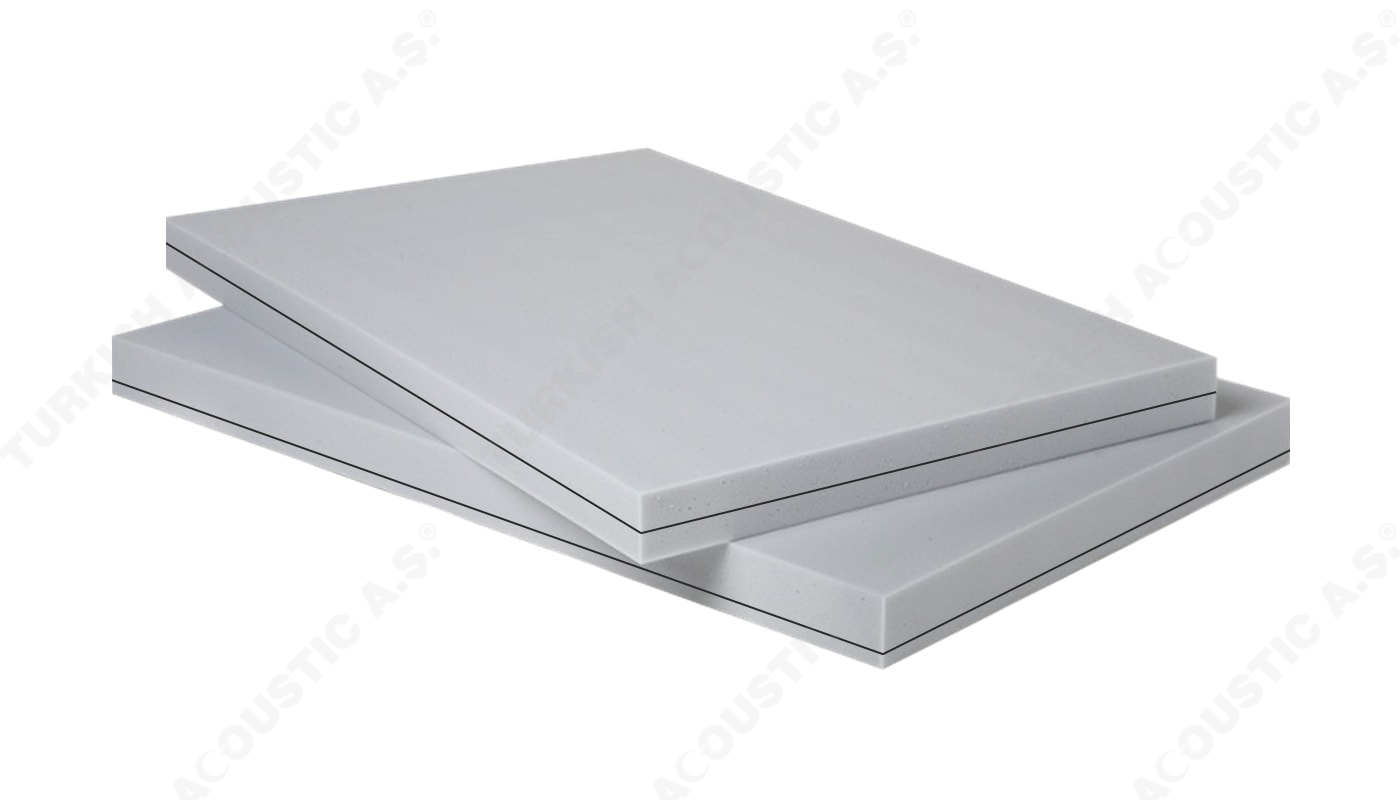

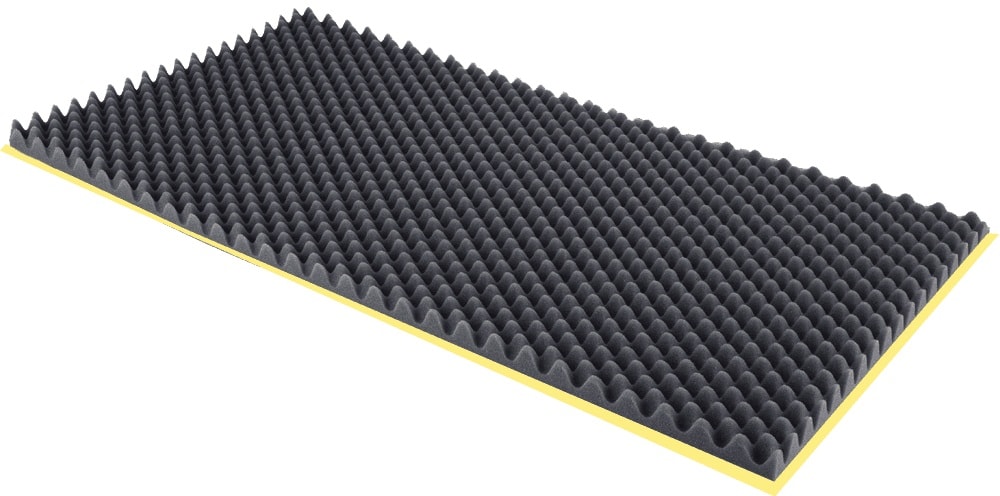

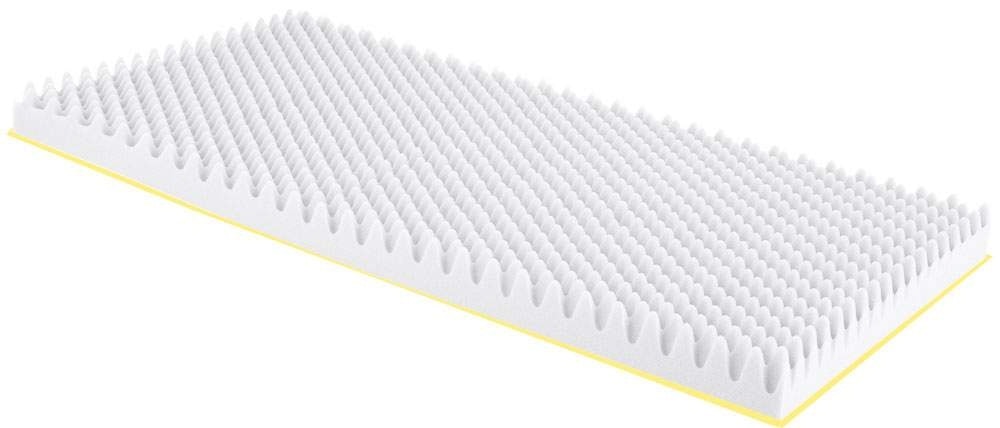

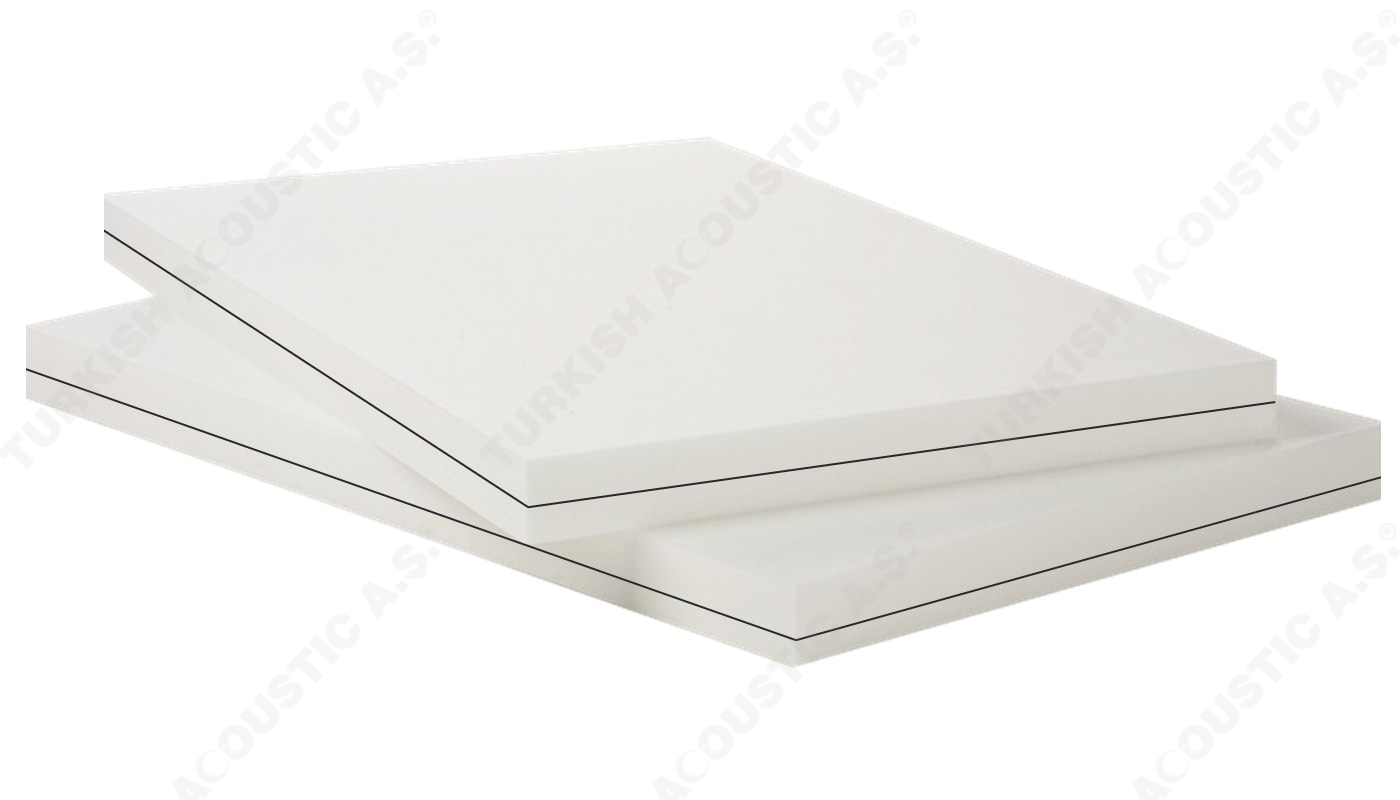

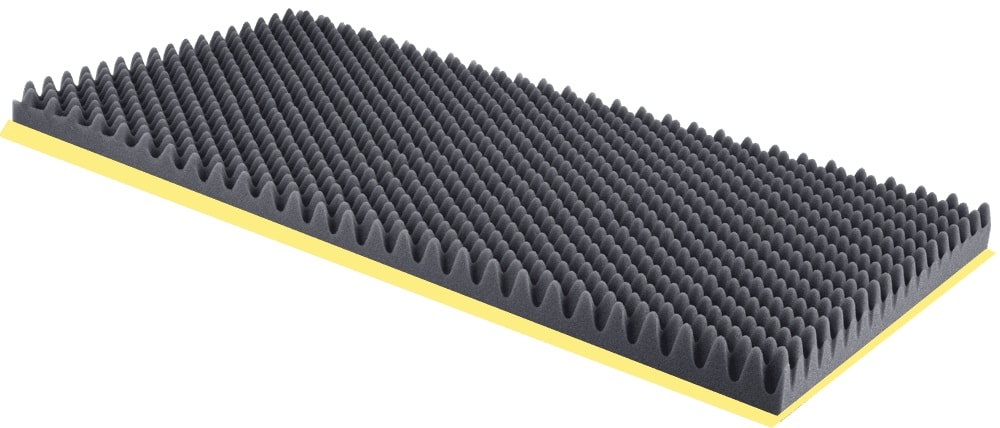

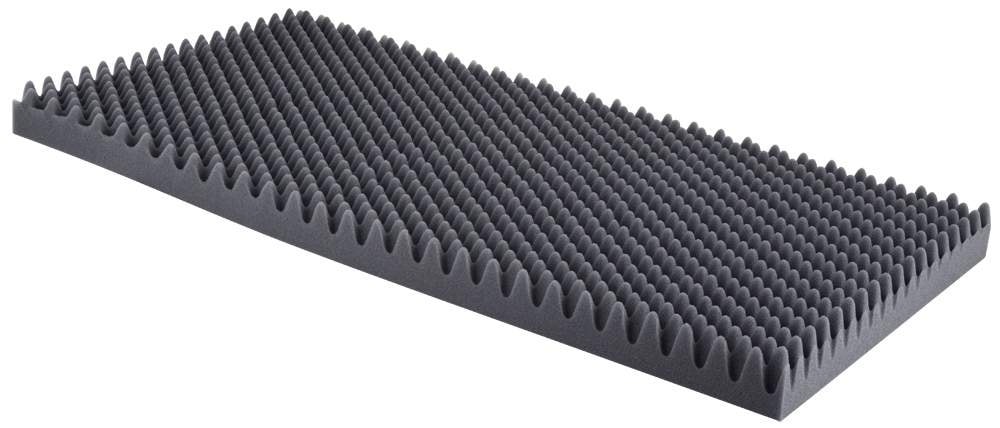

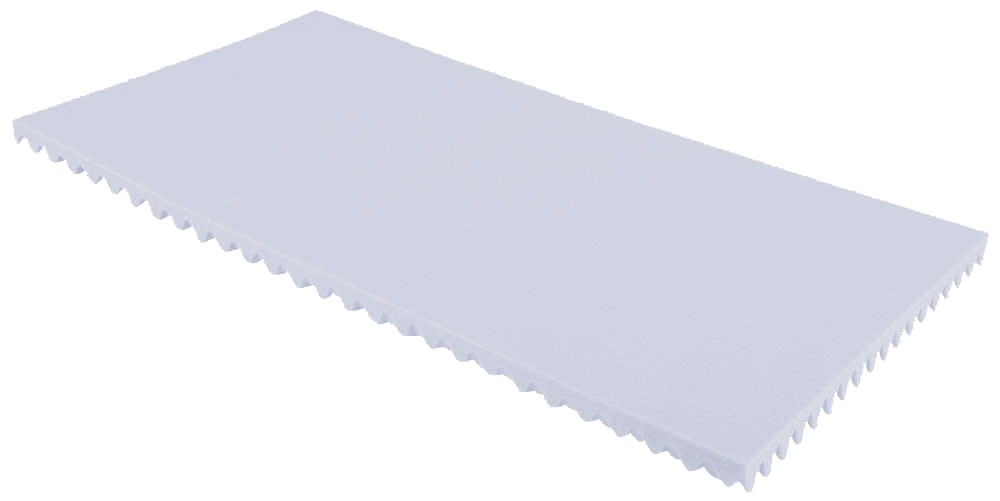

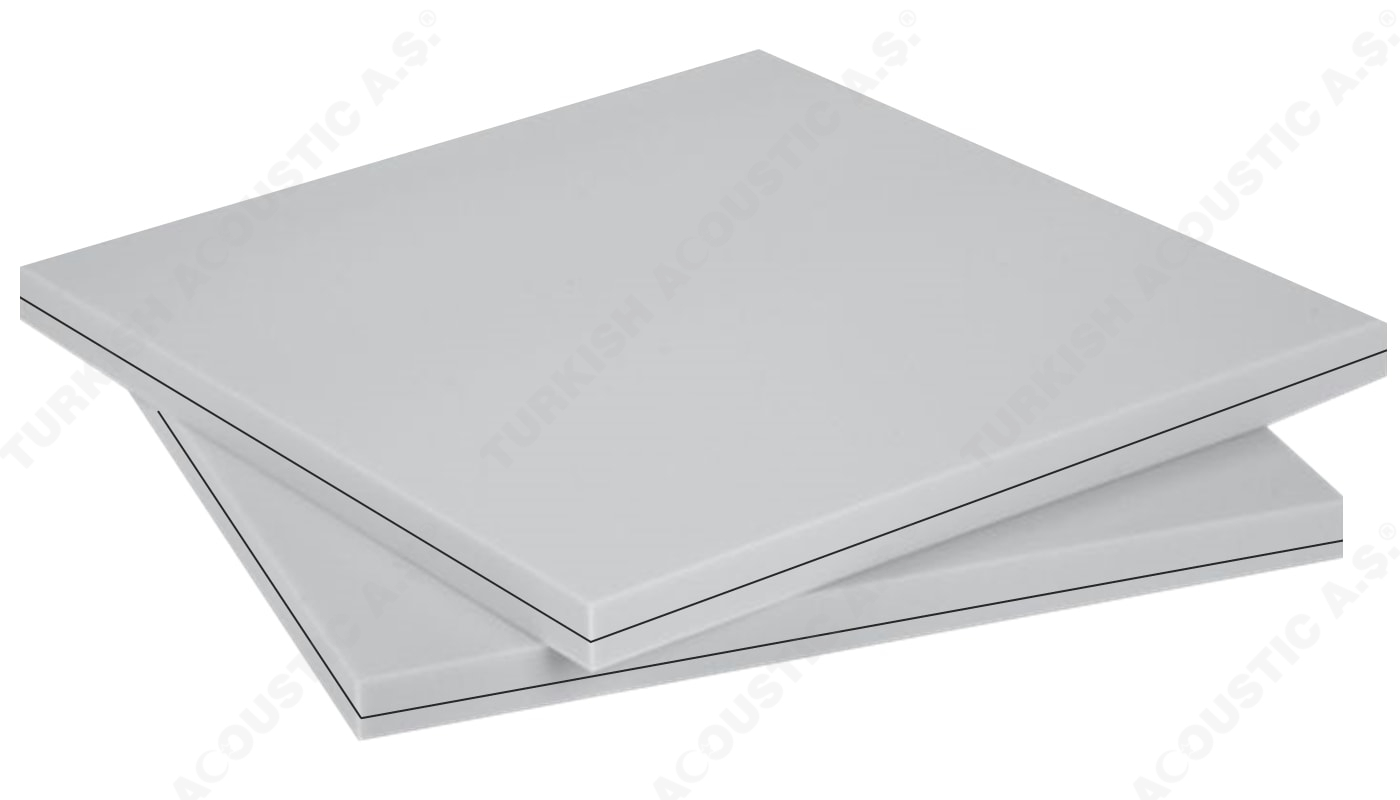

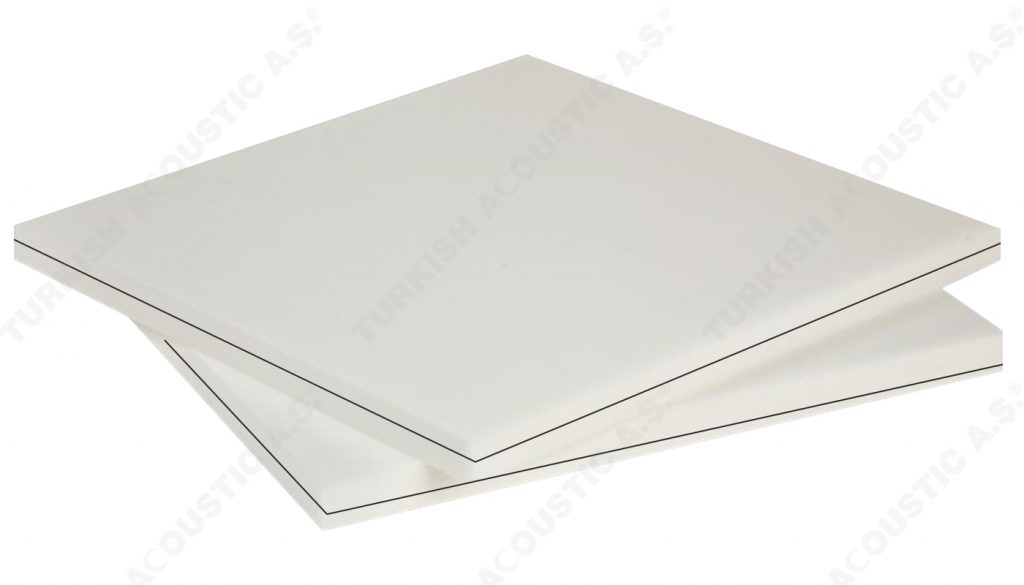

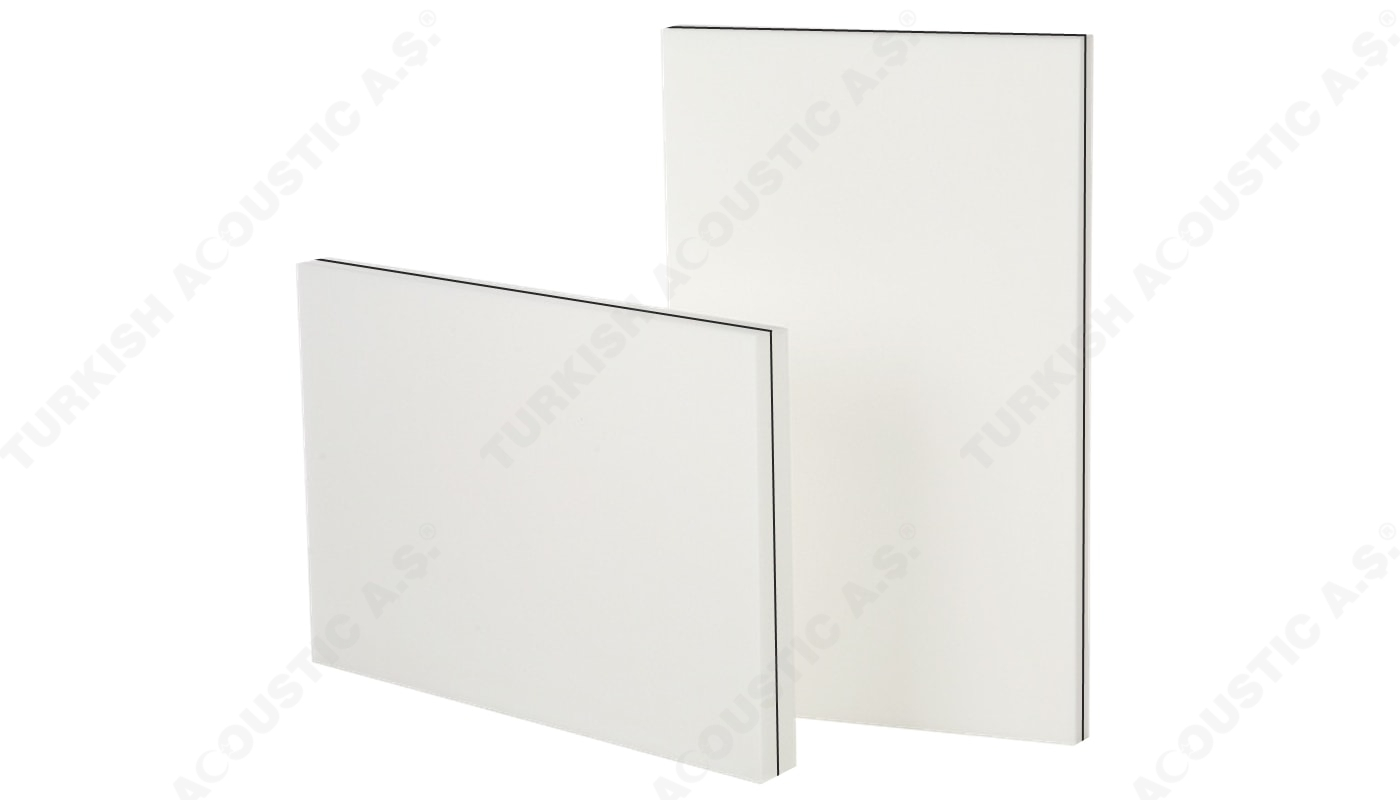

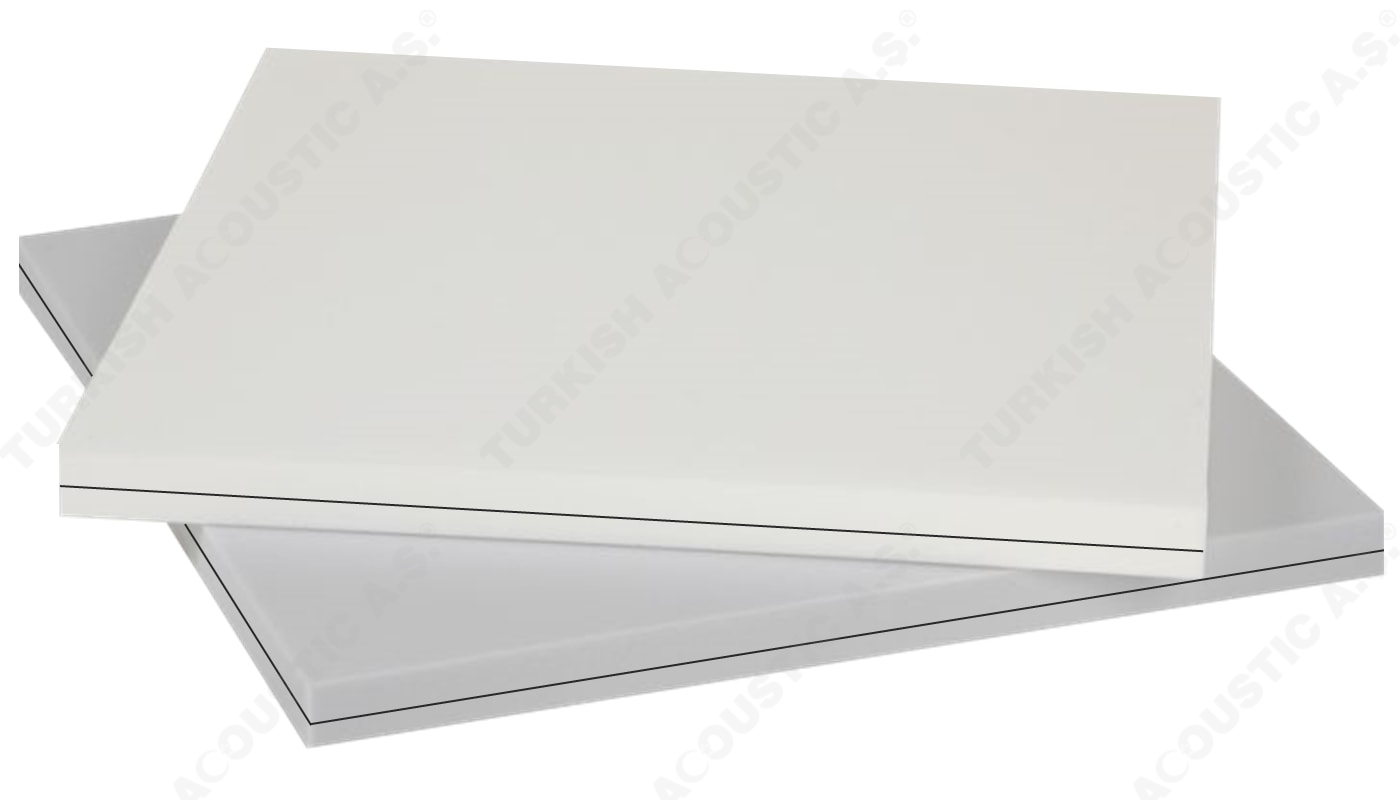

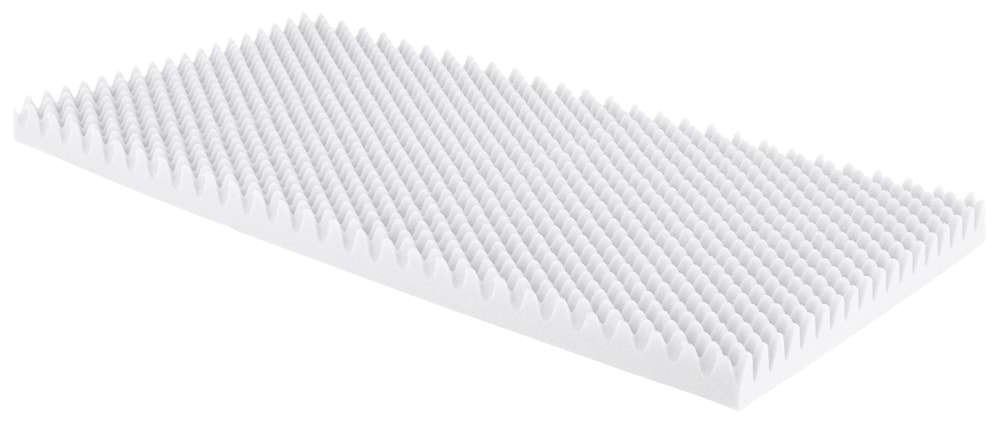

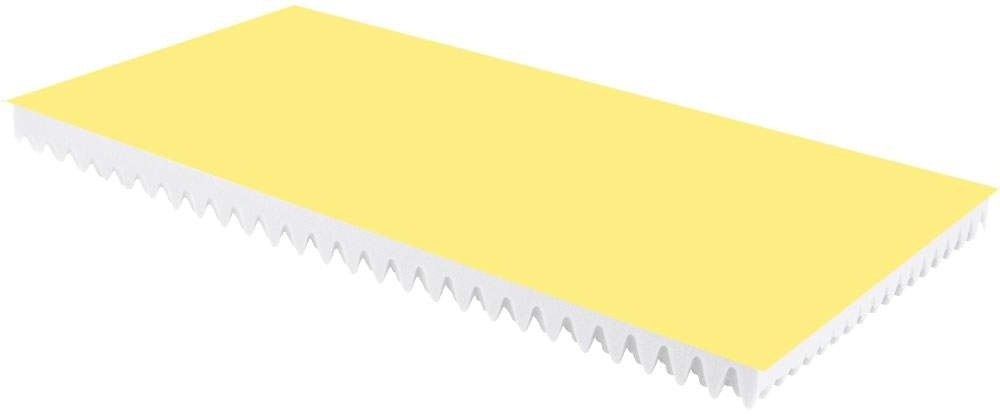

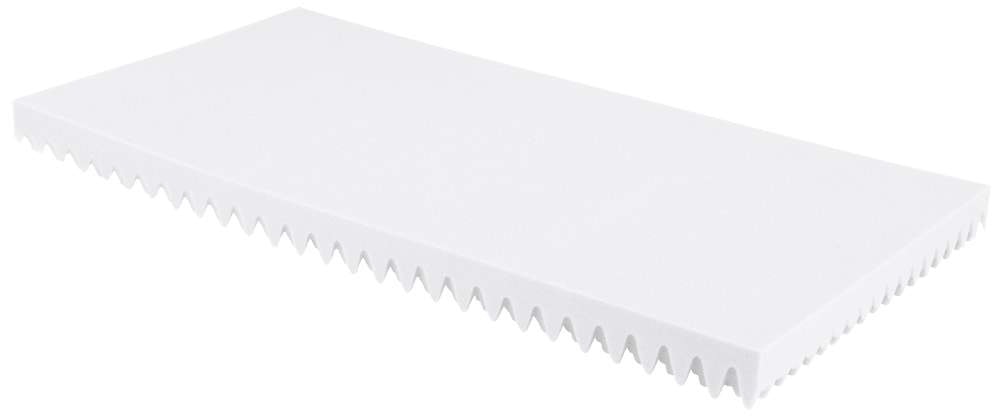

Barrier Basotect Sponge: Basotect melamine fireproof foam sponge panels are an original German-made Basf product. Basotect sponge, a light flexible, and fireproof melamine foam sponge that we imported from Germany and developed for Basf Nasa, provides extremely effective sound insulation and insulation. We laminate between our barrier basotect sponges by using a heavy lead plate or EPDM based rubber sound insulation barriers, this process increases the sound insulation and insulation values of the product. This acoustic material, which has a light density of our product, is generally preferred in automotive, industry, and studio sound insulation. Basotect melamine sponges with barriers are also available in flat panel form and patterned shapes. Barrier basotect foams can be produced in special cuts and thicknesses. Basotect sponges imported from Turkey are in the form of cube blocks. Our block size is 1250 mm x 2500 mm x 2000 mm. You can find Basotect melamine sponge prices from the price list on our homepage. It is white-gray and light gray as standard. See also other models of barrier basotect foams. Barrier basotect melamine sponge foam Istanbul sales office Turkish acoustic.

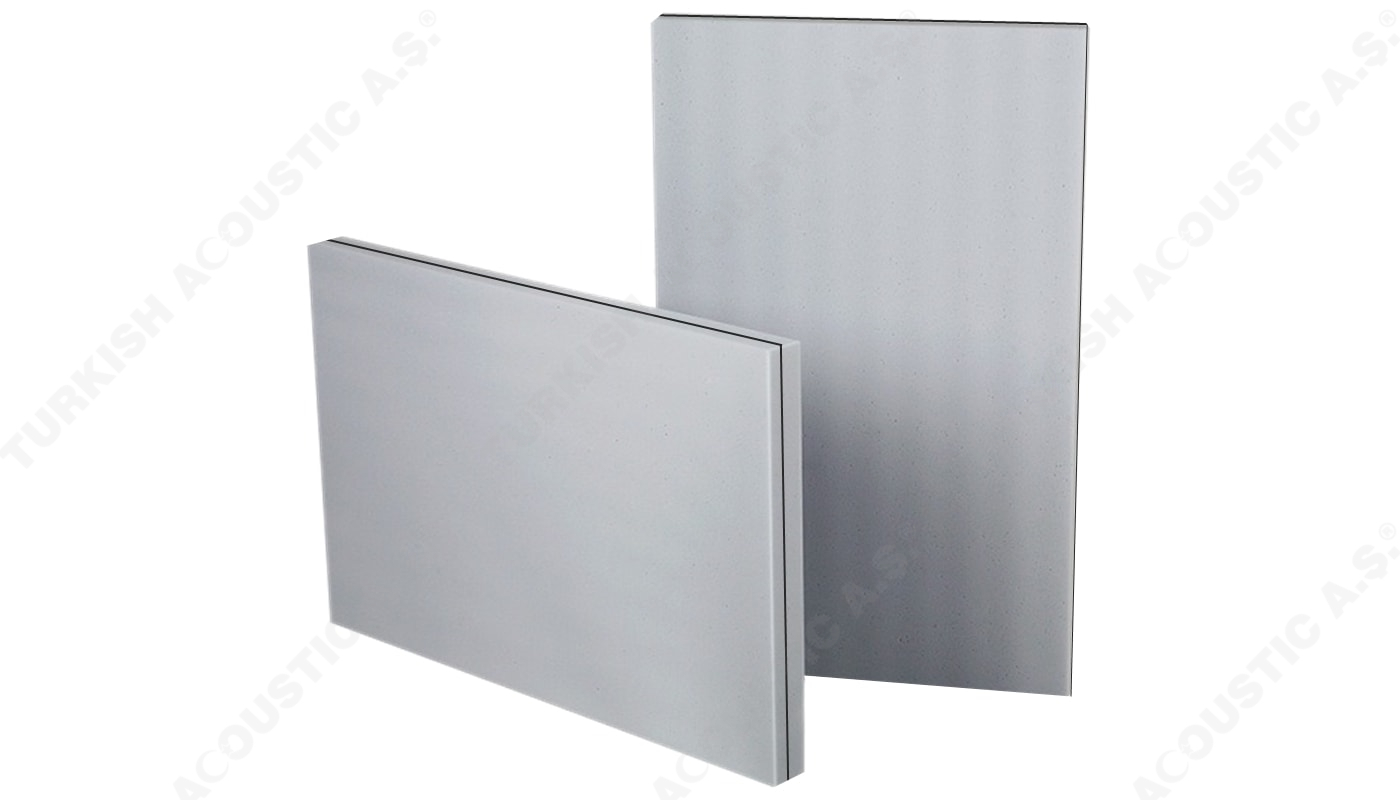

Barrier Basotect Melamine Sponge Dimensions: It is 50 cm x 125 cm plate dimensions, 30 mm and 40 mm are offered for retail sale.
Basotect Melamine Sponge with Barrier Package Contents: Basotect barrier sponges are sold in 40 packages of 50 cm x 125 cm size plates. 1 Package 25 m² Sold.
Barrier Basotect Melamine Sponge Color varieties: White and light gray are sold as standard.
Barrier Basotect Melamine Foam Usage Areas: Music room, studio, generator cabin, radio broadcasting house, sports hall, entertainment venues.
Barrier Basotect Melamine Sponge Production: Special thickness 50 mm and above is possible. Custom cut to size is possible.
Barrier Basotect Melamine Sponge Fireproof: Non-flammable/non-flammable Friend; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates.
Barrier Baostect Melamine Sponge Density: 1 0 to 20 Kg / M³ Special production is possible in desired density and thickness. CNC cutting is possible.
Note: 30 mm product is between 25 - 30 mm, 40 mm thickness is tolerated between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Basotect sponges are in 50 cm x 125 cm or 100 cm x 125 plates and contain 10 m² of product in their package. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
