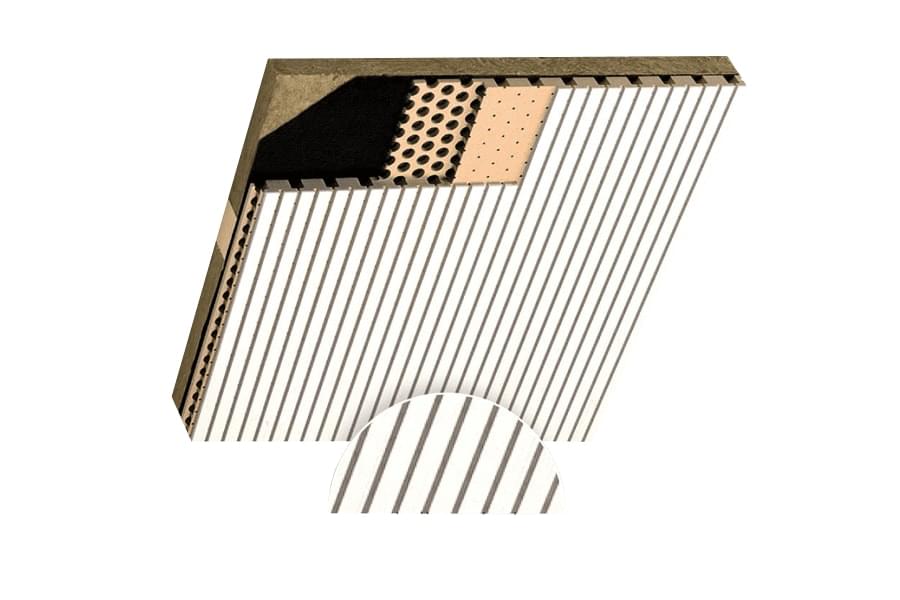

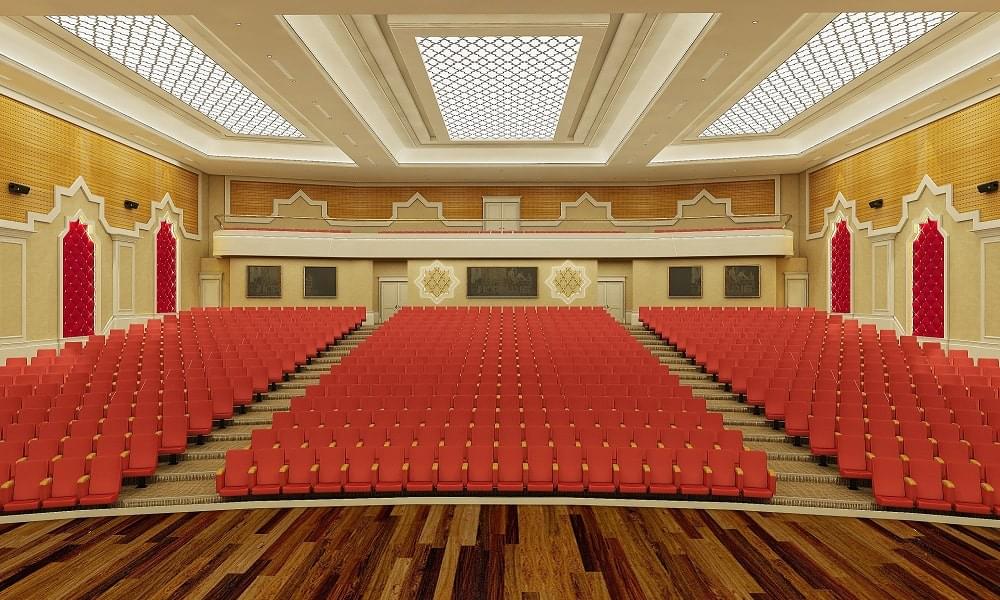

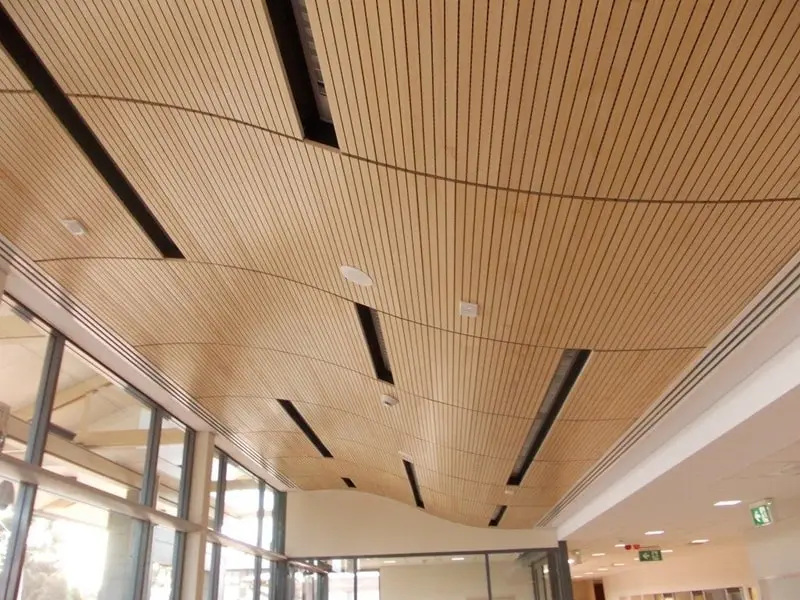

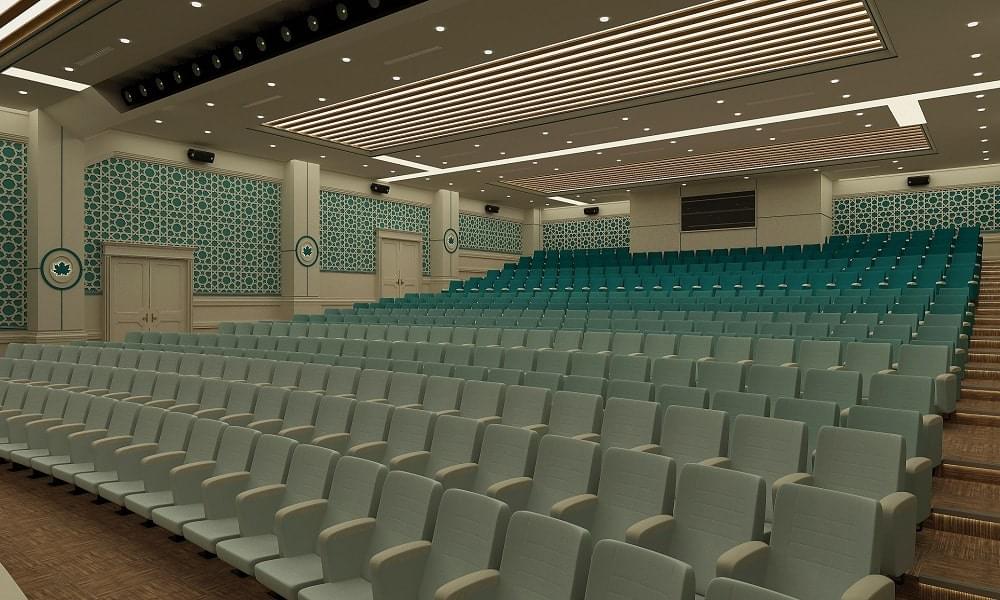

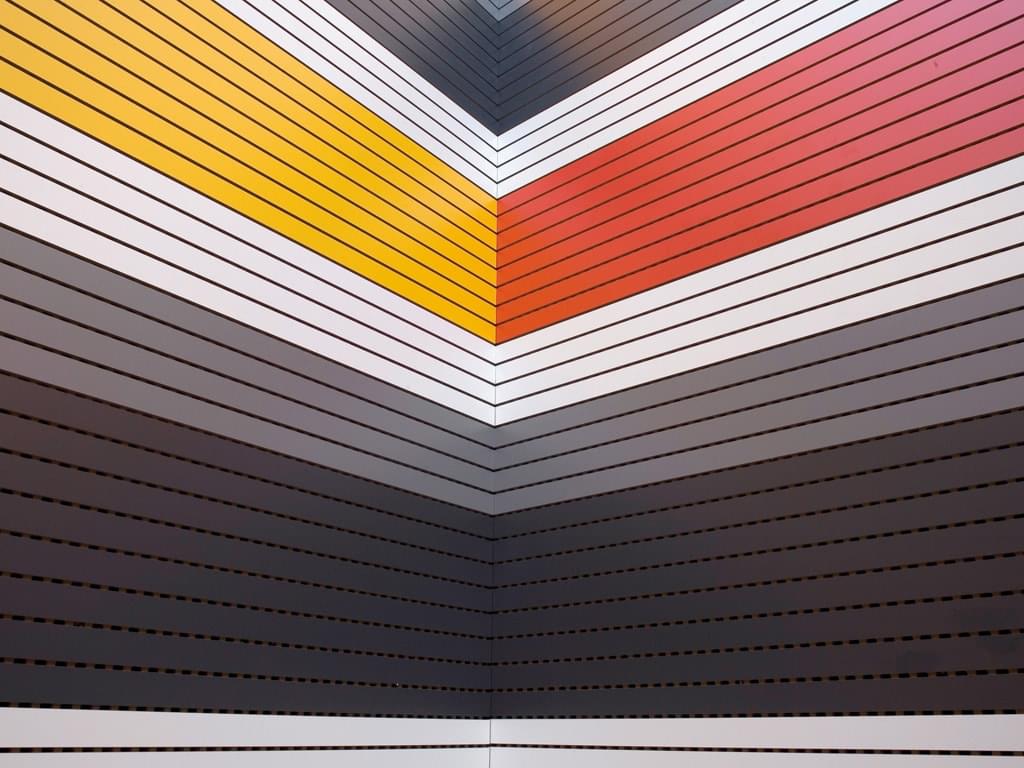

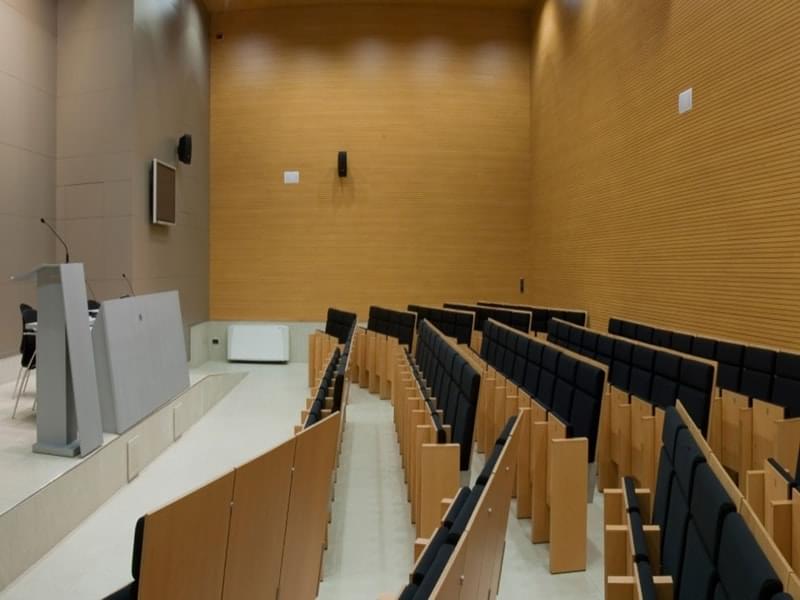

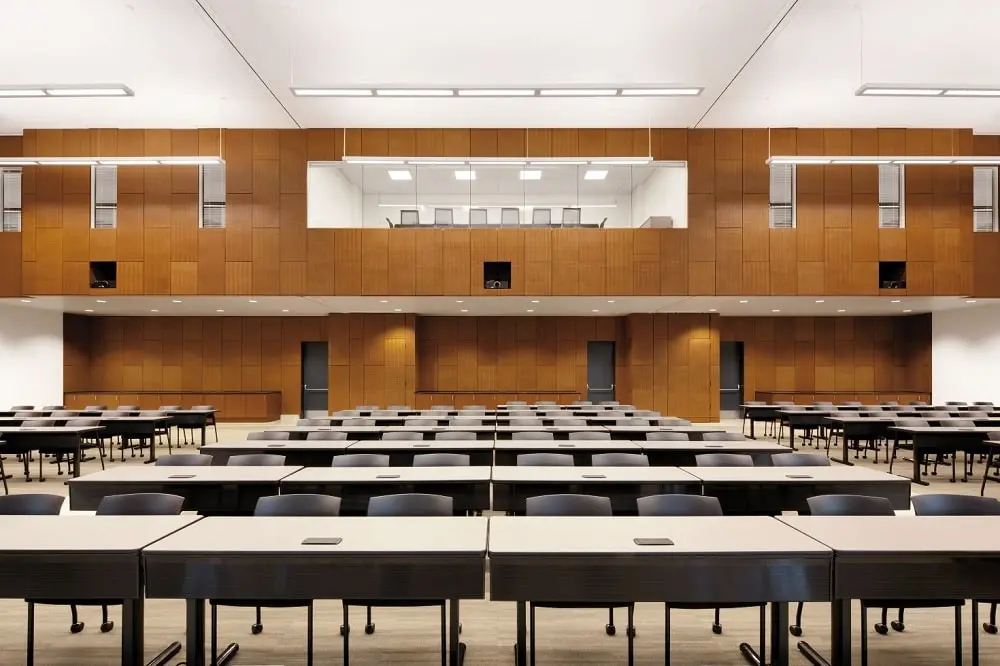

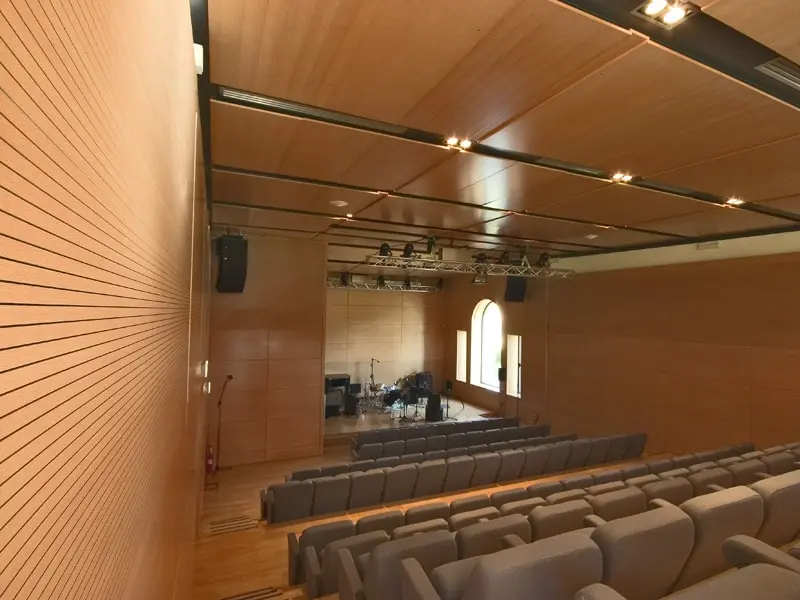

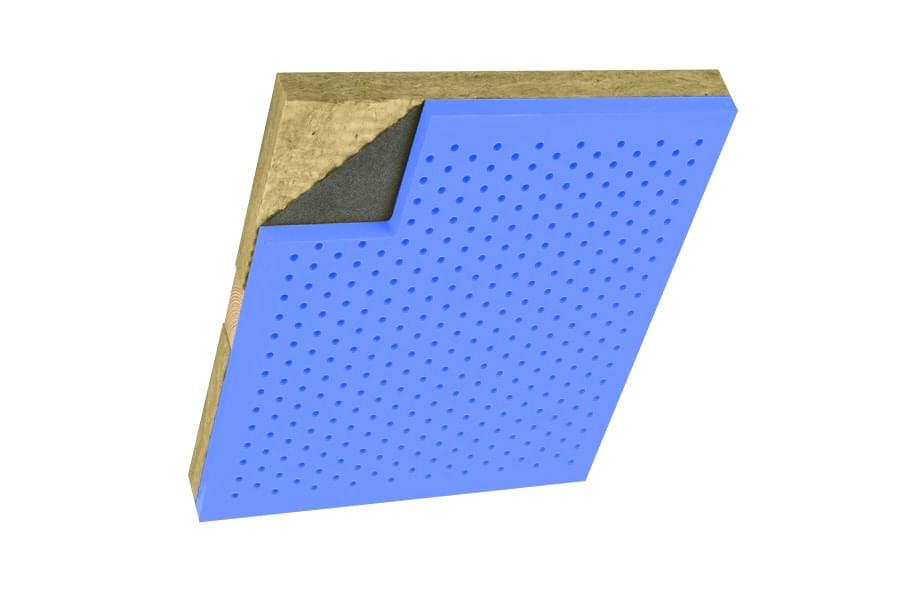

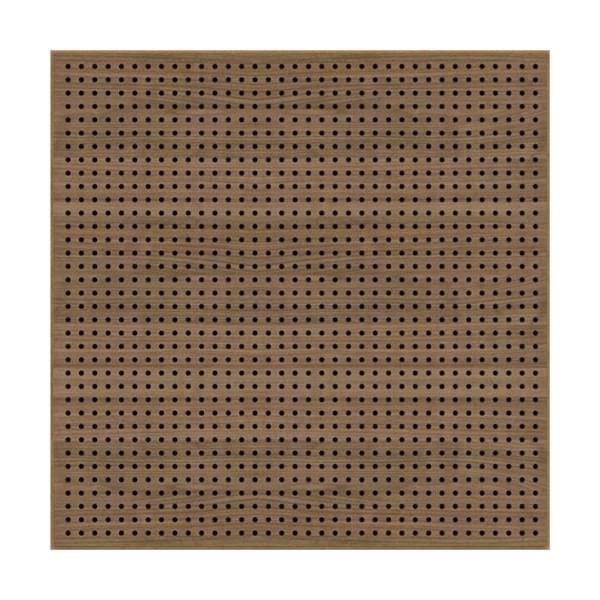

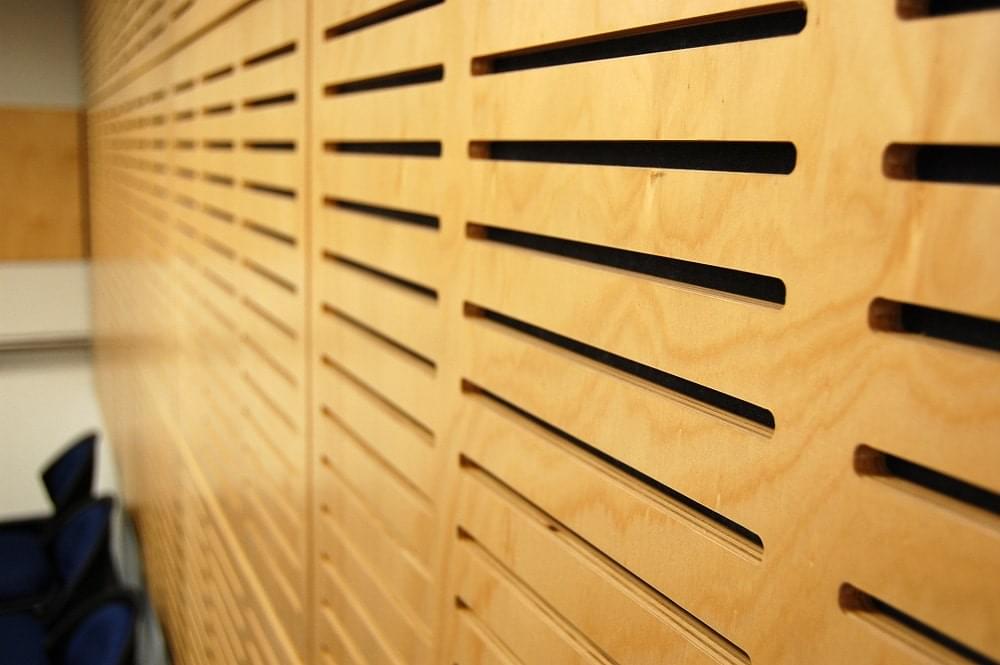

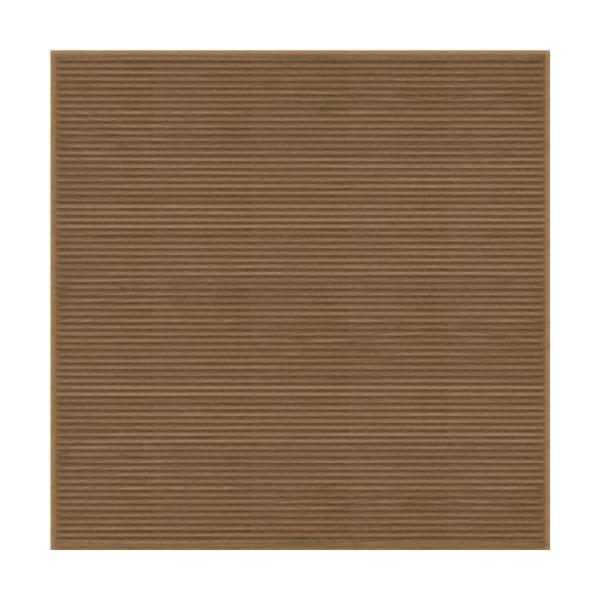

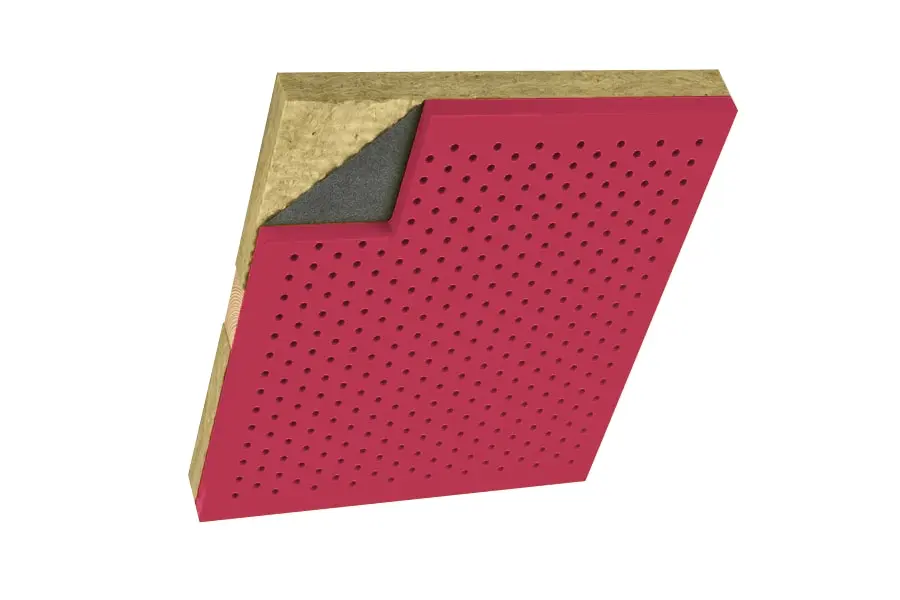

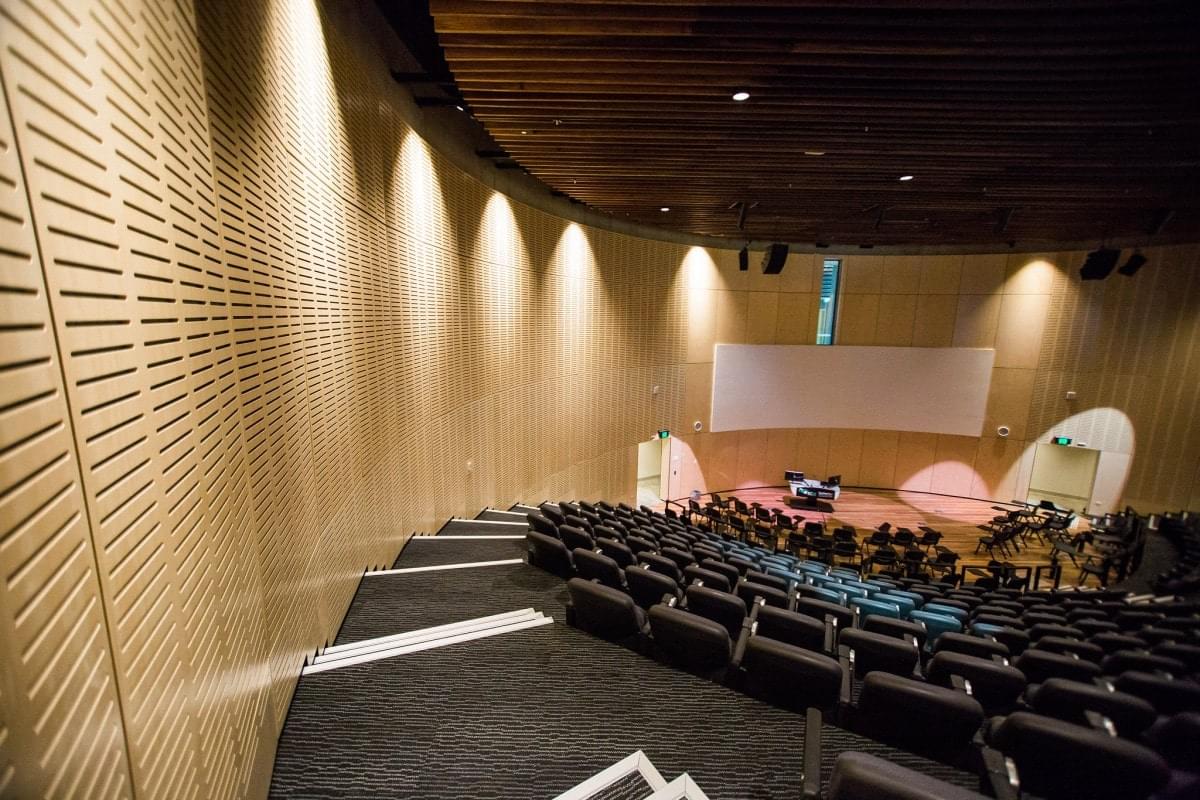

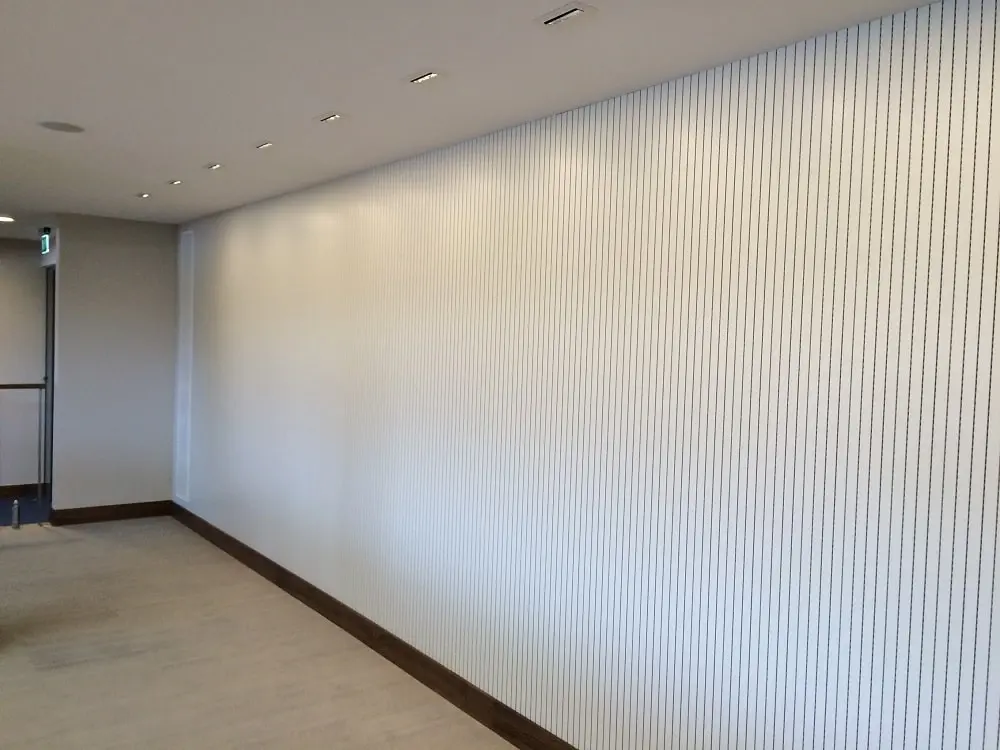

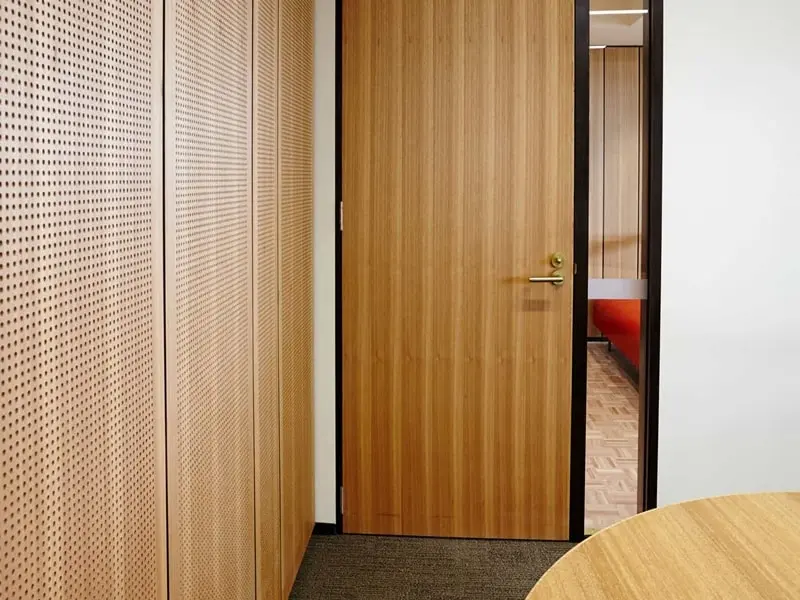

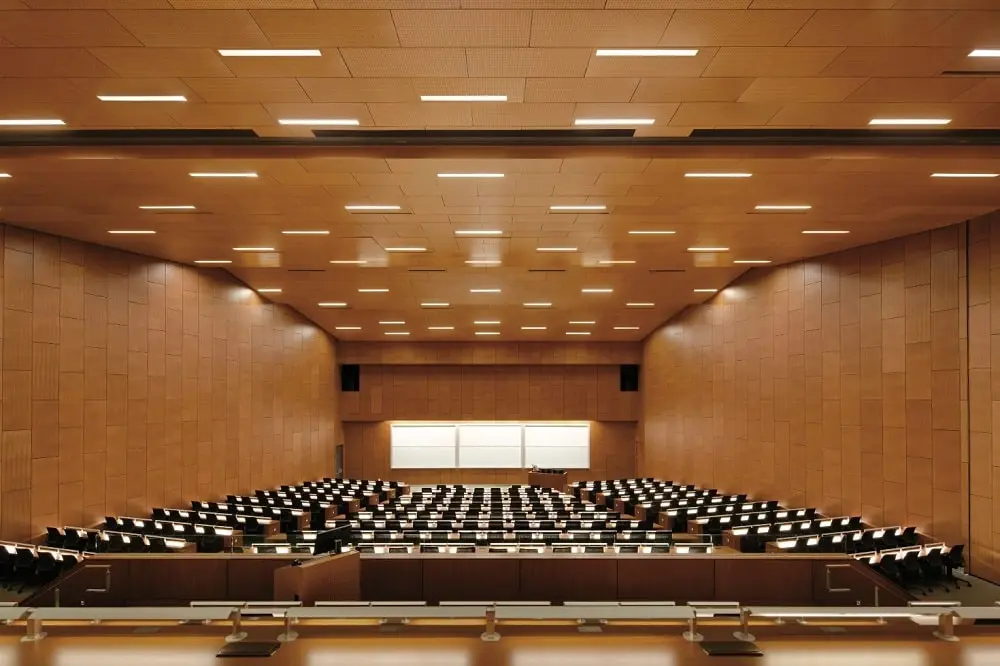

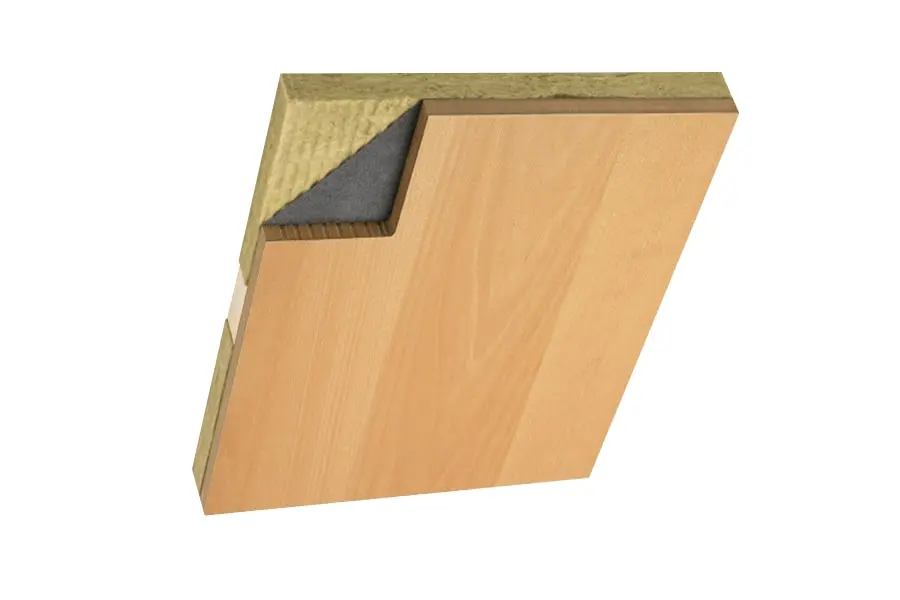

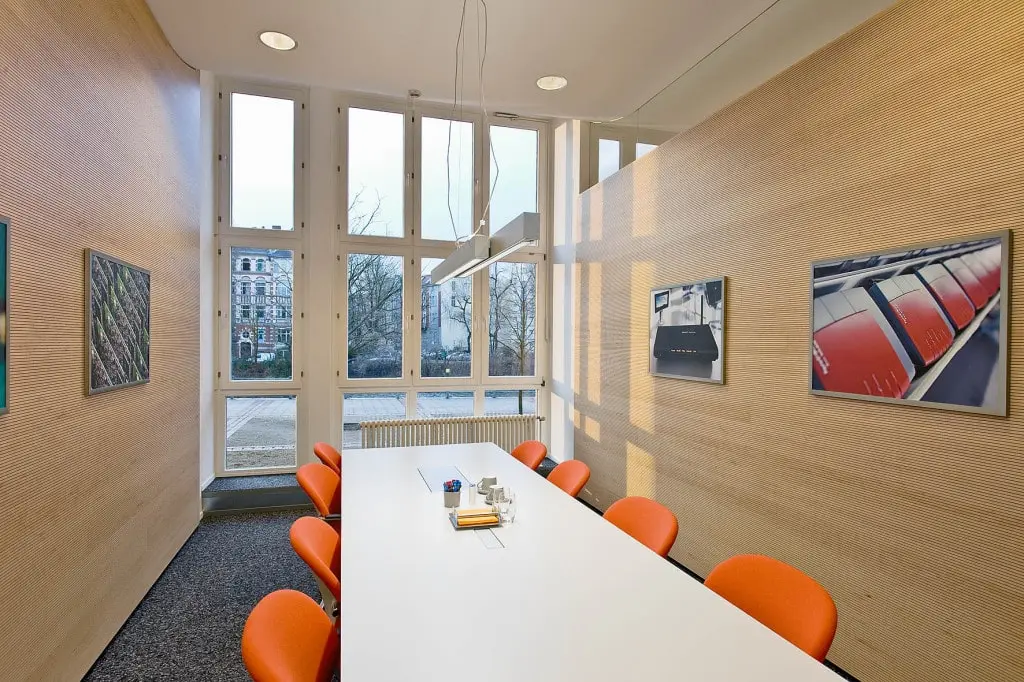

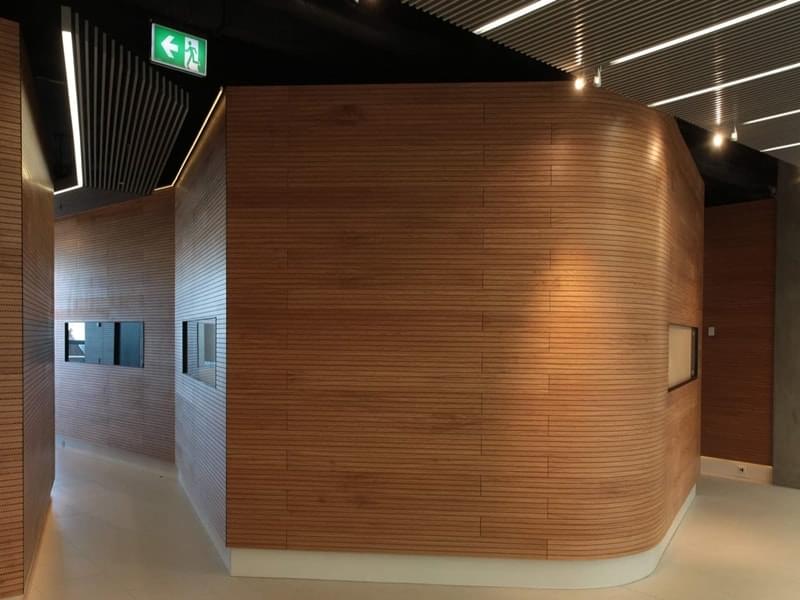

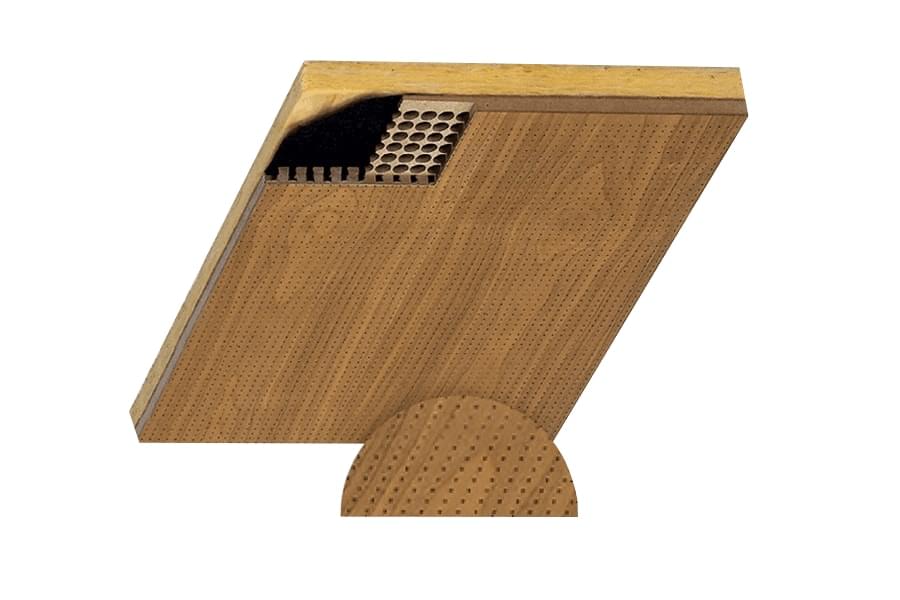

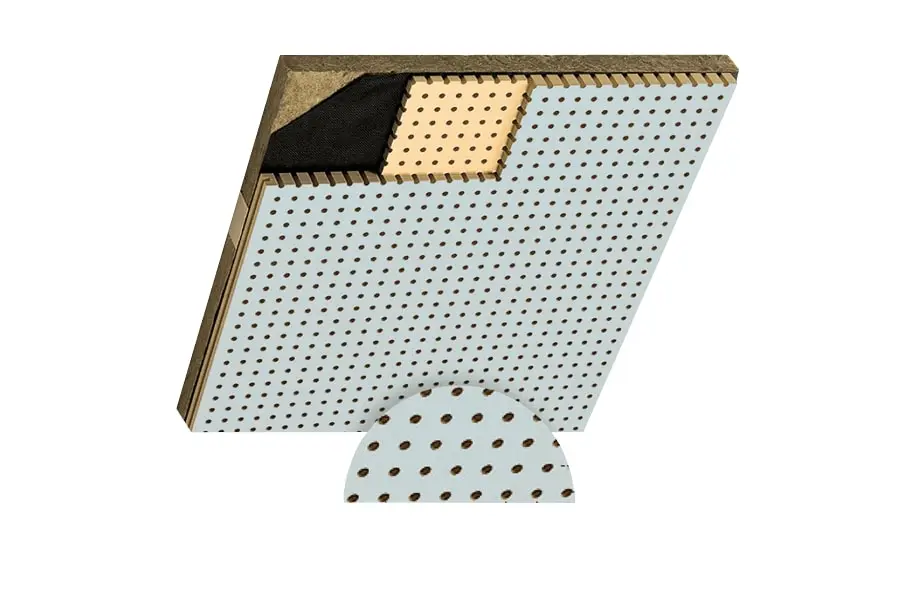

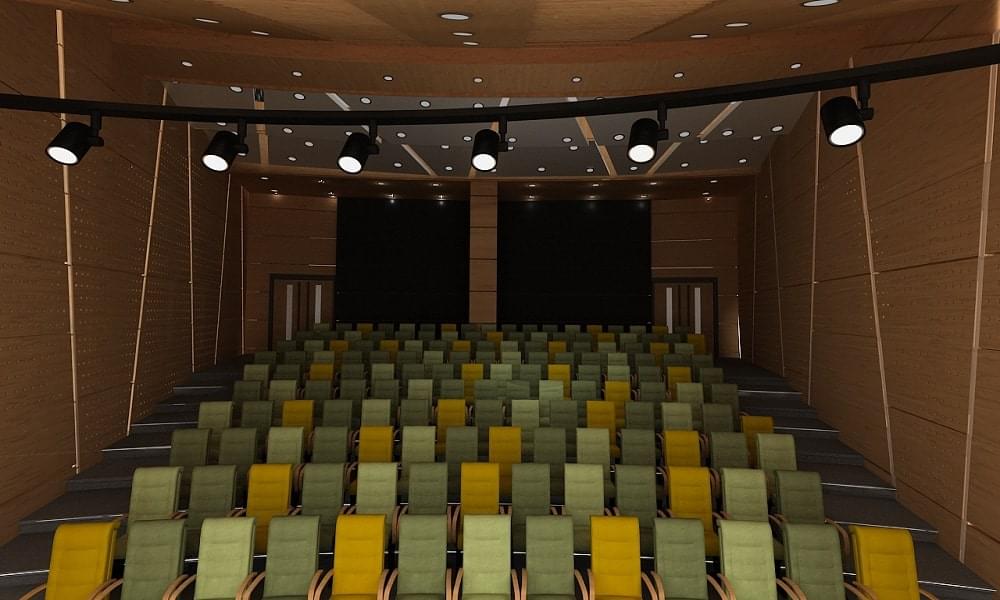

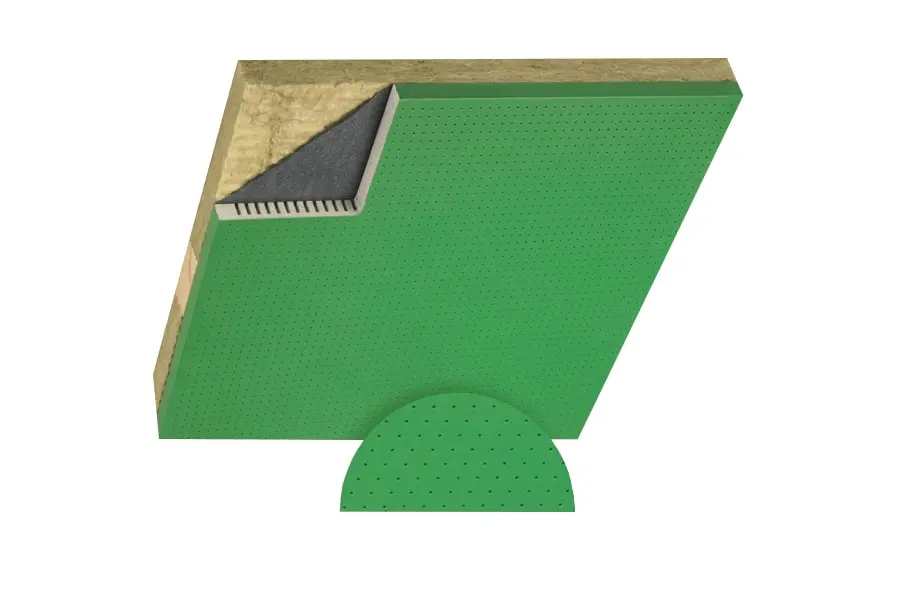

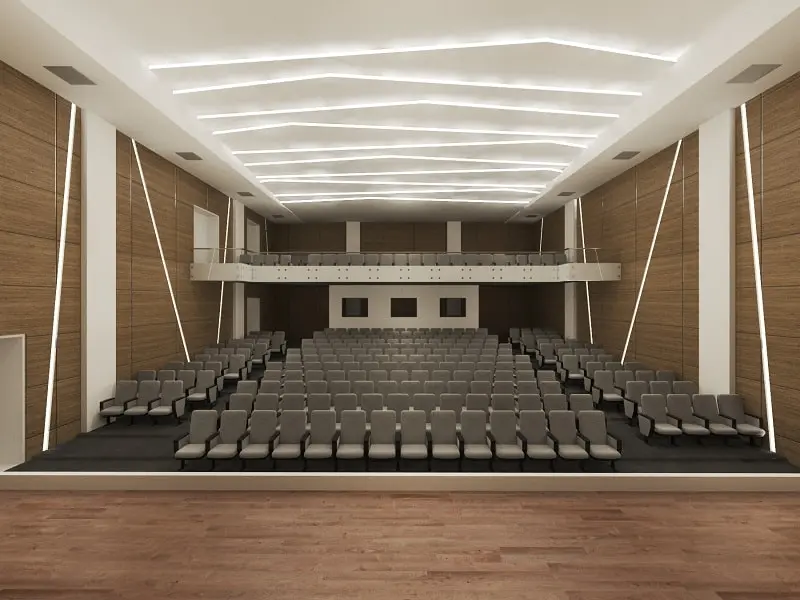

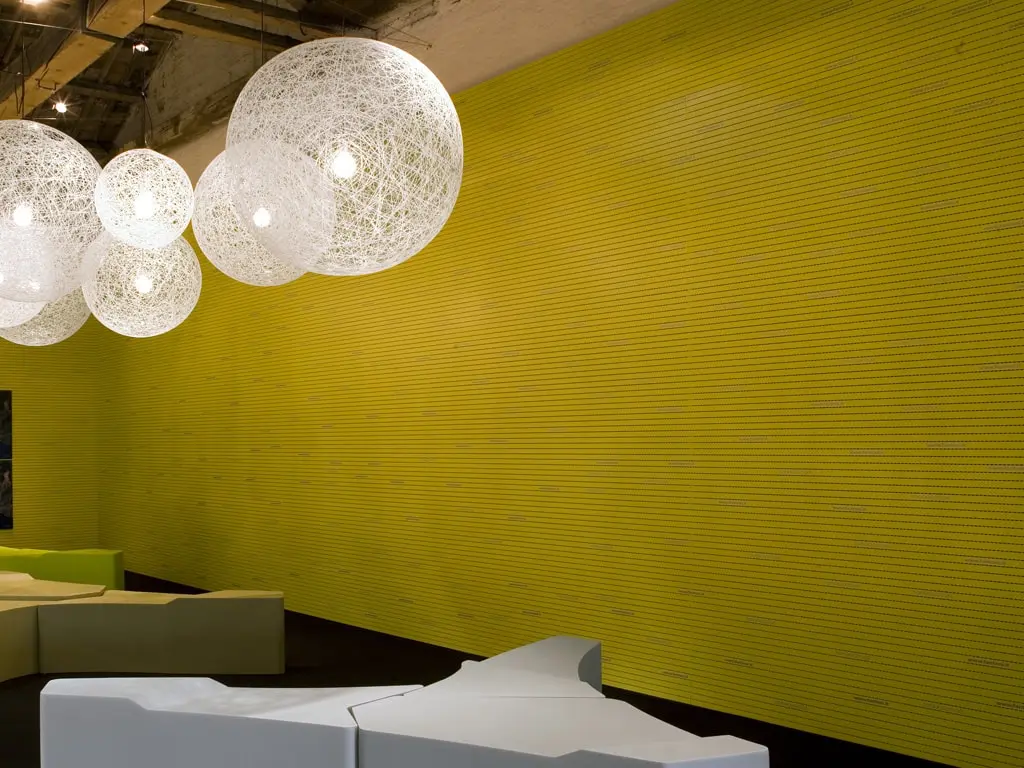

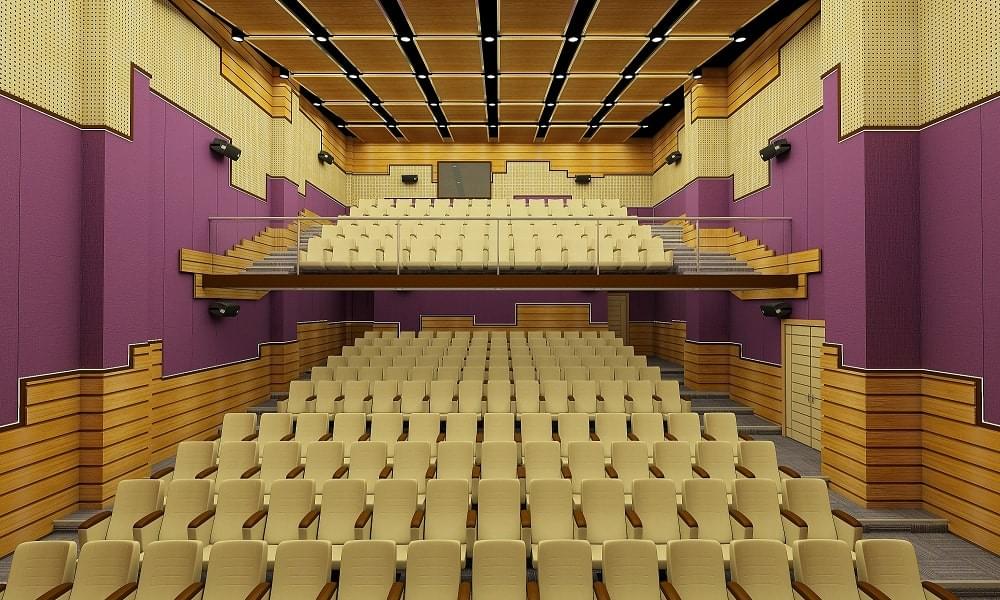

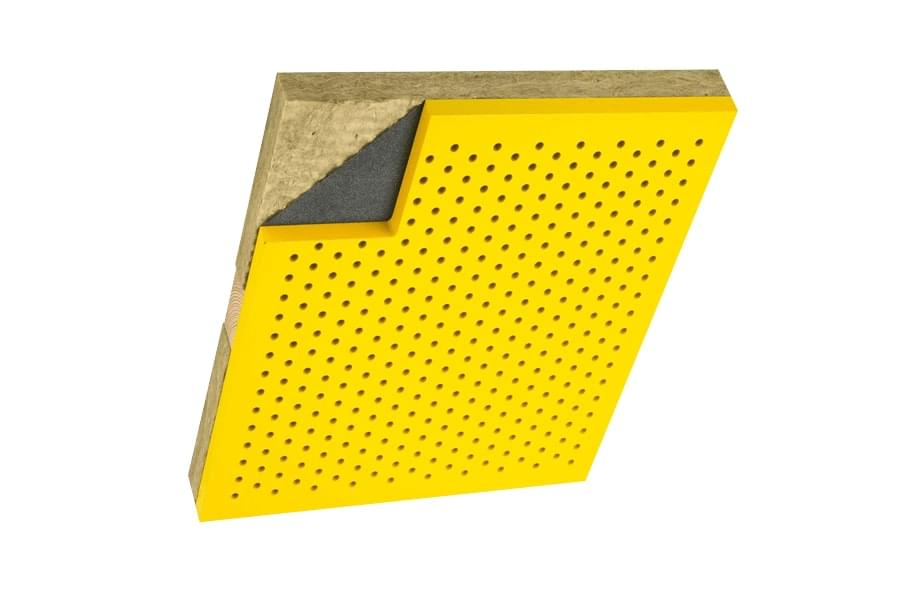

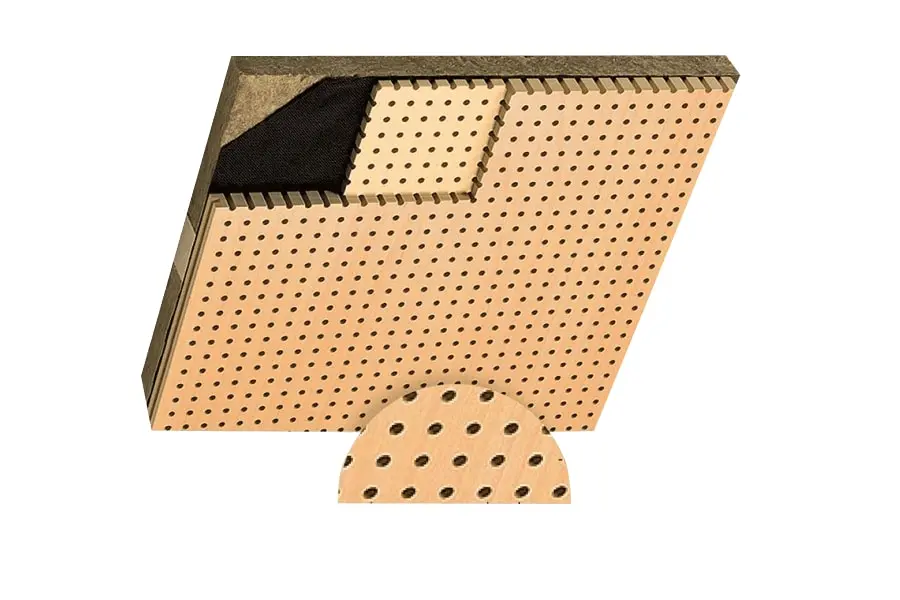

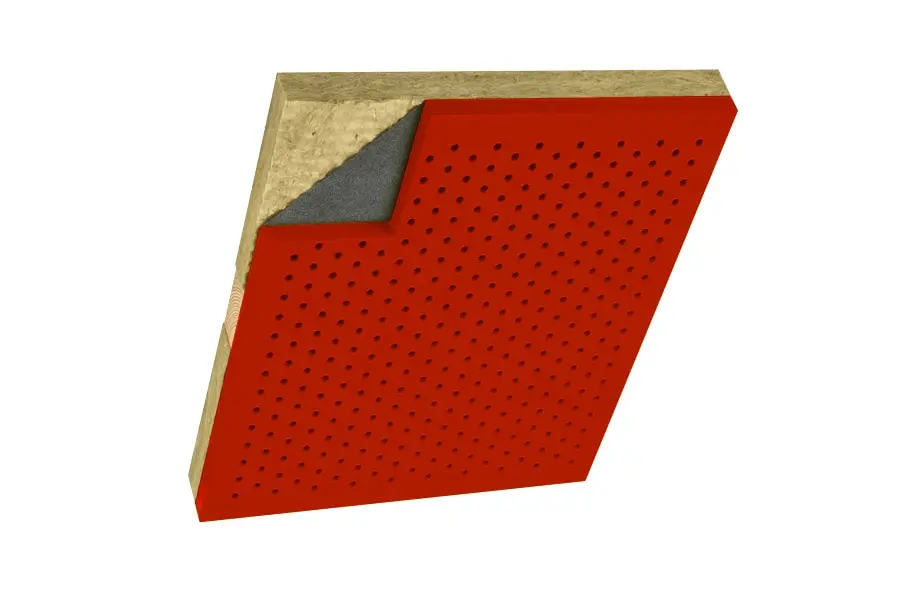

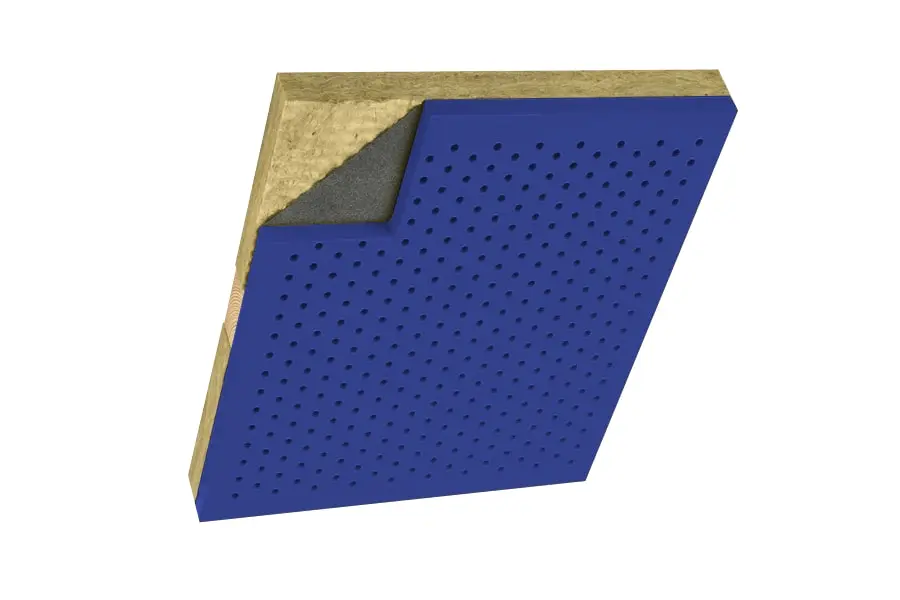

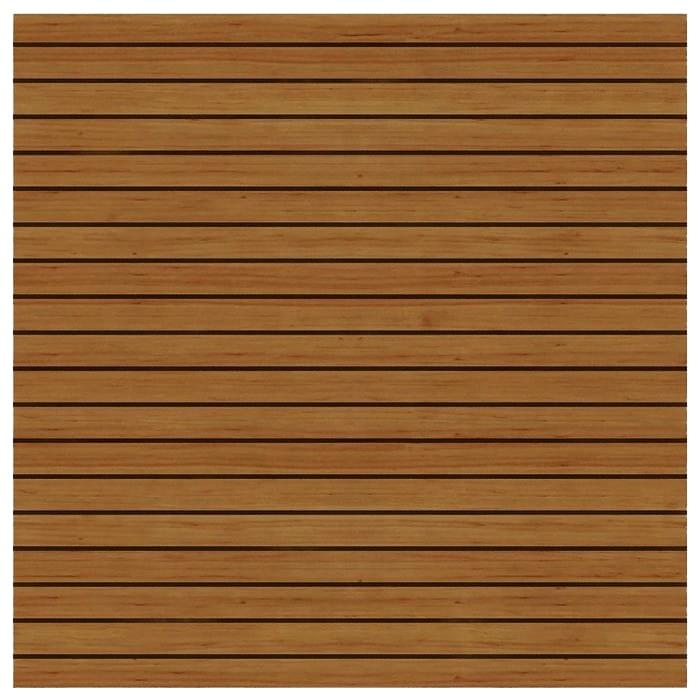

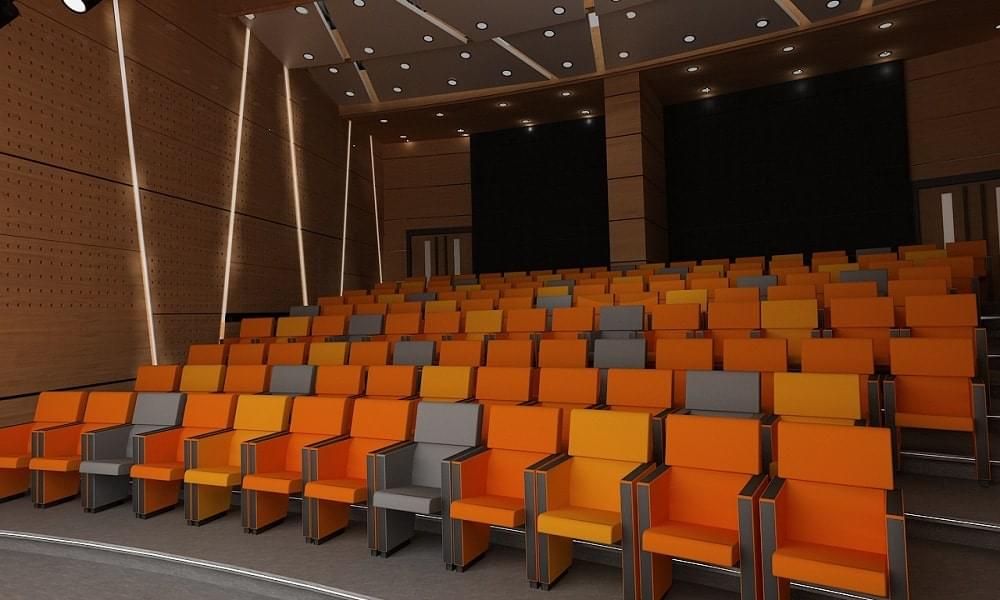

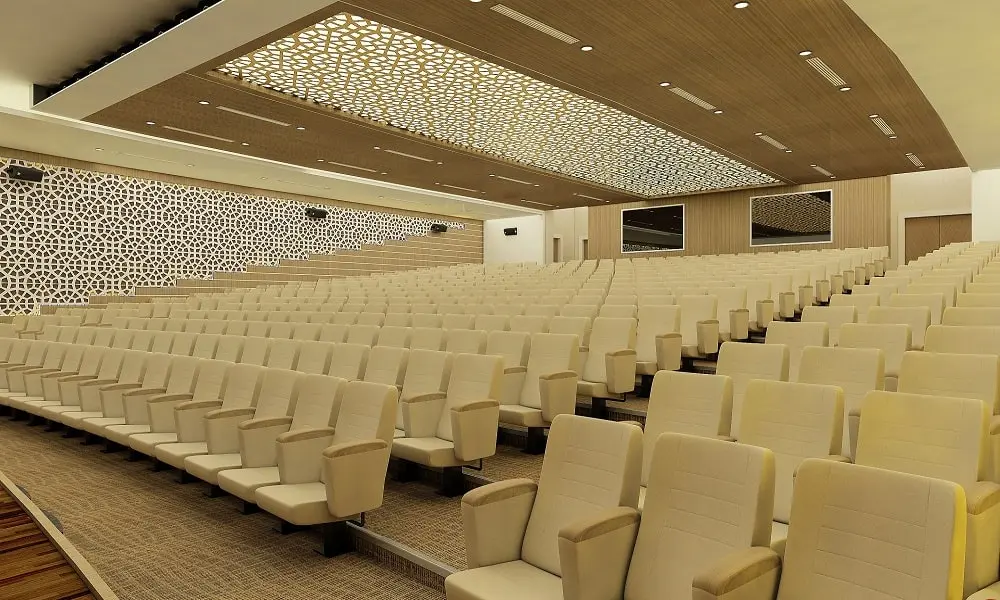

Wooden Wall Panels: Perforated wooden panels are decorative products with different perforated versions that provide medium or high sound absorption performance. The backside of the panels is covered with Soundex fabric. They are often used in acoustic projects. We produce wooden wall panels suitable for the technical provisions. A special discount is provided for projects. When the whole area of the place is not coated with a sound absorber panel, less perforated or unperforated panels can be used as sound reflective.
Panel Types: MDF Lam, natural veneer on MDF, lacquer painting on MDF
Panel Sizes: 600 x 1200 mm, 300 x 600 mm, 350 x 1200 mm
Panel Thicknesses: 8 – 10 – 12 – 18 mm

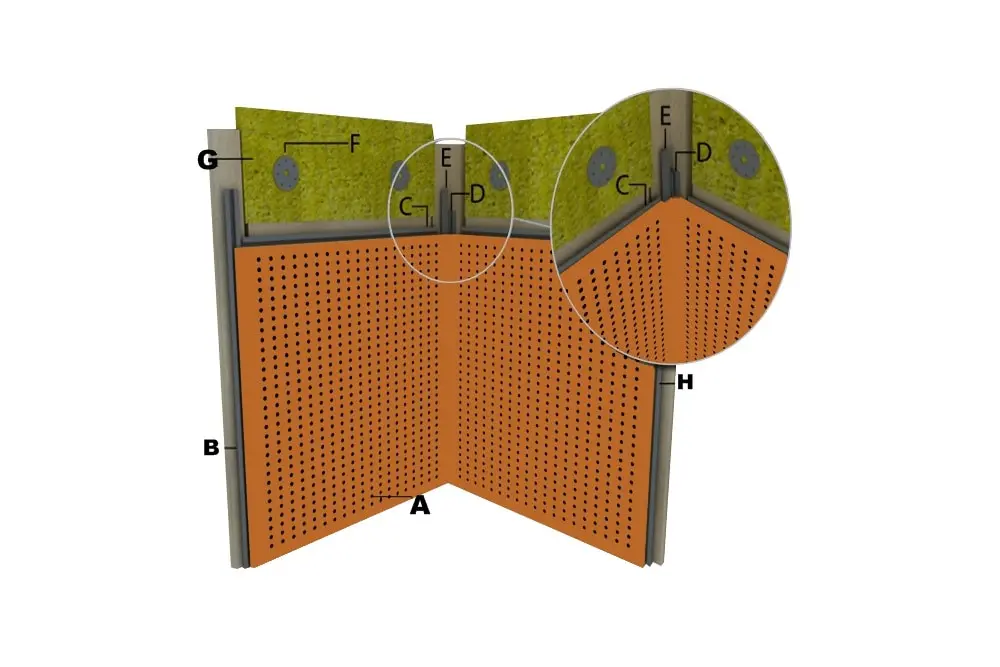

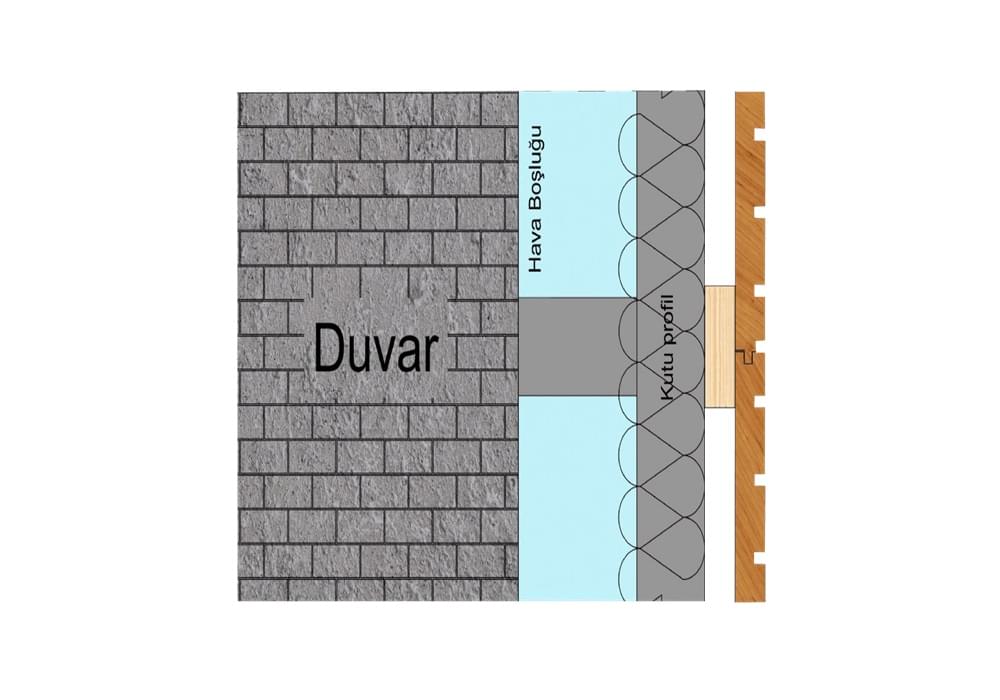

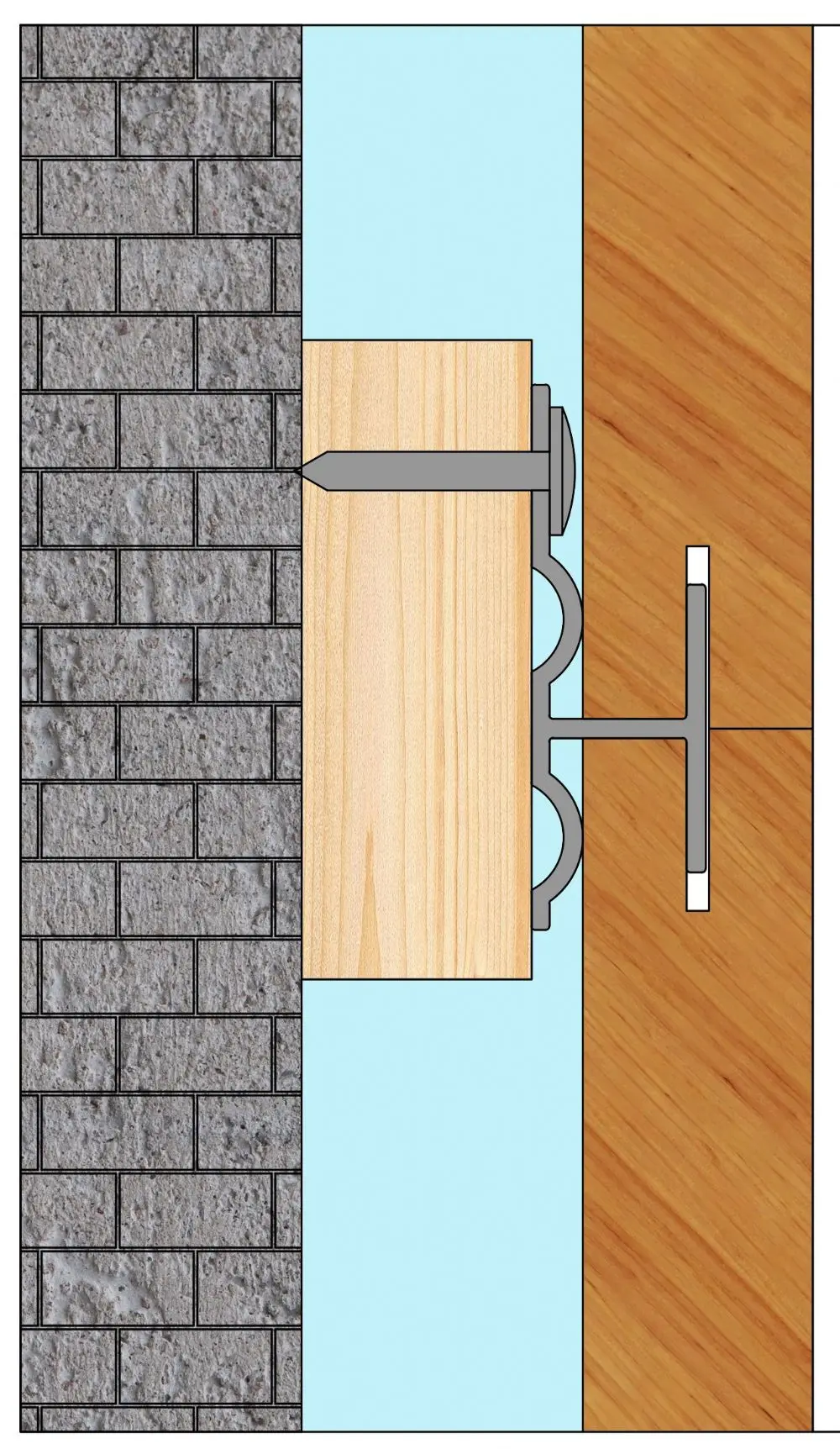

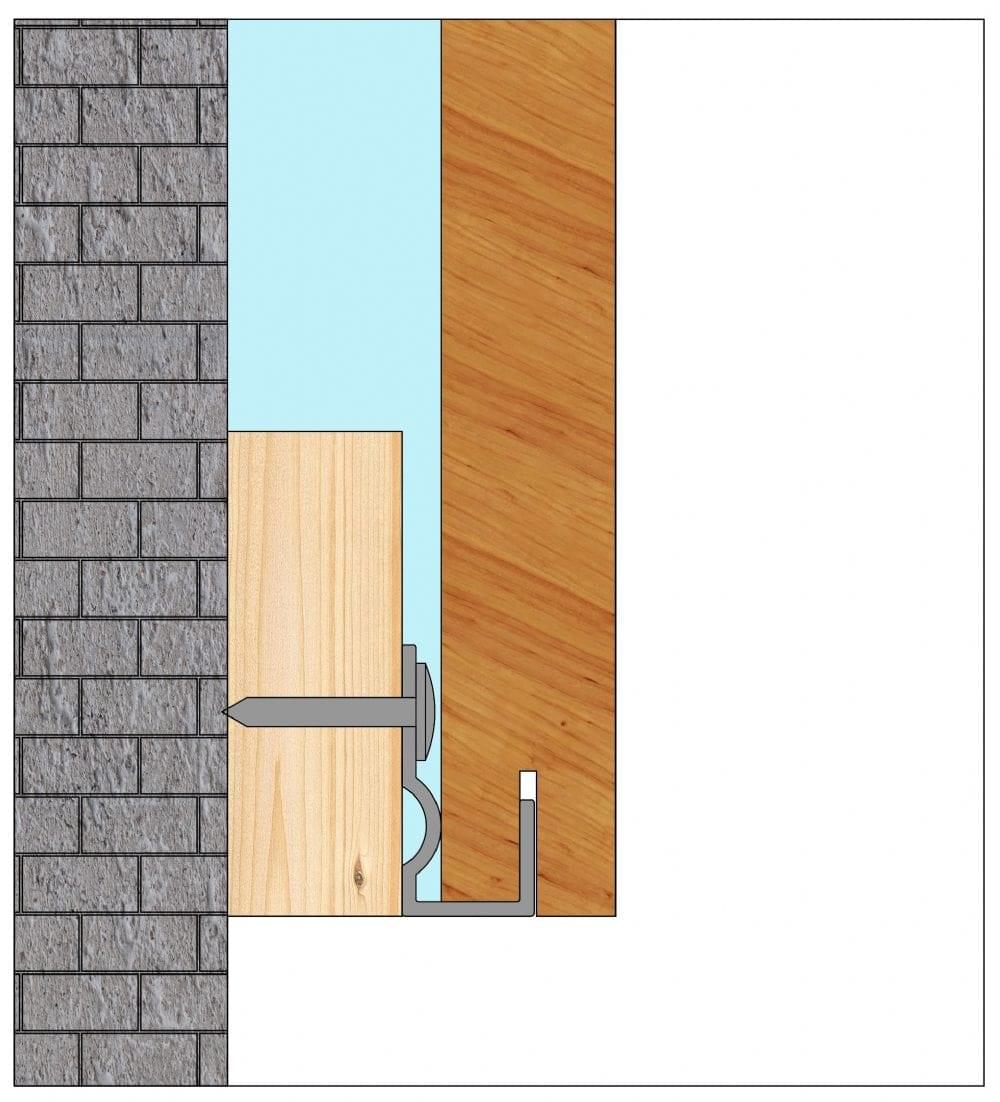

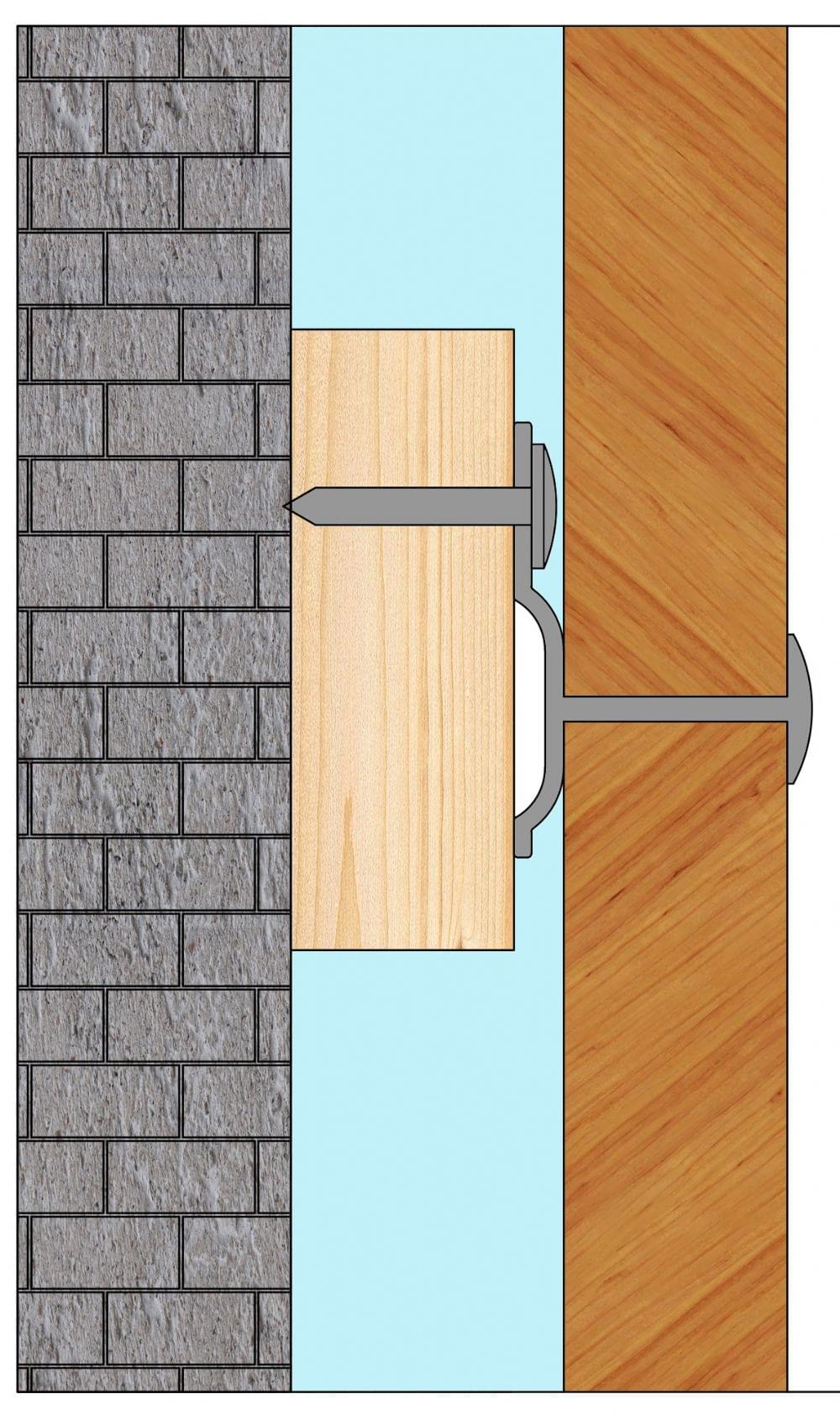

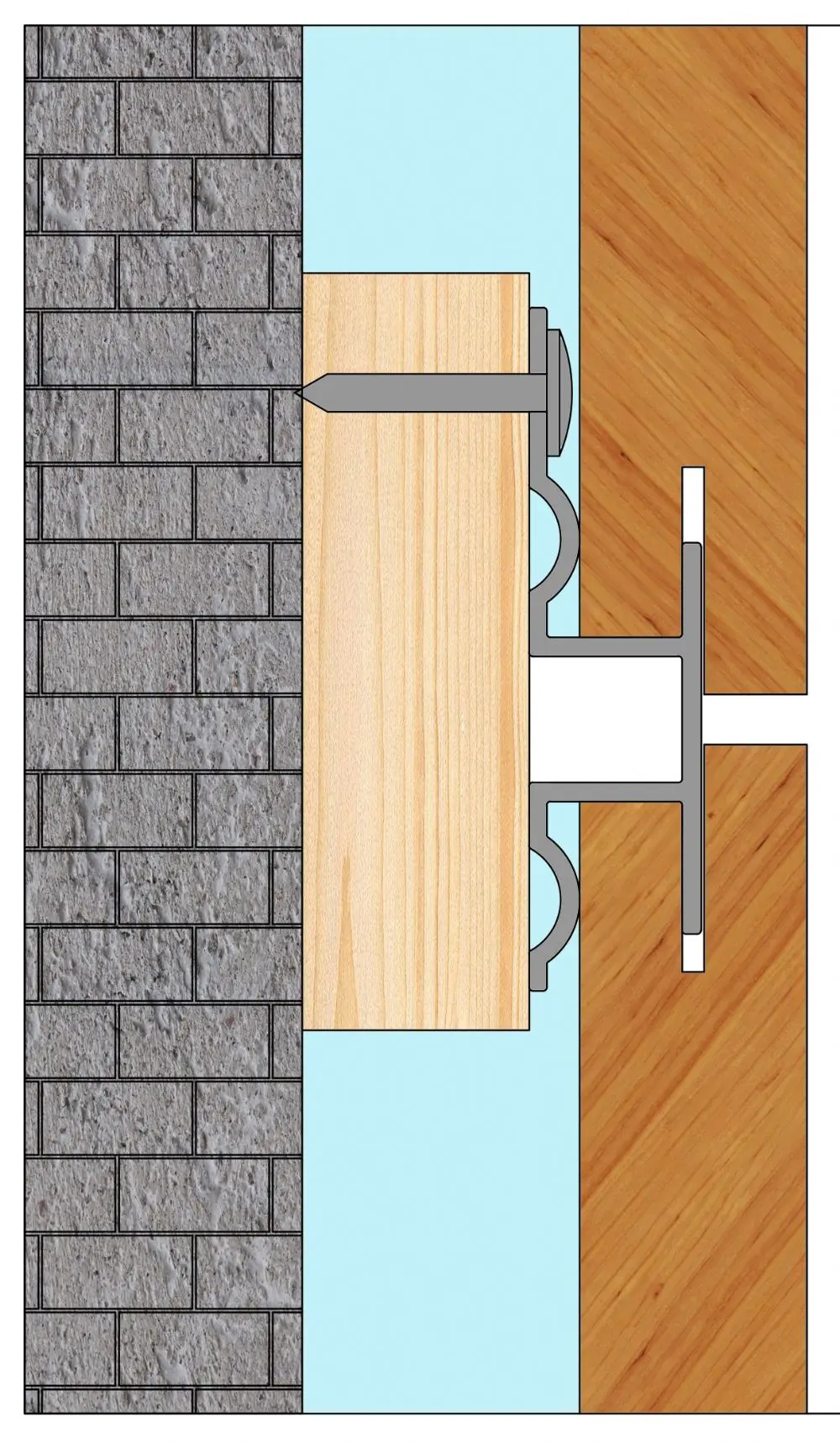

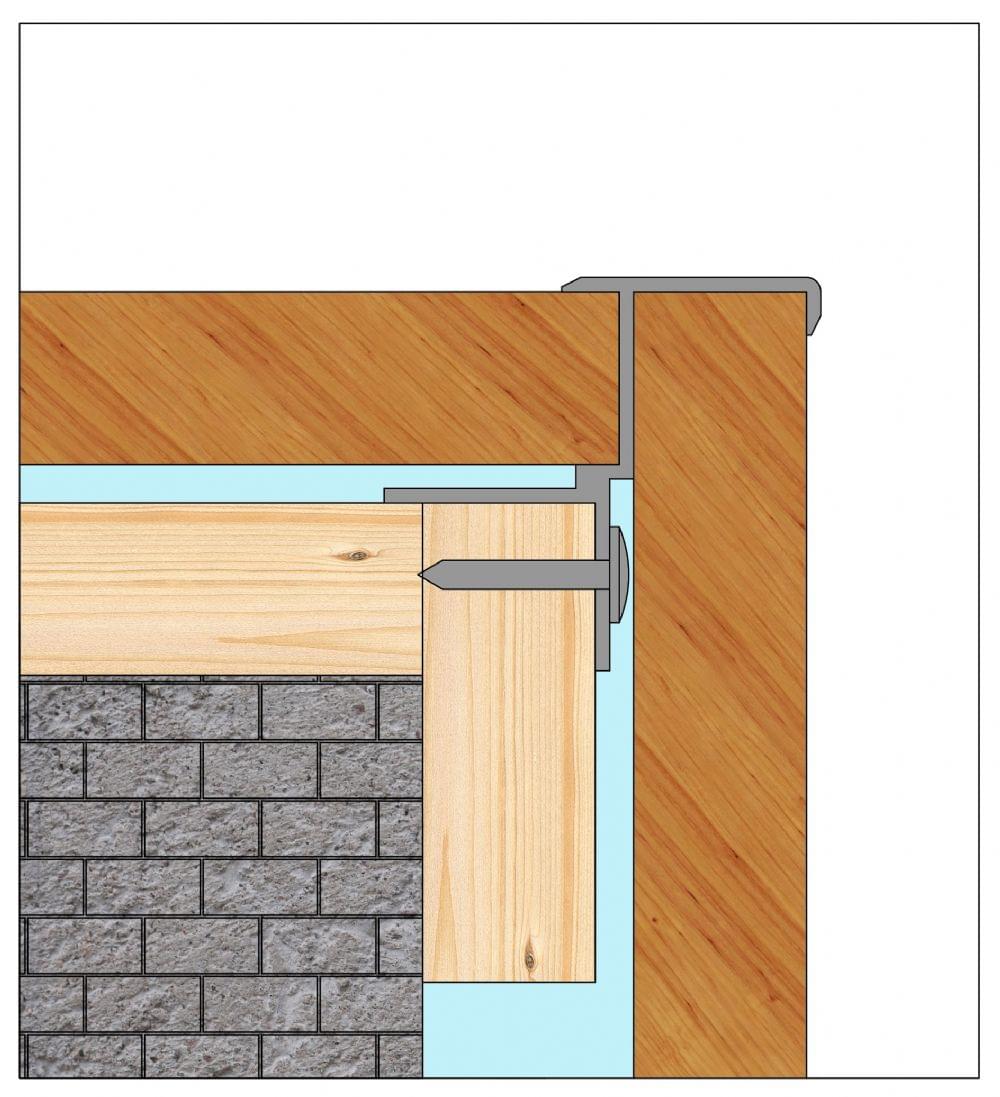

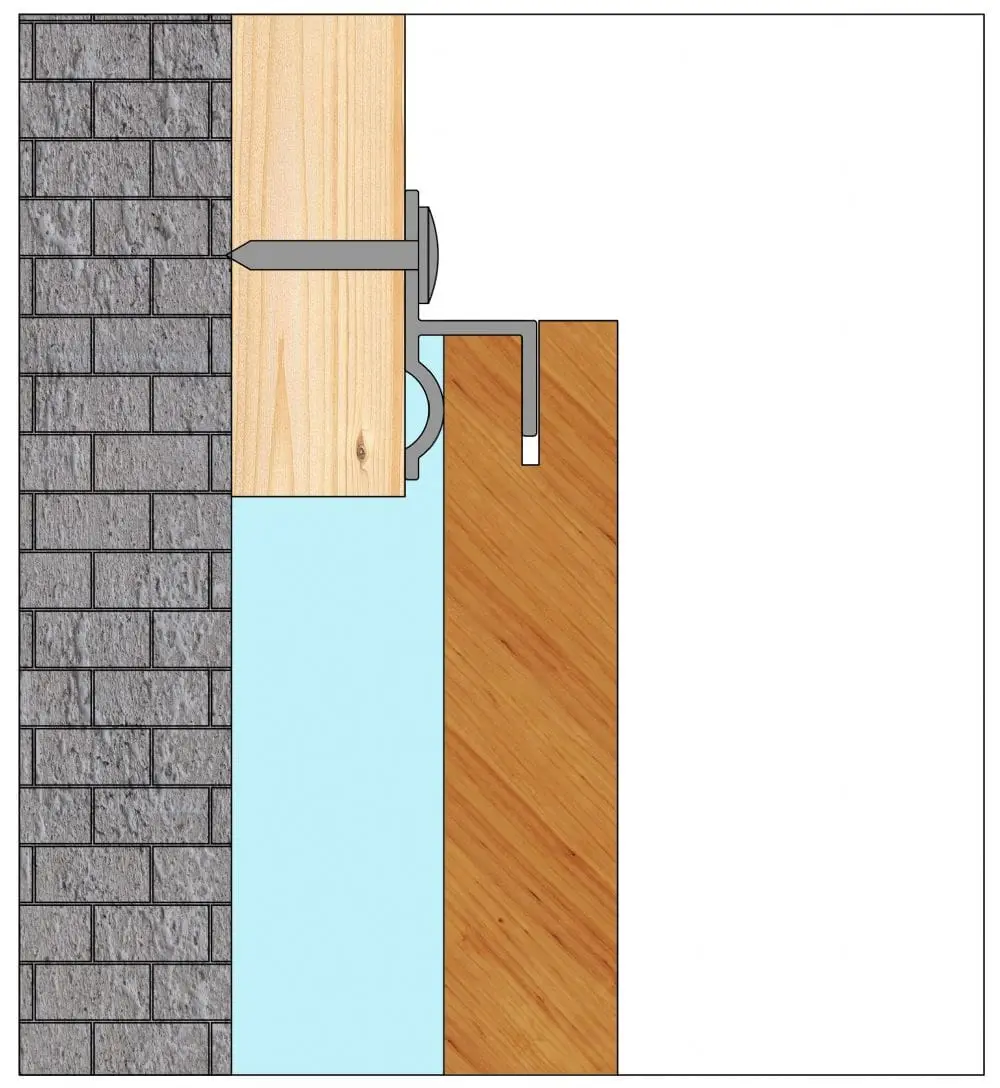

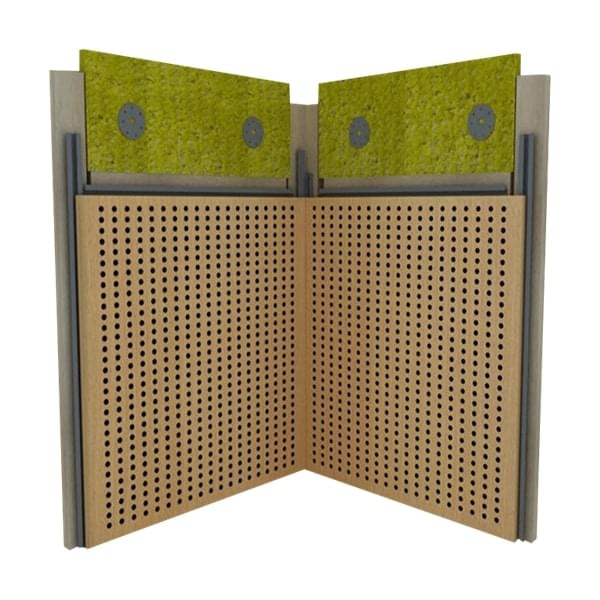

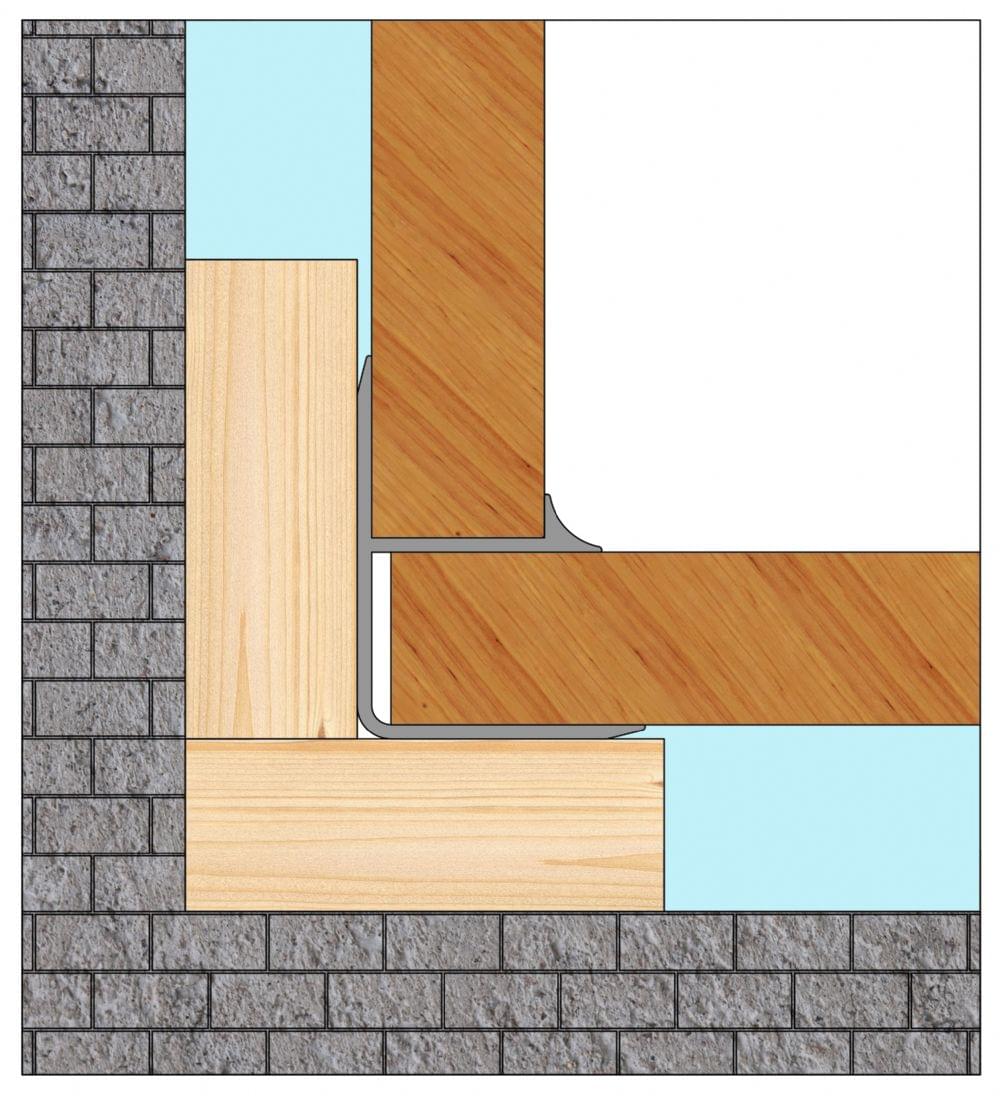

Base (Carrier) System: Box profile construction, morticed panels on a wooden carcass, or intestinal system

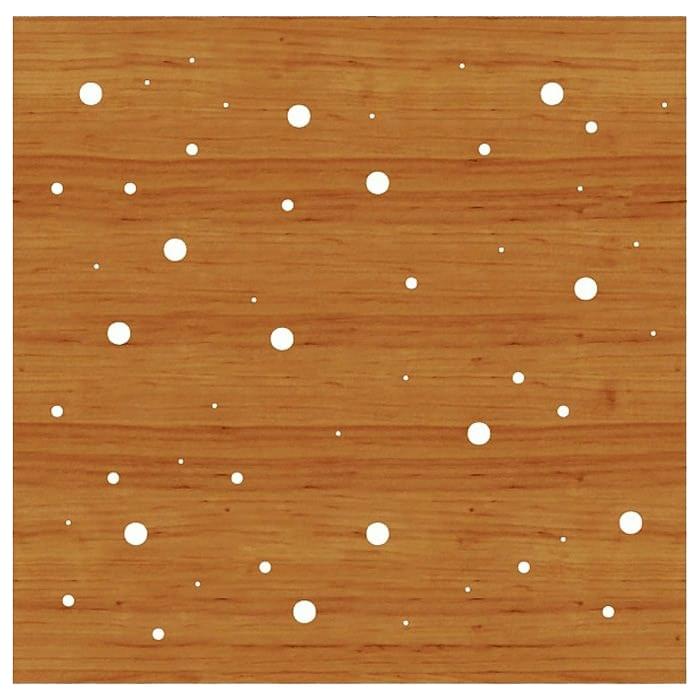

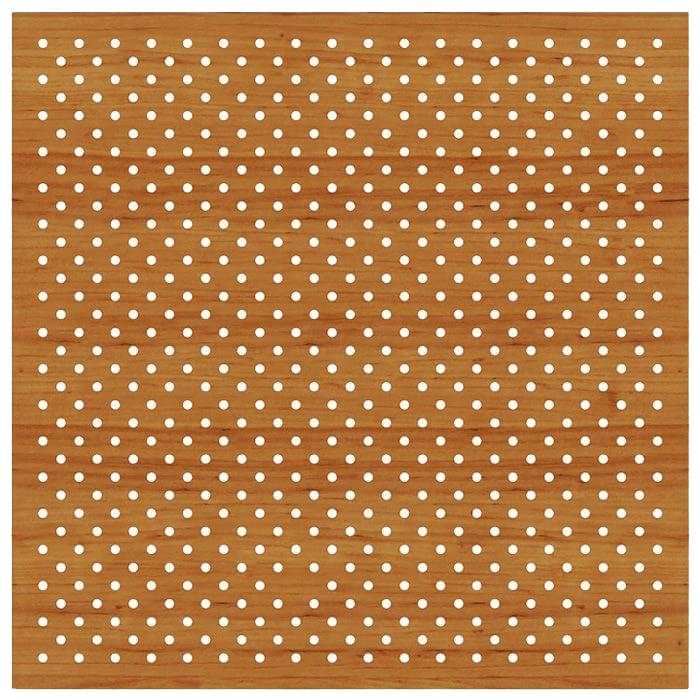

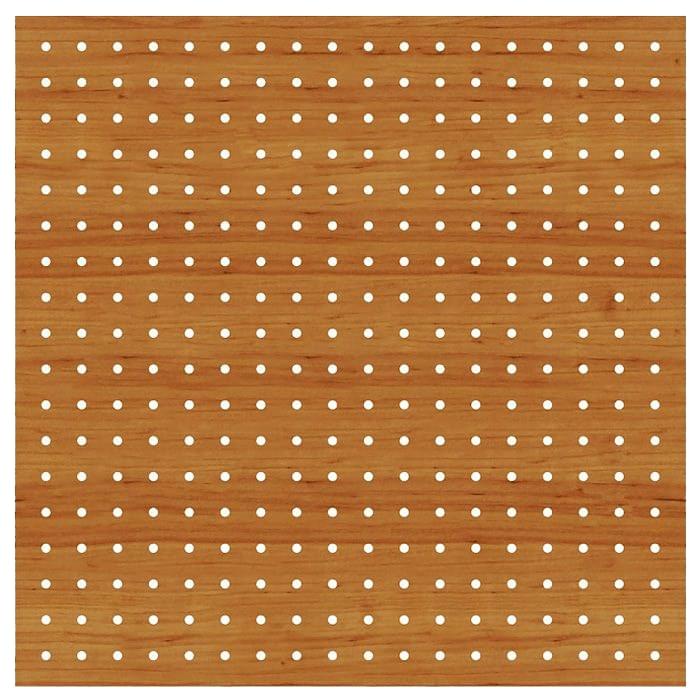

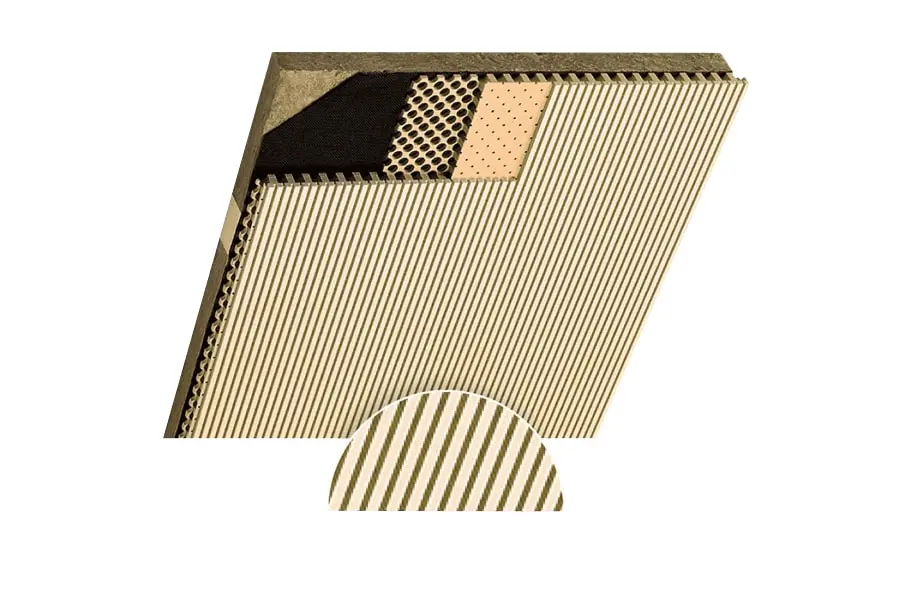

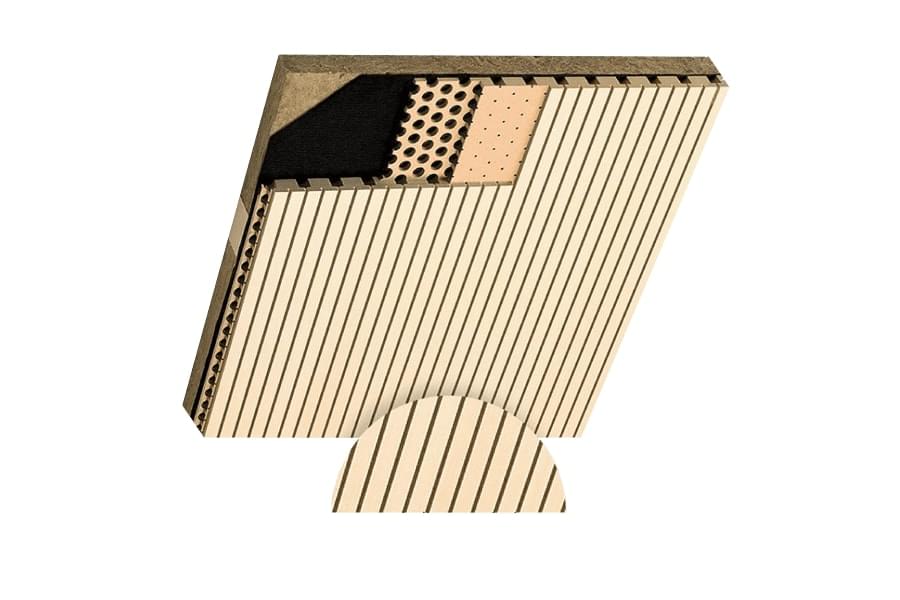

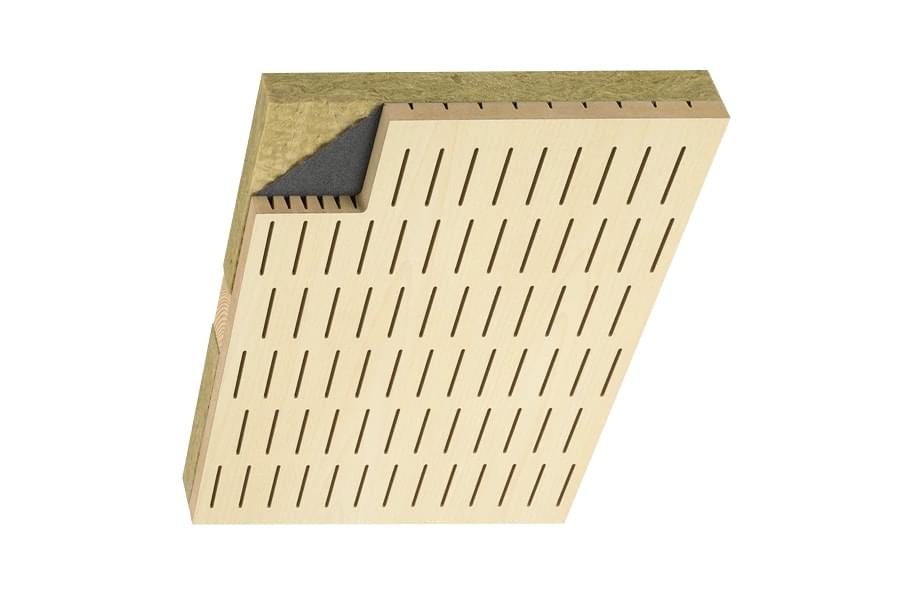

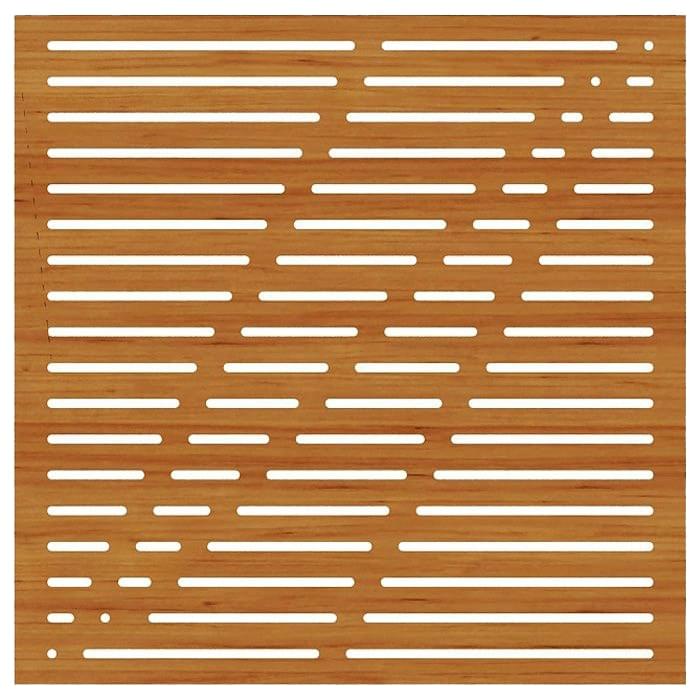

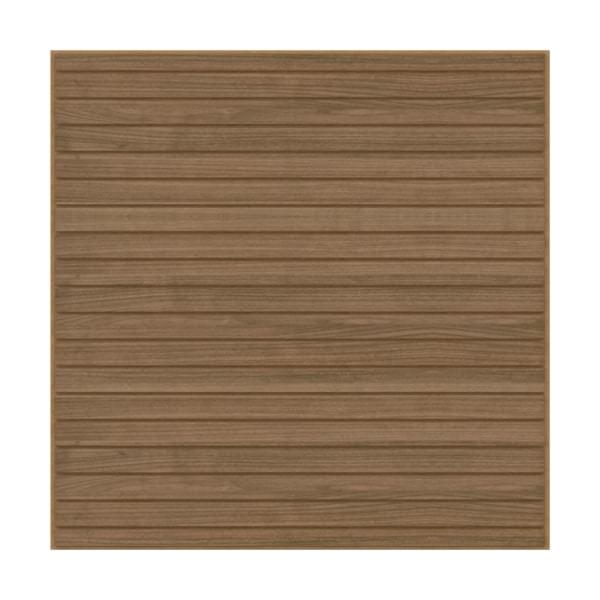

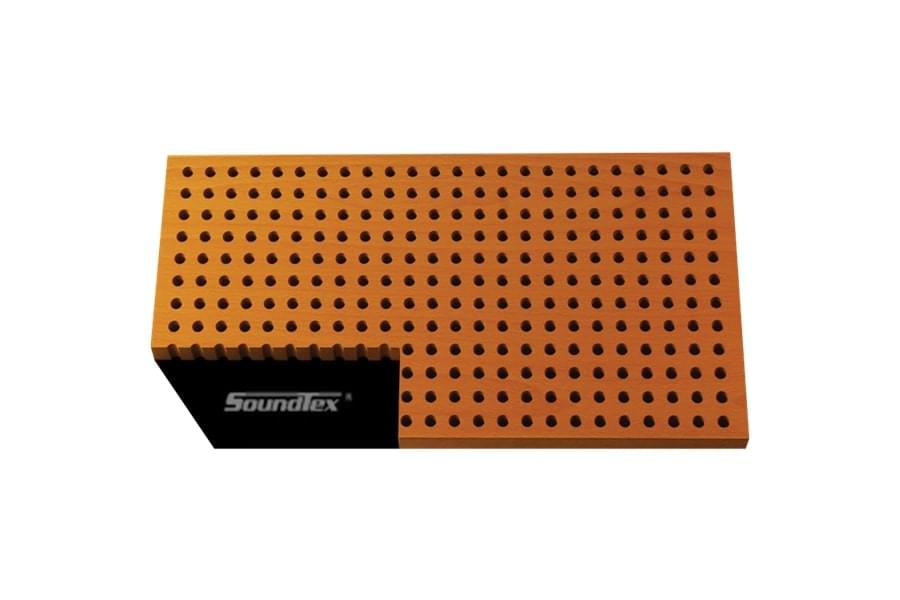

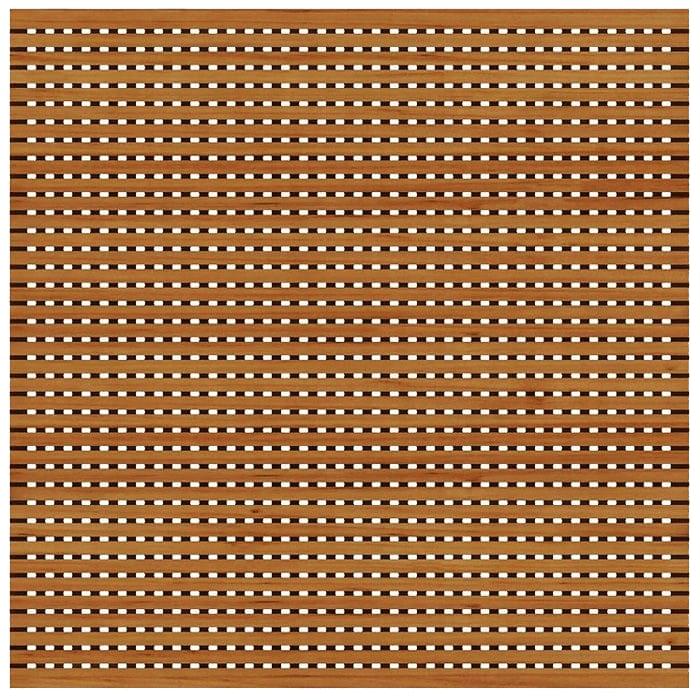

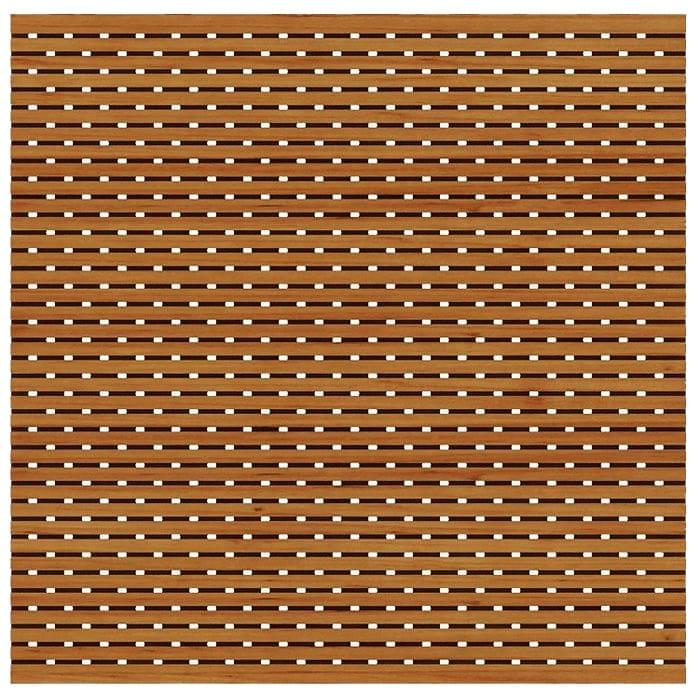

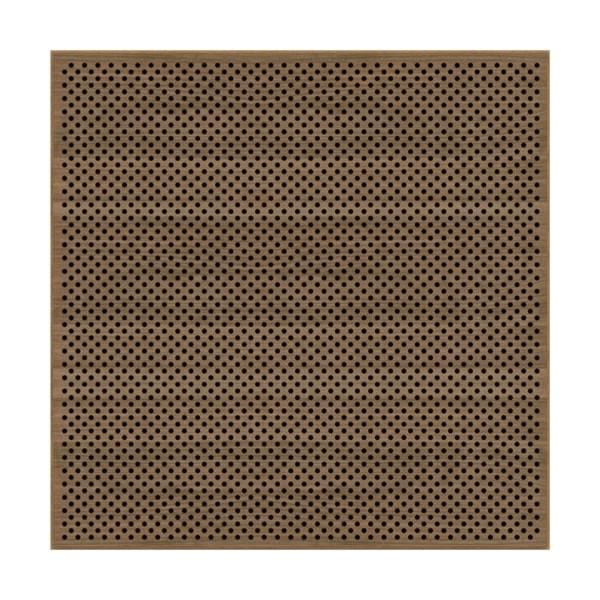

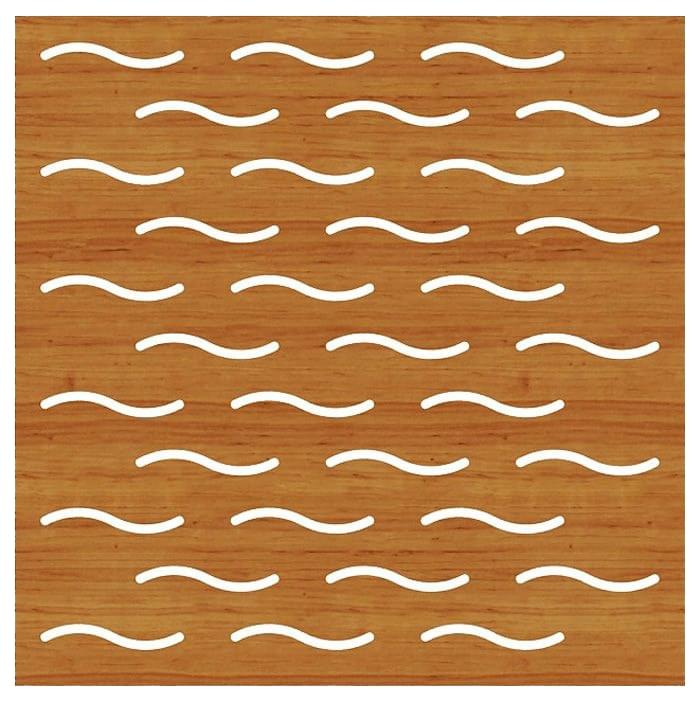

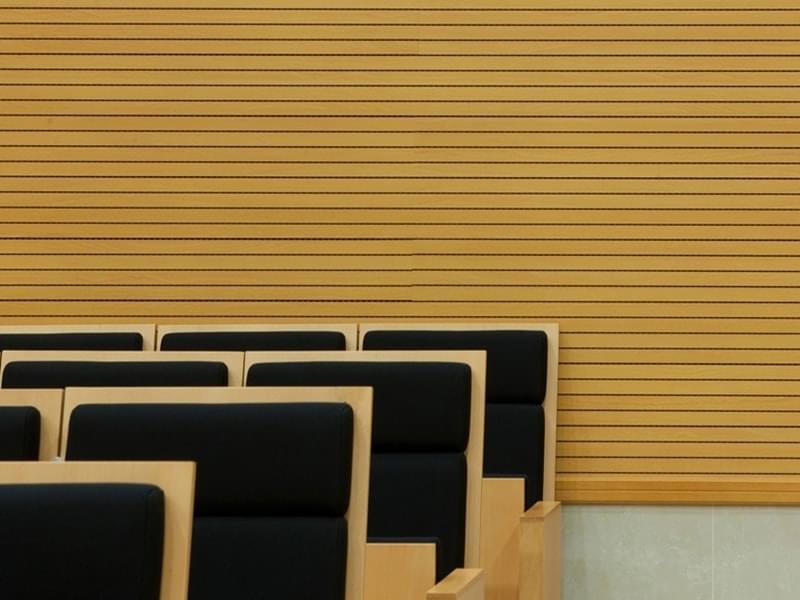

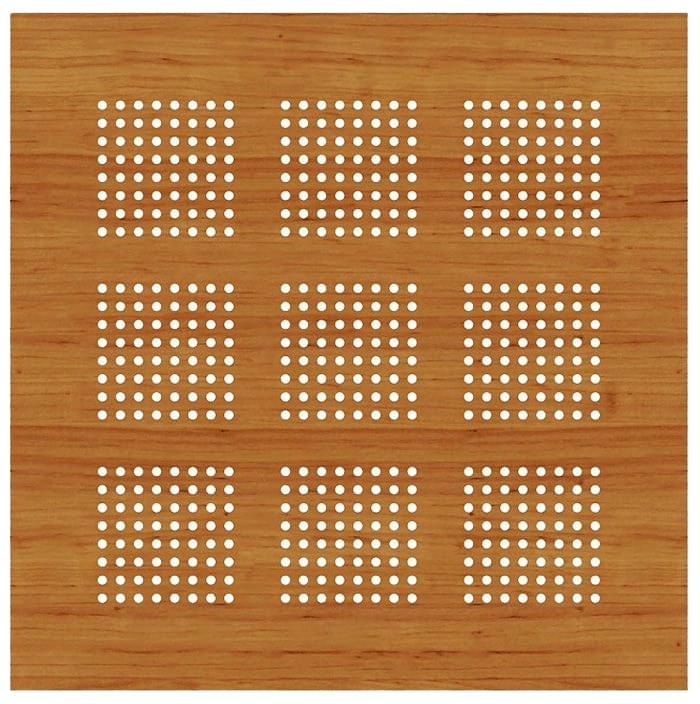

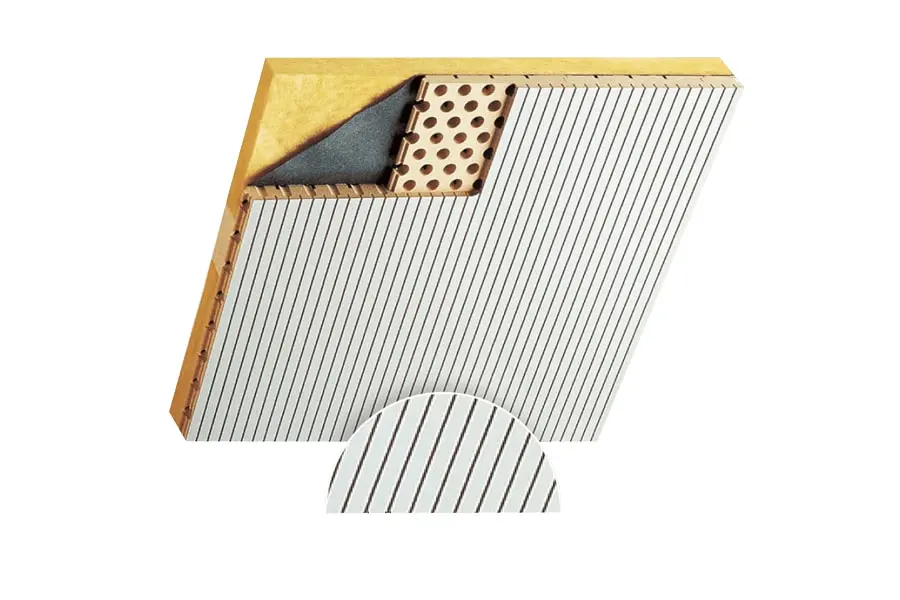

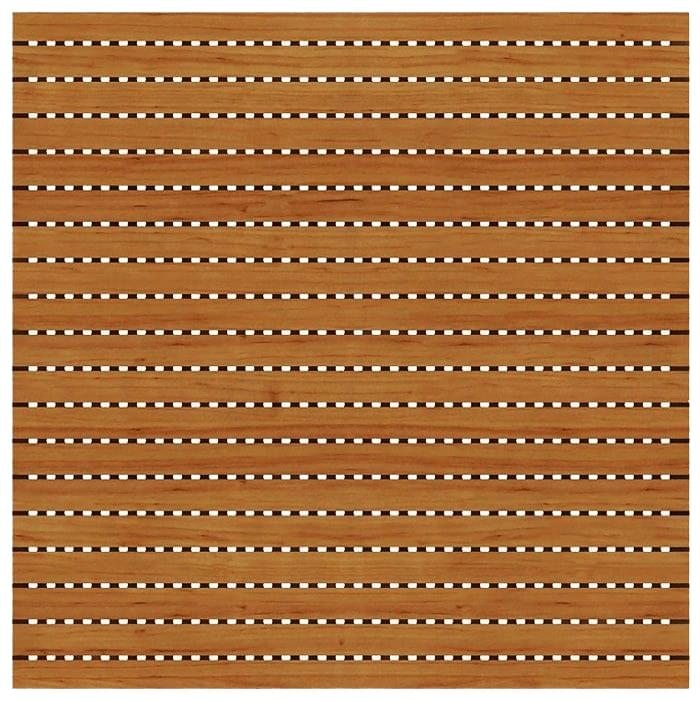

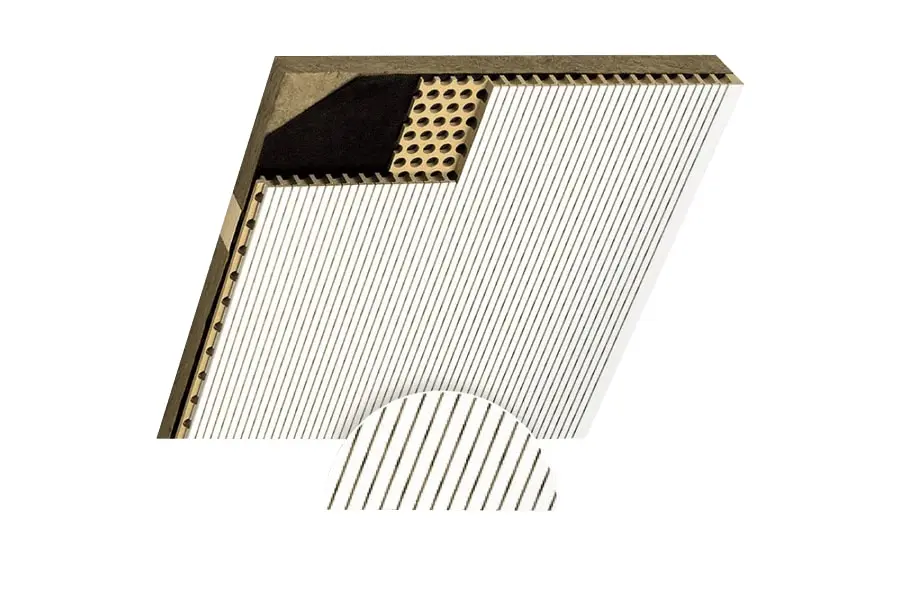

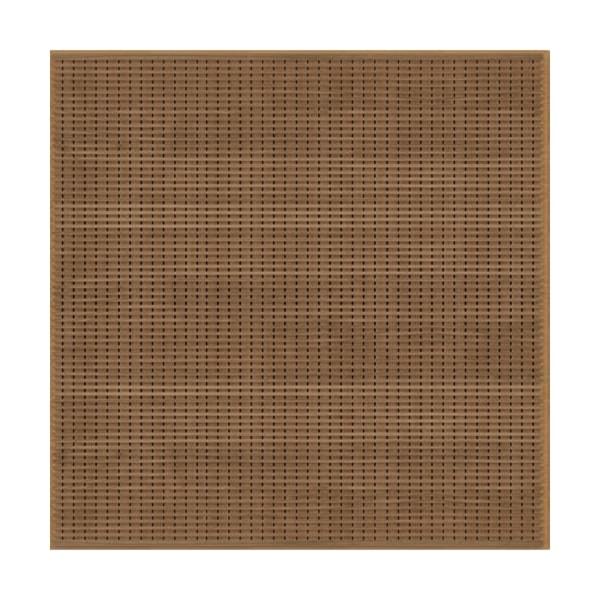

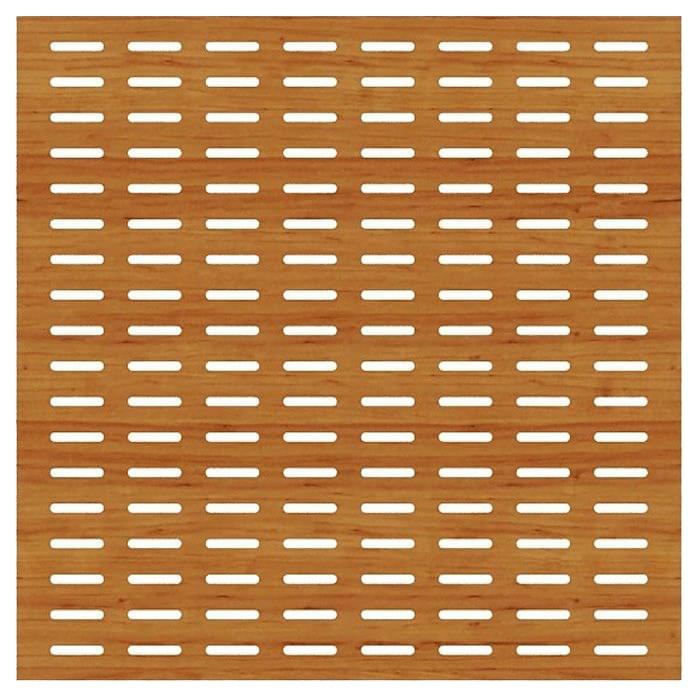

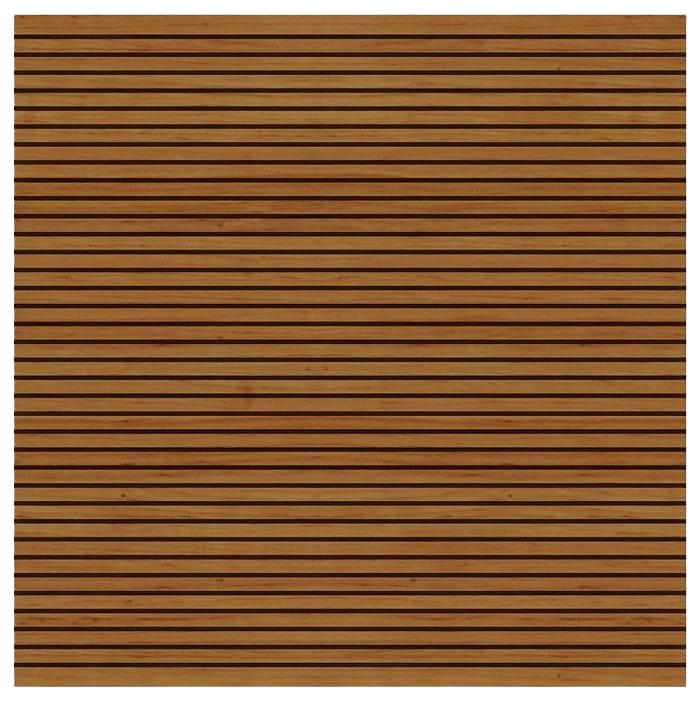

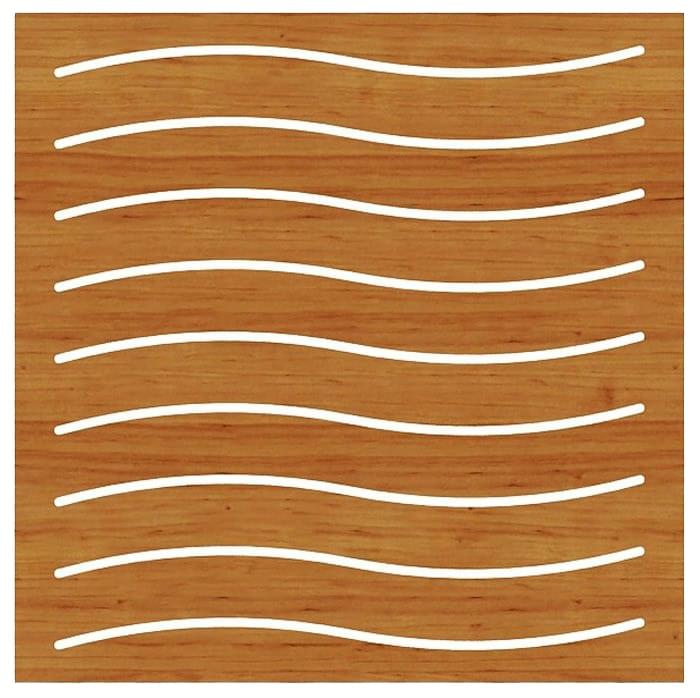

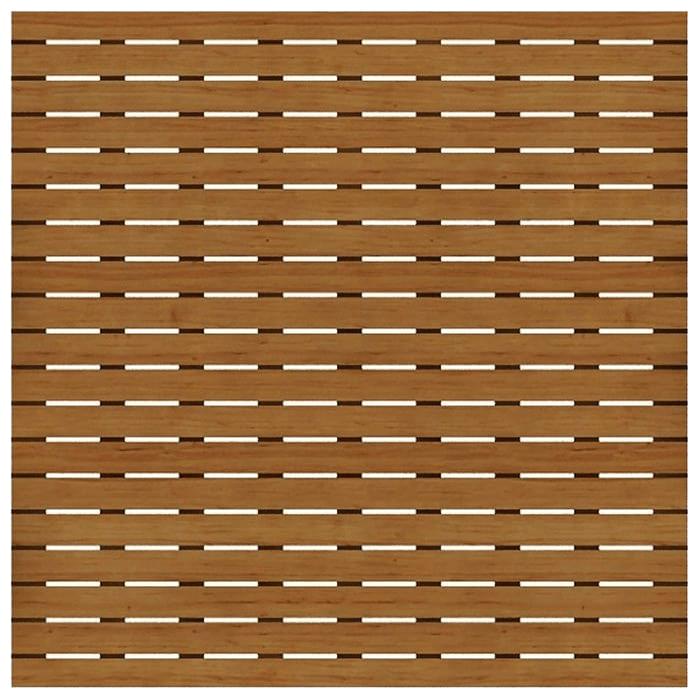

Perforation: Ø1 mm. / Ø4 mm. / Ø6 mm. / Ø8 mm. / Ø10 mm. 2 mm. / 3 mm. / 4 mm. striped (slotted) frontside, Ø8 mm. / Ø10 mm. backside

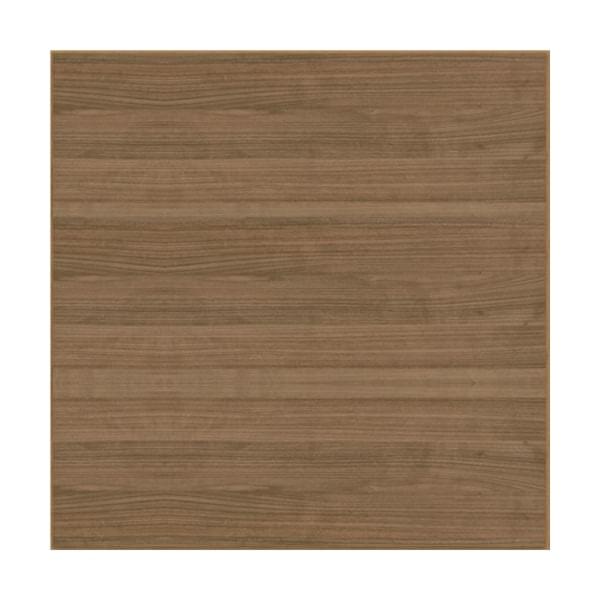

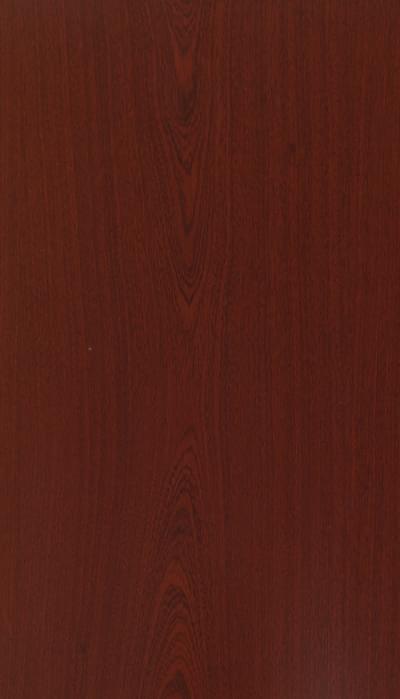

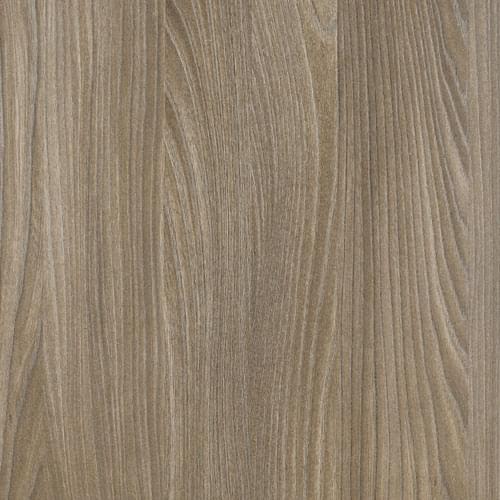

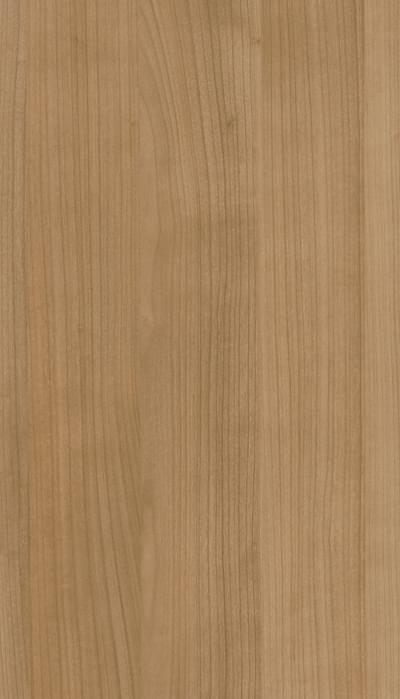

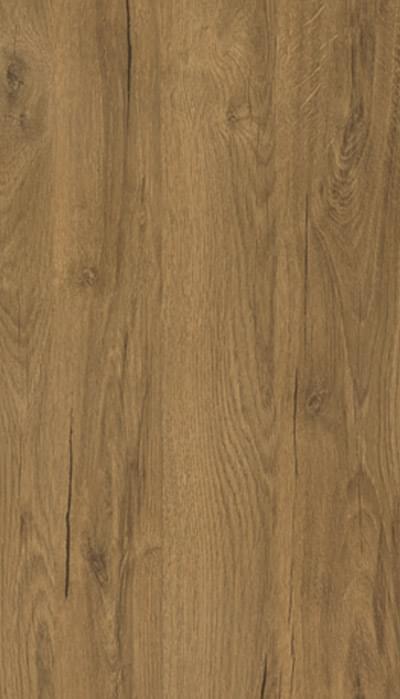

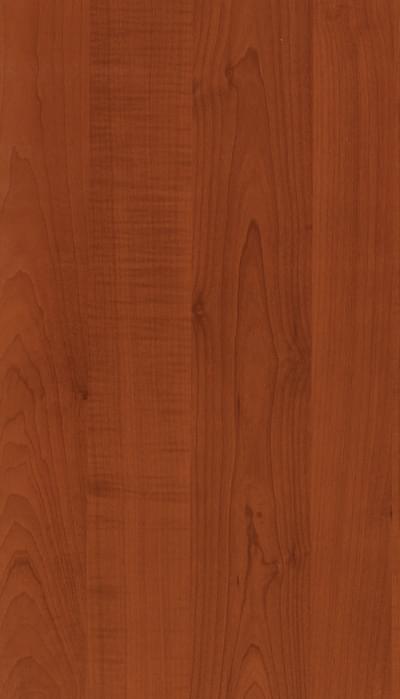

Color: Production in the desired pattern and color from the color chart for MDF Lam, or wooden veneer on MDF

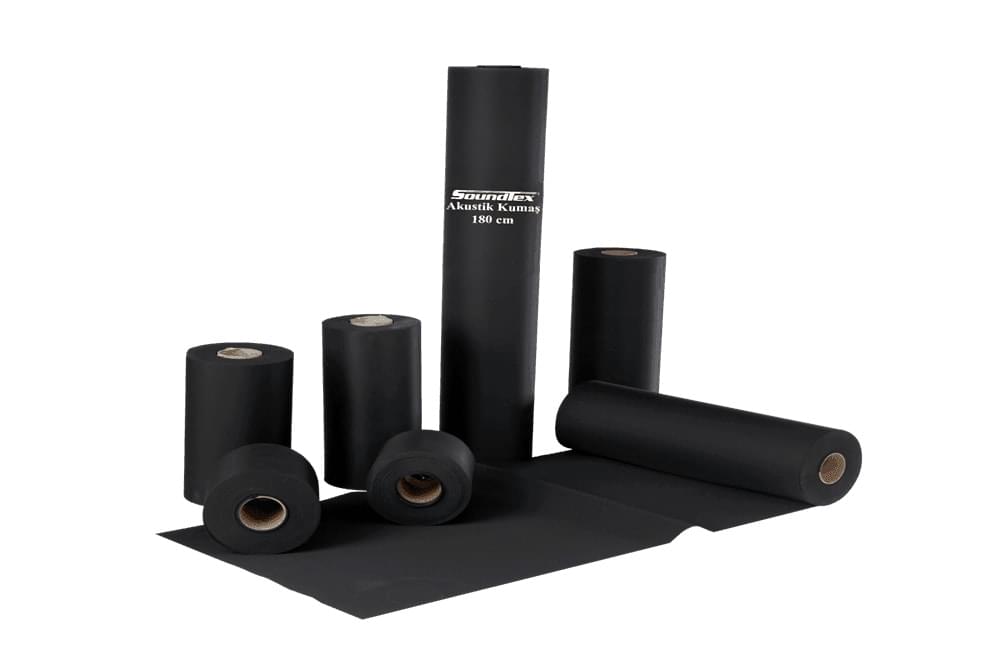

Acoustic Fabric: Domestic acoustic felt fabric, Soundtex, Royalin, Lantor imported acoustic, and fireproof fabric options
Quality Certificates: TSE, CE
Tolerance: 30 mm thickness is between 25 – 30 mm, and 40 mm thickness is between 35 – 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
|Acoustic Panel Size||Height-Thickness||Absorption Factor Suitable for DİN52212|
|mm||mm||125 Hz||250 Hz||500 hz||1000 Hz||2000 Hz||4000 Hz|
Wooden wall panels are in 600 x 1200 mm, 300 x 600 mm, 350 x 1200 mm scale as plates, one package contains 1 plate (1m²) product. Sold as 60mm standard thickness by retail and wholesale. Custom measurement is possible. Contact our technical office for details.
