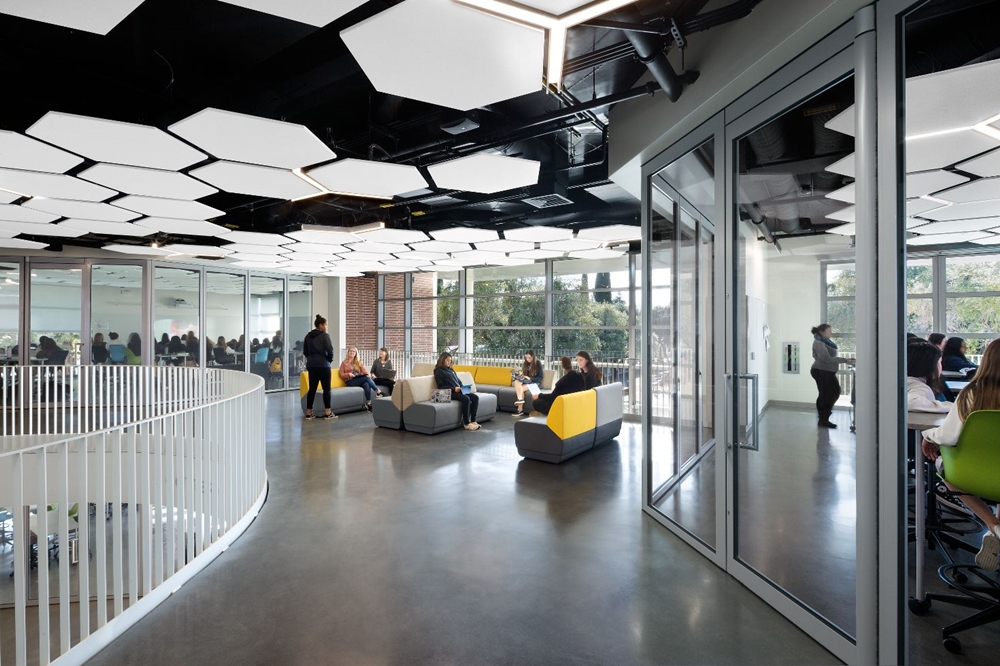

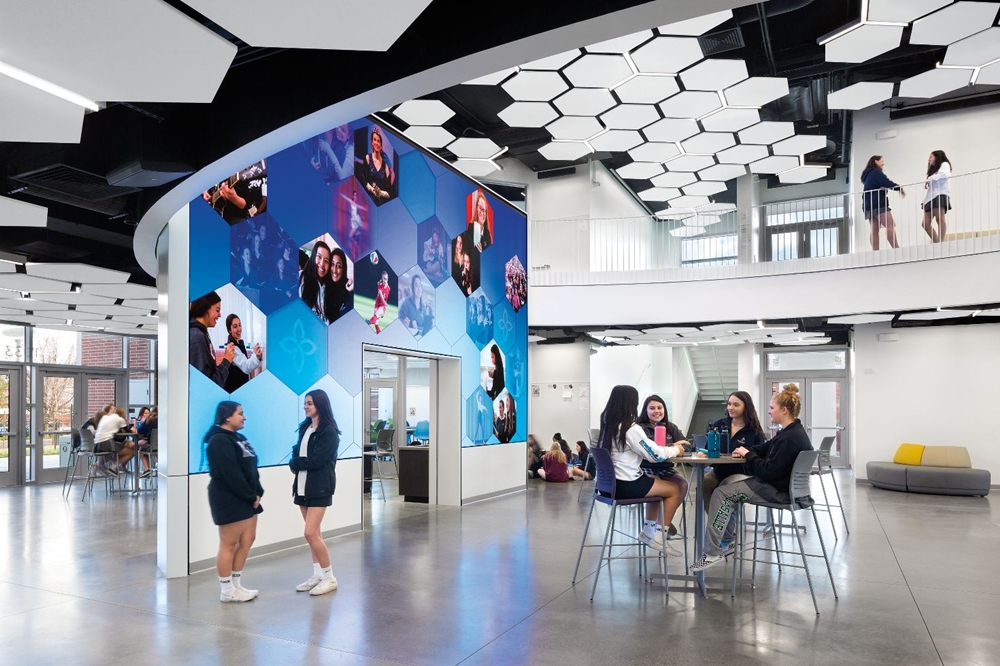

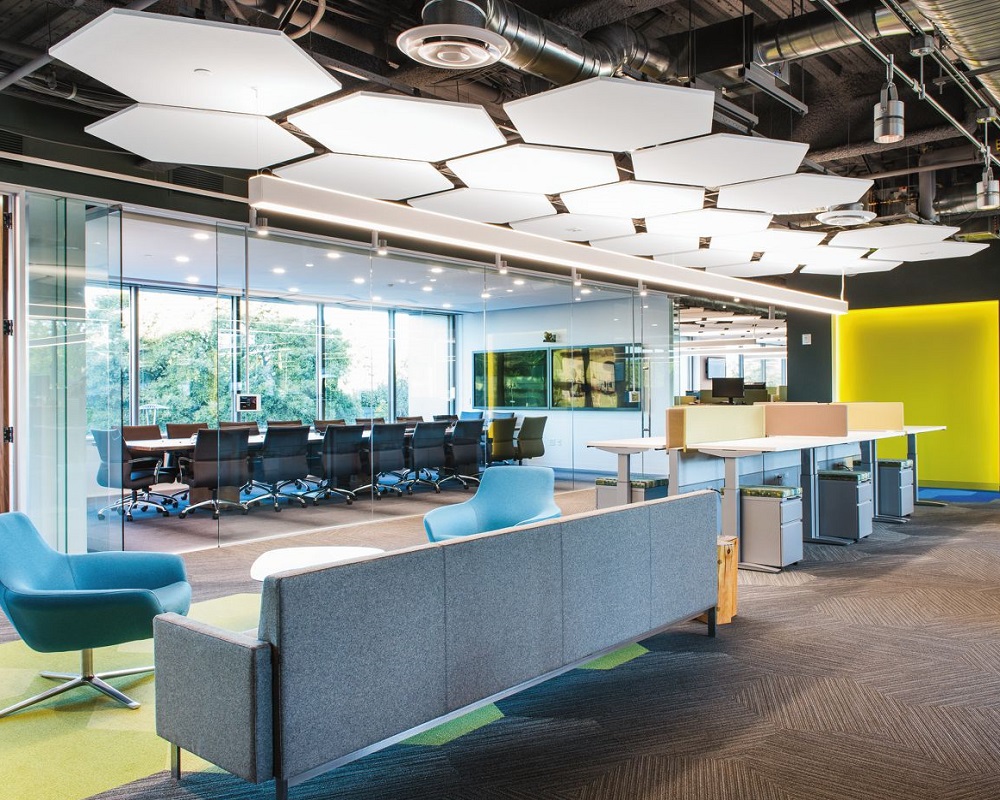

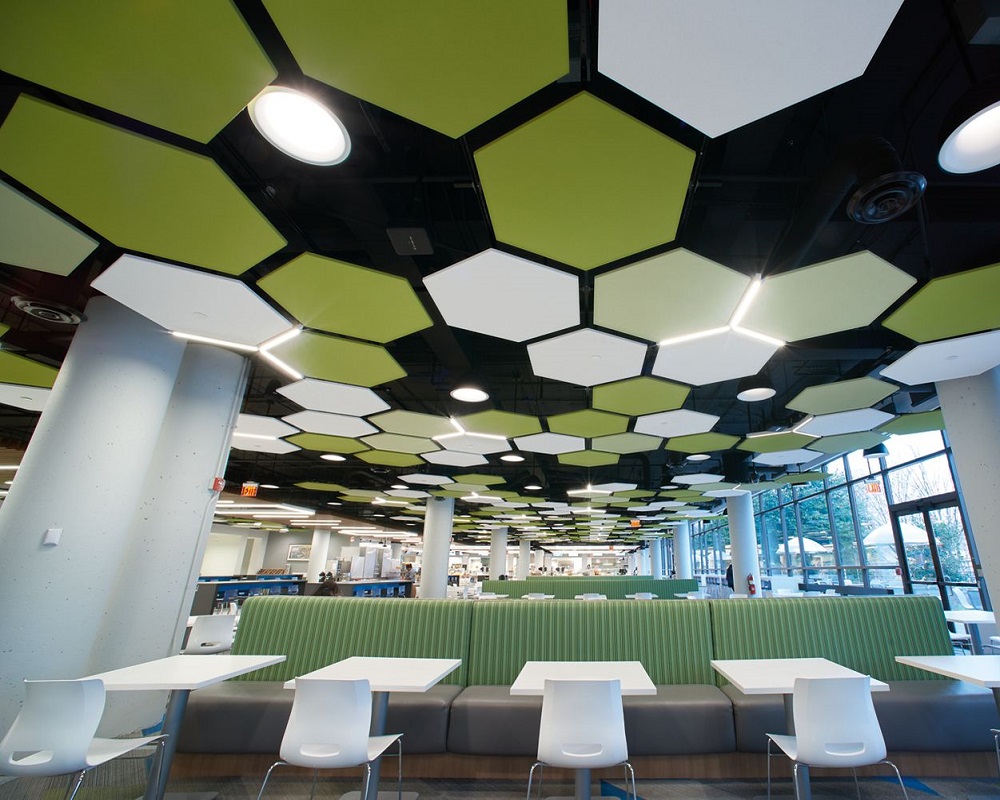

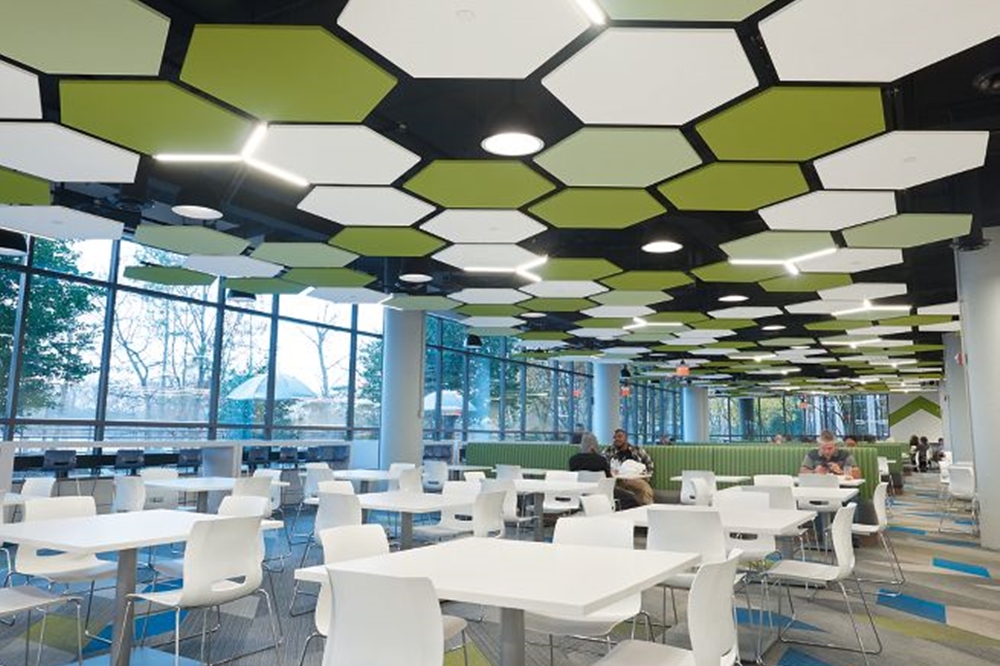

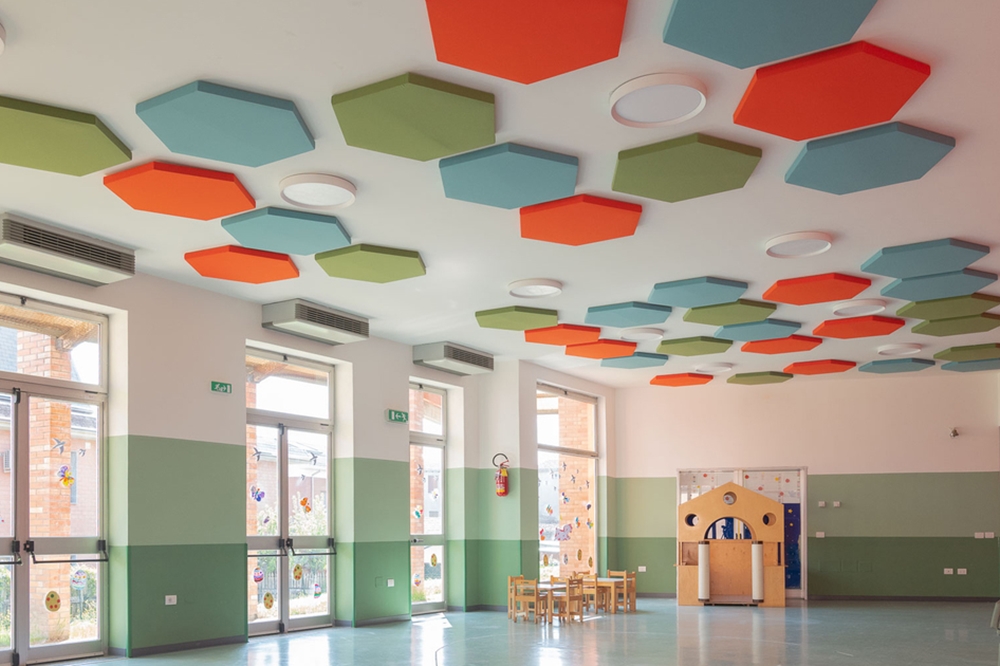

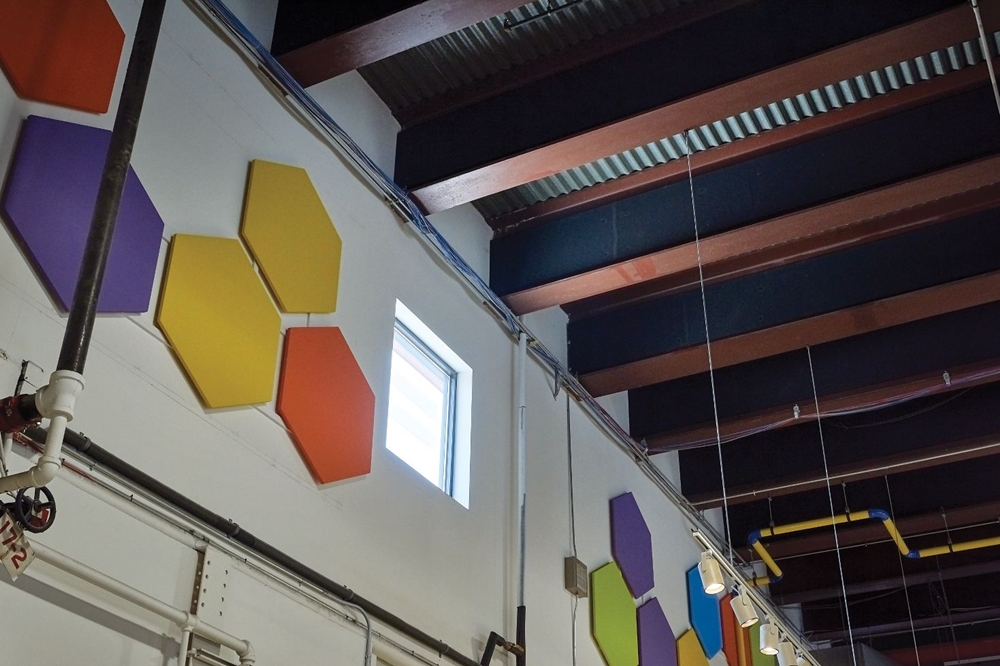

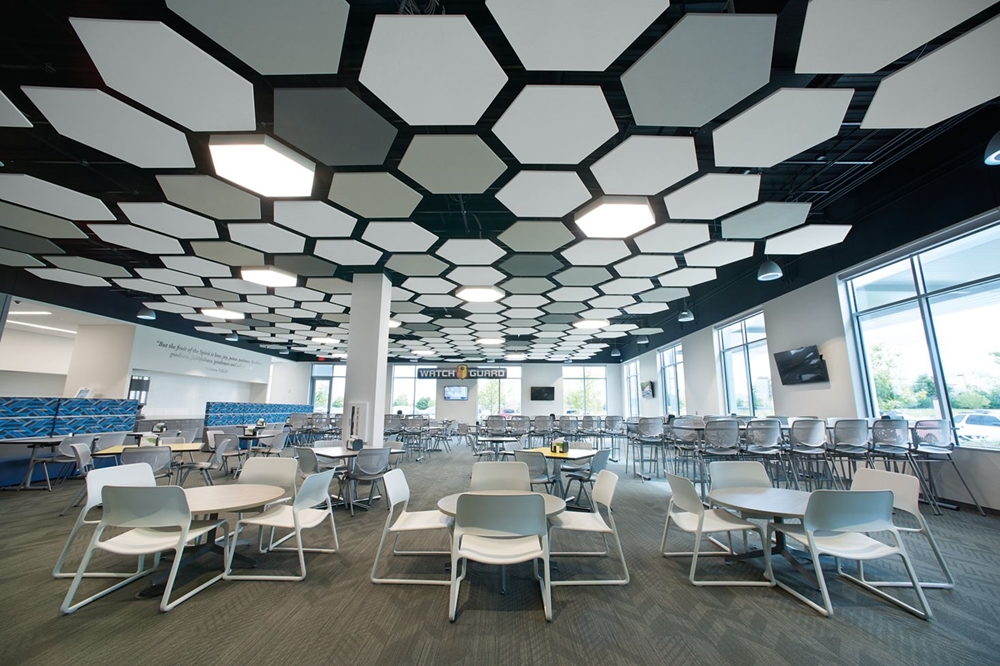

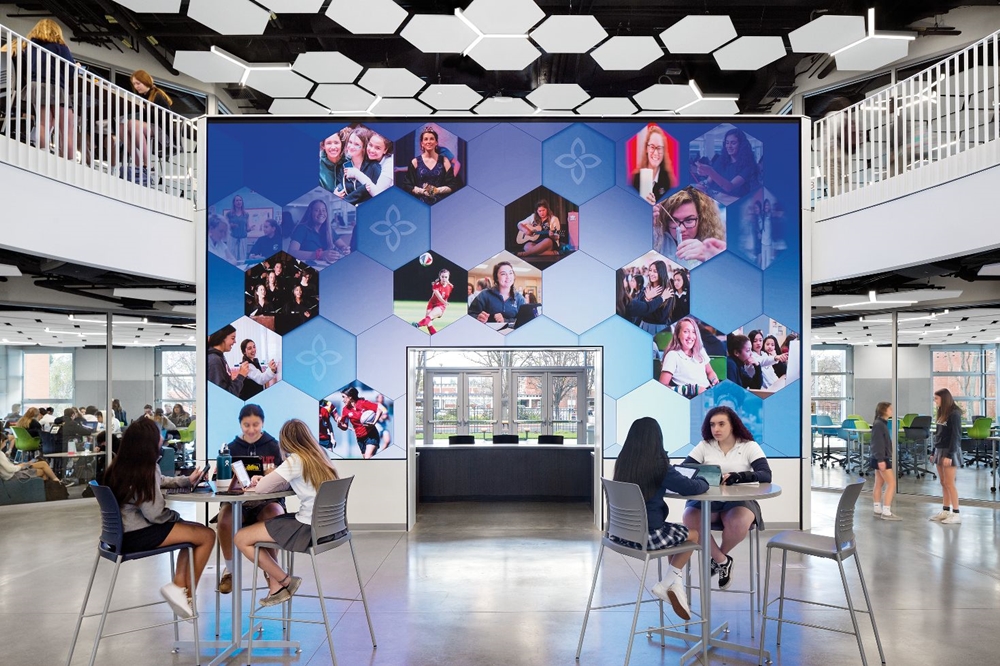

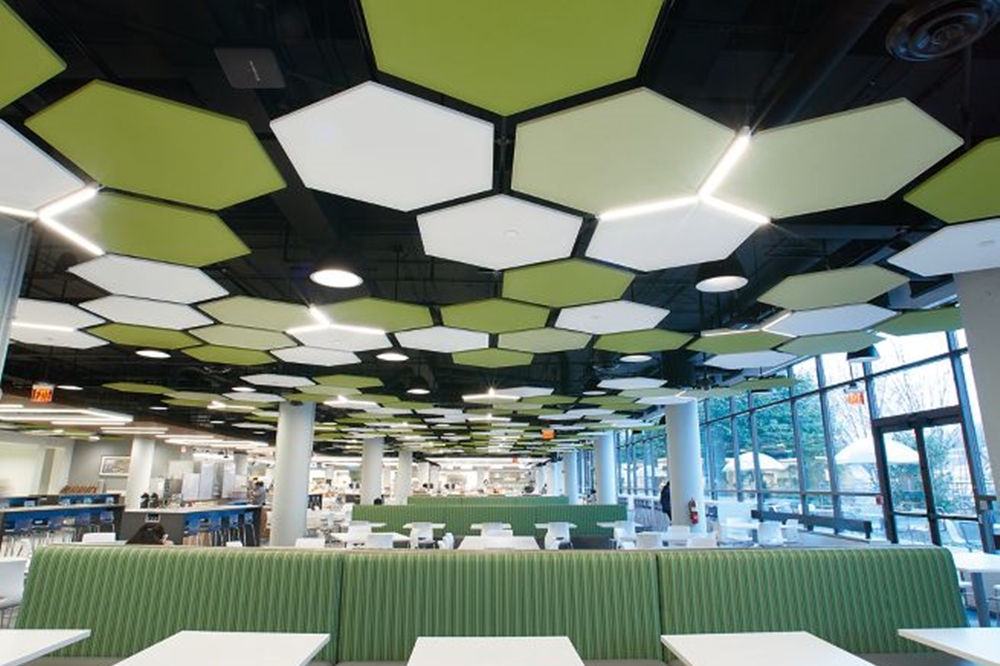

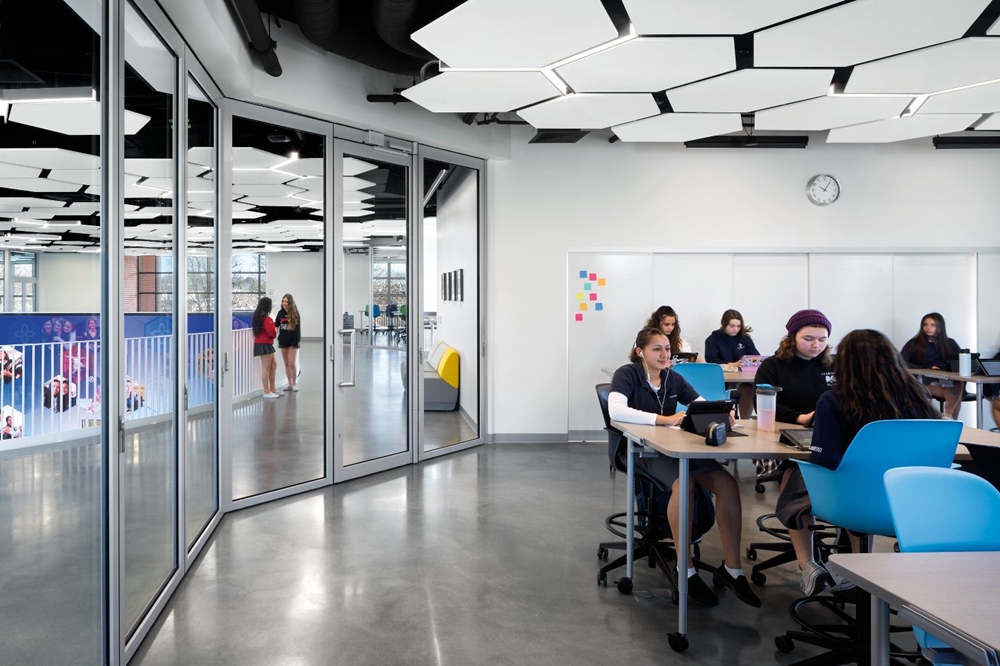

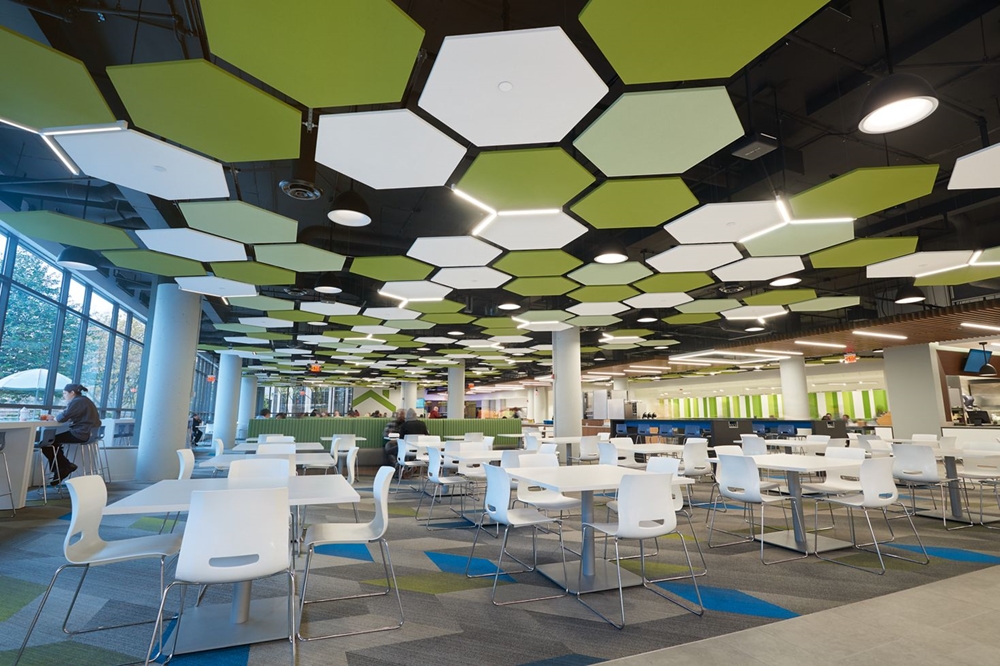

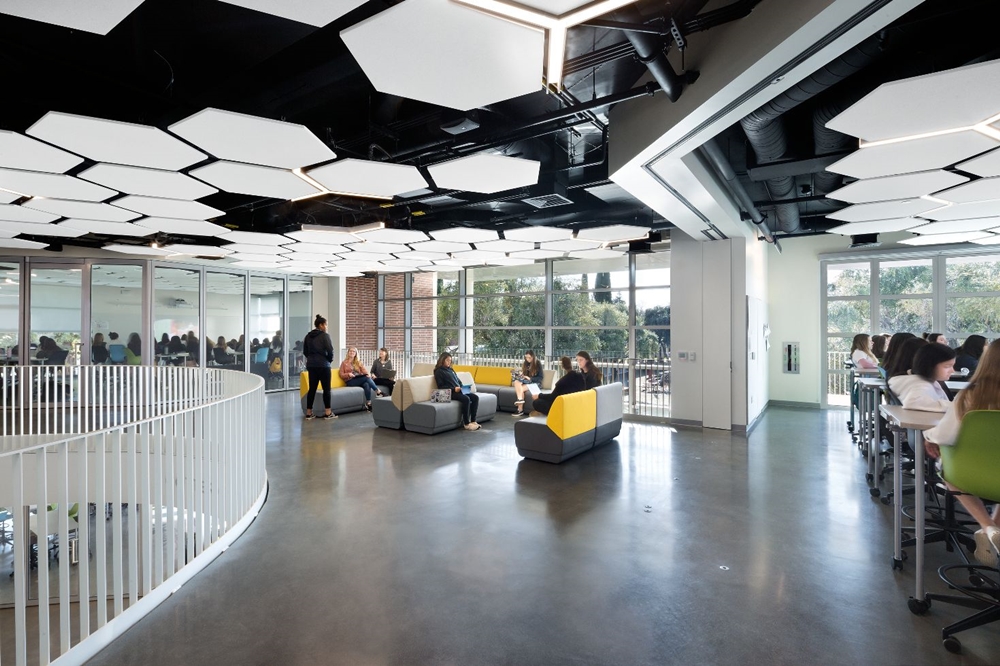

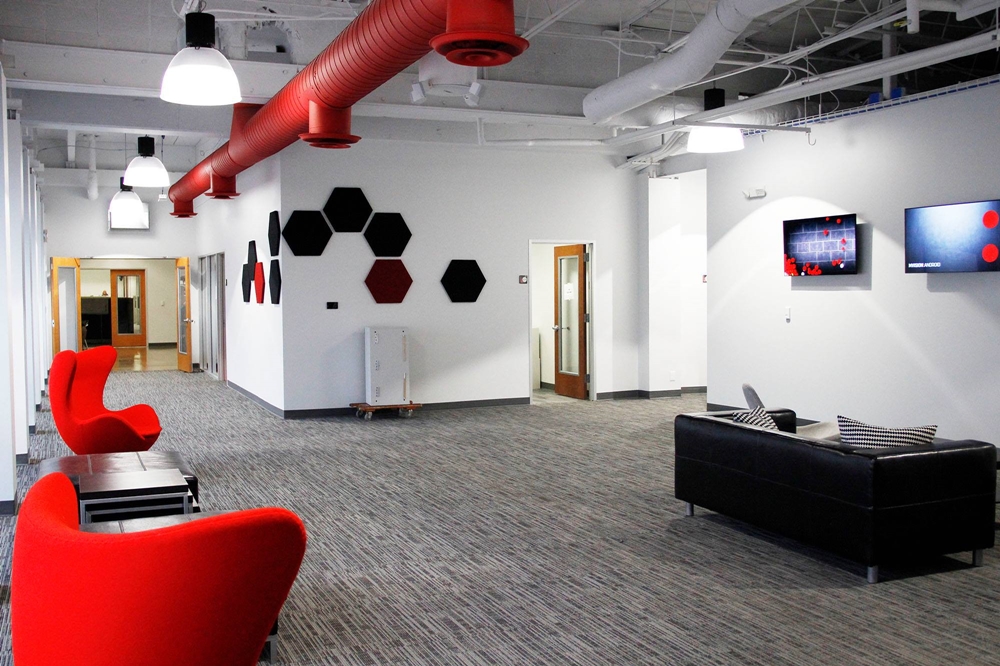

Applıcatıon Images

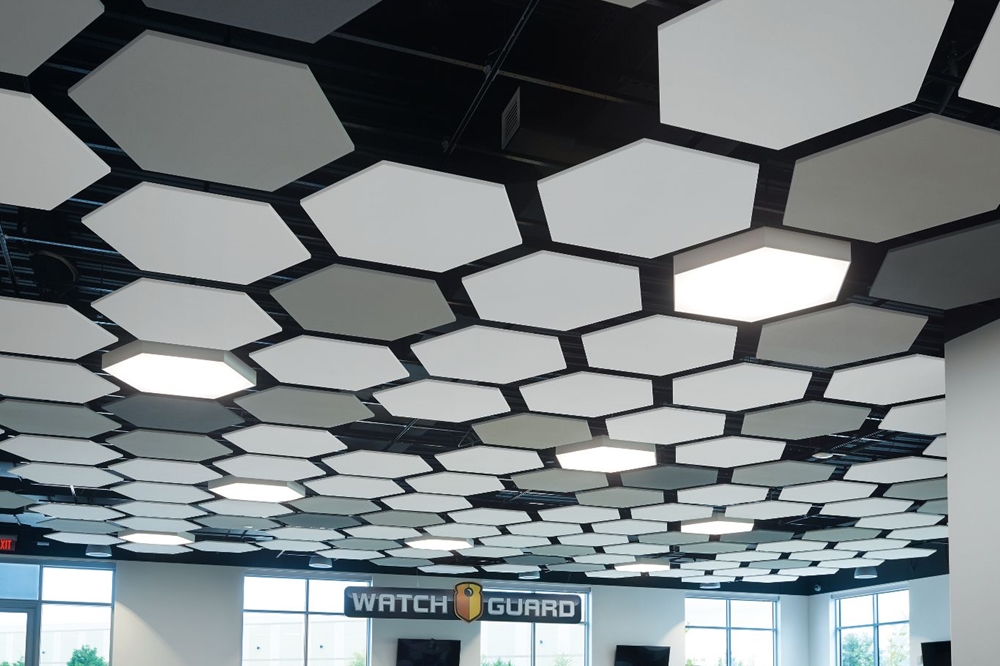

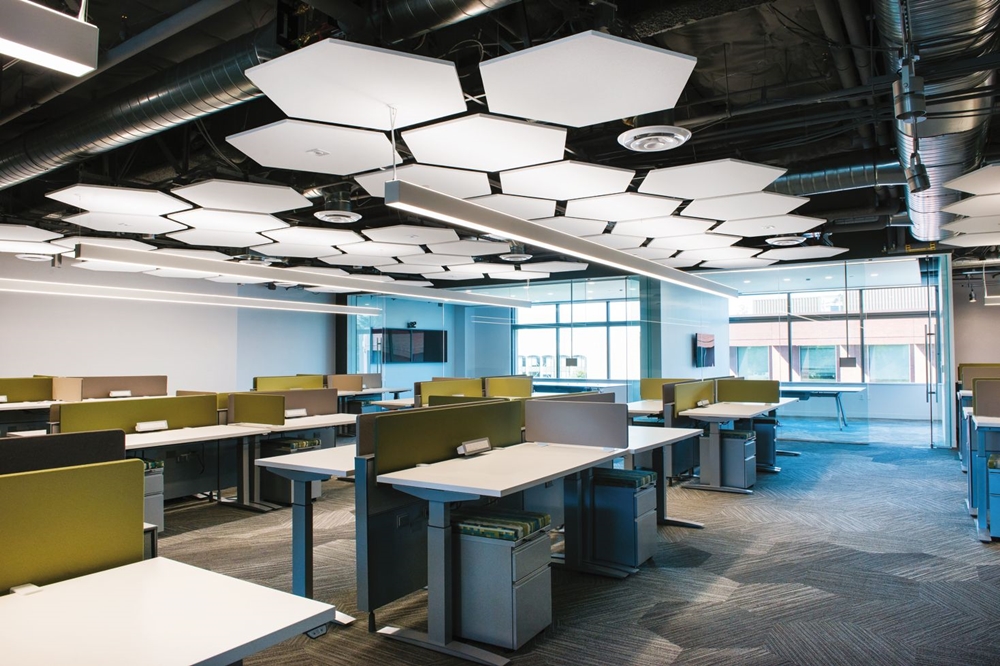

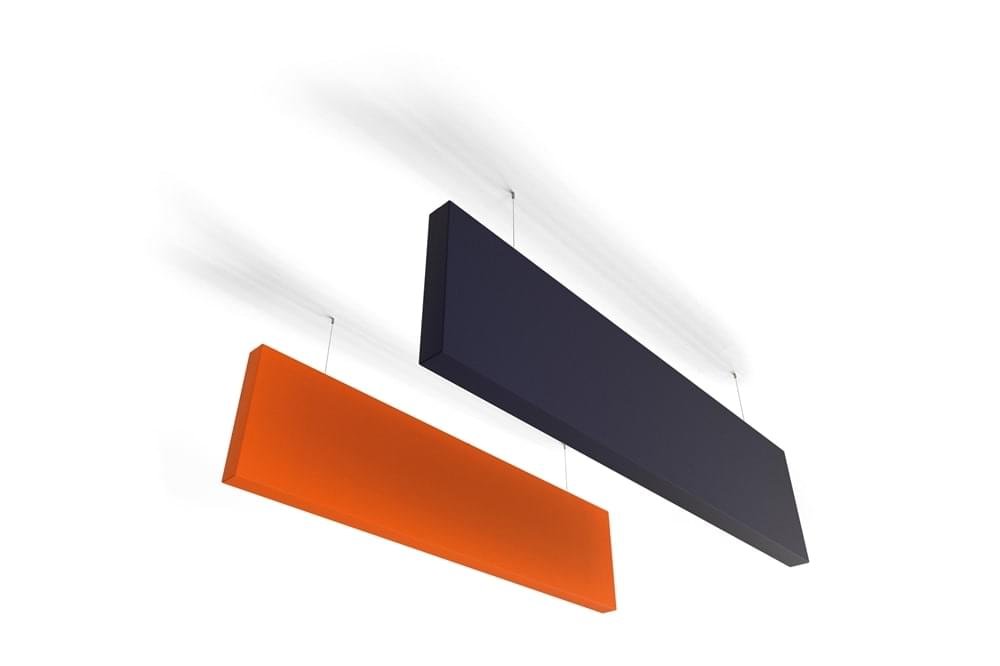

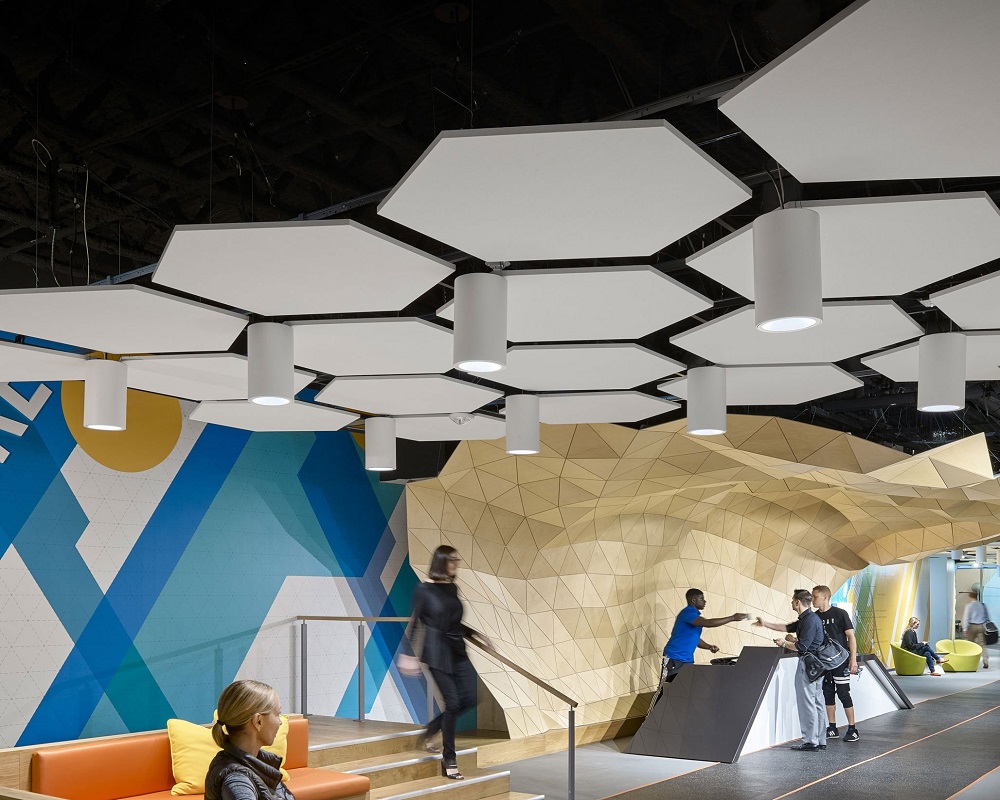

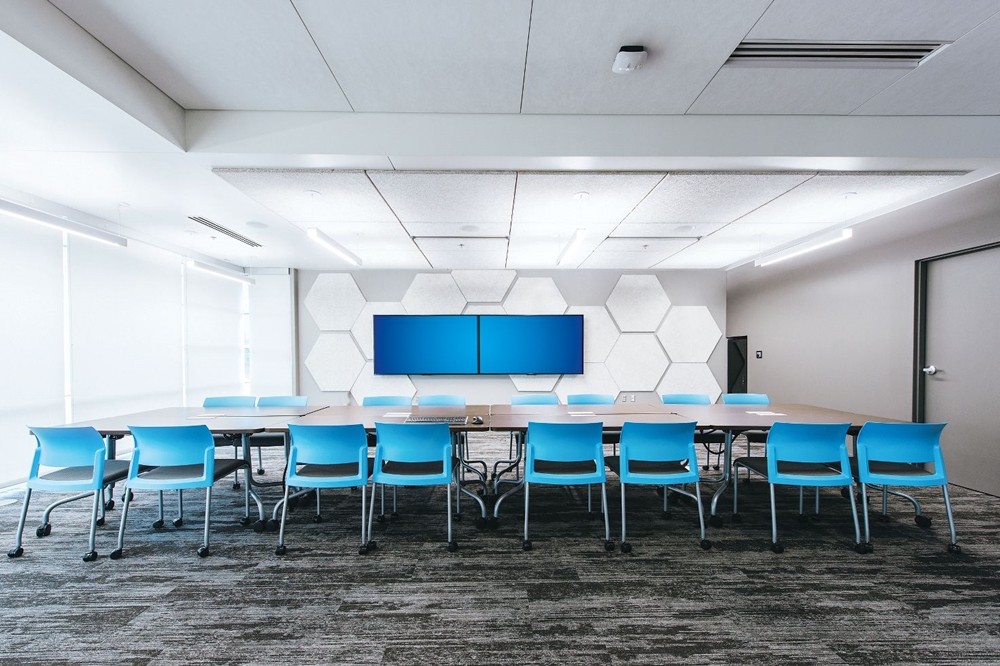

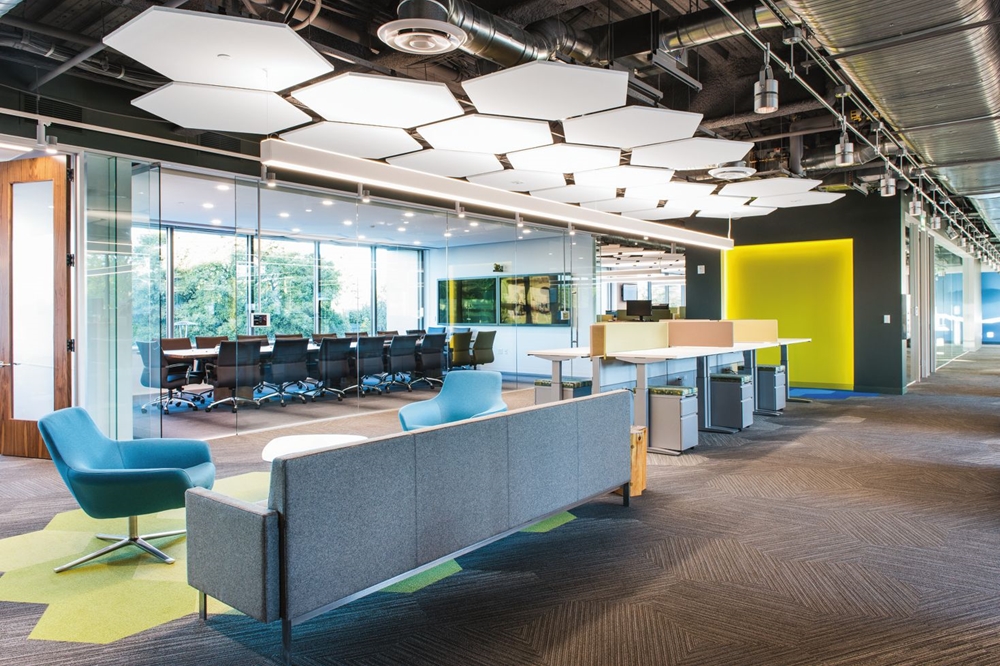

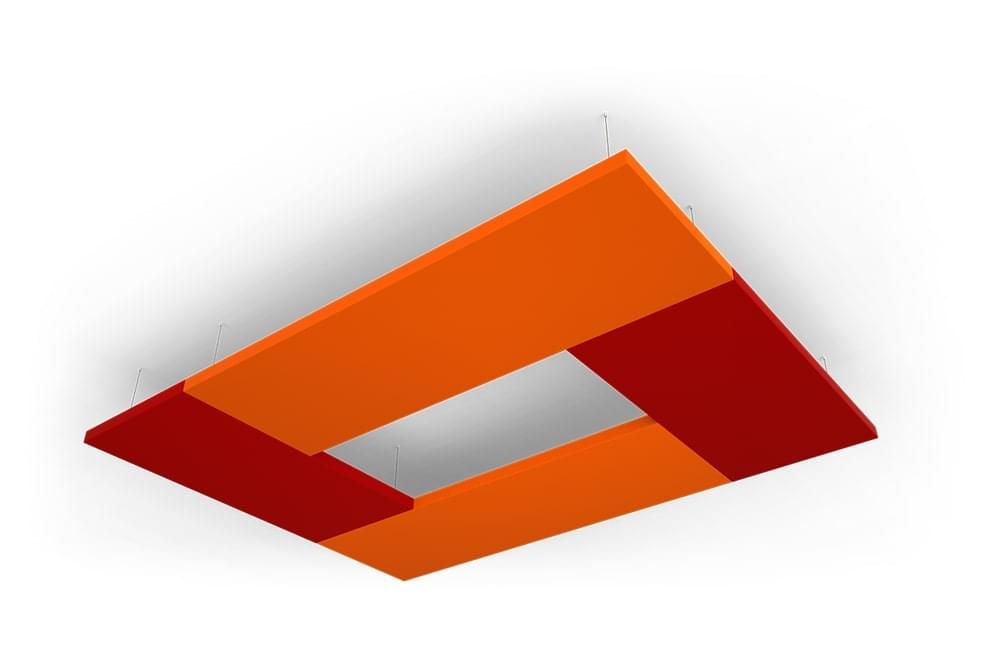

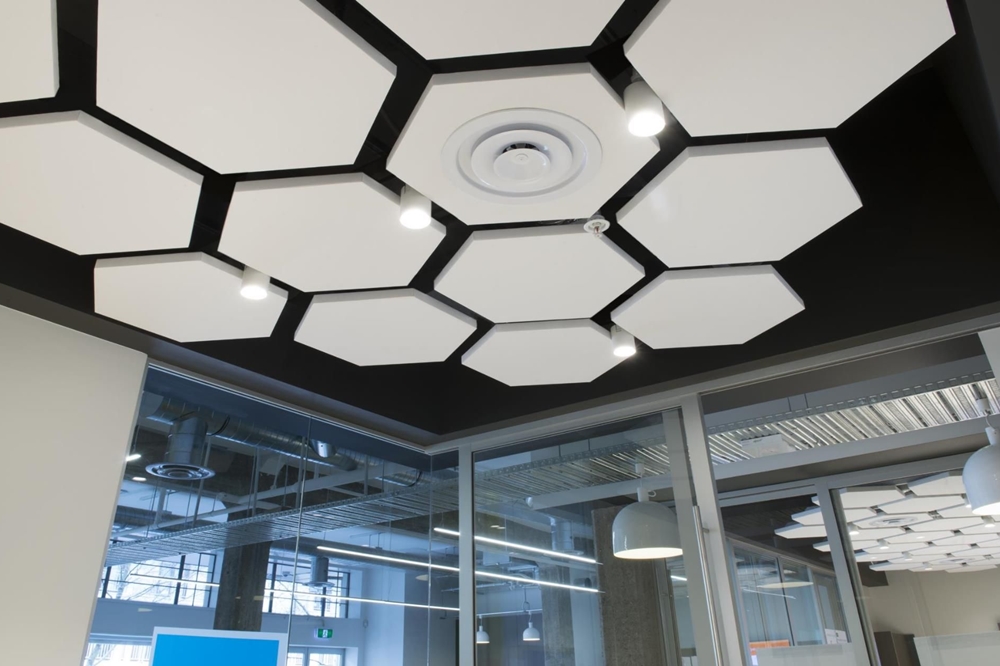

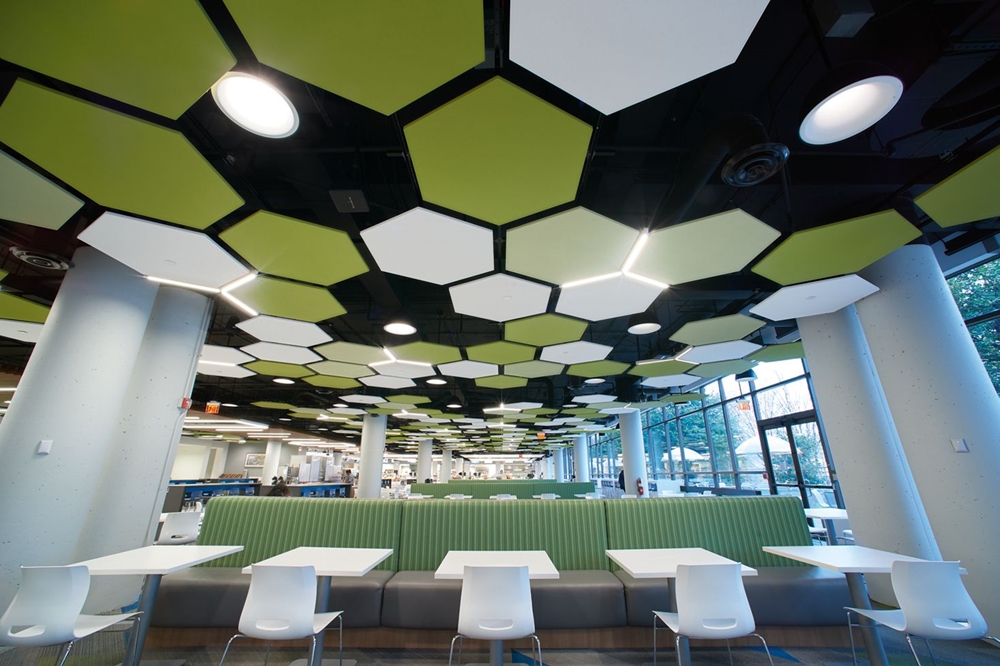

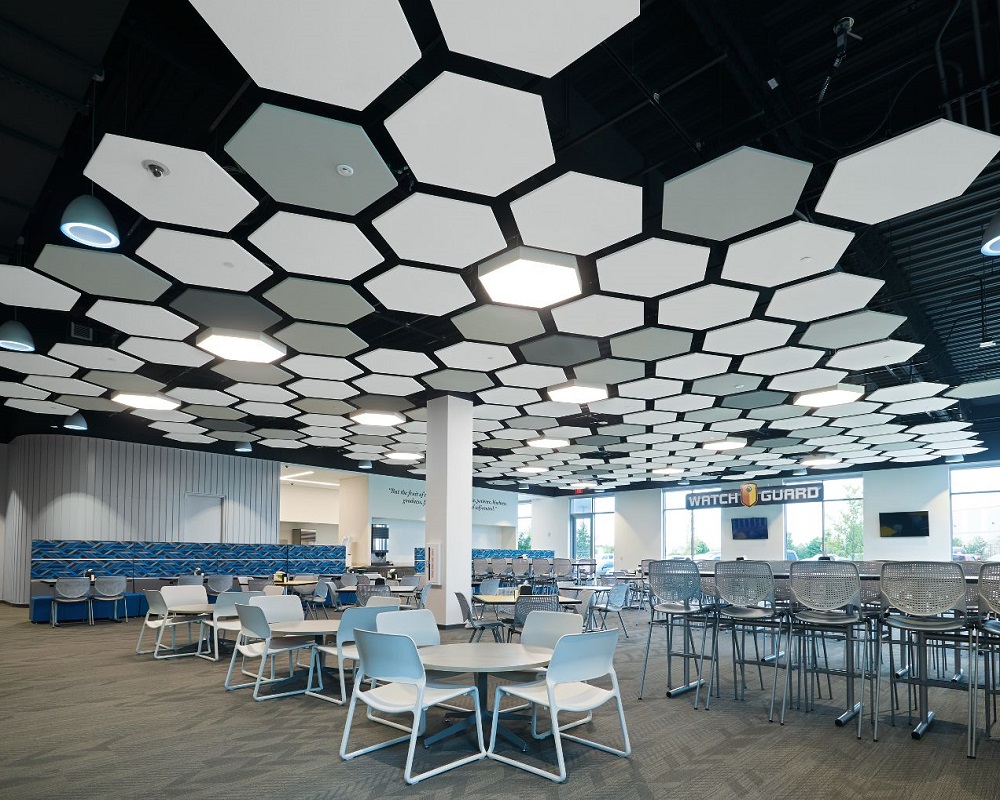

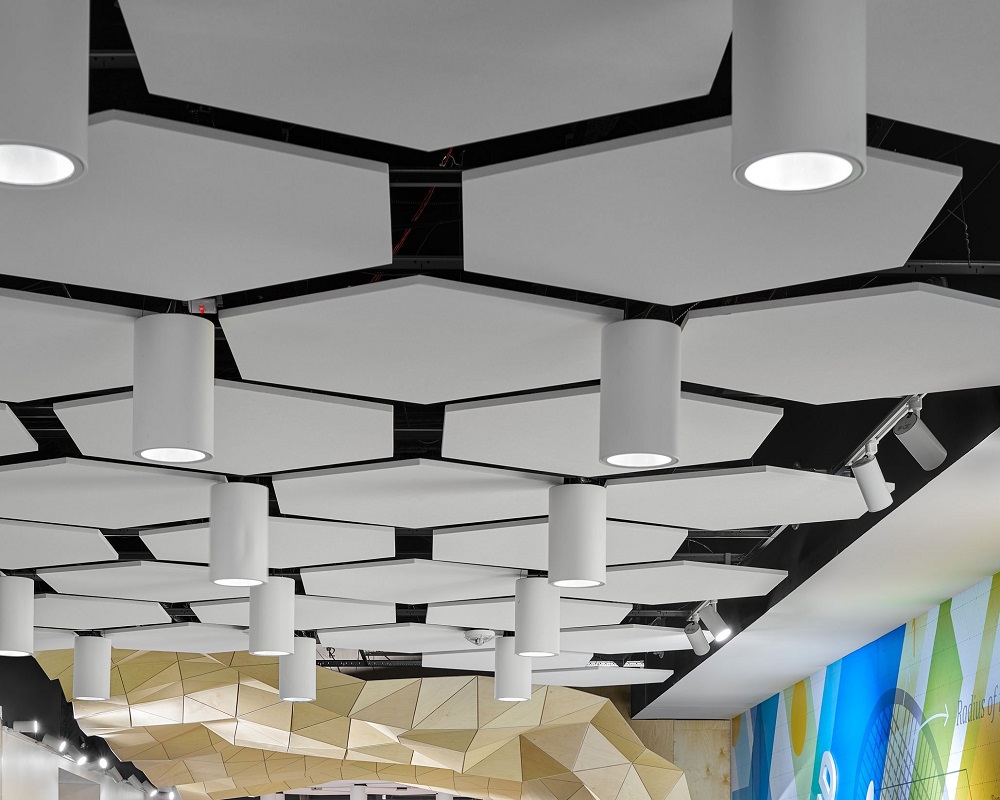

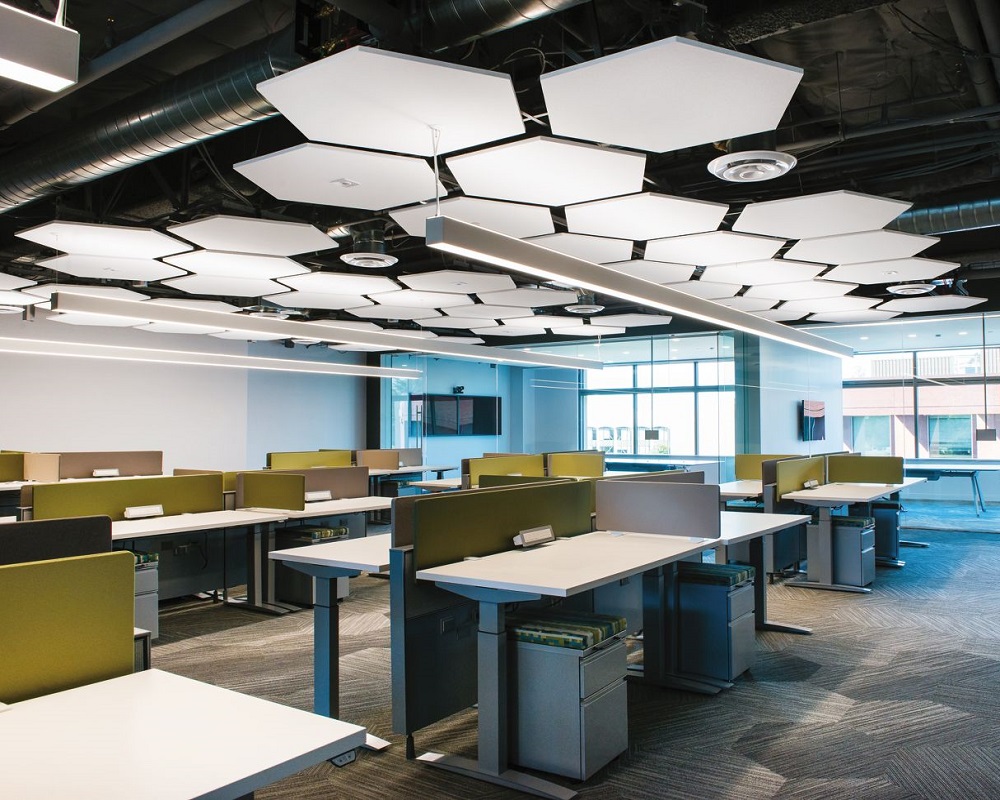

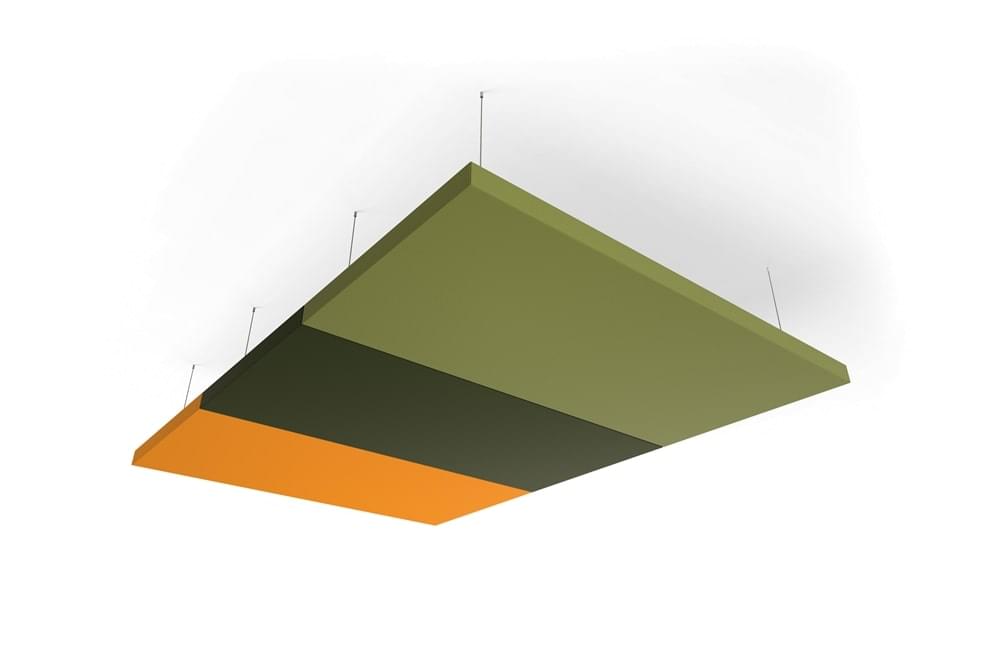

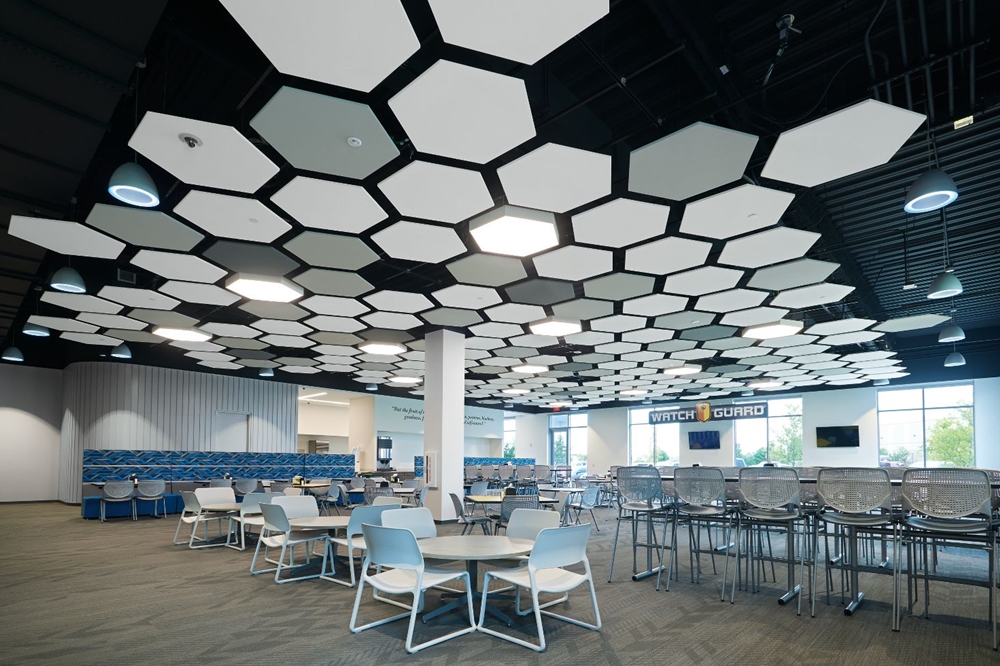

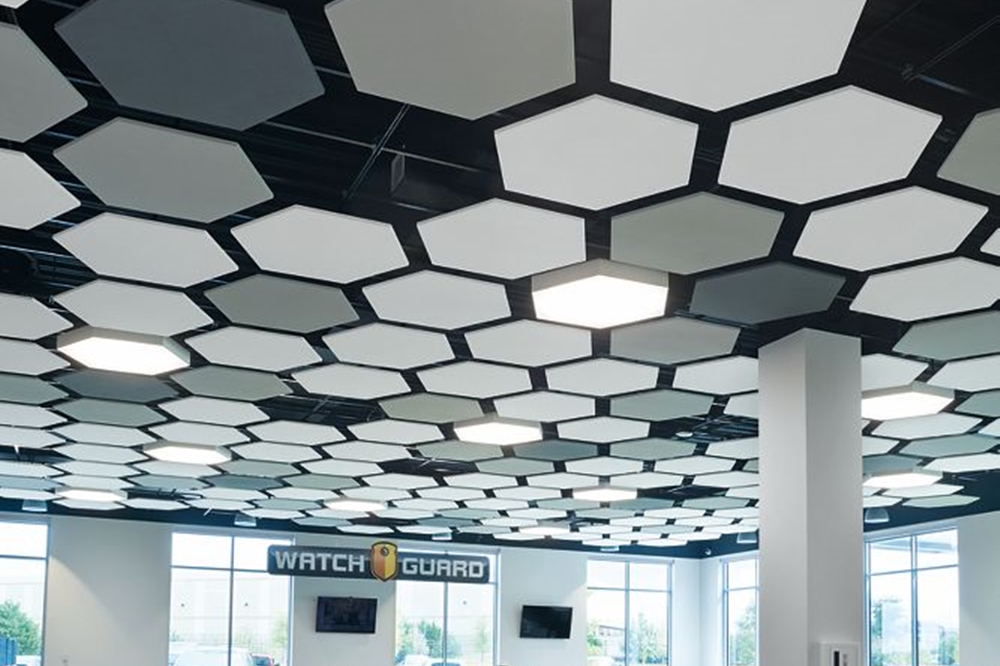

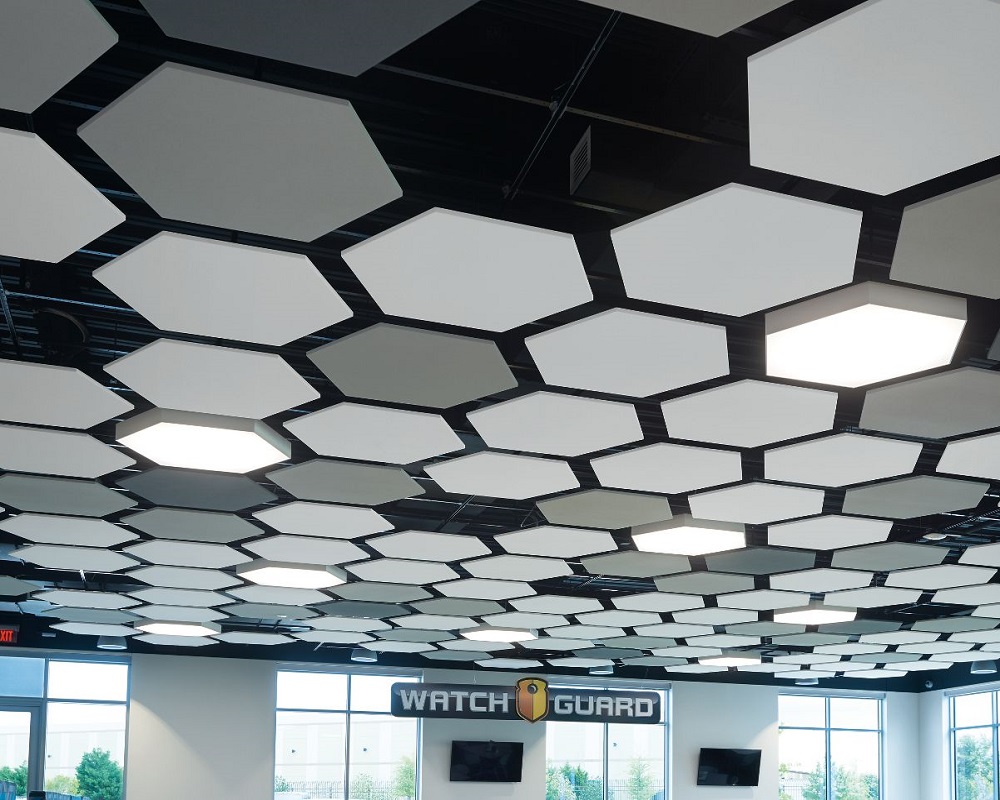

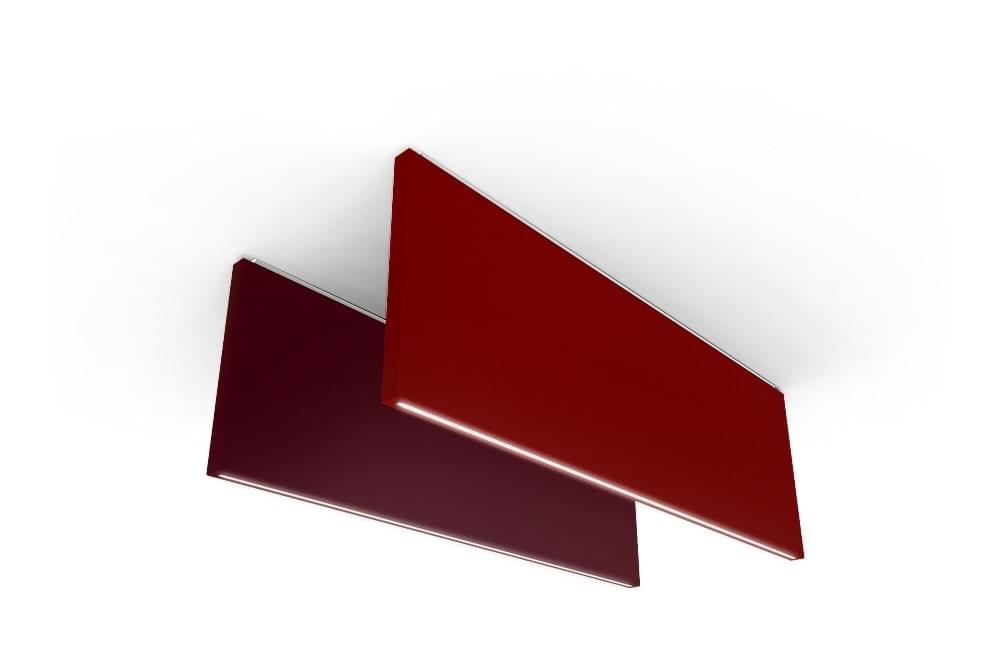

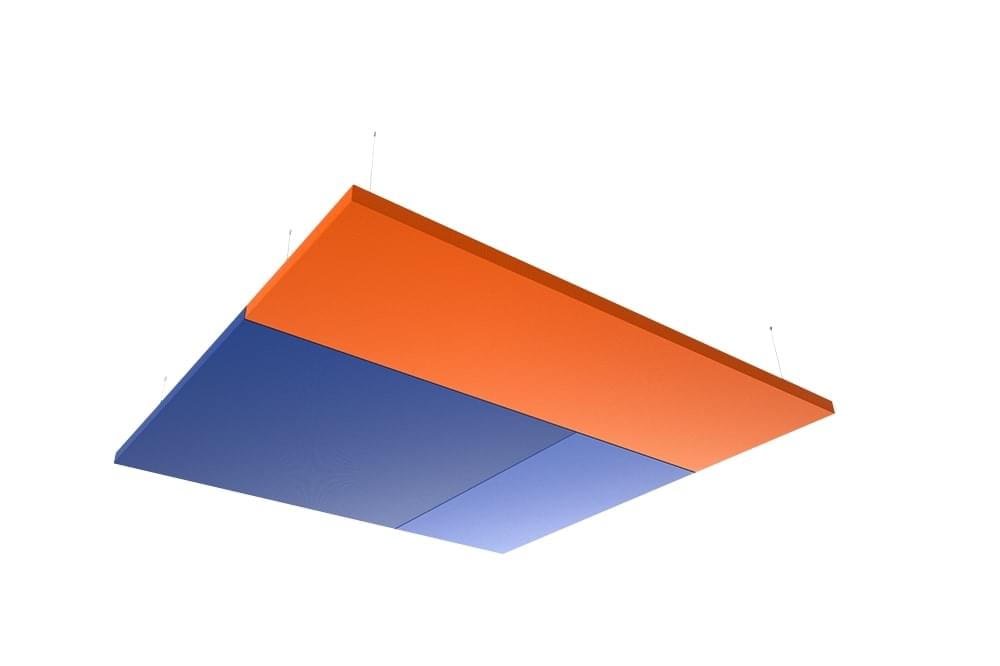

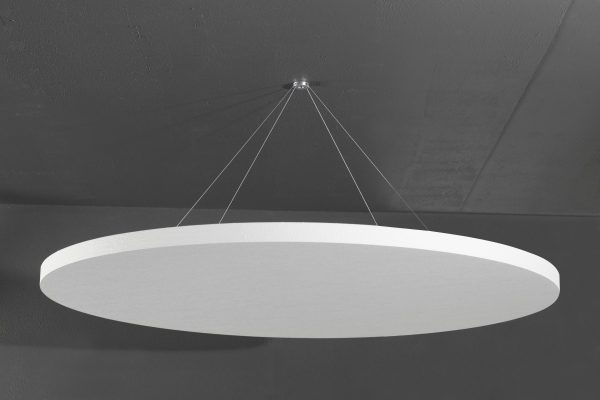

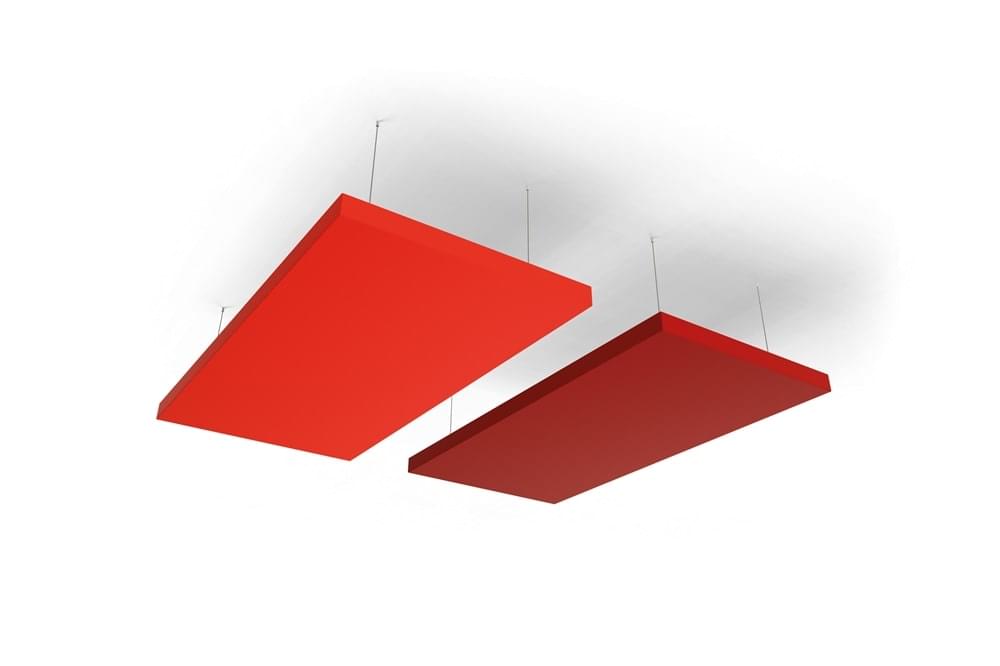

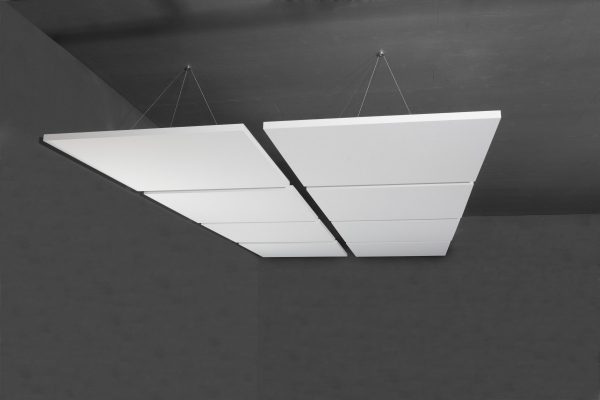

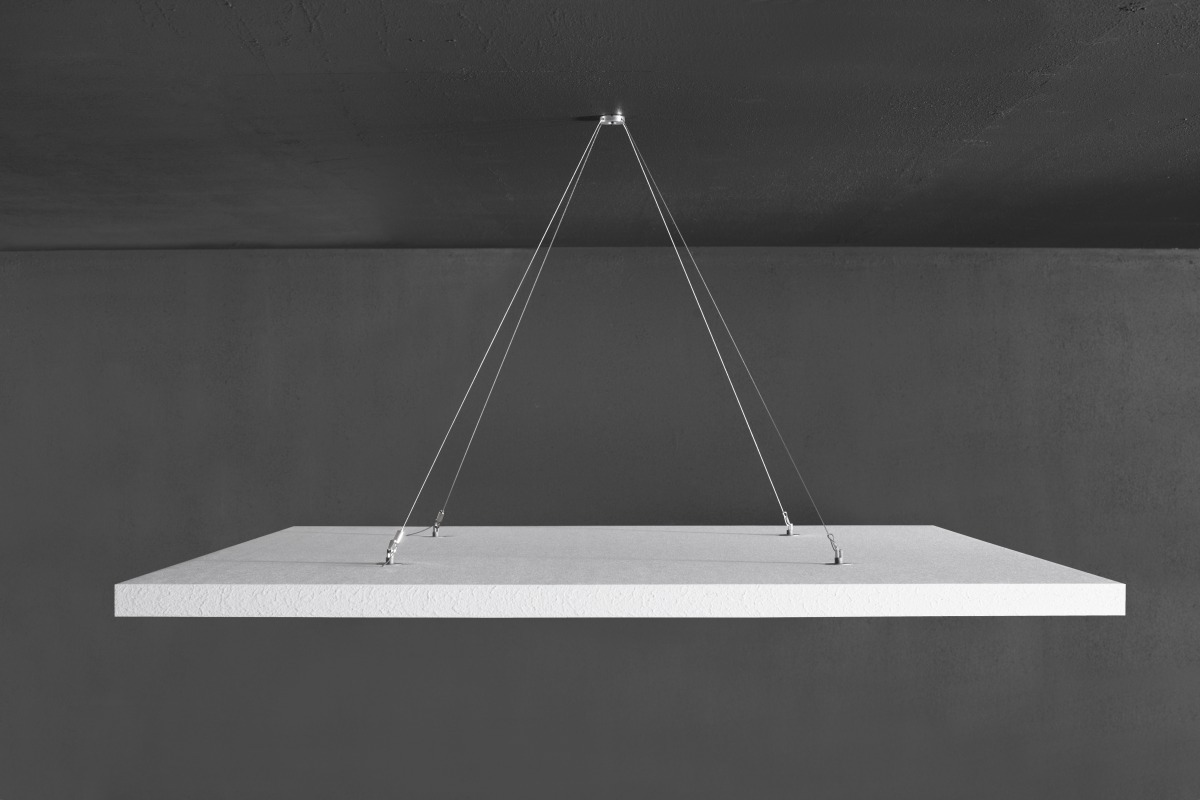

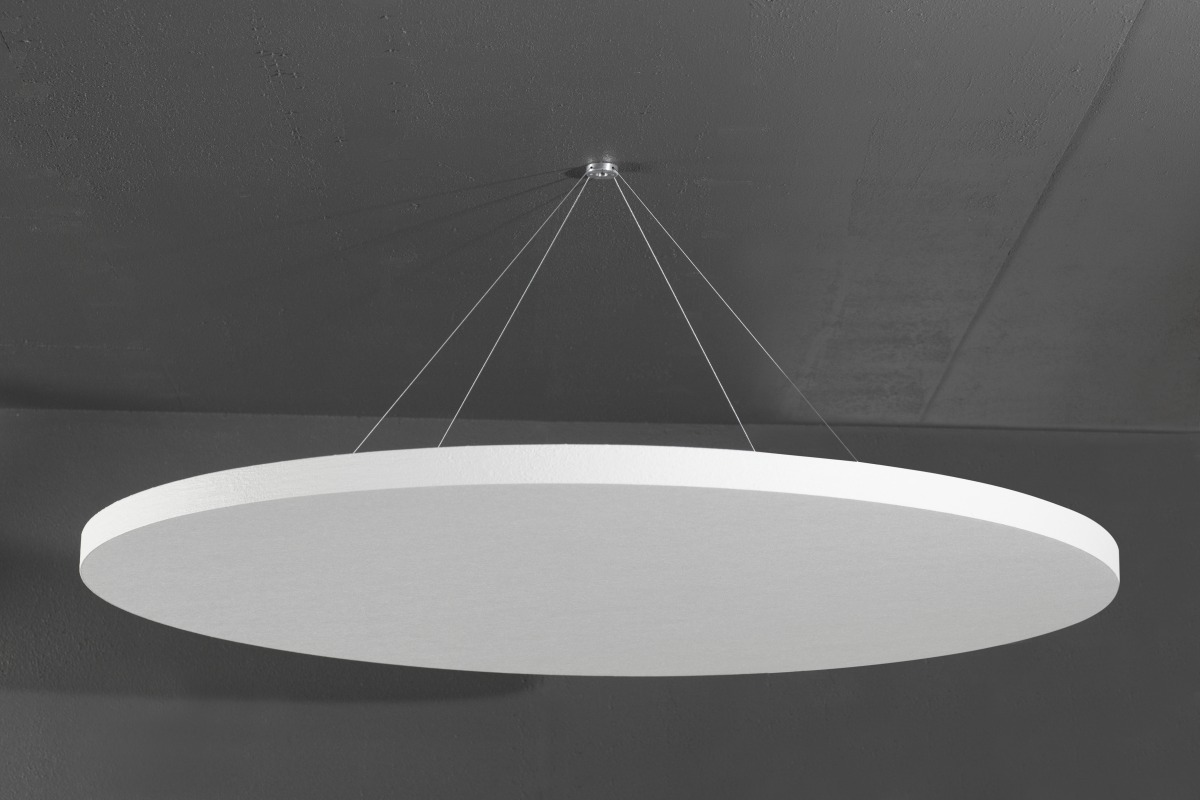

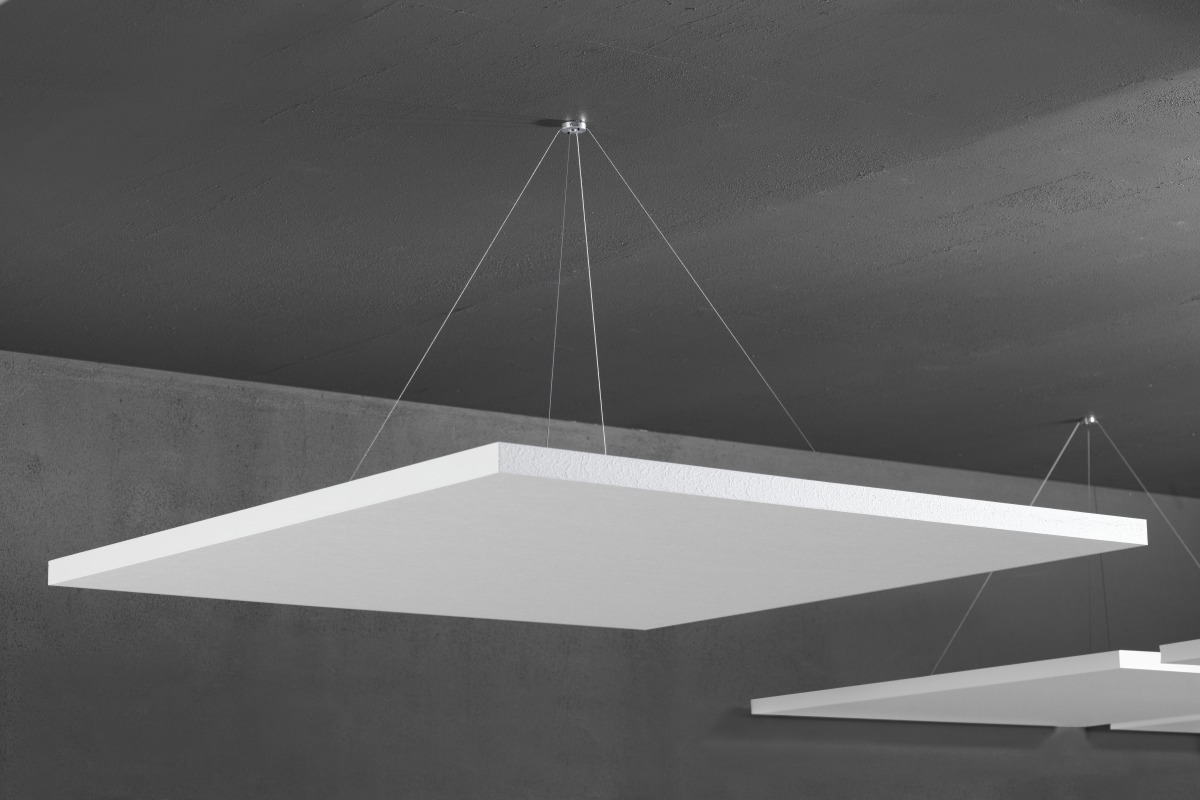

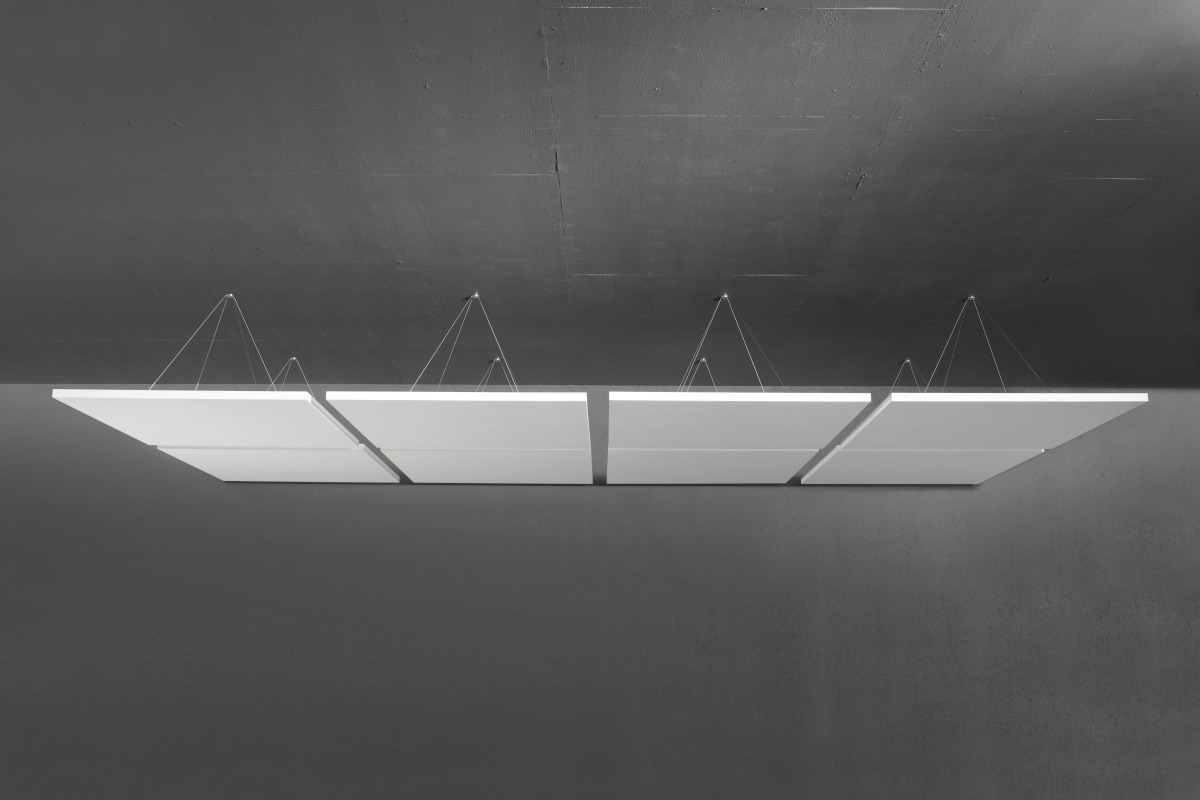

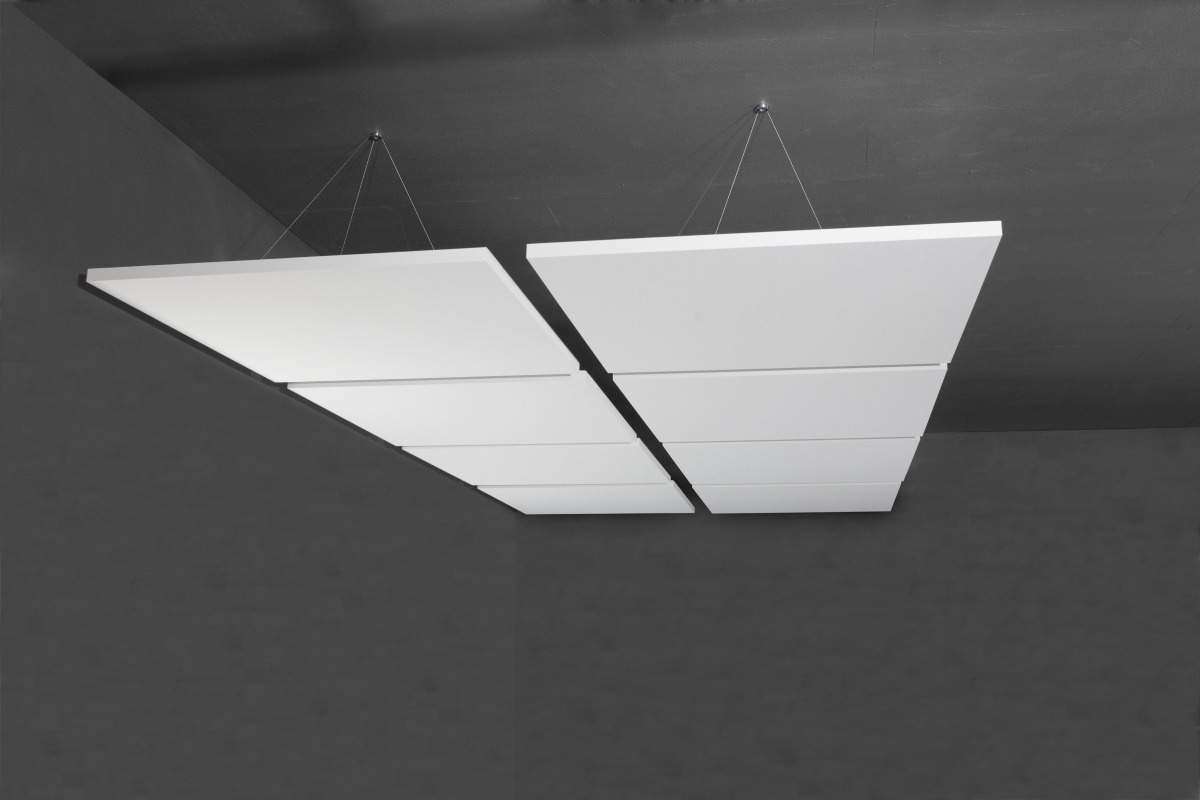

Hexagonal Honeycomb Canopy Panels: Baffle ceiling systems are produced from coated or flat basotect sponge panels. Canopy acoustic panels are mounted by hanging on ceilings with steel stainless accessories, cable and anchorage materials. (Canopy Acoustic Ceiling). Canopy acoustic ceiling systems NRC acoustic value (sound absorption absorption value) is in the range of 0.95-1.00. Baffle acoustic fabric covered panel panels are fire resistant, class B s2 d0 according to UNE - EN 13501-1: 2007 standard. The product is produced in standard 30 mm, 40 mm and 50 mm thickness.

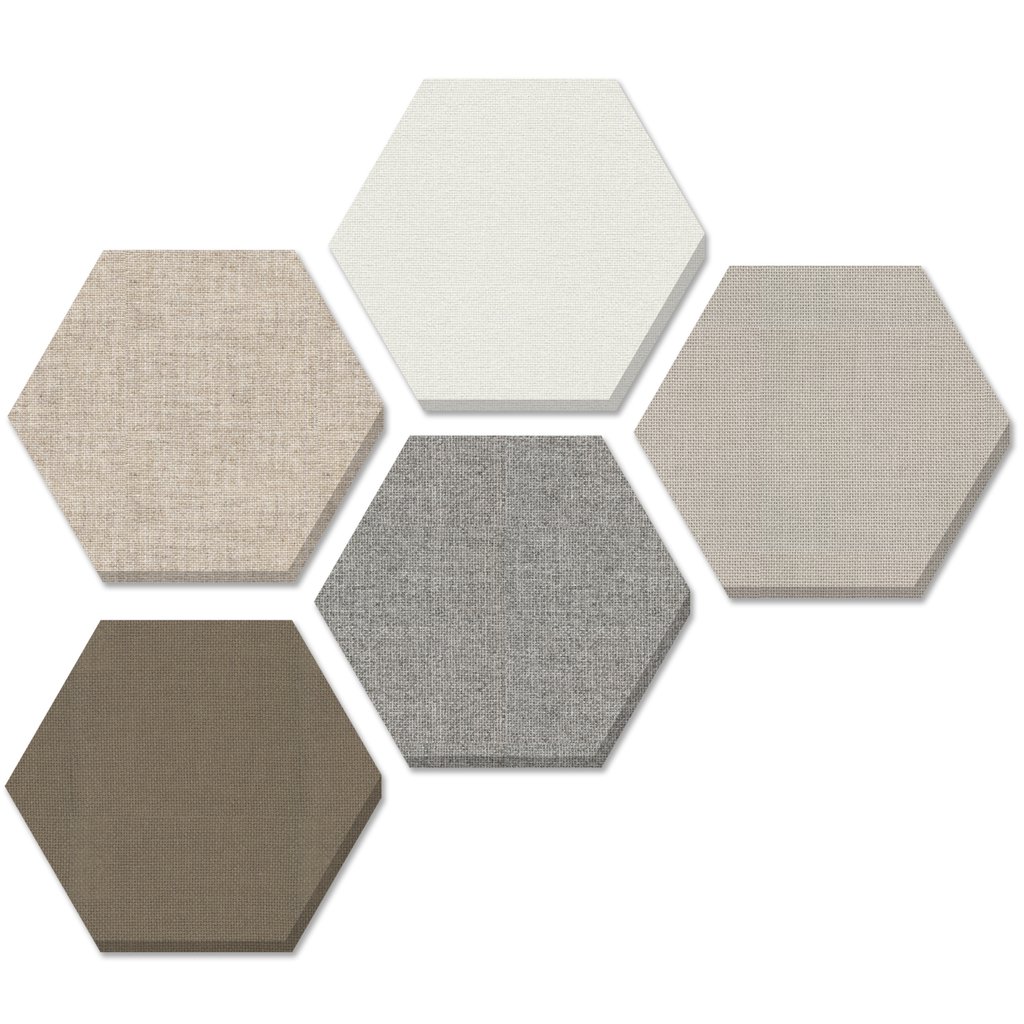

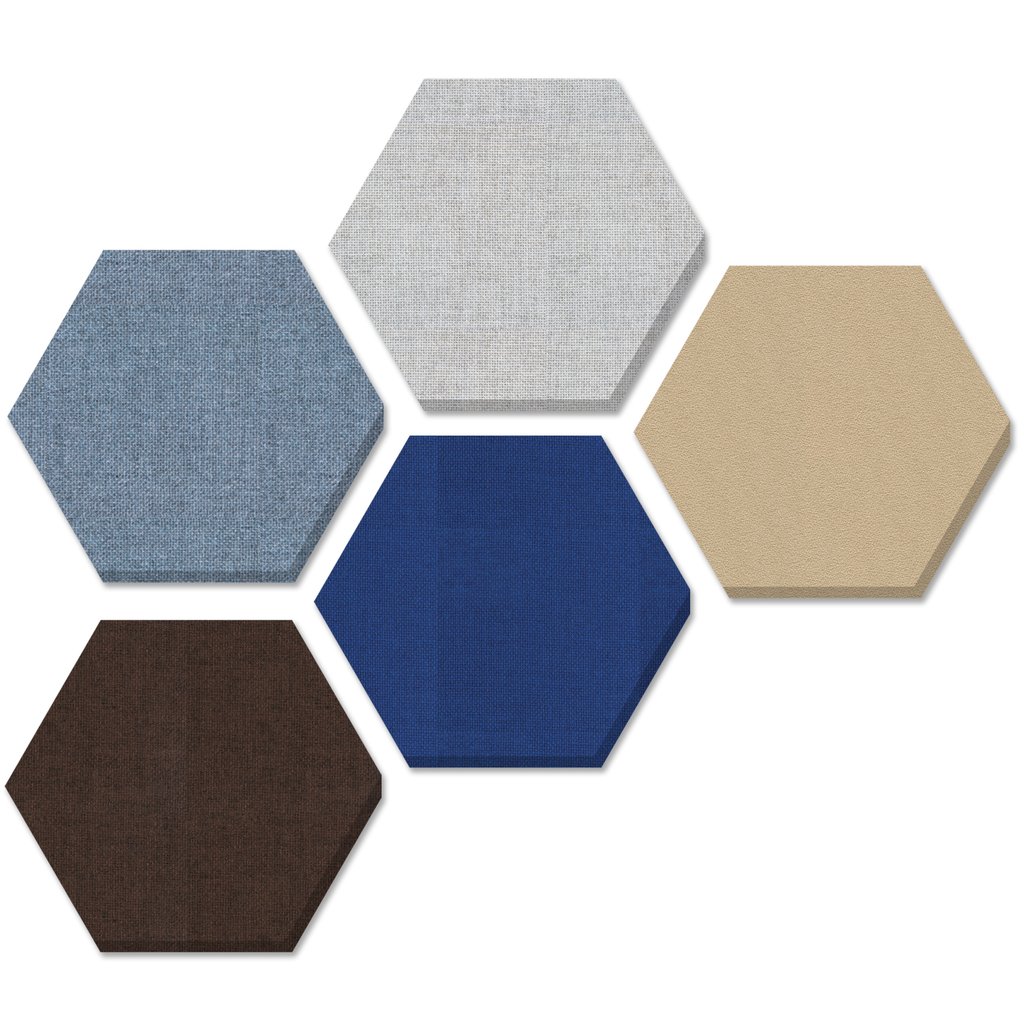

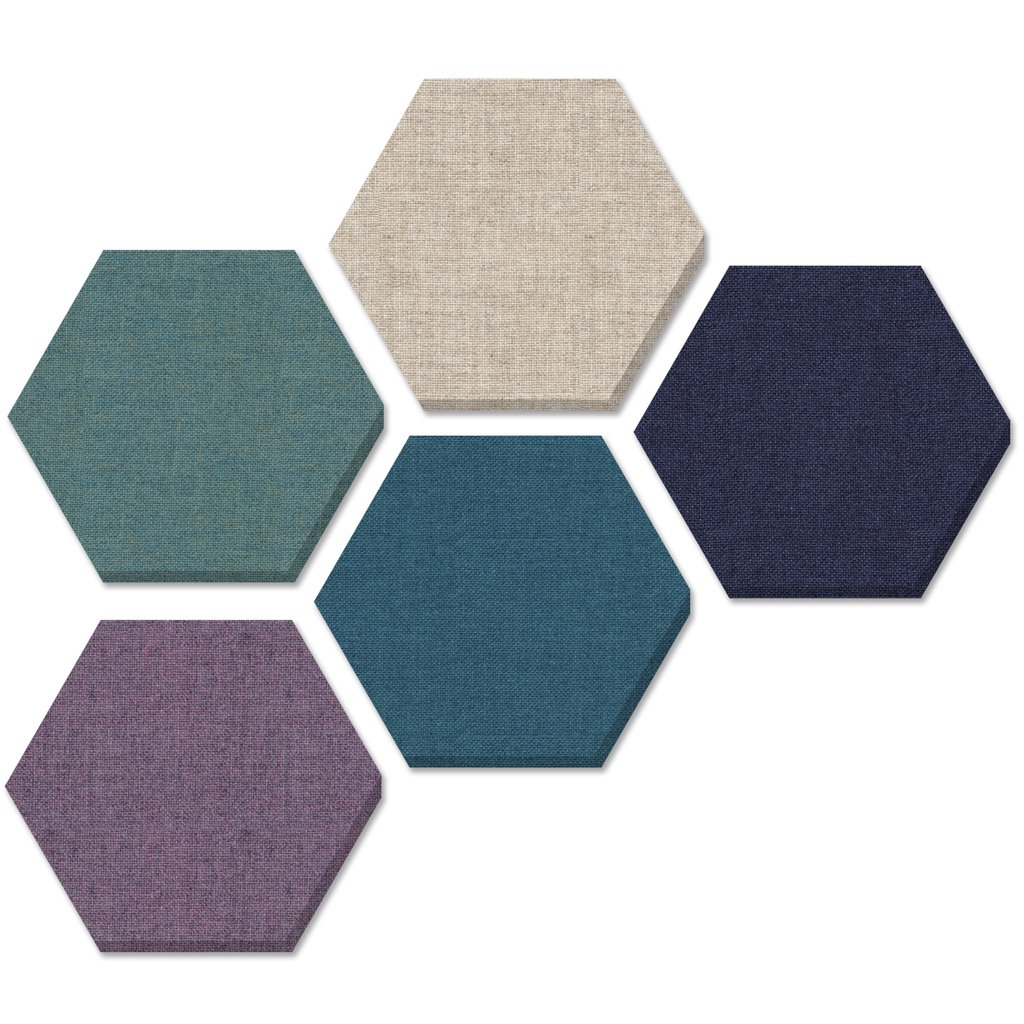

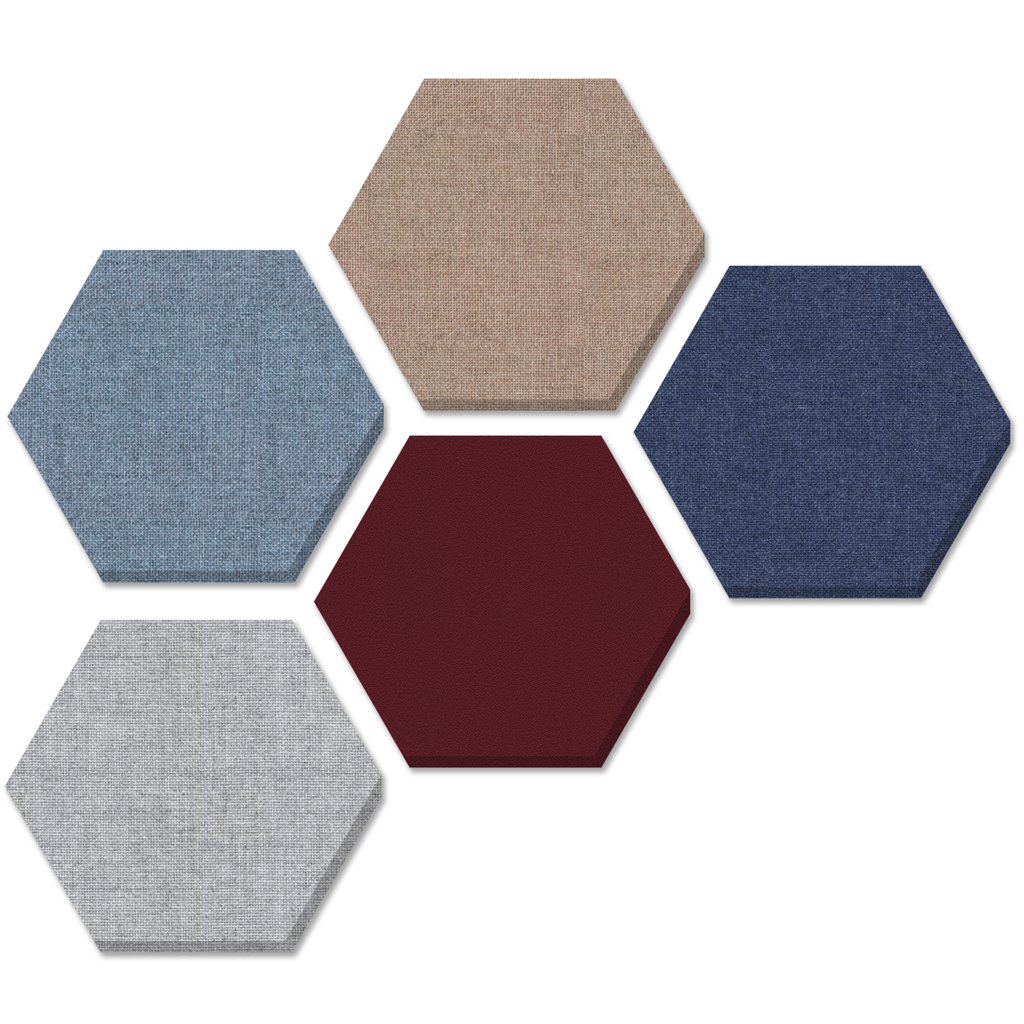

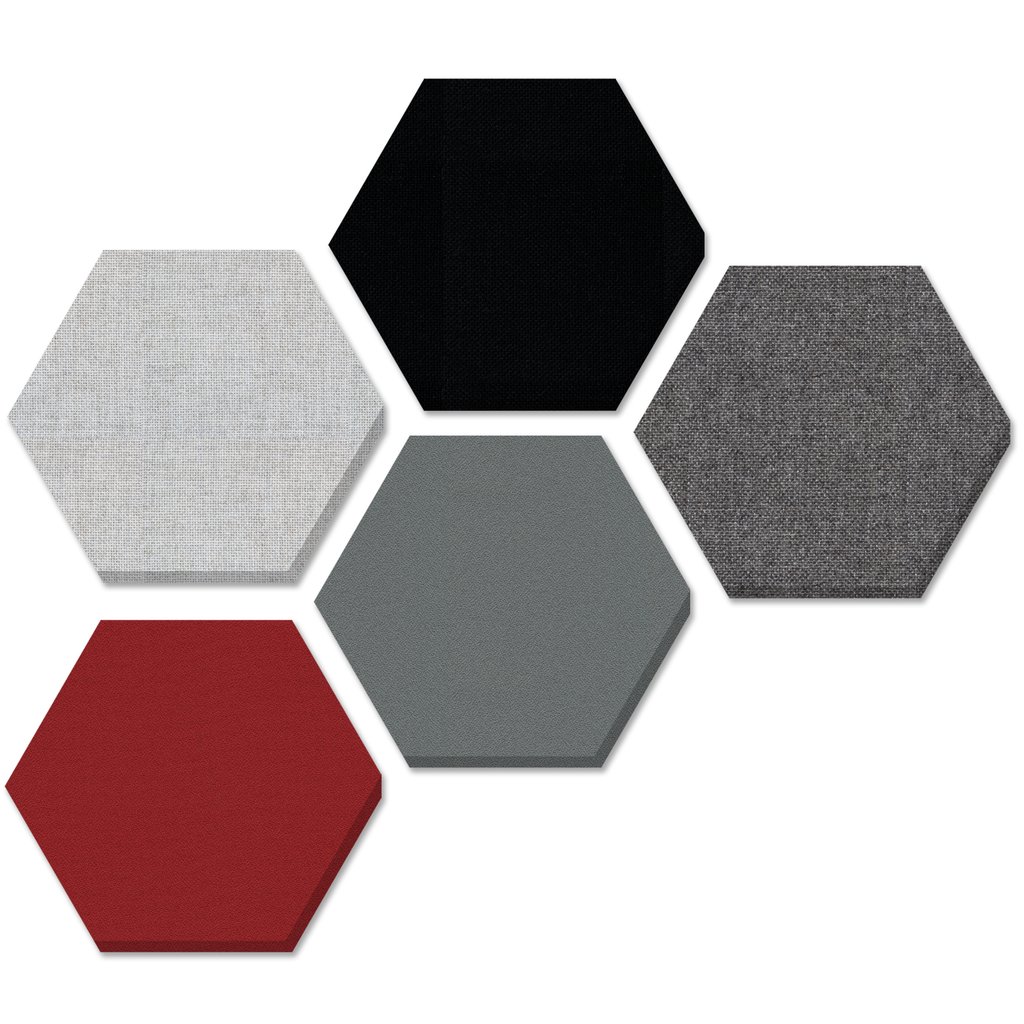

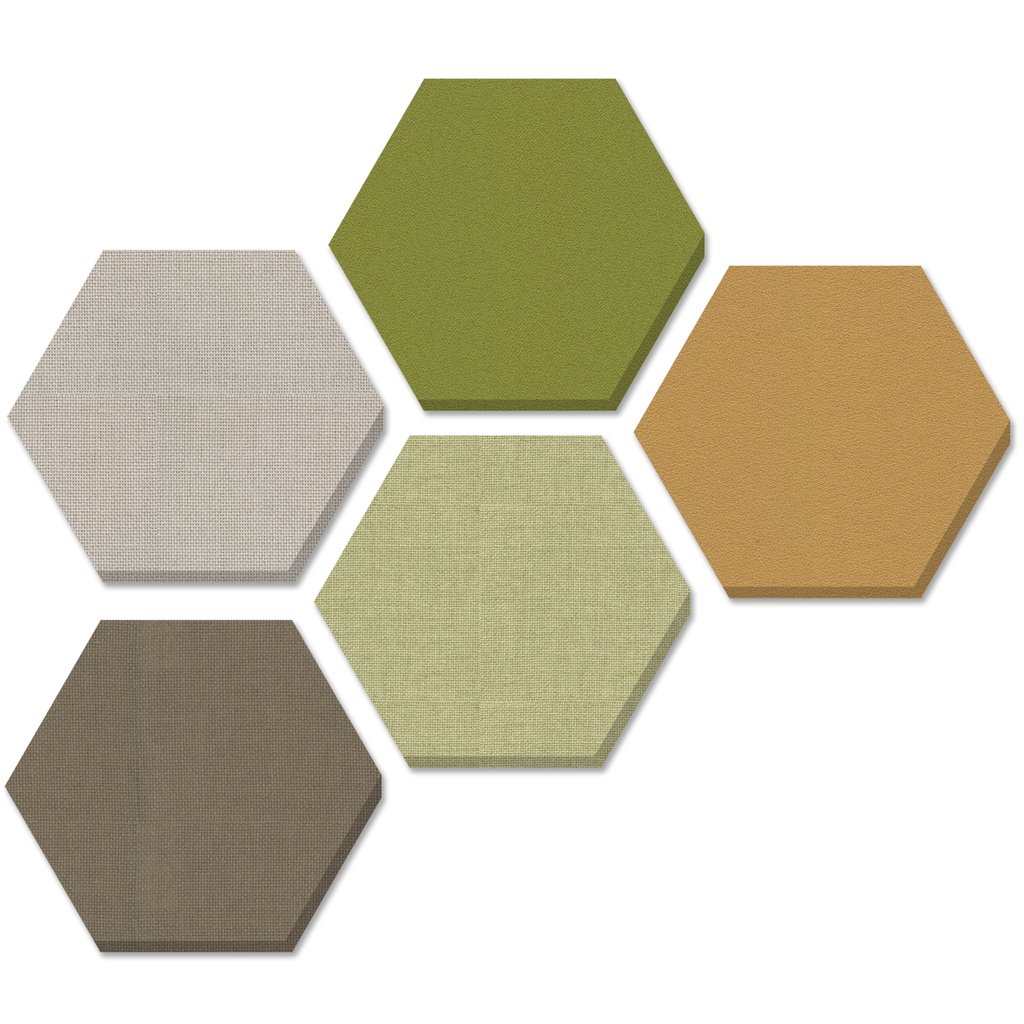

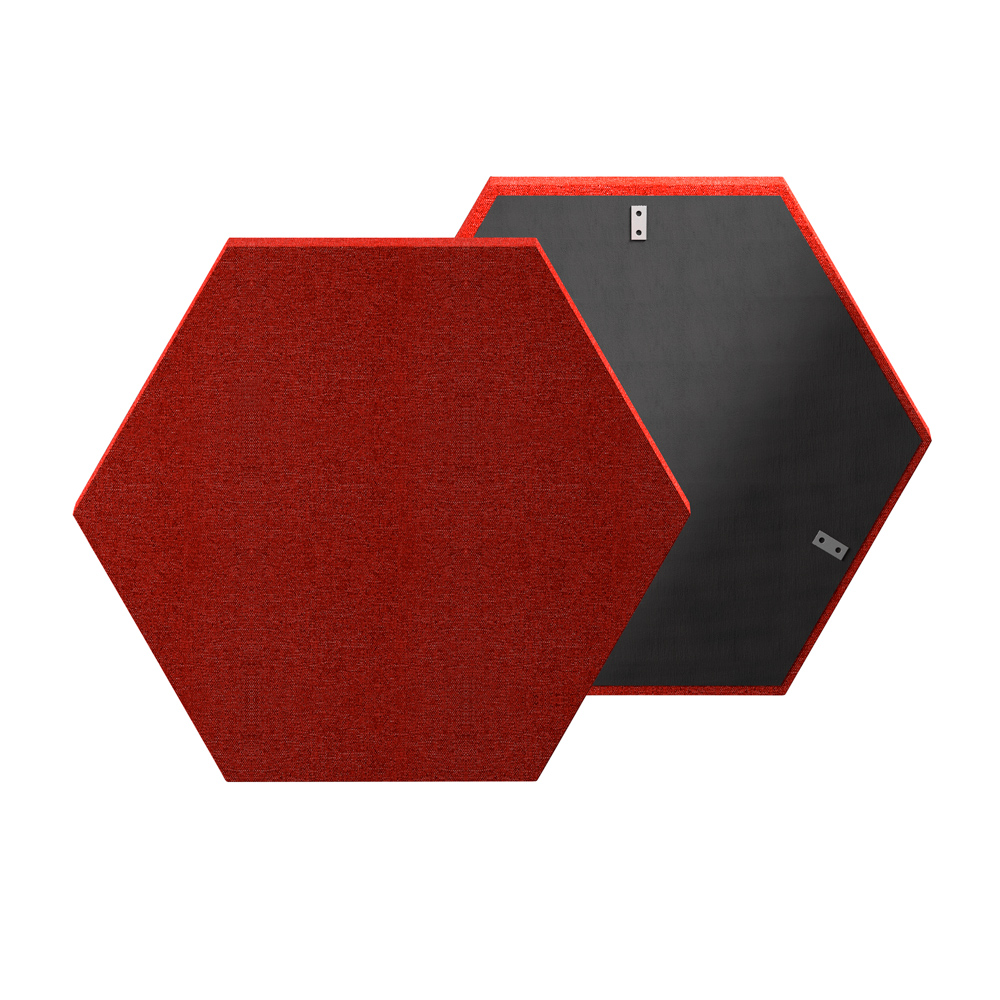

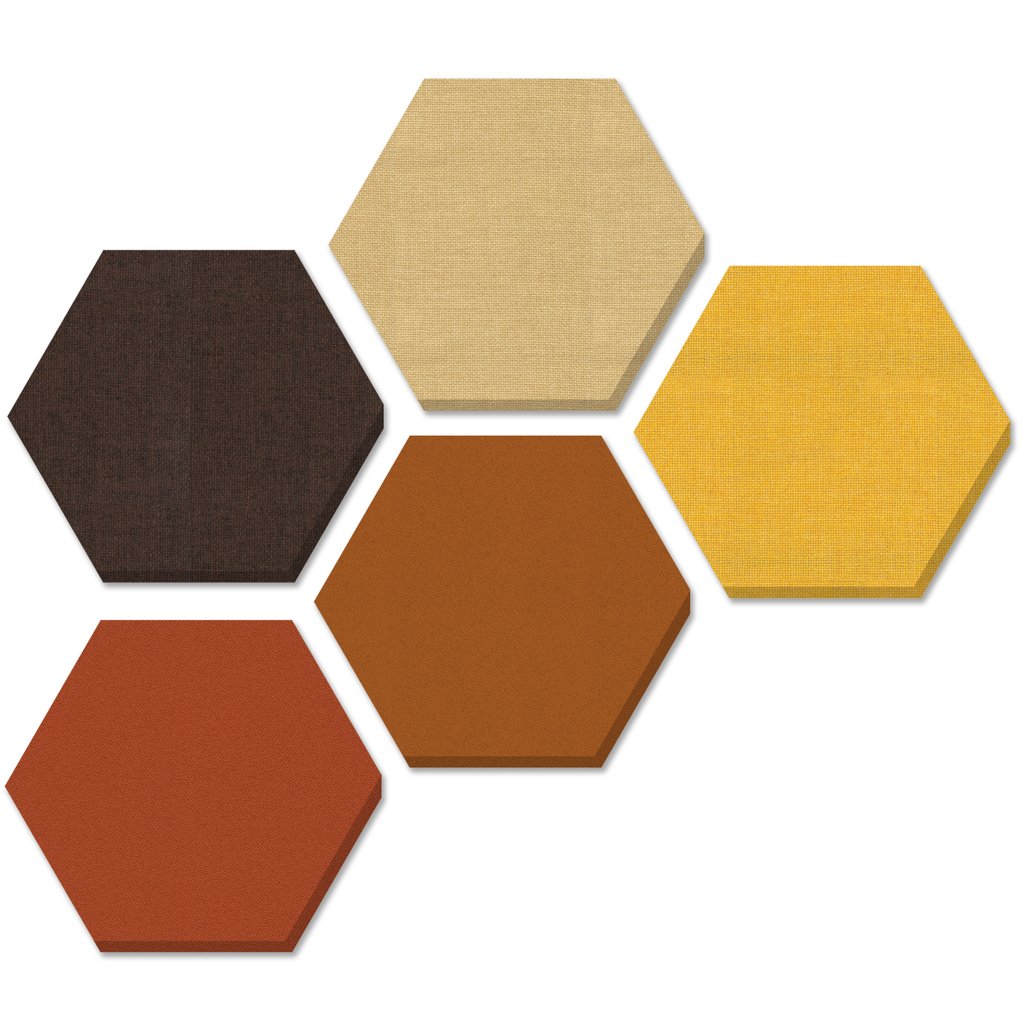

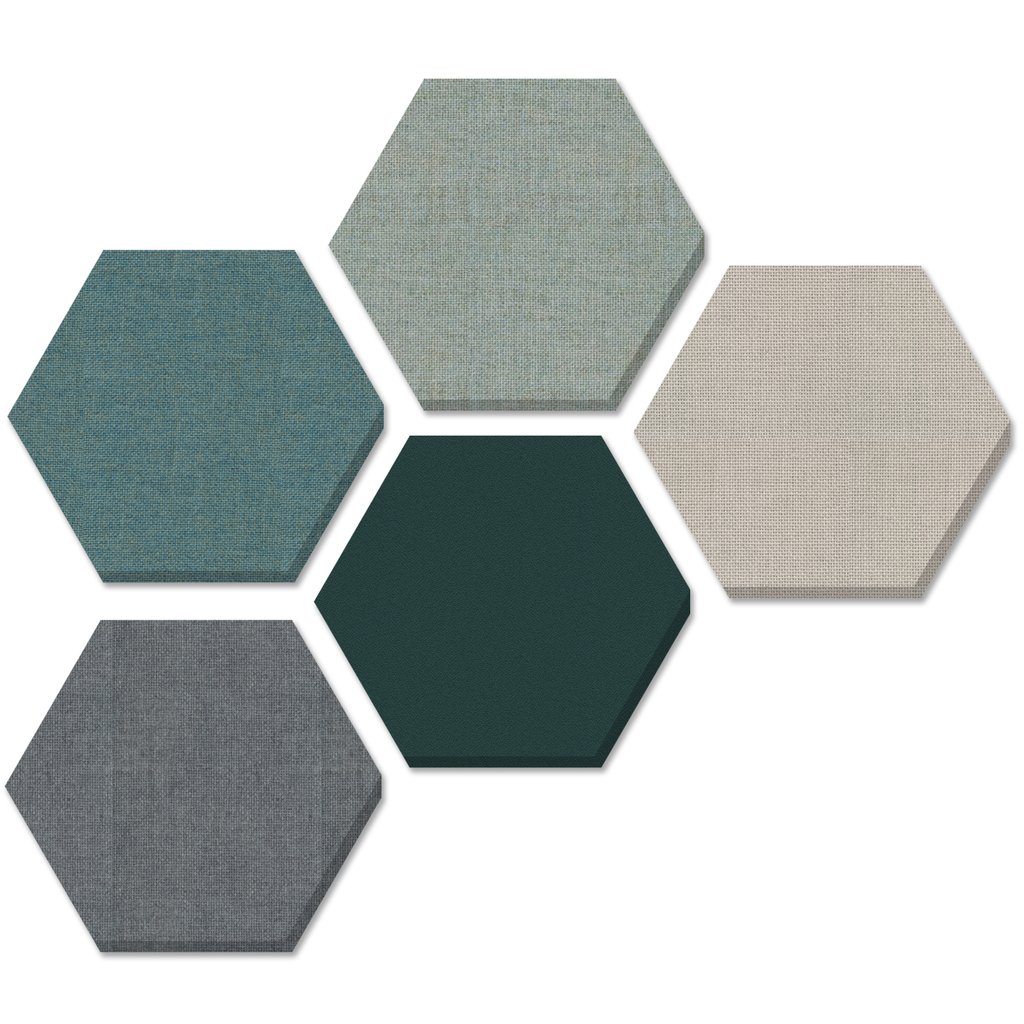

Hexagonal Honeycomb Panels Colors: fabric covered acoustic panels are unlimited in color , click for the fabric chart .
Hexagonal Honeycomb Panels Thicknesses: Standard thicknesses of 20 mm, 40 mm and 50 mm depending on the model. It complies with all technical specifications.
Hexagonal Honeycomb Dimensions: 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm

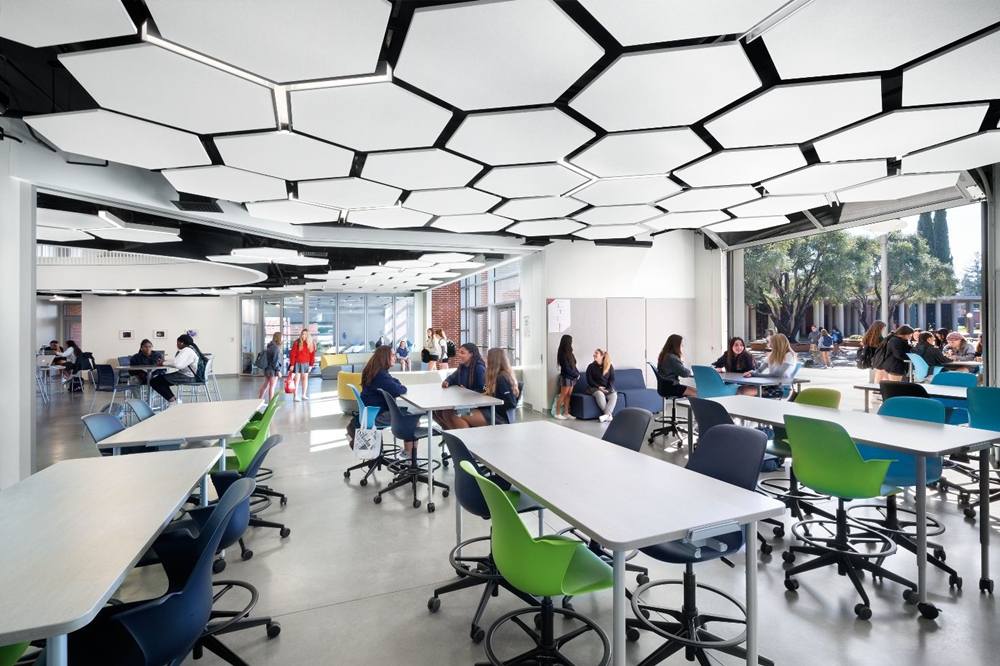

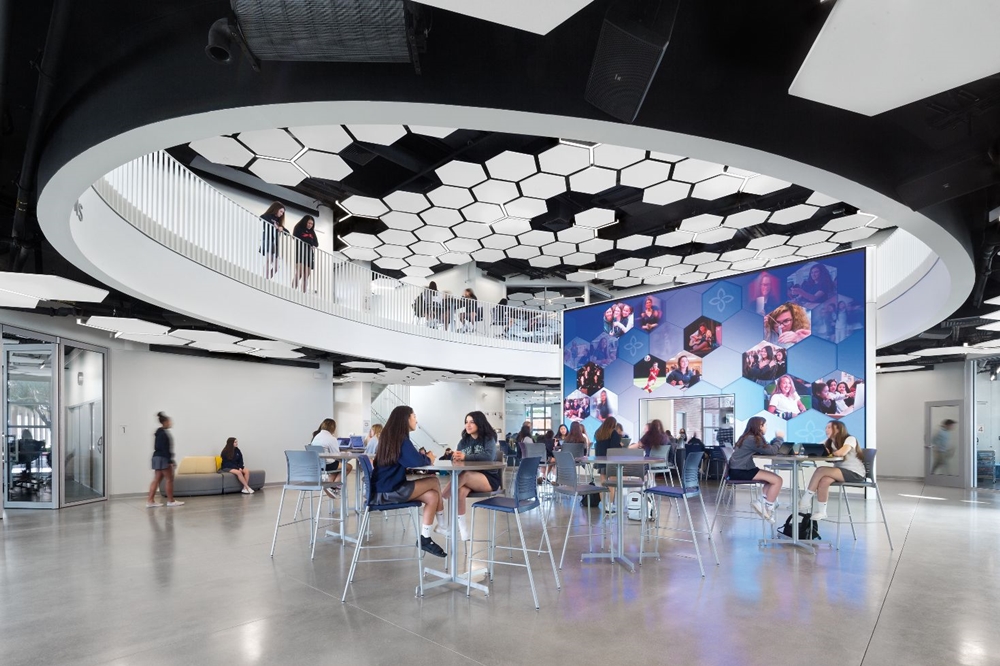

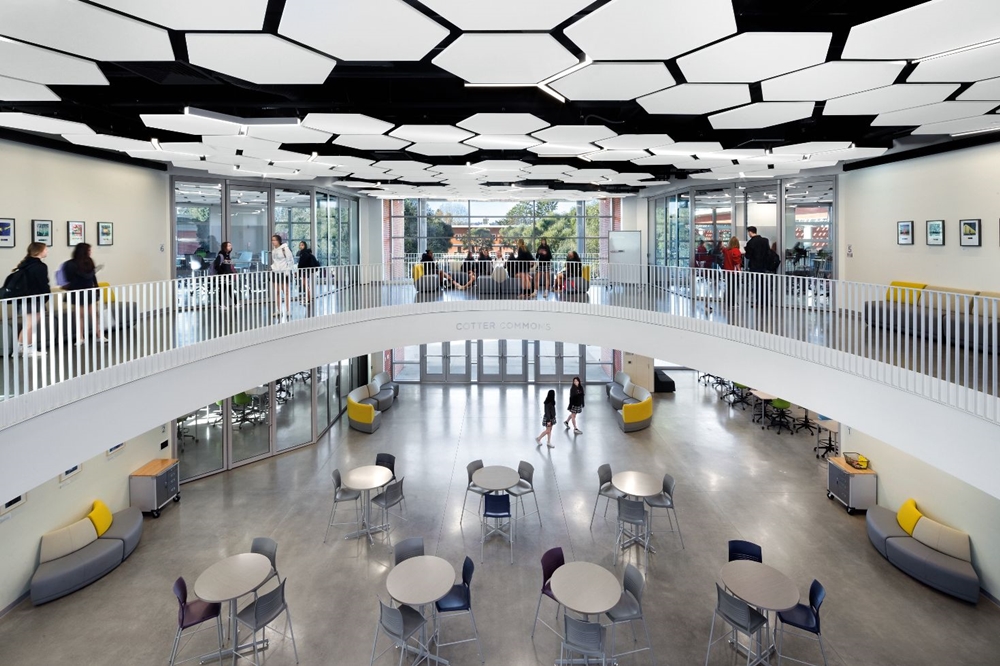

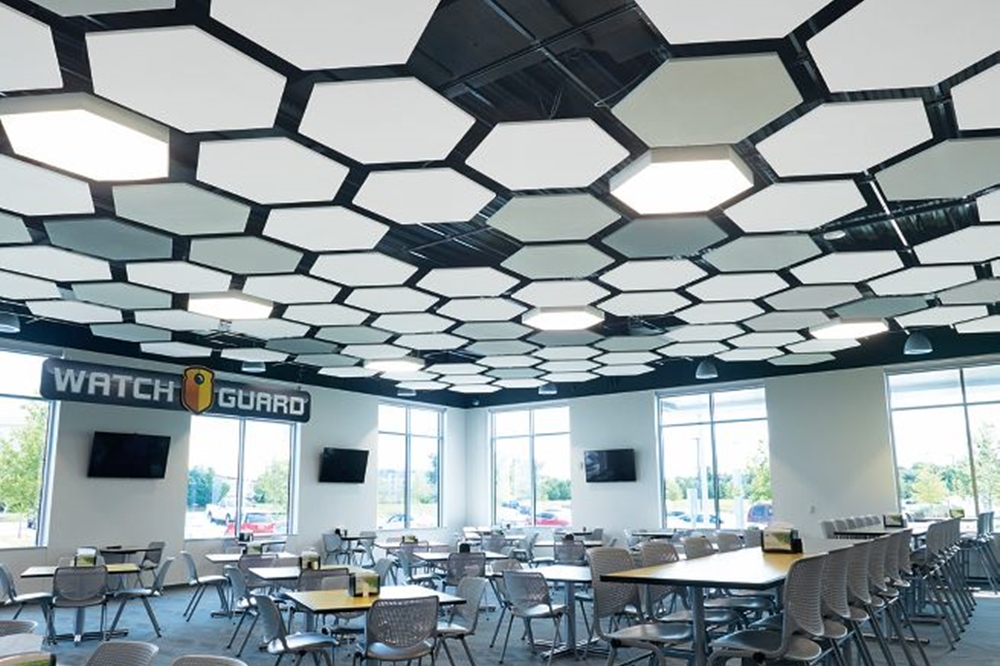

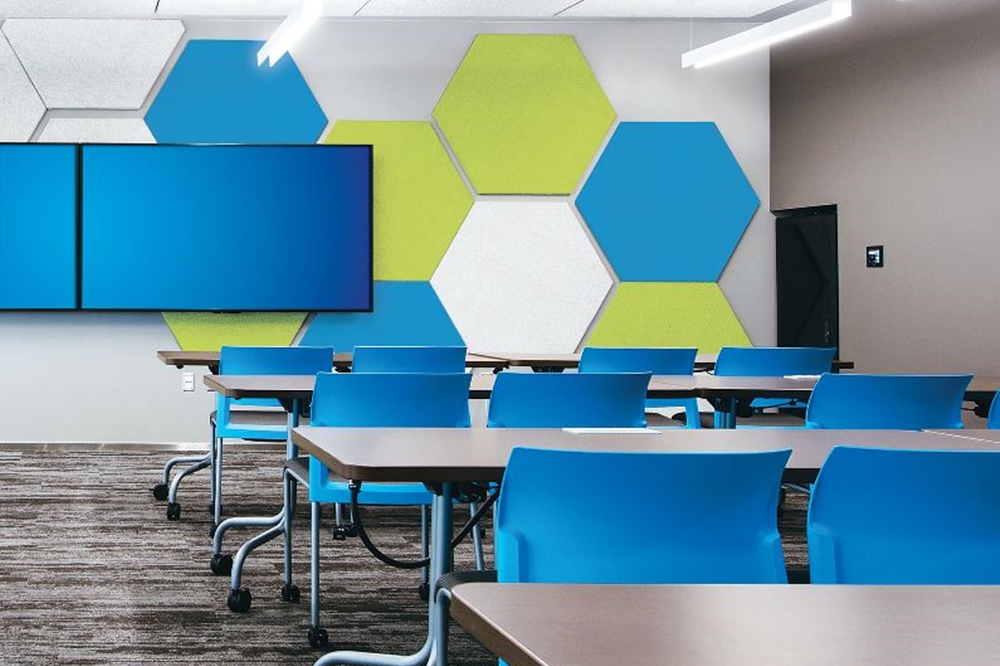

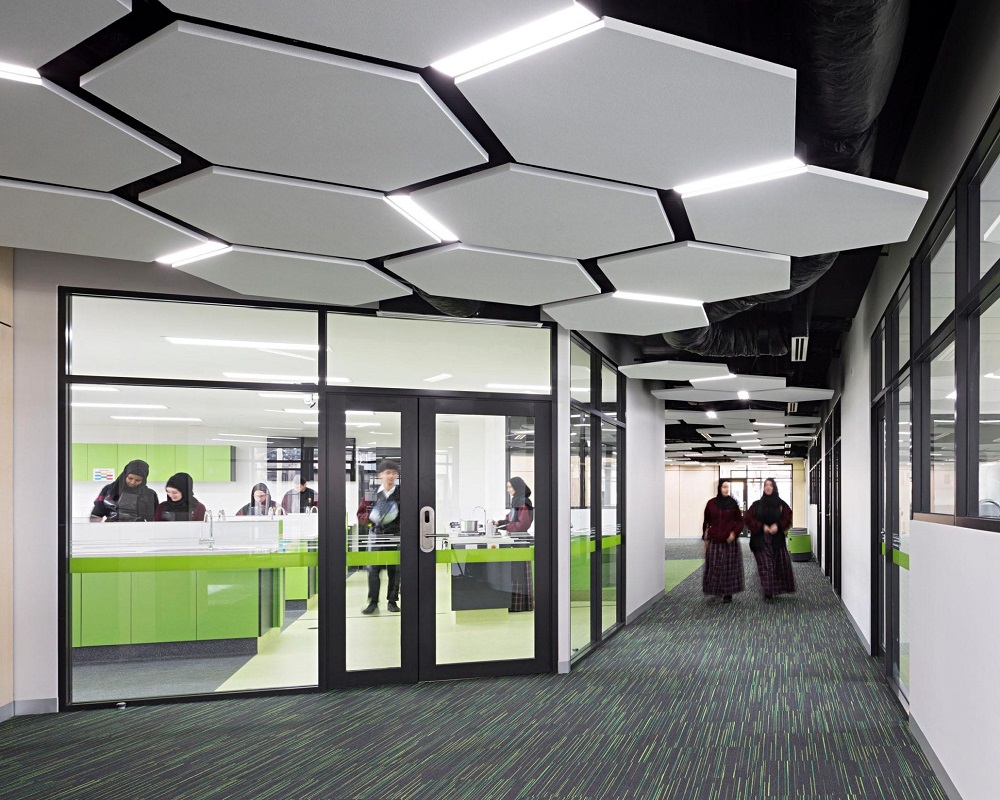

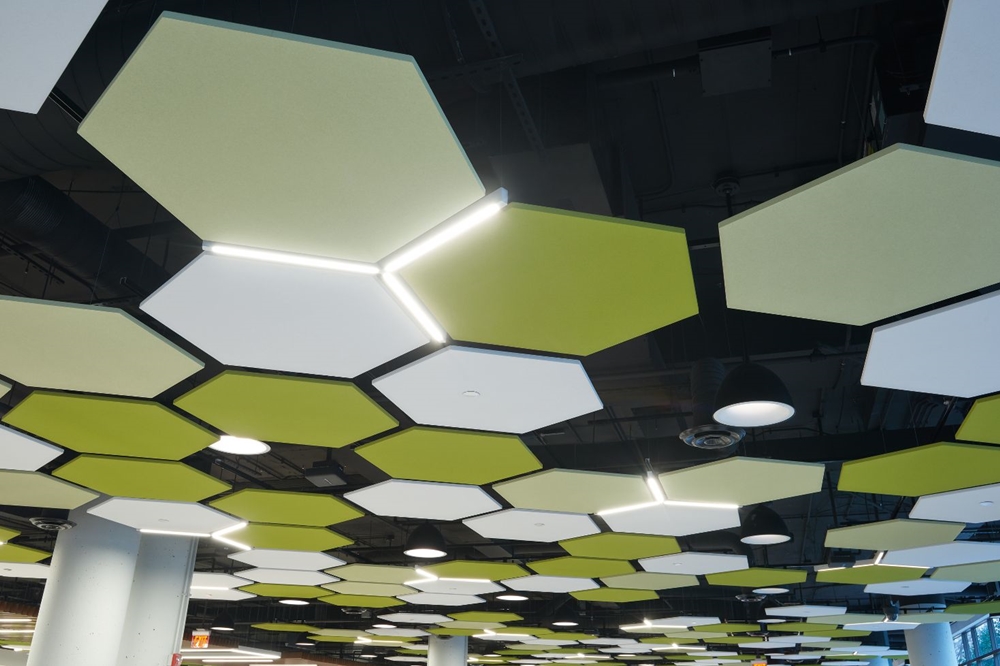

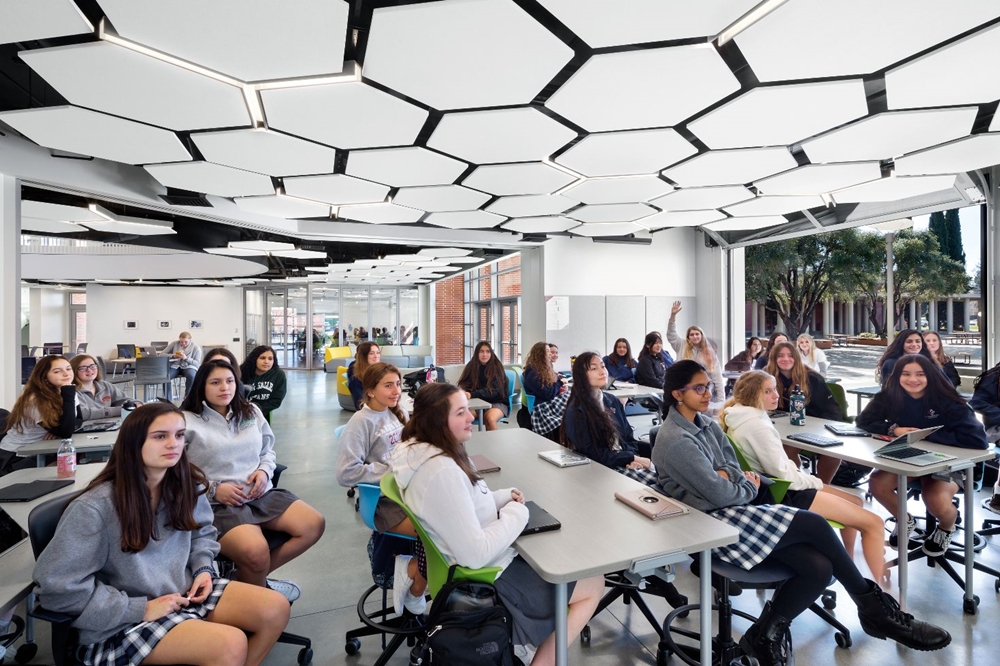

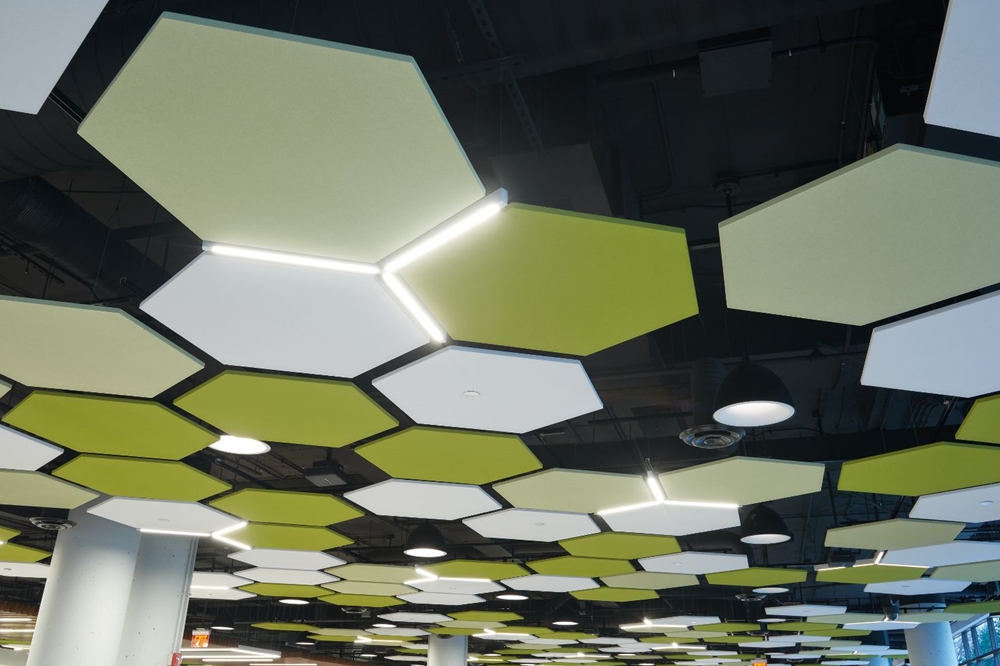

Hexagonal Honeycomb Usage Areas: Conference and seminar halls, factories, shopping malls, sports halls, meeting & movie theaters, auditoriums and studios.

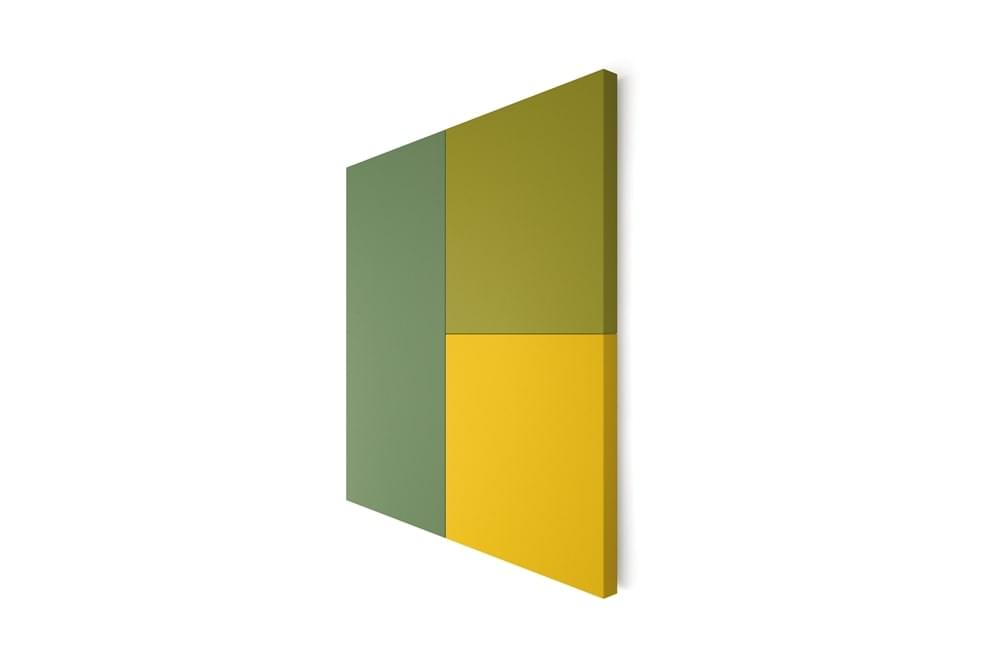

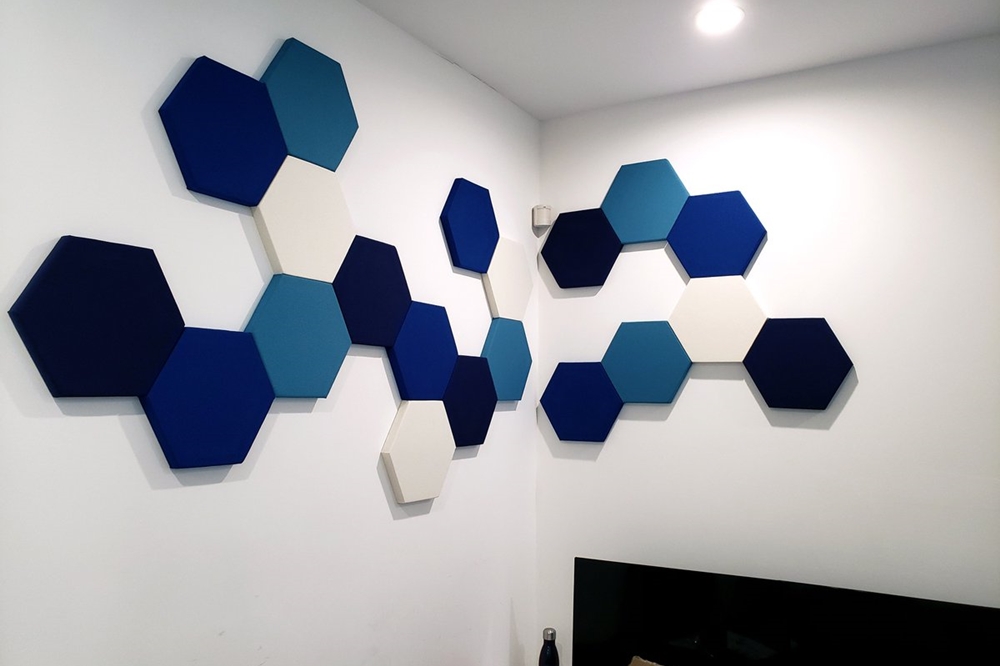

Hexagonal Honeycomb Panel Options: Fabric covered acoustic panels can be produced in combination in different geometric shapes and thicknesses.
Hexagonal Honeycomb Panels Non-flammability: Materials used are glass wool and fabric coverings in the form of b1 non-flammability.
Hexagonal Honeycomb Panels Density: 95 kg / m3 density aktav acoustic glass wool board or 30 - 60 Dns Acoustic sponge.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.

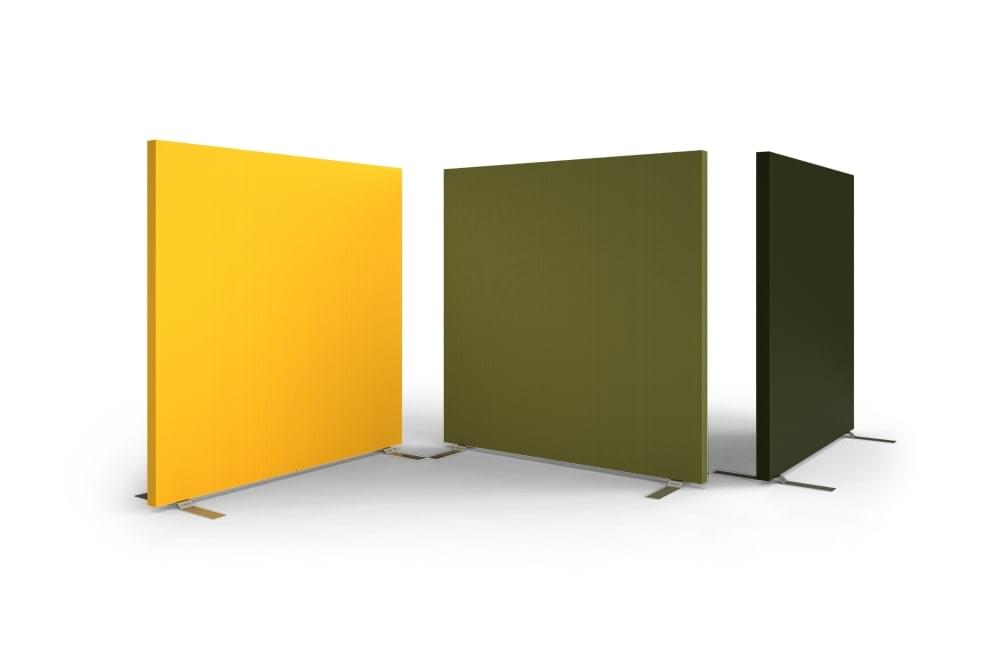

Acoustic Separator Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |

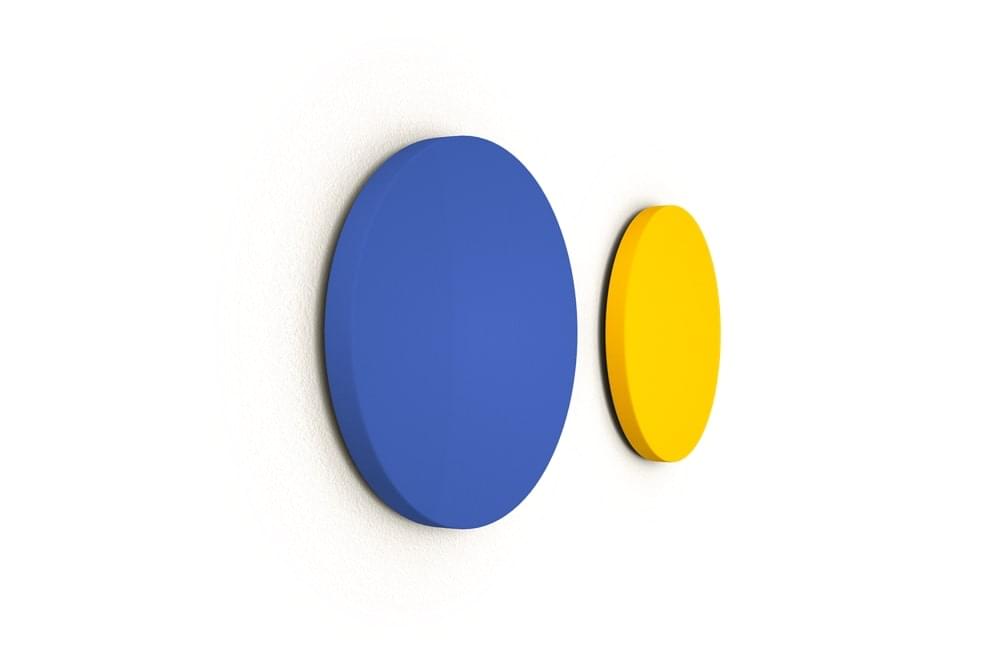

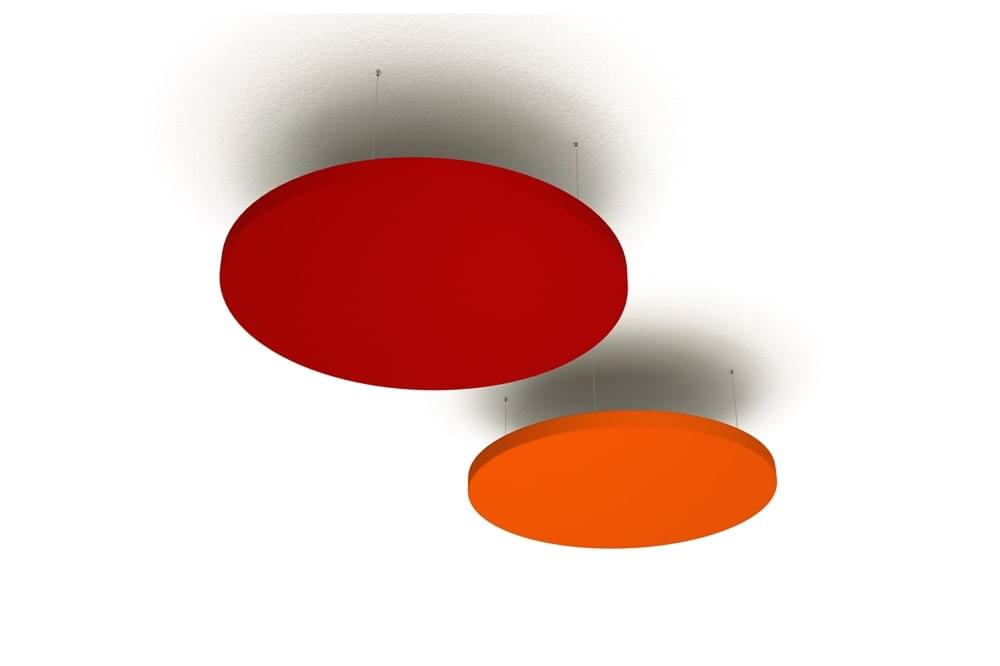

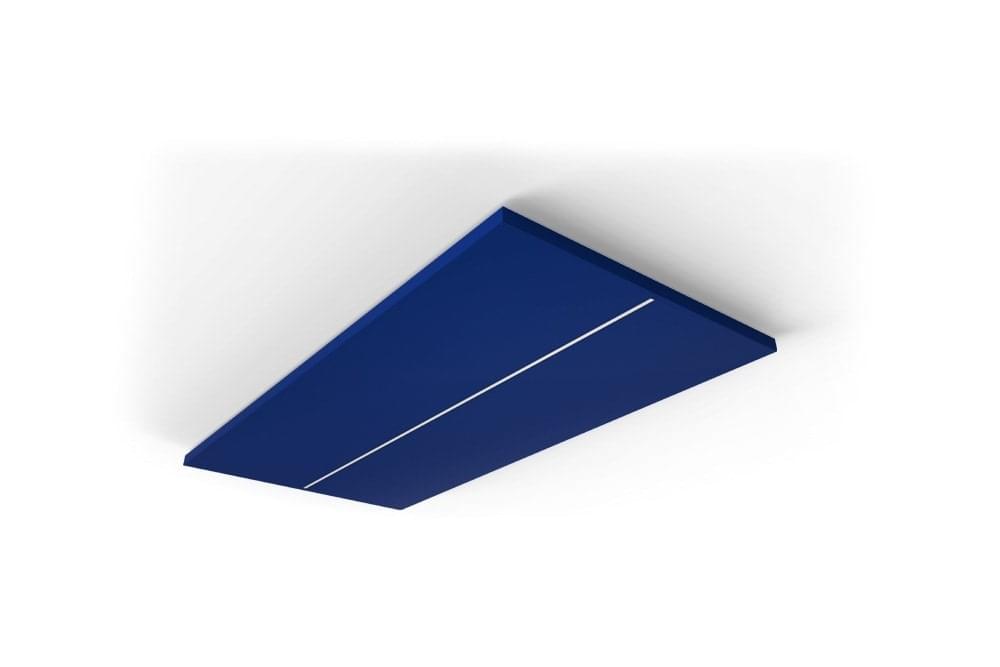

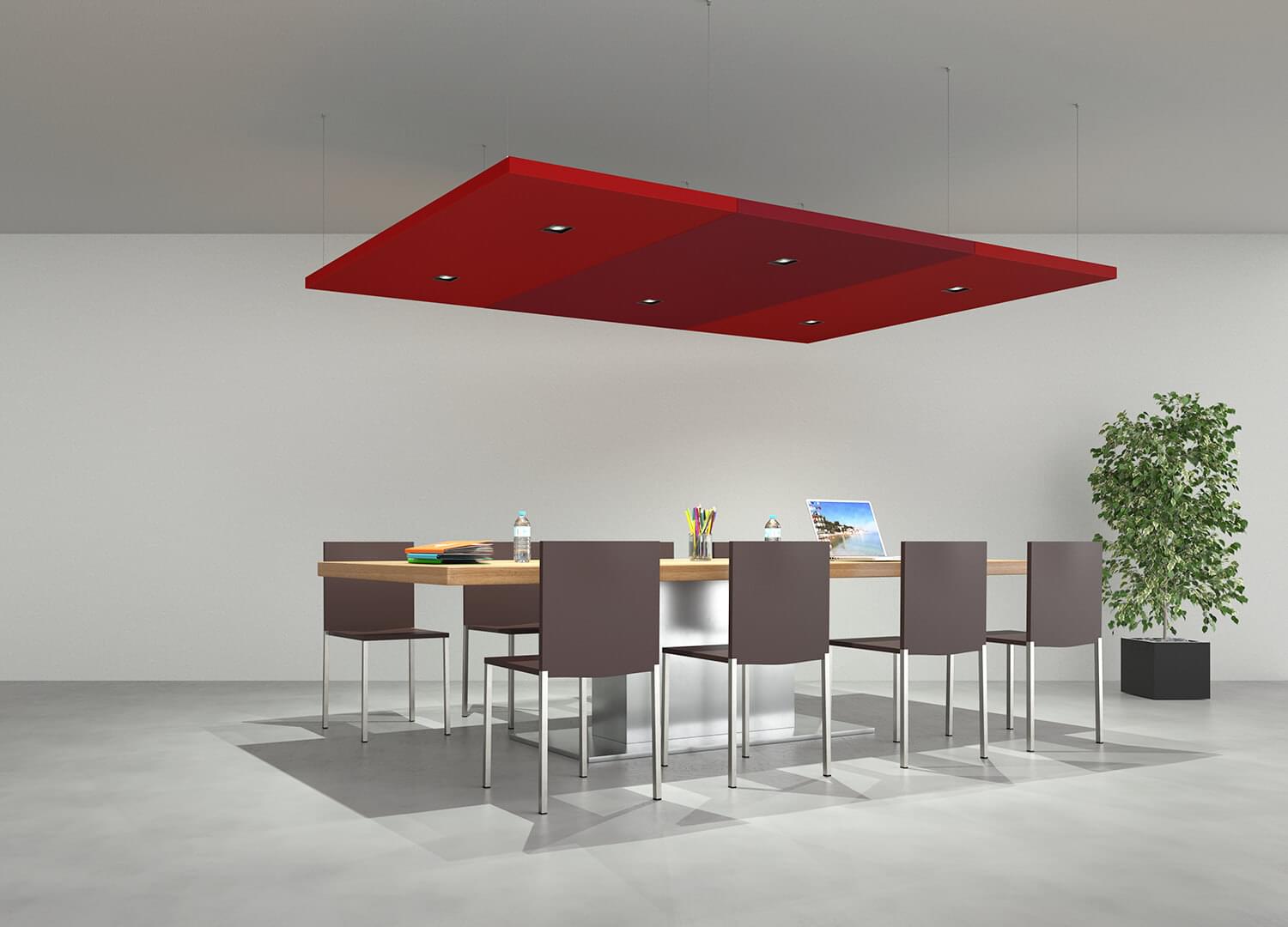

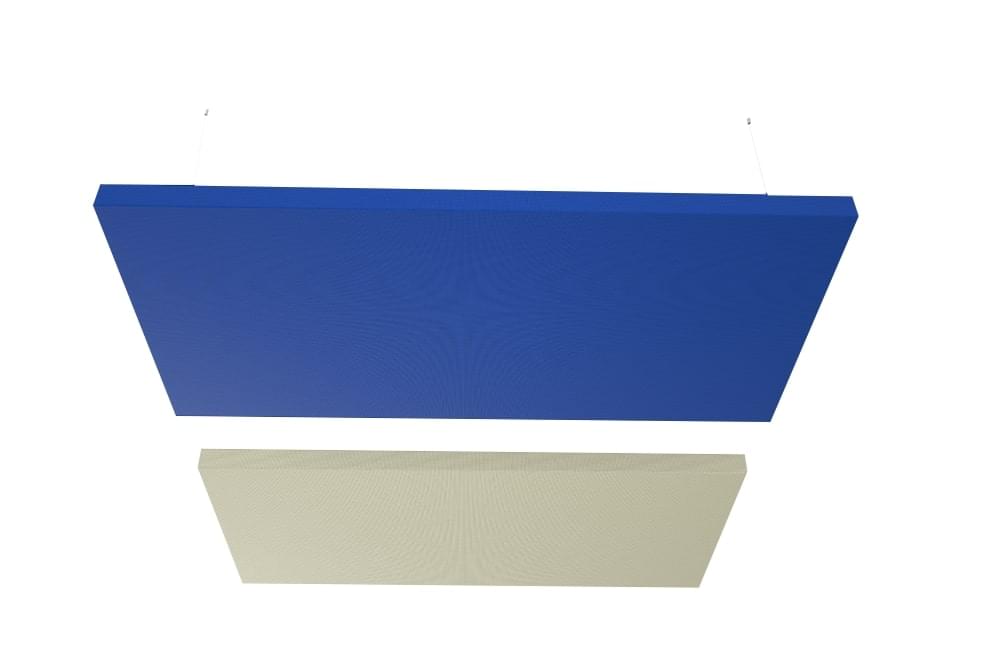

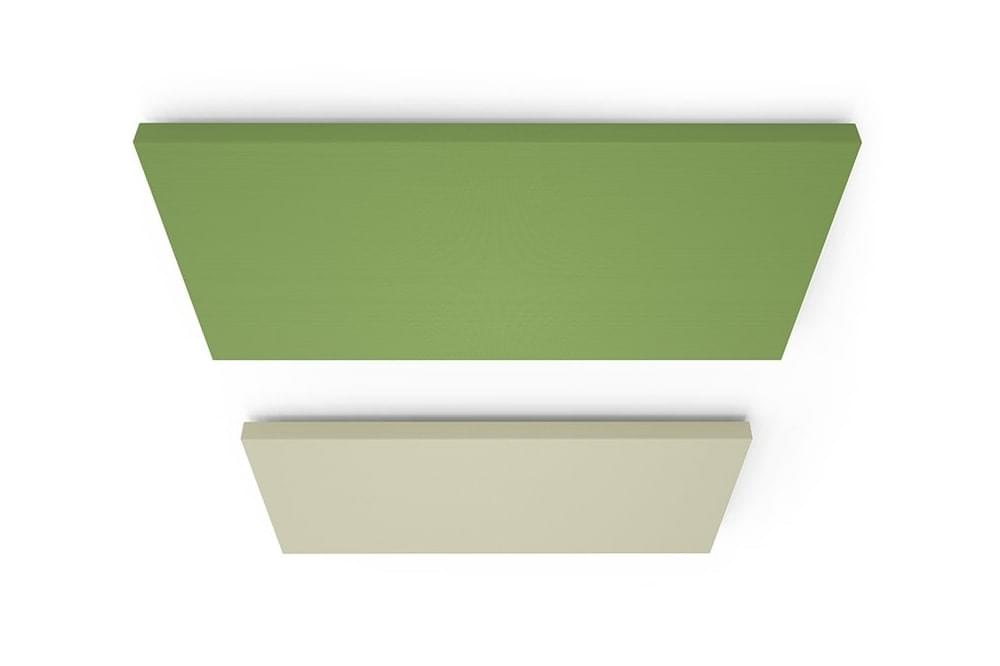

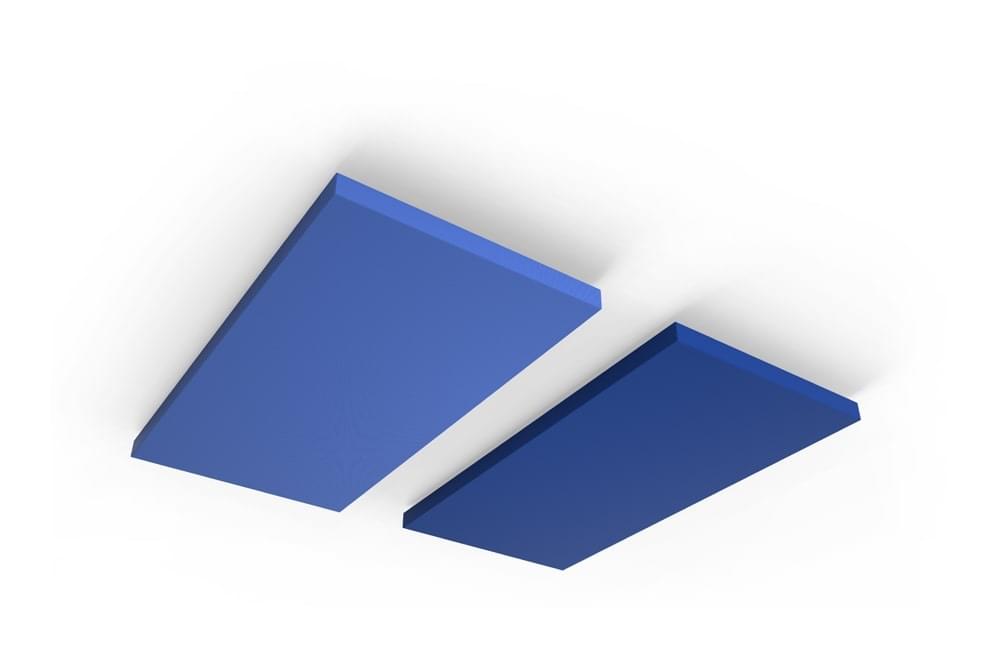

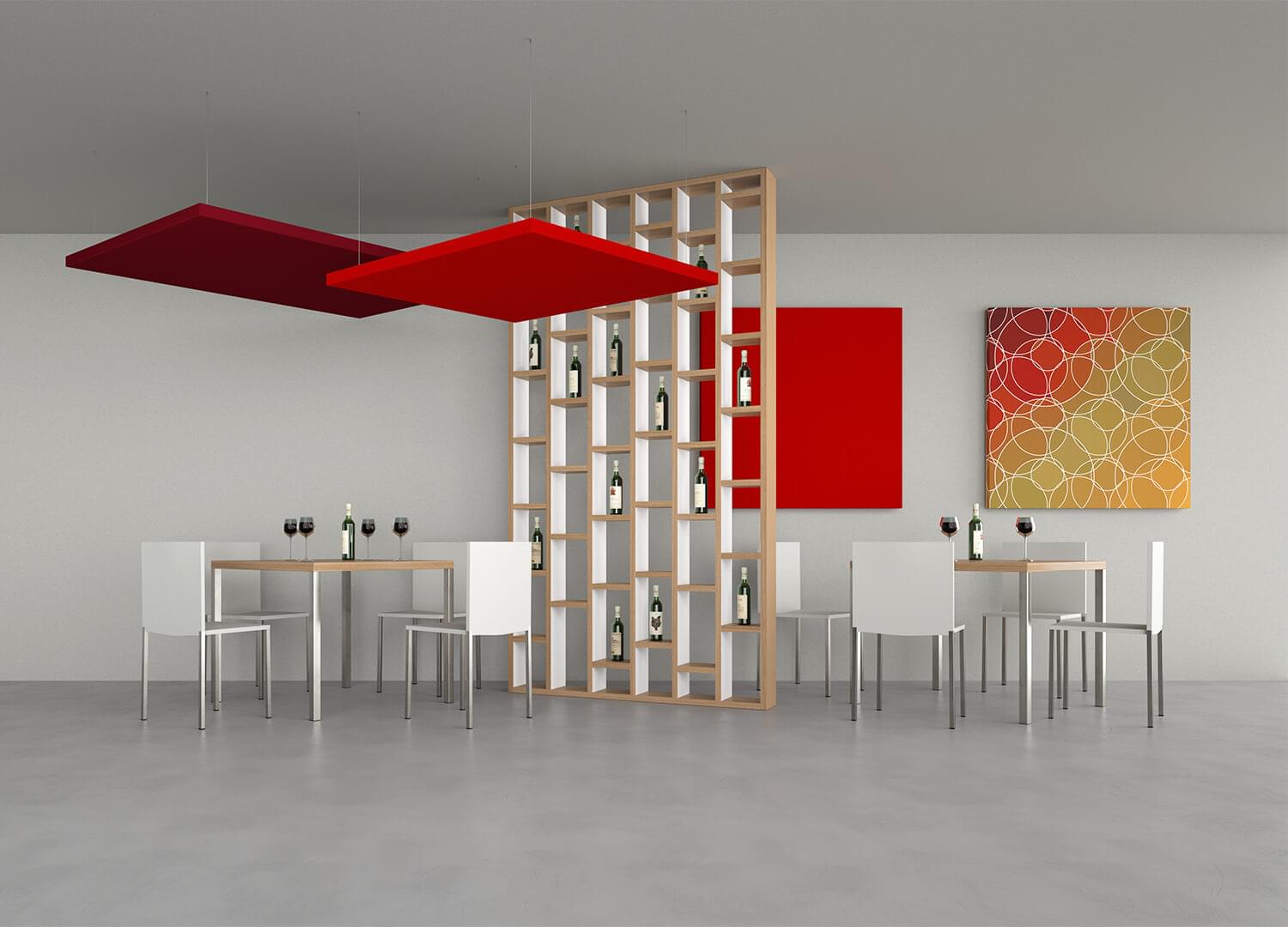

Oval ceiling panels are in 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm plates, and there are 10 plates of products in different quantities in their packages. It is sold by retail and wholesale as 30 mm, 40 mm, and 50 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
