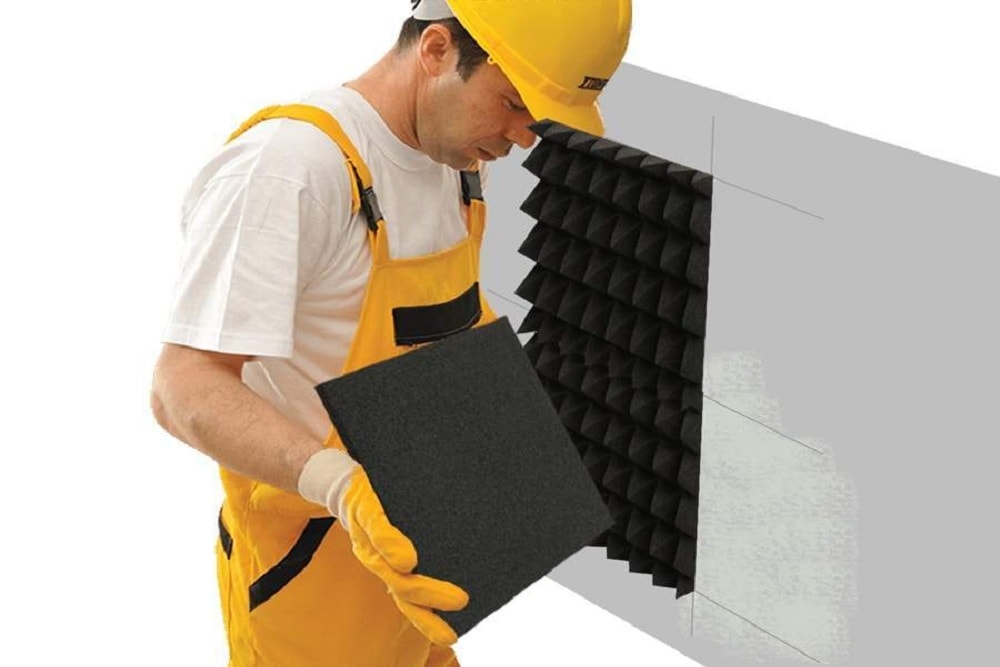

Application Images

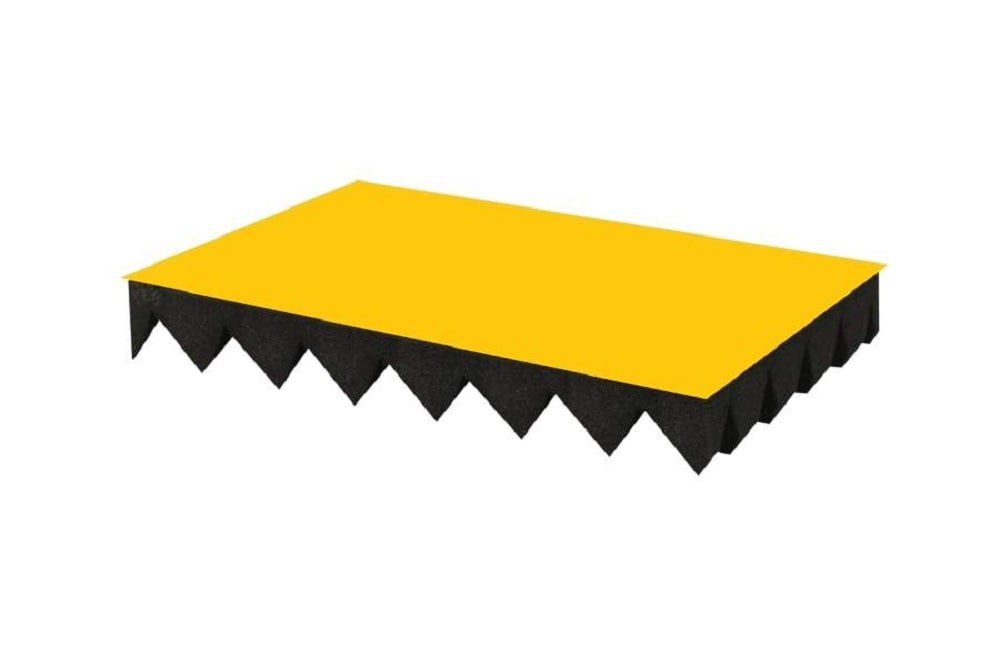

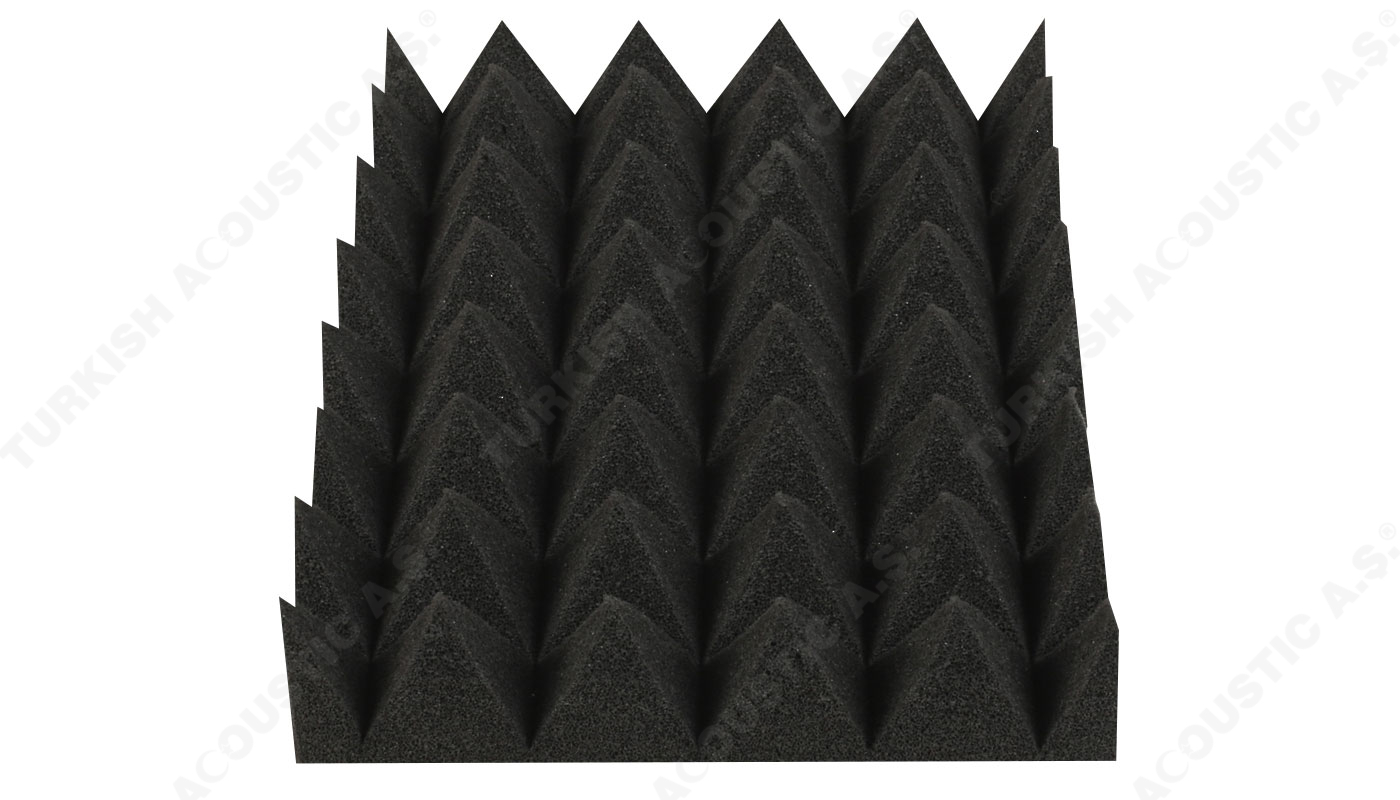

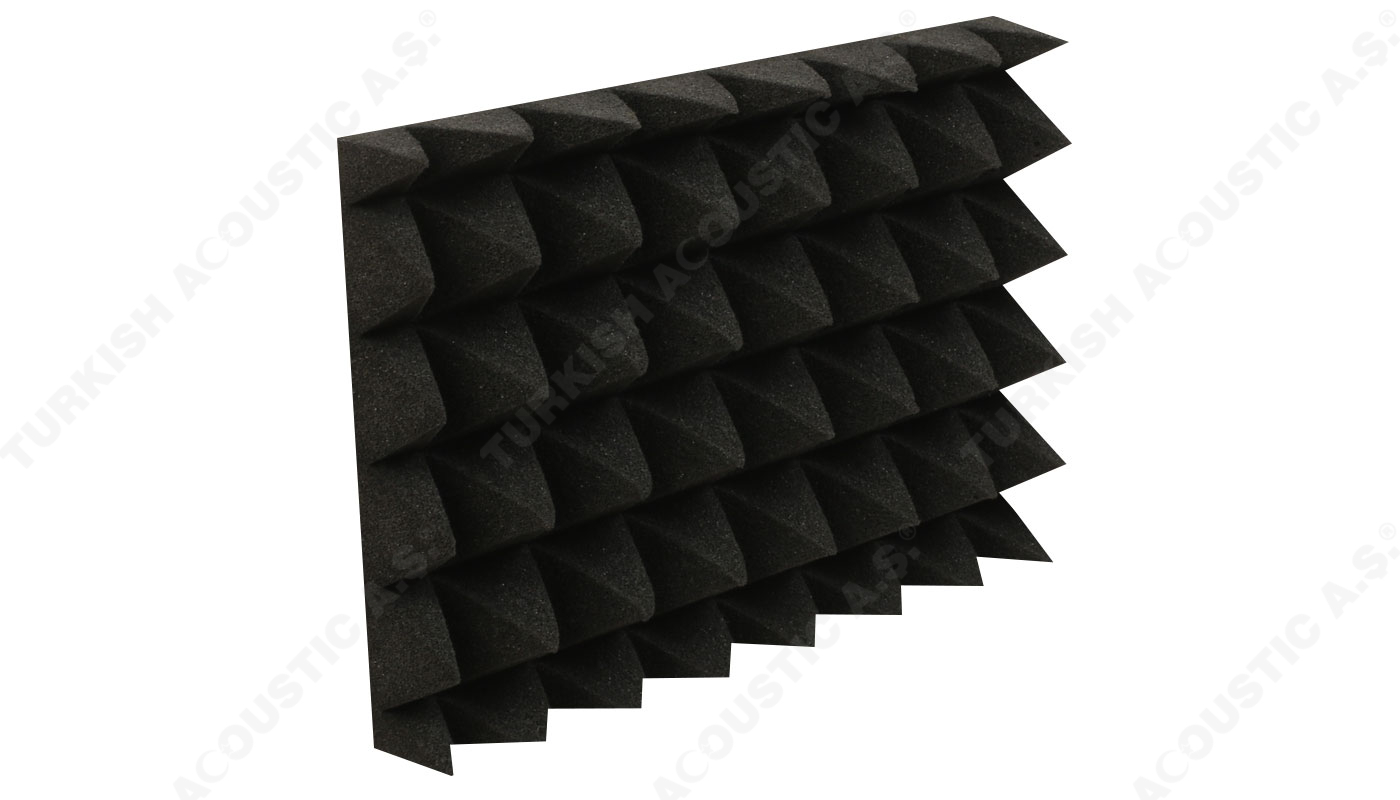

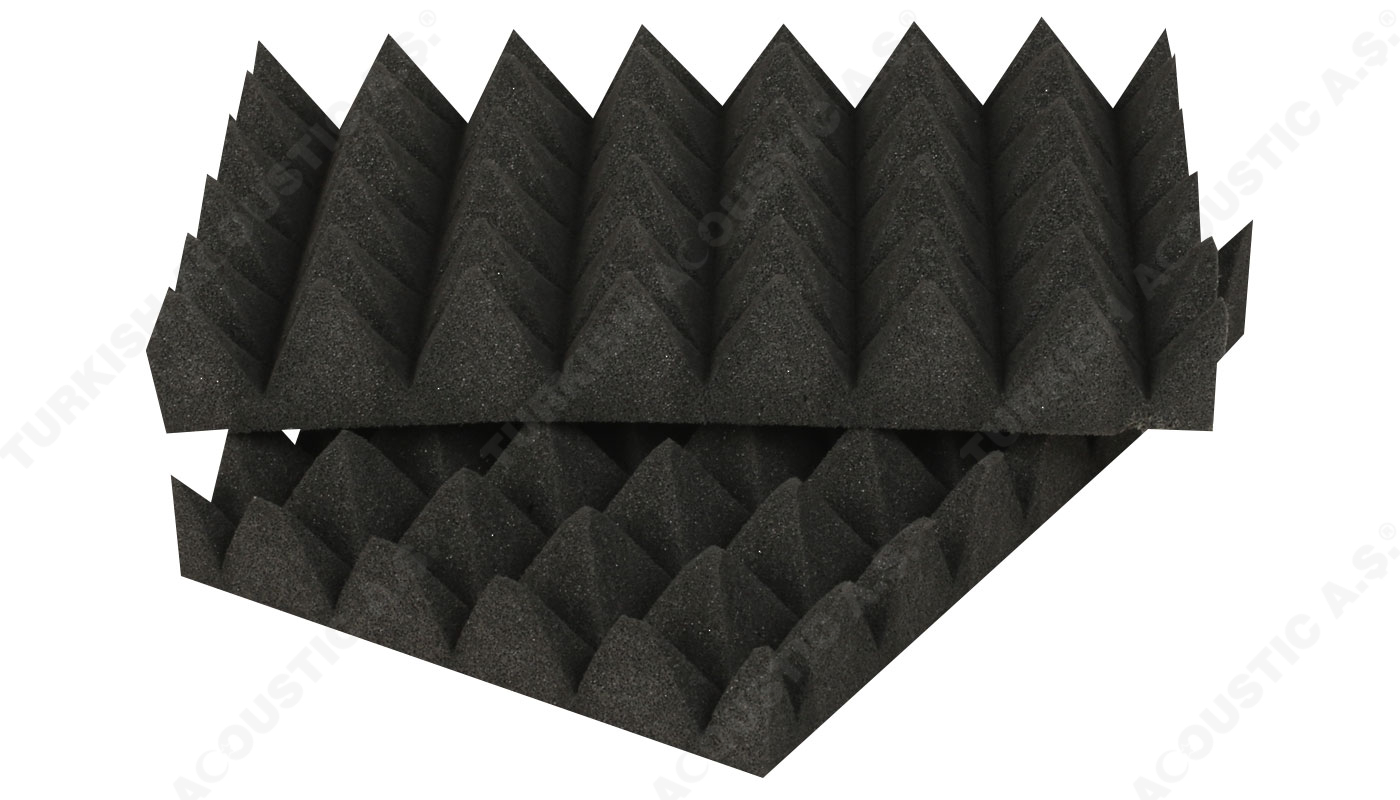

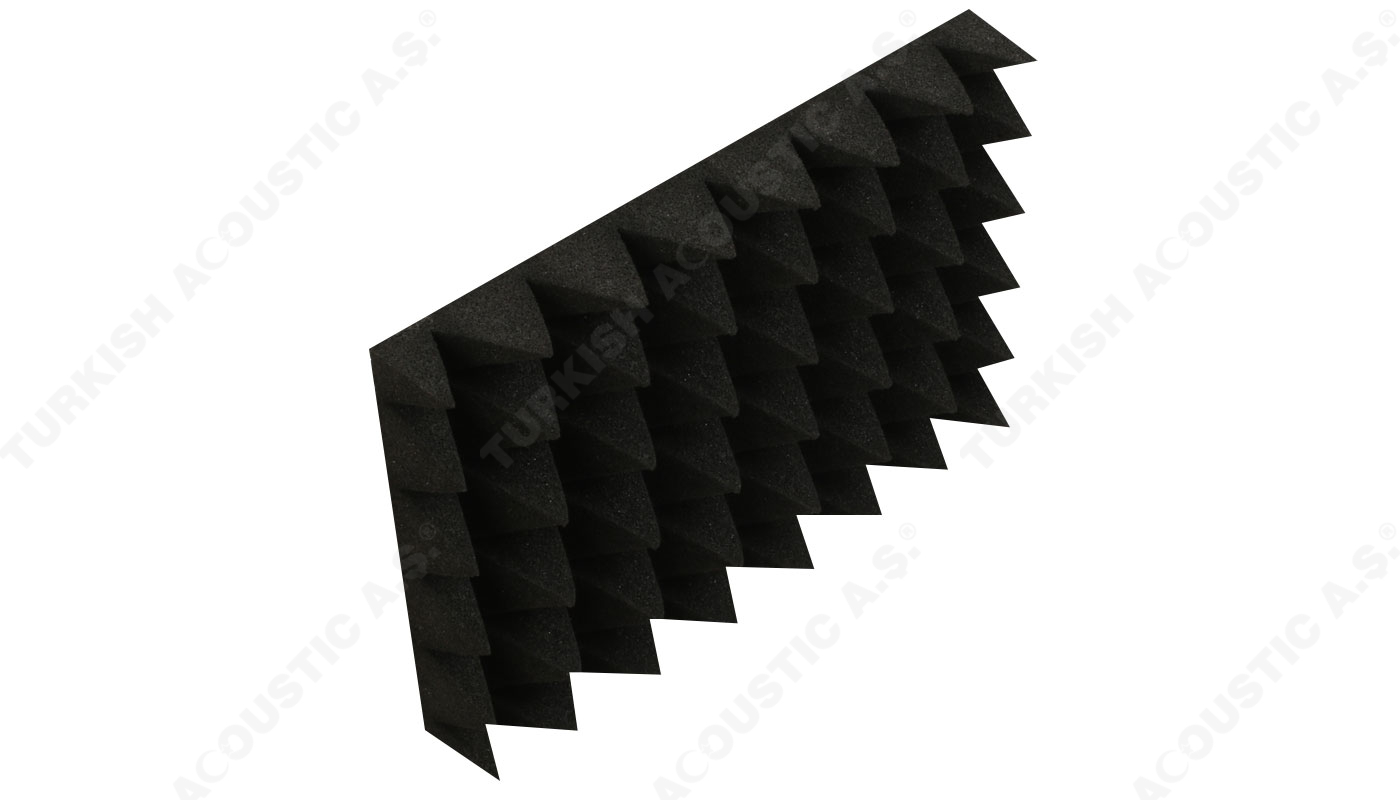

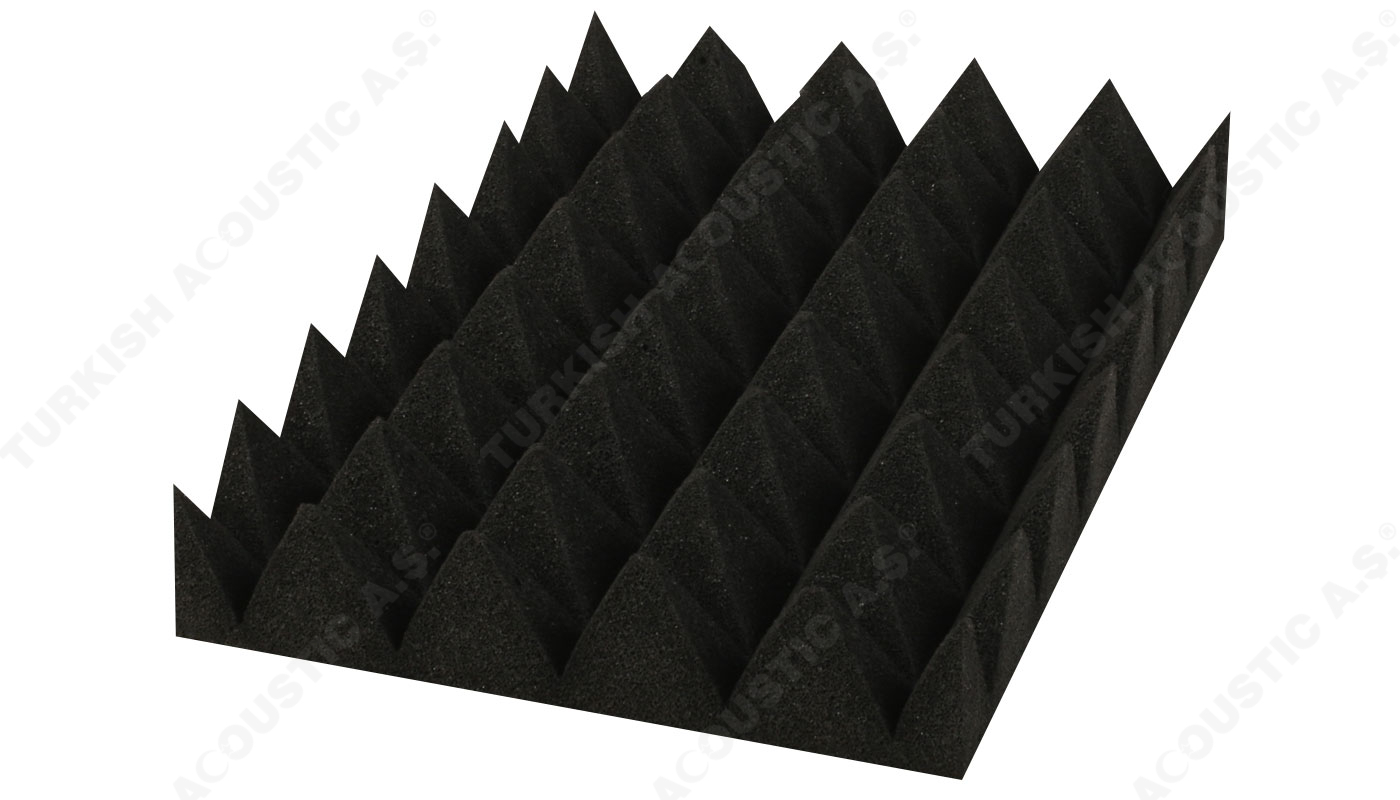

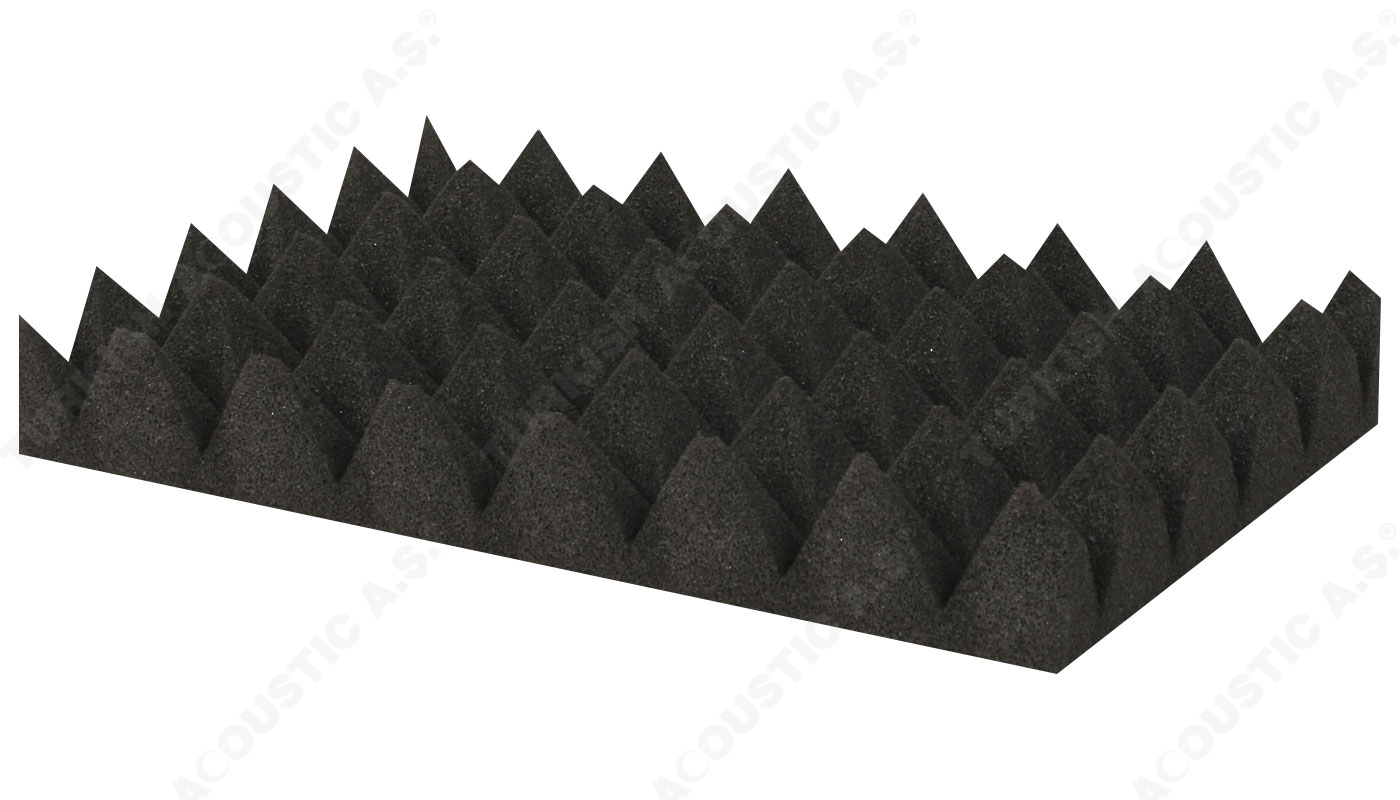

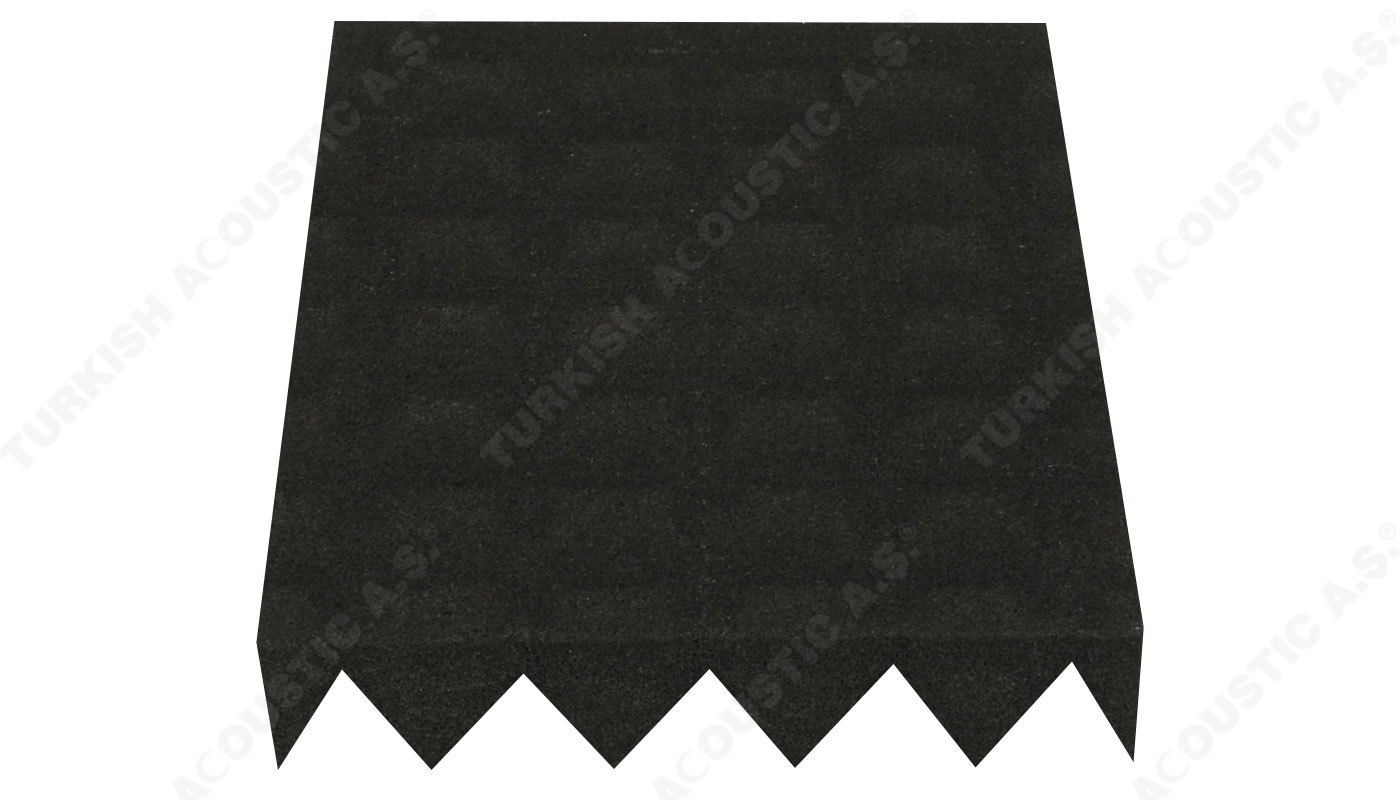

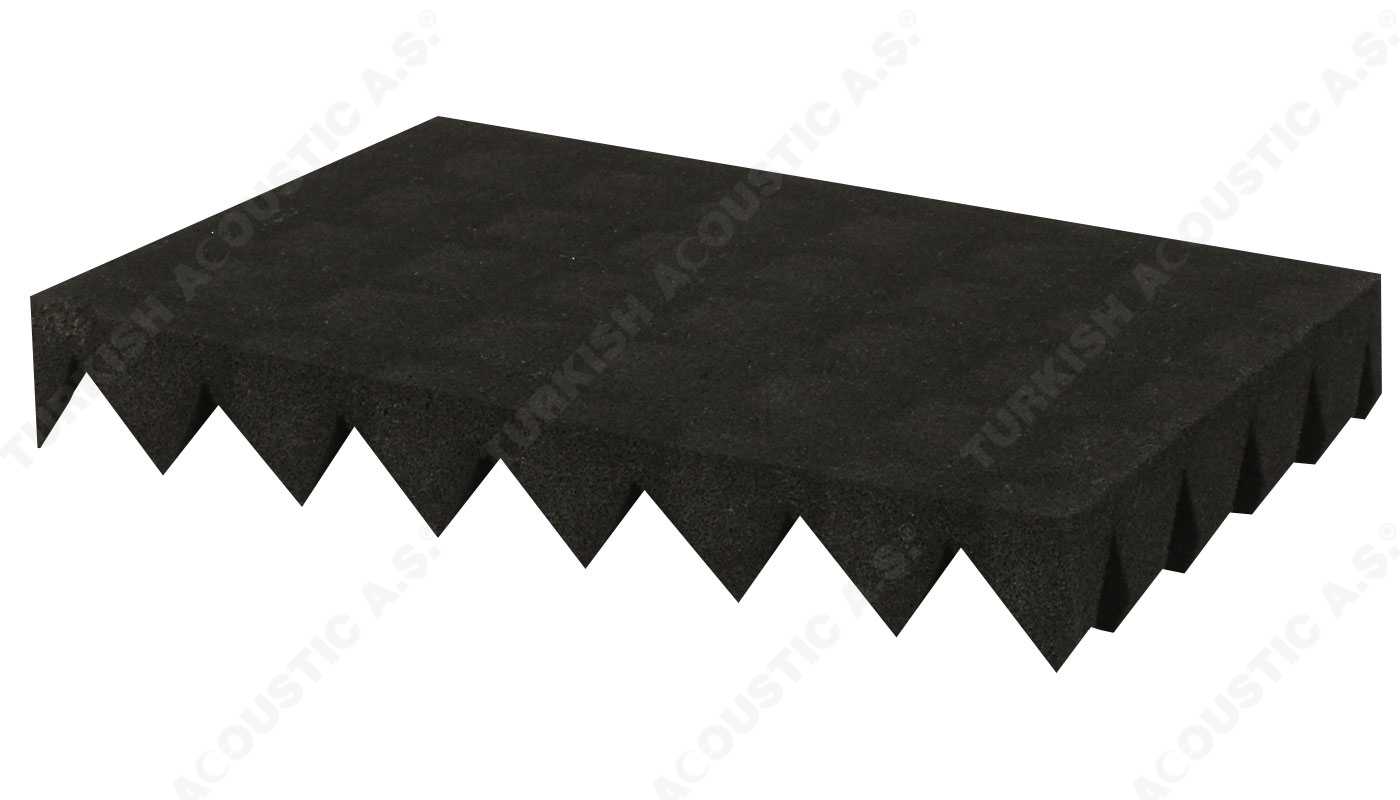

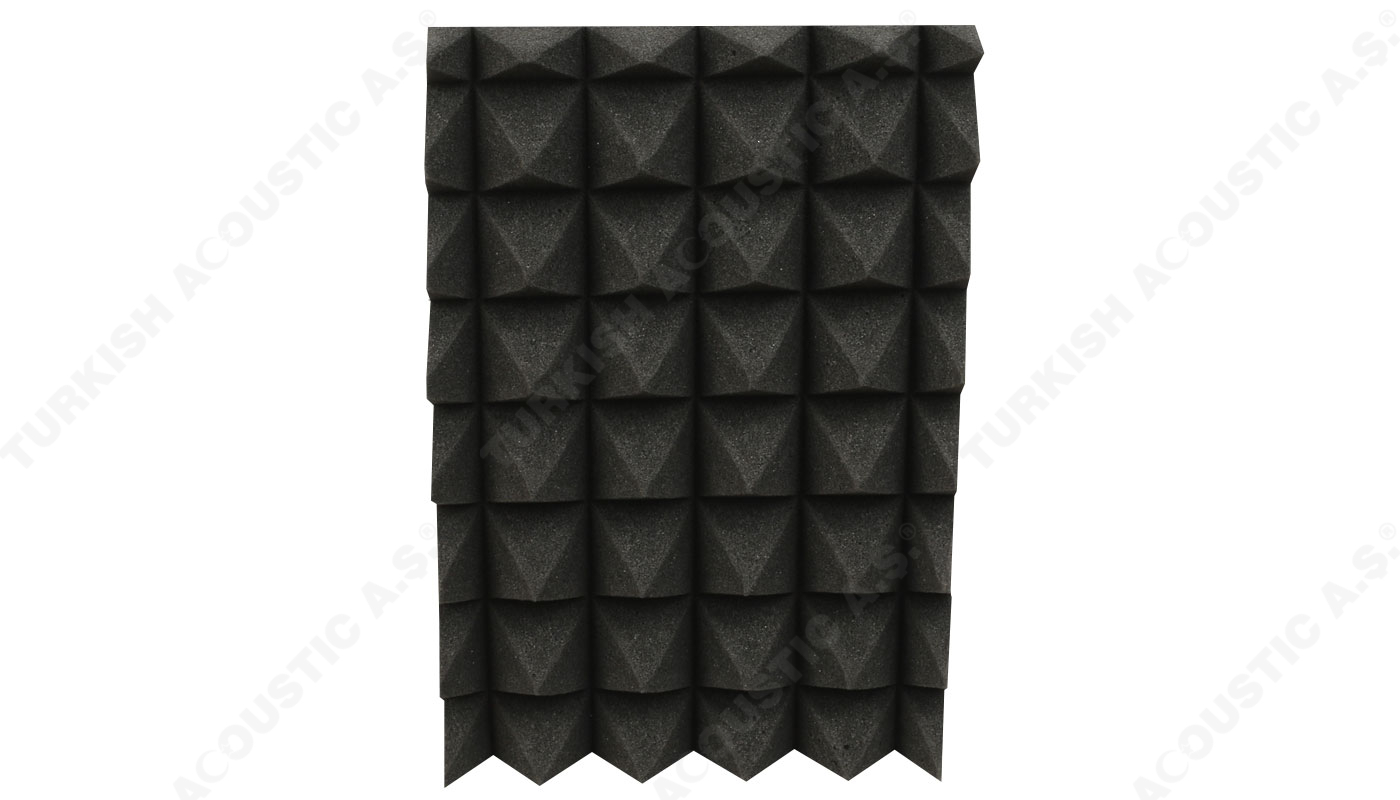

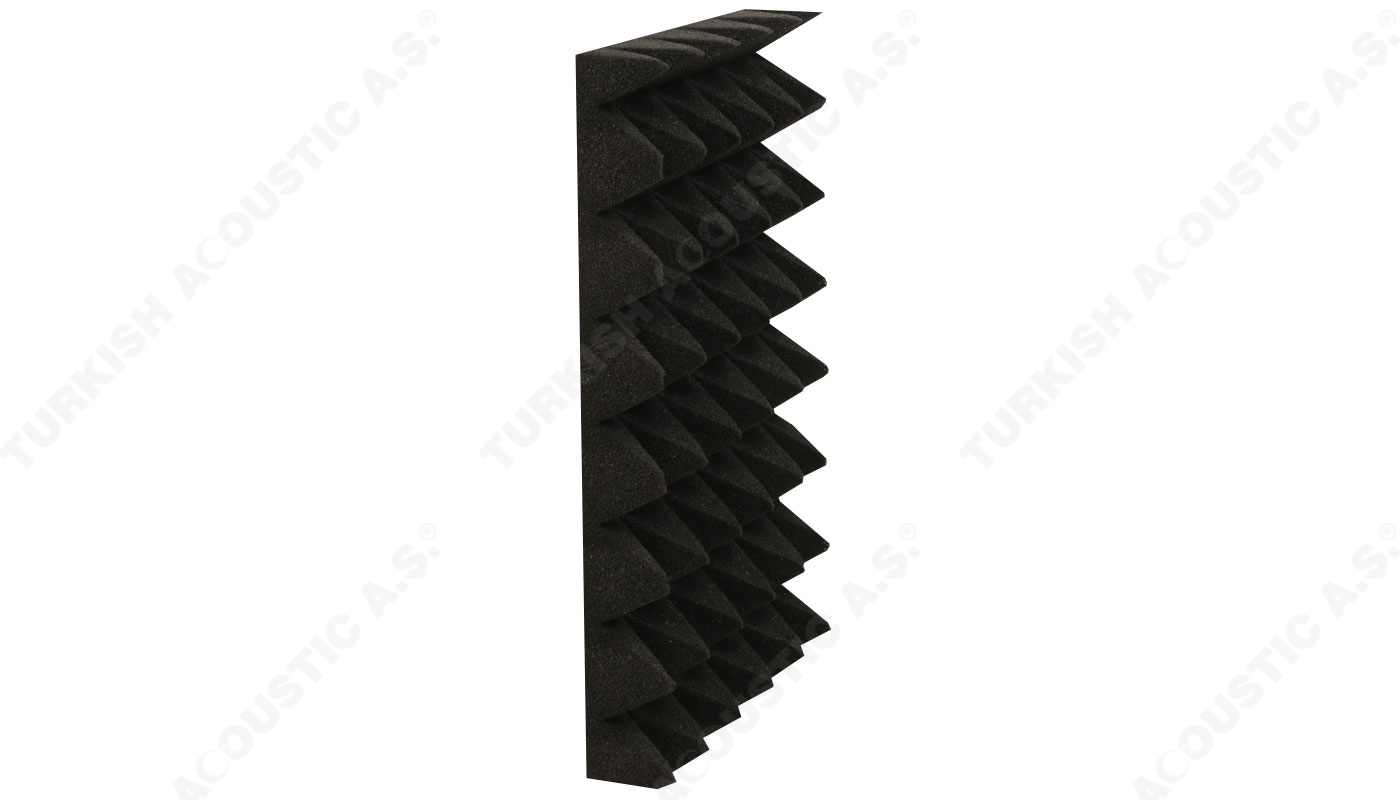

Trk Pyramid Foam: It has an open-cell polyurethane structure. Trk Pyramid Foam is an effective sound insulation material that is used to regulate sound insulation and acoustics with its high sound absorption power. The Trk Pyramid Foam is optional and is resistant to flame and high temperature. Trk Pyramid Foam products can be found on our website. Trk Pyramid Foams are professional materials in sound insulation and absorption and are used in effective sound insulation. You can learn the prices of Trk Pyramid Foam from the price list on the home page of our website. Other variations of Trk Pyramid Foams can also be found in the following assortment (see similar products). Trk Pyramid Foam is used for sound insulation in-studio music room and generator cabinets. Trk Pyramid Foams are optional. Trk Pyramid Foam types are laminated (with inter-barrier) and colored (like white cream) ones on our website.
Trk Pyramid Foam Dimensions: 100 cm x 100 cm Plate dimensions, 40 mm and 50 mm 70 mm are offered for retail sale
Trk Pyramid Foam Package Content: Trk Pyramid Foams 100 cm x 100 cm size plate are sold in 10 packages. 1 Pack 10 m²
Trk Pyramid Foam Color Variations: Black (dark andesite gray) are sold as standard, colored production is possible.
Trk Pyramid Foam Area of Usage: Music room, studio, generator cabin, radio broadcast room, gym, amusement centers.
Trk Pyramid Foam Production: Production of special thickness 50 mm and above is possible. Custom cut to size is possible. Colors RAL chart
Trk Pyramid Foam Nonflammability: Optional / non-flammability Friend; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates.
Trk Pyramid Foam Density: 50 to 60 Kg / M³ It is possible to custom manufacture in desired density and thickness.
Tolerances: 30 mm product is between 25 - 30 mm, 40 mm product is between 35 - 40 mm.

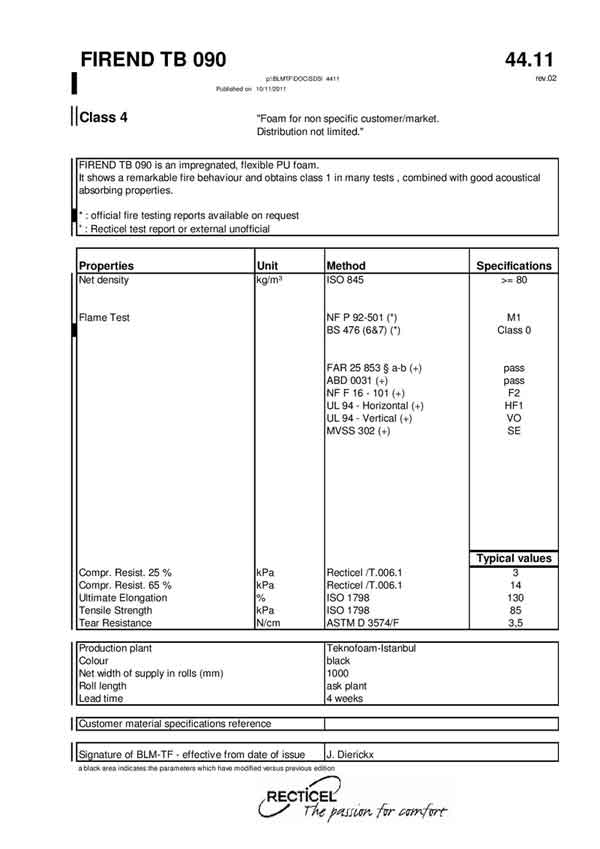

Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Acoustic pyramid sponges are in 100 cm x 100 cm plates, and their packages contain 10 plates, ie 10 m² of products. It is sold retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
