Product Descrıptıon

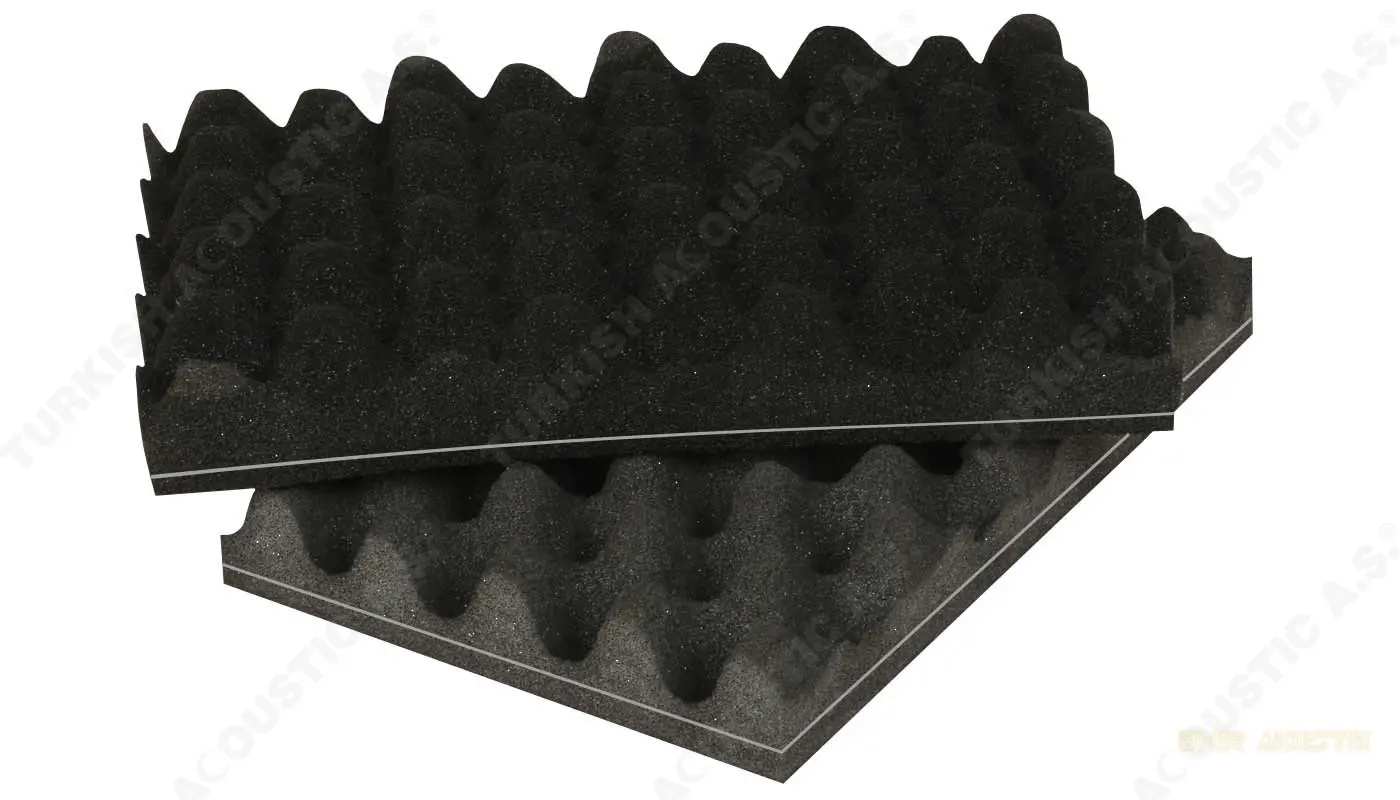

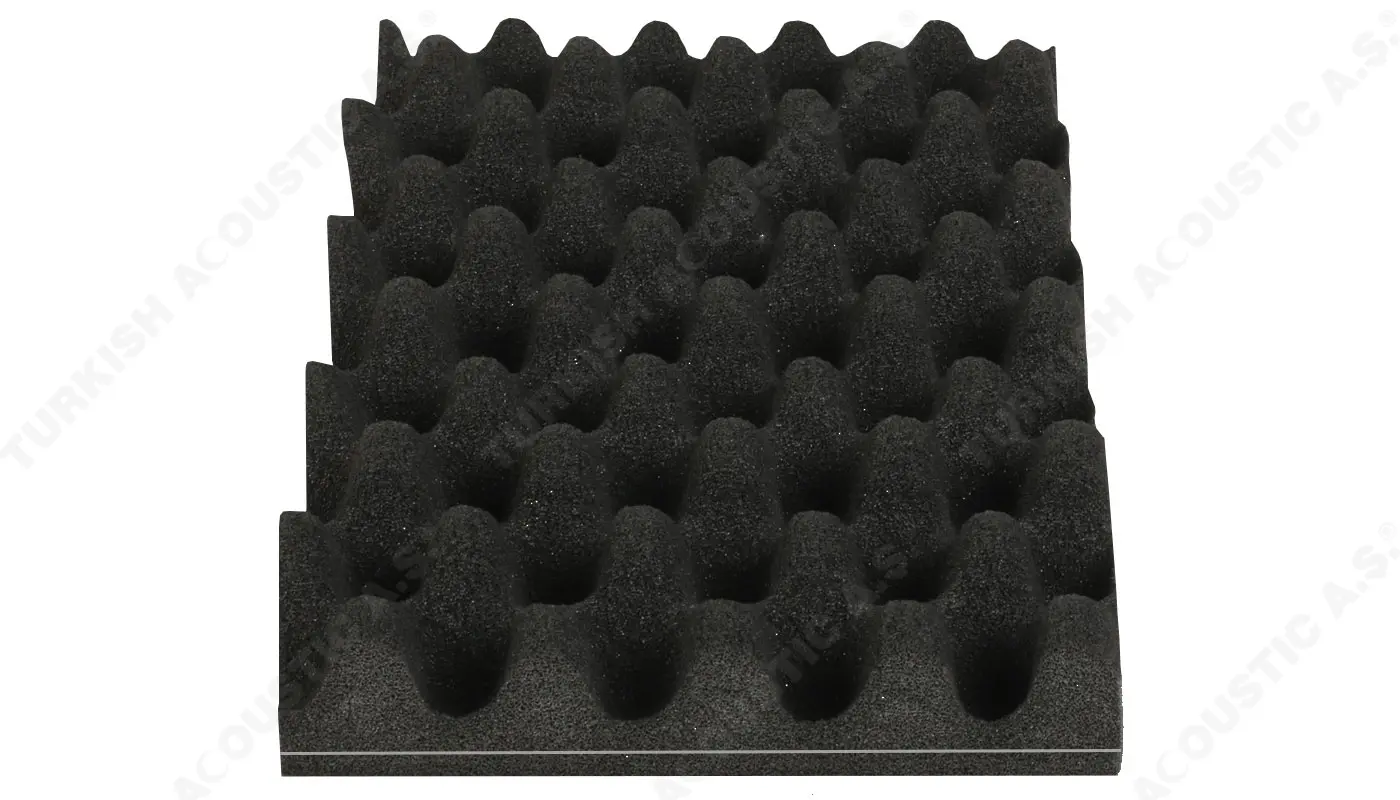

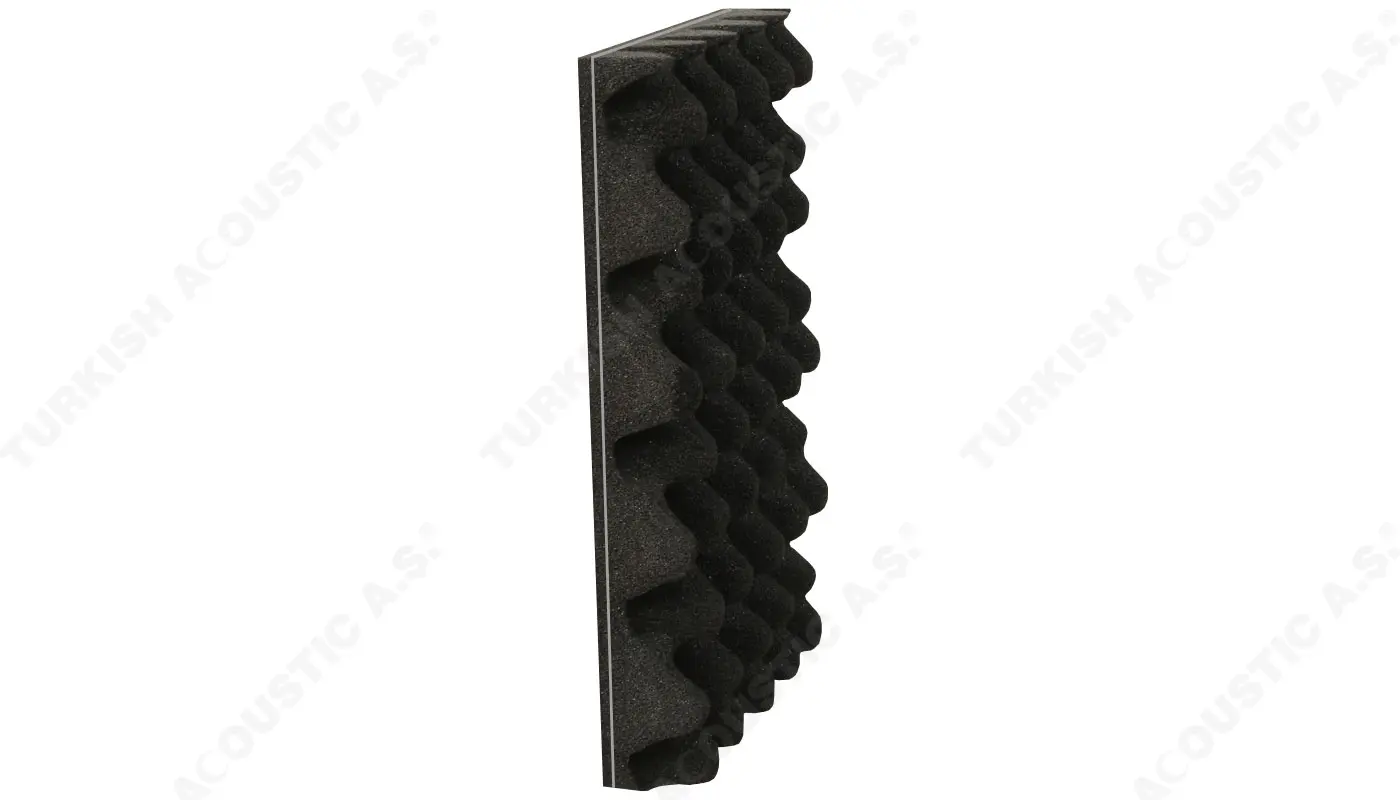

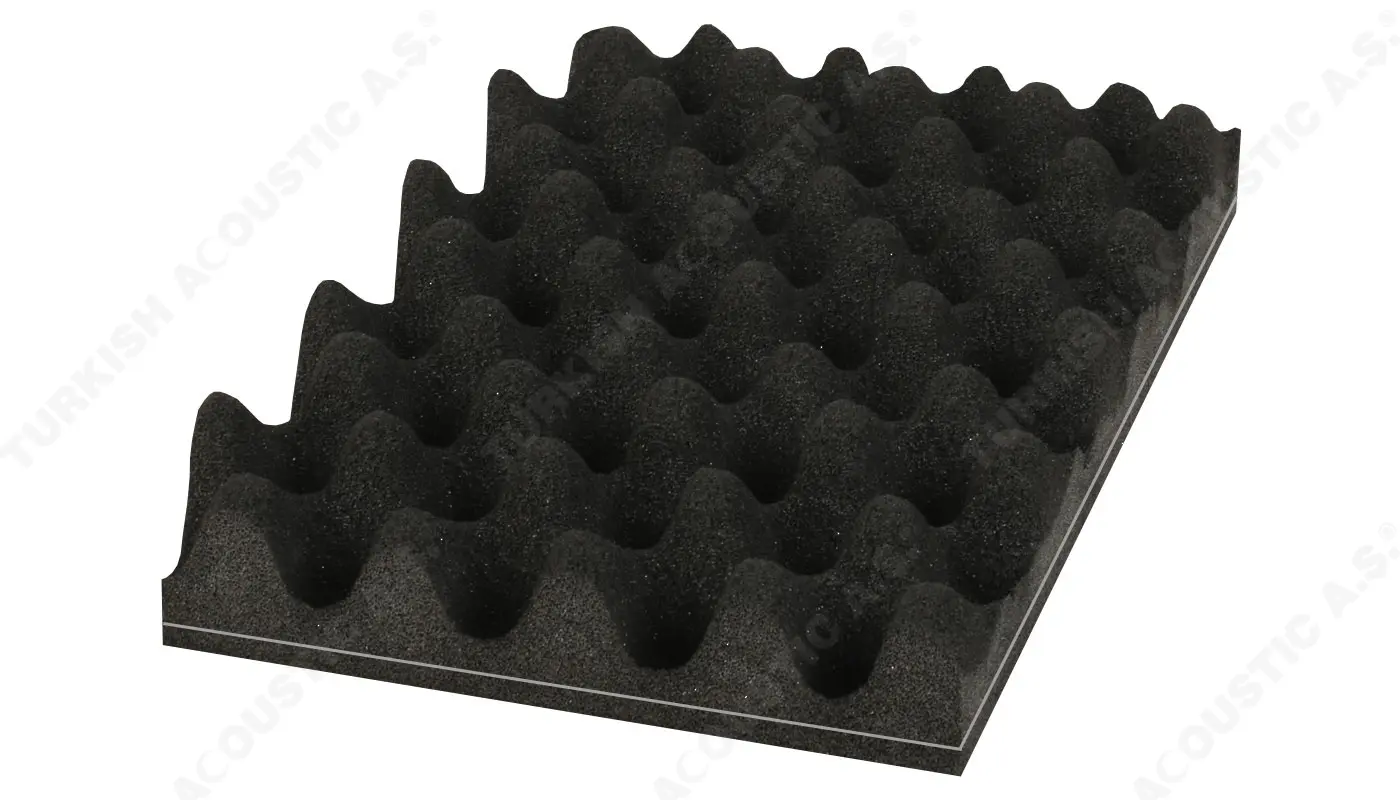

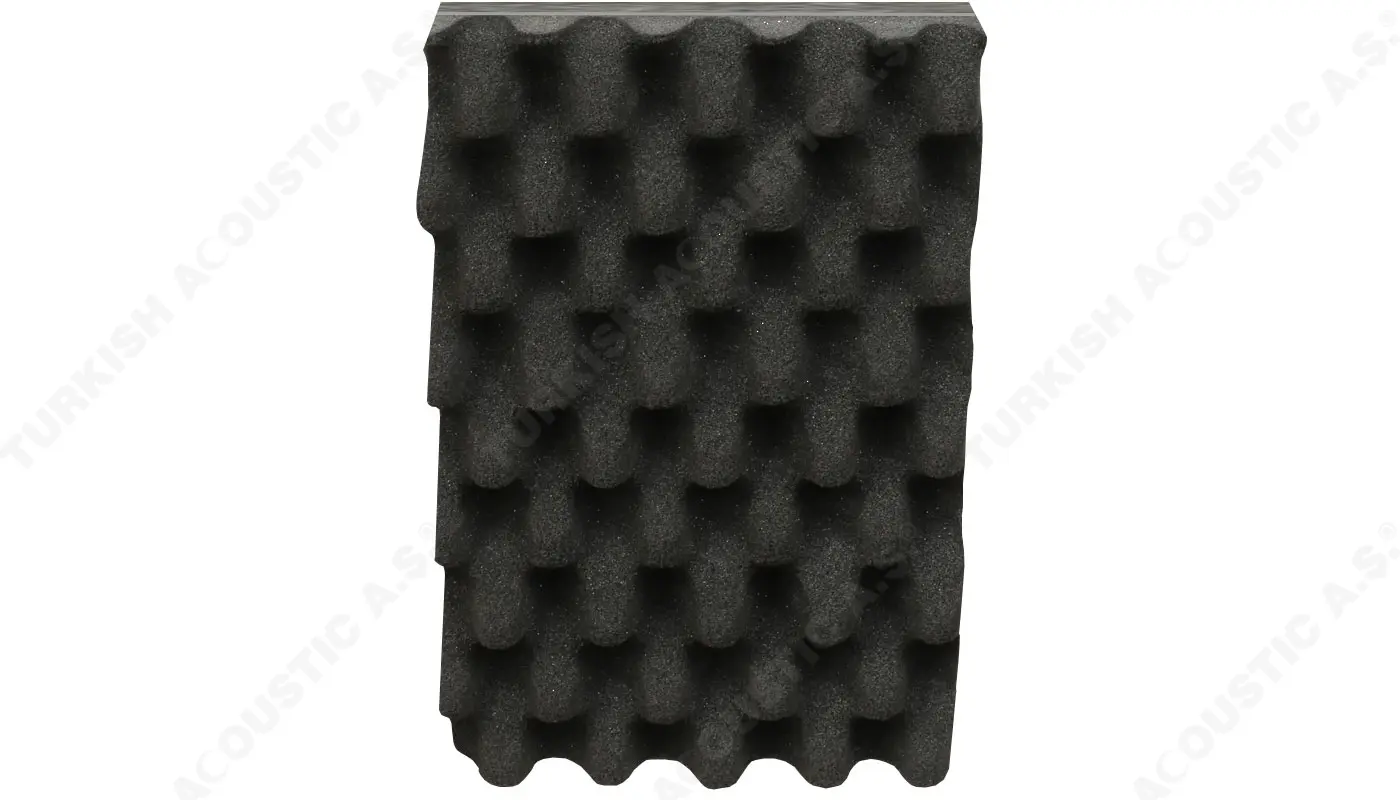

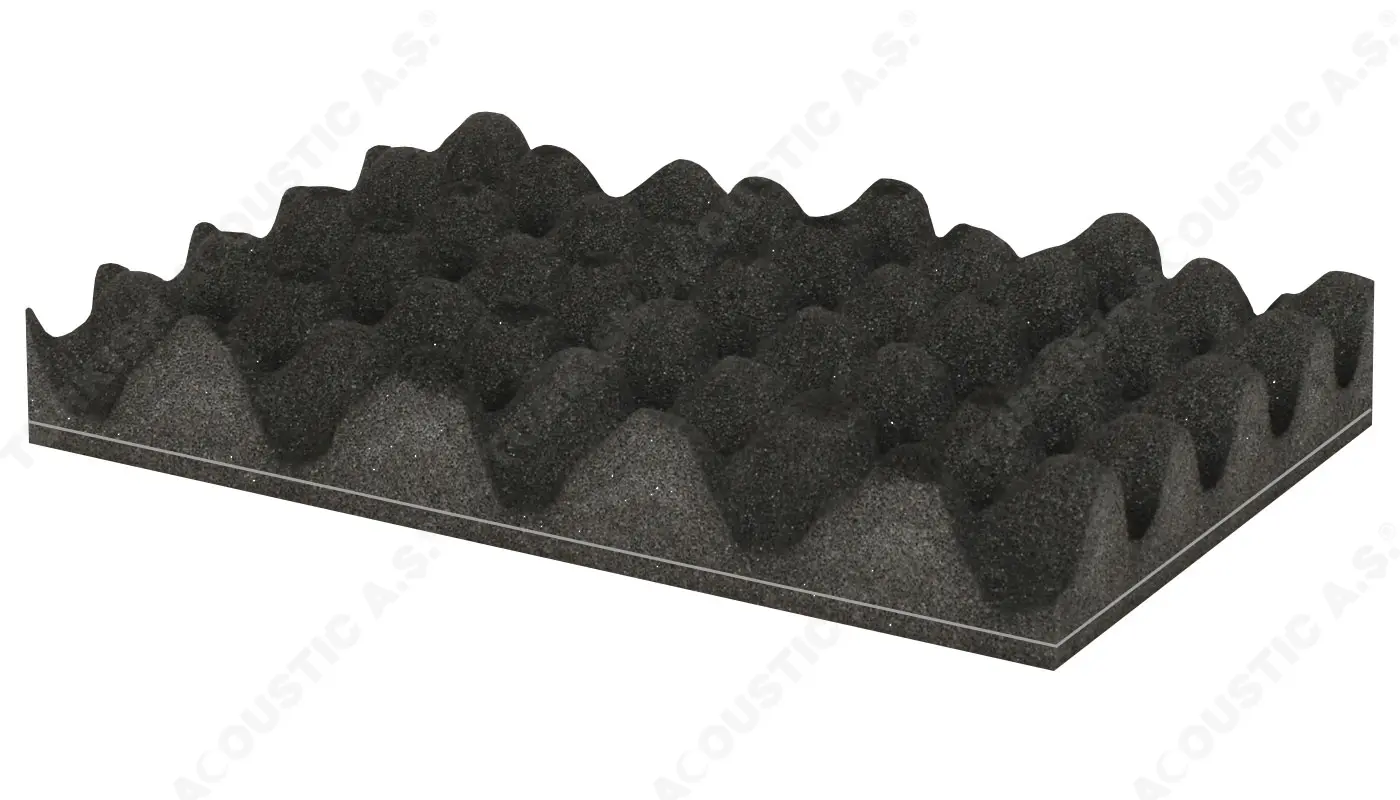

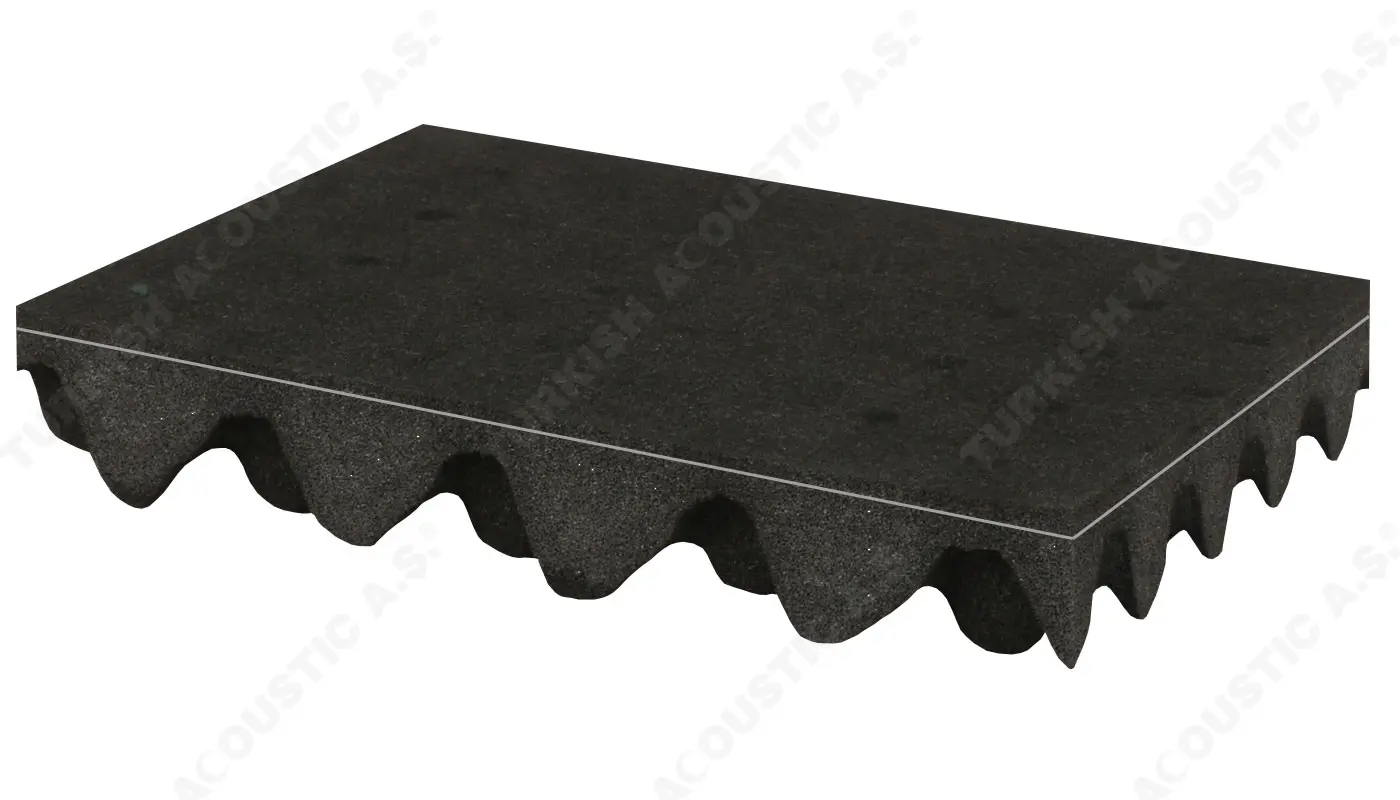

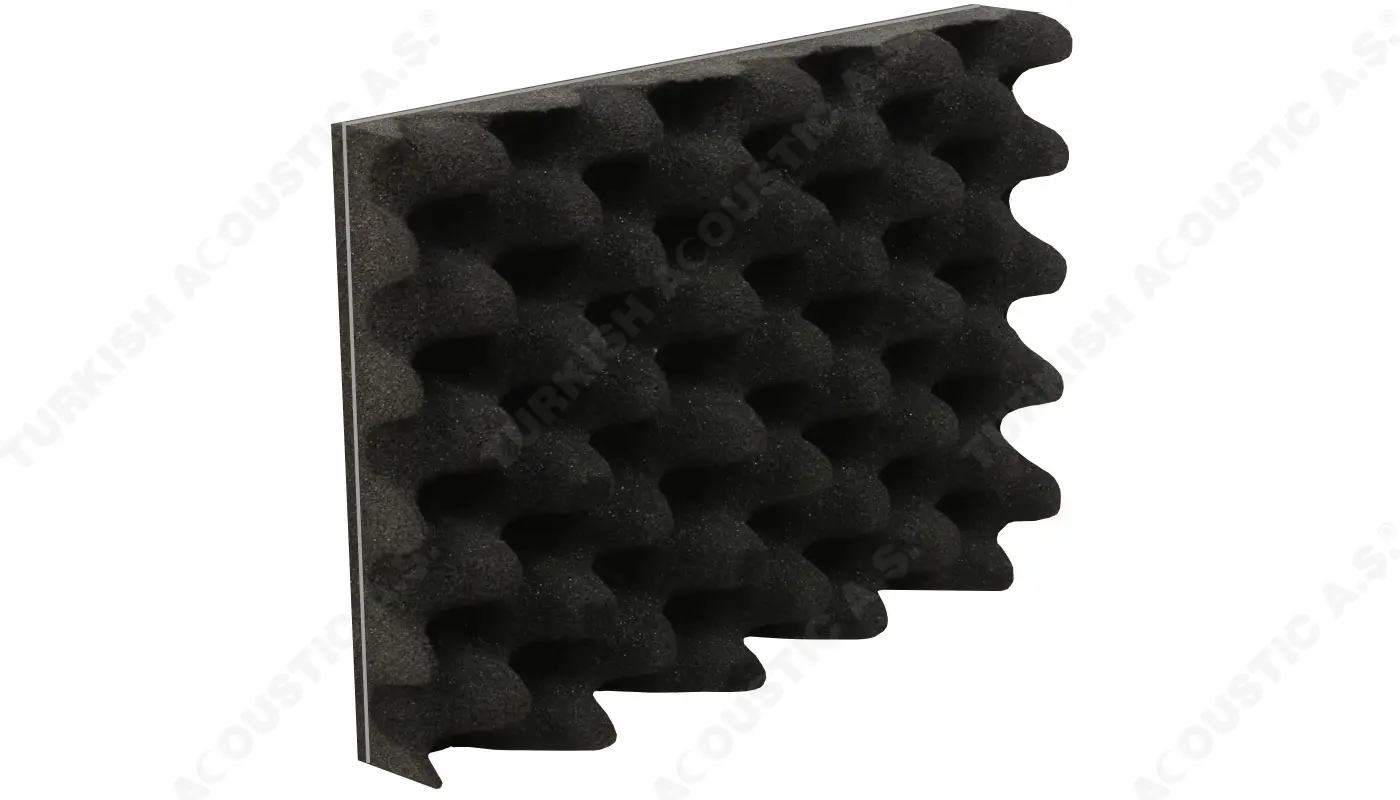

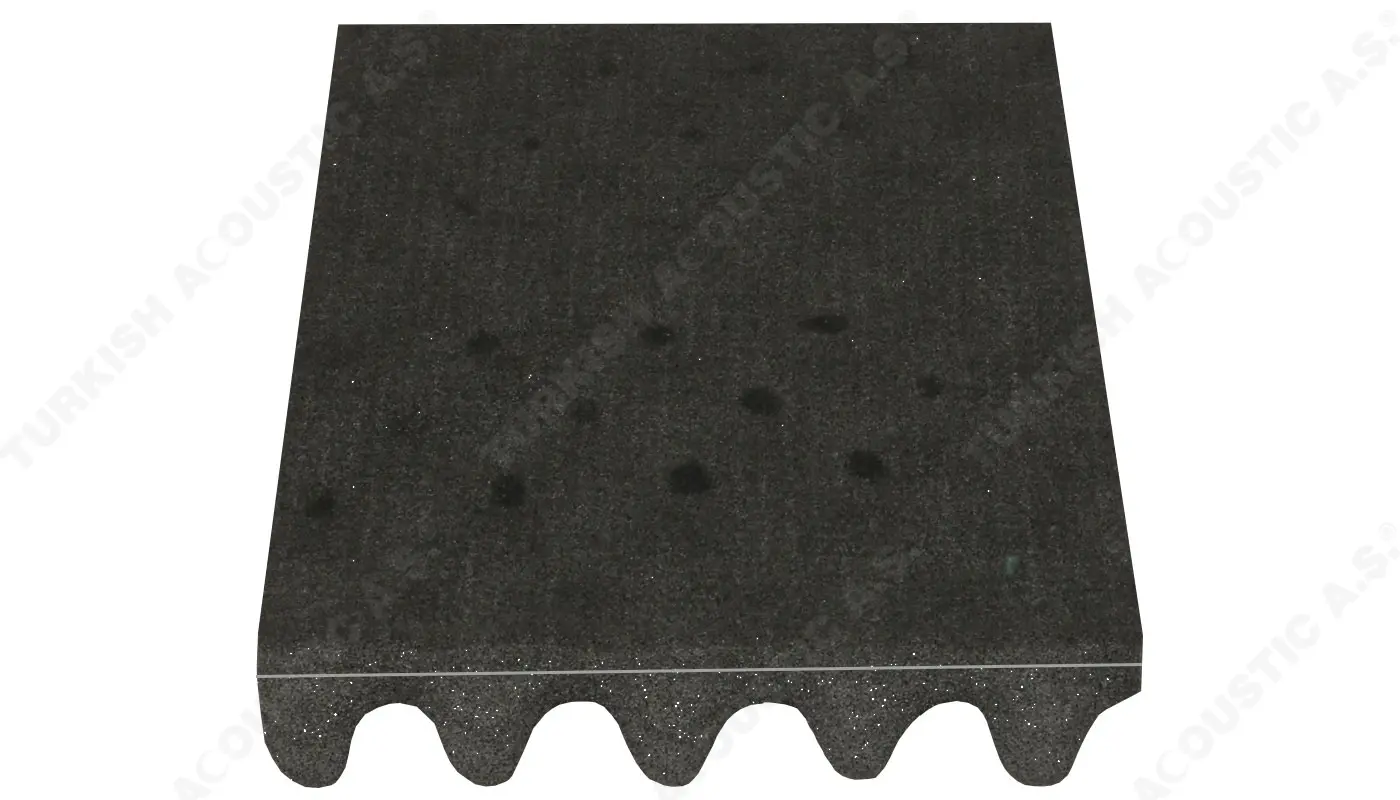

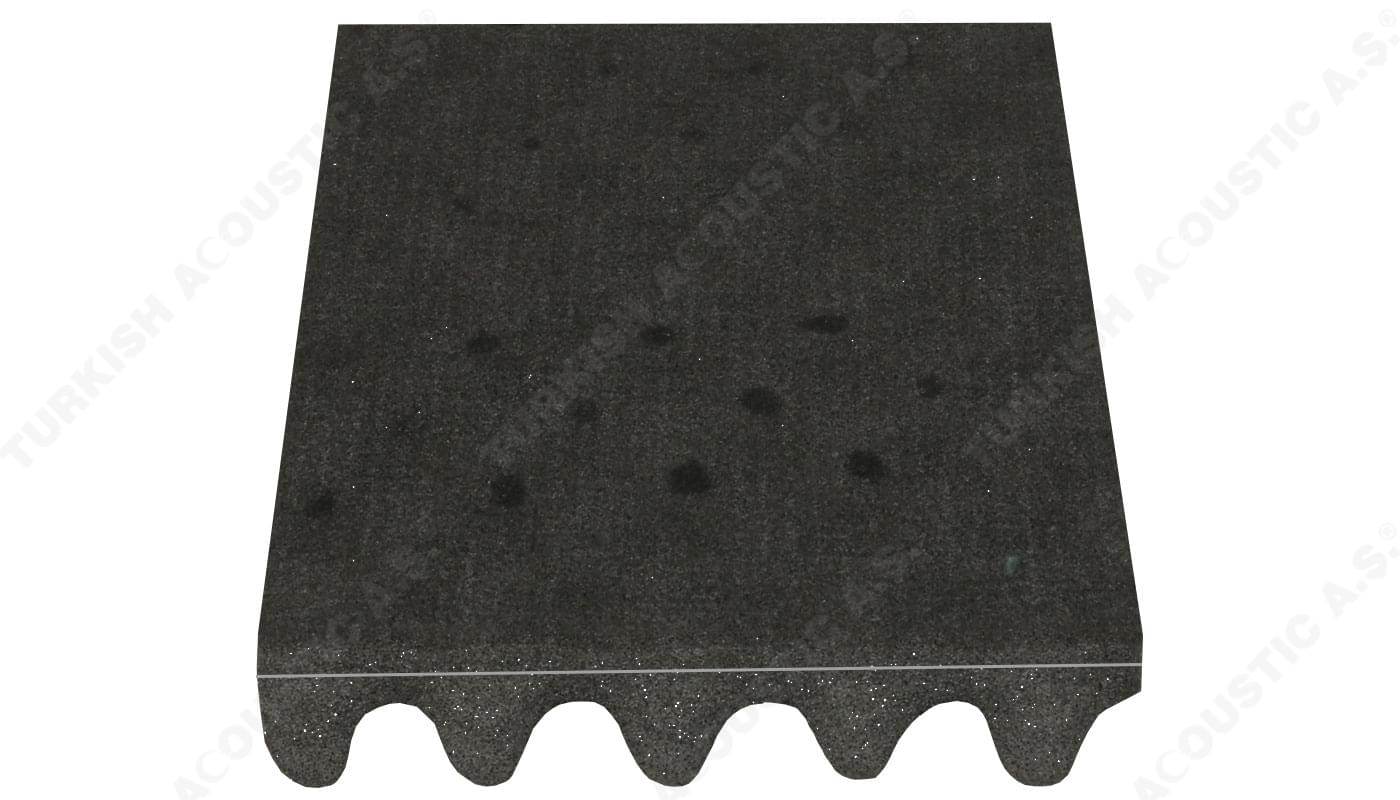

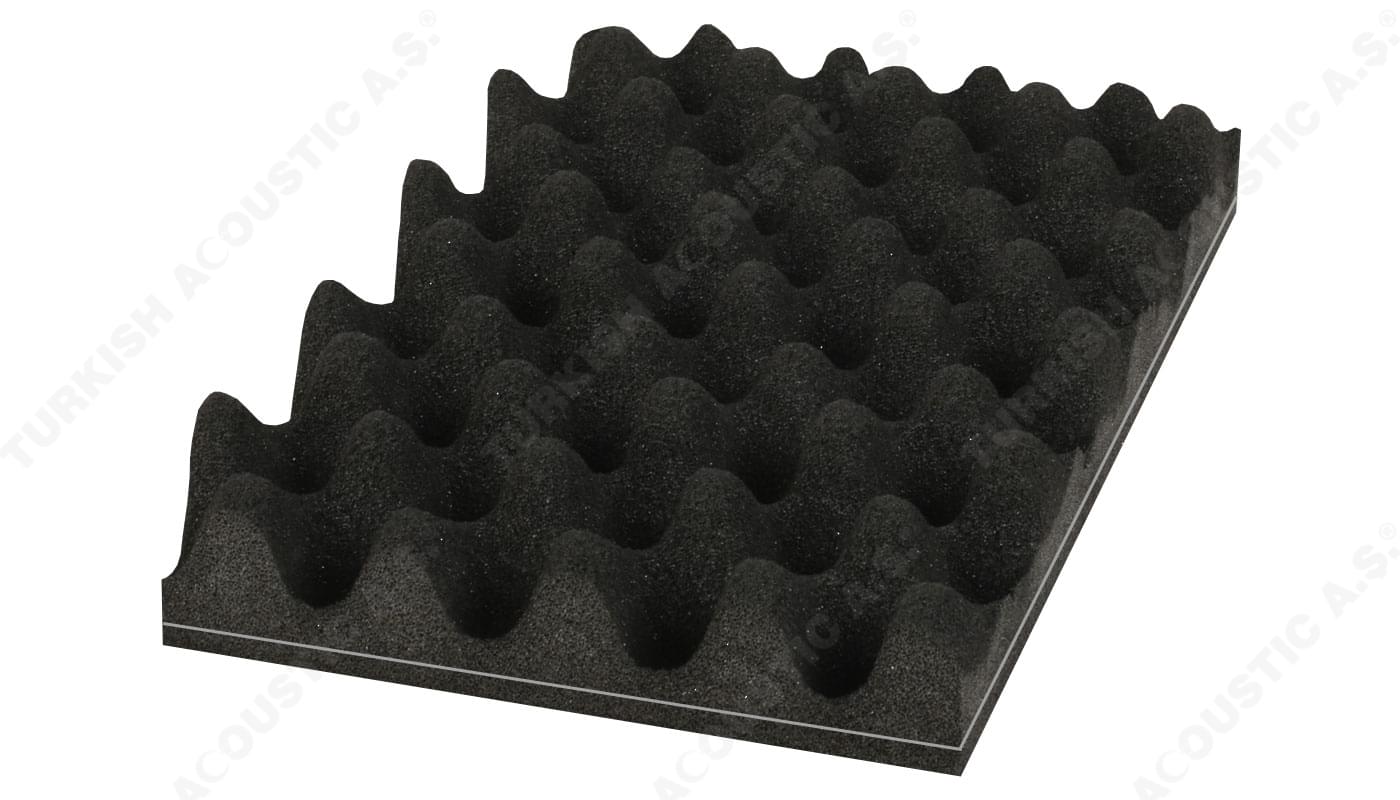

Barrier Egg Sponge: Barrier acoustic sponge is a sponge type which has a flat fireproof acoustic sponge on its lower surface, acoustic labyrinth, pyramid, or egg sponge on its surface, and EPDM heavy rubber barrier between the sponges. Acoustic sponges cannot eliminate loud sounds by themselves effectively and with high performance.

Barrıer Egg Sponge

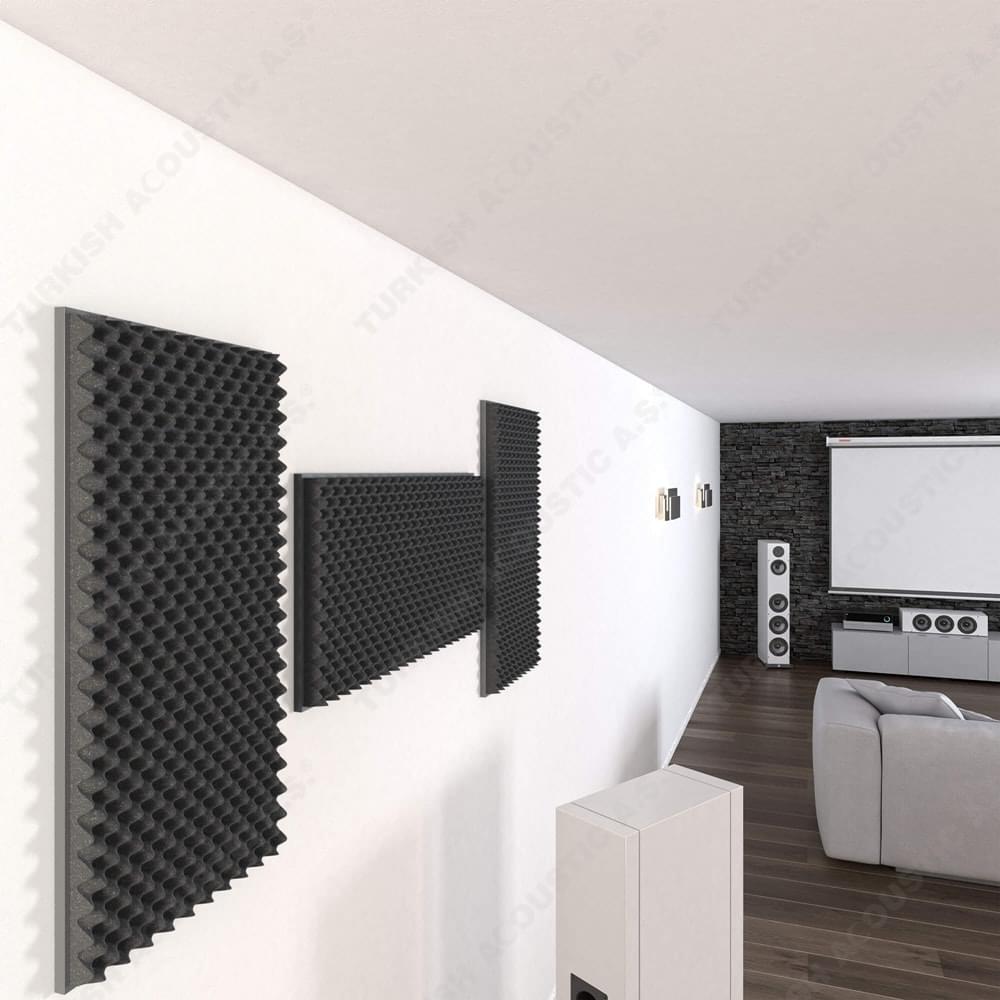

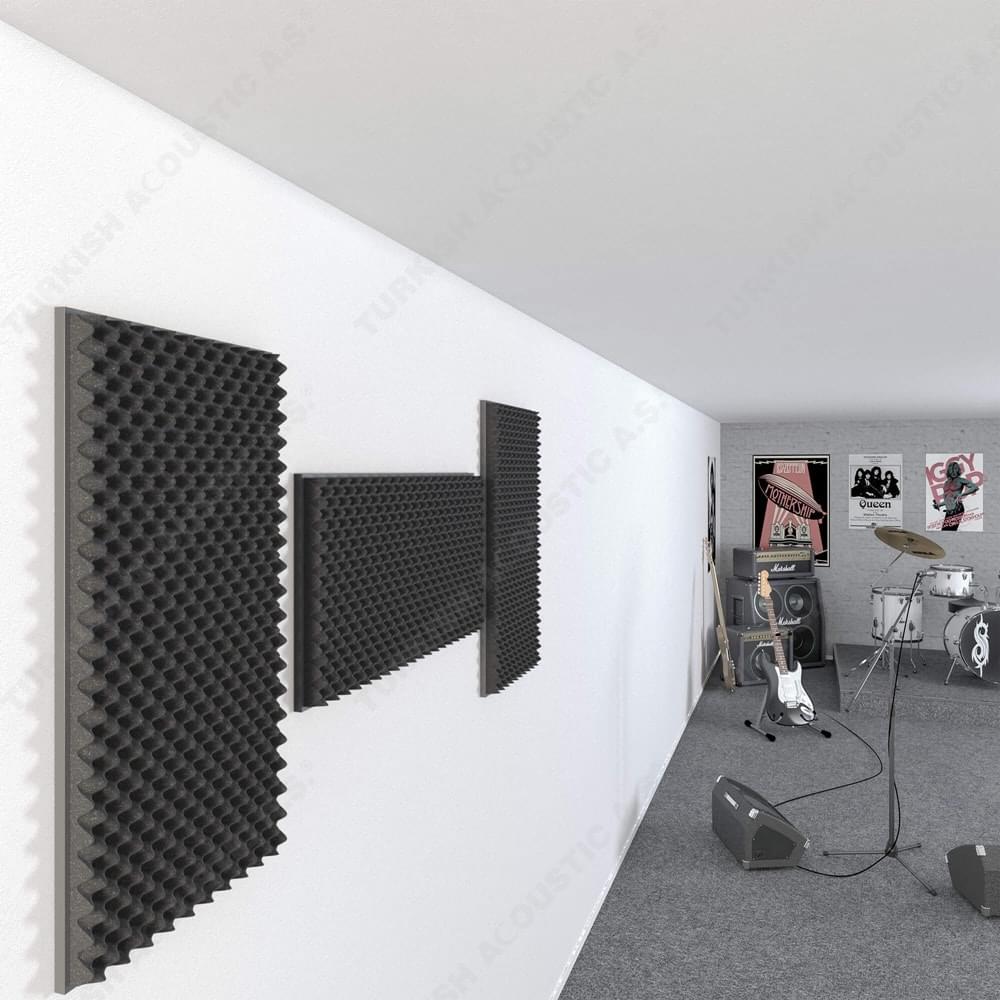

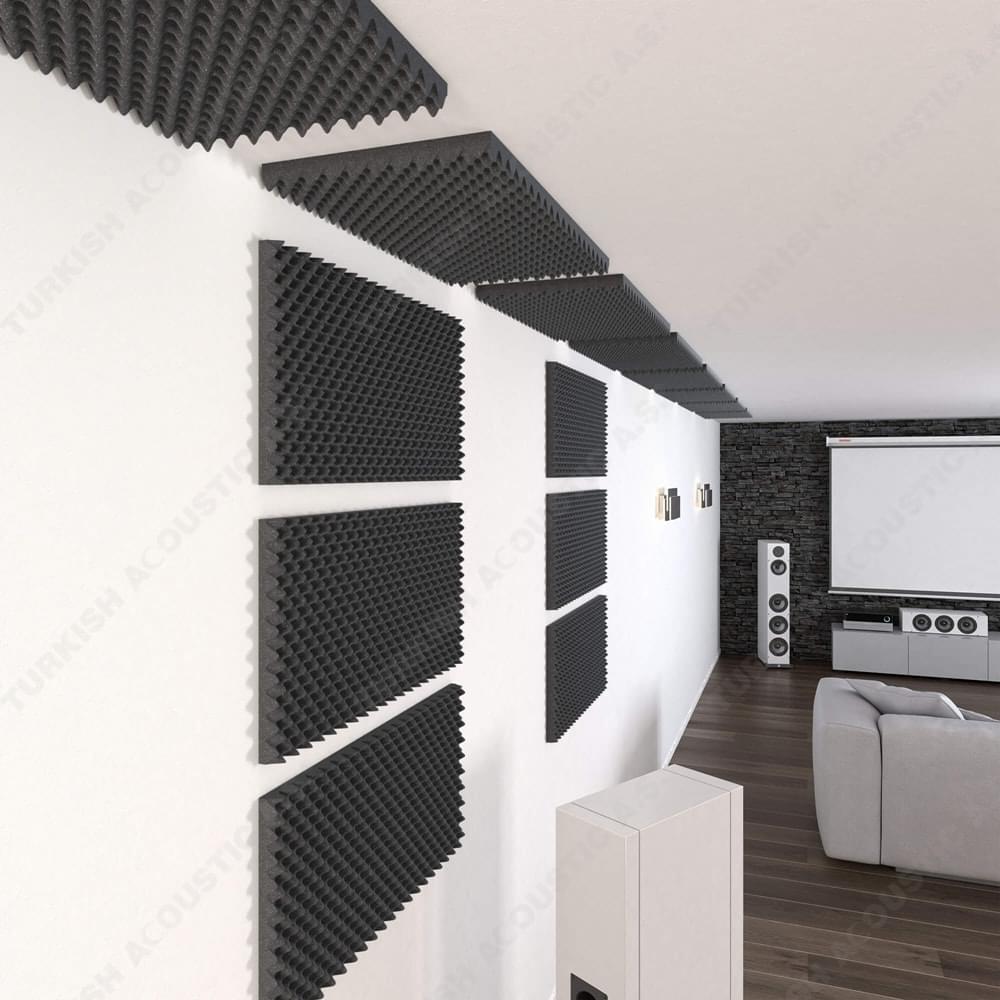

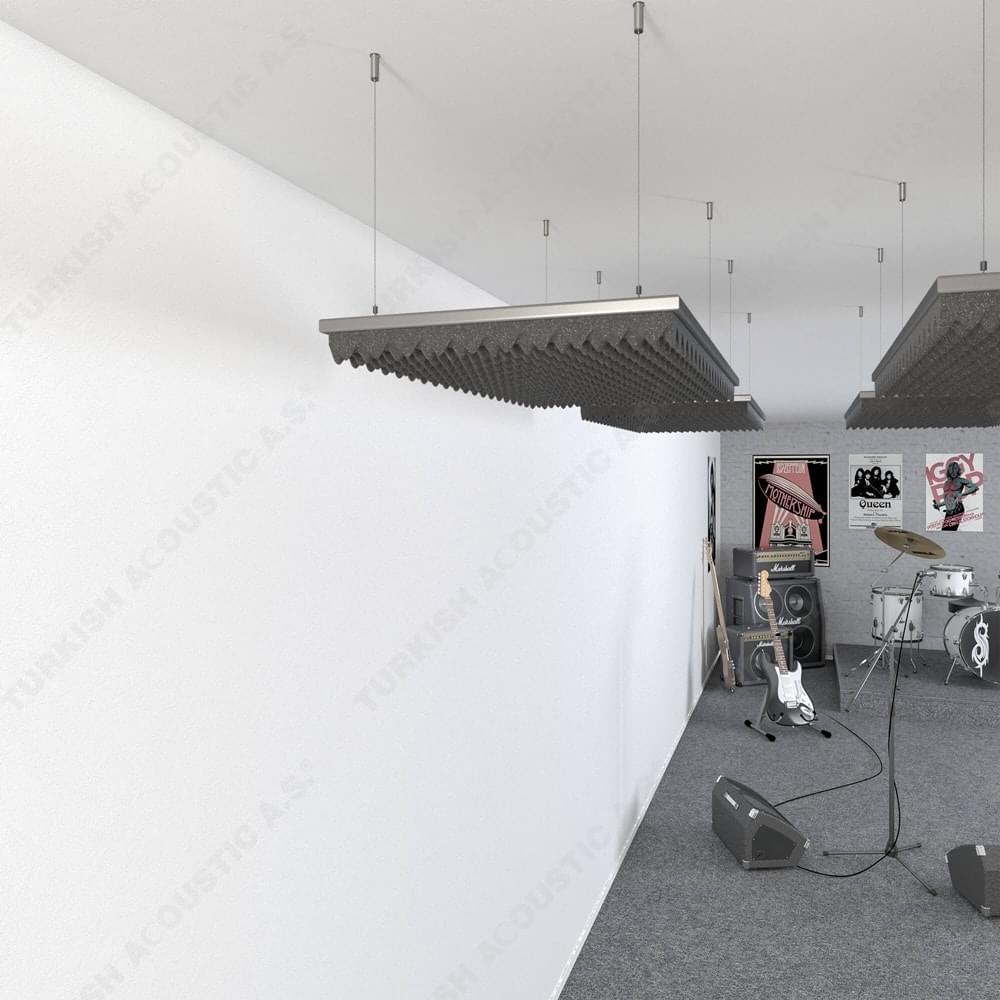

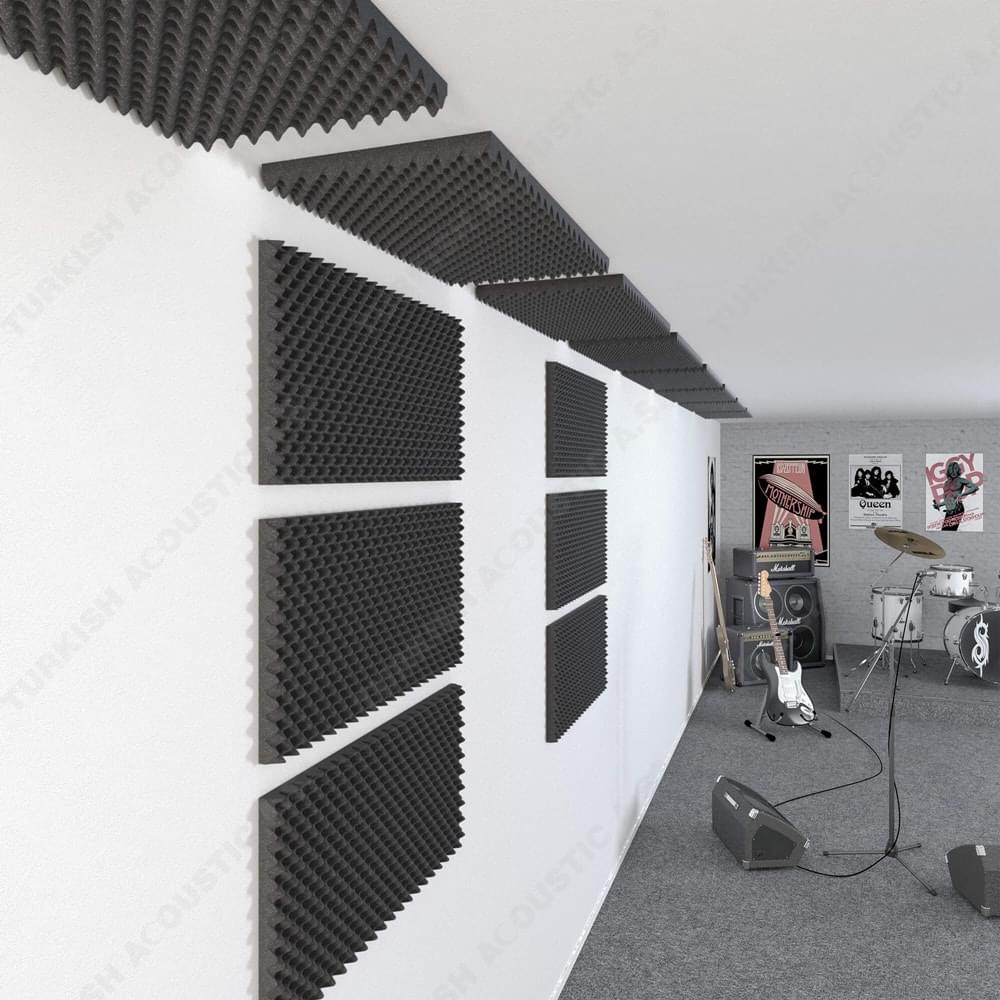

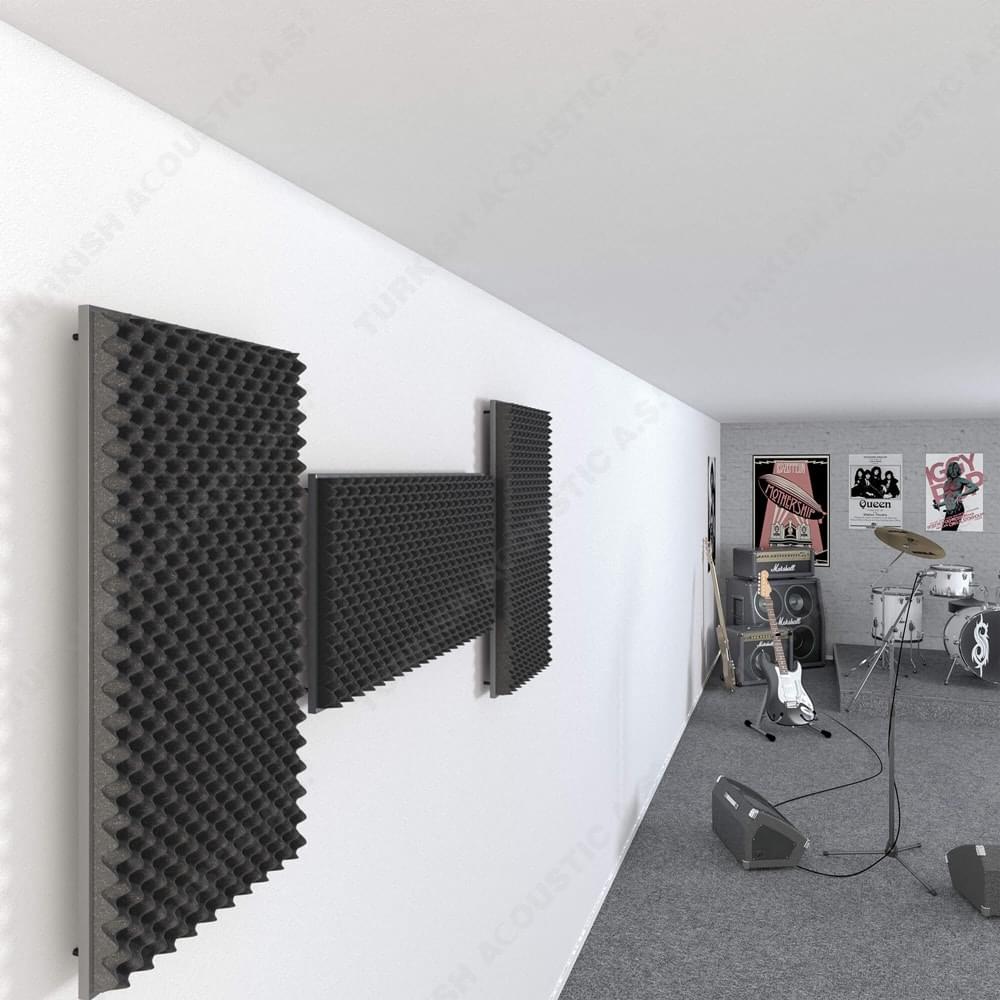

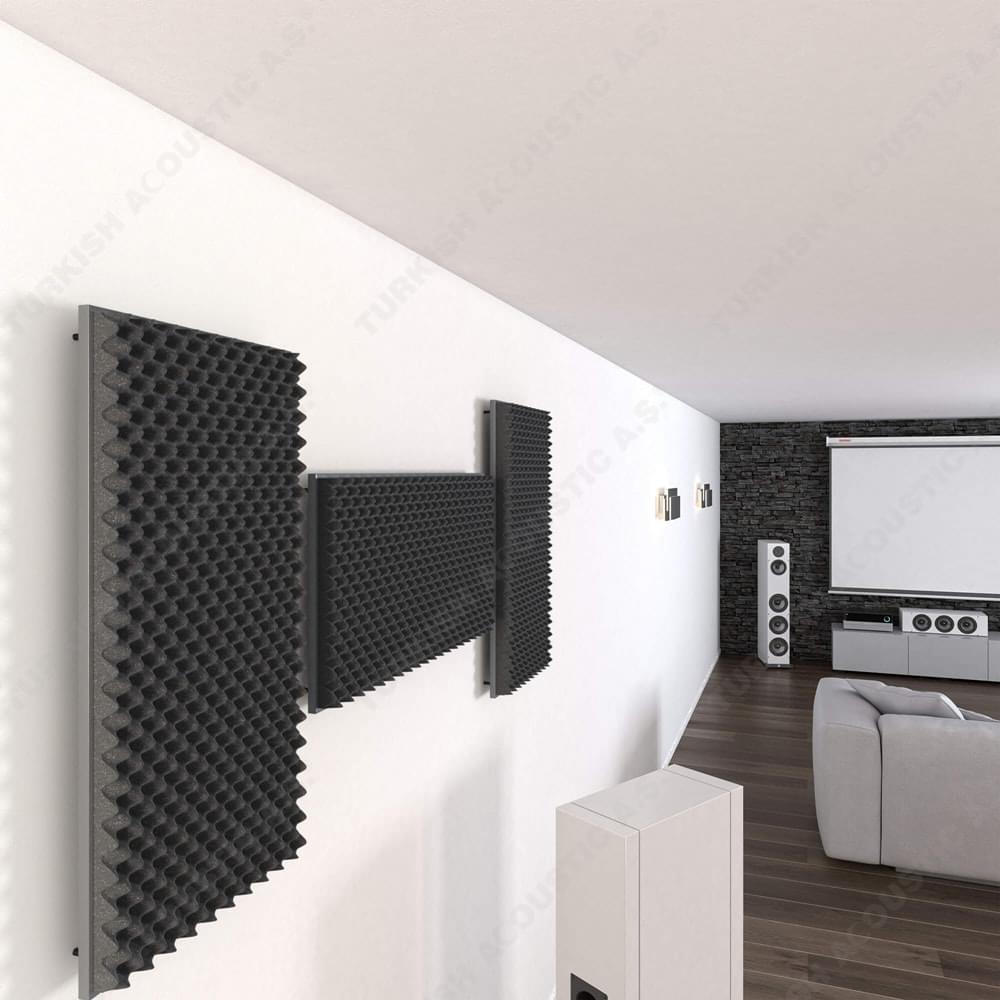

Application Images

Product Images

Implementatıon Gallery

Product Certıfıcates

Fıelds of use

Implementatıon Fıelds

Varıatıons

Barrıer Egg Sponge

Barrıer Self Adhesıve Egg

Colored Egg Sponge

Colored Self Adhesıve Egg

Self Adhesıve Egg Sponge

Implementatıons

Egg Sponge Applıcatıon

Product Detaıls

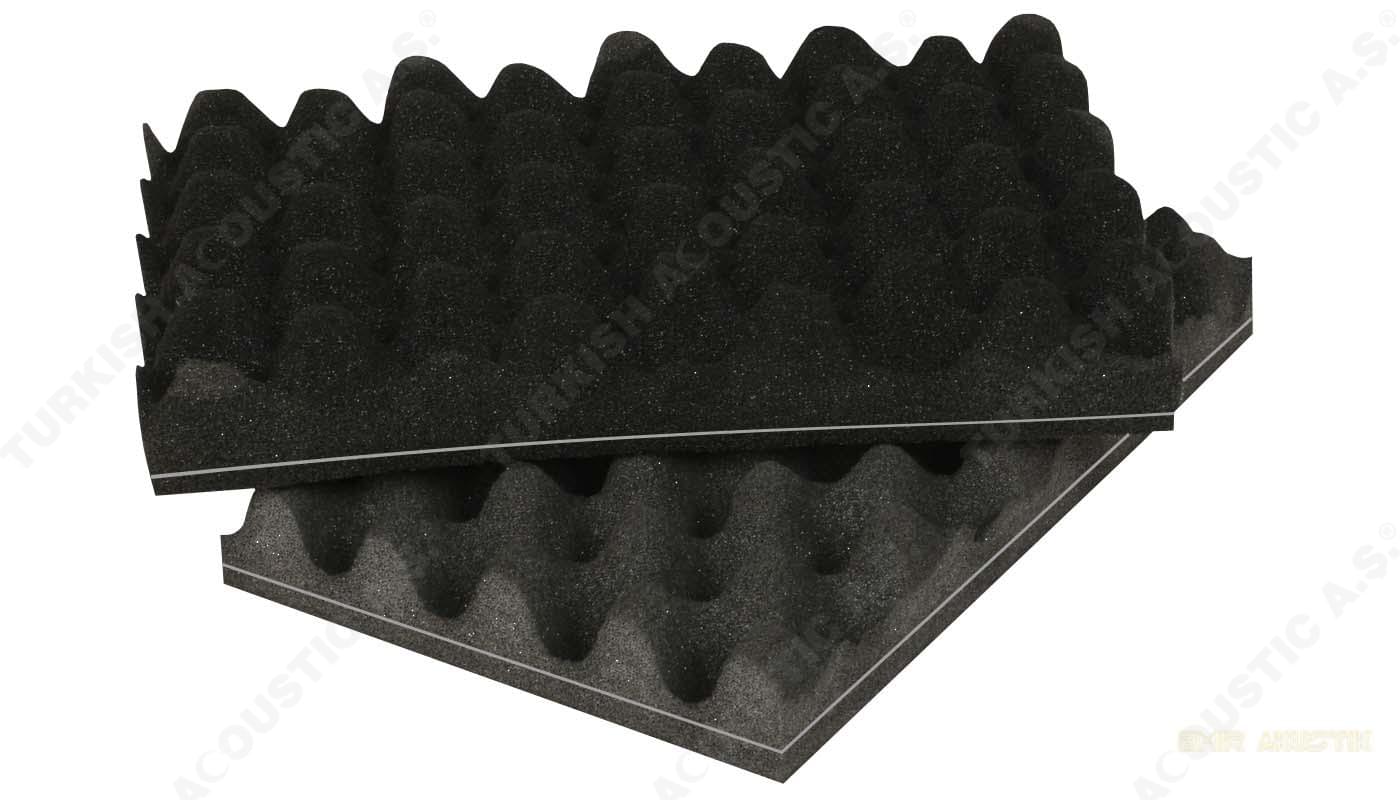

Barrier Egg Sponge: Barrier acoustic fireproof egg sponges absorb the sound thanks to its open-cell polyurethane structure and provide powerful sound insulation with the barrier between the sponge layers. Barrier egg sponges, with their high sound absorption property, are used for regulating acoustics. Acoustic fireproof egg sponges are non-flammable and resistant to high temperatures. You can have access to our barrier egg sponges on our website.

Barrier Egg Sponge Dimensions: 100 cm x 100 cm as plate, sold by retail in 30 mm, 40 mm, 50 mm, and 60 mm thicknesses.

Barrier Egg Sponge Package Content: 100 cm x 100 cm as a plate. One package contains 10 pieces (10 m²).

Barrier Egg Sponge Color Variations: Black (Dark Andesite Gray) as standard. Colored production is available.

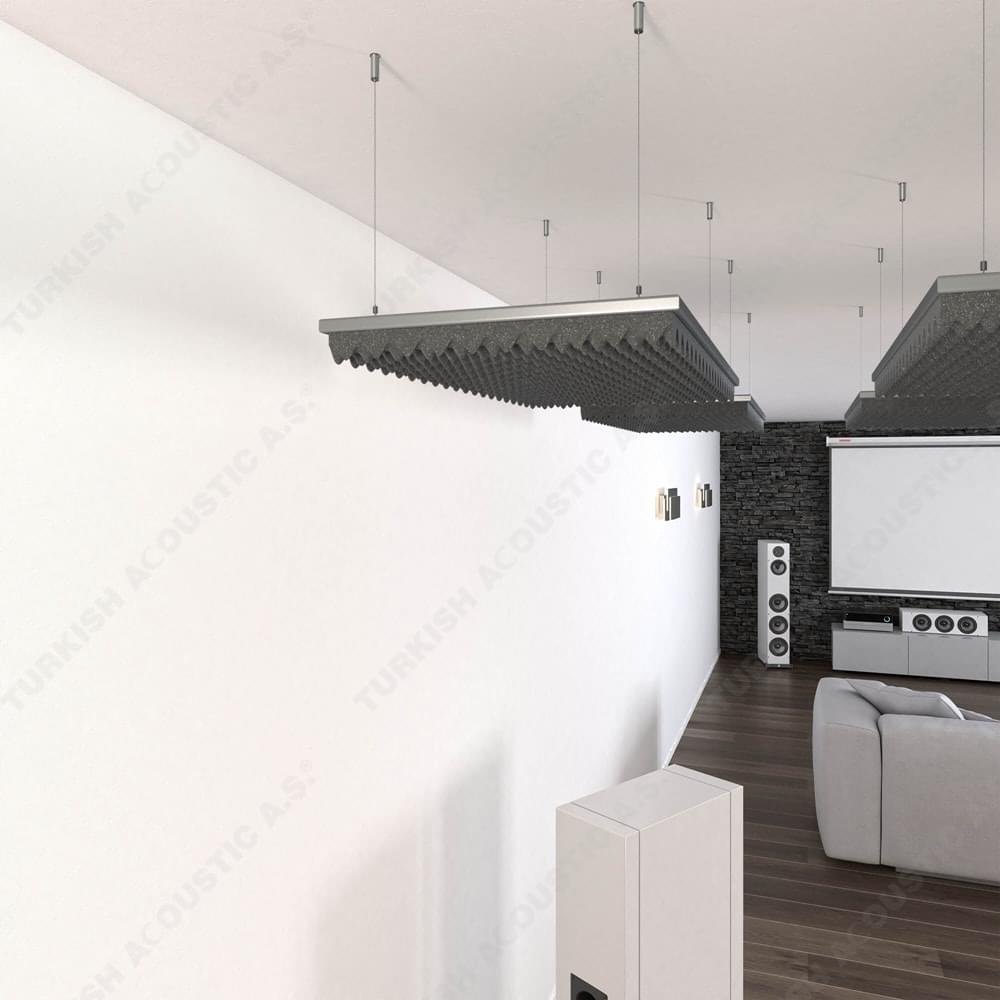

Barrier Egg Sponge Area of Usage: Music room, studio, generator room, radio broadcast room, gymnasium, amusement centers.

Barrier Egg Sponge Production: 60 mm and above custom thickness is available. The custom cut is possible. Colors RAL chart.

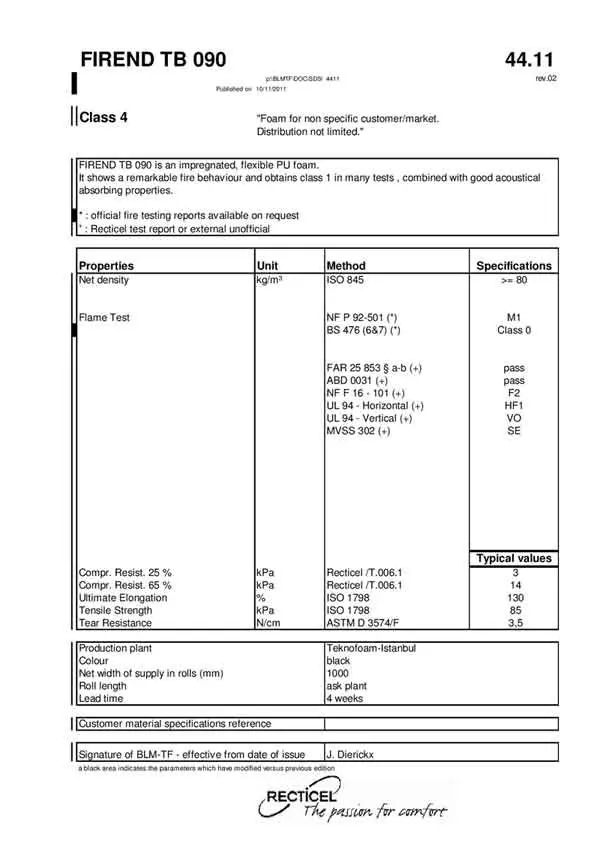

Barrier Egg Sponge Nonflammability: BS476: class 0 and Unı 9175:2008 M1 certificates are available in nonflammability

Barrier Egg Sponge Density: 30 and 60 Kg / M³ density / Production in desired density and thickness is available.

Tolerance: 30 mm product is between 25 – 30 mm, 40 mm product is between 35 – 40 mm.

Product Profıles

Acoustıc Fıreproof Sponge

Barrıer Sponge Roll

Product Securıty

Sound Absorptıon

Product Packages

Product Assembly

İncelenme 121

Acoustic Sponge Size	Thickness	Absorption Factor Suitable For DİN52212
mm	mm	125 Hz	250 Hz	500 hz	1000 Hz	2000 Hz	4000 Hz
1000x1000	30 (30/10)	0,10	0,21	0,54	0,90	0,98	0,93
1000x1000	40 (40/10)	0,11	0,32	0,63	0,90	0,91	0,95
1000x1000	50 (50/10)	0,16	0,54	1,01	0,90	1,01	1.02
