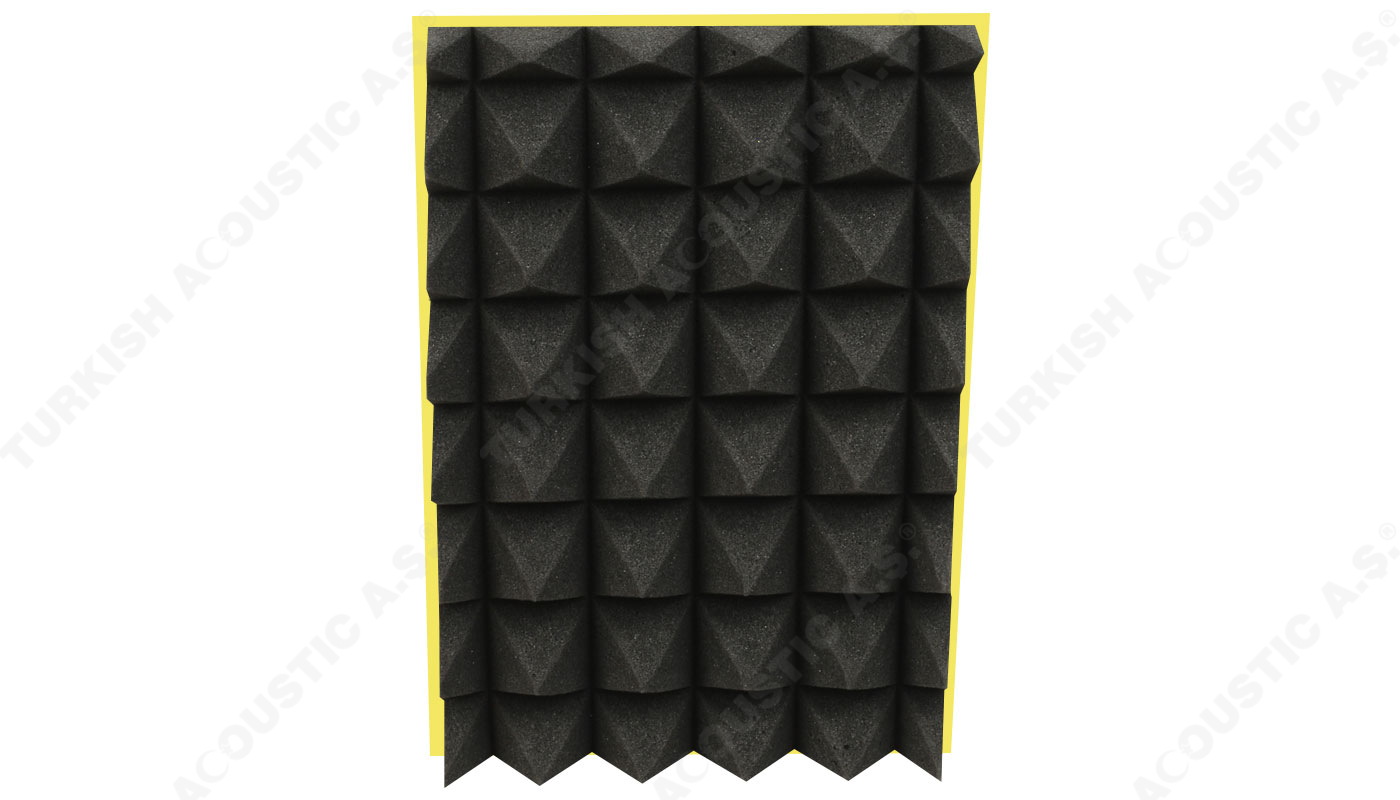

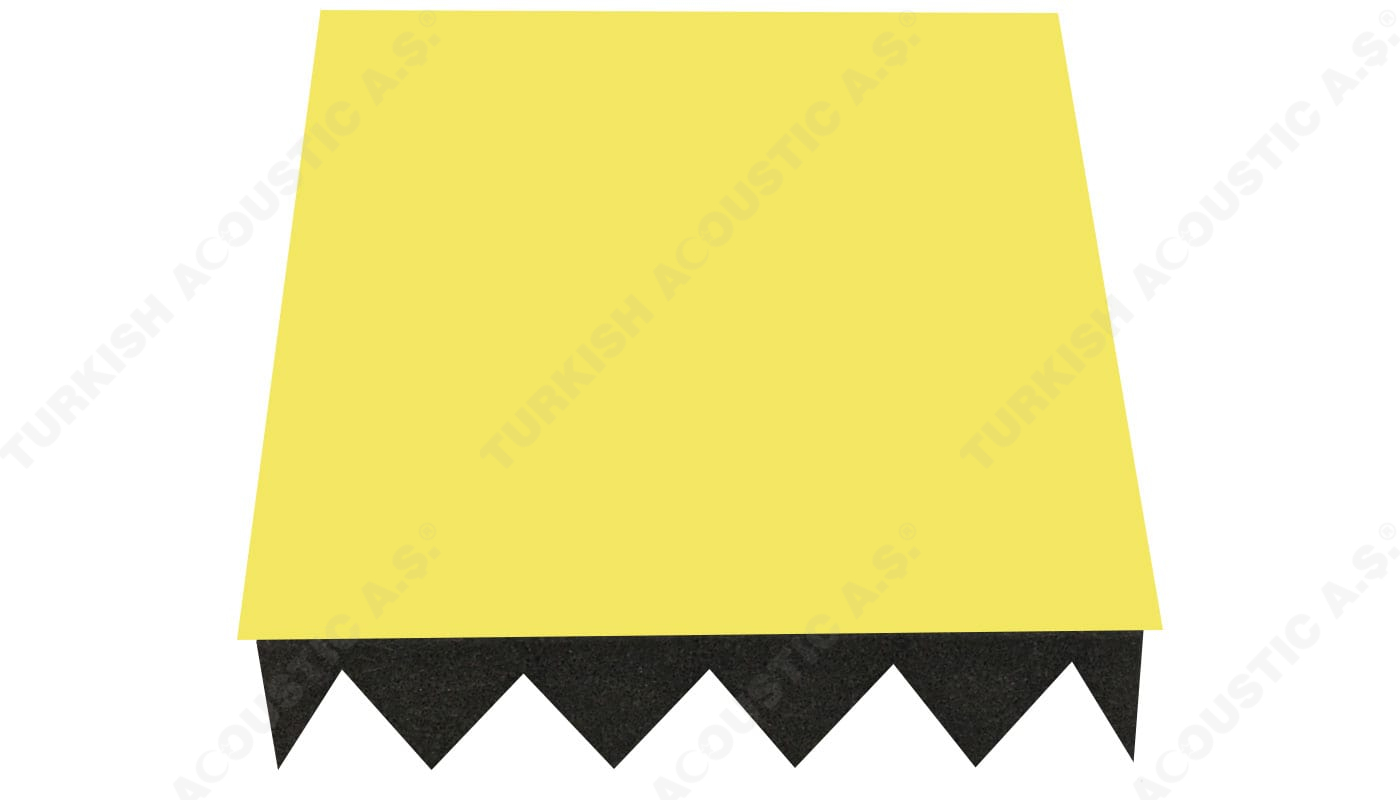

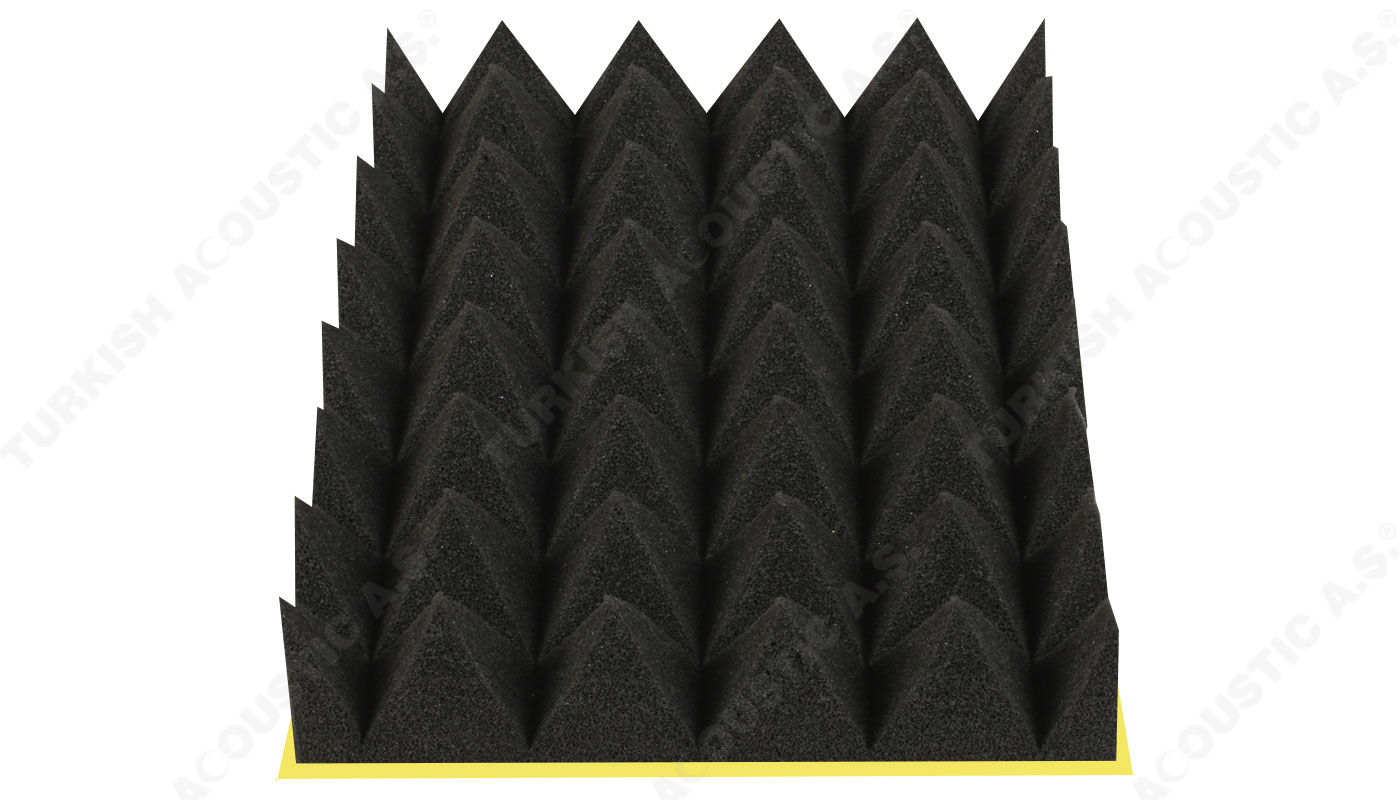

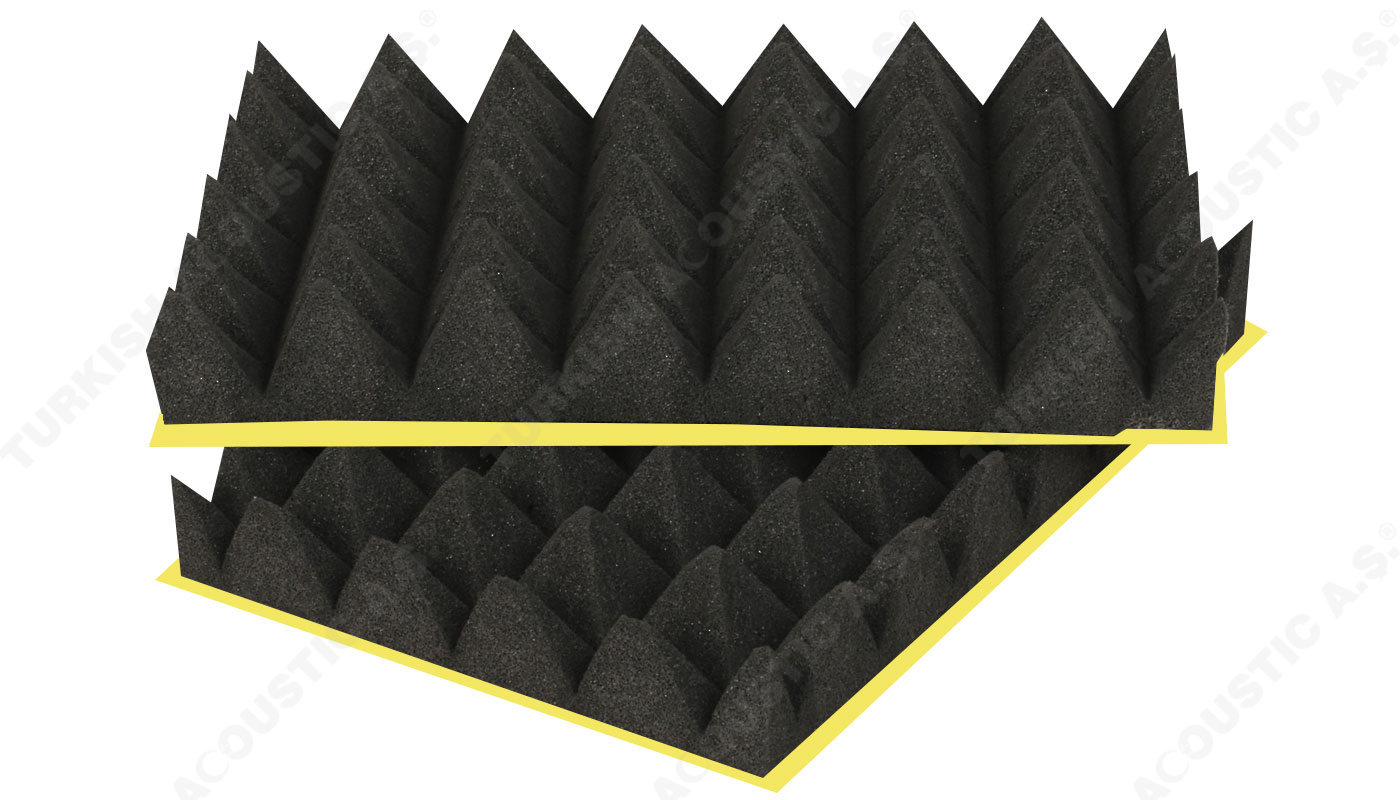

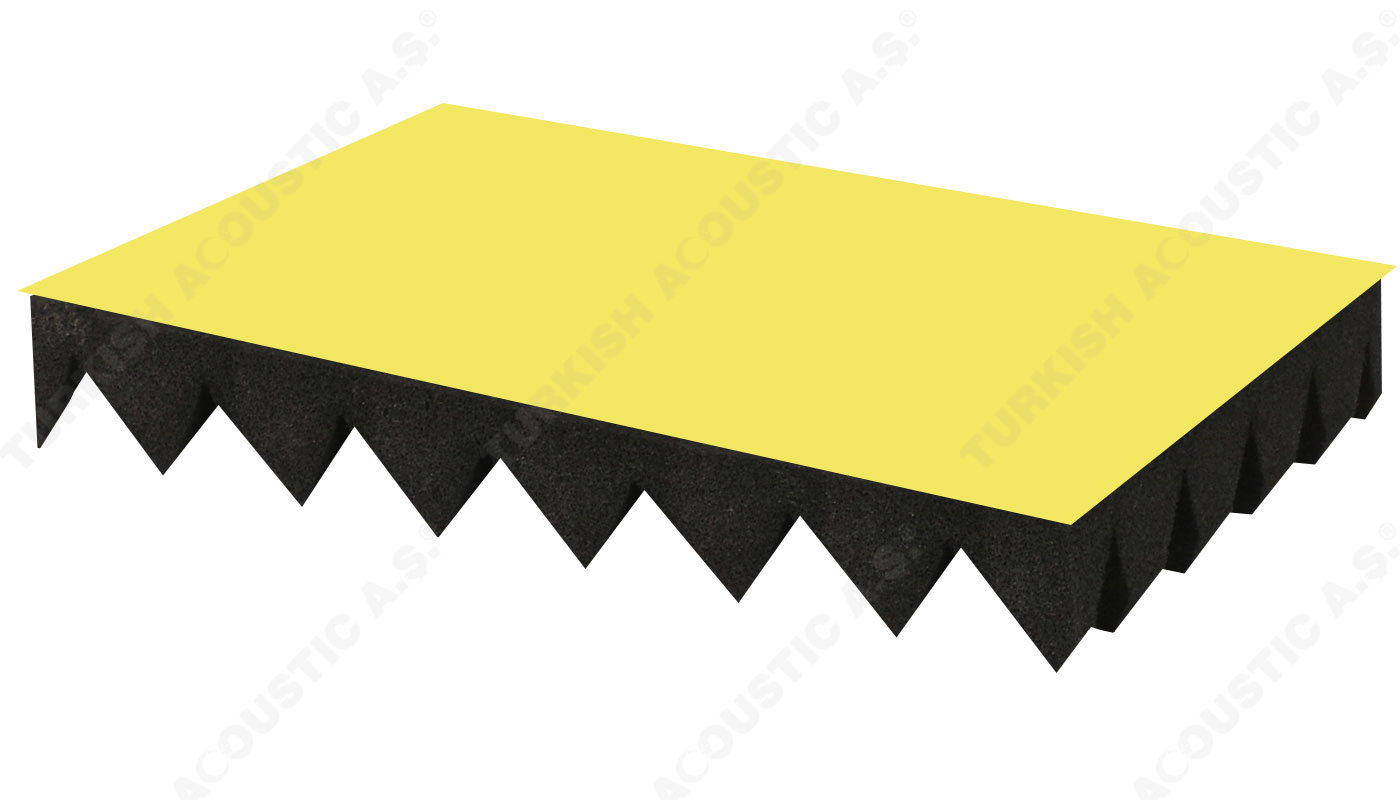

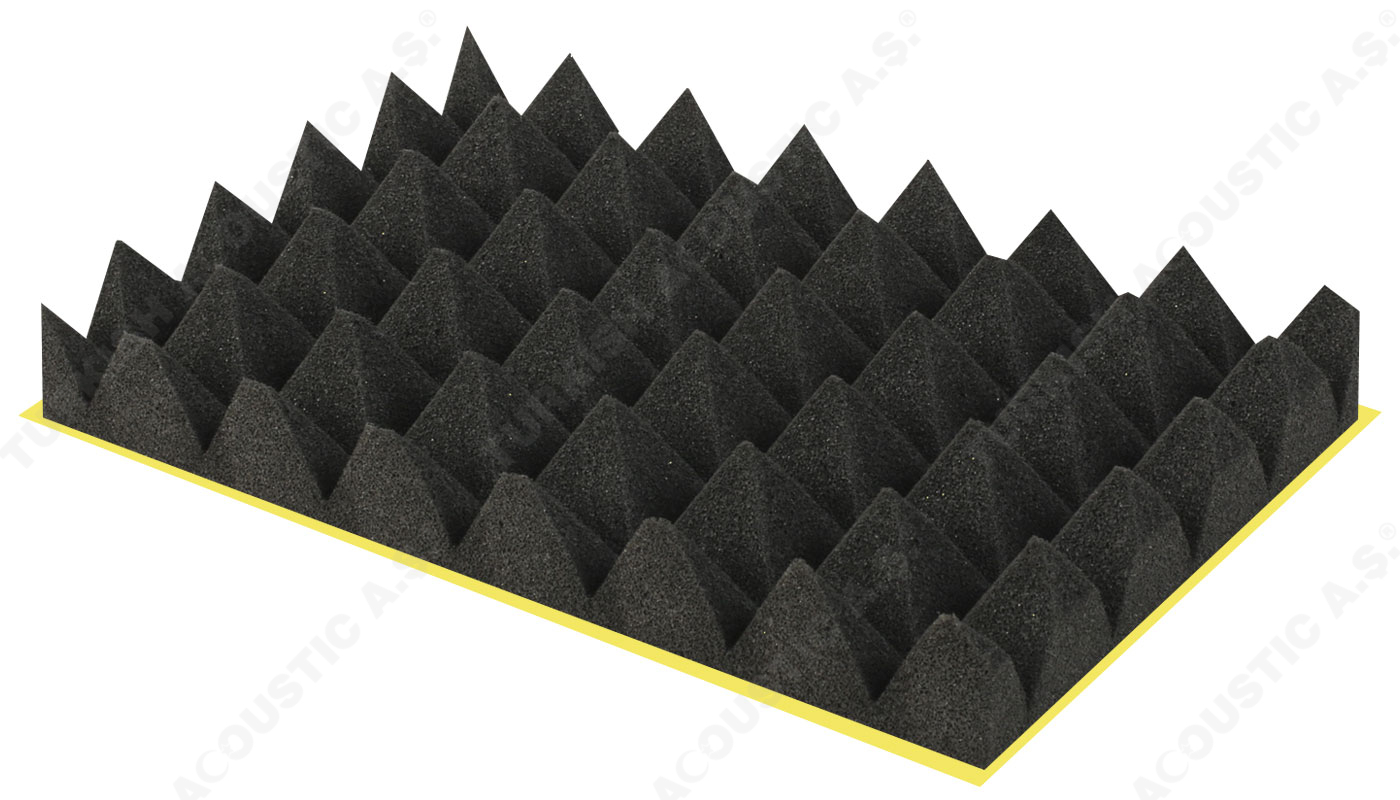

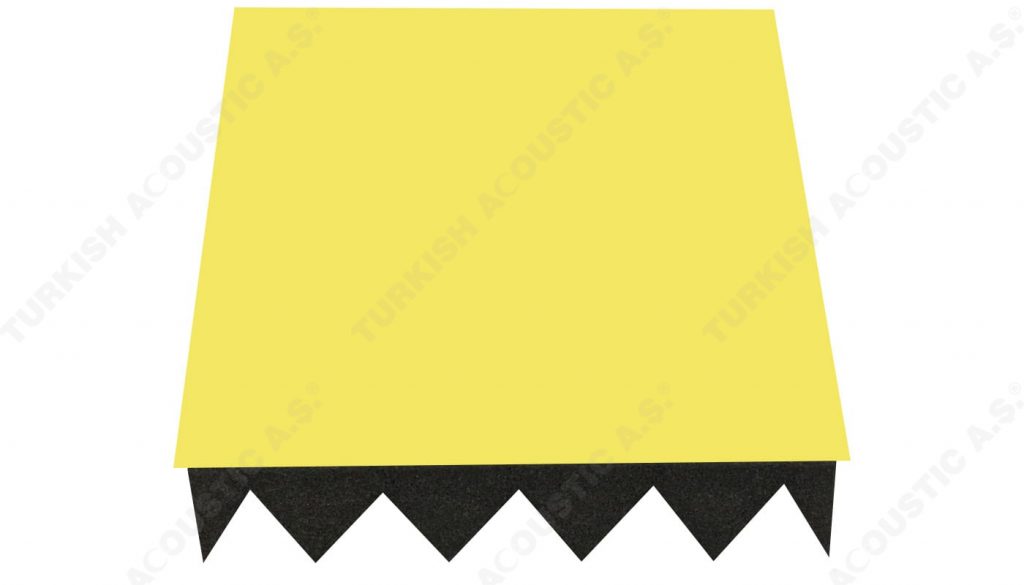

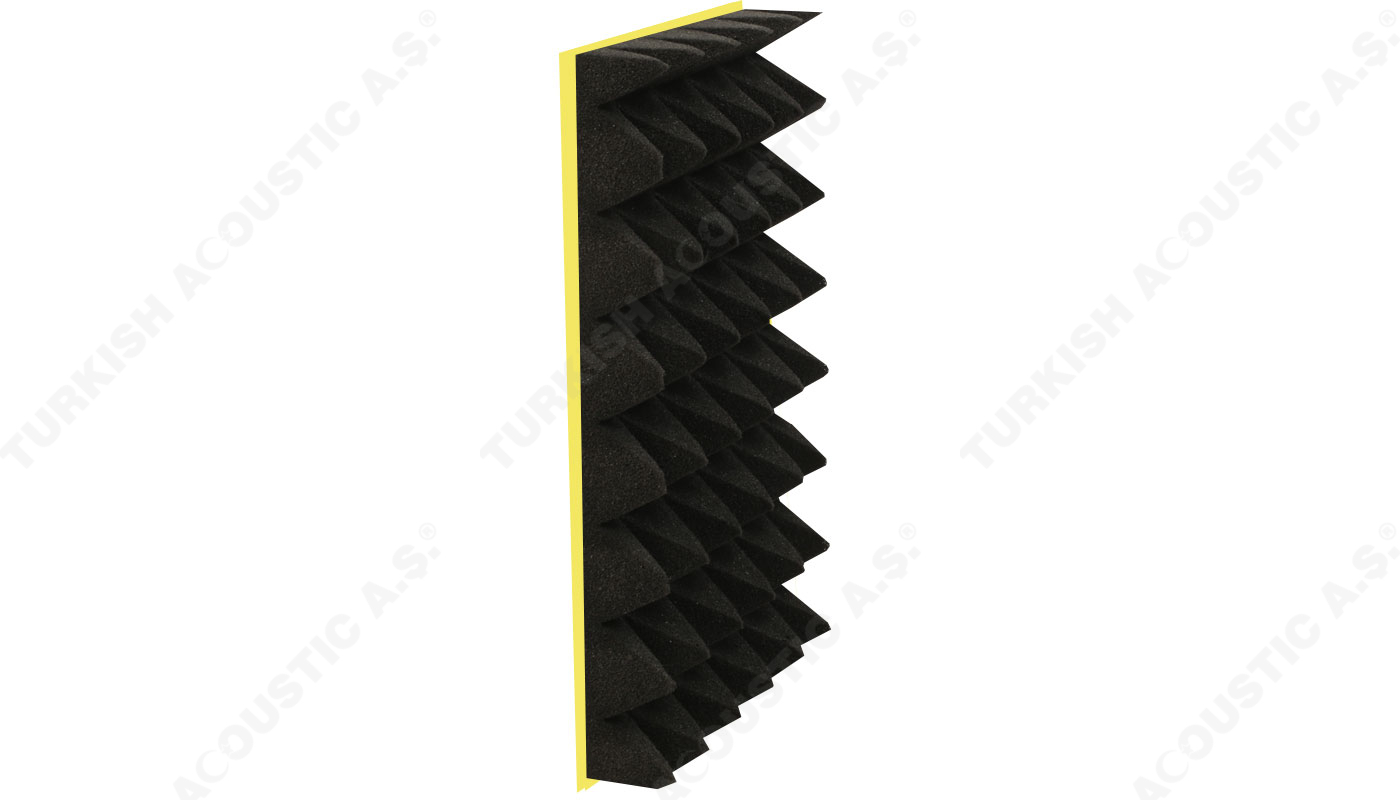

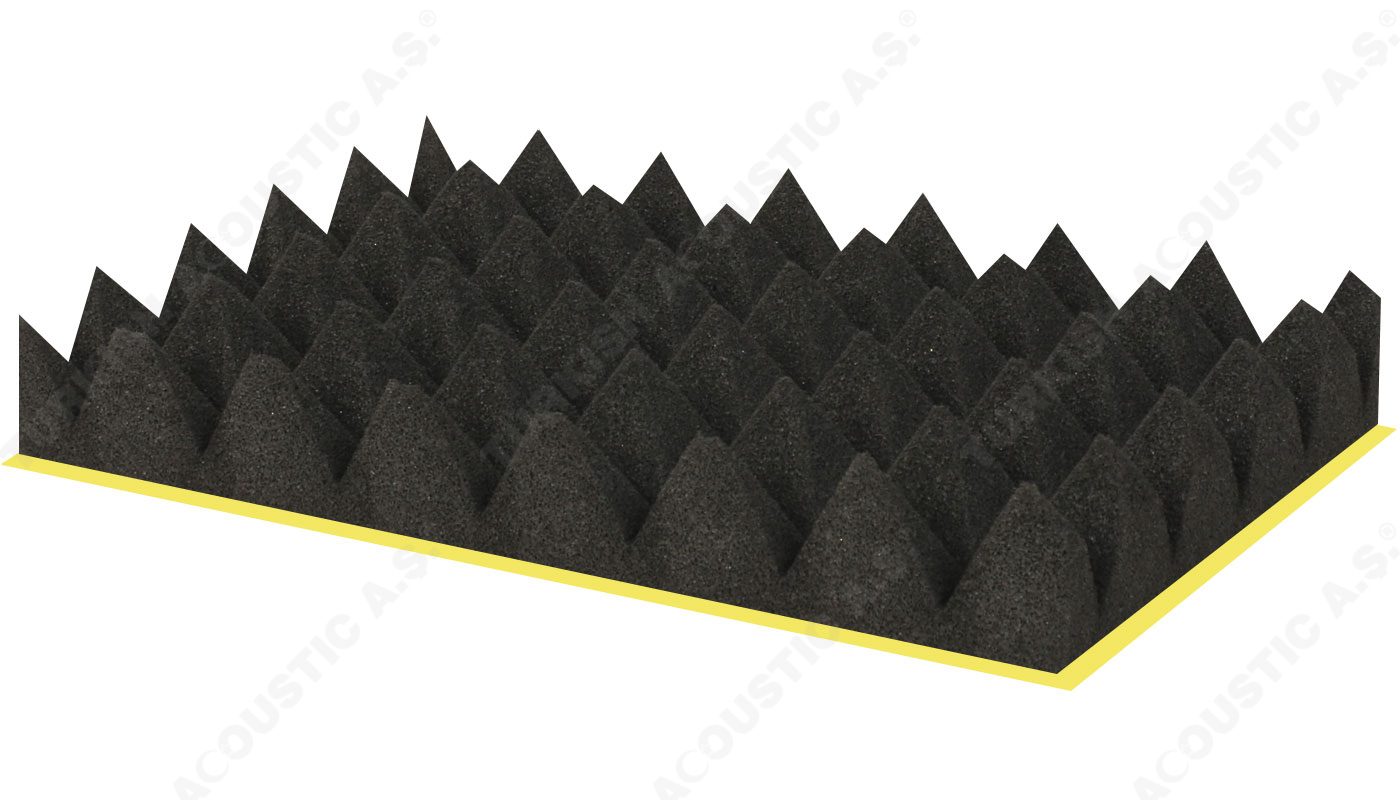

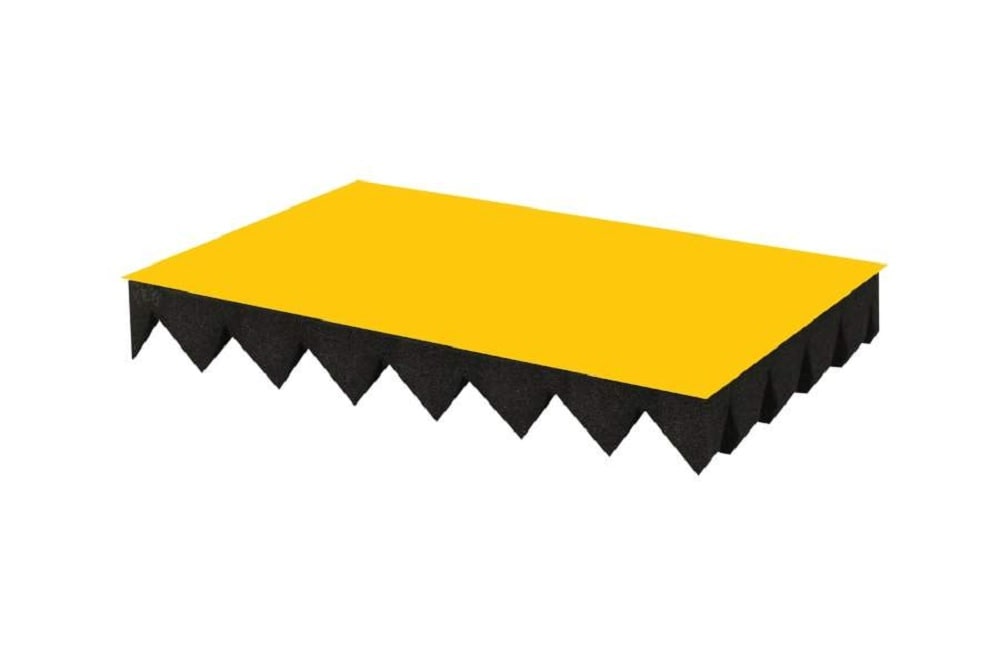

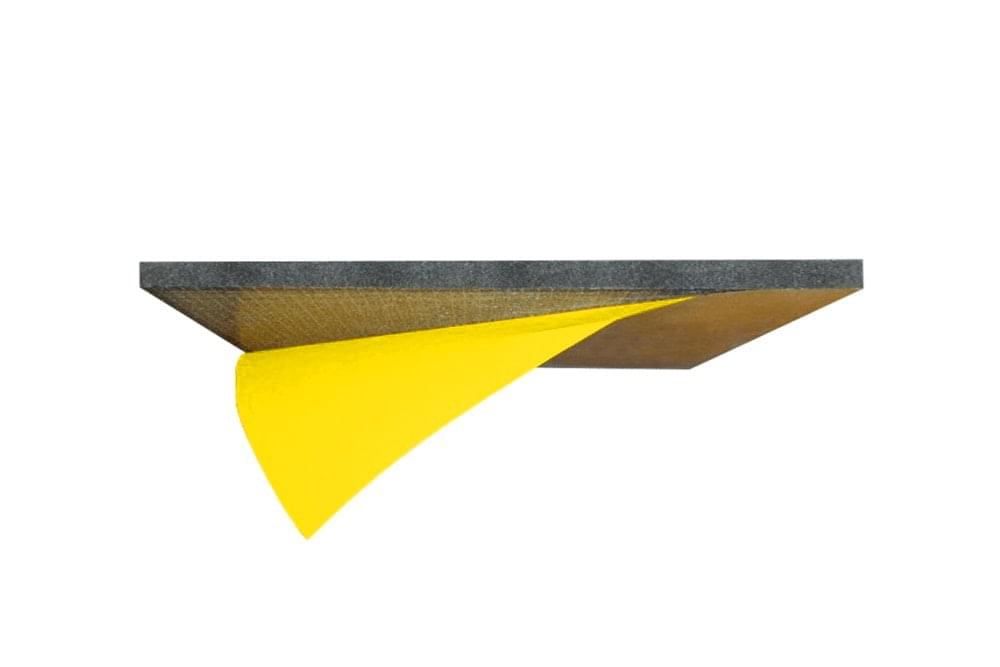

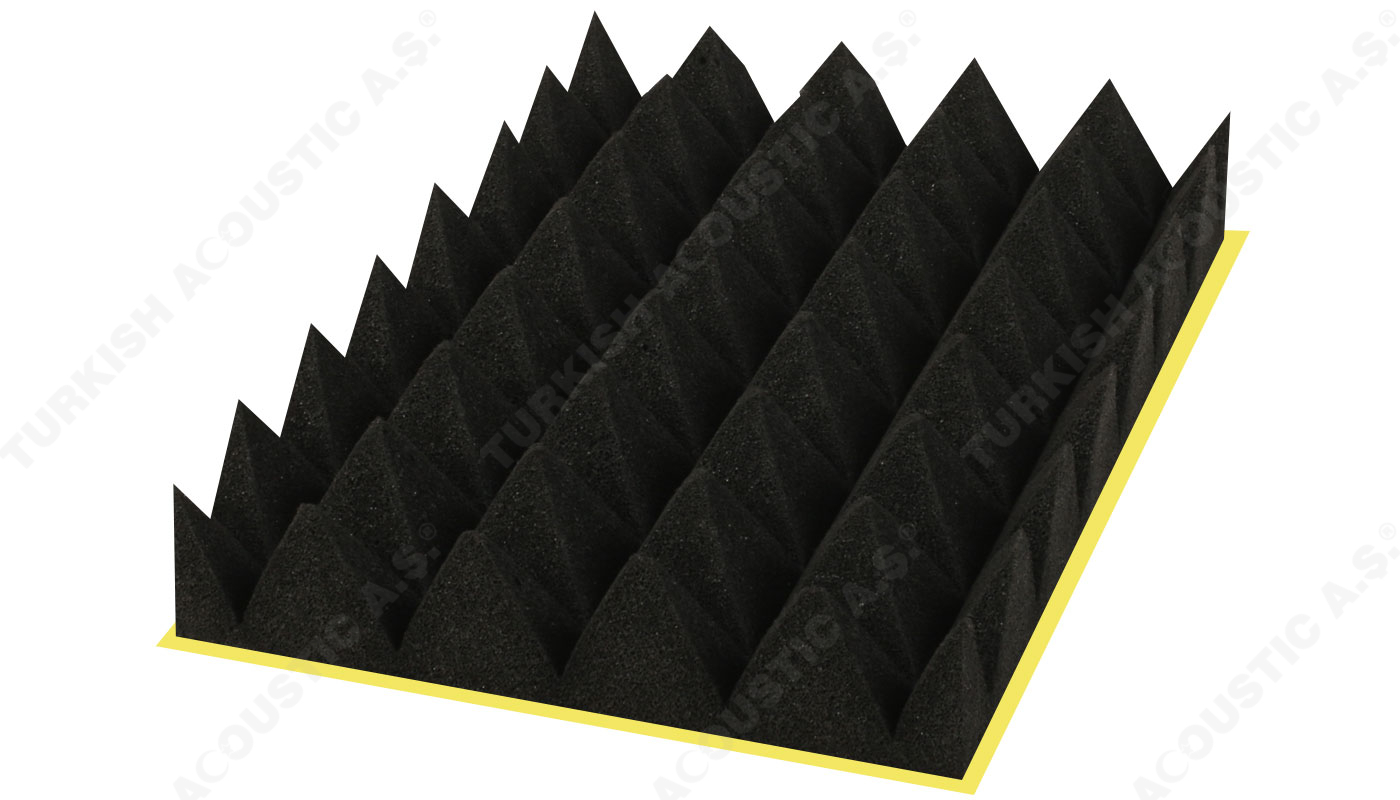

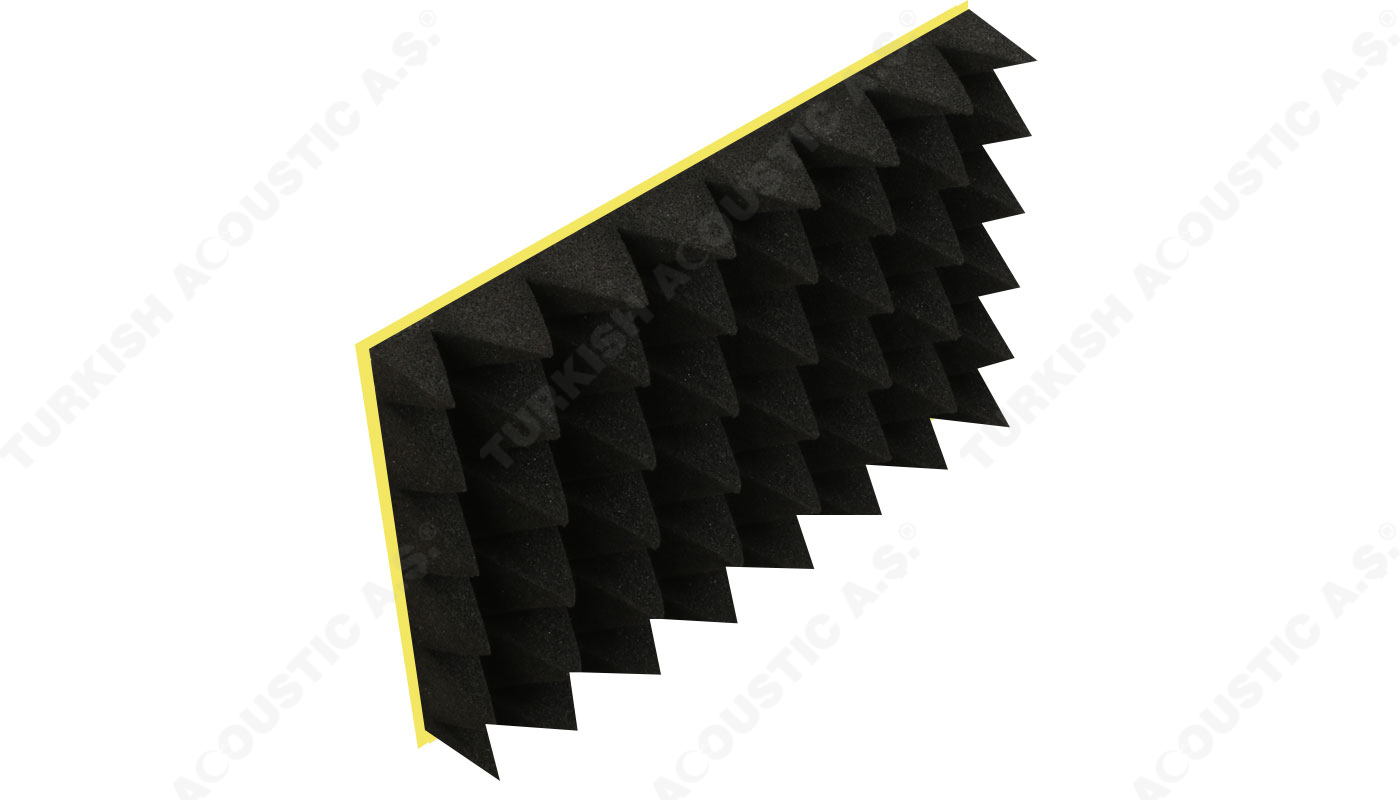

Self Adhesive Pyramid Sponge: Adhesive fireproof acoustic pyramid sponge has an open-cell firex polyurethane structure. Self Adhesive acoustic pyramid is one of the effective sound insulation materials used in sound insulation and insulation acoustics with high sound absorption power. The adhesive-backed acoustic pyramid sponge is optional, and it is resistant to flame and high temperature. Adhesive acoustic pyramid sponge products can be found on our website. The self-adhesive model is more useful in terms of making the bonding process easier. You can easily and simply apply adhesive acoustic sponges in your place. You can order the surface form or flat acoustic sponges you want and get them as self-adhesive. Sound absorption values are high. This makes it ideal for medium and high frequencies. Provides acoustic analysis to prevent sound problems. The surface form consists of pyramidal partitions. The thickness and density alternatives are offered. It is used in places like a studio, sound recording room, music room, television studio, radio studio, drama room, disco - bar, drum room, piano room, shooting range, concert hall, wedding hall, movie theater, acoustic room, acoustic cabin, etc.
Self Adhesive Pyramid Sponge Dimensions: 100 cm x 100 cm plate dimensions, 40 mm and 50 mm are offered for retail sale.
Self Adhesive Pyramid Sponge Package Content: Adhesive pyramid sponges 100 cm x 100 cm size plate are sold in 10 packages. 1 Pack 10 m²
Self Adhesive Pyramid Sponge Color Variations: Black (dark andesite gray) are sold as standard, colored production is possible.
Self Adhesive Pyramid Sponge Area of Usage: Music room, studio, generator cabin, radio broadcast room, gym, entertainment venues.
Self Adhesive Pyramid Sponge Production: It is possible to produce a special thickness 50 mm and above. Custom cut possible Colors RAL color chart

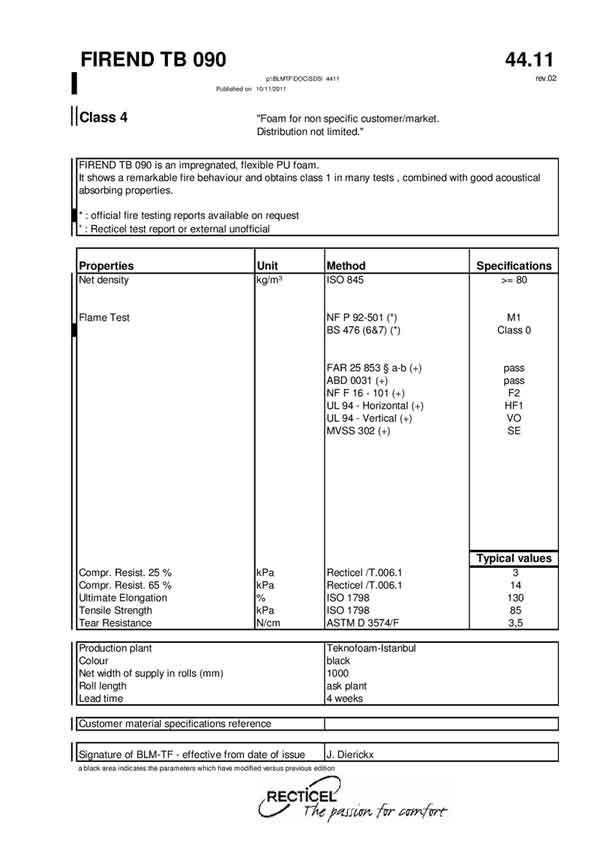

Self Adhesive Pyramid Sponge Nonflammability: Optional / non-flammability Firend ; In flammability, it has BS476: class 0 and UNI 9175: 2008 M1 certificates.
Self Adhesive Pyramid Sponge Density: 50 to 60 Kg / M³ It is possible to produce custom made in desired density and thickness.
Tolerances: 30 mm product is between 25 - 30 mm, 40 mm product is between 35 - 40 mm.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Sponge Size | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Self adhesive pyramid sponges are in 100 cm x 100 cm plates and there are 10 plates, 10 m² of products in their packages. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
