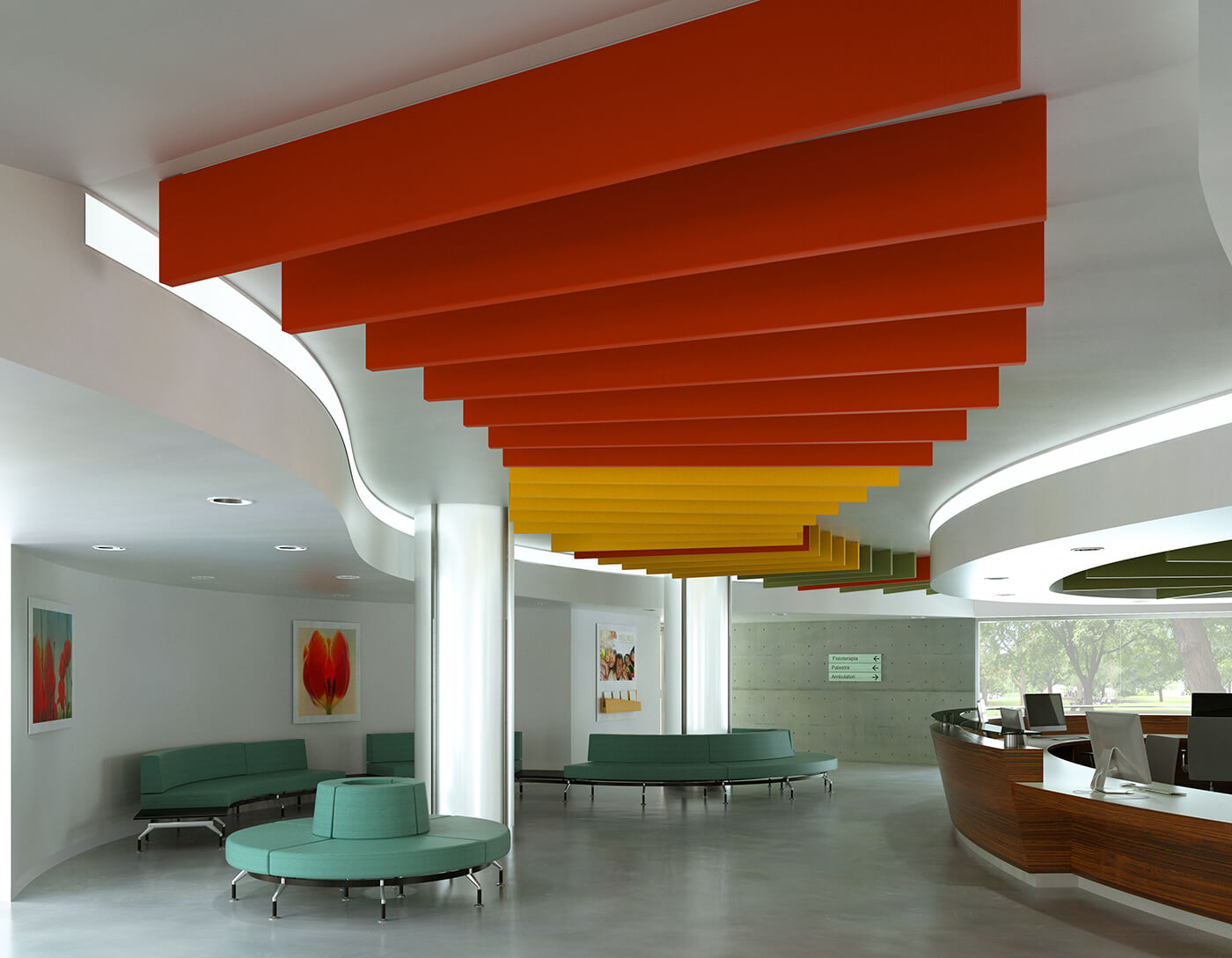

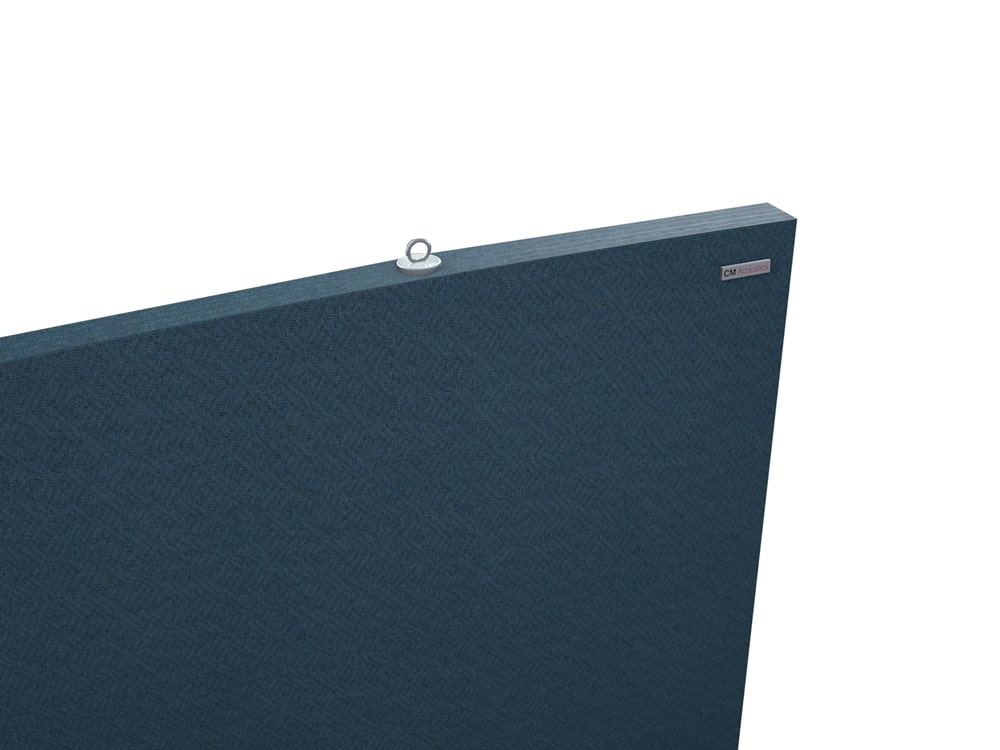

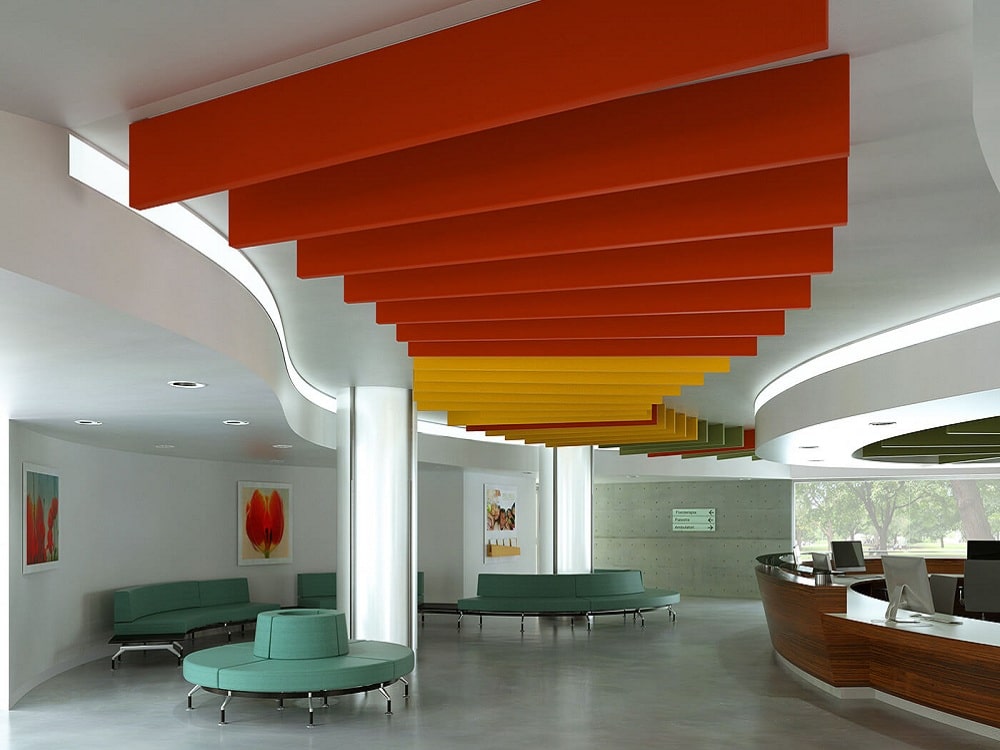

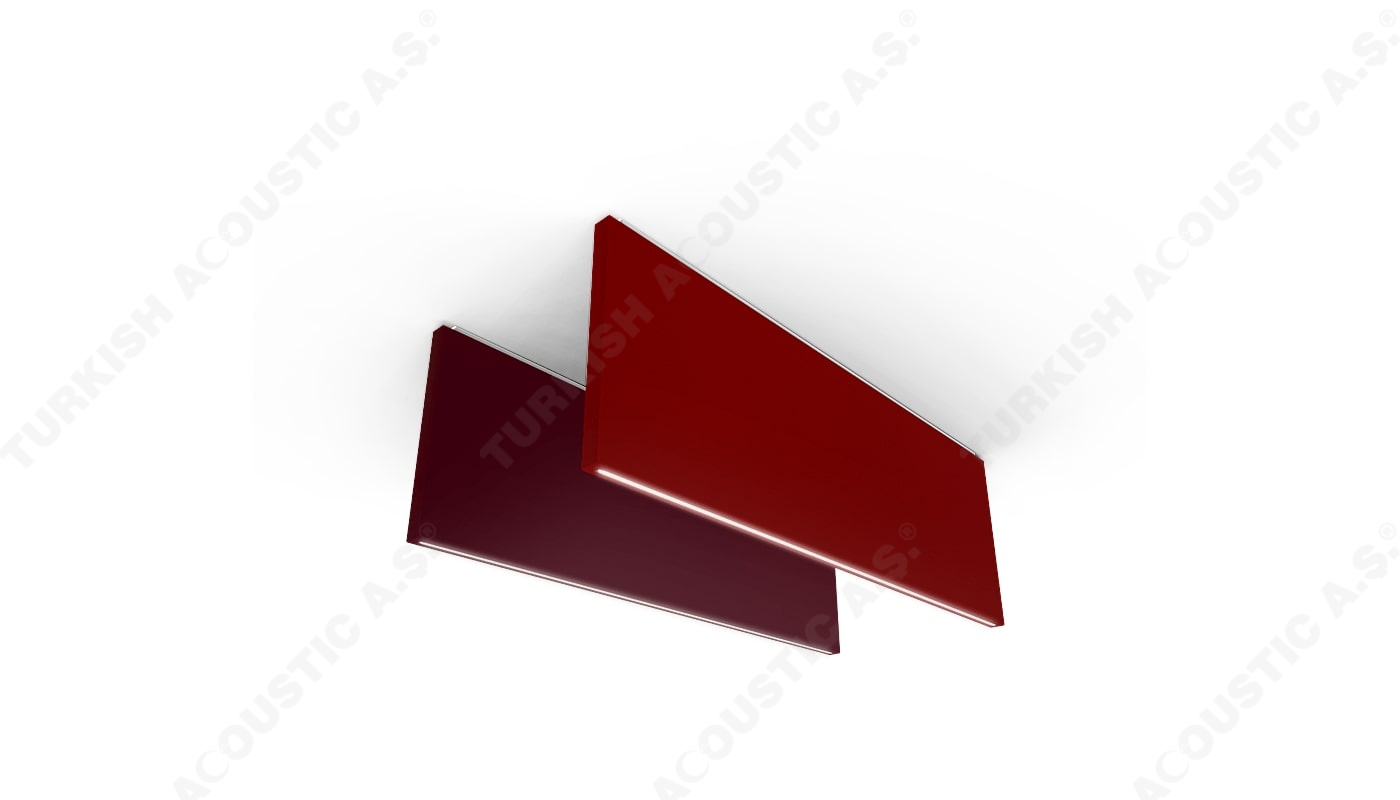

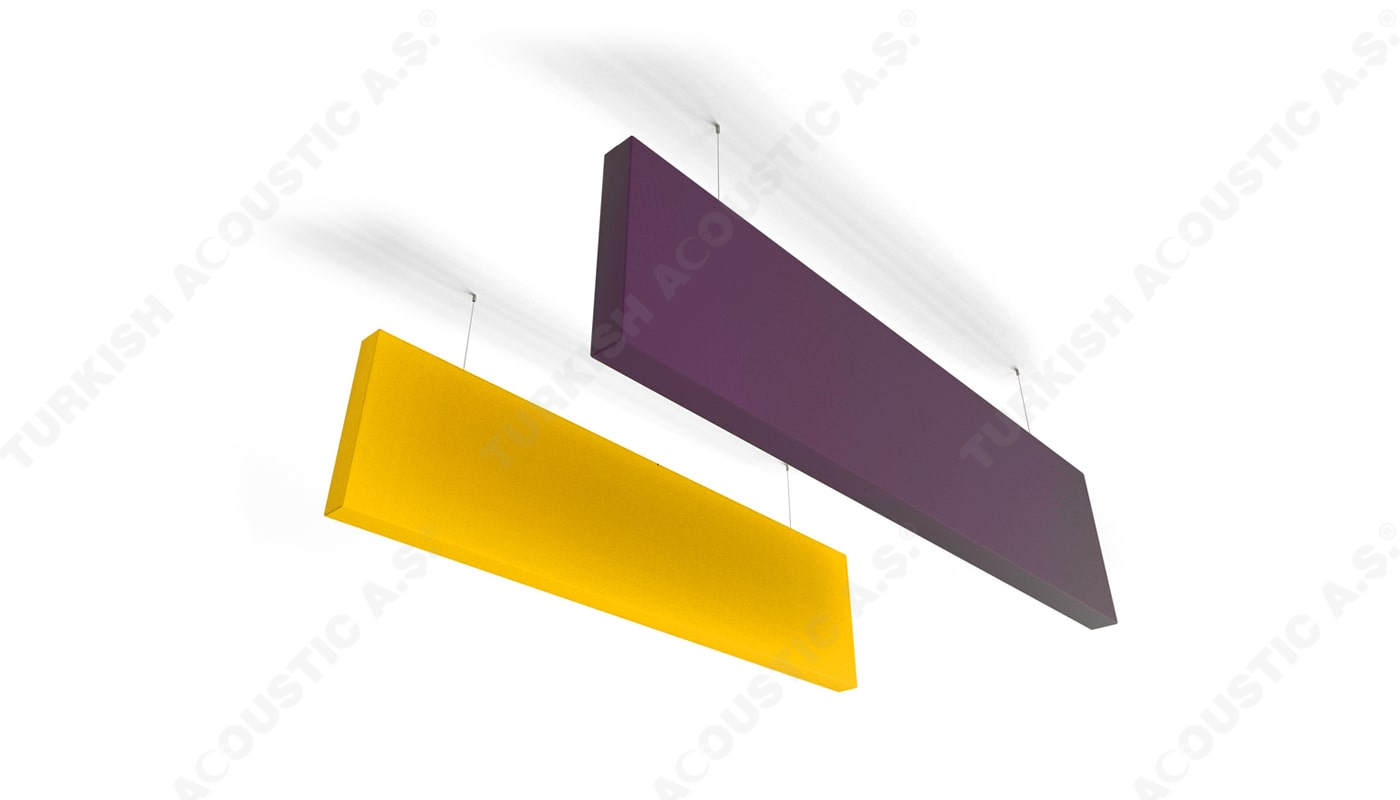

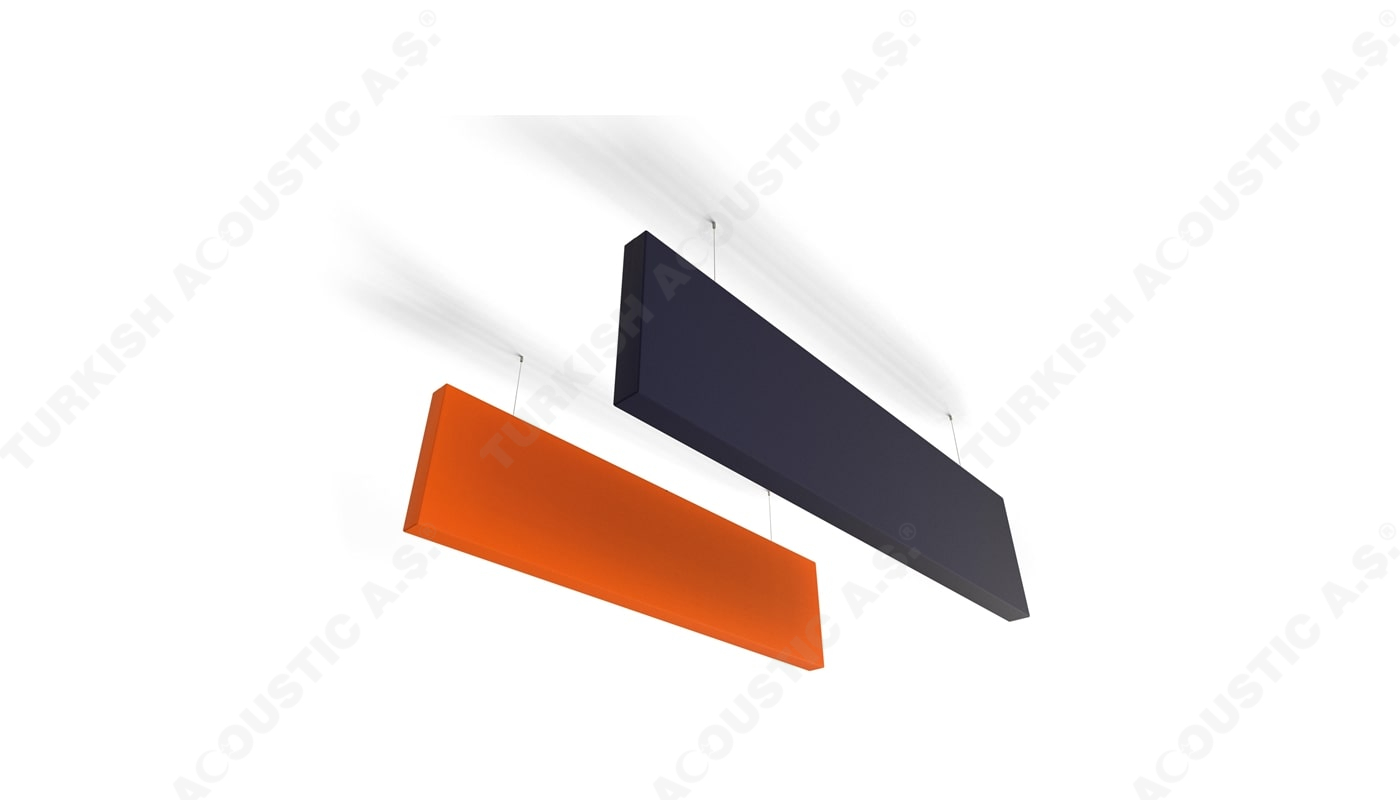

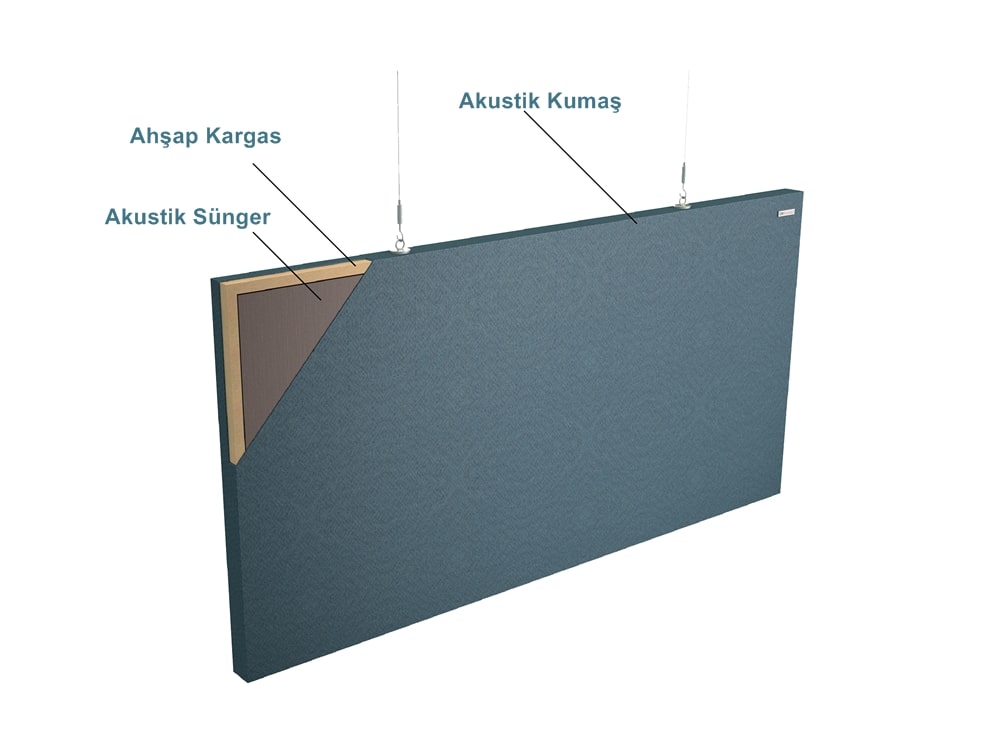

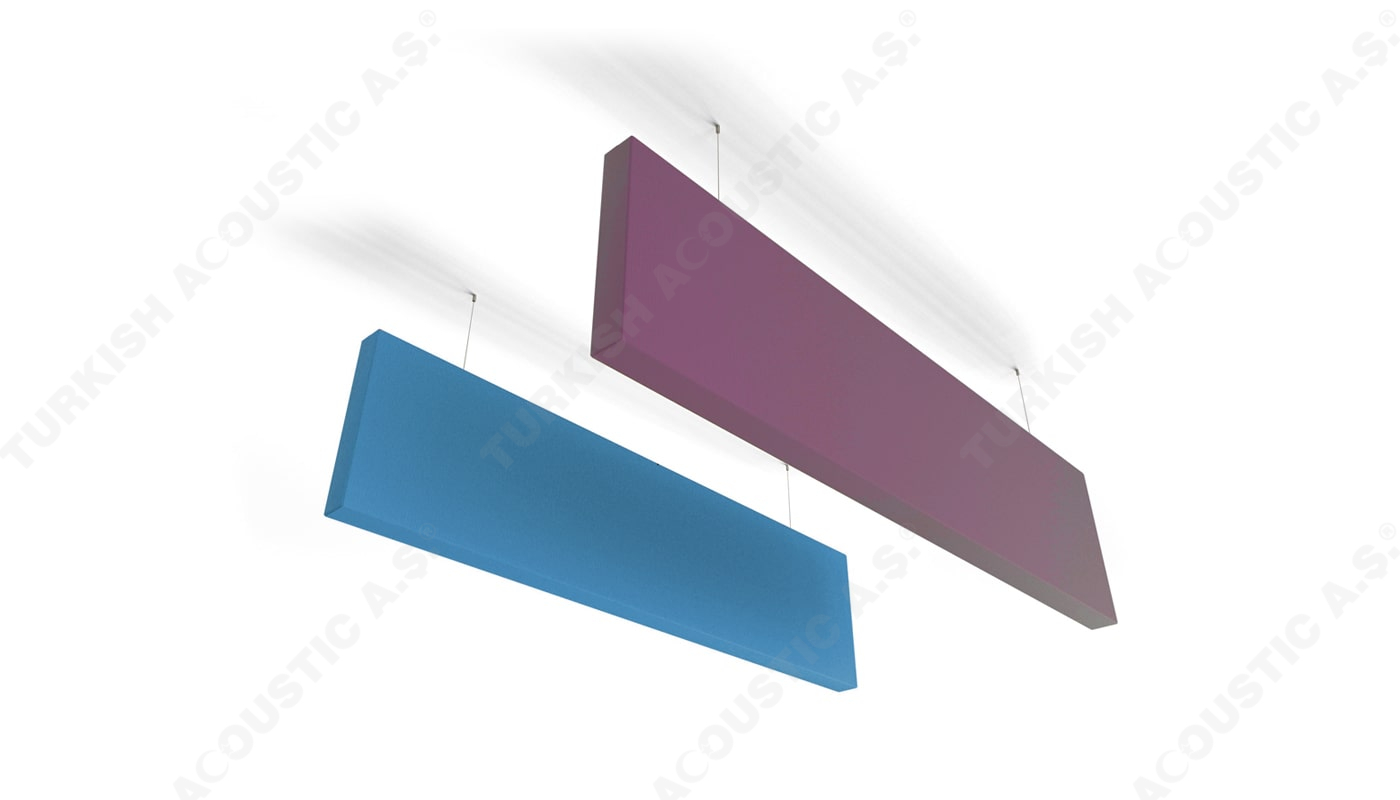

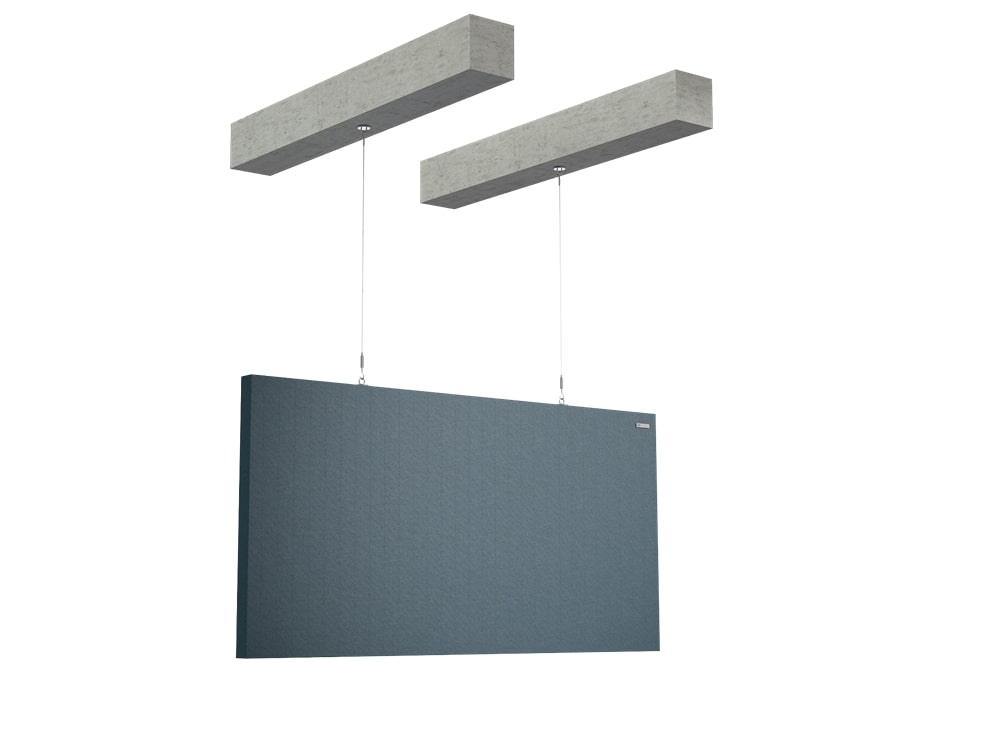

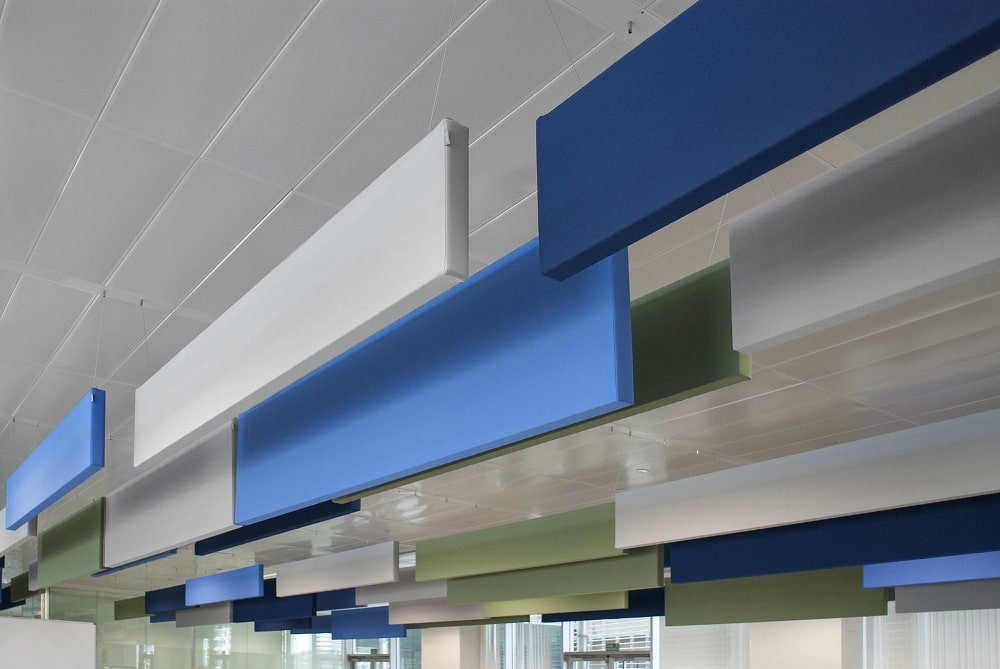

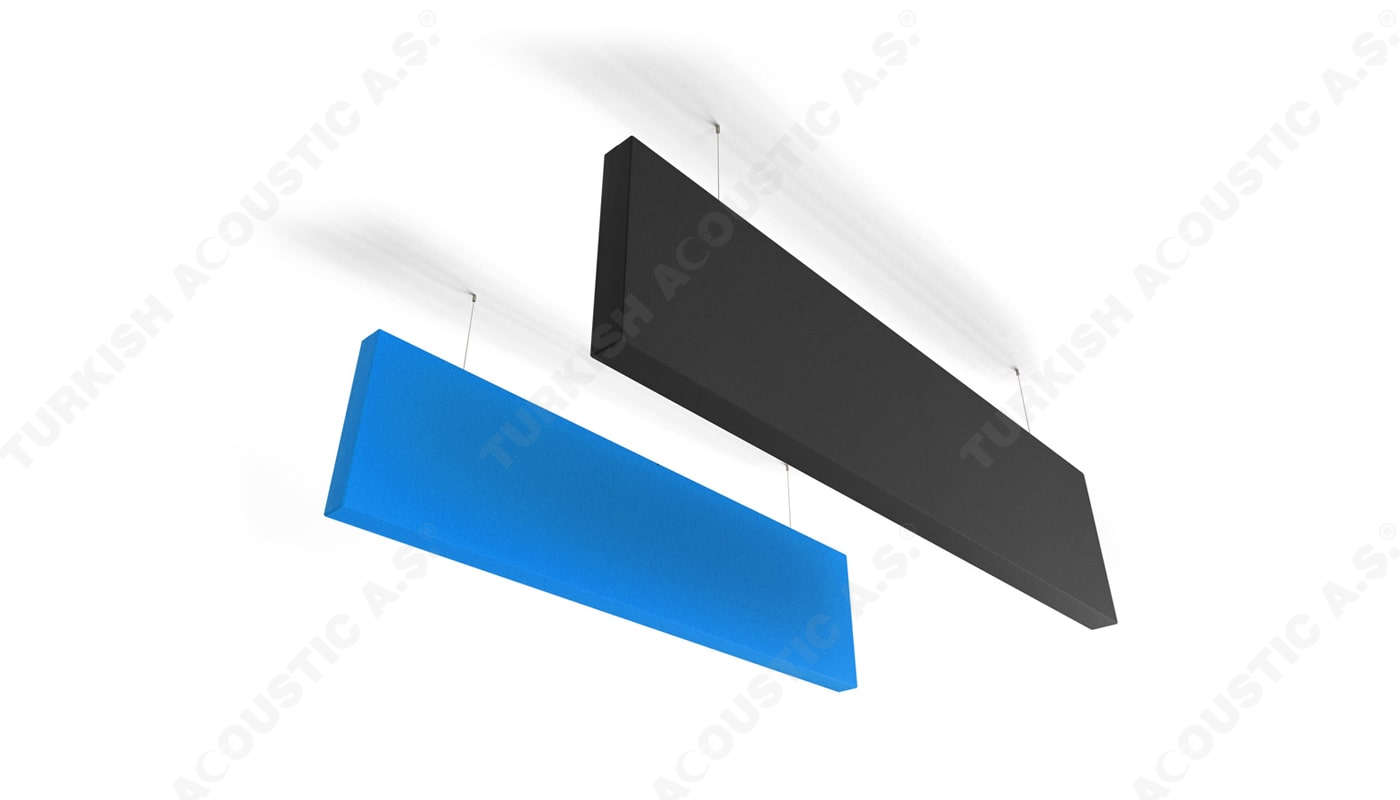

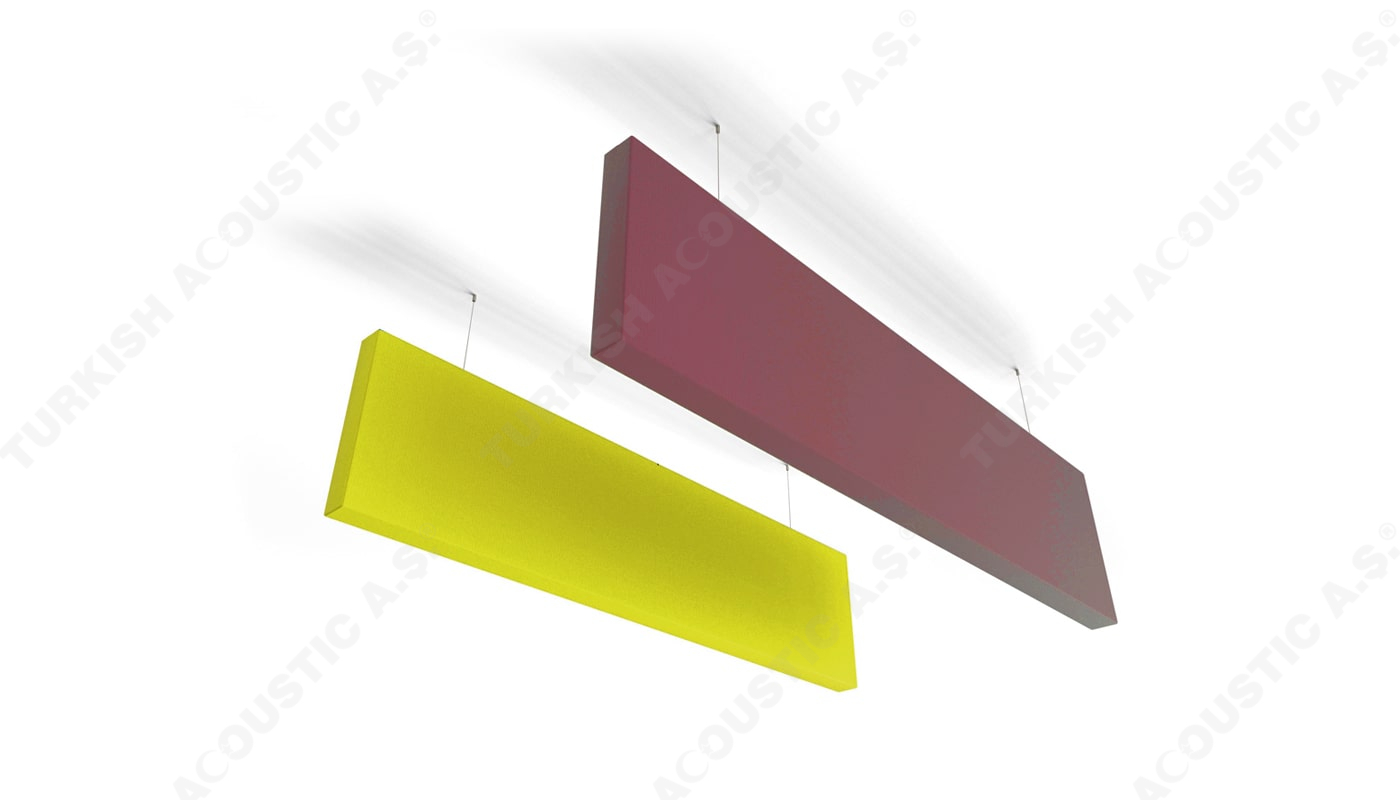

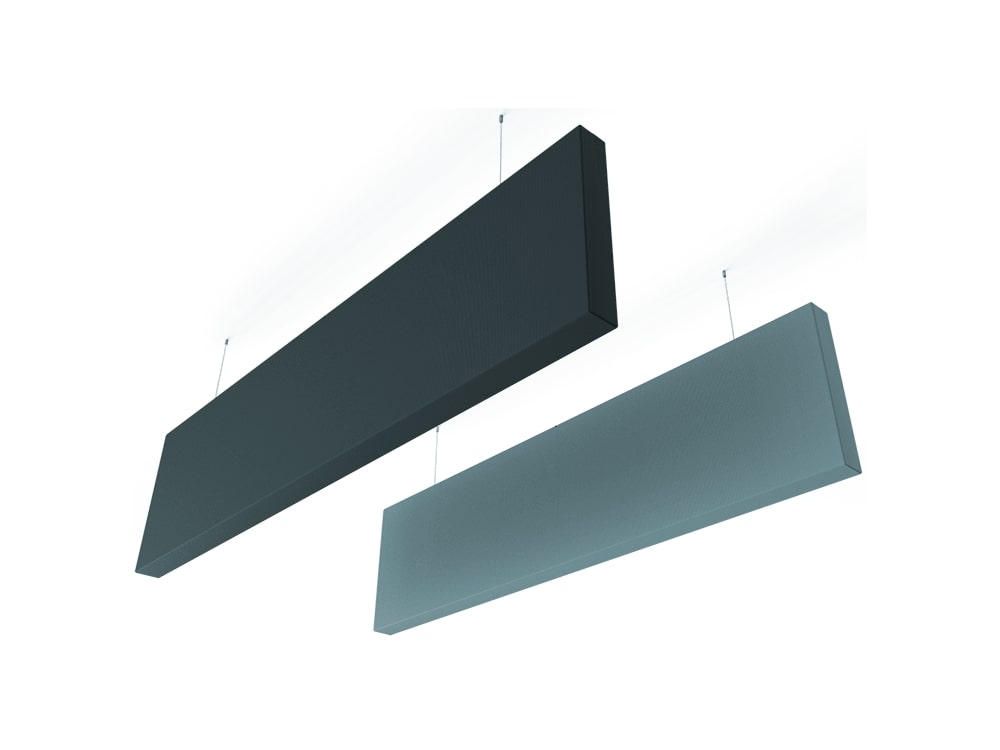

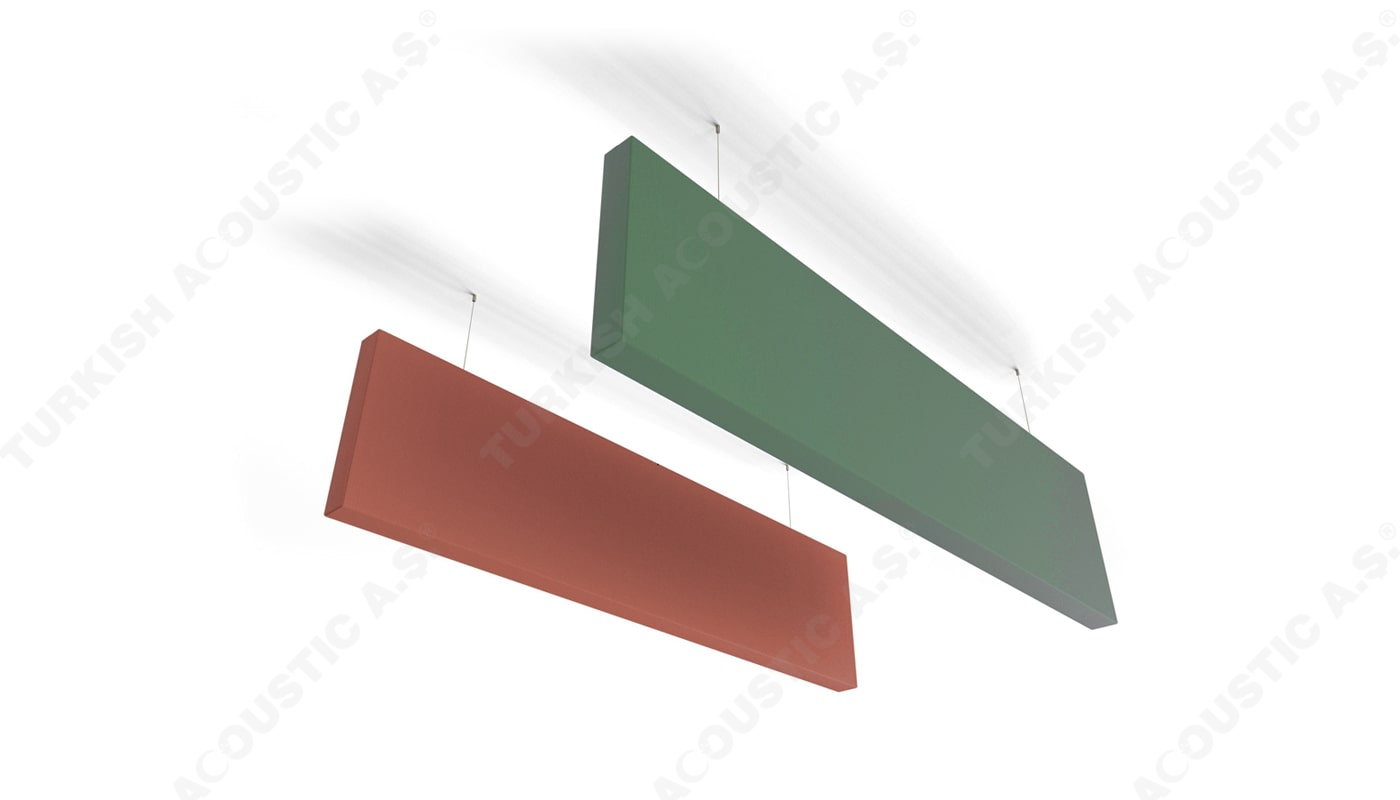

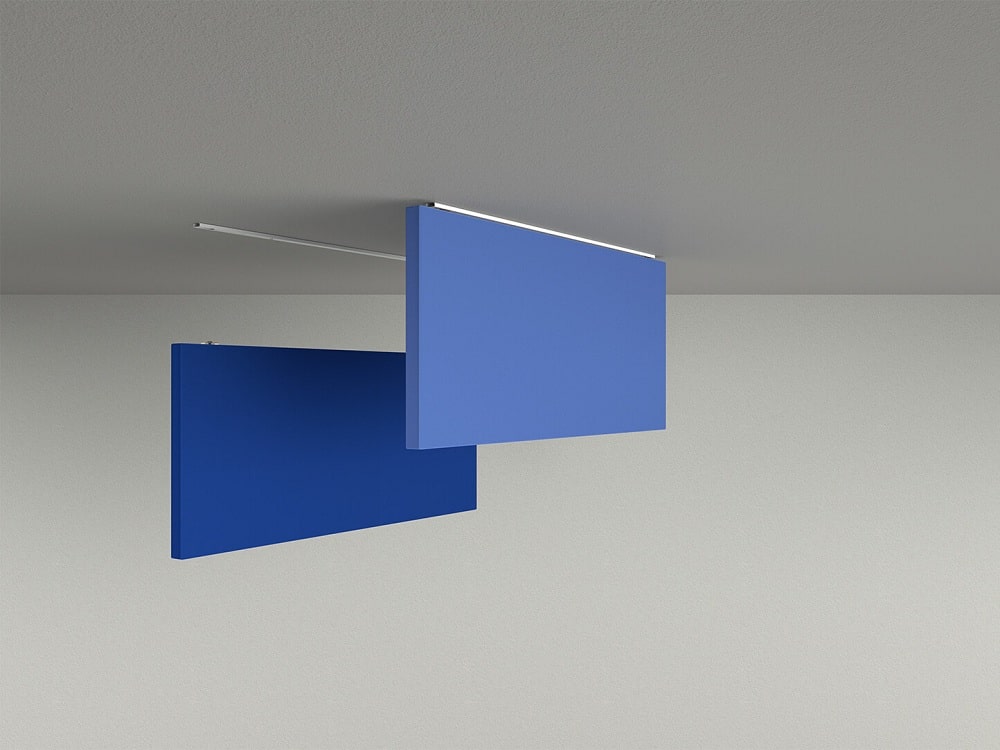

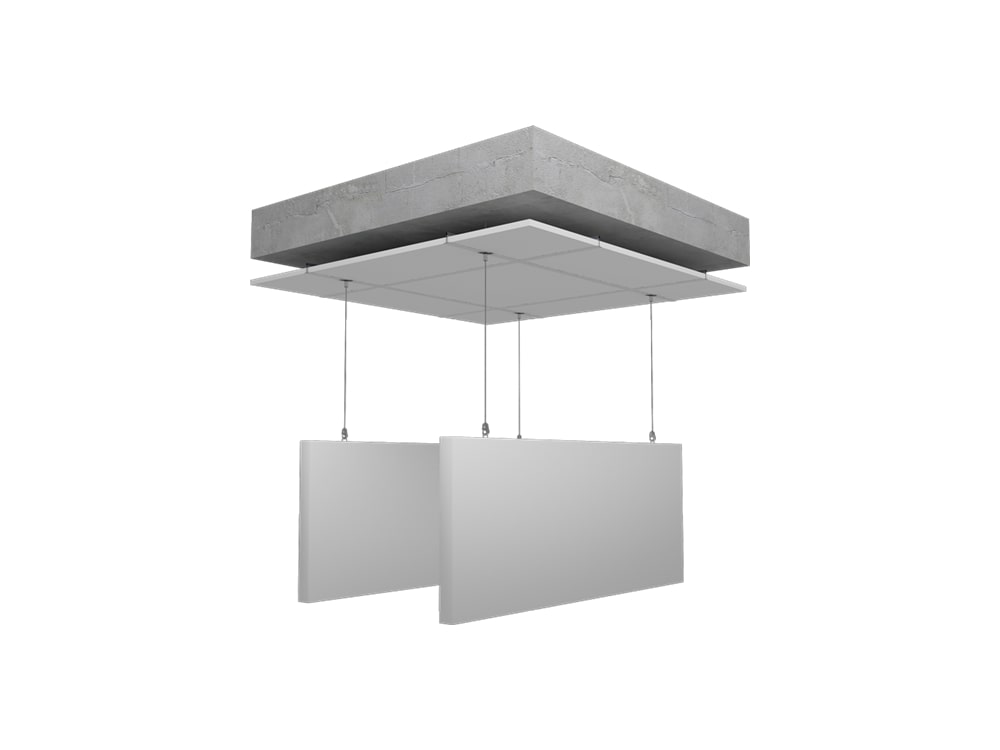

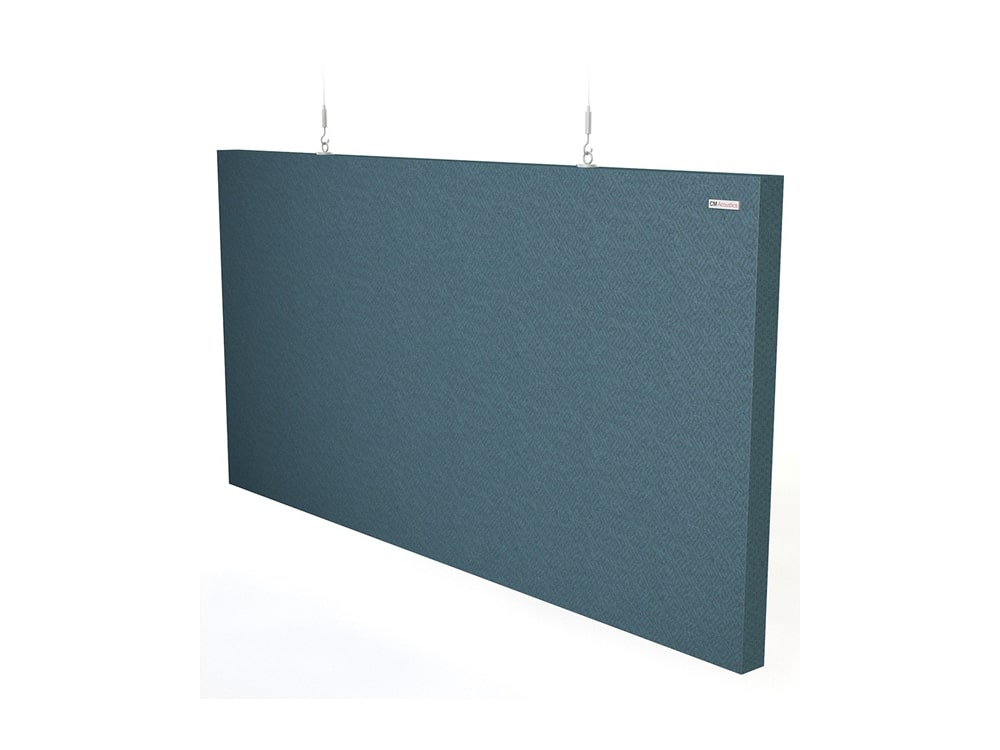

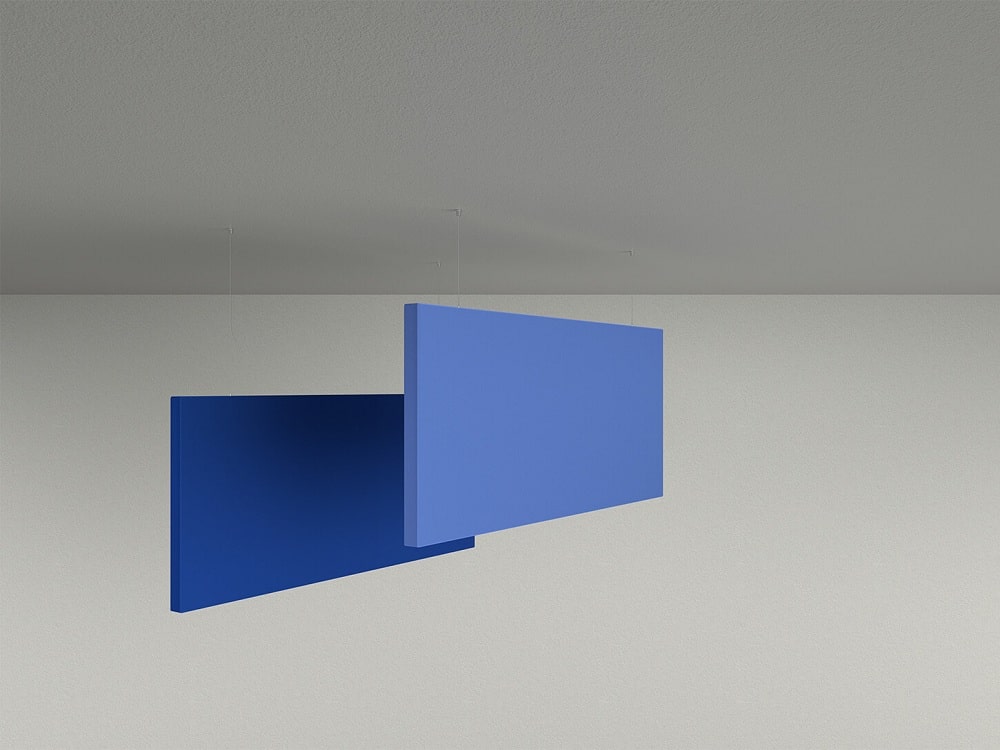

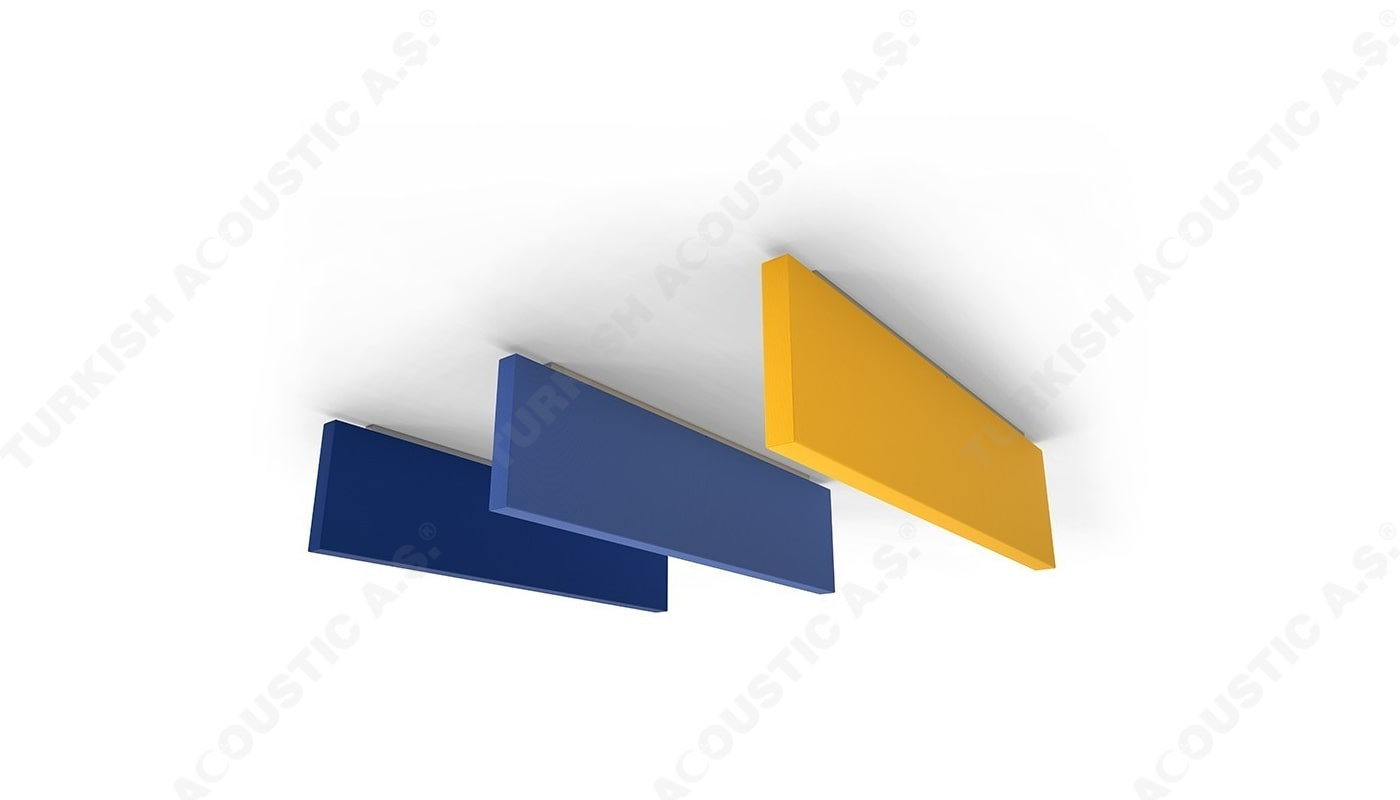

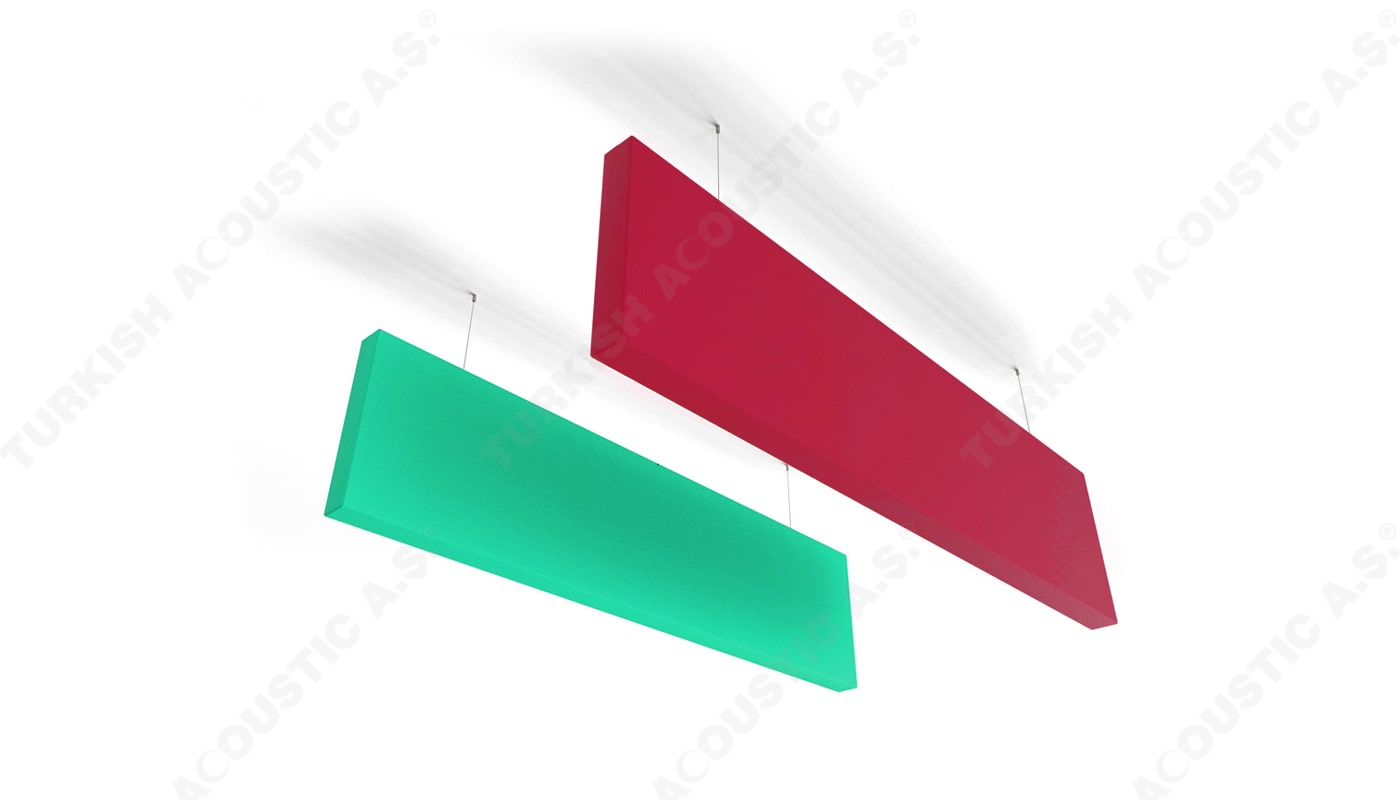

Baffle Acoustic Ceiling Systems: The edges of the baffle ceiling panels are smooth and reinforced. We can produce different thickness, color, size and shape upon request (Project-based) The NRC acoustic value (sound absorption value) of acoustic sound absorbing baffle fabric panels is in the range of 0.95-1.00. Baffle acoustic fabric-covered panels are fire-resistant, class B s2 d0 according to UNE - EN 13501-1: 2007 standard. The product is produced in standard 30 mm, 40 mm, and 50 mm thickness. Baffle ceiling systems are produced from coated or flat basotect sponge panels. Standard size is rectangular shapes such as 40 cm x 120 cm. (Acoustic Baffle Ceiling Panels)
Baffle Panels Colors: Fabric-covered acoustic panels are unlimited in color, click here for the fabric chart.
Baffle Panels Thicknesses: Standard thicknesses of 20 mm, 40 mm, and 50 mm depending on the model. Complies with all technical specifications.
Baffle Sizes: 60 × 60 cm, 60 × 120 cm, 60 × 180 cm, 60 × 240 cm, 60 × 270 cm, 60 × 300 cm, 120 × 120 cm, 120 × 180 cm, 120 × 240 cm, 120 × 270 cm, 120 x 300 cm

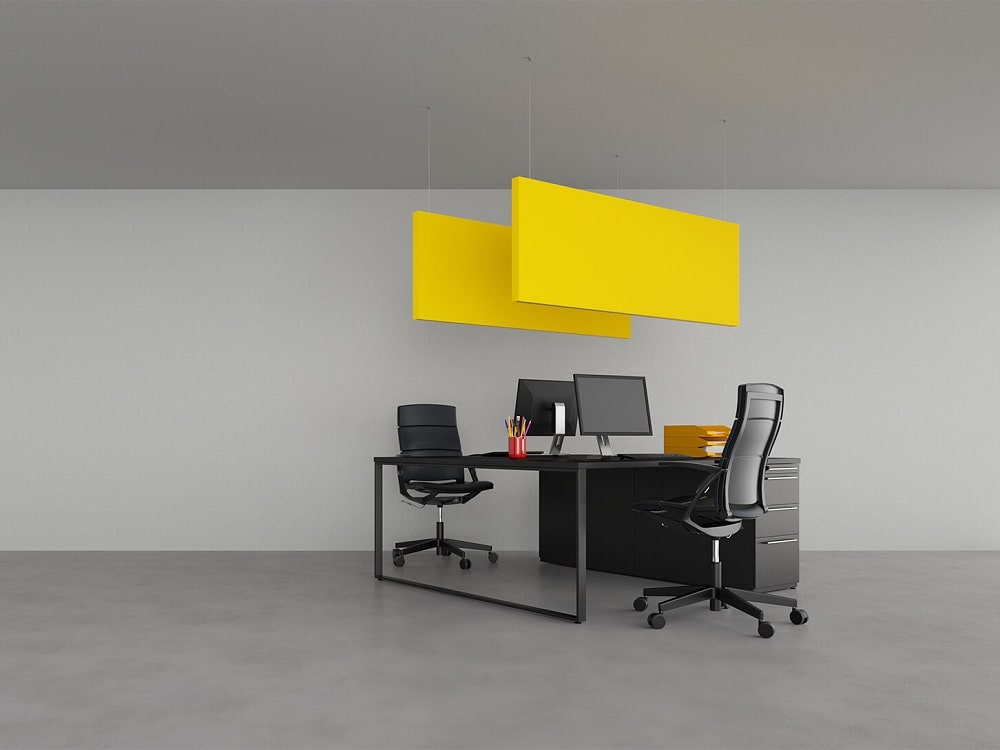

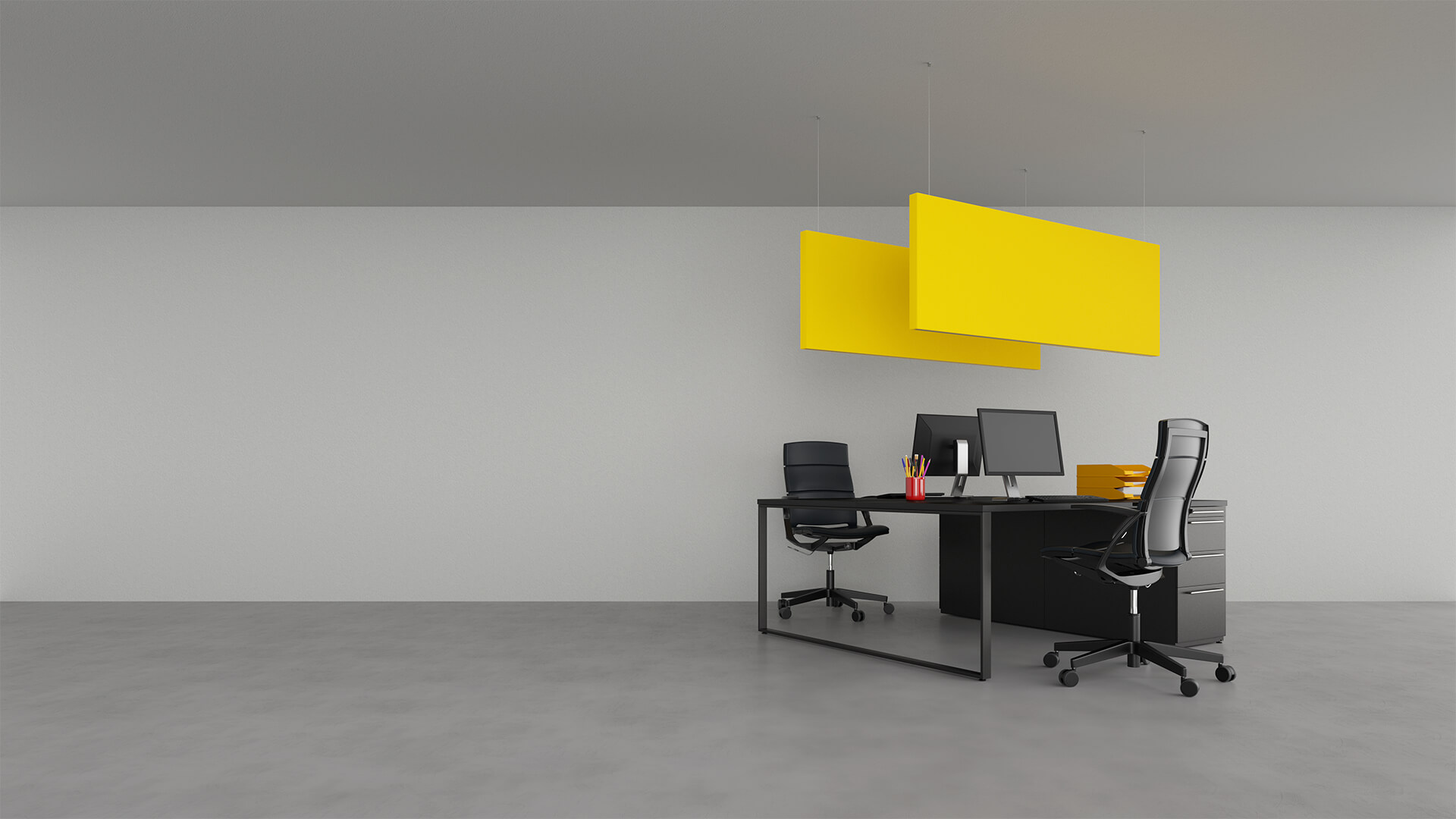

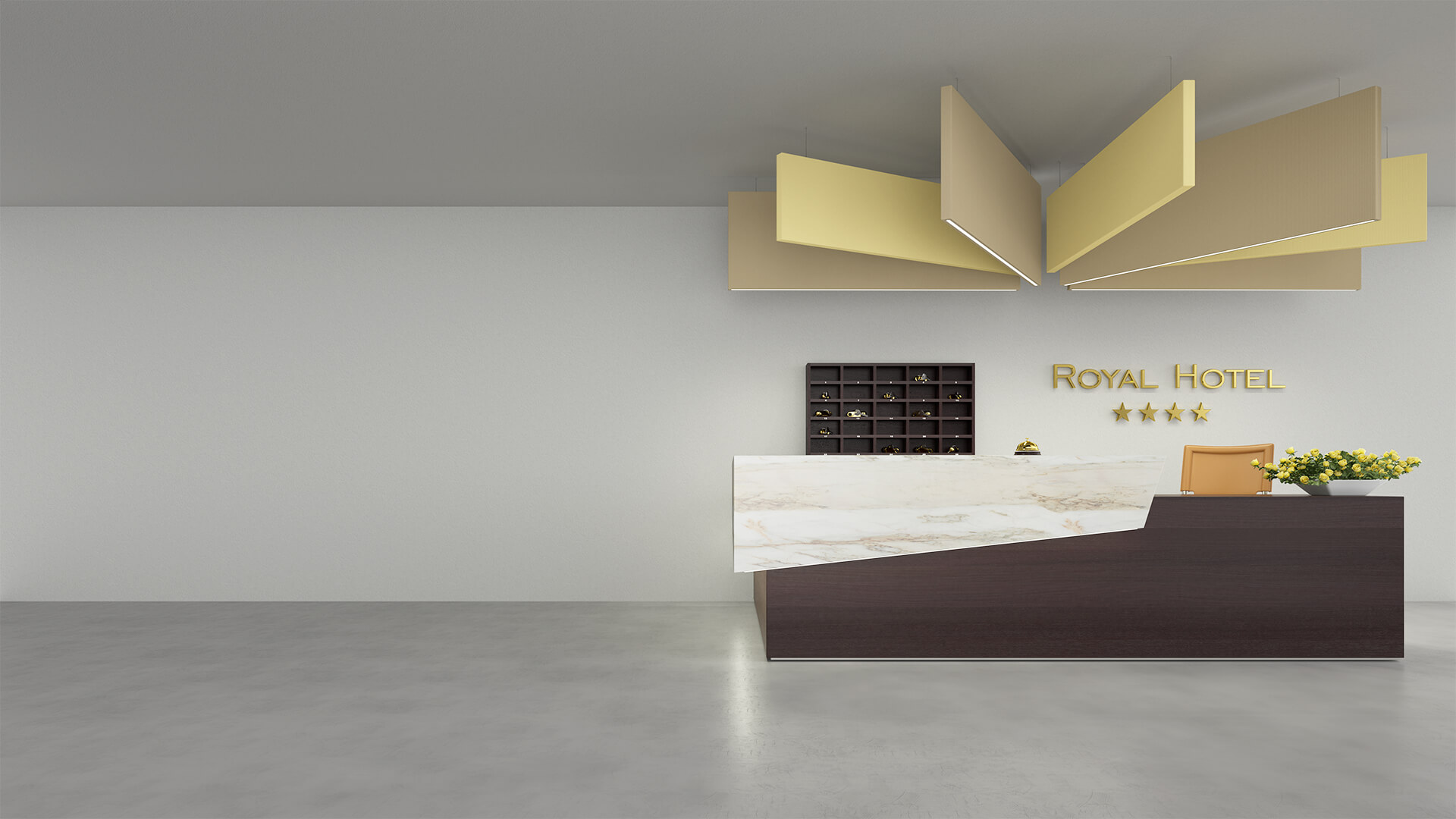

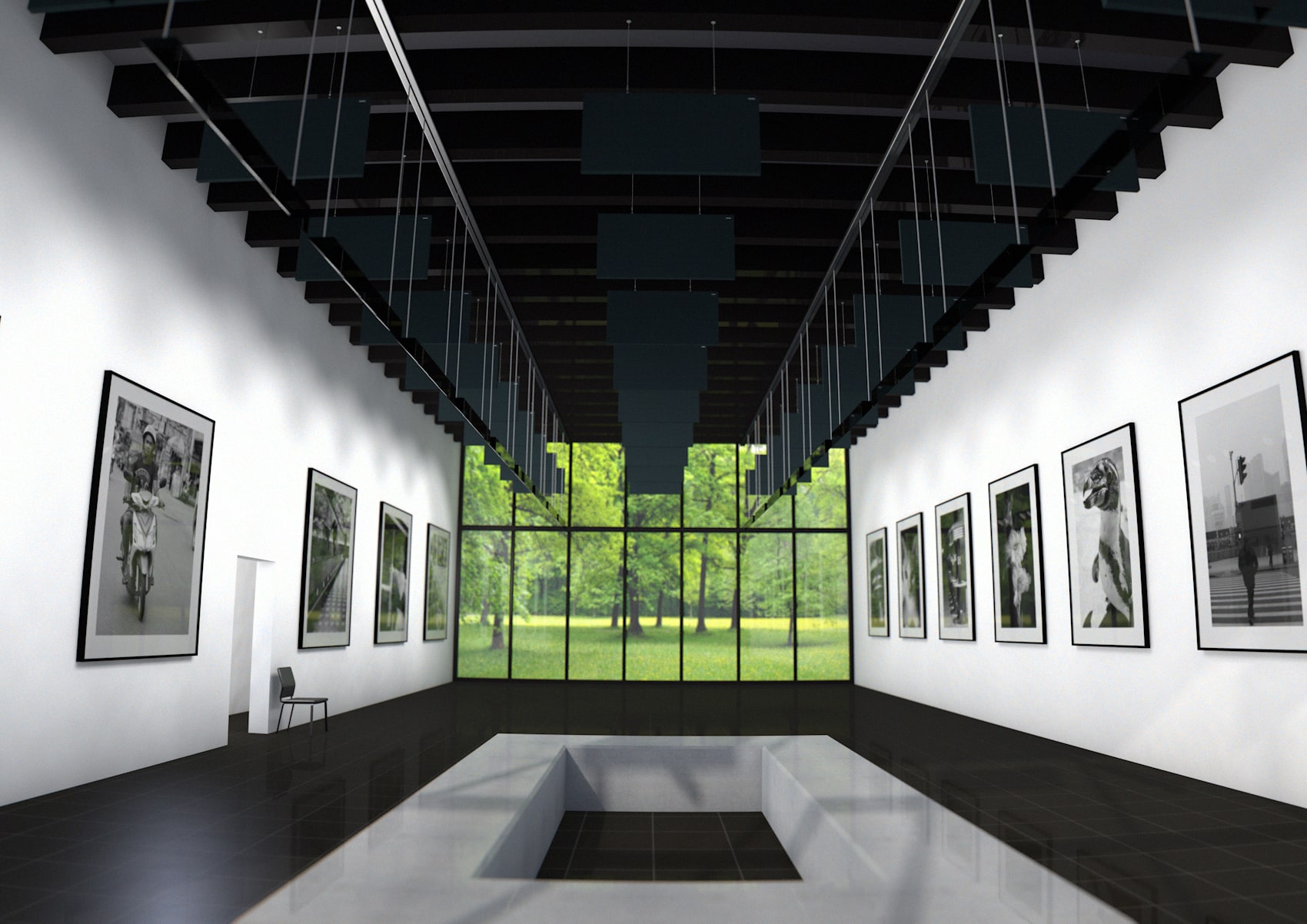

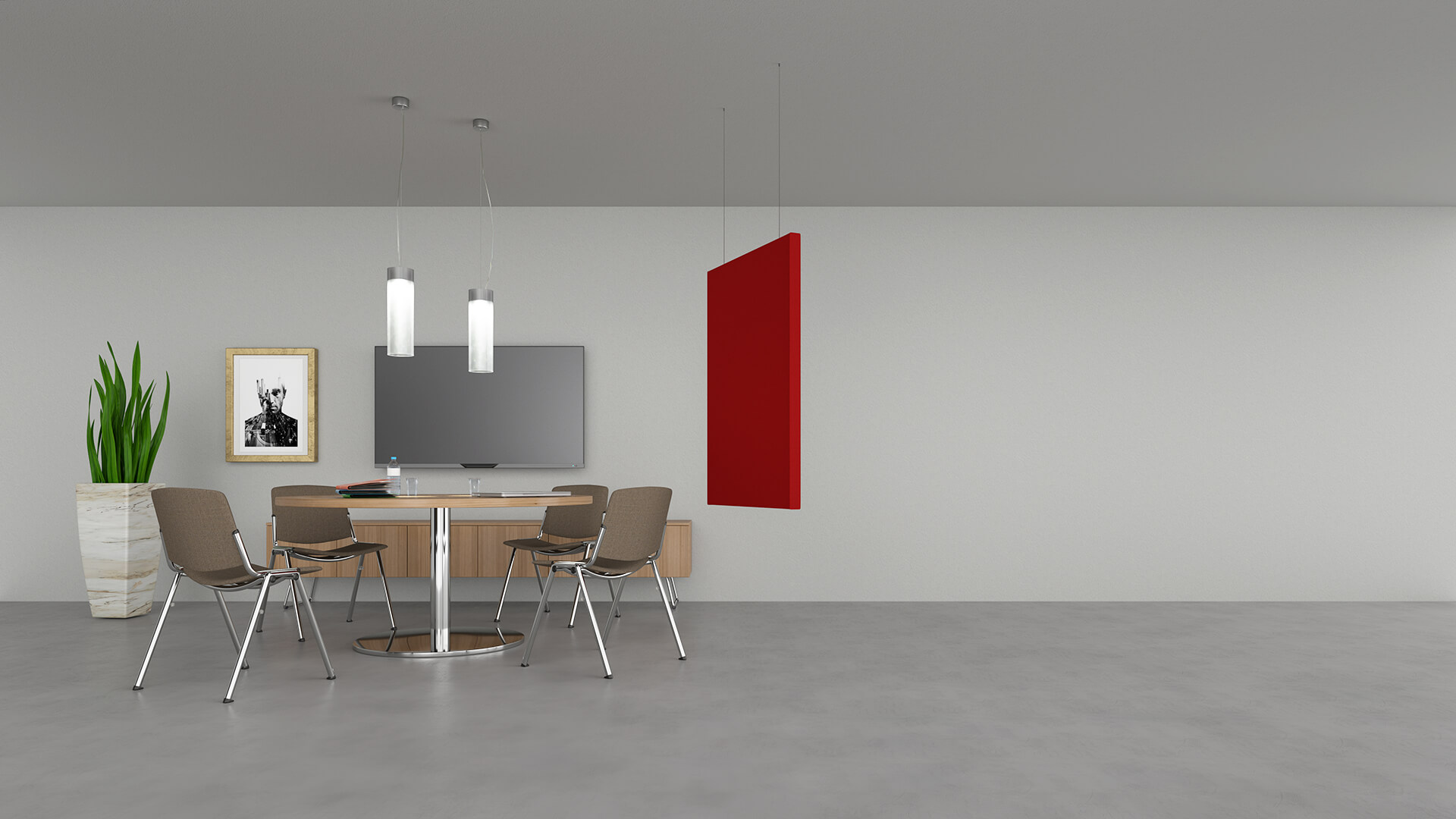

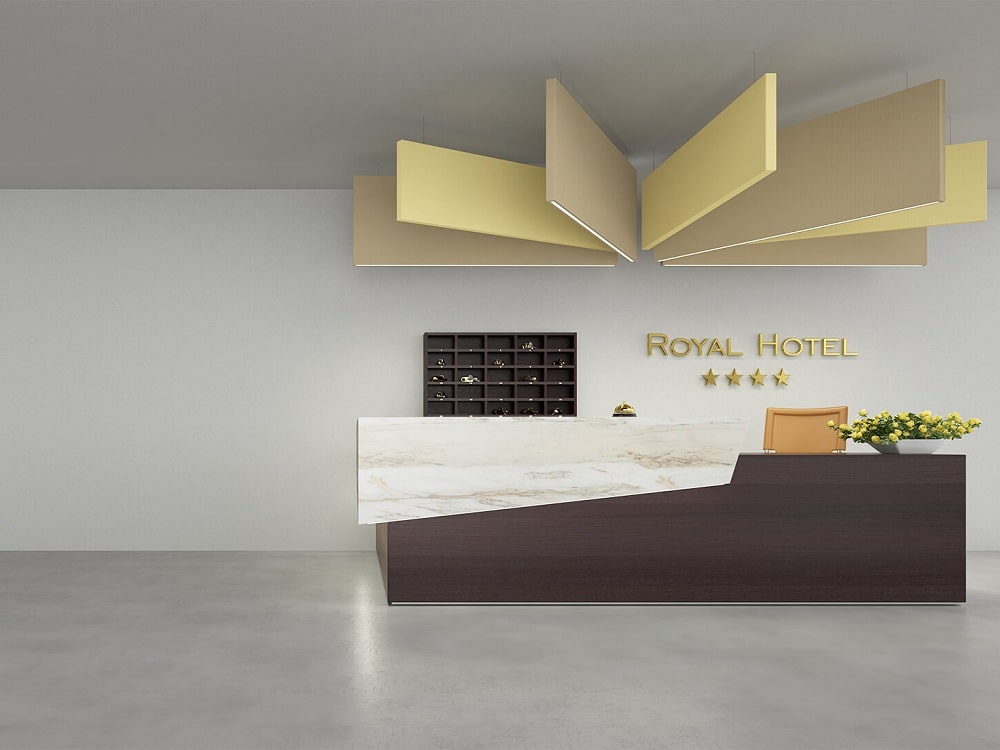

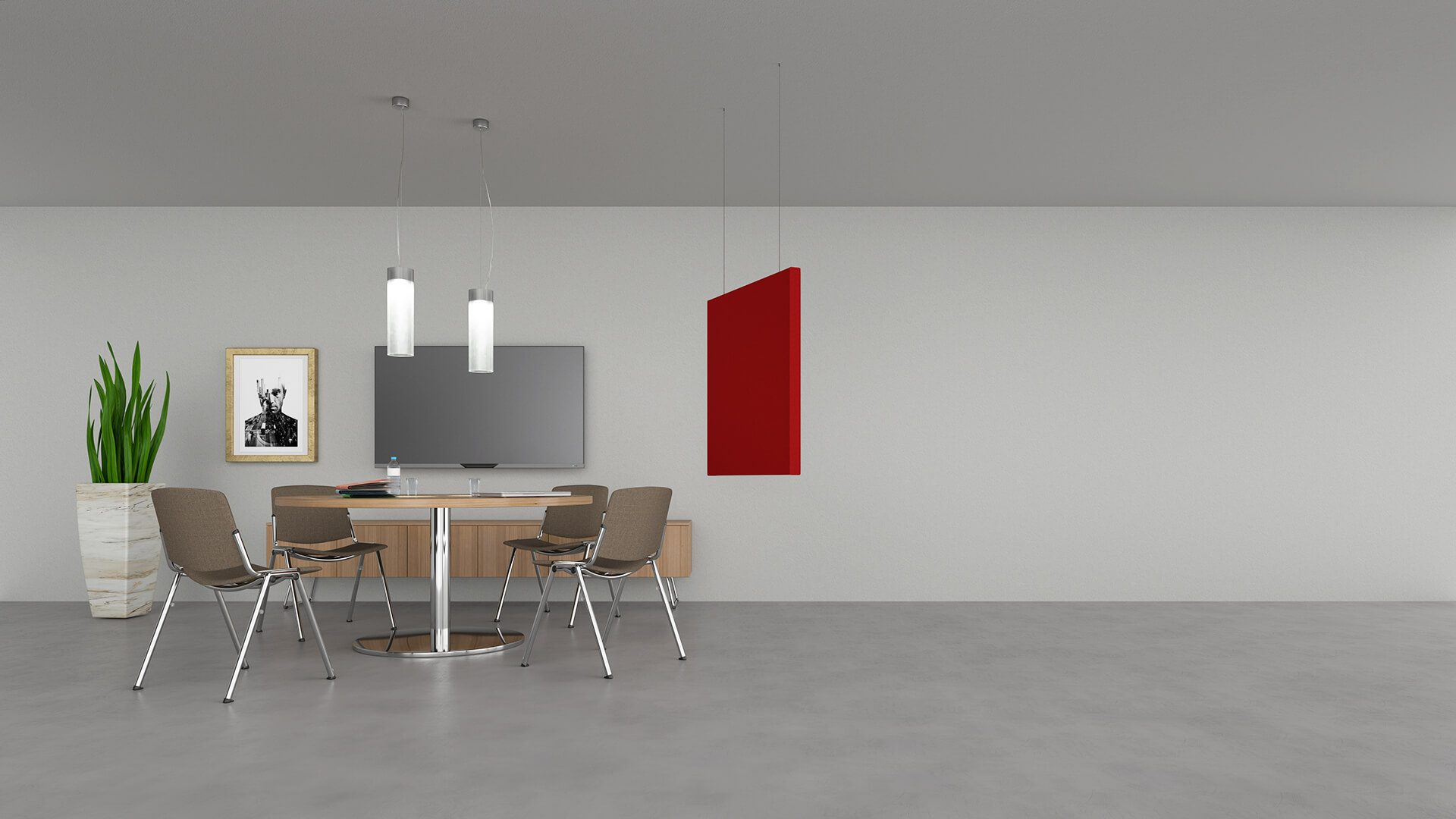

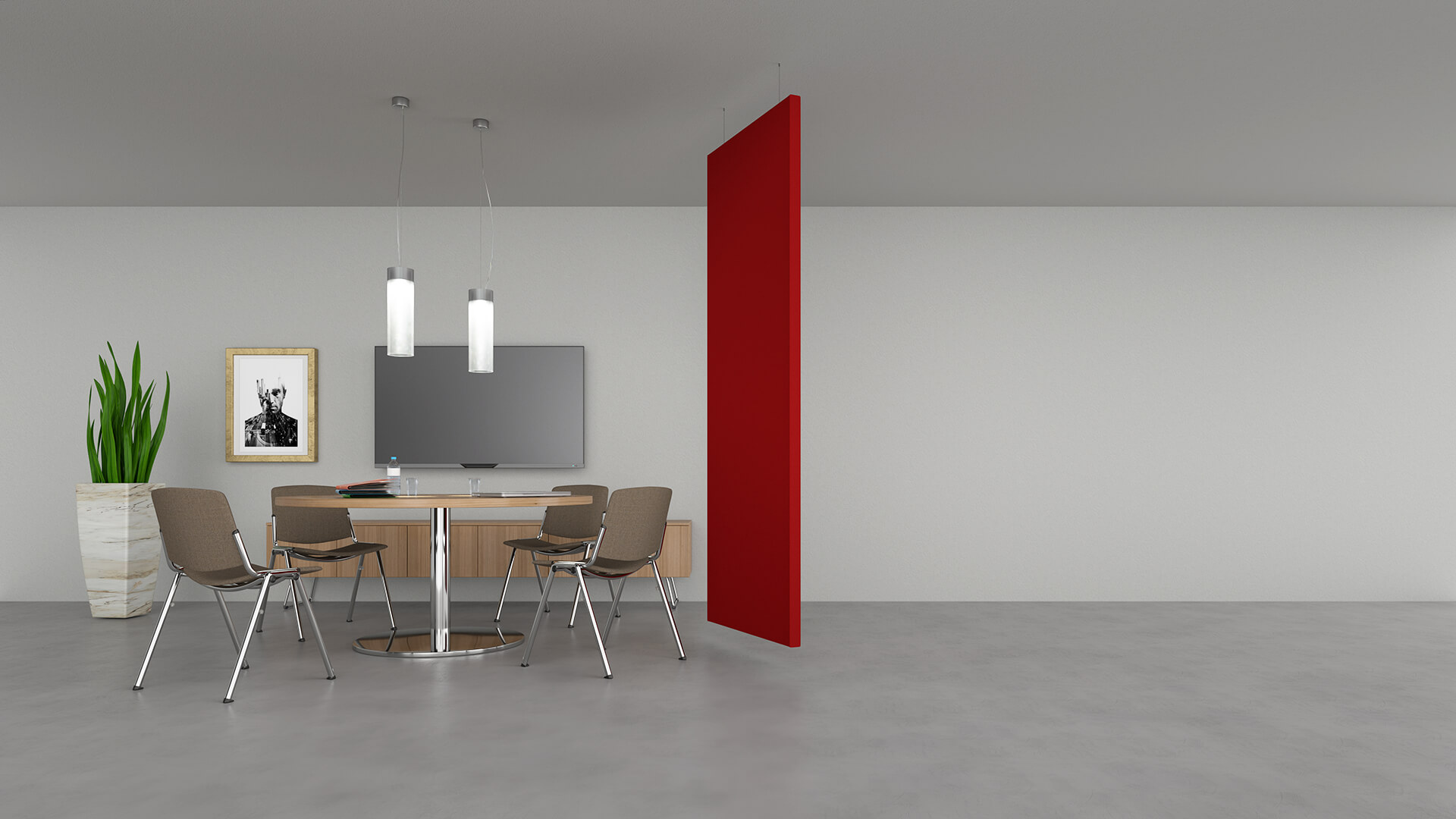

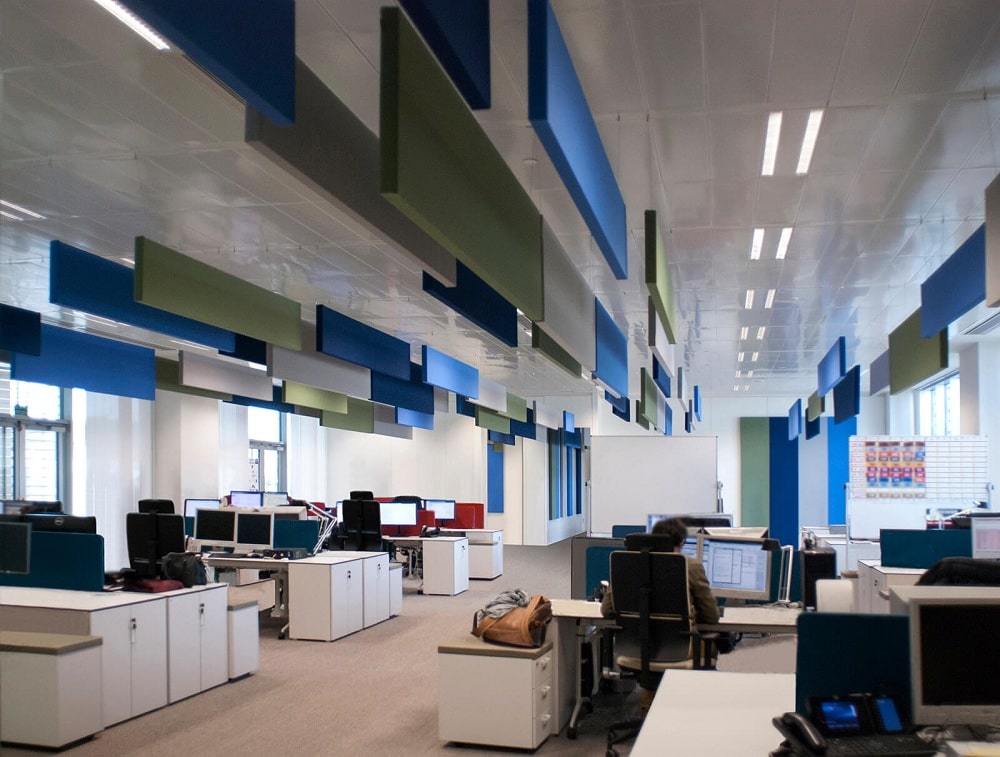

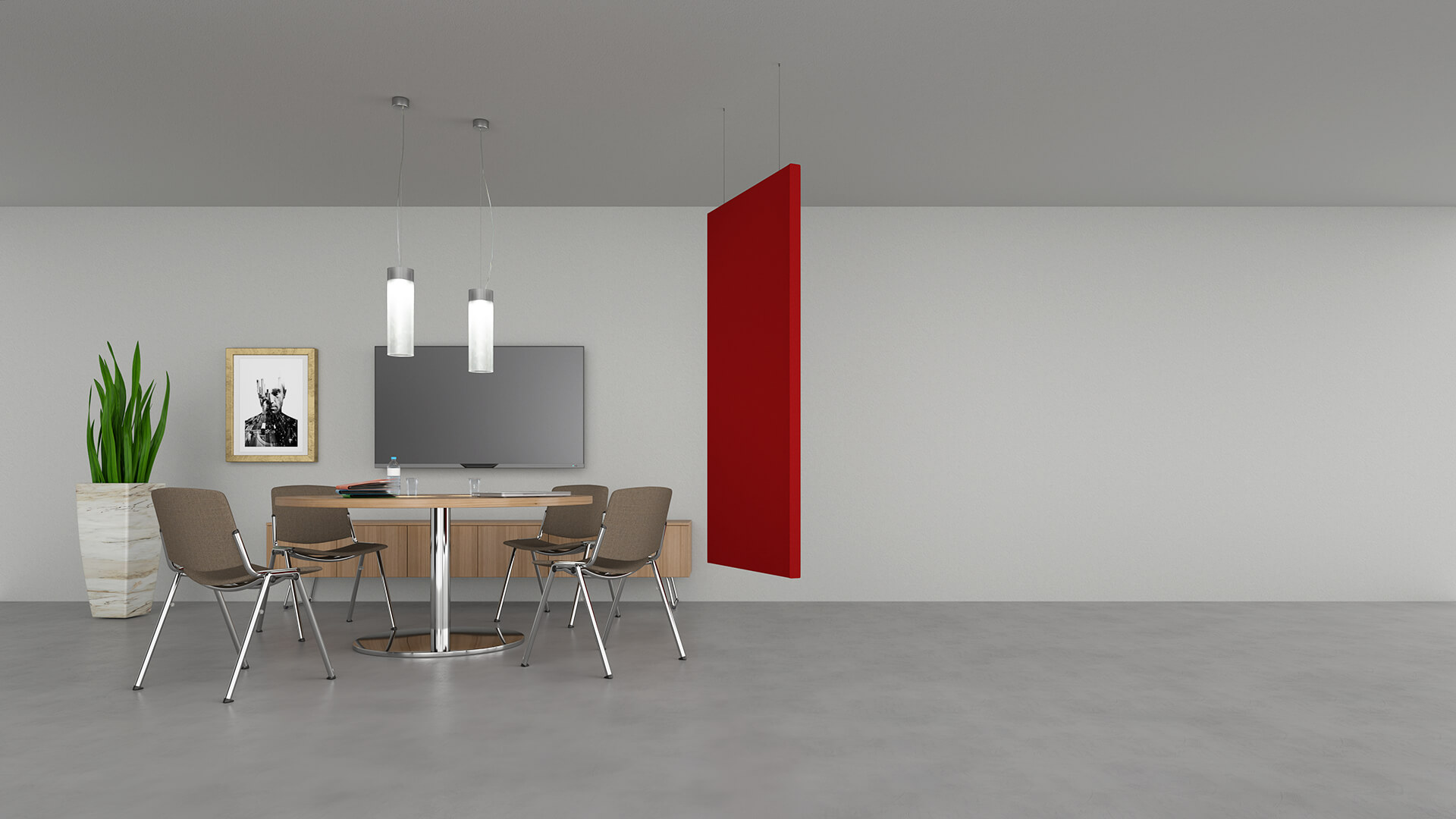

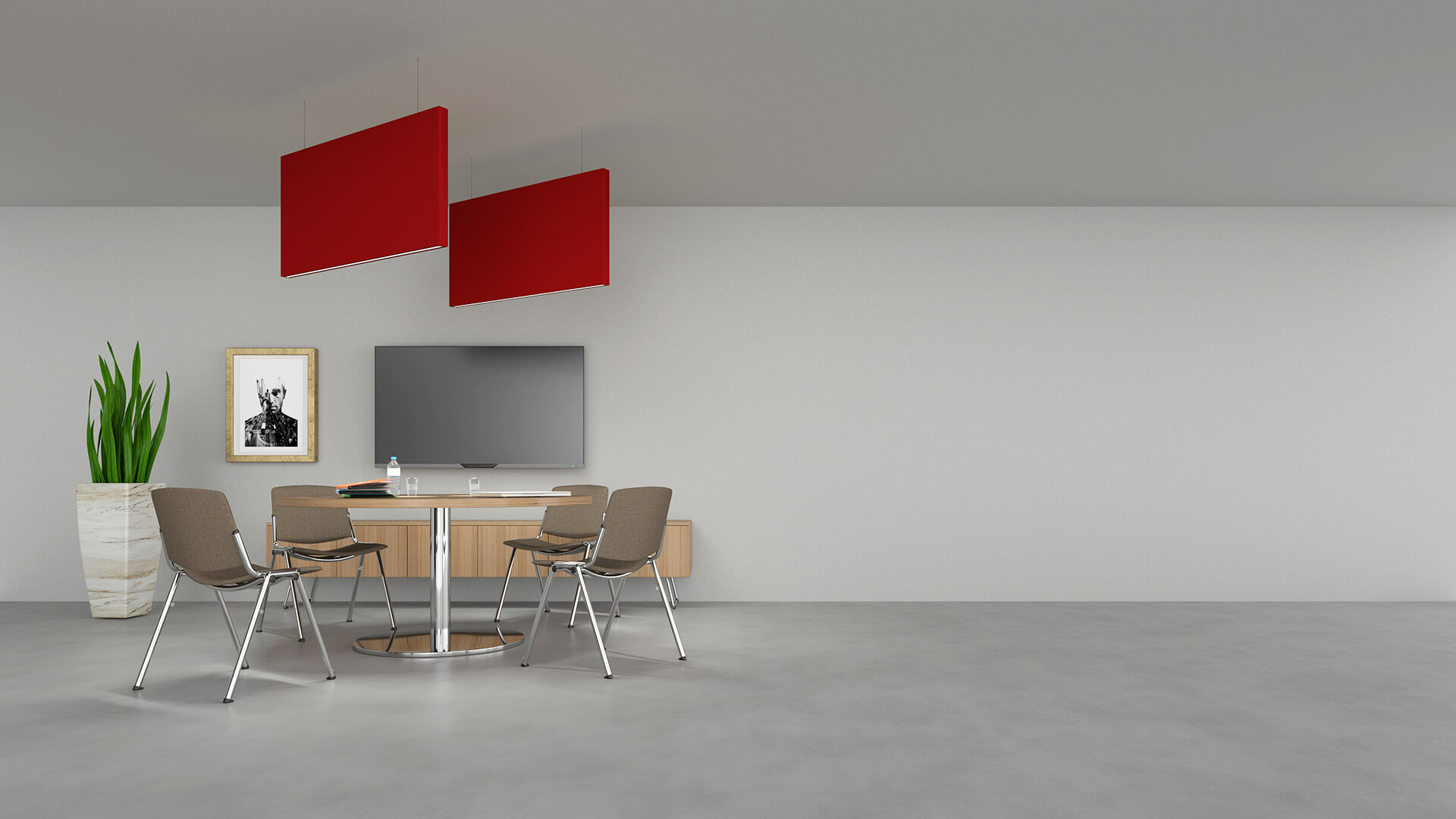

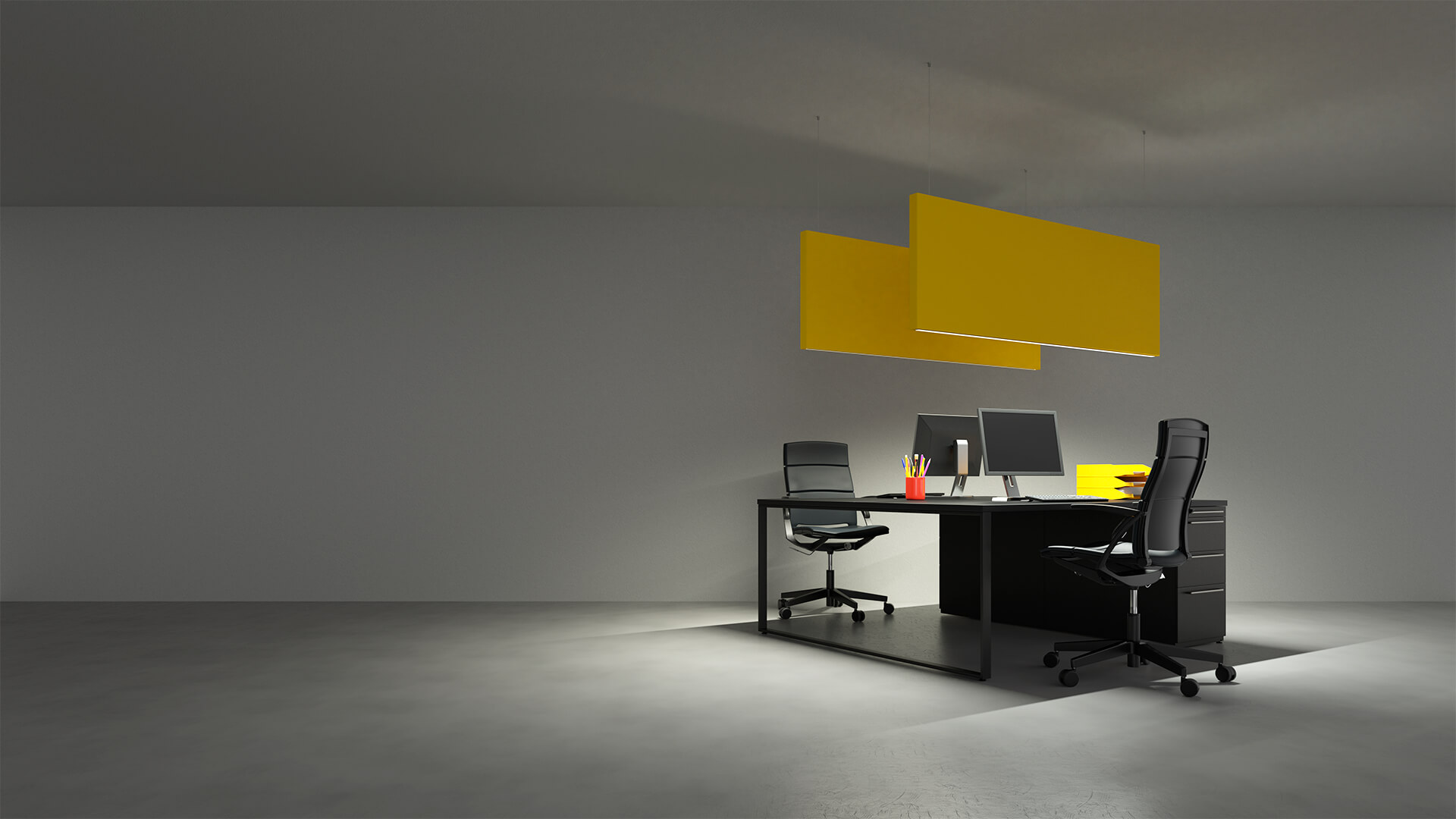

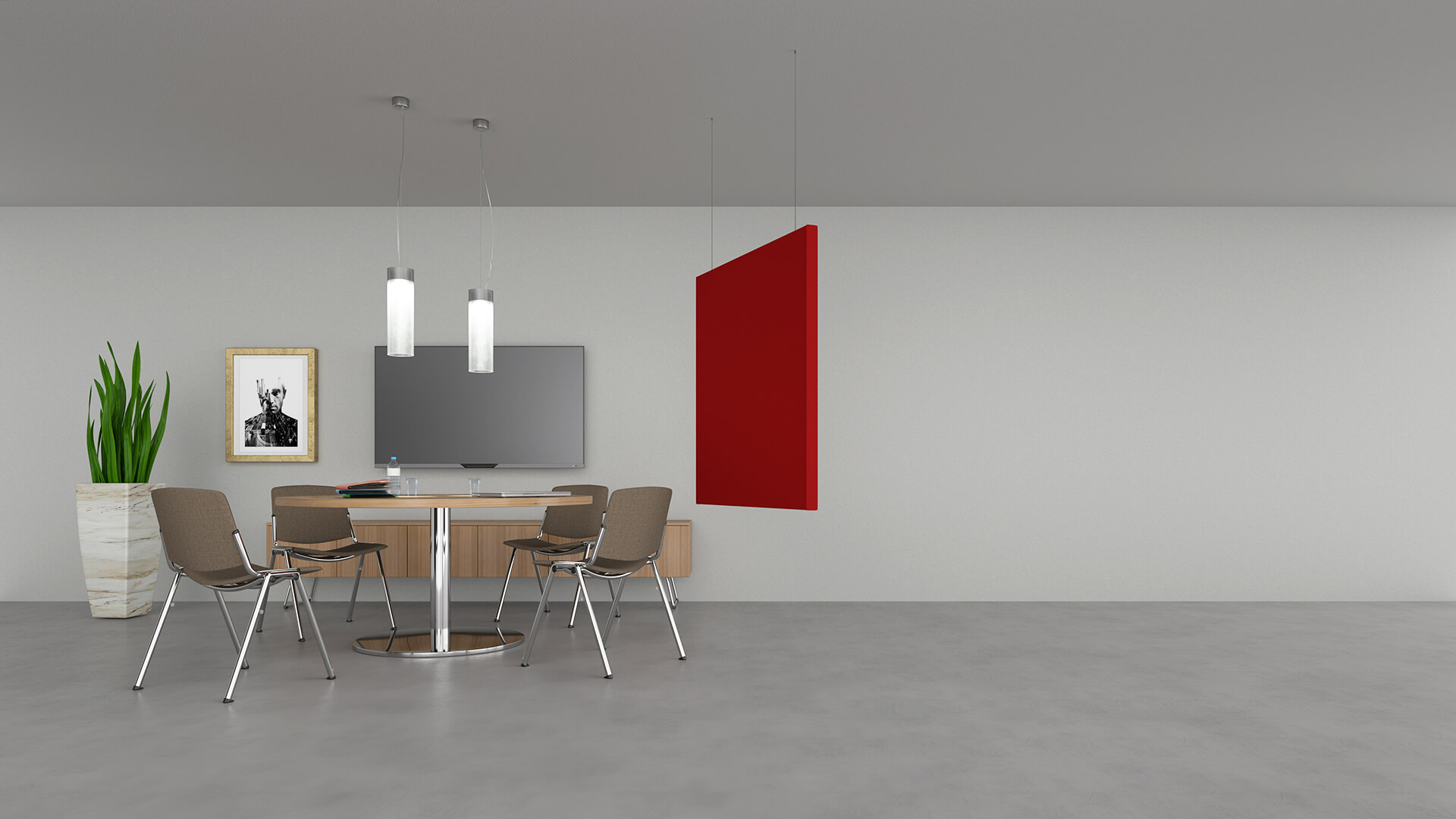

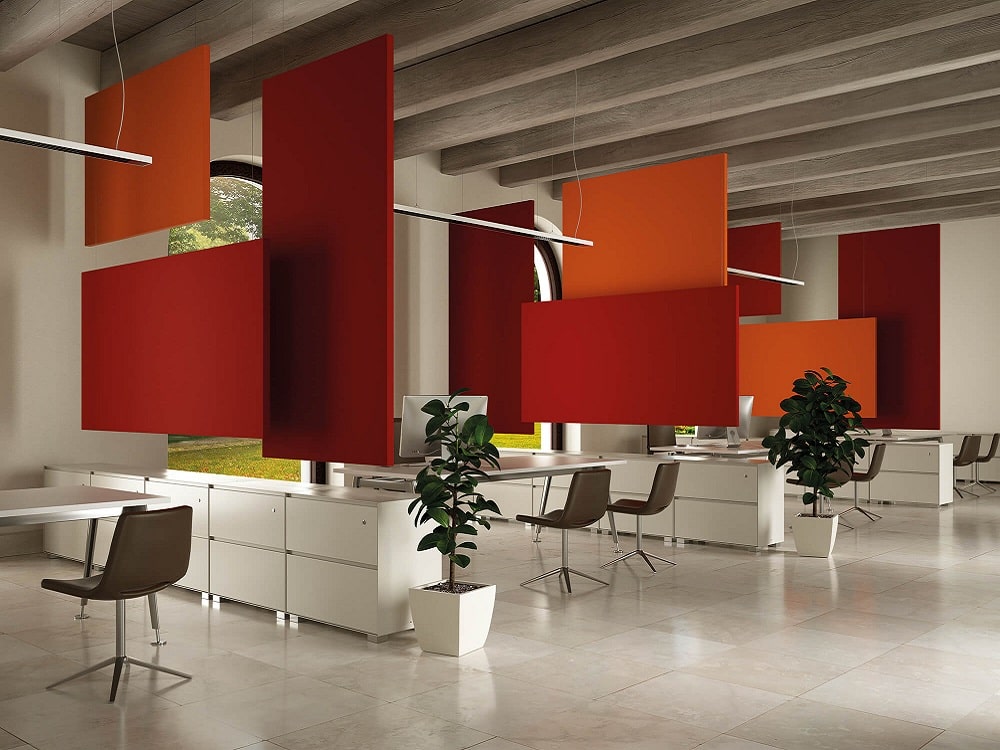

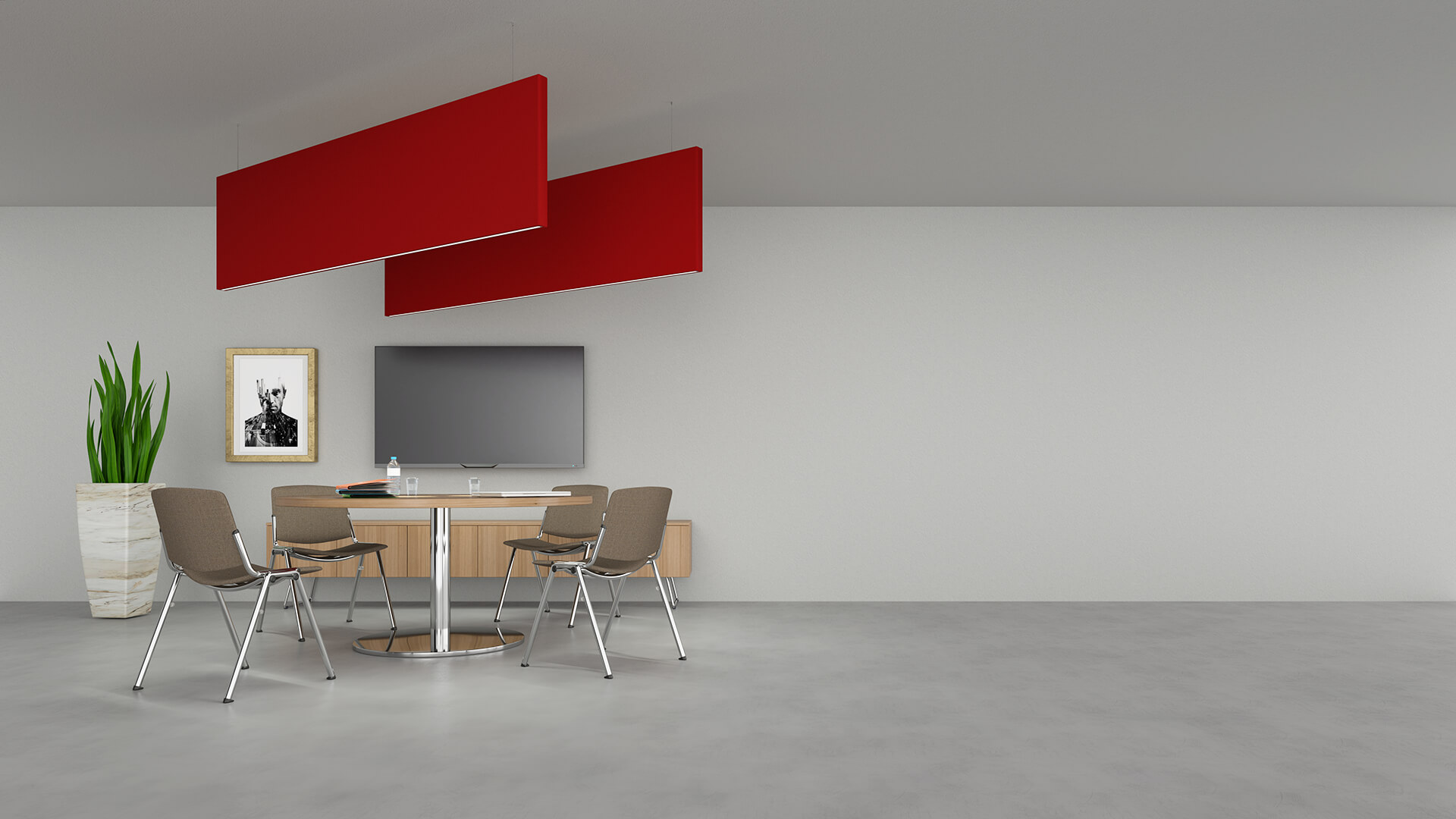

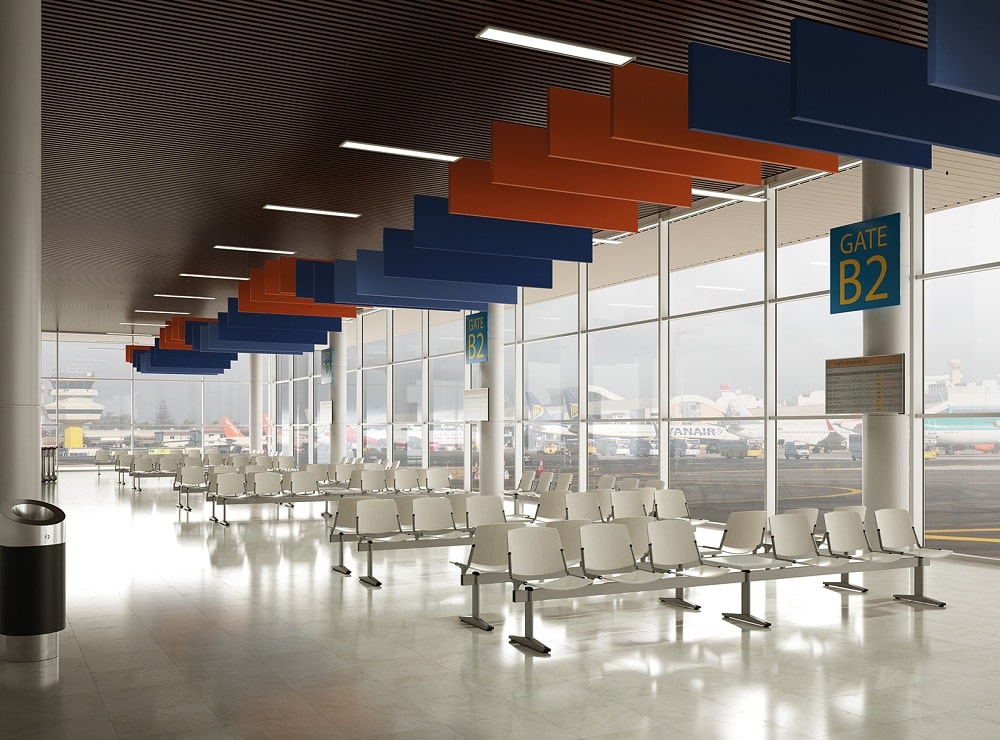

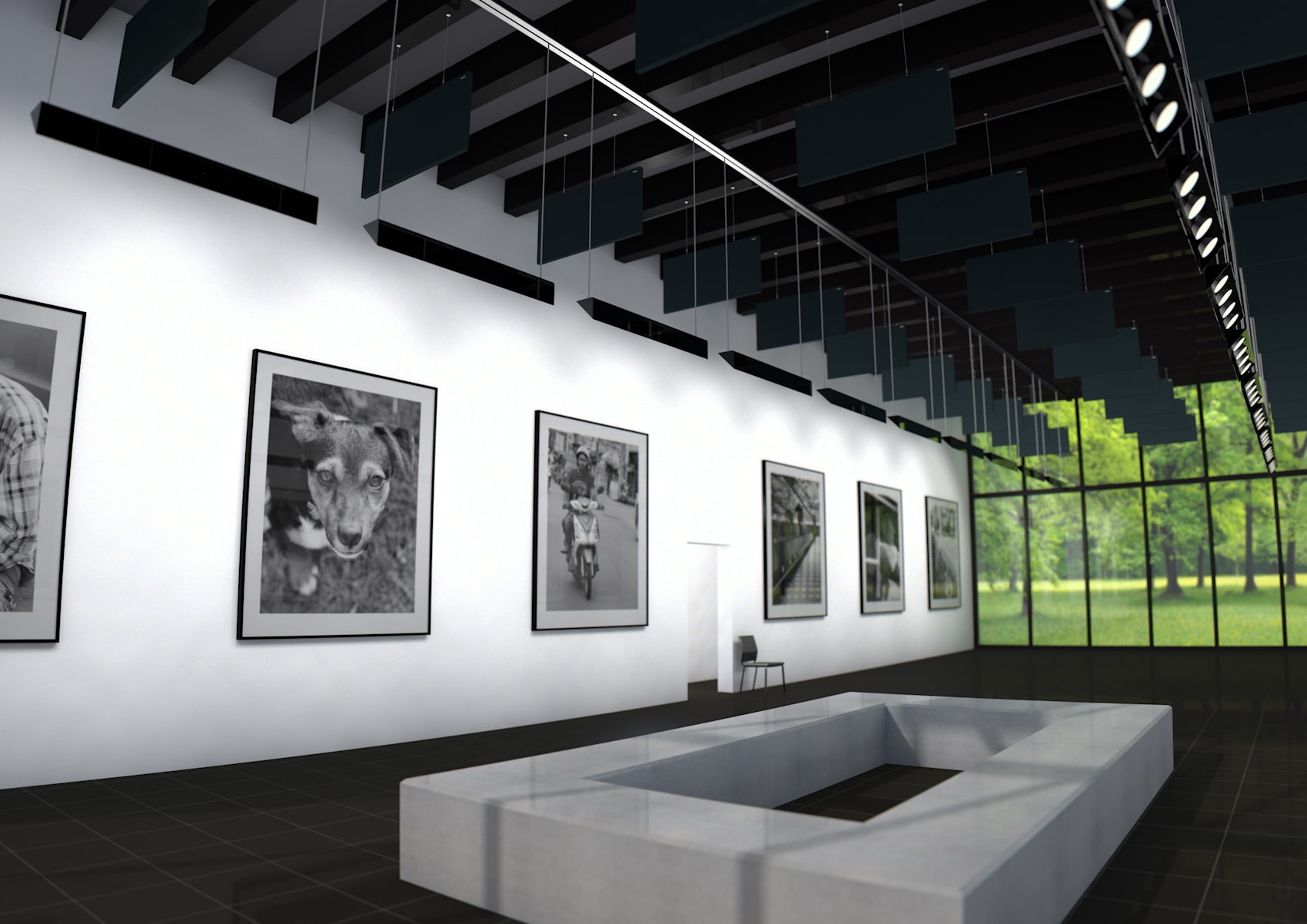

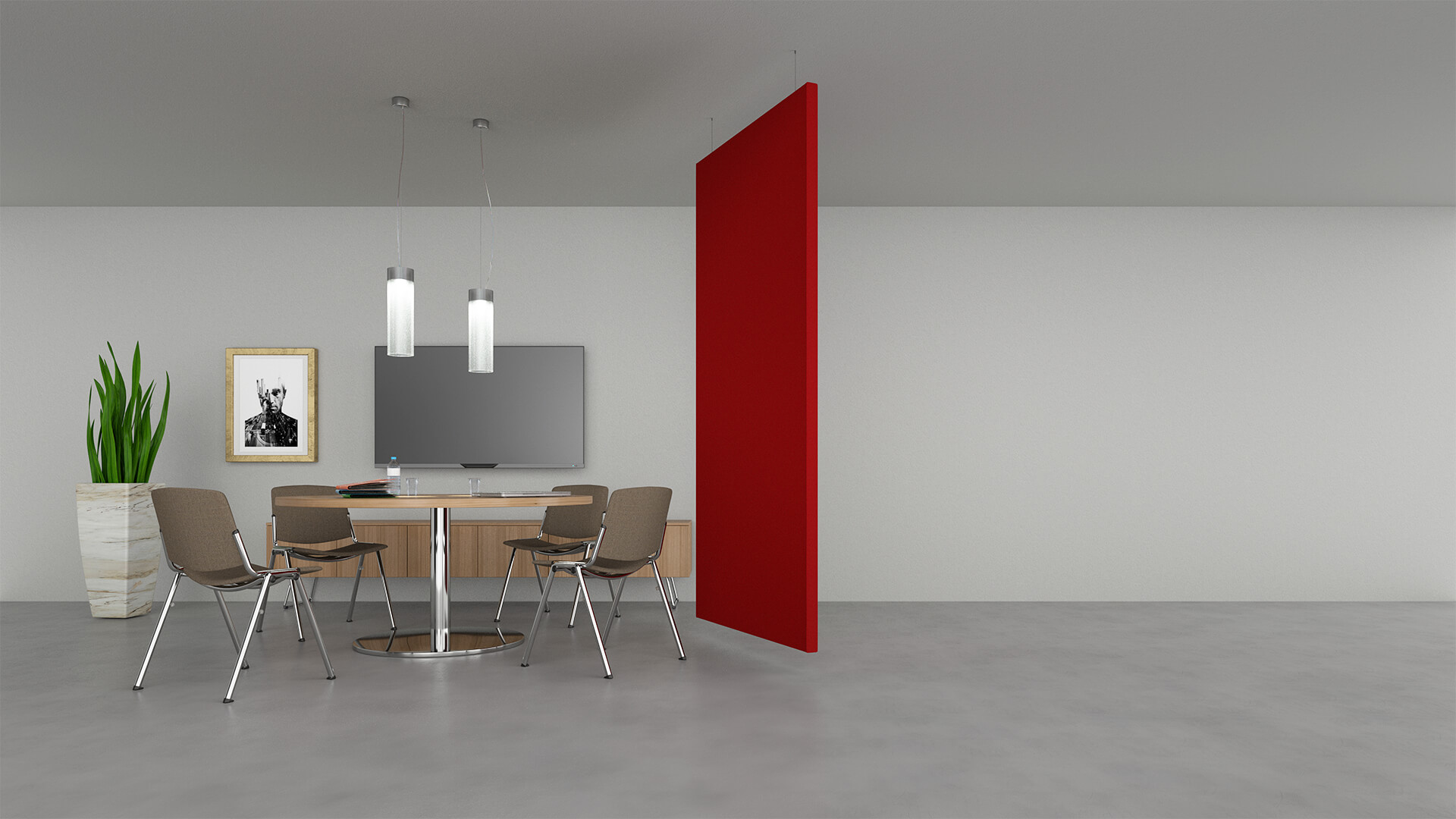

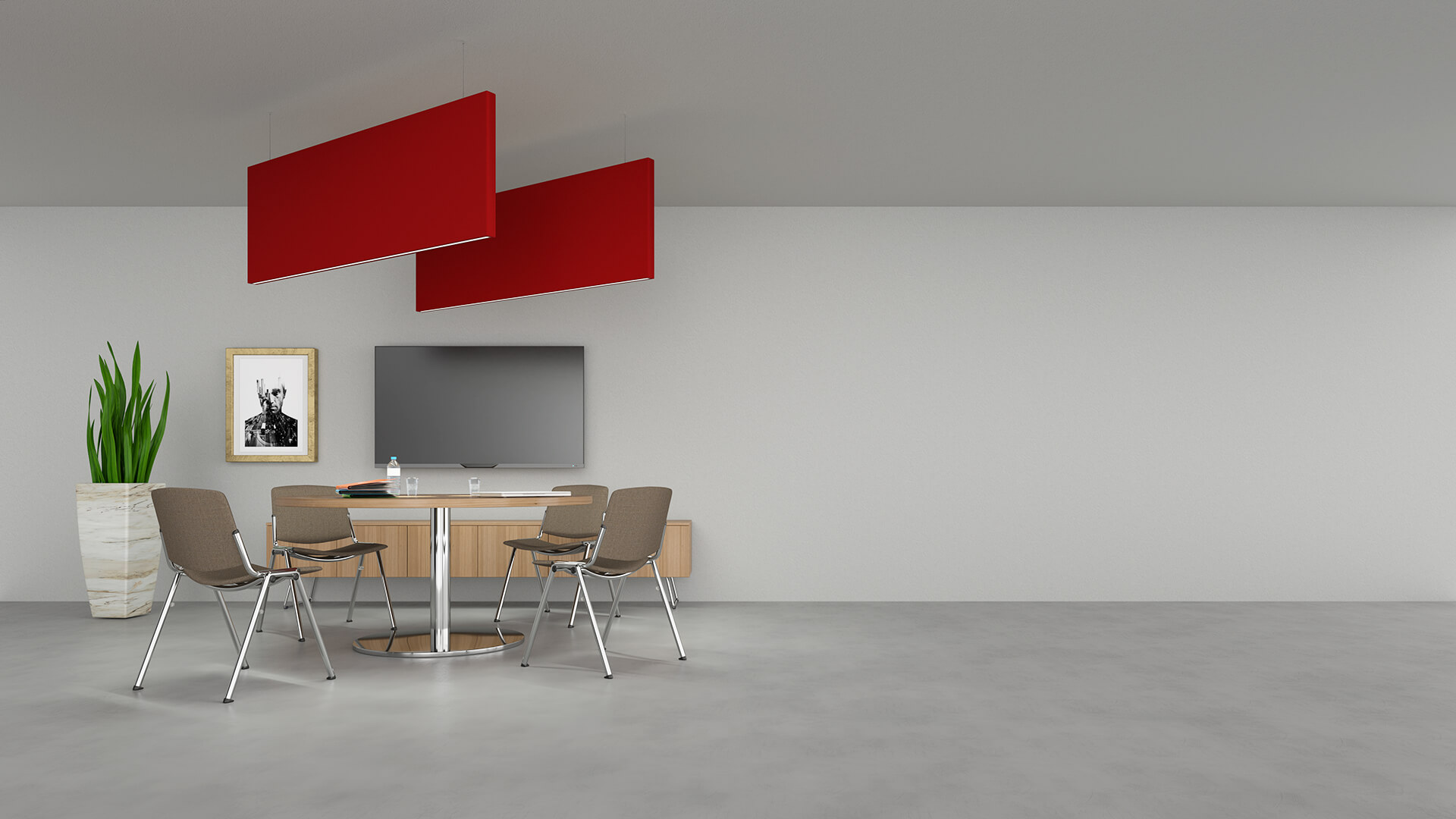

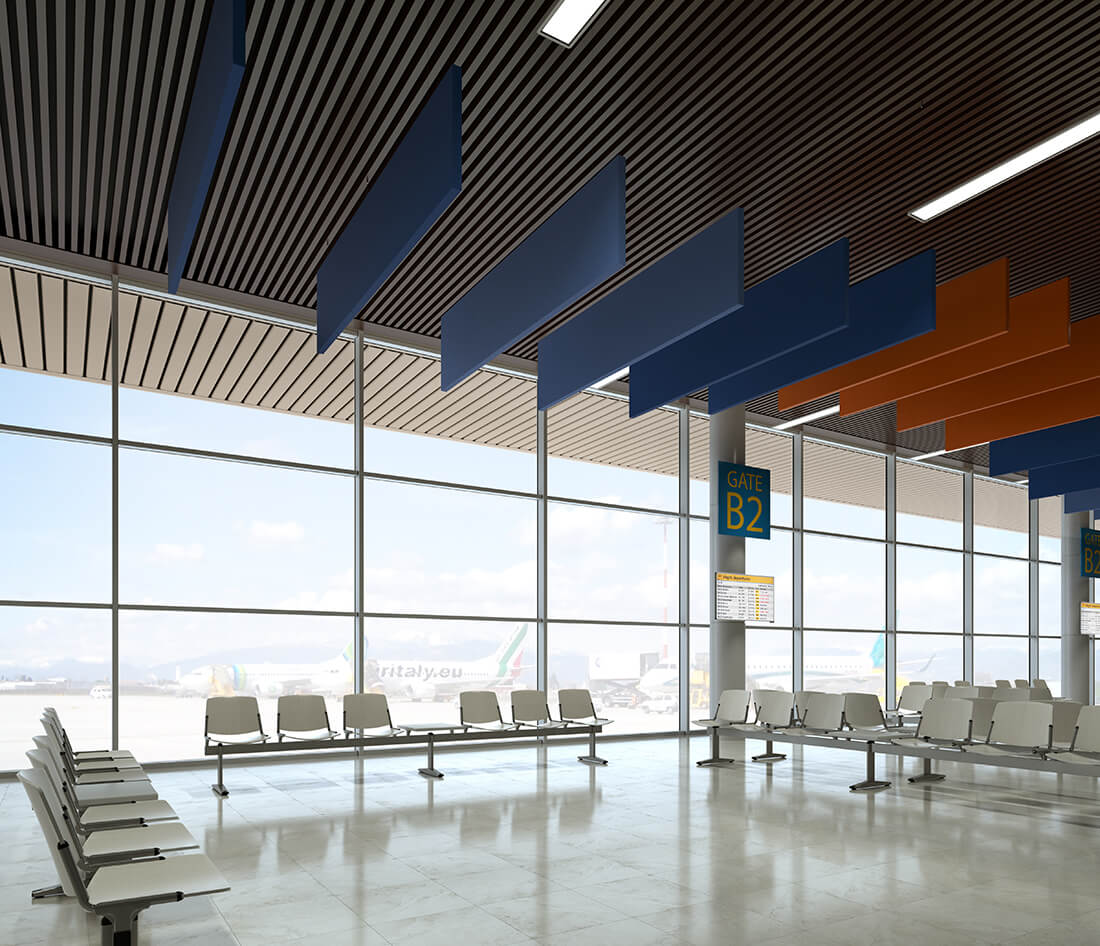

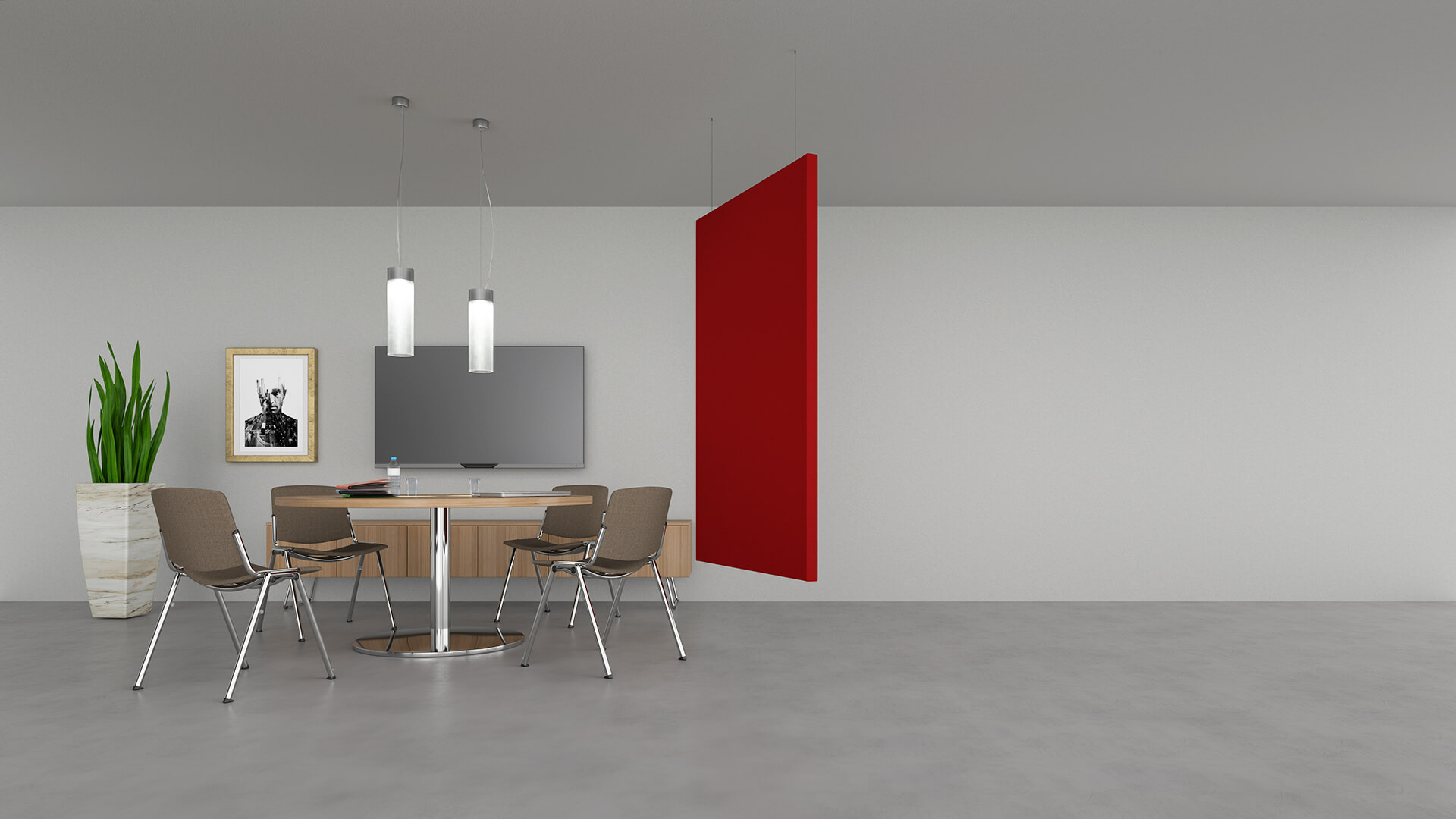

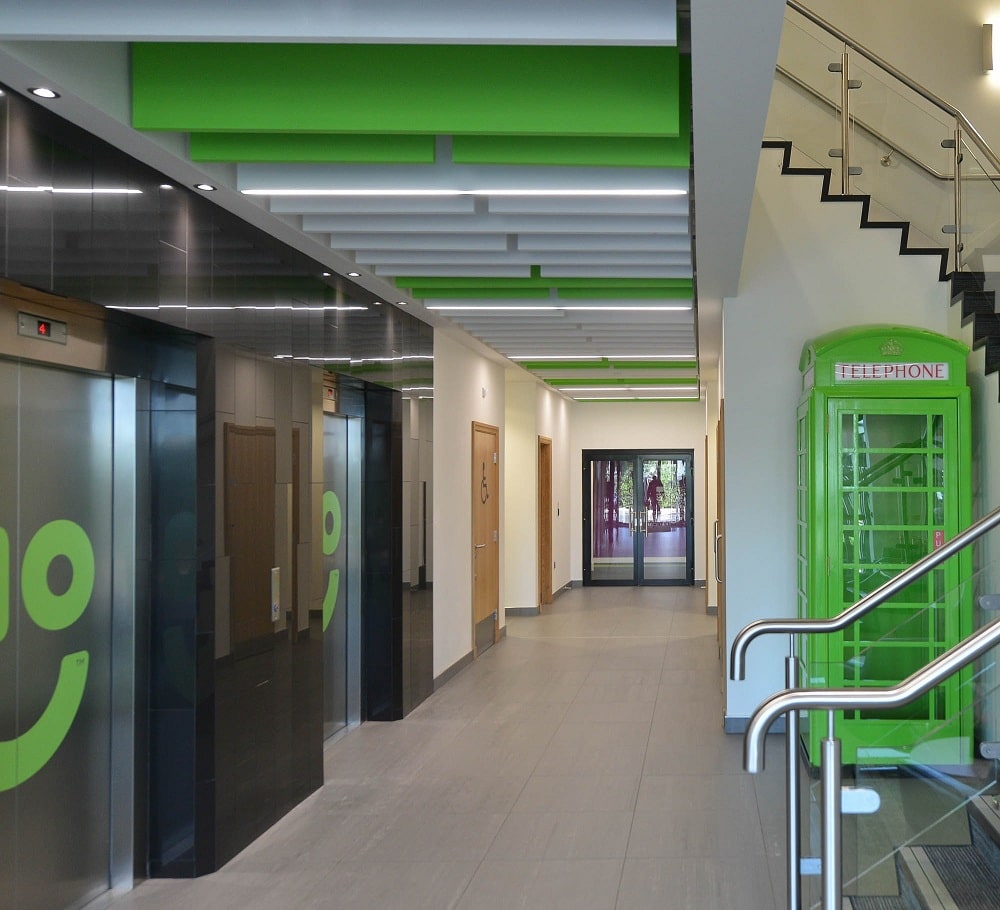

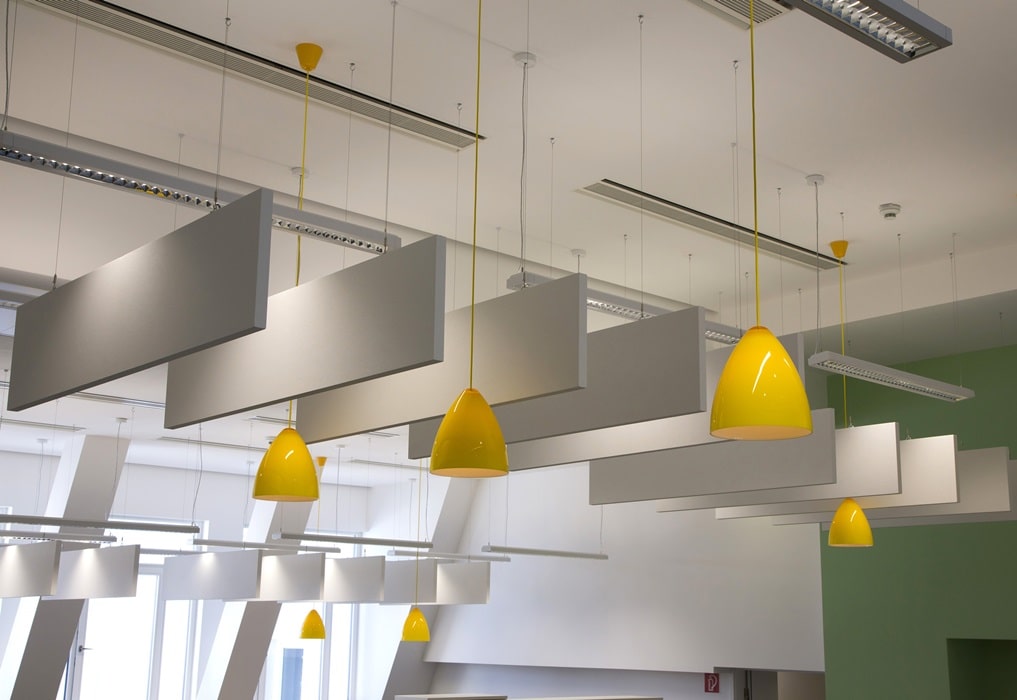

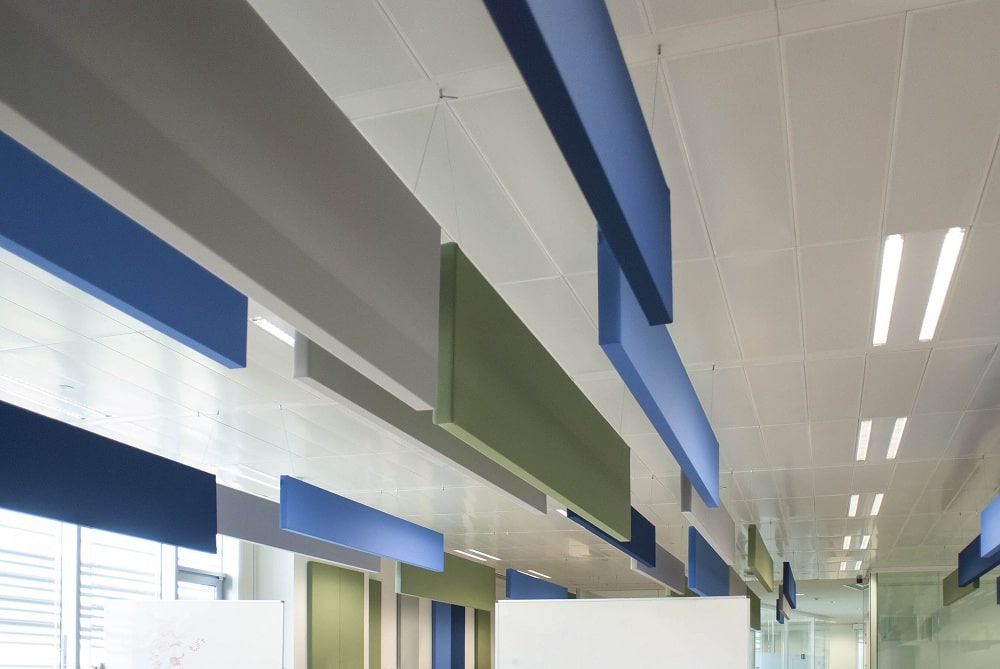

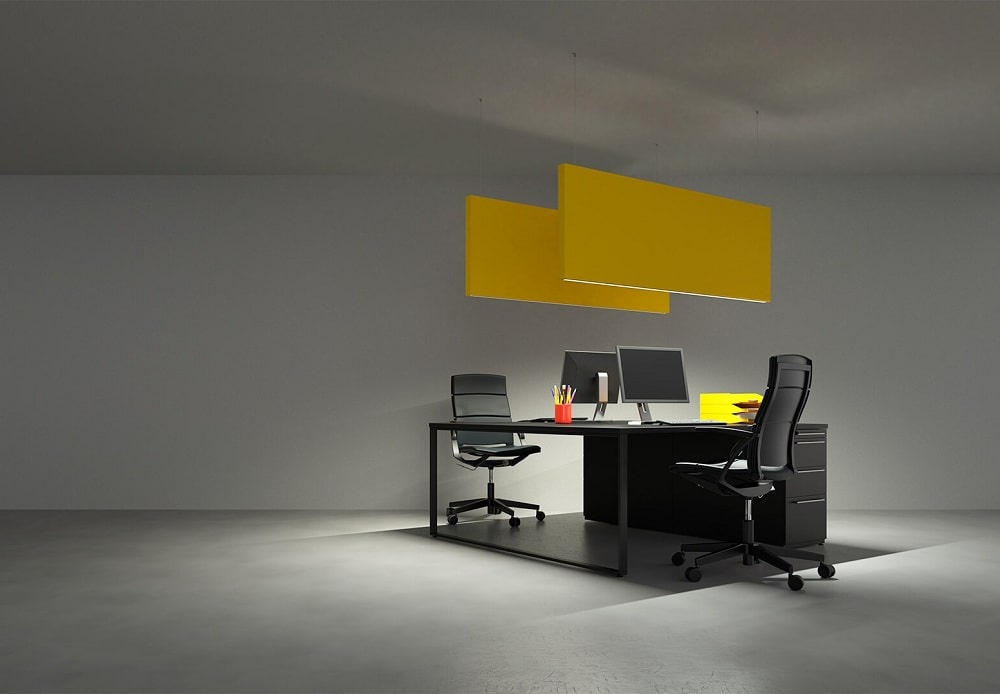

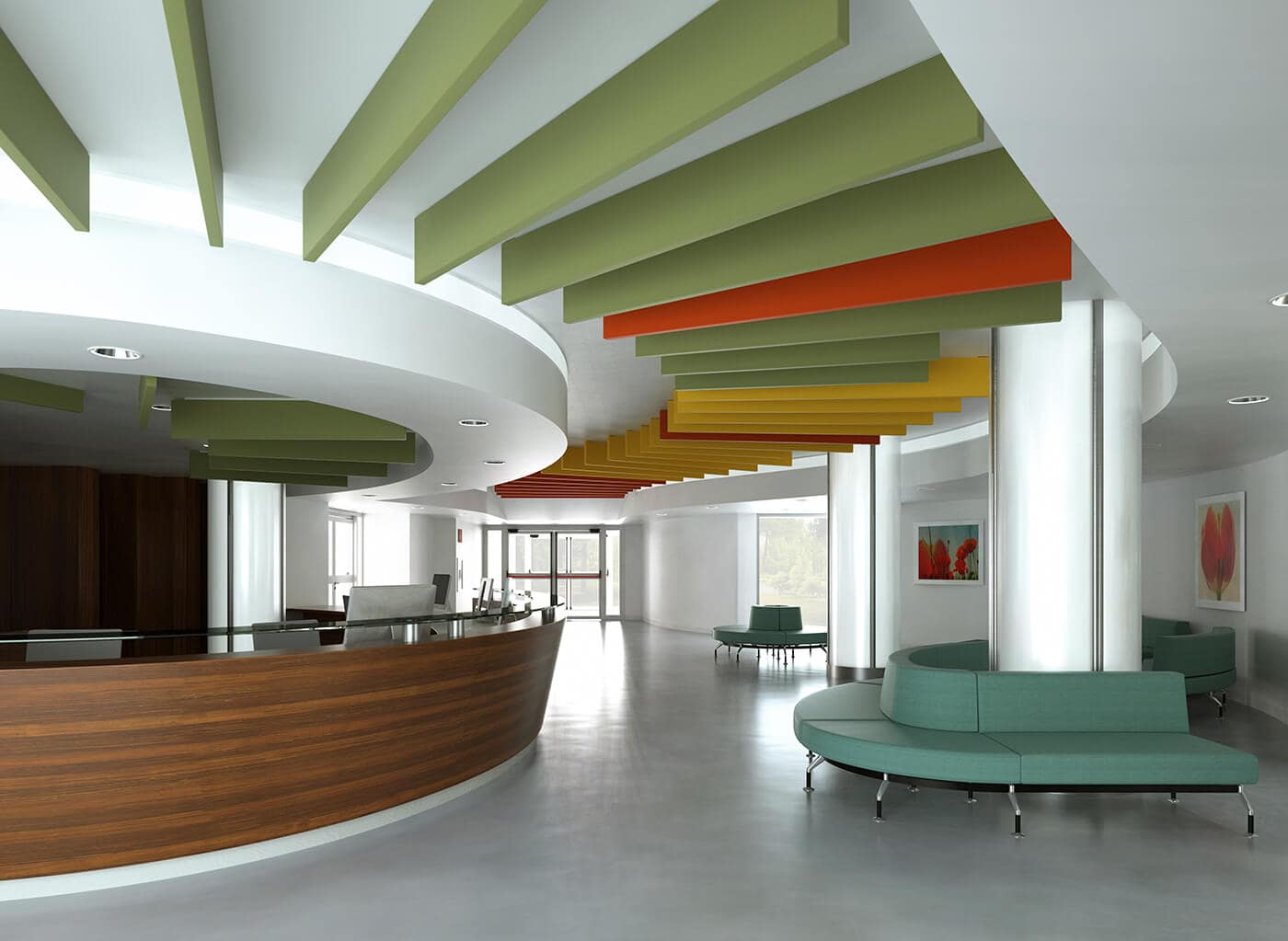

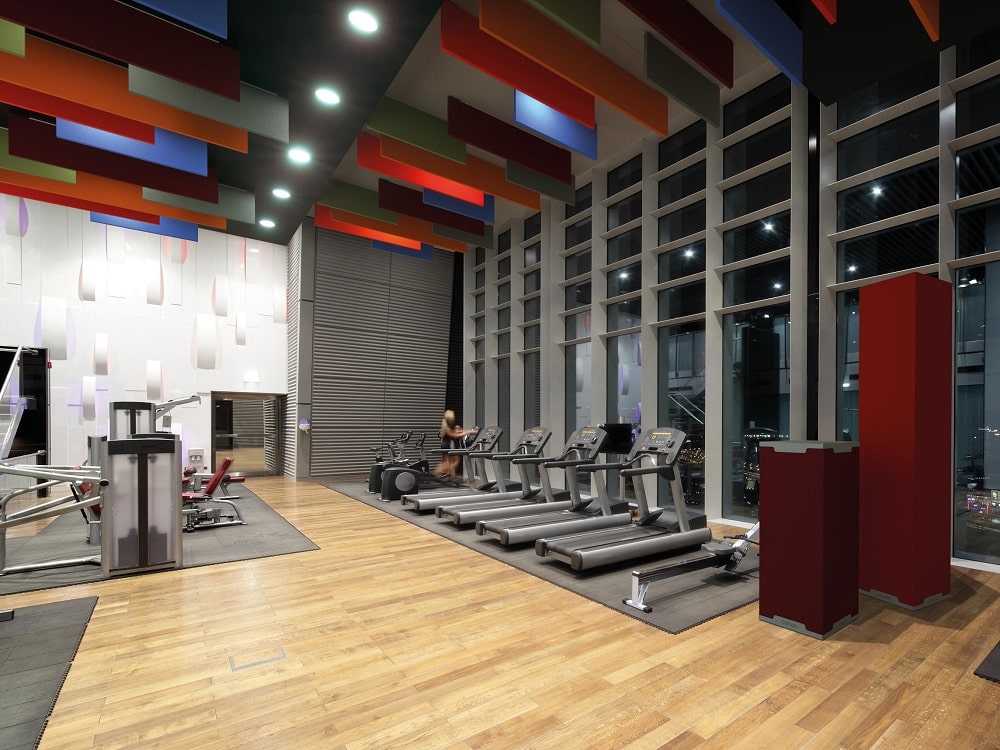

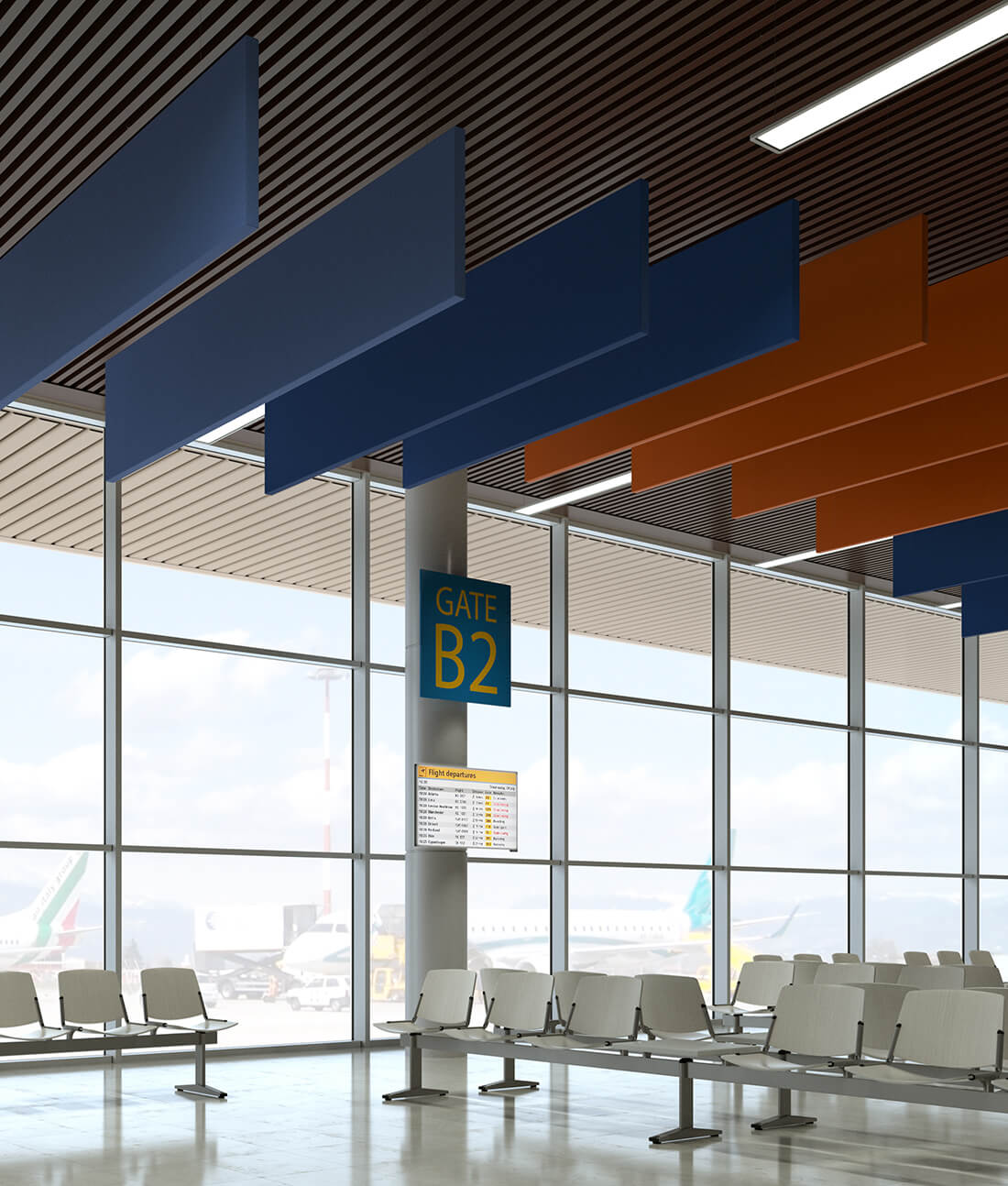

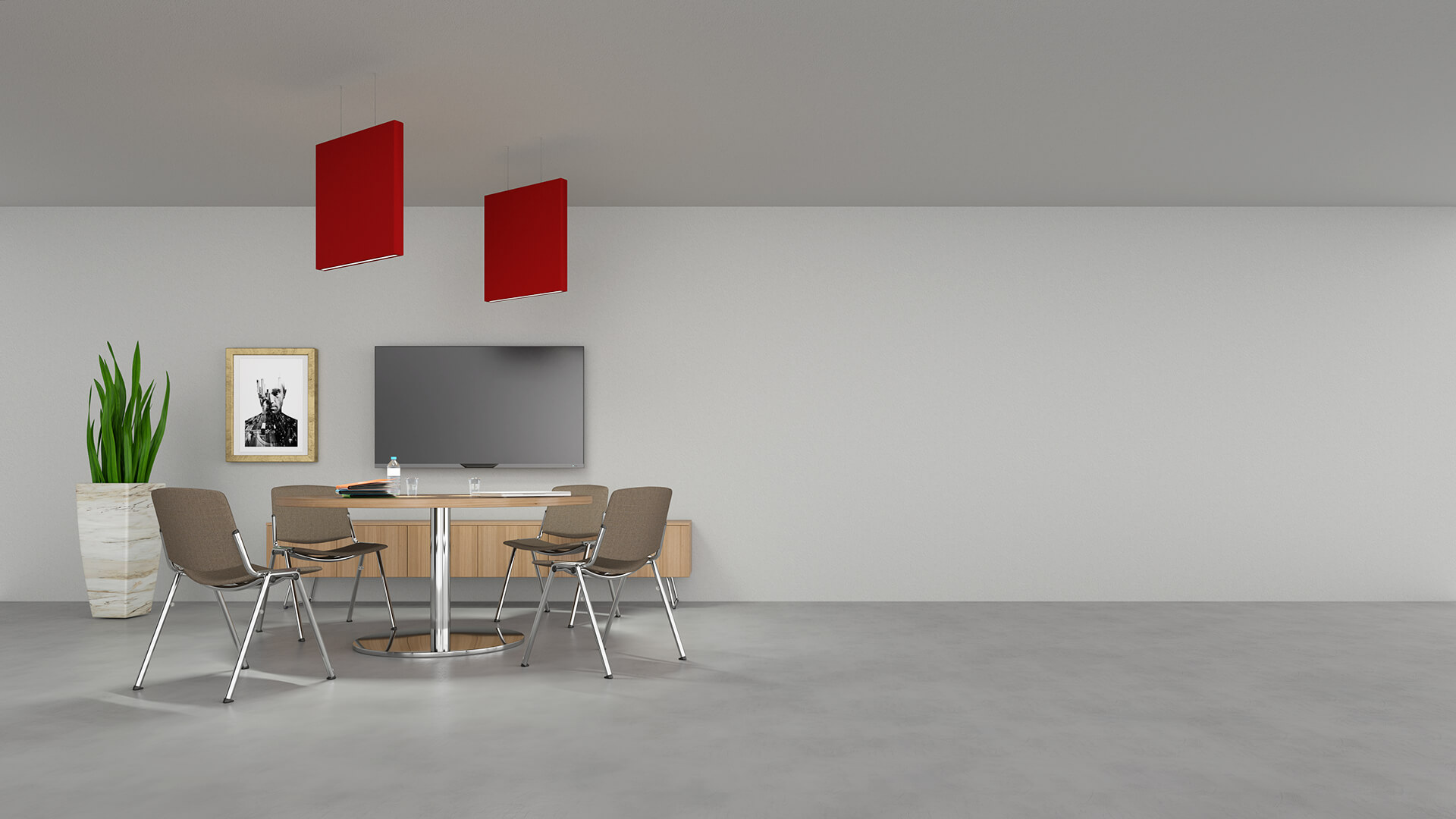

Main Usage Areas: Conference and seminar halls, factories, shopping malls, gymnasiums, meeting rooms & movie theaters, auditoriums, and studios.

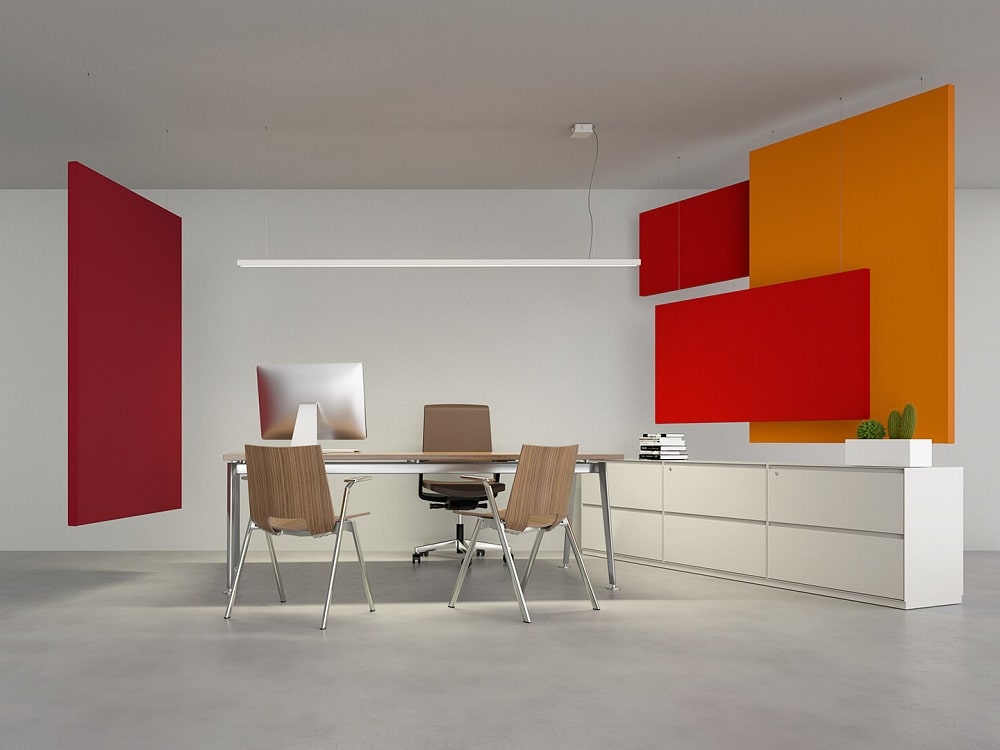

Baffle Panel Options: Fabric covered acoustic panels can be produced in combination in different geometric shapes and thicknesses.
Baffle Panels Non-flammability: Materials used are glass wool and fabric coverings in the form of b1 non-flammability.
Baffle Panels Density: 95 kg / m3 density acoustic glass wool board or 30 - 60 Dns Acoustic sponge.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
|Acoustic Baffle Size||Height-Thickness||Absorption Factor Suitable for DİN52212|
|mm||mm||125 Hz||250 Hz||500 hz||1000 Hz||2000 Hz||4000 Hz|
Baffle acoustic ceiling panels are in 40 cm x 100 cm plates, and there are 10 plates in their packages. It is sold by retail and wholesale as 30 mm and 40 mm as standard, it can be produced in different thicknesses and sizes as special production if you wish. Please contact our technical office for detailed information.
