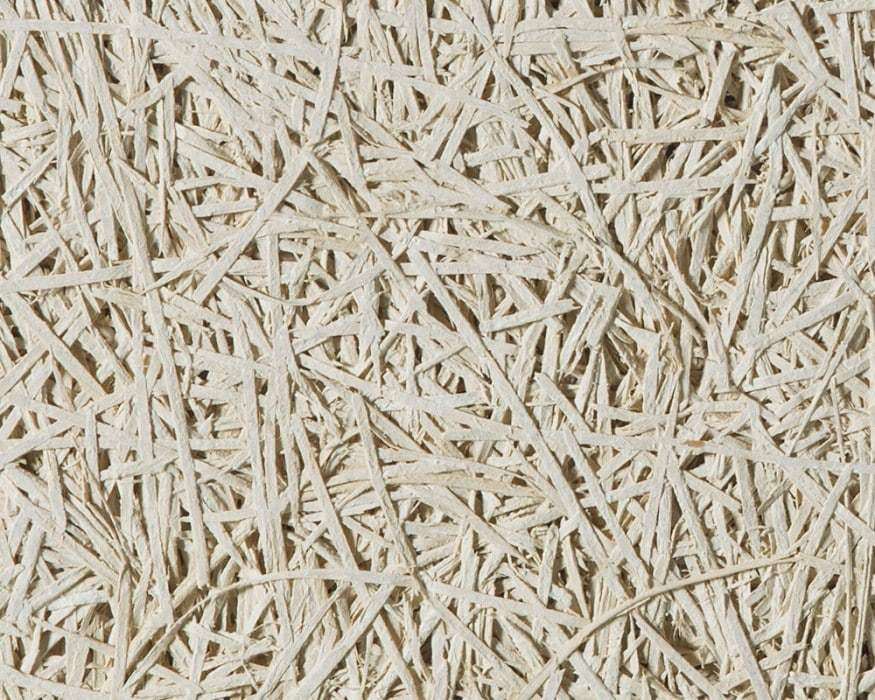

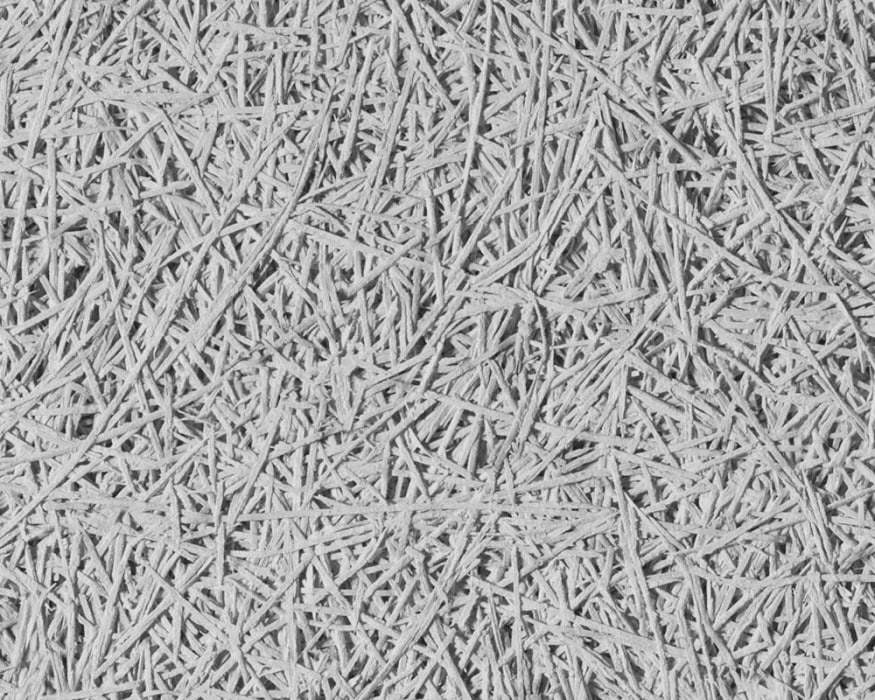

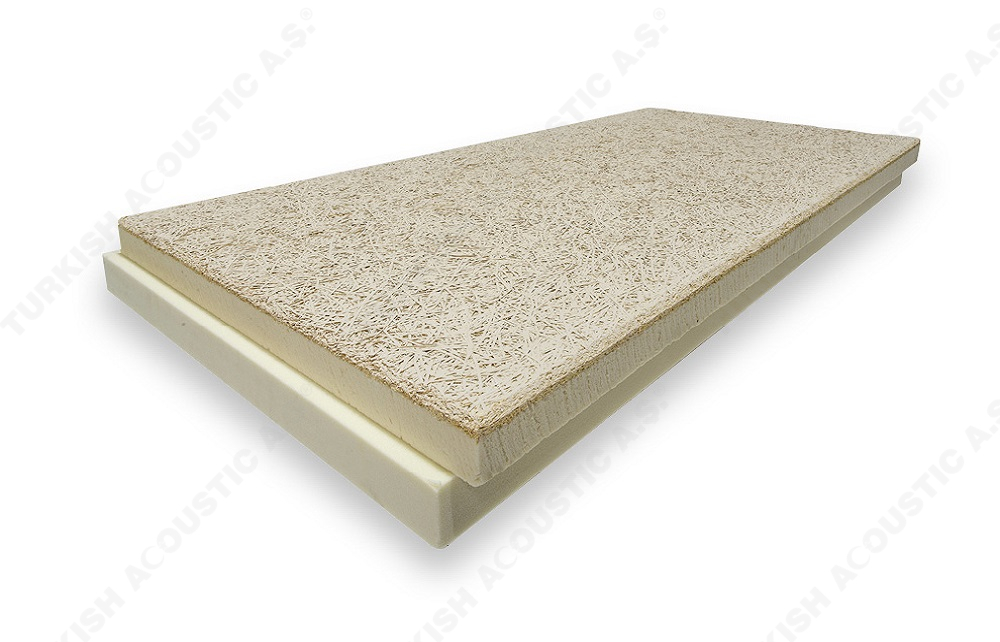

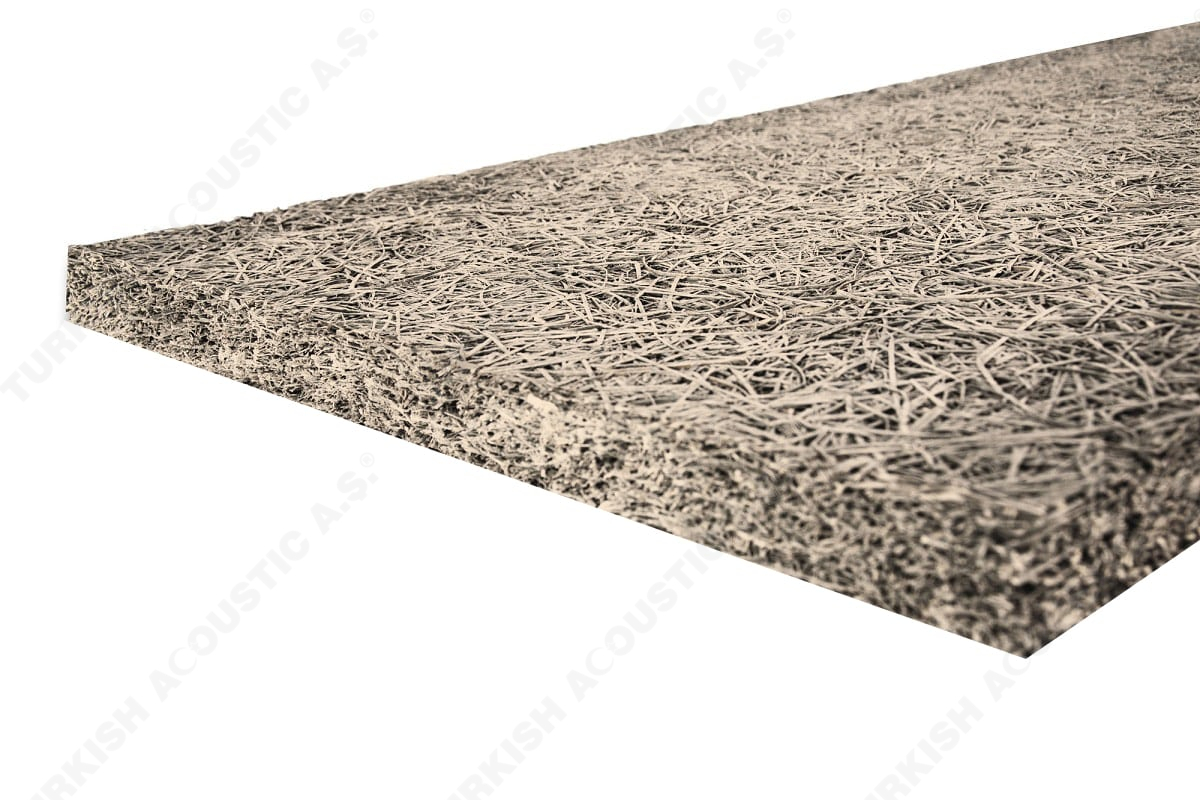

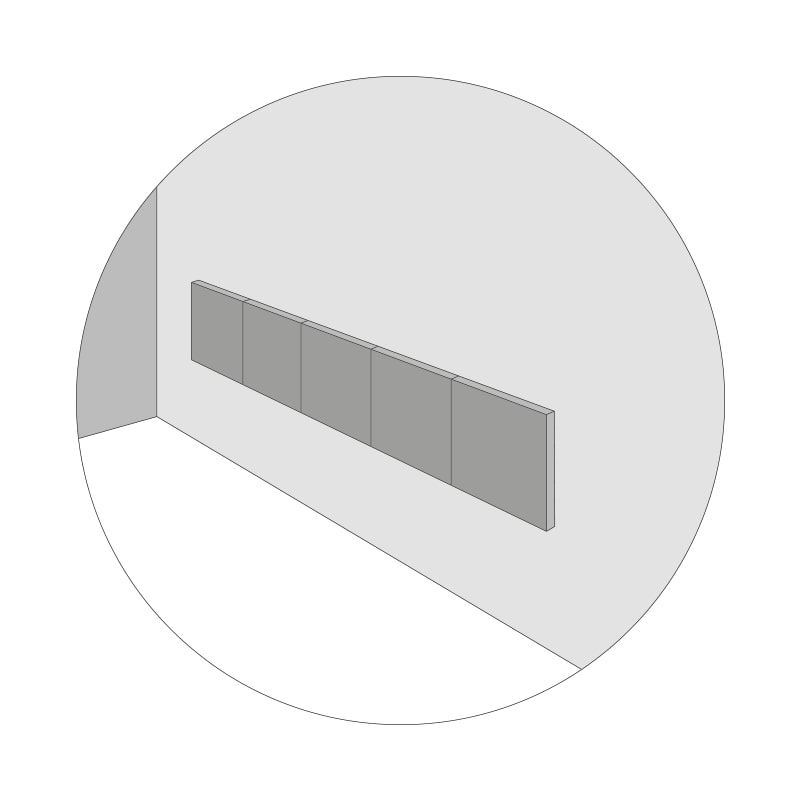

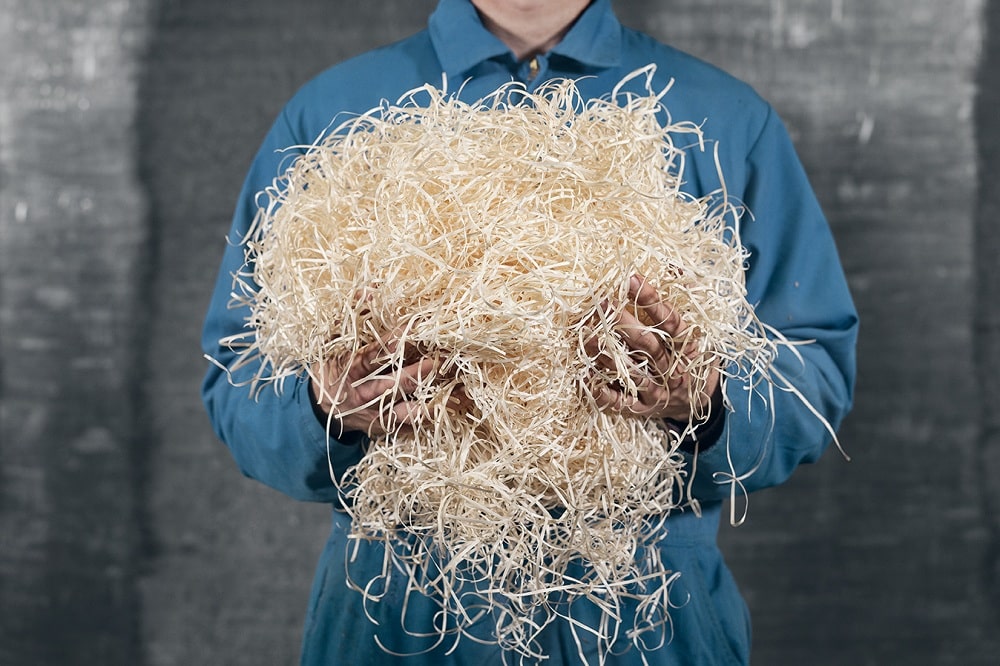

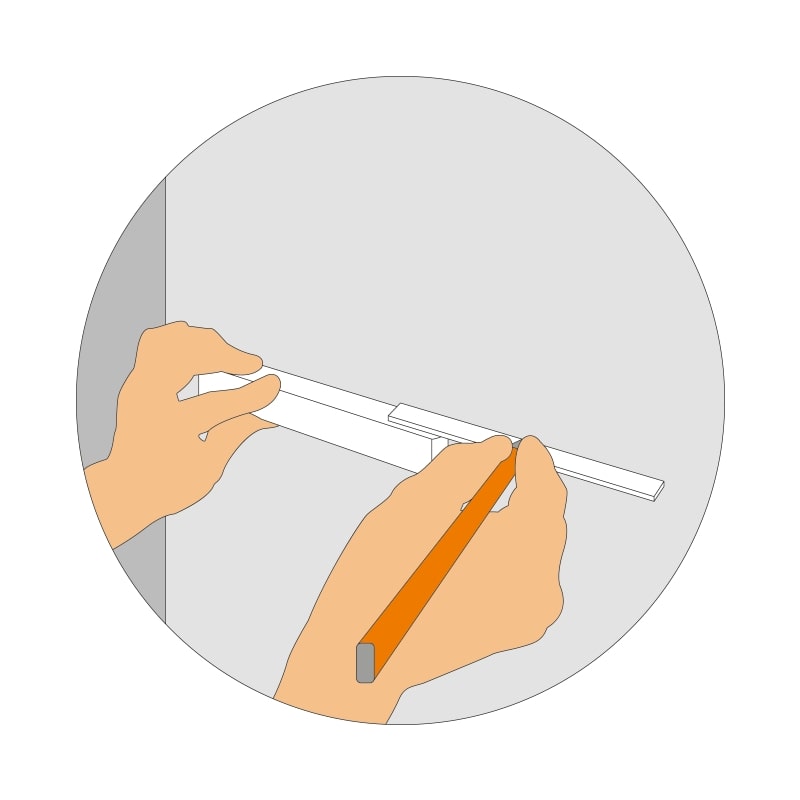

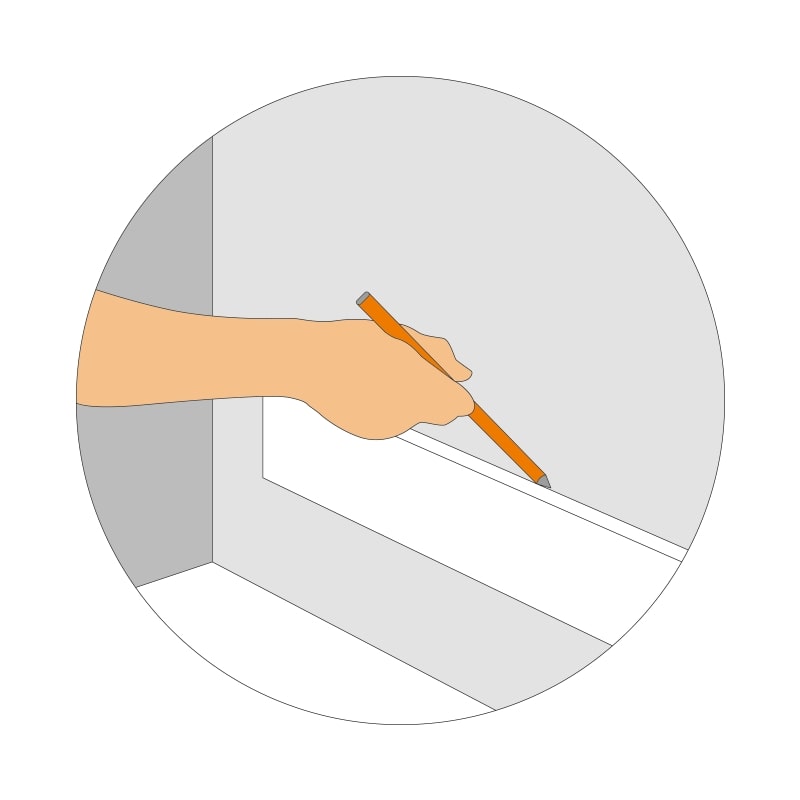

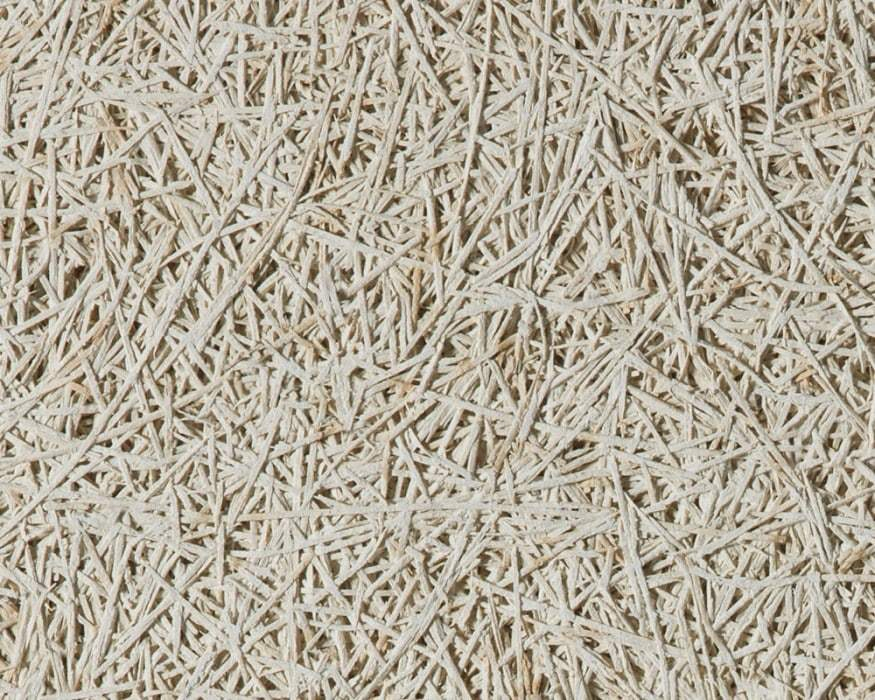

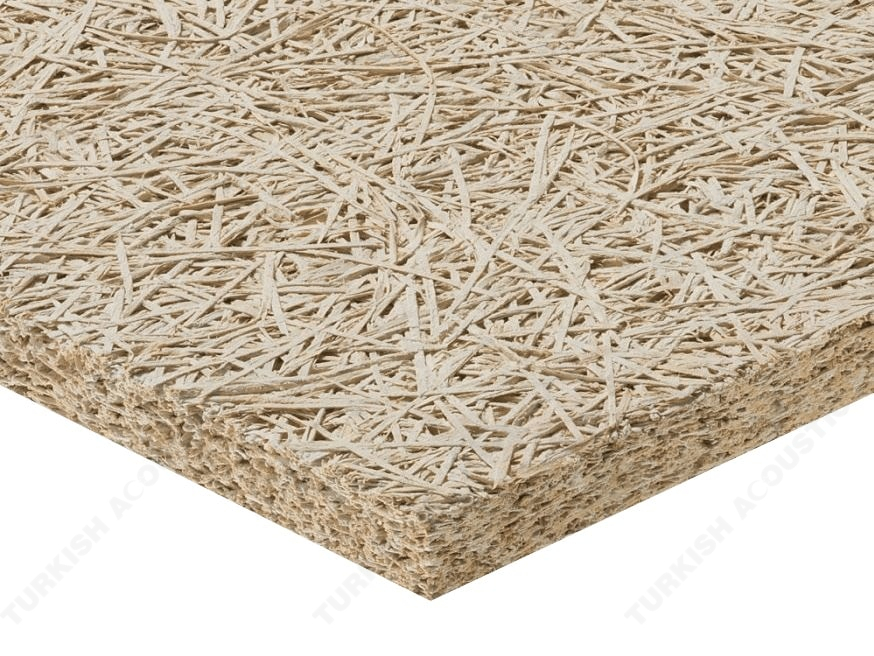

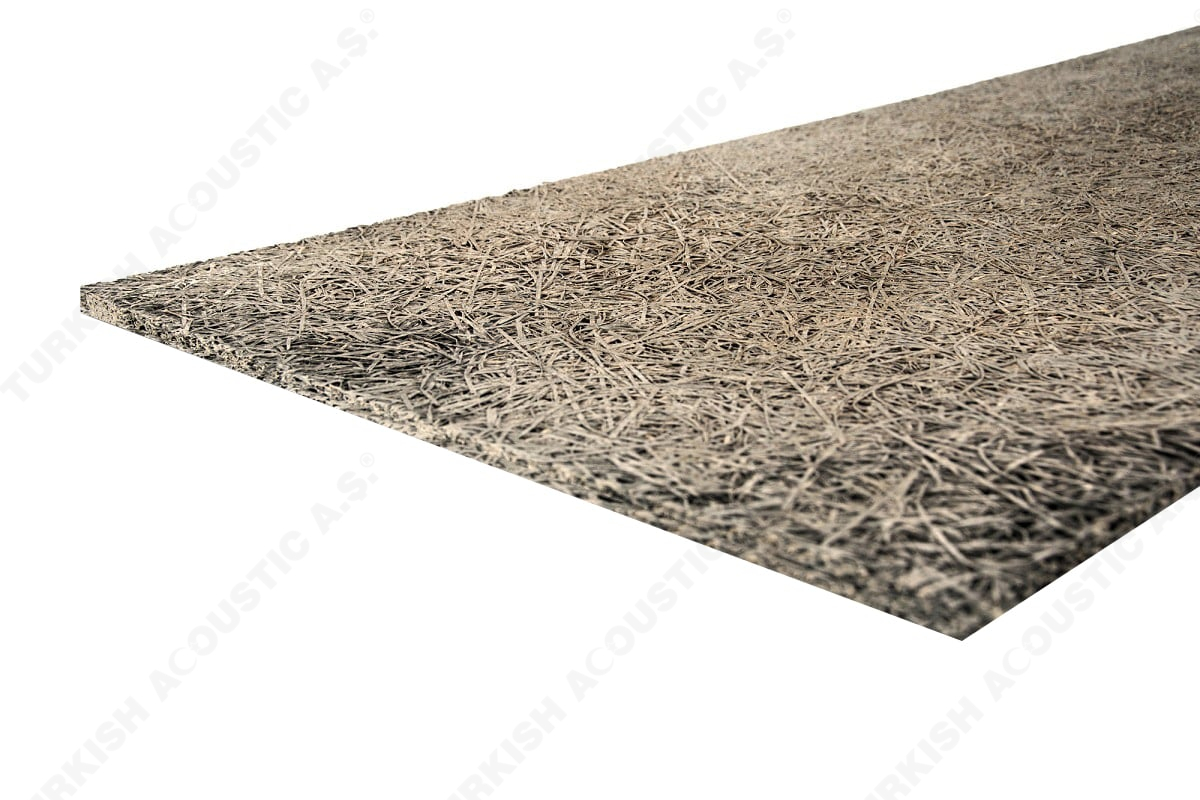

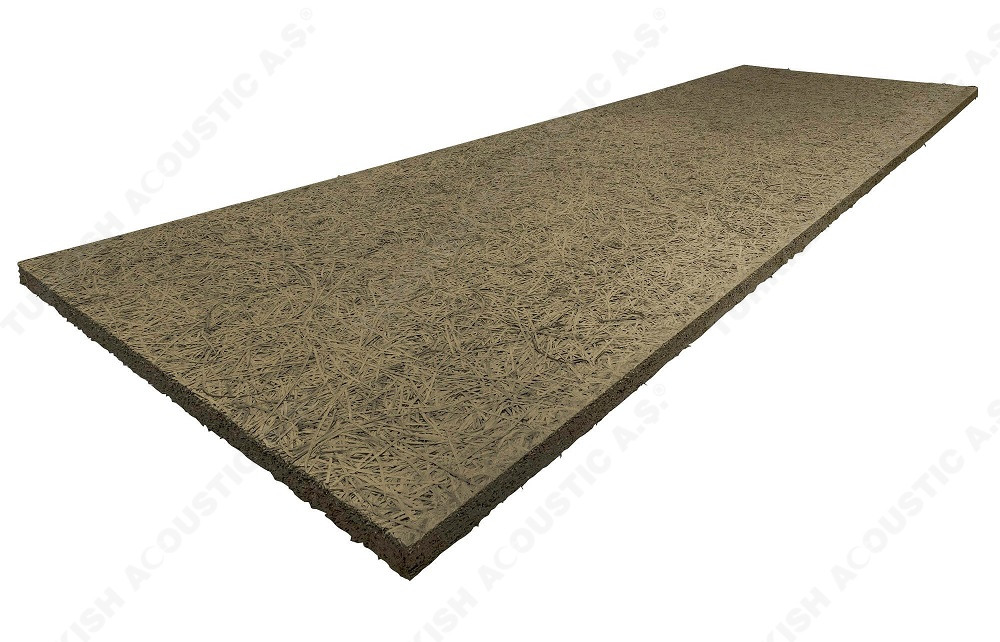

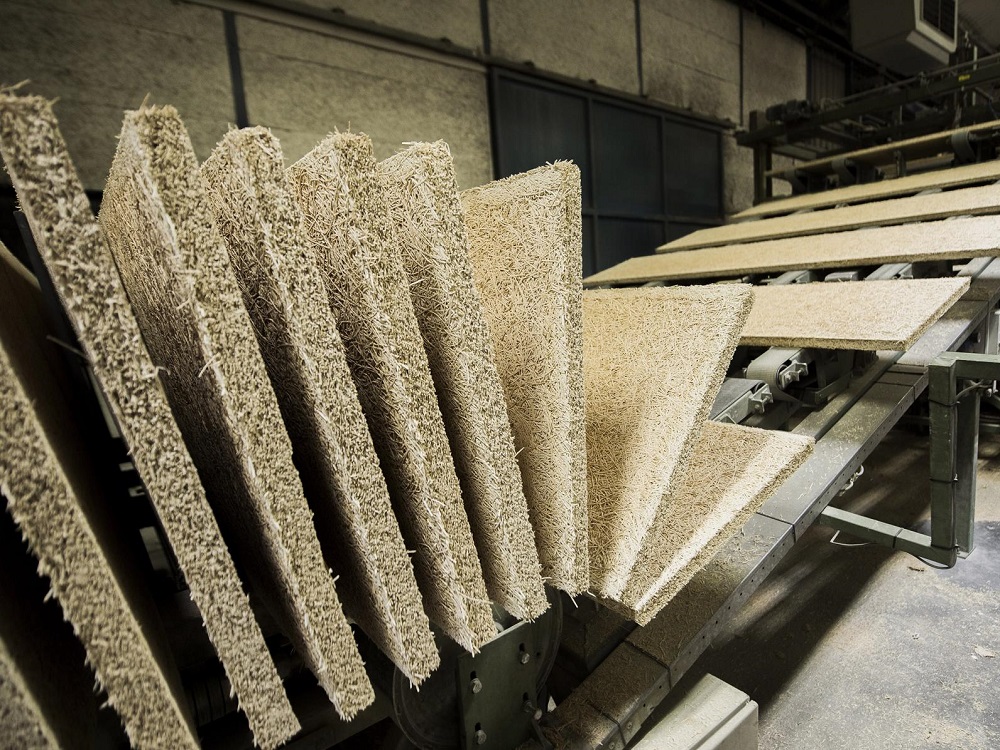

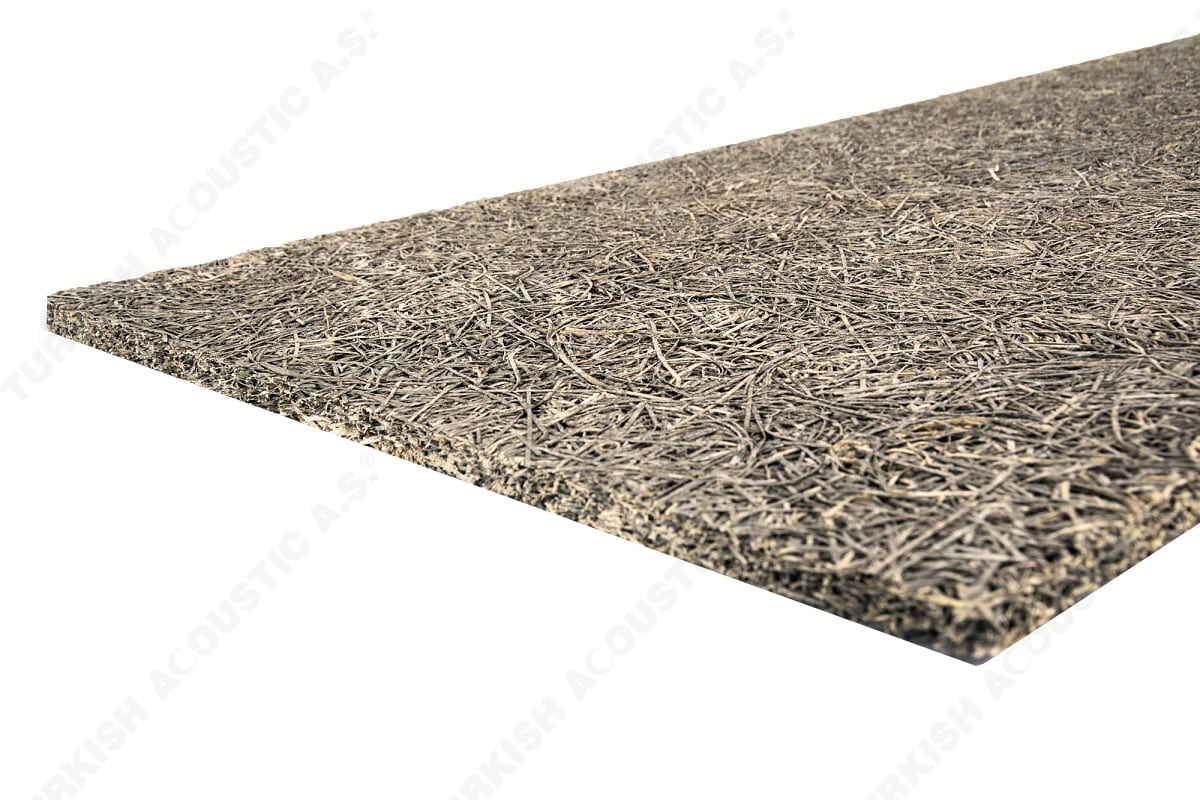

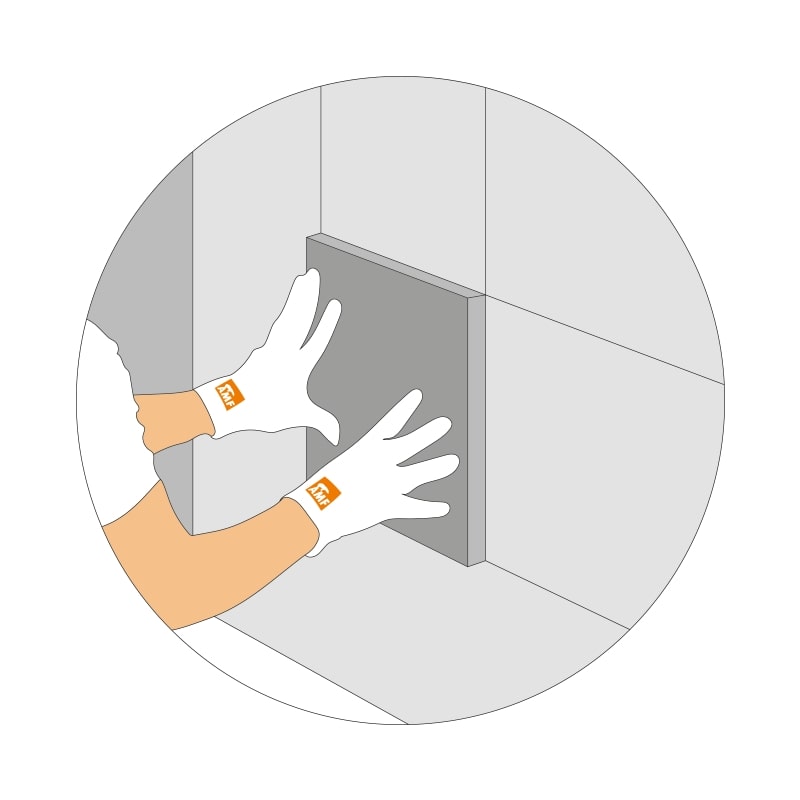

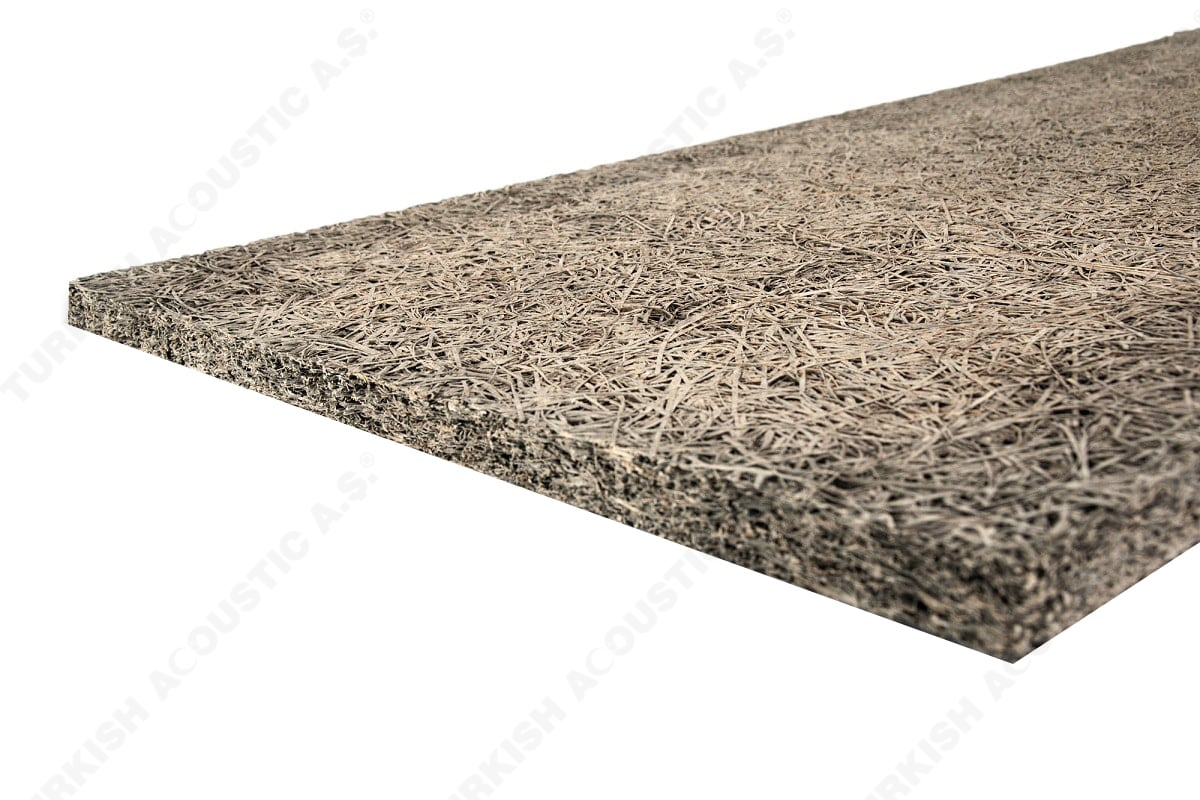

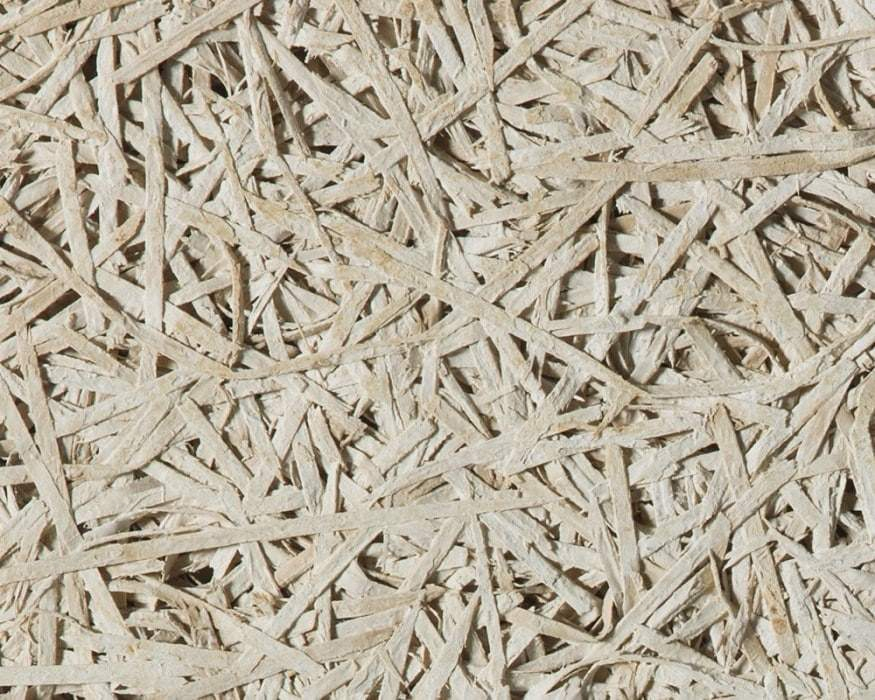

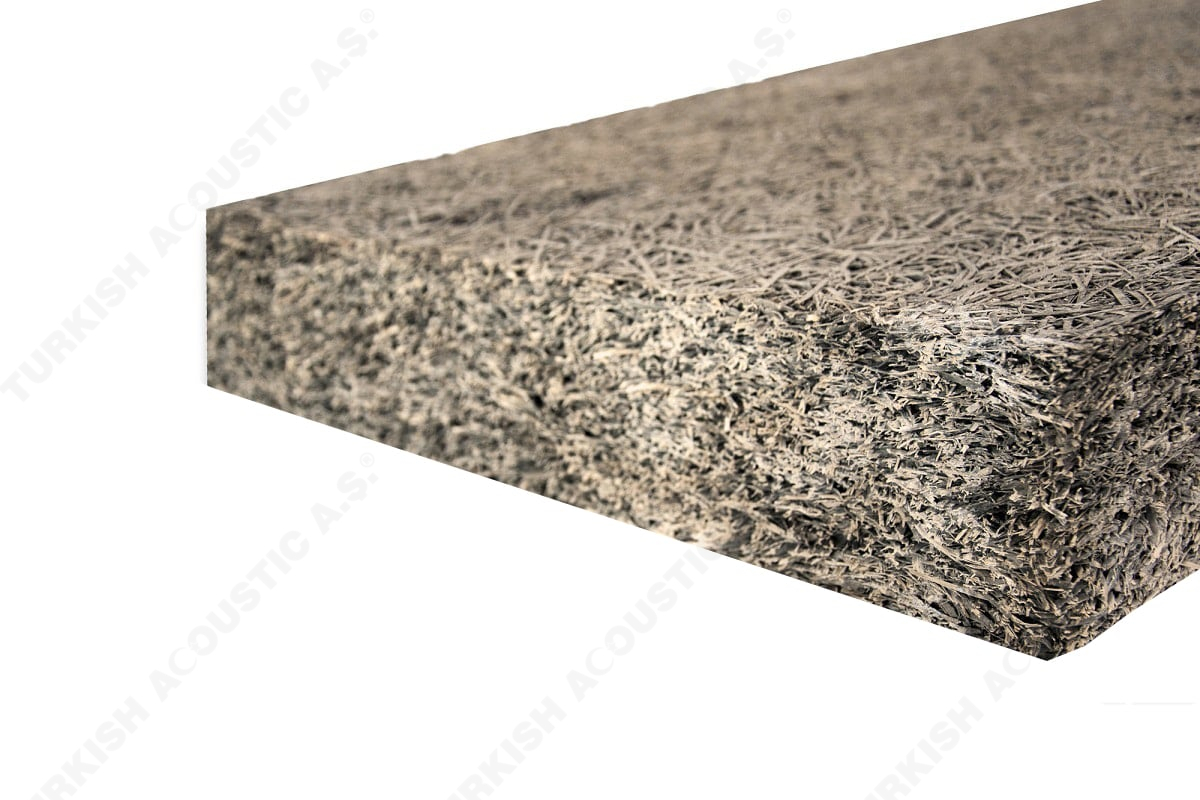

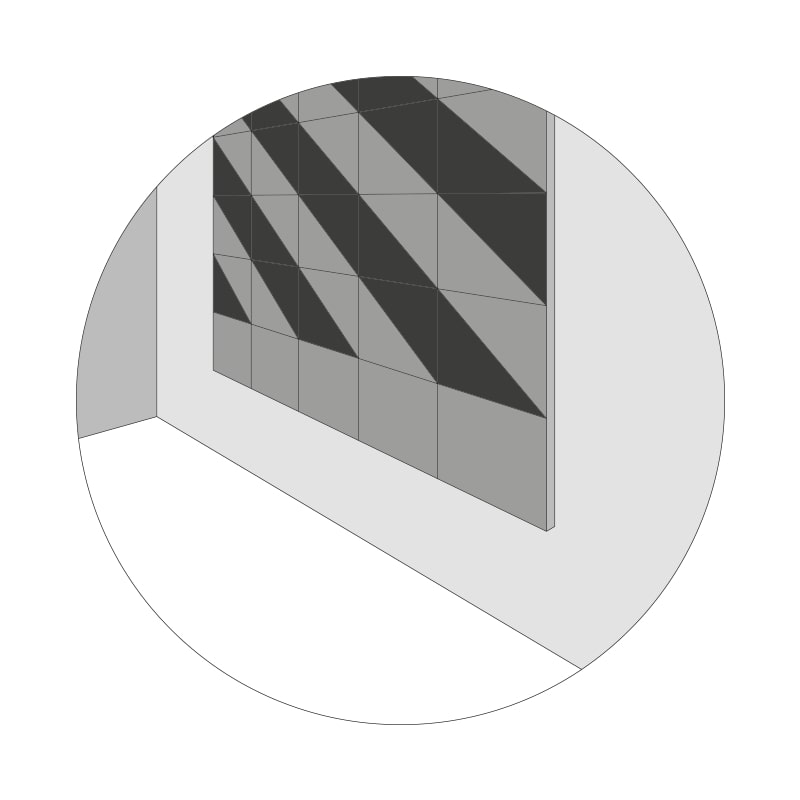

Heraclith: Wood material is obtained by mixing chipboards with cementitious components. It can also be called acoustic panel coating material, which is laminated with different acoustic sound insulation products. Tektalan A2 E21, Heraklith - Wood Wool insulation inspired by nature. The heraklith material used between the sound insulation material is made of poplar wood. Wood wools and cement are mixed, poured into molds and pressed. The heraklith material, which provides a high level of sound insulation, is combined with wood shavings, rock wool, cement or polystyrene foam and the desired efficiency in insulation is provided. Acoustic wool plates are prepared in accordance with the project so that a gap is left between the wall and the plate and 40x40x2mm metal profile carcass is applied to the museum. Stone wool plates with a density of 50-80 kg / m3 and 3 cm thickness covered with glass fiber will be mounted on the back of the plates. Mounting materials suitable for the properties of the material are used in the assembly. Wood wool acoustic plates should be prepared in accordance with the project to be made and covered in accordance with the wall surfaces and the properties of the material, with no gaps between them to provide adequate sound insulation, loading in the construction area, vertical transport, unloading and all kinds of material losses, workmanship tools and equipment. You can find the price of 1 m² heraklith wood material from our homepage, including the expenses of the contractor's profit and general expenses. Size: The price per m2 is calculated over the area where wood wool acoustic plate is laid. You can protect the significant heat loss caused by the facade with the robust facade insulation systems of Heraclith. In addition, you can ensure that the walls are resistant to impacts by applying thick plaster, which is only possible by the heraklith technology.

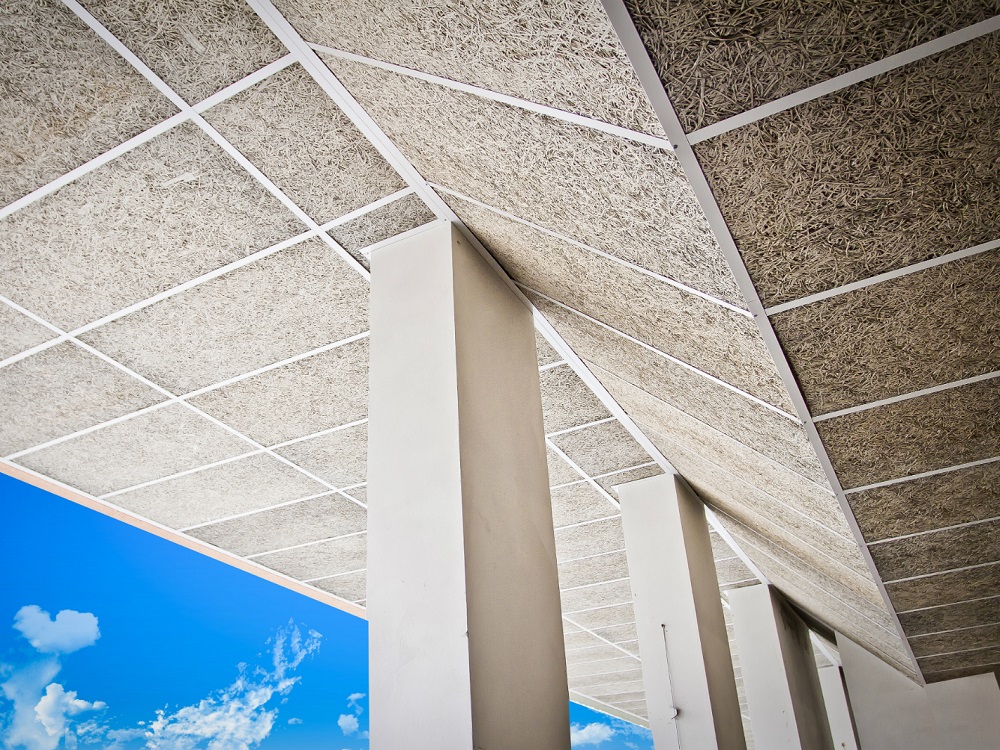

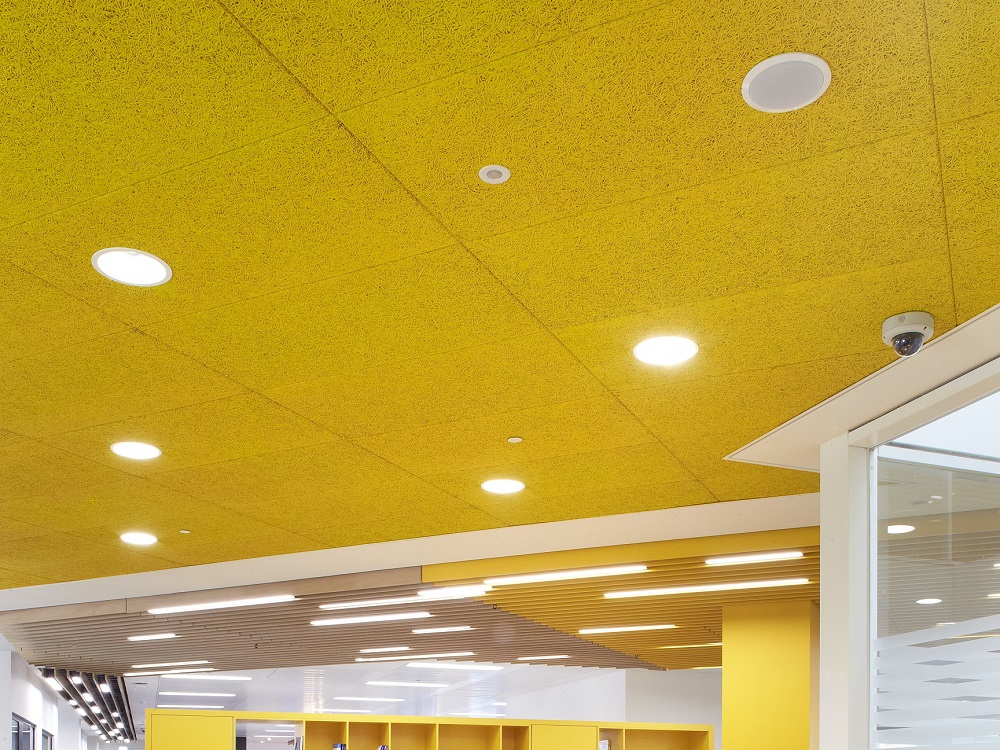

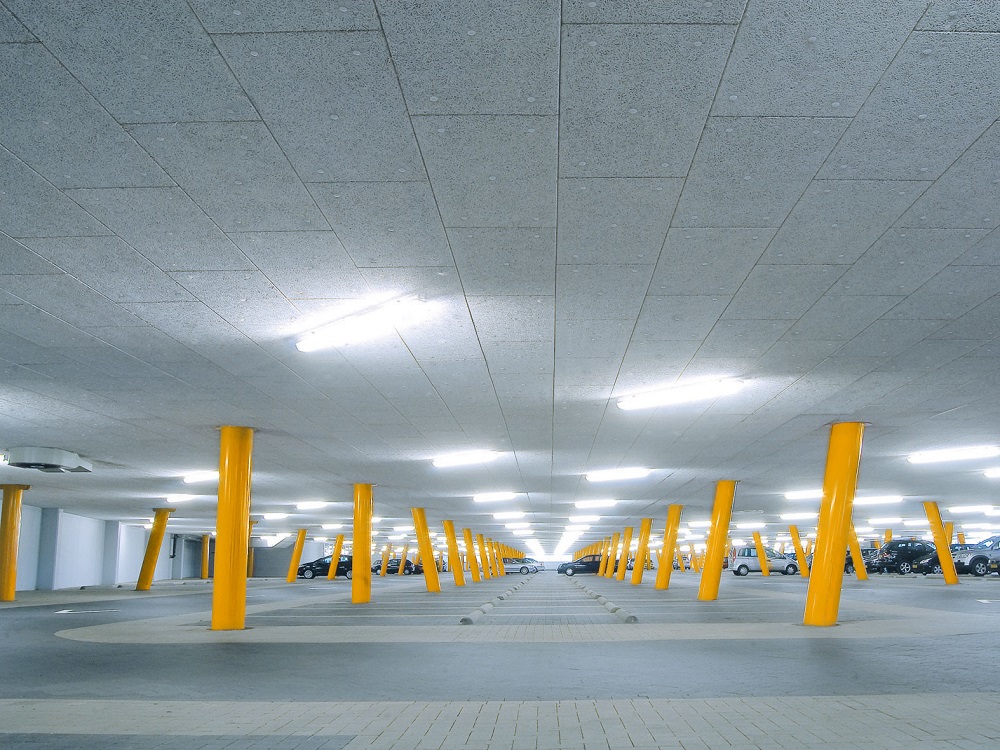

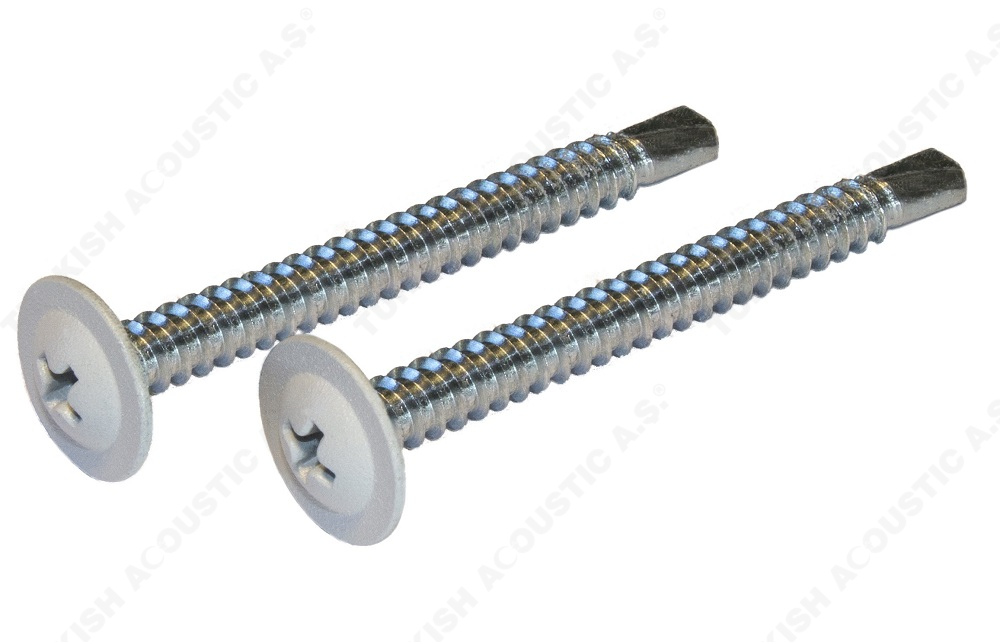

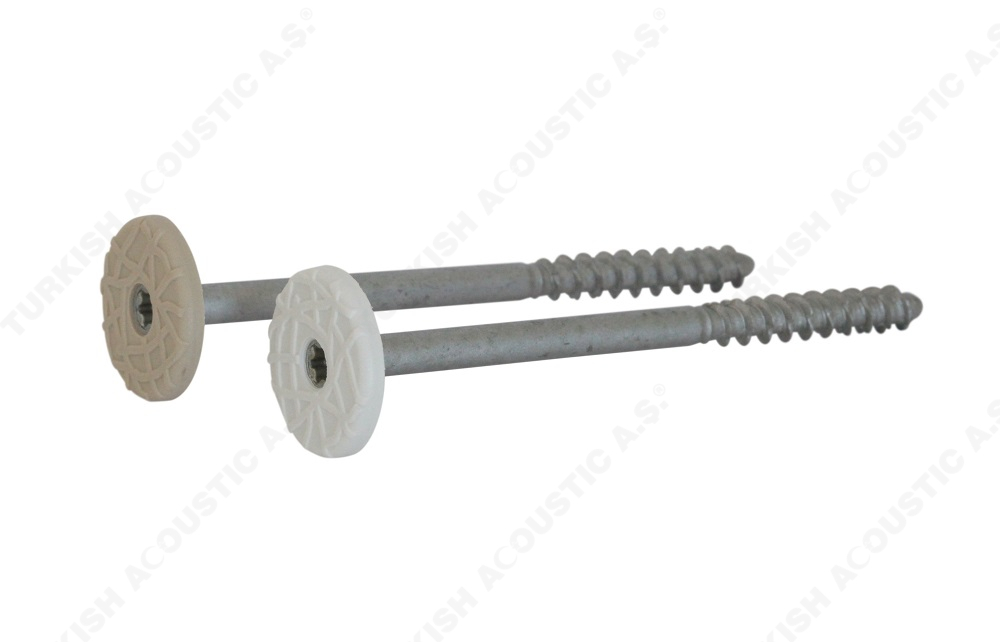

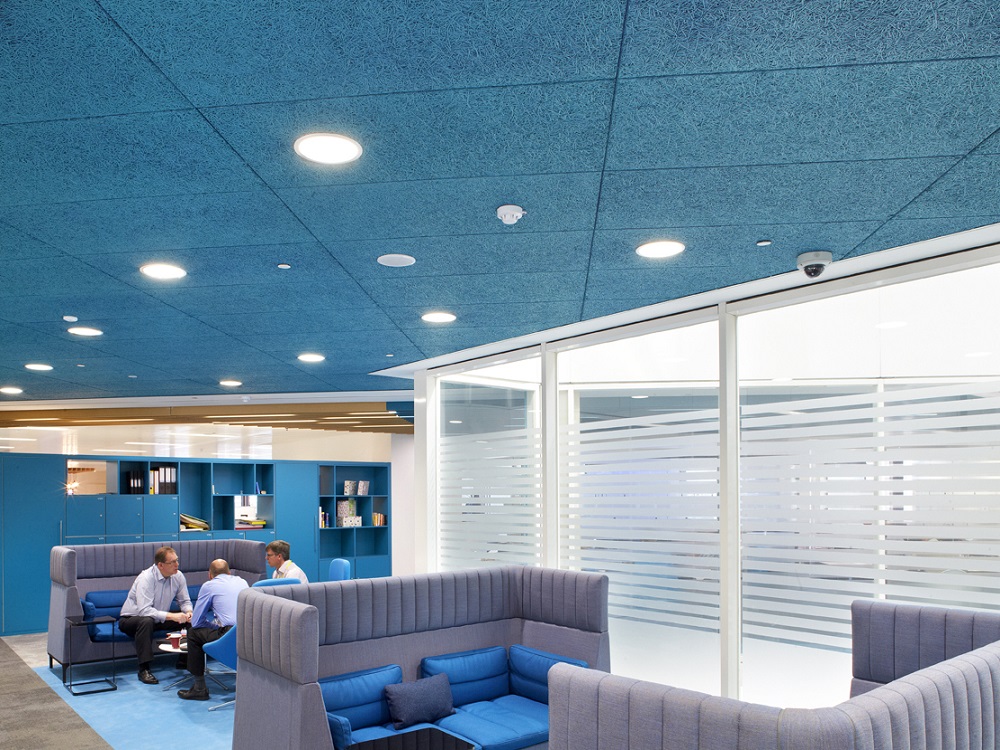

Robust facade insulation systems as Heraklith: The wood wool, the high-tech product of this product, allows for much thicker plastering. Thus, it becomes impact resistant with the outer wall. Heraklith wood wool insulation panel is applied to all suspended ceilings, it can be applied by poking or screwing into the ceiling or wall. Heraclith, which is highly resistant to impact, is the preferred insulation material when it is desired to create an aesthetic appearance and an acoustic environment. A certain usage time is not given for the board formed by using wood fibers and cement at the same time. It has long-term durability.
It stores the heat inside the walls and saves fuel. It provides a significant effect in reducing air pollution. Its fire resistance is very high. It prevents the fire from spreading for more than three hours. Provides sound insulation (+ 11dB improvement) thanks to wood wool and relatively thick plaster. A thick plaster is applied, consisting of two separate layers as thick and thin plaster. Unlike other sheathing systems, the wall is resistant to impacts. It is light, can be applied in all weather conditions, it saves labor and time because it is fast and practical.

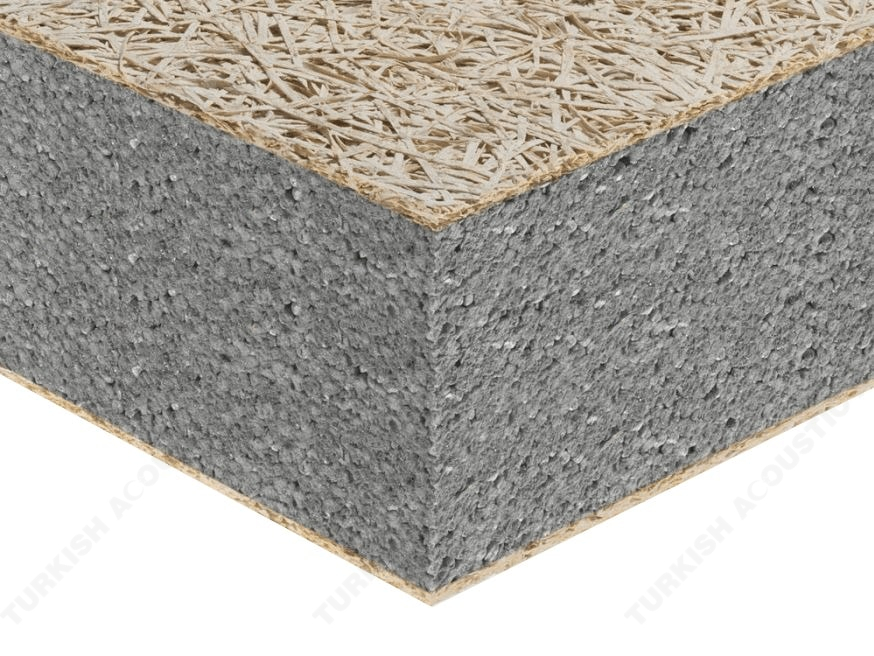

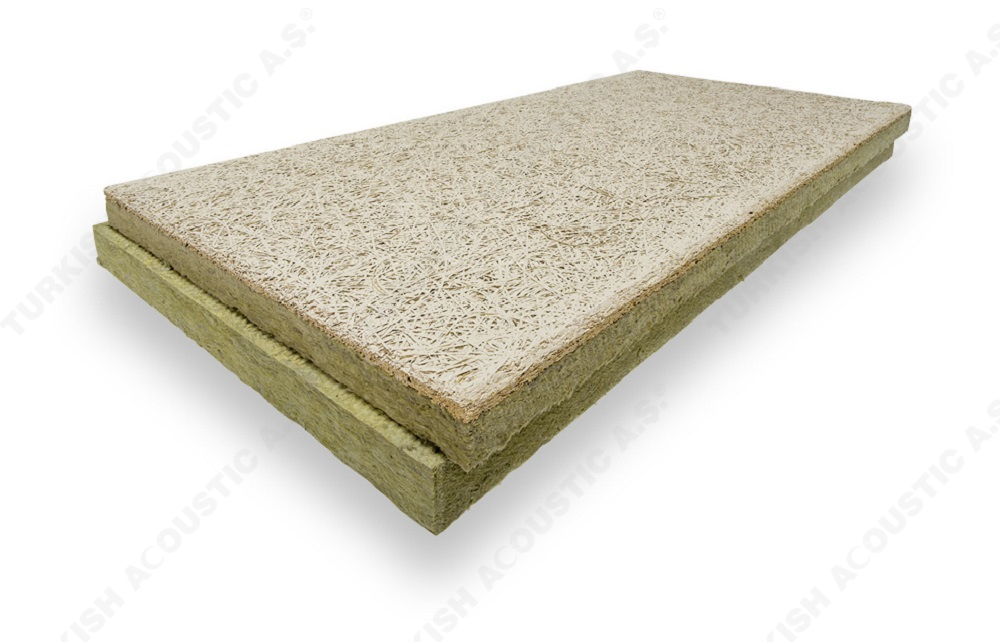

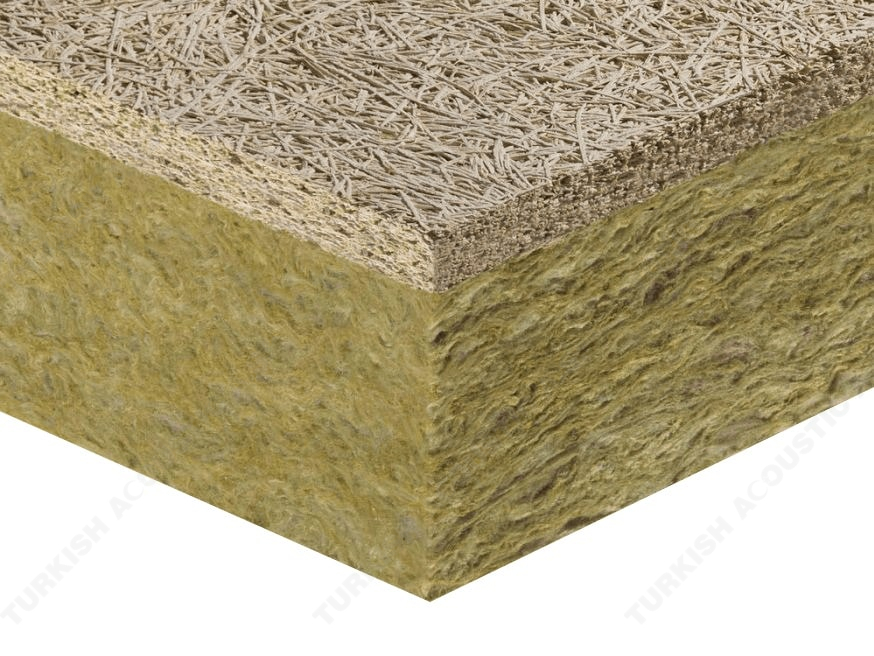

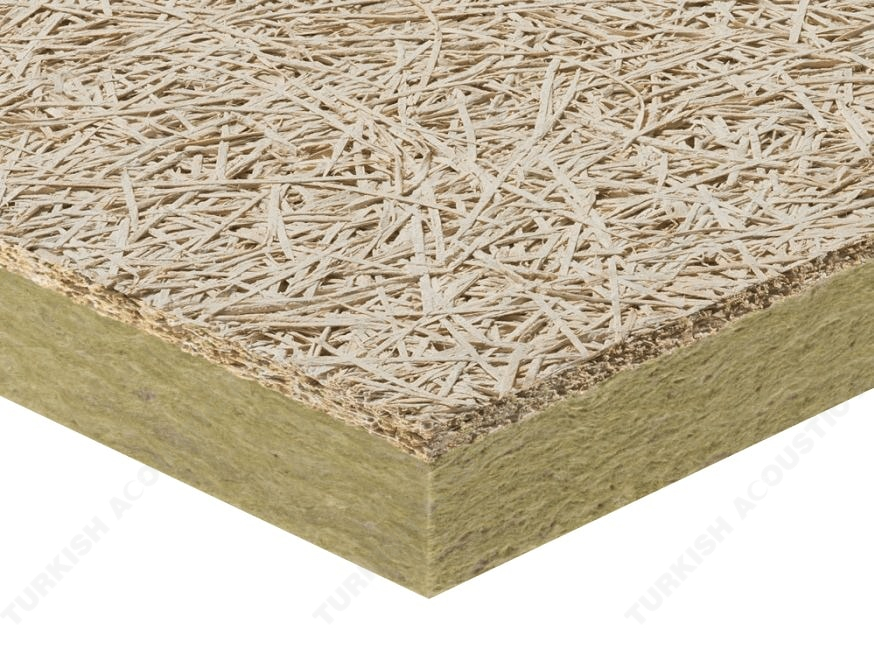

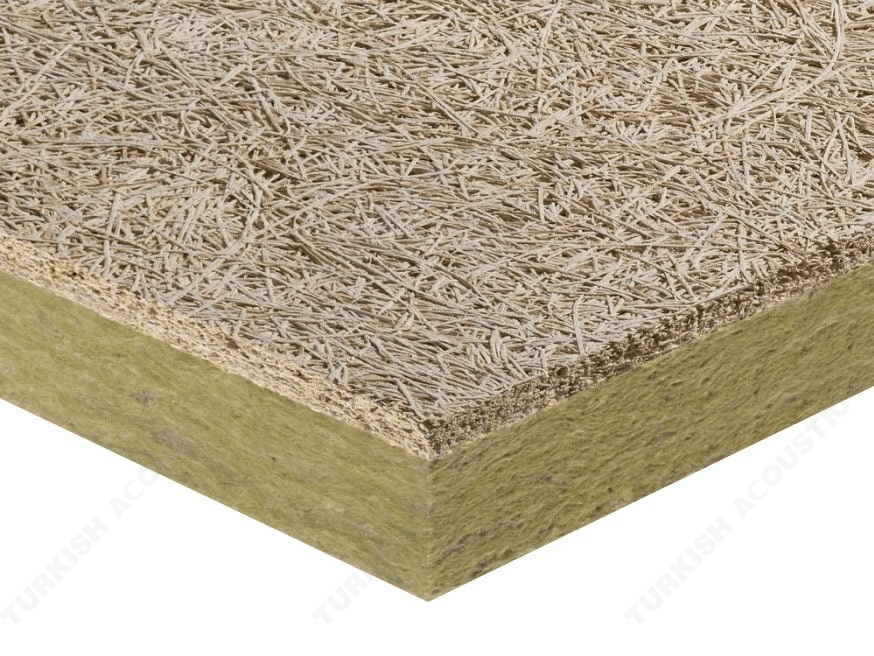

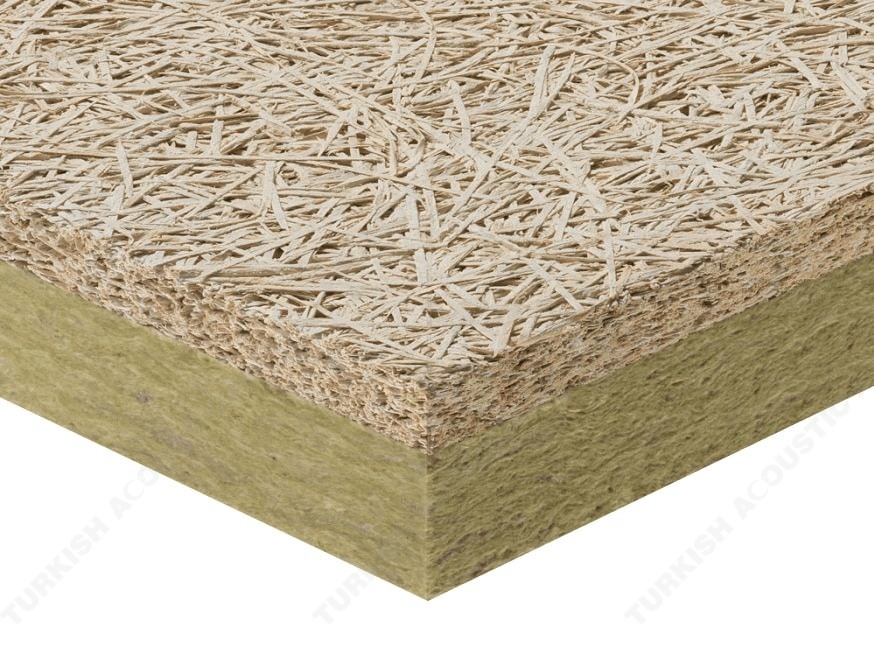

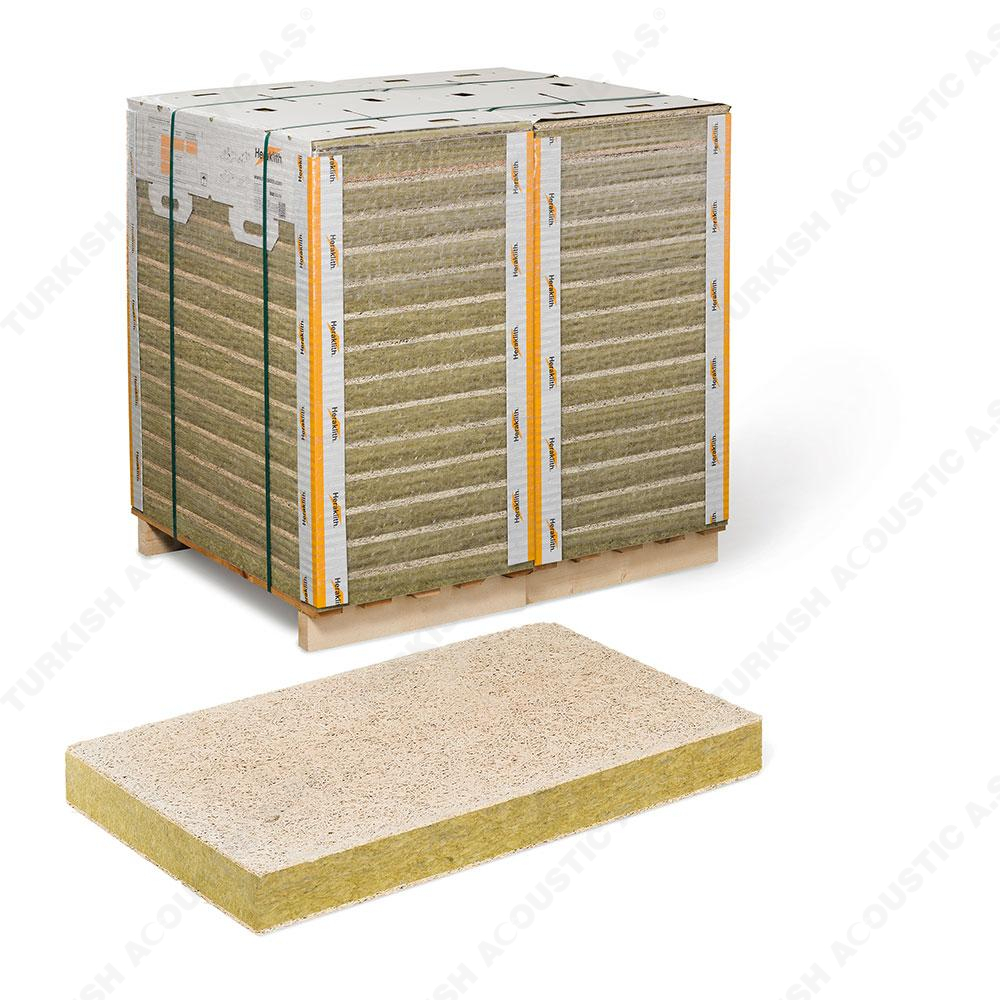

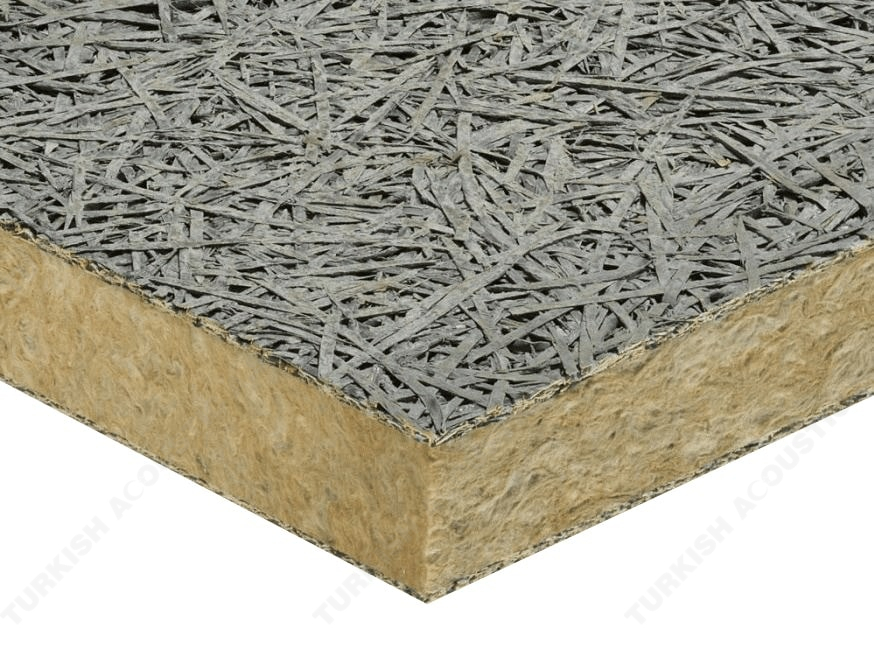

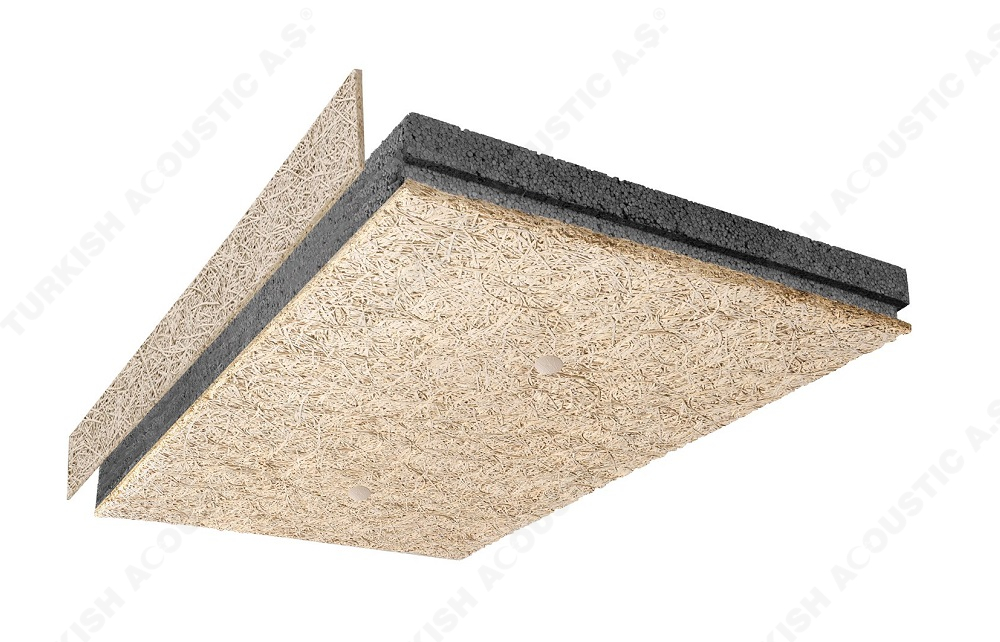

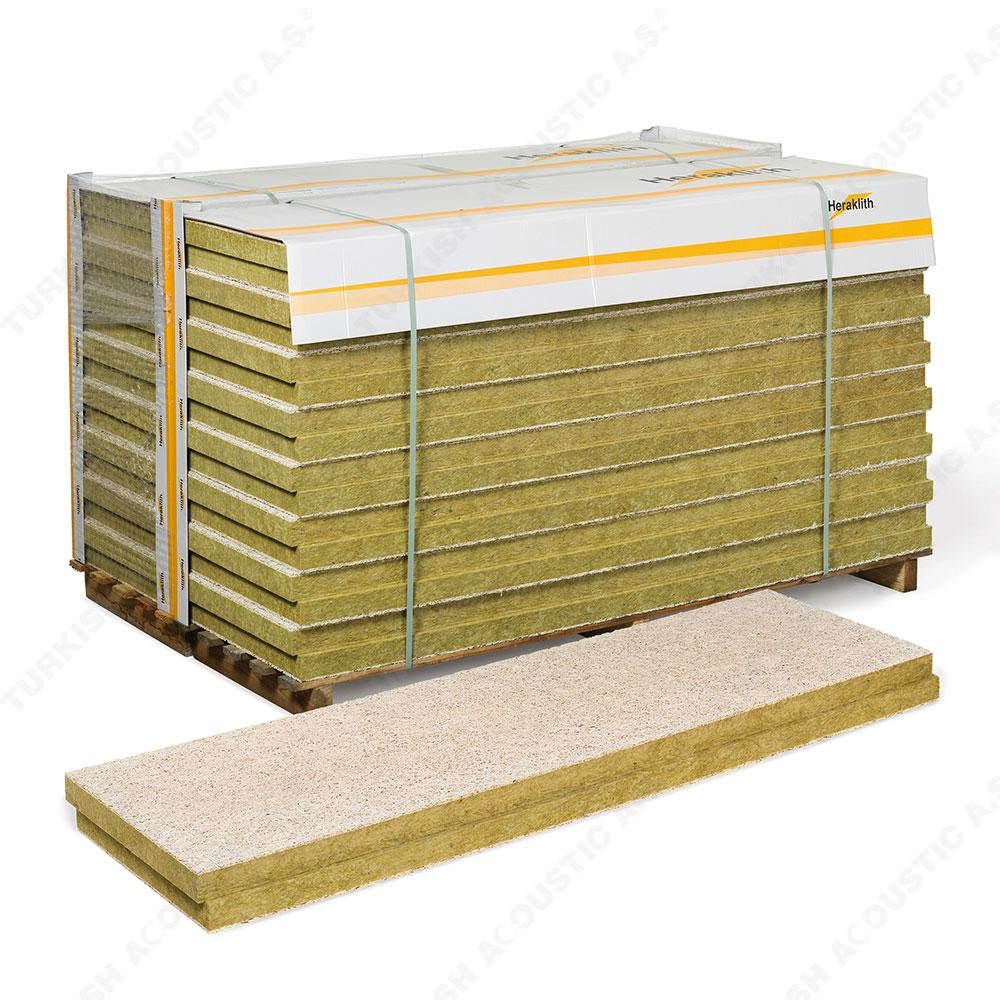

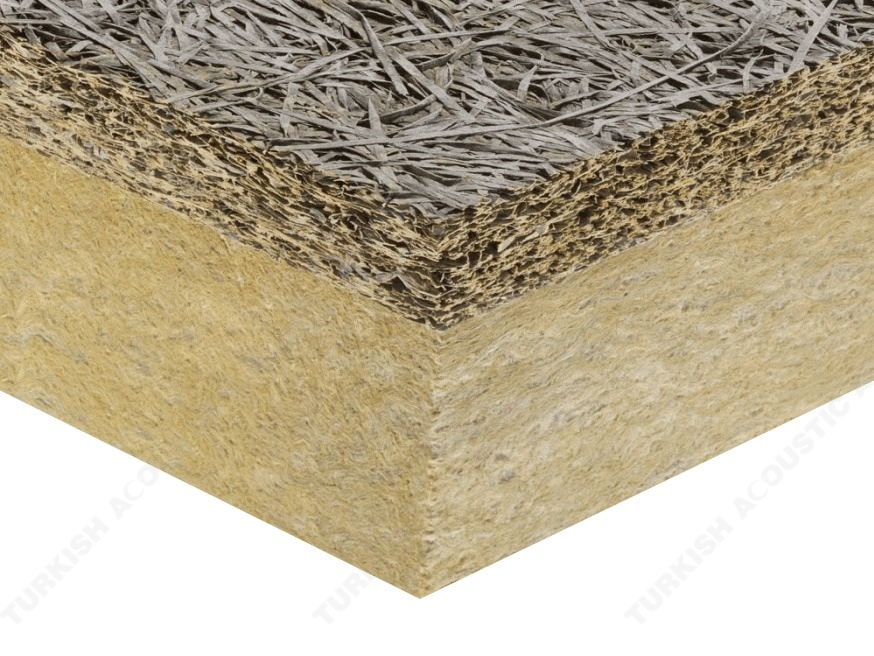

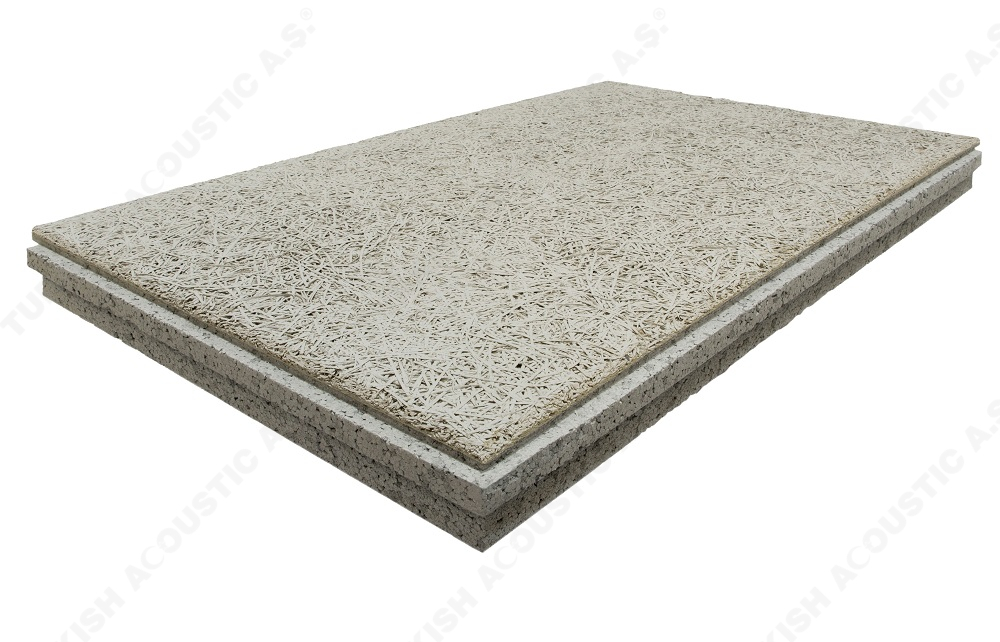

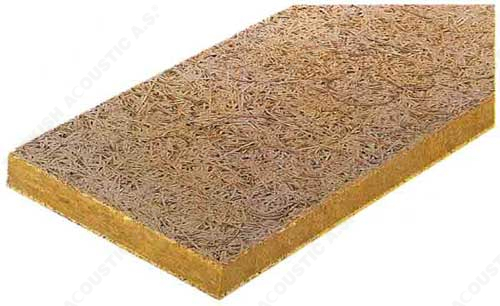

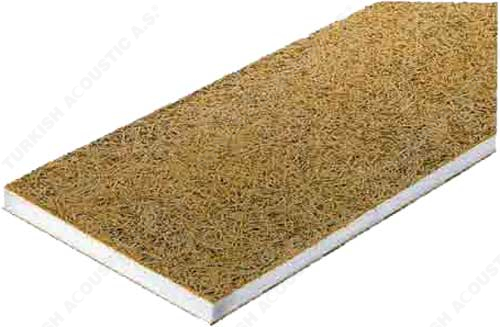

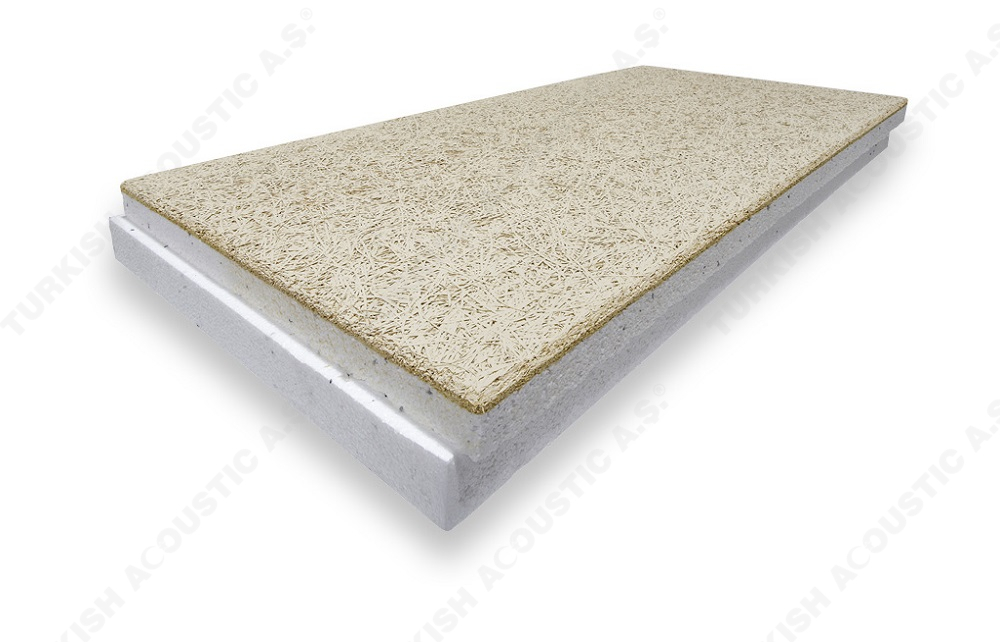

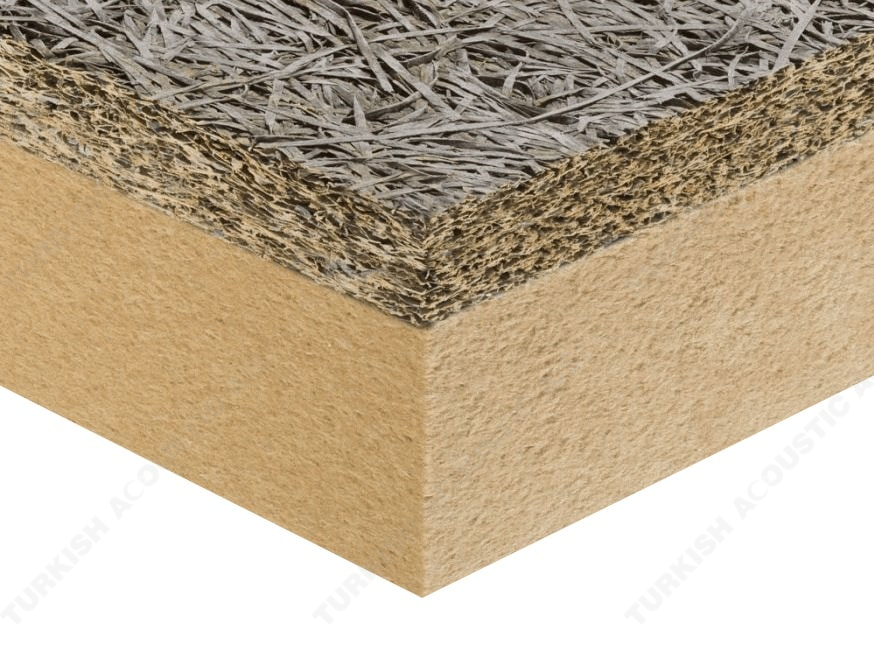

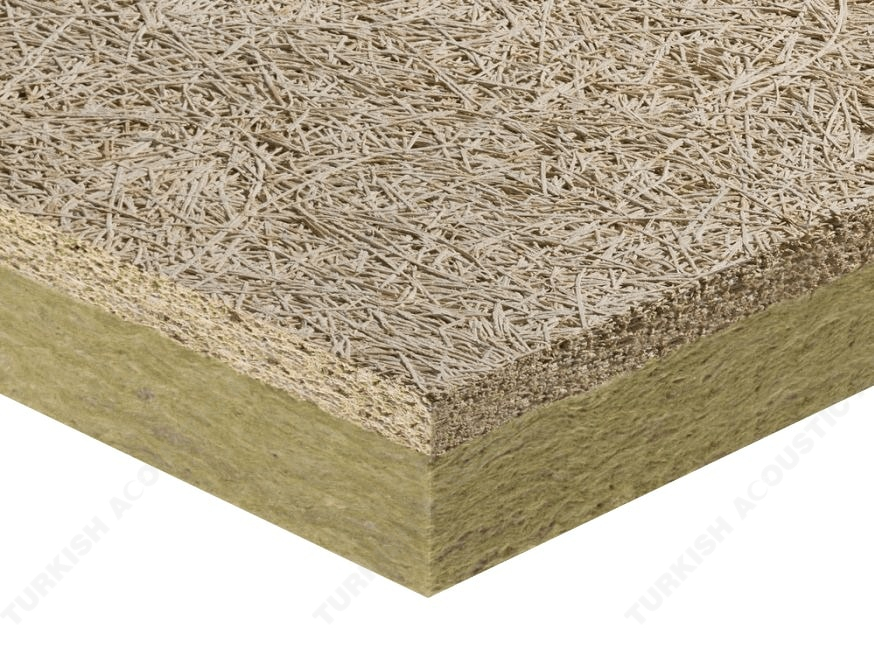

It prevents the formation of moisture, mold and fungus. It reduces construction costs. Allows less investment in wall materials and heating installations. In addition, there is no need for an external plaster and paint. All materials are high quality and reliable as they are Heraklith's high technology products. Provides thermal comfort in buildings. It prevents condensation and allows the building to breathe. Since it keeps the temperature inside the buildings for a long time, it prevents disturbing air currents. It provides a warm environment in winter and a cool environment in summer. It prevents the formation of cracks caused by thermal movements as it prevents temperature changes on the walls. For all these reasons, it improves your quality of life. Tektalan E-21 is a three-layer composite insulation board with rock wool between magnesite binders. Sound barrier feature of the stone wool in the middle of the plate, creates a spring effect. At the same time, the thick plaster on it both absorbs the sound and makes it resistant to impacts. It is not deformed, thick plaster can be applied. It is not deformed, thick plaster can be applied. Stone wool heat conduction class 0.040 Polystyrene heat conduction class 0.040 Fire resistance class F30 (for 50 mm thickness) Has breathing feature Sound absorbing It improves the sound insulation of the building elements used together. It does not contain animal and vegetable pests and it is antibacterial. It is suitable for concrete and mineral plasters. It can be easily cut and applied. Besides sound insulation Stone wool heat conduction class 0.040 Polystyrene heat conduction class 0.040 Fire resistance class F30 (for 50 mm thickness) Has breathing feature Sound absorbing It improves the sound insulation of the building elements used together. It does not contain animal and vegetable pests and it is antibacterial. It is suitable for concrete and mineral plasters. It can be easily cut and applied. Besides sound insulation Stone wool heat conduction class 0.040 Polystyrene heat conduction class 0.040 Fire resistance class F30 (for 50 mm thickness) Has breathing feature Sound absorbing It improves the sound insulation of the building elements used together. It does not contain animal and vegetable pests and it is antibacterial. It is suitable for concrete and mineral plasters. It can be easily cut and applied. Besides sound insulation The heraklite wood wool insulation material also provides thermal insulation. Heraclite wood wool, which can be used as sound or heat insulation, provides long-term protection of the applied buildings. The fact that it is produced from protective materials ensures that it is not affected by impacts. Thanks to its high resistance to fire, it prevents the flames from enveloping the whole building in a short time.
TECHNICAL SPECIFICATIONS :

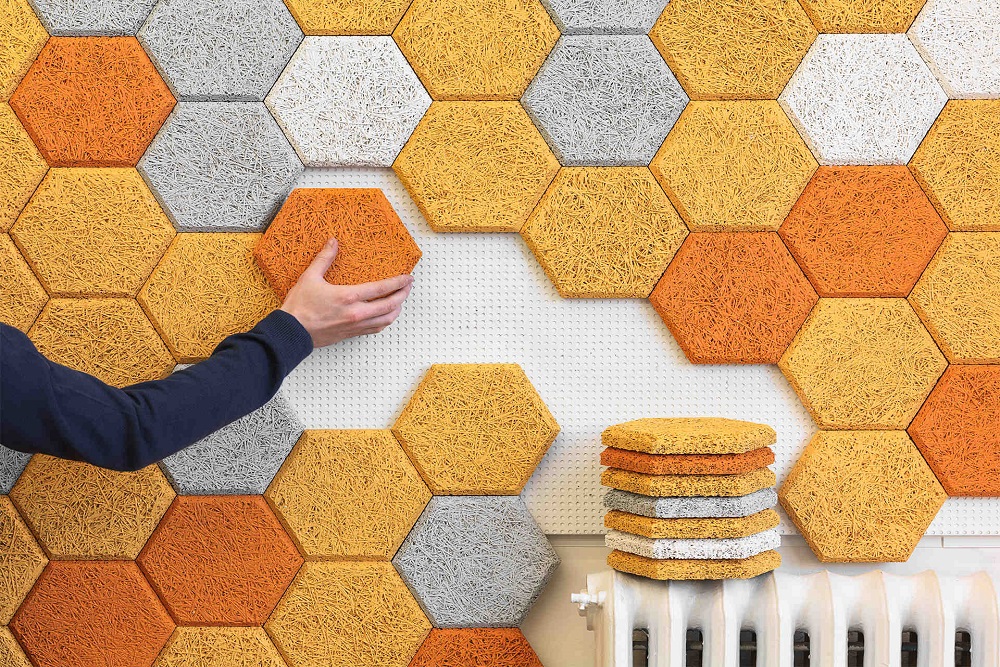

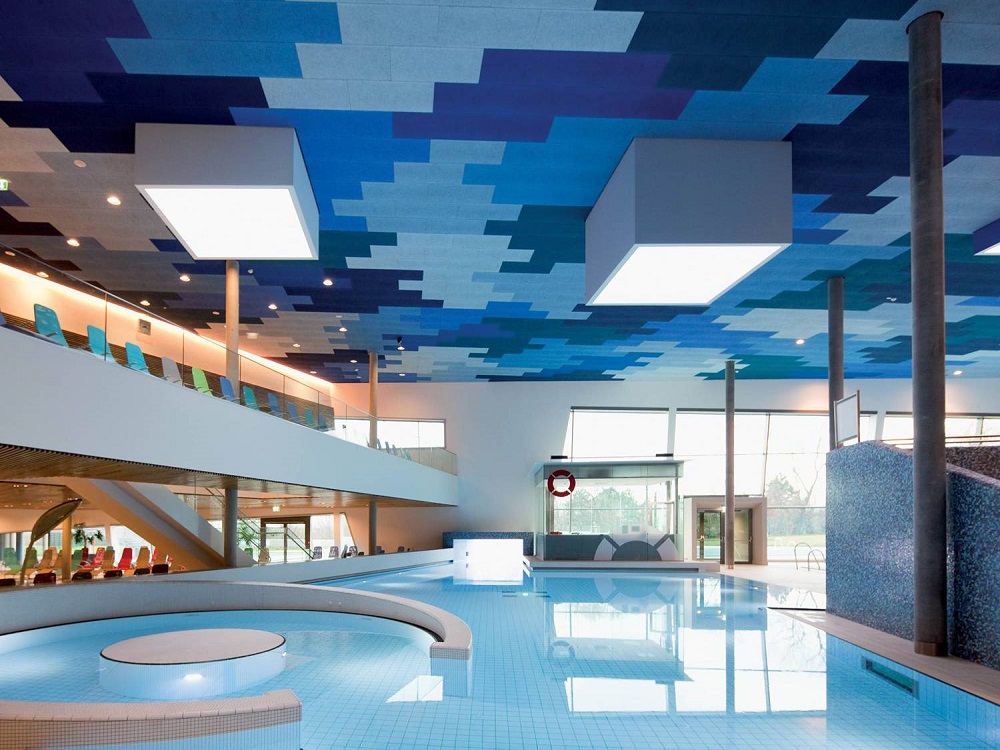

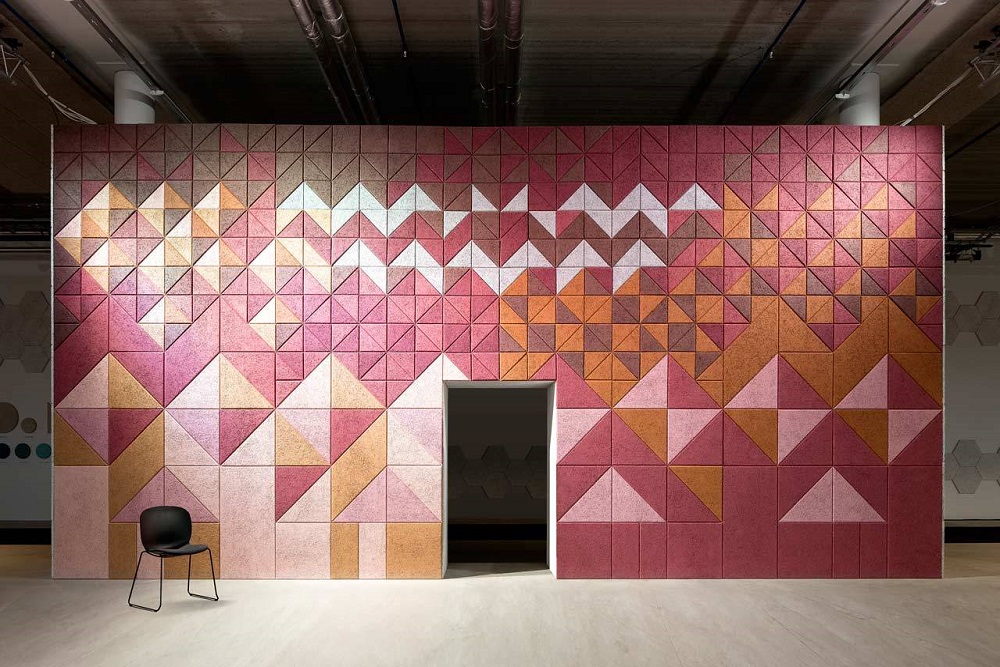

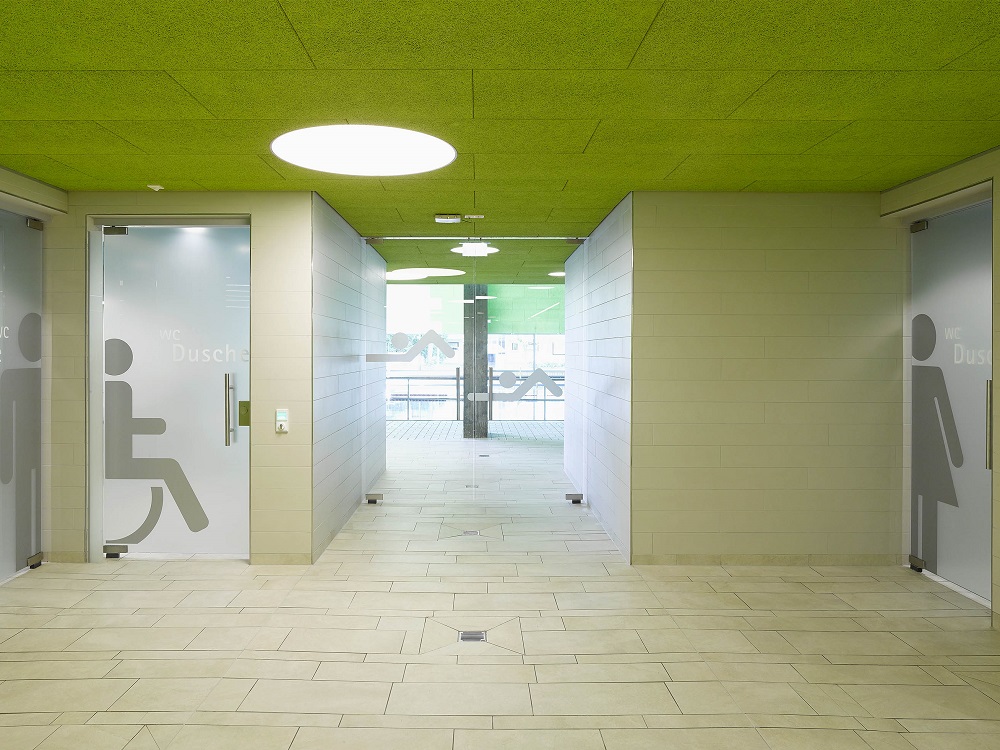

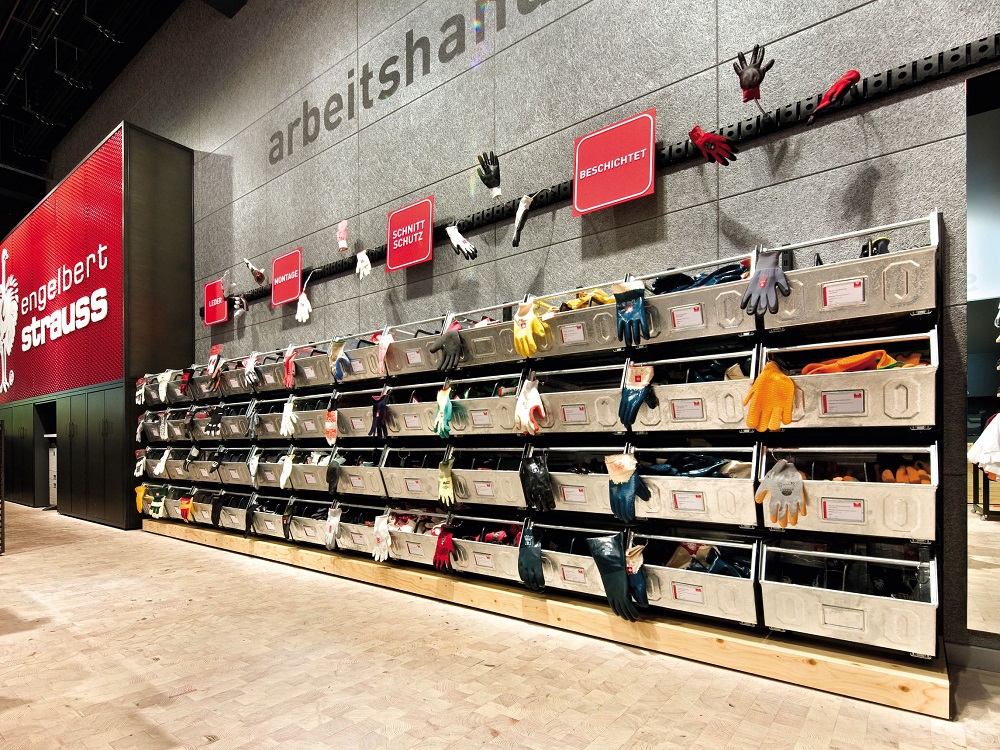

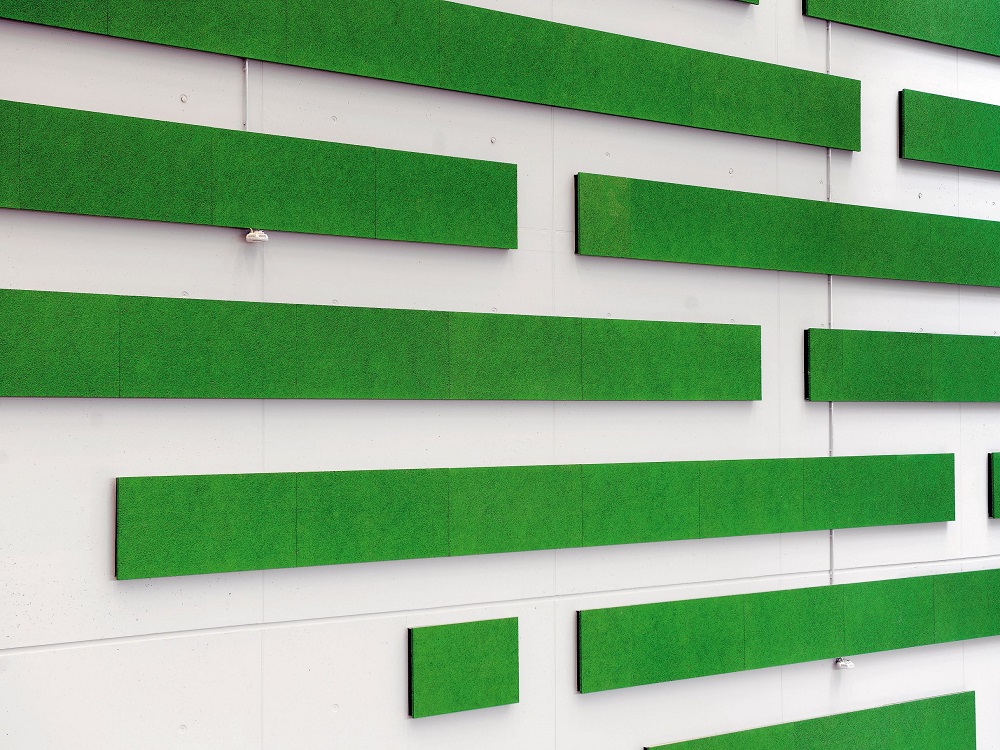

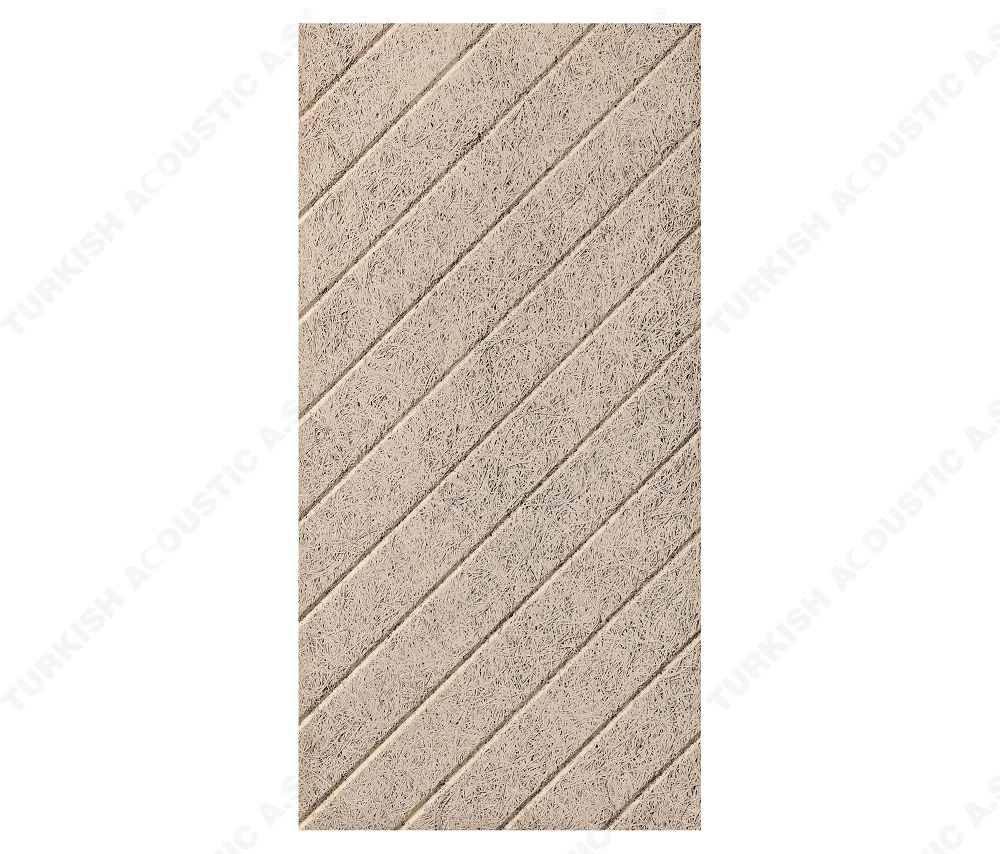

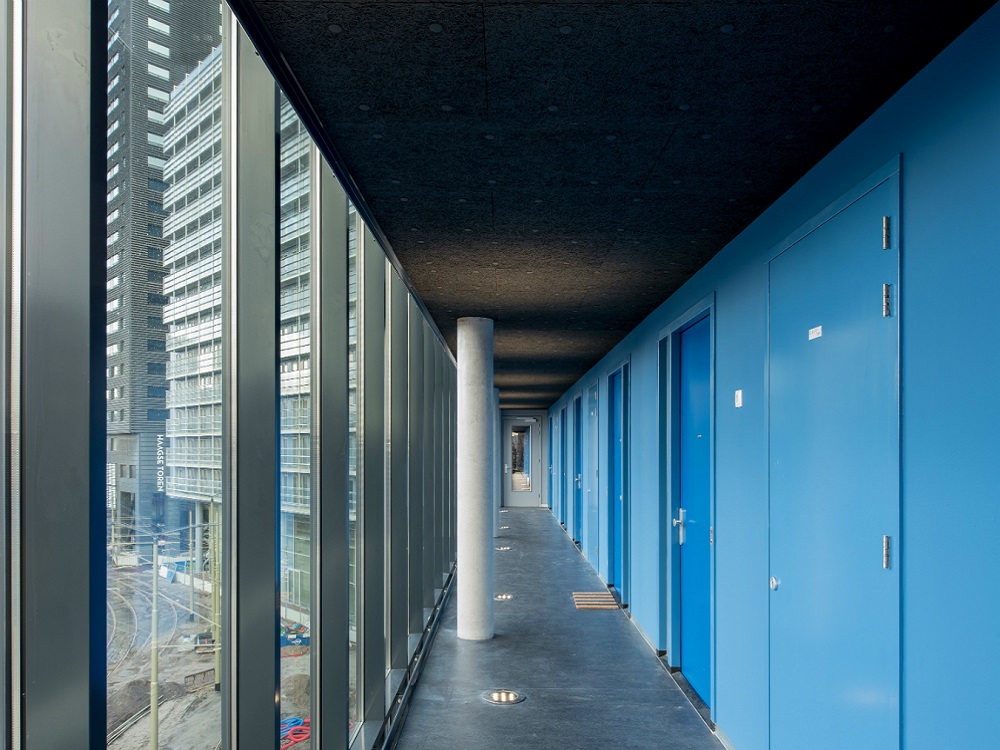

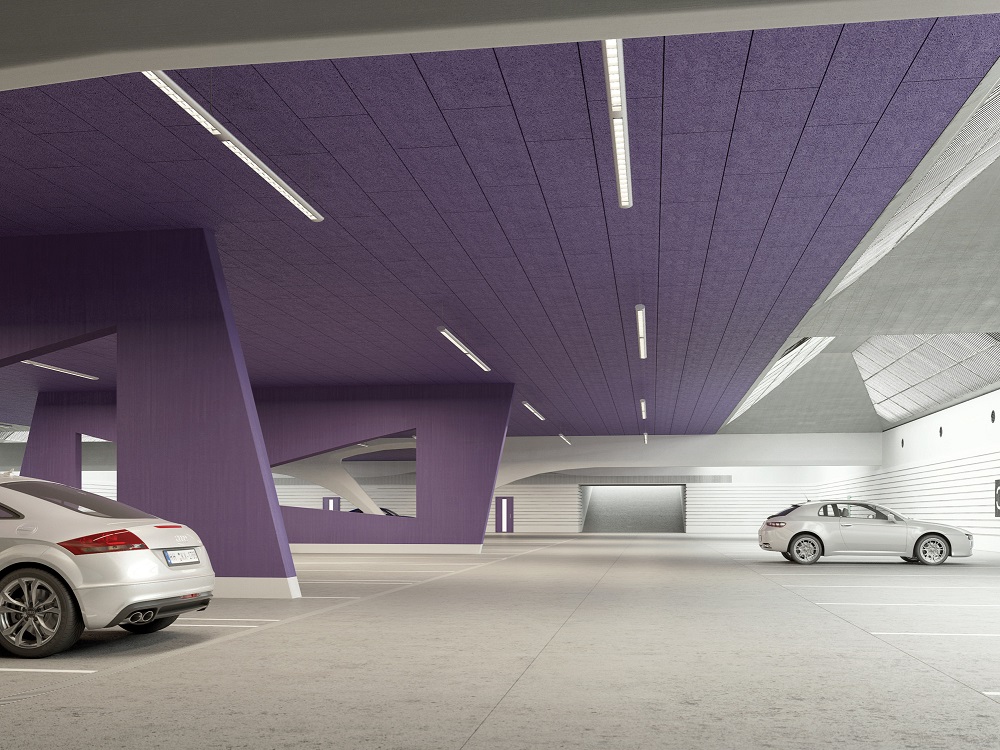

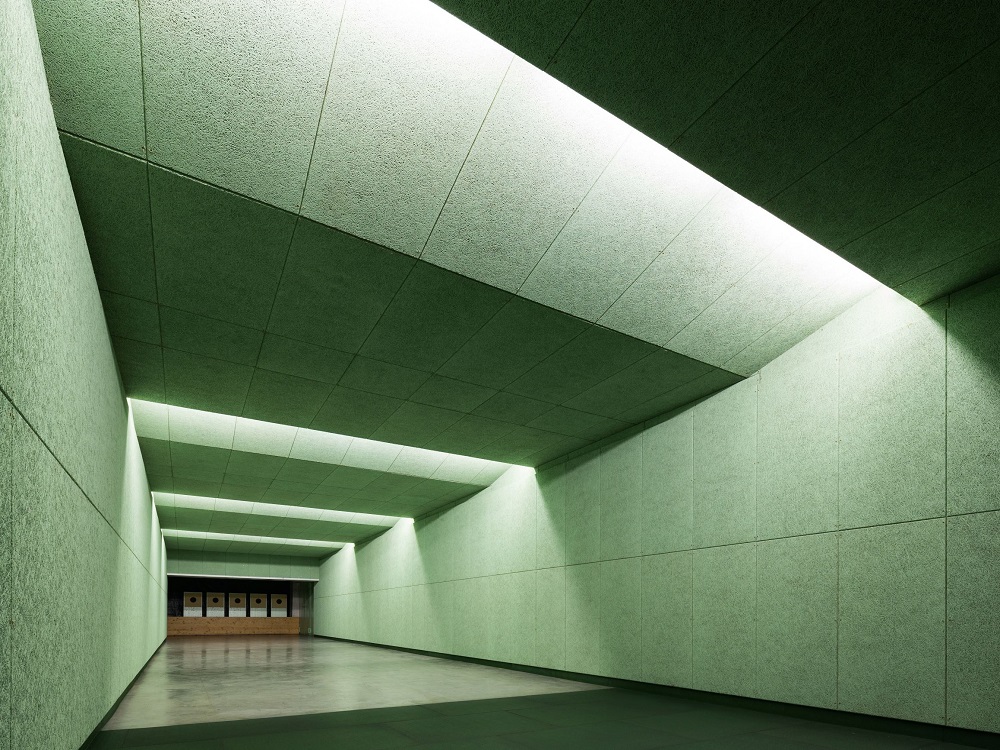

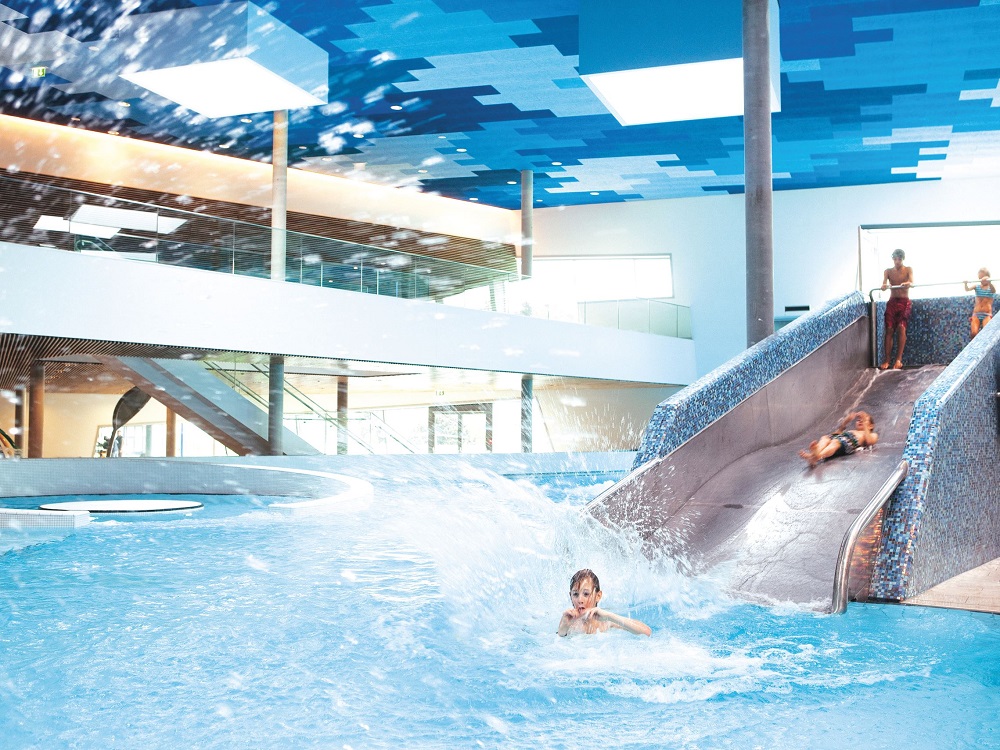

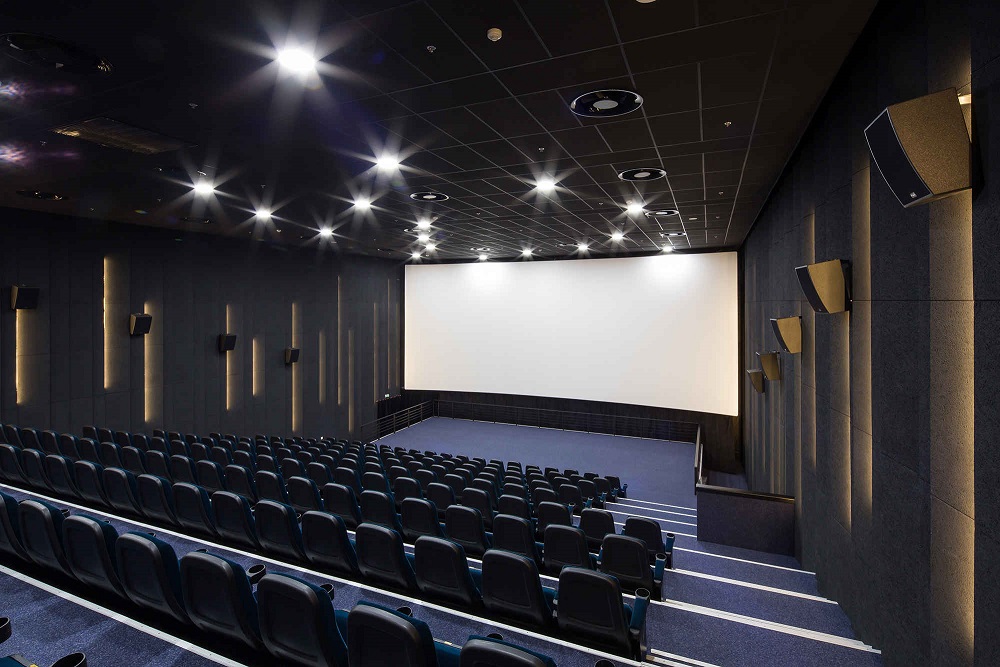

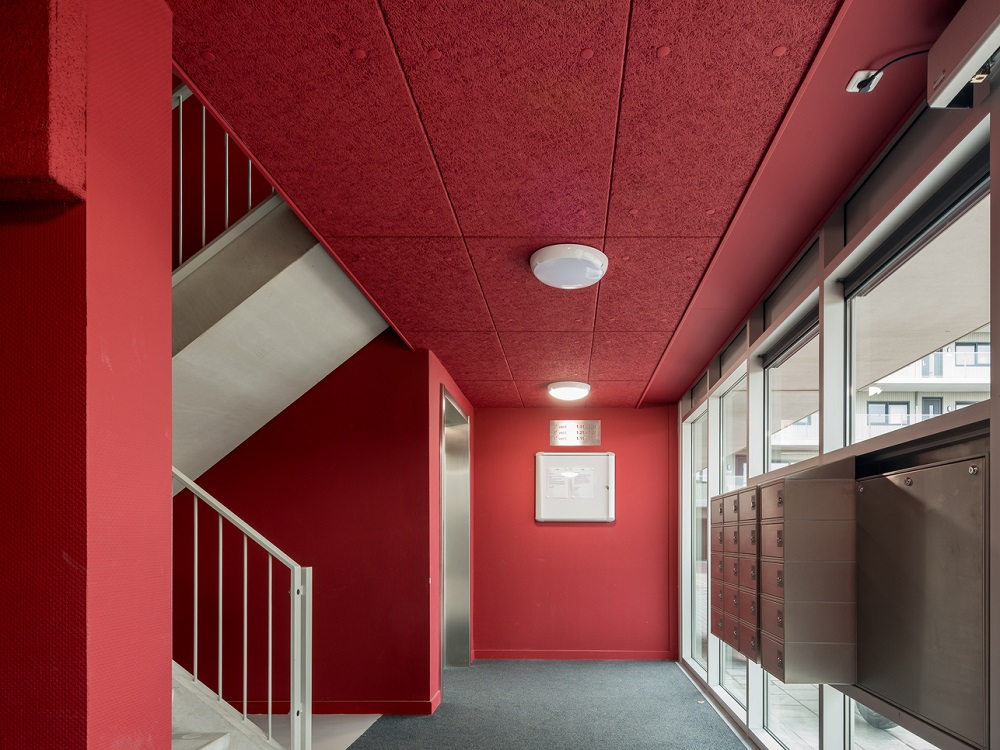

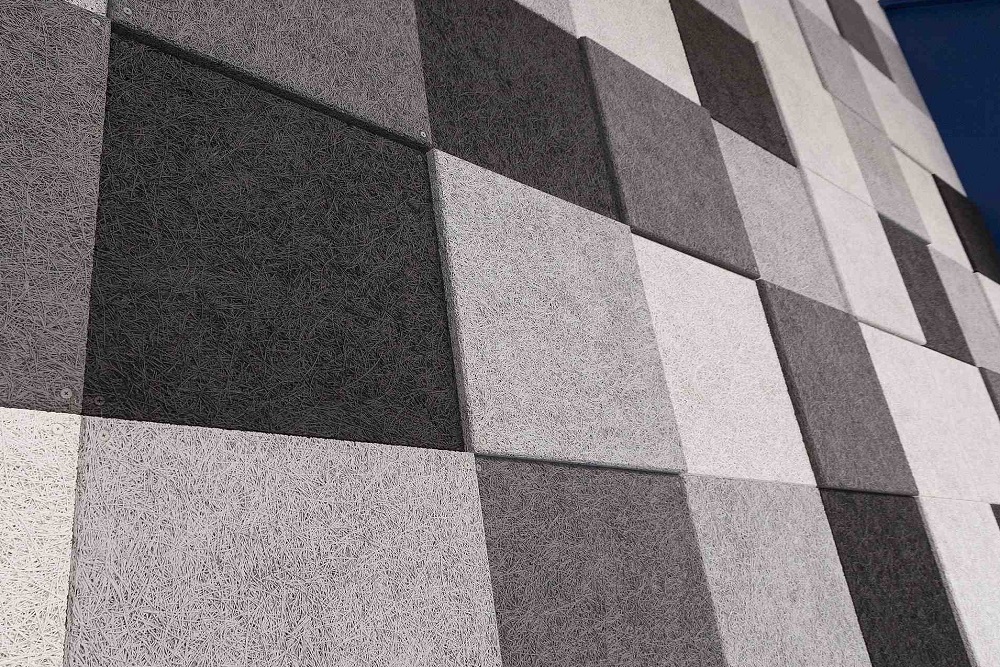

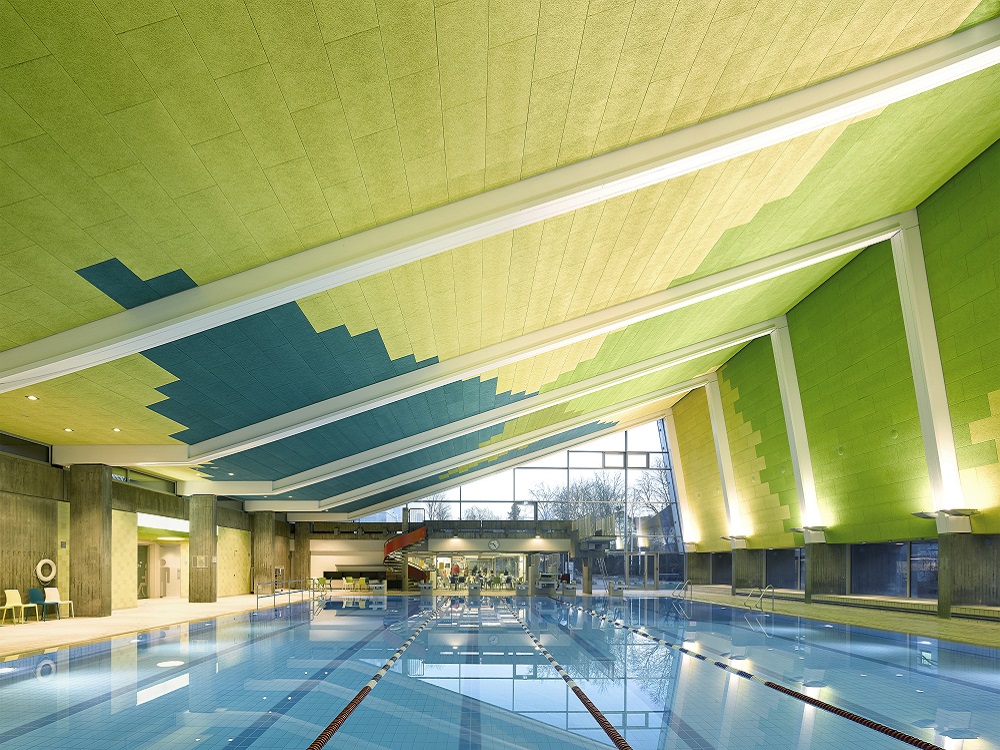

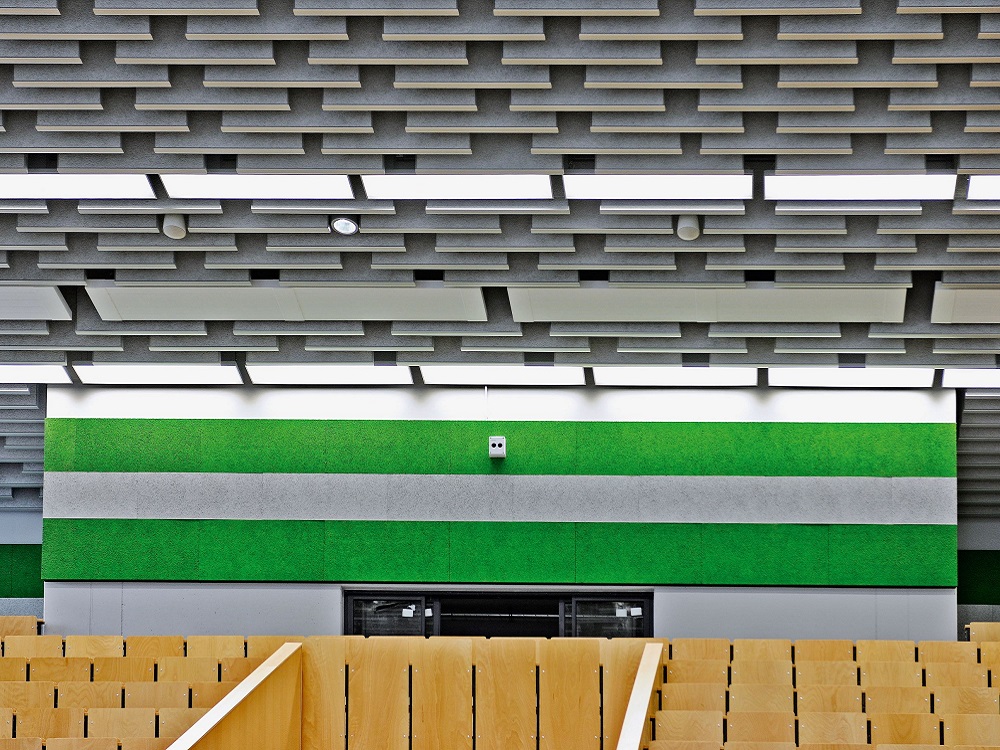

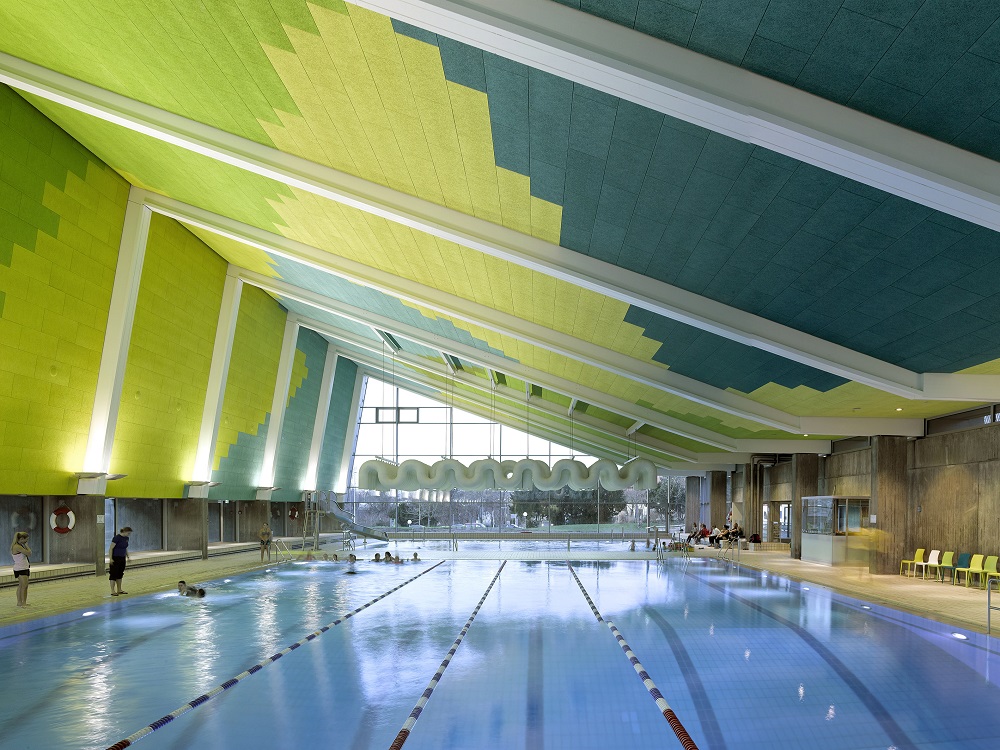

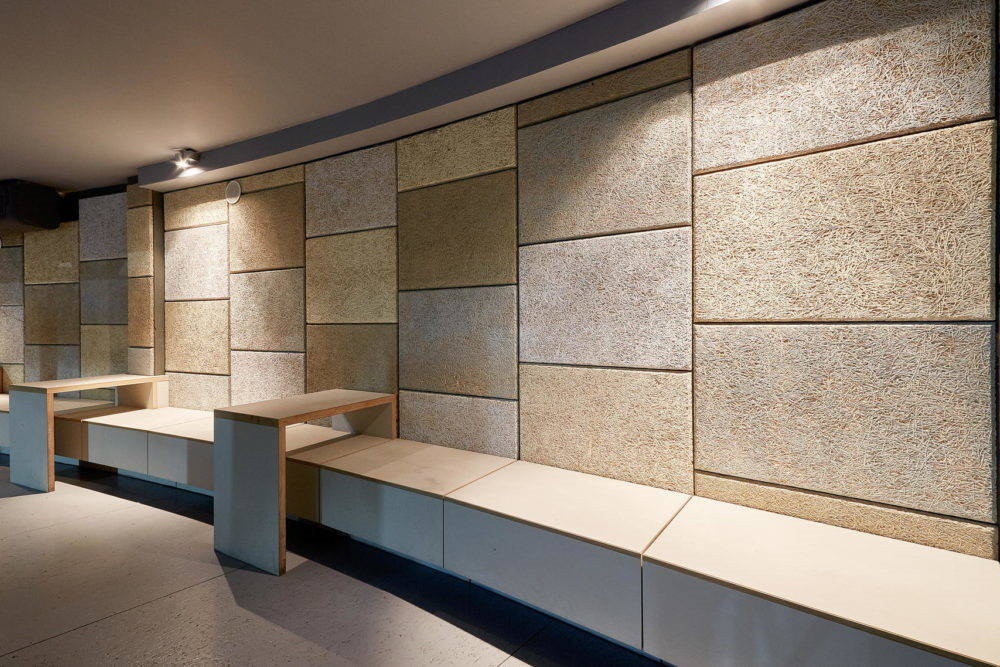

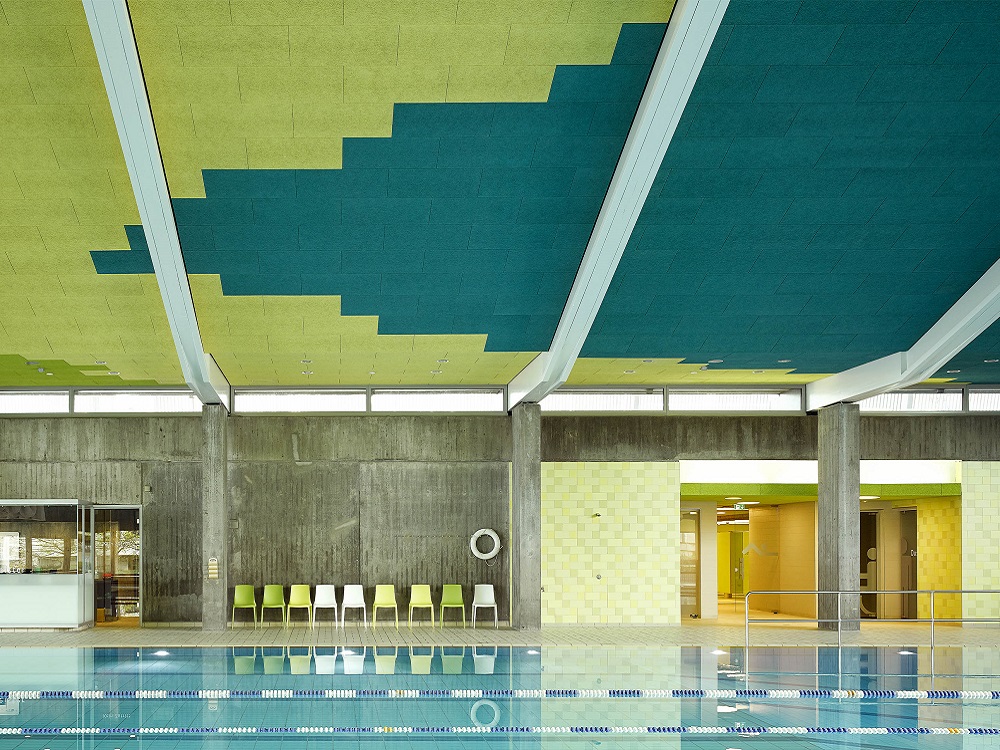

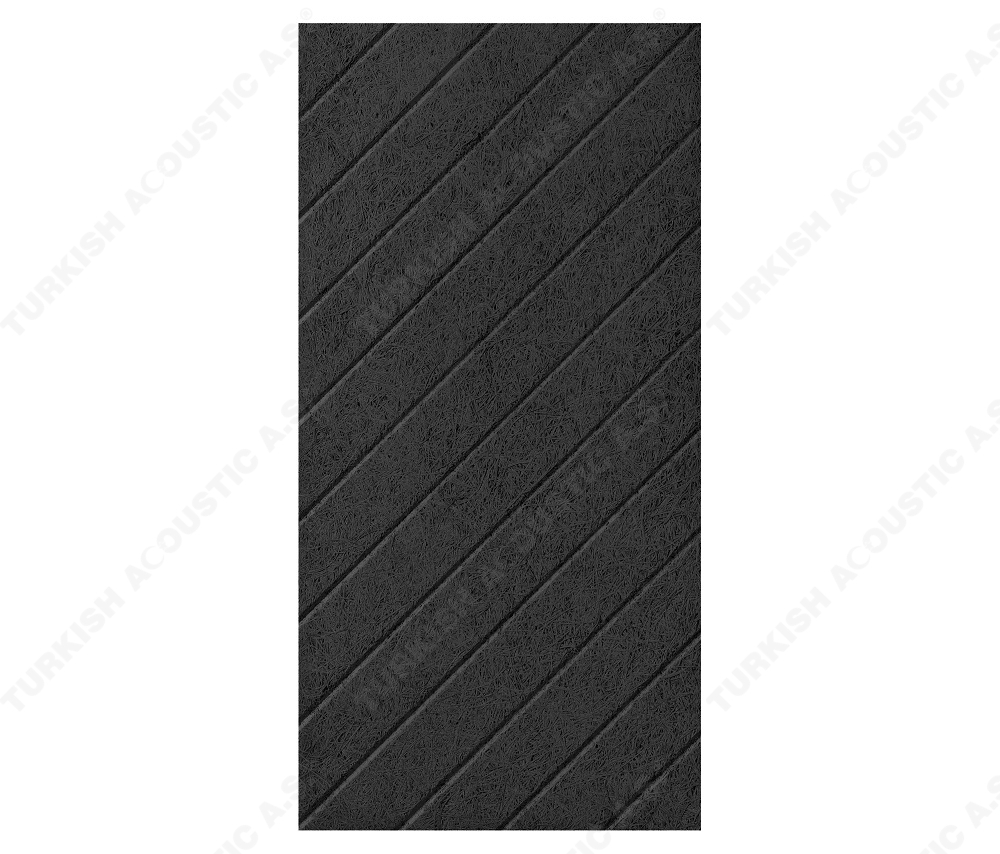

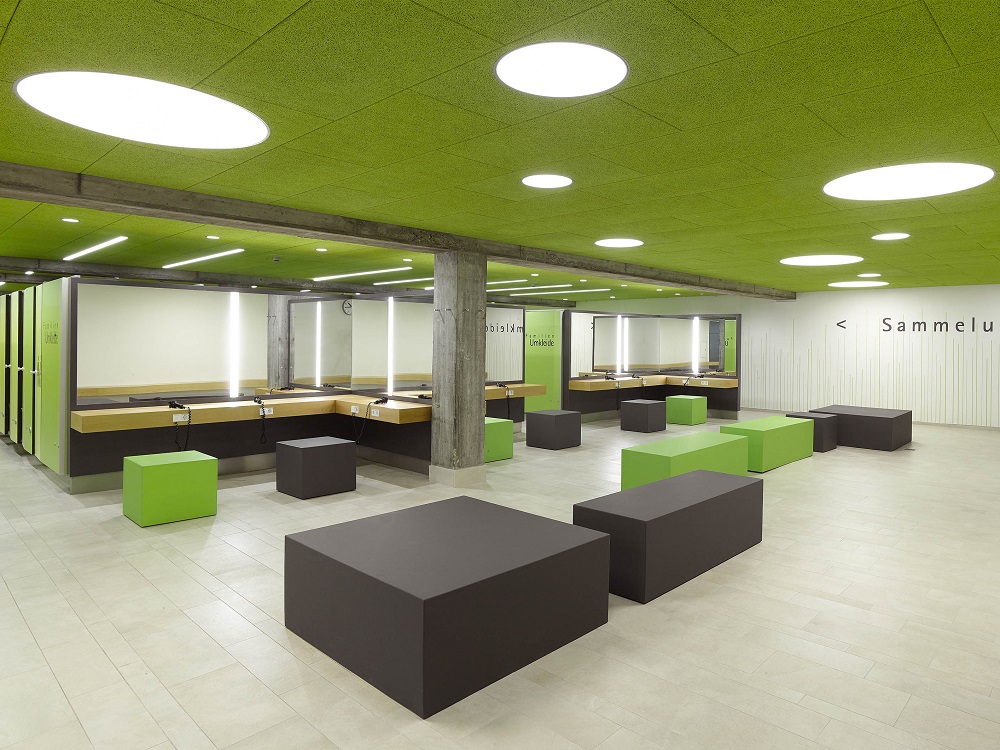

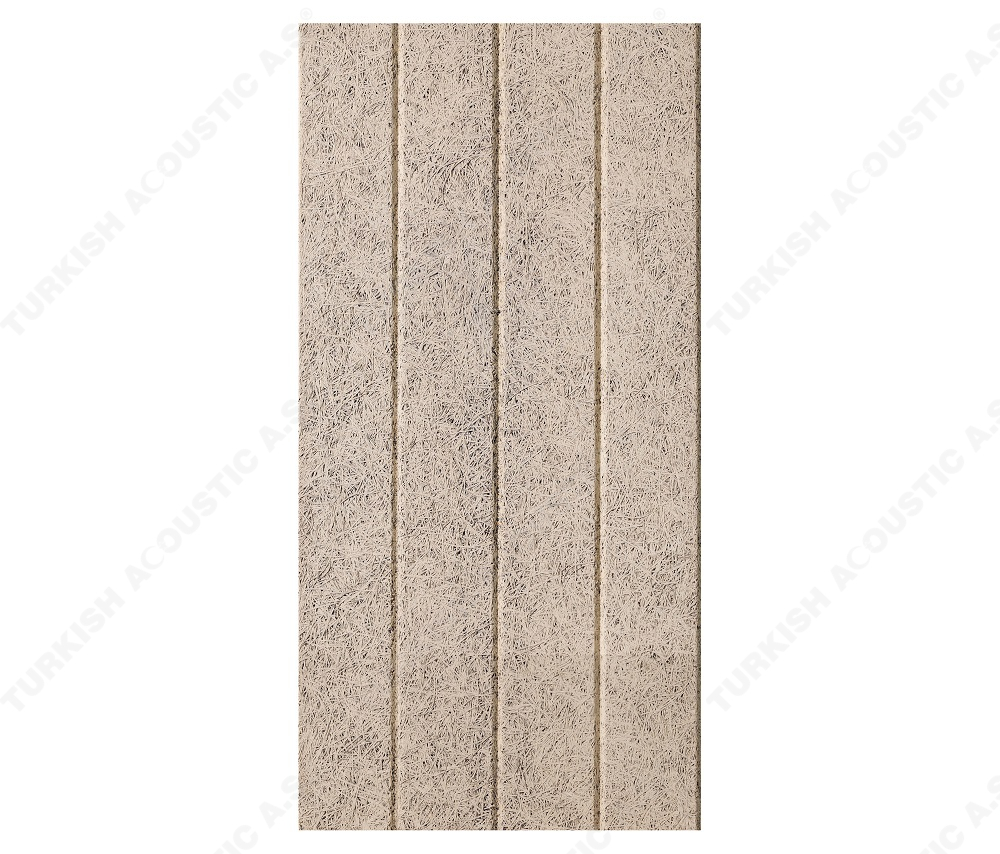

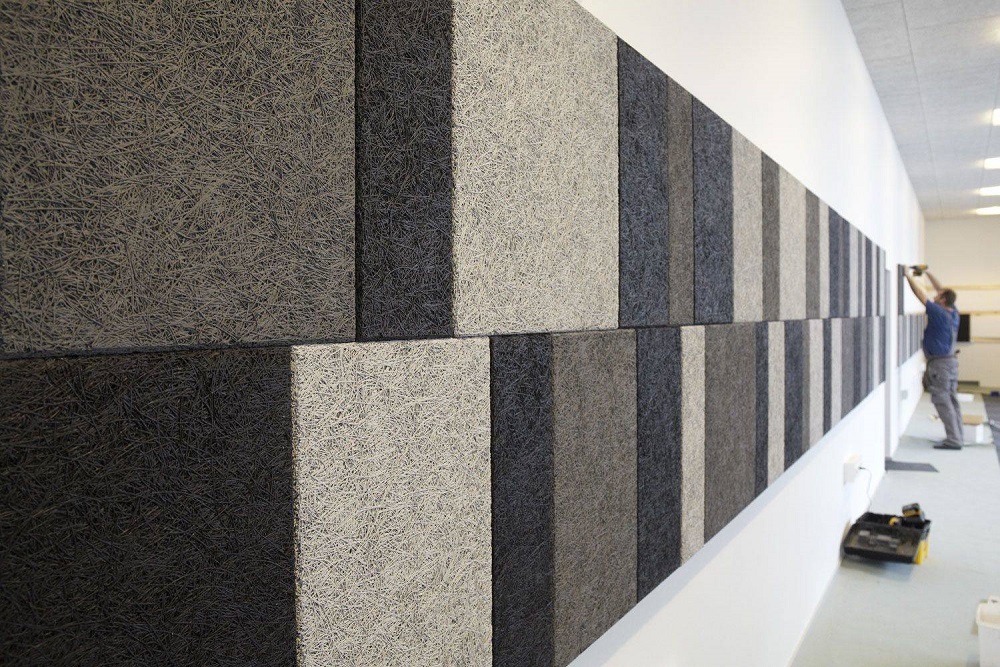

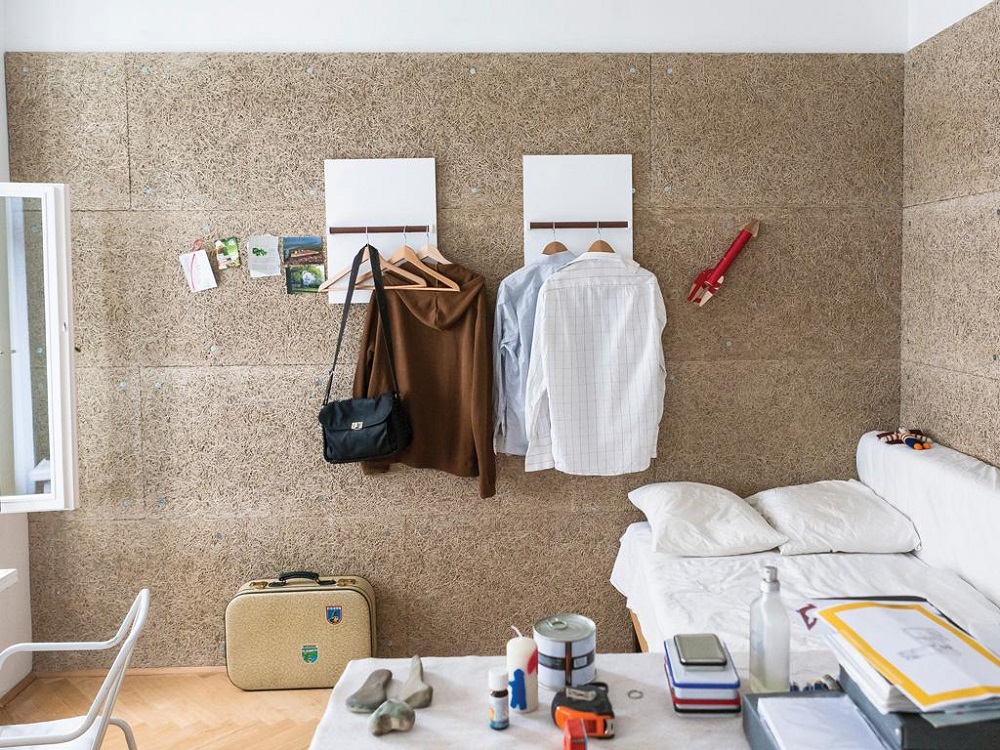

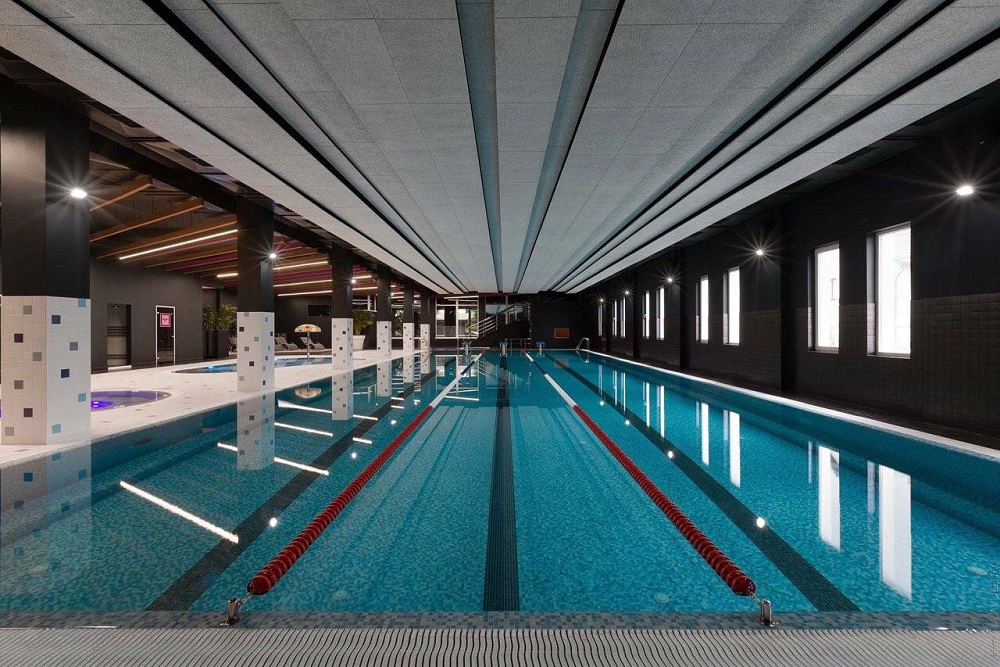

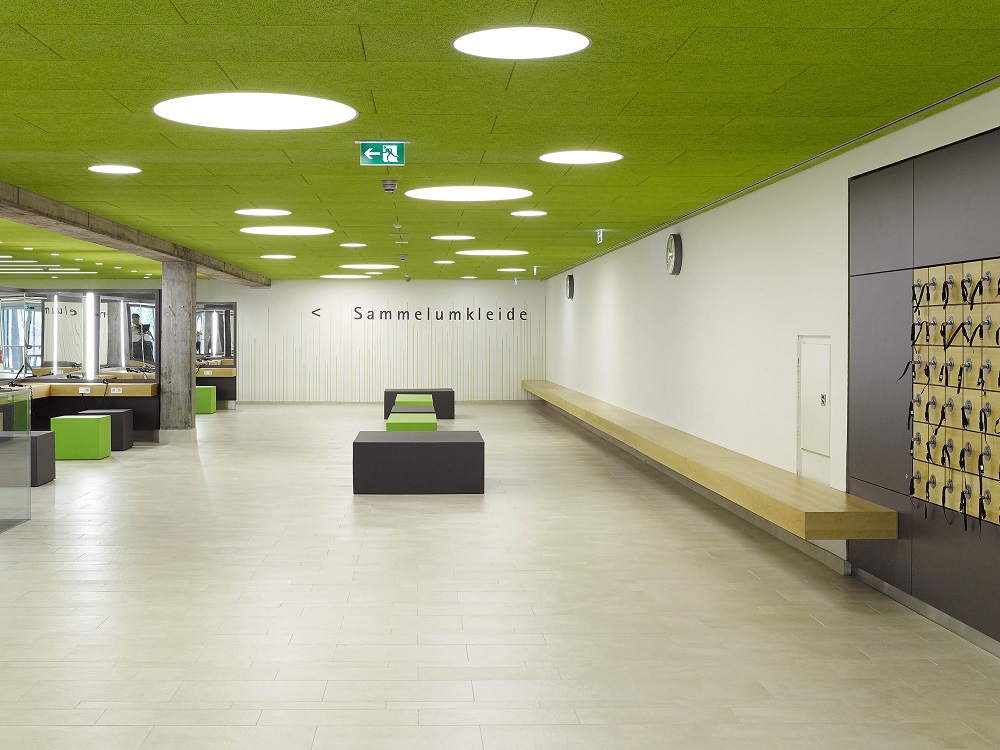

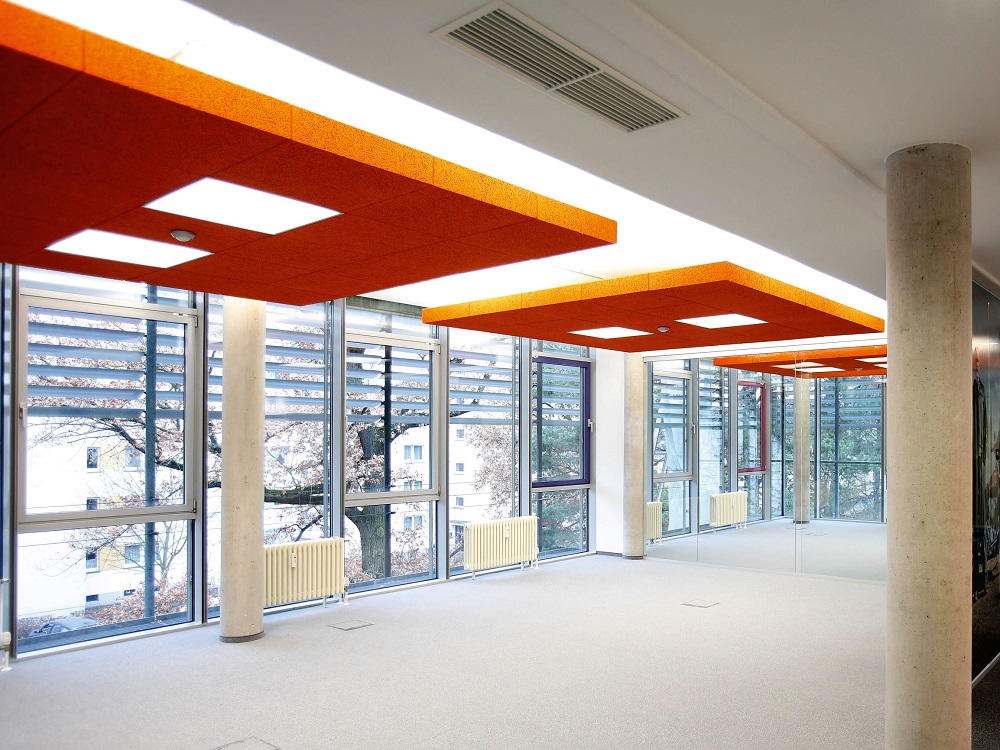

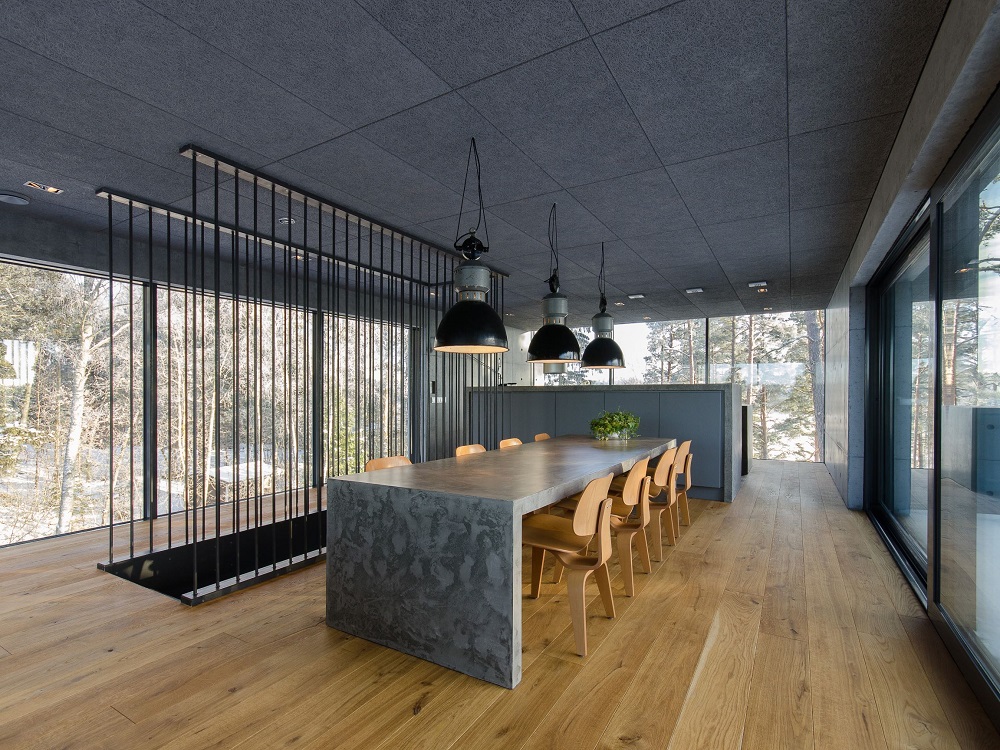

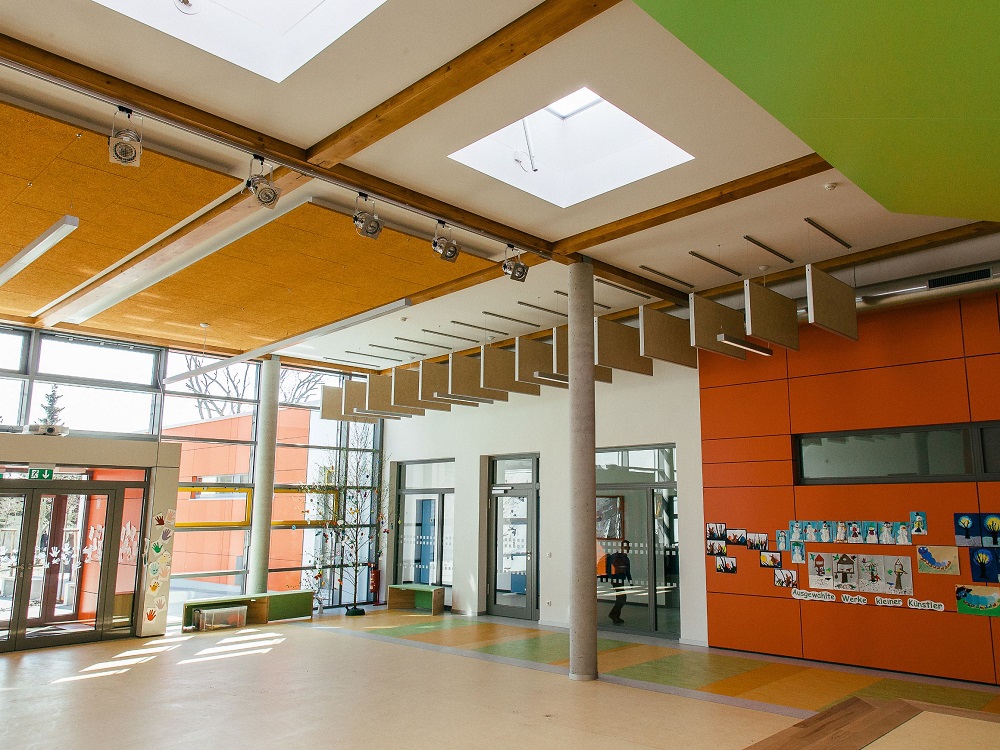

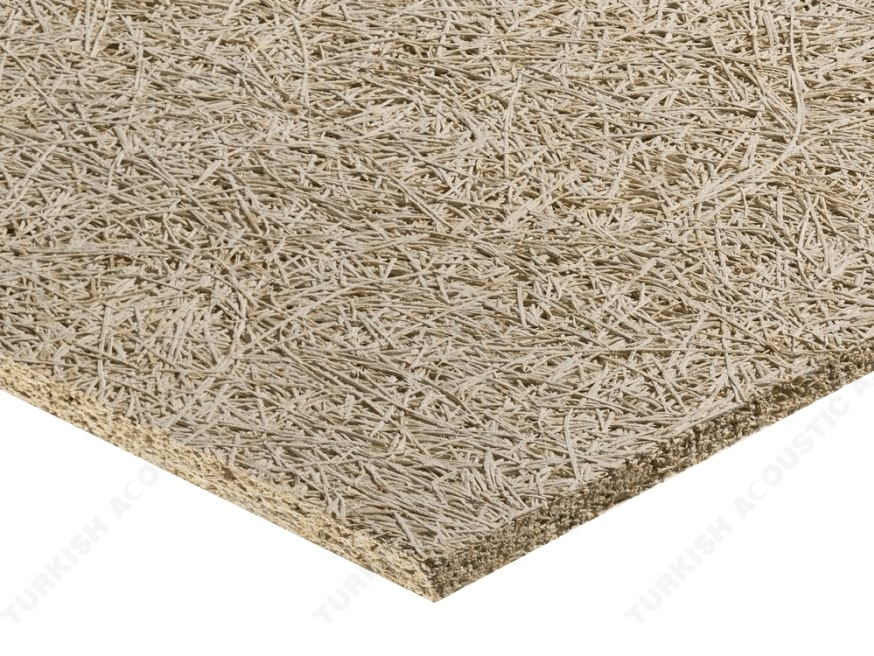

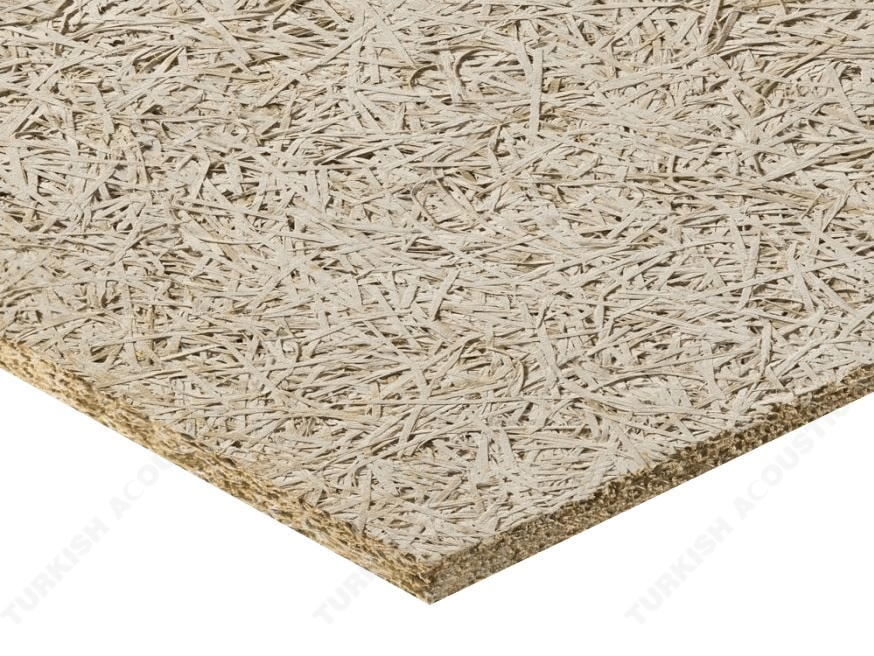

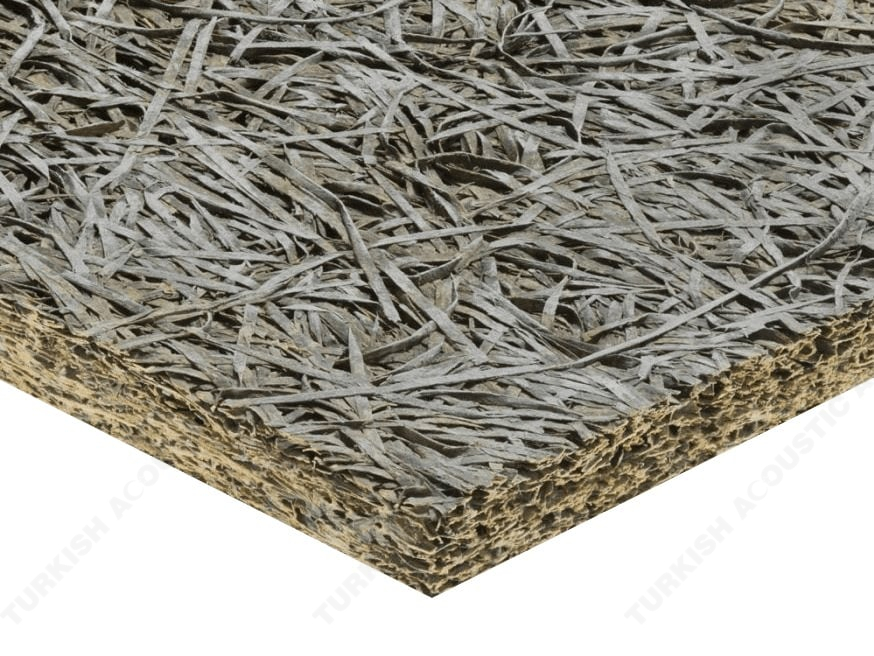

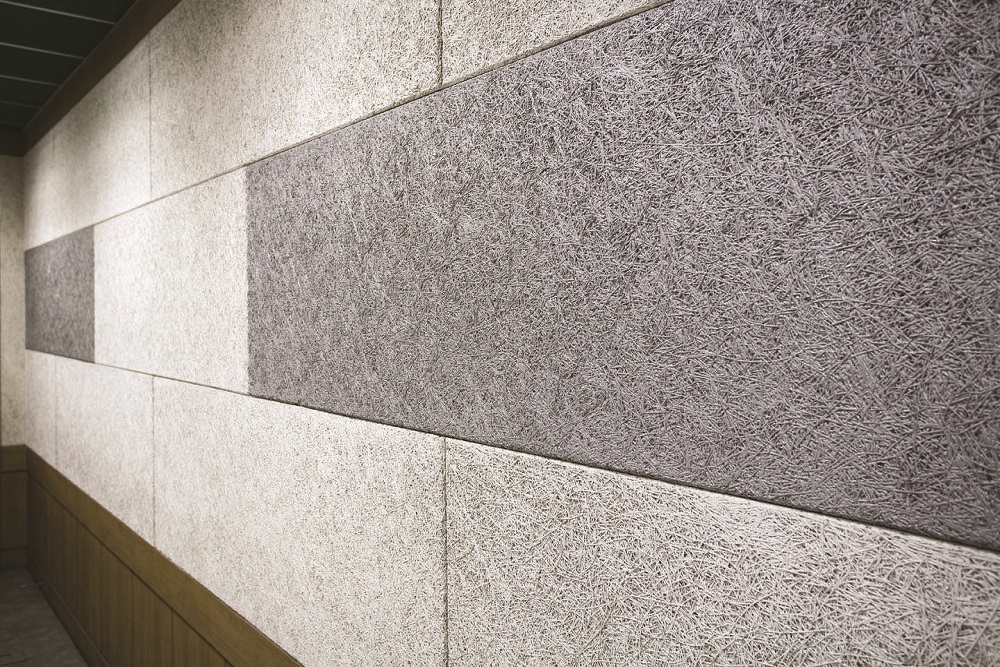

Heraklith panel plates are resistant to burning. For this reason, it is preferred in the construction sector. They prevent moisture and moisture build-up. Heraklith acoustic panels provide acoustic sound insulation to the application area and prevent sound vibrations. Heraklith wood wool; It is applied on ceilings, walls and floors of sound insulation areas, music halls, modern farms, touristic facilities, schools, hospitals, industrial buildings and movie theaters. Wooden wool plates used on the walls consist of magnesite binding acoustic plates. Wood Wool Plates they are fire resistant and are not easily affected by fire. They are produced in accordance with the fire regulations. They do not cause mold and infestation. They do not rot and have an indestructible structure. It should not be affected by water and moisture. They must have antibacterial properties. They should not contain any additional substances harmful to human health and formaldehyde. Each plate size should be 1200z600mm. According to the detail requirement of the project, 600x600 sized plates should be used in the areas requested by the administration. There will be no change in dimensions except for slight shifts due to biological and organic components of the wood. Length should not exceed 3 mm, width, 2 mm, and thickness 1 mm. The sound absorption coefficient of the plates should provide 0.90. Coefficient measurements must be measured according to international standards. Measurements and results should be given to the administration.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.

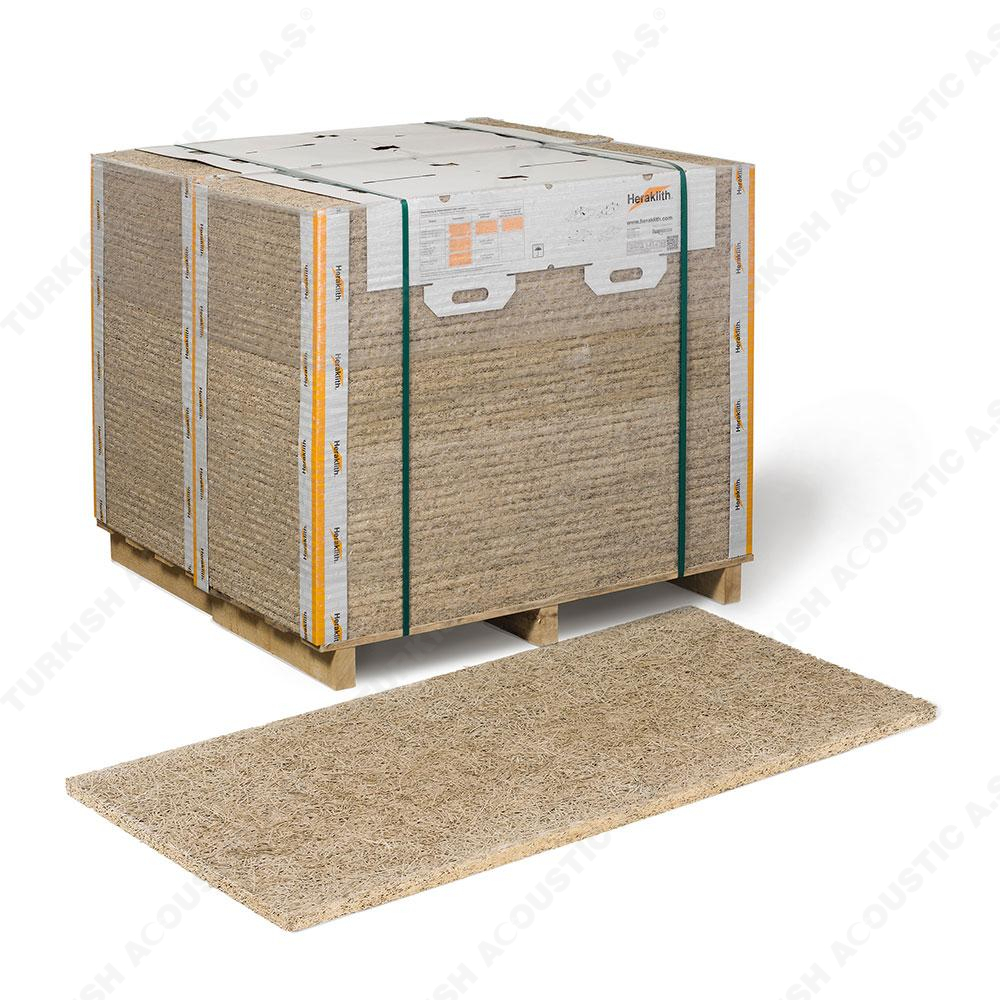

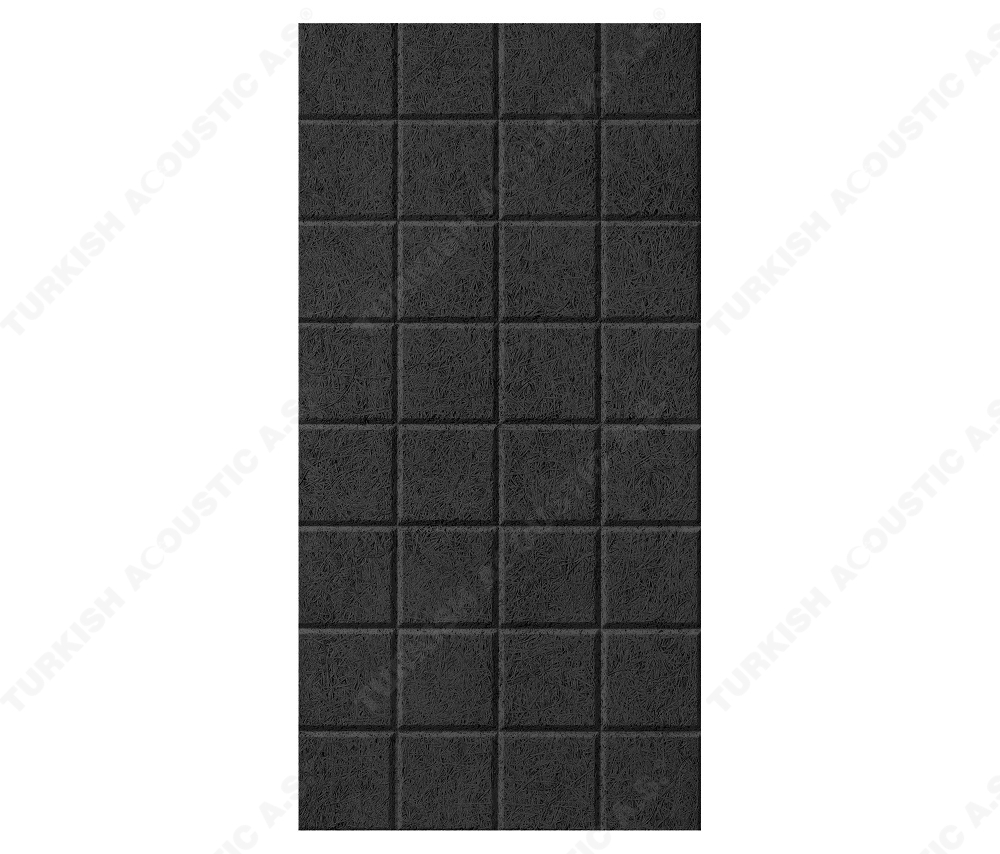

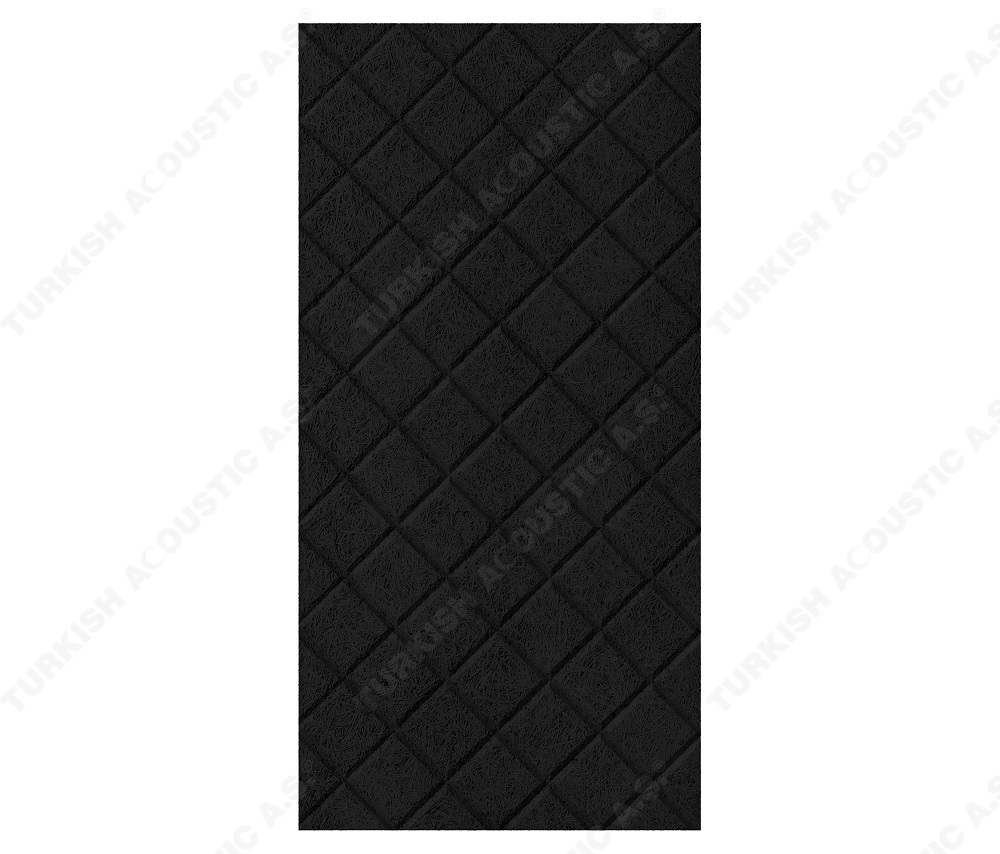

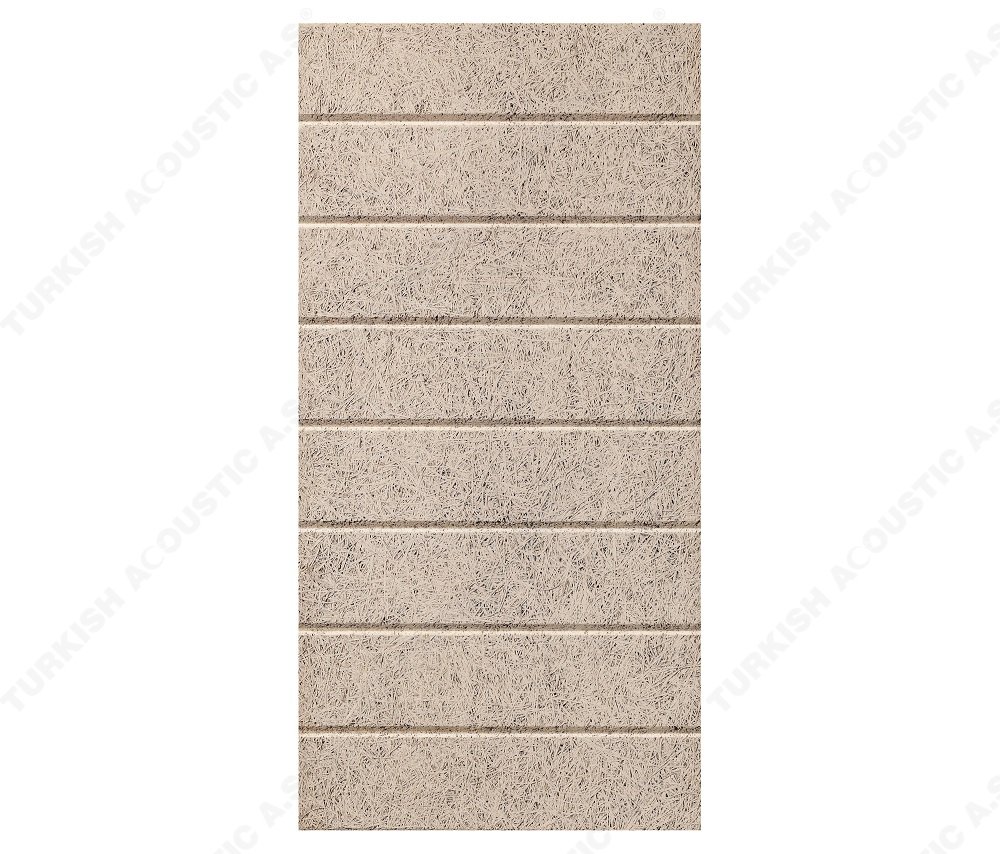

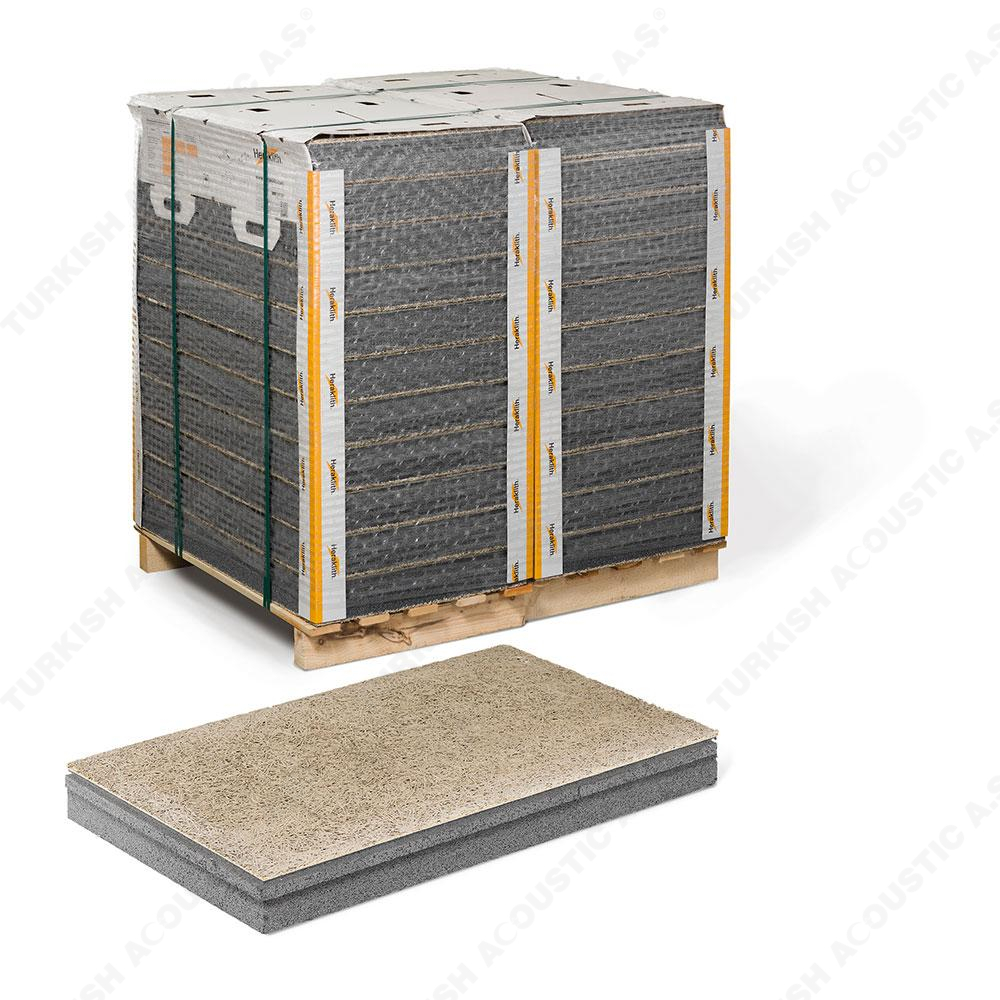

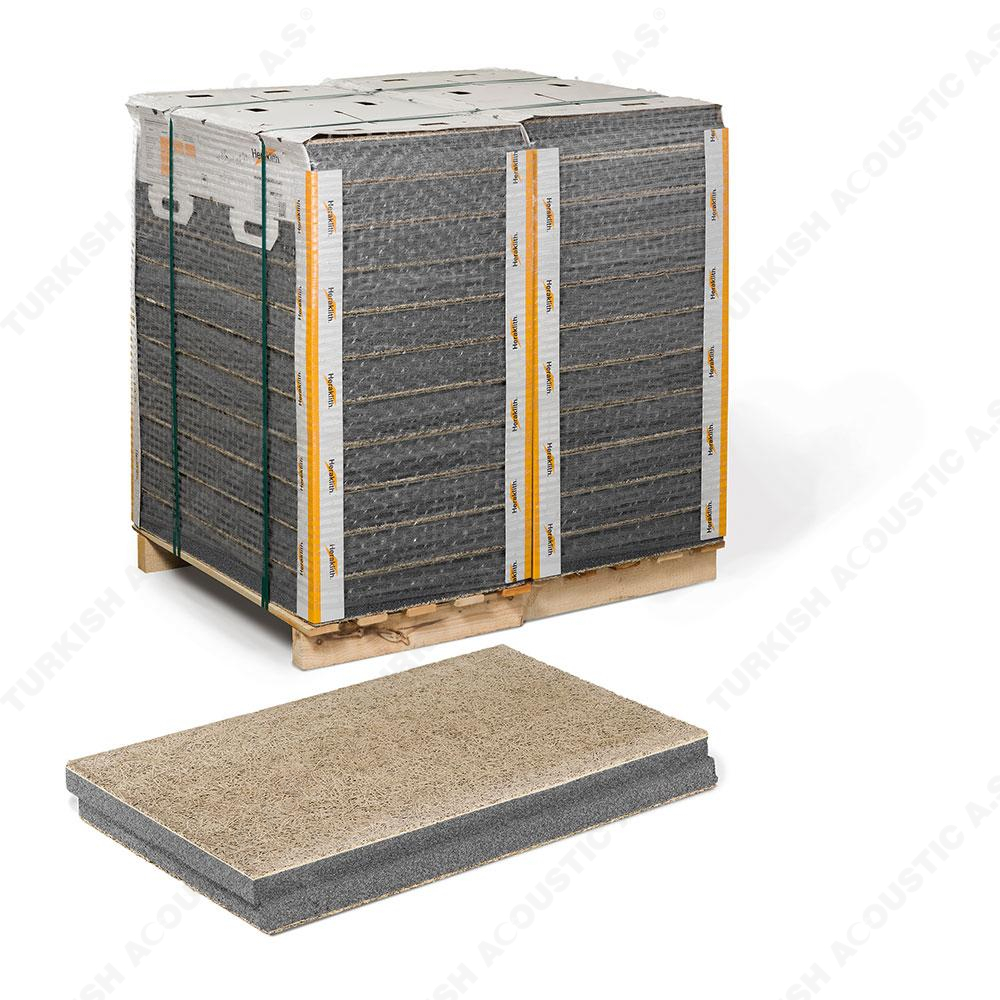

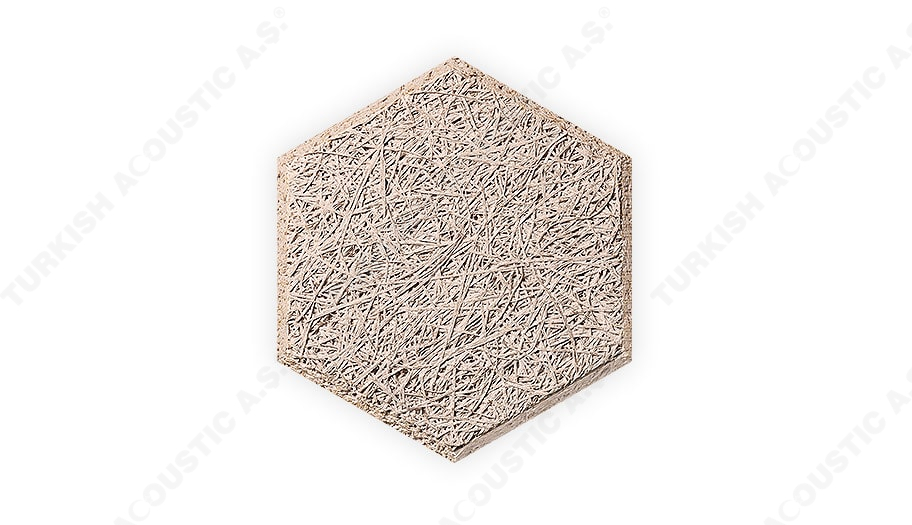

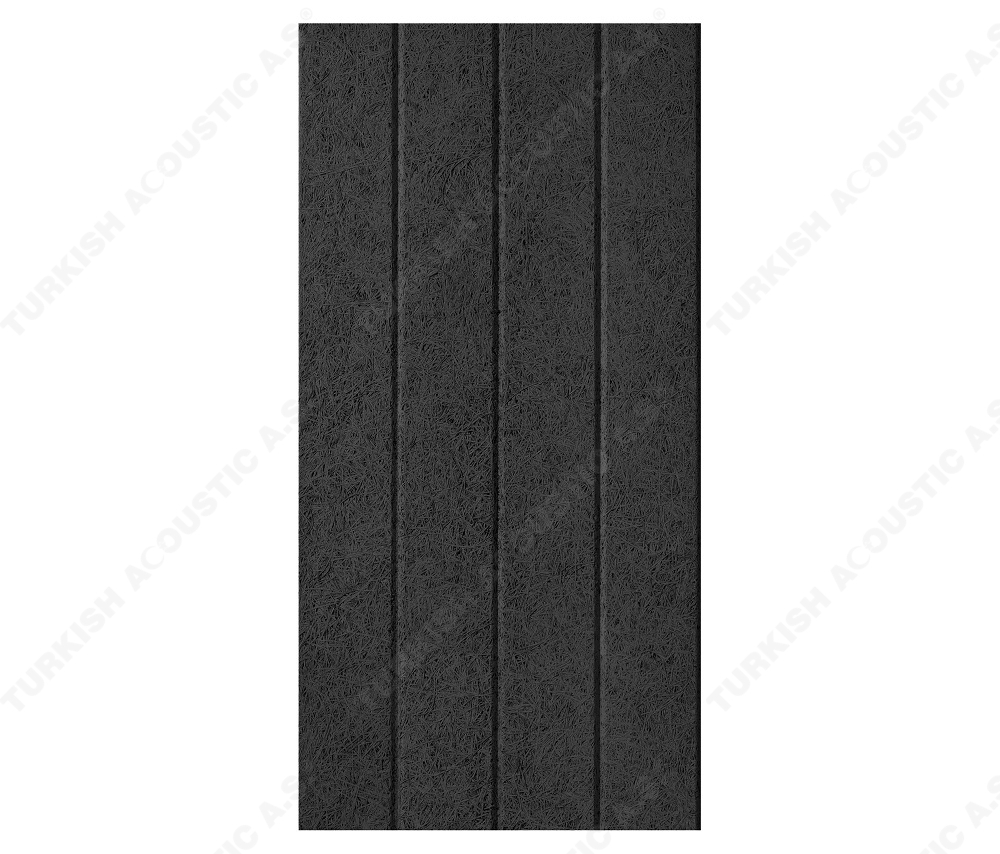

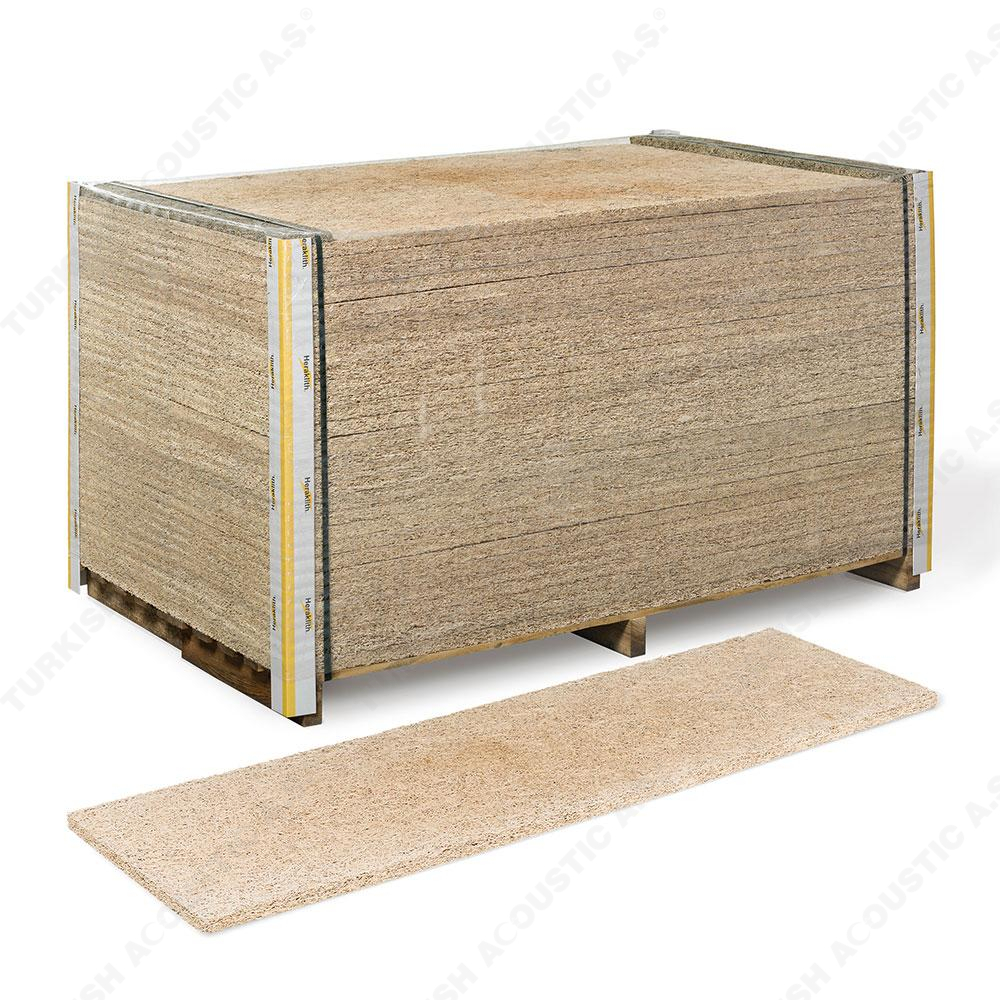

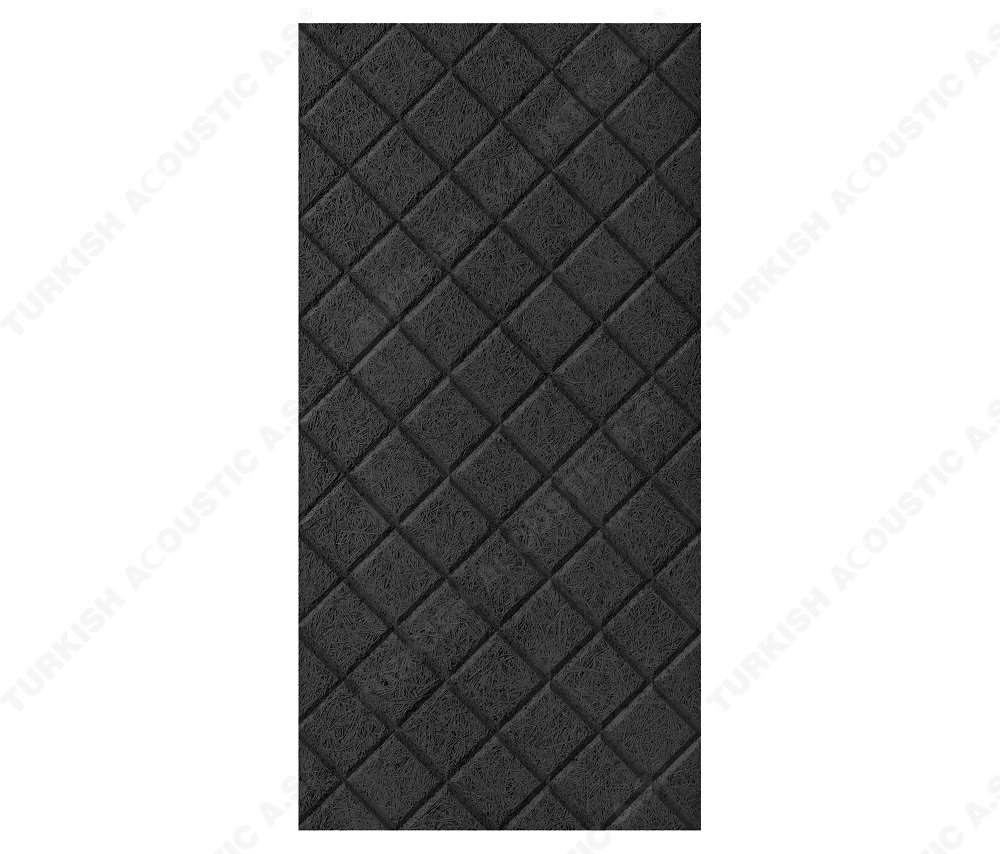

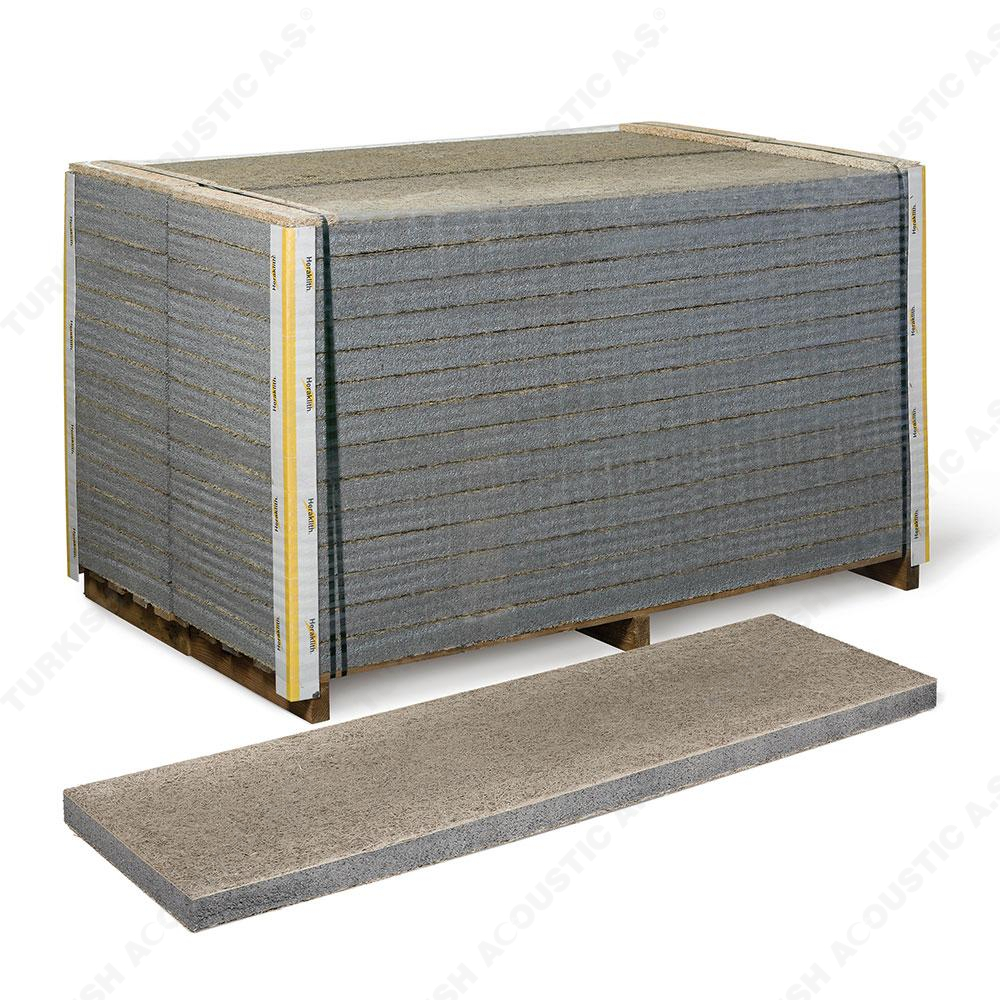

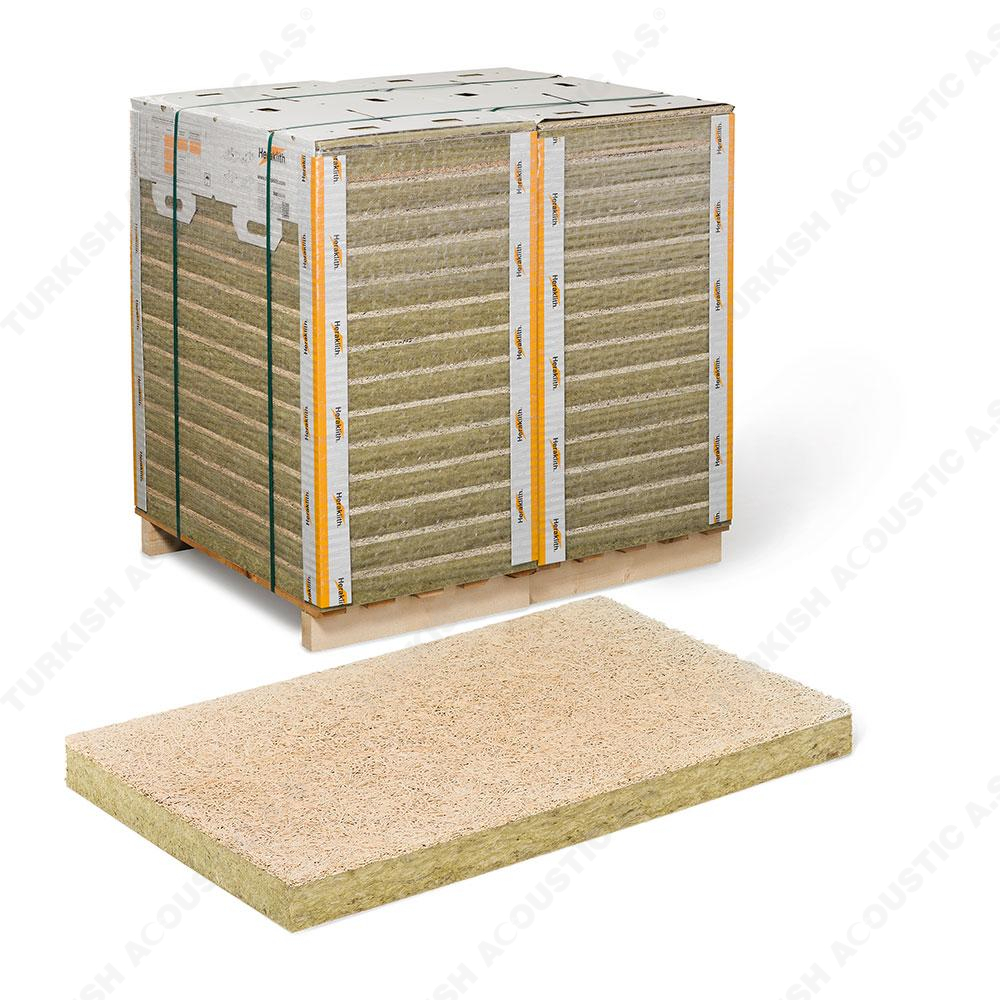

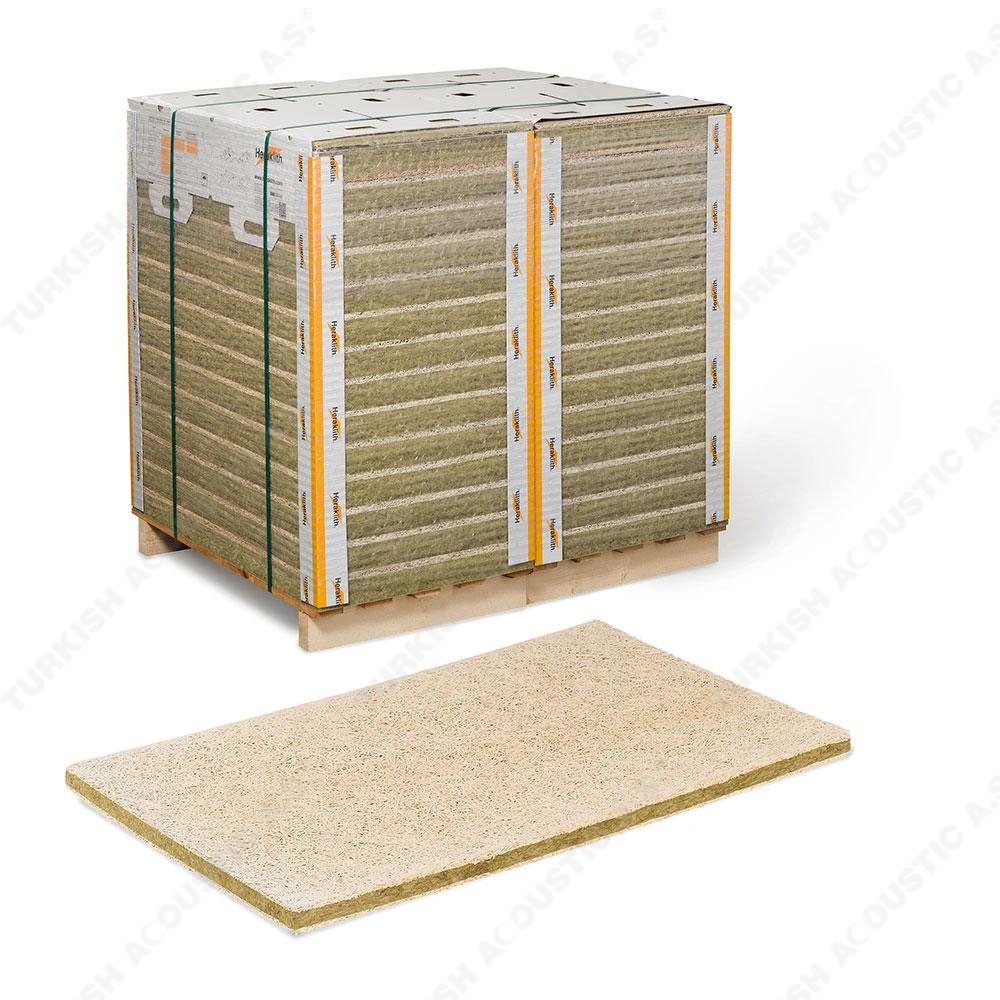

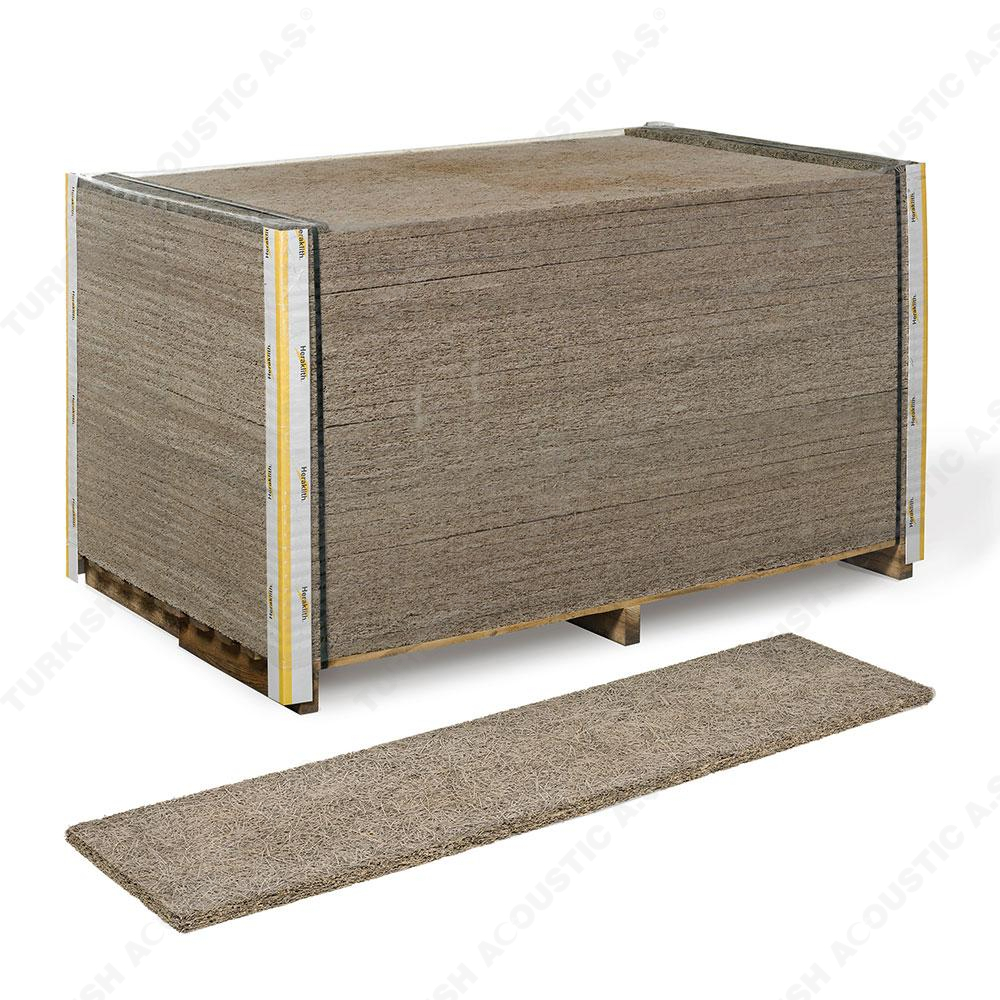

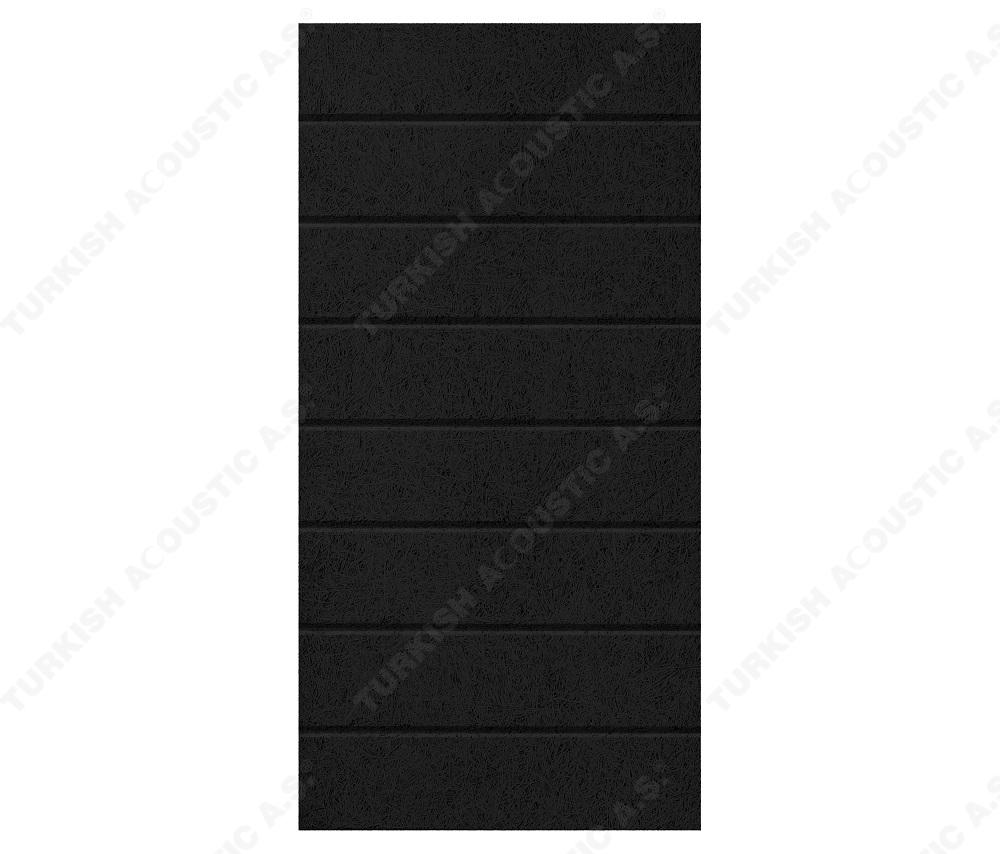

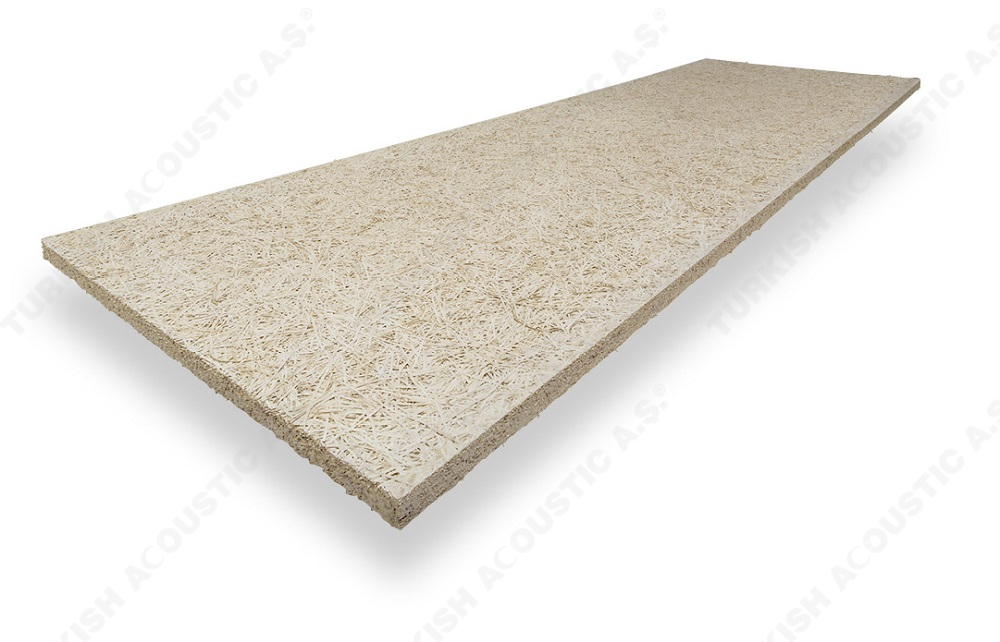

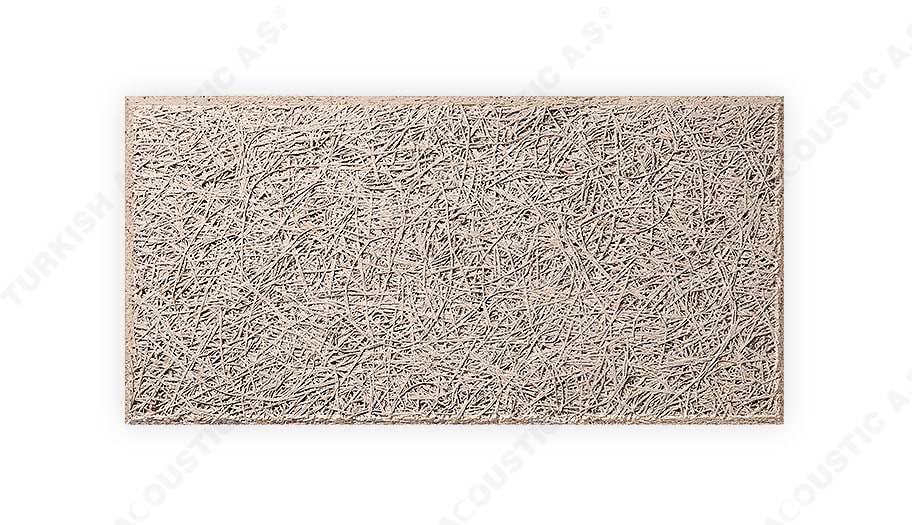

Acoustic panels are 60 cm x 120 cm, and their packages contain 10 m² of products. It is sold by retail and wholesale as 25 mm and 35 mm as standard, it can also be produced in different thicknesses and sizes as a special production. Please contact our technical office for detailed information.
|Size: 1200 mm x 600 mm - 600 mm x 600 mm|
|Thickness: 15 mm - 25 mm - 35 mm|
|Weight: 7,80 11,30 15,00 kg/m2|
|Thermal Conductivity : 0,08 0,08 0,08 W/mK|
|Heat Resistance : 0,20 0,30 0,45 m2K/W|
|Flexural Strength : * >2000 >1800 >1600 kPa|
|Diffusion Resistance Factor : 5 5 5 -|
|Quality : *EN 12089, prosedür|
|Plate Thickness (mm)||25||35||50|
|Heat Transfer Resistance-R- (m² K/W)||0,28||0,39||0,56|
|Diffusion Resistance (µ)||6||5||4|
