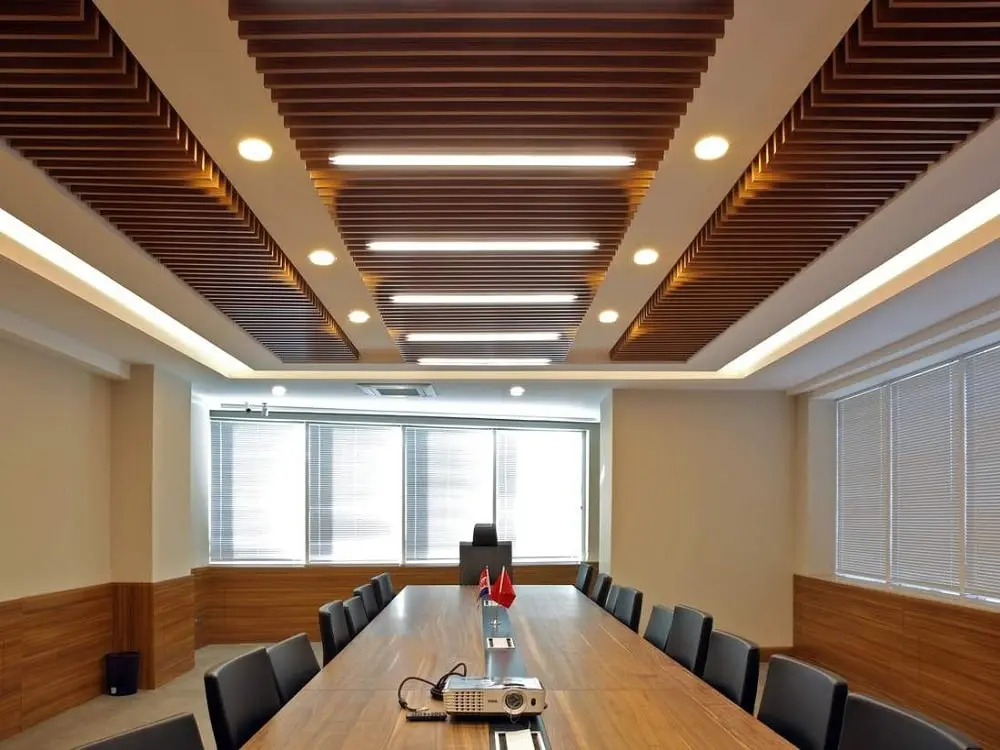

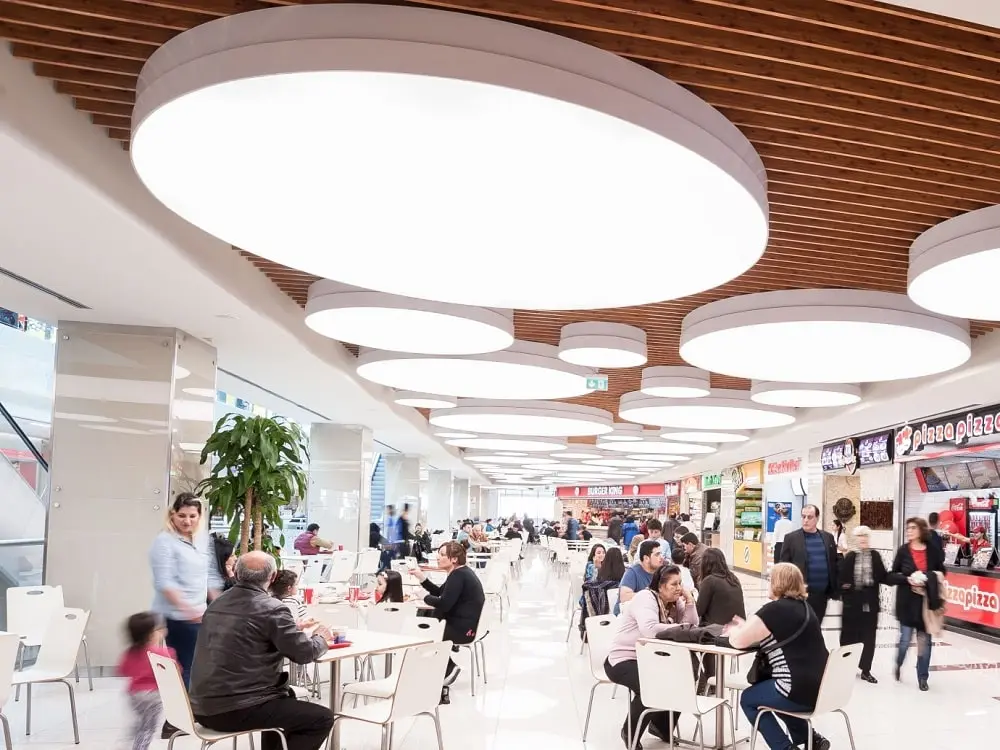

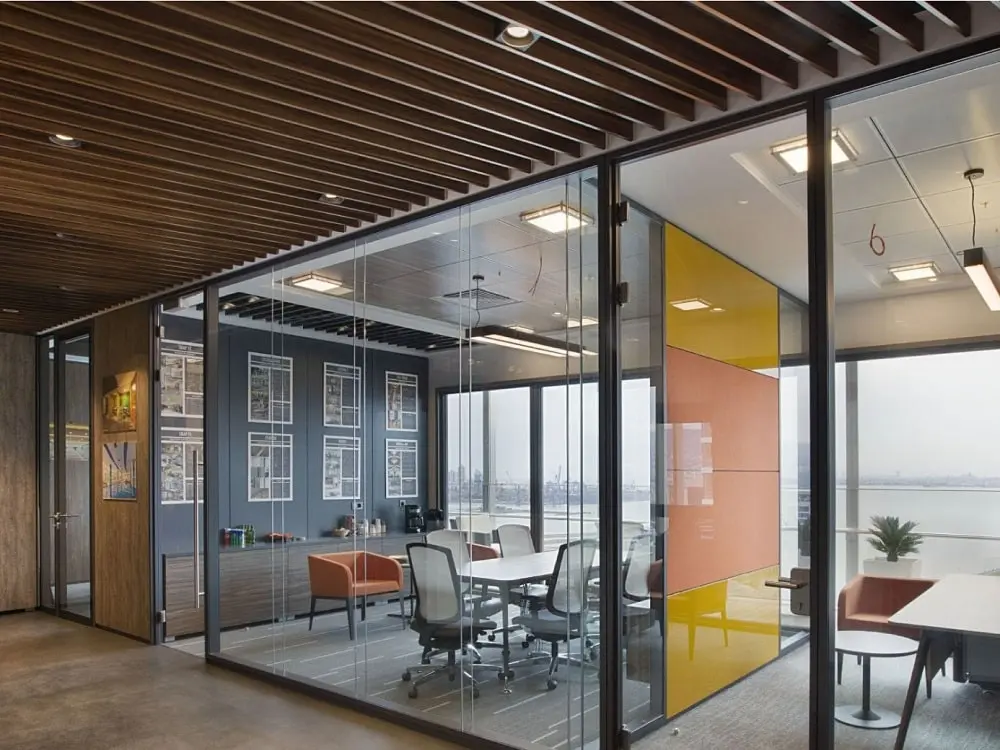

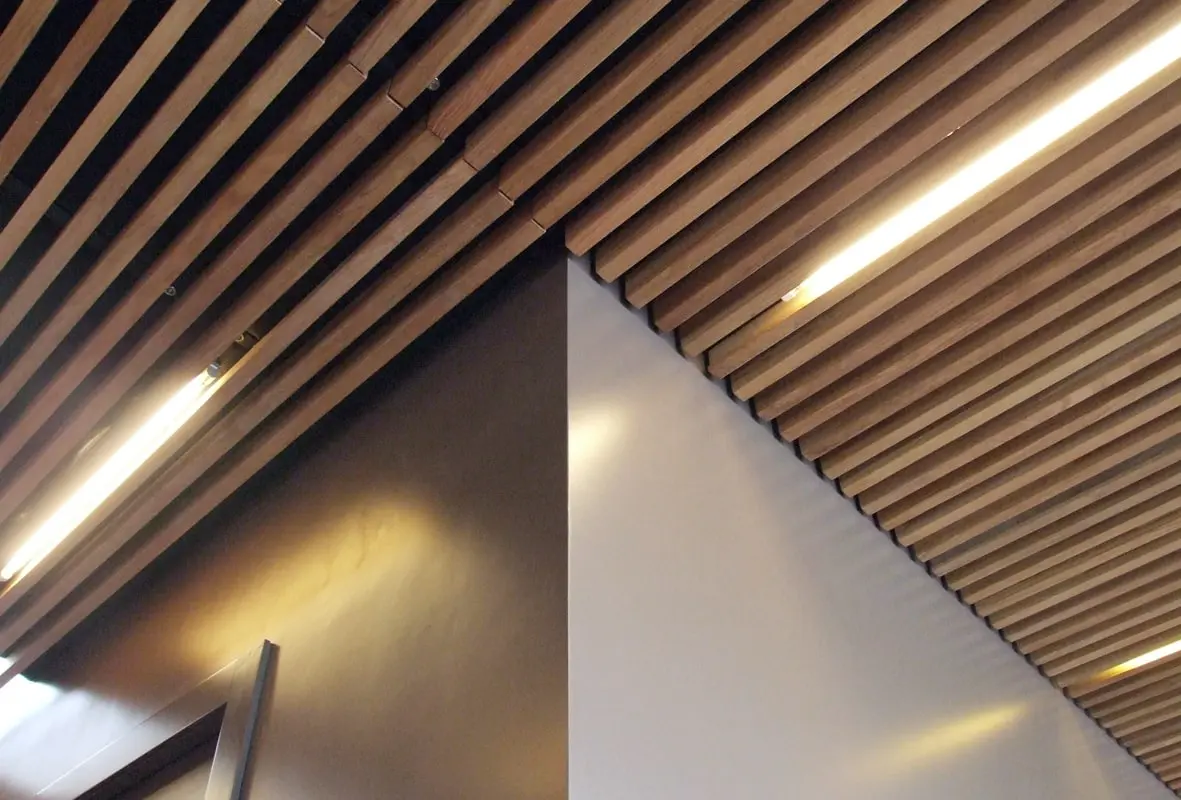

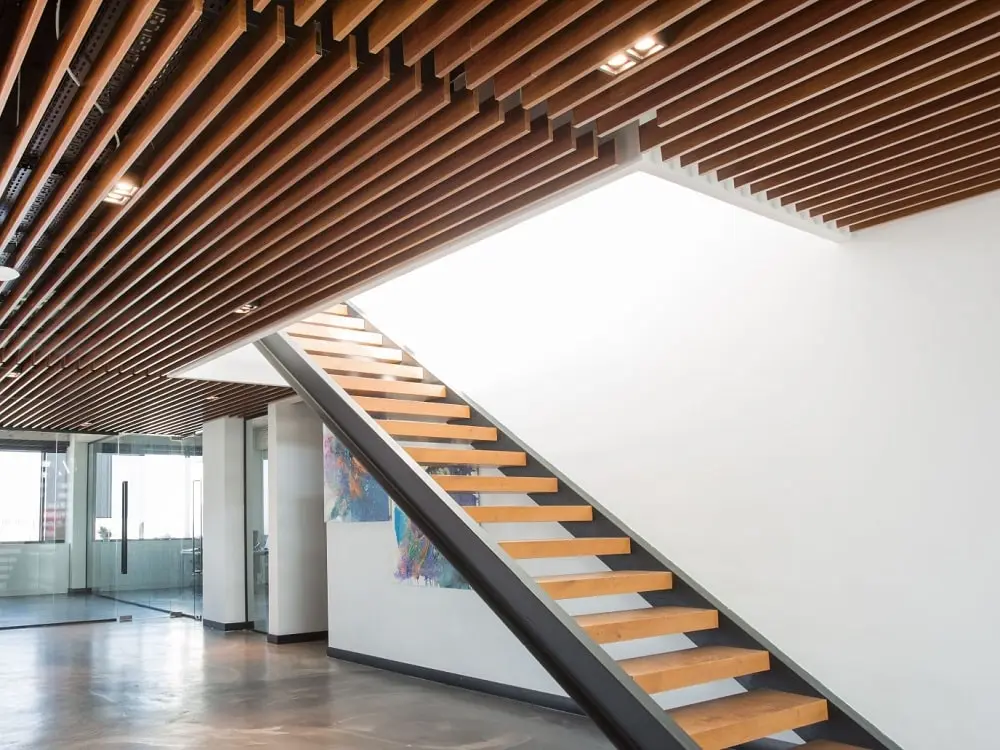

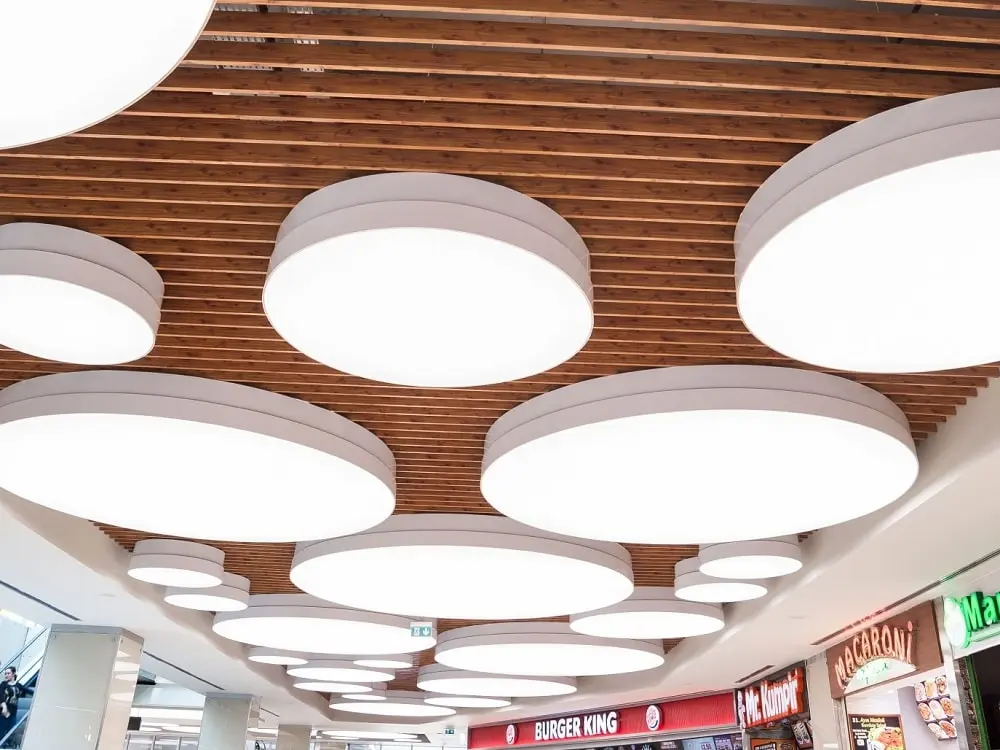

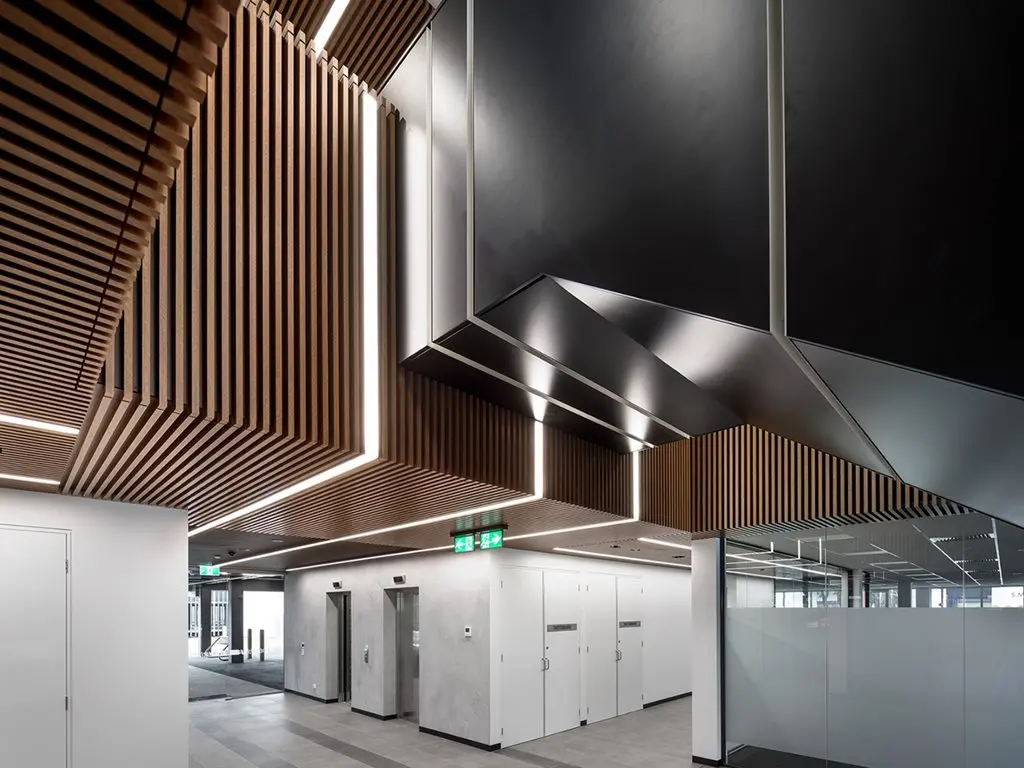

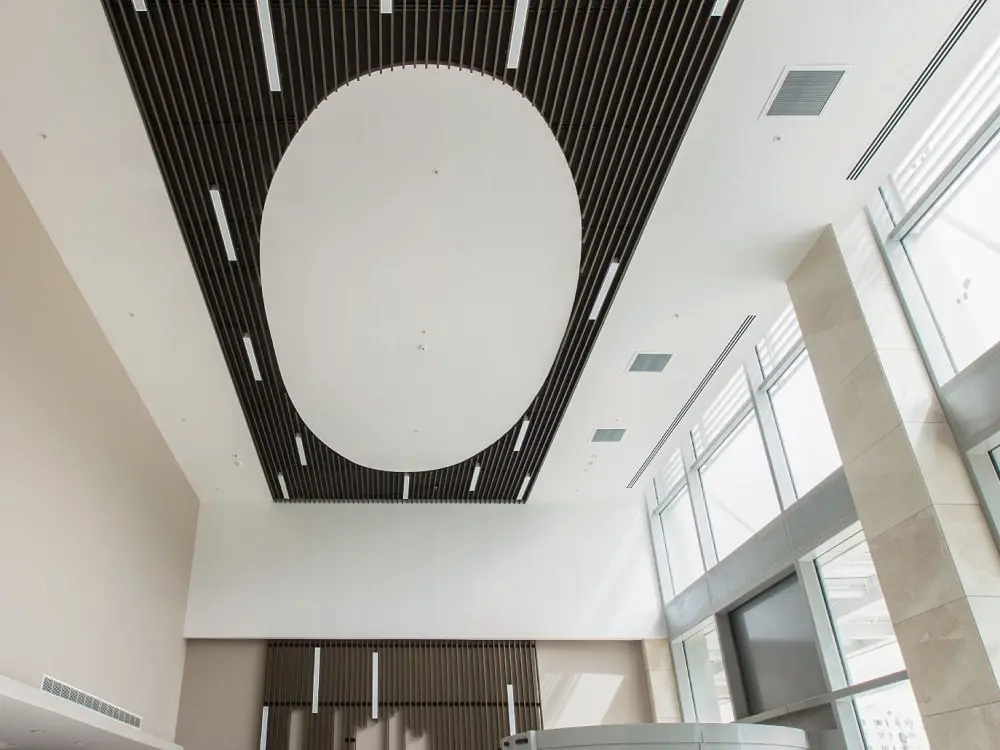

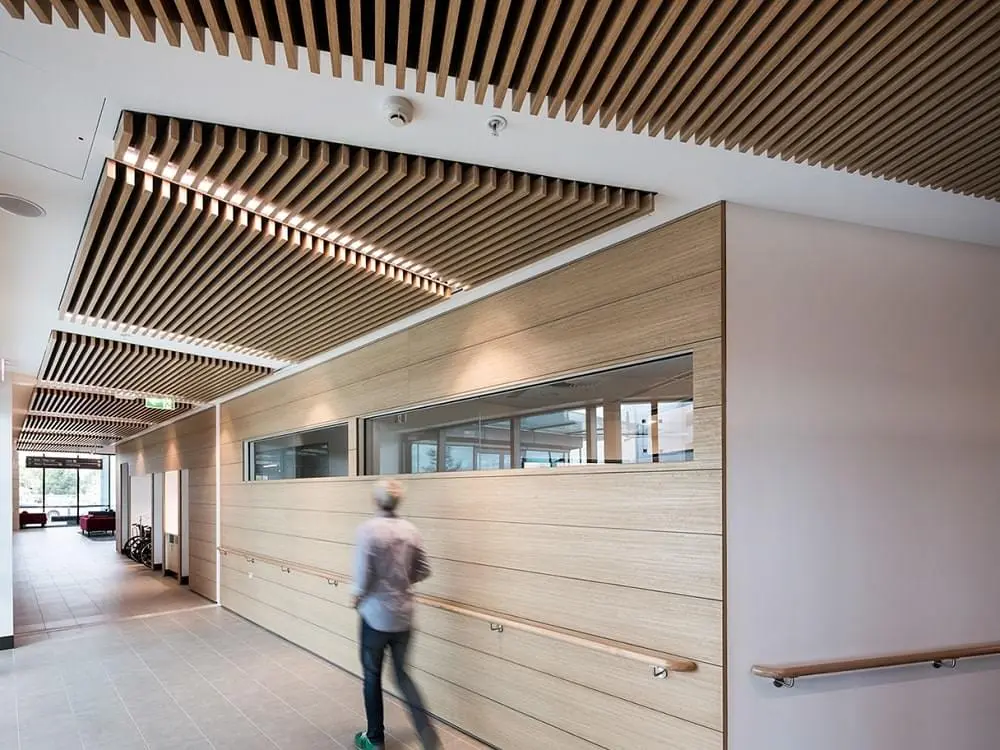

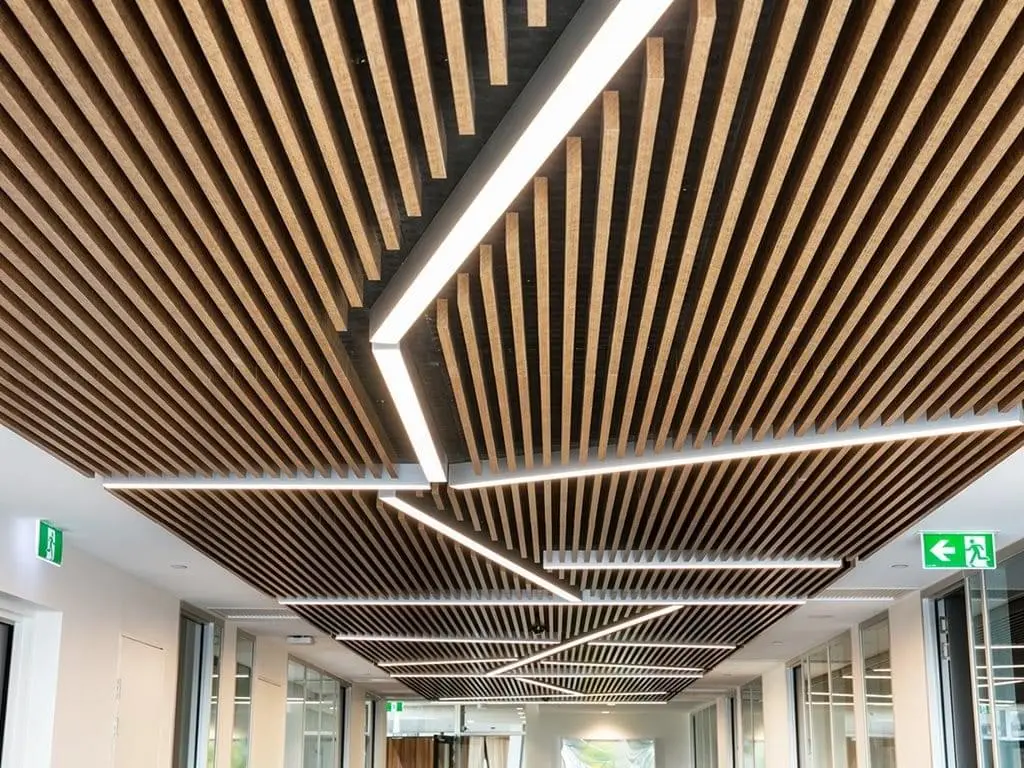

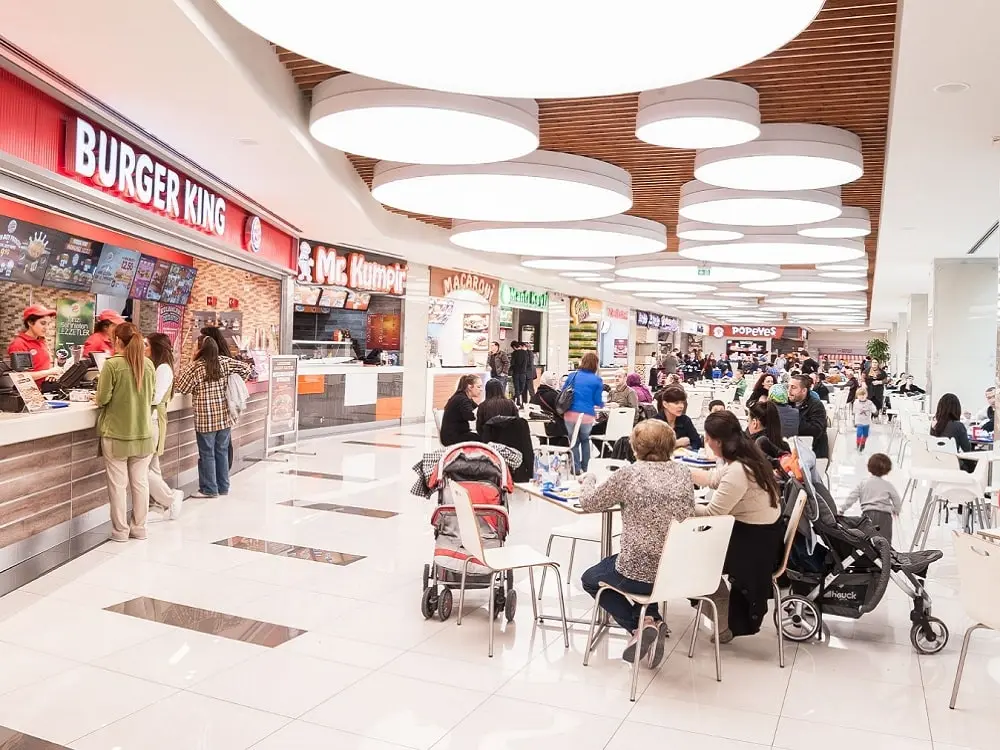

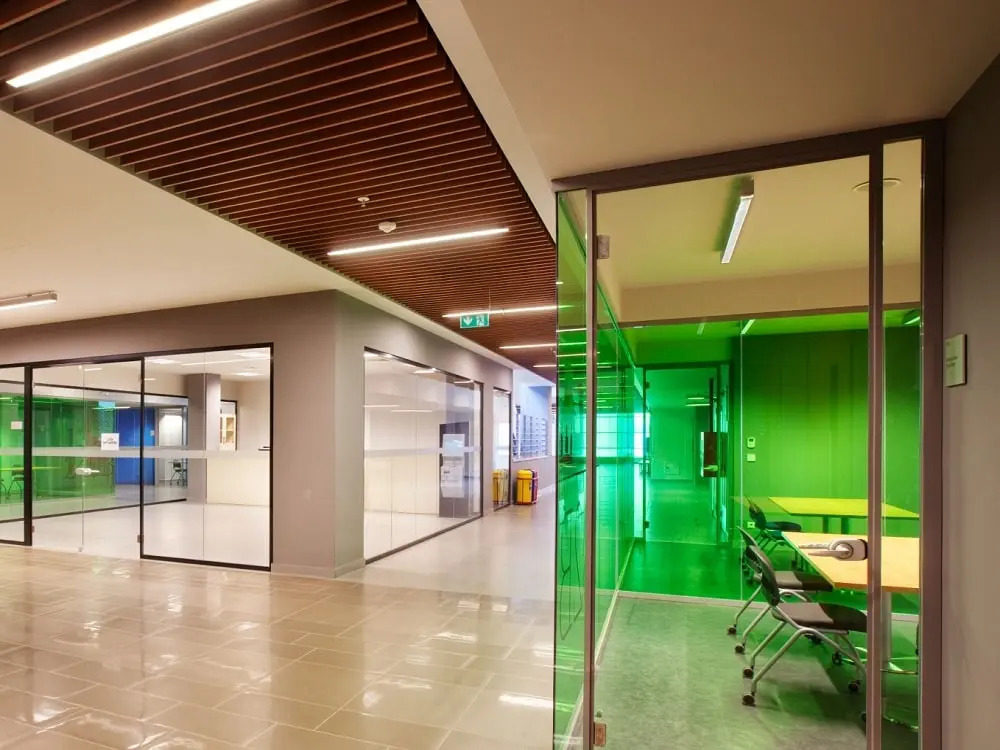

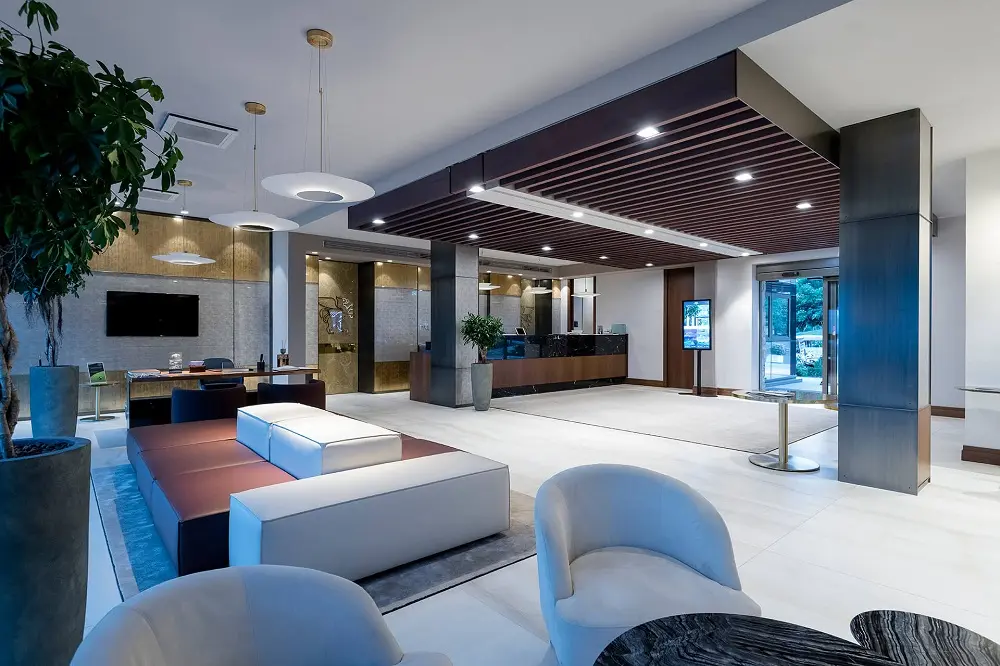

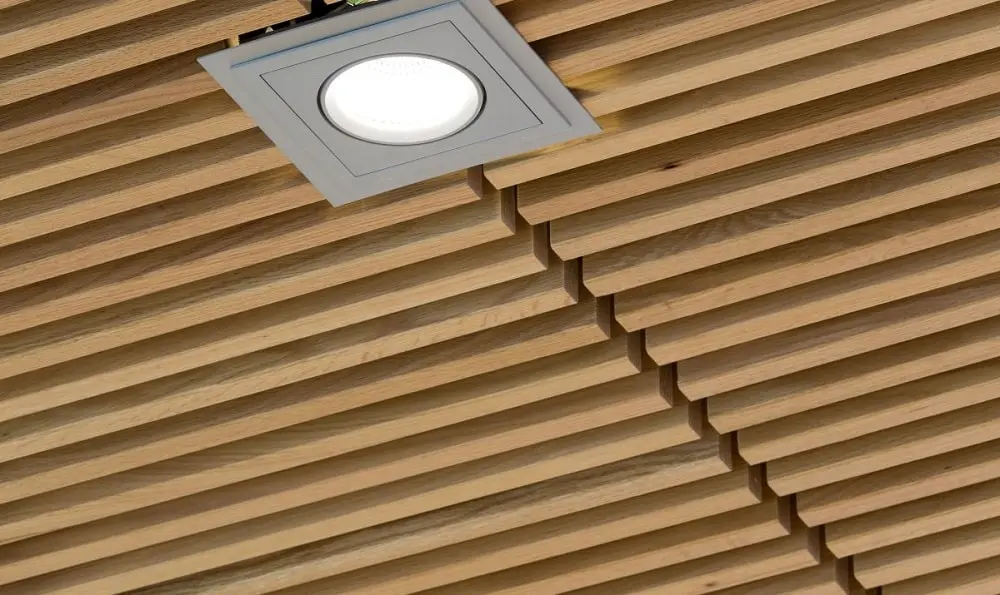

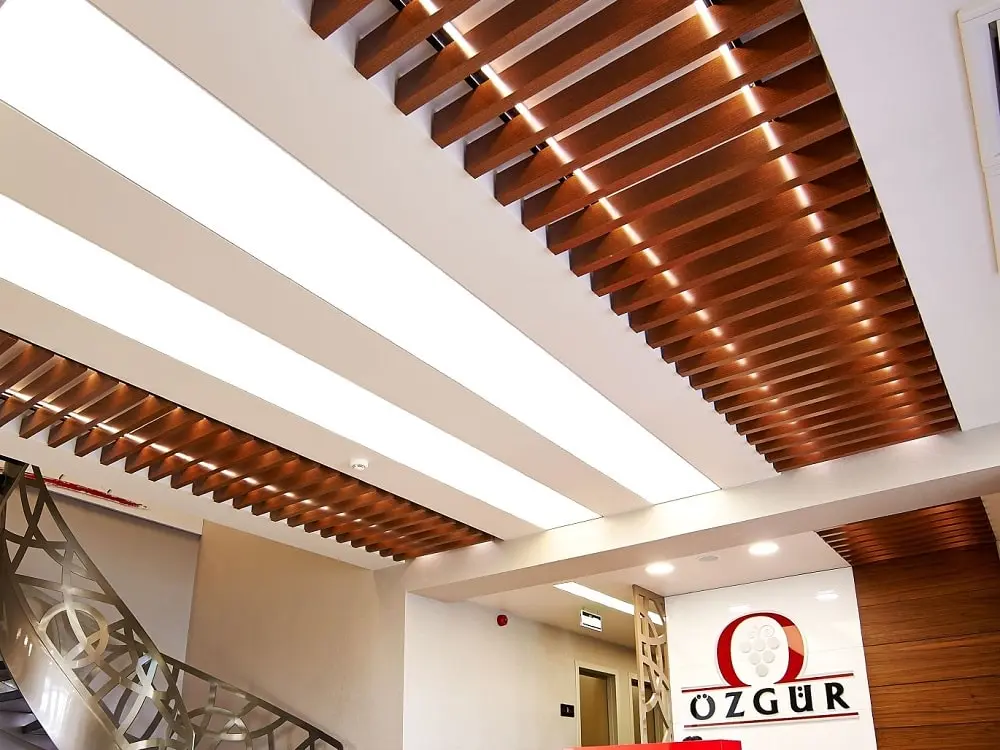

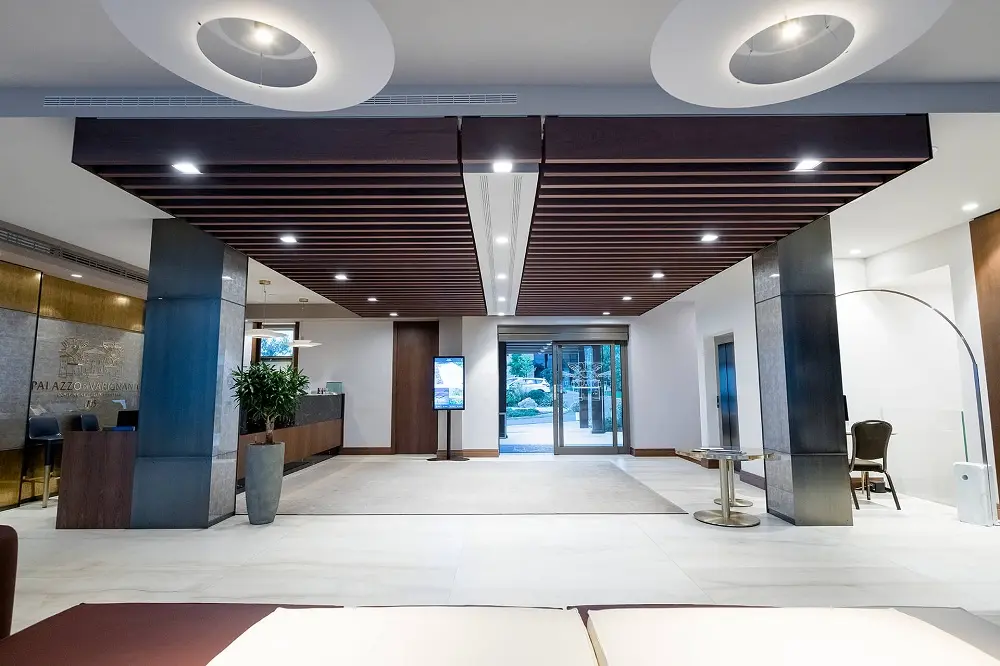

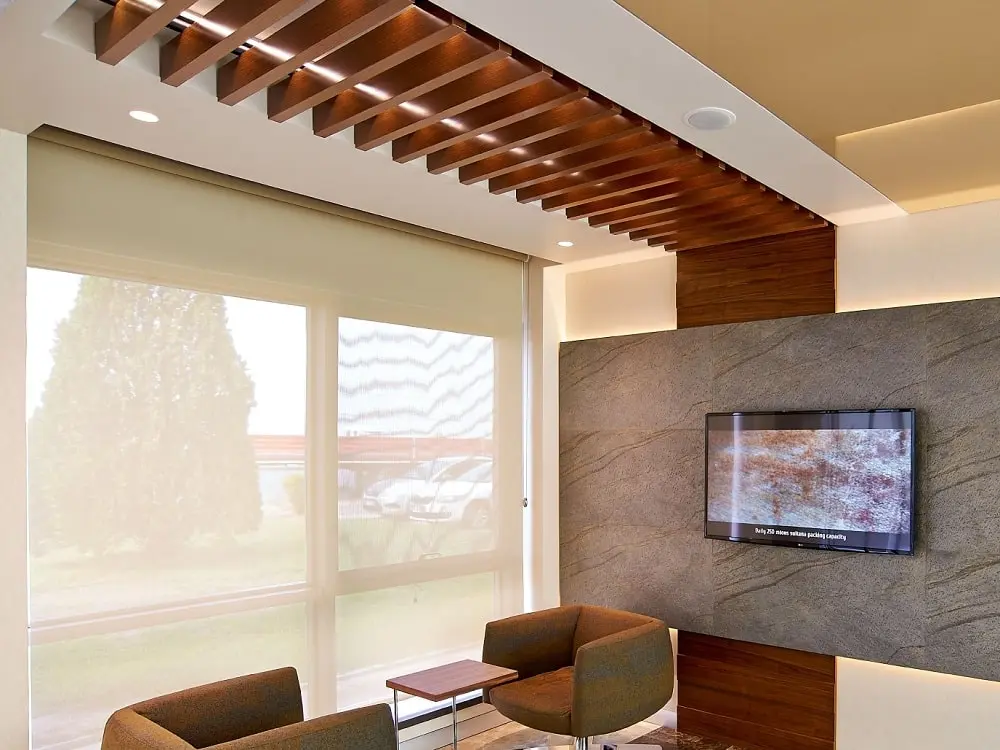

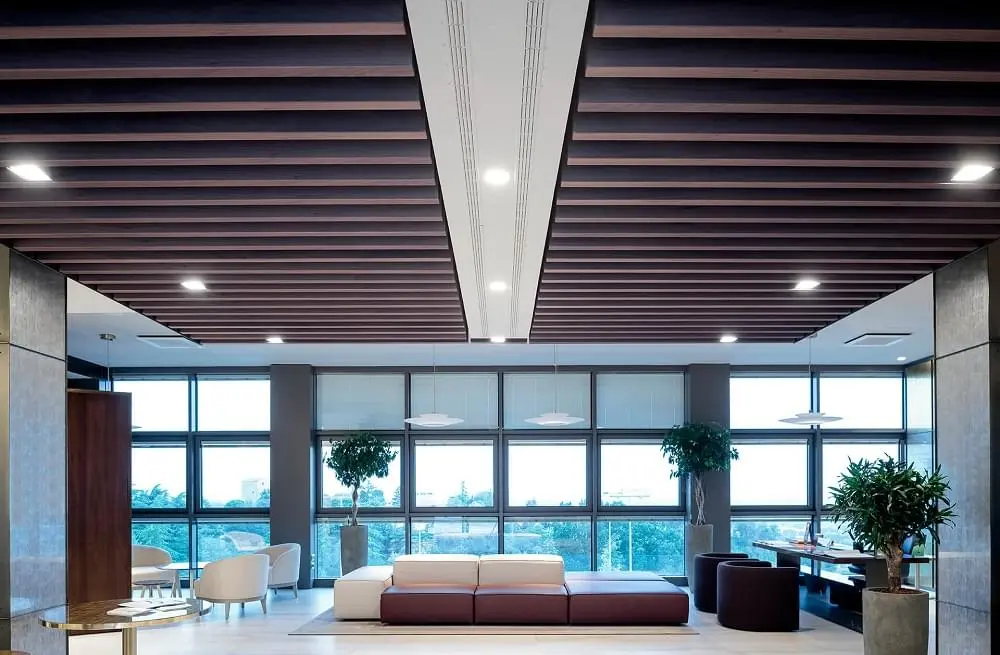

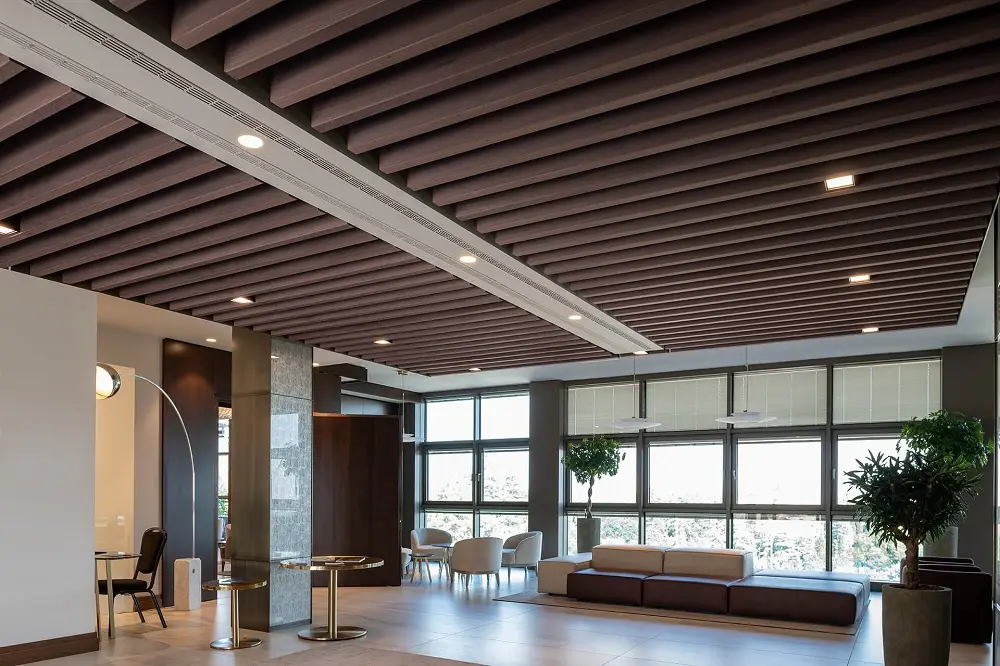

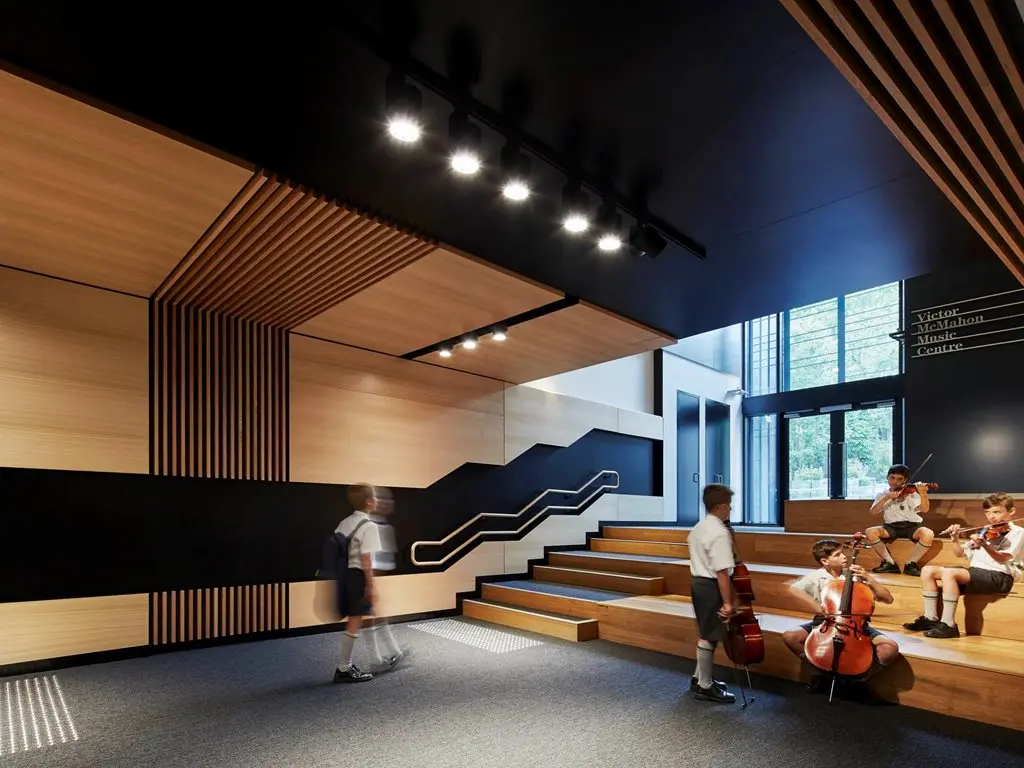

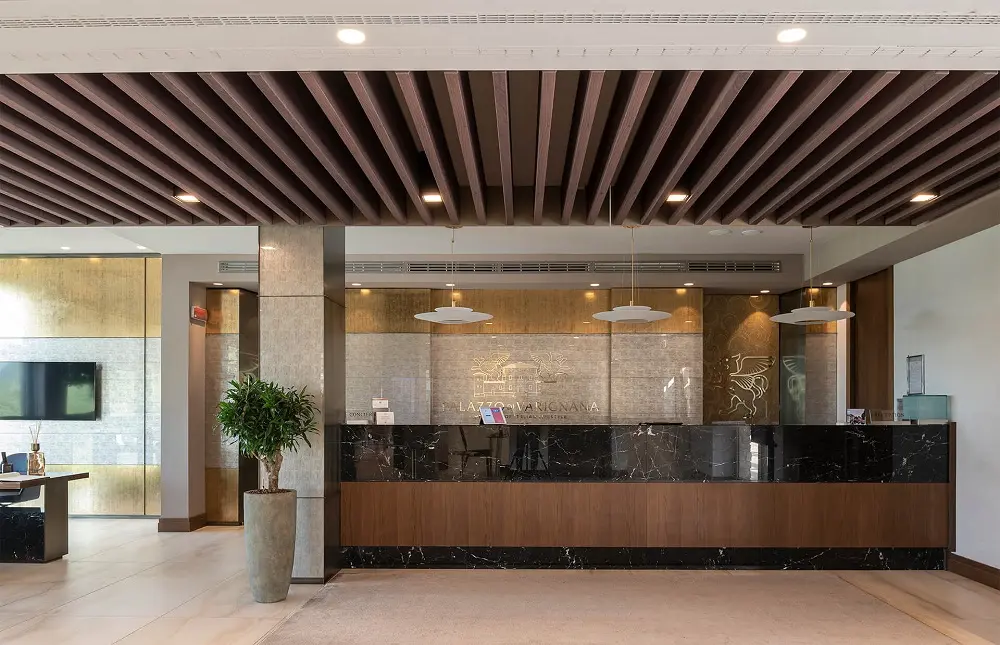

Application Images

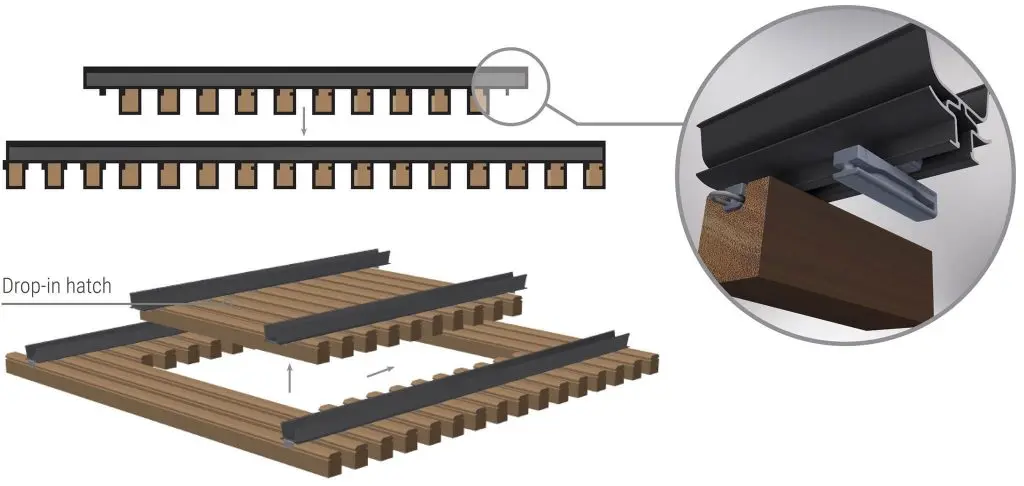

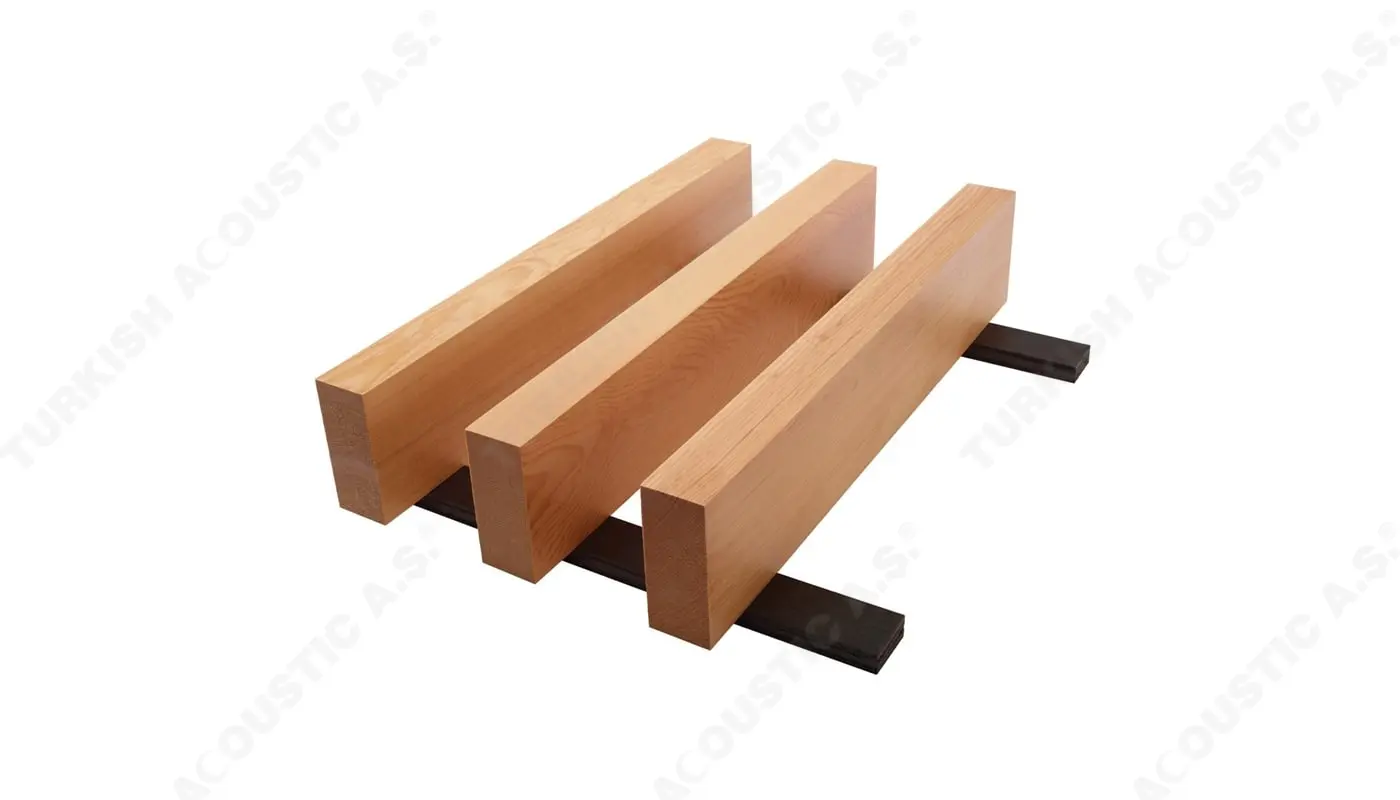

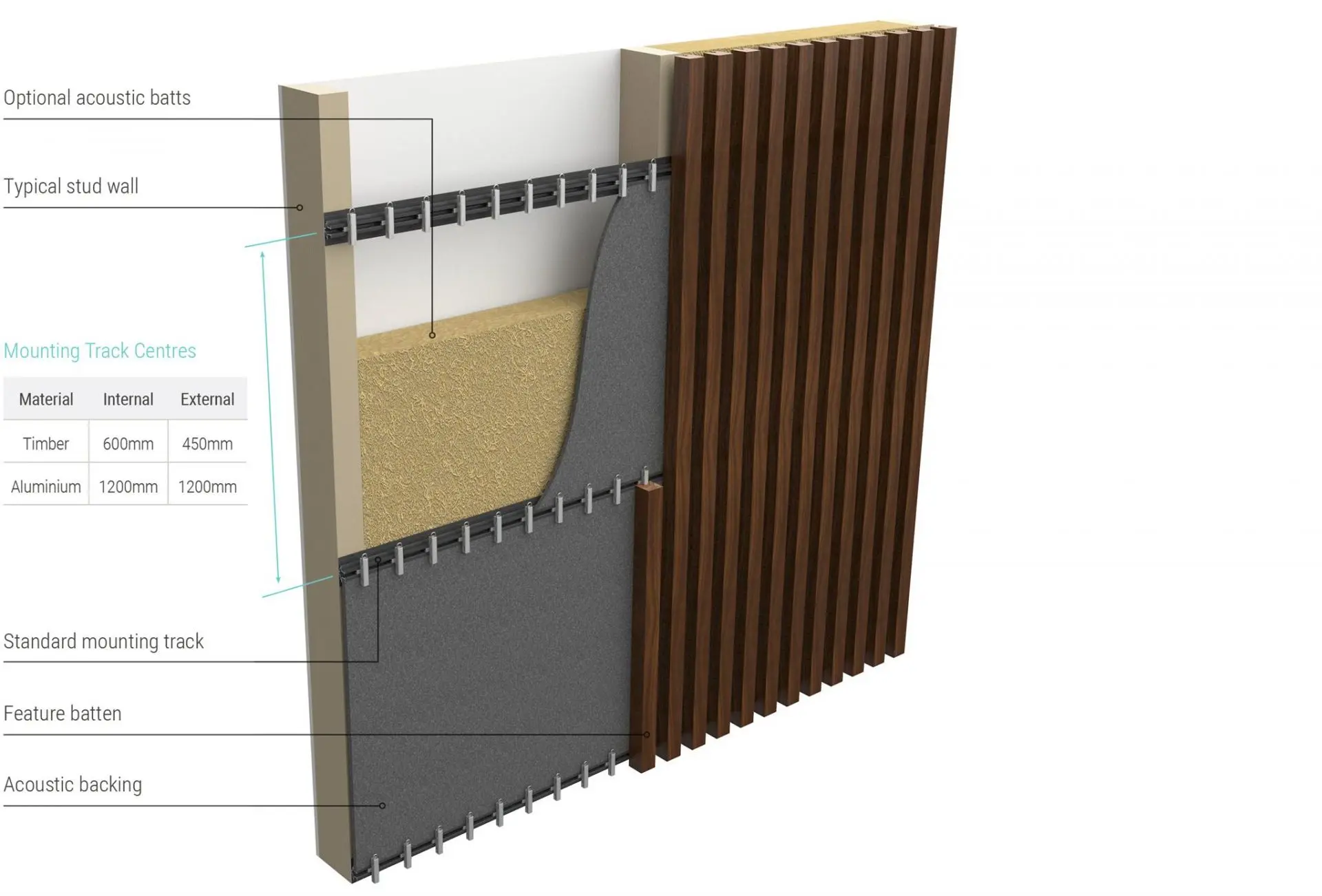

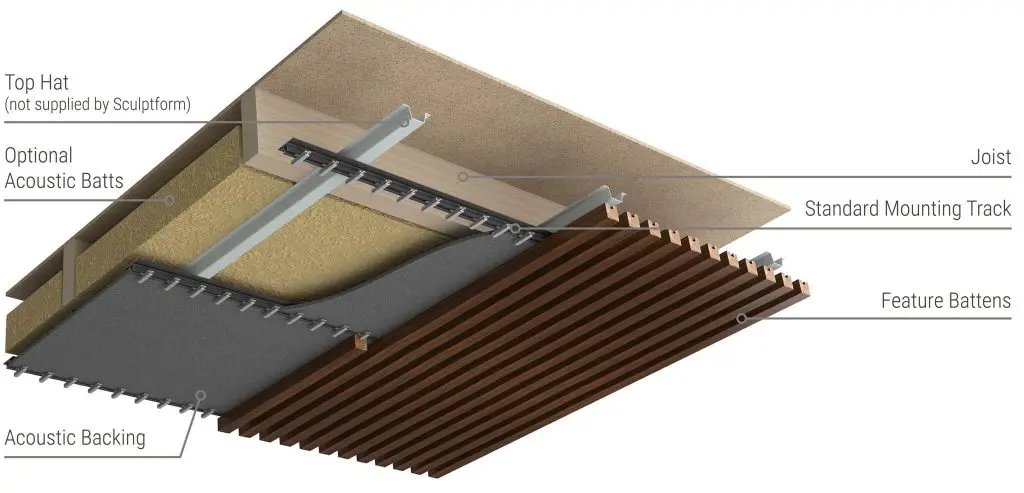

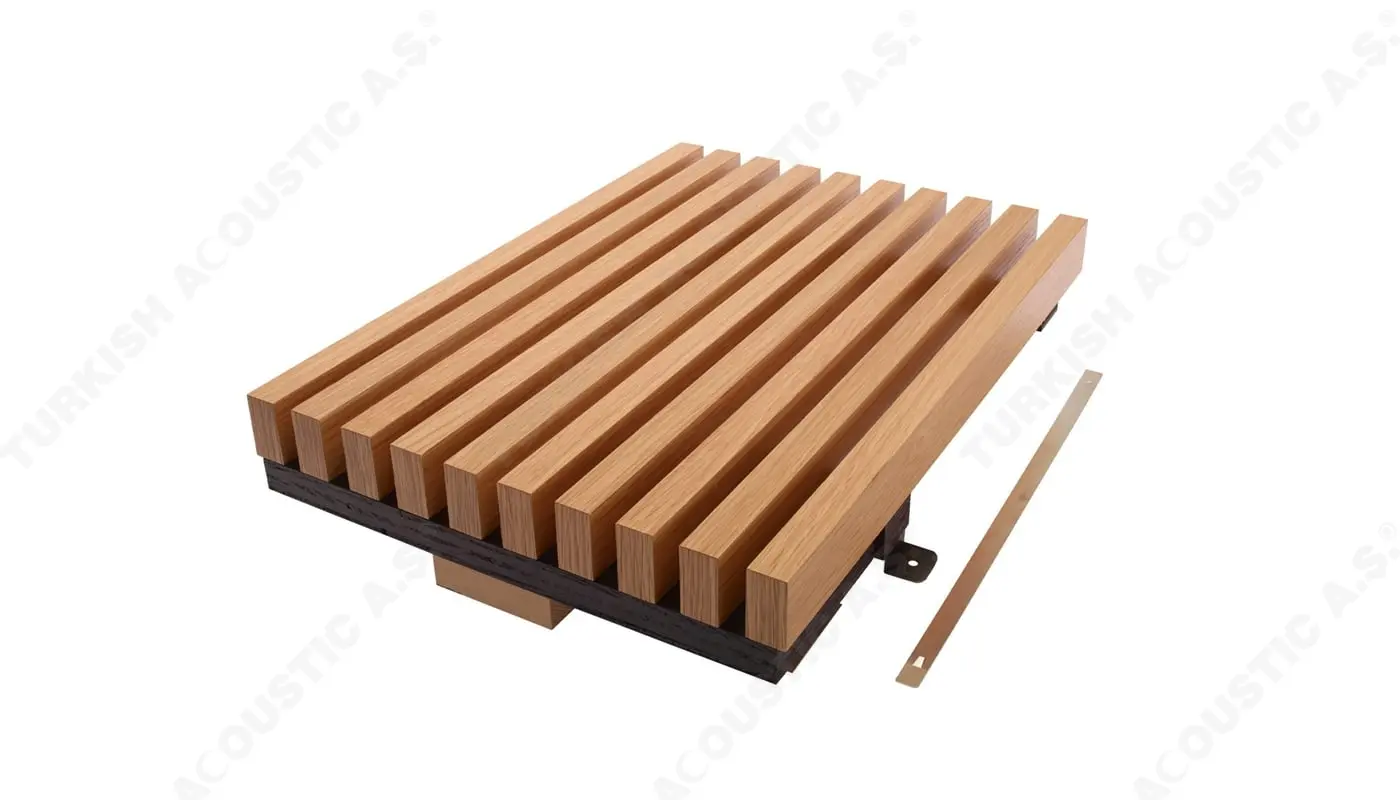

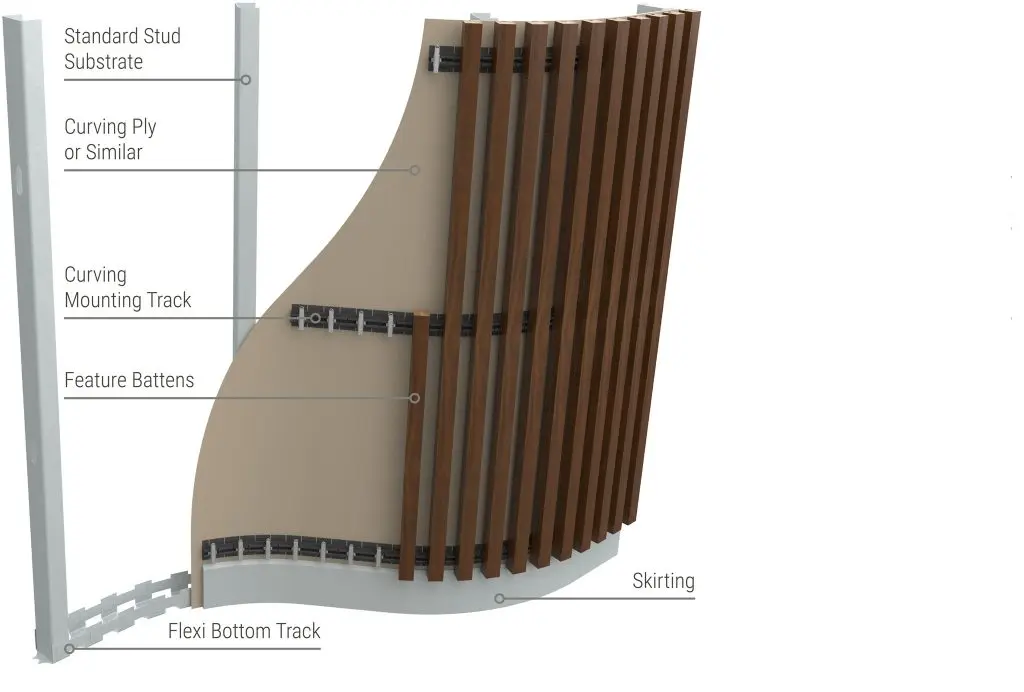

Closed Linear Panel Systems: Used for decorative and acoustic purposes in all kinds of internal structure applications. In addition to its functional and elegant features, Hook-on and panel mounting system options are offered in assembly and application. Applicable materials: Solid, natural wood MDF, laminated MDF. Standard panel dimensions; thickness: 12 and 18 mm, width: 100, 150, and 200 mm, length: 1200 and 1500 mm

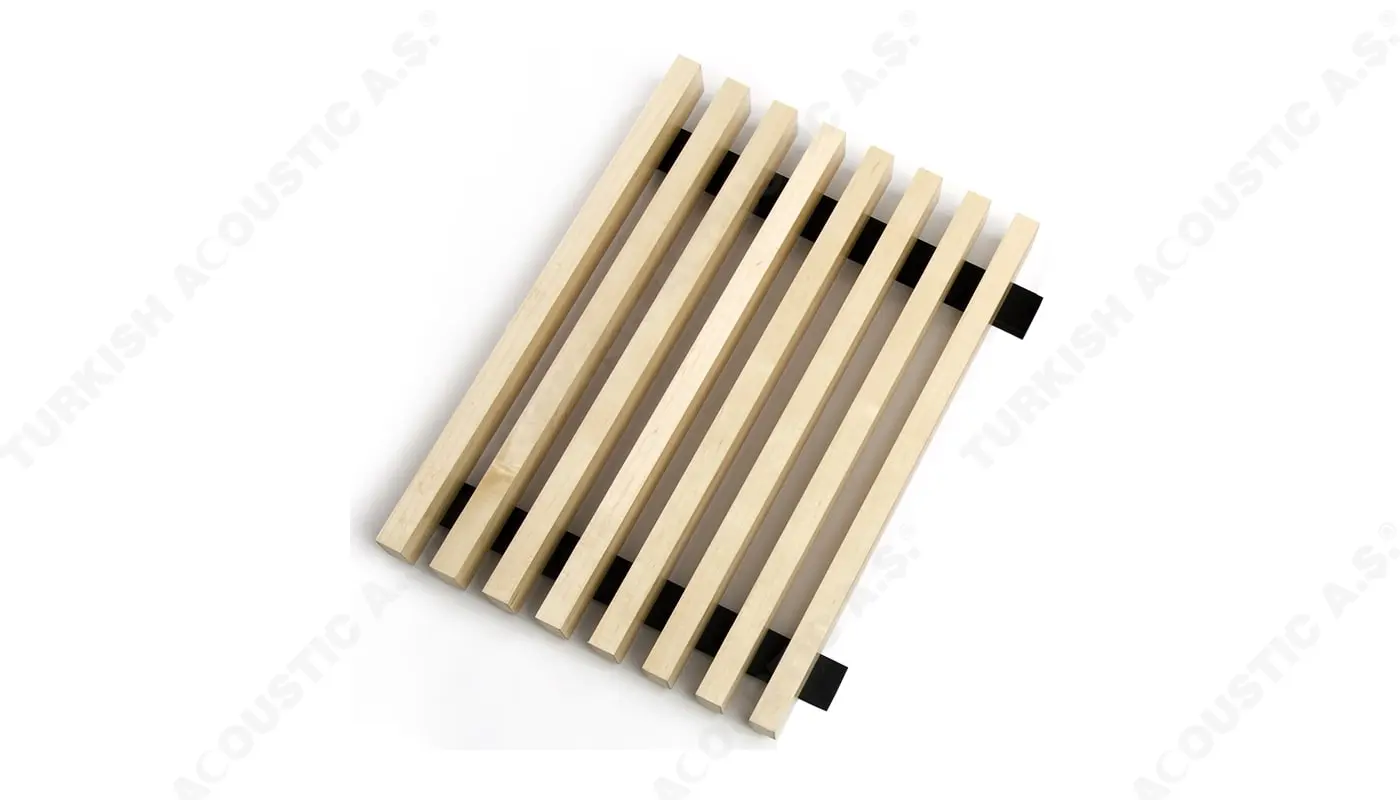

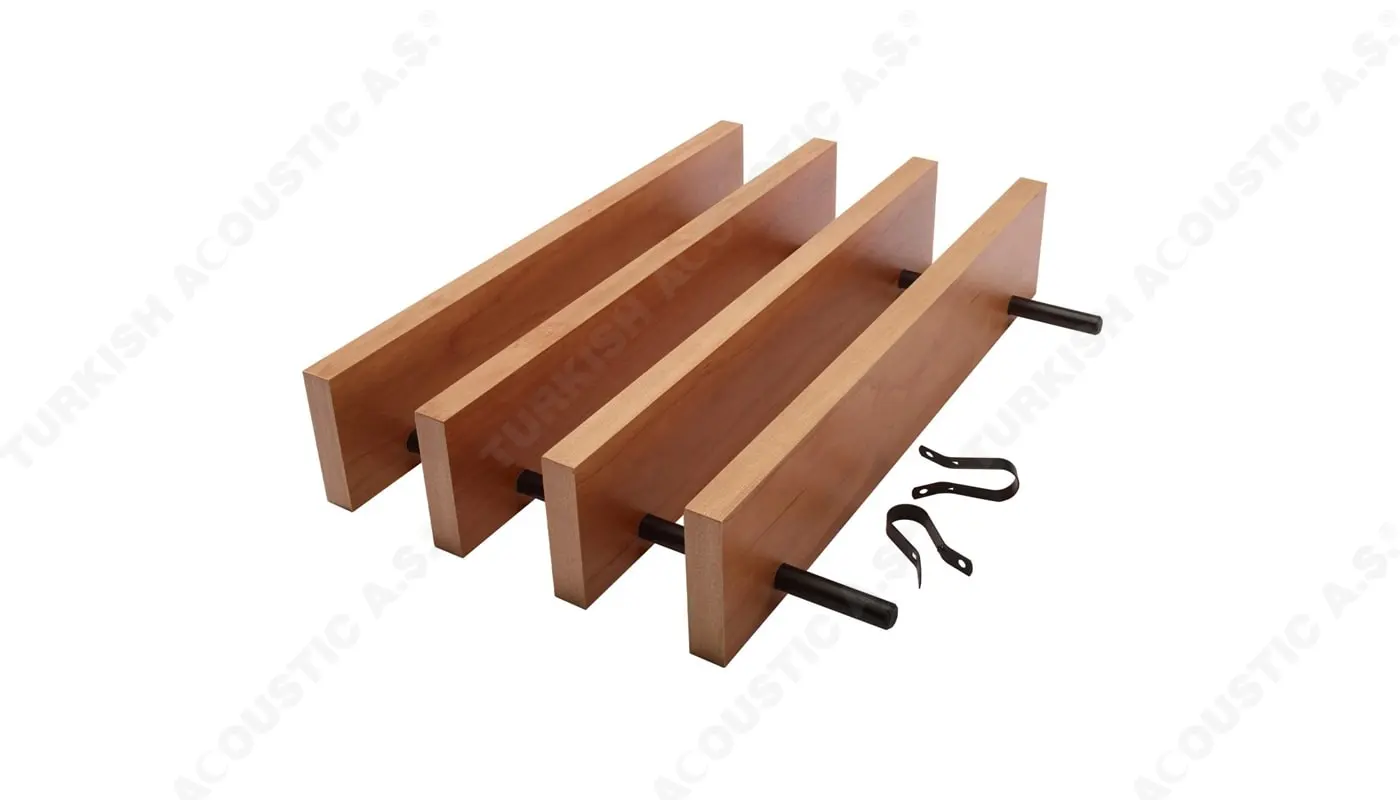

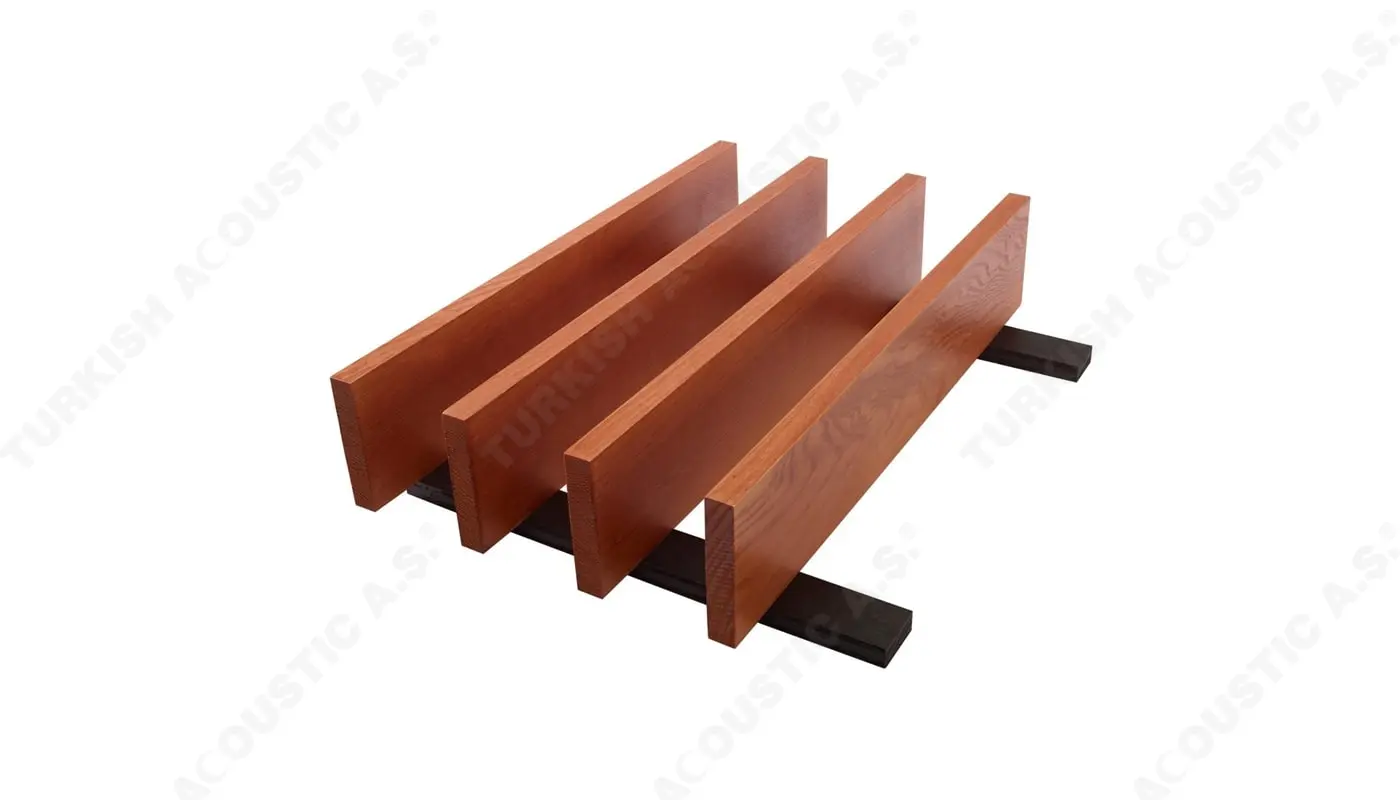

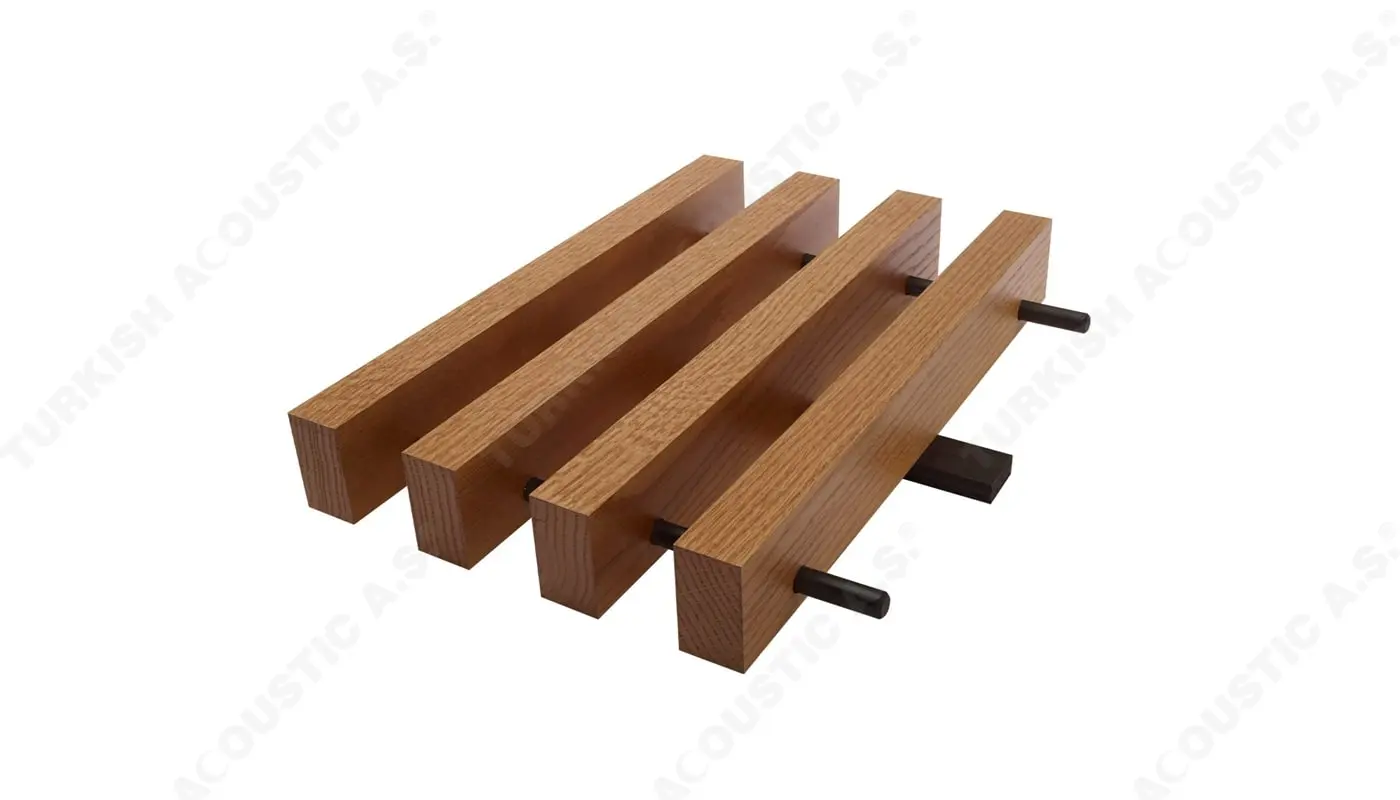

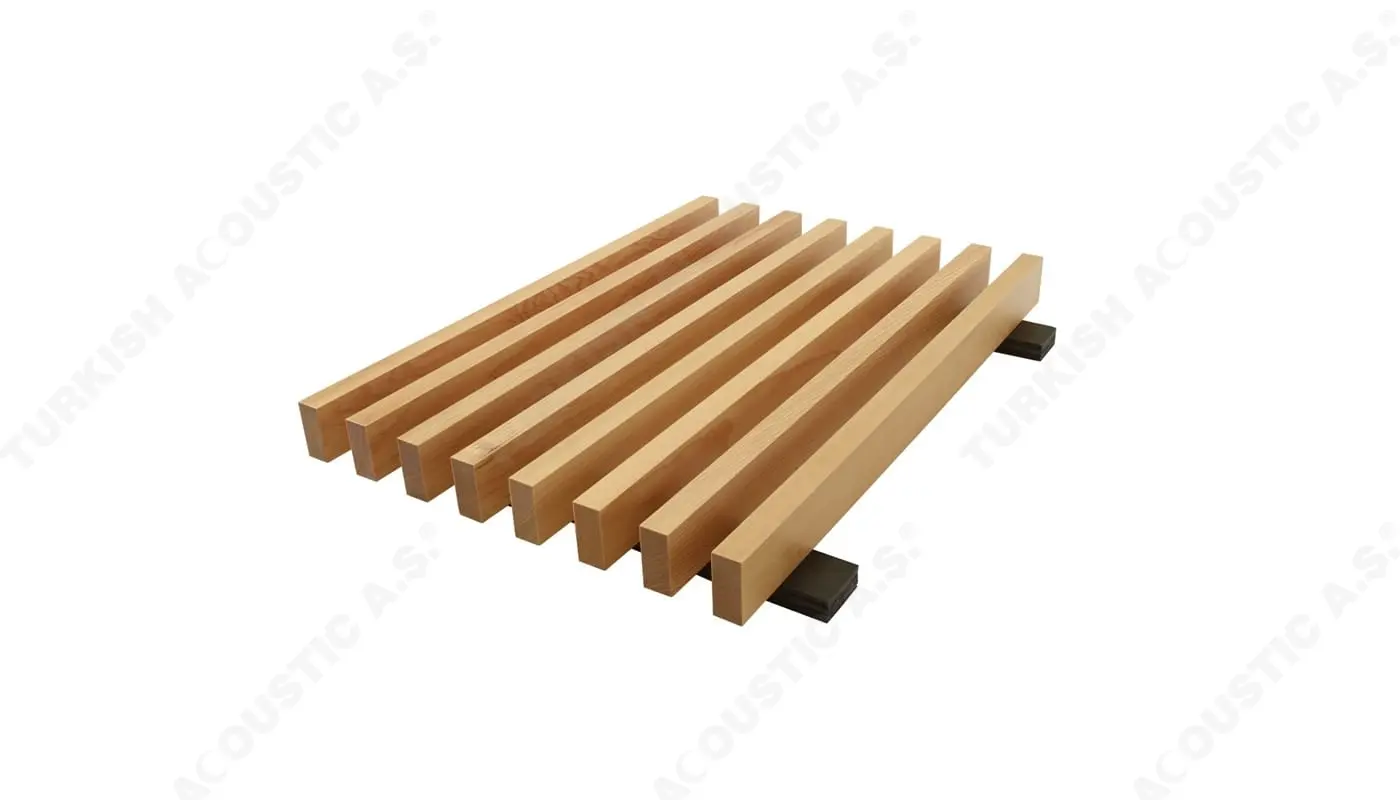

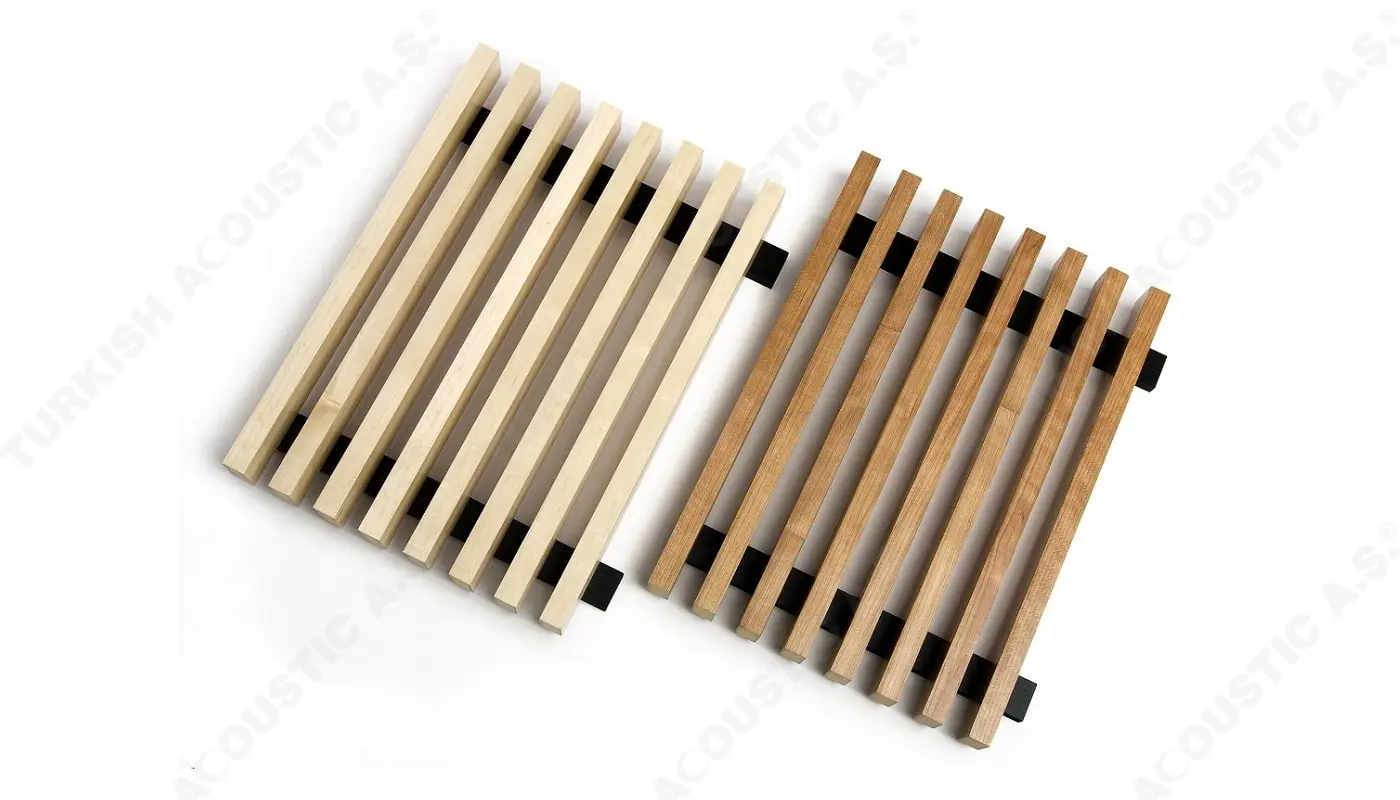

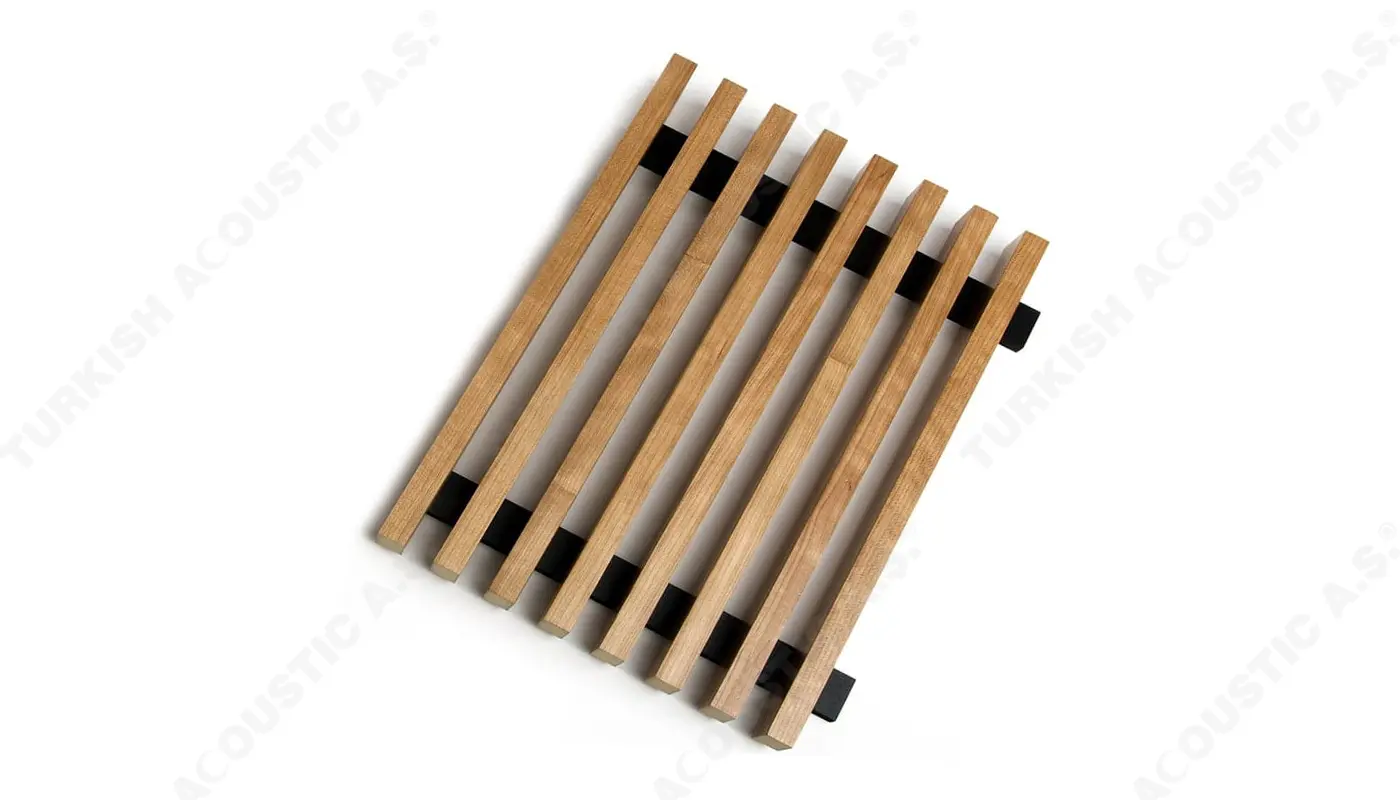

Open Linear Panel System: Used for decorative and acoustic purposes in all kinds of internal structure applications. In addition to its functional and elegant features, Hook-on and panel mounting system options are offered in assembly and application. Applicable materials: Solid, natural wood MDF, laminated MDF. Standard panel dimensions; thickness: 12 and 18 mm, width: 100, 150, and 200 mm, length: 1200 and 1500 mm Standard module dimensions; width: 600 mm, length: 1200 and 1500 mm

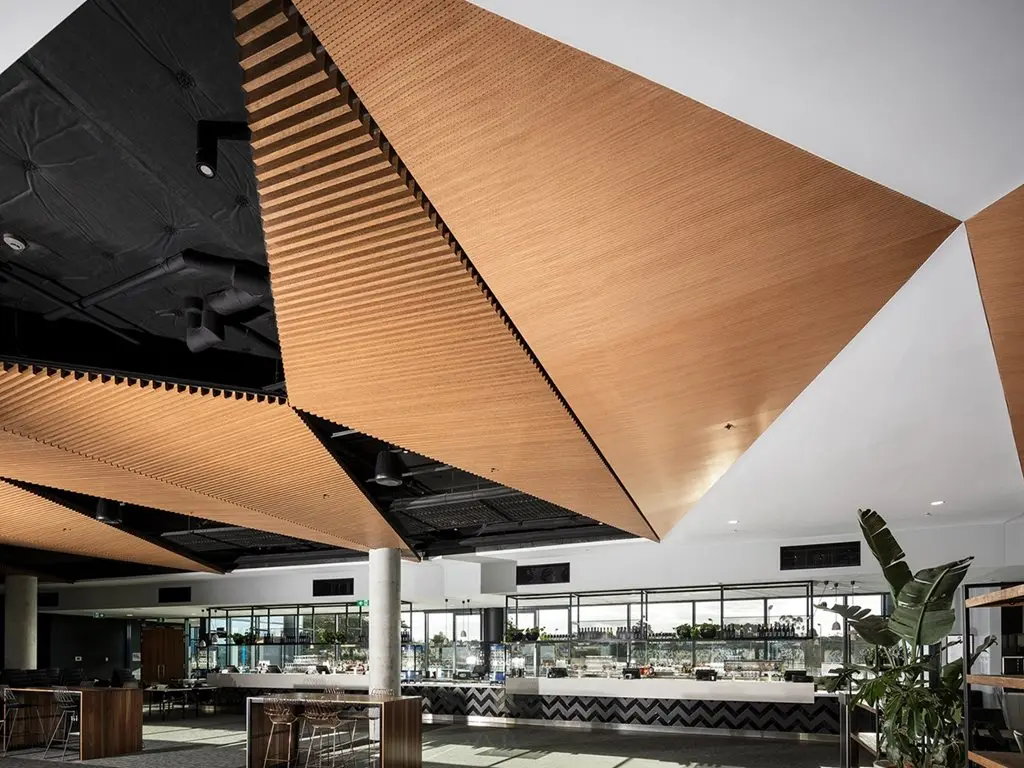

Privileges of Linear Suspended Ceiling Systems: Linear suspended ceiling systems emancipate designers and architects to design special ceiling systems. The system provides a wide range of design originality for indoor and outdoor applications. Concave, cambered, and wavy ceiling parts can be easily made by courtesy of a specially designed suspension system and special solutions in different geometries. The system is designed to keep the panels straight in all situations, including outdoors, swimming pool areas, flat, and wide areas. Wood type options are also offered in a wide range starting from deep warm colors such as red cedar and mahogany to lighter tones such as poplar and maple.
Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms. They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.
Acoustic Panel Dimensions | Height-Thickness | Absorption Factor Suitable for DİN52212 | |||||
mm | mm | 125 Hz | 250 Hz | 500 hz | 1000 Hz | 2000 Hz | 4000 Hz |
1000x1000 | 30 (30/10) | 0,10 | 0,21 | 0,54 | 0,90 | 0,98 | 0,93 |
1000x1000 | 40 (40/10) | 0,11 | 0,32 | 0,63 | 0,90 | 0,91 | 0,95 |
1000x1000 | 50 (50/10) | 0,16 | 0,54 | 1,01 | 0,90 | 1,01 | 1.02 |
Linear ceiling panels are in 40 x 100 cm dimensions as plates and one package contains 10 plates. Sold as 100 mm and 200 mm standard by retail and wholesale. Custom production is possible in different thicknesses and dimensions. Contact our technical office for detailed information.
